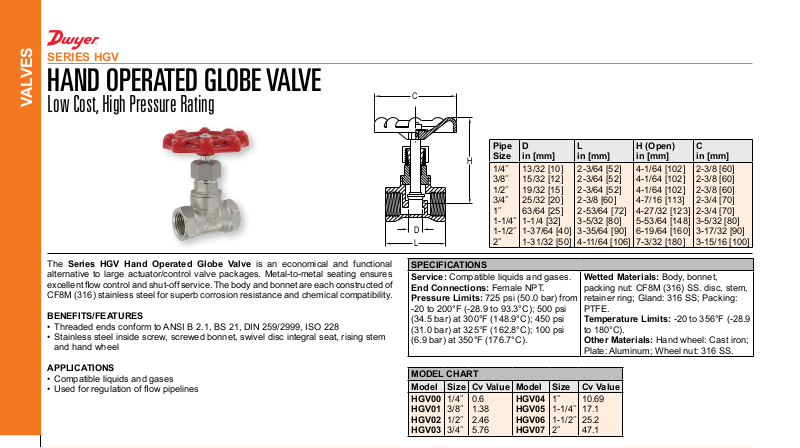

SERIES HGV

HAND OPERATED GLOBE VALVE

VALVES

Low Cost, High Pressure Rating

The Series HGV Hand Operated Globe Valve is an economical and functional alternative to large actuator/control valve packages. Metal-to-metal seating ensures

excellent ow control and shut-off service. The body and bonnet are each constructed of

CF8M (316) stainless steel for superb corrosion resistance and chemical compatibility.

BENEFITS/FEATURES

• Threaded ends conform to ANSI B 2.1, BS 21, DIN 259/2999, ISO 228

• Stainless steel inside screw, screwed bonnet, swivel disc integral seat, rising stem and hand wheel

APPLICATIONS

• Compatible liquids and gases

• Used for regulation of ow pipelines

Pipe SizeDin [mm]Lin [mm]

1/4˝

13/32 [10]

3/8˝

15/32 [12]

1/2˝

19/32 [15]

3/4˝

25/32 [20]

1˝

63/64 [25]

1-1/4˝

SPECIFICATIONS Service: Compatible liquids and gases.

End Connections: Female NPT. Pressure Limits: 725 psi (50.0 bar) from

-20 to 200°F (-28.9 to 93.3°C); 500 psi (34.5 bar) at 300°F (148.9°C); 450 psi (31.0 bar) at 325°F (162.8°C); 100 psi (6.9 bar) at 350°F (176.7°C).

MODEL CHART Model Size Cv Value Model Size Cv Value HGV00

1/4˝ 3/8˝ 1/2˝ 3/4˝

0.6

1.38

2.46

5.76

HGV01 HGV02 HGV03

1-1/2˝ 2˝

1-1/4 [32] 1-37/64 [40] 1-31/32 [50]

HGV04 HGV05 HGV06 HGV07

2-3/64 [52] 2-3/64 [52] 2-3/64 [52] 2-3/8 [60] 2-53/64 [72] 3-5/32 [80] 3-35/64 [90] 4-11/64 [106]

Wetted Materials: Body, bonnet, packing nut: CF8M (316) SS. disc, stem, retainer ring; Gland: 316 SS; Packing: PTFE. Temperature Limits: -20 to 356°F (-28.9 to 180°C). Other Materials: Hand wheel: Cast iron; Plate: Aluminum; Wheel nut: 316 SS.

1˝

10.69

1-1/4˝

17.1

1-1/2˝

25.2

2˝

47.1

H (Open) in [mm]

4-1/64 [102] 4-1/64 [102] 4-1/64 [102] 4-7/16 [113] 4-27/32 [123] 5-53/64 [148] 6-19/64 [160] 7-3/32 [180]

C in [mm]

2-3/8 [60] 2-3/8 [60] 2-3/8 [60] 2-3/4 [70] 2-3/4 [70] 3-5/32 [80] 3-17/32 [90] 3-15/16 [100]
