Page 1

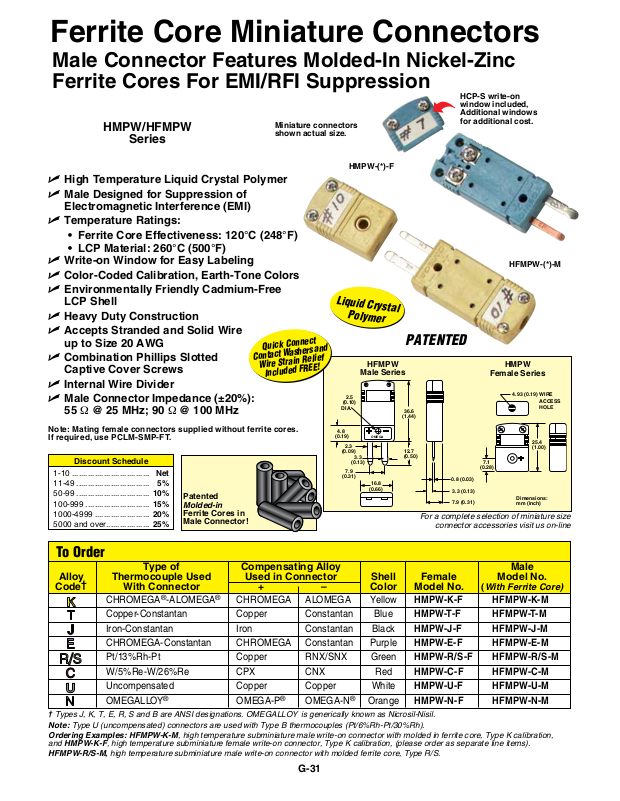

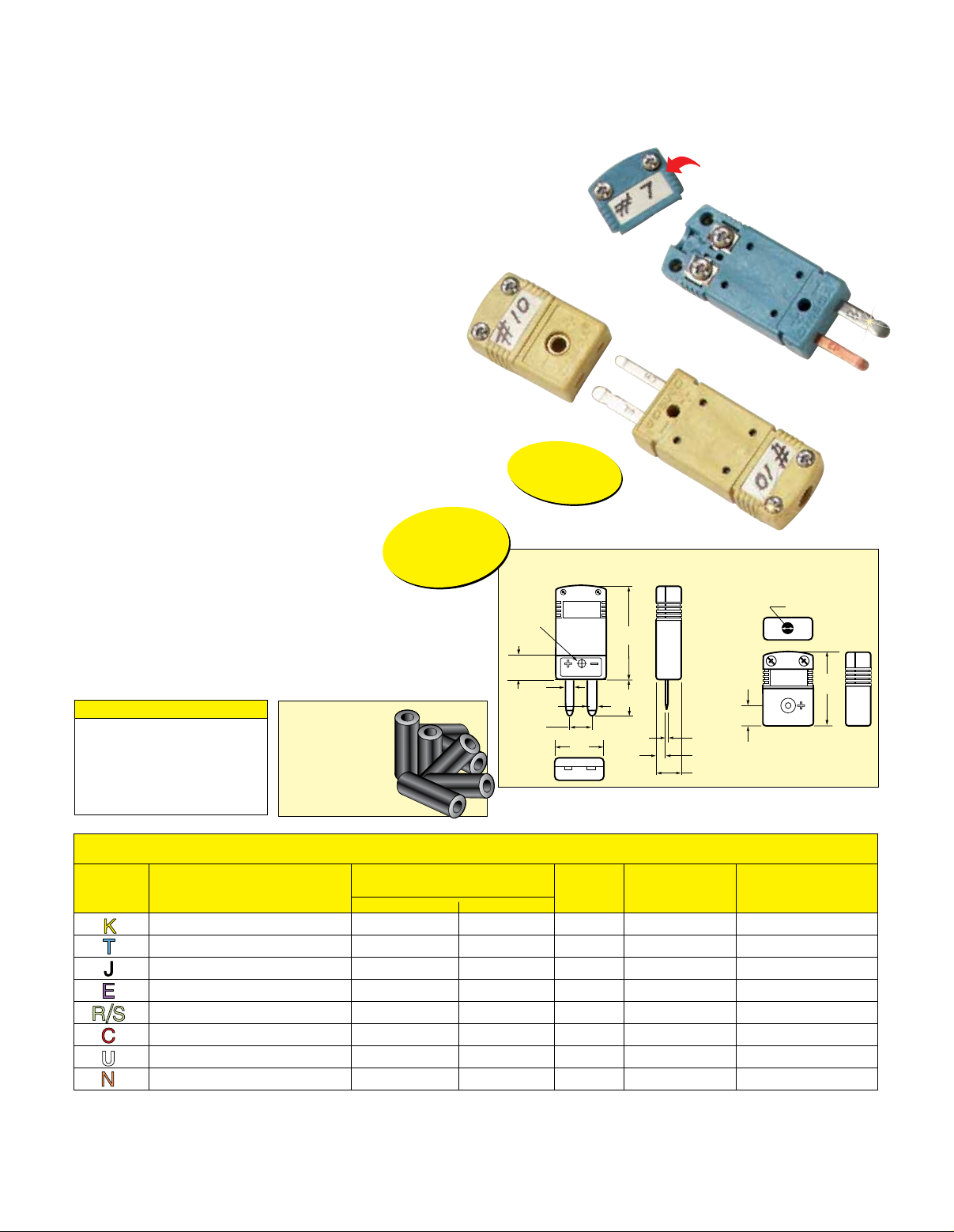

Ferrite Core Miniature Connectors

Male Connector Features Molded-In Nickel-Zinc Ferrite Cores For EMI/RFI Suppression

HCP-S write-on window included, Additional windows

HMPW/HFMPW

Series

Miniature connectors shown actual size.

U High Temperature Liquid Crystal Polymer U Male Designed for Suppression of

Electromagnetic Interference (EMI)

U Temperature Ratings:

  •FerriteCoreEffectiveness:120°C(248°F)   •LCPMaterial:260°C(500°F)

U Write-on Window for Easy Labeling U Color-Coded Calibration, Earth-Tone Colors U EnvironmentallyFriendlyCadmium-Free

LCP Shell

U HeavyDutyConstruction U Accepts Stranded and Solid Wire

uptoSize20AWG

U Combination Phillips Slotted

CaptiveCoverScrews

Quick Connect

Contact Washers and

Wire Strain Relief

Included FREE!

U InternalWireDivider U MaleConnectorImpedance(±20%):

55Ω@25MHz;90Ω@100MHz

Note: Mating female connectors supplied without ferrite cores. If required, use PCLM-SMP-FT.

Discount Schedule

1-10 .................................. Net

11-49 ................................ 5%

50-99 ................................ 10%

100-999 ............................ 15%

1000-4999 ........................ 20%

5000 and over................... 25%

Patented Molded-in Ferrite Cores in Male Connector!

HMPW-(*)-F

Liquid Crystal

Polymer

2.5

(0.10)

DIA.

4.8

(0.19)

2.3

(0.09)

3.3

(0.13)

7.9

(0.31)

HFMPW

Male Series

OMEGA

16.8

(0.66)

PATENTED

36.6

(1.44)

12.7 (0.50)

For a complete selection of miniature size

for additional cost.

HFMPW-(*)-M

HMPW

Female Series

4.93 (0.19) WIRE

25.4 (1.00)

7.1

(0.28)

0.8 (0.03)

3.3 (0.13)

7.9 (0.31)

connector accessories visit us on-line

Dimensions: mm (inch)

ACCESS HOLE

To Order

Type of Compensating Alloy Male Alloy Thermocouple Used Used in Connector Shell Female Model No. Code† With Connector + – Color Model No. (With Ferrite Core)

CHROMEGA®-ALOMEGA® CHROMEGA ALOMEGA Yellow HMPW-K-F HFMPW-K-M Copper-Constantan Copper Constantan Blue HMPW-T-F H FMPW-T- M Iron-Constantan Iron Constantan Black HMPW-J-F HFMPW-J-M CHROMEGA-Constantan CHROMEGA Constantan Purple HMPW-E-F HFMPW-E-M Pt/13%Rh-Pt Copper RNX/SNX Green HMPW-R/S-F HFMPW-R/S-M

W/5%Re-W/26%Re CPX CNX Red HMPW-C-F HFMPW-C-M Uncompensated Copper Copper White HMPW-U-F HFMPW-U-M

OMEGALLOY

†

Types J, K, T, E, R, S and B are ANSI designations. OMEGALLOY is generically known as Nicrosil-Nisil.

Note: Type U (uncompensated) connectors are used with Type B thermocouples (Pt/6%Rh-Pt/30%Rh). Ordering Examples: HFMPW-K-M, high temperature subminiature male write-on connector with molded in ferrite core, Type K calibration,

and HMPW-K-F, high temperature subminiature female write-on connector, Type K calibration, (please order as separate line items). HFMPW-R/S-M, high temperature subminiature male write-on connector with molded ferrite core, Type R/S.

OMEGA-P® OMEGA-N® Orange HMPW-N-F HFMPW-N-M

G-31
