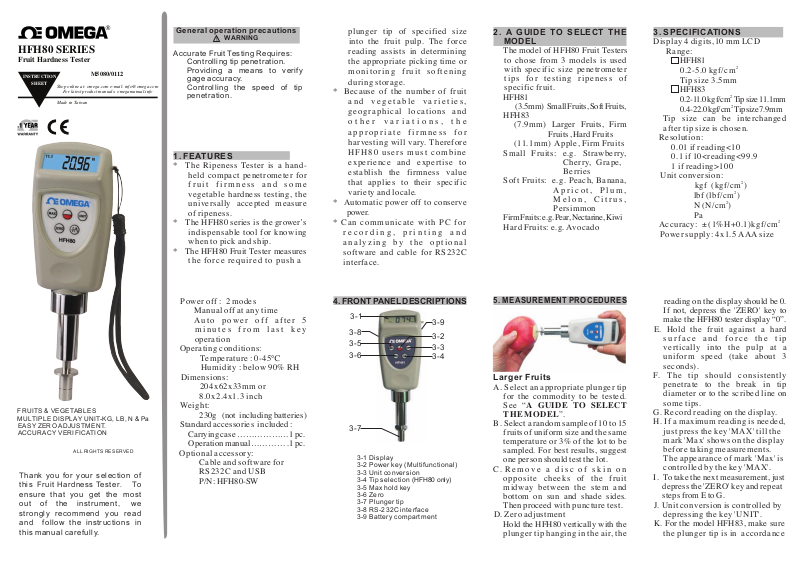

HFH80 SERIES

Fruit Hardness Tester

INSTRUCTION

SHEET

Shop online at: omega.com e-mail: [email protected]

For latest product manuals: omegamanual.info

Made in Taiwan

M5080/0112

Gener al oper ation p recau tions

WARNIN G

Accurate Fruit Testin g Requi res:

Controlling tip penetration. Providing a me ans t o v erify gage accuracy. Co ntrol ling the sp eed o f ti p penetration.

1. FEATURE S

The Ripeness Tester is a hand-

held comp act penetrometer for f r ui t f i rm n e ss a n d s o me vegetable hardness te sting, the universally accepted measure of ripeness.

* The HFH80 series is the grower’s

indispensable t ool for knowing when to pick and ship.

* The HFH80 Fruit Tester measures

the f o rce r e quir e d to p u s h a

plunger tip of specified s ize into th e frui t pulp . The fo

rce reading assists in determining the appropriate pi cking time or monit or i n g f r u i t softe ni n g during storage.

* Because of the numbe r of fruit

a n d v e g et a bl e v ar i et i es , geo g raph i cal loc a tio n s a n d o t h e r v a r i a t i o n s , t h e a p pr o p ri a t e f ir m n es s f o r harvesting will vary. Therefore H

FH80 u se r s m ust co mb i n e ex perience and e xp er tise to es tablish the firmness value that applies to their speci fic variety and locale.

* Automatic power off to conserve

power.

* Can com mun i cat e wi th P C f o r

r e c o r d i n g , p r i n t i n g a n d a n a l yz ing b y t he o ptio n a l software and cable for RS232C interface.

2. A GU IDE TO S ELECT THE MODEL

The model of HFH80 Fruit Testers

to cho se from 3 models is used with specific size pe netrometer tip s for tes tin g r i pen ess of specific fruit.

HFH81

(3.5mm) Small Fruits, Soft Fruits,

HFH83

(7.9mm) Larger Fruits, Firm

Fruits ,Hard Fruits

(11.1mm) Apple, Fi rm Frui ts

Small Fruits: e.g. Strawberry,

Cherry, Grape , Berries

Soft Fruits: e.g. Peac h, Banan a,

A p r i c o t , P l u m , M e l o n , C i t r u s , Persim

mon Firm Fruits: e.g. Pear, Nectarine, Kiwi Hard Fruits: e.g. Avocado

3. SPECIFIC ATIONS

Display 4 digits,10 mm LCD

Range:

HFH81

0.2-5.0 kgf/cm

Tip s ize 3.5 mm HFH83

0.2-11.0 kgf/cm Tip size 11.1mm

0.4-22.0 kgf/cm Tip size 7.9mm

Tip size can be interc hange d after tip size is chosen.

Resolution:

0.01 if reading<10

0.1 if 10<reading<99.9 1 if reading>100

Unit conversion:

kgf (kgf/cm )

lbf (lbf/cm ) N (N/cm )

Pa Accuracy: ± (1%H+0.1)kgf/cm Power supply: 4x1.5 AAA size

FRUITS & VEGETABLES MULTIPL E DISPLAY UNIT- KG, L B, N & P EASY ZER O ADJUSTMENT. ACCURACY VERIFICATION

ALL RI GHTS R ESERV ED

Th an k you for your se le ct io n of th is Fruit Hardness Tes te r. To en su re t ha t yo u get the m os t ou t of the i ns tr um en t, we st ro ng ly re co mm en d you read an d f ol lo w t he i ns tr uc ti on s i n th is manual c ar ef ul ly.

Power off : 2 modes

Manual off at any time A u t o p o we r o ff a fter 5 m in u t e s f r om l a s t k e y operation

Operating conditions:

Temperature : 0-45℃

4. FRONT PANEL DESCRIPTIONS

3-1

3-8 3-5

3-6

3-9

3-2 3-3

3-4

5. MEASUREMEN T PROCEDURE S

Humidity : below 90% RH

Dimensions:

204x62x33mm or

8.0x2.4x1.3 inch

Weig ht:

230g (not including batteries) Standard accessories included : Carrying case ………………1 pc.

3-7

Operation manual………… .1 pc. Optional accessory:

Cable and software for

S232C and USB

P/N: HFH80-SW

3-1 Dis pla y 3-2 Pow er ke y (Mu lti functional) 3-3 Uni t con ver sio n 3-4 Tip se lec tio n (HFH80 only) 3-5 Max h old k ey 3-6 Zer o 3-7 Plu nge r tip 3-8 RS- 232 C int erf ace 3-9 Bat ter y com par tment

Larger Frui ts

A. Select a n appropriate plunger t ip

for the commod ity to be tested. See “ A GU ID E TO S ELE CT TH E MODEL ”.

B. Select a random sample of 10 to 15

fruits of uniform size and the same temperature or 3% of the lot to be sampled. For best results, suggest one person should test the lot.

C. R

e mo v e a di s c o f s k i n o n op pos it e c heeks o f t he fr uit midway betw een t he stem and bottom on sun and shade sides. Then proceed with puncture test.

D. Zero adjustment

Hold the HFH80 vertically with the plunger tip hanging in the air, the

reading on the display should be 0. If not, depress the 'ZERO' key to make the HFH80 tester display “0”.

E. Hold the fruit against a hard

s u r fac e a n d f o rce t he t i p ve rt ic al ly i nt o the pulp at a un if or m speed (take a bo ut 3 seconds).

F. The t ip sho uld c ons ist ent ly

penetrate to the b reak in t ip diameter or t o th e sc ribed lin e on some tips.

G. Reco

rd reading on the display.

H. If a maximum reading is needed,

just press the key 'MAX' till the mark 'Max' shows on the display before taking measurements. The appearance of mark 'Max' is controlled by the key 'MAX'.

I. To take the next measurement, just

depress the 'ZERO' key and repeat steps from E to G.

J. Unit conversion is controlled by

depressing the key 'UNIT'.

K. F

or the model HFH83, make sure

th e plunger tip is in accordance

Page 2

with the tip si ze on the display. If not, pr ess th e key ' 7.9/11.1' to choose.

Smaller Fru its

Similar to large fruit testing except:

A. Ma ke a punct ure test on only

one cheek midway between the stem and the bottom.

B. R e m o v a l o f t h e s k i n i s

unnecessary.

C. P e n e t r a t i o n s h o u l d b e

suff i c ient to o b t ain p eak reading. Repeti tive testing is a perf ect te sting techn ique f or small fruits.

6. BATTERY RE PLACEMENT

A. When the battery sym bol

appears on the display, it is time to replace the batteries.

B. Slide the Battery Cover away

from the tester and remove the batteries.

C. Install batteries paying

careful attention to polarity.

7. MAINTENA NC E

A. Before daily us e, exercise the

pl unger in an d out for 10 s e c o n d s t o e n s u r e t h e mechanism functions freely.

B. After daily use, cl ea n th e

penetrometer tips. Carefu lly hold the te ster with t he load shaft pointing down u nder a slowly flowi ng water faucet for a few seconds, dry with a towel and all ow to dr y further by s tan d ing it wit h s h aft pointing down.

C. The HFH80 tester should never

be lubr icate d with oi l since thi s w i ll a ccum u lat e d u st causing increased friction and decrease

d accuracy.

WARNING

PART 8 AND 9 ARE ONLY FOR SKILLED AND PROFESSIONAL PERSONNEL ONLY.

Users are not suggested to try to carr y o ut the o perations in part 8 and p art 9. Improper operation will lead to the HFH80 tester inaccurate , even coul d not work.

8.HOW TO SET THE TIME OF AUTO POWE R OFF

The default setting f or auto power off at the factory i s 5 minutes. That means the tester will auto power off 5 mi nutes from the time of last key operation. Users can change it to any value bet ween 09 mi nu tes by f ol lowing steps.

ess the POW ER for abou t 4

Depr seconds, relea se it after "OFF" shows on displa y, then press the key 'MA X' to preset the ti me as desired. To disabl e the fun ction o f

auto powe r off, just prese t the time to 0. the tester will only be shut down manually in such a case.To quit the time setting, just press the key ZERO.

9.ACCURACY VERIFICATION

rior to u s e, t h e HF H 8 0 te s ter accuracy s hould b e verified b y testing with weights.

HFH80 accuracy can be easily verified by the following formula.

P=N/S

Here P is HFH80 reading N is the force applied to the

plunger tip

S is the area on which the

ce is applied.

for

Based on the above formula,

coefficients are gi ven for different models be low.

Model

HFH81

HFH83

Tip

3.5mm

7.9mm

11.1mm

Coefficient

k=10.3 99

k=2.04 1

k=1.05 3

Apply a f orce N to the tip. When r e ading s are a l m ost u n c h a n g e d , p r e s s th e k e y 'MAX' to hold the reading P w h i ch s ho u l d s ati s f y t h e equation below.

P=k× N e. g. if applying 0.4 kgf to HFH81, the reading should be

0.4 10.399=4.16

× Max. deviation is ±(4.16*1%+ 0.1)= ±0.14 so correct reading should lie in

4.16±0.14

=4.02-4.30kgf But i f apply ing 11.0 kgf to

HFH83 (7.9mm) the reading

should be 11x2.041 =22.4 5 Max. deviation is ±(22.45*1% +0.1) =±0.32 so correct reading should lie in

22.45±0.32 =22.13-22.77kgf

If th e deviation is beyond it s

accuracy, D epress Power key

an d not release i t till 'CO'

appears on the Display. I t take s

about 6 seconds fro m starting

depressin g Power key. Then

adjust the read ing P by the

'MAX' key (in creas

e) o r 'UNIT' key (decre ase) to the d esire d value. s tore that value and quit by pressing Zero key.

10. COMMUNICATE WITH PC

A. Instal l the optional RS232 C

software to the PC.

B. Connect the test er to the COM

or USB port of the P C w ith the opt ion al R S23 2 c abl es. To connect to a USB port, a U SB adaptor is required.

C. Run the software on the deskto p

and s elect the COM po rt or U S B p ort i n t h e s ys t e m settings.

D . C li ck t h e b u t t o n o f d a t a

collec ti o n , t he n clic k t he button of Begin/Continue.
