1 Notes, Cautions, and Warnings
If the equipment is used in a manner not specified in this manual, the protection by the equipment may be impaired.
Do not operate the equipment in flammable or explosive environments.
It is important to read and follow all precautions and instructions in this manual before operating or commissioning this
device as it contains important information relating to safety and EMC. Failure to follow all the safety precautions may
result in injury and/or damage to the equipment.
The following labels identify information that is especially important to note:
Note: Provides information that is important to successfully set up and use the Omega Link Gateway.
Caution or Warning: Informs about the risk of electrical shock.
Caution, Warning, or Important: Informs of circumstances that can affect the functionality of the instruments
and must refer to accompanying documents.
5 | M 5 7 9 0
Page 6
2 Introduction
LED Color
Status Description
Amber/Orange (solid)
Gateway is powered on; no network connection
Green (blinking repeatedly)
Gateway is in Pairing Mode or Firmware Upgrade was successful
Amber/Orange (blinking +
reboot)
Gateway firmware automatic update
Red (blinking)
Gateway is powering on or Firmware Upgrade in progress
Amber/Orange (blinking 3
times and a 3 second pause)
Enterprise Mode enabled
Green (solid)
IP Address successfully obtained or network connection successful
No Light
Unit is off or in Sleep Mode
The Omega Link Ethernet Gateway (GW-001 Series) is a high-performance gateway that allows for seamless, wireless,
connection to up to 100 long-range Omega Link Smart Sensor Devices. The Ethernet-enabled RJ45 connectivity ensures
a direct connection to the Omega Link Cloud or to a local-area enterprise network. The local built-in web server is also
accessible through the RJ45 port. The different GW-001 series models support multiple device connection types
including Modbus TCP/RTU RS232/RS485 and USB ports to enable local smart probe connections.
Omega Link Cloud and OEG subscription tiers can be purchased on the Omega website.
Important: Users who will only be connecting to a local-area, enterprise ecosystem with Omega Enterprise Gateway
(OEG) do not need to create an Omega Link Cloud account to use the Omega Link Gateway in Enterprise
Mode.
Refer to the following LED Status Indicator table to identify the different Gateway behaviors and statuses.
Important: Do not power on the Omega Link Gateway or Omega Link Smart Sensor before the Gateway registration
is complete for Omega Link Cloud connections. Refer to section 4.1 Registering your Gateway to Omega
Link Cloud for more information.
6 | M 5 7 9 0
Page 7
3 GW-001 Hardware Overview
Pin
Description
Pin 1
TX (D+)
Pin 2
RX (D-)
Pin 3
GND
Pin 4
Alarm (N/O)
Pin 5
Alarm (N/O)

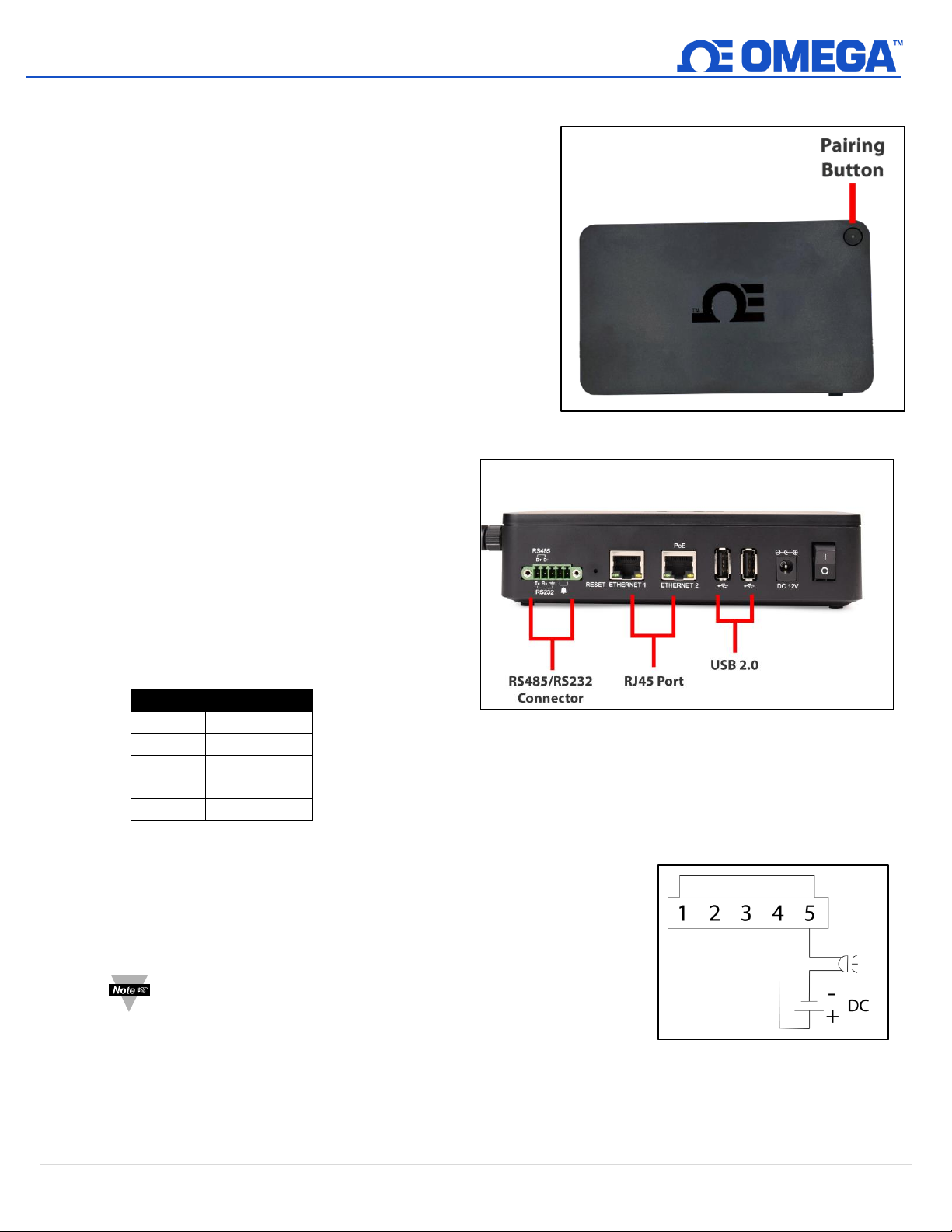

Figure 1: Smart Sensor to Gateway pairing button
Figure 2: GW-001 Series input connectors (varies by model)
Figure 3: Alarm relay wiring diagram
GW-001 series gateways offer the following connector and pairing
options to pair sensing devices to the Gateway (connector options
vary per model):
• Smart Sensor one-button pairing
• USB 2.0 Connector
• Serial Data and Alarm 5-pin screw terminal
• RJ45 connector for local network and Internet access
3.1 Smart Sensor Pairing
Pairing an Omega Link Smart Sensor to your Omega Link Gateway
is made easy with one-button pairing. Simply press the pairing
button on your gateway and press the pairing button on your
Smart Sensor to connect the two. Your Smart Sensor will now be
visible on your Omega Link Cloud or OEG web interface.
3.2 USB 2.0 Connectors
The USB 2.0 connector is used to connect Omega Link
Smart Probes with an Omega Link IF-001 Smart
Interface Cable directly to your gateway.
3.3 Serial Data and Alarm Connector
The 5-pin terminal can accept RS232 or RS485 inputs
from authorized Omega accessories and devices such
as OM240, CN616A, and DP612. The 5-pin screw
connector on the gateway is labeled as follows:
Contact Omega or visit our website to see other compatible devices.
3.3.1 Alarm Relay Wiring
The 5-pin screw terminal can be used to connect a peripheral alarm
relay that will be triggered if the gateway loses network connection
to the Omega Link Cloud or OEG.
Note: This alarm will not detect a cabling or wiring issue. The alarm
will sound if the Gateway cannot reach the Omega Link Cloud
or OEG network.
3.4 RJ45 Port
An RJ45 port is provided for local-network and Internet access, can be used for ModBus TCP devices, and some models
offer a Power over Ethernet feature.
7 | M 5 7 9 0
Page 8
4 Omega Link Gateway First-Time Setup
LED Color
Status Description
Amber/Orange (solid)
Gateway is powered on; no network connection
Green (blinking repeatedly)
Gateway is in Pairing Mode or Firmware Upgrade was successful
Amber/Orange (blinking +
Reboot)
Gateway firmware automatic update
Red (blinking)
Gateway is powering on or Firmware Upgrade in progress
Amber/Orange (blinking 3
times and a 3 second pause)
Enterprise Mode enabled
Green (solid)
IP Address successfully obtained or network connection successful
No Light
Unit is off or in Sleep Mode

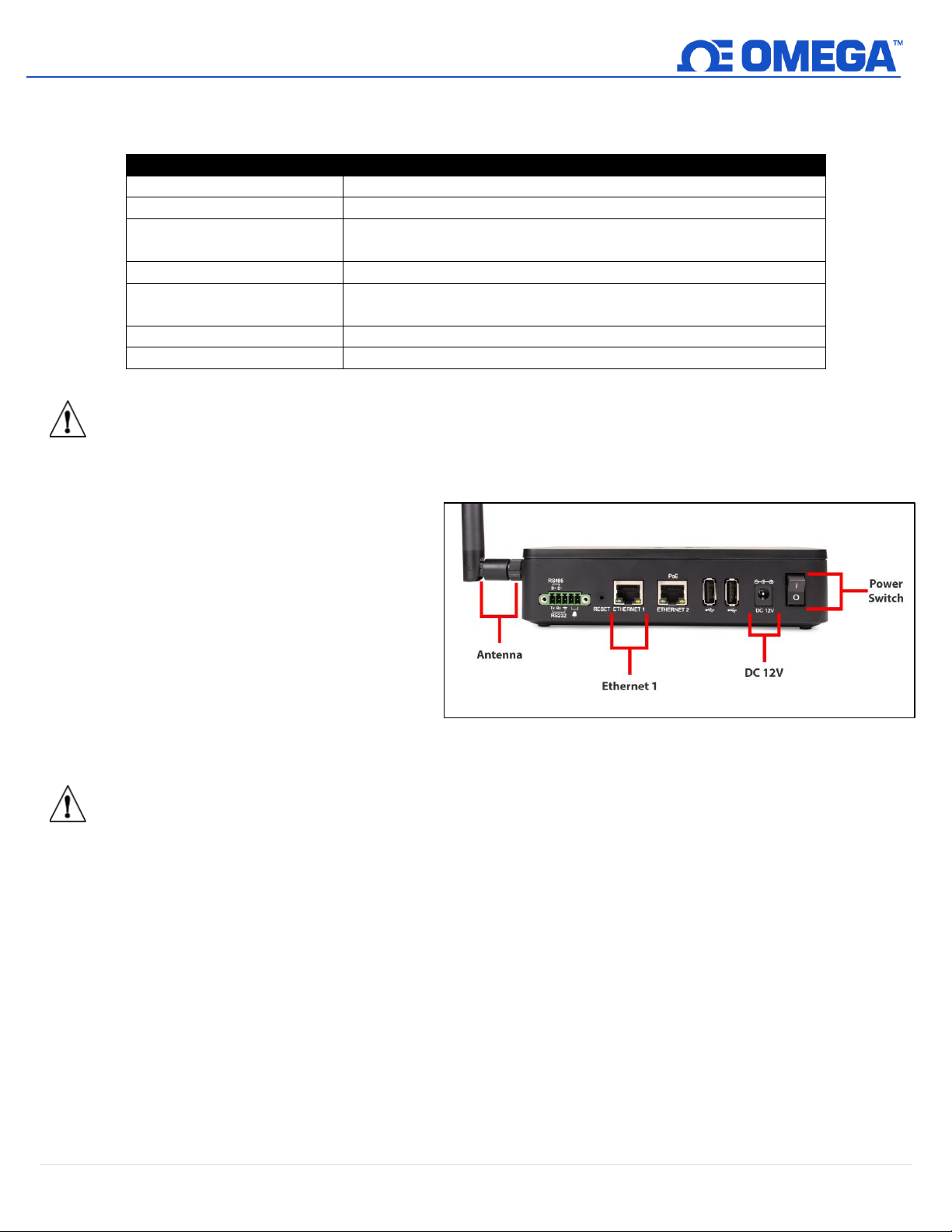

Figure 4: GW-001 connector overview
Refer to the LED color status table below and follow these instructions to power on the GW-001 unit:
Important: For setups that will use Omega Link Cloud, do not power on the Omega Link Gateway or Omega Link
Smart Sensor before the Gateway has been registered to an Omega Link Cloud account. Refer to section
4.1 Registering your Gateway to Omega Link Cloud for more information.
Step 1: Connect the antenna included
with the gateway to the side of
the device housing.
Step 2: Connect the DC 12 V adapter to
the back of the gateway.
Step 3: Connect an RJ45 Ethernet cable
to the port labeled Ethernet 1 on
the gateway.
Step 4: Connect the other end of the
Ethernet cable to a DHCPenabled router with Internet
access for first-time setup.
Important: The GW-001 must be connected to a router with internet access when setup for the first time to ensure
the latest firmware is automatically downloaded onto the device.
Step 5: Turn the power switch on the gateway to the ON position.
Step 6: The LED light on the Pairing Button will blink red to indicate that the device is booting up and updating
firmware.
Once the gateway is connected to the Internet, the Omega Link Gateway unit will automatically download the
latest firmware available and the LED status indicator will stay a solid green when the update is complete.
8 | M 5 7 9 0
Page 9
4.1 Registering your Gateway to Omega Link Cloud

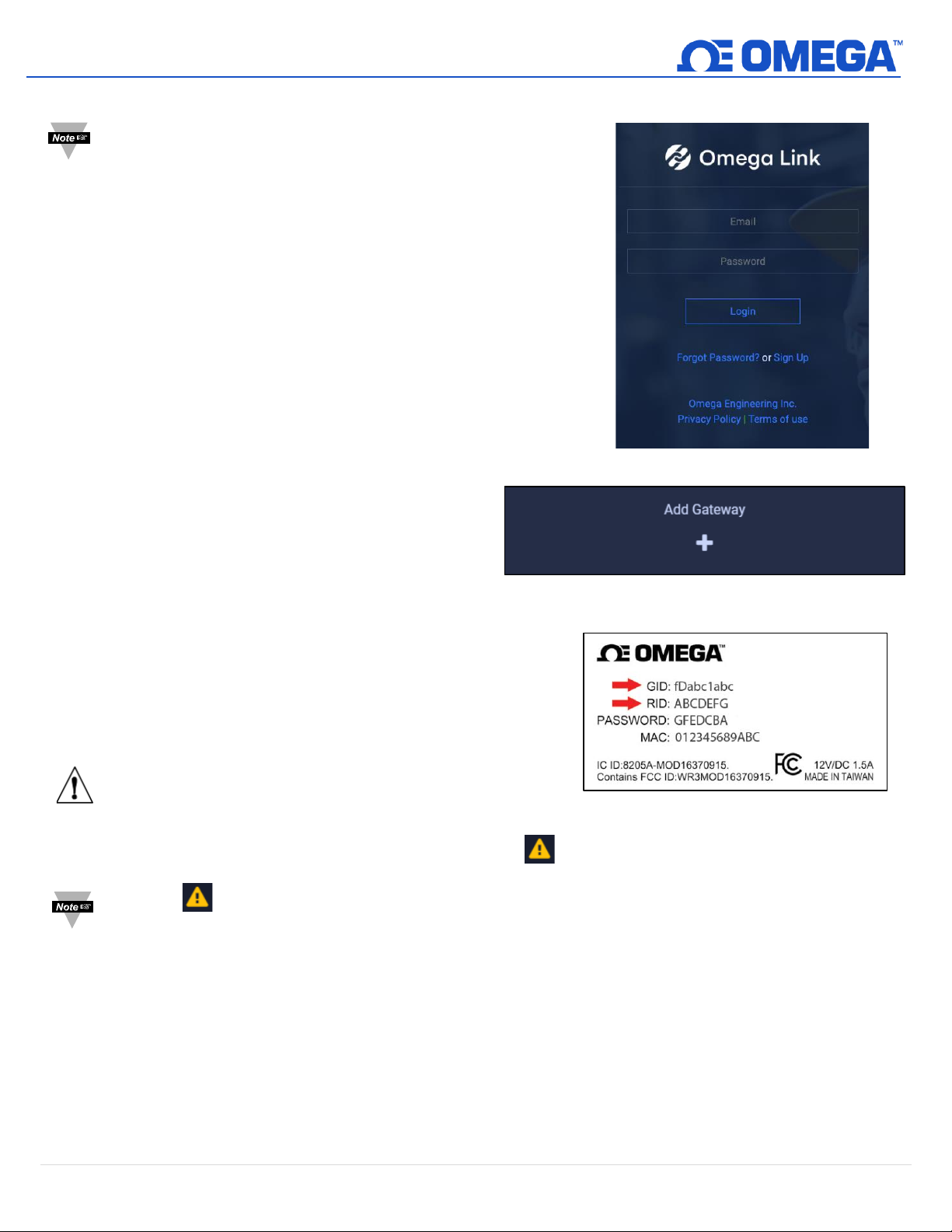

Figure 5: Omega Link Cloud login
Figure 6: Omega Link Cloud Add Gateway button
Figure 7: Sample Omega Link Gateway label
Note: Users who will not be creating an Omega Link Cloud account and
will be connecting to Omega Enterprise Gateway (OEG) in a noninternet environment should refer to section 5 First-Time
Gateway Internal UI Access
To register your Omega Link Gateway with Omega Link Cloud, you must
first create and register an Omega Link Cloud account. Using any device
with a web browser, complete the following steps:
Step 1: Open your browser to cloud.omega.com.
Step 2: Click Sign Up and complete the registration process.
Once the user credentials are verified, the user can sign in and will be
presented with the Omega Link Cloud homepage.
Step 3: From the cloud homepage, click Add Gateway.
Step 4: Type in the Gateway ID (GID) from the label on
your gateway.
Step 5: Type in the Registration ID (RID) from the label
on your gateway and click Register.
Important: The label containing your Gateway ID and Register ID
is located on the bottom of the gateway unit.
Step 6: Once you have successfully registered your gateway, an icon will appear next to your registered device.
Note: The icon will disappear once the registered gateway is powered on.
9 | M 5 7 9 0
Page 10
5 First-Time Gateway Internal UI Access

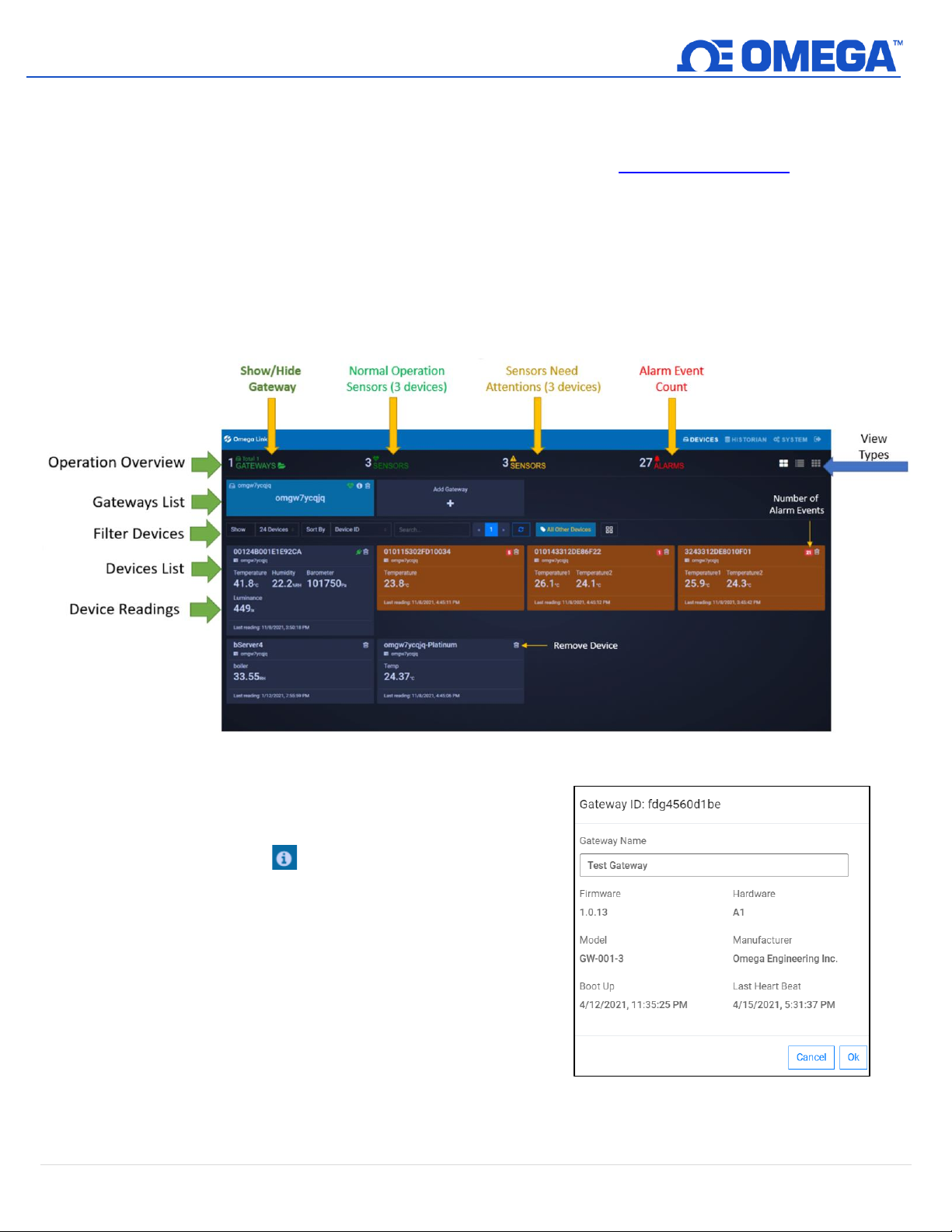

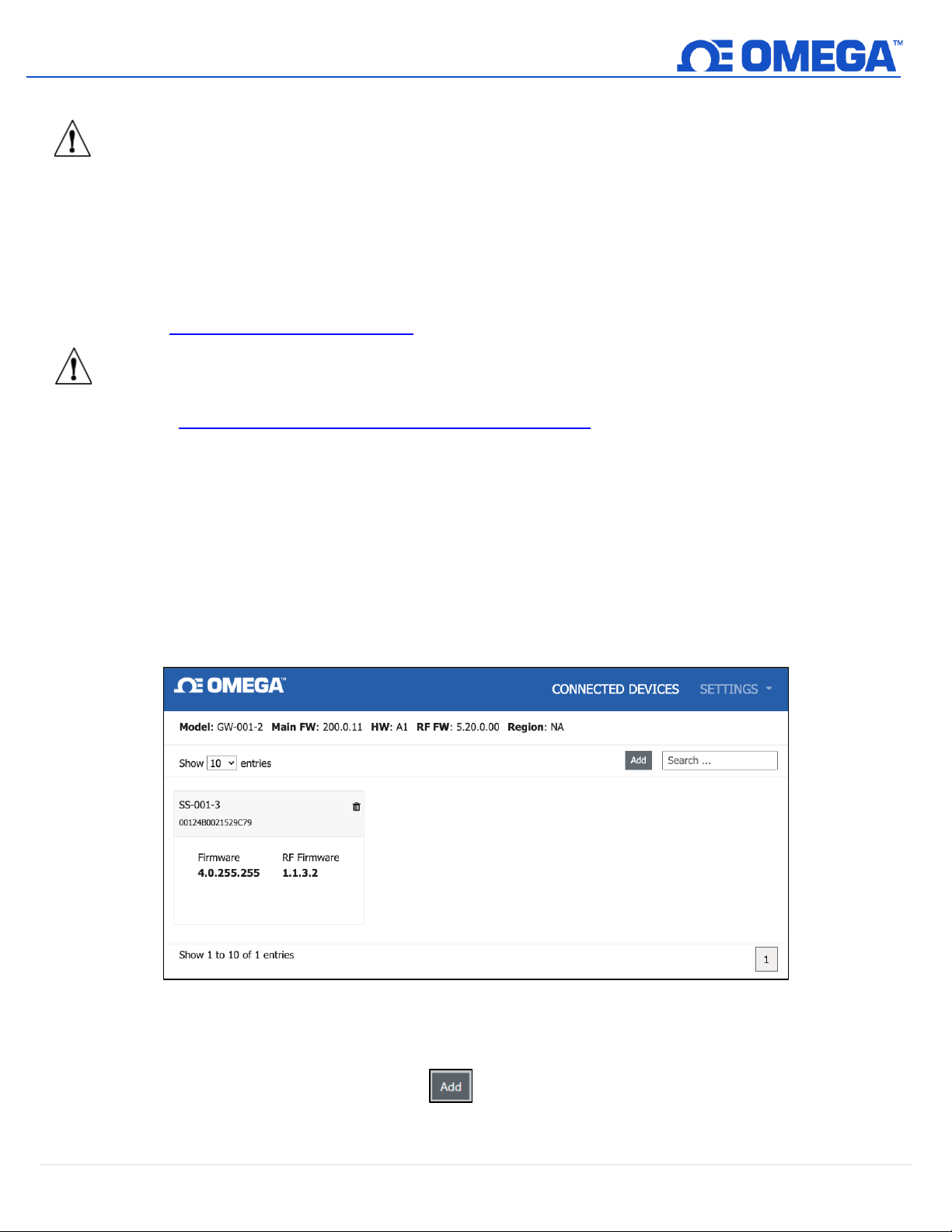

Figure 8: Gateway web UI main page - Connected Devices
Important: A firmware update for the GW-001 is required to access the internal UI as listed below. The latest
firmware is automatically installed when the GW-001 is connected directly to a router with Internet
access.
All Omega Link Gateway models contain an internal user interface (UI) that is used to manually upgrade firmware, add
wired sensing devices to the gateway, and add other external accessories and peripherals. When accessing the gateway
UI for the first time, with the Gateway still plugged in to the DHCP-enabled router with Internet access, follow the steps
below:
Step 1: Using a PC or a device with a web browser on the same network as the connected GW-001, type the following
URL: http://omegaiotgatewayXXXX.local
(Where the XXXX are the last 4 digits of the GW-001 MAC address printed on the rear label).
Important: If the user is unable to access the Gateway UI using the DHCP-router method, the Bonjour Service may
need to be installed. The service can be downloaded from the following URL:
http://omegaupdates.azurewebsites.net/software/bonjour
Step 2: From the gateway UI login screen, enter the password on the rear label of the unit. When entered successfully,
the user will be prompted to create a new password.
Once the user has accessed the UI for the first time, they may leave the network settings as DHCP, or they may choose
a Static IP under the Network Settings menu. Additionally, after the first-time setup, the user may choose to enable
Enterprise Mode to pair the GW-001 to an Omega Enterprise Gateway (OEG) account. Refer to the section titled 6
Registering your Gateway to OEG (Enterprise Mode) to learn more about how to enable Enterprise Mode and to pair a
GW-001 to OEG, or continue below for an explanation of the different menus available in the GW-001 internal UI.
5.1 Connected Devices – Main Interface
The Connected Devices tab is the default page that appears when a user has successfully signed in to the internal
gateway UI. From here, users can add wired devices to the gateway to have them appear in your Omega Link Cloud
or OEG account. Wirelessly paired devices will appear here as well. To pair a wired device to your gateway from the
internal gateway web UI, begin by clicking the button at the top right of the web page. For more
information on how to pair a wireless sensing device such as an Omega Link Smart Probe or Smart Sensor, refer to
section: 7 How to Pair a Sensing Device to an Omega Link Gateway.
10 | M 5 7 9 0
Page 11
5.1.1 Controller

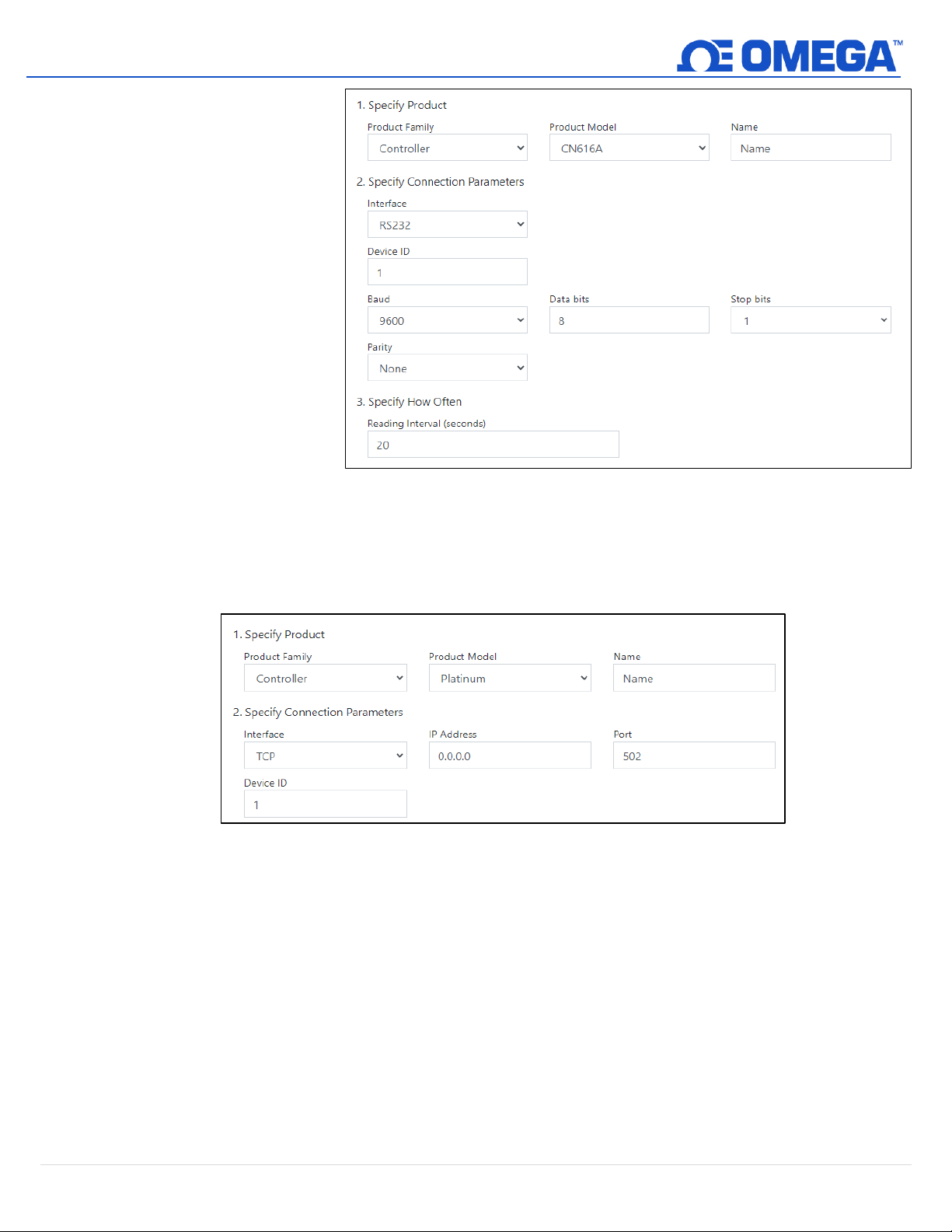

Figure 9: Add Device – Controller Setup
Figure 10: Platinum series controller Add Device interface
When adding a
controller, ensure the
Product Family
dropdown is set to
Controller, and choose
your controller type
from the Product Model
dropdown. You can then
set the communication
parameters for your
device including the
interface type, baud
rate, data bits, stop bits,
parity, device ID, and
reading interval.
5.1.1.1 Omega Platinum
Omega Platinum controllers being added to the GW-001 require users to identify the IP address and
Port number of the Controller device.
11 | M 5 7 9 0
Page 12
5.1.2 DAQ

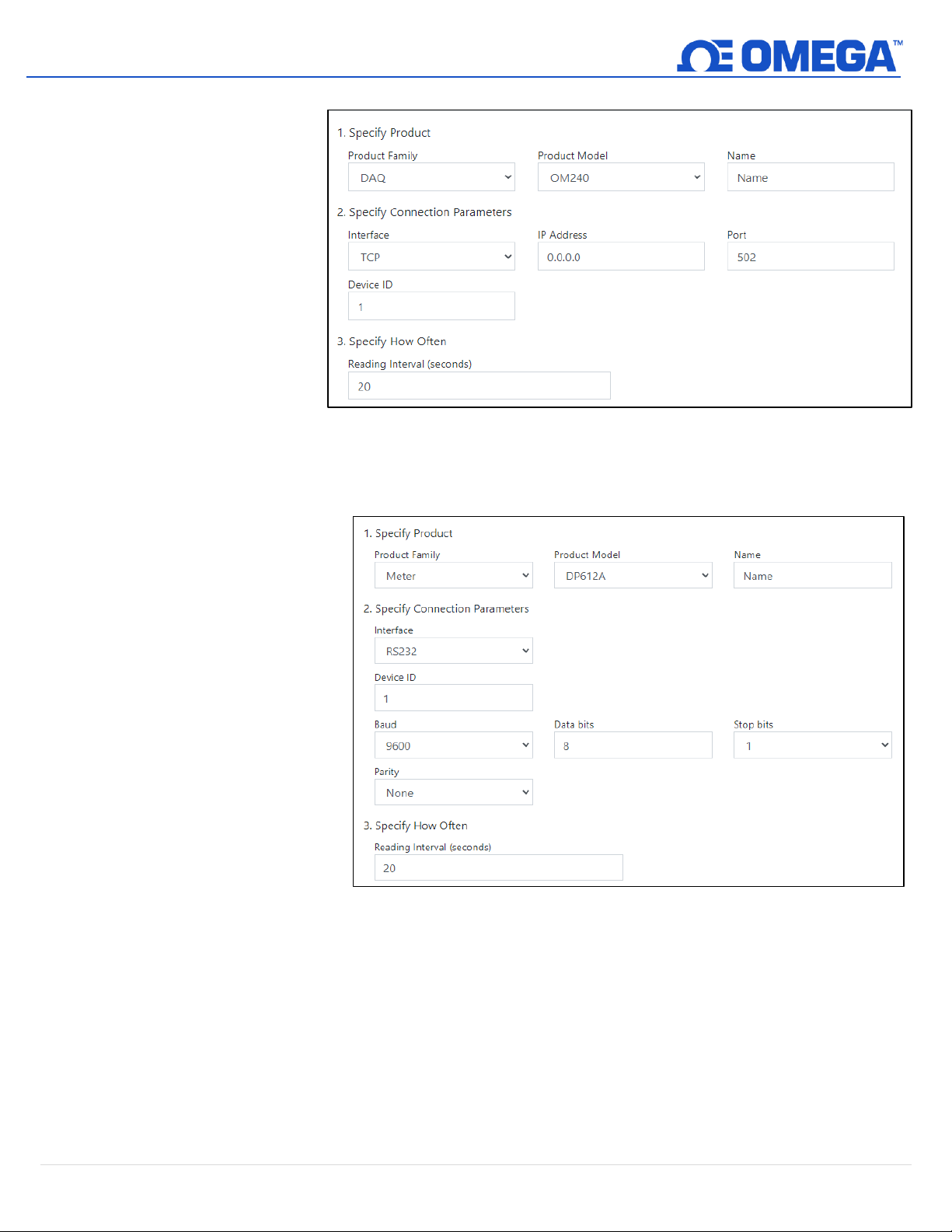

Figure 11: DAQ series Add Device interface
Figure 12: Meter Add Device interface
To add a DAQ device,
select it from the
Product Family
dropdown and select
your Product Model
from the dropdown.
You can then set the
communication
parameters for your
device including
interface type, IP
address, port number,
device ID, and reading
interval.
Omega DAQ devices require users to know the IP address of their controller device. An IP scanner software
can be used to identify the DAQ IP address.
5.1.3 Meter
To add a Meter device,
select it from the Product
Family dropdown and
select your Product
Model from the
dropdown. You can then
set the communication
parameters for your
device including the
interface type, baud rate,
data bits, stop bits, parity,
device ID, and reading
interval.
12 | M 5 7 9 0
Page 13
5.1.4 Probe

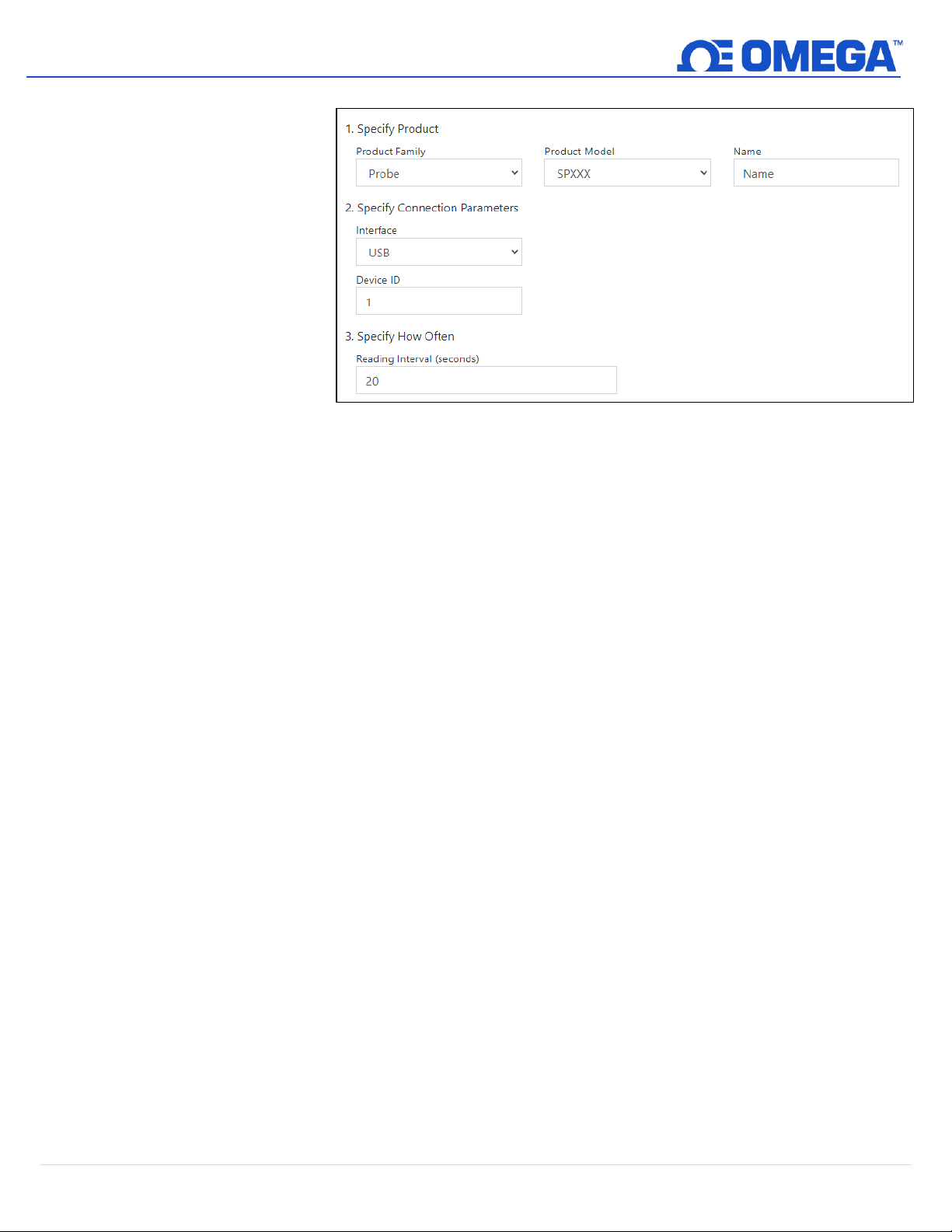

Figure 13: Omega Link Smart Probe Add Device interface
To add a Smart Probe,
select it from the
Product Family
dropdown and select
your Product Model
from the dropdown.
You can then set the
communication
parameters for your
device including the
interface type, device
ID, and reading
interval.
13 | M 5 7 9 0
Page 14
5.2 GW-001 Settings

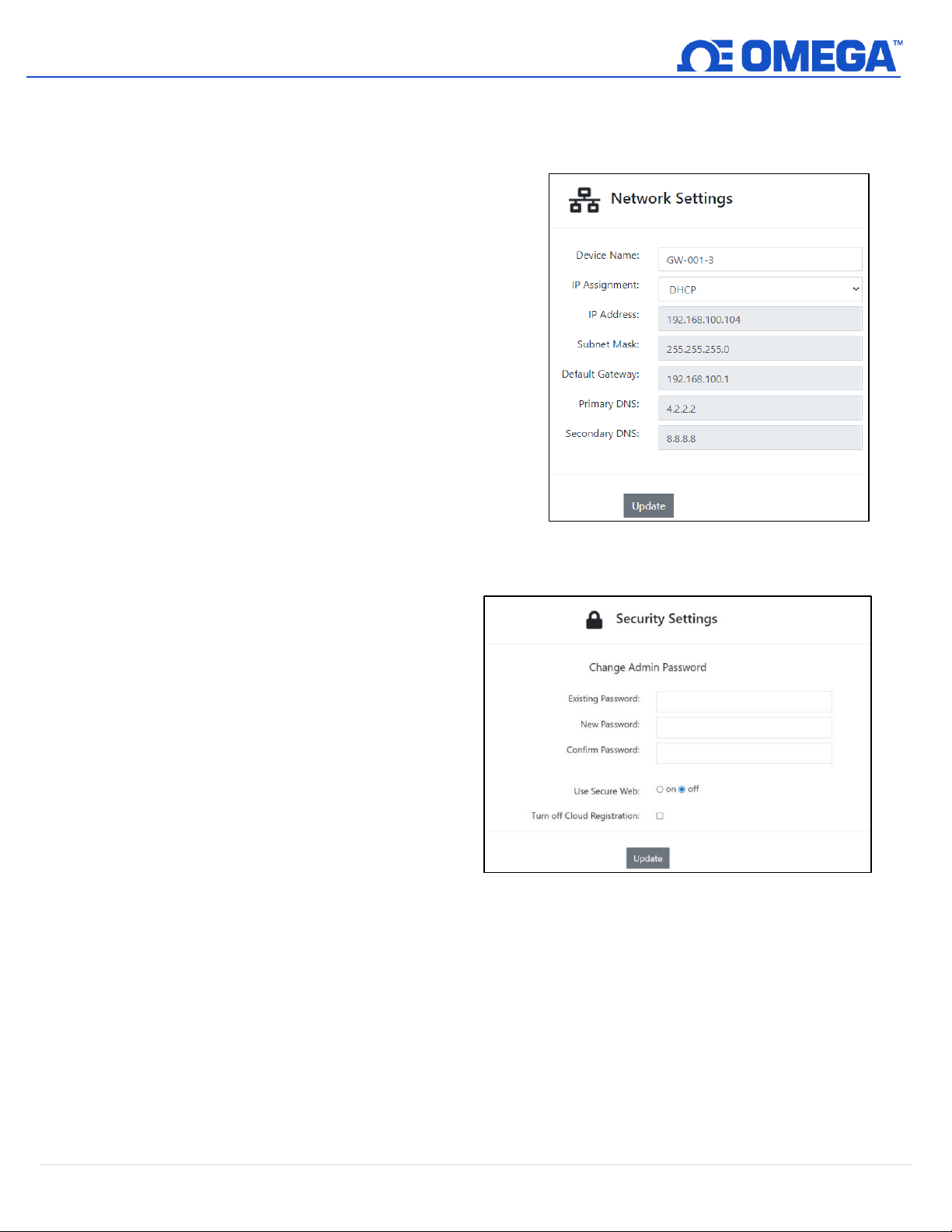

Figure 14: Gateway UI Network Settings
Figure 15: Gateway UI Password and Security Settings
Click the settings tab to view log data, update gateway firmware versions, change security passwords, and view
current network settings.
5.2.1 Network Settings
To view and change the Network settings, select it
from the Settings dropdown at the top right of the
webpage UI. From here, you can change your gateway
device name and change your IP Assignment between
DHCP and Static IP.
5.2.2 Security Settings
To manage the password required to access
your gateway web UI, select the Security
option from the Settings dropdown at the
top right of the webpage UI. From here,
users can turn off the cloud registration to
enable Enterprise Mode. For more
information, refer to section 6 Registering
your Gateway to OEG (Enterprise Mode).
14 | M 5 7 9 0
Page 15
5.2.3 System Settings

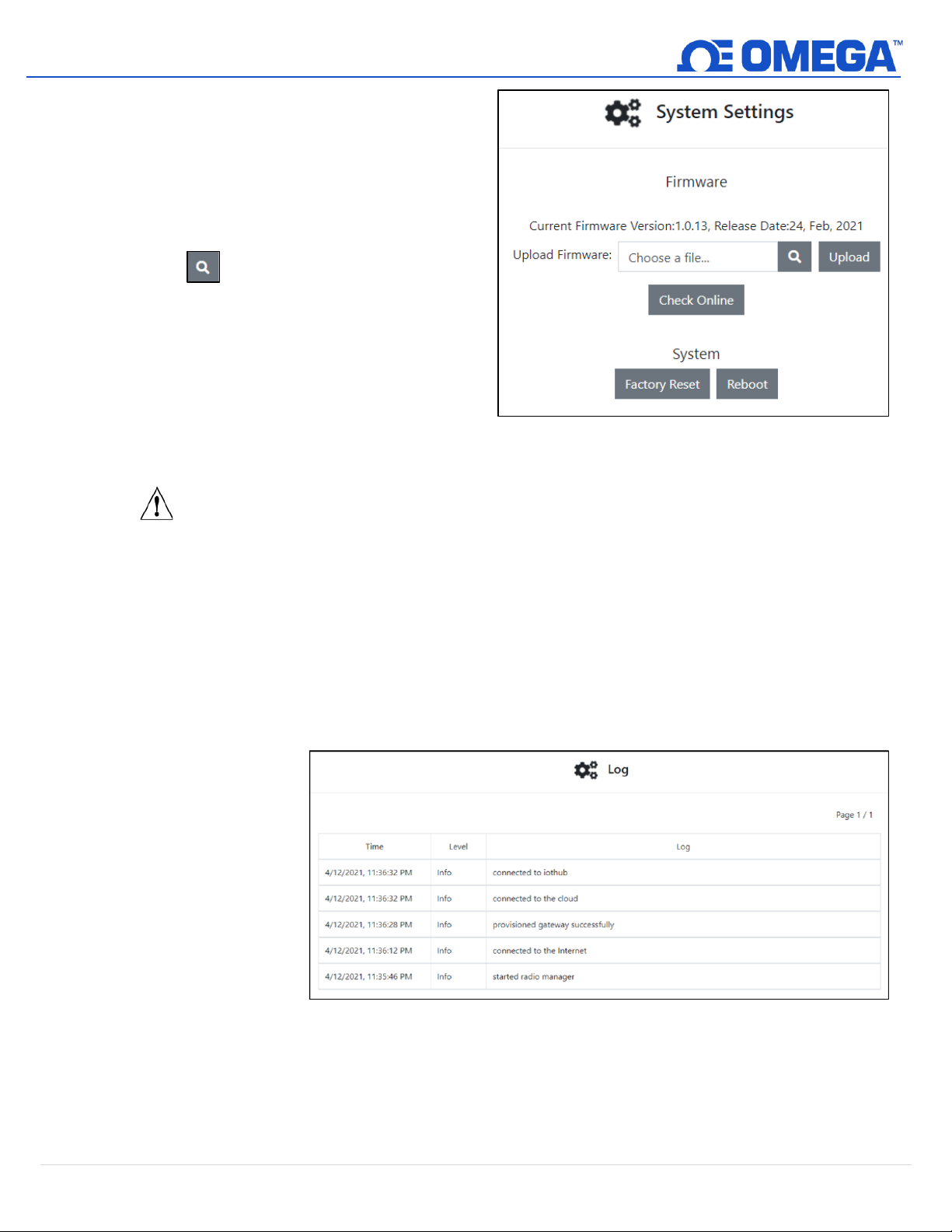

Figure 16: Gateway UI System Setting, Firmware update, and
Factory Reset interface
Figure 17: Gateway UI Log table
To update your gateway firmware version,
factory reset your device, or soft reboot your
device, select System from the Settings
dropdown at the top right of the webpage UI.
When updating the firmware version, click
Check Online to download the latest firmware
version available for your gateway. Then, click
the icon to find the file on your
computer. Finally, click Upload to get the
latest firmware on your gateway.
Warning: Clicking the Factory Reset button erases all saved data and configurations. Your gateway will
be changed back to the default, out-of-the-box settings.
5.2.3.1 How to Update the Firmware on an Omega Link Gateway
Once in the System Settings, the user may click the magnifying glass icon accompanying the Upload
Firmware box to open the File Explorer. Select the new firmware file and click Open. Click Upload to
confirm the firmware upgrade. A red LED on the gateway will indicate that the upgrade is in process.
Once the update process is complete, log out and log back in. The new firmware version will appear
on the main page of the internal gateway interface.
5.2.4 Log
Select Log from the
System dropdown
to view a timestamped report of
the events that
have occurred with
your gateway.
15 | M 5 7 9 0
Page 16
6 Registering your Gateway to OEG (Enterprise Mode)
A Omega Link Gateway can be added to Omega Enterprise Gateway (OEG) in a non-internet environment by enabling
Enterprise Mode on the Gateway unit. To add an Omega Link Gateway to OEG, the Cloud Registration option needs to
be disabled by accessing the System Settings in the Gateway web UI. Once disabled, the gateway will be in Enterprise
Mode.
Important: If the OEG License being used has not been activated, an internet connection will be needed for a one-
time license activation before proceeding. Adding an Omega Link Gateway as a Device to OEG is only
available on non-trial licenses of OEG.
Step 1: Navigate to the Security Settings in the Gateway UI.
Step 2: Click the Turn Off Cloud Registration checkbox to disable the feature and set the GW-001 to Enterprise
Mode.

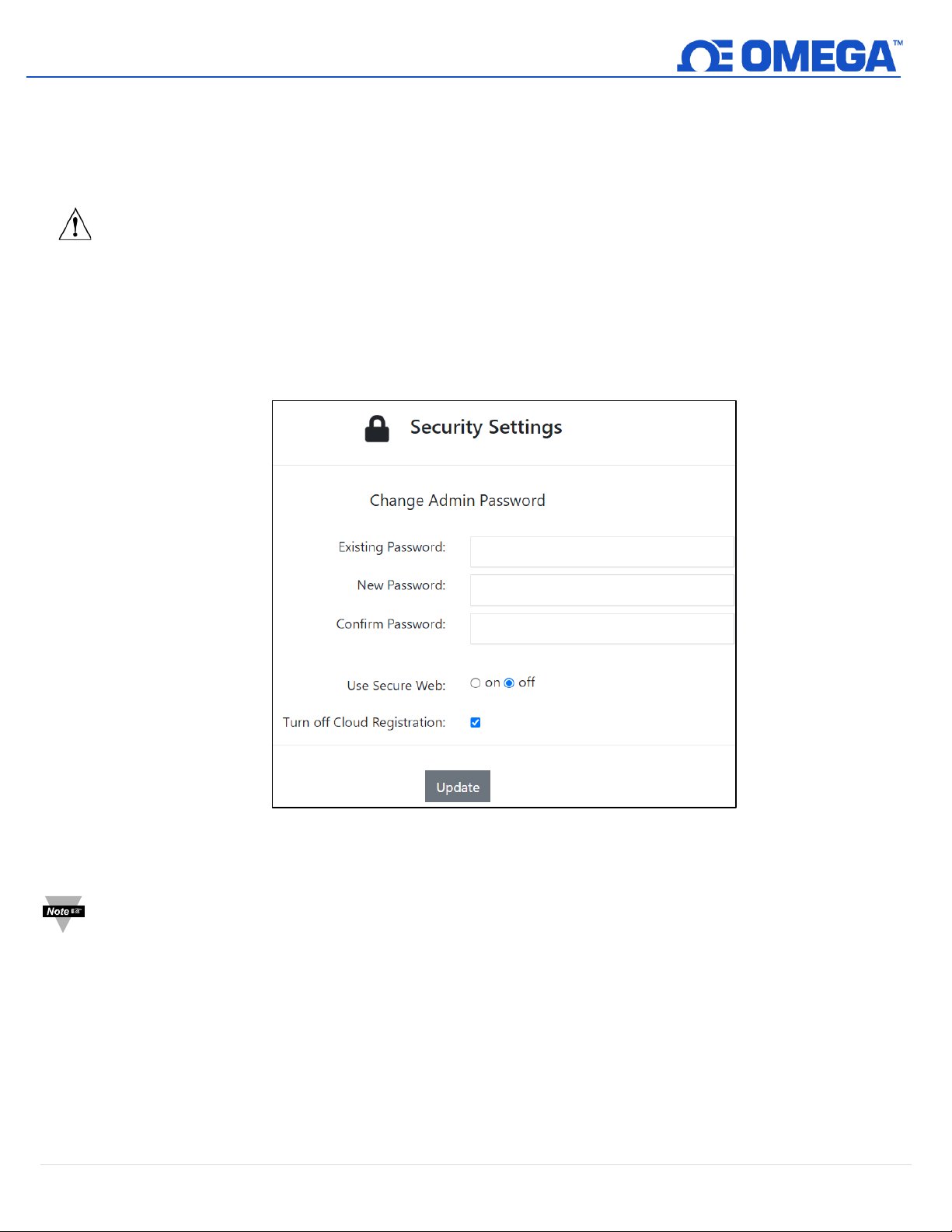

Figure 18: Gateway UI Security Settings – Turn off Cloud Registration
Step 3: Click the Update button to save the setting change. The gateway LED will flash orange 3 times indicating the
device is in Enterprise Mode.
Note: The GW-001 may be configured to use a Static IP rather than the default DHCP. If these settings are changed,
the PC or local-area network router must be on the same local-area network as the Static IP address assigned
to the GW-001 unit.
If the GW-001 will be moved and connected to a local-area network, it should be moved now and connected directly
to a DHCP-enabled, local-area network router or local-area network PC.
Step 4: Launch and log in to your Omega Enterprise Gateway account.
16 | M 5 7 9 0
Page 17

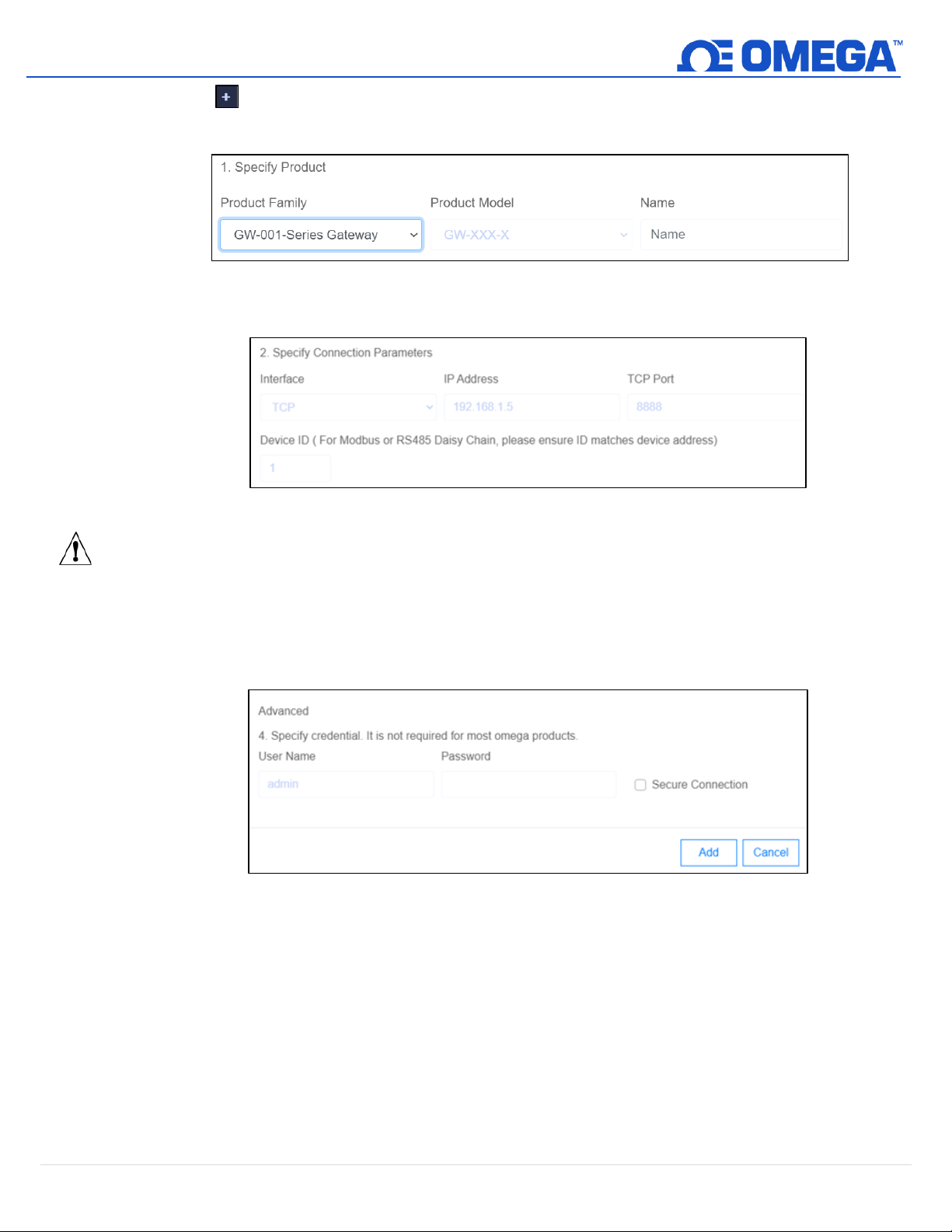

Step 5: Click the icon or Add Devices. Then select GW-001-Series Gateway from the Product Family dropdown
and GW-XXX-X from the Product Model dropdown.
Figure 19: OEG interface Add Device menu – Omega Link GW-XXX-X
Step 6: Input the IP Address of the connected Omega Link Gateway as it appears in your local-area network.
Figure 20: OEG interface Add Device menu – Connection Parameters
Important: If the DHCP-enabled GW-001 unit has been disconnected and moved to a separate DHCP-enabled, local-
area network router or PC, the user must log back into the gateway internal UI to identify the new IP
Address that the unit has been assigned under the local-area network.
Step 7: Click Advanced to reveal the text field for Username and Password. The Username will automatically
populate to “admin.” Input the password required to access the gateway internal UI in the Password
textbox.
Figure 21: OEG Interface Add Device menu – Gateway Username and Password input
Step 8: Click Add to finalize your configuration.
17 | M 5 7 9 0
Page 18
All devices connected to the Omega Link Gateway will appear, including those that are offline. The readings from offline
units will display NaN. For more information on how to navigate OEG, refer to the OEG Software User’s Manual.
Note: The maximum reading interval is 120 seconds for Omega Link Gateway. After switching to Enterprise Mode
from Cloud Mode, the Omega Link Gateway device should be manually powered off and on again. Omega
Enterprise Gateway should also be restarted from the Windows OS Services application. In the future, if users
will be using the Omega Link Cloud service, they must navigate to the Gateway web UI again to uncheck the
Turn off Cloud Registration box.
6.1.1 Configuring Sensing Devices after Pairing with OEG
If a sensing device paired wirelessly or wired directly to the Omega Link Gateway has been configured or
modified after the Omega Link Gateway has been added to OEG, the user must reboot the Omega Link
Gateway and restart the OEG software to sync with the configuration made to the connected device.
18 | M 5 7 9 0
Page 19
7 How to Pair a Sensing Device to an Omega Link Gateway
Refer to either the Wireless Pairing or Wired Pairing instructions as applicable.
7.1 Wireless Pairing
Pairing your wireless Smart Interface (IF-006) or Smart Sensor is made easy with a one-button pairing system between
the IF-006 or Smart Sensor and the Omega Link Gateway.
Important: The pairing instructions for the SS-001-RUG differ from the standard wireless pairing procedure.
Refer to section 7.1.1 SS-001-RUG Pairing to pair an SS-001-RUG to your Omega Link Gateway.
Step 1: Push the pairing button once on your Smart Sensor or IF-006 device. The LED Status Indicator will blink green
indicating it is in Pairing Mode.
Step 2: Quickly push the pairing button on the Omega Link Gateway. The LED on the Gateway will blink green
indicating the Gateway is in Pairing Mode.
When the IF-006 or Smart Sensor has been successfully paired to the Omega Link Gateway, the LED will stop
blinking on both devices.
7.1.1 SS-001-RUG Pairing
To pair an SS-001-RUG sensor to an Omega Link Gateway, follow the instructions below:
Step 1: Locate the small pinhole on the underside of the SS-001-RUG unit and insert a paperclip to press
the button once. The LED Status Indicator at the top of the unit will blink green once when
successfully completed.
Step 2: Quickly push the pairing button on the Omega Link Gateway. The LED on the Gateway will blink
green indicating the Gateway is in Pairing Mode.
When the SS-001-RUG has successfully been paired to the Gateway, the LED status indicator will briefly
flash orange before flashing green one more time.
Note: Holding the pinhole button on the underside of the unit for longer than 5 seconds will reset the
sensor to its factory default settings.
19 | M 5 7 9 0
Page 20
7.2 Wired Pairing
Wired Smart Probes connected directly to an Omega Link Gateway with an IF-001 cable will need to add the device to
the Gateway Internal User Interface.
The Connected Devices tab is the default page set once you are signed in to the internal gateway UI. From here, you
can add devices to your gateway to have them appear in your Omega Link Cloud account.

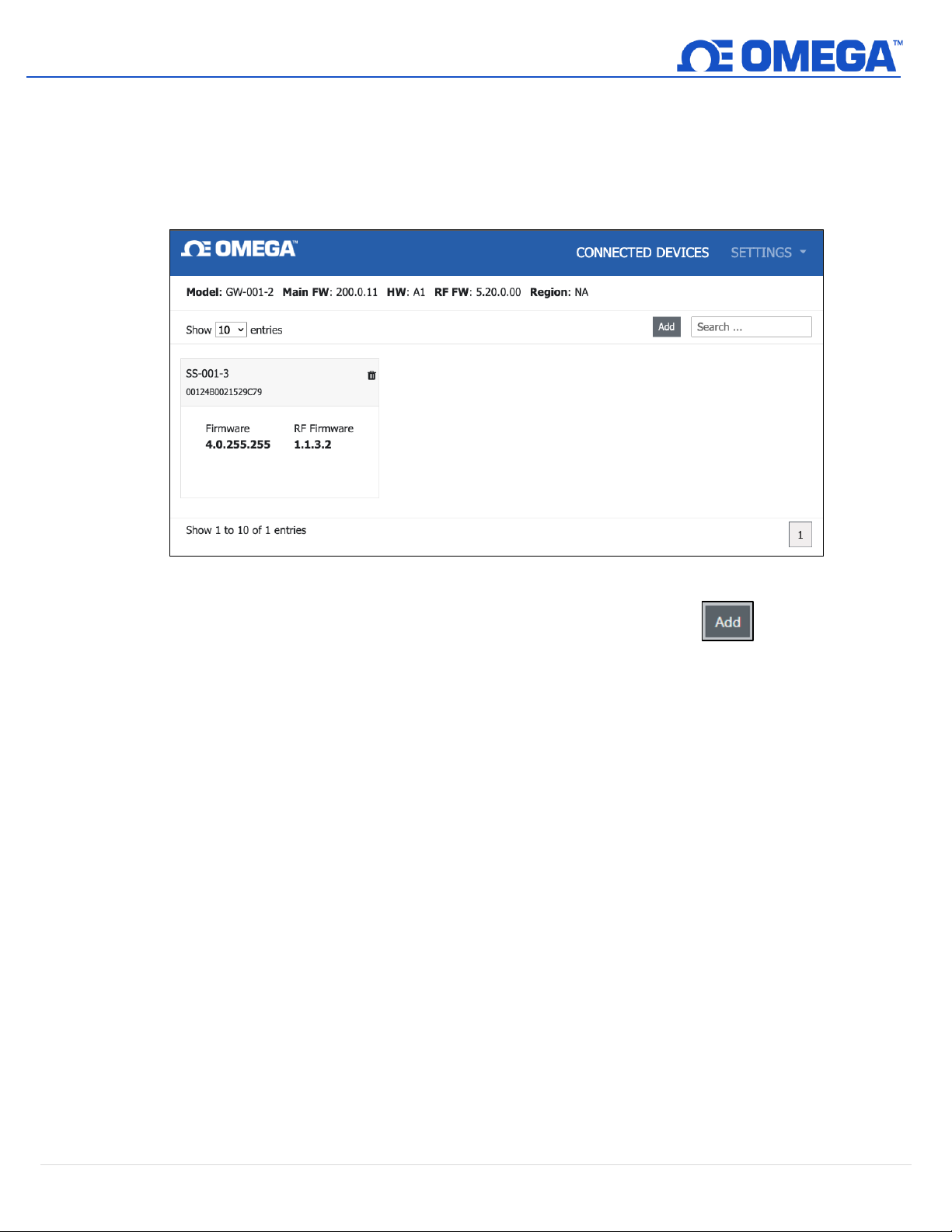

Figure 22: Gateway Internal User Interface
To add a device to your gateway from the internal gateway web UI, begin by clicking the button at the top
right of the web page. Refer to section 5.1 Connected Devices – Main Interface for more information.
20 | M 5 7 9 0
Page 21
8 Navigating Omega Link Cloud
Figure 24: Omega Link Cloud registered gateway
details
The Omega Link Cloud is the bridge between Omega Link Smart Sensing devices and getting your data when you need it
on any device with a web browser. The Omega Link Cloud delivers state and status monitoring, data logging,
visualization, and analytics. Accounts can be created and accessed by visiting: http://cloud.omega.com
Once you have access to your account and have completed your initial device pairing, you will be presented with your
connected devices on the Omega Link Cloud interface.
8.1 Devices
After signing in, the Devices tab immediately presents the readings of all registered Omega Link Gateways and their
connected sensing devices. From here, you may access your gateway details, add additional gateways to your cloud
account, monitor device health, and access specific sensor analytics.
8.1.1 Gateway Details
To view your gateway details or change the name of your
device, click the icon associated with the gateway
you wish to view. From here, you will be able to change
your gateway name and view your gateway ID, firmware
version, model number, initial boot-up date and time,
hardware type, manufacturer, and last recorded device
heartbeat.
Figure 23: Omega Link Cloud main interface - Devices
21 | M 5 7 9 0
Page 22
8.1.2 Management
Figure 25: Omega Link Cloud Users
and Groups
Figure 28: New Group Interface
Figure 27: Device Management
options
Clicking the management icon allows you to create customizable groups of gateways, assign
gateways to admins, and assign alarm notifications to other users.
8.1.2.1 User and Device Assignment
To assign users to devices, click the Groups icon, and
click Add Group. After naming your group, you can click on these
icons to add users and devices to your group.
8.1.2.2 Creating a Device Group and Adding Devices
To create a Device Group and add sensing devices to that group, follow these instructions:

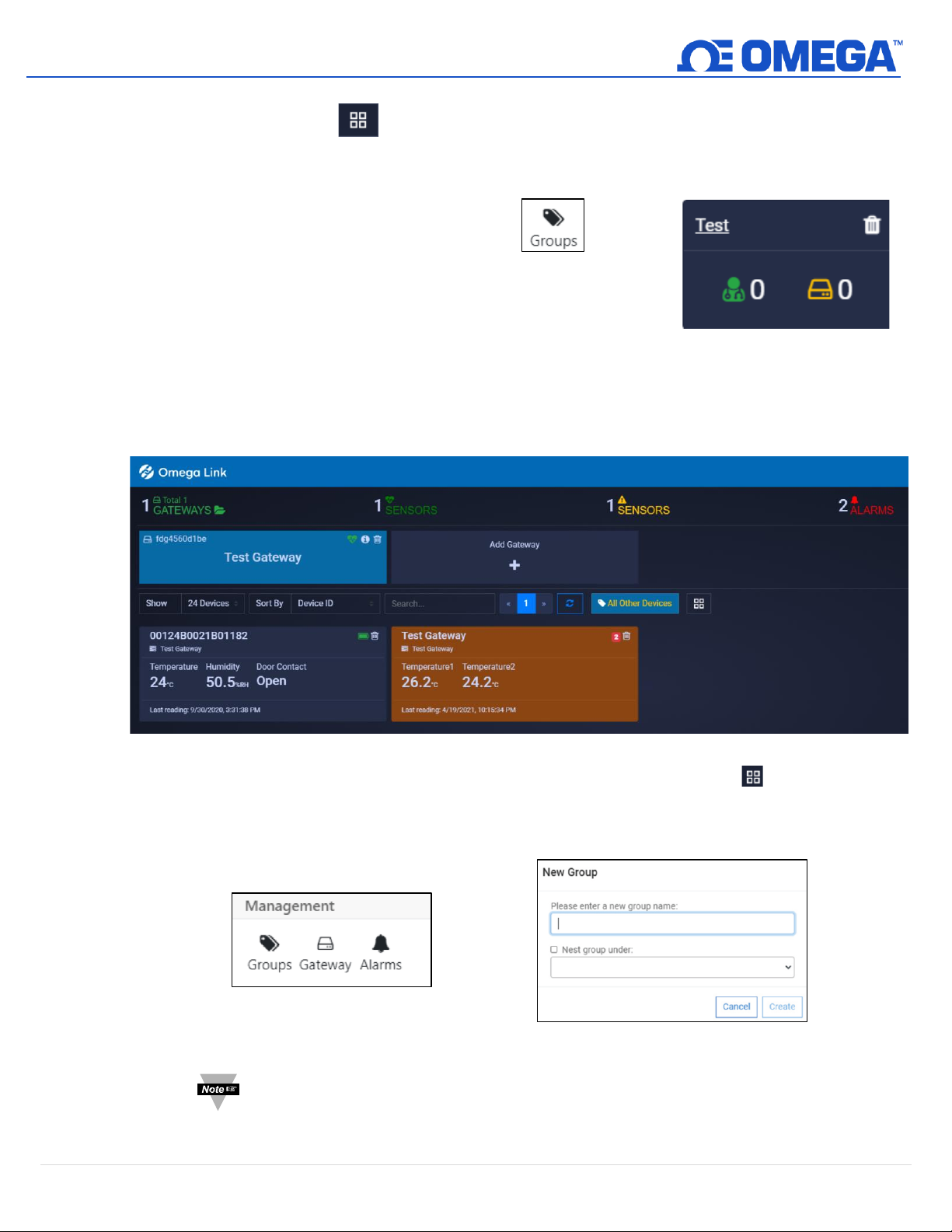

Figure 26: Omega Link Cloud devices homepage
Step 1: On the Omega Link Cloud homepage, click on the management icon .
Step 2: Click Groups, then click Add Group and create a name for your group. Click Create to
finalize.
Note: The dropdown for Nest Group Under can be disregarded.
22 | M 5 7 9 0
Page 23
Step 3: Once your group is created, a pop-up window will appear with the title Manage Device Groups. Click
the icon to add a user’s email address and grant them access to the group. Click OK to finalize
the changes.
Note: Before adding a user to a group, the user must be granted access to the Omega Link Cloud
account by completing the steps outlined in section 8.3.3.1 How to Add Users.
Figure 29: Device group management interface
Step 4: Once back on the Manage Device Groups window, click the icon to add sensing devices to your
newly created group. Click OK to finalize the changes.

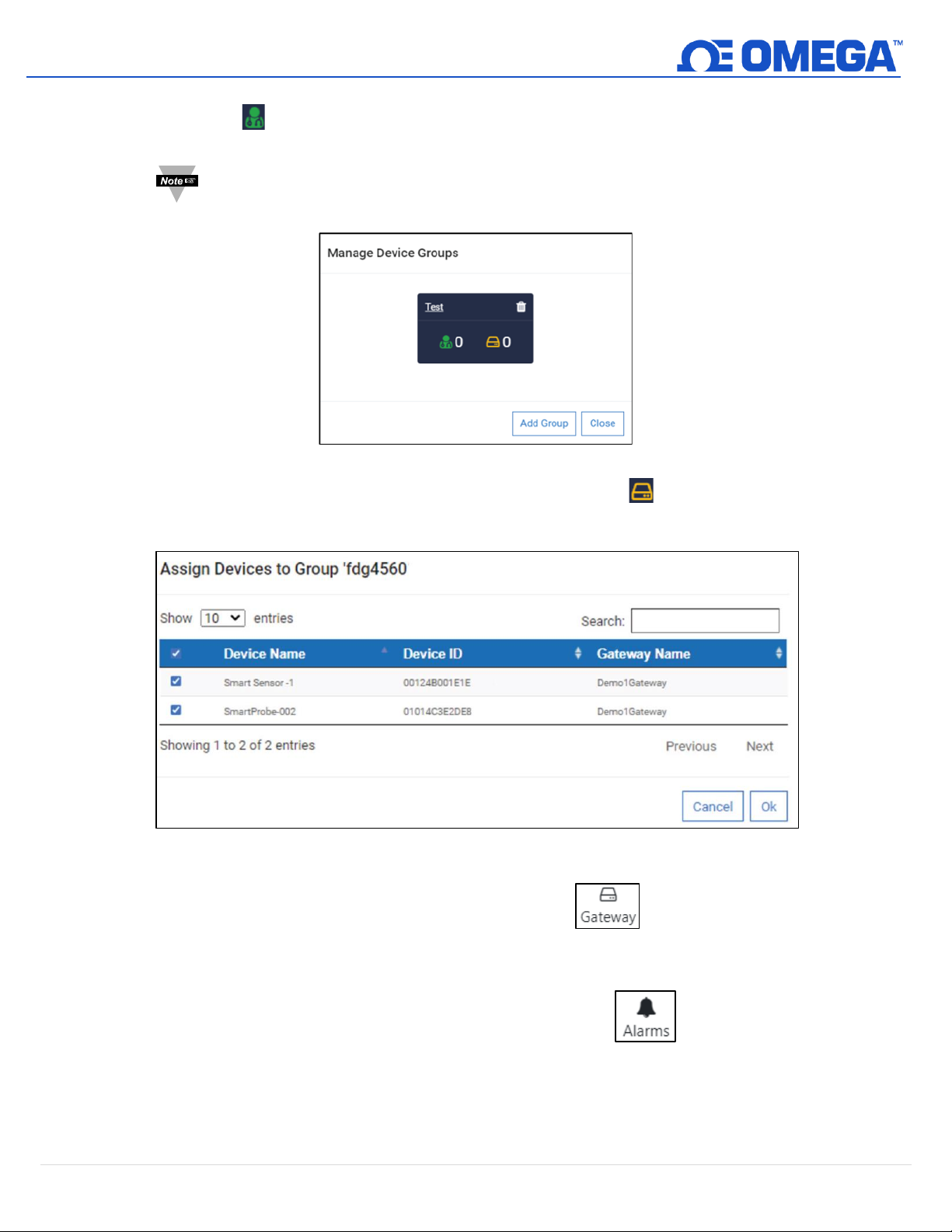

Figure 30: Assigning a device to a specific group
8.1.2.3 Assign Gateway to Admin (Admin Only)
To assign a gateway to an admin, click the Gateway icon. Enter the admin’s email address
and select the gateway that will be assigned to them. Click Assign Gateway to finalize.
8.1.2.4 Assign Alarm Notifications
To assign gateway alarms to other users, click the Alarms icon. Select your gateway,
select the users to be assigned the alarm notifications, and click Confirm Assign to finalize.
23 | M 5 7 9 0
Page 24
8.1.3 Sensor Analytics
To access the analytics of a specific sensor, click on the measurements of the sensor you wish to view.
8.1.3.1 Measurements
The measurements tab displays graphs of the readings recorded by your sensor. It allows users to
change between live readings and specified ranges of time. All data points, except for Real Time, are
down sampled to 10 minutes when plotted on the Omega Link Cloud interface regardless of the
Cloud subscription level. All Real Time data fully remains in the Historian. See section 6.2 Historian
for more information.

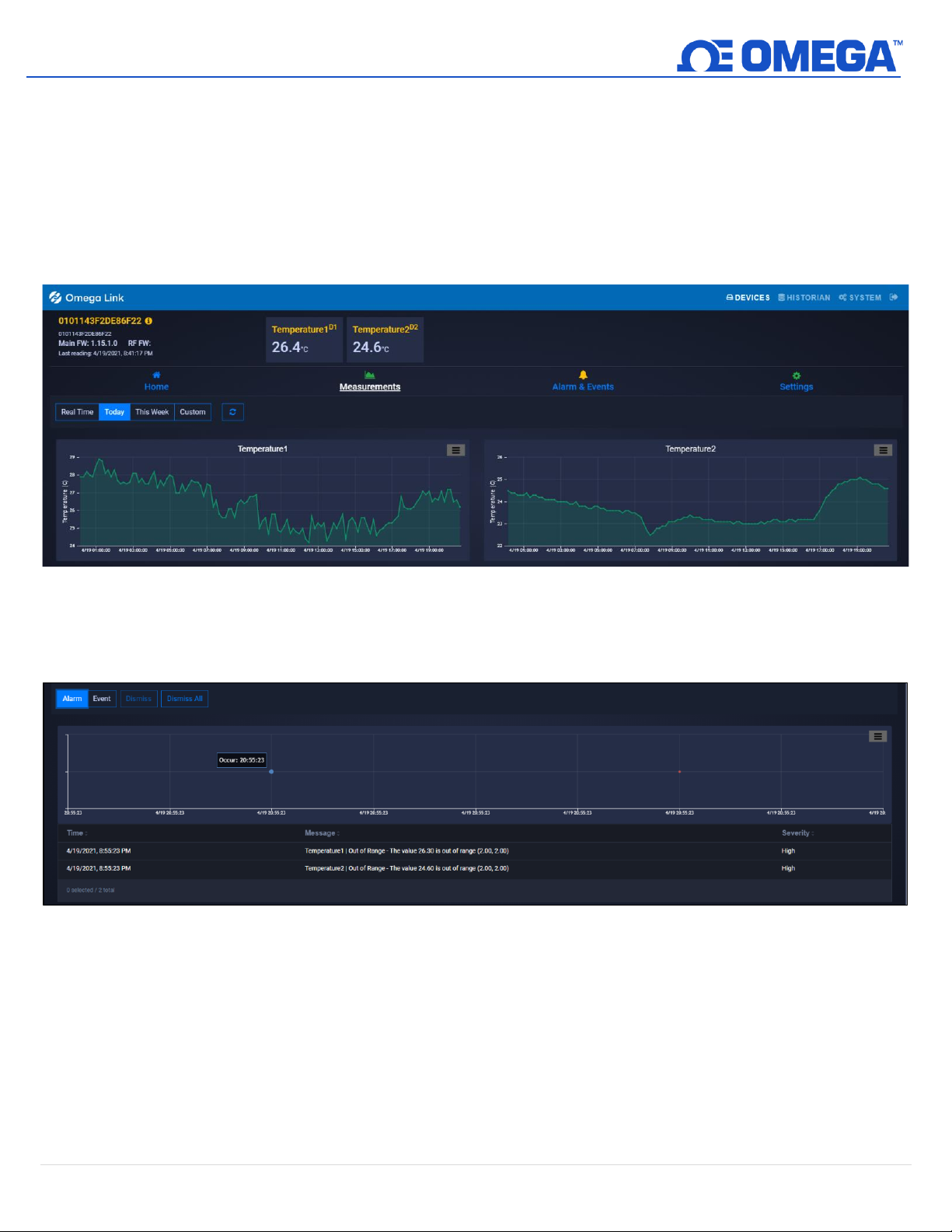

Figure 31: Omega Link Cloud sensor measurements – Graph View
8.1.3.2 Alarms and Events
The Alarms and Events tab displays all alarms and events that were triggered by this device. Each
alarm and event include a short message describing the nature of the alarm or event.
Figure 32: Omega Link Cloud Alarms and Events interface
24 | M 5 7 9 0
Page 25
8.1.3.3 Settings (Define Alarms and Events)

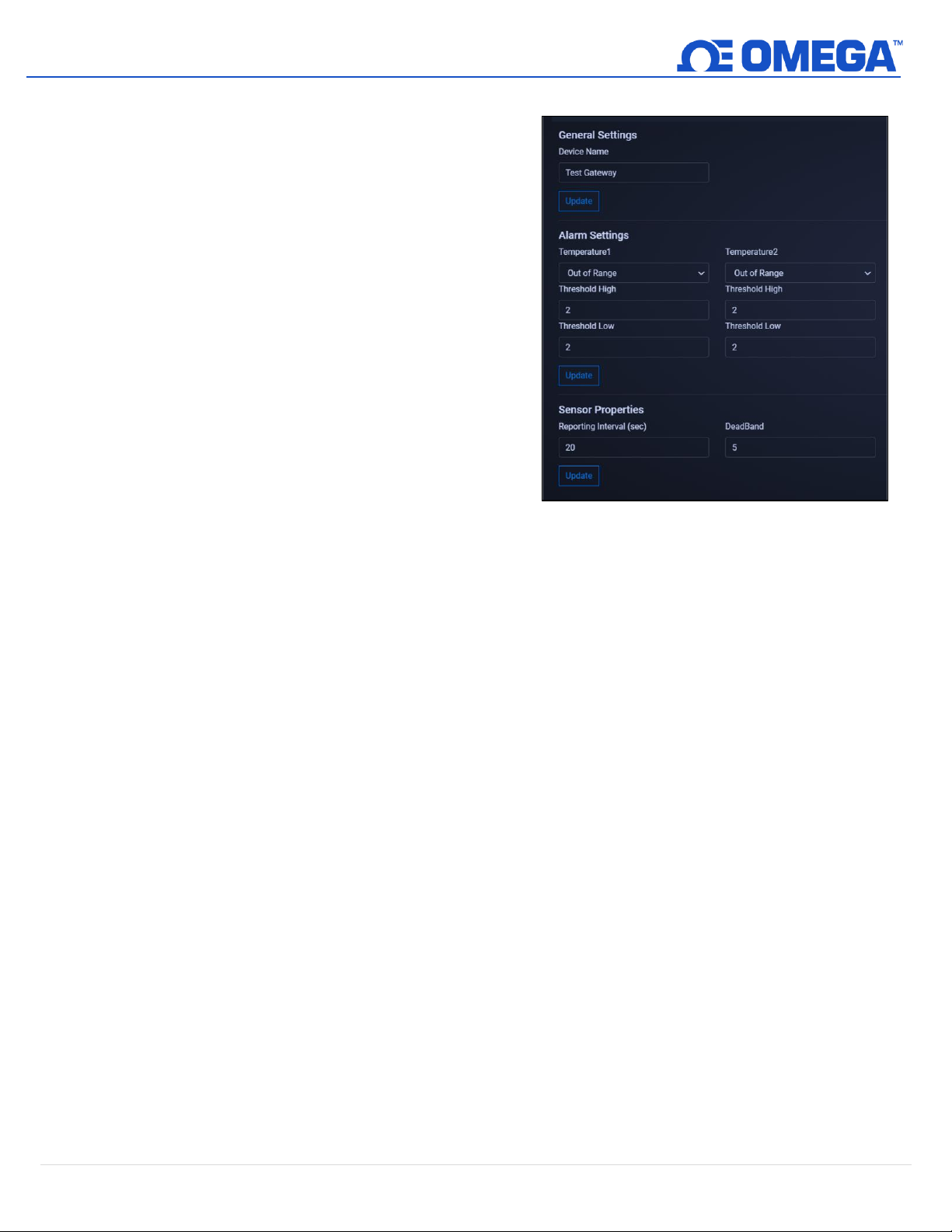

Figure 33: Omega Link Cloud Settings
The Settings tab allows users to change all
settings relevant to how the device interacts
with the Omega Link Cloud. Users can
customize the device name, alarm/event
thresholds, and sensor reporting properties.
To set a local alarm output once you are in
the Settings tab, define the parameters of
the alarm by defining the threshold. Your
alarm can be configured to trigger when
readings go Above, Below, or Out of Range
of your defined threshold. Once you have
defined your alarm parameters, click Update
to finalize your changes.
8.1.3.4 What is Deadband in Settings?
It is standard to establish the desired threshold or setpoint to trigger an alarm when a condition is
met. Triggering an alarm repeatedly in a short period, however, can produce unwanted results, such
as having the alarm flip between inactive and active several times and triggering unwanted actions
tied to that alarm as a result. Additionally, the constant alarm email notifications may result in an
email service shut down.
To solve the alarm chattering issue, Omega has implemented a Deadband feature into the Omega
Link Cloud. Also known as hysteresis, the deadband establishes a range, or threshold, of values from
the setpoint that the Omega Link Cloud will accept before the alarm is triggered. The deadband
threshold can either be defined as an absolute value or as a percentage of the setpoint value.
25 | M 5 7 9 0
Page 26
In the Omega Link Cloud, the deadband feature in the alarm

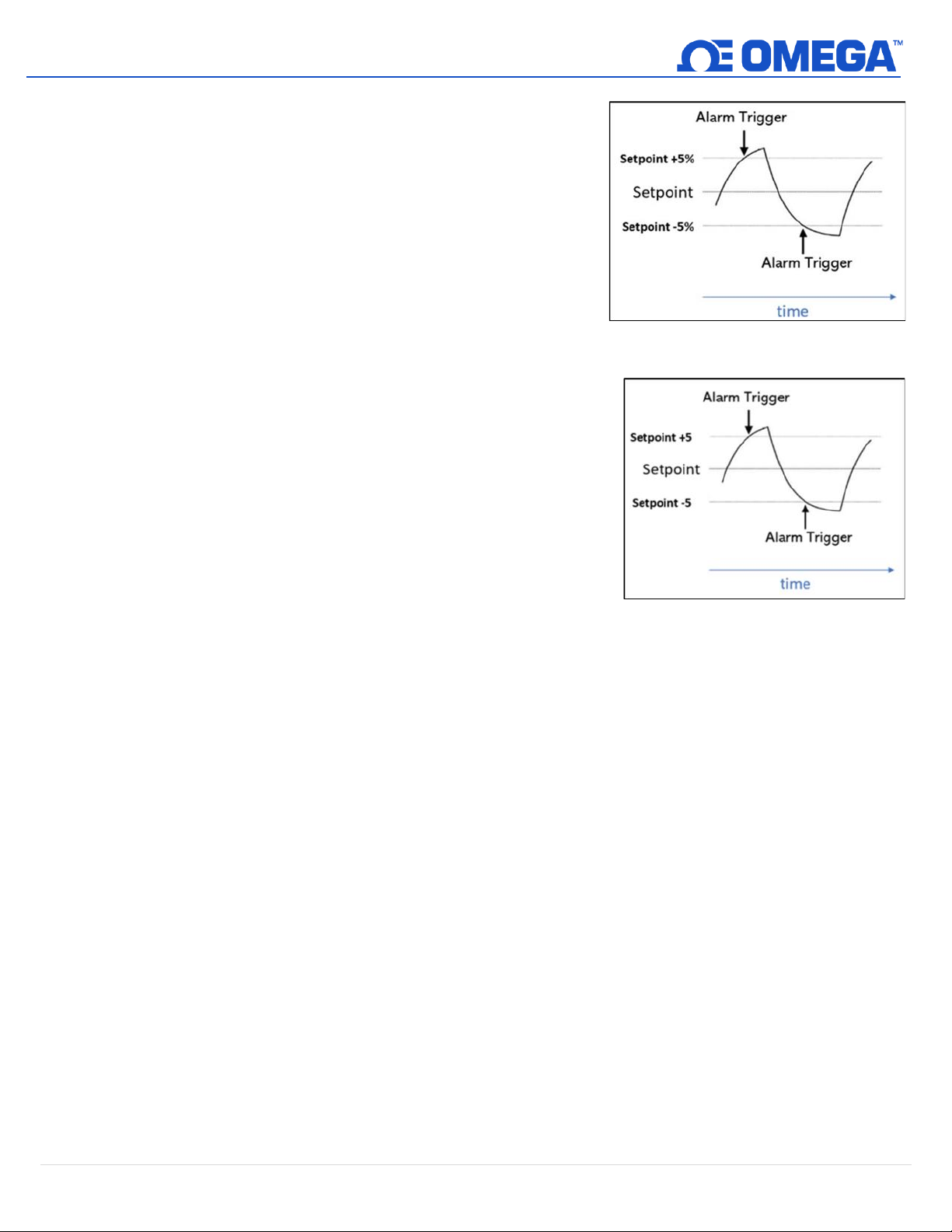

Figure 34: Setpoint as a percentage
Figure 35: Setpoint as an absolute value
settings is expressed as a percentage. For example, if a user
enters a value of 5 in the deadband text box, a range of
+5% to -5% from the threshold has been established and the
alarm will not be triggered within that region.
In OEG, the deadband feature in the alarm settings is expressed as
an absolute value. For example, if a user enters a value of 5 in the
Deadband text box, a range of +5 to -5 from the threshold has
been established and the alarm will not be triggered within that
region.
26 | M 5 7 9 0
Page 27
8.2 Historian
The Historian tab allows users to create reports of past readings within a range of time and presents them as a graph.
Through the Historian tab, users can export their chart data as a .csv file. Begin by clicking Select Devices and making
your selection. Select the range of time your wish to view and choose a graph type from the selection. Your data will
then be displayed and ready for export.
Figure 36: Omega Link Cloud Historian interface
8.2.1 How to Generate a Historical Data Report
The Historian tab allows users to create reports of past readings within a range of time and presents them
as a graph. Through the Historian tab, users can export their chart data as a .csv file. Begin by clicking Select
Devices and making your selection. Select the range of time your wish to view and choose a graph type from
the selection. Your data will then be displayed and ready for export.
Users can begin to generate a Historical Data Report by clicking the Select Devices button.
Figure 37: Historical Data Report parameters
Users can then select the desired device(s) to add to the report by clicking the associated checkboxes. Click
OK to finalize the selection.
27 | M 5 7 9 0
Page 28

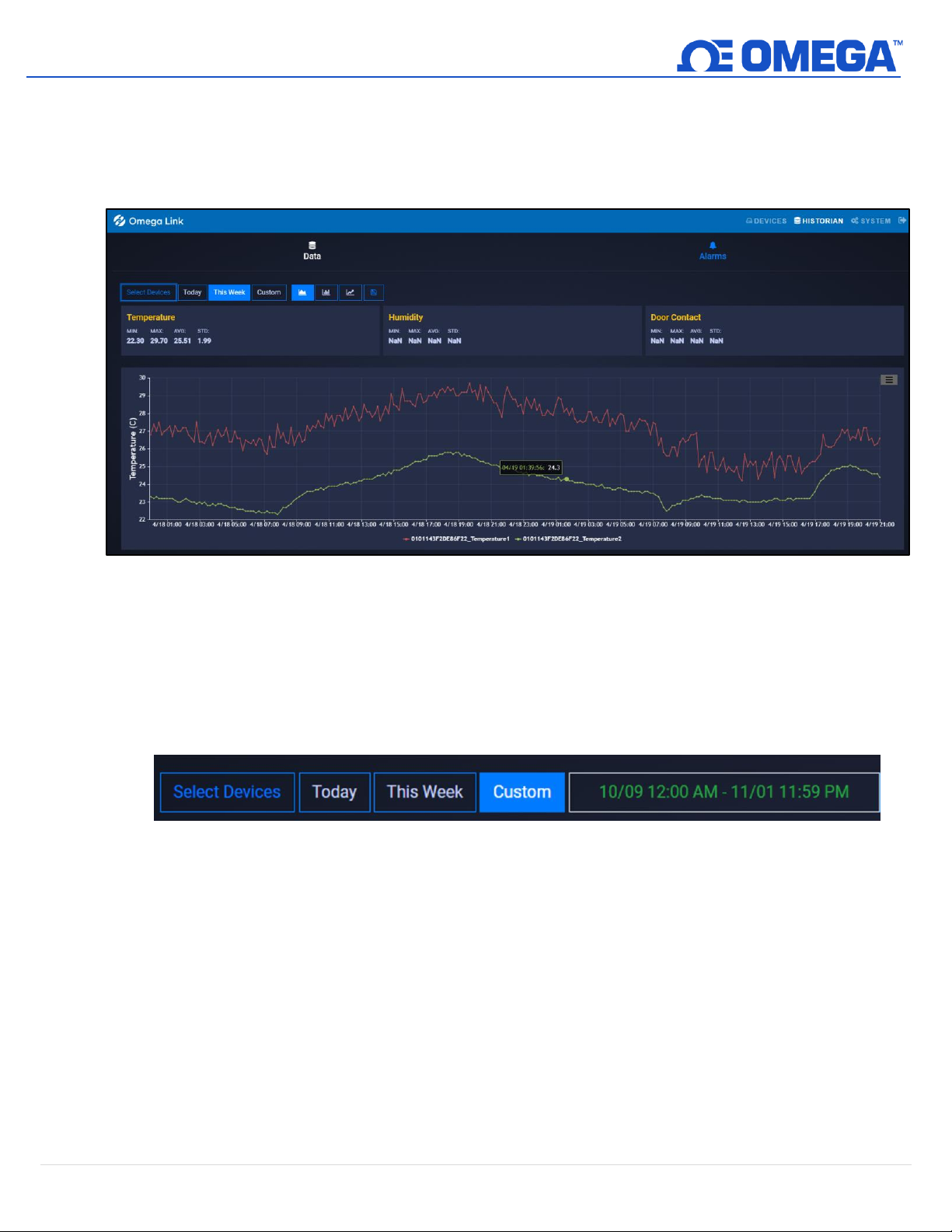

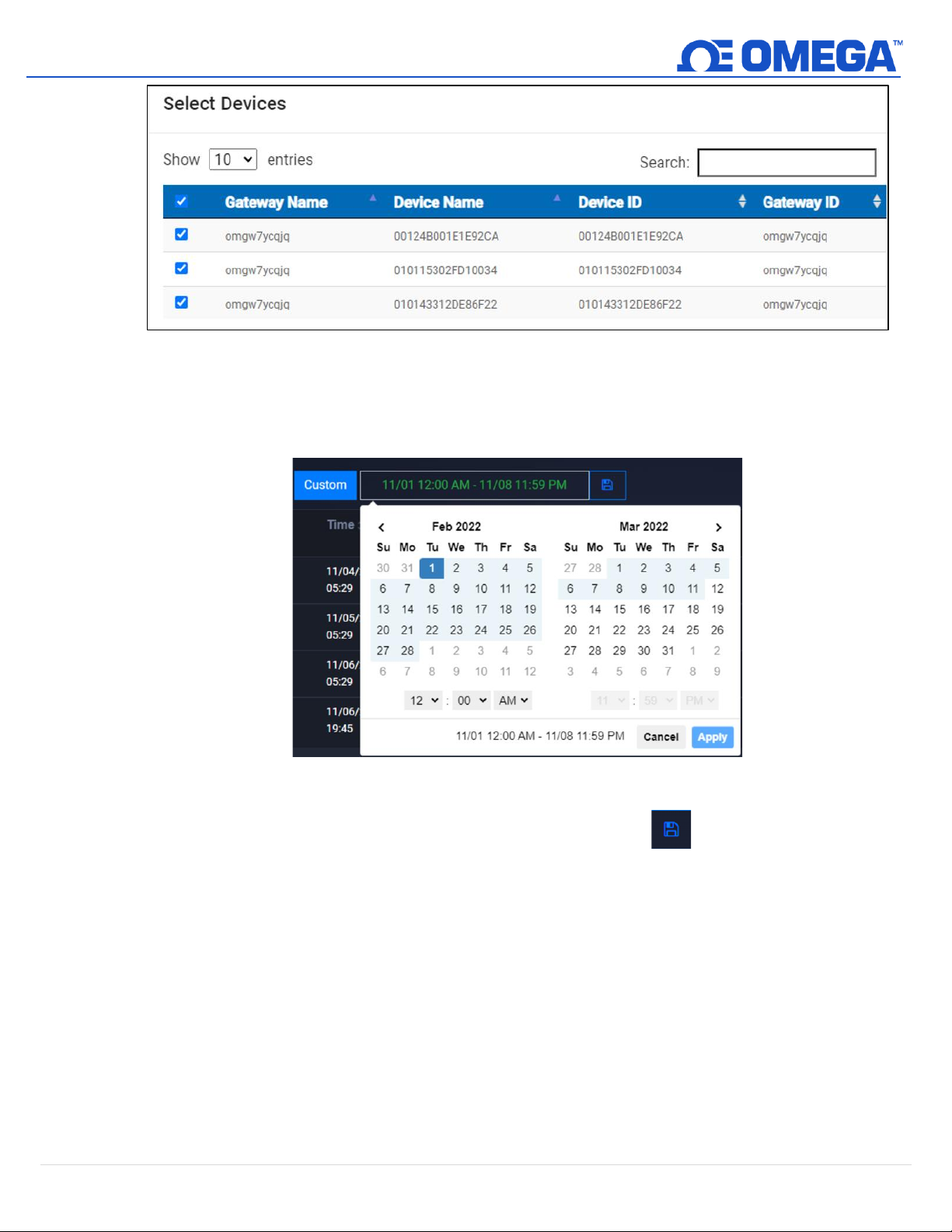

Figure 38: Historical Data Report Select Devices interface
Select a period or a range of dates
To specify the range of time the report will cover, users can select Today, This Week, or Custom date and
time. Click Apply to finalize the changes.
Figure 39: Custom date range calendar interface
Save the Result/Export Chart Data
Users can save and export the generated data by clicking the save icon . A .csv file of the data will be
generated and the user will be prompted to download the file.
28 | M 5 7 9 0
Page 29
Graph Data Presentation
The Historian interface provides three methods of presenting graphed data: Plot Time Series, Plot
Histogram, and Plot Prediction.
Figure 40: Graph data viewing options
Plot Time Series
Plot Histogram

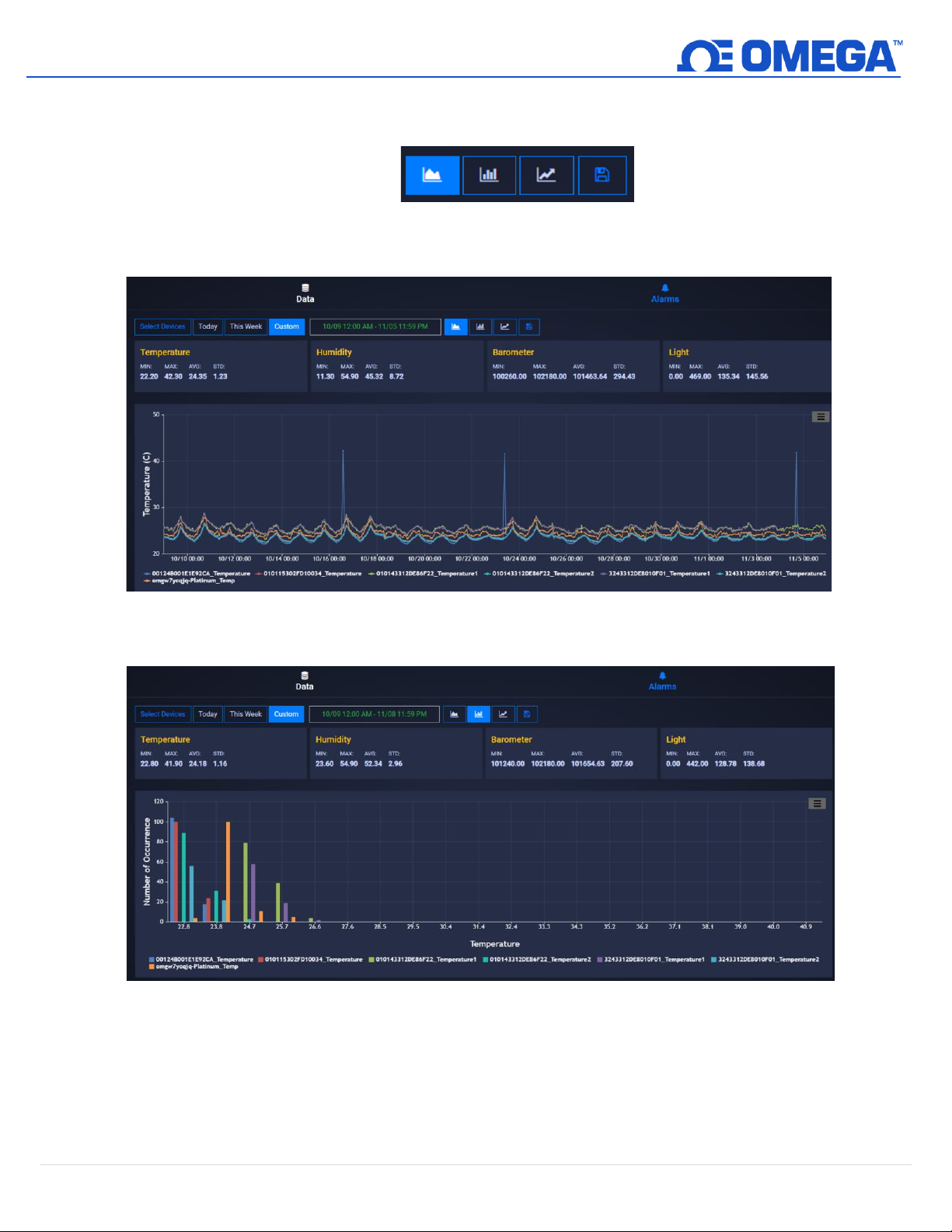

Figure 41: Plot time series graph view
Figure 42: Plot Histogram graph view
29 | M 5 7 9 0
Page 30
Plot Prediction
To utilize the Plot Prediction feature, enter the date and time of the value you would like to predict and click the
Predict Future Values button to display the data.

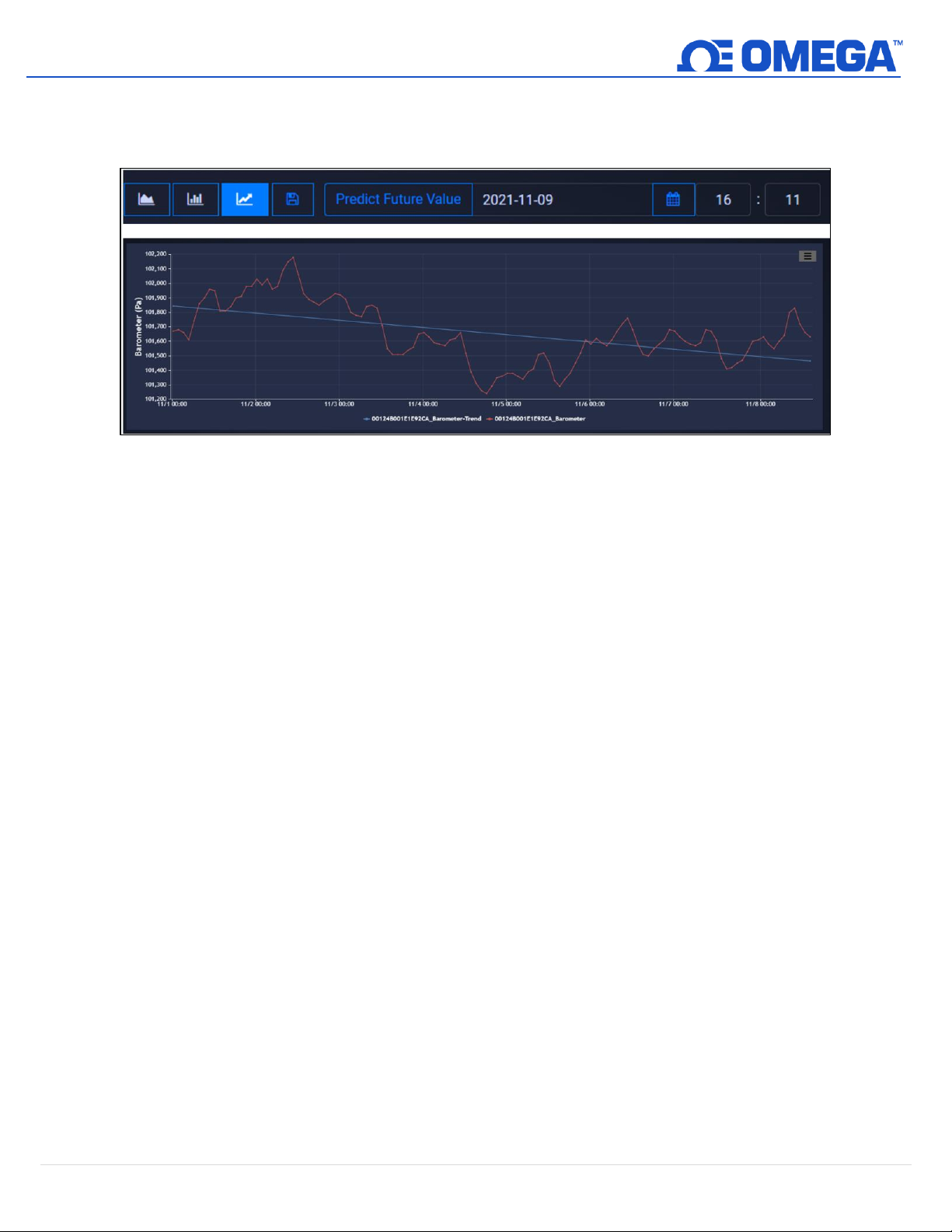

Figure 43: Plot Prediction graph view
30 | M 5 7 9 0
Page 31
8.3 System Settings
The System settings for the Omega Link Cloud allow you to customize your profile information, the units of measure
displayed, user access permission, subscription management, and includes contact information for technical support
and feedback.
8.3.1 Profile
The Profile tab allows users to configure settings such as associated email addresses, passwords, security
questions, and notifications.
Using the email address associated with the account or by providing an SMS email address, users can
receive notifications directly whenever an alarm or event is triggered.
Passwords can be updated by entering the old password in the text box then entering and confirming the
new password as directed on the webpage. Security questions can be configured at the bottom of the
Profile webpage.

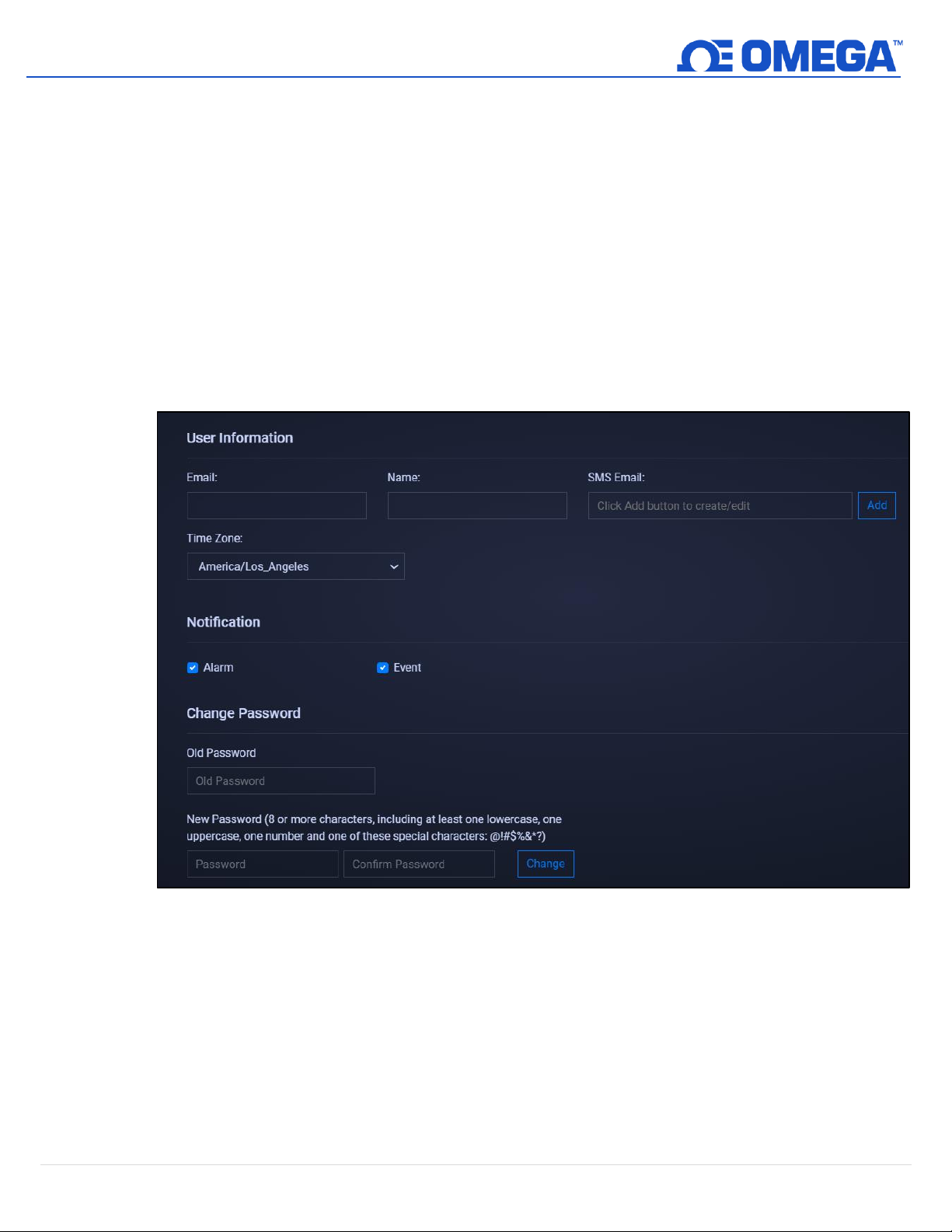

Figure 44: Omega Link Cloud Profile settings
31 | M 5 7 9 0
Page 32
8.3.2 Units

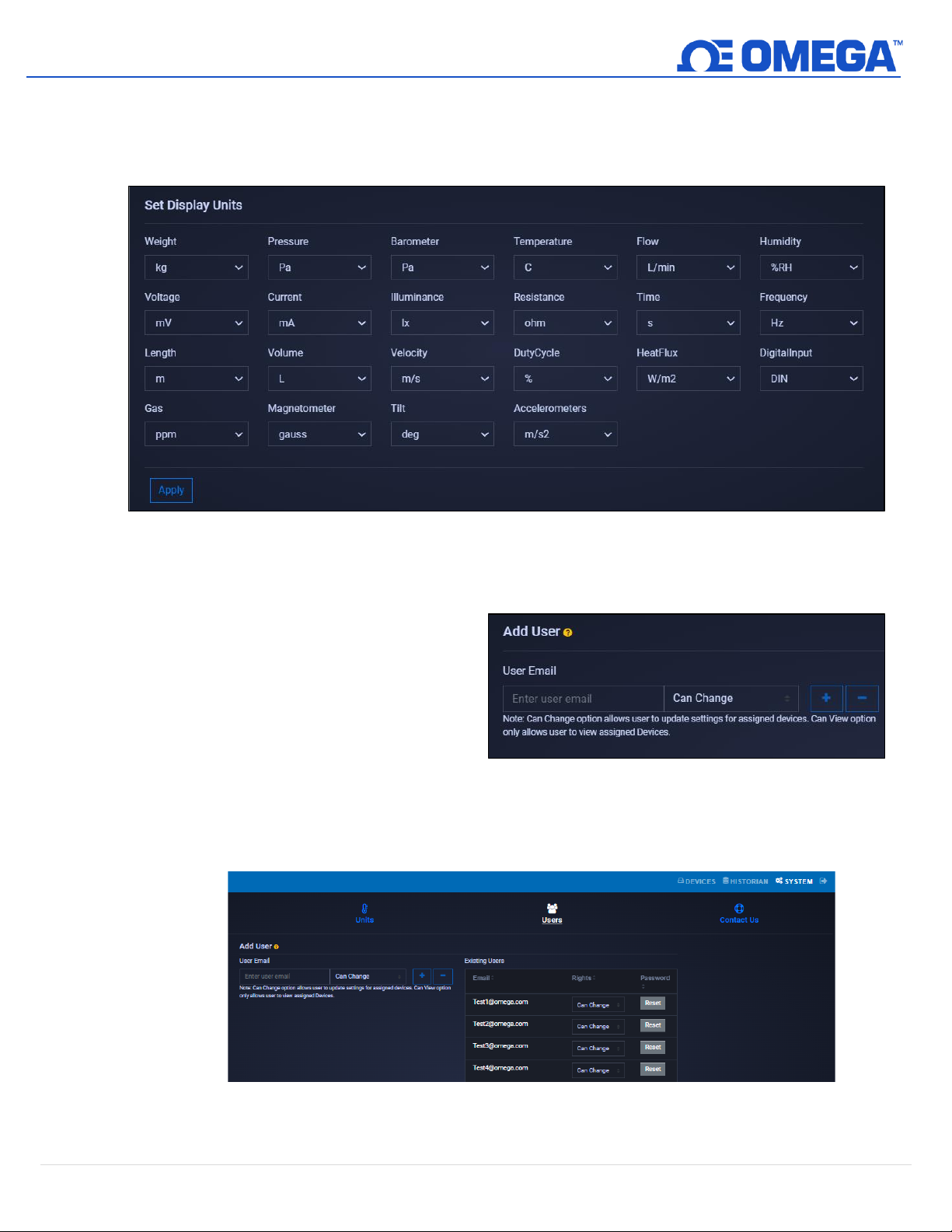

Figure 45: Omega Link Cloud local display units
Figure 46: Omega Link Cloud Add or Remove user access
The units tab allows users to set their preferred units of measure as they appear on the Omega Link Cloud.
Changing the units here does not change the units of your sensing devices. It only changes the unit of
measure as it appears on the Omega Link Cloud.
8.3.3 Users
The Users tab allows you to give others
access to view the data for your gateway on
their Omega Link Cloud accounts. To add a
user, enter their email address in the text box
and choose Can Change or Can View to grant
full access or restrict access, respectively.
8.3.3.1 How to Add Users
To add users to your Omega Link Cloud account, follow these steps:
Step 1: On the Omega Link Cloud homepage, click on the SYSTEM tab, and click on Users. Enter the
email address of the user you want to add.
Figure 47: Omega Link Cloud Users tab
32 | M 5 7 9 0
Page 33
Step 2: Click the dropdown next to the email address text box and select the level of access the new
Step 3: Click the icon to add the user. The email address of the new user will appear on the
Step 4: Once the previous steps are complete, the new user will receive an email prompting them to
8.3.4 Subscription
The Subscription tab shows your current subscription tier and provides a link to the Omega website should
you choose to upgrade your subscription plan. If you purchased the subscription with a billing email
different than your Omega Link Cloud account email, you may link the two here.
8.3.5 Contact Us
The Contact Us tab provides an email address link for direct engineering technical support. It also provides a
text field for user feedback and comments.
Note: Changing the units of measurement only affects the readings displayed on the Omega Link Cloud.
Omega Link sensing devices interpret data in SI.
user will have: Can Change or Can View.
Existing Users table.
register an Omega Link Cloud account. If no email is received within 10 minutes, the email
may be in the user’s spam folder.
33 | M 5 7 9 0
Page 34
8.4 How to Remove a Paired Smart Sensor from a Gateway

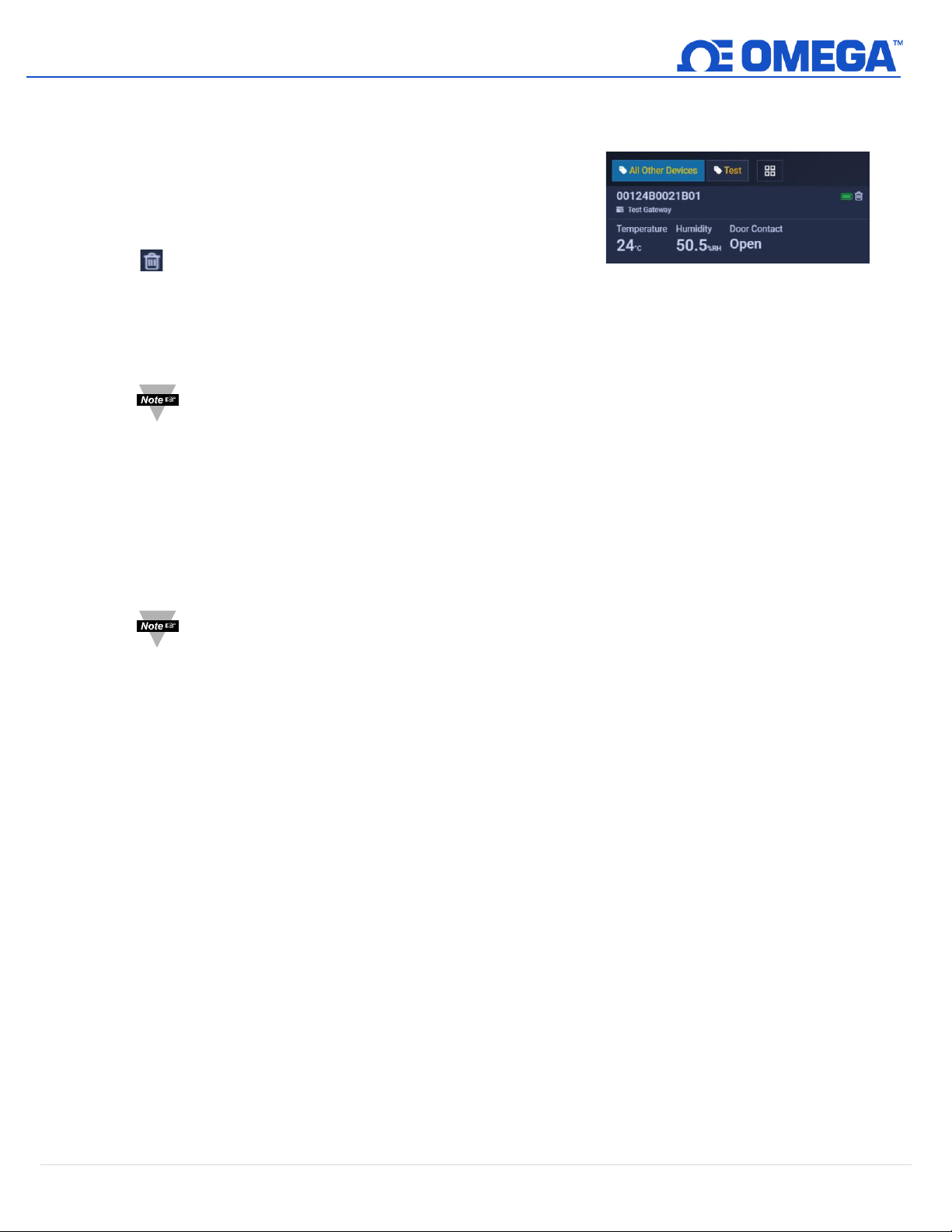

Figure 48: Omega Link Cloud UI Smart Sensor readings
To remove a paired Smart Sensor (such as the SS-001) from a Gateway, follow the steps below:
Step 1: Log in to the Omega Link Cloud account associated with the
paired devices.
Step 2: From the Omega Link Cloud device readings page, identify the
Smart Sensor that will be removed, and click the Trash Can icon
.
8.4.1 How to Move a Paired Smart Sensor to a Different Gateway
To move a paired Smart Sensor (such as the SS-001) to a different Gateway, follow the steps below:
Note: When moving a paired Smart Sensor to a different Gateway, alarm and event thresholds may be
triggered and notifications based on user preference may be delivered. Notifications sent as a
result of the re-pairing process may be disregarded.
Step 1: Navigate to the Omega Link Cloud Portal that is associated with the Smart Sensor and remove the
Smart Sensor from the account.
Step 2: Ensure the unit is being powered with either a USB connection or batteries. Press and hold the
Pairing Button on their Smart Sensor for 8 seconds so that the LED Status Indicator blinks red to
factory reset the device, then release the pairing button.
Note: The Pairing Button for the SS-001-RUG is in a pinhole on the underside of the device. Use a
paperclip to press and hold the pairing button for 8 seconds so that the LED Status Indicator
blinks red to factory reset the device, then release the pairing button.
After the factory reset, the LED Status Indicator on the Smart Sensor will turn Amber/Orange indicating the
device is in pairing mode and is ready to be paired to a new Gateway.
34 | M 5 7 9 0
Page 35
9 Certification
Safety:
EN 61010-1:2010
EMC:
EN 301 489-1 V2.2.0
EN 301 489-3 V2.1.1
Radio:
EN 300 320-1 V3.1.1
EN 300 220-2 V3.1.1
10 General Public License Statement
This product contains software that is subject to an open-source license agreement including GNU General Public
License (“GPL”) or GNU Lesser General Public License (“LGPL”). With respect to the free/open-source terms, customers
of this product have rights to acquire, modify and redistribute the source code in accordance of the terms of the GPL
and LGPL. If you have any questions or wish to receive a copy of any source code that you may be entitled under the
term, please contact us at:
Please include the SKU of this product in your request.
The subject should be: GW001 GPL license statement request
The original source code is available on the corresponding hosting website.
GNU General Public License:
https://www.gnu.org/licenses/gpl-3.0.en.html
GNU Lesser General Public License:
https://www.gnu.org/licenses/lgpl-3.0.en.html
35 | M 5 7 9 0
Page 36
11 Specifications
Wireless Communication
Frequency*: 915 MHz (-NA)
868 MHz (-EU)
Range**: 1.2 km or up to 3.2 km for -NA models
*Wireless communication is only available on qualifying variants
**Maximum range possible when Smart Sensor is powered by USB and without obstruction
Power
AC Adapter: DC 12 V @ 2A
Interface*
RJ45: 2x port
USB: 2x USB 2.0
DC Jack: DC 12V power input
Serial Port: RS232/RS485
Alarm: SSR 36 V DC 100 mA
Antenna: 1x Antenna for Sub-1G (on qualifying models)
*Available interfaces vary by model of Gateway
Environmental
Rating: IP40
Operating Temperature: -20°C to 65°C (-4°F to 149°F,) non-condensing
Mechanical
Dimensions: 170 mm L x 100 mm W x 42 mm H (6.69” x 3.93” x 1.65”)
Certifications
Contains FCC ID: WR3-MOD16370915
Contains IC ID: 8205A-MOD16370915
Emission & Immunity for EMI/EMS
FCC: FCC Part 15B
CE: Radio Equipment Directive 2014/53/EU, EMC Directive 2014/30/EU, RoHS Directive EU 2015/863
UKCA: Radio Equipment Regulations 2017, Electromagnetic Compatibility Regulations 2016, RoHS Regulations 2012
Radio Frequency & Human Exposure/SAR
FCC: FCC Part 15C (15.247) FCC MPE
Safety
LVD: EN 62368-1
General
Max number of Smart Sensors: Up to 40 Smart Sensors can connect to the Gateway unit.
All specifications are subject to changes without prior notifications. Please visit Omega.com for the latest information.
36 | M 5 7 9 0
Page 37
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for
any damages that result from the use of its products in accordance with information provided
by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED
RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.
FOR WARRANTY RETURNS, please have the
following information available BEFORE contacting
OMEGA:
1. Purchase Order number under which the product
was PURCHASED,
2. Model and serial number of the product under
warranty, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.
OMEGA is a trademark of OMEGA ENGINEERING, INC.
© Copyright 2019 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.
FOR NON-WARRANTY REPAIRS,
OMEGA for current repair charges. Have
the following information available BEFORE
contacting OMEGA:
1. Purchase Order number to cover the COST
of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems
relative to the product.
consult
Page 38
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
TEMPERATURE
MU
Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
MU
Wire: Thermocouple, RTD & Thermistor
MU
Calibrators & Ice Point References
MU
Recorders, Controllers & Process Monitors
MU
Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
MU
Transducers & Strain Gages
MU
Load Cells & Pressure Gages
MU
Displacement Transducers
MU
Instrumentation & Accessories
FLOW/LEVEL
MU
Rotameters, Gas Mass Flowmeters & Flow Computers
MU
Air Velocity Indicators
MU
Turbine/Paddlewheel Systems
MU
Totalizers & Batch Controllers
pH/CONDUCTIVITY
MU
pH Electrodes, Testers & Accessories
MU
Benchtop/Laboratory Meters
MU
Controllers, Calibrators, Simulators & Pumps
MU
Industrial pH & Conductivity Equipment
DATA ACQUISITION
MU Communications-Based Acquisition Systems
MU Data Logging Systems
MU Wireless Sensors, Transmitters, & Receivers
MU Signal Conditioners
MU Data Acquisition Software
HEATERS
MU
Heating Cable
MU
Cartridge & Strip Heaters
MU
Immersion & Band Heaters
MU
Flexible Heaters
MU
Laboratory Heaters
ENVIRONMENTAL
MONITORING AND CONTROL
MU
Metering & Control Instrumentation
MU
Refractometers
MU
Pumps & Tubing
MU
Air, Soil & Water Monitors
MU
Industrial Water & Wastewater Treatment
MU
pH, Conductivity & Dissolved Oxygen Instruments
M5790/0223
Loading...
