Omega GPR-1500 GB, GPR-2500 GB User guide

GPR-x500 Oxygen Analyzers

User Manual

PST-UM-3004-EN-03

PST-UM-3004-EN-03 03/2024

GPR-x500 Oxygen Analyzer User Manual

Issue No. Description Date Author Initials

01 Original document issued 01/2016 PP

02 02/2020

03 * Re-brand template 02/2024 IM

* Hazardous area information

* New firmware information

GPR-x500 Oxygen Analyzers

For contact information, visit

ProcessSensing.com

Analytical Industries Inc (Aii) is part of the Process Sensing Technologies Group (PST).

This document is the property of Process Sensing Technologies and may not be copied or otherwise reproduced, communi-

cated to third parties, nor stored in any Data Processing System without the express

written authorization of Process Sensing Technologies.

©2024 Process Sensing Technologies

ii ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Before using your GPR-x500

Safety information

Please read this manual, ensuring that you fully understand the content before attempting to setup,
maintain or use the GPR-x500. Important safety information is highlighted throughout this document
as follows:

The electrical warning symbol indicates instructions that must be followed to avoid serious or

fatal injury from hazardous voltages and electric shock.

The warning symbol indicates instructions that must be followed to

avoid minor, serious or even fatal injury to personnel.

The electrostatic discharge (ESD) warning symbol indicates the user must take precautions and

follow the necessary steps to avoid generating electrostatic discharge.

The caution symbol indicates instructions that must be followed to avoid damage to equipment

(hardware and/or software) or the occurrence of a system failure.

NOTE: Highlights an essential operating procedure, condition, or statement.

ProcessSensing.com iii

Abbreviations

AC Alternating Current

DC Direct Current

o

C Degrees celcius

o

F Degrees fahrenheit

EC Electrochemical

ELV Extra Low Voltage

ESD Electrostatic Discharge

FSD Full-scale Deflection

g Grams

GND Ground

IS Intrinsically Safe

kg Kilograms

GPR-x500 Oxygen Analyzer User Manual

lb Pounds

LD Liquid Drain

LDL Lower Detection Limit

LED Light Emitting Diode

LPM Liters Per Minute

mA Milliampere

OEM Original Equipment Manufacturer

oz Ounces

PC Personal Computer

PCB Printed Circuit Board

PLC Programmable Logic Controller

ppb Parts Per Billion

ppm Parts Per Million

SCFH Standard Cubic Feet per Hour

SS Stainless Steel

iv ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Contents

Before using your GPR-x500 ........................................................................................... iii

Safety information ....................................................................................................................................iii

Abbreviations ..............................................................................................................................................iv

1 Introduction ........................................................................................................................1

1.1 Overview .................................................................................................................................................1

1.2 Models ....................................................................................................................................................2

1.3 Applications ..........................................................................................................................................2

1.4 Sensors ....................................................................................................................................................2

1.4.1 GPR-12-333 Sensor ................................................................................................................................... 3

1.4.2 -LD suffix Sensor ........................................................................................................................................ 3

1.4.3 GPR-12-333-H Sensor ............................................................................................................................. 3

1.4.4 XLT-12-333 Sensor .................................................................................................................................... 3

1.4.5 GPR-11-60 Sensor ..................................................................................................................................... 3

1.4.6 XLT-11-24 Sensor ...................................................................................................................................... 3

1.5 Further general considerations .....................................................................................................4

1.5.1 Conditions of use in hazardous areas ............................................................................................... 4

1.6 Safety approvals and directives .....................................................................................................5

2 Installation ......................................................................................................................... 6

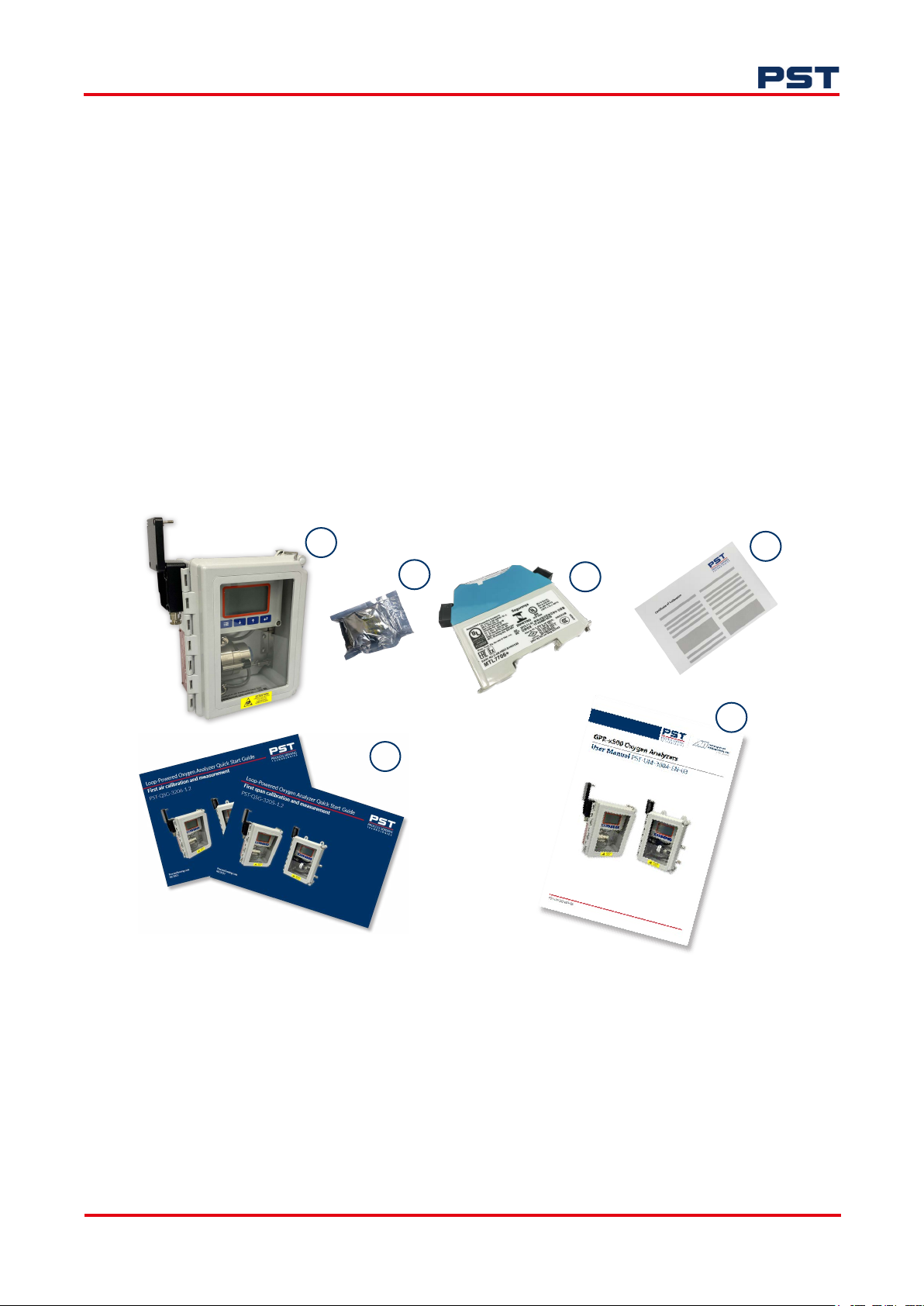

2.1 Unpack your analyzer ........................................................................................................................7

2.2 Analyzer features ................................................................................................................................8

2.3 Mount your analyzer .........................................................................................................................8

3 Connection ...................................................................................................................... 10

3.1 Connect your power supply ......................................................................................................... 10

3.2 Hazardous area connections ....................................................................................................... 11

4 Sensor installation ......................................................................................................... 12

4.1 GPR-1500 ............................................................................................................................................12

4.2 GPR-2500 ............................................................................................................................................13

5 Before connecting gas .................................................................................................. 15

5.1 Necessary considerations before gas connection .............................................................. 15

5.2 Connect your gas ............................................................................................................................. 16

5.3 Calibration gases .............................................................................................................................. 16

5.4 Sample gas requirements ............................................................................................................. 17

5.4.1 Inlet pressure .............................................................................................................................................17

5.4.2 Outlet pressure .........................................................................................................................................17

5.5 Prepare your zero/span gas ......................................................................................................... 17

6 Operation ......................................................................................................................... 19

6.1 User interface .................................................................................................................................... 19

6.2 Initial start-up and self-test ......................................................................................................... 20

6.3 Menus ................................................................................................................................................... 21

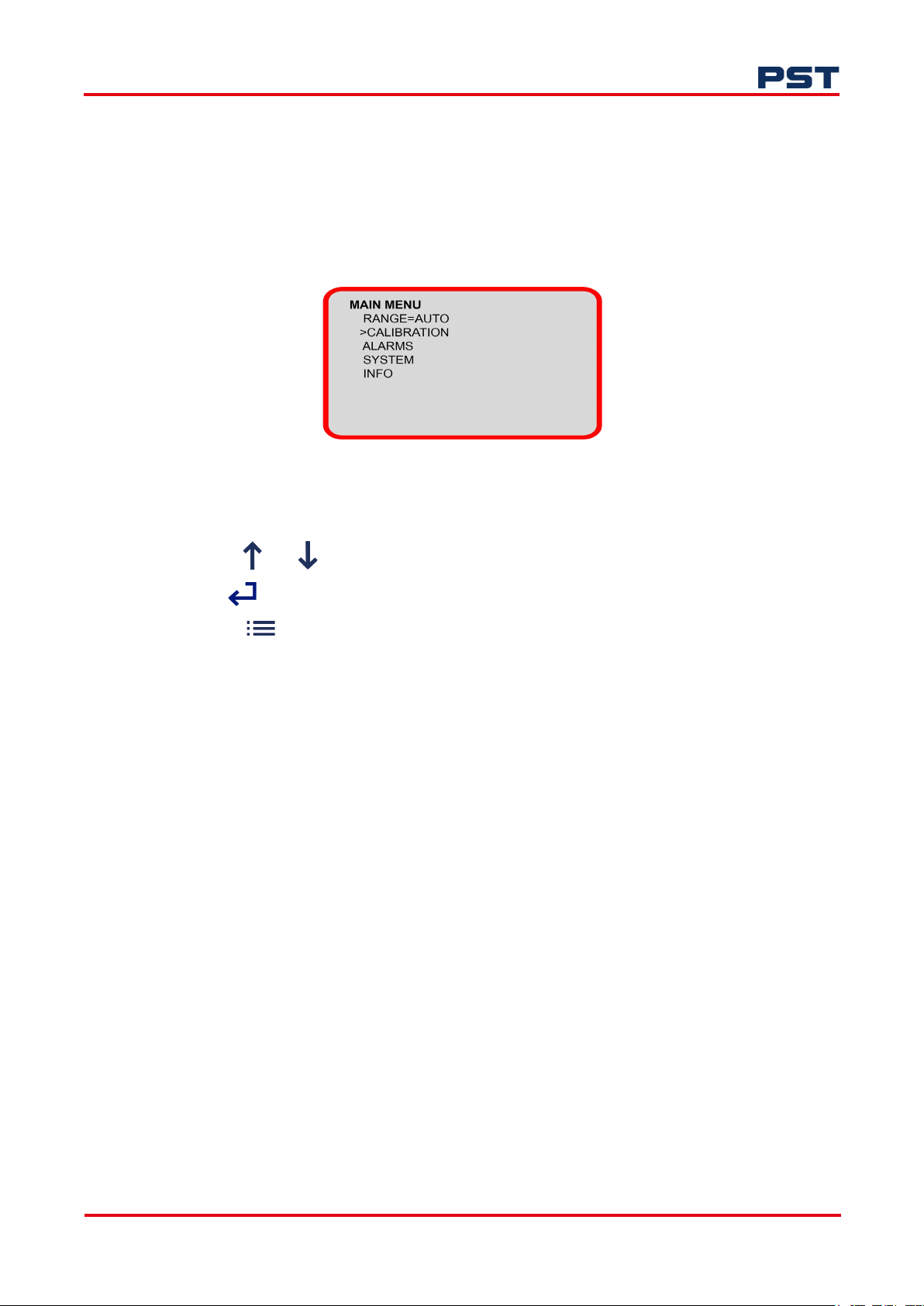

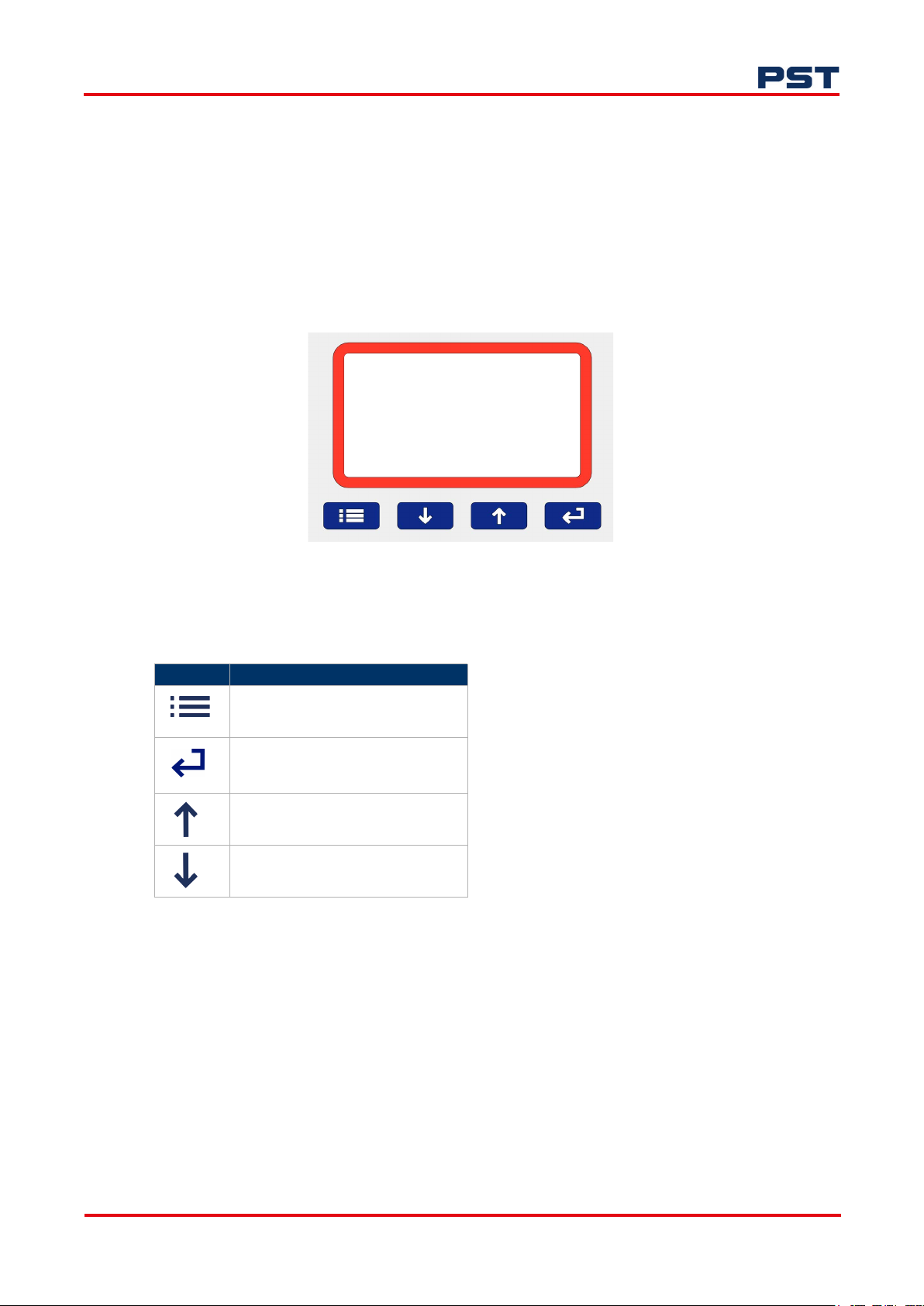

6.3.1 Main Menu and interface keys ...........................................................................................................21

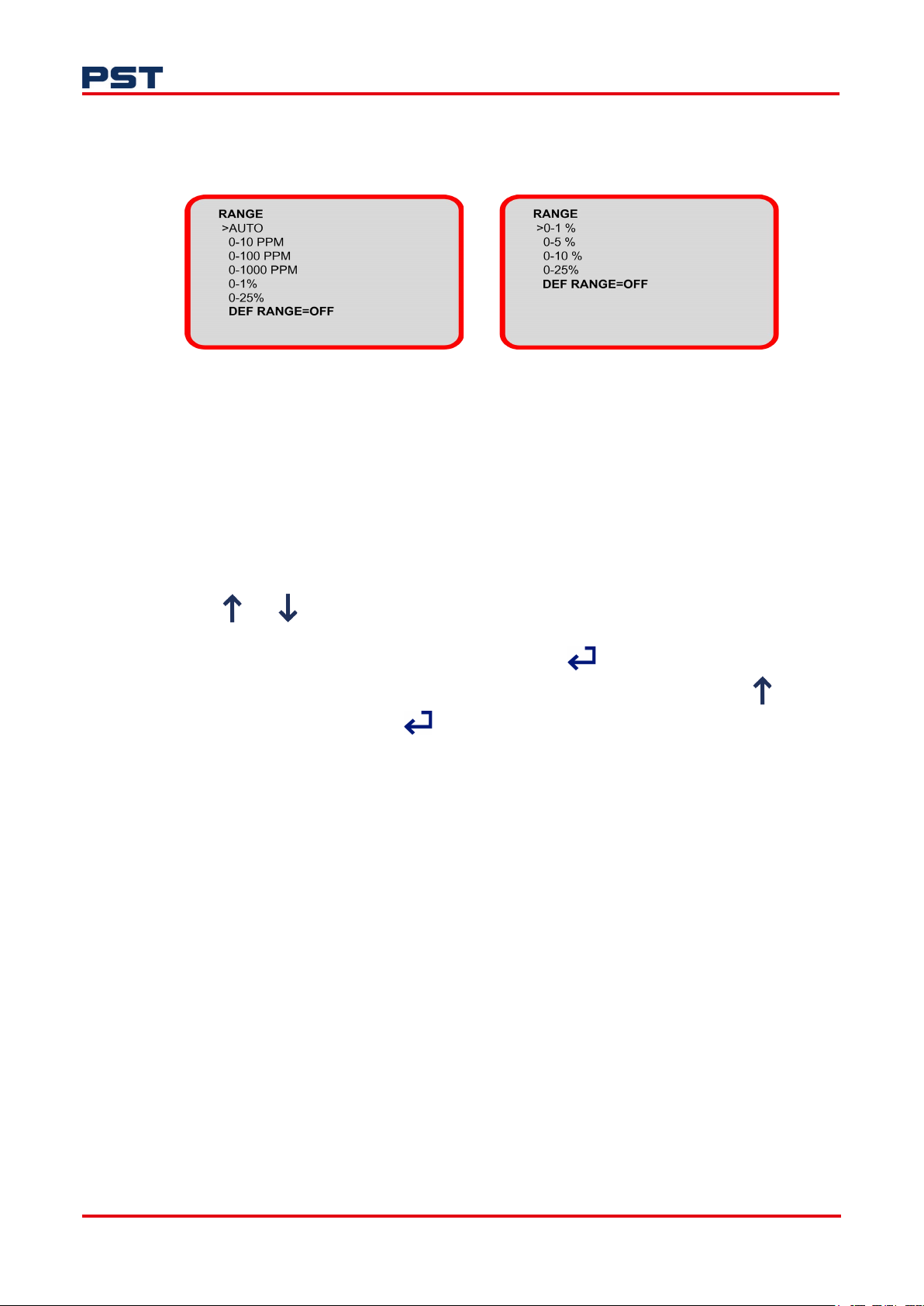

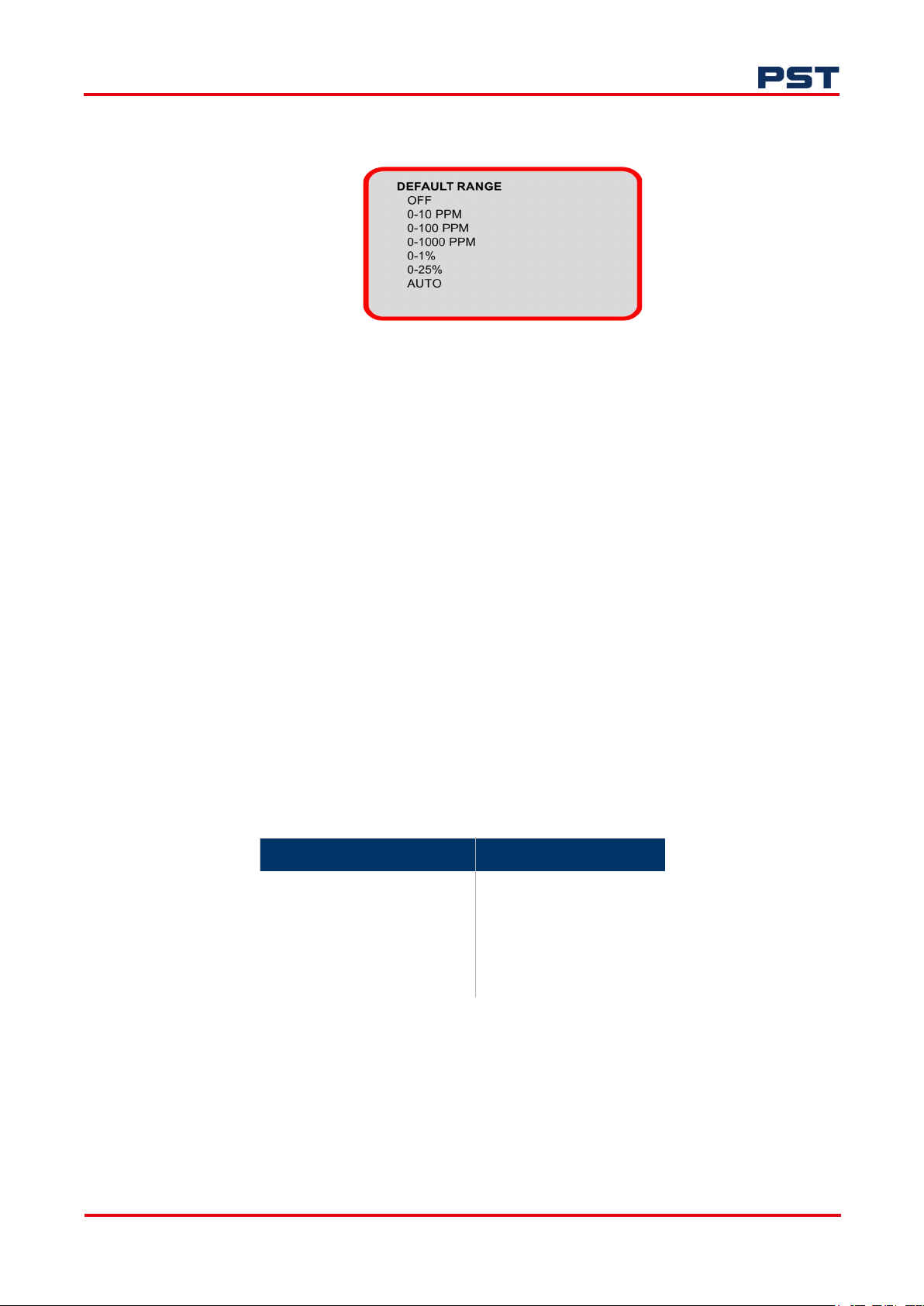

6.3.2 Range selection ........................................................................................................................................22

ProcessSensing.com v

GPR-x500 Oxygen Analyzer User Manual

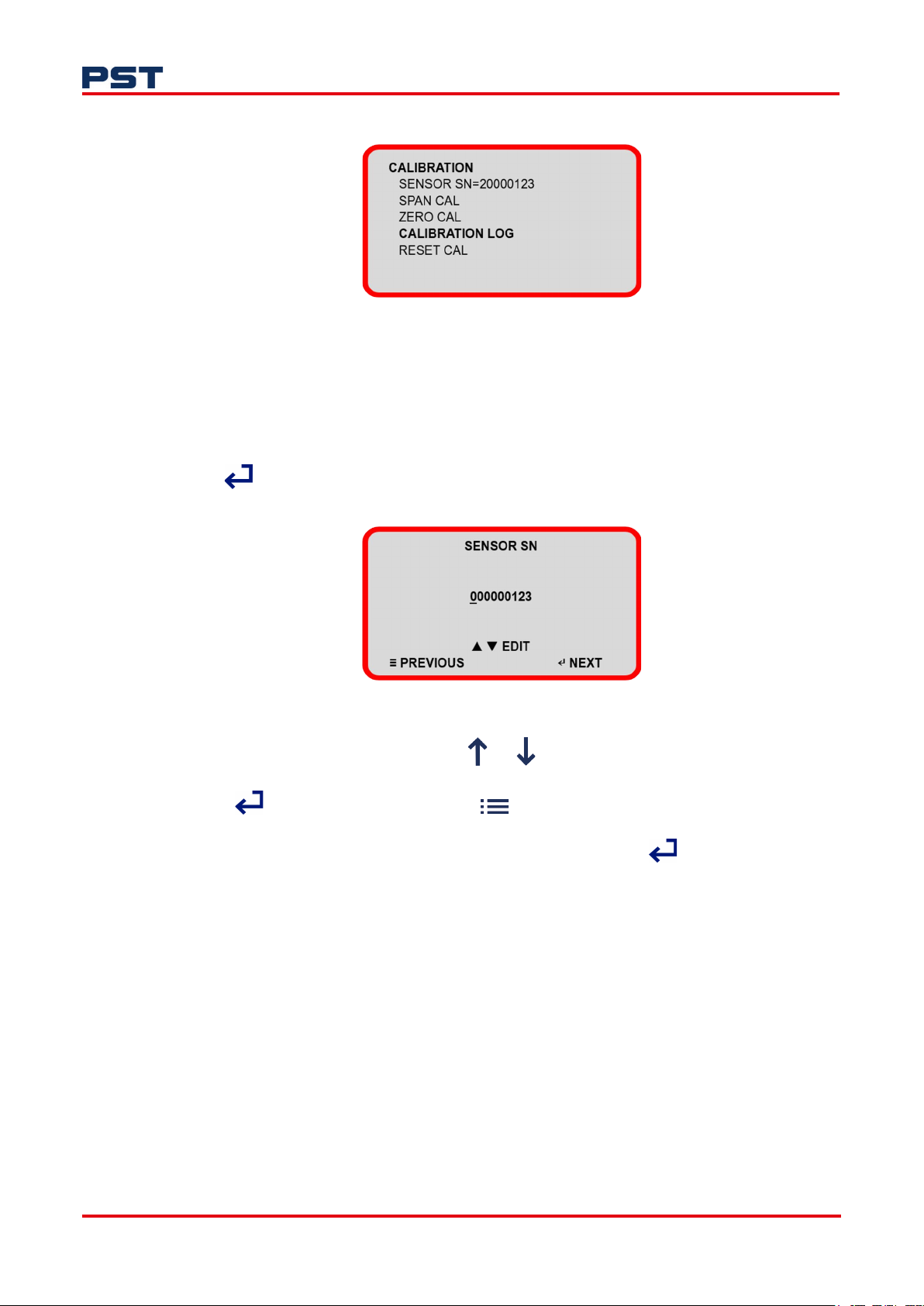

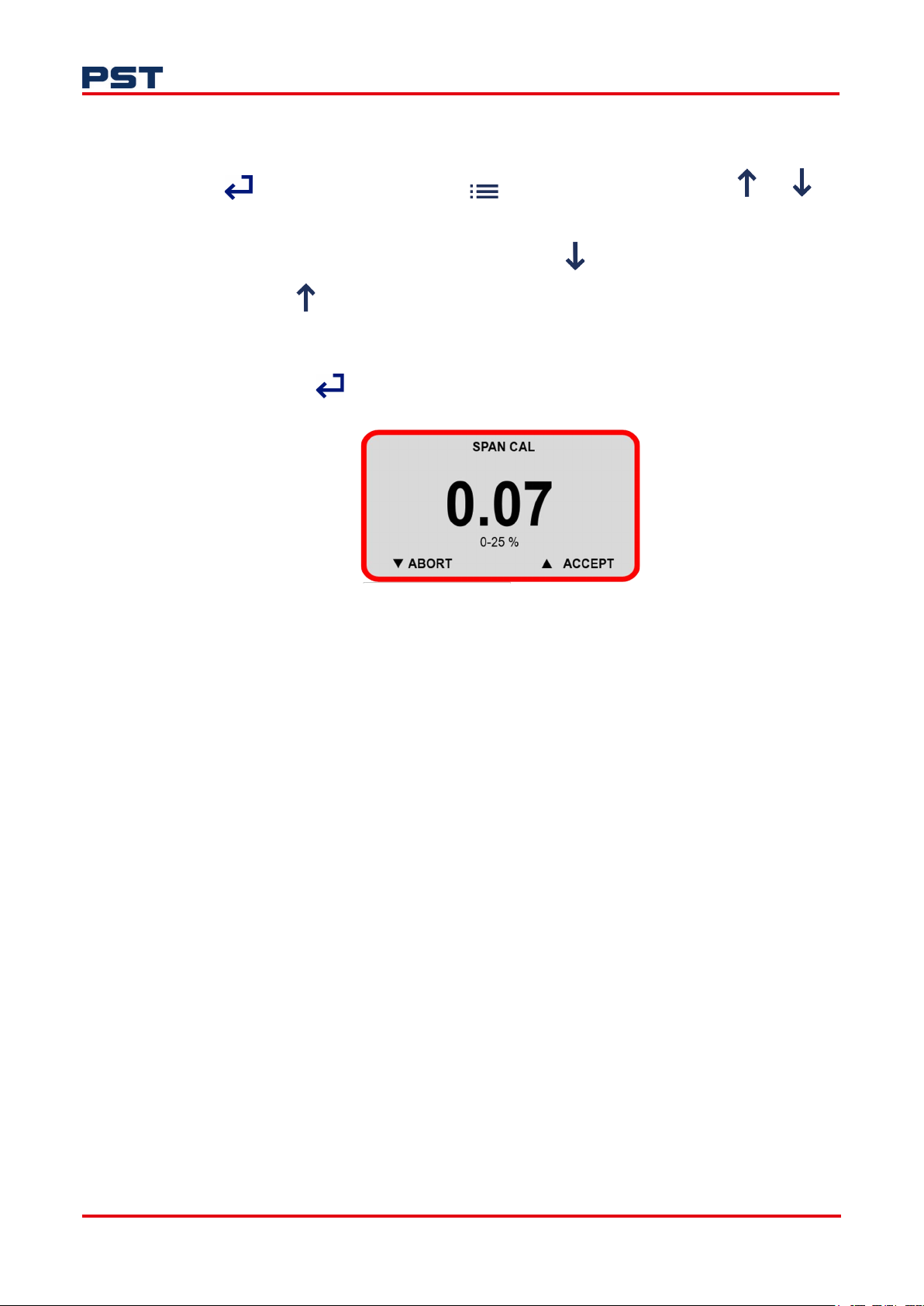

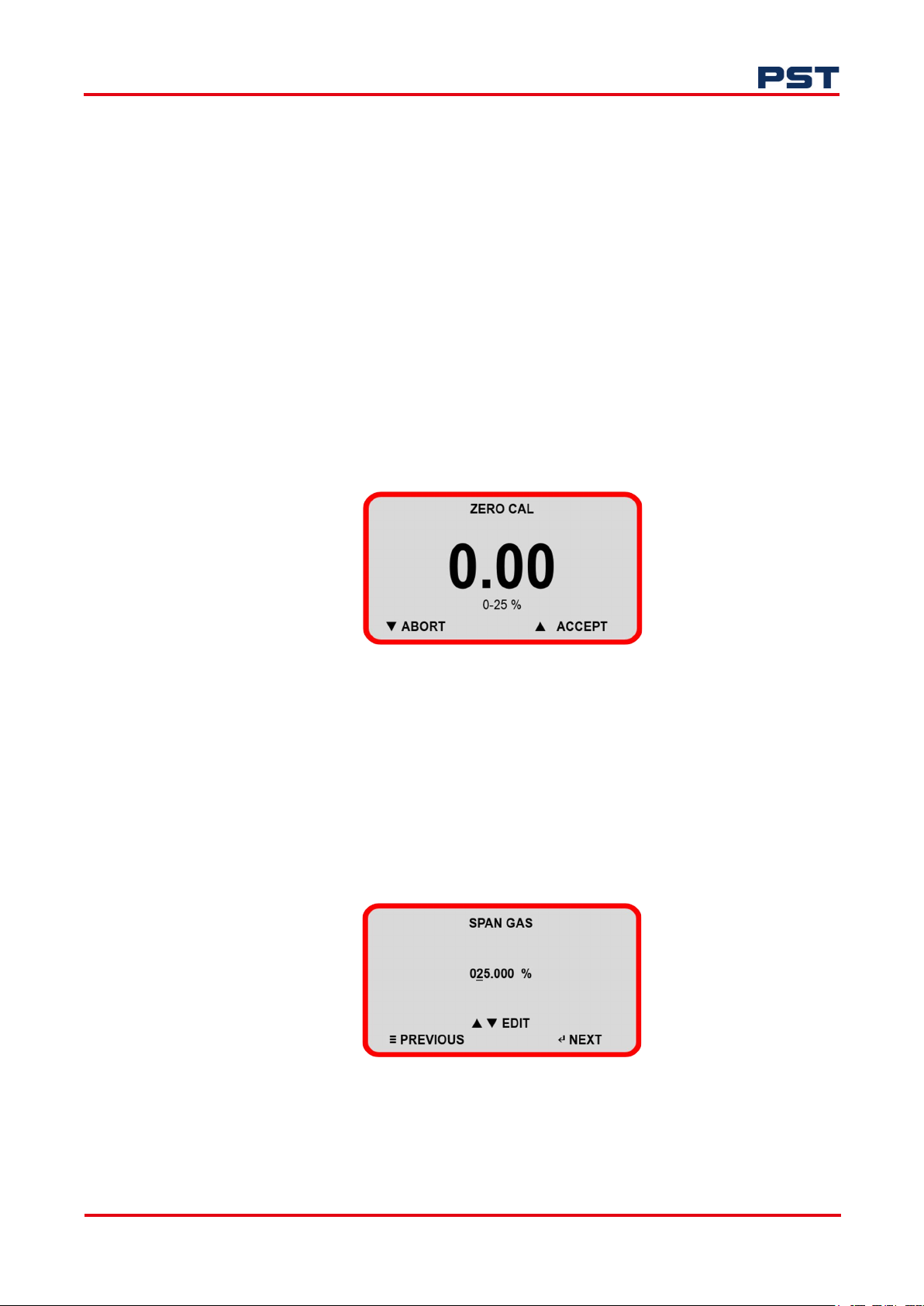

6.3.3 Analyzer calibration ................................................................................................................................23

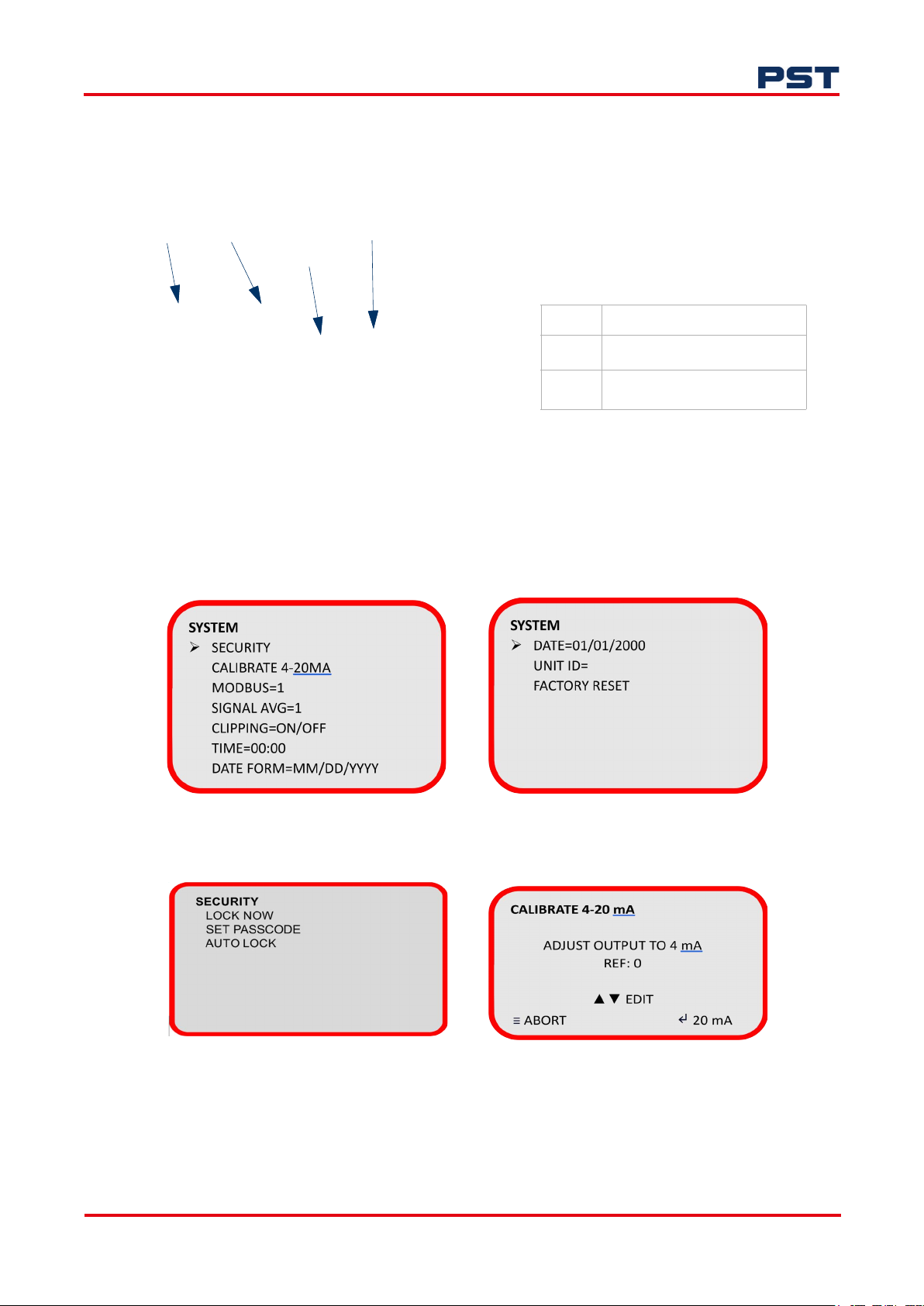

6.3.4 System .........................................................................................................................................................27

6.3.5 Info ................................................................................................................................................................29

7 Maintenance ................................................................................................................... 30

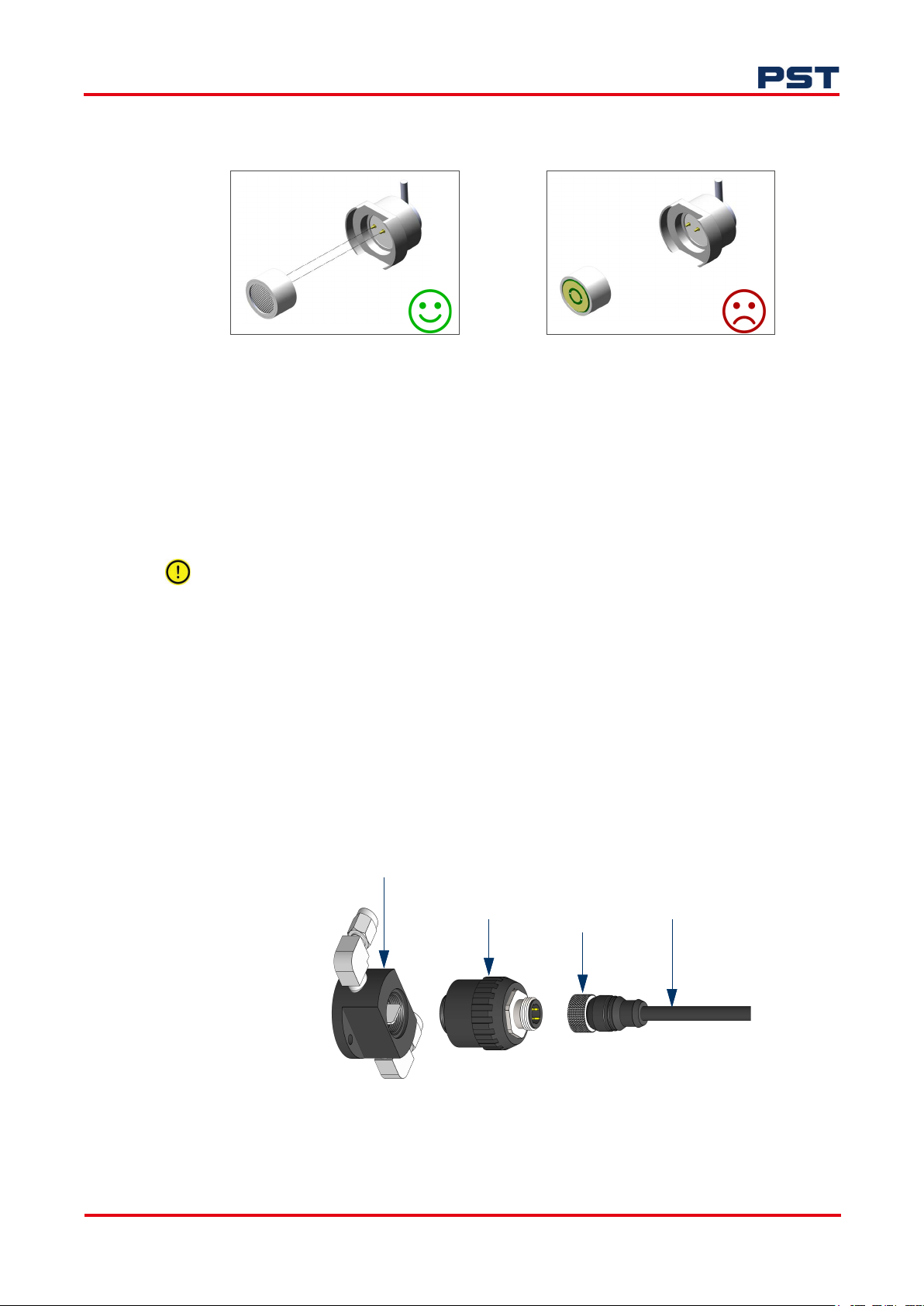

7.1 Sensor replacement .........................................................................................................................30

7.2 Routine cleaning ...............................................................................................................................30

7.3 Routine inspection of sensor housing ......................................................................................31

7.4 Troubleshooting ................................................................................................................................31

8 Warranty information .................................................................................................. 34

8.1 Coverage ..............................................................................................................................................34

8.2 Limitations ...........................................................................................................................................34

8.3 Exclusions ............................................................................................................................................34

8.4 Service ...................................................................................................................................................35

9 Appendices ..................................................................................................................... 36

Appendix A - Technical Specifications ............................................................................................36

Appendix B - Hazardous Area Certification ...................................................................................37

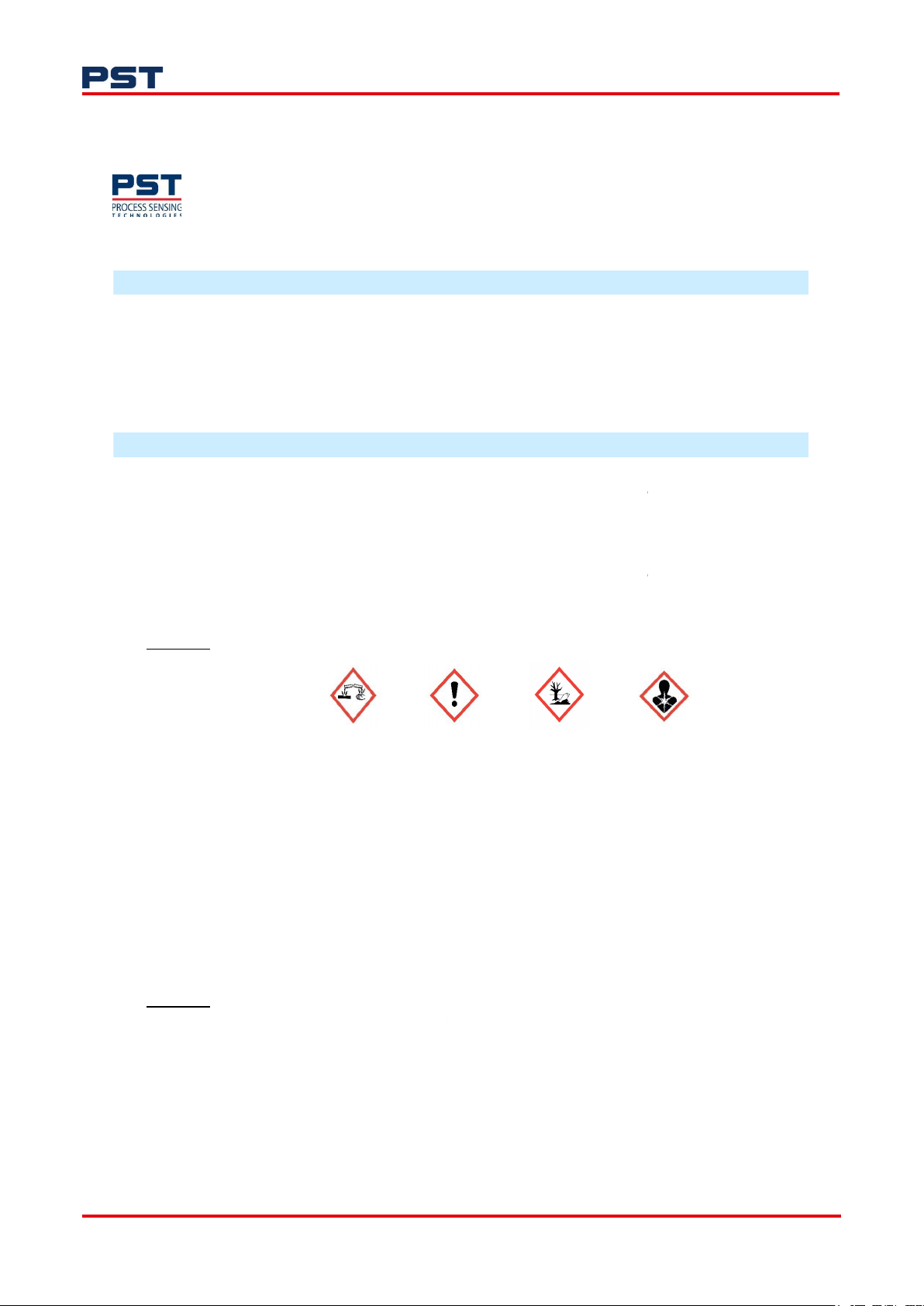

Appendix C - Safety Data Sheet .........................................................................................................38

Appendix D - Controlled Drawings ..................................................................................................46

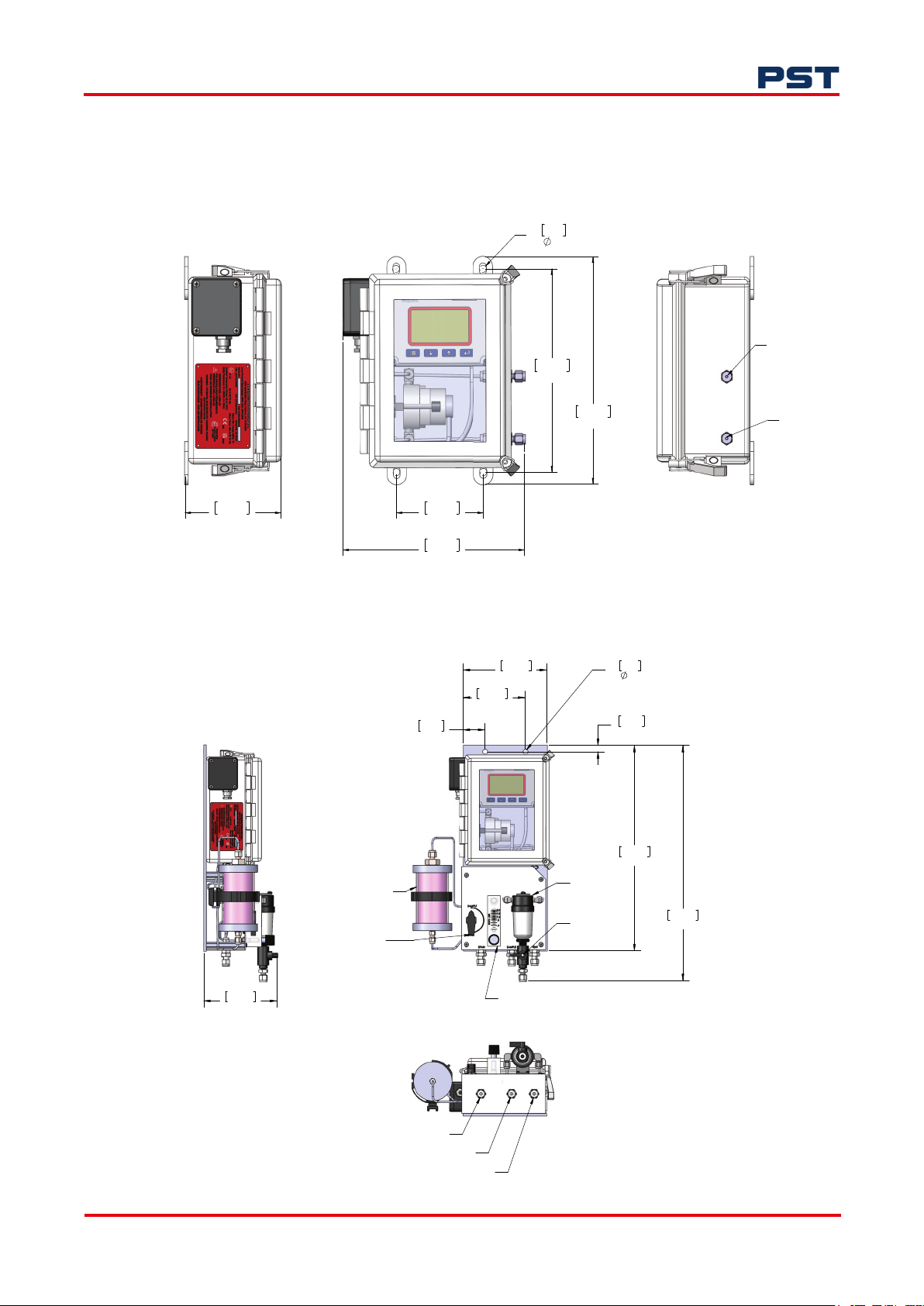

Appendix E - Mounting Information ................................................................................................47

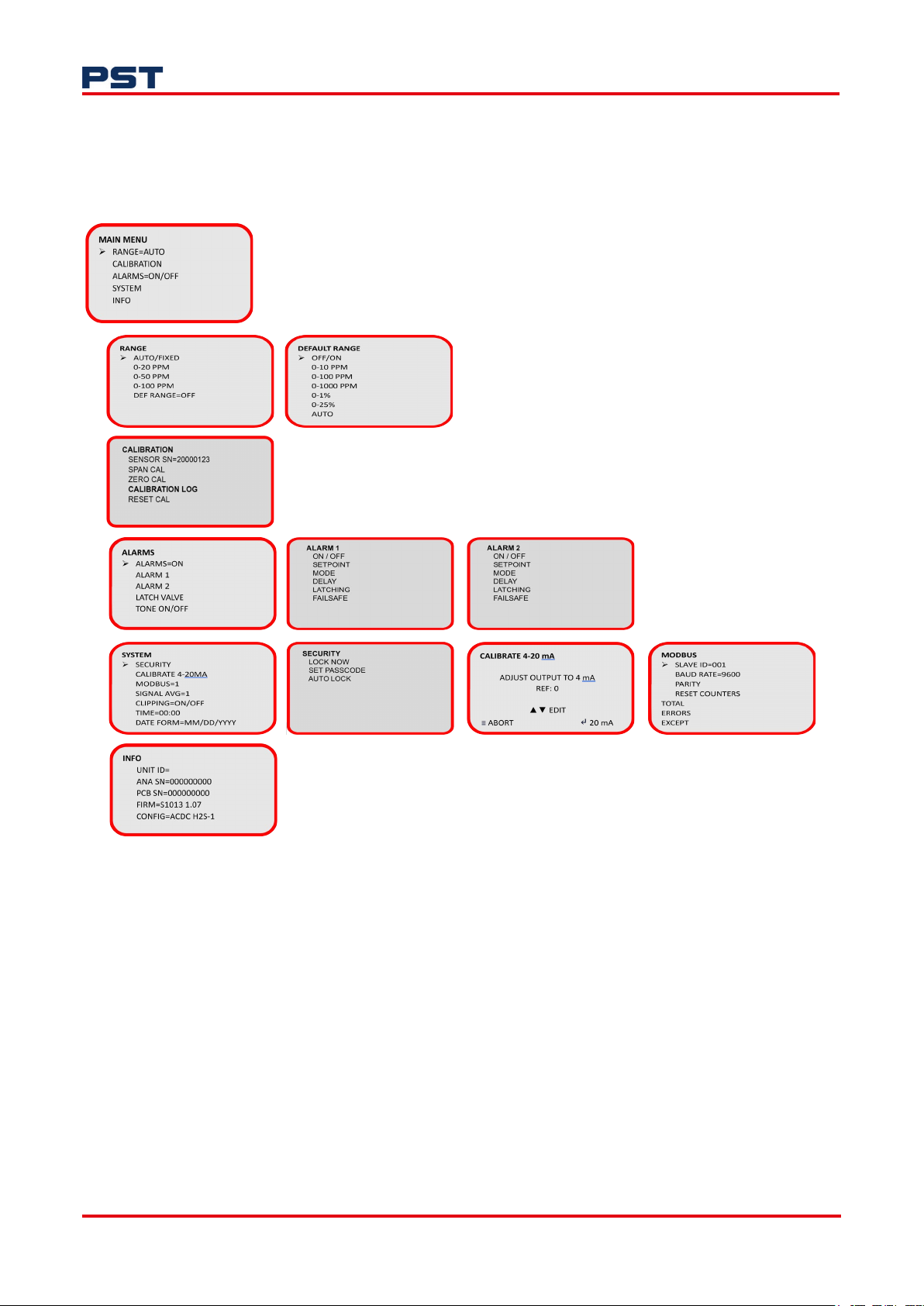

Appendix F - Menu Displays ...............................................................................................................48

Appendix G - Spare Parts .....................................................................................................................49

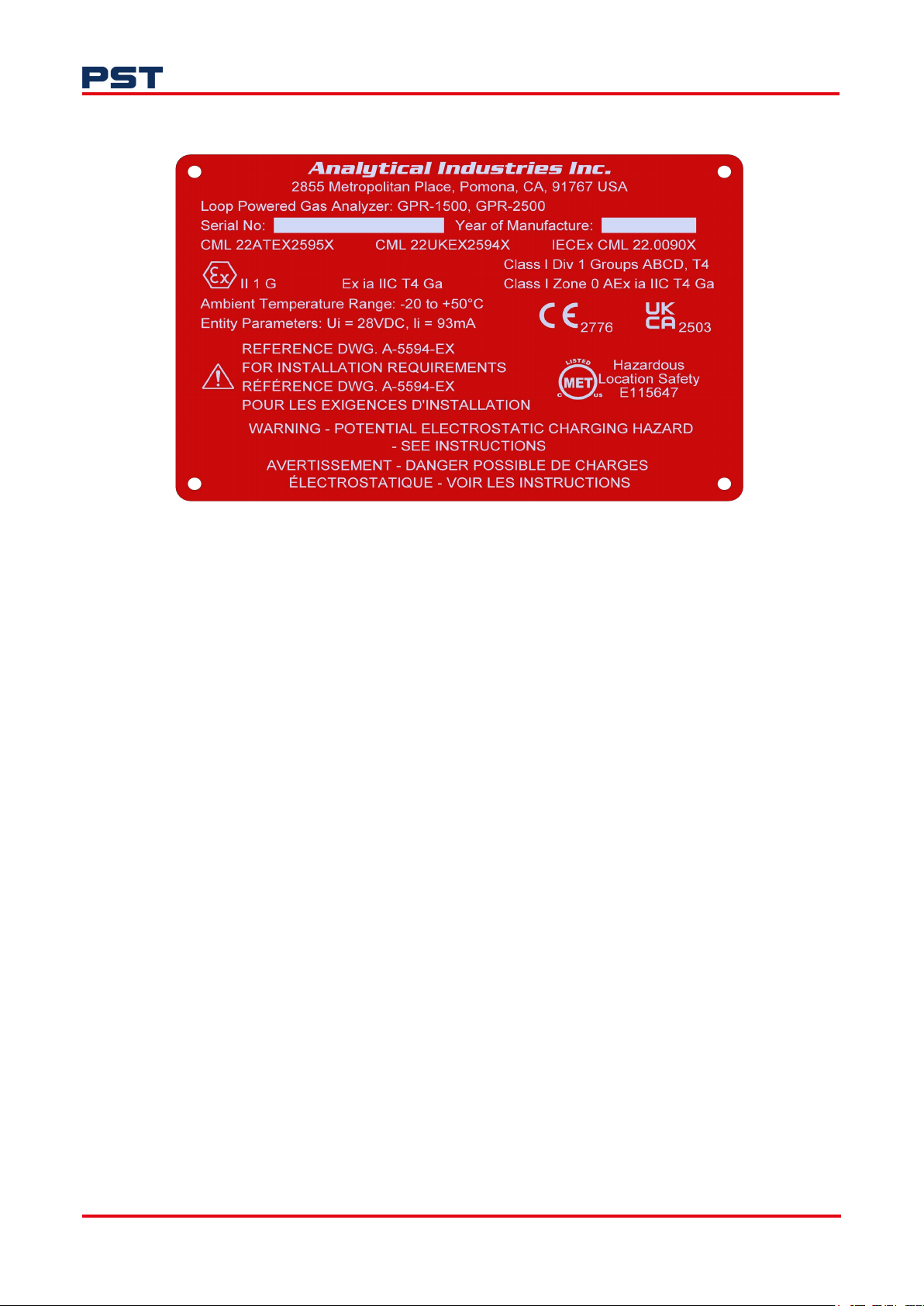

Appendix H - Rating Plate ....................................................................................................................50

Appendix I - Quality, Recycling, and Warranty Information ...................................................51

vi ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

1 Introduction

This user manual is applicable to the GPR-1500 and GPR-2500 oxygen analyzers.

These products are for indoor and outdoor use. If they are used in a manner not specified by

the manufacturer, the protection provided by this equipment may be impaired.

This document contains the following information for your analyzer:

• Installation

• Connection

• Operation

• Maintenance and troubleshooting.

To ensure that the latest manual is being used please visit the PST website www.processsensing.com.

Access the latest datasheets, user manuals, certificates and more at the product page Downloads tab.

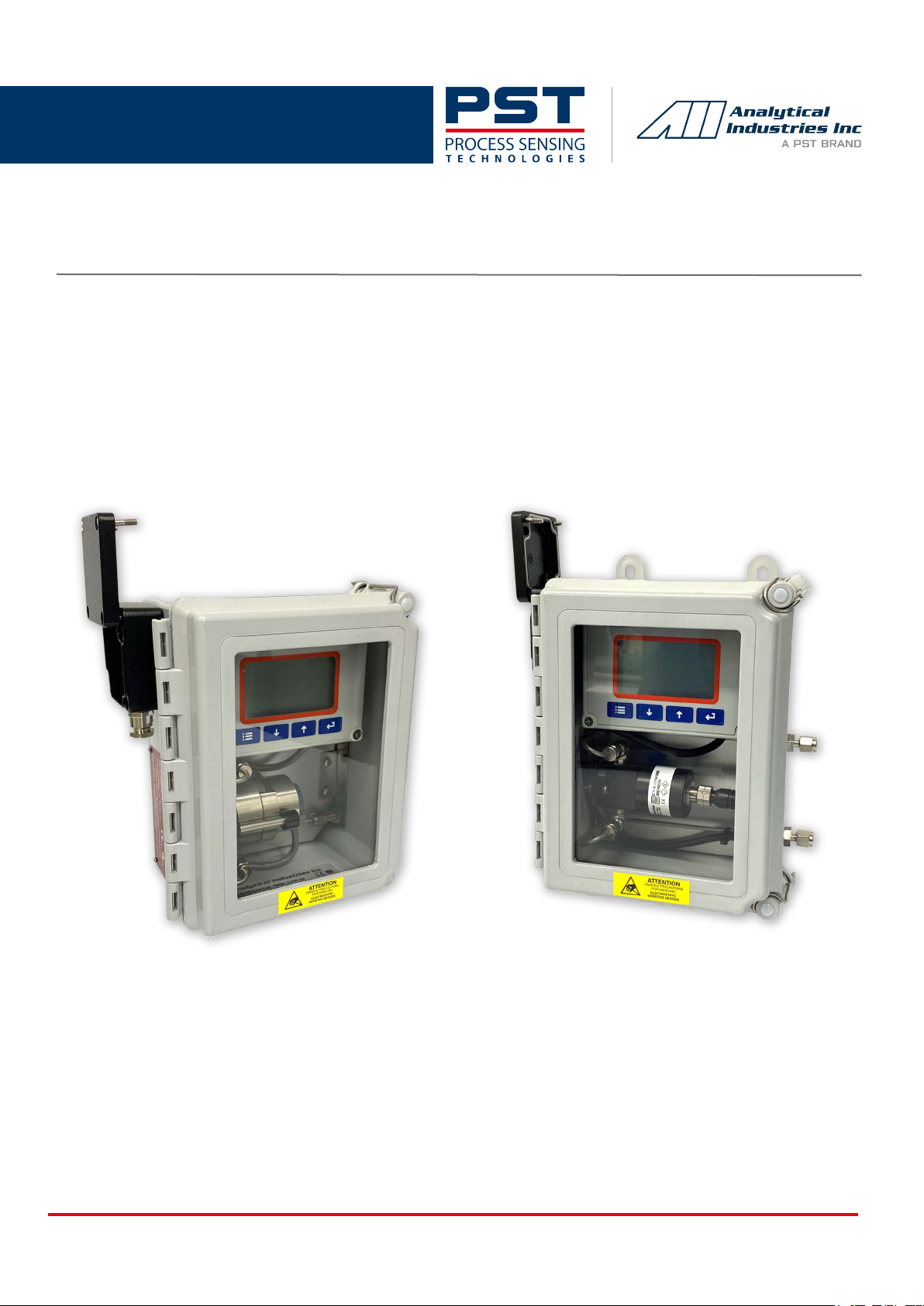

GPR-1500

1.1 Overview

GP R oxygen analyzer s are re liab le, compact, rob ust, an d desi gned to perform verification
measurements in a variety of industrial oxygen applications.

Features of GPR-1500 and GPR-2500 analyzers include:

• Simple, intuitive HMI

• Sensors available for measurement in CO

• User-selectable or automatic adjusted measurement ranges

• Gas temperature compensation

• Loop-powered configurations

• Range of sampling options available for different applications

or H2 gases

2

GPR-2500

ProcessSensing.com 1

1.2 Models

The GPR range of oxygen analyzers covered in this manual are detailed as follows:

• GPR-1500 - ppm oxygen online analyzer

• GPR-2500 - % oxygen online analyzer

These are loop-powered and certified for hazardous area installation.

1.3 Applications

• Monitoring inertization and blanketing gases for the storage or transport of hydrocarbons

• Monitoring natural gas quality

• Monitoring oxygen in pharmaceutical reactors and centrifuges.

1.4 Sensors

GPR-x500 Oxygen Analyzer User Manual

Our maintenance-free electrochemical sensors are galvanic cells capable of superior performance,
accuracy and stability; designed to be unaffected by the presence of background gases. As a
consumptive sensor type, it is disposable and requires only periodic calibrations.

Operational life is typically up to 18 months however, replacement frequency is dependent on the
individual application.

If contaminants are present in the sample gas, the sensor can be affected, and the validity of the
measurement impacted. Please ensure that the sensor is protected, and any contamination is
prevented from reaching the analyzer’s pipework and the sensor.

Consult the PST-Aii sales team about our cost-effective standard sample conditioning systems.

2 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Table 1: Available sensor types:

Analyzer model

Model number

Recommended O2

Measurement Range

Minimum Range

Sensitivity

For full sensor technical specifications, please refer to "Appendix A - Technical Specifications" on
page 36.

1.4.1 GPR-12-333 Sensor

Our standard ppm sensor can be used to measure oxygen in a wide variety of gases.

Specific sensor selection should be given when the background gases are helium (He), hydrogen (H
or > 0.5 % carbon dioxide (CO

1.4.2 -LD suffix Sensor

This is the standard sensor for use with sample gas containing occasional liquid. The LD sensor is in a
screw-in housing and has a 4-pin molex process connection. The sensor itself is the same as standard.

GPR-1500 GPR-2500 GPR-1500 GPR-2500

GPR-12-333 /
GPR-12-333-LD /
GPR-12-333-H

0...1000 ppm

0...10 ppm

0.01 ppm

V

V

V

).

2

GPR-11-60 / GPR­11-60-LD

0...25 % 0...1000 ppm

0...1 % 0...10 ppm

0.005 % 0.01 ppm

XLT-12-333 / XLT­12-333-LD

V

V

XLT-11-24 / XLT­11-24-LD

V

0...25 %

0...1 %

0.005 %

)

2

1.4.3 GPR-12-333-H Sensor

In applications with a background gas of helium or hydrogen, we recommend using the -H sensor.

This sensor has the same construction as the standard sensor but a different electrolyte formula
enables a quick measurement response with He and H

1.4.4 XLT-12-333 Sensor

For measurement applications with ppm levels of oxygen in a background gas containing more than

0.5 % CO

, the specially designed XLT sensor should be selected.

2

With most standard electrochemical sensors, an alkaline electrolyte is used; this is neutralized over
time when exposed to acidic gases, such as CO
with a special electrolyte formula, which maintains functionality in temperatures as low as -10 °C.

1.4.5 GPR-11-60 Sensor

Our standard % sensor can be used to measure oxygen in a wide variety of gases.

1.4.6 XLT-11-24 Sensor

For measurement applications with % levels of oxygen in a background gas containing more than 0.5
% CO2, the specially designed XLT sensor should be selected.

background gases.

2

. To combat this, Aii has developed the XLT sensor

2

ProcessSensing.com 3

NOTE: Calibration is required each time your sensor is replaced. Ideally, your sensor should be

replaced before reaching the end of its operational life.

1.5 Further general considerations

When your GPR-x500 analyzer is used with or in other equipment please consider the following:

• The analyzer should not be submerged in any liquid. Care should be taken to ensure liquids are not

spilled and objects do not fall into the unit.

• Avoid force when using connectors, switches and knobs. Before moving your analyzer, be sure to

disconnect the wiring/power cord and any cables connected to the output terminals.

• Ensure the sensor selected and supplied is suitable for the gas composition to which it will be

presented; if in doubt, review the application and consult the PST-Aii Factory before initiating the
installation.

• The products covered should be evaluated to the environmental conditions as defined by the

standard up to 2000m altitude and within the temperature range applicable to your sensor; refer
to "Appendix A - Technical Specifications" for details.

• The current rating and size of the power supply cable should be appropriate to the equipment.

• The products covered by this manual should be installed using the manufacturer’s instructions.

• Only the sensor provided by the manufacturer is to be used with the analyzer.

GPR-x500 Oxygen Analyzer User Manual

NOTE: In natural gas applications such as extraction and transmission, a low voltage current is

applied to the pipeline itself to inhibit corrosion of the pipeline. As a result, electronic devices

connected to the pipeline can be affected unless they are adequately grounded.

1.5.1 Conditions of use in hazardous areas

NOTE: Always ensure the power is switched off prior to accessing the Ex enclosure for any purpose

other than normal operation, or prior to disconnecting any cables.

Refer to "Appendix B - Hazardous Area Certification" on page 37 for certification details.

i) All versions of the enclosure are manufactured in aluminum. In rare cases, ignition sources due to
impact and friction sparks could occur. This shall be considered during installation, particularly if the
equipment is installed in a Zone 0 location.

ii) The online gas analyzers has non-metallic parts incorporated in the enclosure of this equipment
which may generate an ignition-capable level of electrostatic charge, under certain extreme
circumstances. Therefore, the equipment shall not be installed in a location where the external
conditions are conducive to the build-up of electrostatic charge on such surfaces. This is particularly
important if the equipment is installed in a Zone 0 location. In addition, the equipment shall only be
cleaned with a damp cloth.

iii) The online gas analyzer is not capable of withstanding the 500 V insulation test required by Clause

6.3.12 of IEC 60079-11. This shall be taken into account when installing the equipment.

iv) When connected using a conduit system, the explosion-proof enclosures type Adalet type XIHLX
require conduit seals.

v) When connected with cable glands, the glands shall be a suitably Listed Explosion-proof type,
suitable for the applicable Class and Division or Class and Zone, Gas Group, T-Class and ambient

4 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

temperature. It shall only employ sealing around individual cores. Additional thread adapters shall not
be used.

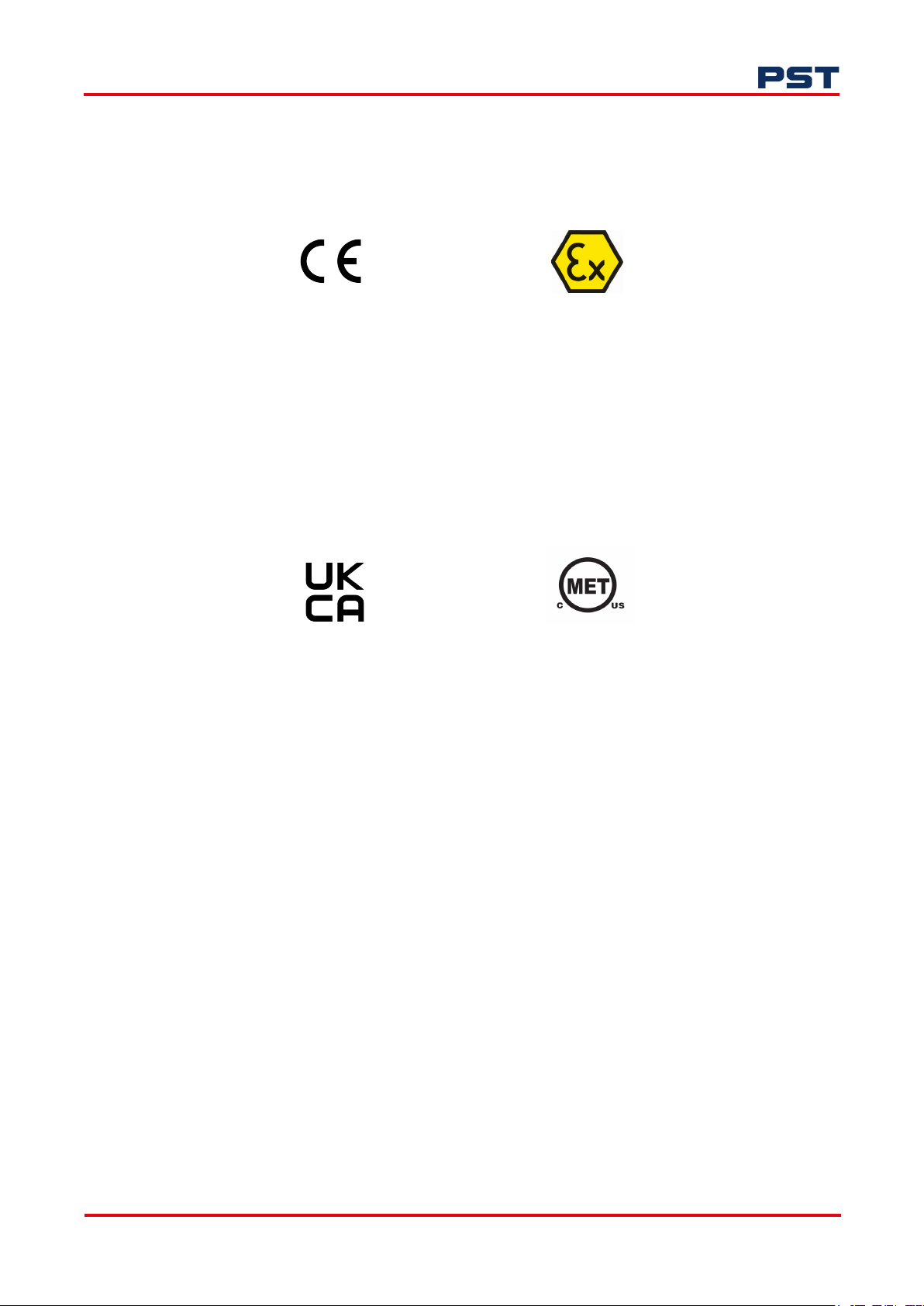

1.6 Safety approvals and directives

The CE marking indicates GPR-x500
oxygen analyzer conformity to European
health, safety, safety and environmental
protection directives.

This UKCA marking demonstrates
GPR-x500 oxygen analyzer complies
with UK designated standards in electric
and electronic engineering and
measuring technology.

The Ex marking indicates GPR-x500
oxygen analyzer conformity to European
Union directive 2014/34/EU (ATEX) and
UK Statutory Instrument 2016 No. 1107
(as amended) (UKEX). It complies with
Intrinsically Safe (I.S) standards for
equipment category 2 when used
following the instructions for safe use in
this user manual. This makes it normally
suitable for use in Zones 1 or 2 hazard­ous areas.

The MET marking certifies GPR-x500
oxygen analyzer is compliant in North
America and Canada, with the electrical
and hazardous location safety directive.

NOTE: The GPR-x500 range of analyzers are not tri-rated. These analyzers are built to comply with

ATEX / IECEx / UKEX or cMETus. The hazardous area compliance rating is shown on the rating

plate on the analyzer. Please ensure your analyzer is compliant with site or location requirements.

This m anu al details installation, operation and support for all GPR-x500 analyzers for all

certifications.

ProcessSensing.com 5

2 Installation

NOTE: Installation, operation and maintenance of this equipment should be carried out only by

appropriately trained and suitably qualified technicians in accordance with the instructions in this

user manual, and any applicable standards/certificates associated with the country, industry and

application.

serious or even fatal injury. In this regard, the manufacturer will not be
held liable.

NOTE: The operator may only perform modifications and repairs to the equipment or system with

approval from the manufacturer.

Do not operate damaged equipment. If faults cannot be rectified, the equipment must be taken

out of service and secured against unintentional commissioning.

GPR-x500 Oxygen Analyzer User Manual

Failure to correctly adhere to these instructions may result in

Before using your GPR-x500, ensure that its specifications are suitable for the process in which it
will be installed.

6 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

2.1 Unpack your analyzer

If sold separately (not part of a sampling system), the GPR-x500 will be supplied in a custom box
which should be retained for future use (such as a service return).

Your GPR-x500 analyzer pack is comprised of the following equipment (pack contents may vary
depending on your specification):

1. GPR-x500 analyzer

2. Sensor (in double-foil pack)

3. Remote barrier (supplied with hazardous area models)

4. PST-Aii Factory calibration certificate

5. Quick Start Guides (ref: PST-QSG-3205, span calibration, PST-QSG-3206, air calibration)

6. User Manual, this document (ref: PST-UM-3004) on a USB stick.

GPR-1500 pictured

1

2

3

4

6

5

Figure 1. Contents of GPR-x500 pack

ProcessSensing.com 7

2.2 Analyzer features

The GPR-x500 analyzer consists of two interconnected enclosures enclosures (without the optional
sample conditioning system and panel) and measures 8.4” (L) x 4.4” (W) x 10” (H).

Wiring enclosure

Sensor in housing
(Stainless steel: GPR-1500
polyacetal: GPR-2500)

GPR-x500 Oxygen Analyzer User Manual

Analyzer interface and display

Fiberglass window
and painted aluminum
housing

GPR-1500 pictured

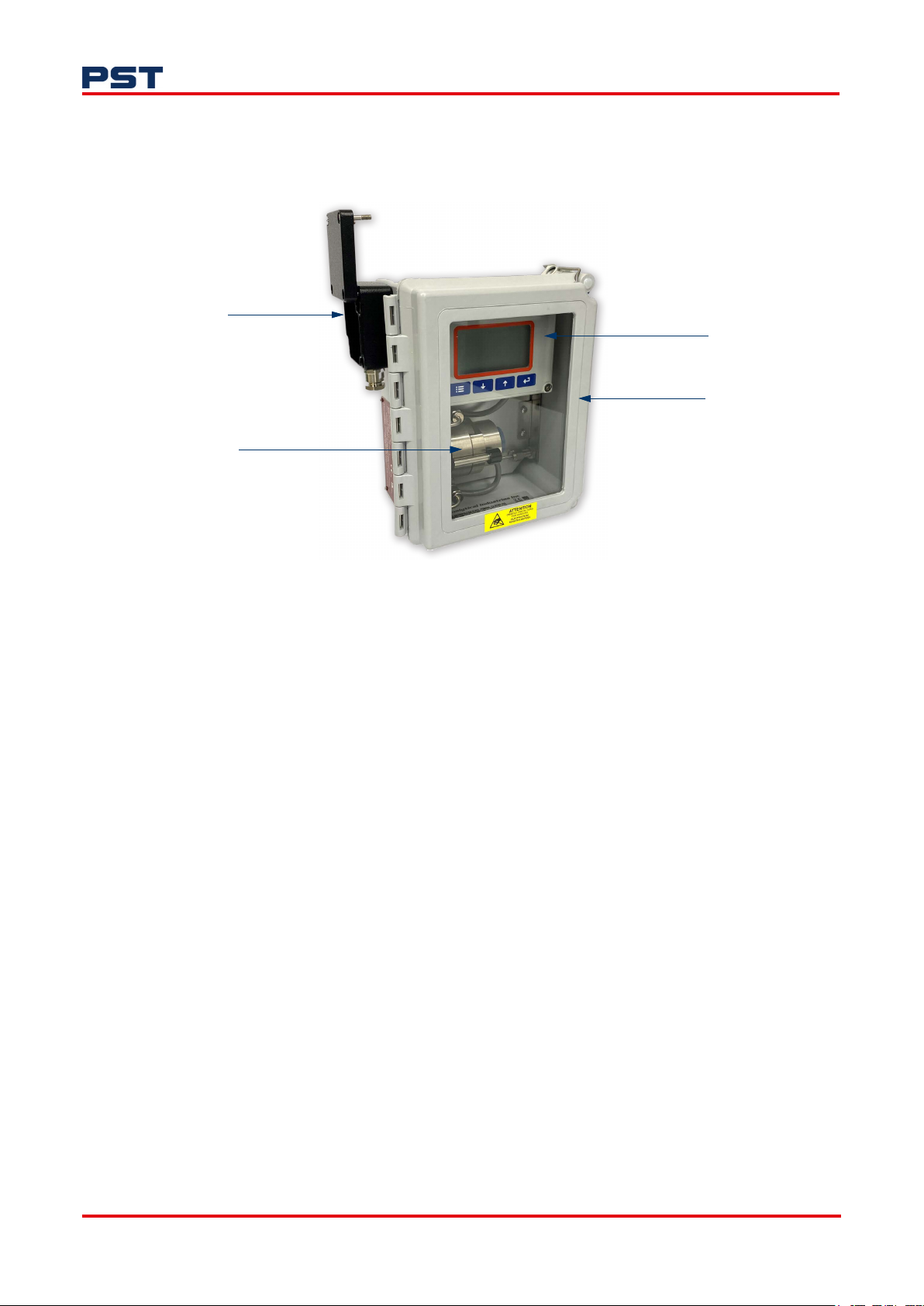

Figure 2. The GPR-x500 oxygen analyzer set-up

2.3 Mount your analyzer

The analyzer is approved for indoor as well as outdoor use. However, avoid mounting in an area
where direct sun might heat up the analyzer beyond the recommended operating temperature range.
If possible, install a small hood over the analyzer for rain water drain and to prevent over-heating of
analyzer.

• Find the appropriate location to install the analyzer.

• Ensure that the mounting and operation is only in the upright vertical orientation.

• To facilitate convenient servicing the interior of the transmitters, secure the back plate to a

vertical surface approximately 1.5 m (5 ft) from the floor or a level accessible to service
personnel. This requires the user to supply four (4) additional proper sized screws and anchors.

8 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

NOTE: For installations where temperature can be expected to fall below -18 °C (0 °F) please

consult PST-Aii Sales to discuss heated enclosure options.

This GPR-x500 configuration is designed to be mounted directly to any flat vertical surface, wall or
bulkhead plate. Please see "Appendix E - Mounting Information" on page 47.

The analyzer’s design provides immunity from RFI/EMI by maintaining good conductive contact
between the two halves of the enclosures via a conductive gasket (the smaller enclosure containing
signal processing electronics).

The surfaces contacting the conductive gasket are unpainted. Do not paint these areas. Painting will
negate the RFI/EMI protection.

Do not remove or discard the gaskets from either the Ex enclosure or the fiberglass enclosure.

Failure to reinstall either of the gaskets will void the NEMA 4, UL Type 3R rating and the immunity
to RFI/EMI.

For mounting requirements and information, please refer to "Appendix E - Mounting Information" on
page 47.

ProcessSensing.com 9

3 Connection

Supply power to the analyzer only as rated by the specification or markings on the analyzer enclosure.
The wiring that connects the analyzer to the power source should be installed in accordance with
recognized electrical standards.

Ensure that the analyzer case is properly grounded and meets the requirements for area classification
where the analyzer is installed. Never use force when removing wiring from a terminal connection.

3.1 Connect your power supply

This configuration is loop-powered; it requires a 18...24 V DC power supply on a 4...20 mA loop.

Incoming power is connected via a 3-way terminal block.

Do not supply voltage more than specified in this manual and noted near the power input

terminal of the analyzer.

GPR-x500 Oxygen Analyzer User Manual

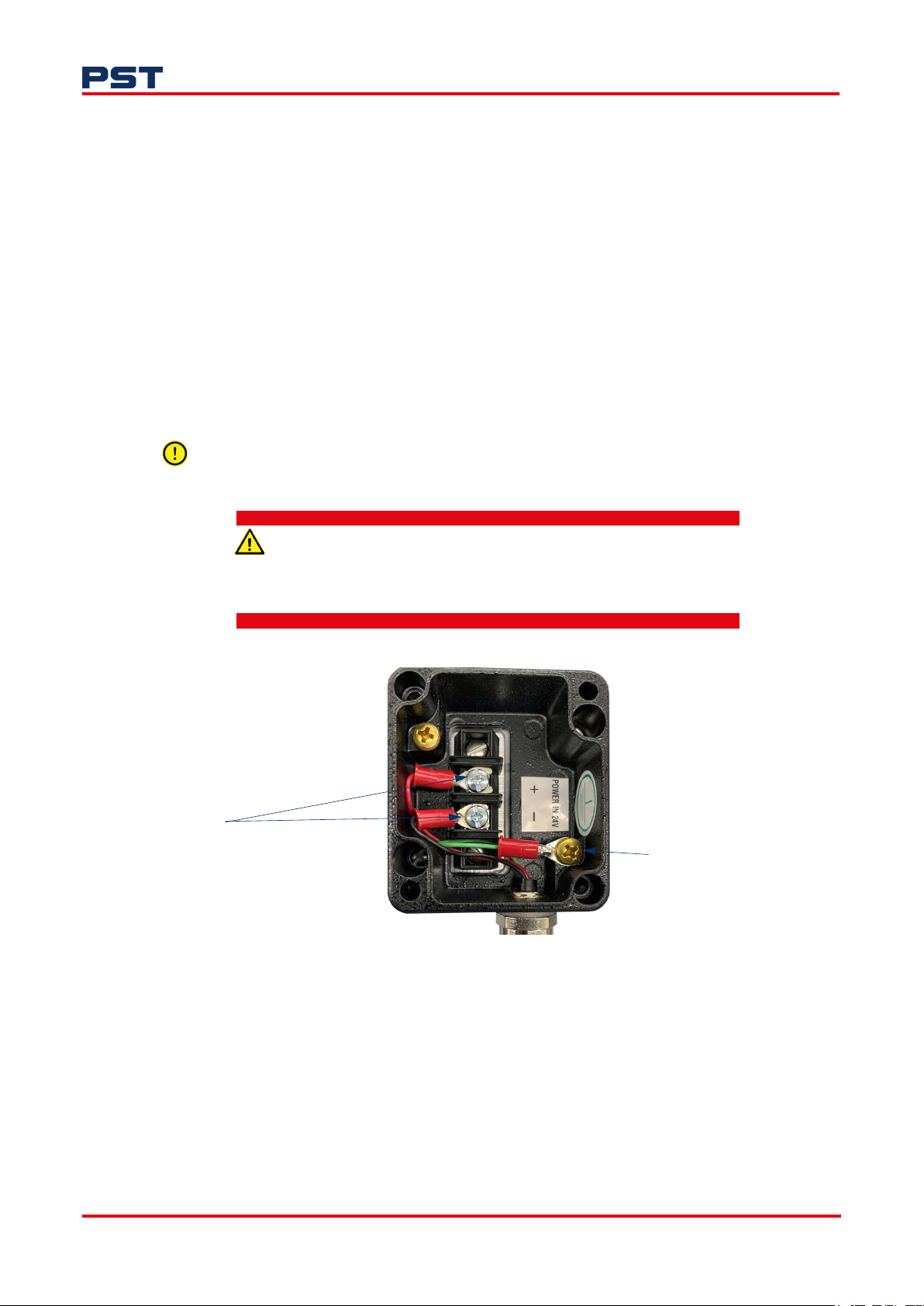

Power terminals

The maximum power consumption for GPR-x500 analyzers is 1.8 W.

Do not apply line-power to the GPR-1500 or the GPR-2500. If line­power is applied to a loop-powered analyzer, it will result in damage to
the main PCB.

Earth terminal

Figure 3. Wiring and connections

10 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

3.2 Hazardous area connections

For installation in a hazardous area:

• Entity parameters for all connection facilities are as follows:

o Ui = 28 V DC, Ii = 93 mA

• All cables must be shielded to ground at customer side.

• Use a certified cable gland or stopper box.

• The power cable to the Ex enclosure must be supplied through a conduit approved for use in

hazardous areas.

• Secure the wires to the power input terminal block by using the integral screws of the terminal

block. Do not substitute terminal screws.

ProcessSensing.com 11

4 Sensor installation

NOTE: Please read through this procedure and "5 Before connecting gas" on page 15 before

attempting to install your sensor.

4.1 GPR-1500

The GPR-1500 oxygen analyzer is equipped with stainless steel sensor housing. This housing offers
ease of replacement of sensor whilst preventing any leakage into the system. The two sections of the
sensor are held together by a metal clamp secured in place by an easily accessed bolt.

The integrity of the sensor housing has been tested at the PST-Aii Factory prior to shipment.

The analyzer must be calibrated once the installation has been completed and periodically thereafter.

To install or replace an oxygen sensor:

1. Apply power to your analyzer (refer to Figure 3 on page 10 for guidance).

GPR-x500 Oxygen Analyzer User Manual

2. Using the two latches, open the front window of the enclosure.

3. Open the sensor housing (refer to Figure 4 below for guidance).

Bottom sensor housing

b

Loosen

Tighten

Star wheel

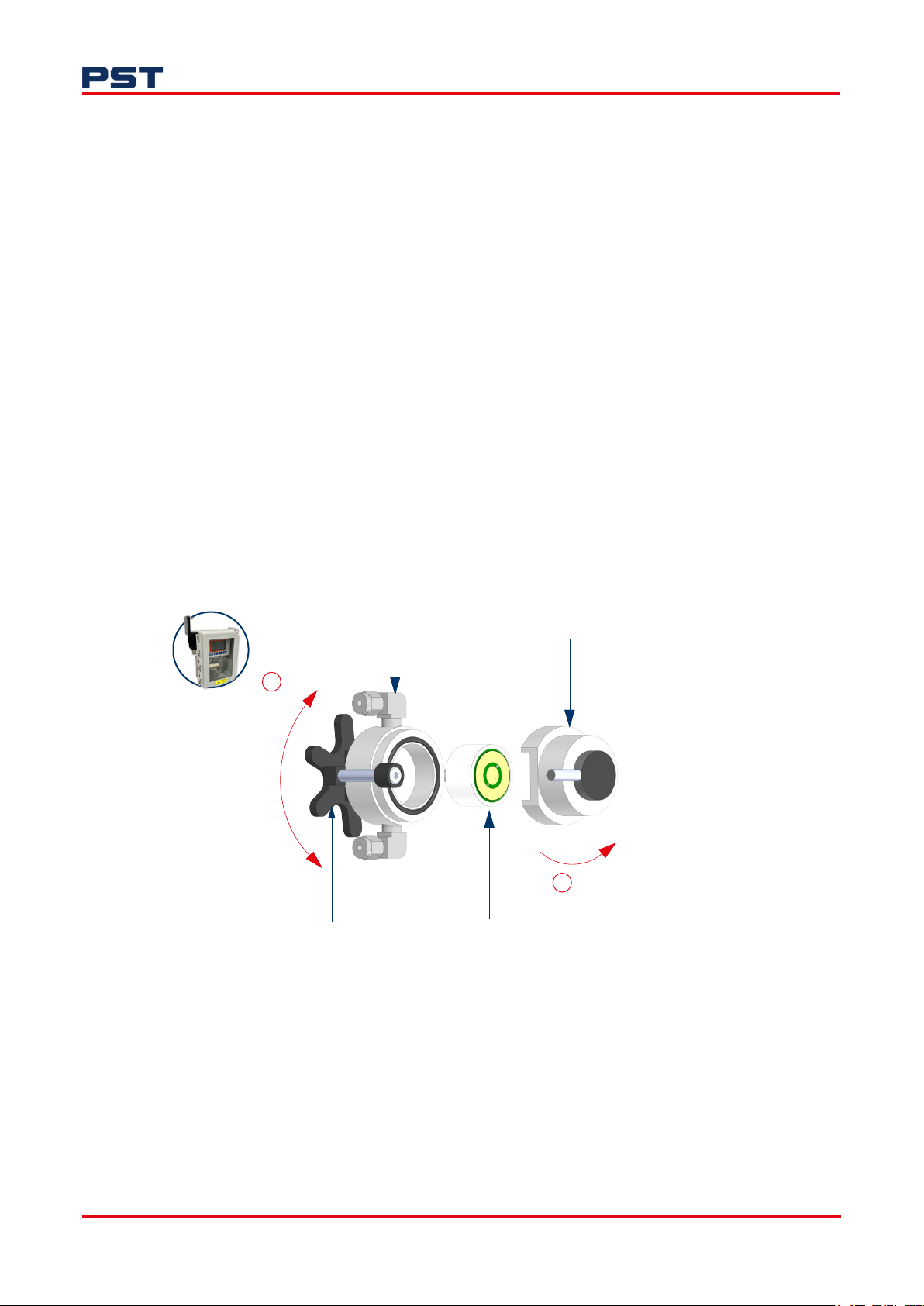

Figure 4. Installing and uninstalling your sensor (GPR-1500)

Sensor

Top sensor housing

O

a

90

4. Loosen the star wheel then disengage the top sensor housing by turning it 90°
counter-clockwise.

5. If replacing your sensor, remove the old sensor from the sensor housing, otherwise continue to
the next step.

12 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

6. Remove the sensor from its packaging, remove the shorting flags and immediately place in the
top sensor housing with the gold contact plate facing towards two gold contact pins in the top
sensor housing as shown in Figure 5.

7. You may perform a zero and span calibration or an air calibration to confirm that the sensor out­put is within the recommended limits. See " Zero and span vs span calibration" on page 24 and
for guidance.

8. Secure it with the star wheel at the bottom of the housing assembly (refer to ‘b’ in Figure 4 on
page 12).

9. Quickly close your analyzer and connect your process sample gas or zero oxygen gas
immediately.

Figure 5. Aligning your sensor

Always minimize the time that the sensor is exposed to ambient air.

4.2 GPR-2500

The GPR-2500 analyzer is delivered with the sensor installed. If you need to replace your sensor,
follow the procedure below.

1. Apply power to your analyzer

2. Using the two latches, open the front window of the enclosure.

3. Open the sensor housing (refer to Figure 6 below for guidance).

Sensor base

Sensor

Lock nut

Sensor cable

Sensor appearance may vary depending on your configuration

Figure 6. Installing and uninstalling your sensor (GPR-2500)

ProcessSensing.com 13

GPR-x500 Oxygen Analyzer User Manual

4. Disconnect the sensor cable by turning the lock nut counter-clockwise and unscrewing the old
sensor from the sensor base.

5. Remove the new sensor from its packaging, remove the shorting flags and immediately screw it
into the sensor base.

6. Secure the sensor cable by turning the lock nut clockwise.

7. Quickly close your analyzer and connect your process sample gas or zero oxygen gas
immediately, following the procedure in "5.2 Connect your gas" on page 16.

14 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

5 Before connecting gas

5.1 Necessary considerations before gas connection

With standard flow-through configuration, the GPR-x500 analyzers are designed for positive pressure
samples and require connections for incoming sample and outgoing vent lines.

Your analyzer is equipped with two gas ports as shown in Figure 7.

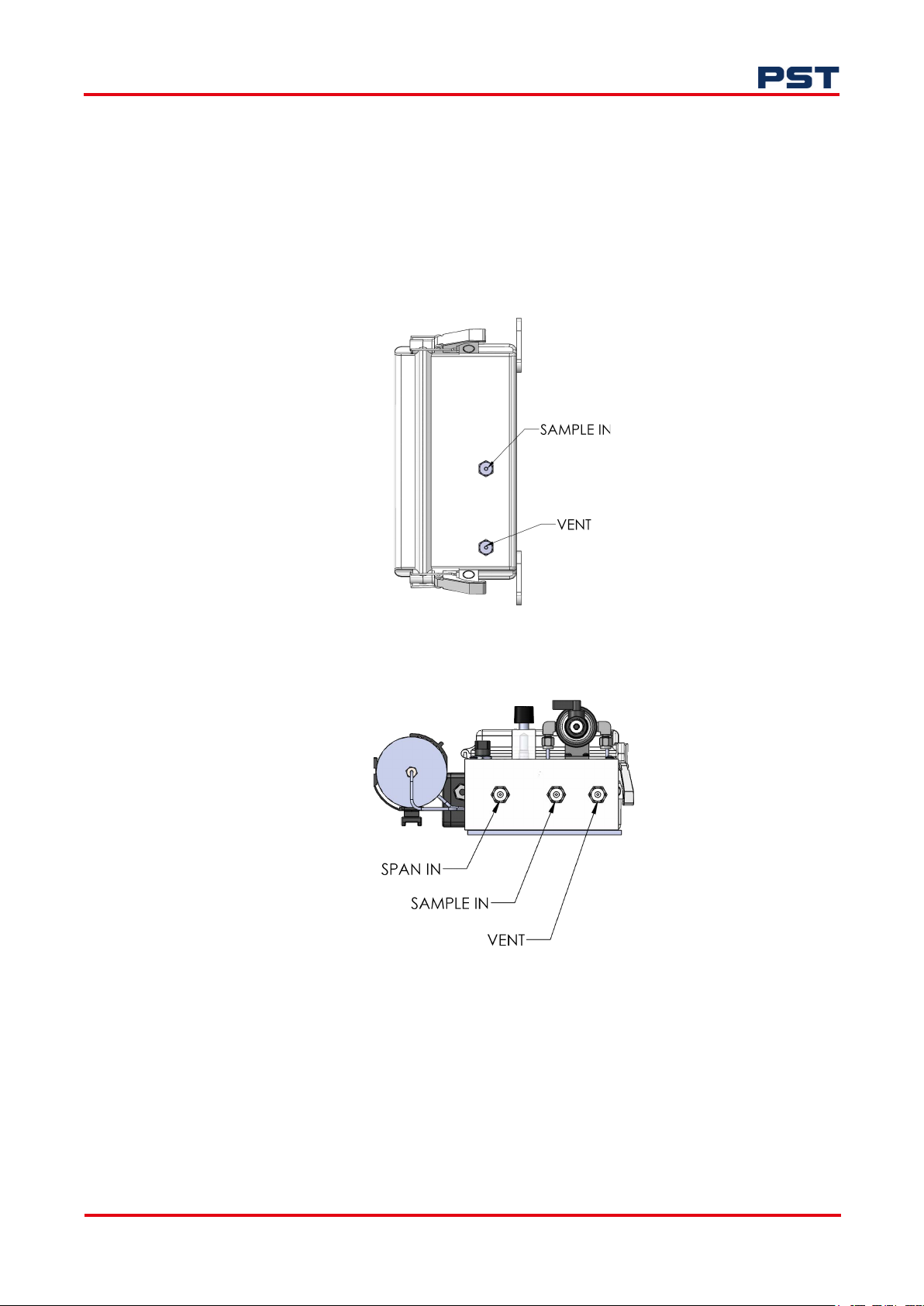

Figure 7. Gas ports (right elevation)

Figure 8. Gas ports: sample system (bottom elevation)

The inlet and outlet vent gas lines require 1/4” stainless steel compression type tube fittings.

The sample inlet tubing must be metallic, preferably stainless steel (SS). The sample vent line may be
of SS or hard plastic tubing with low gas permeability.

ProcessSensing.com 15

To ensure the best possible operation, a review of the installation is recommended:

a. Sample gas quality

• Is the sensor suitable for gas?

• Is a gas scrubber required?

• Is the sample gas clean and liquid free?

b. Stainless steel tubing (essential for maintaining the integrity of the gas stream for very low ppm

or % level analysis.

NOTE: If operated in potentially contaminated gases, which can interfere with measurement and

reduce the sensor’s life expectancy. Consult PST-Aii for recommendations concerning the proper

selection and installation of components.

5.2 Connect your gas

To connect your gas:

GPR-x500 Oxygen Analyzer User Manual

1. See Figure 7 on page 15 for port designation and connect your Sample and Vent lines accordingly.

2. Regulate the sample pressure as described in below in "5.3 Calibration gases".

3. Connect a 1/8” or 1/4” vent line to the compression fitting to be used for venting the sample.

4. Connect a 1/8” or 1/4” sample line to the compression fitting to be used to bring sample gas to
the analyzer.

5. Set the Sample gas pressure between 5...30 psi (0.4...2.1 bar).

6. Select sample gas and allow it to flow through the analyzers and set the flow rate to 1...2 SCFH
(0.5...1 LPM).

Zero and span calibration gas ports are offered as part of the optional sample systems.

NOTE: If the analyzer is equipped with an optional H₂S scrubber, sample inlet pressure must not

exceed 30 psi (2.1 bar).

Do not place your finger over the vent (it pressurizes the sensor) to test the flow indicator when
gas is flowing to the sensor. Removing your finger (the restriction) generates a vacuum on the
sensor and may damage the sensor, voiding the sensor warranty.

5.3 Calibration gases

NOTE: It is recommended that you use a certified zero and span gases for calibration to ensure the

best measurement readings.

Cylinders of the appropriate certified zero and span gases should be made available for installation
and commissioning. Calibration gases will need to be set to the same input pressure and flow rate as
the sample gas to ensure calibration integrity.

16 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

5.4 Sample gas requirements

All gas analyzers utilizing electrochemical oxygen sensors respond to partial pressure changes in
oxygen. To ensure accurate measurement of the oxygen sample, gas must be presented to the
analyzer at a stable pressure and flow rate.

5.4.1 Inlet pressure

For the analyzers designed to measure oxygen in a flowing gas stream, the inlet sample pressure must
be regulated in the range 5...30 psi (0.4...2.1 bar).

5.4.2 Outlet pressure

The sample must be vented at a pressure less than the inlet pressure so that the sample gas can flow
through the sensor housing. Ideally, the sample should be vented to the atmosphere or into a flare at
atmospheric pressure.

NOTE: The sensor may be used at a slightly positive pressure (e.g., when sample is vented to a

common exhaust where the pressure might be higher than 1 atmosphere). However, the pressure at

the sensor must remain constant at all times including during the span calibration. This may be

accomplished by using a back-pressure regulator on the vent line of the analyzer.

If assistance is required to configure a measurement at a positive pressure, please contact PST-Aii
with full application details for a review.

A sudden change in pressure at the sensor may result in the sensor electrolyte leakage.

5.5 Prepare your zero/span gas

Avoid contamination of the zero/span gas cylinder when connecting the pressure regulator. Bleed the
air-filled regulator for a couple of minutes before closing the vent valve of the pressure regulator
(faster and more reliable method of purging the regulator than simply allowing the zero/span gas to
flow through the regulator and the span gas line).

The following components/tools are required to set up a zero/span gas cylinder:

a. Certified zero/span gas cylinder with an oxygen concentration, balance nitrogen, of

approximately 80 % of the full scale range above the intended measuring range.

b. A pressure regulator to enable reduction of gas pressure to between 5 and 30 psi (0.4...2.1 bar).

c. A flow meter (for use only if the analyzer is not equipped with one) to set the flow rate between

1 and 2 SCFH (0.5...1 LPM).

d. Suitable fittings and 1/8” diameter metal tubing to connect the regulator to the inlet of the

analyzer.

Ensure your zero/span gas cylinder valve is closed, then:

1. Install the regulator on the cylinder using good practice.

2. Open the regulator’s exit valve and partially open the pressure regulator’s control knob.

ProcessSensing.com 17

GPR-x500 Oxygen Analyzer User Manual

3. Slightly open the cylinder valve.

4. Loosen the nut connecting the regulator to the cylinder and bleed the pressure regulator.

5. Re-tighten the nut connecting the regulator to the cylinder.

6. Adjust the regulator exit valve and slowly bleed the pressure regulator.

7. Open the cylinder valve completely.

8. Set the output pressure between 5 and 30 psi using the pressure regulator’s control knob.

Do not exceed the recommended pressure. Excessive pressure will make flow adjustment more

difficult.

18 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

6 Operation

This section details the best practice operation for a correctly installed analyzer. Please refer to "2
Installation" on page 6 for analyzer installation guidance and gas connection.

6.1 User interface

The GPR-x500 has a 1-inch LCD display and a four-key keypad interface.

Figure 9. GPR-x500 user interface

The interface keys can be used as identified in the table below:

Table 2: Interface key functions

Key Function

Menu open/close

Enter

Next (increment)

Previous (decrement)

ProcessSensing.com 19

6.2 Initial start-up and self-test

Once the analyzer is correctly installed and power applied the analyzer will immediately start up. The
digital display responds instantaneously and will display an initial start-up screen:

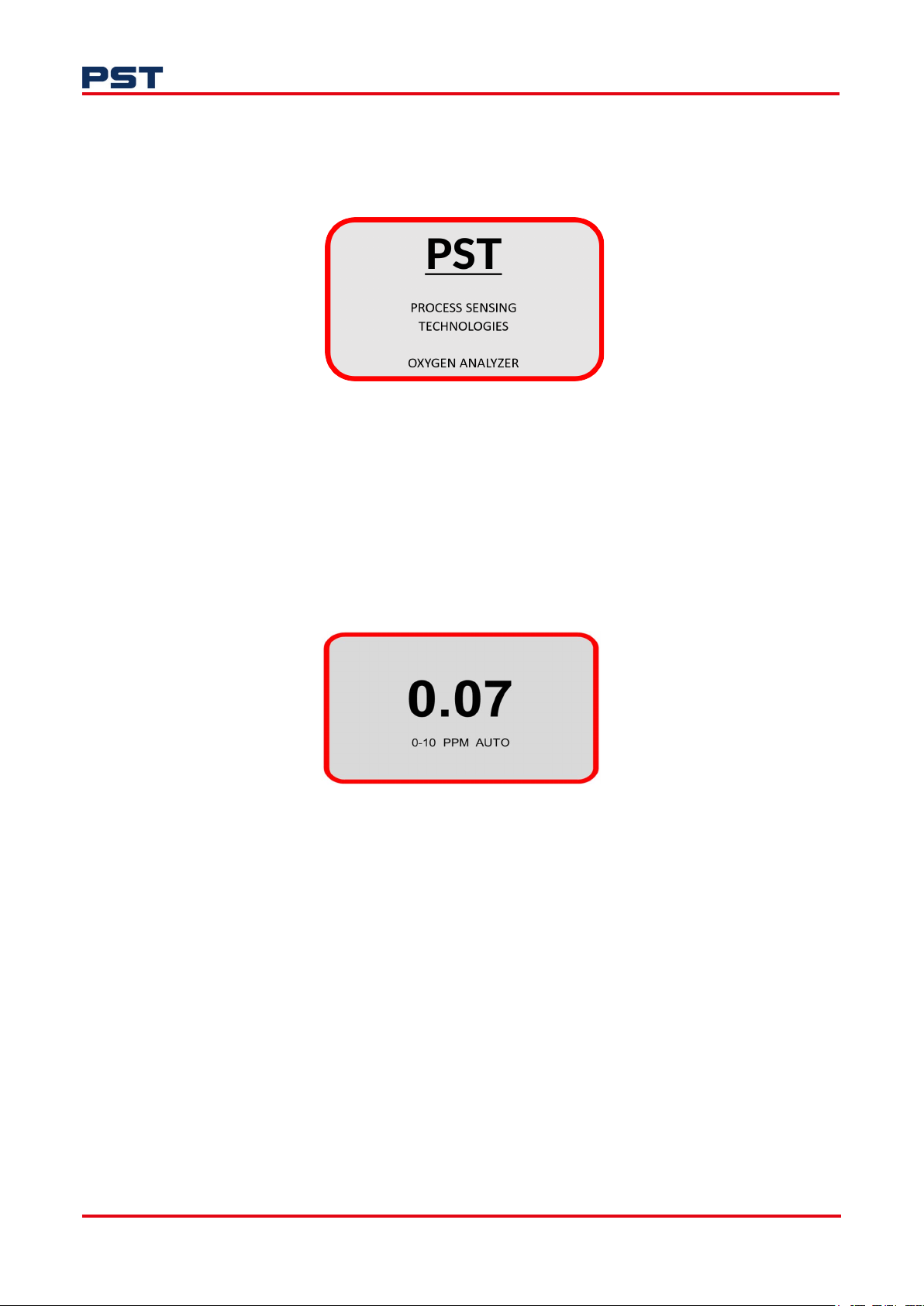

Figure 10. GPR-series analyzer start-up screen

After self-diagnostic tests, the analyzer switches to sampling mode and displays the oxygen reading
from the sensor (larger size numeric value) and the measurement range (small size font with units).

Auto indicates that the analyzer is in AUTO mode. In this mode, the measured value affects the range,
which will automatically adjust to the next higher level. See Range (page 22) in the Main Menu to
select.

GPR-x500 Oxygen Analyzer User Manual

If the Auto is not selected, the range display will not show Auto. An example of a sampling mode
screen is shown below in Figure 11.

Figure 11. Measurement mode display

20 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

6.3 Menus

NOTE: Available menu options and sequences will vary between analyzer model and sensor type.

6.3.1 Main Menu and interface keys

To access the Main Menu, press the Menu key and the following Main Menu display will appear:

Figure 12. Main menu display

This screen shows the menu options available.

• Use the and keys to move the cursor to the desired menu

• Press to access the sub menu

• Use the key to return to the previous screen.

Range

Configure analyzer measurement range (see "6.3.2 Range selection").

Calibration

Perform zero, span or analog calibration functions (see " Zero and span vs span calibration" on page 24).

System

Configure system-level settings (see "6.3.4 System" on page 27).

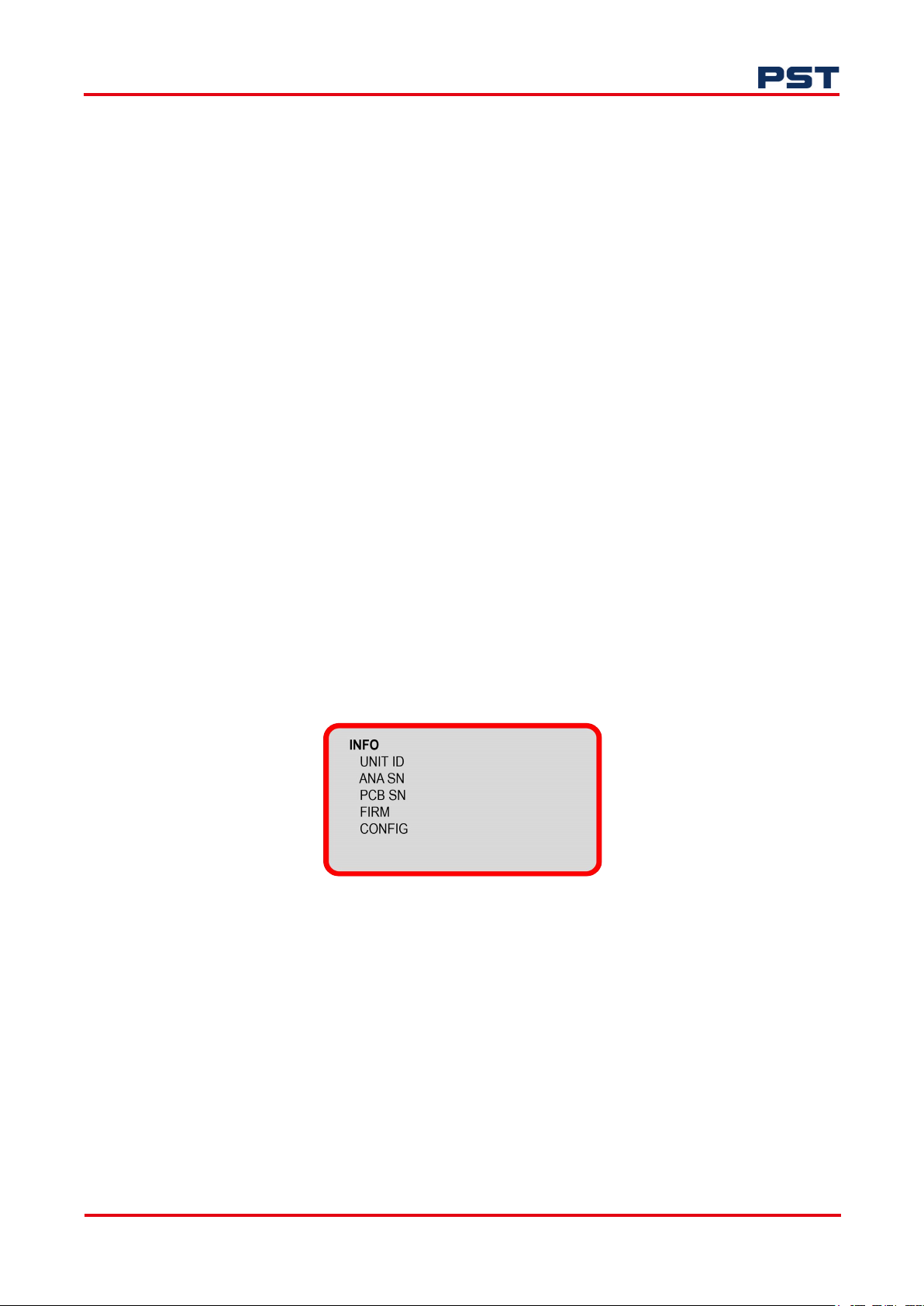

Info

View analyzer information (see "6.3.5 Info" on page 29).

ProcessSensing.com 21

6.3.2 Range selection

Within the Range menu, you can select 6 options. The range is linked to the display and the 4...20 mA
analog output of the analyzer.

NOTE: For trace oxygen analyzers, the range 0...25 % is for calibration purposes only. It is not a

measurement range of the analyzer (see " Zero and span vs span calibration" on page 24 for

calibration). Using this range extensively can significantly shorten the sensor life.

GPR-x500 Oxygen Analyzer User Manual

Figure 13. GPR-x500 Range displays

Range menu options

In the Range menu:

1. Use and to move the cursor to the desired range option.

2. Once the cursor is pointing to your chosen range, press to select the range.

Selecting a range will cause the Auto option to change to Fixed. To select Auto, use to move

the cursor to Fixed, then press to toggle between Auto and Fixed.

Auto

Selecting Auto will enable automatic adjustment of your measurement range depending on the
oxygen levels detected by your oxygen sensor. For example, a 0...10 ppm range will change to

0...100 ppm if the measured oxygen value is higher than 10 ppm.

Default Range

This option will prevent incorrect range-setting if multiple users have access to the analyzer.

If the analyzer range has been changed, for instance for the purpose of checks or maintenance,
and a default range has been pre-set, the analyzer will automatically return to the default range
after 30 minutes of inactivity.

Def Range allows you to set the default range for the analyzer. Within this sub-menu, all stand­ard ranges or Auto mode can be selected.

22 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

It is recommended that you set your preferred default range for the analyzer.

Measurements outside manual range

If the oxygen reading goes above the manual or auto range maximum value, the values will be
displayed up to 10% above the maximum range. Beyond this, an OVER RANGE warning will be
displayed.

6.3.3 Analyzer calibration

Figure 14. Default Range display

All electrochemical sensor-based analyzers require periodic calibration. The electrochemical sensor
signal will remain relatively constant throughout its useful life, however, some components in a gas
stream, e.g. sulfides, can adversely affect the sensor causing changes in sensitivity with time. As such,
regular calibration is recommended to ensure accuracy and ascertain the integrity of the sensor (e.g.
weekly intervals to a 3-month maximum).

Always use good calibration practices.

• Calibrate the analyzer at or close to the temperature and pressure of the sample gas.

• Use known reference gases or fresh air.

• Allow suitable stability time especially when making significant changes in measurement value (e.g.

20.9 % to 0.0 %). Use the table below for guidance.

Table 3: Example stability times

Condition example Typical stability time

<1 % to air (20.9 %) <3 minutes

Air (20.9 %) to 0.1% <30 seconds

Air (20.9 %) to 0.01% <2 minutes

2 minute air exposure to 10 ppm 60 minutes

Set sensor serial

Updating the sensor serial number is critical for the calibration process.

When replacing O
9-digit sensor serial number, enter the Calibration menu.

ProcessSensing.com 23

sensors it is important to update the sensor serial number. To view the current

2

GPR-x500 Oxygen Analyzer User Manual

The sensor serial number can be seen in the menu as shown below:

Figure 15. Calibration display

NOTE: Changing the sensor serial number will reset span and zero calibrations to Factory defaults

and clear the calibration log. It should only be changed when a new sensor is installed.

To change the sensor serial number:

1. Use to select Sensor SN=00000000.

The display will change as shown below in Figure 16.

Figure 16. Sensor serial number display

2. Enter your sensor serial number by using or to edit the value.

3. Press to progress to the next digit or to move to the previous digit.

4. When you have entered your sensor serial number’s last digit, press to Accept the new

serial number.

Zero and span vs span calibration

Electrochemical oxygen sensors generate an electrical current that is linear or proportional to the
oxygen concentration in a sample gas. In the absence of oxygen the sensor exhibits an absolute zero,
i.e. the sensor does not generate a current output in the absence of oxygen. Given the properties of
linearity and an absolute zero, a single point calibration is possible.

Zero calibration is recommended only when the application demands optimum accuracy of better
than 5 % of the lowest range of the analyzer (e.g. for an analyzer configured for 0…25 % range, we
would recommend a zero calibration if measurements below 1.0 % O

Span calibration is required routinely for accurate measurements of oxygen.

NOTE: Zero calibration should always be carried out before a span calibration.

were required).

2

24 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Zero calibration

The zero calibration adjustments are limited to 30 % of the most sensitive range. All analyzers are
QC-tested to confirm the zero calibration. Should you observe a zero calibration error more than 30
% of the lowest range, we recommend first:

• Check the sample system for any possible leaks

• Confirm the integrity of the zero gas

• Ensure the analyzer has been given enough time to stabilize on the zero gas

• Ensure CLIP = OFF, refer to " Clipping" on page 28 for information.

If adequate time is not allowed for the analyzer to establish the true baseline and a ZERO calibration
is performed, the analyzer will likely display a negative reading in the sample mode when exposed to
zero gas. If a negative reading is observed, we recommend repeating the ZERO calibration.

To perform a zero calibration:

1. Enter the Calibration menu and select Zero Calibrate.

The analyzer will switch to Zero Cal mode and display the live readings.

Figure 17. Zero calibration display

2. Once gas readings are stable you can Accept or Abort the calibration.
The calibration will Pass or Fail and the analyzer will return to normal operation at the configured
range.

During calibration ensure stability of readings, secure gas connections and supply of suitable
reference gas.

Span calibration

To perform a Span Calibration, enter the Calibration menu and select Span Calibration.

Figure 18. Span gas display

ProcessSensing.com 25

GPR-x500 Oxygen Analyzer User Manual

In the sub-menu, set the Span Gas value. If using certified cylinder gas, this can be found on the
certificate that was supplied with the cylinder:

1. Use to progress to the next digit or to move to the previous digit; use and to
edit the values.

NOTE: When a Span or Zero Cal starts, only "Abort" with is shown until the reading is stable,

then "Accept" with appears.

2. Now select the unit in use (% or ppm).

3. When you press , the analyzer will switch to the appropriate range and display the live

readings.

Figure 19. Span calibration display

Once gas readings are stable you can Accept or Abort the calibration. The calibration will Pass or Fail
and the analyzer will return to normal operation at the configured range.

During calibration ensure stability of readings, secure gas connections and supply of suitable
reference gas.

NOTE: If using a ppm sensor we do not recommend exposure of the sensor to ambient air as it will

significantly degrade the sensor life.

26 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Calibration log

The Cal Log shows a summary of events on the analyzer. A total 256 records can be recorded.

Details included are shown below;

Date Cal Type Pass/Fail

Correction Value

01/01/23 RST ZRO = Zero calibration

01/01/23 SPN -0.05 P

01/01/23 ZRO -1.00 F

NOTE: The correction value does not relate to actual readings it is a proportional value. This value

can be used by the PST Factory for diagnostics.

6.3.4 System

Use the System menu to make the system adjustments shown in Figure 20.

SPN = Span calibration

RST = Reset calibration to factory

calibration

Figure 20. System display

Figure 21. System sub-menu displays

ProcessSensing.com 27

GPR-x500 Oxygen Analyzer User Manual

Security

• Enable Screen Lock with a passcode (default code is 0000)

• Set Passcode > Set the 4-digit passcode

• Enable Auto Lock > Locks the screen after 30 minutes.

Calibrate 4...20 mA

This sub-menu allows a direct offset to be applied to the 4...20 mA analog output.

1. Use the keypad to adjust the reference corrections for both 4 and 20 mA outputs.

2. Select Accept to apply the adjustments or Abort.

Signal AV - signal average

This function enables the setup of a measurement rolling average. A value between 1...100 readings
can be used in a simple average calculation for the display measurements. Measurements are made at
1 Hz so that a value of 60 will give a 1-minute rolling average.

Higher signal average will help remove measurement instability but will reduce measurement
response.

Clipping

Enabling Clipping will stop the analyzer displaying below 0 ppm / 0 % readings.

Time

Sets the on board 24-hour clock for data logging.

Date form

This user-configurable functions enables you to set your date format preference to one of the
following:

mm/dd/yy
dd/mm/yy
yy/mm/dd

Date

Set the on board device date (after a full power cycle the date time will be 00:00 1 Jan 2000.

28 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Range scale

Adjusts the ppm range max value by a multiple (1-5).

For example setting Range Scale to 5 will give the following Range Options in the Range menu:

• 0-50 ppm

• 0-500 ppm

• 0-5000 ppm

Your analyzer is supplied with a Range scale of 1 as standard. This will generate ranges of:

• 0-10 ppm

• 0-100 ppm

• 0-1000

NOTE: Range scale only applies to the lowest three ranges of group 1 O

Unit ID

Allows an Alpha numeric ID to be given to the analyzer. This value will be stamped on log files and
displayed on the INFO SCREEN.

Factory reset

Reverts all settings to Factory Configuration including security settings, sensor calibration and analog
calibration.

6.3.5 Info

The Info menu displays the device information including:

(10, 100, 1000 ppm O2).

2

Figure 22. Info display

• UNIT ID: User defined (this is left blank for user, usually a location ID or asset number is entered

here)

• ANA SN: Serial number of the analyzer (The 9-digit analyzer serial number is also displayed in log

files)

• PCB SN: Serial number of the circuit board (a 9-digit number)

• FIRM: Firmware part number and revision

• CONFIG: This number refers to your analyzer’s power, gas and Factory group number.

ProcessSensing.com 29

7 Maintenance

The GPR-x500 will provide reliable and fault-free service with regular maintenance and calibration.

During periods without use the sensor should be purged with nitrogen or argon gas to preserve the
sensor life.

Do not attempt to make repairs to the analyzer. This will void the

warranty and may result in electrical shock, injury, or damage. All
servicing should be referred to qualified service personnel.

7.1 Sensor replacement

To maintain performance, the sensor in your GPR-x500 analyzer will require replacement. Sensor life
is application dependent.

GPR-x500 Oxygen Analyzer User Manual

When your sensor reaches the end of its serviceable life, calibration can no longer be performed and
the sensor must be replaced.

A regular program of calibration will mitigate against sudden sensor failure. It is advisable to establish
a program of preventative maintenance to ensure process downtime is kept to a minimum or avoided.

The protective plugs on your sensor should only be removed when your GPR-x500 is installed and
ready to begin gas measurement.

Refer to "5 Before connecting gas" on page 15 for the sensor installation procedure.

7.2 Routine cleaning

During sensor replacement, it is recommended that light cleaning of electrical contacts is carried out.

Never use chemical cleaning agents, solvents or high pressure water or steam to clean the

equipment. Do not submerge in water.

To perform routine cleaning:

1. Use a clean cloth that is damp with water to wipe away dust and dirt from the outside of the unit.

2. Dry the analyzer with a clean, dry cloth.

30 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

7.3 Routine inspection of sensor housing

The maximum interval between routine inspections should be determined with consideration of the
application and importance of the measurement.

The interval should be reassessed on a regular basis and can be extended and reduced as the process
control requires.

This can be carried out during sensor replacement. To perform routine inspection:

1. Ensure the gas entry and vent ports on the sensor housing are not obstructed.

2. Inspect the sensor housing seal and replace it if damage is visible.

7.4 Troubleshooting

• Ensure the correct calibration gas is used when performing a validation or calibration of your

analyzer. This will prevent unpredictable operation and incorrect readings.

• The calibration gas should be within range of your GPR-x500, typically 100 ppm for the 0...1 %

range analyzer, and 20.9 % for the 0...25 %. See the PST Factory calibration certificate supplied
with your module for specific calibration gas values.

• A faulty sensor or one that is incorrectly installed will display ‘FLT’ on your analyzer’s display.

• Do not expose the sensor to moisture in an un-powered state. If this happens, allow the sensor to

dry out, and if necessary, apply clean dry inert gas.

ProcessSensing.com 31

GPR-x500 Oxygen Analyzer User Manual

Table 4: Troubleshooting causes and recommendations

Symptoms

Slow recovery. At installation, defective sensor. Replace sensor if recovery unacceptable or

High O

installing or replacing sensor.

High O

Response time slow. Air leak, dead legs, longer distance of

O

expected O

reading after

2

reading sampling. Flow rate exceeds limits Pressurized

2

reading doesn’t agree with

2

values.

2

Possible cause Recommended actions

reading fails to reach 10 % of lowest

O

2

range.

Air leak in sample system connection(s). Leak test the entire sample system: Vary

the flow rate, if the O

inversely with the change in flow rate
indicates an air leak - correct source of leak.

Abnormality in zero gas. Qualify with zero gas.

Replace sensor.

Damaged in service - prolonged exposure

Replace sensor.
to air, electrolyte leak.
Sensor nearing end of life. Replace sensor.

Analyzer calibrated before sensor
stabilized caused by:
Prolonged exposure to ambient air, worse
if sensor was left in air un-shorted.

Allow O

any calibration adjustment, continue purge

reading to stabilize before making

2

with zero gas.
Air leak in sample system connection(s). Leak test the entire sample system (above).

Abnormality in zero gas. Qualify with zero gas.

Correct pressure and flow rate.
sensor.

Remove restriction on vent line or open.
Improper sensor selection. SHUT OFF valve completely.

Replace GPR/PSR sensor with XLT sensor

when CO

or acid gases are present.

2

Replace GPR/PSR sensor with -H sensor

when H

or He gas is the background gas.

2

Abnormality in sample gas measurement. Validate with portable oxygen analyzer.

Leak test sample system bringing sample
sample line, low flow rate, high volume of
optional filters and scrubbers.
Pressure and temperature of the sample
may be different than the span gas used
for calibration Abnormality in the sample

gas to analyzer, reduce dead volume and/or

increase sample flow rate.

Calibrate the analyzer (calibrate close to the

pressure and temperature of the sample

gas).
gas.

Qualify sample gas independently.

reading changes

2

32 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Symptoms

Erratic O2 reading or No O2

reading.

Erratic O

Negative O

O

2

accompanied by electrolyte
leakage.

reading or

2

reading or No

2

reading possibly

Possible cause Recommended actions

Test sensor signal output independent
from analyzer.

Abrupt changes in sample pressure. Regulate sample gas pressure and flow.

Dirty electrical contacts in upper section of
sensor housing.
Corroded solder joints on sensor PCB from
corrosive sample or electrolyte leakage
from sensor Corroded spring loaded
contact in upper section of sensor housing
from liquid in sample or electrolyte leakage
from sensor.
Liquid in sensor housing. Wipe sensor and sensor housing with a

Improper sensor selection. Replace GPR/PSR series sensor with XLT

Presence of other interference gases. Consult PST Factory.

Presence of sulfur gases. Replace sensor and install H

Unauthorized maintenance. Replace sensor, obtain authorized service.

Sensor nearing end of life. Replace sensor.

Pressurizing of the sensor by flowing gas to
the sensor with the vent restricted

Pressurizing of the sensor by flowing gas to
the sensor with SHUT OFF valve closed
then suddenly removing the restriction to
draw a vacuum on the sensor, or partially
opening the valves upstream of the
analyzer when using a pump downstream
of the analyzer to draw sample from a
process at atmospheric pressure or a slight
vacuum.

Remove sensor from housing. Using a volt­meter set to uA output, apply the (+) lead to
the outer ring of the sensor PCB and the (-)
lead to the center circle to obtain the
sensor’s output in air. If no current signal,
replace sensor, otherwise contact the PST
Factory.

Replace sensor.

Clean spring loaded contacts in upper
section of sensor housing with a damp cloth
or cotton swab, water or IPA can be used. If
electrolyte leakage from sensor is evident,
replace sensor.

damp cloth or cotton swab. Water or IPA
can be used.

sensor when CO

or acid gases are present.

2

S scrubber.

2

Zero the analyzer. If not successful replace
the sensor.

Avoid drawing a vacuum on the sensor.

A pressurized sensor may not leak but still
can produce negative readings.

Placing a vacuum on the sensor in excess
40” of water column is strongly
discouraged.
A premature ZERO OFFSET of analyzer. From MAIN MENU select DEFAULT ZERO

and perform a zero calibration.

ProcessSensing.com 33

8 Warranty information

The design and manufacture of Analytical Industries Inc. oxygen analyzers and oxygen sensors are
performed under a certified Quality Assurance System that conforms to established standards and
incorporates state of the art materials and components for superior performance and minimal cost of
ownership.

Prior to shipment every analyzer is thoroughly tested by the manufacturer and documented in the
form of a Quality Control Certification that is included in the Owner’s Manual accompanying every
analyzer.

When operated and maintained in accordance with the Owner’s Manual, the units will provide many
years of reliable service.

8.1 Coverage

Under normal operating conditions, the analyzers and sensors are warranted to be free of defects in
materials and workmanship for the period specified in accordance with the most recent published
specifications, said period begins with the date of shipment by the manufacturer.

GPR-x500 Oxygen Analyzer User Manual

The manufacturer information and serial number of this analyzer are located on the rear of the
analyzer. Analytical Industries Inc. reserves the right in its sole discretion to invalidate this warranty if
the serial number does not appear on the analyzer.

If your Analytical Industries Inc. monitor, analyzer and/or oxygen sensor is determined to be defective
with respect to material and/or workmanship, PST will repair it or, at our option, replace it at no
charge to you.

This warranty applies to all monitors, analyzers and sensors purchased worldwide.

8.2 Limitations

Analytical Industries Inc. will not pay for: loss of time; inconvenience; loss of use of your Analytical
Industries Inc. analyzer or property damage caused by your Analytical Industries Inc. analyzer or its
failure to work; any special, incidental or consequential damages; or any damage resulting from
alterations, misuse or abuse; lack of proper maintenance; unauthorized repair or modification of the
analyzer; affixing of any attachment not provided with the analyzer or other failure to follow the user
manual.

US Customers only: Some states and provinces do not allow limitations on the duration of an implied
warranty or the exclusion or limitation of special, incidental or consequential damages, in this case,
these exclusions may not apply. This warranty gives you specific legal rights. You may have other
rights, which vary between states and provinces.

8.3 Exclusions

This warranty does not cover installation; defects resulting from accidents; damage while in transit to
our service location; damage resulting from alterations, misuse or abuse; lack of proper maintenance;

34 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

unauthorized repair or modification of the analyzer; affixing of any label or attachment not provided
with the analyzer; fire, flood, or acts of God; or other failure to follow the User Manual.

8.4 Service

For queries related to service and warranty, please contact your local Process Sensing Technologies
office, sales partner or supplier.

Offices are listed at ProcessSensing.com or email [email protected]

.

ProcessSensing.com 35

GPR-x500 Oxygen Analyzer User Manual

9 Appendices

Appendix A - Technical Specifications

Sensor

Electrochemical ppm %

Model Number

Measuring Range 0...10, 0...100, 0...1000 ppmV, 0...1 %

Output Resolution 0.01 ppm

Lower Detection Limit

(LDL)

Sample Flow Rate

(application dependent)

Pressure Range 5...30 psi (0.4...2.1 bar)

Response Time (T90) < 2 minutes < 30 seconds

Operating Temperature
Range

Humidity 0...80 %rh non-condensing

Life Expectancy

(application dependent)

Calibration Interval

(application dependent)

GPR-12-333

GPR-12-333-LD

GPR-12-333-H

0...25 % (calibration only)

0.05 ppm

+5 °C...+45 °C

(+41 °F...+113 °F)

24 months in 1000 ppm

Analyzer

Electrical

Display LCD

Output Signal 4...20 mA

Power Supply 18...24 V DC

Maximum Power
Consumption

Mechanical

Ingress Protection NEMA 3R

Analyzer Housing
Material
Mounting Wall / vertical surface

XLT-12-333

XLT-12-333-LD

V

V

1...2 SCFH (0.5...1 LPM)

-10 °C...+45 °C

(+14 °F...+113 °F)

V

Fiberglass and painted aluminum

(+41 °F...+113 °F)

60 months in air 24 months in air

30 days

1.8 W

GPR-11-60

GPR-11-60-LD

0...1, 0...5, 0...10, 0...25 %

0.001 %

0.01 %

+5 °C...+45 °C

XLT-11-24

XLT-11-24-LD

-10 °C...+45 °C

(+14 °F...+113 °F)

Compliance

Complies with EMC Directive: 2014/30/EU

36 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Appendix B - Hazardous Area Certification

Region Certification details Standards

Europe

North America/Canada

International

ATEX / UKCA

II 1 G Ex ia IIC T4 Ga

T

(–20 °C...+50 °C)

amb

cMETus

Class I, Div 1, Groups A, B, C & D, T4

Class I, Zone 0, AEx ia IIC T4 Ga, Ex ia IIC T4 Ga

T

(–20 °C...+50 °C)

amb

IECEx

Ex ia IIC T4 Ga

T

(–20 °C...+50 °C)

amb

EN 60079-0:2018
EN 60079-1:2014
EN 60079-11:2012

UL 60079-0:2019 (R2020)
UL 60079-1:2020
UL 60079-11:2013 (R2018)
UL 1203:2022
UL 61010-1:2019

CSA C22.2 No. 60079-0:2019
CSA C22.2 NO. 60079-1:16 (R2021)
CSA C22.2 No. 60079-11:2014 (R2018)
CSA C22.2 NO. 30:20
CSA C22.2 No. 61010-1:2017

IEC 60079-0:2017
IEC 60079-1:2014
IEC 60079-11:2011

ProcessSensing.com 37

Appendix C - Safety Data Sheet

Safety Data Sheet (KOH)

Analytical Industries Inc.

A PST Brand

I. Product Identification

Product Name: Oxygen Sensor (Series AII, GPR, PSR, Private Label derivations)

Product Use: Oxygen Sensors
Manufacturer: Analytical Industries Inc.
Address: 2855 Metropolitan Place, Pomona, CA 92767 USA
Contact Information: Tel: [phone], Fax: [phone], email: [email protected]
Emergency Number:

Date Prepared: January 1, 1995
Date Revised: January 31, 2023

II. Hazardou(s) Identification

GHS Classification:

Lead (Pb) Health Environmental Physical

Acute Toxicity- Category (Inhalation)

Acute Aquatic Toxicity-Cate

NA
Acute Toxicity- Category 4 (oral/dermal) Chronic Aquatic Toxicity-Category 1
Carcinogenic- Category 2ty
Reproductive/Developmental- Category 2
Target organ Toxicity (Repeated) Category 2

Potassium Hydroxide (KOH) Health Environmental Physical

Corrosive to Metal- Category 1

Acute Aquatic Toxicity-Cate

NA
Acute Toxicity- Category 4 (oral)
Skin Corrosion-Category 1A
Serious Eye Damage-Category 1

GHS Labels:
Potassium Hydroxide (KOH)
Symbols:

Hazardous Statements Precautionary Statements

• Danger • Wash skin thoroughly after handling.

• Ma

y be corrosive to metal •Do not eat, drink or smoke when using this product.

• Ha

rmful if swallowed •

Avo

id release to the environment.

• Caus

es severe skin burns and eye damage •

Wear pr

otective gloves/ protective clothing/ eye protection/ face protection.

• Ha

rmful to aquatic life

• IF SWALLOWED

: Call a POISON CENTER or doctor/ physician if you feel unwell.

• IF SWALLOWED: Rinse mouth. Do NOT induce vomiting.

• IF ON SKIN (or hair): Remove/Take off immediately all contaminated clothing.
Rinse skin with water/ show

er.

• IF INHALED: Remove vic

tim to fresh air and ke

ep at rest in a position comfortabl

for

breathing

.

• IF IN

EYES: Rinse cautiously with water for several minutes. Remove contact len

if p

resent and easy to do. Continue rinsing. Immediately call a POISON CENTER f

doct

or/ physicia

n.

• Was

h contaminated clothing before reus

e.

• Abs

orb spillage to prevent material da

mage.

• S

tore in corrosive resistant stainless steel container with a resistant inner liner.

• Dispose of contents/ container to an approved waste disposal plant.

GHS Labels:
Lead (Pb)

PFR 7.3-1002-0 Rev 1

Page 1 of 8

GPR-x500 Oxygen Analyzer User Manual

38 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Safety Data Sheet (KOH)

Analytical Industries Inc.

A PST Brand

Symbols:

Hazardous Statements Precautionary Statements

• Warning !

• If breathed in, move person into fresh air. In not breathing, give artificial respirat

• Harmful if swallowed Consult a physician.

• Suspected of causing cancer. •

In c

ase of skin contact, wash off with soap and plenty of

water.

• S

uspected of damaging fertility or the unborn c

hild. • In cas

e of eye contact, flush eyes with water

as a precaution.

• May c

ause damage to organs through prolonged or

• If s

wallowed, rinse mouth with water.

repeated exposure.

• V

ery toxic to aquatic life with long lasting effects.

III. Composition /Information on Ingredients

Material C.A.S. # Weight % GHS Classification Notes

Lead (Pb) 7439-92-1 50-75 Carc 1A;H350

Aquatic Acute 1:H400

Substance with a work place limit

Potassium Hydroxide (KOH) 1310-58-3 1.0-10 Acute Tox. 4; H302

Skin Corr.1A; H314

Substance with a work place limit.

IV. First Aid Measures

4.1. Description of aid measures

General:

Inhalation:

Eyes:

Skin:

Ingestion:

V. Fire -Fighting Measures

5.1. Extinguishing media

• Lead Oxides.

5.3. Advice for fire-fighters

• Wear s

elf-contained breathing apparatus for firefighting if necessary.

Substance classified with a
health & Environmental hazard.

Substance classified with a
health & Environmental hazard.

• In all cases of doubt, or when symptoms persist, seek medical attention. Never
g

ive anything by mouth to an unconscious person.

• Remove to fresh air, keep patient warm and at rest. If breathing is irregular or
stopped, give artificial respiration. If unconscious place in the recovery position
and obtain immediate

• Irrigate copiously with clean water for at least 15 minutes, holding the eyelids
apart and seek medical attention

.

• Remove contaminated clothing. Wash skin thoroughly with soap and water or
use a recognized skin cleanser

.

• Do NOT induce vomiting. Rinse mouth and slowly drink several glasses of
water. Call a physician. Do NOT give anything by mouth to an unconscious or

4.2. Most important symptoms and effects, both
acute and delayed

• The most important known symptoms and effects are described in the labelling
(s

ee section II) and/or in section XI

5.2. Special hazards arising from the substance or
mixture

• Use standard fire fighting media on surrounding materials including water
spray, foam

, and carbon dioxide. (Do not use dry chemical ext

inguisher

PFR 7.3-1002-0 Rev 1

Page 2 of 8

ProcessSensing.com 39

GPR-x500 Oxygen Analyzer User Manual

Safety Data Sheet (KOH)

Analytical Industries Inc.

A PST Brand

5.4. Further Information • Gives off hydrogen by reaction with metals.

VI. Accidental release measures

6.2. Environmental precautions

VII. Handling and storage

7.1. Precautions for safe handling

7.3. Specific end use(s)

VIII. Exposure Controls/Personal Protection

8.1. Control parameters

CAS No. Ingredient Source Value

0001310-58-3 Potassium hydroxide OSHA

No Establish Limits

ACGIH

Ceiling: 2mg/m3

NIOSH

Ceiling: 2mg/m3

Supplier

No Establish Limits

007439-92-1 Lead (Pb) OSHA

(1910.1025)TWA 0.050mg/m3

ACGIH

TWA:0.05 mg/m3R,2B,2A

NIOSH

TWA (8 Hour)0.050 mg/m3

Supplier

No Establish Limits

CAS No.

Ingredient Source Value

0001310-58-3 Potassium hydroxide OSHA

Select Carcinogen: No

NTP

Known: No; Suspected: No

007439-92-1 Lead (Pb) OSHA

Select Carcinogen: Yes

• Apart from the uses mentioned in section I no other specifies are stipulated.

• Do not allow spills to enter drains or waterways. Use good personal hygiene
practices. Wash hands be

fore eating, drinking, smoking or using toilet. Pr

omptly

r

emove soiled clothing and wash thoroughly before reuse.

6.3.Methods and material for containment and
cleaning up

• Contain spillage. Neutralize spill with soda ash or lime. Carefully place material
into c

lean dry contain and cover. Flush spill area with water. Avoid creating dust.

6.1. Personal precautions, protective equipment
and emergency procedures

• Use appropriate personal protective equipment. Avoid dust formation. Avoid
breathing va

pors, mist or gas. Ensure adequate ventilation. Evacuate

personnel to safe areas. Avoid breathing dust. For personal protection see section

Note: The Oxygen sensor contains a strong basic solution encapsulated in a plastic housing. Under normal operating conditions the
s

olution (electrolyte) is never exposed. In case of a leak please observe the following instructions

:

7.2. Conditions for safe storage, including any
incompatibilities

• Store sensors in a cool ,dry and well-ventilated places. Exercise due caution to
prevent damage to or leakage from the container. Keep containers closed when

• Under normal circumstances the lead anode and potassium hydroxide electrolyte
are sealed inside the oxygen sensor which is then\ sealed in a polyethylen

e bag

and placed in a car

dboard box for shipment) and do not present a health haz

ard.

The following guidelines

are provided in the event an oxygen sensor leaks

• Before opening the bag containing the sensor cell, check the sensor cell for
leakage. If the sensor cell leaks, do not open the bag. If there is liquid around th

e

cell while in the instrument, put o

n gloves and eye protection before re

moving the

Exposure

Carcinogen Data

Group 1: No; Group 2a: No;
Group 2b: No; Group 3: No;
Group 4: No;

IARC

PFR 7.3-1002-0 Rev 1

Page 3 of 8

40 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Safety Data Sheet (KOH)

Analytical Industries Inc.

A PST Brand

NTP

Known: No; Suspected: Yes

8.2. Exposure controls
Respiratory

Eyes

• Chemical s

plash goggles

Skin

Engineering Controls

Other Work Practices

IX. Physical / Chemical Characteristics

9.1 Information on basic physical and chemical properties

Material / Component:

Lead (Pb) - Anode

Appearance

Article Solid

Odor

None

Odor threshold

Not Measured

pH

Not Measured

Melting point / freezing point

>328° C

Initial boiling point and boiling range

>1320° C

Flash Point

Not Measured

Evaporation rate (Ether = 1)

Not Measured

Flammability (solid, gas)

Not Applicable

Upper/lower flammability or explosive limits

Not Measured

Vapor pressure

Not Measured

Vapor Density

Not Measured

Specific Gravity

Not Measured

Solubility in Water

Insoluble

Partition coefficient n-octanol/water (Log Kow)

Not Measured

Auto-ignition temperature

Not Measured

Decomposition temperature

Not Measured

Viscosity (cSt)

Not Measured

9.2. Other information

No other relevant information.

X. Stability and Reactivity

10.1. Reactivity • Hazardous Polymerization will not occur

10.2. Chemical stability • Stable under normal circumstances

10.3. Possibility of hazardous reactions

Not Measured

100% (Water based solution)

Not Measured

• Incompatible with strong oxidizers, leather and halogenated compounds.
Product will react with 'soft' metals such as aluminum, tin, magnesium, and z

inc

Potassium Hydroxide (KOH) - Electrolyte

Form: Liquid; Color: Clear Translucent

None

Not Measured

>13

Not Measured

Not Measured

>100° C

Not Measured

Not Measured

Not Measured

Not Measured

Not Measured

Not Measured

Not Measured

• If workers are exposed to concentrations above the exposure limit they must
u

se the appropriate, certified respirators.

• Apron, face shield Wear gloves. Gloves must be resistant to corrosive materials.
Nit

rile or PVC gloves are suitable. Do not use cotton or leather gloves

.

• Provide adequate ventilation. Where reasonably practicable this should be
achieved by the use of local exhaust ventilation and good general extraction

. If
these are not sufficient to maintain concentrations of particulates and any vapor
below occupational exposure limits suitable respiratory protection must be worn.

• Use good personal hygiene practices. Wash hands before eating, drinking,
sm

oking or using toilet. Promptly remove soiled clothing and wash thoroughly

IARC

Group 1: No; Group 2a: No;
Group 2b: Yes; Group 3: No;
Group 4: No;

Not Measured

PFR 7.3-1002-0 Rev 1

Page 4 of 8

ProcessSensing.com 41

Safety Data Sheet (KOH)

Analytical Industries Inc.

A PST Brand

10.4. Conditions to avoid • Excessive heat and open flame.

10.5. Incompatible materials

10.6. Hazardous decomposition products

• Toxic fumes.

XI. Toxicological Information

11.1 Information on toxicological effects (Potassium Hydroxide)

Acute toxicity • LD50 Oral - Rat- 333mg/kg

• Inhalation : no data available

• Dermal: no data available

Skin Corrosion/irritation • Skin Rabbit- Severe skin irritation 24 h

Serious eye damage/eye irritation • Eyes Rabbit- Corrosive to eyes (OECD Test Guideline 405

Respiratory or skin sensitization • No Data Available

Germ cell mutagenicity • No Data Available

Carcinogenicity

Reproductive toxicity • No Data Available

Specific target organ toxicity-single exposure • No Data Available

Specific target organ toxicity-repeated exposure • No Data Available

Additional information • RTECS:TT2100000

11.2 Information on toxicological effects (Lead)
Acute toxicity • Inhalation : no data available

• Dermal: no data available

Skin Corrosion/irritation • No Data Available

Serious eye damage/eye irritation • No Data Available

Respiratory or skin sensitization • No Data Available

Germ cell mutagenicity • Rat - Cytogenetic analysis

ACGIH • No component of this product presents at levels greater than or equal

to 0.1% is identified as a carcinogen or potential carcinogen by ACGIH.

NTP • No component of this product presents at levels greater than or equal to

0.1% is identified as a known or anticipated carcinogen by NTP

OSHA • No component of this product presents at levels greater than or equal to

0.1% is identified as a carcinogen or potential carcinogen by OSHA

releasing flammable hydrogen gas.

IARC • No component of this product presents at levels greater than or equal to

0.1% is identified as probable, possible or confirmed human carcinogen by IARC.

• Aluminum, organic materials, acid chlorides, acid anhydrides, magnesium,
copper. Avoid contact with acids and hydrogen peroxide >52%

PFR 7.3-1002-0 Rev 1

Page 5 of 8

GPR-x500 Oxygen Analyzer User Manual

42 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Safety Data Sheet (KOH)

Analytical Industries Inc.

A PST Brand

Carcinogenicity • Limited evidence of carcinogenicity in animal studies

IARC • 2B-Group 2B. Possibly carcinogenic to humans (Lead)

NTP • Reasonably anticipated to be a human carcinogen (Lead)

OSHA • 1910.1025 (Lead)

Reproductive toxicity • Suspected human reproductive toxicant

• Rat-

Inhalation: Effects on Newborn; Biochemical metabolic

• Rat-

Oral: Effects on Newborn; Behavioral

Development Toxicity

Specific target organ toxicity – single exposure • No Data Available

Specific target organ toxicity – repeated exposure • May cause damage to organs through prolonged or repeated exposure.

Aspiration hazard

• No D

ata Available

Additional Information • RTECS: OF7525000

XII. Ecological Information

12.1. Toxicity

Very toxic to aquatic life

Aquatic Ecotoxicity

12.1. Persistence and degradability

• T

here is no data available on the preparation itself.

12.3. Bioaccumulative potential

• Not Me

asured

12.4. Mobility in soil

• No D

ata Available

12.5. Result of PBT and vPvB assessment

• This Pr

oduct contains no PBT and vPvB chemicals.

12.6. Other adverse effects

XIII. Disposal Considerations

Potassium hydroxide. -

(1310-58-3)

Not Available

Not Available

Not Available

• Lead is bioaccumulative in most aquatic life and mammals. It is highly mobile as
lead dus

t or fume, yet forms complexes with organic ma

terial which limits its

• Rat-Oral: Effects on Embryo or Fetus: Fetotoxicity (except death, e.g., stunted
fe

tus). Effects on Embryo or Fetus: Fetal death.

• Rat-Inhalation: Effects on Embryo or Fetus: Fetotoxicity (except death, e.g.,
s

tunted fetus). Specific Developmental Abnormalities: Blood and lymphatic sys

tem

(including spleen and marrow).

• Rat-Oral: Specific Developmental Abnormalities: Blood and lymphatic system
(i

ncluding sleep and marrow). Effects on Newborn: Growth statistics

(e.g.,

• Mouse-Oral: Effects on Embryo or Fetus: Fetotoxicity (except death, e.g.,
s

tunted fetus). Effects on Embryo or Fetus: Fetal death.

96 hr. LC50 fish,

mg/l

Ingredient

48 hr. EC50 crustacea,

mg/l

ErC50 algae,

mg/l

Lead Compounds (as

Pb) - (7439-92-1)

0.44, Cyprinus
carpio

4.40, Daphnia magna

0.25 (72 hr.), Scenedesmus
subspicatus

• Mouse-Oral: Effect on Fertility: Female fertility index (e.g., # females pregnant
per # s

perm positive females; # females pregnant per # females ma

ted). Effects

on Fertility: Pre-

implantation mortality (e.g., reduction in number of implants pe

r

femal

e; total number of implants per corpora lutea).

PFR 7.3-1002-0 Rev 1

Page 6 of 8

ProcessSensing.com 43

Safety Data Sheet (KOH)

Analytical Industries Inc.

A PST Brand

13.1. Waste treatment methods

XIV. Transport Information

DOT: • Regulated. Refer to Small Quantity Exceptions: 49 CFR 173.4

IATA:

• Regulated. Meets criteria for IATA Dangerous Goods in Excepted Quantities, Secti

Environmental hazards
IMDG • Marine Pollutant: Yes ( Lead Compounds (as Pb) )

XV. Regulatory Information

Regulatory Overview

Toxic Substance Control Act ( TSCA)

WHMIS Classification • D2A E

US EPA Tier II Hazards

Fire: No

Sudden Release of Pressure: No

Reactive: No

Immediate (Acute): Yes

Delayed (Chronic): Yes

EPCRA 311/312 Chemicals and RQs (lbs.): • Lead Compounds (as Pb) ( 10.00)

• Potassium hydroxide. ( 1,000.00)

EPCRA 302 Extremely Hazardous : •(No Product Ingredients Listed)

EPCRA 313 Toxic Chemicals: • Lead Compounds (as Pb)

Proposition 65 - Carcinogens (>0.0%): • Lead Compounds (as Pb)

Proposition 65 - Developmental Toxins (>0.0%): • Lead Compounds (as Pb)

Proposition 65 - Female Repro Toxins (>0.0%): • Lead Compounds (as Pb)

Proposition 65 - Male Repro Toxins (>0.0%): • Lead Compounds (as Pb)

N.J. RTK Substances (>1%): • Lead Compounds (as Pb)

• Potassium hydroxide.

XVI. Other Information

• The regulatory data in Section 15 is not intended to be all-inclusive, only
selected regulations are represented.

• All components of this material are either listed or exempt from listing on the
TSCA Inventory

The information and recommendations contained herein are based upon data believed to be correct. However, no guarantee or warranty of

• UN3363, Dangerous Goods in Machinery or Dangerous Goods in Apparatus, 9.
NOTE: This description is used when shipping under the US DOT Approval.

• Do not allow into drains or water courses. Wastes and emptied containers
should be disposed of in accordance with regulations made under the Control of
Pollution Act and the Environmental Protection Act.

• Using information provided in this data sheet advice should be obtained from
the Waste Regulation Authority, whether the special waste regulations apply.

• UN3266, Corrosive liquid, basic, inorganic, n.o.s., (potassium hydroxide, lead),
8, II NOTE: This description is used for shipping purposes when not using
Analytical Industries Inc. US DOT Approval.

PFR 7.3-1002-0 Rev 1

Page 7 of 8

GPR-x500 Oxygen Analyzer User Manual

44 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Safety Data Sheet (KOH)

Analytical Industries Inc.

A PST Brand

H30

2 Harmful if swallowed.
H314 Causes severe skin burns and eye damage.
H350 May cause cancer.
H400 Very toxic to aquatic life.

End of Document

This is the first version in the GHS SDS format. Listings of changes from previous versions in other formats are not

All chemicals may pose unknown hazards and should be used with caution. While the information contained in this Material Safety Data
Sheet is believed to be correct and is offered for your information, consideration and investigation, Analytical Industries Inc assumes no
responsibility of the completeness or accuracy of the information contained herein.

any kind, expressed or implied, is made with respect to the information contained herein. We accept no responsibility and disclaim all liability
for any harmful effects which may be caused by exposure to our products. Customers/users of this product must comply with all applicable
health and safety laws, regulations, and orders.

PFR 7.3-1002-0 Rev 1

Page 8 of 8

ProcessSensing.com 45

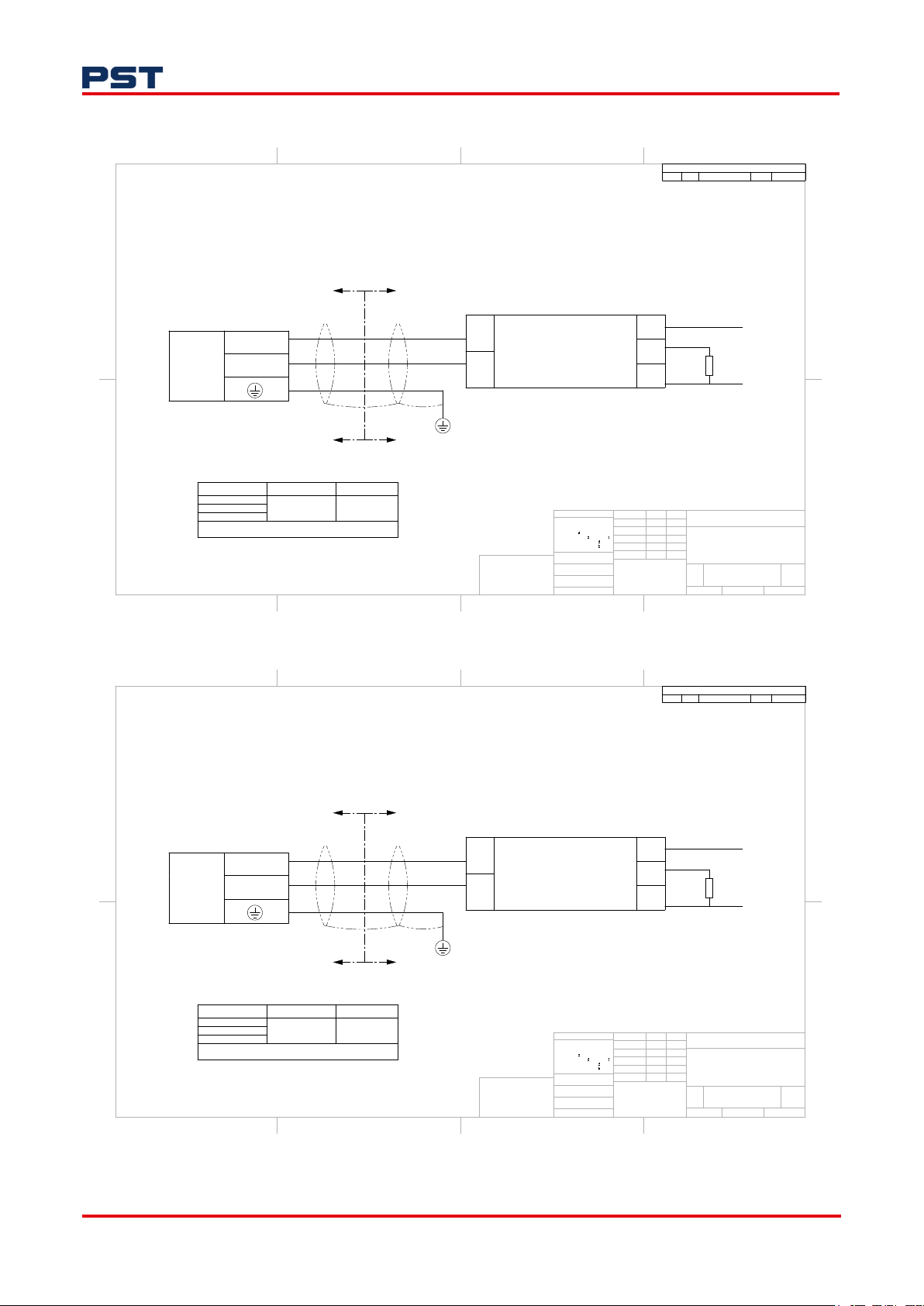

Appendix D - Controlled Drawings

7+(/22332:(5('*$6$1$/<=(5,6127&$3$%/(2):,7+67$1',1*
7+(9,168/$7,21',(/(&75,&675(1*7+7(675(48,5('%<,(&
7+,66+$//%(7$.(1,172$&&2817:+(1,167$//,1*7+((48,30(17

7+(,167$//$7,210867&203/<:,7+7+(,167$//$7,2135$&7,&(62)
7+(&28175<2)86(LH7+(1$7,21$/(/(&75,&$/&2'($16,1)3$
$1'7+(&$1$',$1(/(&75,&$/&2'(&6$&

$662&,$7('$33$5$786)25(;$03/(

3527(&7('6$)(7<%$55,(5

&(57,),&$7(180%(5%$6$7(;

,17(5)$&(07/

121+$=$5'286/2&$7,21+$=$5'286/2&$7,21

+$=$5'286$5($,167$//$7,216

7+(5(,621/<21(&211(&7,21:+,&+,6,175,16,&$//<6$)(,763$5$0(7(57$%/(,6







:$51,1*68%67,787,212)&20321(1760$<,03$,5,175,16,&6$)(7<



$//&$%/(0867%(6+,(/'('72*5281'$7&86720(56,'(



352'8&702'(/180%(5*35*35

(48,30(177<3(,'/22332:(5('*$6$1$/<=(5

&(57,),&$7(180%(5(

',9,6,216<67(00$5.,1*&ODVV,'LY*URXSV$%&'7

=21(6<67(00$5.,1*&ODVV,=RQH$([LD,,&7*D

,(&&$1$'$([LD,,&7*D








5(7851

96

/2$'

96

P$

729'&

5(9,6,216

=21(

5(9

'(6&5,37,21

'$7(

$33529('

*5283 8L9

OLP$

%RU,,&

 

&RU,,%
'RU,,$

27+(53$5$0(7(56$5('(7(50,1('%<7+(

&211(&7('(48,30(17

/223

32:(5('*$6

$1$/<=(5

1(*$7,9(

326,7,9(

$ $

% %

















/22332:(5('

*$6$1$/<=(5

6<67(0'5$:,1*



'21276&$/('5$:,1*

$(;

6+((72)



81/(6627+(5:,6(63(&,),('

6&$/(

:(,*+7

5(9

':*12

%

6,=(

7,7/(

$1$/<7,&$/,1'8675,(6,1&

1$0(

'$7(

&200(176

4$

0)*$335

(1*$335

&+(&.('

'5$:1

),1,6+

0$7(5,$/

,17(535(7*(20(75,&
72/(5$1&,1*3(5$16,<

',0(16,216$5(,1,1&+(6
72/(5$1&(6
)5$&7,21$/



$1*8/$50$&+

%(1'



7:23/$&('(&,0$/



7+5((3/$&('(&,0$/



35235,(7$5<$1'&21),'(17,$/

7+(,1)250$7,21&217$,1(',17+,6
'5$:,1*,67+(62/(3523(57<2)
$1$/<7,&$/,1'8675,(6,1&$1<
5(352'8&7,21,13$5725$6$:+2/(
:,7+2877+(:5,77(13(50,66,212)
$1$/<7,&$/,1'8675,(6,1&,6
352+,%,7('

(:

$33$5(,/$662&,e3$5(;(03/(

%$55,Ë5('(6e&85,7e3527e*e(

180e52'(&(57,),&$7

%$6$7(;

,17(5)$&(07/

(03/$&(0(17121'$1*(5(8;

/$1$/<6(85'(*$=$/,0(17e3$5/$%28&/('(&285$171(673$6
&$3$%/('(5e6,67(5/(66$,'(5,*,',7e',e/(&75,48('(95(48,6
3$5/$1250(,(&,/&219,(17'(17(1,5&2037(/256'(
/,167$//$7,21'(/e48,3(0(17

/,167$//$7,21'2,7È75(&21)250($8;35$7,48(6',167$//$7,21'8
3$<6'87,/,6$7,21&(67',5(/(&2'(e/(&75,48(1$7,21$/$16,

1)3$(7/(&2'(e/(&75,48(&$1$',(1&6$&

=21('$1*(5(86(

,167$//$7,216(1=21('$1*(5(86(



,/1<$4881(6(8/(&211(;,2148,62,7,175,16Ë48(0(176Õ5(6217$%/($8'(3$5$0Ë75(6(67/(68,9$17



$9(57,66(0(17/$68%67,787,21'(&20326$1763(8718,5(/$6e&85,7e,175,16Ë48(



7286/(6&Ç%/(6'2,9(17È75(%/,1'e6-8648/$7(55(3$5/(&/,(17

180e52'(02'Ë/('8352'8,7*35*35

7<3('e48,3(0(17,'/22332:(5('*$6$1$/<=(5

180e52'(&(57,),&$7(

0$548$*('86<67Ë0('(',9,6,21&ODVV,'LY*URXSV$%&'7

0$548$*('86<67Ë0('(=21(6&ODVV,=RQH$([LD,,&7*D

,(&&$1$'$([LD,,&7*D








5(7285

96

5e6,67$1&(

96

P$

9'&

5e9,6,216

=21(

5(9

'(6&5,37,21

'$7(

$335289e(

*5283( 8L9

OLP$

%RX,,&

 

&RX,,%
'RX,,$

/(6$875(63$5$0Ë75(66217'e7(50,1e63$5

/e48,3(0(17&211(&7e

$1$/<6(85'(

*$=$/,0(17e

3$5

/$

%28&/(

'(

&285$17

1e*$7,)

326,7,)

$ $

% %

















6&+e0$'86<67Ë0(

'$1$/<6('(*$=

$/,0(17e3$581(%28&/(

'(&285$17



1(3$60(775(/('(66,1/e&+(//(

$(;

),&+(685



6$8),1',&$7,21&2175$,5(

e&+(//(

32,'6

5(9

':*12

%

7$,//(

7,75(

$1$/<7,&$/,1'8675,(6,1&

120

'$7(

&200(17$,5(6

4$

0)*$335

(1*$335

9e5,),e

7,5e

),1,7,21

0$7e5,$8;

,17(535e7(5/(72/e5$1&(0(17
*e20e75,48(6(/21$16,<

/(6',0(16,2166217
(;35,0e(6(1328&(6$9(&
'(672/e5$1&(6

)5$&7,211(//(



$1*8/$,5(0$&+



%(1'







'e&,0$/('(8;3/$&(6
'e&,0$/(752,63/$&(6



(;&/86,)(7&21),'(17,(/

/(6,1)250$7,216&217(18(6'$16&(
'(66,16217/$35235,(7((;&/86,9('(

$1$/<7,&$/,1'8675,(6,1&7287(

5(352'8&7,213$57,(//(28727$/(

6$16/$8725,6$7,21e&5,7('(
$1$/<7,&$/,1'8675,(6,1&(67

,17(5',7(

(:

GPR-x500 Oxygen Analyzer User Manual

46 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual













;









6$03/(,1

9(17

























;









&2$/(6&,1*

),/7(5

+6

6&58%%(5

6$03/(63$1

9$/9(

)/2:0(7(5

&2$/(6&,1*

),/7(5'5$,1

9$/9(

63$1,1

6$03/(,1

9(17





Appendix E - Mounting Information

GPR-x500

GPR-x500 with sample system

ProcessSensing.com 47

Appendix F - Menu Displays

GPR-x500 Oxygen Analyzer User Manual

NOTE: The menu structure may vary depending on your configuration.

48 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Appendix G - Spare Parts

Sensors

GPR-12-333 ppm oxygen sensor

GPR-12-333-LD ppm oxygen sensor for analyzer with liquid drain system

GPR-12-333-H ppm oxygen sensor for He and H

XLT-12-333 ppm oxygen sensor for gases with < 0.5 % CO

ppm oxygen sensor for gases with < 0.5 % CO

XLT-12-333-LD

gases

2

presence

2

presence and analyzer

2

with liquid drain system

GPR-11-60 % oxygen sensor

GPR-11-60-LD % oxygen sensor for analyzer with liquid drain system

XLT-11-24 % oxygen sensor for gases with < 0.5 % CO

% oxygen sensor for gases with < 0.5 % CO

XLT-11-24-LD

presence

2

presence and analyzer

2

with liquid drain system

Operational Spares

CHEM-1008-2 H2S scrubber material (sampling system only, not LD)

FLTR-1037 Coalescing filter element (sampling system only, not LD)

BARR-1002 Intrinsically Safe remote barrier (B2 option only)

ORNG-1007 O-ring 3/32 x 1-3/8 x 1-9/16 Viton

Analyzer Hardware Spares

B-2762-A-3-18 Sensor top housing assembly stainless steel

ProcessSensing.com 49

Appendix H - Rating Plate

GPR-x500 Oxygen Analyzer User Manual

50 ProcessSensing.com

GPR-x500 Oxygen Analyzer User Manual

Appendix I - Quality, Recycling, and Warranty Information

Aii is part of the Process Sensing Technologies (PST) Group. The PST Oxygen group of
companies - Aii, Ntron and SST - comply with applicable national and international stan­dards and directives.

Full information can be found on this website

https://www.processsensing.com/en-us/resources/compliance/

The compliance site contains information on the following directives:

• ATEX (equipment for explosive atmosphere, Europe)

• CE

CMETUS (electrical equipment for hazardous areas, North America)

•

• IECEx

• REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals)

• Recycling policy

• RoHS (Restriction of Hazardous Substances in electrical and electronic equipment

• UKCA

• WEEE (Waste Electrical and Electronic Equipment recycling.

ProcessSensing.com 51

GPR-x500 Oxygen Analyzer User Manual

This page is intentionally blank.

52 ProcessSensing.com

GPR x500 Oxygen Analyzer User Manual

This page is intentionally blank.

ProcessSensing.com

ProcessSensing.com

Analytical Industries Incorporated (Aii) is part of the Process Sensing Technologies Group

©2024 Process Sensing Technologies
