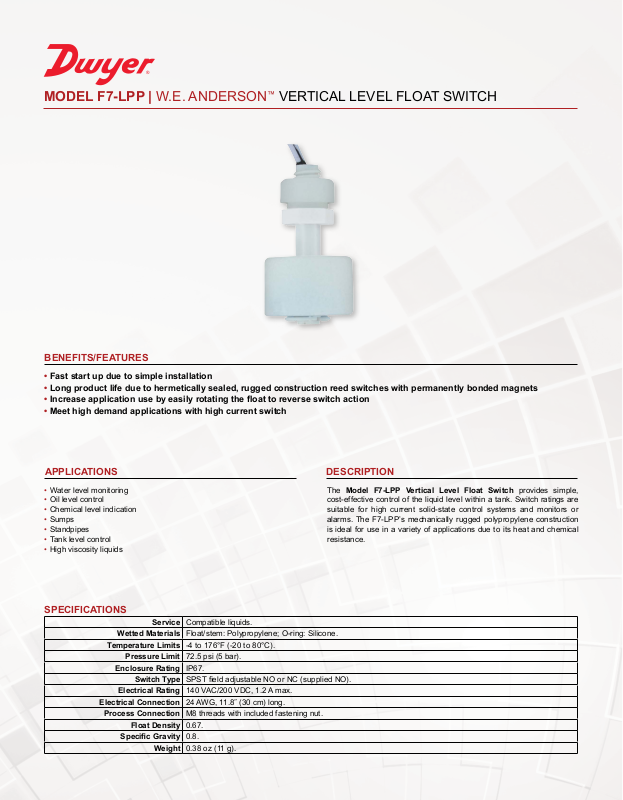

MODEL F7-LPP | W.E. ANDERSON™ VERTICAL LEVEL FLOAT SWITCH

®

BENEFITS/FEATURES

• Fast start up due to simple installation

• Long product life due to hermetically sealed, rugged construction reed switches with permanently bonded magnets

•Increaseapplicationusebyeasilyrotatingtheoattoreverseswitchaction

• Meet high demand applications with high current switch

• Water level monitoring

• Oil level control

• Chemical level indication

• Sumps

• Standpipes

• Tank level control

• High viscosity liquids

SPECIFICATIONS

Wetted Materials Float/stem: Polypropylene; O-ring: Silicone.

Temperature Limits -4 to 176°F (-20 to 80°C).

Pressure Limit 72.5 psi (5 bar).

Enclosure Rating IP67.

Electrical Rating 140 VAC/200 VDC, 1.2 A max.

Electrical Connection 24 AWG, 11.8˝ (30 cm) long.

Process Connection M8 threads with included fastening nut.

SpecicGravity 0.8.

DESCRIPTIONAPPLICATIONS

The Model F7-LPP Vertical Level Float Switch provides simple,
cost-effective control of the liquid level within a tank. Switch ratings are
suitable for high current solid-state control systems and monitors or
alarms. The F7-LPP’s mechanically rugged polypropylene construction
is ideal for use in a variety of applications due to its heat and chemical
resistance.

Service Compatible liquids.

Switch Type SPST eld adjustable NO or NC (supplied NO).

Float Density 0.67.

Weight 0.38 oz (11 g).

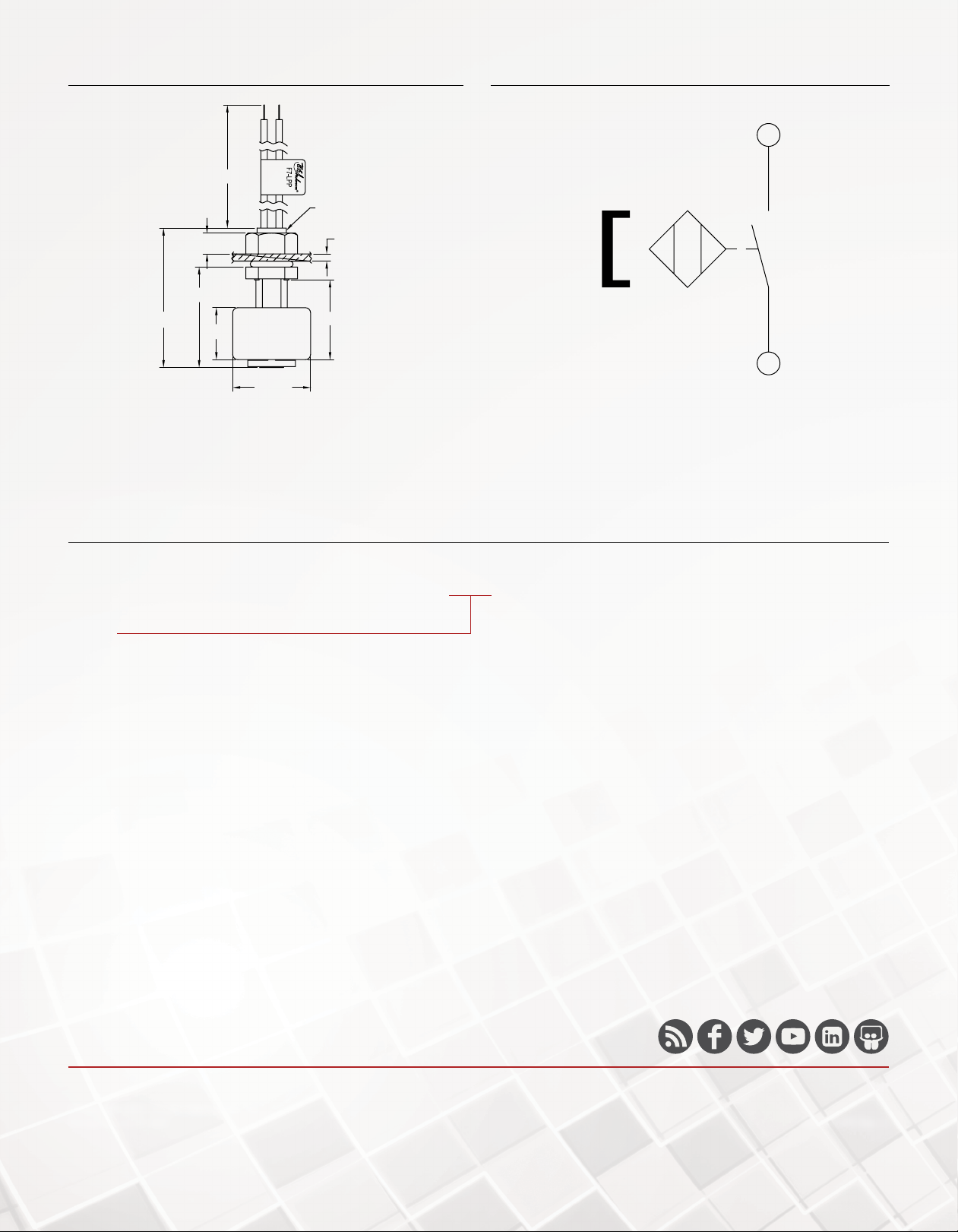

DIMENSIONS WIRINGDIAGRAM

43 MM

X

Ø24 MM

300 MM

M8

6.4 MM

31 MM

16 MM

5 MM MA

24.5 MM

HOW TO ORDER

Use the bold characters from the chart below to construct a product code.

F7-LPP

MODEL

F7-LPP: Vertical level oat switch

©Copyright 2021 Dwyer Instruments, Inc.
Printed in U.S.A. 4/21 DS-F7-LPP Rev. 2
