Series
M6 MOUNTING
THREADS
55/64
[21.93]
17/64
[6.69]
F71XN
FILTER
ELEMENT
1-19/64
[33.02]
4-9/64
[105.16]
FILTER
ELEMENT
M6 MOUNTING
THREADS
NPT INLET/OUTLET
[SEE CHART FOR SIZES]
1-45/64
[43.18]
1-19/64
[33.02]
3/8
[9.52]
NPT INLET/OUTLET
[SEE CHART FOR SIZES]
2-35/64
[64.77]
F76XN
25/64
[9.72]
1-3/8
[34.79]
6-5/32
[156.21]
1-45/64
[43.18]
19/32
[15.24]
2-1/4
[57.15]

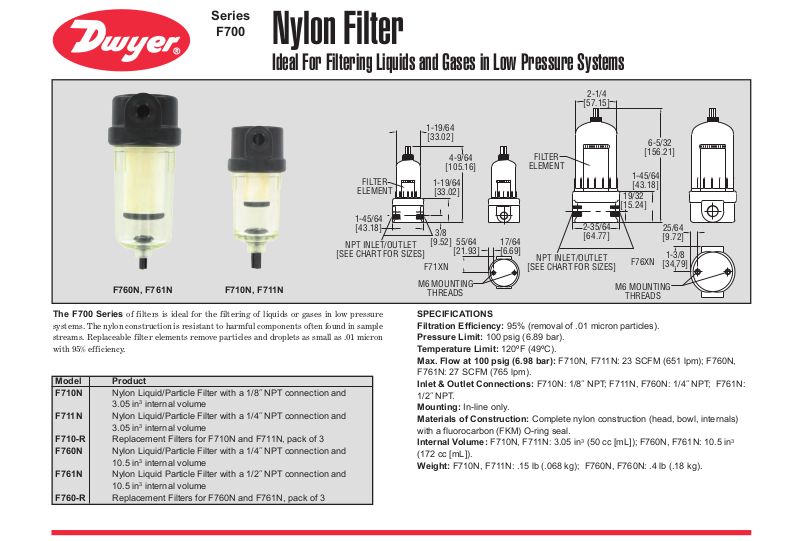

F700
Nylon Filter
Ideal For Filtering Liquids and Gases in Low Pressure Systems
The F700 Series of filters is ideal for the filtering of liquids or gases in low pressure
systems. The nylon construction is resistant to harmful components often found in sample
streams. Replaceable filter elements remove particles and droplets as small as .01 micron
with 95% efficiency.
Model
F710N
F711N
F710-R
F760N
F761N
F760-R
F760N, F761N
Product
Nylon Liquid/Particle Filter with a 1/8˝ NPT connection and
3
internal volume
3.05 in
Nylon Liquid/Particle Filter with a 1/4˝ NPT connection and
3
internal volume
3.05 in
Replacement Filters for F710N and F711N, pack of 3
Nylon Liquid/Particle Filter with a 1/4˝ NPT connection and
3
internal volume
10.5 in
Nylon Liquid Particle Filter with a 1/2˝ NPT connection and
10.5 in
Replacement Filters for F760N and F761N, pack of 3
3
internal volume
F710N, F711N
SPECIFICATIONS
Filtration Efficiency: 95% (removal of .01 micron particles).
Pressure Limit: 100 psig (6.89 bar).
Temperature Limit: 120ºF (49ºC).
Max. Flow at 100 psig (6.98 bar): F710N, F711N: 23 SCFM (651 lpm); F760N,
F761N: 27 SCFM (765 lpm).
Inlet & Outlet Connections: F710N: 1/8˝ NPT; F711N, F760N: 1/4˝ NPT; F761N:
1/2˝ NPT.
Mounting: In-line only.
Materials of Construction: Complete nylon construction (head, bowl, internals)
with a fluorocarbon (FKM) O-ring seal.
Internal Volume: F710N, F711N: 3.05 in
(172 cc [mL]).
Weight: F710N, F711N: .15 lb (.068 kg); F760N, F760N: .4 lb (.18 kg).
3
(50 cc [mL]); F760N, F761N: 10.5 in
3
