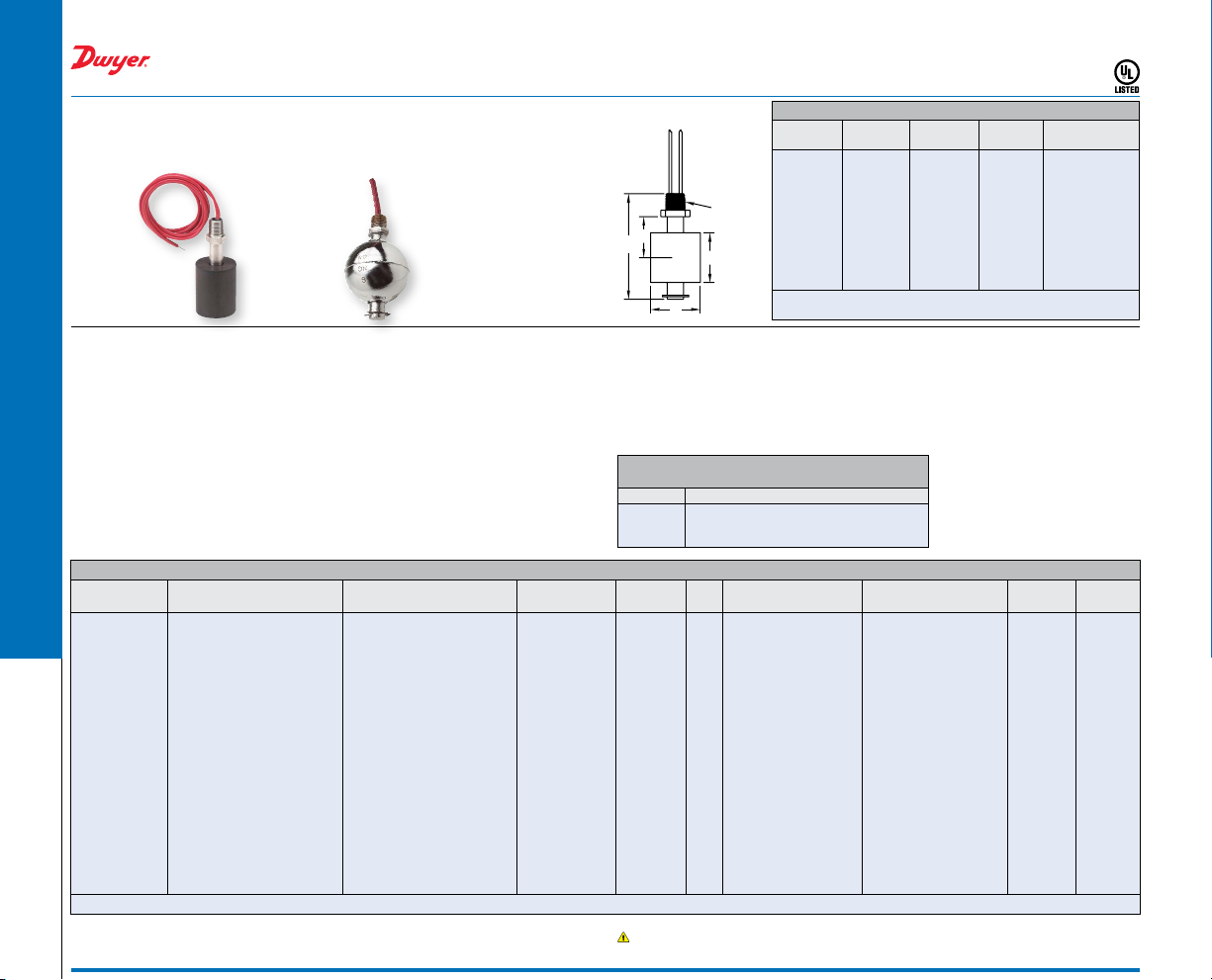

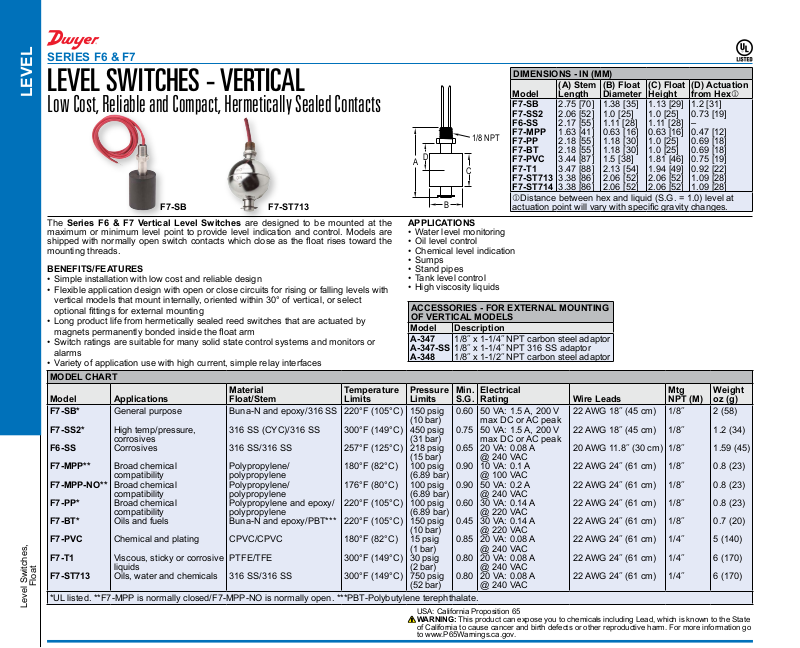

SERIES F6 & F7

LEVEL SWITCHES - VERTICAL

LEVEL

Low Cost, Reliable and Compact, Hermetically Sealed Contacts

F7-SB F7-ST713

The Series F6 & F7 Vertical Level Switches are designed to be mounted at the maximum or minimum level point to provide level indication and control. Models are

shipped with normally open switch contacts which close as the oat rises toward the mounting threads.

BENEFITS/FEATURES

• Simple installation with low cost and reliable design

• Flexible application design with open or close circuits for rising or falling levels with vertical models that mount internally, oriented within 30° of vertical, or select optional ttings for external mounting

• Long product life from hermetically sealed reed switches that are actuated by magnets permanently bonded inside the oat arm

• Switch ratings are suitable for many solid state control systems and monitors or

alarms

• Variety of application use with high current, simple relay interfaces

MODEL CHART

Model Applications F7-SB*

F7-SS2*

F6-SS

F7-MPP**

F7-MPP-NO**

F7-PP*

F7-BT*

F7-PVC

F7-T1

F7-ST713

Float

*UL listed. **F7-MPP is normally closed/F7-MPP-NO is normally open. ***PBT-Polybutylene terephthalate.

Level Switches,

General purpose

High temp/pressure,

corrosives Corrosives

Broad chemical compatibility Broad chemical compatibility Broad chemical compatibility

Oils and fuels

Chemical and plating

Viscous, sticky or corrosive liquids Oils, water and chemicals

Material Float/Stem

Buna-N and epoxy/316 SS

316 SS (CYC)/316 SS

316 SS/316 SS

Polypropylene/

polypropylene

Polypropylene/

polypropylene

Polypropylene and epoxy/

polypropylene

Buna-N and epoxy/PBT***

CPVC/CPVC

PTFE/TFE

316 SS/316 SS

Temperature Limits

220°F (105°C)

300°F (149°C)

257°F (125°C)

180°F (82°C)

176°F (80°C)

220°F (105°C)

180°F (82°C)

300°F (149°C)

APPLICATIONS

• Water level monitoring

• Oil level control

• Chemical level indication

• Sumps

• Stand pipes

• Tank level control

• High viscosity liquids

ACCESSORIES - FOR EXTERNAL MOUNTING

OF VERTICAL MODELS Model Description A-347

A-347-SS A-348

Pressure Limits

150 psig

(10 bar)

450 psig

(31 bar)

218 psig

(15 bar)

100 psig

(6.89 bar)

100 psig

(6.89 bar)

100 psig

(6.89 bar)

150 psig

(10 bar)

15 psig

(1 bar)

30 psig

(2 bar)

750 psig

(52 bar)

USA: California Proposition 65 WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

DIMENSIONS - IN (MM)

Model F7-SB F7-SS2 F6-SS

1/8 NP

1/8˝ x 1-1/4˝ NPT carbon steel adaptor 1/8˝ x 1-1/4˝ NPT 316 SS adaptor 1/8˝ x 1-1/2˝ NPT carbon steel adaptor

Min. S.G.

0.60

0.75

0.65

0.90

0.60

0.45

0.85

0.80

F7-MPP F7-PP F7-BT F7-PVC F7-T1 F7-ST713 F7-ST714

jDistance between hex and liquid (S.G. = 1.0) level at

actuation point will vary with specic gravity changes.

Electrical Rating Wire Leads

50 VA: 1.5 A, 200 V max DC or AC peak 50 VA: 1.5 A, 200 V max DC or AC peak 20 VA: 0.08 A @ 240 VAC 10 VA: 0.1 A @ 100 VAC 50 VA: 0.2 A @ 240 VAC 30 VA: 0.14 A @ 220 VAC 30 VA: 0.14 A @ 220 VAC 20 VA: 0.08 A @ 240 VAC 20 VA: 0.08 A @ 240 VAC 20 VA: 0.08 A @ 240 VAC

(A) Stem Length

2.75 [70]

2.06 [52]

2.17 [55]

1.63 [41]

2.18 [55]

3.44 [87]

3.47 [88]

3.38 [86]

(B) Float Diameter

1.38 [35]

1.0 [25]

1.11 [28]

0.63 [16]

1.18 [30]

1.5 [38]

2.13 [54]

2.06 [52]

22 AWG 18˝ (45 cm)

20 AWG 11.8˝ (30 cm)

22 AWG 24˝ (61 cm)

1.13 [29]

1.0 [25]

1.11 [28]

0.63 [16]

1.0 [25]

1.81 [46]

1.94 [49]

2.06 [52]

Mtg NPT (M)

1/8˝

1/4˝

(D) Actuation from Hexj

1.2 [31]

0.73 [19] –

0.47 [12]

0.69 [18]

0.75 [19]

0.92 [22]

1.09 [28]

Weight oz (g)

2 (58)

1.2 (34)

1.59 (45)

0.8 (23)

0.7 (20)

5 (140)

6 (170)
