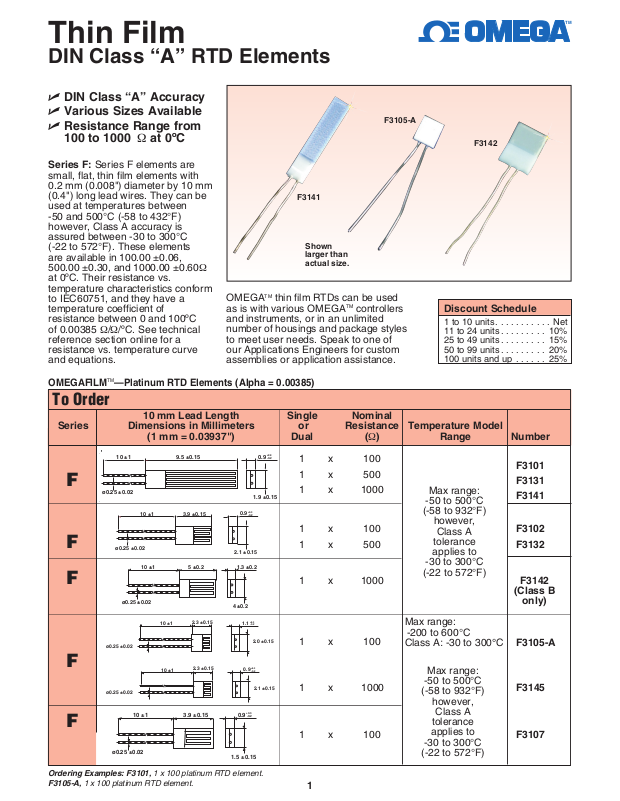

Thin Film
TM
DIN Class “A” RTD Elements
U DIN Class “A” Accuracy
Various Sizes Available
U
U Resistance Range from
100 to 1000 Ω at 0ºC
Series F: Series F elements are
small, flat, thin film elements with
0.2 mm (0.008") diameter by 10 mm
(0.4") long lead wires. They can be
used at temperatures between
-50 and 500°C (-58 to 432°F)
however, Class A accuracy is
assured between -30 to 300°C
(-22 to 572°F). These elements
are available in 100.00 ±0.06,
500.00 ±0.30, and 1000.00 ±0.60Ω
at 0ºC. Their resistance vs.
temperature characteristics conform
to IEC60751, and they have a
temperature coefficient of
resistance between 0 and 100ºC
of 0.00385 Ω/Ω/ºC. See technical
reference section online for a
resistance vs. temperature curve
and equations.
OMEGATM thin film RTDs can be used
as is with various OMEGATM controllers
and instruments, or in an unlimited
number of housings and package styles
to meet user needs. Speak to one of
our Applications Engineers for custom
assemblies or application assistance.
F3141
Shown
larger than
actual size.
F3105-A
F3142
Discount Schedule
1 to 10 units ........... Net
11 to 24 units ......... 10%
25 to 49 units ......... 15%
50 to 99 units ......... 20%
100 units and up ...... 25%
OMEGAFILMTM—Platinum RTD Elements (Alpha = 0.00385)
To Order
10 mm Lead Length Single Nominal
Series Dimensions in Millimeters or Resistance Temperature Model
(1 mm = 0.03937") Dual (Ω) Range Number
+0.3
0.9
+0.3
0.9
-0.2
1.3 ±0.2
1.1
0.9
+0.3
0.9
-0.2
1.9 ±0.15
+0.3
-0.2
2.0 ±0.15
+0.3
-0.2
2.1 ±0.15
-0.2
1 x 100
1 x 500
1 x 1000
Max range:
-50 to 500°C
(-58 to 932°F)
1 x 100
however,
Class A
tolerance
applies to
-30 to 300°C
(-22 to 572°F)
Max range:
-
1 x 100
1 x 1000
200 to 600°C
Cla
ss A: -30 to 300°C
Max range:
-50 to 500°C
(-58 to 932°F)
however,
Class A
tolerance
1 x 100 F3107
applies to
-30 to 300°C
(-22 to 572°F)
1
10 ±1
9.5 ±0.15
F
ø0.25 ±0.02
10 ±1
F 1 x 500 F3132
ø0.25 ±0.02
10 ±1
3.9 ±0.15
2.1 ±0.15
5 ±0.2
F 1 x 1000
F
ø0.25 ±0.02
ø0.25 ±0.02
ø0.25 ±0.02
10 ±1
10 ±1
10 ±1
2.3 ±0.15
2.3 ±0.15
3.9 ±0.15
4 ±0.2
F
ø0.25 ±0.02
Ordering Examples: F3101, 1 x 100 platinum RTD element.
F3105-A,
1 x 100 platinum RTD element.
1.5 ±0.15
F3101
F3131
F3141
F3102
F3142
(Class B
only)
F3105-A
F3145
Page 2
OMEGATM Thin Film RTD Elements
1.0
2.2
6.7
2.1 thick
W2112
“W” Series
platinum thin film ceramic elements that can be used at
temperatures between -50 and 600°C (-58 to 1112°F).
These elements have a 0.38 mm (0.015") diameter and
gold-palladium leads approximately 10 mm (0.4") long
which are strain relieved in the ceramic body. Series W
elements include single and dual element configurations
with resistances at 0°C of 100, 200, 400, 500, 1000, and
2000 Ω. The resistance vs. temperature characteristics
of these elements conforms to IEC751, with a
tolerance of ±0.12% at 0°C, meeting Class B
requirements. The resistance vs. temperature table and
calculation equations can be found in the
reference section online
OMEGAFILMTM RTDs can be used as-is with various
OMEGATM controllers and instruments, or packaged
Series W: Series W elements are rugged, cylindrical
W2204
into an unlimited number of housings and package
styles to meet your measurement and control needs.
W2102
Shown larger than actual size
All RTD elements
available with PFA
insulated lead wire.
†
Pricing is dependent
on lead style.
OMEGAFILMTM—Platinum RTD Elements (Alpha = 0.00385)
Shown actual size.
.
technical
Discount Schedule
1 to 10 units ........... Net
11 to 24 units ......... 10%
25 to 49 units ......... 15%
50 to 99 units ......... 20%
100 units and up ...... 25%
To Order
15 mm Lead Length Nominal
Series Dimensions in millimeters Single or Resistance Temperature Model
(1 mm = 0.03937") Dual (Ω) Range Number
1 x 100 W2102
1 x 200 W2112
W 1 x 500 W2132
12
2 x 200 W2212
W 2 x 400 W2222
12
W
3.0
*
1 x 1000 W2142
1 x 2000 W2152
2 x 100 W2202
3.0
2 x 500 W2232
2 x 1000 W2242
2.0
-50
to
600°C
(-58
to
1112°F)
1 x 100 W2103
7
3.0
7
2 x 100
W2204
-50 to
600°C
WS 1 x 100 WS81
(-60 to
1112°F)
Length is 17 mm for 1000 and 2000 Ω elements.
*
Ordering Example: W2103, 1 x 100 Ω, 2 mm dia. platinum RTD element.
