RT
1-1/2
[101.6
2-3/4 [69.85]
ASSEMBLE
WITH TEFLON SEALANT
Ø1.100
[27.94]

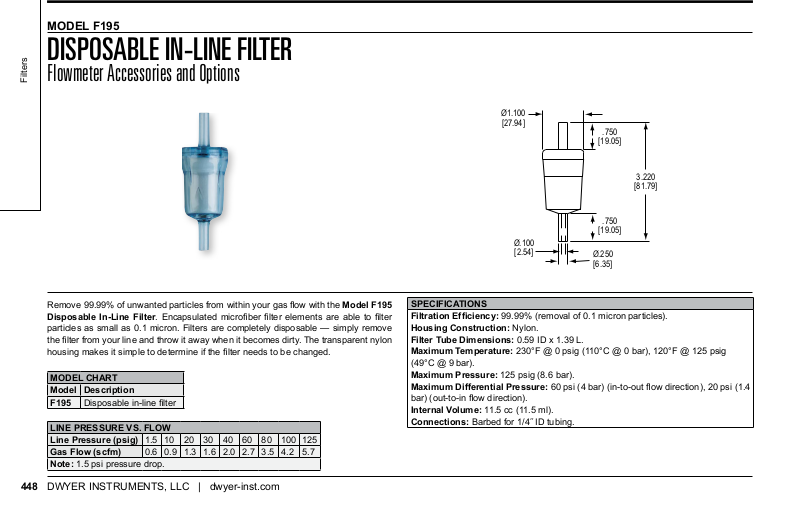

MODEL F195
DISPOSABLE IN-LINE FILTER
Flowmeter Accessories and Options
Filters
Ø.100
[2.54]
.750
[19.05]
.750
[19.05]
Ø.250
[6.35]
3.220
[81.79]
Remove 99.99% of unwanted particles from within your gas ow with the Model F195
Disposable In-Line Filter. Encapsulated microber lter elements are able to lter
particles as small as 0.1 micron. Filters are completely disposable — simply remove
the lter from your line and throw it away when it becomes dirty. The transparent nylon
housing makes it simple to determine if the lter needs to be changed.
MODEL CHART
Model Description
F195 Disposable in-line lter
LINE PRESSURE VS. FLOW
Line Pressure (psig) 1.5 10 20 30 40 60 80 100 125
Gas Flow (scfm) 0.6 0.9 1.3 1.6 2.0 2.7 3.5 4.2 5.7
Note: 1.5 psi pressure drop.
DWYER INSTRUMENTS, LLC | dwyer-inst.com448
SPECIFICATIONS
Filtration Efciency: 99.99% (removal of 0.1 micron particles).
Housing Construction: Nylon.
Filter Tube Dimensions: 0.59 ID x 1.39 L.
Maximum Temperature: 230°F @ 0 psig (110°C @ 0 bar), 120°F @ 125 psig
(49°C @ 9 bar).
Maximum Pressure: 125 psig (8.6 bar).
Maximum Differential Pressure: 60 psi (4 bar) (in-to-out ow direction), 20 psi (1.4
bar) (out-to-in ow direction).
Internal Volume: 11.5 cc (11.5 ml).
Connections: Barbed for 1/4˝ ID tubing.
