H-35
Price/ Nominal Size
Model Number
1000'
Calibration mm (Inches) AWG No.*
EXTT-J-16-SB-T $1385
3.3 x 5.1 (0.13 x 0.20)
16 Solid
EXTT-J-20-SB-T 935
2.9 x 4.3 (0.12 x 0.17)
20 Solid
EXTT-J-24-SB-T 750
2.5 x 3.3 (0.10 x 0.13)
24 Solid
EXTT-T-16-SB-T 1370
3.3 x 5.1 (0.13 x 0.20)
16 Solid
EXTT-T-20-SB-T 925
2.9 x 4.3 (0.12 x 0.17)
20 Solid
EXTT-T-24-SB-T 750
2.5 x 3.3 (0.10 x 0.13)
24 Solid
EXTT-K-16-SB-T 1620
3.3 x 5.1 (0.13 x 0.20)
16 Solid
EXTT-K-20-SB-T 1045
2.9 x 4.3 (0.12 x 0.17)
20 Solid
EXTT-K-24-SB-T 800
2.5 x 3.3 (0.10 x 0.13)
24 Solid
EXTT-E-16-SB-T 1620
3.3 x 5.1 (0.13 x 0.20)
26 Solid
EXTT-E-20-SB-T 1045
2.9 x 4.3 (0.12 x 0.17)
20 Solid
EXTT-E-24-SB-T 905
2.5 x 3.3 (0.10 x 0.13)
24 Solid
Price/ Nominal Size
Model Number
1000'
Calibration mm (inches) AWG No.*
EXPP-J-14-TCB-P $970 5.1 x 7.4 (0.20 x 0.29) 14 Solid
EXPP-J-16-TCB-P 720 4.8 x 6.7 (0.19 x 0.26) 16 Solid
EXPP-J-16S-TCB-P 880 4.8 x 6.9 (0.19 x 0.27) 16 Stranded
EXPP-J-20-TCB-P 500 4.1 x 5.5 (0.16 x 0.22) 20 Solid
EXPP-J-20S-TCB-P 640 4.1 x 5.6 (0.16 x 0.22) 20 Stranded
EXPP-J-24S-TCB-P 560 4.0 x 5.1 (0.16 x 0.20) 24 Stranded
EXPP-T-14-TCB-P 995 5.1 x 7.4 (0.20 x 0.29) 14 Solid
EXPP-T-16-TCB-P 740 4.8 x 6.7 (0.19 x 0.26) 16 Solid
EXPP-T-20-TCB-P 510 4.1 x 5.5 (0.16 x 0.22) 20 Solid
EXPP-T-20S-TCB-P 660 4.1 x 5.6 (0.16 x 0.22) 20 Stranded
EXPP-K-14-TCB-P 1270 5.1 x 7.4 (0.20 x 0.29) 14 Solid
EXPP-K-16-TCB-P 900 4.8 x 6.7 (0.19 x 0.26) 16 Solid
EXPP-K-16S-TCB-P 1145 4.8 x 6.9 (0.19 x 0.27) 16 Stranded
EXPP-K-20-TCB-P 550 4.1 x 5.5 (0.16 x 0.22) 20 Solid
EXPP-K-20S-TCB-P 740 4.1 x 5.6 (0.16 x 0.22) 20 Stranded
EXPP-K-24S-TCB-P 640 4.0 x 5.1 (0.16 x 0.20) 24 Stranded
EXPP-E-16-TCB-P 1095 4.8 x 6.7 (0.19 x 0.26) 16 Solid
EXPP-E-20-TCB-P 580 4.1 x 5.5 (0.16 x 0.22) 20 Solid
EXPP-E-24S-TCB-P 620 4.0 x 5.1 (0.16 x 0.20) 24 Stranded

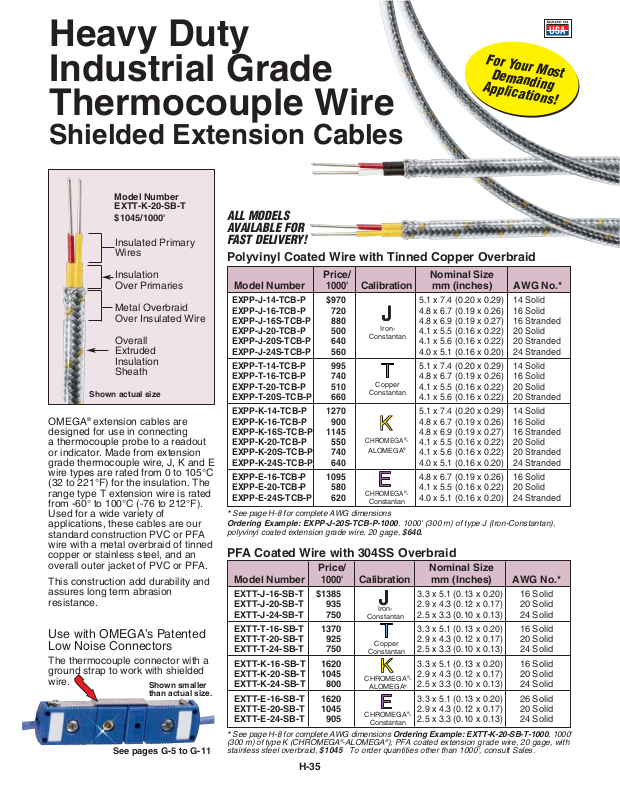

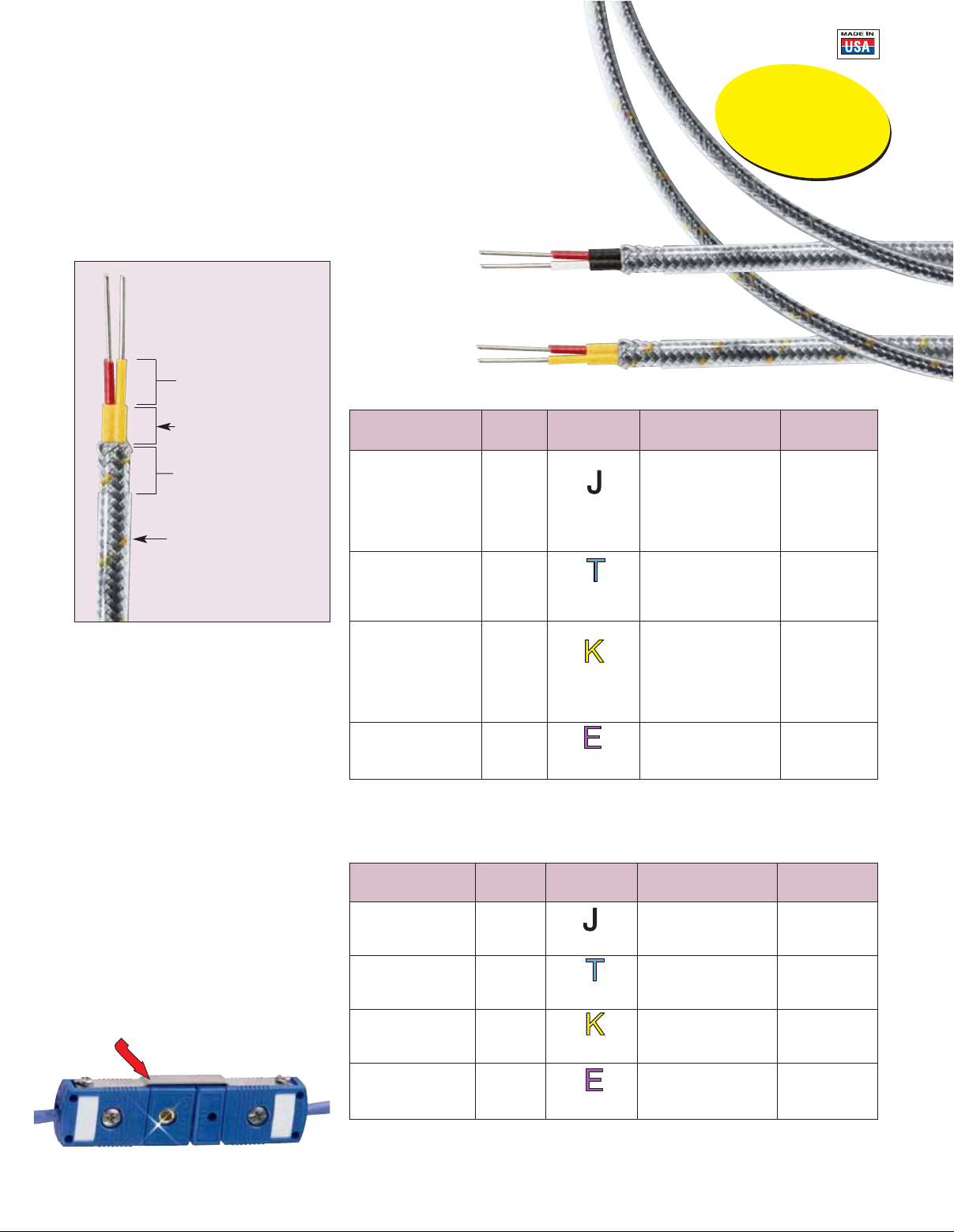

Heavy Duty
Industrial Grade
Thermocouple Wire
Shielded Extension Cables
OMEGA®extension cables are
designed for use in connecting
a thermocouple probe to a readout
or indicator. Made from extension
grade thermocouple wire, J, K and E
wire types are rated from 0 to 105°C
(32 to 221°F) for the insulation. The
range type T extension wire is rated
from -60° to 100°C (-76 to 212°F).
Used for a wide variety of
applications, these cables are our
standard construction PVC or PFA
wire with a metal overbraid of tinned
copper or stainless steel, and an
overall outer jacket of PVC or PFA.
This construction add durability and
assures long term abrasion
resistance.
ALL MODELS
AVAILABLE FOR
FAST DELIVERY!
Polyvinyl Coated Wire with Tinned Copper Overbraid
* See page H-8 for complete AWG dimensions Ordering Example: EXTT-K-20-SB-T-1000, 1000'
(300 m) of type K (CHROMEGA®-ALOMEGA®), PFA coated extension grade wire, 20 gage, with
stainless steel overbraid, $1045 To order quantities other than 1000', consult Sales.
PFA Coated Wire with 304SS Overbraid
Iron-
Constantan
Copper
Constantan
CHROMEGA®-
ALOMEGA
®
CHROMEGA®-
Constantan
Insulated Primary
Wires
Insulation
Over Primaries
Metal Overbraid
Over Insulated Wire
Overall
Extruded
Insulation
Sheath
Iron-
Constantan
Copper
Constantan
CHROMEGA
®
-
ALOMEGA
®
CHROMEGA®-
Constantan
Use with OMEGA’s Patented
Low Noise Connectors
See pages G-5 to G-11
Shown actual size
Model Number
EXTT-K-20-SB-T
$1045/1000'
Shown smaller
than actual size.
* See page H-8 for complete AWG dimensions
Ordering Example: EXPP-J-20S-TCB-P-1000, 1000' (300 m) of type J (Iron-Constantan),
polyvinyl coated extension grade wire, 20 gage, $640.
The thermocouple connector with a
ground strap to work with shielded
wire.
For Your Most
Demanding
Applications!
