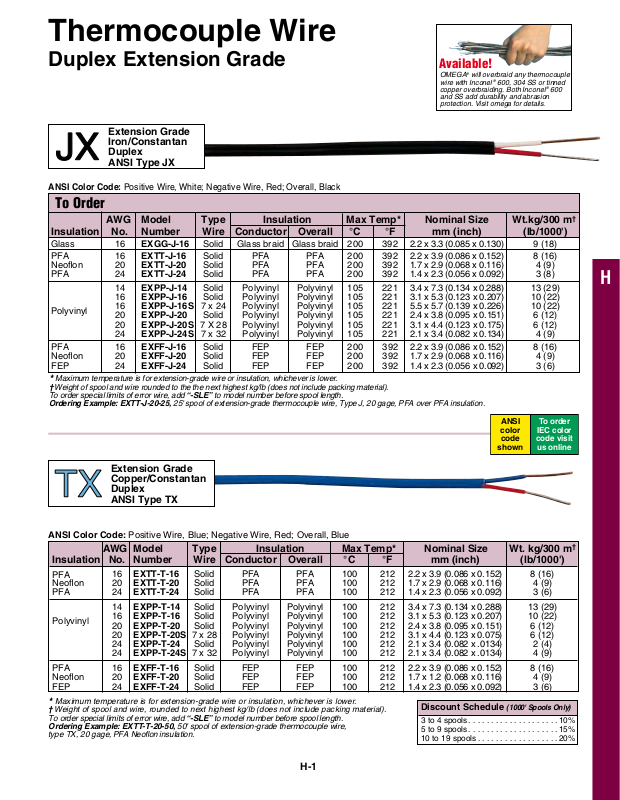

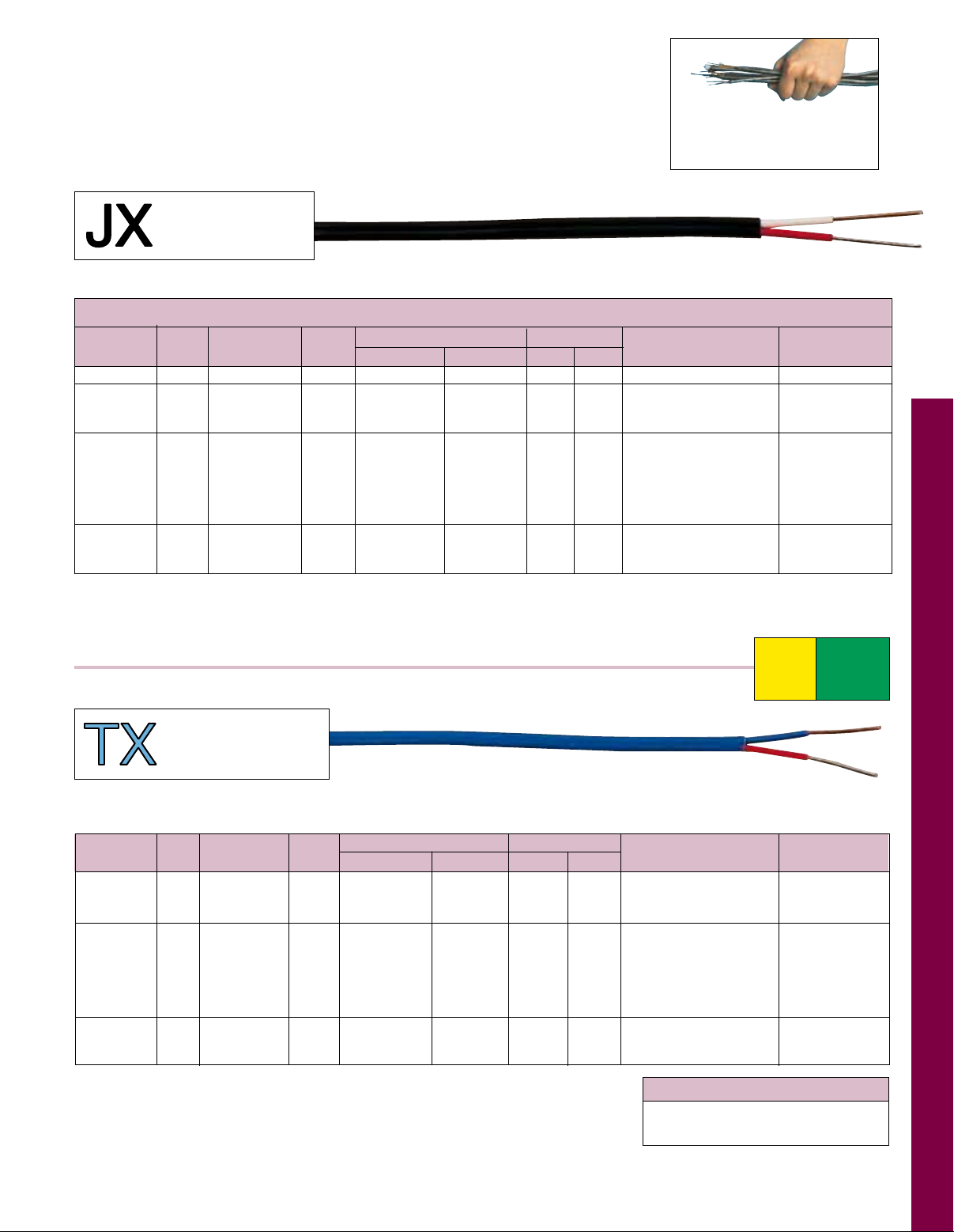

Thermocouple Wire
Duplex Extension Grade
Available!
OMEGA® will overbraid any thermocouple
wire with Inconel
copper overbraiding. Both Inconel
and SS add durability and abrasion
protection. Visit omega for details.
®
600, 304 SS or tinned
®
600
Extension Grade
Iron/Constantan
Duplex
ANSI Type JX
ANSI Color Code: Positive Wire, White; Negative Wire, Red; Overall, Black
To Order
AWG Model Type Insulation Max Temp* Nominal Size Wt.kg/300 m
Insulation No. Number Wire Conductor Overall °C °F mm (inch) (lb/1000')
Glass 16 EXGG-J-16 Solid Glass braid Glass braid 200 392 2.2 x 3.3 (0.085 x 0.130) 9 (18)
PFA 16 EXTT-J-16 Solid PFA PFA 200 392 2.2 x 3.9 (0.086 x 0.152) 8 (16)
Neoflon 20 EXTT-J-20 Solid PFA PFA 200 392 1.7 x 2.9 (0.068 x 0.116) 4 (9)
PFA 24 EXTT-J-24 Solid PFA PFA 200 392 1.4 x 2.3 (0.056 x 0.092) 3 (8)
14 EXPP-J-14 Solid Polyvinyl Polyvinyl 105 221 3.4 x 7.3 (0.134 x 0.288) 13 (29)
16 EXPP-J-16 Solid Polyvinyl Polyvinyl 105 221 3.1 x 5.3 (0.123 x 0.207) 10 (22)
16 EXPP-J-16S 7 x 24 Polyvinyl Polyvinyl 105 221 5.5 x 5.7 (0.139 x 0.226) 10 (22)
Polyvinyl
20 EXPP-J-20S 7 X 28 Polyvinyl Polyvinyl 105 221 3.1 x 4.4 (0.123 x 0.175) 6 (12)
24 EXPP-J-24S 7 x 32 Polyvinyl Polyvinyl 105 221 2.1 x 3.4 (0.082 x 0.134) 4 (9)
PFA 16 EXFF-J-16 Solid FEP FEP 200 392 2.2 x 3.9 (0.086 x 0.152) 8 (16)
Neoflon 20 EXFF-J-20 Solid FEP FEP 200 392 1.7 x 2.9 (0.068 x 0.116) 4 (9)
FEP 24 EXFF-J-24 Solid FEP FEP 200 392 1.4 x 2.3 (0.056 x 0.092) 3 (6)
Maximum temperature is for extension-grade wire or insulation, whichever is lower.
*
† Weight of spool and wire rounded to the the next highest kg/lb (does not include packing material).
To order special limits of error wire, add “-SLE” to model number before spool length.
Ordering Example: EXTT-J-20-25, 25' spool of extension-grade thermocouple wire, Type J, 20 gage, PFA over PFA insulation.
20 EXPP-J-20 Solid Polyvinyl Polyvinyl 105 221 2.4 x 3.8 (0.095 x 0.151) 6 (12)
†
H
ANSI
color
code
shown
To order
IEC color
code visit
us online
Extension Grade
Copper/Constantan
Duplex
ANSI Type TX
ANSI Color Code: Positive Wire, Blue; Negative Wire, Red; Overall, Blue
AWG Model Type Insulation Max Temp* Nominal Size Wt. kg/300 m
Insulation No. Number Wire Conductor Overall °C °F mm (inch) (lb/1000')
16 EXTT-T-16 Solid PFA PFA 100 212 2.2 x 3.9 (0.086 x 0.152) 8 (16)
PFA
Neoflon 20 EXTT-T-20 Solid PFA PFA 100 212 1.7 x 2.9 (0.068 x 0.116) 4 (9)
PFA 24 EXTT-T-24 Solid PFA PFA 100 212 1.4 x 2.3 (0.056 x 0.092) 3 (6)
14 EXPP-T-14 Solid Polyvinyl Polyvinyl 100 212 3.4 x 7.3 (0.134 x 0.288) 13 (29)
Polyvinyl
20 EXPP-T-20 Solid Polyvinyl Polyvinyl 100 212 2.4 x 3.8 (0.095 x 0.151) 6 (12)
20 EXPP-T-20S 7 x 28 Polyvinyl Polyvinyl 100 212 3.1 x 4.4 (0.123 x 0.075) 6 (12)
24 EXPP-T-24 Solid Polyvinyl Polyvinyl 100 212 2.1 x 3.4 (0.082 x .0134) 2 (4)
24 EXPP-T-24S 7 x 32 Polyvinyl Polyvinyl 100 212 2.1 x 3.4 (0.082 x .0134) 4 (9)
PFA 16 EXFF-T-16 Solid FEP FEP 100 212 2.2 x 3.9 (0.086 x 0.152) 8 (16)
Neoflon 20 EXFF-T-20 Solid FEP FEP 100 212 1.7 x 1.2 (0.068 x 0.116) 4 (9)
FEP 24 EXFF-T-24 Solid FEP FEP 100 212 1.4 x 2.3 (0.056 x 0.092) 3 (6)
Maximum temperature is for extension-grade wire or insulation, whichever is lower.
*
† Weight of spool and wire, rounded to next highest kg/lb (does not include packing material).
To order special limits of error wire, add “-SLE” to model number before spool length.
Ordering Example: EXTT-T-20-50, 50' spool of extension-grade thermocouple wire,
type TX, 20 gage,
16 EXPP-T-16 Solid Polyvinyl Polyvinyl 100 212 3.1 x 5.3 (0.123 x 0.207) 10 (22)
PFA Neoflon insulation
Discount Schedule
3 to 4 spools ....................10%
.
5 to 9 spools ....................15%
10 to 19 spools ..................20%
(1000' Spools Only)
†
H-1
