EWS-RH
Relative Humidity/Temperature
Transmitter
Page 2
omega.com [email protected]
U.S.A.:
Servicing North America:
Omega Engineering, Inc.
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660
e-mail: [email protected]
Fax: (203) 359-7700
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains,
and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.
Page 3
EWS-RH
Relative Humidity/Temperature Transmitter
TABLE OF
CONTENTS
Page
General Description .................................................................. 1
Unpacking ................................................................................... 1
Theory of Operation .................................................................. 1
Mounting ..................................................................................... 3
RH/Temperature Calculations ................................................ 5
Calibration .................................................................................. 6
Relative Humidity Calibration Procedure ............................ 6
Temperature Calibration Procedure ...................................... 7
Specifications .............................................................................. 8
i
Page 4
FIGURES
EWS-RH
Relative Humidity/Temperature Transmitter
Figure Page
Figure 1A Mounting Diagram ........................................................... 3
Figure 1B EWS-MB Dimensions ..................................................... 4
Figure 2 Transmitter Wiring Examples For Current Output ... 4
Figure 3 Transmitter Wiring Examples For Voltage Output ... 4
Figure 4 Relative Humidity Calibration Procedure ................... 6
Figure 5 Temperature Calibration Procedure ............................. 7
ii
Page 5
Relative Humidity/Temperature Transmitter
General Description
The OMEGA® Model EWS-RH is a combination dual output,
relative humidity/temperature transmitter. A thin film temperature
compensated, polymer capacitor senses relative humidity while
a solid state temperature sensor measures ambient temperature.
Independent user selectable 4-20 mA or 1-5 Vdc outputs are provided
for both measured parameters via a terminal strip connection.
Unpacking
Remove the packing list and verify that you have received all your
equipment. If you have any questions about the shipment, please call
our Customer Service Department at
1-800-622-2378 or 203-359-1660. On the web you can find us at:
www.omega.com e-mail: [email protected]
When you receive the shipment, inspect the container and
equipment for any signs of damage. Note any evidence of rough
handling in transit. Immediately report any damage to the shipping
agent.
The carrier will not honor any damage claims unless all
shipping material is saved for inspection. After examining
and removing contents, save packing material and carton
in the event reshipment is necessary.
EWS-RH
NOTE
The following items are supplied in the box with your transmitter.
This Manual, # M-3501 (1 ea.)
Dewpoint Card (1 ea.)
#6 Wall Anchor (2 ea.)
#6 Mounting Screw (2 ea.)
1
Page 6
EWS-RH
Relative Humidity/Temperature Transmitter
Additional EWS Series Models Available
Model Description
EWS-TC-(*) Wall mount thermocouple sensor
(* = insert type,J, K, T, E)
EWS-RTD Wall mount RTD sensor (1002 Pt., .00385)
EWS-TX Wall mount solid state temperature transmitter
EWS-BP-A Wall mount barometric pressure transmitter
Theory of Operation
A 4-20 mA loop is a series loop in which a transmitter will vary
the current flow depending on the input to the transmitter. In the
EWS-RH the amount of current allowed to flow in the loop will
vary depending on the relative humidity or temperature being
measured by the sensor. Some advantages of a current output over
a voltage output is that the signal measured is less susceptible to
electrical noise interference and the loop can support more than one
measuring instrument as long as the maximum loop resistance is not
exceeded.
A typical application utilizing a current loop will normally consist of
a power supply, the transmitter and a meter, recorder or controller
to measure the current flow. The loop resistance in the sum of the
measuring instruments and wire used. The maximum allowable loop
resistance for the EWS-RH to function properly is found by using the
following formula:
R
max = (power supply voltage - 8 volts)/.02 amps
For applications that require a voltage output signal the EWS-RH has
a built-in 250 Ohm shunt resistor that will convert the transmitters
output to a 1-5 Vdc signal when wired correctly. See “Transmitter
Wiring Examples” in this manual.
Recommended Accessories
Power Supply, OMEGA
Shielded 4-conductor cable, OMEGA® Part No.: TX4-100
Conduit Box Mounting Kit, OMEGA® Part No.: EWS-MB
2
®
Part No.: PSU-93
Page 7
Mounting
EWSMountingDrawing.eps
CONDUIT BOX (NOT INCLUDED) IS SHOWN FOR
OMEGA’s EWS Series of sensors and transmitters are designed
for wall mounting in locations that are free from dirt, grease, food
particles and condensing moisture such as manufacturing clean
rooms, computer rooms and laboratory type environments. Plastic
wall anchors and mounting screws are included for mounting
to standard wallboard. A conduit box mounting bracket/wall
plate adapter kit is also available as an option that will allow the
transmitter to be mounted to a standard electrical conduit box.
Order OMEGA
EWS-RH
Relative Humidity/Temperature Transmitter
NOTE
These units are not designed, nor recommended for
medical, Explosive Environment or outdoor applications.
®
Model No.: EWS-MB.
REFERENCE ONLY
ADAPTER PLATE
GROMET
®
COVER PLATE

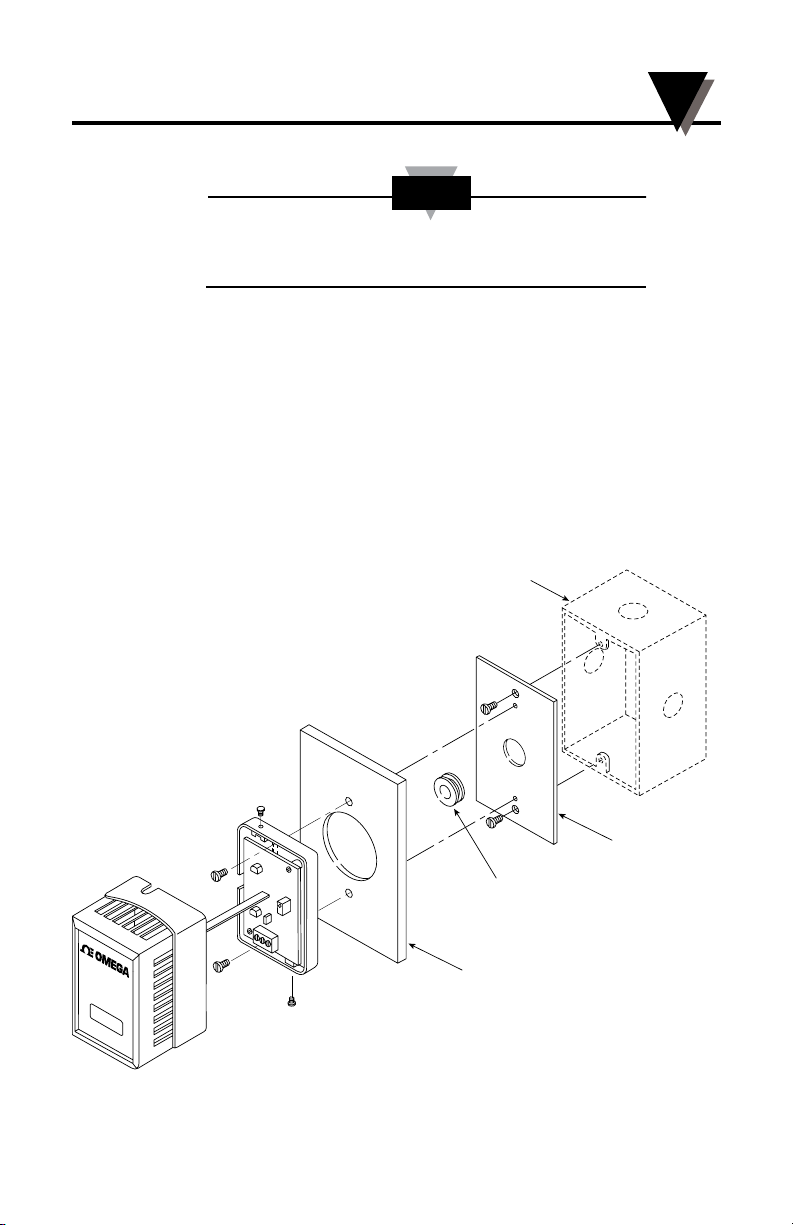

Figure 1A. Mounting Diagram
3
Page 8
EWS-RH
EWSTransmitWireExCurrent.eps
EWS-RH RELATIVE HUMIDITY OUTPUT
POWER SUPPLY
EWS-RH TEMPERATURE OUTPUT
POWER SUPPLY
EWSTransmitWireExVoltage.eps
115.09
(4.531)
(0.062)
Relative Humidity/Temperature Transmitter
60.45
(2.38)
1
70.64
(2.78)
WALL PLATE
(SS, BRUSH FINISH)
EWS–MB
5432
6
(2) MTG.
HOLES
FOR
#6–32
SCREWS
Ø 35.71
(1.406)
DIMENSIONS mm (in)
0.79
(0.031)
WALL
THICKNESS
3.96
(0.156)
Figure 1B. EWS-MB Dimensions
+
44%
–
PROCESS PANEL METER
+
–
63.50
(2.50)
31.75
(1.25)
53.97
(2.125)
107.95
(4.25)
Ø 12.7
(0.5)
6-32 UNC THRU
2 PLACES
CONDUIT BOX MOUNTING PLATE
(0.06" THICK ALUMINUM)
Ø 3/16
THRU.
2 PLACES
30.22
(1.19)
60.12
(2.37)
EWS–MB
+
–
PROCESS PANEL METER
5432
1
6
+
85.85
(3.28)
72F
1.58
–
EWS-RH RELATIVE HUMIDITY OUTPUT
5432
1
6
+
–
PROCESS PANEL METER
4

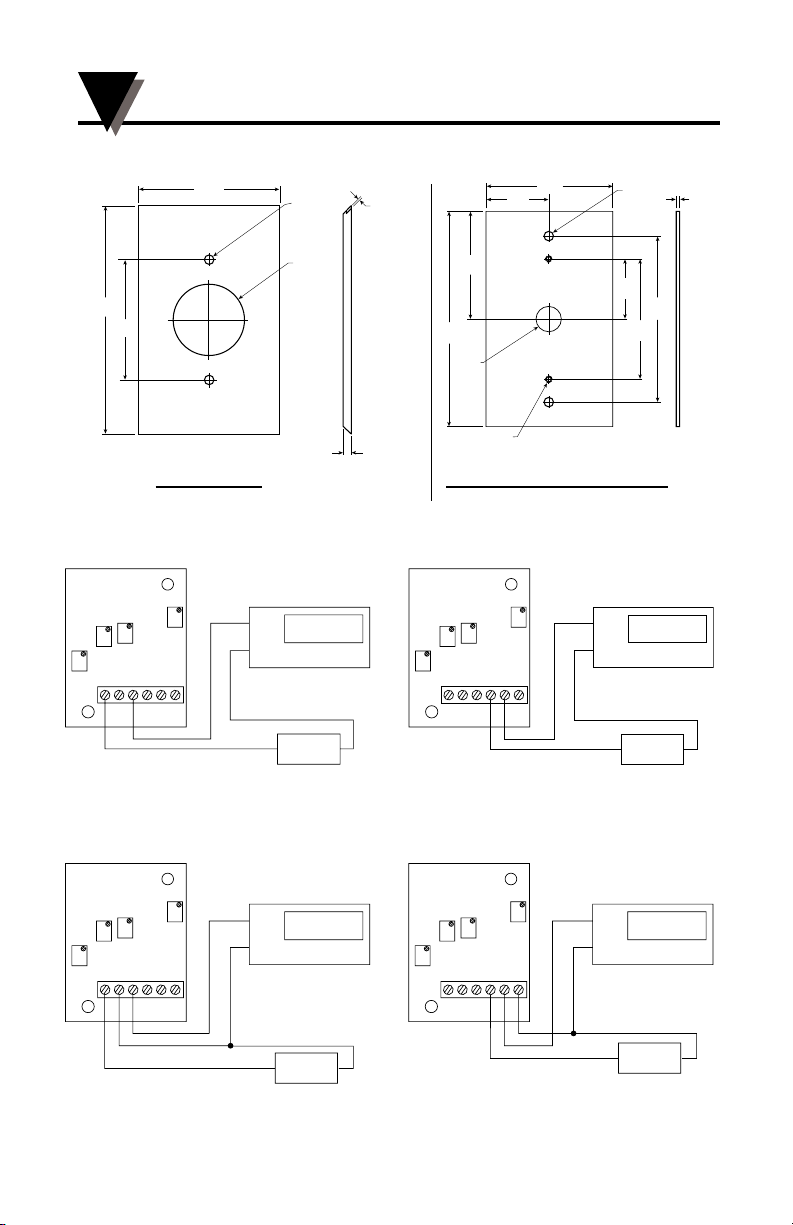

Figure 2. Transmitter Wiring Examples
For Current Output (4-20 mA)
EWS-RH TEMPERATURE OUTPUT
44%
6
5432
+
POWER SUPPLY
–
1
Figure 3. Transmitter Wiring Examples
For Voltage Output (1-5 Vdc)
+
–
PROCESS PANEL METER
72F
+
POWER SUPPLY
–
Page 9
EWS-RH
Relative Humidity/Temperature Transmitter
RH/Temperature Calculations
To calculate % Relative Humidity by measuring current output in
milliamperes.
Current output - 4 )
(
To calculate Temperature by measuring current output in
milliamperes.
Current output - 4
(
RH Measured Vs Output Reading Temperature Measured Vs Output Reading
% Relative
Humidity
5 4.8 1.2
10 5.6 1.4
15 6.4 1.6
20 7.2 1.8
25 8 2
30 8.8 2.2
35 9.6 2.4
40 10.4 2.6
45 11.2 2.8
50 12 3
55 12.8 3.2
60 13.6 3.4
65 14.4 3.6
70 15.2 3.8
75 16 4
80 16.8 4.2
85 17.6 4.4
90 18.4 4.6
95 19.2 4.8
Output
Current(mA) Voltage(Vdc)
.16
16
= % RH
x 135
+5 = Temp (°F)
)
Temperature
°C (°F)
-15 (5) 4 1
-10 (14) 5.07 1.27
0 (32) 7.20 1.80
10 (50) 9.33 2.33
20 (72) 11.94 2.99
30 (86) 13.60 3.40
40 (104) 15.73 3.93
50 (122) 17.87 4.47
60 (140) 20 5
Output
Current(mA) Voltage(Vdc)
5
Page 10
EWS-RH
WSRelHumidityCalib.eps
Relative Humidity/Temperature Transmitter
Calibration
Your transmitter has been factory calibrated to meet or exceed
the specifications outlined in this manual. To maintain original
specifications it is generally recommended that your transmitter be
re-calibrated on an annual basis depending on operating conditions.
Relative Humidity Calibration Procedure
Recommended equipment:
Humidity Generator/Calibrator Kit, OMEGA® Model No.: RHCL-KIT
Handheld Digital Multimeter, OMEGA
NOTE
®
Model No.: HHM29
Do not make adjustments to potentiometer “P3”, this is
a factory setting and is not field adjustable. If “P3” is
disturbed the transmitter will need to be returned to the
factory for service.
1. Remove enclosure cover
2. Connect transmitter as shown in figure below.
3. Apply power to transmitter and allow to warm up for 15 min.
4. Place sensor in a 20% RH environment and allow to stabilize for 20 min.
5. Adjust potentiometer “P1” for a output reading of 7.2 mA
6. Place sensor in a 80% RH environment and allow to stabilize for 20 min.
7. Adjust potentiometer “P2” for an output reading of 16.8 mA
8. Repeat steps 4, 5, 6, 7 as necessary until proper readings are maintained.
9. Calibration complete.
P2
P1
6
5432
1
MULTIMETER
+
16.80 mA
–
+
–
POWER SUPPLY

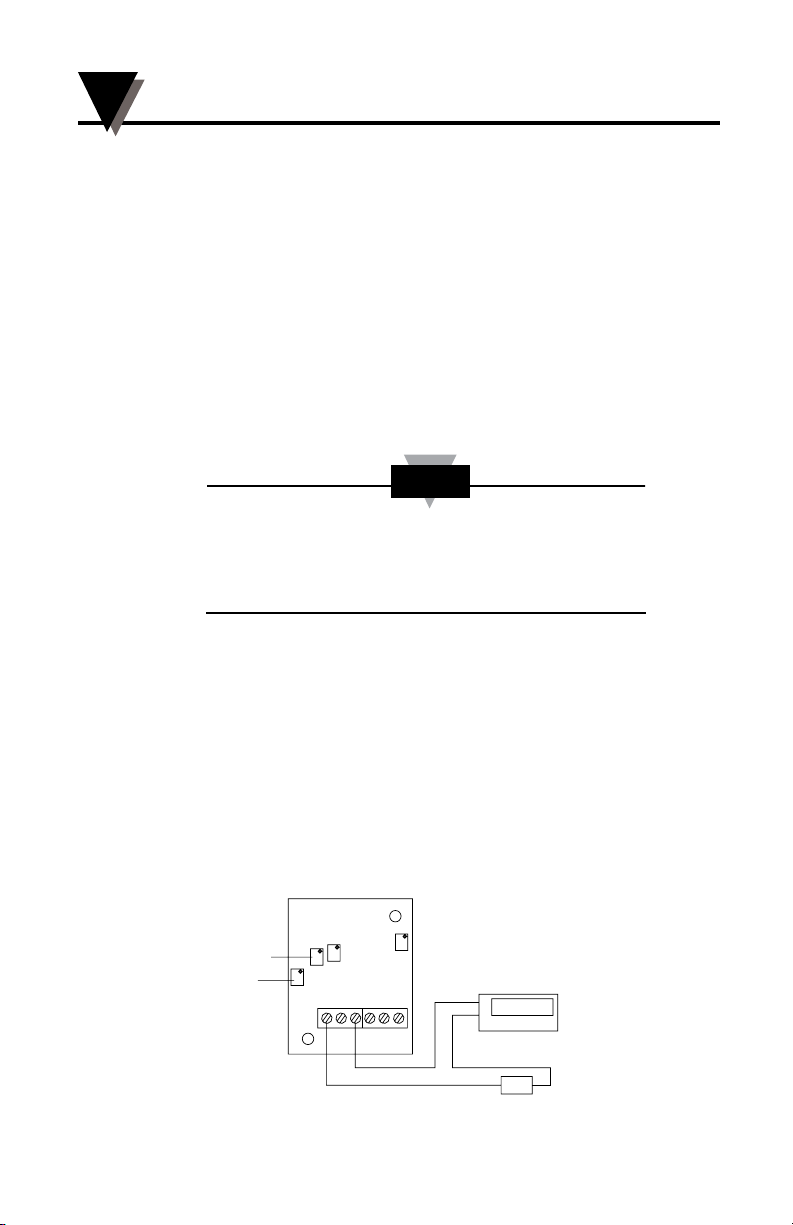

Figure 4. Relative Humidity Calibration Procedure
6
Page 11
Relative Humidity/Temperature Transmitter
EWSTemperatureCalib.eps

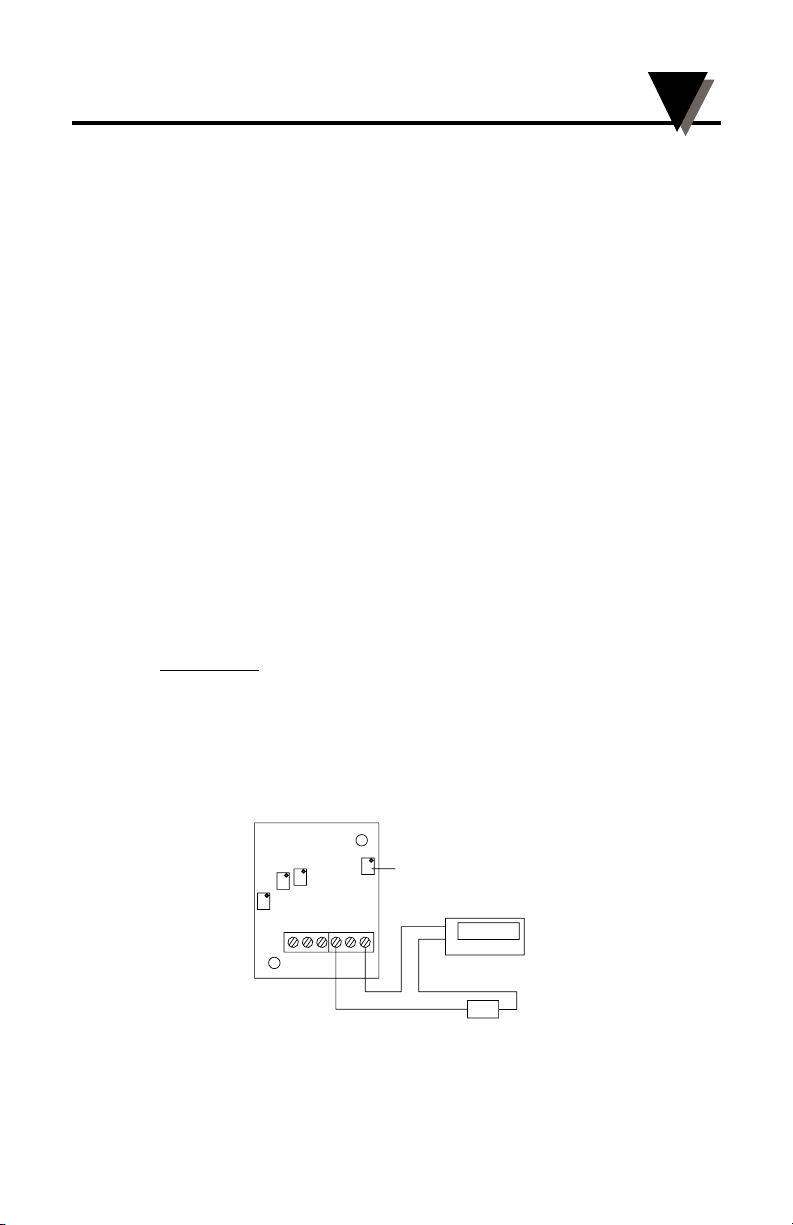

Temperature Calibration Procedure
Recommended equipment:
Series 860 Thermistor Meter OMEGA® Model No. 865F or 865C
Series 400 Thermistor Probe, OMEGA® Model No.: ON-406-PP
Handheld Digital Multimeter, OMEGA® Model No.: HHM29
1. Remove enclosure cover.
2. Connect transmitter as shown in figure below.
3. Apply power to transmitter and allow to warm up for 10 min.
4. Place unit on workbench with temperature reference probe next to unit.
5. Allow output from transmitter and reference probe to stabilize.
6. Observe the reading on the handheld thermometer coming from the
reference probe.
7. Without touching the unit with your hand, adjust potentiometer “P4”
for a current output of the transmitter that matches the temperature
measured by the reference probe. Note: if you hold the unit with
your hand, the unit will sense heat from your hand and cause a bad
calibration.
Use this formula:
Ambient - 5
(
135
Example:
If your reference probe measures 70°F (21.11°C) you need to adjust
the transmitter’s current output to be 11.70 mA.
8. Calibration complete.
x 16
+4
)
EWS-RH
P4
MULTIMETER
+
11.70 mA
–
6
5432
1
+
–
POWER SUPPLY
Figure 5. Temperature Calibration Procedure
7
Page 12
EWS-RH
Relative Humidity/Temperature Transmitter
Relative Humidity Specifications
Range: 5-95% (non-condensing)
Accuracy @ 25°C: From 5-20%, ± 4% RH
From 20-80%, ± 3% RH
From 80-95%, ± 4% RH
Repeatability: ± 1% RH
Temp. Compensation Range: 5 to 140°F (-15 to 60°C)
Output: 4-20 mA or 1-5 Vdc (scaled for 0 to
100% RH)
Power: 12-24 Vdc @ 20mA
Max Loop Resistance: Ohms = (V supply - 8V)/.02 A
RH Time Constant: 100 sec., from 20-90%, 60 sec from
90-20%
Sensor Type: Thin Film Polymer Capacitor
Temperature Specifications
Range: 5 to 140°F (-15 to 60°C)
Accuracy @ 25°C
In Still Air: ± 1.2°F (0.7°C) @ 25°C
± 2.5°F (1.4°C) across full range
In Moving Air: ± 2.5°F (1.4°C) @ 25°C
± 3°F (1.7°C) across full range
Note: Not recommended for fast moving air applications.
Repeatability: ± 0.5°F (0.3°C)
Output : 4-20 mA or 1-5 Vdc
(scaled across range)
Temp. Time Constant: (for 63.2% response)
9 sec. in moving air (1 M/sec.),
30 sec. in still air
Power: 12-24 Vdc @ 20 mA
Max Loop Resistance: Ohms = (V supply - 8V)/.02 A
Sensor Type: Solid State
General Specifications
Enclosure Material: Acrylonitrile Butadiene
Dimensions: 79 x 54 x 45mm
(3.12 L x 2.12 W x 1.78" H)
Weight: 54 g (.12 lb)
8
Page 13
NOTES:
EWS-RH
Relative Humidity/Temperature Transmitter
9
Page 14
NOTES:
EWS-RH
Relative Humidity/Temperature Transmitter
10
Page 15
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and
workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds
an additional one (1) month grace period to the normal one (1) year product warranty to
cover handling and shipping time. This ensures that OMEGA’s customers receive maximum
coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer
Service Department will issue an Authorized Return (AR) number immediately upon phone
or written request. Upon examination by OMEGA, if the unit is found to be defective, it
will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects
resulting from any action of the purchaser, including but not limited to mishandling, improper
interfacing, operation outside of design limits, improper repair, or unauthorized modification.
This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows
evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture
or vibration; improper specification; misapplication; misuse or other operating conditions
outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes
liability for any damages that result from the use of its products in accordance
with information provided by OMEGA, either verbal or written. OMEGA warrants
only that the parts manufactured by the company will be as specified and free of
defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY
KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL
IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION
OF LIABILITY: The remedies of purchaser set forth herein are exclusive, and the
total liability of OMEGA with respect to this order, whether based on contract,
warranty, negligence, indemnification, strict liability or otherwise, shall not exceed
the purchase price of the component upon which liability is based. In no event shall
OMEGA be liable for consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1)
as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or
activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or
with any nuclear installation or activity, medical application, used on humans, or misused in
any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY / DISCLAIMER
language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from
any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
RETURN REQUESTS/INQUIRIES
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT
(IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be
marked on the outside of the return package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to
prevent breakage in transit.
FOR WARRANTY RETURNS, please have
the following information available BEFORE
contacting OMEGA:
1. Purchase Order number under which
the product was PURCHASED,
2. Model and serial number of the product
under warranty, and
3. Repair instructions and/or specific
problems relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible.
This affords our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2014 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without
the prior written consent of OMEGA ENGINEERING, INC.
FOR NON-WARRANTY REPAIRS,
consult
OMEGA for current repair charges. Have the
following information available BEFORE
contacting OMEGA:
1. Purchase Order number to cover the
COST of the repair,
2. Model and serial number of theproduct, and
3. Repair instructions and/or specific problems
relative to the product.
Page 16
W
here Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
TEMPERATURE
MU
Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
MU
Wire: Thermocouple, RTD & Thermistor
MU
Calibrators & Ice Point References
MU
Recorders, Controllers & Process Monitors
MU
Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
MU
Transducers & Strain Gages
MU
Load Cells & Pressure Gages
MU
Displacement Transducers
MU
Instrumentation & Accessories
FLOW/LEVEL
MU
Rotameters, Gas Mass Flowmeters & Flow Computers
MU
Air Velocity Indicators
MU
Turbine/Paddlewheel Systems
MU
Totalizers & Batch Controllers
pH/CONDUCTIVITY
MU
pH Electrodes, Testers & Accessories
MU
Benchtop/Laboratory Meters
MU
Controllers, Calibrators, Simulators & Pumps
MU
Industrial pH & Conductivity Equipment
TM
DATA ACQUISITION
MU
Data Acquisition & Engineering Software
MU
Communications-Based Acquisition Systems
MU
Plug-in Cards for Apple, IBM & Compatibles
MU
Data Logging Systems
MU
Recorders, Printers & Plotters
HEATERS
MU
Heating Cable
MU
Cartridge & Strip Heaters
MU
Immersion & Band Heaters
MU
Flexible Heaters
MU
Laboratory Heaters
ENVIRONMENTAL
MONITORING AND CONTROL
MU
Metering & Control Instrumentation
MU
Refractometers
MU
Pumps & Tubing
MU
Air, Soil & Water Monitors
MU
Industrial Water & Wastewater Treatment
MU
pH, Conductivity & Dissolved Oxygen Instruments
M3501/0818
Loading...
