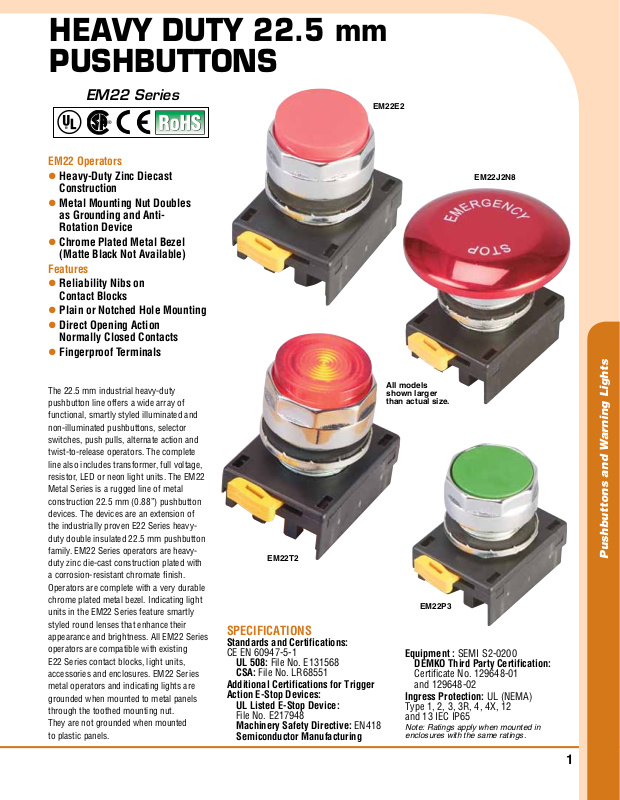

Omega EM22 Specification

Heavy Duty 22.5 mm
PusHbuttons

EM22 Series

EM22 Operators

l Heavy-Duty Zinc Diecast

Construction

l Metal Mounting Nut Doubles

as Grounding and Anti­Rotation Device

l Chrome Plated Metal Bezel

(Matte Black Not Available)

Features

l Reliability Nibs on

Contact Blocks

l Plain or Notched Hole Mounting
l Direct Opening Action

Normally Closed Contacts

l Fingerproof Terminals

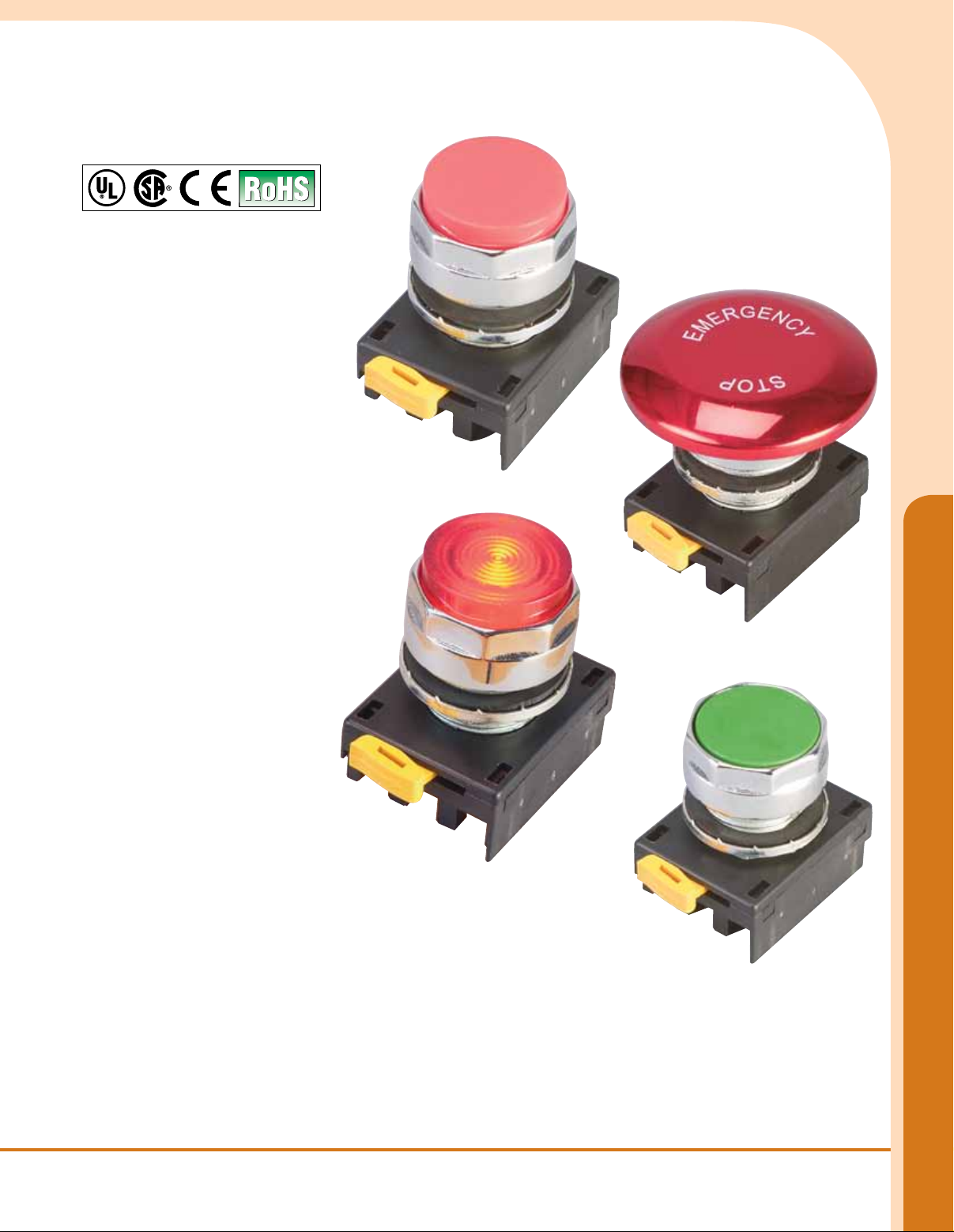

The 22.5 mm industrial heavy-duty
pushbutton line offers a wide array of
functional, smartly styled illuminated and
non-illuminated pushbuttons, selector
switches, push pulls, alternate action and
twist-to-release operators. The complete
line also includes transformer, full voltage,
resistor, LED or neon light units. The EM22
Metal Series is a rugged line of metal
construction 22.5 mm (0.88”) pushbutton
devices. The devices are an extension of
the industrially proven E22 Series heavy­duty double insulated 22.5 mm pushbutton
family. EM22 Series operators are heavy­duty zinc die-cast construction plated with
a corrosion-resistant chromate finish.
Operators are complete with a very durable
chrome plated metal bezel. Indicating light
units in the EM22 Series feature smartly
styled round lenses that enhance their
appearance and brightness. All EM22 Series
operators are compatible with existing
E22 Series contact blocks, light units,
accessories and enclosures. EM22 Series
metal operators and indicating lights are
grounded when mounted to metal panels
through the toothed mounting nut.
They are not grounded when mounted
to plastic panels.

EM22E2

EM22T2

SPECIFICATIONS

Standards and Certifications:

CE EN 60947-5-1
UL 508: File No. E131568
CSA: File No. LR68551

Additional Certifications for Trigger
Action E-Stop Devices:

UL Listed E-Stop Device:
File No. E217948
Machinery Safety Directive: EN418
Semiconductor Manufacturing

EM22J2N8

All models
shown larger
than actual size.

Pushbuttons and Warning Lights

EM22P3

Equipment : SEMI S2-0200
DEMKO Third Party Certification:
Certificate No. 129648-01
and 129648-02

Ingress Protection: UL (NEMA)
Type 1, 2, 3, 3R, 4, 4X, 12
and 13 IEC IP65

Note: Ratings apply when mounted in
enclosures with the same ratings.

1

12

34

4

3

3A

4A

4

3

2

1

4

3

2

1

X1

X2

12

34

4

3

3A

4A

4

3

2

1

4

3

2

1

X1

X1

X2

X2

12

34

4

3

3A

4A

4

3

2

1

4

3

2

1

4

3

2

1

4

3

2

1

4

3

3A

4A

4

3

2

1

4

3

2

1

34

4

3

3A

4A

4

3

2

1

4

3

2

1

4

3

2

1

2

1

MECHANICAL ENDURANCE RATINGS
Frequency of Operation:

Pushbuttons: 6000 operations per hr
Push-Pulls: 3000 operations per hr
Push-Push: 1800 cycles per hr
Selector Switches: 3000 operations per hr
Trigger-Action E-Stop: 360 cycles per hr
Twist-to-Release: 1200 cycles per hr

MECHANICAL LIFE
Contact Blocks: 3M operations
Pushbuttons: 5M operations
Push-Pulls: 300,000 operations
Push-Push: 300,000 operations
Selector Switches: 500,000 operations
Trigger-Action E-Stop: 100,000 operations
Twist-to-Release: 300,000 operations
Joysticks: 500,000 operations;

vibration IEC 68-2 (BS 2011)
Vibration: 5 g/0.7 mm peak to peak,

10 sweeps, 10 to 500 Hz

ELECTRICAL LIFE
AC15 Durability:

120V: 6 A – 1 x 106 operations
DC13 Durability:
24V: 4 A – 0.15 x 106 operations

660V: 0.1 A – 0.5 x 106 operations
MATERIAL

Housing, Bezel, Mounting Rings: Glass filled nylon
Metal Bezels: Chrome plated brass
Internal Seal: Nitrile rubber
Panel Gasket: Nitrile rubber
Illuminated Lenses: Polycarbonate
Buttons: Polyester or polycarbonate
Contacts: Silver
Terminals: Brass

TERMINAL MARKINGS

All rear of panel devices are marked with
the circuit configuration per CENELLEC 500013 standards.

Shock: 30 g, 18 ms
Bump: 25 g, 6 ms for 1000 cycle

ENVIRONMENTAL CONDITIONS
Operating Temperature: -20 to 60°C (-4 to 140°F)
Storage Temperature: -40 to 80°C (-40 to 176°F)
Altitude: Up to 2000 m (6562’)
Pollution Degree (IEC 947-1): 3

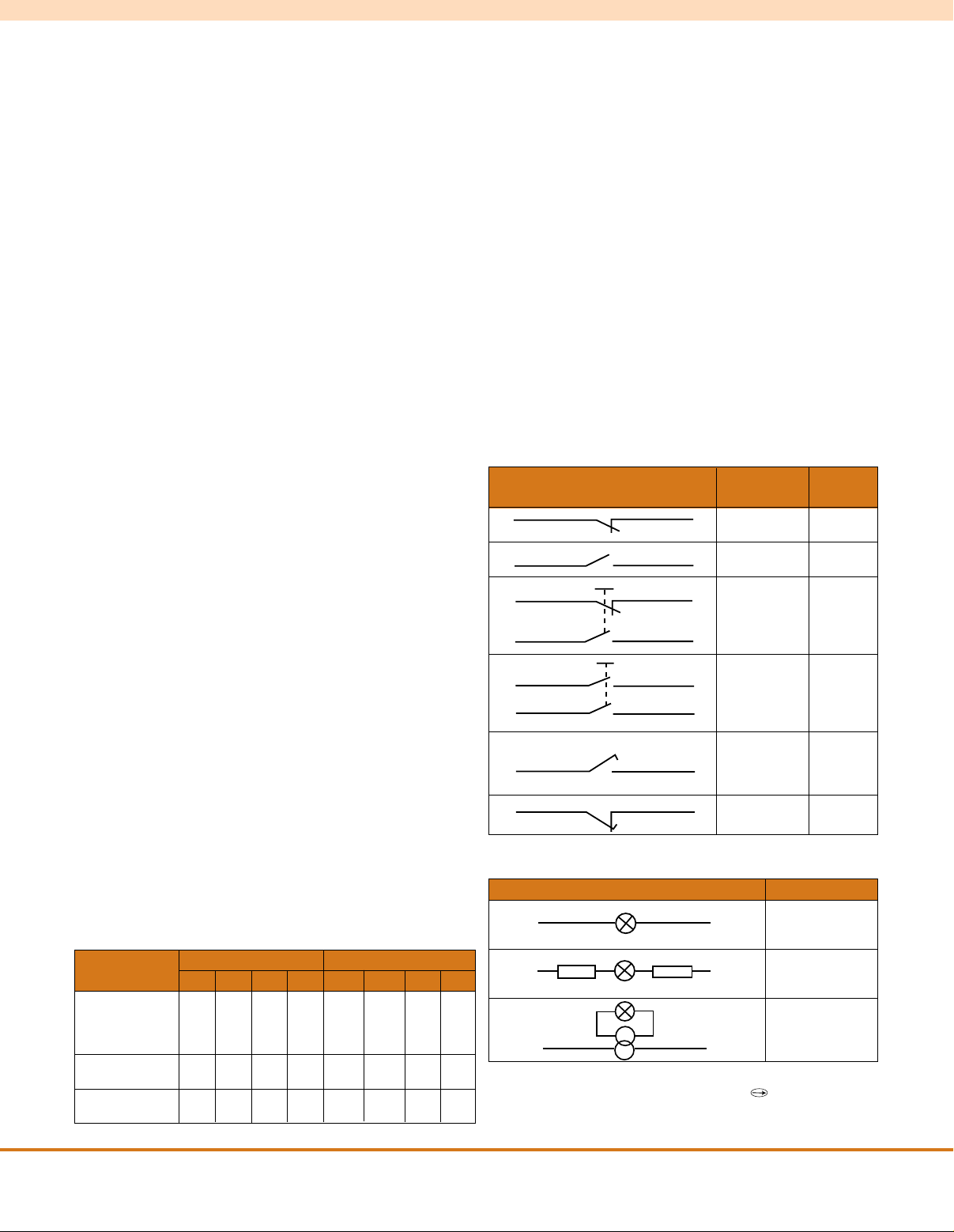

CONTACT BLOCKS

Plunger
Circuit Configuration Description Color

2

4

1 NO Green

1

3

1 NC Red

Humidity: Maximum 95% RH @ 60°C (140°F)
CONTACT BLOCK TERMINAL CLAMPS

Clamp Type: Self-lifting
Screw Type: Plus/minus, captive
Wire Range: 18 to 12 AWG (0.75 to 4.0 mm
Fingerproof Protection: IP2X
Tightening Torque: 7 lb in (0.8 Nm)

ELECTRICAL RATINGS

2

)

2

1 NO-1 NC White

4

4A

2 NO Green

4

1

3

3A

3

Meet or exceed NEMA contact rating designations A600 and Q600
A600: Q600 per UL 508

AC15: DC13 per IEC 60947-5-1
Logic Level Contact Blocks:

UL A600,
Q600 and IEC AC15, DC13 rated and also
have a minimum rating of 1 mA @ 5 Vdc

Impulse Withstand Voltage (Uimp): 4 kV
Short Circuit Coordination to IEC/EN 60947-5-1:

Rated Conditional Short Circuit Current: 1 kA
Fuse Type: GE power controls TIA 10, red spot type gG,
10 A, 660 Vac, 460 Vdc, BS88-2, IEC 60269-2-1

ELECTRICAL RATINGS FOR CONTACT BLOCKS

A600 Vac Q600 Vdc

Description 120 240 480 600 125 250 440 600

Make and 60 30 15 12 0.55 0.27 0.1 0.1
emergency
interrupting
capacity (A)

Normal load 6 3 1.5 1.2 0.55 0.27 0.1 0.1
break (A)

Thermal 10 10 10 10 2.5 2.5 2.5 2.5
current (A)

1

Ratings do not apply to rotary cam switches.

2

34

1 NO

Early Make

1 NC

12

Late Break

LIGHTED UNITS

Circuit Configuration Description

X1

Full Voltage

X1

Resistor

X2

l E22CB1, E22CB11, E22CB1E, E22B1, and E22B11 contact blocks are

marked with Direct Opening Action (DOA) symbol per IEC 60947-5-1,
Annex K and NEMA ICS 5, Part 6. For mechanical operating parameters.

l E22CB1, E22CB11 and E22CB1E contact blocks will be marked as suitable

for isolation per IEC 60947-5-1.

X2

X2

X1

Black

Gray

Transformer

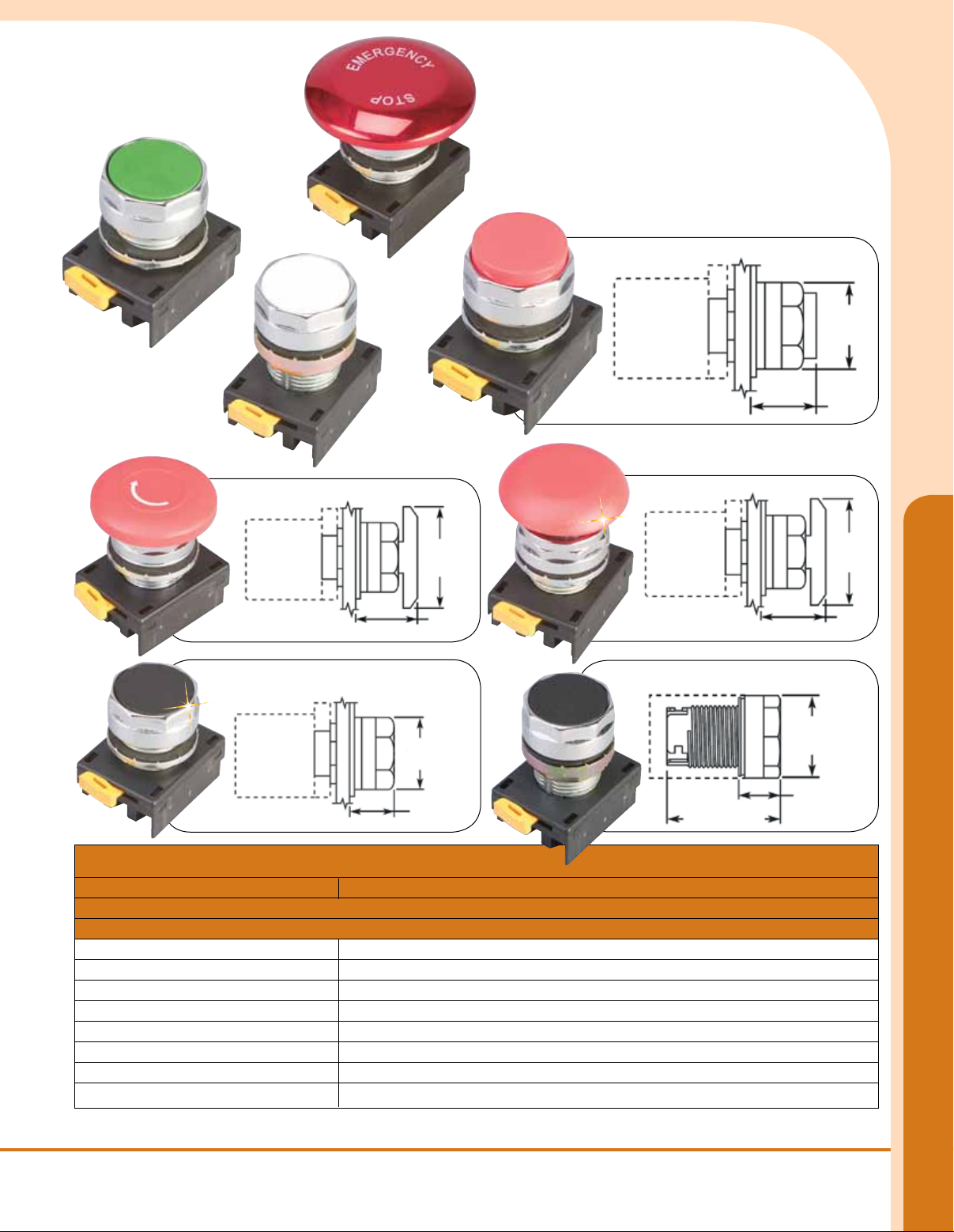

EM22P3

EM22PP5

EM22J2N8

All models

shown smaller

than actual size.

All dimensions:

mm (in)

EM22E2

20

(0.79)

EM22LL2

40

(1.57)

22

(0.87)

EM22P1

29.5

(1.16)

16 (0.63)

EM22LP2

EM22PP1

40.6 (1.60)

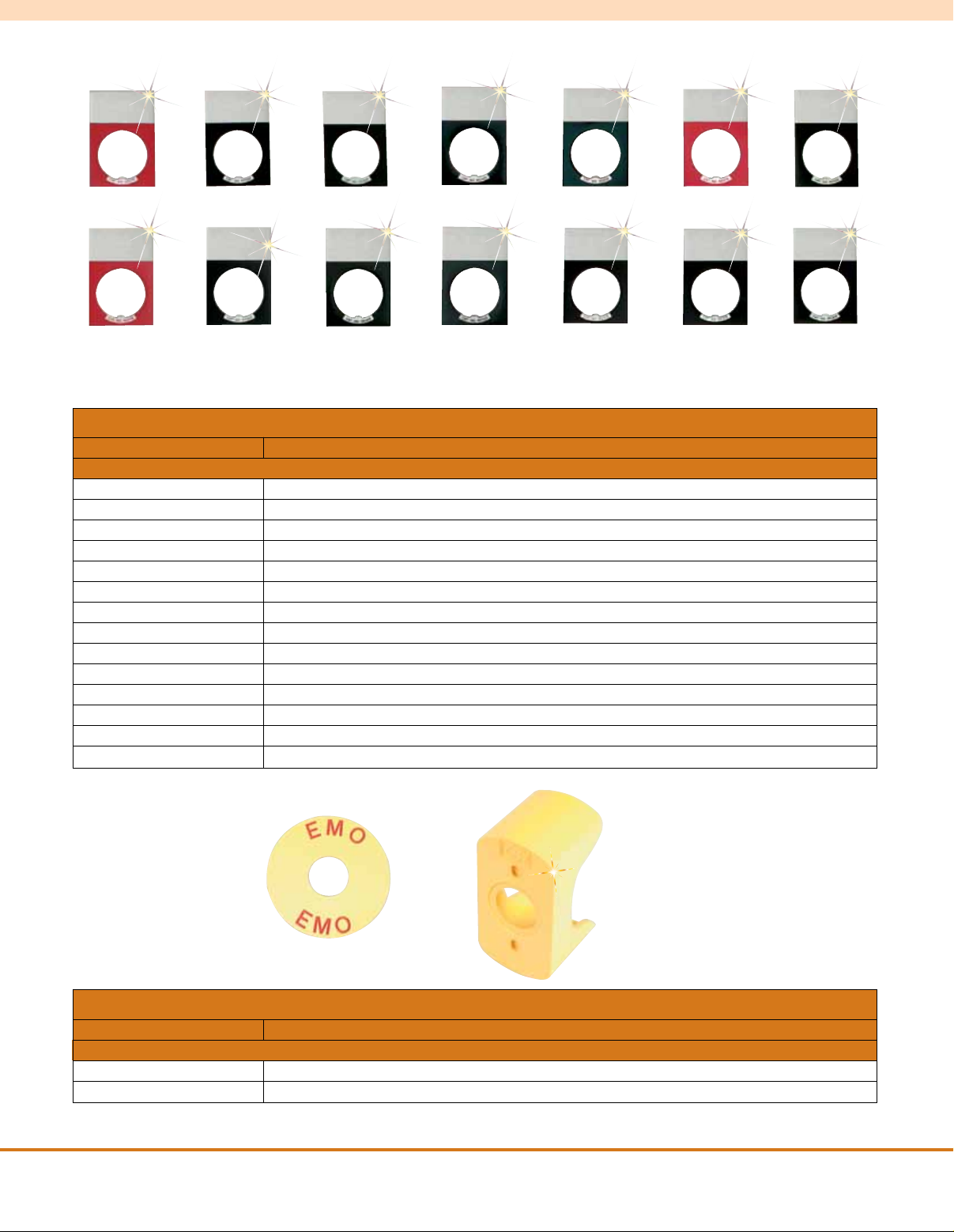

To Order

MODEL NO. DESCRIPTION
22 mm METAL

PUSHBUTTONS OPERATORS ONLY

EM22E2 Red extended pushbutton operator, chrome bezel
EM22J2N8 Red (alum) 50 mm MRH operator engraved EMERGENCY STOP
EM22LL2 Red 40 mm MRH twist-to-release operator
EM22LP2 Red 40 mm MRH push-pull (maint) operator
EM22P1 Black flush pushbutton operator, chrome bezel
EM22P3 Green flush pushbutton operator, chrome bezel
EM22PP1 Black flush push-push (alternate action) pushbutton
EM22PP5 White flush push-push (alternate action) pushbutton

Comes with instruction sheet
Ordering Example: EM22E2, red extended pushbutton operator.

40

(1.57)

22

(0.87)

29.5

(1.16)

15.2 (0.60)

Pushbuttons and Warning Lights

3

All models

shown smaller

than actual size.

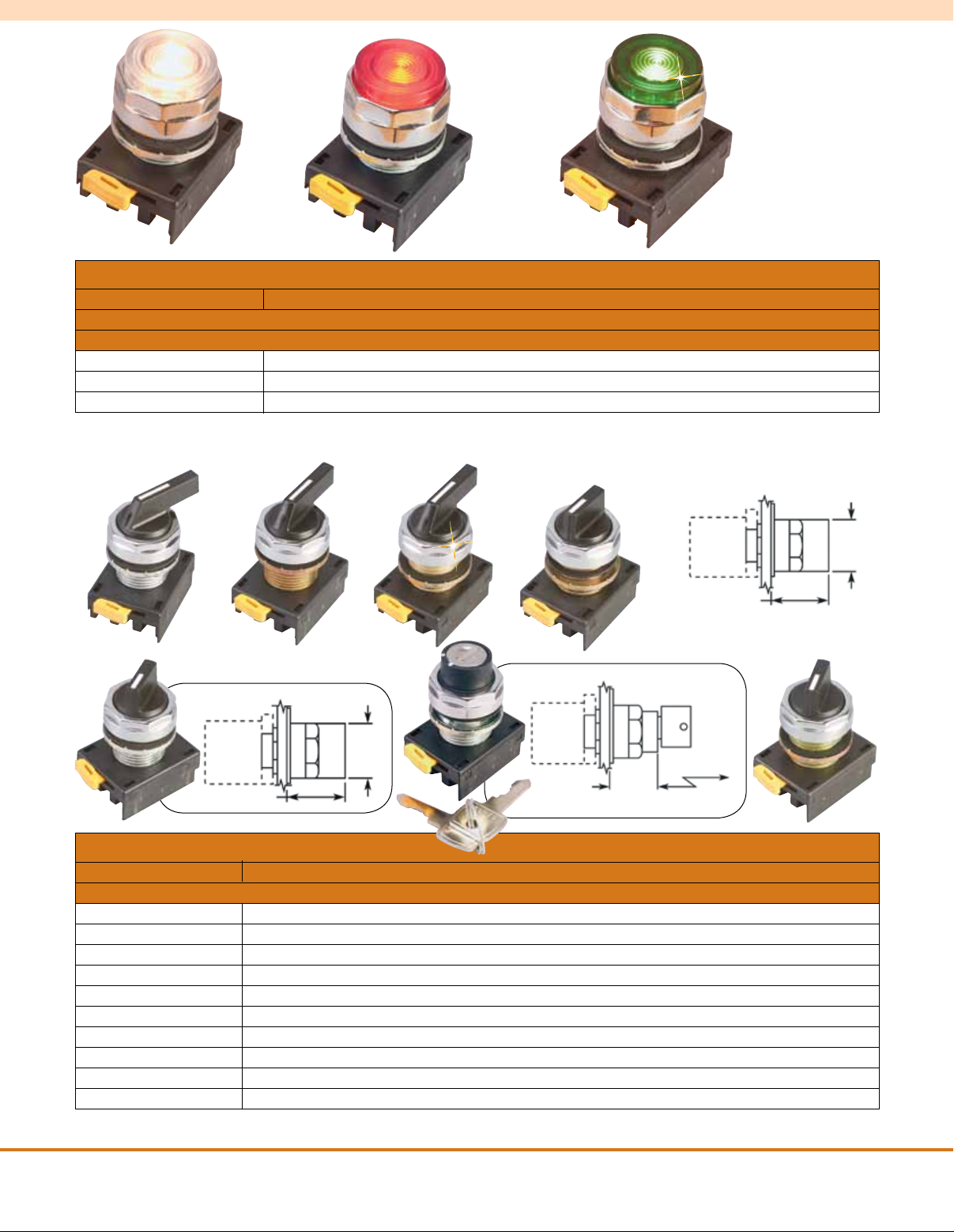

EM22T0

EM22T2

To Order

MODEL NO. DESCRIPTION
22 mm METAL

E22 INDICATING LIGHT AND ILLUMINATED PUSHBUTTON OPERATORS
EM22T0 Clear Pres-Test or illuminated PB operator, chrome bezel
EM22T2 Red Pres-Test or illuminated PB operator, chrome bezel
EM22T3 Green Pres-Test or illuminated PB operator, chrome bezel

Comes with instruction sheet
Ordering Example: EM22T0, clear pres-test or illuminated pushbutton operator.

EM22V561

EM22VE61

All models shown

smaller than actual size.

EM22X561

EM22VM61

EM22X661

EM22KF5

All dimensions: mm (in)

EM22T3

EM22XG61

20

(0.79)

22 (0.87)

Dimensions: mm (in)

EM22XM61

20

(0.79)

22 (0.87)

To Order

MODEL NO. DESCRIPTION

E22 SELECTOR SWITCHES OPERATORS ONLY
EM22V561 2-position maintained selector switch, lever
EM22VE61 2-position momentary selector switch, lever
EM22VH61 3-position maintained selector switch, lever
EM22VM61 3-position momentary selector switch, lever
EM22X561 2-position maintained selector switch, knob
EM22X661 2-position momentary selector switch, knob
EM22XG61 3-position maintained selector switch, knob, 60°
EM22XM61 3-position momentary selector switch, knob
EM22KF5 2-position maintained selector switch, key, 45°
EM22KH7 3-position maintained selector switch, key, 45°

Comes with instruction sheet
Ordering Example: EM22V561, lever 2 position switch.

4

20

(0.79)

to remove key

40 (1.57)

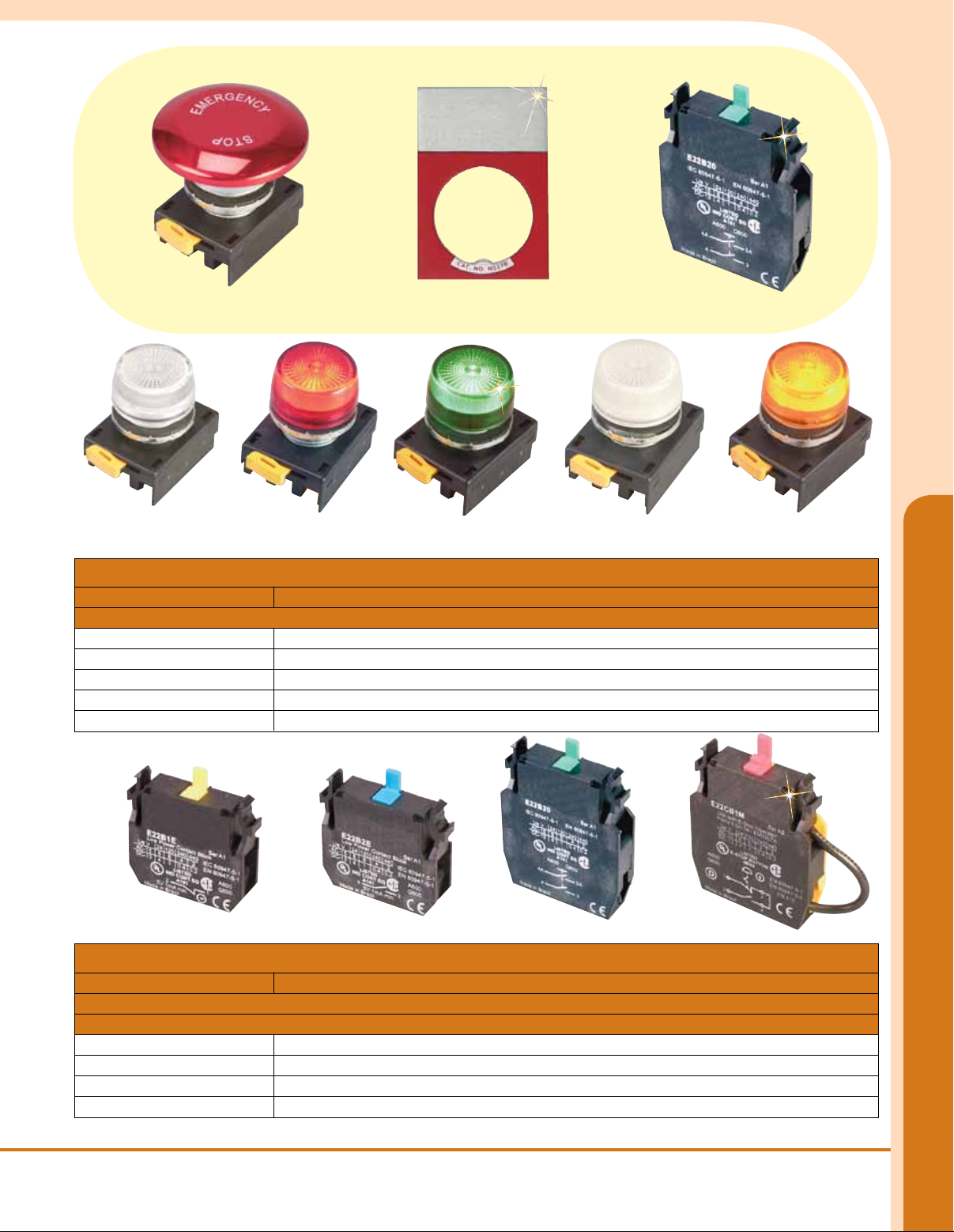

Build Your Own System

EMERG.

STOP

+

EM22J2N8

Note: To order complete system add a contact block and legend plate to operator.

EM22H0

To Order

MODEL NO. DESCRIPTION

E22 INDICATING LIGHT AND ILLUMINATED PUSHBUTTON OPERATORS
EM22H0 Clear lens unit
EM22H2 Red lens unit
EM22H3 Green lens unit
EM22H5 White lens unit
EM22H9 Amber lens unit

Comes with instruction sheet.
Ordering Example: EM22H2, red lens unit.

EM22H2

All models shown smaller than actual size.

E22NS13

EM22H3

+

EM22H5

E22B20

EM22H9

E22B1E

To Order

MODEL NO. DESCRIPTION

22 mm HEAVY DUTY PLASTIC

E22 CONTACT BLOCKS

E22B20 Contact Block, 2 NO
E22B1E Contact Block, 1 NC, Logic
E22B2E Contact Block, 1 NO, Logic
E22CB1M Self monitoring contact block, 1 NC

Comes with instruction sheet
Ordering Example: E22B20, 2 normally open contacts.

E22B2E

All models shown smaller than actual size.

E22B20

Pushbuttons and Warning Lights

E22CB1M

5

EMERG.

STOP

OFF

ON

RUN

START

STOP

E22NS13

E22NS37

E22NS24

FOR. REV.

E22NS38

E22NS25

OFF ON

E22NS42

E22NS31

START STOP

E22NS47

All models shown

smaller than actual size.

To Order

MODEL NO. DESCRIPTION

E22 LEGEND PLATES
E22NS13 Emergency Stop
E22NS24 Off
E22NS25 On
E22NS31 Run
E22NS33 Start
E22NS34 Stop
E22NS36 Blank, Black
E22NS37 Blank, Red
E22NS38 For Rev
E22NS42 Off On
E22NS47 Start Stop
E22NS50 F - O - R
E22NS51 H - O - A
E22NS80 Power On

Comes with instruction sheet
Ordering Example: E22NS13, emergency stop legend plate.

E22NS33

OFF

FOR. REV.

E22NS50

E22NS34

OFF

HAND AUTO

E22NS51

E22NS36

POWER ON

E22NS80

E22VA5

To Order

MODEL NO. DESCRIPTION

E22 PUSHBUTTONS ACCESSORIES
E22MGTA Rectangular guard
E22VA5 EMO round yellow nameplate

Comes with instruction sheet
Ordering Example: E22MGTA, rectangular guard.

6

Both models shown

smaller than actual size.

E22MGTA
