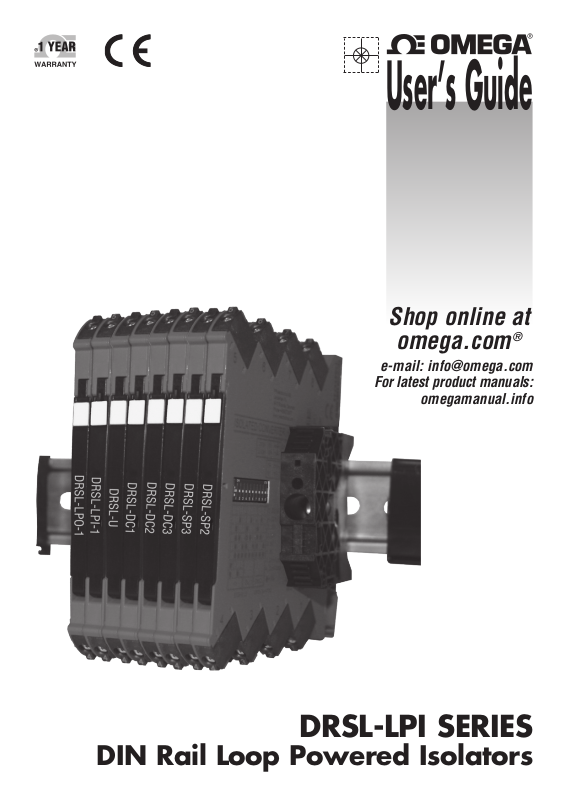

DRSL-LPI SERIES
DIN Rail Loop Powered Isolators
Page 2
omega.com [email protected]
Servicing North America:
U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047
Stamford, CT 06907-0047 USA
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
e-mail: [email protected]
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct, but OMEGA accepts no
liability for any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human
applications.
Page 3
DRSL SERIES
LOOP POWERED ISOLATOR
DRSL-LPI SERIES
CONTENTS
Warning ...................................................................................................................... 2
Safety instructions ................................................................................................ 3
Mounting and demounting of DRSL SERIES ............................................... 5
Installation on DIN rail ......................................................................................... 6
Marking ...................................................................................................................... 6
Side label ................................................................................................................... 7
Applications.............................................................................................................. 8
Technical characteristics ..................................................................................... 8
Mounting / installation ........................................................................................ 8
Specifications .......................................................................................................... 9
Connections ............................................................................................................. 12
NB.: Click on the entries in the table of contents to go to the desired section.
1
Page 4
GENERAL
HAZARD-
OUS
VOLTAGE
CAUTION
To avoid the risk of electric shock and fire, the safety instructions
of this guide must be observed and the guidelines followed. The
specifications must not be exceeded, and the device must only be
applied as described in the following. Prior to the commissioning of
the device, this installation guide must be examined carefully. Only
qualified personnel (technicians) should install this device. If the
equipment is used in a manner not specified by the manufacturer,
the protection provided by the equipment may be impaired. Until
the device is fixed, do not connect hazardous voltages to the device.
Repair of the device must be done by OMEGA Engineering only.
In applications where hazardous voltage is connected to in-/
outputs of the device, sucient spacing or isolation from wires,
terminals and enclosure - to surroundings (incl. neighbouring
devices), must be ensured to maintain protection against electric
shock.
Potential electrostatic charging hazard. To avoid the risk of
explosion due to electrostatic charging of the enclosure, do not
handle the units unless the area is known to be safe, or appropriate
safety measures are taken to avoid electrostatic discharge.
SYMBOL IDENTIFICATION
Triangle with an exclamation mark: Read the manual
before installation and commissioning of the device in
order to avoid incidents that could lead to personal injury or
mechanical damage.
The CE mark proves the compliance of the device with the
essential requirements of the directives.
WARNING
2
Page 5
SAFETY INSTRUCTIONS
RECEIPT AND UNPACKING
Unpack the device without damaging it. The packing should always follow the
device until this has been permanently mounted. Check at the receipt of the device
whether the type corresponds to the one ordered.
ENVIRONMENT
Avoid direct sunlight, dust, high temperatures, mechanical vibrations and shock, as
well as rain and heavy moisture. If necessary, heating in excess of the stated limits
for ambient temperatures should be avoided by way of ventilation.
All devices can be used for Measurement Category II and Pollution Degree 2.
The module is designed to be safe at least under an altitude up to 2 000 m.
MOUNTING
Mounting and connection of the device should comply with national legislation for
mounting of electric materials, i.e. wire cross section, protective fuse, and location.
Descriptions of input / output and supply connections are shown in this installation
guide and on the side label.
The device is provided with field wiring terminals and shall be supplied from a Power
Supply having double / reinforced insulation. A power switch should be easily accessible
and close to the device. The power switch shall be marked as the disconnecting unit
for the device.
DRSL Series must be mounted on a DIN rail according to EN 60715.
UL installation
Use 60/75°C copper conductors only.
Wire size ................................... AWG 26-12
UL file number........................ E703667
The device is an Open Type Listed Process Control Equipment. To prevent injury
resulting from accessibility to live parts the equipment must be installed in an
enclosure.
The power Supply unit must comply with NEC Class 2, as described by the National
Electrical Code® (ANSI / NFPA 70).
3
Page 6
Cleaning
When disconnected, the device may be cleaned with a cloth moistened with
distilled water.
4
Page 7

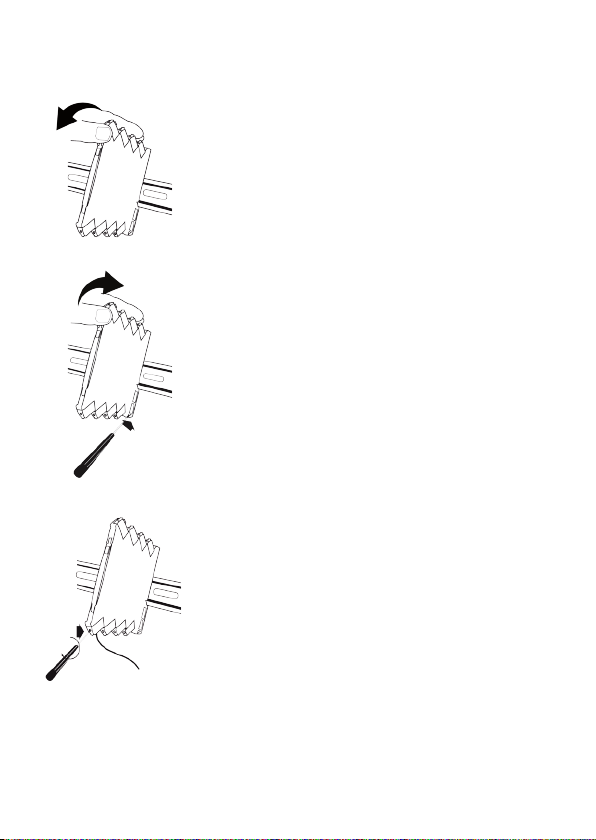

MOUNTING AND DEMOUNTING OF DRSL SERIES

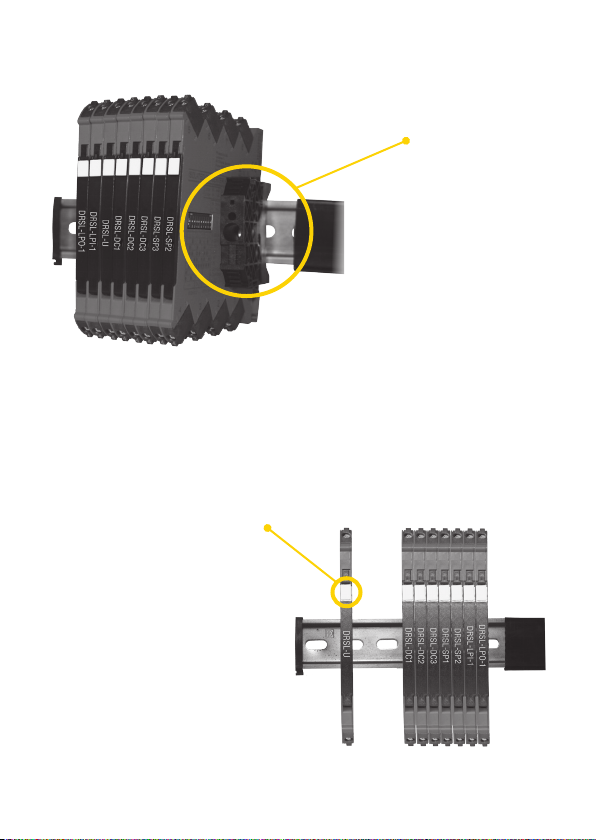

Picture 1:
Mounting on DIN rail.
Click the device onto the rail
Picture 2:
Demounting from DIN rail
First, remember to demount the connectors with
hazardous voltages.
Detach the device from the DIN rail by lifting the
bottom lock.
Picture 3:
Wire size AWG 26-12 / 0.13 x 2.5 mm
Screw terminal torque 0.5 Nm.
2
stranded wire.
5
Page 8
INSTALLATION ON DIN RAIL
The front cover of the DRSL Series
has been designed with an area
for affixation of a click-on marker.
The area assigned to the marker
measures 5 x 7.5 mm. Markers
from Weidmüller’s MultiCard
System, type MF 5/7.5, are
suitable.
Module stop
(DRSL-MOD-STOP)
MARKING
6
Page 9
Type no.

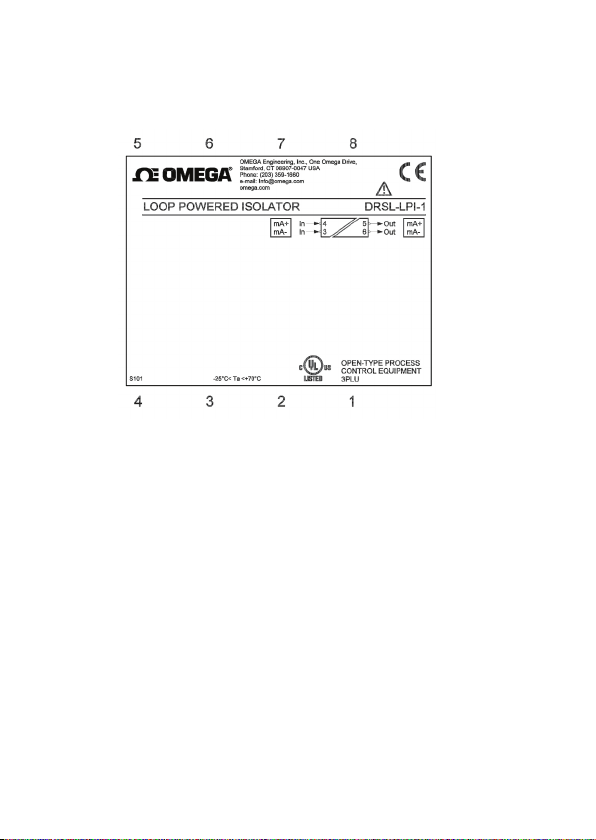

SIDE LABEL
Terminal numbers
}
Pin
connections
}
Approvals
}
}
7
Page 10
DRSL-LPI SERIES: LOOP-POWERED ISOLATOR
• 1 or 2 channel input loop powered isolator
• Signal 1:1 functional range 0...23 mA
• Low input voltage drop and fast response time
• Excellent accuracy and high load stability
• Slimline 6mm housing
Applications
• 1:1 input loop powered isolator of current signals in the range 0(4)...20 mA.
• DRSL-LPIisaneasymountingDINrailunit.
• A verycompetitive choiceinterms of both priceand technology for galvanic
isolation of current signals.
• Providessurge suppressionand protects control systemsfrom transientsand
noise.
• DRSL-LPI eliminates ground loops and can be used for measuring floating
signals.
Technical characteristics
• DRSL-LPIispoweredbytheanaloginputcurrentsignalloop.
• Lowinputvoltagedrop,typ1.35V+Vout.
• Excellentconversionaccuracy,betterthan0.1%intherange0…20.5mA.
• Functional range is 0...23 mA which means that DRSL-LPI is NAMUR NE43
Compliant.
• Inputsandoutputsarefloatingandgalvanicallyseparated.
• Theoutputisvoltagelimitedto17.5VDC.
• Highgalvanicisolationof2.5kVAC.
• Fastresponsetime<5msec.
• Excellentsignal/noiseratio>60dB.
Mounting / installation
•DINrailmountingwithupto330channelspermeter.
•Temperatureoperationrangeisfrom-25...+70°C.
8
Page 11
Order codes for DRSL-LPI Series:
Type Unit channels
DRSL-LPI-1
DRSL-LPI-2
1
2
Accessories for DRSL-LPI Series:
Type Function
DRSL-MOD-STOP Module stop
Specifications
Environmental conditions:
Specifications range ............................................... -25°Cto+70°C
Storage temperature .............................................. -40°Cto+85°C
Calibration temperature ........................................ 20...28°C
Relative humidity..................................................... <95%RH(non-cond.)
Protection degree .................................................... IP20
Installation in pollution degree 2 & overvoltage category II.
Mechanical specifications:
Dimensions(HxWxD) .............................................. 113 x 6.1 x 115 mm
Weight approx. .......................................................... 70 g
DIN rail type ............................................................... DIN EN 60715 - 35mm
Wire size ...................................................................... 0.13...2.5 mm
AWG 26...12 stranded wire
Screw terminal torque ........................................... 0.5 Nm
Common electrical specifications:
Internal consumption ............................................. 30 mW per channel
Isolation voltage, test ............................................ 2.5kVAC
Working isolation voltage ..................................... 300VAC
Signal / noise ratio .................................................. >60dB
Responsetime(0...90%,100...10%) ................. <5ms
Cut- off frequency (3 dB) ..................................... 100Hz
2
9
Page 12
Input and Output specifications:
Signal range, input to output ............................. 0...20.5 mA
Signal conversion ..................................................... 1:1
Functional range ...................................................... 0...23 mA
Start up current, typ ............................................... 10 uA
Current input overload, max ................................ 50 mA
Input to output voltage drop, typ .................... 1.35V+(0.015xVout)
(V
Input voltage drop ................................................... (Unitvoltagedrop)+V
Output load, max ..................................................... 600 Ω
Output load stability .............................................. <0.01%ofspan/100Ω
Voltagelimit .............................................................. 17.5V
out = Iout
x R
output load
out
Accuracy values
Input
type
mA
Absolute
accuracy
≤ ± 10µA+0.05%ofmax
Temperature
coefficient
≤ ± 2 µA / °C
value of selected span
EMC immunity influence ..................................... <±0.5%ofspan
Extended EMC immunity:
NAMUR NE 21, A criterion, burst .................... <±1%ofspan
*of span = 0...20 mA
)
10
Page 13
Approvals:
EMC 2004/108/EC .................................................. EN 61326-1
LVD2006/95/EC ...................................................... EN 61010-1
UL, Standard for Safety ......................................... UL 61010-1
Safe Isolation ............................................................. EN 61140
11
Page 14

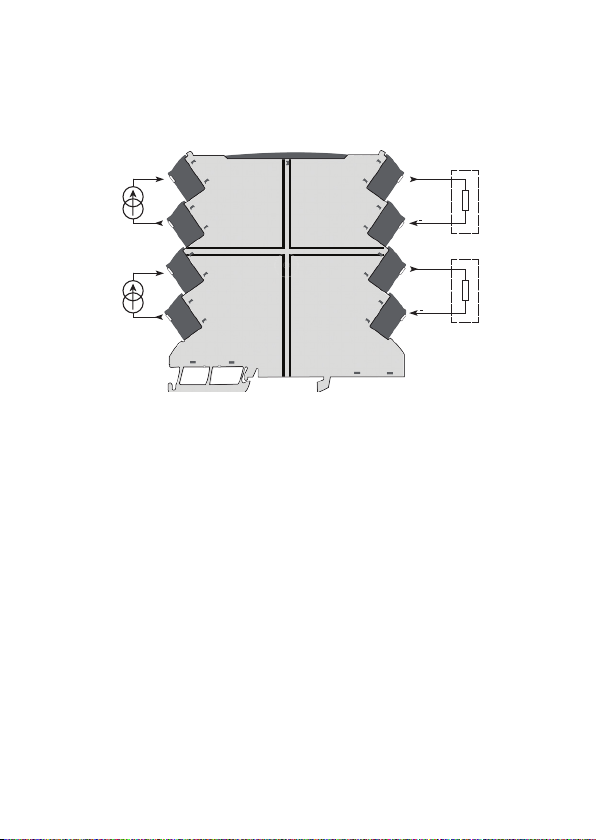

CONNECTIONS
DRSL-LPI
+
4
-
+
-
ch. 1
3
Input
2
ch. 2
1
Input
Output
ch. 1
Output
ch. 2
+
0...20 mA
5
R
load
6
+
7
0...20 mA
R
load
8
12
Page 15
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s Warranty adds an additional
one (1) month grace period to the normal one (1) year product warranty to cover handling
and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each
product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer
Service Department will issue an Authorized Return (AR) number immediately upon phone or
written request. Upon examination by OMEGA, if the unit is found to be defective, it will be
repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting
from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This
WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence
of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of
OMEGA’s control. Components in which wear is not warranted, include but are not limited to
contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes
liability for any damages that result from the use of its products in accordance with
information provided by OMEGA, either verbal or written. OMEGA warrants only
that the parts manufactured by the company will be as specified and free of defects.
OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND
WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED
WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY:
The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of
the component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as
a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity;
or (2) in medical applications or used on humans. Should any Product(s) be used in or with any
nuclear installation or activity, medical application, used on humans, or misused in any way,
OMEGA assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language,
and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability
or damage whatsoever arising out of the use of the Product(s) in such a manner.
WARRANTY/ DISCLAIMER
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT
(IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked
on the outside of the return package and on any correspondence. The purchaser is responsible for
shipping charges, freight, insurance and proper packaging to prevent breakage in transit.
FOR WARRANTY RETURNS, please have
the following information available BEFORE
contacting OMEGA:
1. Purchase Order number under which the
product was PURCHASED,
2. Model and serial number of the product under
warranty, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is
possible. This affords our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2014 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied,
photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form,
in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.
RETURN REQUESTS/ INQUIRIES
FOR NON-WARRANTY REPAIRS,
OMEGA for current repair charges. Have
the following information available BEFORE
contacting OMEGA:
1. Purchase Order number to cover the COST
of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems
relative to the product.
consult
Page 16
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
SM
TEMPERATURE
MU
Thermocouple, RTD & Thermistor
Probes, Connectors, Panels &
Assemblies
MU
Wire: Thermocouple, RTD &
Thermistor
MU
Calibrators & Ice Point References
MU
Recorders, Controllers & Process
Monitors
MU
Infrared Pyrometers
PRESSURE, STRAIN AND
FORCE
MU
Transducers & Strain Gages
MU
Load Cells & Pressure Gages
MU
Displacement Transducers
MU
Instrumentation & Accessories
FLOW/LEVEL
MU
Rotameters, Gas Mass Flowmeters
& Flow Computers
MU
Air Velocity Indicators
MU
Turbine/Paddlewheel Systems
MU
Totalizers & Batch Controllers
pH/CONDUCTIVITY
MU
pH Electrodes, Testers &
Accessories
MU
Benchtop/Laboratory Meters
MU
Controllers, Calibrators, Simulators
& Pumps
MU
Industrial pH & Conductivity
Equipment
DATA ACQUISITION
MU
Data Acquisition & Engineering
Software
MU
Communications-Based
Acquisition Systems
MU
Plug-in Cards for Apple, IBM &
Compatibles
MU
Data Logging Systems
MU
Recorders, Printers & Plotters
HEATERS
MU
Heating Cable
MU
Cartridge & Strip Heaters
MU
Immersion & Band Heaters
MU
Flexible Heaters
MU
Laboratory Heaters
ENVIRONMENTAL
MONITORING AND CONTROL
MU
Metering & Control
Instrumentation
MU
Refractometers
MU
Pumps & Tubing
MU
Air, Soil & Water Monitors
MU
Industrial Water & Wastewater
Treatment
MU
pH, Conductivity & Dissolved
Oxygen Instruments
M5396/0514
Loading...
