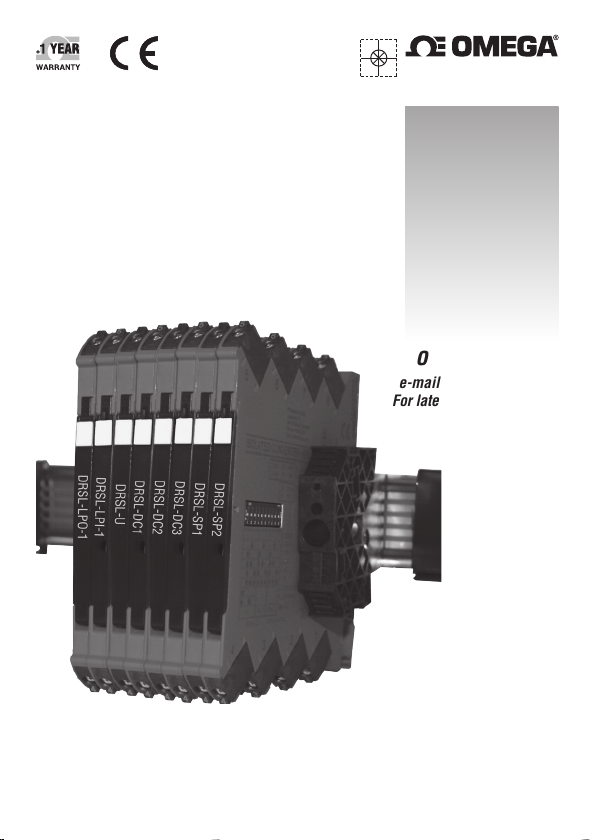

Omega DRSL-DC4 User guide

User’s Guide

Shop online at

omega.com

e-mail: [email protected]

For latest product manuals:

omegamanual.info

®

DRSL-DC4

Bipolar Isolated DIN Rail

Signal Conditioner

omega.com [email protected]

Servicing North America:

U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047

Stamford, CT 06907-0047 USA

Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: [phone] Fax: [phone]
e-mail: [email protected]

For Other Locations Visit omega.com/worldwide

The information contained in this document is believed to be correct, but OMEGA accepts no
liability for any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human
applications.

DRSL SERIES

BIPOLAR ISOLATED SIGNAL CONDITIONER

DRSL-DC4

CONTENTS

Warning ...................................................................................................................... 2

Safety instructions ................................................................................................ 3

Mounting and demounting of system DRSL Series ................................. 5

Installation on DIN rail ......................................................................................... 6

Marking ...................................................................................................................... 6

Side label ................................................................................................................... 7

Applications.............................................................................................................. 8

Technical characteristics ..................................................................................... 8

Mounting / installation ........................................................................................ 8

Specifications .......................................................................................................... 9

DIP-switch configuration .................................................................................... 11

Front LED indication (green) ............................................................................. 11

Connections ............................................................................................................. 12

1

GENERAL

HAZARD-

OUS

VOLTAGE

CAUTION

To avoid the risk of electric shock and fire, the safety instructions
of this guide must be observed and the guidelines followed. The
specifications must not be exceeded, and the device must only be
applied as described in the following. Prior to the commissioning
of the device, this installation guide must be examined carefully.
Only qualified personnel (technicians) should install this device.
If the equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may
be impaired. Until the device is fixed, do not connect hazardous
voltages to the device.

Repair of the device must be done by OMEGA Engineering only.

In applications where hazardous voltage is connected to in-/
outputs of the device, sucient spacing or isolation from wires,
terminals and enclosure - to surroundings (incl. neighbouring
devices), must be ensured to maintain protection against electric
shock.

Potential electrostatic charging hazard. To avoid the risk of
explosion due to electrostatic charging of the enclosure, do not
handle the units unless the area is known to be safe, or appropriate
safety measures are taken to avoid electrostatic discharge.

SYMBOL IDENTIFICATION

Triangle with an exclamation mark: Read the manual

before installation and commissioning of the device in
order to avoid incidents that could lead to personal injury or
mechanical damage.

The CE mark proves the compliance of the device with the
essential requirements of the directives.

WARNING

2

SAFETY INSTRUCTIONS

RECEIPT AND UNPACKING

Unpack the device without damaging it. The packing should always follow the
device until this has been permanently mounted. Check at the receipt of the device
whether the type corresponds to the one ordered.

ENVIRONMENT

Avoid direct sunlight, dust, high temperatures, mechanical vibrations and shock, as
well as rain and heavy moisture. If necessary, heating in excess of the stated limits
for ambient temperatures should be avoided by way of ventilation.
All devices can be used for Measurement / Overvoltage Category II and Pollution
Degree 2.
The device is designed to be safe at least under an altitude up to 2 000 m.

MOUNTING

Mounting and connection of the device should comply with national legislation for
mounting of electric materials, i.e. wire cross section, protective fuse, and location.
Descriptions of input / output and supply connections are shown in this installation
guide and on the side label.
The device is provided with field wiring terminals and shall be supplied from a Power
Supply having double / reinforced insulation. A power switch should be easily accessible
and close to the device. The power switch shall be marked as the disconnecting unit
for the device.
DRSL Series must be mounted on a DIN rail according to EN 60715.

UL installation

Use 60/75°C copper conductors only.

Wire size ................................... AWG 26-12

UL file number........................ E70366

The device is an Open Type Listed Process Control Equipment. To prevent injury
resulting from accessibility to live parts the equipment must be installed in an
enclosure.
The power Supply unit must comply with NEC Class 2, as described by the National
Electrical Code

®

(ANSI / NFPA 70).

3

Cleaning

When disconnected, the device may be cleaned with a cloth moistened with
distilled water.

4

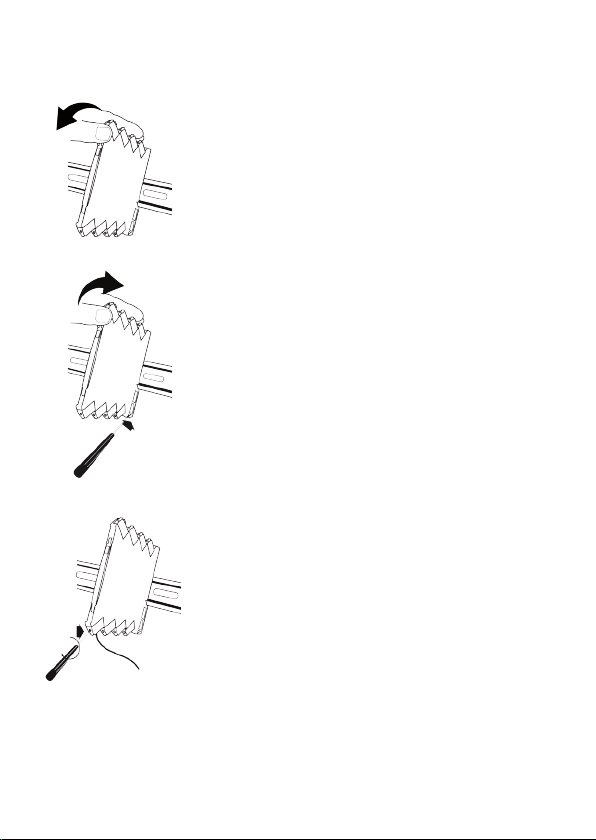

MOUNTING AND DEMOUNTING OF DRSL SERIES

Picture 1:

Mounting on DIN rail.
Click the device onto the rail.

Picture 2:

Demounting from DIN rail
First, remember to demount the connectors with
hazardous voltages.
Detach the device from the DIN rail by lifting the bottom
lock.

Picture 3:

Wire size AWG 26-12 / 0.13 x 2.5 mm
Screw terminal torque 0.5 Nm.

2

stranded wire.

5

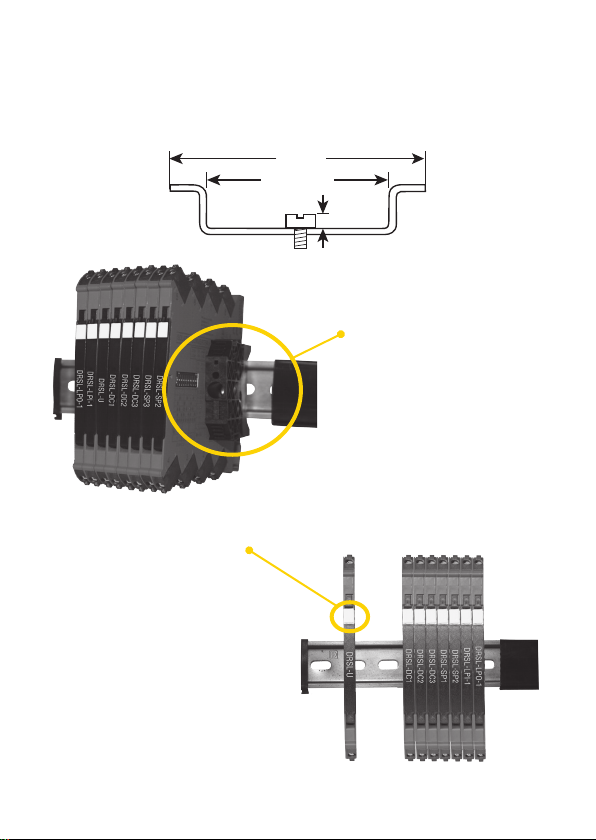

INSTALLATION ON DIN RAIL

To avoid short circuit between the power rail connectors on the DRSL devices and

the screws holding the 7.5 mm DIN rail, the head of the screws shall be no more
than 3.5 mm high.

35 mm

> 24 mm

< 3,5 mm

Module stop (DRSL-MOD-STOP)

The front cover of the DRSL series

MARKING

has been designed with an
area for affixation of a click-on
marker. The area assigned to
the marker measures 5 x 7.5
mm. Markers from Weidmüller’s
MultiCard System, type MF

5/7.5, are suitable.

6

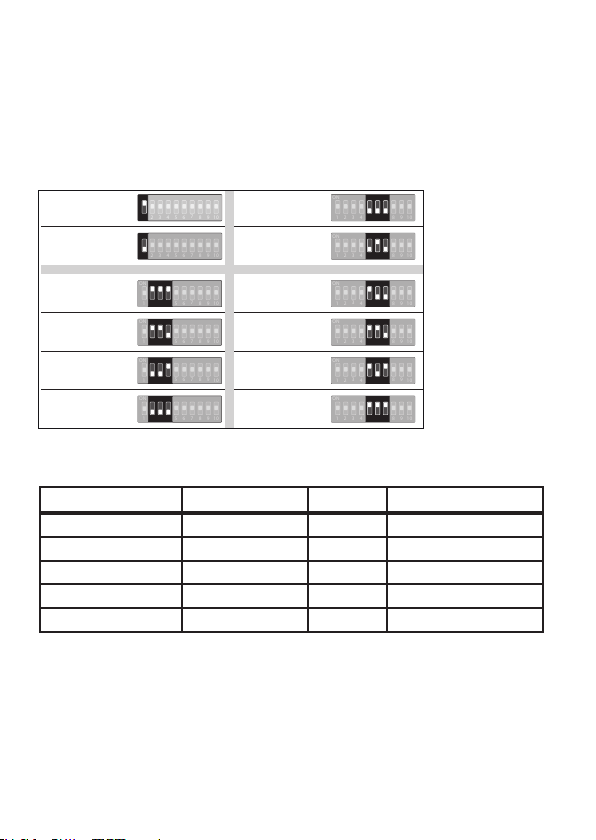

DIP-switch

settings

}

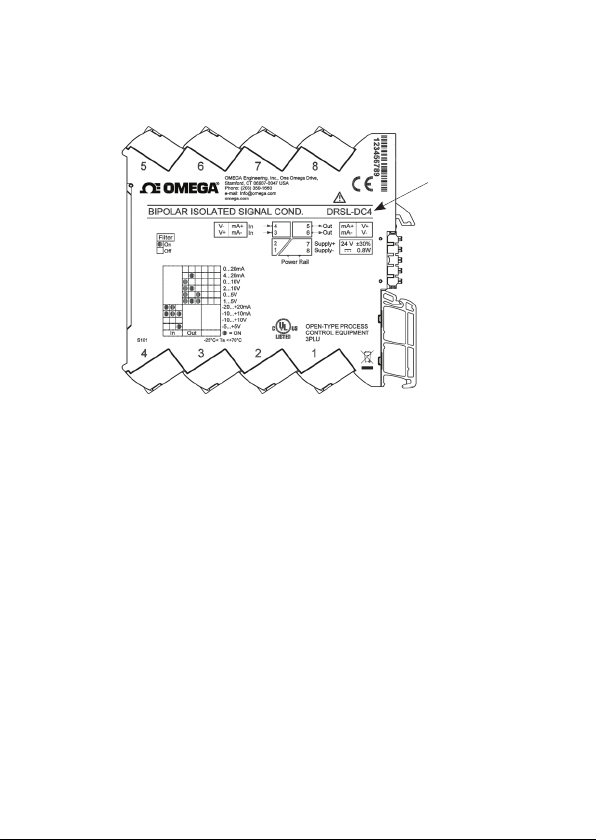

SIDE LABEL

Terminal numbers

}

Type no.

Pin
connections

}

Approvals

}

7

DRSL-DC4: BIPOLAR ISOLATED SIGNAL CONDITIONER

• Conversion of voltage and current bipolar process signals to
unipolar signals

• Multiple signal ranges are selectable via DIP-switches

• Fast response time and high output load stability

• Excellent accuracy, better than 0.05 % of selected range

• Slimline 6 mm housing

Applications

• TheDRSL-DC4isanisolatingconverterwhichcanbeusedforsignalconversion

of standard bipolar analog process signals into a unipolar analog signal.

• The unit offers3-portisolation and provides surgesuppression and protects

control systems from transients and noise.

• The DRSL-DC4 also eliminates ground loops and can be used for measuring

floating signals.

Technical characteristics

• Flexible24VDC(±30%)supplyviapowerrailorconnectors.

• Excellentconversionaccuracy,betterthan0.05%ofselectedrange.

• Inputsandoutputsarefloatingandgalvanicallyseparated.

• AgreenfrontLEDindicateoperationstatusforthedevice.

• Allterminalsareprotectedagainstovervoltageandpolarityerror.

• Meeting the NAMUR NE21 recommendations, the DRSL-DC4 ensures top

measurement performance in harsh EMC environments.

• Highgalvanicisolationof2.5kVAC.

• Fastresponsetime<7ms/>100Hzbandwidth.
 —10HzbandwidthdampingpossibleviaDIP-switch.

• Excellentsignal/noiseratio>60dB.

Mounting / installation

• Fastand easyconfigurationof factorycalibratedmeasurementrangesviaDIP-

switches.

• AverylowpowerconsumptionallowsDINrailmountingwithupto165unitsper

meter without the need for any air gap.

• Widetemperatureoperationrange:-25...+70°C.

8

Order codes for DRSL-DC4:

Type Specifications

DRSL-DC4 Bipolarisolatedsignalconditioner

Accessories for DRSL-DC4:

Type Function

DRSL-PCU

DRSL-PWR-RAIL

DRSL-MOD-STOP

Power rail connector unit
Power rail
Module stop

Specifications

Environmental conditions:

Specifications range ...............................................  -25°Cto+70°C

Storage temperature ..............................................  -40°Cto+85°C

Calibration temperature ........................................ 20...28°C

Relative humidity..................................................... <95%RH(non-cond.)

Protection degree .................................................... IP20

Installation in pollution degree 2 & measurement / overvoltage category II

Mechanical specifications:

Dimensions(HxWxD) .............................................. 113 x 6.1 x 115 mm

Weight approx. .......................................................... 70 g

DIN rail type ............................................................... DIN EN 60715 - 35 mm

Wire size ...................................................................... 0.13...2.5 mm

AWG 26...12 stranded wire

Screw terminal torque ........................................... 0.5 Nm

Common electrical specifications:

Supply voltage, DC ..................................................  16.8...31.2VDC

Internal consumption, typ./max. ........................ 0.4 W / 0.65 W

Power consumption, max. .................................... 0.8 W

Isolation voltage, test ............................................  2.5kVAC

Working isolation voltage .....................................  300VAC

MTBF,acc.toIEC61709(SN29500) ...............  >241years

Signal / noise ratio ..................................................  >60dB

Cut-offfrequency(3dB) ......................................  >100Hzor10Hz

(selectable via DIP-switch)

Responsetime(0...90%,100...10%) ................  <7msor<44ms

2

/

9

Input specifications:
Current input:

Programmable ranges ............................................  ±10and±20mA

Functional range ......................................................  -23...+23mA

Input voltage drop ...................................................  <1VDC@23mA

Voltage input:

Programmable ranges ............................................  ±5and±10V

Functional range ......................................................  -11.5...+11.5V

Input resistance........................................................ ≥ 1 MW

Output specifications:
Current output:

Programmable ranges ............................................ 0...20 and 4...20 mA

Functional range ...................................................... 0...23 mA

Load (max.) ................................................................. 23 mA / 600 Ω

Load stability .............................................................  ≤0.002%ofspan/100Ω

Current limit ............................................................... ≤ 28 mA

Voltage output:

Programmable ranges ............................................  0...5,1...5,0...10,2...10V

Functional range ......................................................  0...11.5V

Load .............................................................................. >10kW

of span = of the selected range

Accuracy values

Input

type

All ≤±0.05% of span ≤±0.01%ofspan/°C

Absolute
accuracy

Temperature

coefficient

EMC immunity influence ........................................... <±0.5%ofspan

Extended EMC immunity:

NAMUR NE 21, A criterion, burst .......................... <±1%ofspan

10

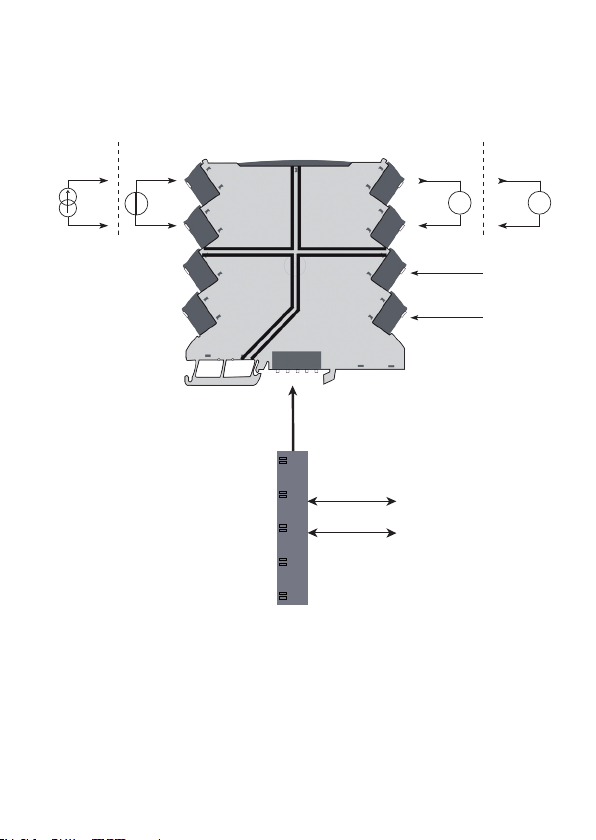

1 234

5 678 9

10

Approvals:

EMC 2004/108/EC .................................................. EN 61326-1

LVD2006/95/EC ...................................................... EN 61010-1

UL, Standard for Safety ......................................... UL 61010-1

Safe Isolation ............................................................. EN 61140

DIP-switch configuration

Filter ON
Bandwidth
10 Hz

Filter OFF
Bandwidth
> 100 Hz

Input

Current

-10...+10 mA

Input

Current

-20...+20 mA

Input

Voltage

-5...+5 V

Input

Voltage

-10...+10 V

ON

1 234

ON

1 234

ON

1 234

ON

1 234

ON

1 234

ON

1 234

5 678 9

5 678 9

5 678 9

5 678 9

5 678 9

5 678 9

DIP-switch positions are only read at power up

Output

Current

10

0...20 mA

Output

Current

10

4...20 mA

Output

Voltage

10

0...10 V

Output

Voltage

10

2...10 V

Output

Voltage

10

0...5 V

Output

Voltage

10

1...5 V

ON

1 234

ON

1 234

ON

1 234

ON

1 234

ON

1 234

ON

1 234

5 678 9

5 678 9

5 678 9

5 678 9

5 678 9

5 678 9

10

10

10

10

10

10

Front LED indication (green)

LED Condition Output Action required

OFF No supply/device error De-energized Connect supply/replace device

1 flash 0.5 s ON and OFF Power-up or Restart De-energized -

Flashing13Hz/15ms ON Device OK Energized -

Flashing1Hz/15ms ON Incorrect DIP-sw setting De-energized Correct setting and repower

Flashing13Hz/0.5s ON Supply or hardware error De-energized Check supply/replace device

11

Current

input

+

(±) (±)

-

Voltage

input

-

+

4

3

2

Input

81 82 83 84 85

Output

Supply

No connection

Rail,+24VDC

Rail, Gnd.

No connection

No connection

Voltage

output

5

6

Supply+

7

Supply -

81

Current

output

+

V

-

+

mA

-

12

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workman­ship for a period of 13 months from date of purchase. OMEGA’s Warranty adds an additional
one (1) month grace period to the normal one (1) year product warranty to cover handling
and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each
product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer
Service Department will issue an Authorized Return (AR) number immediately upon phone or
written request. Upon examination by OMEGA, if the unit is found to be defective, it will be
repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting
from any action of the purchaser, including but not limited to mishandling, improper interfac­ing, operation outside of design limits, improper repair, or unauthorized modification. This
WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence
of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibra­tion; improper specification; misapplication; misuse or other operating conditions outside of
OMEGA’s control. Components in which wear is not warranted, include but are not limited to
contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes
liability for any damages that result from the use of its products in accordance with
information provided by OMEGA, either verbal or written. OMEGA warrants only
that the parts manufactured by the company will be as specified and free of defects.
OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND
WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED
WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY:
The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of
the component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as
a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity;
or (2) in medical applications or used on humans. Should any Product(s) be used in or with any
nuclear installation or activity, medical application, used on humans, or misused in any way,
OMEGA assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language,
and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability
or damage whatsoever arising out of the use of the Product(s) in such a manner.

WARRANTY/ DISCLAIMER

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT
(IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked
on the outside of the return package and on any correspondence. The purchaser is responsible for
shipping charges, freight, insurance and proper packaging to prevent breakage in transit.

FOR WARRANTY RETURNS, please have
the following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the
product was PURCHASED,

2. Model and serial number of the product under
warranty, and

3. Repair instructions and/or specific problems
relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is
possible. This affords our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2014 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied,
photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form,
in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.

RETURN REQUESTS/ INQUIRIES

FOR NON-WARRANTY REPAIRS,
OMEGA for current repair charges. Have
the following information available BEFORE
contacting OMEGA:

1. Purchase Order number to cover the COST
of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems
relative to the product.

consult

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at omega.com

SM

TEMPERATURE

MU

Thermocouple, RTD & Thermistor

Probes, Connectors, Panels &
Assemblies

MU

Wire: Thermocouple, RTD &

Thermistor

MU

Calibrators & Ice Point References

MU

Recorders, Controllers & Process

Monitors

MU

Infrared Pyrometers

PRESSURE, STRAIN AND
FORCE

MU

Transducers & Strain Gages

MU

Load Cells & Pressure Gages

MU

Displacement Transducers

MU

Instrumentation & Accessories

FLOW/LEVEL

MU

Rotameters, Gas Mass Flowmeters

& Flow Computers

MU

Air Velocity Indicators

MU

Turbine/Paddlewheel Systems

MU

Totalizers & Batch Controllers

pH/CONDUCTIVITY

MU

pH Electrodes, Testers &

Accessories

MU

Benchtop/Laboratory Meters

MU

Controllers, Calibrators, Simulators

& Pumps

MU

Industrial pH & Conductivity

Equipment

DATA ACQUISITION

MU

Data Acquisition & Engineering

Software

MU

Communications-Based

Acquisition Systems

MU

Plug-in Cards for Apple, IBM &

Compatibles

MU

Data Logging Systems

MU

Recorders, Printers & Plotters

HEATERS

MU

Heating Cable

MU

Cartridge & Strip Heaters

MU

Immersion & Band Heaters

MU

Flexible Heaters

MU

Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL

MU

Metering & Control

Instrumentation

MU

Refractometers

MU

Pumps & Tubing

MU

Air, Soil & Water Monitors

MU

Industrial Water & Wastewater

Treatment

MU

pH, Conductivity & Dissolved

Oxygen Instruments

5395/0514
