DRSL SERIES OF

ISOLATORS AND SIGNAL CONDITIONERS

DRSL-DC1 / DRSL-DC2 / DRSL-DC3 /

DRSL-SP1 / DRSL-SP2

CONTENTS

Warning ...................................................................................................................... 2

Safety instructions ................................................................................................ 4

UL installation ................................................................................................... 4

Flexible supply ........................................................................................................ 7

Mounting and demounting of system DRSL SERIES ............................... 8

Installation on DIN rail ......................................................................................... 9

Supply of power rail .............................................................................................. 9

Side label ................................................................................................................... 9

Highlights .................................................................................................................. 10

Applications.............................................................................................................. 10

Product overview ................................................................................................... 11

Electrical specifications....................................................................................... 13

Connections ............................................................................................................. 15

Installation on power rail .................................................................................... 16

Marking ...................................................................................................................... 16

DIP-switch programming .................................................................................... 17

DRSL-DC2 ............................................................................................................ 17

DRSL-DC3 ............................................................................................................ 18

DRSL-SP2 ............................................................................................................ 18

LED indication ......................................................................................................... 19

NB.: Click on the entries in the table of contents to go to the desired section.

1

GENERAL

HAZARD-

OUS

VOLTAGE

CAUTION

WARNING

To avoid the risk of electric shock and fire, the safety instructions
of this manual must be observed and the guidelines fol lowed. The
specifications must not be exceeded, and the device must only be
applied as described in the following.
Prior to the commissioning of the device, this manual must be
examined carefully.
Only qualified personnel (technicians) should install this device.
If the equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired.
Until the device is fixed, do not connect hazardous voltages to
the device.

Repair of the device must be done by OMEGA ENGINEERING
only.

WARNING

In applications where hazardous voltage is connected to in-/
outputs of the device, sufficient spacing or isolation from wires,
terminals and enclosure to surroundings (incl. neighbouring
devices), must be ensured to maintain protection against electric
shock.

Potential electrostatic charging hazard. To avoid the risk of
explosion due to electrostatic charging of the enclosure, do not
handle the units unless the area is known to be safe, or appropriate
safety measures are taken to avoid electrostatic discharge.

2

SYMBOL IDENTIFICATION

Triangle with an exclamation mark: Read the manual before installation

and commissioning of the device in order to avoid incidents that could lead
to personal injury or mechanical damage.

The CE mark proves the compliance of the device with the essential
requirements of the directives.

3

SAFETY INSTRUCTIONS

RECEIPT AND UNPACKING

Unpack the device without damaging it and check whether the device type
corresponds to the one ordered. The packing should always follow the device until
this has been permanently mounted.

ENVIRONMENT

Avoid direct sunlight, dust, high temperatures, mechanical vibrations and shock, as
well as rain and heavy moisture. If necessary, heating in excess of the stated limits
for ambient temperatures should be avoided by way of ventilation. All devices can be
used for Measurement / Overvoltage Category II and Pollution Degree 2. The module
is designed to be safe at least under an altitude up to 2 000 m.

MOUNTING

Only technicians who are familiar with the technical terms, warnings, and
in structions in the manual and who are able to follow these should connect the
device.
Should there be any doubt as to the correct handling of the device, please contact,

Mounting and connection of the device should comply with national legislation for
mounting of electric materials, i.e. wire cross section, protective fuse, and location.

Descriptions of input / output and supply connections are shown in this manual
and on the side label.

The device is provided with field wiring terminals and shall be supplied from a
Power Supply having double / reinforced insulation. A power switch should be
easily accessible and close to the device. The power switch shall be marked as the
disconnecting unit for the device.

DRSL Series must be mounted on a DIN rail according to EN 60715.

UL INSTALLATION

Use 60/75°C copper conductors only.

Wire size ...................................................................... AWG 26-12

UL file number .......................................................... E70366

The device is an Open Type Listed Process Control Equipment. To prevent injury
resulting from accessibility to live parts the equipment must be installed in an
enclosure.

OMEGA Engineering, Inc.

www.omega.com

4

The power supply unit must comply with NEC Class 2, as described by the National
Electrical Code

®

(ANSI / NFPA 70).

5

CLEANING

When disconnected, the device may be cleaned with a cloth moistened with
distilled water.

6

FLEXIBLE SUPPLY

The units can be supplied with 24
VDC±30% via direct wiring and a loop
between the devices. This permits the
supply of up to 130 units.

Protective fuse: 2.5 A.

Protective fuse: 0.4 A.

Alternatively, the 24 V supply voltage can
be distributed via a power rail that receives
the voltage from another connected unit
(DRSL-DC1, DRSL-DC2, DRSL-DC3 DRSL­SP1, DRSL-SP2, or DRSL-U). In this way up
to 20 units can be supplied.

Fuse characteristics: The 2.5 A fuse must break after not more than 120 seconds
at 6.4 A.

The power connector unit DRSL-PCU
is a standalone supply unit which
supplies the power rail. With DRSL­PCU, up to 100 units can be supplied.

Protective fuse: 2.5 A.

DRSL-PCU

7

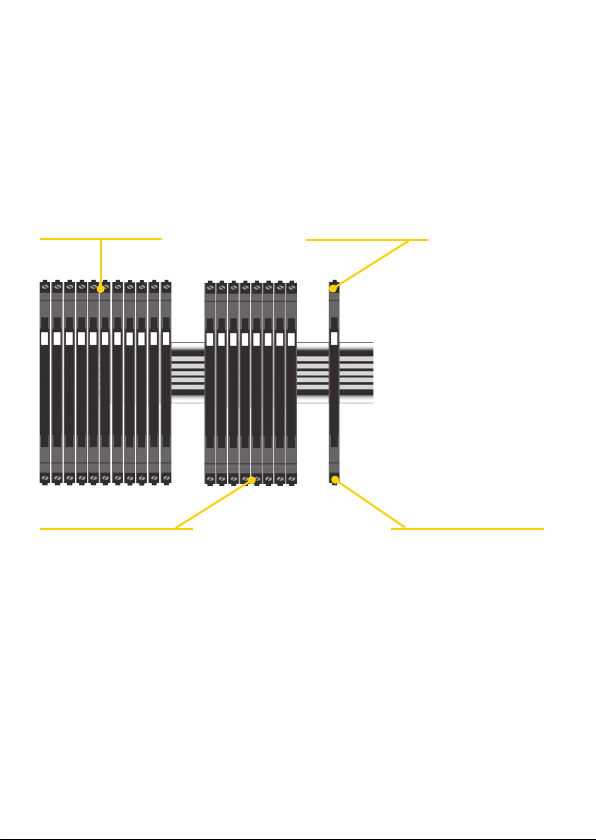

MOUNTING AND DEMOUNTING OF SYSTEM DRSL-

SERIES

Picture 1:

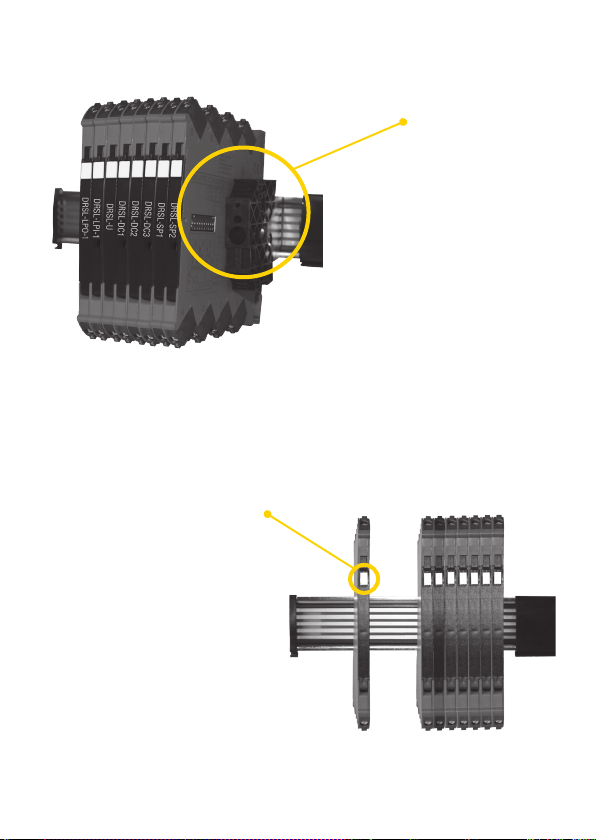

Mounting on DIN rail / power rail.
Click the device onto the rail

Picture 2:

Demounting from DIN rail / power rail .

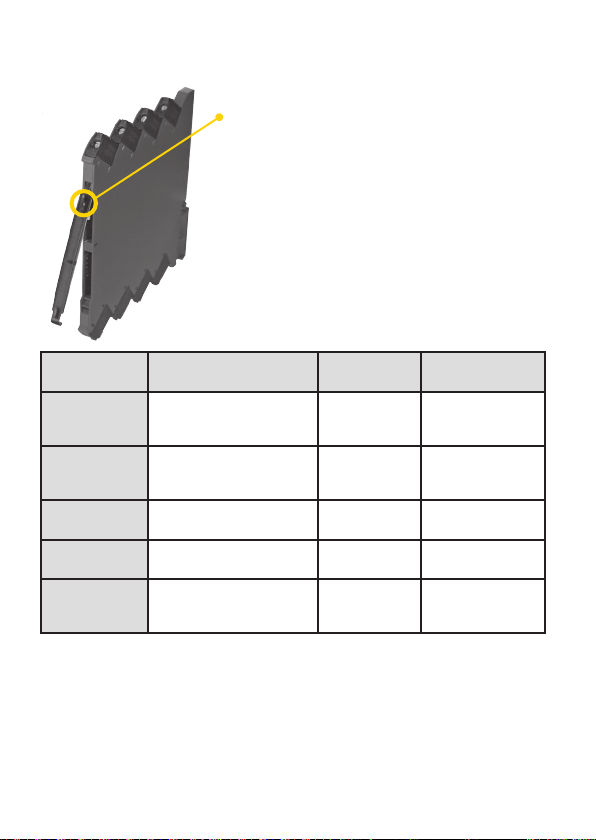

First, remember to demount the connectors with

hazardous voltages. Detach the device from the rail
by lifting the bottom lock.

Picture 3:

Wire size 0.13 x 2.5 mm
Screw terminal torque 0.5 Nm.

2

stranded wire.

8

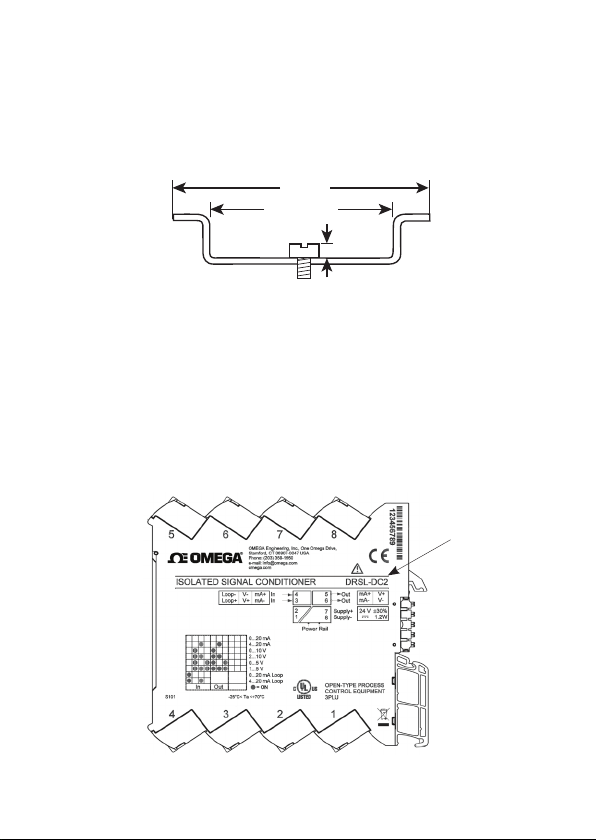

INSTALLATION ON DIN RAIL

To avoid short circuit between the power rail connectors on the DRSL devices and

the screws holding the 7.5 mm DIN rail, the head of the screws shall be no more
than 3.5 mm high.

35 mm

> 24 mm

< 3,5 mm

SUPPLY OF POWER RAIL

It is possible to supply the power rail via the supply terminals.

The terminals can pass a current of max. 400 mA.

SIDE LABEL

Terminal numbers

}

Type no.

Pin
connections

}

DIP-switch

settings

}

Approvals

}

9

DRSL SERIES OF

ISOLATORS AND SIGNAL CONDITIONERS

DRSL-DC1 / DRSL-DC2 / DRSL-DC3 /

DRSL-SP1 / DRSL-SP2

The product family DRSL-DC1, DRSL-DC2, DRSL-DC3, DRSL-SP1 &
DRSL-SP2 are slimline isolaters for 24 VDC fixed supply and can be
used for different purposes.

Highlights

• Can be supplied separately or installed on power rail

• Can be delivered with customer scaling on request

• Approvals by CE, and UL

• Possibility of loop supply output

Applications

The DRSL isolator family are designed for the automation and process industries.

These devices are the result of extensive development and test procedures
making them very well suited for conversion and galvanic isolation in the
following applications:

• Isolationand1:1conversionofcurrentsignalsintherange0…20mA.

• IsolationandconversionofstandardDCsignals.

• Powersupplyandsignalisolatorfor2-wiretransmitters.

• IsolationandsplittingofstandardDCsignals.

10

Product overview

Model no. DRSL-DC1 DRSL-DC2 DRSL-DC3

Product name Isolated repeater Isolated signal

Description Fixed loop

isolator / repeater.

Parameterisation None DIP-switch DIP-switch

Input signal

0…20mA

2-wire supply >17 V @ 20 mA

Output signal

(active)

0…20mA(1:1)

Approvals UL, safety UL, safety UL, safety

conditioner

Loop isolator /

signal conditioner

for standard DC

signals.

DIP-switch setup.

0/2…10V

0/1…5V

0/4…20mA

0/2…10V

0/1…5V

0/4…20mA

Isolated signal

conditioner

Loop isolator /

signal conditioner

for standard DC

signals.

DIP-switch setup.

Low cost.

0/2…10V

0/1…5V

0/4…20mA

0/2…10V

0/1…5V

0/4…20mA

11

Model no. DRSL-SP1 DRSL-SP2

Product name Isolated repeater / splitter Isolated signal conditioner/

Description Fixed loop isolator /

repeater with dual output.

Parameterisation None DIP-switch

Input signal

0…20mA

2-wire supply >17 V @ 20 mA

Output signal (active)

0…20mA(1:1)

Approvals UL, safety UL, safety

splitter

Loop isolator /

signal conditioner for

standard DC signals.

DIP-switch setup.

Dual output.

0/2…10V

0/1…5V

0/4…20mA

0/2…10V

0/1…5V

0/4…20mA

12

Electrical specifications

Specifications range ............................................... -25°C to +70°C

Specifications range, DRSL-DC3 ........................ 0 to +70°C

Storage temperature .............................................. -40°C to +85°C

Supply voltage, DC .................................................. 16.8...31.2 VDC

Internal consumption, typ. / max. ..................... 0.4 W / 0.65 W

Max. consumption .................................................... ≤ 1.2 W

Max. consumption, DRSL-DC1, DRSL-DC3,

DRSL-SP1 .................................................................... ≤ 0.8 W

Isolation voltage, test ............................................ 2.5 kVAC

Isolation voltage, working .................................... 300 VAC

Double isolation........................................................ Input / output 1 / output 2 / supply

Accuracy ...................................................................... < ±0.05% of span

Accuracy, DRSL-DC3 ................................................ < ±0.2% of span

Temperature coefficient ........................................ < ±0.01% of span / ˚C

Temperature coefficient, DRSL-DC3 ................. < ±0.015% of span / ˚C

EMC immunity influence .................................................. < ±0.5% of span

Extended EMC immunity:

NAMUR NE 21, A criterion, burst ................................. < ±1% of span

Signal / noise ratio .................................................. Min. 60 dB

Response time (0...90%, 100...10%):

mA / V input ......................................................... < 7 ms

Calibration temperature ........................................ 20...28°C

2-wire supply (terminal 3...4).............................. > 17 VDC / 20 mA

Relative humidity..................................................... < 95% RH (non-cond.)

Dimensions (HxWxD) .............................................. 113 x 6.1 x 115 mm

DIN rail type ............................................................... EN 60715 – 35 mm

Protection degree .................................................... IP20

Weight .......................................................................... 70 g

Current input

Measurement range ................................................ 0...20.5 mA

Programmable measurement ranges ............... 0...20 and 4...20 mA

Functional range ...................................................... 0...23 mA

Input voltage drop ................................................... < 1.5 VDC

Input resistance........................................................ Nom. 20 Ω + PTC 50 Ω

Voltage input

Measurement range ................................................ 0...10.25 VDC

Programmable measurement ranges ............... 0...10 / 2...10 / 0...5 / 1...5 VDC

Functional range ...................................................... 0...11.5 VDC / 0...5.75 VDC

Input resistance........................................................ ≥ 500 kΩ

13

Current output

Signal range (span) ................................................. 0...20.5 mA

Programmable signal ranges ............................... 0...20 / 4...20 mA

Load (max.), DRSL-DC1, DRSL-DC2,

DRSL-DC3 .................................................................... 23 mA / 600 Ω / 13.8 VDC

Load (max.), DRSL-SP1, DRSL-SP2.................... 23 mA / 300 Ω / 6.9 VDC

Load stability ............................................................. < 0.002% of span / 100 Ω

Current limit ............................................................... ≤ 28 mA

Voltage output

Signal range ............................................................... 0...10 VDC

Programmable signal ranges ............................... 0...10 / 2...10 / 0...5 / 1...5 VDC

Load (min.) .................................................................. > 10 KΩ

of span = of the selected range

Approvals

EMC 2004/108/EC .................................................. EN 61326-1

LVD 2006/95/EC ...................................................... EN 61010-1

UL, Standard for Safety ......................................... UL 61010-1

Safe Isolation ............................................................. EN 61140

14

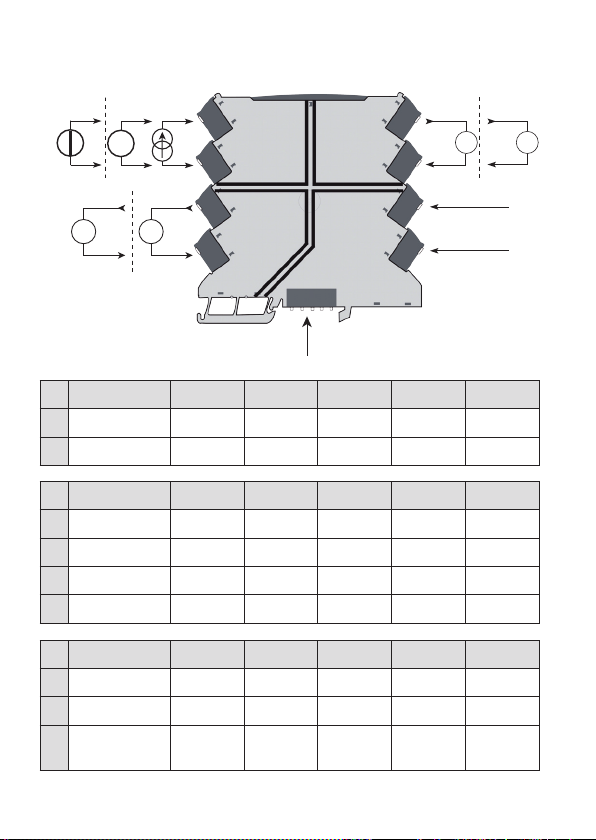

CONNECTIONS

B

-

+

F E

+

V

-

Input signals

Current

A

Voltage

B

Output signals

Current 1

C

Voltage 1

D

Current 2

E

Voltage 2

F

Supply

Supply +

G

Supply -

H

Power rail

I

connections

A

-

+

Tx

+

mA

4

-

+

-

Input

3

2

Output

ch. 2

Output

ch. 1

Supply

81 82 83 84 85

I

5

6

7

81

DC

+
mA

-

G

H

+

V

-

+

-

DRSL-DC1 DRSL-DC2 DRSL-DC3 DRSL-SP1 DRSL-SP2

x x x x x

x x x

DRSL-DC1 DRSL-DC2 DRSL-DC3 DRSL-SP1 DRSL-SP2

x x x x x

x x x

x x

x

DRSL-DC1 DRSL-DC2 DRSL-DC3 DRSL-SP1 DRSL-SP2

x x x x x

x x x x x

x x x x x

15

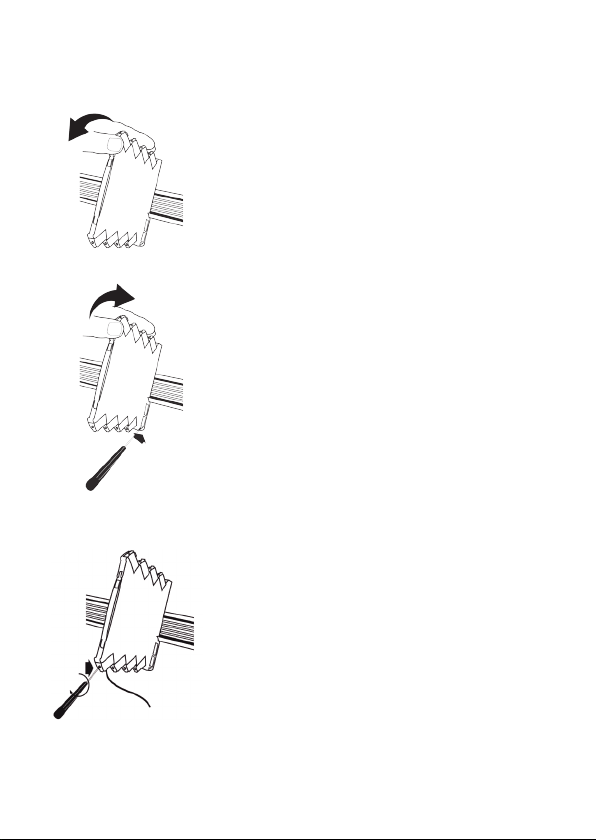

INSTALLATION ON POWER RAIL

Module stop
(DRSL-MOD-STOP)

All devices can be installed on a power rail (part number DRSL-PWR-RAIL).

Power supply units can be mounted on the power rail according to customer
requirements.

MARKING

The front cover of the DRSL series

has been designed with an
area for affixation of a click-on
marker. The area assigned to
the marker measures 5 x 7.5
mm. Markers from Weidmüller’s
MultiCard System, type MF
5/7.5, are suitable.

16

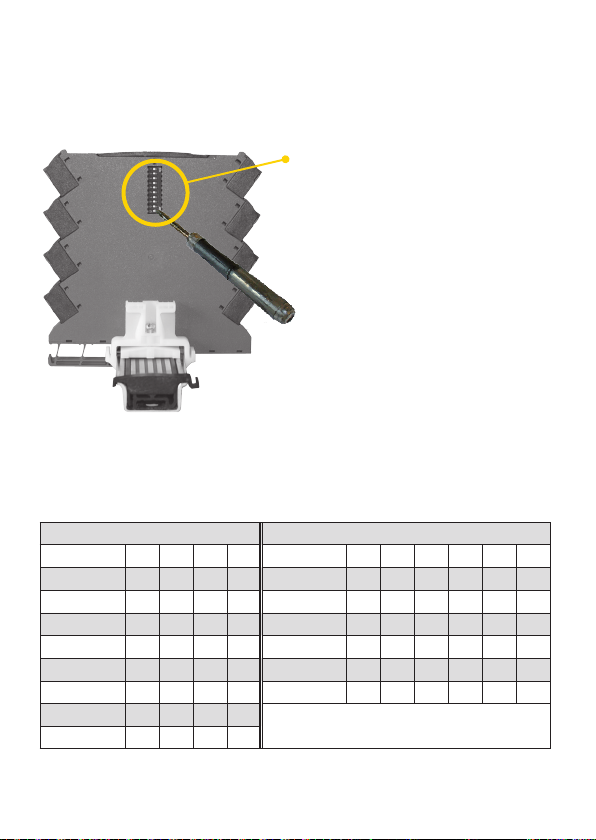

DIP-SWITCH PROGRAMMING

The devices DRSL-DC2, DRSL-DC3 and DRSL-SP2 can be configured via DIP-

switches. The DIP-switches are located on the side of the device and can be
adjusted with a small screwdriver or other implement.

Adjustment of DIP-switches.
Default factory settings are:

Input=0…20mA
Output=0…20mA

All DIP-switches in the OFF position

The tables below show the configuration based on DIP-switch settings.

NA = no function of DIP-switch.

DRSL-DC2

Input setup Output setup

1 2 3 4 5 6 7 8 9 10

0…20mA OFF OFF OFF OFF 0…20mA OFF OFF OFF NA NA NA

4…20mA OFF OFF ON OFF 4…20mA OFF ON OFF NA NA NA

0…10V OFF ON OFF OFF 0…10V ON OFF OFF NA NA NA

2…10V OFF ON ON OFF 2…10V ON ON OFF NA NA NA

0…5V OFF ON OFF ON 0…5V ON OFF ON NA NA NA

1…5V OFF ON ON ON 1…5V ON ON ON NA NA NA

0...20 mA Tx ON OFF OFF OFF

4...20 mA Tx ON OFF ON OFF

17

DRSL-DC3

Input setup Output setup

1 2 3 4 5 6 7 8 9 10

0…20mA NA OFF OFF OFF 0…20mA OFF OFF OFF NA NA NA

4…20mA NA OFF ON OFF 4…20mA OFF ON OFF NA NA NA

0…10V NA ON OFF OFF 0…10V ON OFF OFF NA NA NA

2…10V NA ON ON OFF 2…10V ON ON OFF NA NA NA

0…5V NA ON OFF ON 0…5V ON OFF ON NA NA NA

1…5V NA ON ON ON 1…5V ON ON ON NA NA NA

DRSL-SP2

Input setup

1 2 3 4 5 6 7 8 9 10

0…20mA OFF OFF OFF OFF 0…20mA OFF OFF OFF OFF OFF OFF

4…20mA OFF OFF ON OFF 4…20mA OFF ON OFF OFF ON OFF

0…10V OFF ON OFF OFF 0…10V ON OFF OFF ON OFF OFF

2…10V OFF ON ON OFF 2…10V ON ON OFF ON ON OFF

0…5V OFF ON OFF ON 0…5V ON OFF ON ON OFF ON

1…5V OFF ON ON ON 1…5V ON ON ON ON ON ON

0...20 mA Tx ON OFF OFF OFF

4...20 mA Tx ON OFF ON OFF

Output setup

Channel 1 Channel 2

18

LED INDICATION

The device is equipped with a green power LED in
the front to indicate the operation status, see the
table below.

LED Condition

OFF

1 Flash

(0.5 s OFF +

0.5 s ON)

Flashing 13 Hz

(15 ms ON)

Flashing 1 Hz

(15 ms ON)

Flashing 1 Hz

(0.5 s ON)

code-flash CRC error

Power-up or restart De-energized -

Illegal DIP-switch

Restarting due to:

Supply error/hardware.

RAM or program flow error

Output and
loop supply

No supply /

device error or

Device OK Energized -

setting

De-energized

De-energized

De-energized

Action required

Connect supply /

replace device

Correct setting and

re-power device

Adjust supply /

replace device

19

NOTES:

OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workman­ship for a period of 13 months from date of purchase. OMEGA’s Warranty adds an additional
one (1) month grace period to the normal one (1) year product warranty to cover handling
and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each
product.

If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer
Service Department will issue an Authorized Return (AR) number immediately upon phone or
written request. Upon examination by OMEGA, if the unit is found to be defective, it will be
repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting
from any action of the purchaser, including but not limited to mishandling, improper interfac­ing, operation outside of design limits, improper repair, or unauthorized modification. This
WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence
of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibra­tion; improper specification; misapplication; misuse or other operating conditions outside of
OMEGA’s control. Components in which wear is not warranted, include but are not limited to
contact points, fuses, and triacs.

OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes
liability for any damages that result from the use of its products in accordance with
information provided by OMEGA, either verbal or written. OMEGA warrants only
that the parts manufactured by the company will be as specified and free of defects.
OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND
WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED
WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY:
The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of
the component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.

CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as
a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity;
or (2) in medical applications or used on humans. Should any Product(s) be used in or with any
nuclear installation or activity, medical application, used on humans, or misused in any way,
OMEGA assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language,
and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability
or damage whatsoever arising out of the use of the Product(s) in such a manner.

WARRANTY/ DISCLAIMER

Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT
(IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked
on the outside of the return package and on any correspondence. The purchaser is responsible for
shipping charges, freight, insurance and proper packaging to prevent breakage in transit.

FOR WARRANTY RETURNS, please have
the following information available BEFORE
contacting OMEGA:

1. Purchase Order number under which the
product was PURCHASED,

2. Model and serial number of the product under
warranty, and

3. Repair instructions and/or specific problems
relative to the product.

OMEGA’s policy is to make running changes, not model changes, whenever an improvement is
possible. This affords our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2014 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied,
photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form,
in whole or in part, without the prior written consent of OMEGA ENGINEERING, INC.

RETURN REQUESTS/ INQUIRIES

FOR NON-WARRANTY REPAIRS,
OMEGA for current repair charges. Have
the following information available BEFORE
contacting OMEGA:

1. Purchase Order number to cover the COST
of the repair,

2. Model and serial number of the product, and

3. Repair instructions and/or specific problems
relative to the product.

consult

Where Do I Find Everything I Need for

Process Measurement and Control?

OMEGA…Of Course!

Shop online at omega.com

SM

TEMPERATURE

MU

Thermocouple, RTD & Thermistor

Probes, Connectors, Panels &
Assemblies

MU

Wire: Thermocouple, RTD &

Thermistor

MU

Calibrators & Ice Point References

MU

Recorders, Controllers & Process

Monitors

MU

Infrared Pyrometers

PRESSURE, STRAIN AND
FORCE

MU

Transducers & Strain Gages

MU

Load Cells & Pressure Gages

MU

Displacement Transducers

MU

Instrumentation & Accessories

FLOW/LEVEL

MU

Rotameters, Gas Mass Flowmeters

& Flow Computers

MU

Air Velocity Indicators

MU

Turbine/Paddlewheel Systems

MU

Totalizers & Batch Controllers

pH/CONDUCTIVITY

MU

pH Electrodes, Testers &

Accessories

MU

Benchtop/Laboratory Meters

MU

Controllers, Calibrators, Simulators

& Pumps

MU

Industrial pH & Conductivity

Equipment

DATA ACQUISITION

MU

Data Acquisition & Engineering

Software

MU

Communications-Based

Acquisition Systems

MU

Plug-in Cards for Apple, IBM &

Compatibles

MU

Data Logging Systems

MU

Recorders, Printers & Plotters

HEATERS

MU

Heating Cable

MU

Cartridge & Strip Heaters

MU

Immersion & Band Heaters

MU

Flexible Heaters

MU

Laboratory Heaters

ENVIRONMENTAL
MONITORING AND CONTROL

MU

Metering & Control

Instrumentation

MU

Refractometers

MU

Pumps & Tubing

MU

Air, Soil & Water Monitors

MU

Industrial Water & Wastewater

Treatment

MU

pH, Conductivity & Dissolved

Oxygen Instruments

M5398/0514
