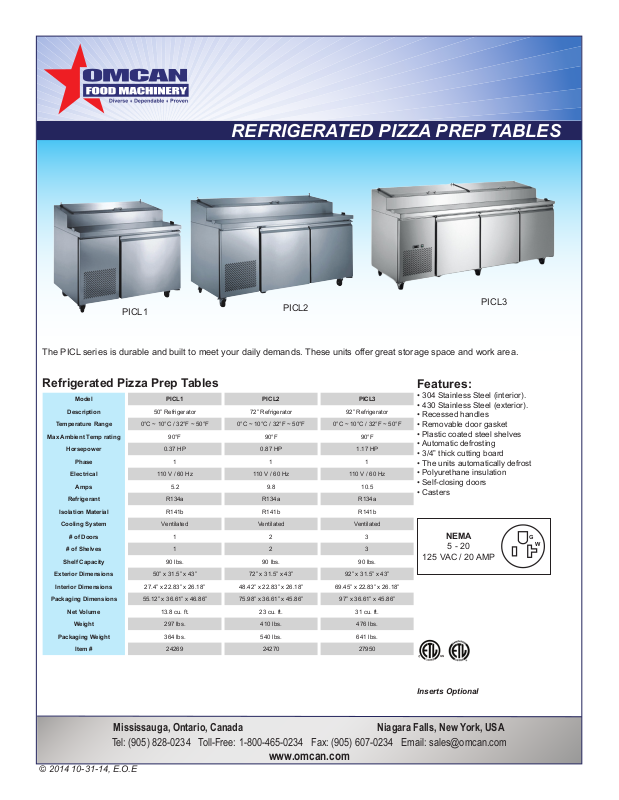

Omcan Food Machinery PICL2 User Manual

REFRIGERATED PIZZA PREP TABLES

PICL3

PICL1

PICL2

The PICL series is durable and built to meet your daily demands. These units offer great storage space and work area.

Refrigerated Pizza Prep Tables

Model PICL1 PICL2 PICL3

Description 50” Refrigerator 72” Refrigerator 92” Refrigerator

Temperature Range 0°C ~ 10°C / 32°F ~ 50°F 0°C ~ 10°C / 32°F ~ 50°F 0°C ~ 10°C / 32°F ~ 50°F

Max Ambient Temp rating 90°F 90°F 90°F

Horsepower 0.37 HP 0.87 HP 1.17 HP

Phase 1 1 1

Electrical 110 V / 60 Hz 110 V / 60 Hz 110 V / 60 Hz

Amps 5.2 9.8 10.5

Refrigerant R134a R134a R134a

Isolation Material R141b R141b R141b

Cooling System Ventilated Ventilated Ventilated

# of Doors 1 2 3

# of Shelves 1 2 3

Shelf Capacity 90 lbs. 90 lbs. 90 lbs.

Exterior Dimensions 50” x 31.5” x 43” 72” x 31.5” x 43” 92” x 31.5” x 43”

Interior Dimensions 27.4” x 22.83” x 26.18” 48.42” x 22.83” x 26.18” 69.45” x 22.83” x 26.18”

Packaging Dimensions 55.12” x 36.61” x 46.86” 75.98” x 36.61” x 45.86” 97” x 36.61” x 45.86”

Net Volume 13.8 cu. ft. 23 cu. ft. 31 cu. ft.

Weight 297 lbs. 410 lbs. 476 lbs.

Packaging Weight 364 lbs. 540 lbs. 641 lbs.

Item # 24269 24270 27950

Features:

• 304 Stainless Steel (interior).

• 430 Stainless Steel (exterior).

• Recessed handles

• Removable door gasket

• Plastic coated steel shelves

• Automatic defrosting

• 3/4” thick cutting board

• The units automatically defrost

• Polyurethane insulation

• Self-closing doors

• Casters

NEMA

5 - 20

125 VAC / 20 AMP

Mississauga, Ontario, Canada

Tel: (905) 828-0234 Toll-Free: 1-800-465-0234 Fax: (905) 607-0234 Email: sales@omcan.com

Inserts Optional

Niagara Falls, New York, USA

www.omcan.com
