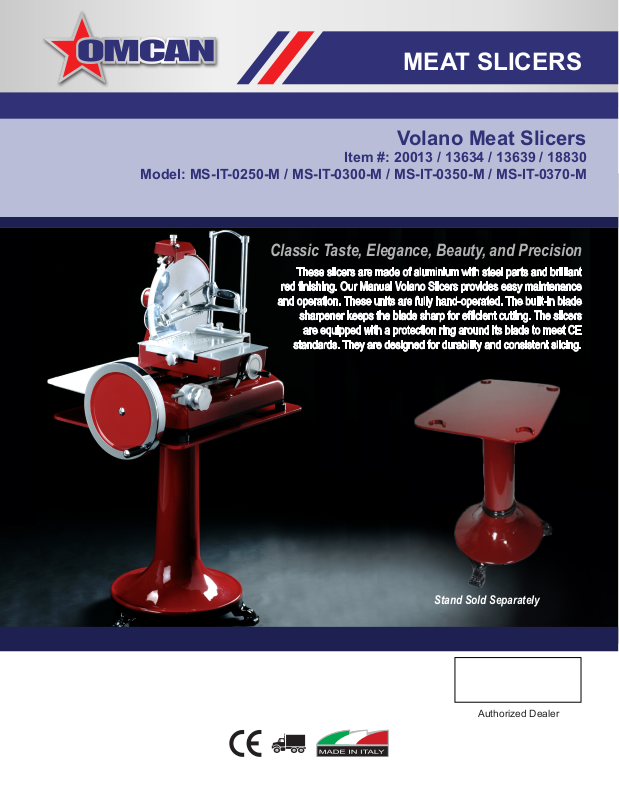

Omcan Food Machinery MS-IT-0250-M User Manual

MEAT SLICERS

Volano Meat Slicers

Item #: 20013 / 13634 / 13639 / 18830

Model: MS-IT-0250-M / MS-IT-0300-M / MS-IT-0350-M / MS-IT-0370-M

Classic Taste, Elegance, Beauty, and Precision

These slicers are made of aluminium with steel parts and brilliant

red nishing. Our Manual Volano Slicers provides easy maintenance

and operation. These units are fully hand-operated. The built-in blade

sharpener keeps the blade sharp for efcient cutting. The slicers

are equipped with a protection ring around its blade to meet CE

standards. They are designed for durability and consistent slicing.

Stand Sold Separately

Authorized Dealer

MEAT SLICERS

VOLANO MEAT SLICERS

MS-IT-0250-M MS-IT-0300-M

MS-IT-0350-M / MS-IT-0370-M

PRODUCT SPECIFICATIONS

ITEM NUMBER 20013 13634 13639 18830

MODEL MS-IT-0250-M MS-IT-0300-M MS-IT-0350-M MS-IT-0370-M

BLADE SIZE 10” / 250 mm 12” / 300 mm 14” / 350 mm 14.6” / 370 mm

CUTTING AREA L x H

CUT THICKNESS RANGE 0-0.8” / 0-20 mm 0-0.8” / 0-20 mm 0-1” / 0-25 mm 0-1” / 0-25 mm

MACHINE WEIGHT 72.6 lbs. / 32.9 kg. 100 lbs. / 45.4 kg. 178 lbs. / 80.7 kg. 178.2 lbs. / 80.8 kg.

STAND WEIGHT 158.4 lbs. / 71.8 kg. 158.4 lbs. / 71.8 kg. 165 lbs. / 74.8 kg. 165 lbs. / 74.8 kg.

PACKAGING WEIGHT 100 lbs. / 45.4 kg. 116 lbs. / 52.6 kg. 234 lbs. / 106.1 kg. 227 lbs. / 103 kg.

PACKAGING DIMENSIONS

MS-IT-0250-M MS-IT-0300-M *Pedestal for MS-IT-0250-M / MS-IT-0300-M

7.3” x 5.9”

185 x 150 mm

30” x 26” x 27”

762 x 660 x 686 mm

9” x 7.5”

229 x 191 mm

30” x 26” x 28”

762 x 660 x 711 mm

10.6” x 9.4”

269 x 239 mm

37” x 33” x 38”

940 x 838 x 965 mm

940 x 838 x 965 mm

10.6” x 9.8”

269 x 249 mm

37” x 33” x 38”

MS-IT-0350-M / MS-IT-0370-M *Pedestal for MS-IT-0350-M / MS-IT-0370-M

*Stands sold separately.

MEAT SLICERS

VOLANO MEAT SLICERS

ALL FLYWHEEL / FLOWERWHEEL OPTIONS

AVAILABLE ON REQUEST

Rosette Flywheel

- White -

Rosette Flywheel

- Black -

Rosette Flywheel

- Red -

Standard Flywheel

- White -

Rosette Flywheel

Standard Flywheel

STANDS SOLD SEPARATELY

- Blue -

- Black -

Standard Flywheel

- Red -

Daisy Flywheel

- Silver with Black Border -

Daisy Flywheel

- Red with Gold Border -

OMCAN INC.OMCAN INC.
OMCAN INC.

Telephone: [phone]
Fax: [phone]
E-mail: sales@ omcan.com
Website: www.omcan.com

Daisy Flywheel

- Black with Gold Border -

Daisy Flywheel

- Red -

Daisy Flywheel

Daisy Flywheel

- Black -

Daisy Flywheel

- Dark Red with Silver Border -

- Green -

ITEM: 20014

- Pedestal for MS-IT-0250-M -

ITEM: 18986

- Pedestal for MS-IT-0300-M -

ITEM: 18987

- Pedestal for MS-IT-0350-M / MS-IT-0370-M -
