Refrigerated Showcases
Models RS-CN-0120-4, 0160-4, 0202-4
Items 44629, 44630, 44631
Instruction Manual
Revised - 11/12/2019
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com
Table of Contents
Model RS-CN-0120-4 / Model RS-CN-0160-4 / Model RS-CN-0202-4
Section
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Troubleshooting
----------------------------------------------------------------------------------------- 7 - 8
----------------------------------------------------------------------------------------- 8
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 6
------------------------------------------------------------------------------------- 9
Page
-------------------------------------------------------------------------- 6
Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
------------------------------------------------------------------------------------------- 17 - 18
---------------------------------------------------------------------------- 10 - 15
---------------------------------------------------------------------------- 16
---------------------------------------------------------------------------- 19
2
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
3
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
Safety and Warranty
Handle with care
Unplug the wall socket rst. Never tilt it over 45
degrees when handling.
Dry place
Always place the refrigerator in a dry location.
4
Safety and Warranty
Sucient space
The distance from both sides and back of refrigerator
to wall or other substance must be no less than 10
cm (4”). The refrigeration capability may decrease if
its surrounding space is too small to circulate air.
Far from heat source
Never place the refrigerator in direct sunlight. Never
place refrigerator near heat source as it reduces
refrigeration capabilities.
Do not make holes
Never make any holes on the refrigerator. Do not
attach any objects onto the refrigerator.
Exclusive power socket
Normally, the power supply should be 100 – 120V,
60 Hz single phase AC with exclusive single phase
receptacle.
Protect cables
Never break or damage the cables as this may cause
current leakage resulting in a re.
Avoid ammable and explosive objects
Never put any ammable or explosive items inside
the refrigerator such as gasoline or alcohol. Never
put any dangerous products in close proximity to the
refrigerator.
After power break
After a power break or unplugging the refrigerator,
always wait at least 5 minutes before starting the
refrigerator again.
Well ventilated
Always place the refrigerator in an area with proper
ventilation. When using for the rst time, wait at least
24 hours after handling to start.
Heavy load
Never put any heavy objects on top of the
refrigerator.
Stable Location
Unpack and place the refrigerator on level and stable
ground.
Do not share the socket
Never let the refrigerator share a socket with another
appliance. The cable may become hot and this may
cause a re.
DO NOT USE EXTENSION CORDS.
No water ushing
Never spray down refrigerator with pressurized water
supply.
No spray
Do not spray the unit with a ammable substance
such as paint. This may result in a re.
Medical Storage
No medicine is allowed to be kept inside the
refrigerator.
NOTE
• The electric circuit diagram and parameters on the product name plate are subject to change without the
manufacturer having to change the manual.
• The design might be improved without notice.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a qualied
electrician in order to avoid injury.
WARNING: The unit uses R290 refrigerant. Make sure that all precautions against re
have been taken.
5
Safety and Warranty
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without diculty.
In any case, for suitable recycling, we suggest disposing of the products separately (dierentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Technical Specications
Model RS-CN-0120-4 RS-CN-0160-4 RS-CN-0202-4
Capacity 115L / 4.06 cu. ft. 146L / 5.16 cu. ft. 200L / 7.06 cu. ft.
Refrigerant R290 (55g) R290 (65g) R290 (75g)
Power 295W 330W 400W
Climate 4
Rated Temperature 0 - 12°C / 32 - 53.6°F
Protection Class I
Electrical 110-120V / 60Hz
Current 2.7A 3A 3.9A
Lamp Power 2W
Net Weight 125.7 lbs. / 57 kgs. 145.5 lbs. / 66 kgs. 195.1 lbs. / 88.5 kgs.
Dimensions
Item Number 44629 44630 44631
27.6” x 22.4” x 27”
702 x 568 x 686mm
34.6” x 22.4” x 27”
880 x 568 x 686mm
48” x 22.4” x 27”
1219 x 568 x 686mm
6
Operation
BEFORE USE
Ensure the unit is upright and positioned in its location for 12 hours prior to use.
Plug the refrigerator in a 110V~ socket exclusively for the unit. After the refrigerator is running, test the air
suction to conrm it is suciently cold. Then you may put food inside the unit. Make sure the food product is
already cooled before placing it in the display case. The unit should not be used to cool food products.
DIGITAL TEMPERATURE CONTROLLER
The digital temperature controller is easy to operate and controls the compressor.
• The main functions are: Temperature display, temperature control, manual control, automatic defrost, light
control, value storing, self-testing and parameter locking.
Digital Controller Operation:
1. Set Temperature:
Press SET and the set temperature is displayed.
Press or button to modify and store the displayed value.
Press SET to exit the adjustment and display the cold-room temperature.
2. If no buttons are pressed within 10 seconds, the cold-room temperature will be displayed.
3. Illumination:
Press the light button, it lights. Press the light button again, the light turns o.
4. Manual start/stop defrost:
Press the light button and hold for 6 seconds to defrost or stop defrost.
5. Refrigerant LED:
During refrigeration, the LED is on. When the cold-room temperature is consistent, the LED is o. During
the delay start, the LED ashes.
6. Defrost LED:
During defrosting, the LED is on. When it stops defrosting, the LED is o. During the delay display of
defrost, the LED ashes.
7. Digital Controller Reset:
When the display shows “disorder”, press button for 2 seconds until buzzer rings, quickly press button
for 6 seconds until the buzzer rings again. The display will ash for 3 seconds and it will be restored to the
factory setting.
CAUTION
• Reducing the frequency of opening the refrigerator door will keep more cold air inside the refrigerator.
• Do not block air suction or outlet. Air must continue circulating to increase refrigeration capability.
• Do not over ll or over stock the refrigerator, as it will inuence the cooling eect. Adjust the rack height for
proper food storage.
• Cool hot food down to room temperature before storing it in the refrigerator.
• Try to reduce open times and keep refrigerator cold and closed, if power is ever o. Only allow a skilled
service individual with proper tools to repair damaged power cables. Never touch compressor, as it can
result in injury.
7
Operation
• If supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualied
persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING: Do not use mechanical devices of other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
CAUTION: Risk of re. The height of the triangle in the symbol should be at least 15mm.
Maintenance
Keep the refrigerator clean and perform periodical maintenance as necessary. Always unplug the socket before
maintenance. Never use a damaged plug or loose socket in order to prevent from electric shock or short
circuit. Never ush the refrigerator. Never use alkali detergent, soap, gasoline, acetone or brush.
1. Clean outside:
Dip soft cloth in neutral detergent (tableware detergent) to clean the outside of the refrigerator and then
wipe it with dry soft cloth.
2. Clean inside:
Take rack out for cleaning with water. Use soft cloth to wipe the box.
3. Shut down refrigerator for a long time:
Take all food out and unplug the wall socket. Clean both inside and outside of the refrigerator thoroughly
and open the door for sucient dry. The glass breaks easily. Keep the glass far from children.
4. Replacement of lamp in the light box:
If the LED lamp is damaged, it must be replaced by the manufacturer, or its service agent.
8
Troubleshooting
Trouble Cause and Remedy
No refrigeration Is the plug in the socket well?
Is the fuse broken?
Is there no power?
Unsatisfactory refrigeration Is it under the sunlight? Is there any heat source nearby?
Is the surrounding ventilation bad?
Does the door close well? Has the door been open for a long time?
Is the door seal strip deformed or damaged?
Is food congested or too much?
Does food block the air suction outlet?
Regulate the temperature controller.
Too much noise The refrigerator is not level.
The refrigerator touches the wall or other objects.
There is a loose part in the refrigerator.
Contact Omcan at 1-800-465-0234 for help if simple troubleshooting does not solve the problems.
The following situations are not problems:
1. The murmur of water is heard when the refrigerator is working. This is normal as the coolant is circulating in
the system.
2. During wet season, condensation may be found on the outside of the refrigerator. This is not a problem,
this is caused by high humidity. Simply use a cloth to wipe it.
REFERENCE
Item Number Model Number Description Manufacturer Model Number
Refrigerated Showcase Countertop
44629 RS-CN-0120-4
44630 RS-CN-0160-4
44631 RS-CN-0202-4
120 L / 4.2 cu. ft. 110V/60/1
cETLus / ETL Sanitation
Refrigerated Showcase Countertop
160 L / 5.7 cu. ft. 110V/60/1
cETLus / ETL Sanitation
Refrigerated Showcase Countertop
202 L / 7.13 cu. ft. 110V/60/1
cETLus / ETL Sanitation
RTW-120L-4
RTW-160L-4
RTW-202L-4
9
Parts Breakdown

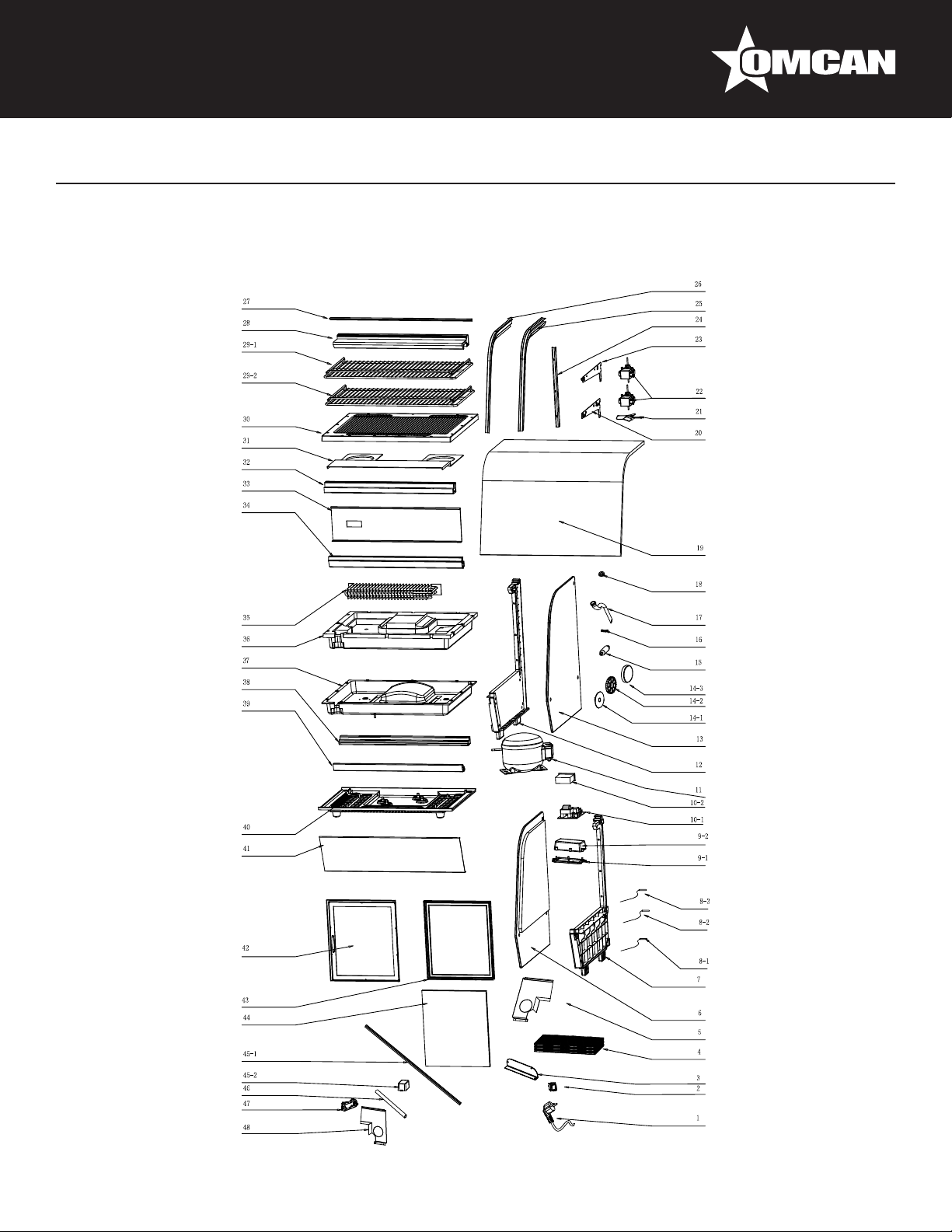

Model RS-CN-0120-4 44629
10
Parts Breakdown
Model RS-CN-0120-4 44629
Item No. Description Position Item No. Description Position Item No. Description Position
AA045 Power Cord for RTW-120L-4 1 79312 Nut Decoration for RTW-120L-4 14-3 68489 Rear Middle Pillar for RTW-120L-4 32
70105 Switch for RTW-120L-4 2 30624 Dry Filter for RTW-120L-4 15 AA056 Rear Base Panel for RTW-120L-4 33
68510 Fixed Board of PCB Box for RTW-120L-4 3 30617 Wire Clip for RTW-120L-4 16 68487 Front Middle Pillar for RTW-120L-4 34
AA046 Condenser for RTW-120L-4 4 68306 Water Pipe for RTW-120L-4 17 68486 Evaporator for RTW-120L-4 35
AA047
AA048 Left Glass for RTW-120L-4 6 68501 Curved Front Glass for RTW-120L-4 19 68484 Plastic Base for Foam for RTW-120L-4 37
68506 Left Panel for RTW-120L-4 7 67313 Left Shelf Bracket for RTW-120L-4 20 68483 Rear Bottom Pillar for RTW-120L-4 38
68332 Temperature Probe for RTW-120L-4 8-1 68528 Fan Blade for RTW-120L-4 21 68482 Front Bottom Pillar for RTW-120L-4 39
AA049 Defrost Probe for RTW-120L-4 8-2 AA055 Motor Fan for RTW-120L-4 22 AA058
60581 Overheating Probe for RTW-120L-4 8-3 67314 Right Shelf Bracket for RTW-120L-4 23 AA059 Front Frame for RTW-120L-4 41
AA050 Control Box for RTW-120L-4 9-1 68498 Pillar for Bracket for RTW-120L-4 24 68479 Inner Door Frame for RTW-120L-4 42
AA051 Control Box Cover for RTW-120L-4 9-2 68496 Left Seal for RTW-120L-4 25 68478 Outer Door Frame for RTW-120L-4 43
AA052 Main Circuit Board for RTW-120L-4 10-1 68497 Right Seal for RTW-120L-4 26 68477 Door Glass for RTW-120L-4 44
AA053 Digital Controller for RTW-120L-4 10-2 68495 Decorative Board for RTW-120L-4 27 AA060 LED Light for RTW-120L-4 45-1
60534 Compressor for RTW-120L-4 11 68494 Top Panel for RTW-120L-4 28 68356 LED Power Drive for RTW-120L-4 45-2
68503 Right Panel for RTW-120L-4 12 68493 Shelf 1 for RTW-120L-4 29-1 68860 Accumulator for RTW-120L-4 46
AA054 Right Glass for RTW-120L-4 13 68492 Shelf 2 for RTW-120L-4 29-2 60125 Control Bracket for RTW-120L-4 47
79314 Decoration Nut Gasket for RTW-120L-4 14-1 68491 Vent Tray for RTW-120L-4 30 AA061
79313 Nut Gasket for RTW-120L-4 14-2 68490
Left Condensator Cushion for RTW120L-4
5 30613 Motor Fixer Ring for RTW-120L-4 18 AA057
Evaporator Protect Board for RTW120L-4
31
Foam Base of Evaporator for RTW120L-4
Bottom Base of Compressor for RTW120L-4
Right Condenser Cushion for RTW120L-4
36
40
48
11
Parts Breakdown
Model RS-CN-0160-4 44630
12
Parts Breakdown
Model RS-CN-0160-4 44630
Item No. Description Position Item No. Description Position Item No. Description Position
68534 Water Tray for RTW-160L-4 1 79313 Nut Gasket for RTW-160L-4 17-2 68523 Rear Middle Pillar for RTW-160L-4 35
68533 Cover for Air Outlet for RTW-160L-4 2 79312 Nut Decoration for RTW-160L-4 17-3 AA064 Rear Base Panel for RTW-160L-4 36
68532 Cover for Air Suction for RTW-160L-4 3 30624 Dry Filter for RTW-160L-4 18 68521 Front Middle Pillar for RTW-160L-4 37
AA062 Power Cord for RTW-160L-4 4 30617 Wire Clip for RTW-160L-4 19 68520 Evaporator for RTW-160L-4 38
68510 Fixed Board of PCB Box for RTW-160L-4 5 68306 Water Pipe for RTW-160L-4 20 68519
70105 Switch for RTW-160L-4 6 30613 Motor Fixer Ring for RTW-160L-4 21 68518 Plastic Base for Pillar for RTW-160L-4 40
AA063 Condensator for RTW-160L-4 7 68529 Curved Front Glass for RTW-160L-4 22 68517 Rear Bottom Pillar for RTW-160L-4 41
60581 Overheating Probe for RTW-160L-4 8 67313 Left Shelf Bracket for RTW-160L-4 23 68516 Front Bottom Pillar for RTW-160L-4 42
AA048 Left Glass for RTW-160L-4 9 68528 Fan Blade for RTW-160L-4 24 AA058
68506 Left Panel for RTW-160L-4 10 AA055 Motor Fan for
68332 Temperature Probe for RTW-160L-4 11-1 67314 Right Shelf Bracket for RTW-160L-4 26 68514 Inner Door Frame for RTW-160L-4 45
60666 Defrost Probe for RTW-160L-4 11-2 68498 Pillar for Bracket for RTW-160L-4 27 68513 Outer Door Frame for RTW-160L-4 46
AA052 Main Circuit Board for RTW-160L-4 12-1 68497 Right Seal for RTW-160L-4 28 68512 Door Glass for RTW-160L-4 47
AA053 Digital Controller for RTW-160L-4 12-2 68496 Left Seal for RTW-160L-4 29 AA066 LED Light for RTW-160L-4 48-1
AA050 Control Box for RTW-160L-4 13-1 68527 Decorative Board for RTW-160L-4 30 68356 LED Power Drive for RTW-160L-4 48-2
AA051 Control Box Cover for RTW-160L-4 13-2 68526 Top Panel for RTW-160L-4 31 68860 Accumulator for RTW-160L-4 49
60534 Compressor for RTW-160L-4 14 71684 Shelf 1 for RTW-160L-4 32-1 60125 Control Bracket for RTW-160L-4 50
68503 Right Panel for RTW-160L-4 15 71683 Shelf 2 for RTW-160L-4 32-2 AA067 Left Condenser Cushion for RTW-160L-4 51
AA054 Right Glass for RTW-160L-4 16 68525 Vent Tray for RTW-160L-4 33 AA061
79314 Decoration Nut Gasket for RTW-160L-4 17-1 68524
Evaporator Protect Board for RTW160L-4
RTW-160L-4 25 AA065 Front Frame for RTW-160L-4 44
34
Foam Base of Evaporator for RTW160L-4
Bottom Base of Compressor for RTW160L-4
Right Condenser Cushion for RTW160L-4
39
43
52
13
Parts Breakdown
Model RS-CN-0202-4 44631
14
Parts Breakdown
Model RS-CN-0202-4 44631
Item No. Description Position Item No. Description Position Item No. Description Position
AA068 Door Glass for RTW-202L-4 1 68506 Left Panel for RTW-202L-4 21 68497 Right Seal for RTW-202L-4 41
AA069 Inner Door Frame for RTW-202L-4 2 AA050 Control Box for RTW-202L-4 22-1 AA089 Decorative Board for RTW-202L-4 42
AA070 Outer Door Frame for RTW-202L-4 3 AA051 Control Box Cover for RTW-202L-4 22-2 AA090 Top Panel for RTW-202L-4 43
AA071 Front Middle Support for RTW-202L-4 4 60534 Compressor for RTW-202L-4 23 AA091 Shelf 1 for RTW-202L-4 44
68533 Cover for Air Outlet for RTW-202L-4 5 AA083 Backing Plate for RTW-202L-4 24 AA092 Shelf 2 for RTW-202L-4 45
AA072 Cover for Air Suction for RTW-202L-4 6 71518 Nut for RTW-202L-4 25-1 AA093 Vent Tray for RTW-202L-4 46
68298 Switch Panel Assembly for RTW-202L-4 7 AA084 Drainage Pipe Joint for RTW-202L-4 25-2 AA094
60117 Wire Clip Holder for RTW-202L-4 8-1 79314 Decoration Nut Gasket for RTW-202L-4 26-1 AA095 Rear Middle Pillar for RTW-202L-4 48
60116 Wire Clip Cover for RTW-202L-4 8-2 79313 Nut Gasket for RTW-202L-4 26-2 AA096 Rear Base Panel for RTW-202L-4 49
AA062 Power Cord for RTW-202L-4 9 79312 Nut Decoration for RTW-202L-4 26-3 AA097 Front Middle Pillar for RTW-202L-4 50
AA073
AA074 Fixed Board of PCB Box for RTW-202L-4 11 68306 Water Pipe for RTW-202L-4 28 AA099
60948 Water Receiver for RTW-202L-4 12 68368 Wire Clip for RTW-202L-4 29 AA100 Plastic Base for Pillar for RTW-202L-4 53
AA075 Tray of Heater for RTW-202L-4 13 AA054 Right Glass for RTW-202L-4 30 AA101 Rear Bottom Pillar for RTW-202L-4 54
AA076 Condensator for RTW-202L-4 14 68503 Right Panel for RTW-202L-4 31 AA102 Front Bottom Pillar for RTW-202L-4 55
AA077
AA078
AA048 Left Glass for RTW-202L-4 17 67313 Left Shelf Bracket for RTW-202L-4 34 AA105
AA079 Temperature Probe for RTW-202L-4 18-1 67314 Right Shelf Bracket for RTW-202L-4 35 AA106 Front Frame for RTW-202L-4 59
AA080 Defrost Probe for RTW-202L-4 18-2 AA087 Fan Blade for RTW-202L-4 36 AA107 LED Light for RTW-202L-4 60-1
AA081 Overheating Probe for RTW-202L-4 18-3 79662 Fan Motor Stand for RTW-202L-4 37 68356 LED Power Drive for RTW-202L-4 60-2
AA052 Main Circuit Board for RTW-202L-4 19-1 AA088 Fan Blade for RTW-202L-4 38 68860 Accumulator for RTW-202L-4 61
AA082 Digital Controller for RTW-202L-4 19-2 68498 Pillar for Bracket for RTW-202L-4 39
70105 Switch for RTW-202L-4 20 68496 Left Seal for RTW-202L-4 40
Condenser Limiting Plate for RTW202L-4
Right Condensator Cushion for RTW202L-4
Left Condensator Cushion for RTW202L-4
10 30624 Dry Filter for RTW-202L-4 27 AA098 Evaporator for RTW-202L-4 51
15 AA085 Curved Front Glass for RTW-202L-4 32 AA103
16 AA086 Motor Fan for RTW-202L-4 33 AA104
Evaporator Protect Board for RTW202L-4
Foam Base of Evaporator for RTW202L-4
Rear Bottom Pillar Lining for RTW202L-4
Front Bottom Pillar Lining for RTW202L-4
Bottom Base of Compressor for RTW202L-4
47
52
56
57
58
15
Electrical Schematics
Model RS-CN-0120-4 44629
Model RS-CN-0160-4 44630
Model RS-CN-0202-4 44631
16
Notes
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
17
Notes
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
18
Warranty Registration
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear o the card at
the perforation and then send to the address specied below. You can also register online by visiting:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
https://omcan.com/warranty-registration/
For mailing in Canada
Pour postale au Canada
Por correo en Canadá
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
For mailing in the US
Pour diusion aux États-Unis
Por correo en los EE.UU.
OMCAN
Niagara Falls, New York
USA, 14305
or email to: service@omcan.com
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan
19
Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 5,000 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 5,000 productos con origen a nivel mundial.
Loading...
