Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
3
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
Safety and Warranty
Handle with care
Unplug the wall socket rst. Never tilt it over 45
degrees when handling.
Dry place
Always place the refrigerator in a dry location.
4
Safety and Warranty
Sufcient space
The distance from both sides and back of refrigerator
to wall or other substance must be no less than 10
cm (4”). The refrigeration capability may decrease if
its surrounding space is too small to circulate air.
Far from heat source
Never place the refrigerator in direct sunlight. Never
place refrigerator near heat source as it reduces
refrigeration capabilities.
Do not make holes
Never make any holes on the refrigerator. Do not
attach any objects onto the refrigerator.
Exclusive power socket
Normally, the power supply should be 100 – 110V,
60 Hz single phase AC with exclusive single phase
receptacle.
Protect cables
Never break or damage the cables as this may cause
current leakage resulting in a re.
Avoid ammable and explosive objects
Never put any ammable or explosive items inside
the refrigerator such as gasoline or alcohol. Never
put any dangerous products in close proximity to the
refrigerator.
After power break
After a power break or unplugging the refrigerator,
always wait at least 5 minutes before starting the
refrigerator again.
Well ventilated
Always place the refrigerator in an area with proper
ventilation. When using for the rst time, wait at least
24 hours after handling to start.
Heavy load
Never put any heavy objects on top of the
refrigerator.
Stable Location
Unpack and place the refrigerator on level and stable
ground.
Do not share the socket
Never let the refrigerator share a socket with another
appliance. The cable may become hot and this may
cause a re.
DO NOT USE EXTENSION CORDS.
No water ushing
Never spray down refrigerator with pressurized water
supply.
No spray
Do not spray the unit with a ammable substance
such as paint. This may result in a re.
Medical Storage
No medicine is allowed to be kept inside the
refrigerator.
NOTE
• The electric circuit diagram and parameters on the product name plate are subject to change without the
manufacturer having to change the manual.
• The design might be improved without notice.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a qualied
electrician in order to avoid injury.
WARNING: The unit uses R134a or R600a refrigerant. Make sure that all precautions
against re have been taken.
5
Safety and Warranty
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Technical Specications
ModelsRS-CN-0120RS-CN-0160
Coolant and Injection Quantity
General Rated Input Power230/160 W
Type of Climate4
Refrigeration Temperature0-12°C / 32-53.6°F
Electrical Shock Protection Class1
Rated Current3/2.8A
Lamp Power2 W (LED)2.5 W (LED)
Total Effective Volume120 L / 4.2 cu. ft.160 L / 5.7 cu. ft.
Net Weight125.7 lbs. / 57 kgs.145.5 lbs. / 66 kgs.
Rated Voltage~110 V
Rated Frequency60 Hz
Overall Dimensions
Item Number2715627157
R134a (100g)
R600a (50g)
27.6” x 22.4” x 27”
702 x 568 x 686mm
R134a (140g)
R600a (65g)
34.6” x 22.4” x 27”
880 x 568 x 686mm
6
Operation
BEFORE USE
Ensure the unit is upright and positioned in its location for 12 hours prior to use.
Plug the refrigerator in a 110V~ socket exclusively for the unit. After the refrigerator is running, test the air
suction to conrm it is sufciently cold. Then you may put food inside the unit. Make sure the food product is
already cooled before placing it in the display case. The unit should not be used to cool food products.
DIGITAL TEMPERATURE CONTROLLER
The digital temperature controller is easy to operate and controls the compressor.
• The main functions are: Temperature display, manual control, automatic defrost, light control, value storing,
self-testing and parameter locking.
Digital Controller Operation:
1. Press and display ON, parameter unlock.
2. Press SET button and hold until display 0, and then press or to set lower limit of the temperature.
Usually set 0 =2.
3. Press SET button and hold until display 1, and then press or to set upper limit of the temperature.
Usually set 1 =6 or 8.
4. Press SET button and hold until display 2, and then press or to set temperature difference. Usually set
2 =4.
5. Press SET button and hold until display 3, and then press or to set the delay time for compressor
starting work. The scale would be 0-5 minutes. Usually set 3 =3.
6. Press SET button and hold until display 4, and then press or to adjust the temperature of cold-room
probe. The scale would be from -5°C to 5°C.
7. Press SET button and hold until display 5, and then press or to adjust the temperature of defrost
probe. The scale would be from -5°C to 5°C.
8. Press SET button and hold until display 6, and then press or to set defrost time. The scale would be
10-30 minutes. Usually set 6 =25.
9. Press SET button and hold until display 7, and then press or to set the interval of defrost. The scale
would be 4-8 hours. Usually set 7 =6.
10. Press SET button and hold until display 8, and then press or to set the temperature of start working.
The scale would be 0-20°C. Usually set 8 =20°C.
11. Press SET button and hold until display 9, If set 9 as 01, the room temperature is locked during defrost,
and the last value before defrost is displayed. When defrost ends, normal display will be resumed after 20
minutes delay of room temperature display. The defrost display will ash during the delay.
12. Press SET button and hold until display A, it is temperature unit. Set 00 as Celsius scale, set 1 as
Fahrenheit.
13. Press the light switch, light is on, press again, light is off.
14. Refrigeration indicator light: The light is on when refrigeration, the light is off when the cold room
temperature is constant, the light will ash when there is a delay start.
15. Defrost indicator light: The light is on when defrosting, the light will ash when there is a delay display
defrost.
16. Irregular working mode: HH1 is displayed if the control probe short circuits or a high temperature (>80°F) is
7
Operation
reached, LL1 is displayed if the control probe short circuits or a low temperature (<-60°F) is reached, and
the compressor start working 45 minutes and then stop working 15 minutes. The control probe happened
with short circuit, open circuit or over limit, the refrigerator will top defrost, and will be under control of
defrost time.
CAUTION
• Reducing the frequency of opening the refrigerator door will keep more cold air inside the refrigerator.
• Do not block air suction or outlet. Air must continue circulating to increase refrigeration capability.
• Do not over ll or over stock the refrigerator, as it will inuence the cooling effect. Adjust the rack height for
proper food storage.
• Cool hot food down to room temperature before storing it in the refrigerator.
• Try to reduce open times and keep refrigerator cold and closed, if power is ever off. Only allow a skilled
service individual with proper tools to repair damaged power cables. Never touch compressor, as it can
result in injury.
• If supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualied
persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING: Do not use mechanical devices of other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
CAUTION: Risk of re. The height of the triangle in the symbol should be at least 15mm.
Maintenance
Keep the refrigerator clean and periodical maintenance is necessary. Always unplug the socket before
maintenance. Never use damaged plug or loose socket to prevent from electric shock or short circuit. Never
ush the refrigerator. Never use alkali detergent, soap, gasoline, acetone or brush.
1. Clean outside:
Dip soft cloth in neutral detergent (tableware detergent) to clean the outside of the refrigerator and then
wipe it with dry soft cloth.
8
Maintenance
2. Clean inside:
Take rack out for cleaning with water. Use soft cloth to wipe the box.
3. Shut down refrigerator for a long time:
Take all food out and unplug the wall socket. Clean both inside and outside of the refrigerator thoroughly
and open the door for sufcient dry. The glass breaks easily. Keep the glass far from children.
4. Replacement of lamp in the light box:
If the LED lamp is damaged, it must be replaced by the manufacturer, or its service agent.
Troubleshooting
TroubleCause and Remedy
No refrigerationIs the plug in the socket well?
Is the fuse broken?
Is there no power?
Unsatisfactory refrigerationIs it under the sunlight? Is there any heat source nearby?
Does the door close well? Has the door been open for a long time?
Is the door seal strip deformed or damaged?
Is food congested or too much?
Does food block the air suction outlet?
Regulate the temperature controller.
Too much noiseThe refrigerator is not level.
The refrigerator touches the wall or other objects.
There is a loose part in the refrigerator.
Contact Omcan at 1-800-465-0234 for help if simple troubleshooting does not solve the problems.
The following situations are not problems:
1. The murmur of water is heard when the refrigerator is working. This is normal as the coolant is circulating in
the system.
2. During wet season, condensation may be found on the outside of the refrigerator. This is not a problem,
this is caused by high humidity. Simply use a cloth to wipe it.
REFERENCE
Item NumberModel NumberDescriptionManufacturer Model Number
68534Water Tray for RTW160L130624Dry Filter for RTW160L1868522Rear Base Panel for RTW160L36
68533Cover for Air Outlet for RTW160L230617Wire Board for RTW160L1968521Front Middle Pillar for RTW160L37
68532Cover for Air Suction for RTW160L368306Leakage for RTW160L2068520Evaporator for RTW160L38
68511Power Cord for RTW160L430613Motor Fixed Ring for RTW160L2168519Foam Base of Evaporator for RTW160L39
68510Fixed Board of PCB Box for RTW160L568529Curved Front Glass for RTW160L2268518Plastic Base for Pillar for RTW160L40
70860Socket for RTW160L671654Left Shelf Bracket for RTW160L2368517Rear Bottom Pillar for RTW160L41
68531Condenser for RTW160L768528Fan Blade for RTW160L2468516Front Bottom Pillar for RTW160L42
68530Condenser Cushion for RTW160L868499Motor Fan for RTW160L2568481
68507Left Glass for RTW160L971655Right Shelf Bracket for RTW160L2668515Front Frame for RTW160L44
68506Left Panel for RTW160L1068498Pillar for Bracket for RTW160L2768514Inner Door Frame for RTW160L45
60137Controller Box for RTW160L1168497Left Seal for RTW160L2868513Outer Door Frame for RTW160L46
60136Controller Panel for RTW160L1268496Right Seal for RTW160L2968512Door Glass for RTW160L47
68505
68504Compressor for RTW160L1468526Top Panel for RTW160L31
68503Right Panel for RTW160L1571684Chrome Shelf 2 for RTW160L32-168860Accumulator for RTW160L49
68502Right Glass for RTW160L1671683Chrome Shelf 1 for RTW160L32-279662Metal Base of Fan Motor for RTW160L50
79314Decoration Nut Gasket for RTW160L17-168525Vent Tray for RTW160L3360125Digital Controller Holder for RTW160L51
79313Nut Gasket for RTW160L17-268524Evaporator Protect Board for RTW160L34
79312Nut Decoration for RTW160L17-368523Rear Middle Pillar for RTW160L35
Temperature Display with Probes for
RTW160L
1368527Decorative Board for RTW160L3067372LED Lights for RTW160L48-1
67373LED Power for RTW160L48-2
Bottom Base of Compressor for
RTW160L
43
13

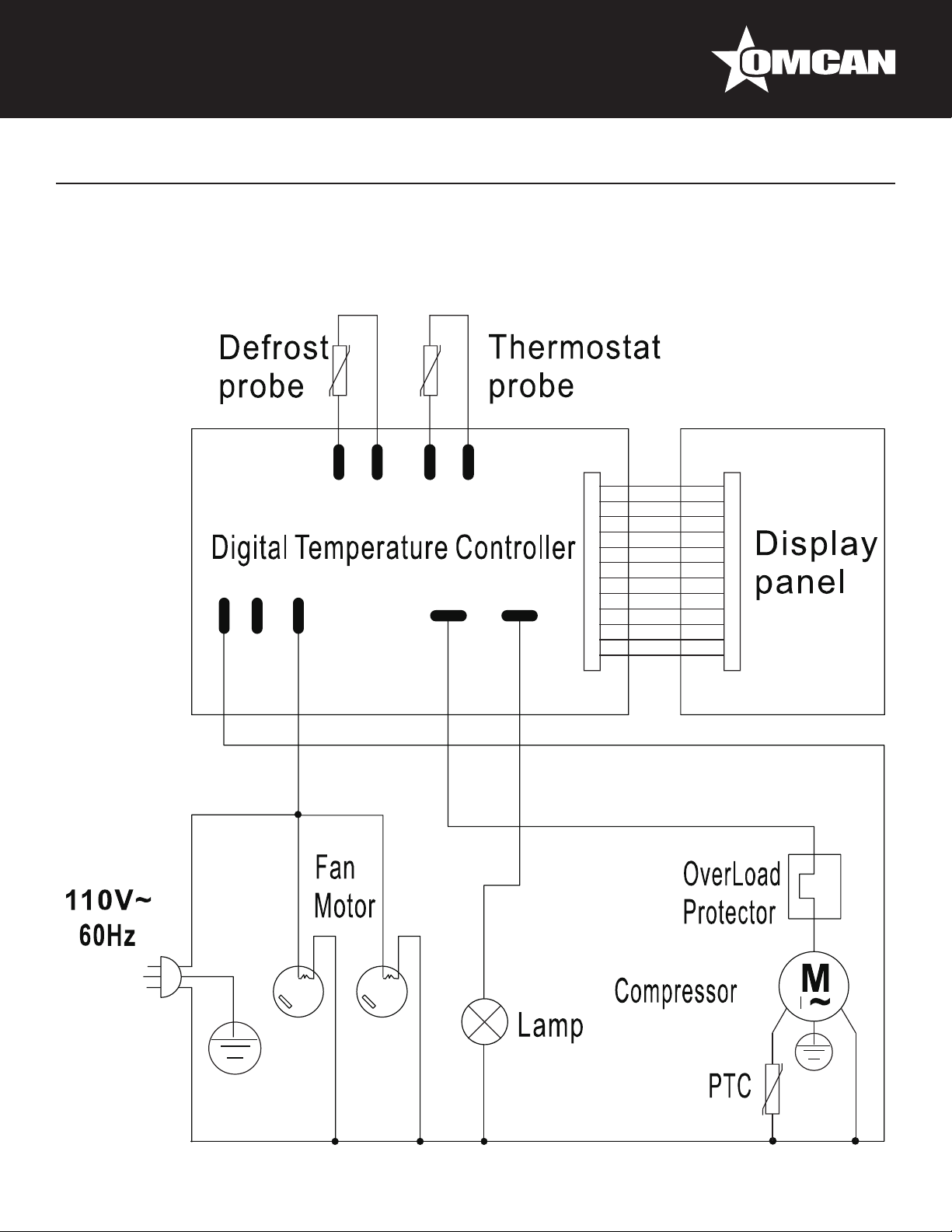

Electrical Schematics
Model RS-CN-0120-E 27156
Model RS-CN-0160-E 27157
14
Warranty Registration
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at
the perforation and then send to the address specied below. You can also register online by visiting:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
https://omcan.com/warranty-registration/
For mailing in Canada
Pour postale au Canada
Por correo en Canadá
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
For mailing in the US
Pour diffusion aux États-Unis
Por correo en los EE.UU.
OMCAN
Niagara Falls, New York
USA, 14305
or email to: service@omcan.com
Purchaser’s Information
Name:Company Name:
Address:
Telephone:
City:Province or State:Postal or Zip:Email Address:
Country:Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City:Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name:Model Number:Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY):Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan
15
Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 5,000 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 5,000 productos con origen a nivel mundial.
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
