Orange Juicer
Model JE-CN-0020
Item 44228
Instruction Manual
Revised - 09/21/2018
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com
Table of Contents
Model JE-CN-0020
Section
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Troubleshooting
----------------------------------------------------------------------------------------- 5 - 7
----------------------------------------------------------------------------------- 7 - 10
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
----------------------------------------------------------------------------- 10 - 11
Page
-------------------------------------------------------------------------- 5
Parts Breakdown
Electrical Schematics
Warranty Registration
---------------------------------------------------------------------------- 12 - 13
---------------------------------------------------------------------------- 14
---------------------------------------------------------------------------- 15
2
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
3
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
Safety and Warranty
1 YEAR PARTS AND LABOUR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
4
Safety and Warranty
improper use.
Please see www.omcan.com/warranty.html for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Technical Specications
Model JE-CN-0020
Electrical 120V / 60Hz / 1Ph
Motor Power 120W
Power Consumption 300W
Size of Oranges 1.57” - 3.15” / 40mm - 80mm
Output 20 Oranges Per Minute
Dimensions 15.75” x 13” x 30.7” / 400 x 330 x 780mm
Packaging Dimensions 19.7” x 19.7” x 37.4” / 500 x 500 x 950mm
Weight 99.2 lbs. / 45 kgs.
Packaging Weight 110.2 lbs. / 50 kgs.
Item Number 44228
Operation
BEFORE OPERATION
1. The power supply must be safely grounded, and the machine connection parts shall only be changed by
qualied individuals.
2. Check whether all parts are installed properly. This product is equipped with a safety system, only after the
machine cover is correctly installed, it can work, the machine will not start otherwise.
5
Operation
3. Before using for the rst time, please clean the unit thoroughly, taking extra care when cleaning the parts
that come into contact with food.
OPERATION PROCESS
1. Put a glass or a desired container on the tray below the dispenser.
2. Put the fruit peel buckets under the two ejector slots on the sides of the unit.
3. Fill the top basket with the desired amount of cleaned oranges.
4. Plug in the machine and it will be ready to work.
6
Operation
5. Pressing the start switch can feed the oranges continuously into the feeding port, once one orange has
been squeezed the skin will be discarded into each peel basket automatically.
6. When the machine is operating, it is important to note that you must never insert your hands and ngers
into the feeding port. If the juice storage container or the fruit peel bucket is lled up, switch off the power
supply and then clean it.
7. After the operation of this machine is completed, turn off the unit and disconnect from the power supply.
Maintenance
MAINTENANCE AND CLEANING
1. Before cleaning the product, the unit must be switched off, ensure to unplug the machine from the power
source, always wait until the machine stops completly.
2. Clean the unit immediately after use.
3. The outer main body can be wiped with a damp cloth, do not wash the machine with water directly, remove
7
Maintenance
the parts that come into contact with the oranges and wash thoroughly.
4. Refer to the following steps on how to disassemble the parts to clean:
- Unscrew the cover screw, remove the cover.
- Pull out the knife combination (being extra careful around the blade).

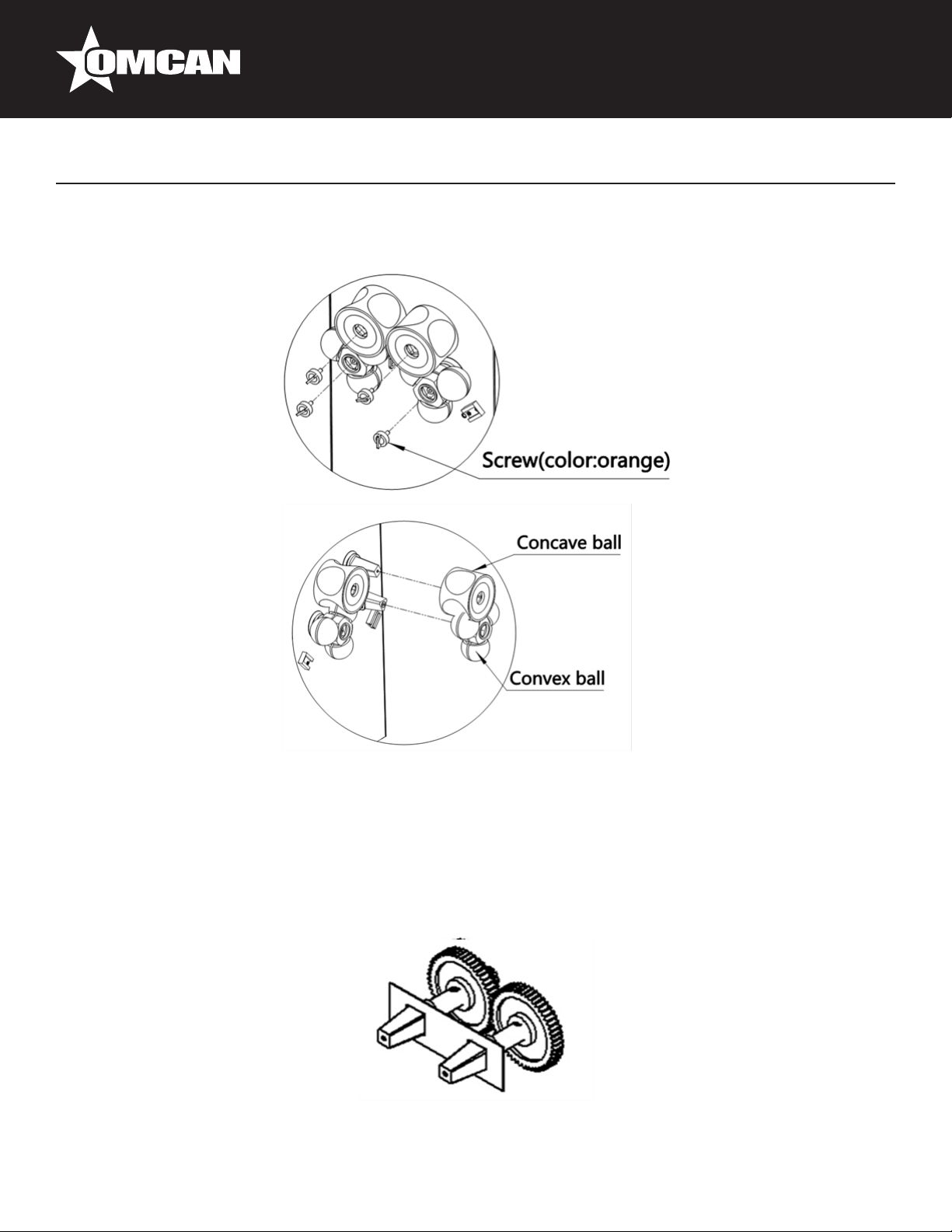

- Remove the two groups of scraper combinations by unscrewing the four screws and sliding them out as
shown below.
8
Maintenance
- Remove the two groups of concave and convex balls (each group of the concave and convex balls need
to be removed at the same time).
- After the cleaning of the unit is completed, re-install each part by following the previous instructions in the
reverse order.
REPLACING THE GEARS
1. Remove the damaged cylindrical gear and the connected parts according to the assembly sequence.
2. Use two square hole templates to lock the upper two of four corner angle shaft parallels, and then install
two big cylindrical gears.
3. Remove the two square hole templates.
9
Maintenance
4. Use one square and a triangle template to lock the left (or right) upper four corner angle shaft and lower
triangular shaft under the ridge axis, and then install the small cylindrical gear.
5. The installation method of the other side of the small cylindrical gear is the same as part 4.
Troubleshooting
Type of Fault Problem Check
Electrical fault. The safety switch does not work. Check whether the safety switch is
in good condition.
Check whether the safety switch is
in the closed state.
The starting switch does not work. Check whether the starting switch
is in good condition.
Check whether the starting switch
socket end is plugged.
Motor does not work. Check whether the socket at the
two sides of the power line is
tightened.
Check whether the fuse is in good
condition.
Check whether the terminal in
the motor switch box is solid
connection.
10
Troubleshooting
Mechanical failure. The motor output shaft end bevel
gear wheel transmission mesh.
The damage of transmission
cylindrical gear.
Check whether the size of bevel
gear wheel is damaged.
Check whether the meshing
positions of the big and small
bevel gears wheel are correct, the
adjustable small bevel gears wheel
is rising to the correct meshing
position and tighten the hex screws
on the gear( when the small bevel
gear wheel on the motor shaft
position is moved down).
The size of transmission cylindrical
gear is divided into a pair of large
cylindrical gear (Z = 52), a pair of
small cylindrical gear (Z = 39).
Iron gear is generally is tooth form
damage.
If the cylindrical gear transmission
has abnormal sound, it can be
judged that the cylindrical gear is
damaged, in the initial stage of the
gear damaged, the machine work
must be stopped immediately, the
damaged gear must be replaced,
otherwise it will affect the relative
position of the working parts of
machine, thus aggravates the
damage of the gear, and until
damage the electrical machine
and the working surface of the and
concave and convex balls.
REFERENCE
Item Number Model Number Description
44228 JE-CN-0020
Juice Extractor 20 Orange per Min
120W 115V/60/1 cETLus
11
Manufacturer Model
Number
2000E-2
Parts Breakdown
Model JE-CN-0020 44228
12
Parts Breakdown
Model JE-CN-0020 44228
Item No. Description Position Item No. Description Position Item No. Description Position
65914 Cover for 2000E-2 1 65918 Panel in Back for 2000E-2 10 65907 Peeler Stand for 2000E-2 18.1
65909 Screw for 2000E-2 2 65929 Back Axle Protection for 2000E-2 11 65906 Peeler Shelf for 2000E-2 18.2
65910 Convex Ball for 2000E-2 3 65900 Basket for 2000E-2 12 65905 Peeler for 2000E-2 18.3
65908 Concave Ball for 2000E-2 4 66055 Fix Lock for 2000E-2 13 66057 Complete Blade Set for 2000E-2 19
65917 Feet Screw for 2000E-2 5 65901 Slide Way for 2000E-2 14 65913 Blade Shelf (Stainless) for 2000E-2 19.1
65932 Plastic Bucket (Two) for 2000E-2 6 65916 Starting Switch for 2000E-2 15 66058 Screw for Blade Shelf for 2000E-2 19.2
65898 Leaking Drawer for 2000E-2 7 65904 Slide Way for 2000E-2 16 65911 Blade Stand for 2000E-2 19.3
65899 Juicer Holder for 2000E-2 7 65902 Tray for 2000E-2 17 65912 Blade (Stainless) for 2000E-2 19.4
65896 Back Over Plank for 2000E-2 8 65903 Tray Bottom for 2000E-2 17 65925 Safety Switch for 2000E-2 A
65923 Gear Protection for 2000E-2 9 66056 Complete Peeler Set for 2000E-2 18
13
Electrical Schematics
Model JE-CN-0020 44228
14
Warranty Registration
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at
the perforation and then send to the address specied below. You can also register online by visiting:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
www.omcan.com/warrantyregistration.html
For mailing in Canada
Pour postale au Canada
Por correo en Canadá
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
For mailing in the US
Pour diffusion aux États-Unis
Por correo en los EE.UU.
OMCAN
Niagara Falls, New York
USA, 14305
or email to: service@omcan.com
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan
15
Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 5,000 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 5,000 productos con origen a nivel mundial.
Loading...
