Omcan BS-VE-2489-E Operators Manual

Bandsaw

Model BS-VE-2489-E

Item 10271

Instruction Manual

Revised - 02/05/2019

Toll Free: 1-800-465-0234

Fax: [phone]

Email: [e-mail]

www.omcan.com

Table of Contents

Model BS-VE-2489-E

Section

General Information

Safety and Warranty

Technical Specications

Installation

Operation

Maintenance

-------------------------------------------------------------------------------------------- 6

----------------------------------------------------------------------------------------- 6 - 7

------------------------------------------------------------------------------------- 7 - 8

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

Page

-------------------------------------------------------------------------- 6

Parts Breakdown

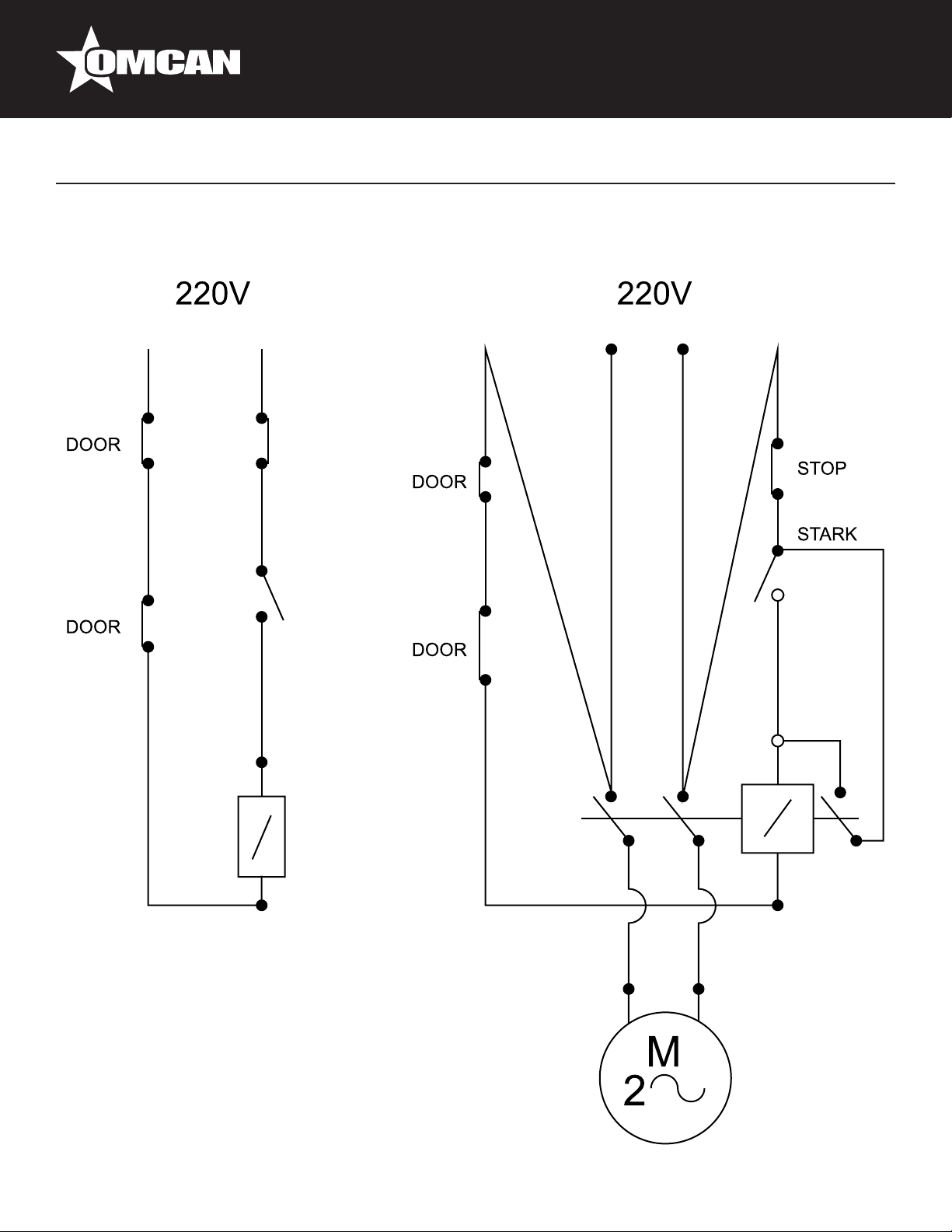

Electrical Schematics

Notes

Warranty Registration

------------------------------------------------------------------------------------------- 20 - 22

----------------------------------------------------------------------------- 9 - 18

---------------------------------------------------------------------------- 19

---------------------------------------------------------------------------- 23

2

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

3

General Information

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

Safety and Warranty

CAUTION - NOT MEANT FOR FROZEN PRODUCT

MAIN PRECAUTIONS

When incorrectly used, a bandsaw can be a potentially dangerous machine. Cleaning, maintenance or service
must always be done by experienced operators, and with the machine disconnected from the electricity supply.

4

Safety and Warranty

• NEVER use tools not belonging to the machine to help operation.

• KEEP hands off the moving parts of the machine.

• NEVER connect the power source with wet hands or wet clothes.

• ALWAYS ground the machine properly.

• NEVER touch the blade even when it is not in use because its edge is very sharp, it can cause serious

cuttings.

• NEVER adjust the cutting regulator (optional) with the blade in motion.

• NEVER use clothes with loosen sleeves specially near the wrist during the cutting operation.

• USE steel gloves during the cutting operation.

• NEVER switch on the machine with one of its doors opened.

• NEVER spray water or other liquid substances directly at motor, power switch or any other electrical

components.

• KEEP your working area clean and dry to prevent it from becoming slippery.

• ALWAYS install equipment in working area with adequate light and space away from CHILDREN and

visitors.

• NEVER operate without all warning labels attached and owner/operator manual available to operator.

• NEVER leave unattended while operating.

• STOP the machine immediately if you hear abnormal noises, of fear that injuries may occur.

• CONTACT your Distributor if you have any problems with the installation and operation of this machine.

1 YEAR PARTS AND LABOUR WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized

service technician to repair the equipment locally.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see https://omcan.com/disclaimer for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

5

Technical Specications

Model BS-VE-2489-E
Blade Length 98” / 2489mm
Cutting Capacity 12” x 10.5” / 305 x 267mm
HP 2 HP
Electrical 220V/60/1
Weight 346 lbs. / 156.9 kgs.
Dimensions 36” x 40” x 72” / 914 x 1016 x 1829mm
Item Number 10271

Installation

Be sure to install the bandsaw in an easily accessible area with plenty of space.

Grounding wire must always be connected.

IMPORTANT: Check the tension of the blade by turning the handle clockwise before operating it.

Operation

BEFORE OPERATION

Check and make sure the machine is in a stable location. Wash with warm water and soap all the food-contact
parts, and wipe dry. To do it proceed as follows:

1. Switch the machine off and disconnect it from the power source.

2. Open the upper door and lower door by pulling the handle.

3. Loosen the blade turning the handle or calibrator (optional) clockwise and take it out from the upper and
lower wheels.

4. Take out the staples which are in front of the upper and lower wheels to be able to pull them out.

5. Assemble the components following the inverse steps.

IMPORTANT: The blade must be well calibrated. Use the handle turning it clockwise to get the right

tension of the blade. Keep the machine off to adjust the cutting regulator.

OPERATION

Switch on the machine pressing the on/off switch.

Put the product to be processed onto the table, pushing it to the direction of the blade lined up by the cutting

6

Operation

regulator (optional), maintaining the thickness of the slice desired.

When pulling back the product do not touch the blade avoiding disconnecting it from the wheels.

Drop a little bit of water onto the xed table to facilitate the slipping of the product.

Maintenance

COMPONENTS ADJUSTMENT

PULLEY BELT

• The belt must be rmly xed to prevent it from skidding. Do not tighten it too much because it can wear out
quickly.

• To have access to the belt remove the screws with a screwdriver from the inferior back lid and take it out.

• With a screw-wrench loosen the screws turning it counter-clockwise. To stretch out the belt you have to

push the motor with the wood lever tightening the screws.

IMPORTANT: The pulleys must be lined up.

UPPER BEARING ADJUSTMENTS

• The purpose of this adjustment is to centralize the blade on the gear and avoid it falling down.

• First of all disconnect the machine from the electricity supply. Then loosen blade turning handle counter-

clockwise.

• Take out upper back lid by removing screws using the screwdriver. Loosen the three screw-nuts using a
10mm screw-wrench.

• Using the screwdriver turn the screw-nut ¼ counter-clockwise if the wheel is inclined towards the front or
turn it ¼ clockwise if it is inclined backwards. Tighten the three screw-nut previously loosen. Calibrate the
blade according to pre-operation.

• Turn the wheels manually to check if the blade is centralized, if it is not keep turning the wheels until the
blade is centralized.

CUTTING REGULATOR

• The cutting regulator (optional) was designed to provide cuts with the same thickness and also to protect
the operator from getting injured.

• To adjust the cutting regulator proceed as follows:
Turn locking knob counter-clockwise to be able to move the cutting regulator to the left and right according
to the distance you want to leave from it to the blade.

• Then turn the locking knob clockwise to x the cutting regulator in the desired position.

CLEANING

First of all disconnect the machine from power source.

• Remove the upper door by unscrewing the screws of the hinges.

7

Maintenance

• Remove the lower door doing as above.

• Remove the blade by turning blade calibrator knob counter-clockwise, then loosen the blade and pull it out.

• Take out upper and lower wheels by pulling staples out, which are located in front of the wheels.

• Never use hard tools such as: knives, forks, hooks, or others to remove stuck pieces of cut meat from the

upper and lower doors. To do that use a plastic brush.

• Assemble the components following the inverse steps.

NOTE: The sharp edge of the blade must be facing the front of the machine.

All removable components must be washed with warm water and neutral soap. Be careful when washing the
blade. It has a sharp edge that could cause serious irreparable injuries to the hands.

CAUTION: The machine is not protected against water jets. Do not clean it with steam jets, or high
pressure blasts or similar methods. Under no circumstances should the bandsaw be hose rinsed as

this may result in short circuit or serious damage to the machine.

Clean the body of the machine with a damp clean cloth and wipe dry.

REFERENCE

Item Number Model Number Description Manufacturer Model Number

Band Saw 98” / 2489mm Blade

10271 BS-VE-2489-E

2 HP / 1491 W 220V/60/1

cETLus ETL Sanitation

B34

8

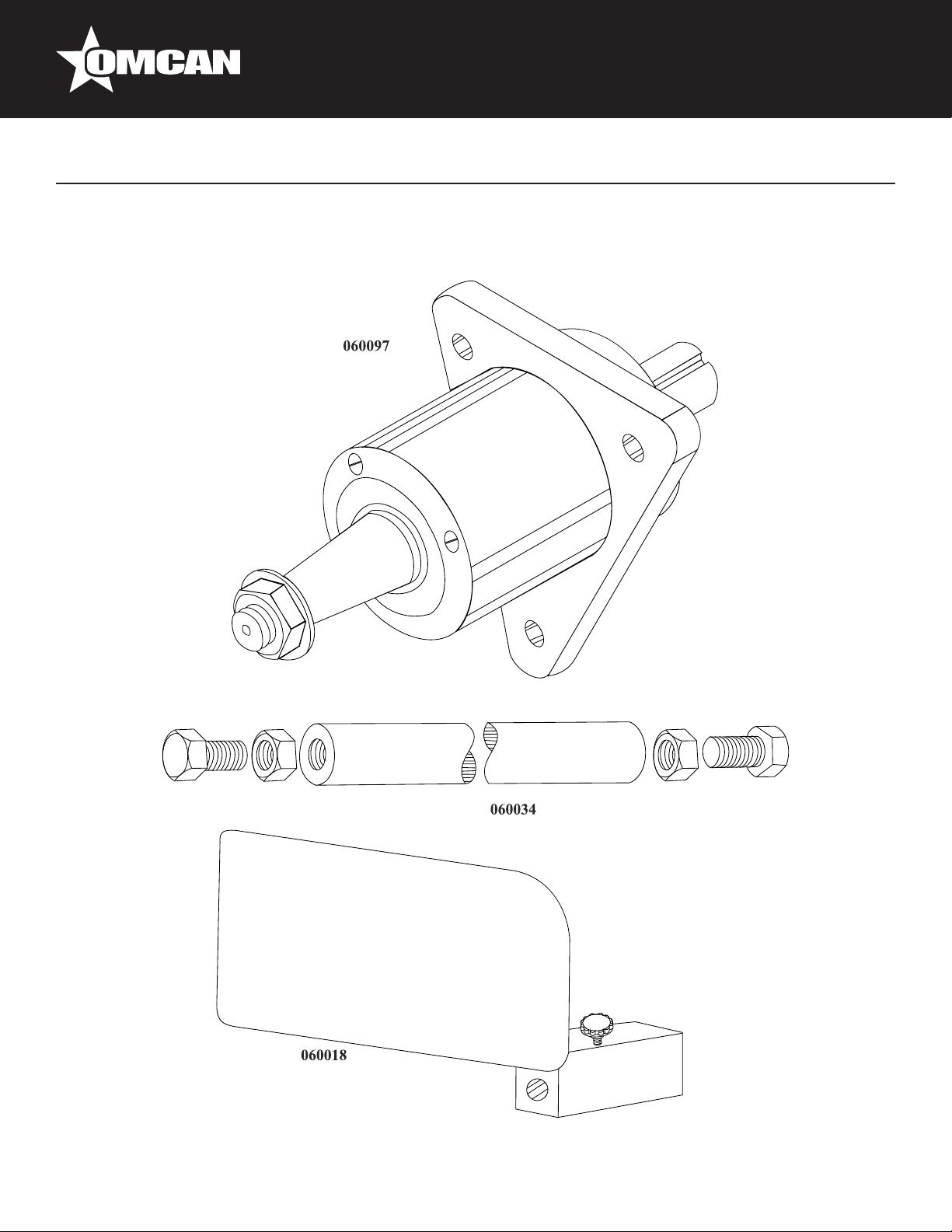

Model BS-VE-2489-E 10271

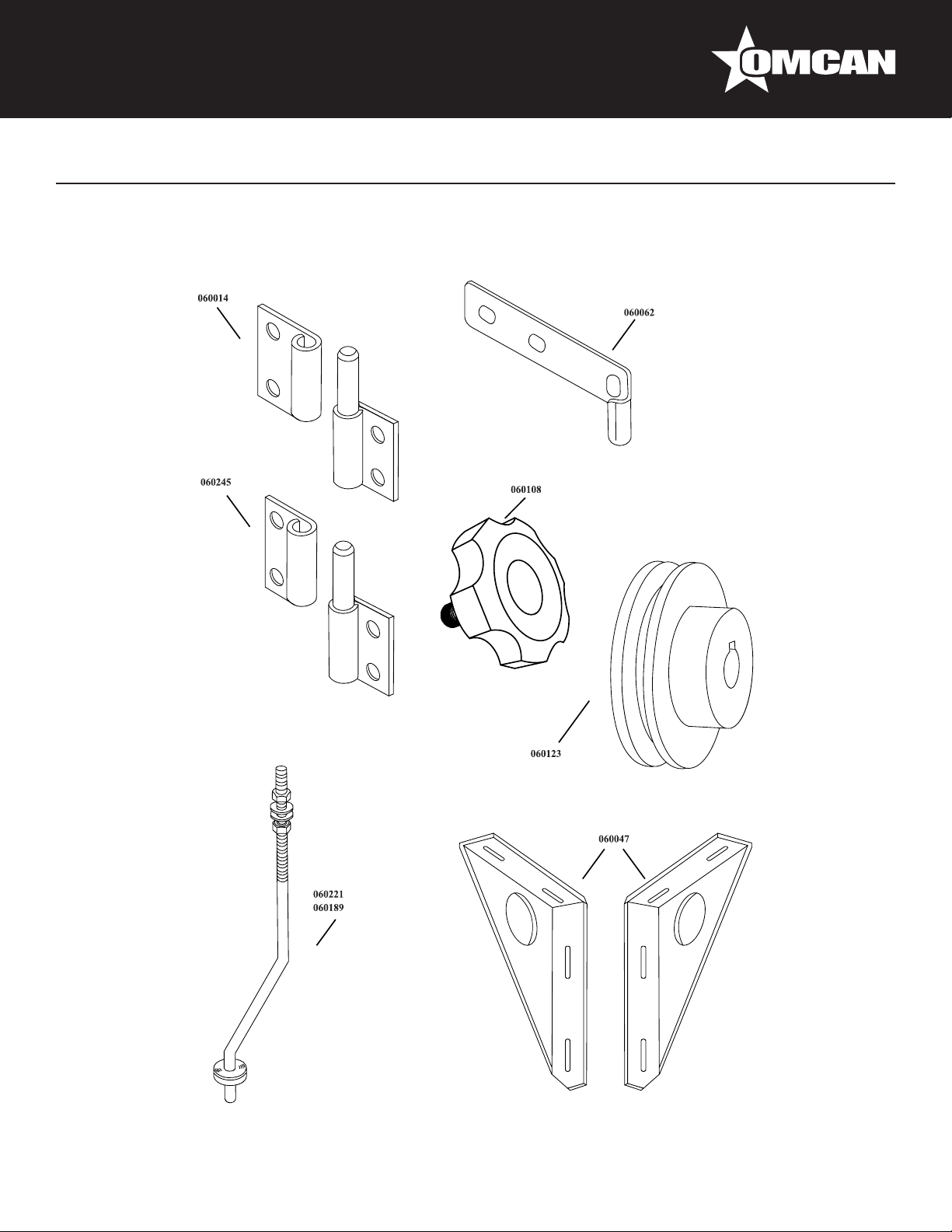

Parts Breakdown

9

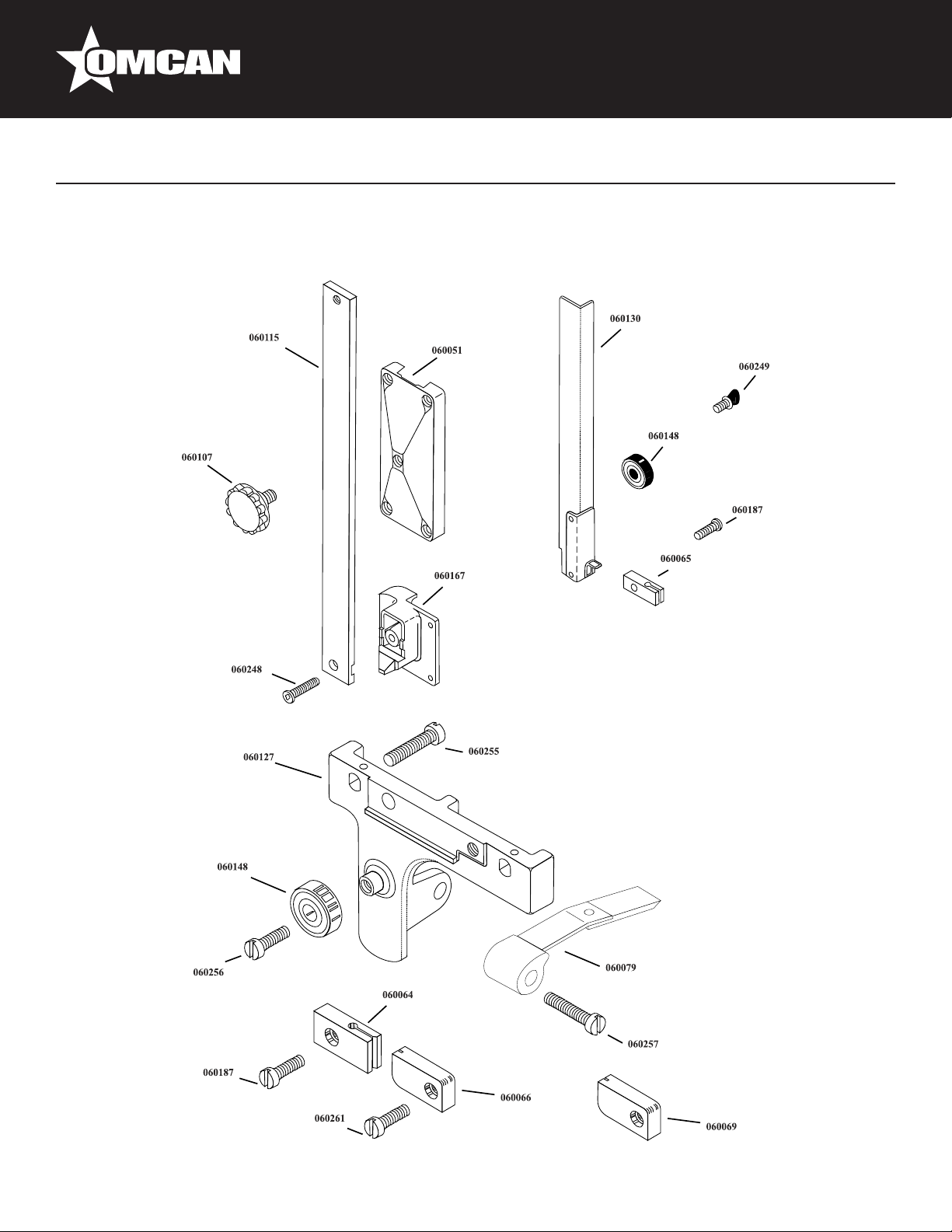

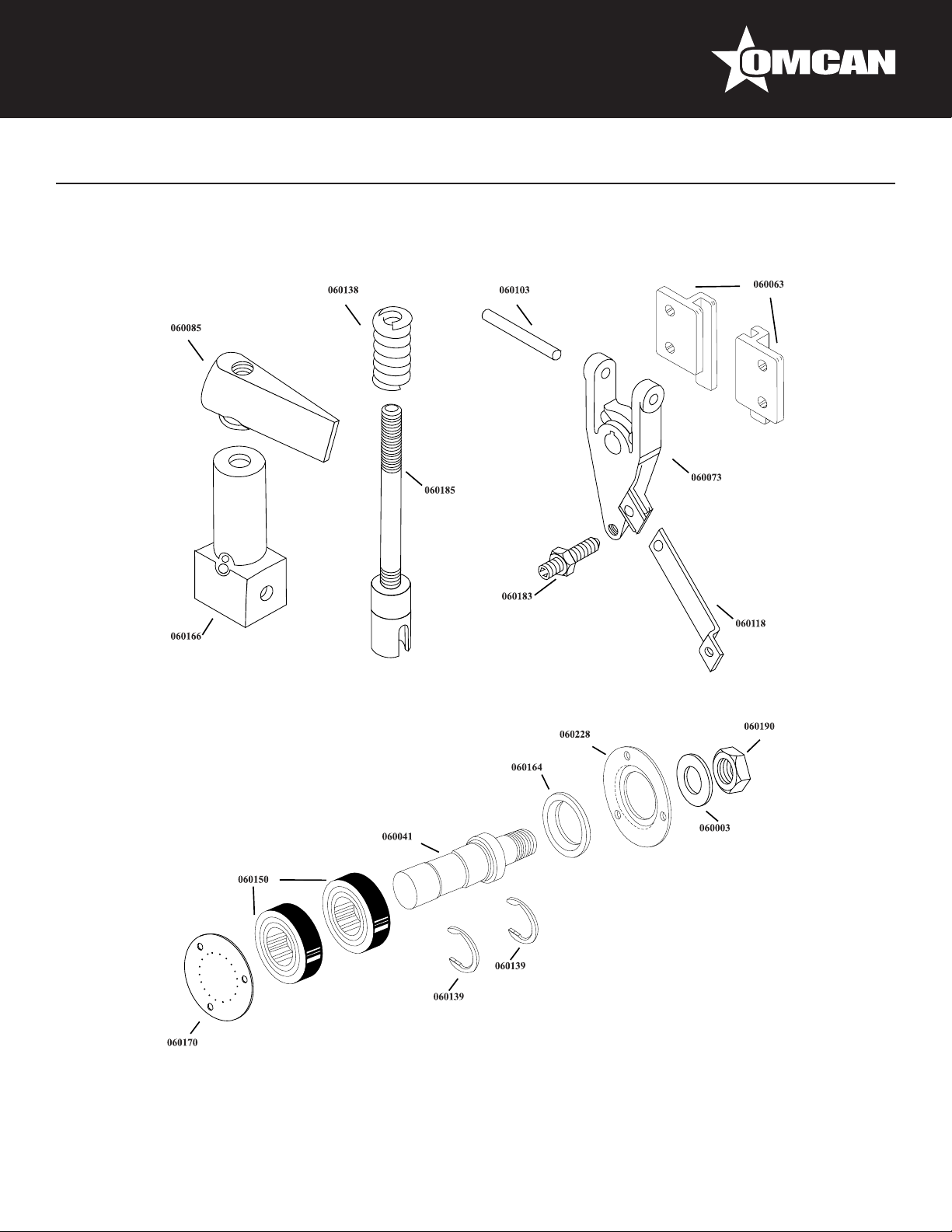

Parts Breakdown

Model BS-VE-2489-E 10271

10

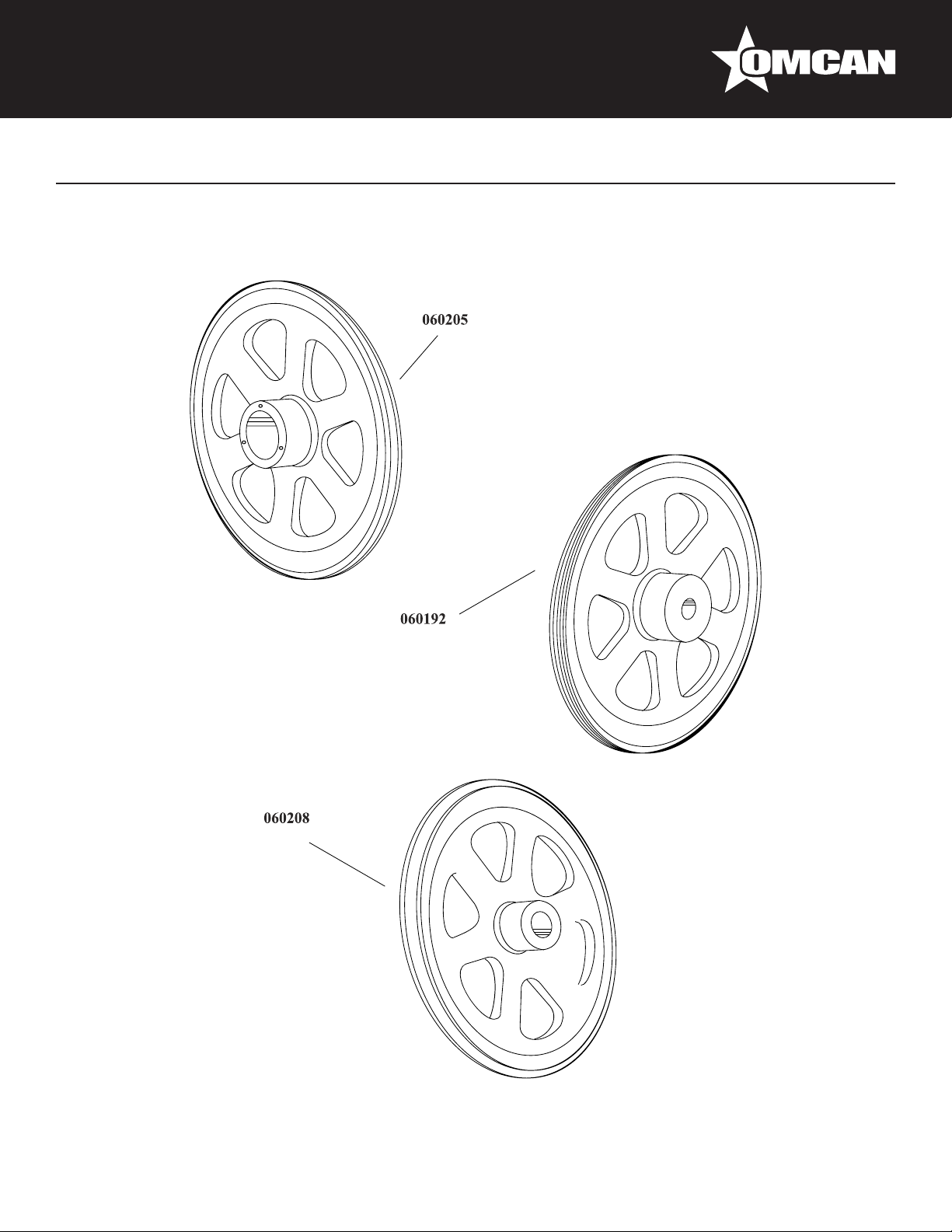

Model BS-VE-2489-E 10271

Parts Breakdown

11

Parts Breakdown

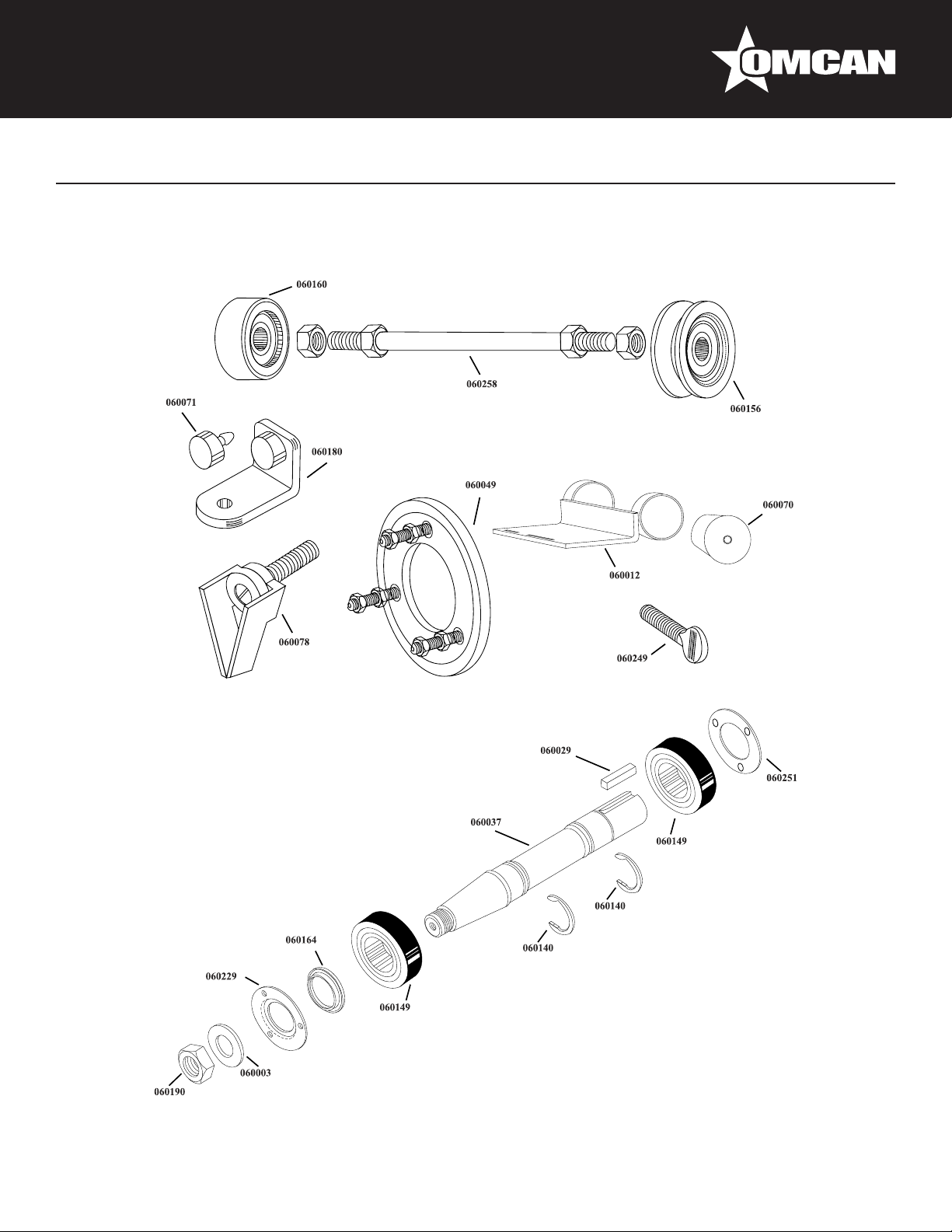

Model BS-VE-2489-E 10271

12

Model BS-VE-2489-E 10271

Parts Breakdown

13

Parts Breakdown

Model BS-VE-2489-E 10271

14

Model BS-VE-2489-E 10271

Parts Breakdown

15

Parts Breakdown

Model BS-VE-2489-E 10271

16

Model BS-VE-2489-E 10271

Parts Breakdown

17

Parts Breakdown

Model BS-VE-2489-E 10271

Item No. Description Position Item No. Description Position Item No. Description Position

45115 Washer for B34 060003 44013 Micro Switch for B34 060089 62094 Graduated Screw for B34 060183

62165 Metal Tray for B34 060008 23715 Housing Assembly for B34 060097 62133 Tension Screw for B34 060185

62152 Motor Base for B34 060012 62158 Aluminum Housing for B34 060100 26129 Long Screw for Aluminum Guide for B34 060187

62061 Long Door Hinge for B34 060014 24154 Pin for B34 060103 62173 Motor Tension Screw for B34 060189

62062 Full Arm Shield for B34 060018 62078 Tightening Knob for B34 060107 44012 Lower Shaft Nut for B34 060190

23716 Belt for B34 060027 16869 Knob for B34 060108 62168 Lower Cylindrical Flywheel for B34 060192

45116 Pin for B34 060029 62141 Front Aluminum Plate for B34 060115 24133

62180 Arm Shaft for B34 060034 62136 Platinum Sustain Clean Flywheel for B34 060118 17715

17704 Lower Pulley Shaft for B34 060037 62171 Motor Pulley for B34 060123 62167 Upper Cylindrical Flywheel for B34 060205

23713 Shaft for B34 060041 45066 Guide for B34 060127 62169 Trapezoidal Flywheel for B34 060208

62174 Iron Square Brackets for B34 060047 23718 Guide Assembly for B34 060128 17716 Motor Tension Bar for B34 060221

62065 Aluminum Flange for B34 060049 62083 Blade Protector for B34 060130 62137 Steering Wheel for B34 060228

62066 Aluminum Front for B34 060051 62164 Complete Control Box for B34 060134 17717 Cover for B34 060229

17706 Complete Tension Assembly for B34 060053 62132 Hairpin Spring for B34 060138

62170 Steel Door Hook for B34 060062 17710 Clip for B34 060139 62102 Front Plate Screw for B34 060248

15587 Fluted Guide Pair for B34 060063 17711 Clip for B34 060140 62103 Buttery Screw for B34 060249

23714 Guide for B34 060064 45067 Bearing 6200 for B34 060148 17719 Cover for B34 060251

62070 Steel Guide Support for B34 060065 16871 Bearing for B34 060149 31436 Housing Only for Switch for B34 060252

26128 Aluminum Guide for B34 060066 16872 Bearing for B34 060150 16873 Start Switch for B34 060253

15590 Nylon Filler Black for B34 060069 64815 Complete Grooved Wheel for B34 060156 16874 Stop Switch for B34 060254

62151 Motor Base Rubber for B34 060070 64569 Front Platinum for B34 060160 62143 Screw for Roller Port Guide for B34 060255

62071 Rubber Stopper for B34 060071 40168 Seal for B34 060164 45068 Screw for B34 060256

62135 Fork for B34 060073 62134 Support for B34 060166 45069 Screw for B34 060257

62159 Switch 602-A for B34 060075 62091 Aluminum Support for B34 060167 45070 Wheel Axle for B34 060258

17707 Scraper for B34 060078 62140 Top Seat Flywheel Top for B34 060170 26130 Short Screw for Aluminum Guide for B34 060261

62074 Iron Scraper for B34 060079 17713 Tension Assembly for B34 060179 39415 Motor 220/60/1 for B34

62075 Buttery Handle for B34 060085 62093 Complete Car Iron Bumper for B34 060180 23717 On/Off Switch Assembly for B34

62099 Door Hinge for B34 060245

Complete Upper Pulley Assembly for
B34

Complete Lower Pulley Assembly for
B34

060196

060201

18

Model BS-VE-2489-E 10271

Electrical Schematics

19

Notes

20

Notes

21

Notes

22

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

https://omcan.com/warranty-registration/

For mailing in Canada

Pour postale au Canada

Por correo en Canadá

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

For mailing in the US

Pour diffusion aux États-Unis

Por correo en los EE.UU.

OMCAN

Niagara Falls, New York

USA, 14305

or email to: [e-mail]



Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

23

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 5,000 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 5,000 productos con origen a nivel mundial.
