Omcan BCC-100 User Manual
Model BCC-100
POULTRY PROCESSING MACHINE
Parts List, Installation and Operating Instructions
Applicable from Serial No. 500 On
Biro Designed Biro Built
+ IMPORTANT SAFETY NOTICE +
This Manual contains important safety
instructions which must be strictly
followed when using this equipment.
096-10-05-21
PTCT
BCC-100
TABLE OF CONTENTS
Page
NOTICE TO OWNERS AND OPERATORS ......................................... 1
SAFETY TIPS ............................................................... 2
INSTALLATION ............................................................. 3
OPERATION ................................................................ 4
CLEANING ................................................................. 7
MAINTENANCE ............................................................. 7

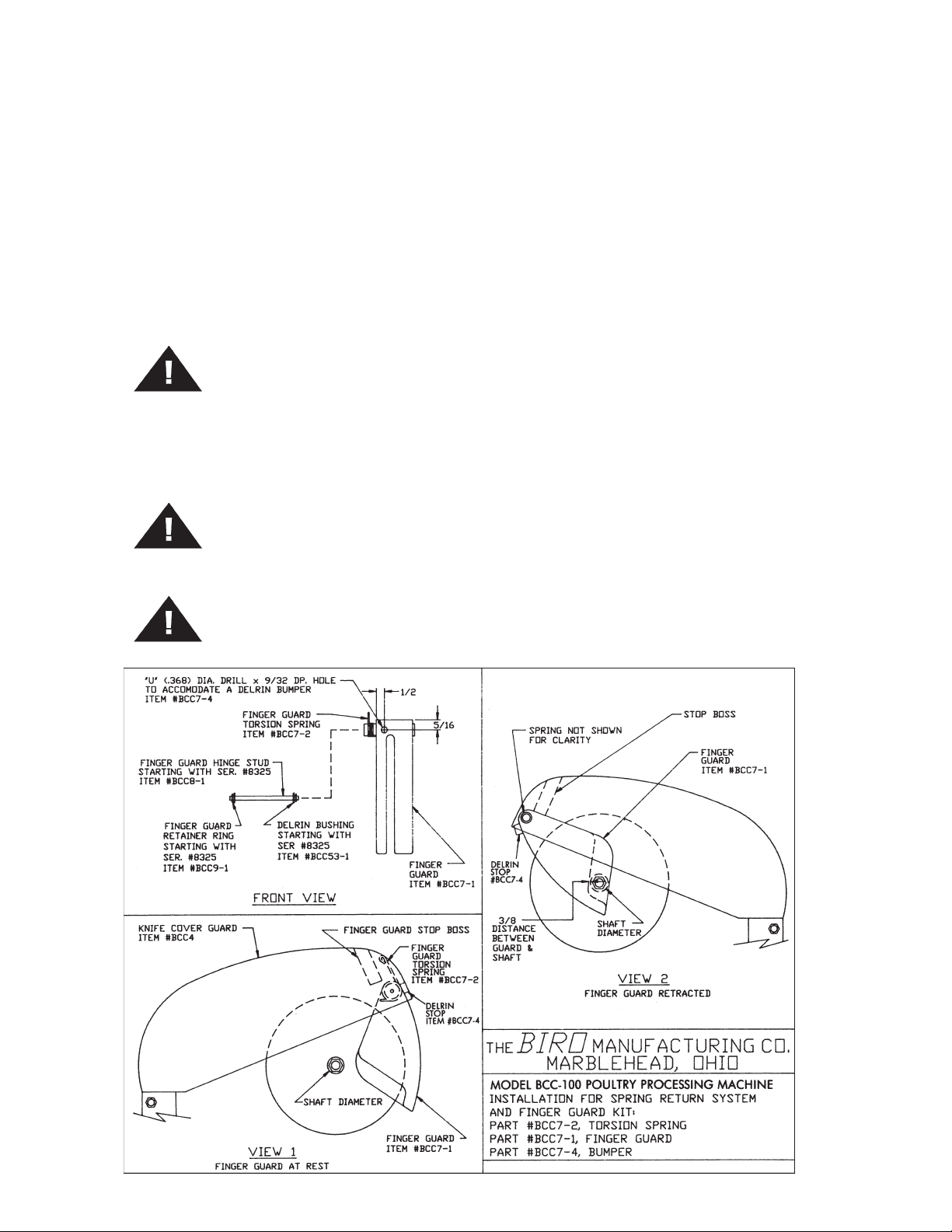

FINGER GUARD RETURN SPRING INSTALLATION .................................. 8
WIRING DIAGRAMS .......................................................... 9
PARTS LIST/ORDERING.......................................................10

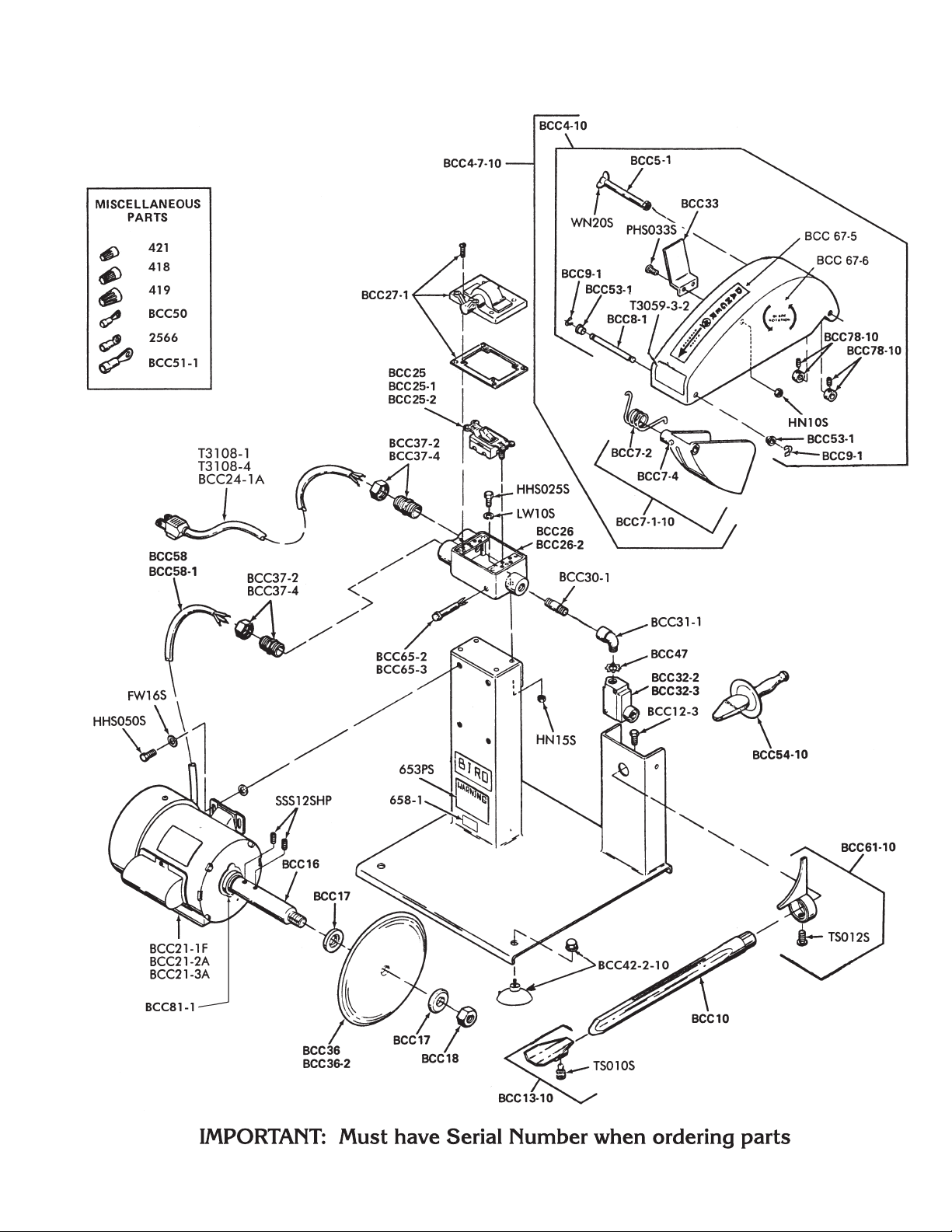

PARTS DIAGRAM ............................................................11
NOTES PAGE ...............................................................12
OPERATOR’S SIGNATURE PAGE................................................13
LIMITED WARRANTY .........................................................14
NOTICE TO OWNERS AND OPERATORS
BIRO’s products are designed to process food products safely and efficiently. Unless the oper
ator is properly trained and supervised, however, there is the possibility of a serious injury. It is the
responsibiltiy of the owner to assure that this machine is used properly and safely, strictly following
the instructions contained in this Manual and any requirements of local law.
No one should use or service this machine without proper training and supervision. All opera
tors should read and be thoroughly familiar with the procedures contained in this Manual. Even so,
BIRO cannot anticipate every circumstance or environment in which its products will be used.
You, the owner and operator, must remain alert to the hazards posed by the function of this equip
ment — particularly the SHARP ROTATING BLADE. No one under eighteen (18) years of age
should operate this equipment. If you are uncertain about a particular task, ask your supervisor.
This Manual contains a number of safe practices in the SAFETY TIPS section. Additional warn
ings are placed thoughout the Manual. Warnings related to your personal safety are indicated by:
OR
Warnings related to possible damage to the equipment are indicated by:
-
-
-
-
If any warning label, or Manual becomes misplaced, damaged, or illegible, please contact your
nearest Distributor or BIRO directly for a replacement.
Remember, however, this Manual or the warning labels do not replace the need to be alert and
to use your common sense when using this equipment.
This Manual applies to machines with serial number 500 and higher.
1
SAFETY TIPS
SHARP ROTATING BLADE
TO AVOID SERIOUS PERSONAL INJURY
NEVER Touch This Machine without Training and Authorization by Your Supervisor.
·
· ALWAYS Read Operation and Service Manual BEFORE Operating, Cleaning, or Servicing.
· ALWAYS Keep Hands Clear of Blades and Moving Parts.
· ONLY Use a Qualified Electrician to Install According to Local Building Codes: Machine MUST
Be Properly Grounded.
· ONLY Install on Level, Non-Skid Surface in Clean, Well-Lighted Work Area Away from Children
and Visitors.
· DO NOT Tamper With, Bypass or Remove the Knife Cover, Finger Guard, Interlock Switch, or
Toggle Switch.
·
DO NOT Operate With the Knife Cover in Raised Position or Removed. Safety Knife Cover
MUST Be Down During Operation.
·
ONLY Operate Machine by Using the Machine’s ON/OFF Toggle Switch. ALWAYS Turn Off
Toggle Switch When Not in Use.
·
DO NOT Wear Gloves While Operating.
·
ALWAYS Turn Off and Unplug Machine From Power Source and Perform Lockout/Tagout
Procedures BEFORE Cleaning, Servicing, or Attempting to Unjam or Unclog.
·
NEVER Leave Machine Unattended While Operating.
·
PROMPTLY REPLACE Any Worn or Illegible Warning Labels.
·
USE ONLY BIRO Parts and Accessories Properly Installed.
2
I. INSTALLATION
TO AVOID SERIOUS PERSONAL INJURY, PROPERLY INSTALL
EQUIPMENT IN ADEQUATE WORK AREA
ALWAYS Use Qualified Technician and Electrician for Installation.
·
ALWAYS Install Equipment in Work Area with Adequate Light and Space.
·
ONLY Operate on a Solid, Level, Non-Skid Surface.
·
NEVER Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition.
·
NEVER Operate With Knife Cover in raised Position or Removed.
·
NEVER Operate Without all Warnings Attached.
·
1. Read this Manual thoroughly before installation and operation. Do not proceed with installation and operation if
you have any questions or do not understand anything in this Manual. Contact your local Distributor, or BIRO
first.
2. Install your machine on a level, solid, non-skid surface which should be at a height that allows the operator to
operate the machine comfortably with his or her hands slightly above the crook of the elbow and below
bar. The working area should be well-lighted and away from children and visitors.
3. Machine must be properly grounded. Use a qualified electrician to install according to local building codes.
4. Make sure ON/OFF toggle switch is in “OFF” position.

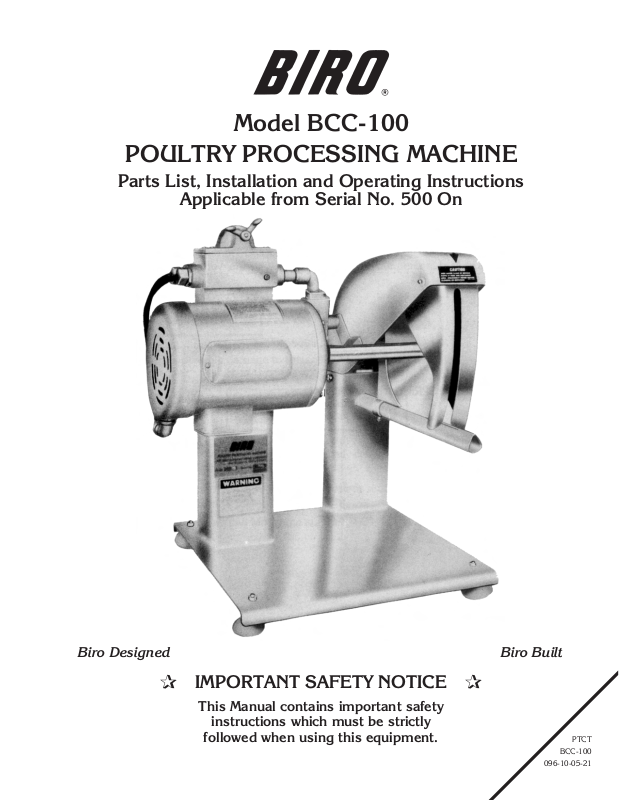

5. Lower Knife Cover into operating position as shown in the picture on the front of this Manual.
6. Uncoil electrical cord and plug into specified, grounded outlet. (Specifications for this machine are found on the
plate located on the back of the motor column.)
7. With Knife Cover lowered into operating position, turn ON/OFF toggle switch to “ON” position. The blade will
begin to rotate. Make sure machine operates properly and is stable and secure on operating surface.
the guide
ALWAYS LEVEL MACHINE BEFORE USING
8. Raise Knife Cover to check safety interlock switch — machine should turn off.
9. Lower Knife Cover — machine should resume operating.
10. Turn toggle switch to “OFF” position.
11. Check placement of all warning labels. Machine is ready for trained operators to process product.
12. Contact your local distributor or BIRO directly if you have any questions or problems with the installation or
operation of the machine.
