Page 1
INSTRUCTIONS
Before using your Stylus Zoom, read this manual
carefully to ensure correct use.
We recommend that you take test shots to get
accustomed to your Stylus Zoom before taking
important photographs.
PREPARATIONS
BASIC
OPERATIONS
ADVANCED
TECHNIQUES
CAMERA
MAINTENANCE
Page 2
Thank you for purchasing the Olympus Stylus Zoom.
Please read this instruction manual carefully before using the camera.
MAIN FEATURES
Built-in 35 mm—70 mm 2X zoom lens.
Weatherproof.
Remote control (optional).
Symbols used in this manual:
Incorrect
Operation
2
sound
Manual
operation
Indicator on
Next
operation
Indicator
blinking
Operation
order
Attention
Automatic
operation
Depress
halfway
Page 3
PREPARATIONS
Names
and
functions
of
parts
Viewfinder
LCD panel .......................................
Attaching the strap .......................... 8
Using the soft case (optional) ......... 9
.......................................
.........
4
6
7
Outline of operations....................... 10
Loading the battery ......................... 14
Checking the battery....................... 15
Points to remember......................... 16
BASIC
OPERATIONS
ADVANCED
TECHNIQUES
CAMERA
MAINTENANCE
Loading the film............................... 18
Taking pictures................................ 20
Using
the
flash
modes
Auto
(Auto
Auto-S (Red-Eye Reducing Flash) .... 33
OFF (Flash Override) ...................... 34
FILL-IN (Forced Activation) ............. 35
Caring for your weatherproof camera ... 42
Care and storage ............................ 44
Remote control RC-100 handling .... 45
Battery handling .............................. 45
Flash)
....................
............................
30
32
Using the focus lock........................ 25
After shooting.................................. 27
Unloading the film ........................... 29
Night Scene .................................... 36
Selftimer..........................................37
Remote control (optional) ................ 38
Spot................................................. 40
Questions and answers .................. 46
Troubleshooting .............................. 47
Specifications.................................. 50
3
Page 4
NAMES AND FUNCTIONS OF PARTS
Zoom lever (p. 21)
Zooms in—telephoto.
Zooms out—wide-angle.
Shutter release button
(p. 17)
Selftimer
indicator
PREPARATIONS
Strap eyelet
Lens barrier
4
Autofocus
windows
Flash mode button (p. 30)
Lens
Selftimer/remote
control button
(p. 37/38)
Flash
LCD panel
Displays the camera's mode
and operation conditions.
(p. 7)
Viewfinder
Light sensor
Page 5
Viewfinder
(P. 6)
Orange lamp
Green lamp
Back cover
Back cover
release
Film window
Battery compartment
cover
Tripod socket
Mid-roll rewind
button (p. 29)
5
Page 6
VIEWFINDER
Close-up correction marks
At a close distance, your subject must
be positioned within the close-up
correction marks.
Autofocus mark
Position your subject
within the autofocus
mark.
6
Orange lamp
When this lamp lights,
the flash will fire when
you press the shutter
button all the way.
Green lamp
Lights when the
subject is in focus.
Page 7
Selftimer/remote
control (p. 37/38)
Spot mode (p. 40)
LCD PANEL
Flash modes (p. 31)
Battery check (p. 15)
Exposure counter (p. 19)
7
Page 8
ATTACHING THE STRAP
8
Page 9
USING THE SOFT CASE (Optional)
9
Page 10
OUTLINE OF OPERATIONS
Basic Shooting Procedures
10
Load the battery
(p. 14).
1.
Open the back cover
(P. 18).
2.
Load the film aligning
the film leader with
3.
the red mark (p. 19).
Page 11
Close the back cover.
The film automatically
4.
advances to the first
frame (p. 19).
Open the lens barrier
until you hear a
5.
"Click" (p. 19).
Make sure the
exposure counter on
6.
the LCD panel reads
(p. 19)
11
Page 12
7.
12
Press the zoom lever
for telephoto or wide-
angle photography
(p. 21).
Place the autofocus
mark on the main
8.
subject (p. 22).
Depress the shutter
release button halfway
9.
to make sure the
green lamp lights
(p. 22).
Page 13
Depress the shutter
10.
release button fully
to take a picture
(p.
22).
11.
When the film
reaches the end, it
will automatically
rewind (p. 29).
12.
Open the back cover
to remove the
rewound film (p. 29).
13
Page 14
LOADING THE BATTERY
Close the lens barrier. Gently use a coin to open the
battery compartment cover.
1.
Read "Battery Handling" on page 45.
14
Do not twist the coin.
Insert the new battery
correctly as indicated
2.
below and close the
battery compartment
cover tightly.
Page 15
Use a 3 V lithium battery
(Duracell DL123A,
Panasonic CR123A, or
equivalent.)
CHECKING THE BATTERY
Open the lens barrier
as shown below until
1.
you hear a "Click" and
check the battery
power remaining.
Batteries are OK. The mark
disappears after 12 sec.
Batteries are low.
Have spares handy.
Batteries should be
replaced immediately.
Note: Keep a spare battery on
hand when going on a long trip or
to a cold area.
15
Page 16
POINTS TO REMEMBER
Hold the Camera Correctly.
Correct.
Hold the camera firmly
with both hands.
16
Correct.
In the vertical position,
hold the camera with its
flash positioned at the top.
Incorrect.
Caution:
Keep your fingers and strap
away from the lens, flash, autofocus windows and light sensor.
Page 17
Proper Shutter Release Practice before loading the film.
Depress the shutter
release button
1.
halfway.
To lock the focus.
Make sure
The green lamp lights in the
viewfinder.
Depress the shutter
release button fully.
2.
To release the shutter and
take the picture.
Cautions:
Press the shutter release
button gently.
Avoid shaking the camera
when pressing the shutter
release button to prevent
blurry pictures.
17
Page 18
LOADING THE FILM
BASIC OPERATIONS
18
Slide the back cover
release upwards to
open the back cover.
1.
Make sure
If there is dust or dirt
on the lens, remove it
with a blower brush.
Insert the film car-
tridge, making sure
2.
the film is lying flat.
Make sure the film is correctly
positioned between the guide rails.
Correct
Incorrect
Page 19
Align the film leader
with the red mark,
3.
and close the back
cover.
The film automatically
advances to the first frame.
Open the lens barrier
until you hear a
4.
"Click".
Make sure
The exposure count-
er on the LCD panel
reads
Note:
If E blinks in the exposure counter,
as shown on the left, the film is
improperly loaded. Reload the film.
19
Page 20
TAKING PICTURES
Open the lens barrier
until you hear a "Click".
1.
Make sure
The lens extends slightly, the
flash pops up, and the LCD
panel activates.
20
If the lens barrier is opened while the flash is held down,
the lens extends slightly then retracts. THE CAMERA WILL
NOT OPERATE.
Release the flash, and reopen the lens barrier or operate
the zoom lever to reactivate the camera.
Page 21
Aim the camera at
your subject. Use the
2.
zoom lever for
telephoto or wide
angle photography.

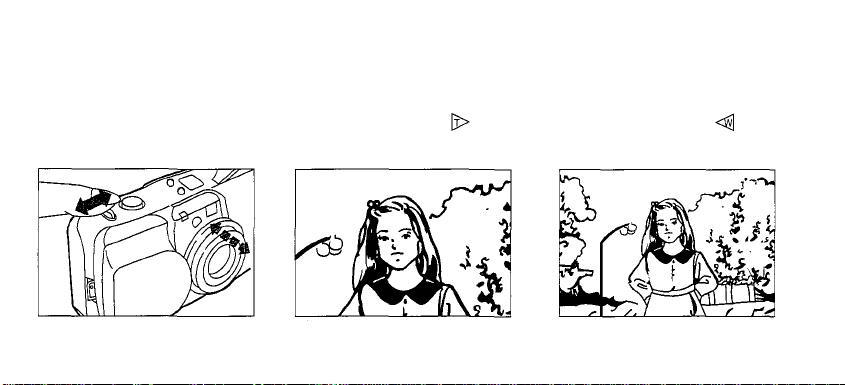

How to Use the Zoom Lever.
Telephoto:
Push the lever to the
to zoom in.
side
Wide-angle:
Push the lever to the
to zoom out.
side
Maximum telephoto focal
length: 70 mm
Maximum wide-angle focal
length: 35 mm
21
Page 22
Position your subject
within the autofocus
3.
mark.
Depress the shutter
release button
4.
halfway.
Depress the shutter
release button fully to
5.
take the picture.
22
Autofocus mark
Make sure
The green lamp lights.
The film automatically
advances to the next frame.
Page 23

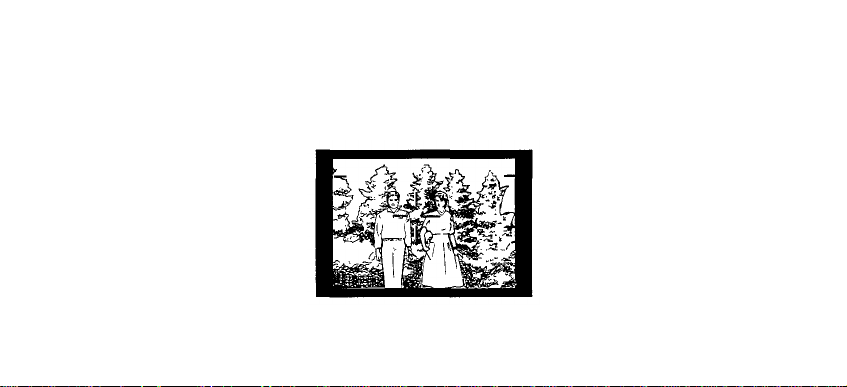

With the composition
shown on the right, the
background will be in
focus but the subjects in
the foreground may not.
This is because the
autofocus mark does not
cover the one of the
subjects. In this case, use
the focus lock to keep the
subjects in focus. (Refer
to page 25.)
23
Page 24
Working Distance
The focus range of the
camera is 0.6 m (2 ft.) to
(infinity).
When the subject is closer
than 0.6m (2 ft.), the
shutter will not release.
(The green lamp blinks.)
When the subject is
extremely close to the
camera, the subject will be
out of focus although the
shutter releases.
24
Close-Up Correction
Picture frame
Image area of picture at 0.6 m (2 ft.)
Close-up correction
marks
The viewfinder's picture
frame is the area that can be
shot of subjects at (infinity).
However, the picture area will
move lower in the viewfinder
as you get closer to the
subject. At 0.6 m (2 ft.), the
shaded area is the actual
available image area. In this
case, the subject should be
positioned below the close-up
correction marks.
Page 25

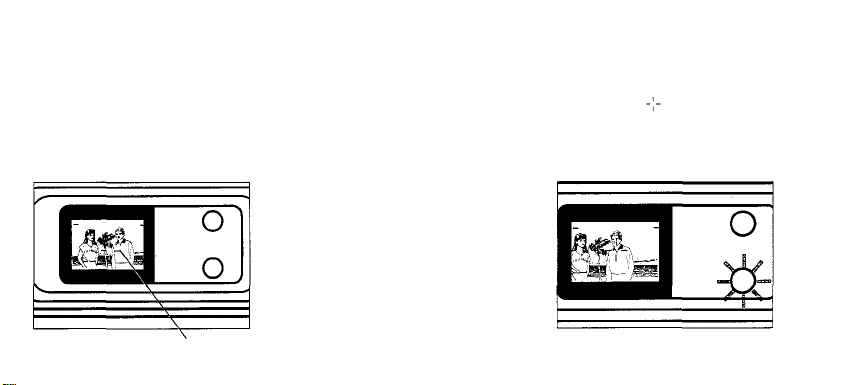

USING THE FOCUS LOCK
To Avoid Taking Out-of-focus Pictures
When the main subject is
not within the autofocus
mark, use the focus lock.
Autofocus mark
The autofocus mark must be
positioned on the subject in
order to focus on it. In the
left case, the camera will
focus on the tree in the
background and the subjects
will be out of focus.
Position the autofocus
mark on your
1.
subject and press the
shutter release button
halfway.
25
Page 26
Make sure
The green lamp lights.
When the focus is locked, the
exposure is also locked (AE lock).
26
Reposition your subjects in the picture frame
while keeping the shutter release button
depressed halfway. Then press the shutter
2.
release button fully.
Page 27
AFTER SHOOTING
Close the lens
barrier slowly and
carefully.
1.
Caution:
Do not force lens barrier closed as
it will interfere with lens retraction.
The lens and flash will
retract automatically.
Close the lens
barrier completely.
2.
The display goes out and the
camera can be put in its case.
27
Page 28
The lens can also be
retracted by pushing down
the flash.
28
Note:
When the camera is not in use, close the
lens barrier to prevent the shutter from
firing accidentally and to protect the lens.
Page 29
UNLOADING THE FILM
The camera automatically
rewinds the film when you
reach the end of a roll.
After the motor stops and
starts blinking on the LCD
panel, open the back cover
and remove the film.
The final number of exposures may
sometimes exceed the number of
exposures specified on the film.
Rewinding the film
before the end of the roll
Press the mid-roll rewind
button gently with your nail.
Do not use an instrument with
a sharp tip.
29
Page 30

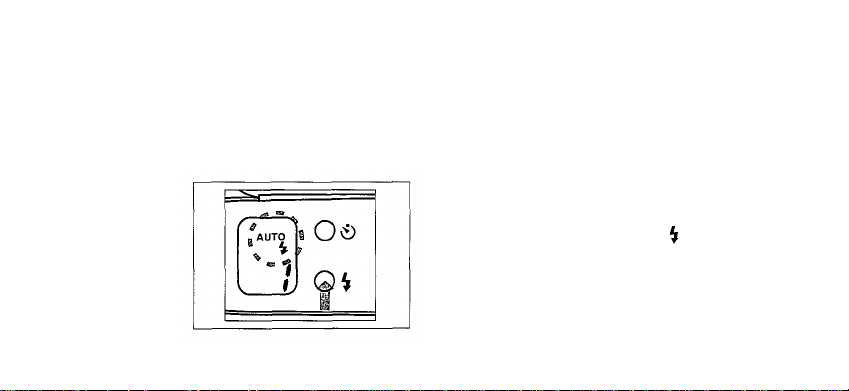

USING THE FLASH MODES
This camera has five flash modes. Select the flash mode
according to your shooting conditions and needs.
ADVANCED TECHNIQUES
30
How to change the flash
mode
Press the button, the flash
mode will change in the order
shown on the right.
Page 31
Mode
Automatically fires in low-light and backlight
Function
conditions. (p. 32)
Can significantly reduce the phenomenon of redeye (when a subject's eyes appear red). (p. 33)
The flash does not fire. (p. 34)
Fires regardless of available light. (p. 35)
When you want to light the subject in the foreground
with a night-scene in the background. (p. 36)
Notes:
All other modes except AUTOS mode will return to the AUTO
mode when the lens barrier is
closed. When the camera is
set to the AUTO-S mode, it will
return to AUTO-S when the
lens barrier is closed and reopened.
In the AUTO, AUTO-S Flash,
and modes, the flash
strength is automatically
controlled to prevent pictures
from being overexposed even
when the subjects are close.
31
Page 32
AUTO (Auto Flash)
In the Auto Flash mode, the flash will fire automatically in low-light and backlight conditions.
Notes:
• While the flash is still charging
and the flash indicator (orange)
is blinking, the shutter will not
release. It takes about 4
seconds after the film is
advanced to recharge the
flash. (at normal temperature
with a new battery)
• In some situations such as
when the subject is too small,
occasionally the flash may not
fire automatically, even in
backlight. (This is more likely
to occur with telephoto.) If this
occurs, use the FILL-IN mode.
Make sure
The orange lamp in the upper
right of the viewfinder lights
when the shutter release button
is depressed halfway. This indicates the flash is fully charged.
32
Flash Working Range
ISO
100
200
400
Wide
(35 mm)
0.6—4.2 m
(2
ft.— 13.8 ft.)
0.6—5.9 m
(2
ft.— 19.4 ft.)
0.6—8.4 m
(2 ft.—27.6 ft.)
Tele
(70 mm)
0.6—2.8 m
(2
ft.—
0.6—3.9 m
(2
ft.— 12.8 ft.)
0.6—5.6 m
(2
ft.— 18.4 ft.)
9.2
ft.)
Page 33

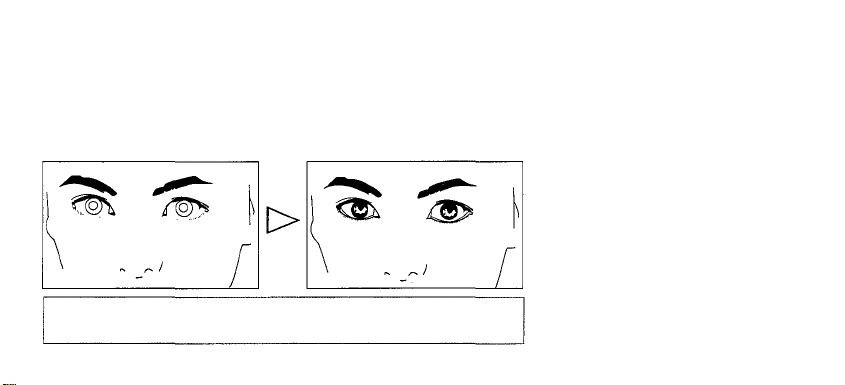

AUTO-S (Red-Eye Reducing Flash)
Significantly reduces the phenomenon of "red-eye" (when a subject's eyes appear red).
In the Auto-S Flash mode, the camera will emit a series of low-power pre-flashss
before the regular flash. This makes the subjects' pupils contract, significantly reducing
red-eye. Except for the pre-flashes, this mode is the same as the Auto Flash mode.
Note:
Red-eye reduction may not
be effective with some
individuals or if:
1. The subject doesn't face
the flash.
2. The subject is too far from
IMPORTANT: Be sure to hold the camera still until the shutter
releases.
the camera.
33
Page 34
OFF (Flash Override)
When you don't want the flash to fire.
In the Flash-OFF mode, the
flash does not fire even in
low-light conditions. Use this
mode in situations where
flash photography is not
desired or is prohibited.
34
Note:
Since a slow shutter speed (down to
4 seconds) is automatically selected
in low-light situations, the use of a
tripod is recommended to prevent
blurred pictures caused by shaking
the camera in this type of situation.
Page 35

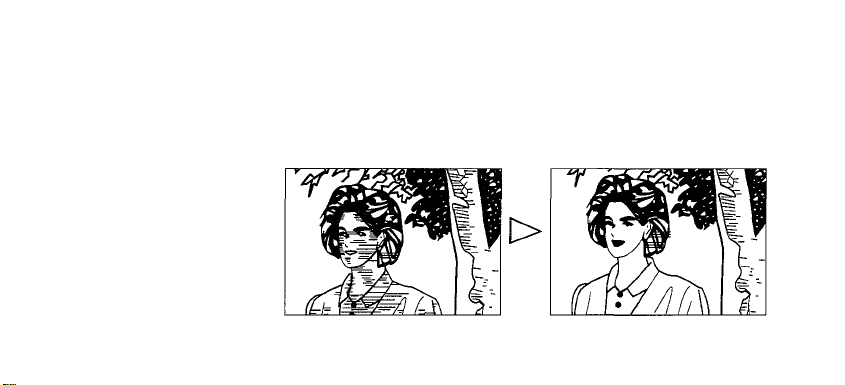

FILL-IN (Forced Activation)
When you want to fire the flash every shot.
In the FILL-IN Flash mode,
the flash fires regardless of
available light. This mode can
be used to brighten up a
subject's shaded face, for
example.
35
Page 36

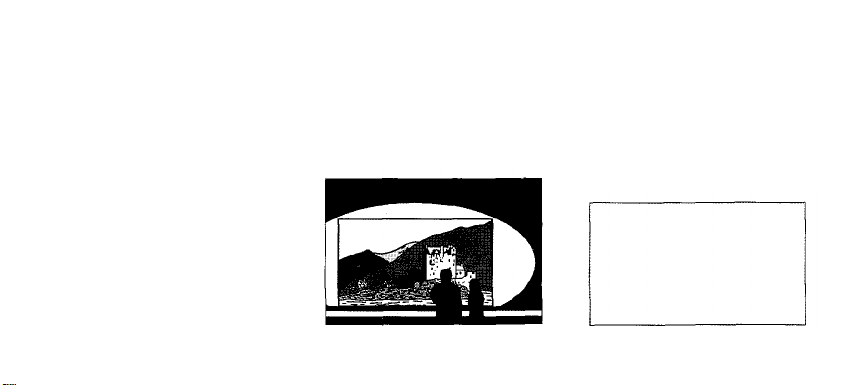

When you want both the subject in the
NIGHT SCENE
Use the Night-Scene Flash mode to properly light the subject in the foreground while leaving
foreground and the night-scene in the
background to be properly exposed.
the background naturally lit.
Note:
Since a slow shutter speed (down to 4 seconds) is automatically selected in low-light situations, the use of a tripod is
36
recommended to prevent blurred pictures caused by shaking the camera.
Page 37
Press the
/REMOTE button.
1.
on the LCD panel.
Make sure
on the LCD panel will
be displayed.
SELFTIMER
is displayed
2.
10
sec.
Selftimer
indicator lights.
The shutter will be released
12 seconds later.
To Put Yourself in the Picture
Aim at your subject,
and press the shutter
release button.
2
sec.
Blinks
Notes:
The focus and exposure will be
locked when the shutter
release button is depressed
halfway.
After the shutter is released,
the camera will return to the
Normal mode.
To cancel the selftimer after it
has been activated, press
/REMOTE button again.
37
Page 38
REMOTE CONTROL RC-100 (Optional)
38
Press the
/REMOTE button.
1.
on the LCD panel.
is displayed
After shooting, press the
/REMOTE button again to
cancel the selftimer/remote
control mode.
Aim the remote control
at the camera, and
press the button. The
2.
shutter will be released
after 3 seconds.
Page 39
Notes:
• Use the remote control within the range shown on the
left.
• In backlit situations, remote control shooting may
sometimes be impossible.
• The camera will focus on the subject directly in front of it.
• The remote control must be activated within 20 minutes
of pressing the button. After 20 minutes the
button must be re-set.
Read "Remote Control RC-100 Handling" on page 45.
39
Page 40
Press the /REMOTE
button and flash mode
button at the same time,
1.
Press the /REMOTE and flash mode
button at the same time or close the lens
barrier to cancel the spot mode.
40
is displayed on the
LCD panel.
SPOT MODE

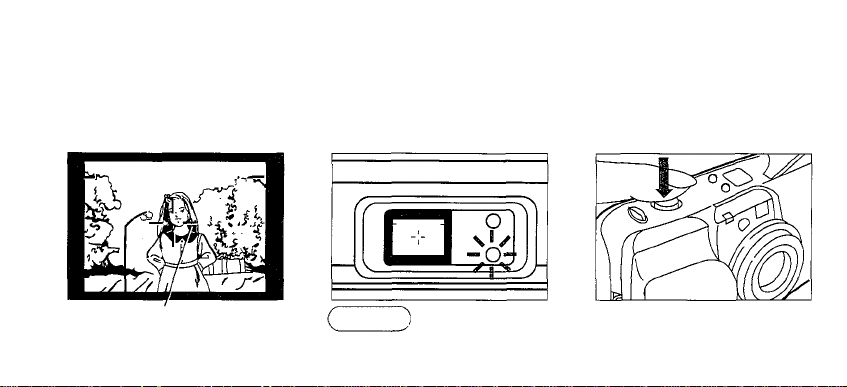

Position the autofocus
mark on your subject,
2.
and press the shutter
release button halfway.
To Focus and Set the Exposure
for the Main Subject or Selective Area
Make sure
The green lamp lights.
The focus and exposure will
be locked in the center of the
autofocus mark.
Page 41
Reposition your subject in the picture
frame while keeping the shutter release
3.
button depressed halfway. Then press
the shutter release button fully.
The use of the Spot mode is
recommended in the following
cases.
When there is an object in front
of the main subject.
When the subject is on the edge
of the frame.
When the background is brighter
than the subject (the subject is
backlit).
41
Page 42
CARING FOR YOUR WEATHERPROOF CAMERA
This camera is weatherproof, however it is not designed for
underwater use. Please use the camera correctly.
CAMERA MAINTENANCE
This camera will be
protected against
42
Splashing water...
and Rain
Do not wash the camera.
Page 43
Do not submerge the camera
or attempt to take pictures
underwater.
NOTES:
If the camera has been splashed by water, etc., clean the
camera with a dry cloth as soon as possible.
Do not touch the rubber gasket on the battery compartment
cover or the rubber gasket on the camera back with excessive
force. Do not remove the gaskets.
Gaskets should be replaced after approximately three years,
although they may require replacement earlier than that
depending on use and wear.
If the gaskets are damaged or need replacement, contact your
nearest Olympus service center.
Wipe any dust or sand off the rubber gasket of the back cover or the battery cover,
then close it. Leaving dust or sand or the gasket may allow water in.
43
Page 44
CARE AND STORAGE
CAUTIONS:
DO NOT EXPOSE THE CAMERA TO
EXTREME HEAT (OVER 40°C/104°F) OR
TO EXTREME COLD (BELOW -10°C/14°F).
DO NOT EXPOSE THE CAMERA TO THE COLD
WHEN IT'S WET, OR THE LENS COVER ETC. MAY
FREEZE, MAKING THE CAMERA INOPERABLE.
AVOID SUDDEN TEMPERATURE
CHANGES AND HUMIDITY.
DO NOT EXPOSE THE CAMERA TO
STRONG MAGNETIC FIELDS.
DO NOT APPLY EXCESSIVE FORCE TO
THE CAMERA OR ITS CONTROLS.
DO NOT TOUCH THE CONTACT POINTS
INSIDE THE CAMERA.
DO NOT USE ORGANIC SOLVENTS, THINNERS,
OR BENZINE TO CLEAN THE CAMERA.
44
AVOID STRONG IMPACT CAUSED BY
BUMPING OR DROPPING THE CAMERA.
DO NOT EXPOSE THE CAMERA TO
EXCESSIVE DUST AND SAND.
THE LENS BARREL IS FINISHED WITH A SPECIAL
COATING TO SMOOTH THE ZOOMING MOVEMENT.
NEVER WIPE IT WITH SOLVENTS LIKE THINNERS OR
BENZINE. WHEN IT IS HEAVILY STAINED, CLEAN IT
WITH A MOISTENED CLOTH AND THEN WIPE OFF
THE MOISTURE WITH A DRY CLOTH.
NEVER ATTEMPT TO DISASSEMBLE THE CAMERA;
IT CONTAINS A HIGH-VOLTAGE CIRCUIT.
In case of malfunction, consult your nearest
Olympus dealer or Olympus service center.
Page 45
REMOTE CONTROL
RC-100 HANDLING
NOTE:
• The remote control unit is
expendable. Order a new one
from your nearby camera store
or Olympus service center
when it no longer transmits
signals to the camera.
CAUTIONS:
• Keep the remote control out of
the reach of children. In case it
is swallowed, immediately
consult a physician.
• Keep the remote control away
from fire and extreme heat.
Never try to disassemble it.
BATTERY HANDLING
NOTES:
• Even when batteries are
brand-new, their service
life may be shorter than
specified if an extended
period of time has passed
since they were produced.
• Sweat and oil can prevent
a battery's terminals from
making electrical contact.
To avoid this, wipe both
terminals before loading
battery.
• If you don't intend to use
the camera for a long time,
remove the battery.
WARNINGS
NEVER TRY TO DISASSEMBLE,
RECHARGE, OR SHORT
CIRCUIT BATTERIES. NEVER
EXPOSE BATTERIES TO
EXCESSIVE HEAT.
KEEP THE BATTERIES OUT OF
THE REACH OF CHILDREN. IF
A CHILD SWALLOWS A
BATTERY, CONTACT A
DOCTOR IMMEDIATELY.
USE A3 V LITHIUM BATTERY
(CR123A OR DL123A). NEVER
TRY TO DISASSEMBLE OR
MODIFY ANY BATTERY OR
BATTERY PACK FOR USE IN
THIS CAMERA.
45
Page 46
QUESTIONS AND ANSWERS
Q: How long will the battery last?
A: If you use 24-exposure rolls of film and use
the flash on half of all your pictures, a new 3
V lithium battery (DL123A/CR123A) will last
for 12 or more rolls of film. If you do not use
the flash and zoom very often, the battery
will last much longer.
Q: How should I clean the lens?
A: Wipe the lens gently with a soft, clean cloth
that has been moistened with a small
amount of lens cleaning fluid.
Q: Can I use film that is not DX-coded?
A: Yes, but only ISO 100 film.
Q: When does the camera measure and set
the exposure?
A: When the shutter release button is
depressed halfway, the camera measures
46
both the exposure and focus and locks them
as long as the shutter release button
remains halfway depressed.
Q: Why did my camera make a loud noise and
retract the lens right after I replaced the
battery?
A: Because you replaced the battery while the
lens barrier was open. Be sure to close it
before replacing the battery.
Q: The flash gets hot.
A: If the flash is used continuously, it may
become hot. If this happens, stop using the
camera for a while.
Q: There's a click if I press the zoom lever after
rolling up the film.
A: It's just the sound of the gears changing,
and is quite normal.
Page 47
OPERATING PROBLEMS
Symptom
The camera does not
work.
The LCD goes off
suddenly and the lens
and flash retract.
TROUBLESHOOTING
Cause
The lens barrier is not opened.
The alignment of the battery
terminals is not correct.
The batteries are exhausted.
The batteries are temporarily unable
to function because of cold.
The loaded film has been rewound.
The film is incorrectly loaded.
If you don't use the camera, the LCD
goes off and the lens and flash retract
after twenty minutes.
The flash is retracted.
Open the lens barrier completely.
Reload the battery correctly.
Replace the battery with new one.
Keep the camera warm while using
it.
Load new film.
Reload the film.
Close the lens barrier and open it
again or operate the zoom lever to
turn the LCD back on. In addition, the
power is turned OFF automatically
after 4 hours. When the camera is not
in use, close the lens barrier as much
as possible.
Remedy
Page
20
14
15
29
19
47
Page 48
OPERATING PROBLEMS (cont.)
Symptom
The shutter doesn't
release when the remote
control's shutter release
button is pressed.
The green lamp blinks,
and the shutter will not
release.
The orange lamp blinks,
and the shutter will not
release.
The flash does not fire,
even in the dark.
48
Cause
The remote control hasn't been used
in the 20 minutes since the Selftimer/
Remote Control mode was entered,
causing the LCD panel to turn off.
The camera is closer than 0.6 m (2
ft.) to the subject.
The flash has not been recharged
yet.
The flash mode is set to OFF.
High sensitive film is in use.
Remedy
Press the zoom lever. The LCD will
light. Then press the /REMOTE
button again.
Move the camera farther than 0.6 m
(2 ft.) from the subject.
Remove your finger from the shutter release
button and waIt for several seconds until the
flash is recharged before shooting.
Set it to a mode other than OFF.
Set the flash mode to FILL-IN.
Page
24
32
30/31
30/31
Page 49
PROBLEMS WITH THE PRINTED PICTURES
Symptom
The picture is out of
focus.
The picture is too dark.
The color of a picture
taken indoors is abnormal.
The camera moved when the shutter
release button was pressed.
The subject was not within the
viewfinder's autofocus mark.
The lens and autofocus windows were dirty.
The autofocus window was blocked,
such as by a finger.
The subject was closer than the minimum
working distance to the lens (0.6 m/2 ft.).
While using the self-timer, the shutter
release button was pressed while
standing right in front of the camera.
The flash was blocked, such as by a finger.
The subject was out of the working
range of the flash.
The flash mode was set to OFF.
The subject was backlit.
The color of the room lighting
affected the picture.
Cause
Remedy
Hold the camera correctly and press
the shutter release button gently.
Position the subject in the center of the
autofocus mark, or use the focus lock.
Clean the lens and autofocus windows.
Hold the camera correctly, keeping your
fingers clear of the autofocus windows.
Shoot from more than 0.6 m (2 ft.)
away from the subject.
Do not stand in front of the camera.
Press the shutter release button
while looking through the viewfinder.
Hold the camera correctly, keeping
your fingers clear of the flash.
Shoot within the flash working range.
Check the flash mode before shooting.
Set the flash mode to FILL-IN.
Set the flash to FILL-IN mode.
Page
16
22/25
16
24
37
16
32
30/31
30/31
30/31
49
Page 50
SPECIFICATIONS
Type: Full automatic 35 mm autofocus lens-shutter camera with built-in 35—70 mm zoom lens.
Film format: 35 mm standard DX-coded film (24 x 36 mm)
Lens: Olympus lens 35—70 mm F4.5—6.9, 6 elements in 5 groups.
Shutter: Programmed electronic shutter.
Viewfinder: Real image zoom viewfinder (with autofocus mark, close-up correction marks, autofocus indicator and
flash indicator).
Focusing: Active-type autofocus system. Focus lock possible. Focusing range: 0.6 m (2 ft.)— (infinity).
Exposure control: Programmed automatic exposure control, 2-zone light metering, switchable to spot metering. Auto
exposure range: Wide-angle—EV2.3 (F4.5, 4 sec.) to EV16 (F11, 1/500 sec.), Telephoto—EV3.6 (F6.9, 4 sec.) to
EV17.2(F17, 1/500 sec.).
Exposure counter: Progressive type with automatic reset, displayed on LCD panel.
Selftimer: Electronic selftimer 12-sec. delay.
Remote control (optional): Infrared remote control unit with 3-sec. delay.
Film speed range: Automatic setting with DX-coded film with ISO 50, 100, 200, 400, 800, 1600, 3200.
For film with less than ISO 50, film speed is set to ISO 100.
Film loading: Automatic loading. (Automatically advances to first frame when camera back is closed).
Film advance: Automatic film winding.
50
Page 51
Film rewind: Automatic film rewind (automatic rewind activation at end of film, automatic rewind stop). Rewind
possible at any point with rewind button.
Flash: Built-in flash. Recycling time: Approx. 0.5—4.5 sec. (at normal temperature with new battery). Flash working
range: Wide-angle— 0.6—4.2 m (2—13.8 ft.), Telephoto—0.6—2.8 m (2—9.2 ft.) with ISO 100 color negative film
Wide-angle — 0.6—8.4 m (2—27.6 ft.). Telephoto— 0.6—5.6 m (2—18.4 ft.) with ISO 400 color negative film.
Flash modes: AUTO (Automatic flash activation in low-light and backlight). AUTO-S (Red-eye reducing, in low-light
and backlight). OFF (No flash). FILL-IN (Forced activation), (for night scene with slowest shutter speed of 4
sec. Other functions operate as the same as in Auto mode.)
Battery check: Displayed on LCD panel.
Weatherproof: IEC Standard publication 529.
Classification of degrees of protection provided by enclosures. Degrees of protection indicated by the second
characteristic numeral 4 • Short description: Protected against splashing water • Definition: Water splashed
against the enclosure from any direction shall have no harmful effect • Test for second numeral 4: The equipment
is sprayed from all practical directions.
The water pressure is adjusted to give a delivery rate of 10 lit./min. The test duration shall be 1 min. per m2 of
calculated surface area of the enclosure with a minimum duration of 5 min.
Power source: 3 V lithium battery (CR123A/DL123A)
Dimensions: 124 (W) x 64.5 (H) x 45 (D) mm (4.9 x 2.5 x 1.8 in) (without protrusions).
Weight: 220 g (7.8 oz) (without battery).
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE OR OBLIGATION ON THE PART OF THE
MANUFACTURER.
:
51
Page 52
San-Ei Building, 22-2, Nishi Shinjuku 1-chome, Shinjuku-ku, Tokyo, Japan. Tel. 03-3340-2211
Two Corporate Center Drive, Melville, NY 11747-3157, USA Tel. 516-844-5000
(Premises/Goods delivery) Wendenstrasse 14-16, 20097 Hamburg, Germany. Tel. 040-237730
2-8 Honduras Street, London EC1Y 0TX, United Kingdom. Tel. 0171-253-2772
OLYMPUS OPTICAL CO., LTD.
OLYMPUS AMERICA INC.
OLYMPUS OPTICALCO. (EUROPA) GMBH.
(Letters) Postfach 10 49 08, 20034 Hamburg, Germany.
OLYMPUS OPTICAL CO. (U.K.) LTD.
PRINTED IN HONG KONG
Loading...
