olympus Stulus720SW User Manual

DIGITAL CAMERA

/

ENGLISH 2

Basic

Manual

FRANÇAIS 28

ESPAÑOL 54

Table of Contents

CAMERA DIAGRAM ...............................................................................3

IMPORTANT INFORMATION ABOUT WATER AND SHOCK RESISTANT FEATURES

BEFORE YOU BEGIN...............................................................................6

GETTING STARTED.................................................................................7

Step 1 Get Started .................................................................................... 7

Step 2 Take a Picture................................................................................. 8

Step 3 Review or Erase a Picture................................................................ 9

Step 4 Transfer Images............................................................................ 10

En

BASIC OPERATION ...............................................................................12

Holding the Camera................................................................................ 12

Shooting and Playback Mode Buttons ..................................................... 12

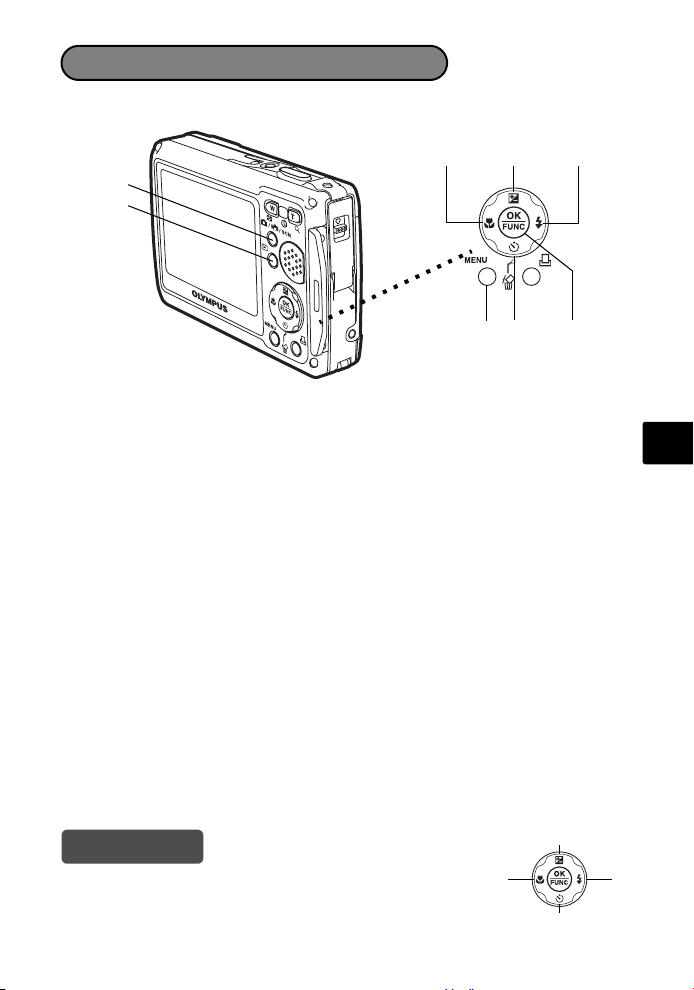

Shooting Mode Buttons .......................................................................... 13

s Modes (Scene)............................................................................... 14

Macro Mode........................................................................................... 14

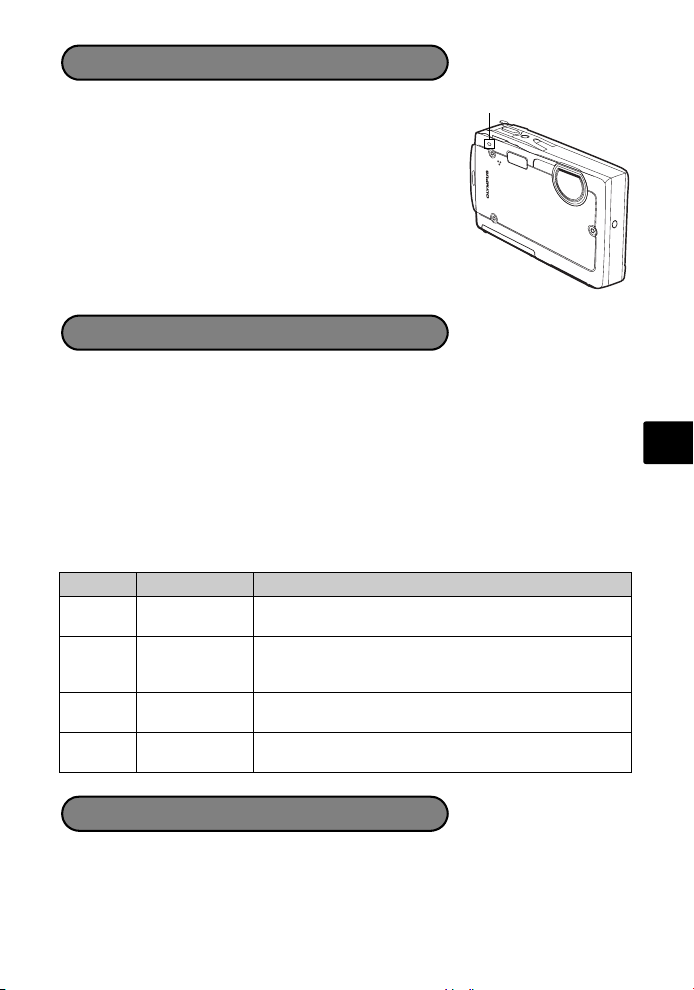

Self-Timer ............................................................................................... 15

Flash Modes............................................................................................ 15

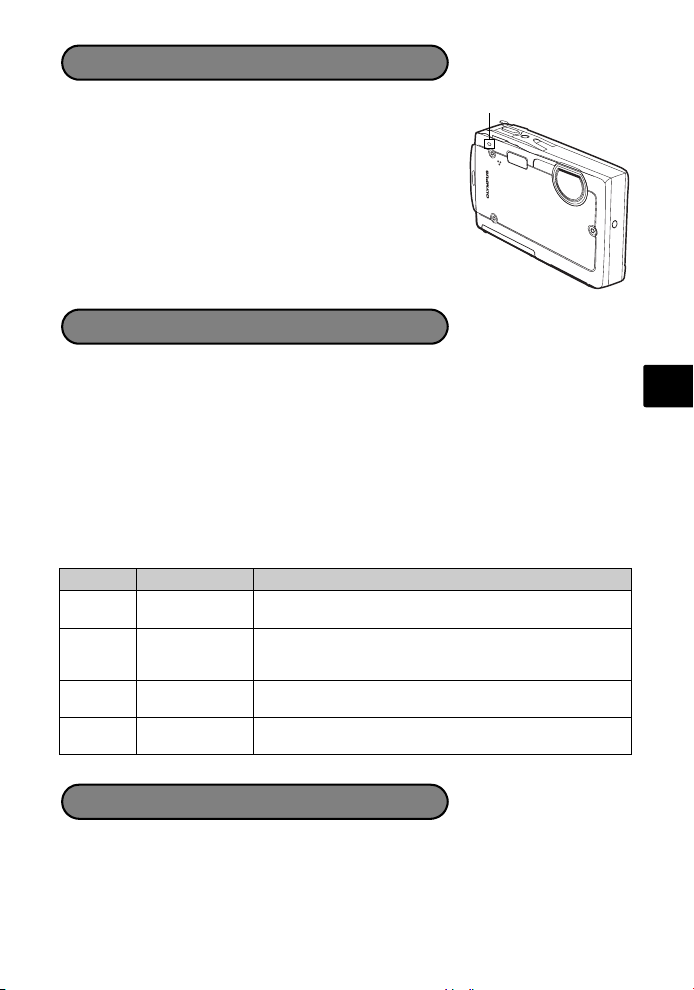

Power Save Feature................................................................................. 15

MENUS AND SETTINGS .......................................................................16

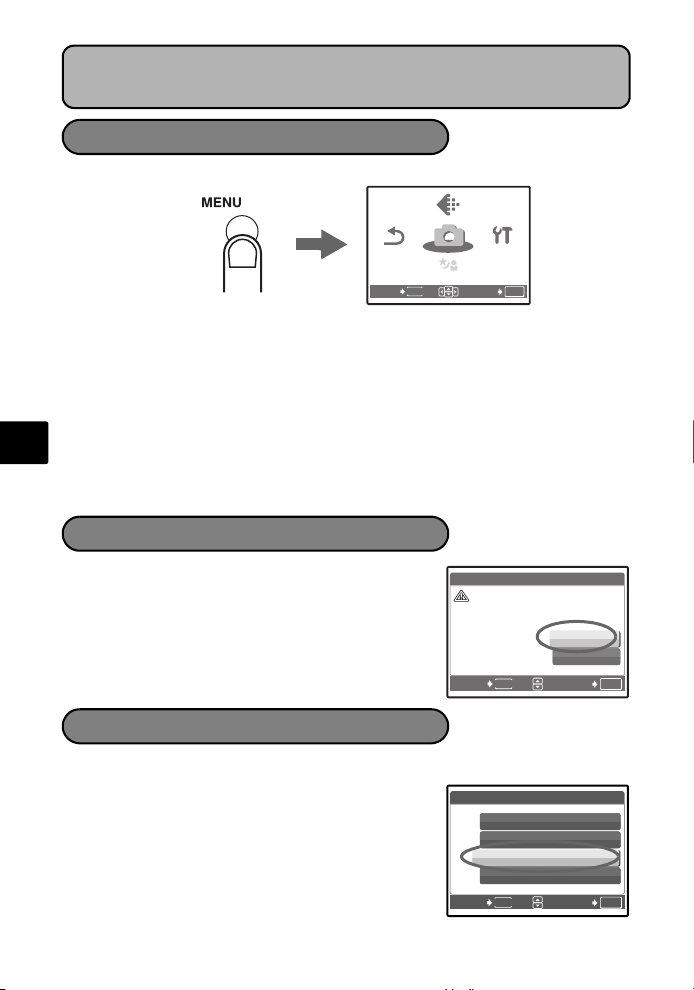

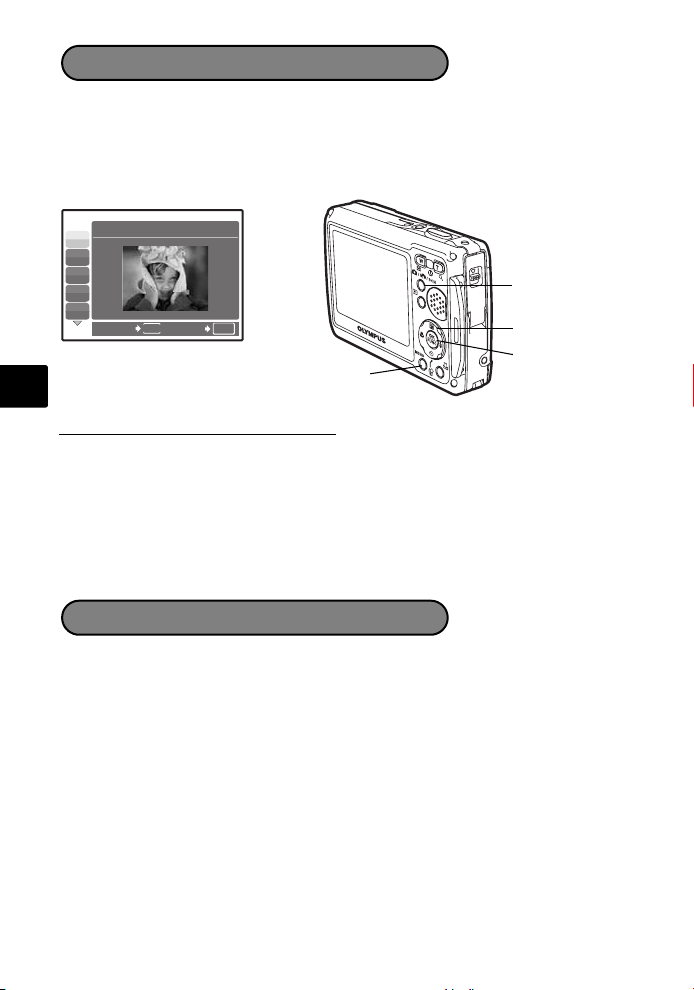

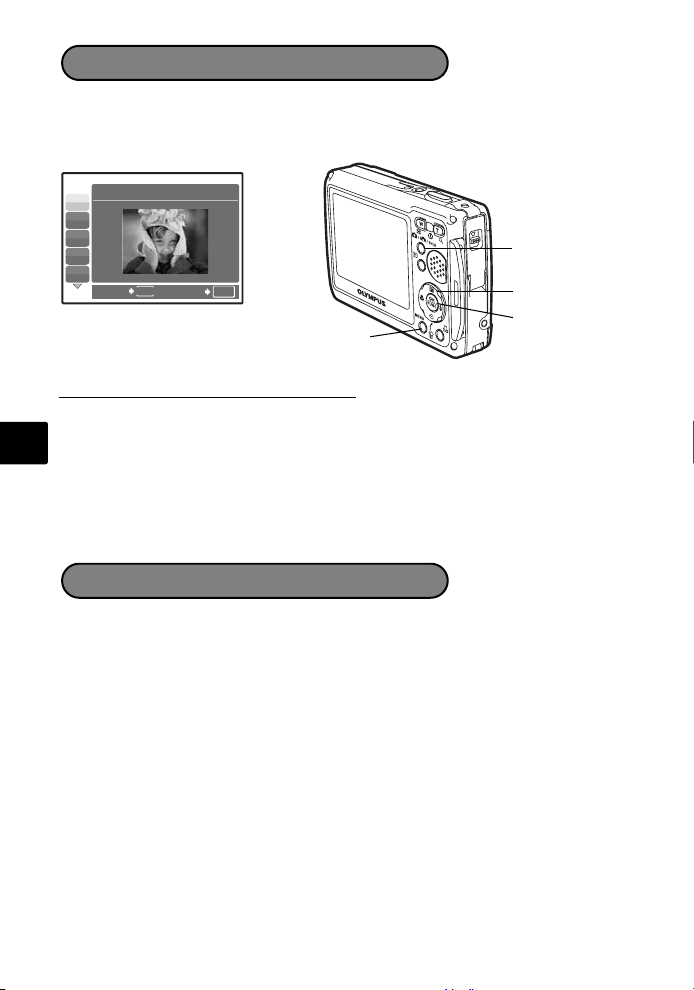

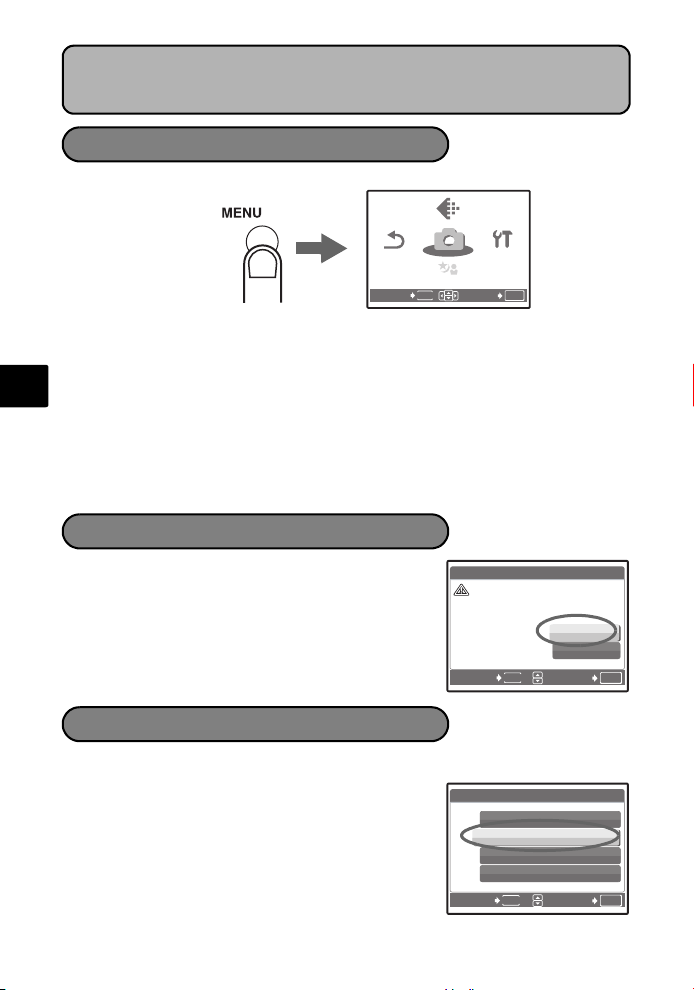

Top Menu............................................................................................... 16

Erase All Pictures..................................................................................... 16

Select a Language................................................................................... 16

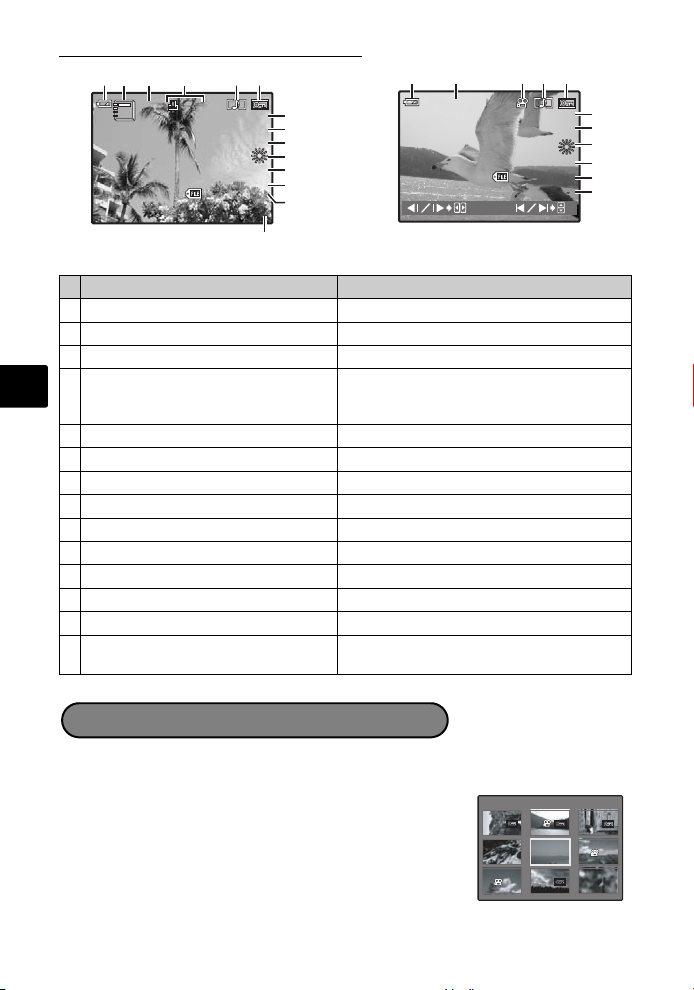

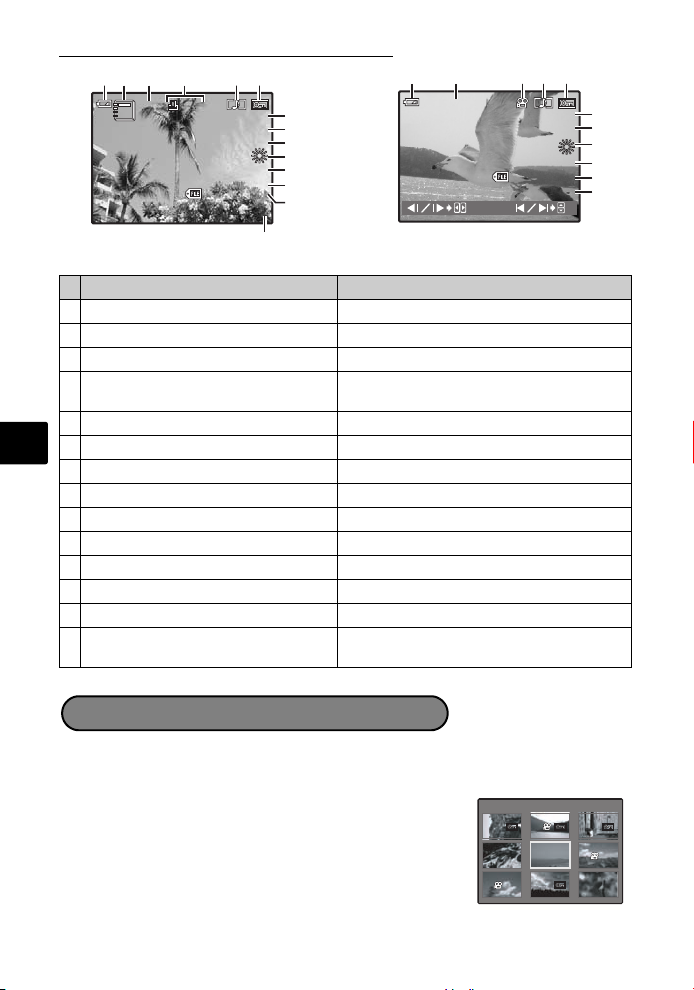

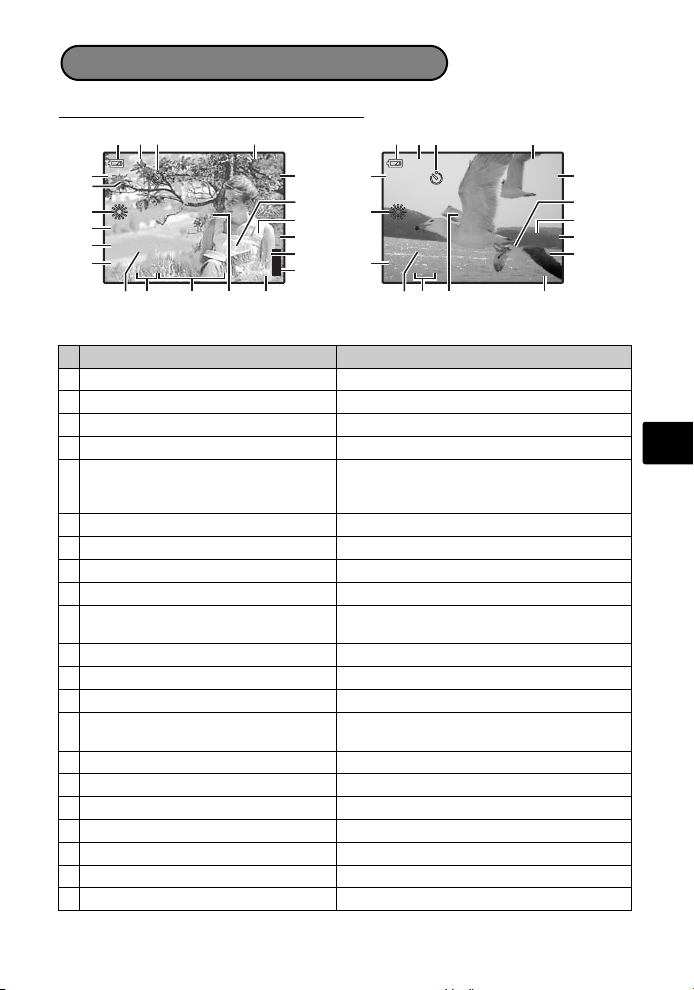

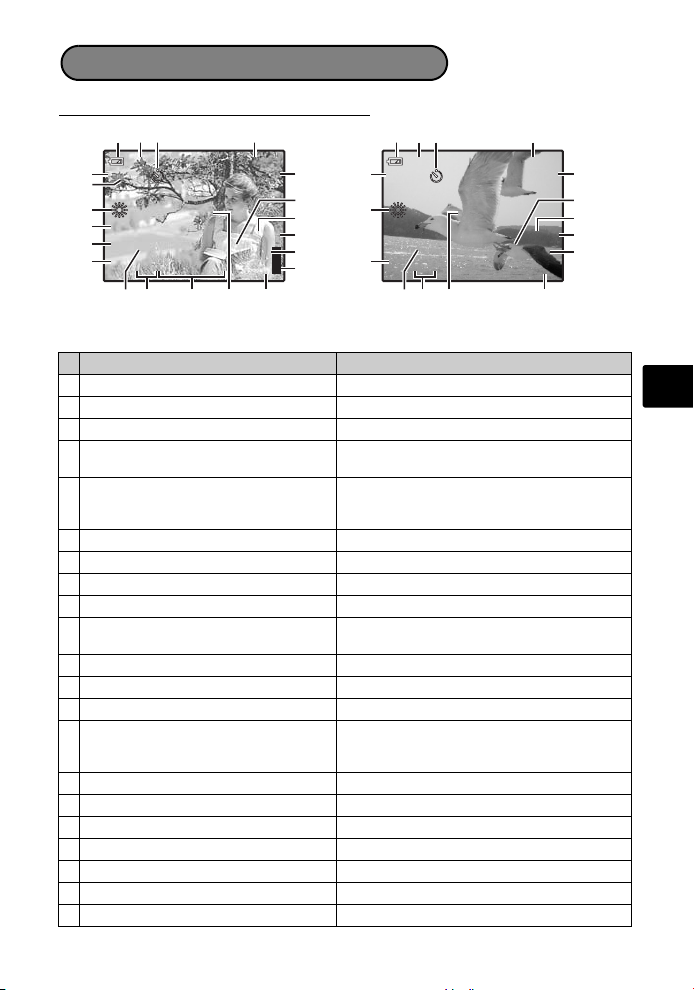

Monitor Symbols & Icons......................................................................... 17

Thumbnail (Index) Display........................................................................ 18

CONNECTING THE CAMERA................................................................19

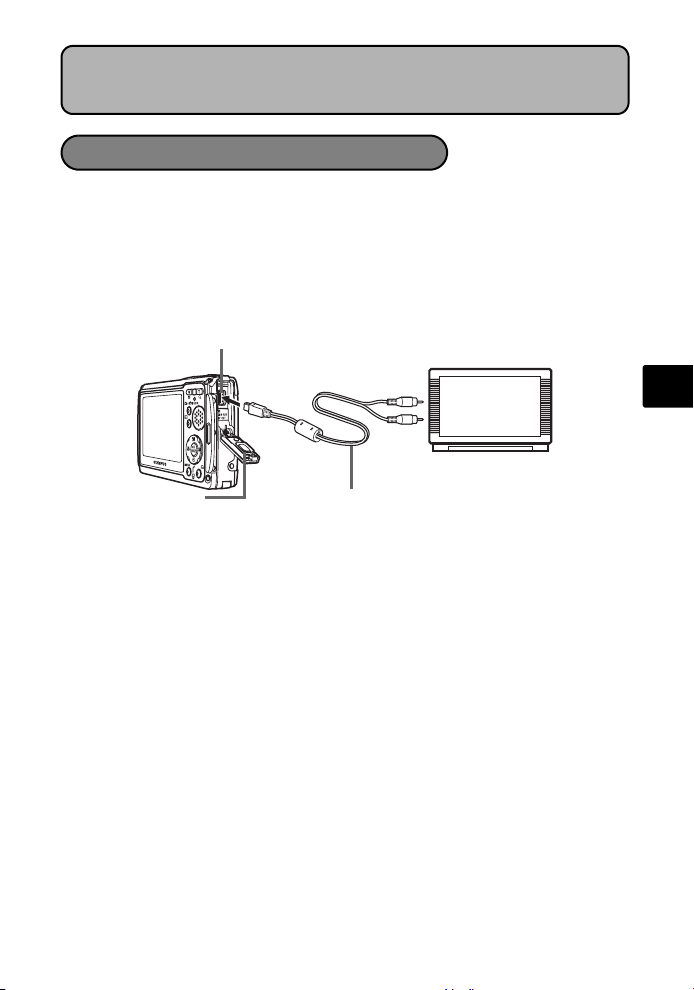

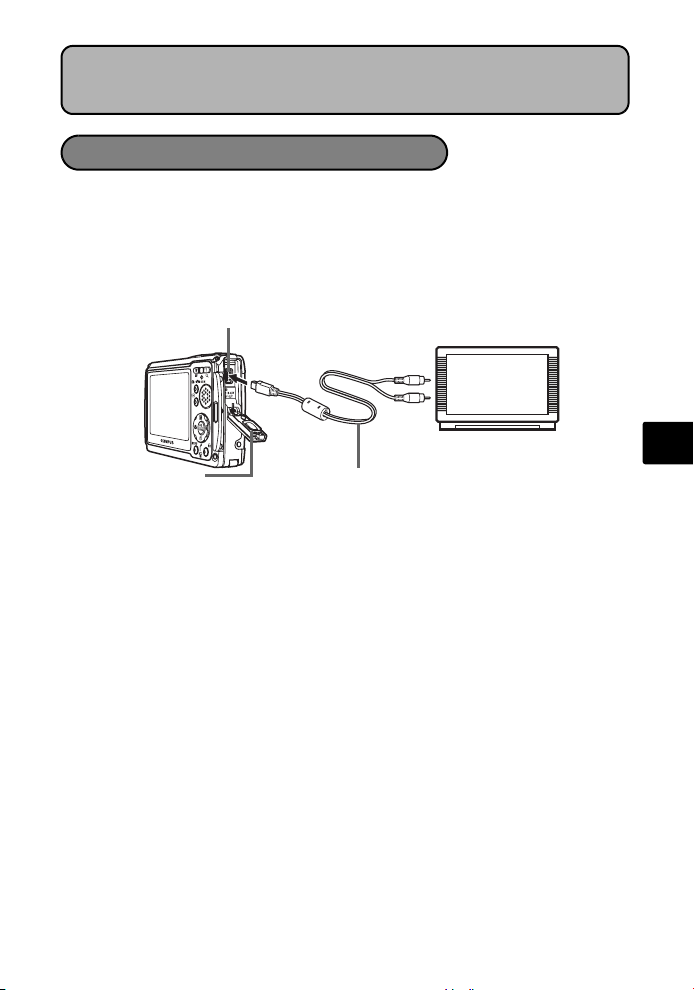

Playback on a TV..................................................................................... 19

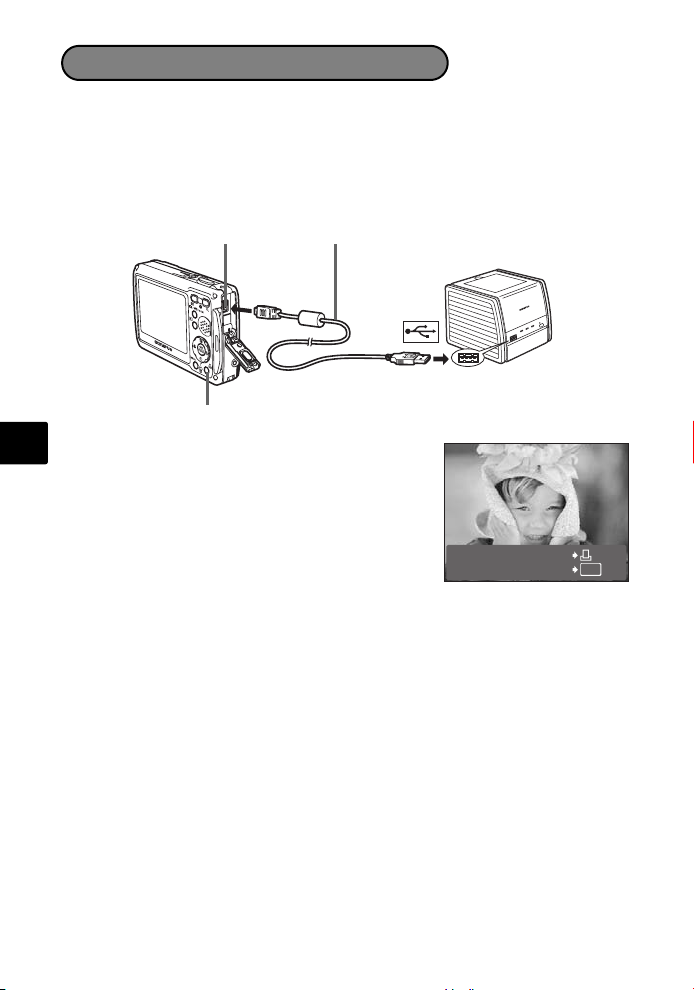

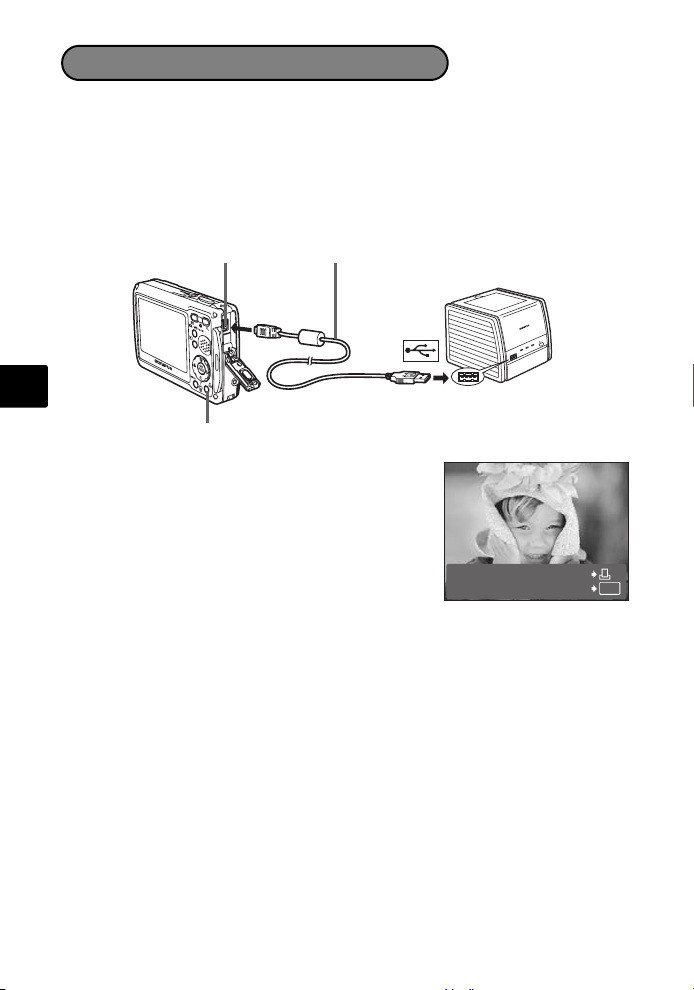

Direct Printing (PictBridge)....................................................................... 20

OLYMPUS Master SOFTWARE ............................................................21

SPECIFICATIONS...................................................................................22

SAFETY PRECAUTIONS ........................................................................24

....4

Before using your camera, read this manual carefully to ensure correct use.
We recommend that you take test shots to get accustomed to your camera before

taking important photographs.

Please observe the safety precautions at the end of this manual.
The screen and camera illustrations shown in this manual were produced during

the development stages and may differ from the actual product.

2

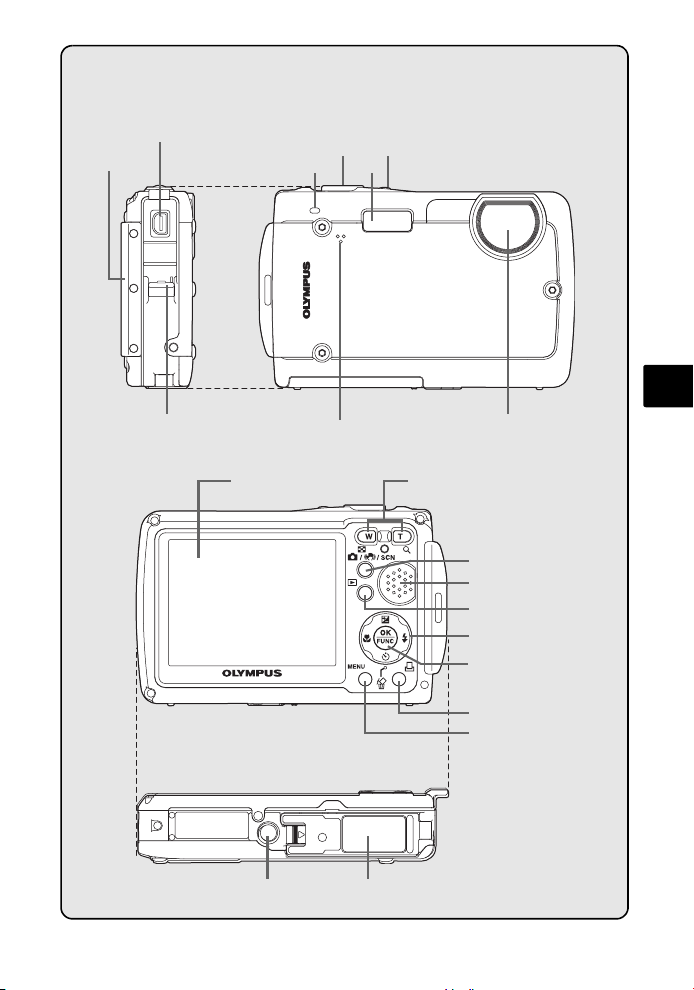

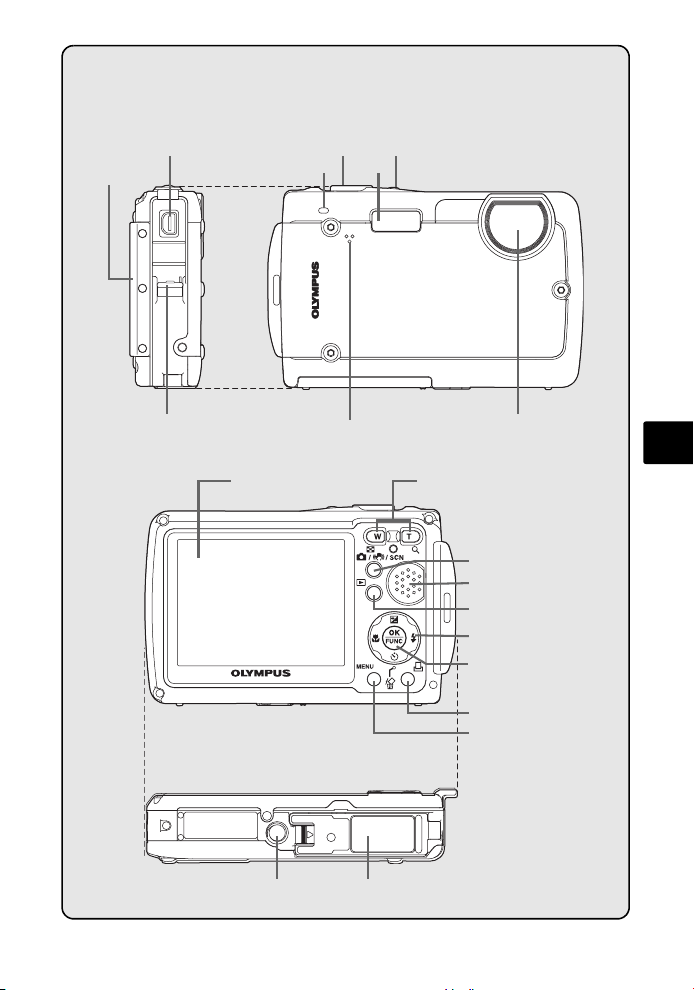

CAMERA DIAGRAM

Strap Eyelet

Connector Cover

Multi-Connector

Shutter Button o Button

Self-Timer Lamp

Microphone

Monitor

Flash

En

Lens

Zoom Button

K/h/s Button

Speaker

q Button

Arrow Pad (1243)

o Button (OK/FUNC)

< Button (Print)
m Button (MENU)

Battery Compartment/Card CoverTripod Socket

3

IMPORTANT INFORMATION ABOUT WATER AND SHOCK RESISTANT FEATURES

Water resistance: The waterproof feature is warranted*1 to operate at depths up to

3m (10 feet) for up to one hour. The waterproof feature may be compromised if the
camera is subject to substantial or excessive impact.

Shock resistance: The anti-shock feature warrants
against accidental impact incurred from everyday use of your digital compact camera.
The anti-shock feature does not unconditionally warrant all defective operation or
cosmetic damage. Cosmetic damage, such as scratches and dents, are not covered
under the warranty.

As with any electronic device, proper care and maintenance are required to preserve
the integrity and operation of your camera. To maintain camera performance, please

En

take your camera to the nearest Olympus Authorized Service Center to have it
inspected after any major impact. In the event the camera is damaged as a result of
negligence or misuse, the warranty will not cover costs associated with the service or
repair of your camera. For additional information on our warranty, please visit to the
Olympus website for your local area.

Please observe the following care instructions for your camera.

Before Use:

• Check the camera for foreign material including dirt, dust or sand.

• Be sure the battery compartment/card cover lock and connector cover lock are

firmly closed.

• Do not open the battery compartment/card cover and connector cover with wet
hands, while under water, or in a damp or dusty environment (e.g. beach).

After Use:

• Be sure to wipe off any excess water or debris after using the camera under water.

• After the camera is used under sea water, immerse the camera in a bucket

containing fresh water for about 10 minutes (with the battery compartment/card
cover and connector cover firmly closed). After that, dry the camera in a shade with
good ventilation.

• Water drops may be observed on the inner surface of the battery compartment/
card cover or connector cover after you open each cover. If any water drops are
found, be sure to wipe them off before using the camera.

*2

the operation of the camera

Storage and Maintenance

• Do not leave the camera in an environment at high temperature (40°C or more) or
at low temperature (0°C or less). Failure to do so may break down water resistance.

• Do not use chemicals for cleaning, rust prevention, anti-fogging, repairing, etc.
Failure to do so may break down water resistance.

• Do not leave the camera in water for a long time. Failure to do so will cause
damage to the camera’s appearance and/or deteriorate water resistance.
In addition do not pour water over the camera directly from the water faucet.

4

• In order to preserve the water resistant feature, as with any underwater
housing, it is recommended that the waterproof packing (and seals) are
replaced annually.
For the Olympus distributors or service stations where the waterproof
packing can be replaced, see the supplied “Olympus Distributors’ List” or
visit Olympus website for your local area.

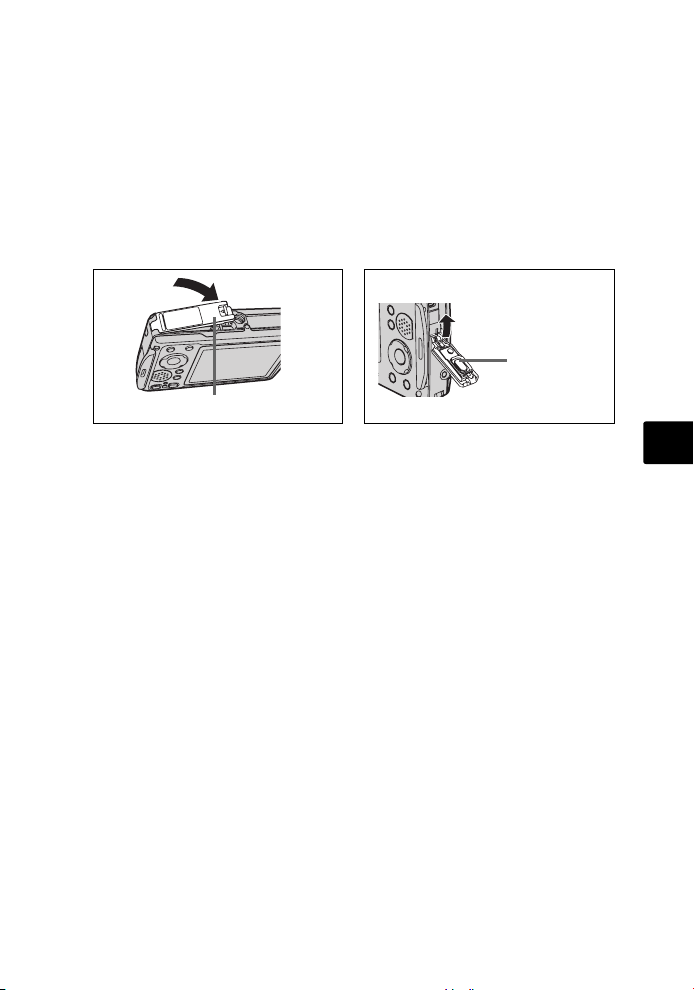

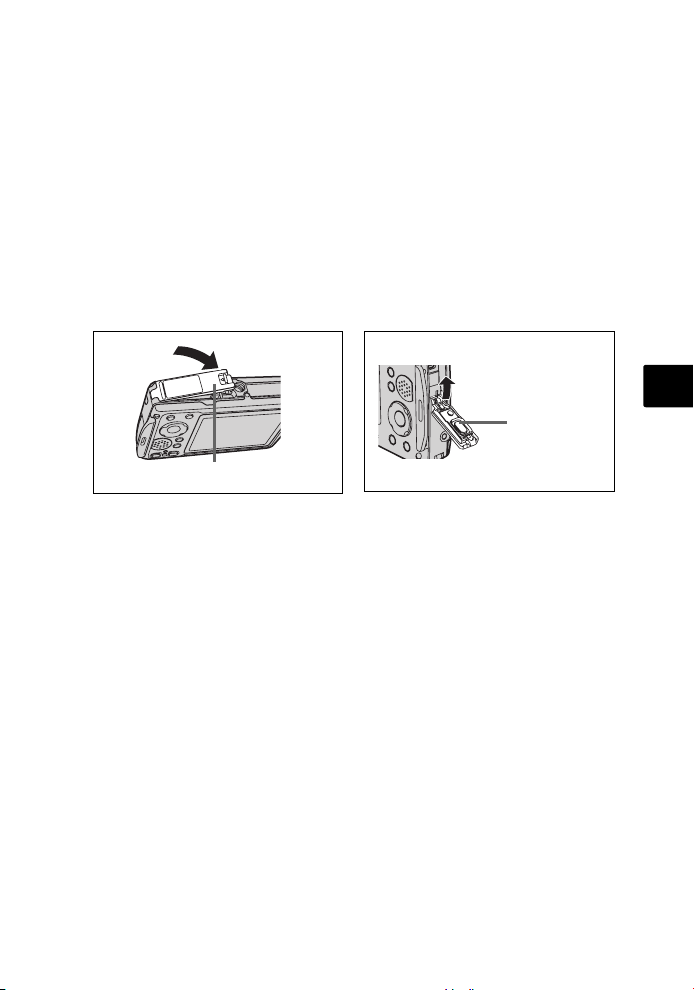

Closing Battery Compartment /Card cover and Connector cover

Connector cover

Battery Compartment/Card Cover

Note: The included accessories (e.g. charger) do not offer shock or water resistance.

*1

as determined by Olympus pressure testing equipment in accordance to IEC
Standard Publication 529 IPX8 - This means that the camera can normally be used
under water at a specified water pressure.

*2

This anti-shock performance is confirmed by Olympus’ testing conditions in
accordance with MIL-STD-810F, Method 516.5, Procedure IV (Transit Drop Test).
For more details of Olympus’ testing conditions, please refer to the Olympus
website for your local area.

En

5

En

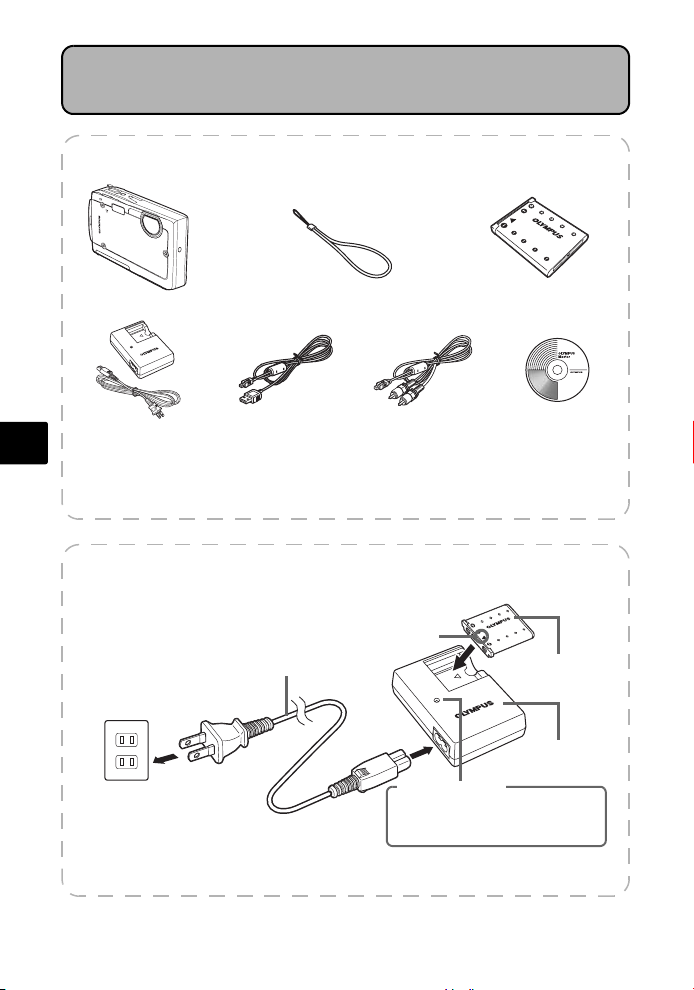

BEFORE YOU BEGIN

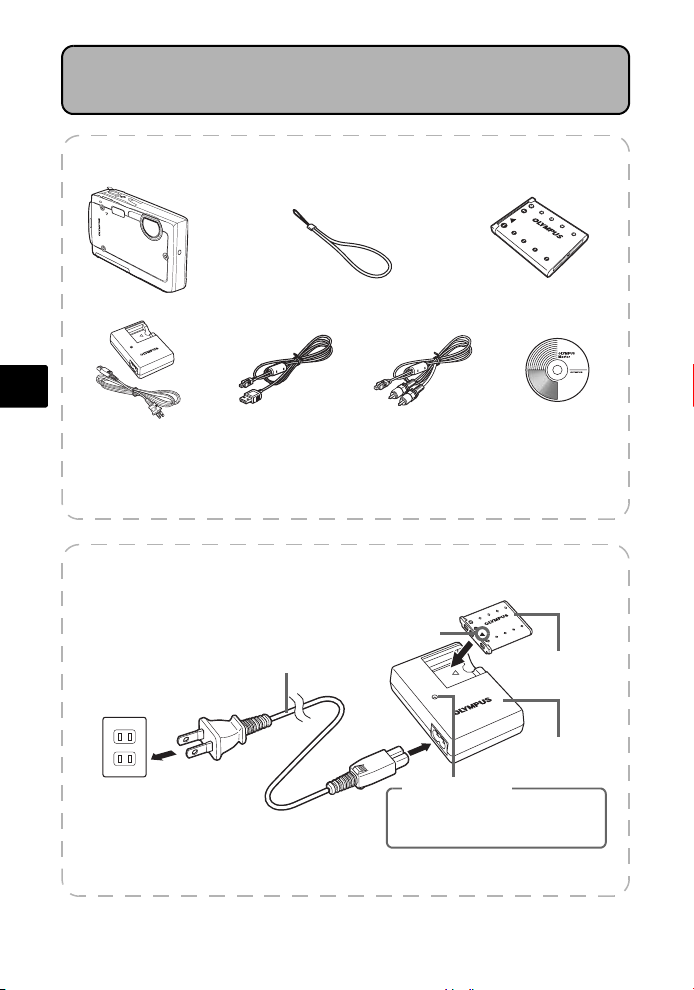

Gather these items (box contents)

Digital Camera Strap LI-42B Lithium Ion Battery

LI-40C Battery Charger USB Cable AV Cable

OLYMPUS Master
Software CD-ROM

Items not shown: Advanced Manual (CD-ROM), Basic Manual (this manual),
warranty card. Contents may vary depending on purchase location.

Charge the battery (recommended*)

3



LI-42B Lithium Ion
Battery

LI-40C Battery
Charger

AC Wall Outlet

6

Power Cable

2

*Battery comes partially charged.

1

Charging Indicator
Red light on: Charging

Light off: Charging complete
(Charging time: Approx. 300 minutes)

GETTING STARTED

ijııķġįġıIJġįġıIJ

ııġĻġıı

SETU P

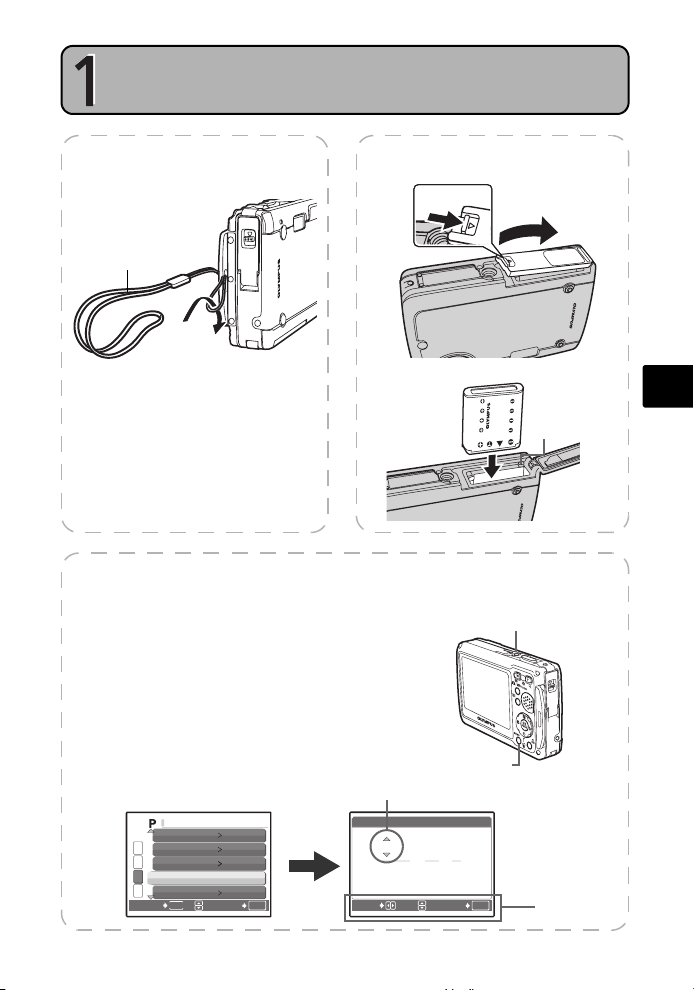

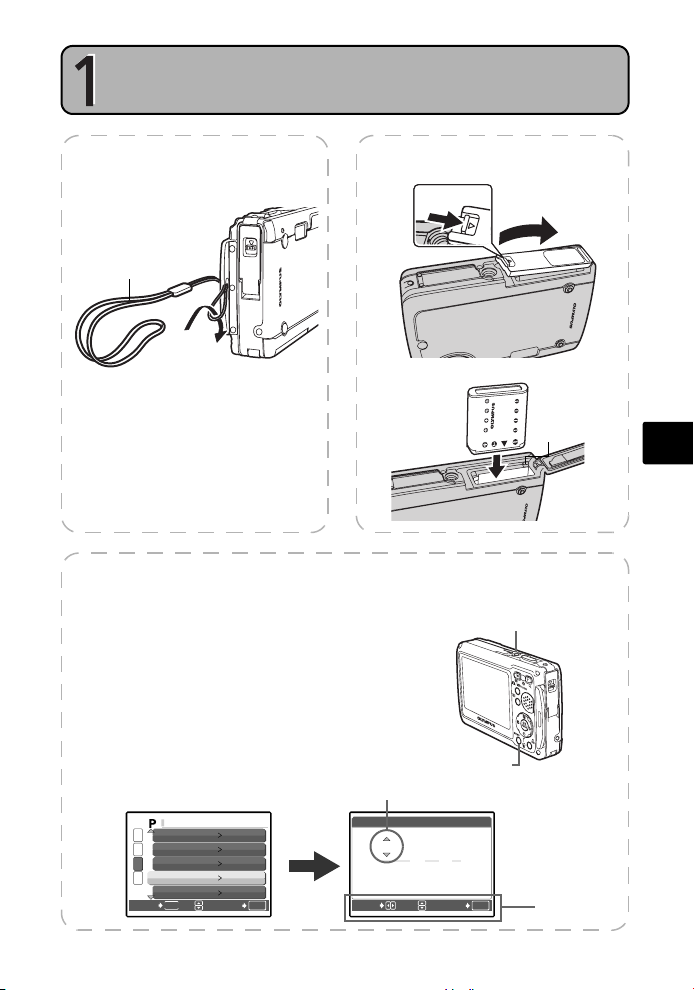

Step 1Get Sta rted

GET STARTED

a. Attach the strap b. Insert the battery

1 Slide

2 Lift

Strap

1

Pull the strap tight so that it does

not come loose.

c. Set the date and time

1 Press o button to turn the camera on.
2 Press m button to display the top menu,

and select [SETUP] > [X].

3 Press 12 to set an item. Press 43 to select

the next field.

IJ

FILE NAME RESET

ij

Ĵ

ĵ

BACK

PIXEL MAPPING

s

X

DUALTIME

MENU

Ƚ

ȆȆȆȆŽȆȆȆȆ

ĨıķįıIJįıIJ

OFF

SET

ȼ

ııĻıı

OK

Date format

X

3 Insert

x

m Button

ijııķġįġıIJġįġıIJ

Y Y ȁM ȁD

ııġĻġıı

ŜŊŏŞ

OK

SETMOVE

Battery
lock knob

o Button

Operation
guide

En

7

TAKE A PICTURE

Ĵıĸij

ijĴıĵ

IN

Ĵıĸij

ijĴıĵ

IN

Ĵıĸij

ijĴıĵ

IN

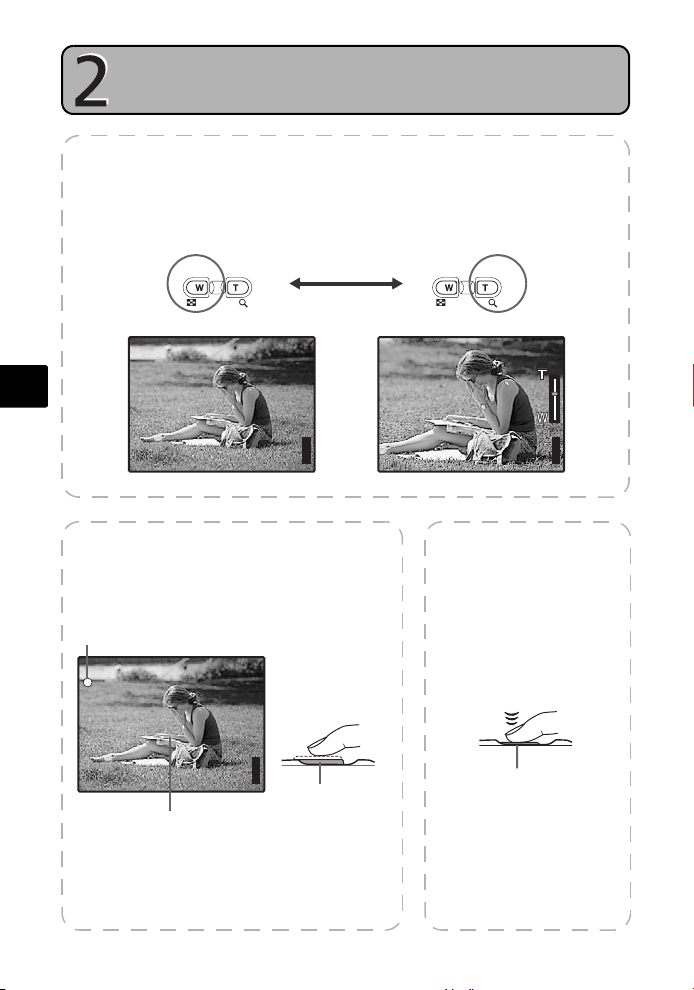

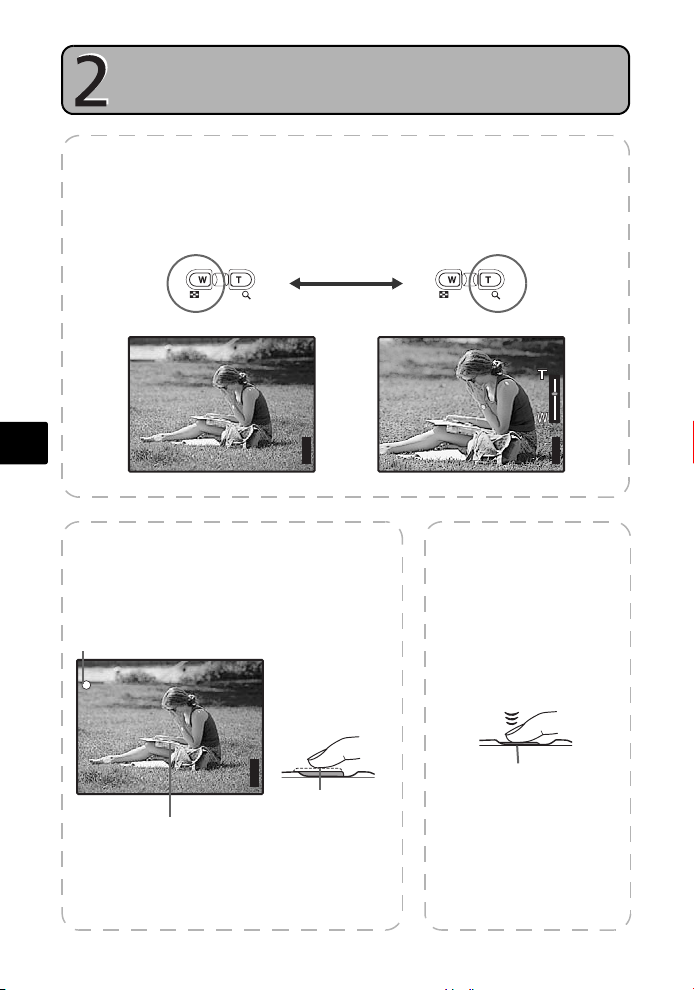

a. Zoom

Zoom Out: Zoom In:

Step 2Take a Pi cture

En

P

[ ]

ʼnŒʼnŒĴıĸij

ȿijĴıĵ

b. Focus

1 Using the monitor, place the AF target

mark over your subject.

Green Lamp

P

[ ]

[

]

ʼnŒʼnŒĴıĸij

ȿijĴıĵ

AF Target Mark

2 Press and hold the shutter button halfway

to lock the focus.

The green lamp indicates the focus is locked.

IN

44

[

]

IN

44

(Pressed Halfway)

Shutter Button

P

[ ]

[

]

ʼnŒʼnŒĴıĸij

ȿijĴıĵ

IN

44

c. Take the picture

1 Press the shutter

button completely to
take the picture.

(Pressed Completely)

Shutter Button

Pictures are recorded in the

internal memory.

Pictures can also be

recorded to an optional xD­Picture Card (It is called just
“card” in the attached
instruction manual.)

8

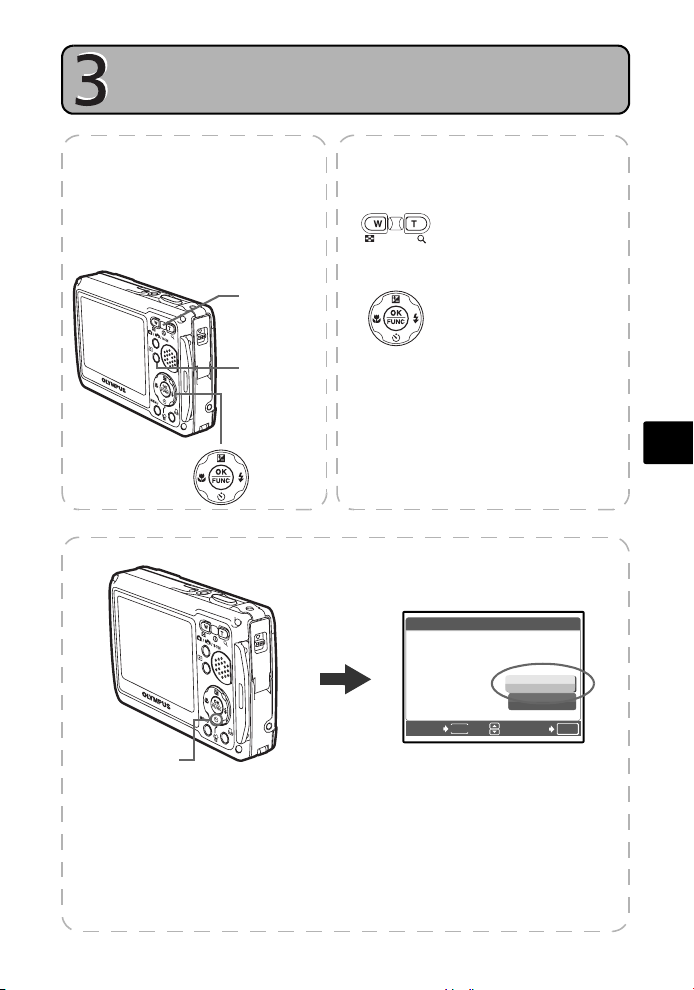

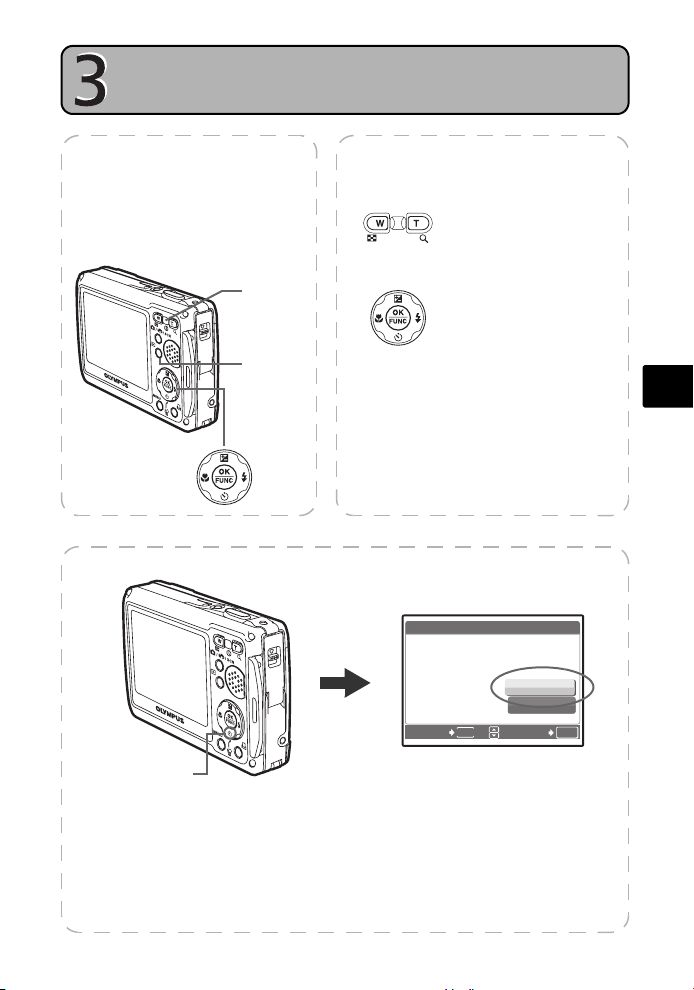

Step 3Review o r Erase a Picture

REVIEW OR ERASE A PICTURE

a. Select the playback

mode

1 Press the q button.

The last picture taken will be

displayed.

Zoom Button

q Button

Prev. Picture Next Picture

c. To erase a picture

b. Take a closer look

Press T or W to zoom in

or out.

Press o to return to

the original size.

Press 12 or 43 to

scroll around.

Press the K/h/s button to
return to the shooting mode.

S ERASE ŜŊŏŞ

YES

NO

BACK

MENU

SET

OK

En

2Y/S Button

1 Display the picture you want to

erase.

Select the single-frame playback.

A single image cannot be erased
while the close-up playback/index
playback is operated.

2 Press the 2Y/S button.
3 Select [YES], and press o.

The picture is permanently erased.

9

En

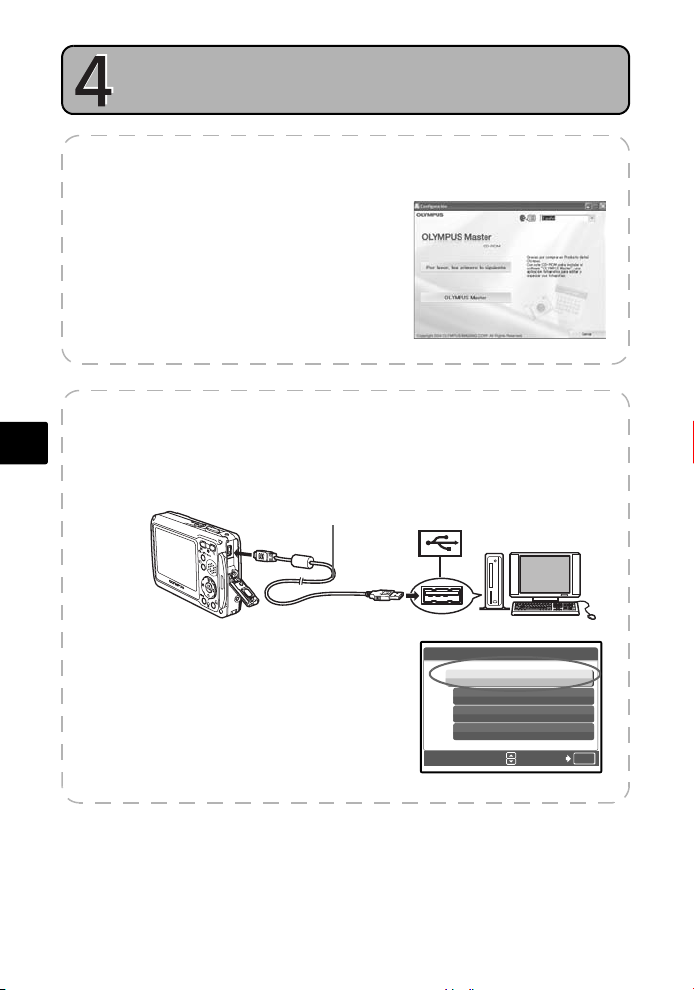

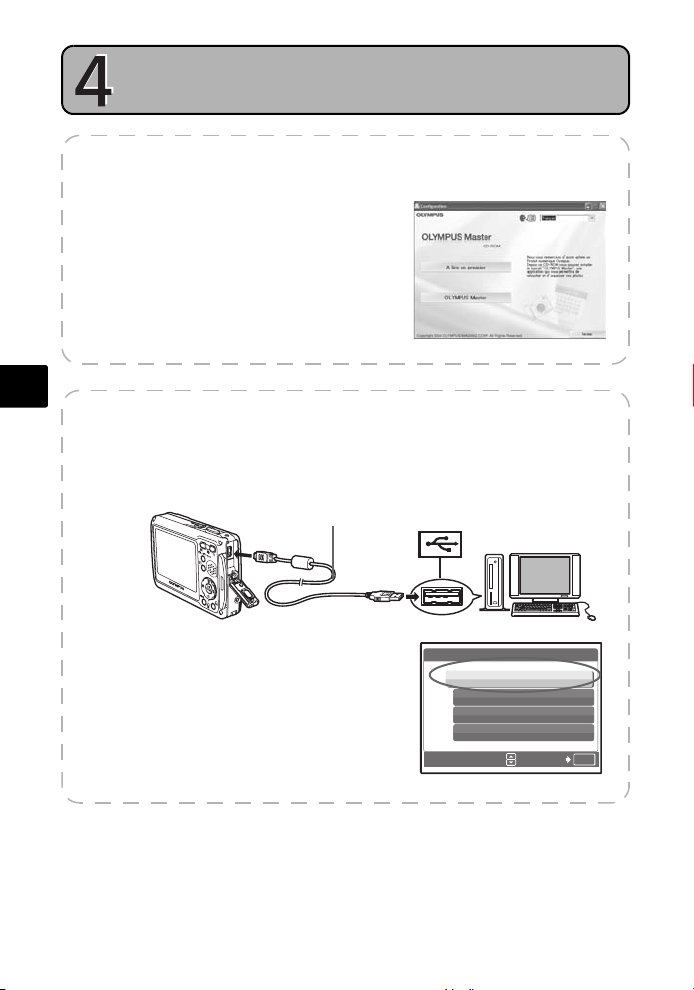

Step 4Transfer Im ages

TRANSFER IMAGES

a. Install the software

1 Insert the OLYMPUS Master CD-ROM.
2 Windows: Click the “OLYMPUS

Master“ button.

Macintosh: Double-click the

“Installer“ icon.

3 Simply follow the on-screen

instructions.

b. Connect the camera to the computer

1 Connect the camera and computer using the USB cable (included).

The monitor will turn on automatically.

USB cable

2

1

2 Select [PC] on the monitor, and press o.

Your PC will now recognize your camera as a

removable storage drive.

10

USB

PC

EASY PRINT
CUSTOM PRINT
EXIT

SET

ŜŊŏŞ

OK

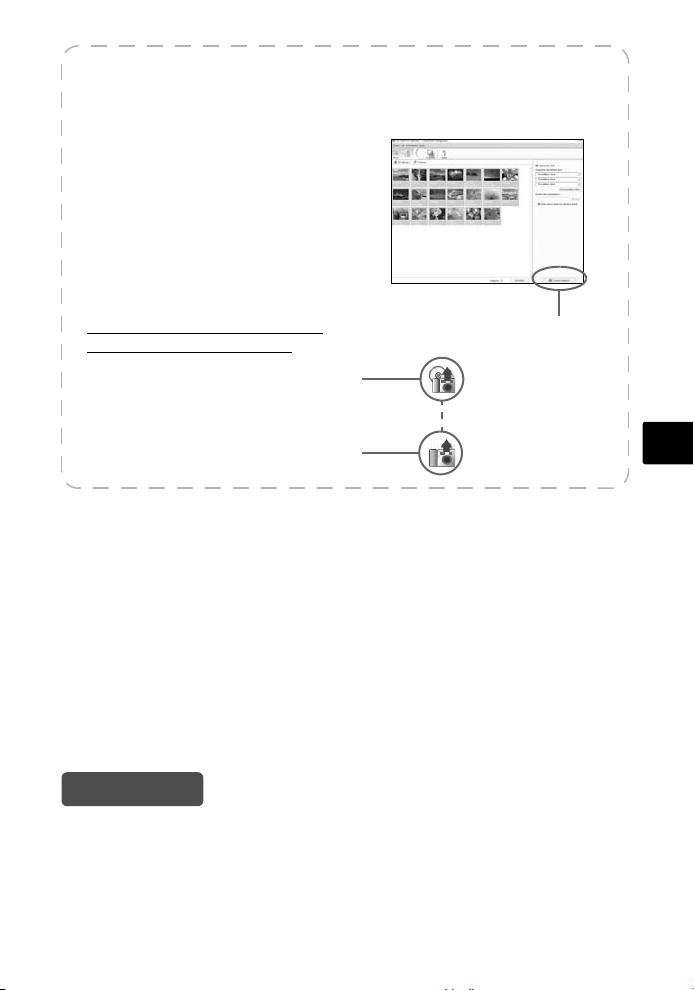

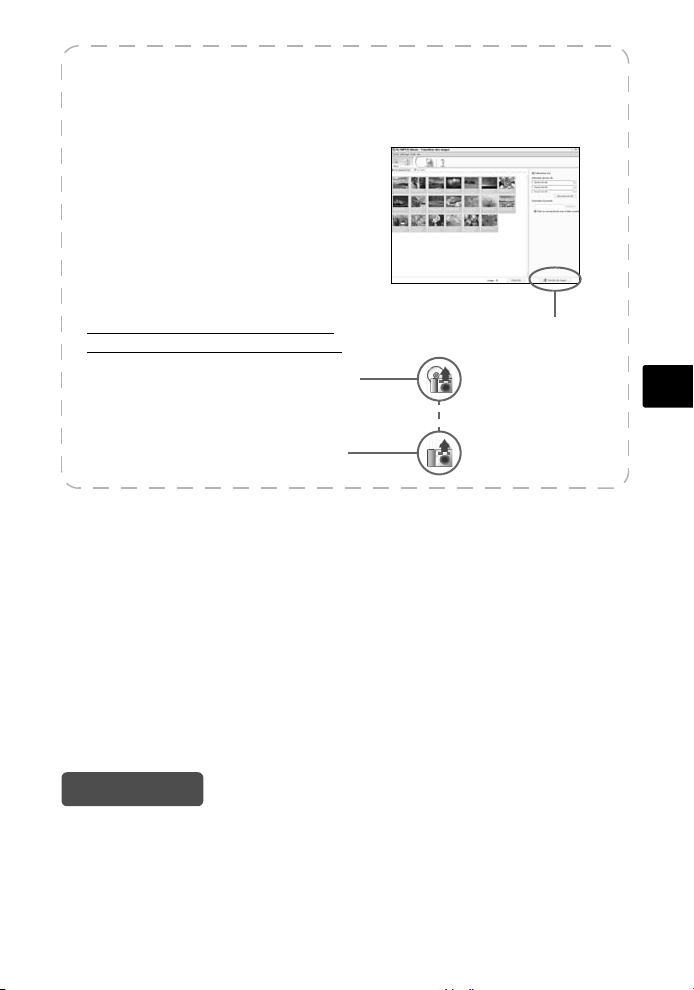

c. Transfer images to the computer

1 With the camera now connected,

open OLYMPUS Master.

The [Transfer Images] window is

displayed.

2 Select the images you want to

transfer, and click the [Transfer
Images] button.

If the [Transfer Images] window is not
displayed automatically:

a. Click the “Transfer Images” icon

on the OLYMPUS Master main
menu.

b. Click the “From Camera” icon.

[Transfer Images] window

[Transfer Images] button

En

Tips

• For more detailed information regarding camera setup and usage, please refer to
the camera’s “Advanced Manual” provided on CD-ROM.

• For more details on using the OLYMPUS Master software, please refer to the
(electronic) reference manual located in the OLYMPUS Master folder on your hard
drive. For additional assistance, refer to the “Help” file in the OLYMPUS Master
software.

11

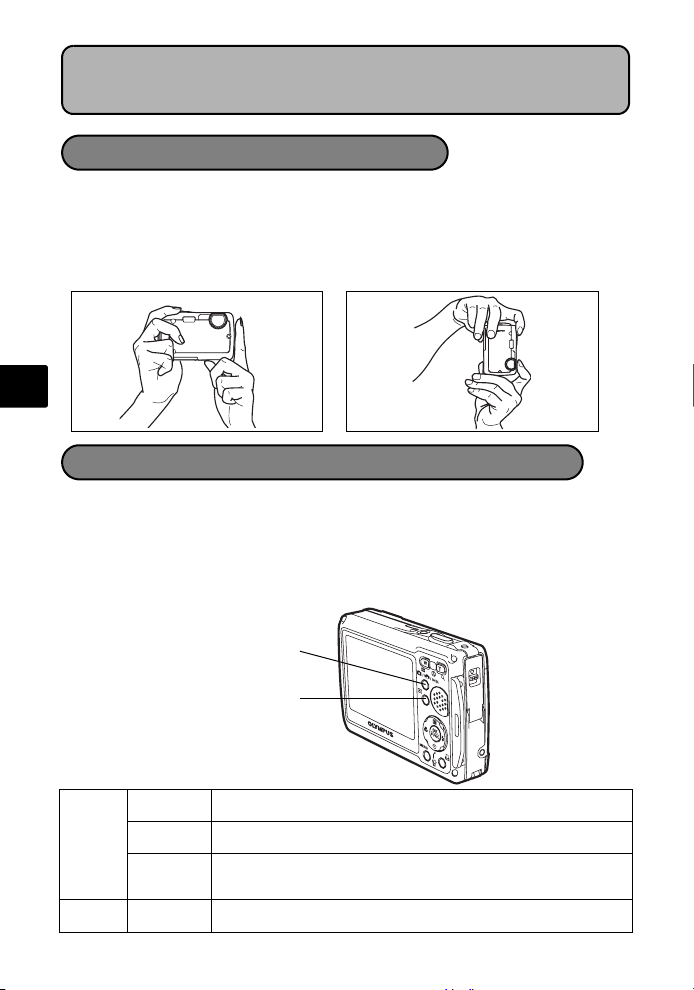

BASIC OPERATION

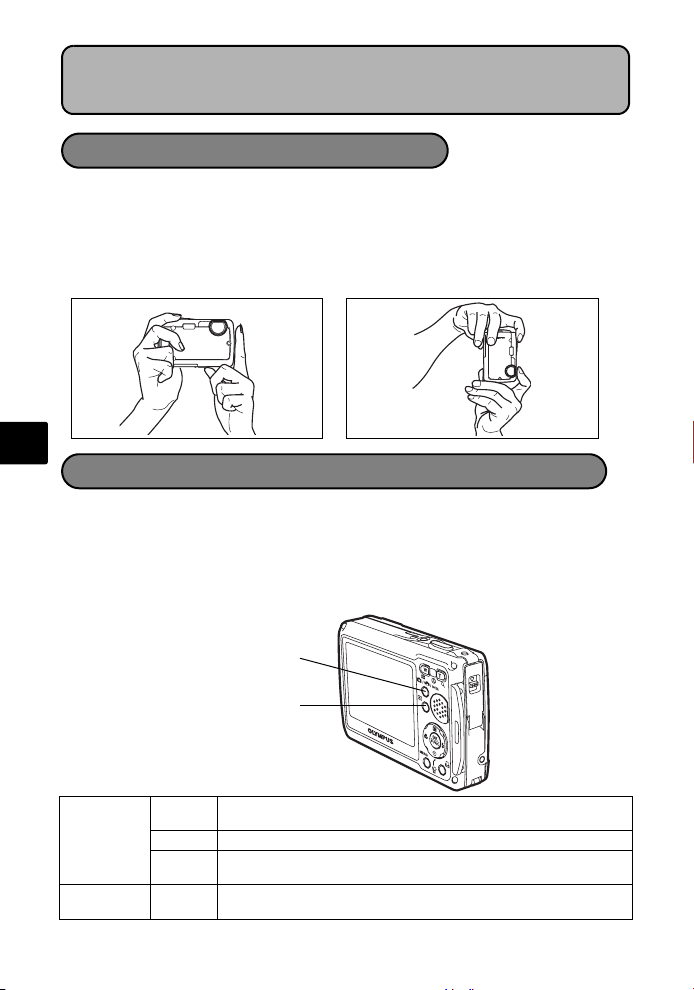

Holding the Camera

Pictures can sometimes appear blurred as the result of moving the camera while the
shutter button is being pressed.

To prevent the camera from moving, hold the camera firmly with both hands while
keeping your elbows at your sides. When taking pictures with the camera in the
vertical position, hold the camera so that the flash is positioned above the lens. Keep
your fingers and the strap away from the lens and flash.

En

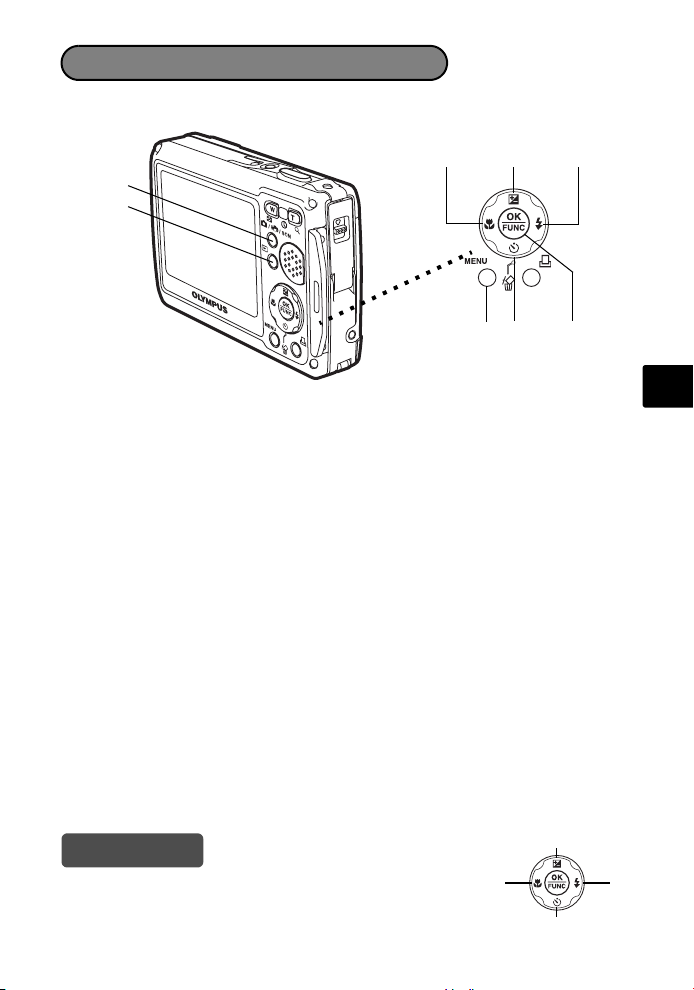

Shooting and Playback Mode Buttons

To shoot pictures or set the items about shooting, press the K/h/s button to
set the shooting mode. (The shooting mode will be changed every time you press the
button.) To display, edit or erase the recorded pictures, press the q button to set
the playback mode.

• If you press the K/h/s button without turning on the camera, the power is

supplied and the shooting mode is set. If you press the q button in the same way,
the power is supplied and the playback mode is set.

Horizontal grip Vertical grip

K/h/s button

Shooting

modes

Playback

mode

12

q button

K
h This function stabilizes images when taking pictures.

s This function allows you to shoot pictures by selecting a scene

q This function allows you to play back still pictures or movies. You

This function allows you to shoot with the camera’s automatic settings.

according to the shooting condition. Also the movie recording is
allowed.

can also play back sound.

Shooting Mode Buttons

While in shooting mode, use these buttons for quick access to some of the more
commonly used features.

3

4

1
2

7

8

1 K/h/s button (Shooting)

Press this button repeatedly to switch over among the normal shooting mode (P
(Program auto)/AUTO (Full auto mode)), the image stabilization mode or s mode.

2 q button (Playback)

Select the playback mode.

3 4& button (Macro Mode)

Use macro or super macro mode when taking close-up pictures such as of a flower.

4 1F button (Exposure Compensation)

Use this setting to overexpose (+) or underexpose (–) a picture.

5 3# button (Flash Mode)

Select from 4 flash modes – Auto, Red-eye reduction, Fill-in flash, or Flash off.

6 o Button (OK/FUNC)

Displays the function menu and sets the functions often used in shooting mode.
Also confirms and sets your selection of menu items.

7 2Y/S button (Self-timer)

Select the self-timer to delay the shot approximately 12 seconds from when the shutter
button is pressed.

8 m button (MENU)

Press this button to display the top menu.

6

5

En

Hint

The directions of the arrow pad (1243) is indicated
with 1243 in the supplied instruction manual.

1

34

2

13

s Modes (Scene)

This function allows you to switch the s (scene mode) according to the subject.

1 Press the K/h/s button repeatedly to select the s mode.
2 Press 12 to select a scene mode, and press o.

IJȁPORTRAIT

B

F

En

D
G

U

BACK

MENU

SET

OK

m Button

K/h/s
Button

12 Button

o Button

Shooting s (Scene) Modes

• PORTRAIT • CANDLE • BEHIND GLASS •

• LANDSCAPE • SELF PORTRAIT • DOCUMENTS •

•

LANDSCAPE+PORTRAIT•AVAILABLE LIGHT

• NIGHT SCENE • SUNSET •

• AUCTION •

SHOOT & SELECT1

• NIGHT+P0RTRAIT • FIREWORKS • SHOOT & SELECT2

• SPORT • MUSEUM • BEACH & SNOW

• INDOOR • CUISINE •

UNDER WATER WIDE1

UNDER WATER WIDE2
UNDER WATER MACRO
UNDERWATER SNAPSHOT

• MOVIE

Macro Mode

& This mode lets you take pictures as close as 20 cm/8 in. to your subject (when the

optical zoom is at the greatest wide-angle).

% Use this mode to take pictures as close as 7 cm/2.7 in. to your subject. In % mode,

the position of the zoom lens is fixed.

1 Press 4&.
2 Press 12 to select [&] or [%] and press o.

14

Self-Timer

1 Press 2Y/S.

Self-Timer Lamp

2 Press 12 to select [Y ON], and press o.
3 Press the shutter button fully to take the picture.

The self-timer lamp lights for approximately 10 seconds

after the shutter button is pressed, then starts blinking.
After blinking for approximately 2 seconds, the picture is
taken.

Flash Modes

1 Press 3#.
2 Press 12 to select the flash mode, and press o.

3 Press the shutter button halfway.

When the flash is set to fire, the # mark lights.

4 Press the shutter button completely to take the picture.

Flash working range:

W (max.): Approx. 0.2 to 3.8 m (0.6 to 12.4 ft.)
T (max.): Approx. 0.3 to 2.6 m (1 to 8.5 ft.)

Icon Flash Mode Description

No

indication

Auto flash The flash fires automatically in low light or backlight

Red-eye

!

reduction flash

Fill-in flash The flash fires regardless of the available light.

#

$ Flash off The flash does not fire even in low light conditions.

conditions.
The red-eye reduction flash mode significantly reduces this

phenomenon by emitting pre-flashes before firing the
regular flash.

En

Power Save Feature

To save battery power, the camera automatically enters sleep mode and stops

operating if not used for 3 minutes in shooting mode. Press the shutter button or
zoom button to reactivate the camera.

If the camera is not operated for 15 minutes after the camera enters sleep mode,

the camera turns off. To resume operation, turn on the power again.

15

MENUS AND SETTINGS

SCN

Ŕ ņ ŕ Ŗ ő

RESET


QUALITY

SCN

ńłŎņœł

ŎņŏŖ

CA UT ION ERA SI NG A LL

Top Menu

1 Press m button to display the top menu.



QUALITY

QUALITY

ńłŎņœł

ńłŎņœł

ŔņŕŖő

RESET

RESET

MENU

EXIT

En

2 Use the Arrow pad (1243) to select menu items, and press o to set them.

 IMAGE QUALITY

Set the image quality of the picture you will shoot according to its intended purpose.

 RESET

Return the changed shooting functions back to default settings.

 CAMERA MENU

Adjust various shooting settings.

 SETUP

Set the date, time, language, and operation sound, etc.

 s (Scene)

Select the scene according to the subject and shooting condition.

Top menu in shooting mode

Erase All Pictures

1 From the top menu of playback mode, select

[ERASE] -> [ALL ERASE], and press o.

2 Select [YES] and press o.

All the pictures are erased.

ŔņŕŖő

ŎņŏŖ

ŎņŏŖ

SCN

SCN

OK

SET

R

ALL ERASE

CAUTION ERASING ALL

MENU

BACK

YES

NO

SET

ŜŊŏŞ

OK

Select a Language

You can select a language for on-screen display. Available languages vary depending
on the area where you purchased this camera.

1 Press m button to display the top menu,

and select [SETUP] -> [W].

2 Select a language and press o.

16

W ŜŊŏŞ

ņŏňōŊŔʼn

ŇœłŏńłŊŔ
ņŔőłÑŐō
őŐœŕŖňŖņŔ

MENU

BACK

SET

OK

Monitor Symbols & Icons

ŊŔŐġIJķıı

Ĵıĸij

ijĴıĵ

Ĭijįı

IN

ʼnŒ

Ĭijįı

00:36

IN

(Monitor – Shooting Mode

3 2 1 21

4
5

66
7
8

9

(

#

ŊŔŐġIJķıı

%

o
n

10

P

[

ʼnŒʼnŒĴıĸij

]

ȿijĴıĵ

Ĭijįı

$

20
19

18
17

R

l

[

]

k

IN

16
15

44

141311 12

Items Indications

Self-timer Y

1
2 Shooting modes h, P, h, B, F, D, G etc.

Battery check e = full power, f = low power

3
4 Green lamp { = Auto Focus Lock

Flash standby # (Lit)
Camera movement warning/flash

5

charge # (Blinks)

6 White balance 5, 3, 1, w – y
7 ISO ISO 64 – ISO 1600
8Drive o, j, i
9 Spot metering 5

Macro mode

10

Super macro mode
11 Image Quality SHQ, HQ, SQ1, SQ2, SQ
12 Image size 3072 × 2304, 2560 × 1920, 640 × 480, etc.
13 AF target mark [ ]

Number of storable still pictures
14

Remaining recording time
15 Memory gauge a, b, c, d (maximum reached)
16 Current memory [IN] (internal memory), [xD] (card)
17 Sound record R
18 Dual time l
19 Alarm k
20 Flash mode !, #, $
21 Exposure compensation -2.0 – +2.0

3 2 1 21

A

4

(

6

%

n

9

ʼnŒ

10

&
%

4
00:36

Ĭijįı

[

]

l

[

k

IN

00:36

00:36

1311

14

MovieStill picture

$

20
19

18

18
17

R

]

16

En

17

(Monitor – Playback mode

ŊŔŐġIJķıı

IJijĻ Ĵı

Ĩı ķ įı Ĵ įijķ

IJı ı Į ı ı ı ĵ

Ĭijįı

ʼnŒ

Ĵıĸij

ijĴıĵ

IN

IJı

10

IJijĻ Ĵı

Ĩı ķ įı Ĵ įijķ

IJı ı Į ı ı ı ĵ

ʼnŒ

ııĻıı

ııĻĴķ

Ĵijı

ijĵı

IN

IN

1

1 2 34

[

]

IN

10

ĨıķįıĴįijķ

Still picture

ȿIJı

5 6

Ĵıĸij

ȿijĴıĵ

Ĭijįı

ŊŔŐġIJķıı

IJijĻĴı

IJııĮıııĵ

ʼnŒ

7
8
9
10
11
12

13

ĵ

14

Items Indications

1 Battery check

En

2Album -

= full power, f = low power

e

3 Current memory [IN] (internal memory), [xD] (card)

Print reservation/Number of prints

4

Movie

<×10
n

5 Sound Record H
6 Protect 9
7 Image Quality SHQ, HQ, SQ1, SQ2, SQ
8 Image size 3072 × 2304, 2560 × 1920, 640 × 480, etc.
9 Exposure compensation -2.0 – +2.0

10 White balance WB AUTO, 5, 3, 1, w – y
11 ISO ISO 64 – ISO 1600
12 Date and time ’06.03.26 12:30
13 File number M100-0004

Number of frames
14

Elapsed time/Total recording time

4
00:00/00:36

3

[

IN

]

ĨıķįıĴįijķ

Movie

IJııĮıııĵ

ııĻıı

54 6

Ĵijı

ȿijĵı

IJijĻĴı

ȟııĻĴķ

7

ʼnŒ

8
10
12
13
14

Thumbnail (Index) Display

This function lets you show several pictures at the same time on the monitor when
reviewing pictures.

1 Press the zoom button toward W (G) to switch to

the thumbnail (index) display.

Use the arrow pad (1243) to select a picture and

press o to display it in single frame playback.

Press the zoom button to display the pictures in 4, 9, 16

18

or 25 frames.

[

]

IN

IJ

ĵ Ķ ķ

ĸ Ĺ ĺ

Index display

ij Ĵ

CONNECTING THE CAMERA

Playback on a TV

Use the AV cable provided with the camera to playback recorded images on your TV.
Both still pictures and movies can be played back.

1 Make sure that the TV and camera are turned off. Connect the multi-connector

on the camera to the video input terminal on the TV using the AV cable.

Multi-Connector

AV cableConnector cover

Connect to the TV’s video
input (yellow) and audio
input (white) terminal.

2 Turn the TV on and set it to the video input mode.

For details of switching to video input, refer to your TV’s instruction manual.

3 Press the q button to turn on the camera.

The last picture taken is displayed on the TV. Use the arrow pad (43) to select the picture

you want to display.

En

19

Direct Printing (PictBridge)

Using the provided USB cable, you may connect your camera directly to a PictBridge
compatible printer such as the Olympus P-11 to make prints.

1 In playback mode, display the picture you want to print out on the monitor.
2 Connect one end of the provided USB cable into the camera’s multi-connector

and the other end into the printer’s USB connector.

USB CableMulti-Connector

En

< button

3 Press the < button.

Printing starts.
When printing is finished, disconnect the USB

cable from the camera with the picture selection
screen displayed.

20

EASY PRINT START

PC / CUSTOM PRINT

OK

OLYMPUS Master SOFTWARE

OLYMPUS Master Software: Use this software to download
pictures from the camera, view, organize, retouch, e-mail and
print your digital pictures and movies and more! This CD also
contains the complete software reference manual in Adobe
Acrobat (PDF) format.

(System Requirements

OS Windows 98SE/Me/2000 Professional/XP or Mac OS X (10.2 or later)
CPU Pentium III 500 MHz/Power PC G3, or faster
RAM 128 MB or more (256 MB or more recommended)
Hard Disk 300 MB or more free space
Connection USB port
Monitor 1024 × 768 pixels resolution or more with minimum 65,536 colors

(Windows), 32,000 colors (Macintosh)

For the latest support information, visit the Olympus website
(http://www.olympus.com/digital)

(Upgrade (OLYMPUS Master Plus)

In addition to the functions in OLYMPUS Master, the OLYMPUS Master Plus features
movie editing, album printing, contact sheet printing, HTML album, free stitch
panorama, CD/DVD writing functions, and a lot more, allowing you to greatly expand
your digital photograph capabilities.
You can upgrade your software to OLYMPUS Master Plus via the Internet.
You need to have OLYMPUS Master installed in a computer with an Internet
connection.

En

User Registration

Register your camera when you install OLYMPUS Master to activate your
warranty, receive notifications of software and camera firmware updates, and
more.

21

SPECIFICATIONS

(Camera

Product type : Digital camera (for shooting and displaying)
Recording system

Still pictures : Digital recording, JPEG (in accordance with

Applicable
standards

Sound with still pictures
Movie : QuickTime Motion JPEG

Memory : Internal memory

En

No. of storable pictures
when using the internal
memory

No. of pictures
when fully charged

No. of effective pixels : 7,110,000 pixels
Image pickup device : 1/2.33" CCD (primary color filter), 7,380,000 pixels (gross)
Lens : Olympus lens 6.7 to 20.1 mm, f3.5 to 5.0

Photometric system : Digital ESP metering, spot metering system
Shutter speed : 4 to 1/1000 sec.
Shooting range :

Monitor : 2.5" TFT color LCD display, 115,000 pixels

22

Design rule for Camera File system (DCF))

: Exif 2.2, Digital Print Order Format (DPOF), PRINT Image

Matching III, PictBridge

: Wave format

xD-Picture Card (16 MB to 1GB)

Still pictures without sound

Image Quality Image size

SHQ

HQ 11

SQ1

SQ2

Movie

Image Quality Image size

SHQ

HQ

SQ

: Approx. 180

(based on CIPA battery life measurement standards)

(equivalent to 38 to 114 mm on a 35 mm camera)

0.5 m (1.6 ft.) to ) (W/T) (normal)

0.2 m (0.7 ft.) to ) (W), 0.3 m (1 ft.) to ) (T) (macro mode)

0.07 m (2.7 in.) to 0.5 m (19.6 in.) (W only) (super macro mode)

3072 × 2304

2560 × 1920 16
2304 × 1728 19
2048 × 1536 24
1600 × 1200 30
1280 × 960 46
1024 × 768 71

0640 × 480 116

640 × 480

(15 frames/sec.)

320 × 240

(15 frames/sec.)

160 × 120

(15 frames/sec.)

Number of storable still

Remaining recording time

pictures

5

17 sec.

50 sec.

129 sec.

Flash charge time : Approx. 6 sec. (for full flash discharge at room temperature

Outer connector : DC-IN jack, USB connector, A/V AUTO jack (multi-

Automatic calendar system
Water resistance

Type : Equivalent to IEC Standard publication 529 IPX8 (under

Meaning : Camera can normally be used under water at a specified

Dust resistance : IEC Standard publication 529 IPX6 (under OLYMPUS test

Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (operation)/

Humidity : 30% to 90% (operation)/10% to 90% (storage)

Power supply :

Dimensions :

Weight : 153 g (5.3 oz) without battery and card

using a new fully charged battery)

connector)

: 2000 up to 2099

OLYMPUS test conditions), available in 3 m (10 feet) deep
water

water pressure.

conditions)

-20°C to 60°C (-4°F to 140°F) (storage)

One Olympus lithium ion battery (LI-42B/LI-40B) or Olympus AC
adapter

91mm (W) × 58.7mm (H) × 19.8mm (D) (3.5 × 2.3 × 0.7 in.)
excluding protrusions

(Lithium ion battery (LI-42B)

Product type : Lithium ion rechargeable battery
Standard voltage : DC 3.7 V
Standard capacity : 740 mAh
Battery life : Approx. 300 full recharges (varies on usage)
Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (charging)/

Dimensions : 31.5 × 39.5 × 6 mm (1.2 × 1.5 × 0.2 in.)
Weight : Approx. 15 g (0.5 oz)

0°C to 60°C (32°F to 140°F) (operation)/

-20°C to 35°C (-4°F to 95°F) (storage)

En

(Battery charger (LI-40C)

Power requirements : AC 100 to 240 V (50 to 60 Hz)

Output : DC 4.2 V, 200 mA
Charging time : Approx. 300 min.
Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (operation)/

Dimensions : 62 × 23 × 90 mm (2.4 × 0.9 × 3.5 in.)
Weight : Approx. 65 g (2.3 oz)

Design and specifications subject to change without notice.

3.2 VA (100 V) to 5.0 VA (240 V)

-20°C to 60°C (-4°F to 140°F) (storage)

23

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.

An exclamation mark enclosed in a triangle alerts you to important operating and

En

DANGER

WARNINGS

CAUTION

WARNING!
TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER
OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

General Precautions

Read All Instructions — Before you use the product, read all operating instructions.

Save all manuals and documentation for future reference.

Cleaning — Always unplug this product from the wall outlet before cleaning. Use

only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or
any type of organic solvent to clean this product.

Attachments — For your safety, and to avoid damaging the product, use only

accessories recommended by Olympus.

Water and Moisture — For precautions on products with weatherproof designs,

read the weatherproofing sections.

Location — To avoid damage to the product, mount the product securely on a stable

tripod, stand, or bracket.

Power Source — Connect this product only to the power source described on the

product label.

Lightning — If a lightning storm occurs while using an AC adapter, remove it from

the wall outlet immediately.

Foreign Objects — To avoid personal injury, never insert a metal object into the

product.

Heat — Never use or store this product near any heat source such as a radiator, heat

register, stove, or any type of equipment or appliance that generates heat,
including stereo amplifiers.

maintenance instructions in the documentation provided with the product.

If the product is used without observing the information given under this symbol, serio us
injury or death may result.

If the product is used without observing the information given under this symbol, in jury or
death may result.

If the product is used without observing the information given under this symbol, m inor
personal injury, damage to the equipment, or loss of valuable data may result.

24

SAFETY PRECAUTIONS

Handling the Camera

WARNING

( Do not use the camera near flammable or explosive gases.
( Do not use the flash on people (infants, small children, etc.) at

close range.

• You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the
flash too close to the subject’s eyes could cause a momentary loss of vision.

( Keep young children and infants away from the camera.

• Always use and store the camera out of the reach of young children and
infants to prevent the following dangerous situations which could cause
serious injury:

• Becoming entangled in the camera strap, causing strangulation.

• Accidentally swallowing the battery, cards or other small parts.

• Accidentally firing the flash into their own eyes or those of another child.

• Accidentally being injured by the moving parts of the camera.

( Do not look at the sun or strong lights with the camera.
( Do not use or store the camera in dusty or humid places.
( Do not cover the flash with a hand while firing.

CAUTION

( Stop using the camera immediately if you notice any unusual

odors, noise, or smoke around it.

• Never remove the batteries with bare hands, which may cause a fire or burn
your hands.

( Never open or close the covers with wet hands.

• Never open or close the battery compartment / card cover and connector
cover, or pull or insert the AC adapter with wet hands. Failure to do so may
cause damage or an electric shock.

( Do not leave the camera in places where it may be subject to

extremely high temperatures.

• Doing so may cause parts to deteriorate and, in some circumstances, cause the
camera to catch fire. Do not use the charger or AC adapter if it is covered (such
as a blanket). This could cause overheating, resulting in fire.

( Handle the camera with care to avoid getting a low-temperature

burn.

• When the camera contains metal parts, overheating can result in a low­temperature burn. Pay attention to the following:

• When used for a long period, the camera will get hot. If you hold on to the

camera in this state, a low-temperature burn may be caused.

• In places subject to extremely cold temperatures, the temperature of the

camera’s body may be lower than the environmental temperature. If
possible, wear gloves when handling the camera in cold temperatures.

( Be careful with the strap.

• Be careful with the strap when you carry the camera. It could easily catch on
stray objects - and cause serious damage.

25

En

SAFETY PRECAUTIONS

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking,
overheating, burning, exploding, or causing electrical shocks or burns.

DANGER

• The camera uses a lithium ion battery specified by Olympus. Charge the battery
with the specified charger. Do not use any other chargers.

• Never heat or incinerate batteries.

• Take precautions when carrying or storing batteries to prevent them from coming

into contact with any metal objects such as jewelry, pins, fasteners, etc.

• Never store batteries where they will be exposed to direct sunlight, or subjected to

En

high temperatures in a hot vehicle, near a heat source, etc.

• To prevent causing battery leaks or damaging their terminals, carefully follow all
instructions regarding the use of batteries. Never attempt to disassemble a battery
or modify it in any way, by soldering, etc.

• If battery fluid gets into your eyes, flush your eyes immediately with clear, cold
running water and seek medical attention immediately.

• Always store batteries out of the reach of small children. If a child accidentally
swallows a battery, seek medical attention immediately.

WARNING

• Keep batteries dry at all times.

• To prevent batteries from leaking, overheating, or causing a fire or explosion, use

only batteries recommended for use with this product.

• Insert the battery carefully as described in the operating instructions.

• If rechargeable batteries have not been recharged within the specified time, stop

charging them and do not use them.

• Do not use a battery if it is cracked or broken.

• If a battery leaks, becomes discolored or deformed, or becomes abnormal in any

other way during operation, stop using the camera.

• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the
affected area with clean, running cold water immediately. If the fluid burns your
skin, seek medical attention immediately.

• Never subject batteries to strong shocks or continuous vibration.

CAUTION

• Before loading, always inspect the battery carefully for leaks, discoloration,
warping, or any other abnormality.

• The battery may become hot during prolonged use. To avoid minor burns, do not
remove it immediately after using the camera.

• Always unload the battery from the camera before storing the camera for a long
period.

26
