Microscope Digital Camera
OLYMPUS EP50
Not for clinical diagnostic use.
Wireless Digital Imaging
Engaging, Collaborative Education
Flexible Classroom for the Digital Age
Adding wireless (WLAN) capabilities to a science classroom enables
students to work together in an interactive way. The exibility offered
by wireless connectivity improves efciency, helping educators save
time and reduce costs.
Every microscope equipped with a WLAN-enabled EP50 camera
becomes a wireless imaging system. Connect through the camera’s
WLAN signal* and stream 5-megapixel images and Full HD videos to
mobile devices or WLAN-enabled PCs and laptops.
Installing the camera is easy. Its stand-alone functionality is enabled
by onboard imaging software, making additional PC equipment
unnecessary.
* A USB WLAN adaptor is required to operate the camera in wireless mode. This WLAN adaptor is
not included with the standard EP50 package. Please contact your local sales representative.
5.0 MPix
FULL HD
1080
WLAN
3 Control Options
Inspiring Enthusiasm
The free EPview app makes it easy to
connect wirelessly to the EP50 camera.*
Educational activities are enhanced by the
easy-to-navigate interface and the crisp
images shared among students on their
mobile devices.
Interactive Learning
Wirelessly stream images
and video to enable
collaboration and interactive
learning between students
and educators.*
Engaging Lectures
Use the HDMI port to connect
the camera to monitors, and
projectors to display live or
previously captured images.
Improved Learning Process
Onboard imaging software with full
stand-alone capabilities enables users to
display live images directly on a Full HD
monitor and store data on an SD card
without additional hardware.
The camera can be controlled with OSD (On-Screen Display) software using a monitor and
mouse, or with the EPview app for mobile devices and EPview software for PCs and laptops
with Windows operation systems. All three options provide controls for image acquisition and
display, basic measurements, annotation, and sharing functionality.
Inspiring Enthusiasm
With its USB WLAN adaptor, the EP50 camera
can create its own wireless network, but it can
also be integrated into LAN networks using its
USB-to-Ethernet adaptor. Entire classrooms can
easily connect to the camera using the free EPview
app for mobile devices and software for Windows
operating systems. The simple and intuitive user
interface enables students and teachers to easily
capture, process, and store sample images.
Engaging Lectures
The camera easily connects to a monitor or
projector so that teachers can support their
lectures with live images or videos. The EP50
camera transforms the microscopy classroom
from an individual experience into an engaging
group activity.
Interactive Learning
Teachers and students can directly access
live microscope images, making the
classroom a truly interactive space. Images
can be shared with the entire class, enabling
open discussion between students and
educators based on live examples.
Simultaneous direct output of WLAN
and HDMI is available.
Improved Learning Process
Display live images directly on a Full HD
monitor using the HDMI output with no
additional hardware required. The onboard
interface enables users to control the
camera through its simple on-screen icons—
only a monitor and mouse are required. Image
and movie les can be stored on an SD card
for sharing and further investigation.
www.olympus-lifescience.com
Shinjuku Monolith, 2-3-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan
N8601137-022019
Image Sensor Color CMOS
Sensor Size 1/1.8 inch (7.140 mm × 4.980 mm)
Resolution (Max.)
2592 × 1944 pixels (Snapshot only)
1920 × 1080 pixels (HDMI, WLAN, on PC)
Pixel Size 2.4 × 2.4 μm
A/D Converter (Bit Depth) 8 bits
Exposure Times 1 ms – 918 ms
Live Frame Rates
Snapshot only (2592 × 1944 pixels)
Up to 30 fps (on PC, 1920 × 1080 pixels)
Up to 60 fps (HDMI Output, 1920 × 1080 pixels)
Up to 25 fps (WLAN Output, 1920 × 1080 pixels)****
Data Transfer
HDMI, WLAN (using the WLAN adaptor), Ethernet (using
the USB-to-Ethernet adaptor)
Annotation Functions Text, Arrow, Rectangle, Circle
Measurement Functions
Line: Length measurement
Parallel lines
Circle: Diameter, area, perimeter measurement
Angle: Angle measurement
Rectangle: Area, perimeter measurement
Polygon: Area, perimeter measurement
Point: Coordinates, number
Scale bar
Remarks
Supported Mobile Device OS: EPView is available for
iOS 11 and later Android 5.1 and later
Supported number of connections to one camera: 6*****
WLAN adaptor not included.
Please contact your local
sales representative.
PC Control
Microsoft Windows 10 (32 bit/64 bit)
Microsoft Windows 8/8.1 (32 bit/64 bit)
Microsoft Windows 7 (32 bit/64 bit)
Dimensions (W × D × H) 78 mm × 65 mm × 88 mm (3.08 in. × 2.56 in. × 3.47 in.)
Weight Approx. 470 g (1.04 lb)
Camera Mount C-mount
Storage SD (HC I; UHS-I, Class 10) Card
EP50 CAMERA SPECIFICATIONS
Stand-Alone Configuration
Microsoft and Windows are registered trademarks of Microsoft Corporation in the
United States and/or other countries.
SD is a trademark of SD-3C, LLC.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries
and is used under license.
Android is a trademark of Google LLC.
The terms HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the
United States and other countries.
• OLYMPUS SOFT IMAGING SOLUTIONS is ISO9001 certied.
WLAN Configuration
Digital Classroom Configuration
EP50
Camera head***
C-mount
camera adaptor
Microscope
HDMI connection
USB mouse
HDMI Monitor / projector
SD card
OSD software
EP50
Camera head***
C-mount
camera adaptor
Microscope
USB WLAN adaptor*
Windows PC / laptop
with WLAN adaptor
Mobile devices
EPview
app**
EPview
app**
EPview
software**
EP50
Camera head***
C-mount
camera adaptor
Microscope
USB-to-Ethernet
adaptor
WLAN router
EP50
Camera head***
C-mount
camera adaptor
Microscope
USB-to-Ethernet
adaptor
......
Network
Mobile devicesWindows PC / laptop
with WLAN adaptor
EPview
app**
EPview
app**
EPview
software**
Mobile devicesWindows PC / laptop
with WLAN adaptor
EPview
app**
EPview
app**
EPview
software**
Mobile devicesWindows PC / laptop
with WLAN adaptor
EPview
app**
EPview
app**
EPview
software**

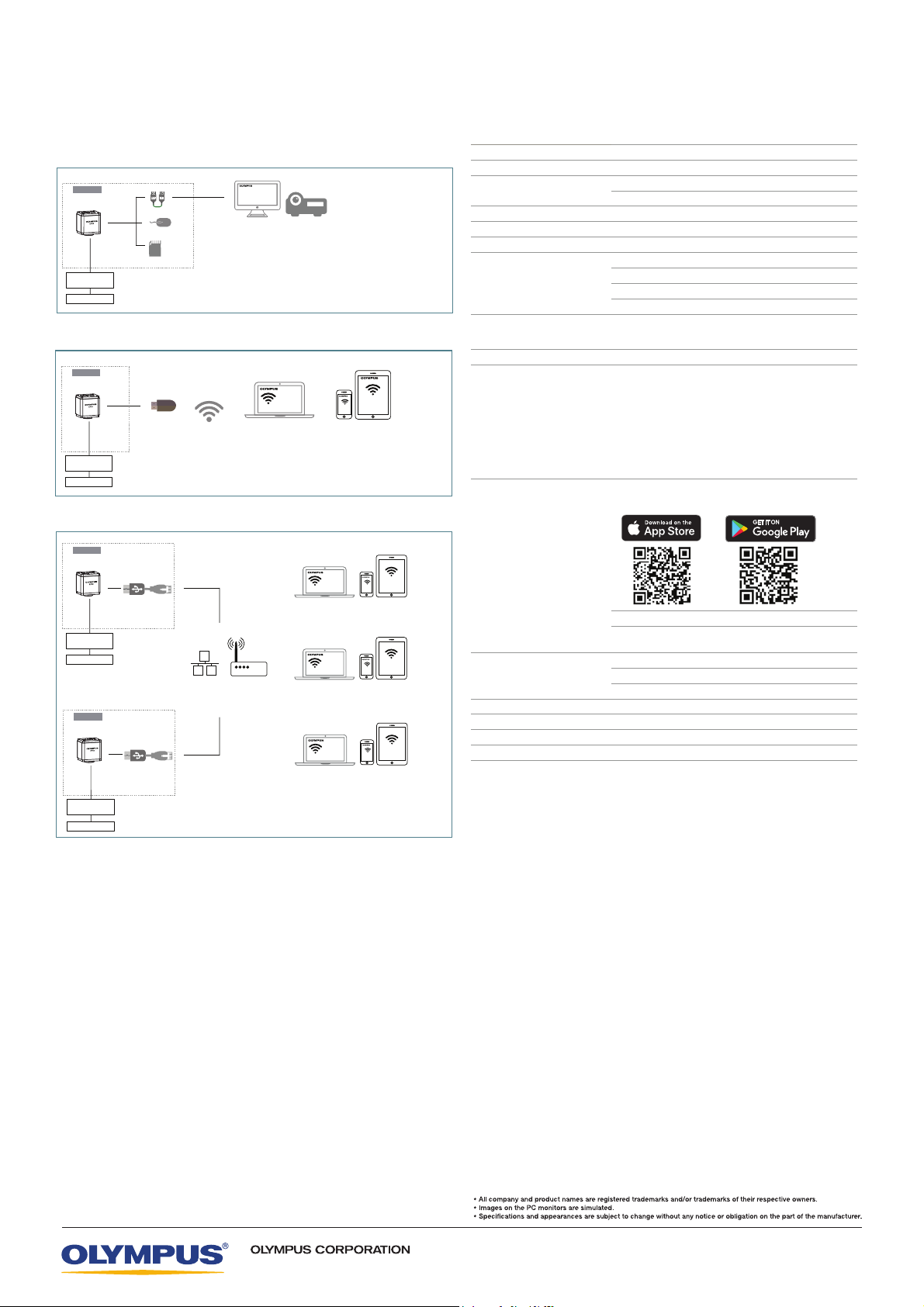

EP50 CAMERA SYSTEM DIAGRAMS
* The USB WLAN adaptor is an optional accessory of the EP50 camera.
** EPview is available for iOS, Android, and Windows operating systems.
*** USB connection for USB mouse, USB WLAN adaptor*, and USB-to-Ethernet
adaptor only.
**** The frame rate may be lower depending on the available network infrastructure
capabilities/performance.
