Olympus A01 User Manual

Download

DRAFT

VoiSquare

DS-F1

USER MANUAL

ENGLISH

ČEŠTINA

DANSK

DEUTSCH

ESPAÑOL

FRANÇAIS

NEDERLANDS

POLSKI

РУССКИЙ

SVENSKA

29 55 81

109 137 165 193 221 249

Thank you for purchasing an Olympus VoiSquare. Please read these instructions for information about using the product correctly and safely. Keep the instructions handy for future reference.

Introduction

• The information in this document is subject to change in future without prior notice. Contact Olympus

Customer Support Center for the latest product names, model numbers and other information.

• The display and illustrations of the device used in this manual may be different from the actual product.

Introduction

While every precaution has been taken to ensure the accuracy of the information in this manual, errors may occasionally arise. Any questions or concerns regarding doubtful information, or possible errors or omissions should be directed to the Olympus Customer Support Center.

• Olympus Corporation and Olympus Imaging Corp. are the copyright holders of this manual. Copyright law

prohibits unauthorized reproduction of this manual, or unauthorized distribution of reproductions thereof.

• Note that Olympus will assume no liability in the event of damages, lost earnings, or any claims from third

parties resulting from improper use of the product.

Table of contents

Introduction .......................................................................................... 2

Getting started

Identification of parts ............................................................................ 3

Touch screen ......................................................................................................4

Touch screen operations .........................................................................5

Installing the battery .............................................................................6

Charging the battery ..............................................................................7

Charging using docking station and AC adapter ................................................7

Charging using docking station and USB cable .................................................7

Using the lithium-ion battery ............................................................................8

Turn the power ON ................................................................................. 9

Memory card........................................................................................ 11

Inserting a micro SD card .................................................................................11

Ejecting a micro SD card...................................................................................11

Various Settings ...................................................................................12

Settings list ......................................................................................................12

Other information

Device care .......................................................................................... 13

Troubleshooting .................................................................................. 14

Wi-Fi Function ...................................................................................... 16

Safety precautions ............................................................................... 18

Specifications ...................................................................................... 25

Getting started

Identification of parts

2 3 4

EAR

(earphone) jack

2 Notification lamp (LED) 3 Speaker for calls * 4 Proximity sensor/luminance sensor 5 Touch screen 6 Navigation buttons 7 Strap hole 8

MIC

(microphone) jack

9 Built-in microphone * 0 Function button* ! Slide switch (4-type switch) * @ Power switch (f) # Microphone for calls * $ Battery cover % Docking station connector ^ Location hole for CL3

7 8

0 !

& * (

)

& Internal Wi-Fi antenna

Do not cover this with a finger or other object.

* Built-in speaker ( Volume buttons ) Battery cover release lever

- USB connector = Connector for DS-F1 q AC adaptor jack w USB connector (mini-AB) e Foot Switch connector r Ethernet cable connector t Security Slot

*1 Use depends on the applications you install.

Identiﬁ cation of parts

q w

e r t

Identification of parts

Touch screen

Identiﬁ cation of parts

4 Homescreen

1 Status bar

Indicates the remaining battery power, device settings, notifications, and other information with icons.

2 Time display 3 Shortcut (application)

a button

Displays a list of applications.

TIP

• The operating instructions in this manual

explain operations performed from the default Home screen. If, for example, another application is set as the Home screen, the explanations and operating procedures in this manual may differ.

• The screen configuration differs depending

on the operating system version.

Touch screen operations

The device employs a multi-touch interface. The interface is operated by directly touching it. The basic operations are described below.

4 Tap

Gently touch a shortcut, list, or other item with a fingertip and then immediately release your finger. Use this operation to, for example, select an icon or item. Tapping the screen twice with a fingertip is called a double-tap. Use this operation to, for example, enlarge an image. Double-tapping the image again while it is enlarged restores it to its original display size.

4 Long press

Continue pressing a shortcut, list, or other item with a fingertip. Use this operation to, for example, move a shortcut or access a sub menu for the selected item.

4 Drag

Continue pressing a shortcut, list, or other item with a fingertip and move your finger to the desired position without releasing it from the screen. Use this operation to, for example, adjust the volume or screen brightness.

4 Flick (Swipe)

Gently swipe the screen with a fingertip. Use this operation to switch or scroll the screen.

4 Pinch

Place two fingers on the screen and then narrow the distance between them. Use this operation to reduce the screen or other item to a size that is easy to see.

4 Spread

Place two fingers on the screen and then widen the distance between them. Use this operation to enlarge the screen or other item to a size that is easy to see.

NOTE

• Do not push the touch screen forcibly with a

finger or press it with a sharp-pointed object (fingernail, ballpoint pen, pin, etc.).

• Set the device to power save mode before

carrying it around in a pocket, bag, etc.

• The touch screen may not operate normally

in the following cases. Furthermore, be careful because the following cases will result in incorrect operation.

• When touched while wearing gloves.

• When touched with the tip of a fingernail.

• When touched while a foreign object is

on the operating surface.

• When touched while a protective sheet,

sticker, etc. is affixed.

• When touched while the touch screen

is wet.

• When touched with sweaty or wet

fingers.

Touch screen operations

Installing the battery

This device uses a lithium-ion battery specified by Olympus (LI-92B). Do not use any other type of

battery.

Installing the battery

1 To open the battery cover, slide the

battery cover lock release lever in the direction of the arrow.

2 With the label facing up, align the

terminals on the device and the battery, then press down in at A, and set the battery into place by pressing it inward at B.

3 Slide the battery cover until it is

completely closed.

NOTE

• Be sure to firmly close the battery cover (slide

until the battery cover lock clicks).

• Do not close the battery cover if the battery is

not completely inserted.

• Check for any metallic foreign matter or dust

on the terminal of the battery.

• Do not use a battery other than that

specified.

• Turn OFF the device before removing the

battery. Removing the battery while the device is still in use may cause malfunctions, file corruption or file loss.

• Remove the battery if you are not going to

use the device for an extended period of time.

• After removing the battery, it may become

necessary to re-set the time and date if you leave the battery out of the device for more than 15 minutes or if you remove the battery right after loading it into the device.

As shown, set the battery so that it tucks under the protruding section of the device.

Charging the battery

After loading the battery into the device, you can charge it by connecting the USB cable to the device, or by using the docking-station in combination with the USB cable or the AC adapter. Fully charge the battery (approx. 2 hours 30 minutes) before use.

NOTE

• Lithium-ion batteries are self-discharging. Be

sure to charge the battery before you start using.

Charging using docking station and AC adapter

Charging using docking station and USB cable

Charging directly via USB cable

NOTE

• Charge the battery frequently during the first

period of use. The battery will perform better after several charge/discharge cycles.

• Models of batteries which are different from

the included one may not be charged.

• Charging the battery via the USB cable

connection may not be successful depending on the power capacity of the USB port in your PC. Use the AC adapter instead.

• Do not set or remove the device from the

docking station while operating.

Charging the battery

• Do not charge the device through a USB hub.

• Do not attach or remove the battery if the

Charging the battery

USB cable is connected.

Using the lithium-ion battery

The included battery is exclusively for use with the Olympus VoiSquare DS-F1. Do not use in combination with other electronic equipment.

Cautions concerning the battery

Read the following instructions carefully when you use the battery.

4 Discharging:

Rechargeable batteries self-discharge while not in use. Charge it regularly before use.

4 Battery life:

Over time, the rechargeable battery may gradually wear down. When the operating time becomes shorter even if the rechargeable battery is fully charged under the specified condition, replace it with a new one.

4 Operating temperature:

Rechargeable batteries are chemical products. Battery efficiency may vary even when operating within the recommended temperature range. This is an inherent nature of these products.

4 Recommended temperature range

of use:

During operation:

0°C - 42°C/ 32°F - 107.6°F

Charging:

5°C - 35°C/ 41°F - 95°F

Storage for a long period:

–20°C - 60°C/ –4°F - 140°F Using the battery outside the above

temperature range may result in declining efficiency and shorter battery life.

NOTE

• When disposing the batteries, always observe

the local laws and regulations. Contact your local recycling center for proper disposal methods.

• If battery is not fully discharged, protect it

against short-circuiting (e.g. by taping the contacts) before disposal.

For customers in Germany:

Olympus has a contract with the GRS (Joint Battery Disposal Association) in Germany to ensure environmentally friendly disposal.

Battery indicator

The battery indicator on the display will decrease as the battery loses power.

• When this [ ] indicator appears on the display,

charge the battery as soon as possible. When the battery is too weak, [ appear on the display and the device will shut down.

] and [Power off] will

Turn the power ON

1 While the device is turned OFF, slide

the power switch (f) in the direction of the arrow for at least 2 seconds.

• The device vibrates and then the lock screen appears after a short while.

2 Move (drag) the lock icon (h) on the

Home screen to the unlock icon (i) without removing your finger from the screen.

Turning the power OFF

Existing data, mode settings and the clock setting are saved when the power is turned OFF.

1 Slide the power switch (f) in the

direction of the arrow for at least one second.

2 Tap [

3 Tap [OK].

TIP

Power off

• Turning the power OFF whenever the device

is not in use minimizes battery consumption.

Turn the power ON

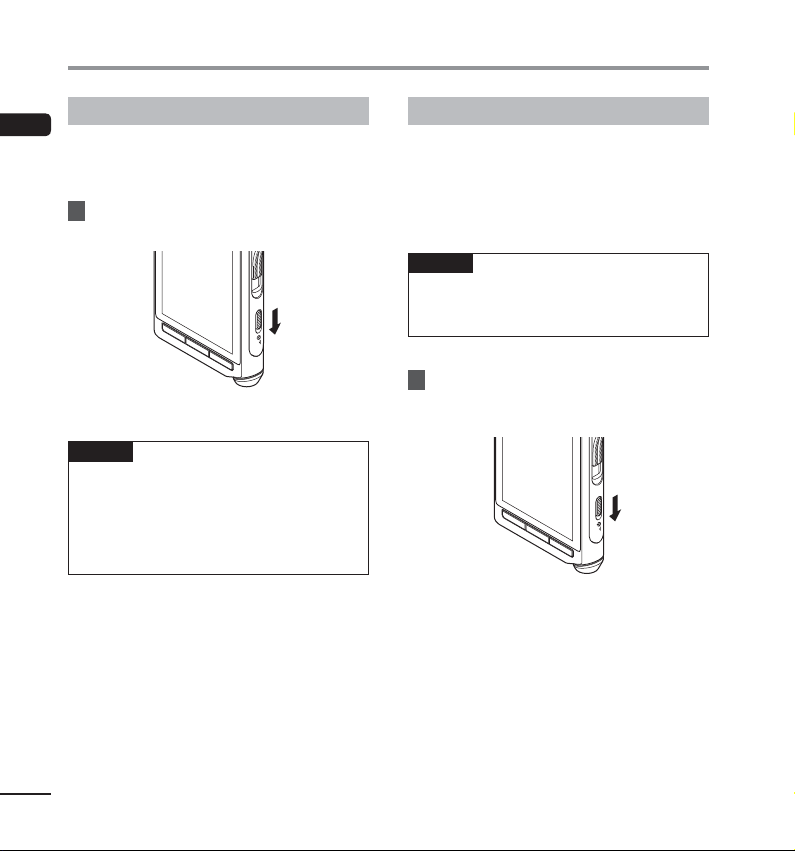

Power save mode

When you set power save mode, the screen turns

Turn the power ON

off and the screen lock is set. This mode prevents unintended operation of the touch screen when carrying the device.

1 Slide the power switch (f) in the

direction of the arrow.

TIP

• When the device has been stopped for at

least 15 seconds (default setting) after power ON, the device automatically enters the power save mode.

• To release the power save mode, slide the

power switch again.

Force termination

The device may not accept an operation while a large volume of data is being transferred. Please wait until the process is finished. If the screen is still frozen after waiting a short while, the power can be forcefully turned OFF as follows.

NOTE

• Please note that the power is being forcefully

turned OFF so any data being processed or settings being configured may not be saved.

1 Slide the power switch (f) in the

direction of the arrow for at least 5 seconds.

Memory card

The device has its own internal memory, and also supports standard microSD cards (SD, SDHC) sold separately. Some applications may allow you to select either the internal memory or a microSD card as the save location.

Compatible cards

The device supports memory card capacity from 2 GB up to 32 GB.

NOTE

• Before replacing a microSD card, turn OFF the

power of the device.

Inserting a micro SD card

Turn the power OFF.

Remove the battery cover and then

remove the battery (☞P.6).

Insert the micro SD card fully into

the card slot with the card facing the direction shown in the illustration below, until it clicks into place.

Ejecting a micro SD card

1 Push the microSD card inward to

unlock it and let it come out of the slot.

• Hold the card straight and pull it out.

Cards compatibility

For a list of card compatible with the device, please visit the product homepage at the Olympus website applicable to your region or contact your Olympus dealer where you purchased the product.

NOTE

• Inserting the card the wrong way or at an

angle could damage the contact area or cause the card to jam.

• If the card is not inserted all the way into the

slot, data may not be written properly.

• After pushing the card inward to eject it,

releasing your finger too quickly may cause the card to be ejected unexpectedly.

• The device may not properly recognize the

card even when that card is compatible with it.

• The processing performance reduces in a

card when you repeat writing and deleting. In this case, format the card.

Memory card

Various Settings

Settings list

Various Settings

4 Wi-Fi

Turn on/off the Wi-Fi function.

• When Wi-Fi is connected, battery life is shorter. If the battery runs out during data transfer, the data may be damaged. Therefore, when using a Wi-Fi connection we recommend that you use the AC adapter included with the device.

4 Data usage

Check data usage for communication via the network.

4 More...

Set VPN (Virtual Private Network) or airplane mode.

4 Sound

Set functions related to the sound of the device such as the volume or notification ringtone.

4 Display

Set functions related to the screen of the device such as the brightness or sleep.

4 Storage

Check information related to the memory of the device such as the available space or used space.

4 Battery

Check information related to the battery of the device such as battery usage.

4 Users

Check detailed user information.

4 Security

Set functions related to the security of the device such as the screen lock or password.

4 Language & input

Set functions related to the text of the device such as the display language or text input.

4 Backup & reset

Return the device to its initial state.

4 Add account

4 Date & time

Set the date and time of the device.

4 Accessibility

Set accessibility for operation.

4 About device

Check the device information.

4 Apps

Check information on the installed applications.

Other information

Device care

s Exterior

Wipe gently with a soft cloth. If the device is very dirty, soak the cloth in mild soapy water and wring well. Wipe the device with the damp cloth and then wipe it with a dry cloth.

s Monitor

Wipe gently with a soft cloth.

Using alcohol disinfectant solution

• Make sure that your device is turned OFF.

• Do not use other than ethanol for

disinfection (76.9 to 81.4 v/v%) and isopropanol for disinfection (70 v/v%).

Soak a soft cloth in the disinfectant

solution and then wring the cloth to prevent dripping.

Wipe the device gently.

Wipe the device well with a soft dry

cloth so that no solution remains.

f CAUTION

• Do not use disinfectant solution to clean the LED and each sensor.

• Do not rub the device strongly when using disinfectant solution. The paint or print may peel off.

• Do not spray disinfectant solution directly onto the device. The device does not have a waterproof design so solution may enter inside the device and affect the electronic parts.

Device care

Troubleshooting

Power does not turn ON.

Charging is not possible.

Touch screen does not operate normally.

Response of the screen is slow when it is tapped or a key is pressed.

Touch screen went black. The device is in power save mode.

Problem Possible cause Solution

The battery has run out of power.

The battery is not inserted properly.

The AC adapter is not connected to the docking station properly.

The protective function is activated.

The power of the USB device is OFF.

The power is OFF.

The battery has run out of power.

The screen lock is enabled.

The operating procedure is incorrect.

A protective sheet is affixed to the display.

The platform is processing data.

Charge the battery (☞P.7).

Insert the battery properly (☞P.6).

Connect the AC adapter properly (☞P.7).

If the temperature of the device becomes very high, the protection function may be activated and may stop charging automatically. Wait until the temperature drops and then perform charging again.

Before charging from a USB device, turn ON the power of the USB device.

Turn the power ON (☞P.9).

Charge the battery (☞P.7).

Disable the screen lock (☞P.9).

Use the correct procedure to operate the touch screen. Do not push the touch screen forcibly with a finger or press it with a sharp-pointed object such as a fingernail, ballpoint pen, pin, etc. (☞P.5).

Correct operation may not be possible depending on the type of protective sheet.

This may occur when saving a large volume of data or when moving or copying a large volume of data between the internal memory and microSD card.

Cancel power save mode (☞P.10).

Troubleshooting

Problem Possible cause Solution

The screen is set to a dark level.

Screen light is dark.

Screen display does not change when changing the orientation of the device.

Device becomes hot during operation and charging.

Screen does not change and power does not turn OFF.

Battery usage time is short. The battery has deteriorated.

Cannot connect to a Wi-Fi network.

*1 Please note that the power is being forcefully turned OFF so any data being processed or settings being

configured may not be saved.

The proximity sensor/luminance sensor is covered.

The [Auto-rotate screen] setting is disabled.

The device is being operated for a long time during charging.

The platform is processing data.

The Wi-Fi function is set to [OFF].

The connection settings of the W-Fi network are incorrect.

An obstacle is blocking the signal between the communication devices.

Increase the brightness in the [Brightness] setting of [Display] (☞P.12).

Do not cover the proximity sensor or luminance sensor of the device with a finger, protective sheet, or other object (☞P.3).

Enable the [Auto-rotate screen] setting of [Display] (☞P.12).

If the device is operated for a long time during charging, the device or internal battery may become hot but this is not abnormal. If the device becomes too hot to touch, turn OFF the power of the device to stop operation and then ask Olympus Customer Support Center to inspect and repair the device.

Battery usage time differs depending on the operating environment. If the usage time has become extremely short even after fully charging the battery, it is time to replace the battery so purchase a new battery of the designated type (LI-92B).

Change the [Wi-Fi] setting to [ON] (☞P.12).

Check the settings of the Wi-Fi function.

Check whether or not there is an obstacle blocking the signal between the communication devices.

(☞P.10).

Troubleshooting

Wi-Fi Function

4 The Wi-Fi function of the device is

designed to be used in the following

Wi-Fi Function

regions.

America:

United states, Canada

Europe:

Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom, Iceland, Liechtenstein, Norway, Switzerland, Croatia, Turkey

Oceania:

Australia, New Zealand Do not use the Wi-Fi function of the device in

regions other than those mentioned above.

Also do not use the Wi-Fi function in other than the country or region of purchase.

Using the function could violate the radio signal restrictions in that country. We will assume no responsibility whatsoever for the use of this technology.

4 Communication may be affected if

there are reinforced structures, metal or concrete between the device and the Wi-Fi access point.

4 Near a microwave, cordless telephone

set, or device that uses the 2.4GHz frequency band, if the device is used at the same time with such an equipment, communication performance may be affected. When using the device, keep a sufficient distance away from such equipments.

4 To the extent possible, try not to

use the device near mobile phones, televisions, or radios.

Mobile phones, PHS, TV sets, and radios use different frequencies than the device but electromagnetic waves generated from Wi-Fi products including this device could generate noise in audio or video images.

Notes on security when using Wi-Fi products

• With a Wi-Fi connection, information is

exchanged wirelessly and as long as radio signals reach the unit, flexible connection is possible. However, because radio signals can penetrate through obstacles (wood, glass, etc.), if there is no security-related setting, the following problems could occur.

• A malicious third party intentionally

intercepts radio signals to spy on communication content.

• Unauthorized intrusion causes the leaking of

important information.

• Intercepted communication contents are

rewritten and transmitted.

• Destructive computer viruses are released

that can destroy data or systems.

For security protection, we recommend to change the password periodically using the [Wi-Fi] function of the device (☞P.12).

• Should a problem occur for an inevitable reason

due to the specifications of the Wi-Fi connection, we assume no responsibility whatsoever for any damage incurred.

Trademarks and registered trademarks

• The product uses MP3 audio coding technology licensed from Fraunhofer IIS and Thomson.

• microSD and microSDHC are trademarks of SD Card Association.

• Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Wi-Fi CERTIFIED logo is a certification mark of the

Wi-Fi Alliance.

• Android is trademarks or registered trademark of Google Inc.

• VoiSquare is registered trademark of Olympus Corporation.

All other brand or product names in this manual are the trademarks or registered trademarks of their respective owners.

Notes

f WARNING

s When using the device in a medical institution, follow the instructions of that medical

institution.

Turn OFF the power of the device when near electronic equipment that handles high-precision control or weak signals. The electronic equipment may malfunction or otherwise be adversely affected.

s Keep a distance of at least 22 cm from the location where a pacemaker is implanted.

Electric waves from this device could affect the operation of a pacemaker.

s Turn OFF the device power when on airplane.

Security of the service could be affected.

Safety precautions

Before using the device, read this manual to ensure correct and safe operation. After reading

this manual, be sure to keep it on hand for ready

Safety precautions

reference whenever needed.

Important safety precautions

• Important items about safety are indicated by

the following display and sentences. Always follow these precautions to prevent harming yourself or others, or causing damage to property.

• The meaning of each precaution type is given

below.

f DANGER

A precaution about an imminent danger that is expected to result in death or serious injury if equipment is handed incorrectly.

f WARNING

A precaution about a situation that is expected to potentially result in death or serious injury if equipment is handled incorrectly.

f CAUTION

A precaution about a situation that is expected to potentially result in injury, or is expected to result only in property damage, if equipment is handled incorrectly.

Caution for usage environment

s To protect the high-precision

technology contained in this device, never leave the device in the places listed below, no matter if in use or storage.

• Places where temperatures and/or humidity are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidifiers.

• Near flammable items or explosives.

• In wet places, such as bathrooms or in the rain.

• In places prone to strong vibrations.

s Never drop the device or subject it to

severe shocks or vibrations.

s Near a microwave, cordless telephone

s To the extent possible, try not to

use the device near mobile phones, televisions, or radios.

• Mobile phones, PHS, TV sets, and radios use different frequencies than the device but electromagnetic waves generated from Wi-Fi products including this device could generate noise in audio or video images.

Safety precautions

• Recorded content in the internal memory and

microSD card may be destroyed or lost due to reasons such as operating errors, device failure or repair.

• Also, when content is saved in the memory

for long period of time or is used repeatedly, operations such as writing to, reading from, or erasing of contents may not be possible.

• Making a backup of important recorded

information and saving it on a PC’s hard disk or other recording media is recommended.

• Note that Olympus will assume no liability for

damages or lost earnings resulting from recorded data damage or loss, regardless of the nature or cause thereof.

• Note that Olympus will assume no liability

for recorded files being erased or becoming unplayable due to device or PC failure.

• Recording of copyrighted material is permitted

when the recording is for your personal use only. Any other type of use without the permission of the copyright owner is prohibited by copyright law.

• Even when data is formatted or erased, only the

management information of the file is updated and the data that was recorded on the microSD card or internal memory is not completely erased. When disposing of an microSD card, be sure to destroy the card, format the card and record silence until the recording time runs out, or perform a similar operation in order to prevent the leakage of personal information.

Device safety precautions f WARNING

s Do not use the device in an atmosphere

that might contain flammable or explosive gases.

This may cause fire or explosion.

s Do not attempt to disassemble, repair

or modify the device.

This may cause electric shock or injury.

s Do not operate the device while

operating a vehicle (such as a bicycle, motorcycle or car).

This may cause traffic accidents.

s Do not leave the device in a location

accessible to an infant or child.

Pay attention when using the device near an infant or child, taking care not to leave it unattended. Infants and children are unable to understand the device safety precautions, and are at risk of accidents such as:

− Strangulation caused by accidental entanglement of the earphone cord around the neck.

− Operation errors resulting in injury or electric shock.

s Use microSD/SDHC memory cards only.

Never place other types of cards in the device.

If another card type is placed in the device by accident, do not try to pull it out by force. Contact an Olympus repair center or service center.

Safety precautions

s If the device is dropped in water or, if

water, metal or combustible foreign matter gets inside:

1 Remove the battery immediately. 2 Contact your place of an authorized

distributor or service center for repair. Continued use may result in fire or electric shock.

s Do not use the device or use it only as

directed in airplanes or other locations where use of electronic devices is restricted.

s Stop using the device if you notice

unusual odor, noise, or smoke coming from it.

This may cause fire or burns. Remove the battery immediately, taking care not to burn yourself. Contact your place of an authorized distributor or service center. (Do not touch the battery with bare hands when removing it. Remove the battery outdoors, and away from flammable objects.)

s When carrying the device by its strap,

take care to prevent it becoming caught on other items.

s Do not touch for an extended period

of time an energized AC adapter or battery while it is charging.

The temperature of the AC adapter or battery being charged rises. Low-temperature burns may result if your skin touches the AC adapter or battery being charged for extended period of time.

s Use only Olympus’ special lithium-ion

battery, charger, and AC adapter.

Attempting to use other equipment could cause fire or electric shock due to heating, deformation, etc. Also, the power of the device could fail or an unexpected accident could occur. We assume not responsibility for problems as a result of using other than specified products.

f CAUTION

s Do not raise the volume before

performing an operation.

Hearing damage or loss may result.

Batteries f DANGER

s Do not place the battery near ignition

sources.

s Do not incinerate, heat or disassemble

the battery. Do not short-circuit the battery’s positive and negative electrodes.

This may cause fire, ruptures, combustion or overheating.

s Do not solder connections directly onto

the battery. Do not deform, modify or disassemble the battery.

s Do not connect the battery’s positive

and negative terminals.

This may cause overheating, electric shock or fire.

Safety precautions

s When carrying or storing the battery,

always place it in the case to protect its terminals. Do not carry or store the battery together with precious metal items such as key rings.

This may cause overheating, electric shock or fire.

s Do not connect the battery directly to a

power outlet or car cigarette lighter.

s Do not use or leave the battery in a

hot location such as in direct sunlight, inside a vehicle on a hot day, or near a room heater.

This may cause fire, burns or injuries from leaking, overheating or ruptures.

f WARNING

s Do not touch or hold the battery with

wet hands.

This may cause electric shock or malfunctions.

s Do not use a battery with a scratched or

damaged case.

This may cause ruptures or overheating.

s Do not insert the battery with its

positive/negative terminals in the opposite direction.

This may cause leaking, overheating, combustion or ruptures.

• Do not use a battery with a torn casing seal (insulating covering).

• Always remove the battery when the device will not be used for an long period.

• When disposing used batteries, insulate their contacts with tape and discard them as general waste in the manner prescribed by the local authority.

• Remove the battery from the device as soon as the battery becomes unusable. This may cause leakage.

s Battery fluid in the eyes may cause

blindness. If battery fluid gets in eyes, do not rub the eyes. Instead, rinse them thoroughly with tap water or other clean water right away. Go to doctor immediately.

s Keep the battery out of the reach of

infants and children.

The battery could be swallowed by an infant or child. If swallowed, go to doctor immediately.

s If you notice abnormal sound, heat,

burning odor or smoke from the device during use:

1 Remove the battery immediately, taking care

not to injure yourself.

2 Have the device repaired by your place of

an authorized distributor or service center. Continued use may result in fire or burns.

s Do not submerge the battery in

freshwater or saltwater, or allow its terminals to become wet.

s Discontinue use of the battery if it

develops a problem such as leaking, discoloration or deformation.

s Stop charging the rechargeable battery

if charging has not finished after the specified amount of charging time.

s Battery fluid on clothing or skin may

damage the skin, so rinse the battery fluid off right away with tap water or other clean water.

Safety precautions

f CAUTION

s Do not throw the battery around, or

Safety precautions

subject it to strong shocks.

s Always charge the rechargeable battery

before use when using it for the first time or if it has not been used for a long time.

s There is a risk of explosion if the battery

is replaced with the incorrect battery type. Dispose of the used battery following the instructions.

• Please recycle batteries to help save our

planet’s resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations.

s Rechargeable batteries have a limited

life. When the device operating time becomes shorter after recharging under the specified condition, please consider that battery is expired and replace it with a new one.

Disposing the rechargeable battery

s Recycling batteries helps saving

resources. When disposing a used battery, always cover its terminals and observe local laws and regulations.

Operating precautions

• Do not leave the device in hot or humid

locations such as in direct sunlight inside a vehicle, or on a beach during summer.

• Do not store the device in humid or dusty

locations.

• If the device becomes wet or damp, wipe off the

moisture right away with a dry cloth. Contact with salt water should be particularly avoided.

• Do not place the device on top of or near a TV,

refrigerator or other electrical appliance.

• Prevent sand or mud from getting on the device.

This may cause product not to be repairable.

• Do not subject the device to intense vibrations

or shocks.

• Do not use the device in humid locations.

• Placing a magnetic card (such as a bank cash

card) near the speaker or earphones may cause errors in the data stored on the magnetic card.

Docking station f DANGER

s Never disconnect the AC adapter or

power cord with a wet hand. This may cause electric shock or injury.

s Only use the specified AC adapter

with the docking station. Using it in combination with other AC adapters may cause overheating, fire, or malfunction.

f WARNING

s Never disassemble, modify, or repair

the docking station yourself. This may cause fire, electric shock, or injury.

s Never use the docking station in

locations where it might come into contact with liquids. Getting the docking station wet may cause fire or electric shock.

Safety precautions

s Do not drop the docking station or

allow it to suffer extreme shocks. This may cause damage, or fire or electric shock.

s Do not touch the connector or insert

the metal wires or similar object into any of the plugs. This may cause fire, or electric shock.

f CAUTION

s Unplug the AC adapter or power cord

from the docking station and AC outlet when not using for extended periods of time. If this precaution is not followed and the docking station is damaged then fire may occur.

AC adapter f DANGER

s Be sure to use the AC adapter with the

proper voltage (AC 100 - 240 V).

Using it with other voltage levels may cause fire, explosion, overheating, electric shock or injury.

s For your safety, be sure to unplug the

AC adapter from the outlet before performing maintenance or cleaning.

Also, never plug in or disconnect the power plug with a wet hand. This may cause electric shock or injury.

f WARNING

s Do not attempt to disassemble, repair

or modify the AC adapter in any way.

This may cause electric shock or other injury.

s Do not use the AC adapter in the

vicinity of flammable gas (including gasoline, benzine and lacquer thinner).

This may cause explosion, fire, or burns.

s Do not short circuit the = and - at the

plug end.

This may cause fire, burns or electric shock.

s If internal material is exposed due to

dropping or damage:

1 Never touch exposed internal material. Doing

so could cause electric shock, burns or other injury.

2 Immediately disconnect the power supply

plug from the power outlet, and;

3 Call your dealer or local Olympus

representative for servicing. Continued use may result in fire or burns.

s If the AC adapter is submerged in

water or, if water, metal or combustible foreign matter gets inside:

1 Disconnect the power plug from the outlet. 2 Call your dealer or local Olympus

representative for servicing. Continued use may result in fire or electric shock.

s If you notice abnormal sound, heat,

burning odor or smoke from the AC adapter during use:

1 Remove the battery immediately, taking care

not to injure yourself.

2 Call your dealer or local Olympus

representative for servicing. Continued use may result in fire or burns.

Safety precautions

f CAUTION

s Do not moisten the AC adapter or touch it

with a wet hand.

Doing so could cause electric shock or other injury.

s Only use the AC adapter with the

specified power supply voltage.

s Do not attempt to insert a power plug

with dust adhering into an outlet.

s Do not use the AC adapter if the power

plug is damaged or the plug is not completely connected to the outlet.

s Unplug the AC adapter from AC outlet

when not using.

s Do not damage the power cord.

• Make sure to hold the plug when removing

the power plug from the outlet.

• Do not place heavy objects on the cord.

• Do not bring the cord near heating

equipment.

• This may cause fire or electric shock.

LCD monitor

s The LCD used for the monitor is made

with high-precision technology. However, black spots or bright spots of light may appear constantly on the LCD Monitor. Due to its characteristics or the angle at which you are viewing the monitor, the spot may not be uniform in color and brightness. This is not a malfunction.

Precautions for touch screen

s The LCD screen is made of glass. If the

glass is cracked or otherwise damaged, do not touch the touch screen or attempt to repair it yourself. Be careful when handling the LCD screen because it may be damaged if it is dropped or subjected to an impact. Damage resulting from inappropriate handling is not covered by the warranty.

Specifications

General points

4 Operating System

droidTM 4.3

4 Storage*

Internal NAND FLASH memory: 8 GB microSD/microSDHC card: Supports 2 GB to 32 GB * Some recording media memory capacity is

used as a management area, so the actual usable capacity will always be slightly less than the displayed capacity.

4 Display

Size: 3.7 inches Resolution: 854 x 480 pixels (FWVGA) Typ e: TFT color LCD

4 Speaker

Built-in ø20 mm round dynamic speaker

4 Maximum working output

280 mW (8 speaker)

4 Maximum headphone output

â 150 mV (conforms to EN 50332-2)

4 Wireless standards

Complies with IEEE802.11b/g/n* * IEEE802.11n is compatible with only the

2.4 GHz band

• The communication speed and distance may vary depending on ambient conditions such as the radio environment, obstacles and installation environment.

Security

WEP, WPA/WPA2 Personal, WPA/WPA2 Enterprise

MIC

jack

ø3.5 mm impedance 2 k

EAR

jack

ø3.5 mm impedance 8 or more

4 Power source

Standard voltage: 3.6V Battery: Lithium-ion battery (LI-92B) External power supply: USB connection, AC adapter (A517) (DC5V)

4 External dimensions

114 mm × 63.8 mm × 14.6 mm (Not including largest projection)

4 Weight

140 g (including battery)

4 Operating temperature

0 to 42°C (32 to 107.6°F)

Battery life

The figures below are guideline values.

erating time: XX hours (approx)

Specifications and design are subject to change without notice. Battery life is measured by Olympus. It varies greatly according to the conditions of use.

Speciﬁ cations

Accessories (optional)

Docking Station: CR20

This product is designed specifically for Olympus DS-F1, keeping it safe and secure.

Clip: CL3

This product is designed to protect your DS-F1 from accidental drops.

Lithium-ion battery: LI-92B

This lithium-ion rechargeable battery is manufactured by Olympus. It is best paired with the UC-90 battery charger.

Battery charger: UC-90

This product is designed for LI-92B.

Foot Switch: RS31

Connect to the USB docking station with DSF1 for hands-free transcription.

Noise-cancellation microphone: ME12 (Dictation microphone)

Used to get crisp recordings of your own voice by reducing the effects of ambient noise. Recommended to improve the accuracy when using voice-recognition software.

External microphone: ME15

A lavalier omni-directional microphone that clips to clothing. Used to record your own voice or people near you.

Highly sensitive noise-cancellation monaural microphone: ME52W

This microphone is used to record sound at a distance while minimizing surrounding noise.

Technical assistance and support

The device is part of the Olympus Professional Dictation System. Your certified professional dealer has been fully trained on the entire Olympus Professional Dictation range, including dictation, transcription devices and software. For technical assistance and guidance relating to installation and set up, please contact your professional dealer from whom you purchased the system.

For customers in North America

4 For customers in USA Declaration of Conformity Model Number: DS-F1 Trade Name: OLYMPUS Responsible Party: OLYMPUS IMAGING

AMERICA INC. Address: 3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A.

Telephone Number: 484-896-5000

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s) Operation is subject to the following two conditions: (1) this device may not cause harmful interference,

and

(

2) this device must accept any interference received, including interference that may cause undesired operation of this device.

4 For customers in CANADA

CAN ICES-3 (B) / NMB-3 (B)

FCC CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

To maintain compliance with FCC's RF exposure guidelines, use only the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations.

FCC Notice

● This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

● This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

● However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Adjust or relocate the receiving antenna.

• Increase the distance between the

equipment and receiver.

• Connect the equipment to an outlet on

a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/ TV technician for help.

• Only the OLYMPUS supplied USB cable should be used to connect the equipment to USB enabled personal computers (PC).

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate it. DS-F1 is equipped with WLAN device with IC and FCC ID:

– FCC ID: YSKA01, – IC: 4763EA01

The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. DS-F1 has been tested and found to comply with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. SAR testing has been done at a distance of 0 cm from the body and the head.

For customers in Europe

The “CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. CE-mark products are for sale in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product.

This symbol [crossed-out wheeled bin Directive 2006/66/EC Annex II] indicates separate collection of waste batteries in the EU countries. Please do not throw the batteries into the domestic refuse. Please use the return and collection systems available in your country for the disposal of the waste batteries.

Hereby, OLYMPUS, declares that VoiSquare is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

For details visit: http://olympus-europa.com/

SAR testing has been done at a distance of 0 cm from the body and the head.

This product supports WLAN. Radio function of this equipment is not allowed to use in the geographical area within a radius of 20 km from the centre of Ny-Alesund on Svalbard.

MEMO

275

2951 Ishikawa-machi, Hachioji-shi, Tokyo 192-8507, Japan.

http://www.olympus.com

OLYMPUS IMAGING CORP.

3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A.

Tel. 484-896-5000

http://www.olympusamerica.com

OLYMPUS EUROPA SE & CO. KG

OLYMPUS IMAGING AMERICA INC.

(Premises) Consumer Product Division

Wendenstrasse 14 - 18, 20097 Hamburg, Germany.

(Goods delivery) Modul H, Willi-Bleicher Str. 36, 52353 Düren, Germany.

Tel. :+49 40 -23 77 3-0 / Fax +49 40 - 23 07 61

(Letters) Postfach 10 49 08, 20034 Hamburg, Germany.

http://www.olympus-europa.com

OLYMPUS IMAGING AUSTRALIA PTY LTD.

Ground Floor, 82 Waterloo Road, Macquarie Park NSW 2113, Australia

PO Box 1991 Macquarie Centre NSW 2113

Tel: +61 2 9886 3992

http://www.olympus.com.au

EN-BS1577-01 AP1408

Olympus A01 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
