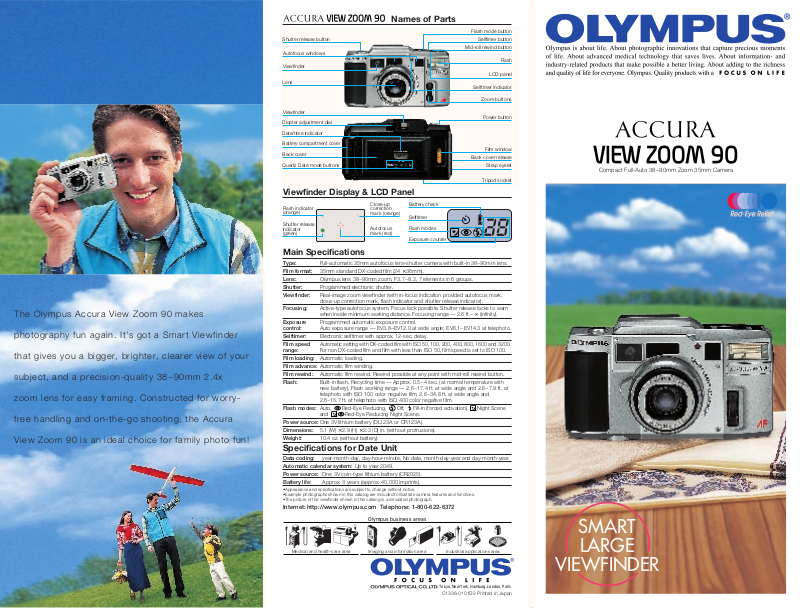

The Olympus Accura View Zoom 90 makes

photography fun again. It’s got a Smart Viewfinder

that gives you a bigger, brighter, clearer view of your

subject, and a precision-quality 38~90mm 2.4x

zoom lens for easy framing. Constructed for worry-

free handling and on-the-go shooting, the Accura

View Zoom 90 is an ideal choice for family photo fun!

Close-up
correction
mark (orange)

Autofocus
mark (red)

Flash modes

Battery check

Selftimer

Exposure counter

Flash indicator
(orange)

Shutter release
indicator
(green)

Selftimer indicator

LCD panel

Zoom buttons

Autofocus windows

Power button

Shutter release button

Lens

Flash

Flash mode button

Selftimer button

Mid-roll rewind button

Diopter adjustment dial

Tripod socket

Film window

Back cover release

Strap eyelet

Viewfinder

Viewfinder

Battery compartment cover

Back cover

Quartz Date mode buttons

Date/time indicator

Viewfinder Display & LCD Panel

Names of Parts

Main Specifications

Type: Full-automatic 35mm autofocus lens-shutter camera with built-in 38~90mm lens.
Film format: 35mm standard DX-coded film (24 × 36mm).
Lens: Olympus lens 38~90mm zoom, F3.7~8.2, 7 elements in 6 groups.
Shutter: Programmed electronic shutter.
Viewfinder: Real-image zoom viewfinder (with in-focus indication provided autofocus mark,

close-up correction mark, flash indicator and shutter release indicator).

Focusing: Active-type autofocus system. Focus lock possible. Shutter release locks to warn

when inside minimumworking distance. Focusing range — 2.6 ft.~ ∞ (infinity).

Exposure Programmed automatic exposure control.
control: Auto exposure range — EV3.8~EV12.0 at wide angle; EV6.1~EV14.3 at telephoto.

Selftimer: Electronic selftimer with approx. 12-sec. delay.
Film speed

Automatic setting with DX-coded film with ISO 50, 100, 200,400, 800, 1600 and 3200.

range: For non DX-coded film and film with less than ISO 50, film speed is set to ISO 100.
Film loading: Automatic loading.
Film advance: Automatic film winding.
Film rewind: Automatic film rewind. Rewind possible at any point with mid-roll rewind button.
Flash: Built-in flash. Recycling time — Approx. 0.5~4 sec. (at normal temperature with

new battery). Flash working range — 2.6~17.4 ft. at wide angle and 2.6~7.9 ft. at
telephoto with ISO 100 color negative film; 2.6~34.8 ft. at wide angle and

2.6~15.7 ft. at telephoto with ISO 400 color negative film.

Flash modes: Auto, Red-Eye Reducing, Off, Fill-In (forced activation), Night Scene

and Red-Eye Reducing Night Scene.

Power source: One 3V lithium battery (DL123A or CR123A).
Dimensions: 5.1 (W) × 2.9 (H) × 2.3 (D) in. (without protrusions).
Weight: 10.4 oz. (without battery).

Specifications for Date Unit

Data coding:

year-month-day, day-hour-minute, No data, month-day-year and day-month-year.

Automatic calendar system: Up to year 2049.
Power source: One 3V coin-type lithium battery (CR2025).
Battery life: Approx. 3 years (approx. 40,000 imprints).

•Appearance and specifications are subject to change without notice.

•Example photographs shown in this catalog are included to illustrate camera features and functions.

•The picture of the viewfinder shown in this catalog is a simulated photograph.

Internet: http://www.olympus.com Telephone: [phone]

SMART

LARGE

VIEWFINDER

38~90mm 2.4x Zoom

The versatile 38~90mm 2.4x zoom responds at a touch,

letting you zoom in or out to get the composition just

right. High-performance aspherical lens elements assure

crisp, clear photos with autofocus shooting ease.

90mm

60mm

38mm

Auto Flash Mode

Intelligent variable-power flash

fires automatically in low-light and

provides soft-flash illumination

when your subject is close.

Red-Eye Reducing Flash Mode

A rapid series of pre-flashes help your subjects’ eyes

adjust to the light, reducing the annoying red-eye effect

that often spoils group photos.

*Results may vary depending on subject’s eye color and exposure to pre-flash.

Fill-In Flash Mode

Fill-In Flash erases annoying shadows when you’re

shooting in harsh sunlight or backlight. It makes

beautiful pictures easy!

Flash Off Mode

If you prefer to shoot without flash — or are in a place

where flash photography is prohibited — you can

simply switch the flash off.

Night Scene / Red-Eye Reducing Night Scene
Flash Mode

At night, you can capture both foreground subjects and

background lights with these two flash modes.

Electronic Selftimer

A 12-second electronic selftimer gives you plenty of

time to get in the picture yourself.

The smart way

to shoot

SMART VIEWFINDER ZOOM LENS

FLASH FREEDOM

Frame your subjects with ease

Our Smart Viewfinder makes it easy to take beautiful

pictures by framing your subjects creatively. It gives you

a bright, clear, real-image view that is approximately

twice as large as the view offered by our conventional

viewfinders. Illuminated indicators superimposed on the

viewfinder image provide visual confirmation of focusing

accuracy, flash readiness and shutter release. And

because the eyepiece is equipped with dioptric

correction, you can adjust viewfinder focus to suit your

personal preference.

Autofocus Mark (red)

Blinks on and off if the
subject is out of focus.

Flash Indicator (orange)

Lights when the flash is
ready to fire.

Shutter Release Indicator
(green)

Lights while the shutter is
being released.

Close-Up Correction Mark
(orange)

Lights when the subject is
close up.

Big, bright, clear view assures easy framing

With Auto Flash Mode
