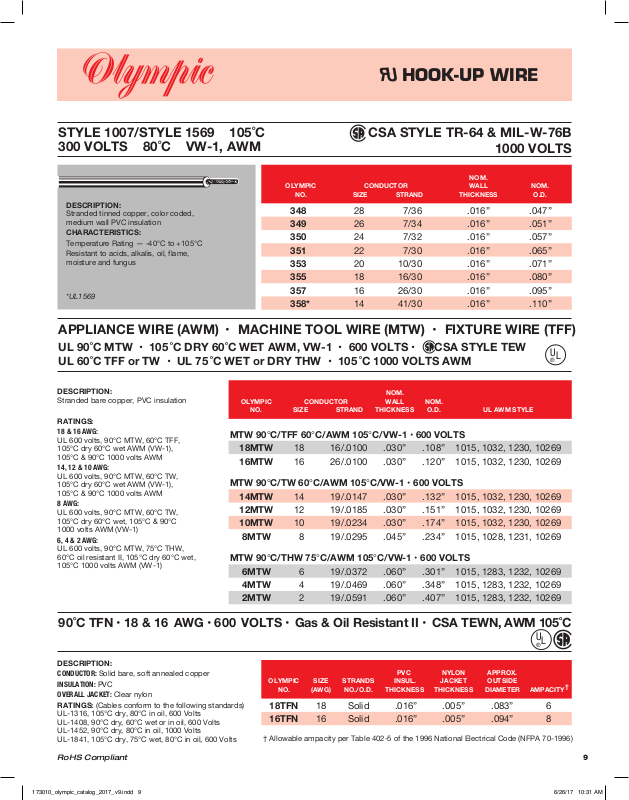

Olympic Wire and Cable HOOK-UP WIRE Catalog Page
RoHS Compliant
HOOK-UP WIRE
STYLE 1007/STYLE 1569 105˚C
300 VOLTS 80˚C VW-1, AWM
DESCRIPTION:
Stranded tinned copper, color coded,
medium wall PVC insulation
CHARACTERISTICS:
Temperature Rating — -40°C to +105°C
Resistant to acids, alkalis, oil, flame,
moisture and fungus
*UL1569
OLYMPIC
NO.
348
349
350
351
353
355
357
358*
CSA STYLE TR-64 & MIL-W-76B
1000 VOLTS
CONDUCTOR NOM.
28
26
24
22
20
18
16
14
STRAND
7/36
7/34
7/32
7/30
10/30
16/30
26/30
41/30
THICKNESSSIZE
NOM.
WALL
.016”
.016”
.016”
.016”
.016”
.016”
.016”
.016”
O.D.
.047”
.051”
.057”
.065”
.071”
.080”
.095”
.110”
APPLIANCE WIRE (AWM) • MACHINE TOOL WIRE (MTW) • FIXTURE WIRE (TFF)
UL 90˚C MTW • 105 ˚C DRY 60˚C WET AWM, VW-1 • 600 VOLTS • CSA STYLE TEW
UL 60˚C TFF or TW • UL 75 ˚C WET or DRY THW • 105 ˚C 1000 VOLTS AWM
DESCRIPTION:
Stranded bare copper, PVC insulation
RATINGS:
18 & 16 AWG:
UL 600 volts, 90°C MTW, 60°C TFF,
105°C dry 60°C wet AWM (VW-1),
105°C & 90°C 1000 volts AWM
14, 12 & 10 AWG:
UL 600 volts, 90°C MTW, 60°C TW,
105°C dry 60°C wet AWM (VW-1),
105°C & 90°C 1000 volts AWM
8 AWG:
UL 600 volts, 90°C MTW, 60°C TW,
105°C dry 60°C wet, 105°C & 90°C
1000 volts AWM (VW-1)
6, 4 & 2 AWG:
UL 600 volts, 90°C MTW, 75°C THW,
60°C oil resistant II, 105°C dry 60°C wet,
105°C 1000 volts AWM (VW-1)
OLYMPIC
NO.
CONDUCTOR NOM.
MTW 90°C/TFF 60°C/AWM 105°C/VW-1 • 600 VOLTS
18MTW
16MTW
18
16
MTW 90°C/TW 60°C/AWM 105°C/VW-1 • 600 VOLTS
14MTW
12MTW
10MTW
8MTW
14
12
10
8
MTW 90°C/THW 75°C/AWM 105°C/VW-1 • 600 VOLTS
6MTW
4MTW
2MTW
6
4
2
STRAND
16/.0100
26/.0100
19/.0147
19/.0185
19/.0234
19/.0295
19/.0372
19/.0469
19/.0591
THICKNESSSIZE
NOM.
WALL
.030”
.030”
.030”
.030”
.030”
.045”
.060”
.060”
.060”
O.D.
.108”
.120”
.132”
.151”
.174”
.234”
.301”
.348”
.407”
UL AWM STYLE
1015, 1032, 1230, 10269
1015, 1032, 1230, 10269
1015, 1032, 1230, 10269
1015, 1032, 1230, 10269
1015, 1032, 1230, 10269
1015, 1028, 1231, 10269
1015, 1283, 1232, 10269
1015, 1283, 1232, 10269
1015, 1283, 1232, 10269
U
L
®
90˚C TFN • 18 & 16 AWG • 600 VOLTS • Gas & Oil Resistant II • CSA TEWN, AWM 105˚C
U
L
®
DESCRIPTION:
CONDUCTOR: Solid bare, soft annealed copper
INSULATION: PVC
OVERALL JACKET: Clear nylon
RATINGS: (Cables conform to the following standards)
UL-1316, 105°C dry, 80°C in oil, 600 Volts
UL-1408, 90°C dry, 60°C wet or in oil, 600 Volts
UL-1452, 90°C dry, 80°C in oil, 1000 Volts
UL-1841, 105°C dry, 75°C wet, 80°C in oil, 600 Volts
173010_olympic_catalog_2017_v9.indd 9 6/26/17 10:31 AM
OLYMPIC
NO.
18TFN
16TFN
† Allowable ampacity per Table 402-5 of the 1996 National Electrical Code (NFPA 70-1996)
SIZE
(AWG)
18
16
STRANDS
NO./O.D.
Solid
Solid
PVC
INSUL.
THICKNESS AMPACITY
.016”
.016”
NYLON
JACKET
THICKNESS
.005”
.005”
APPROX.
OUTSIDE
DIAMETER
.083”
.094”
†
6
8
9
