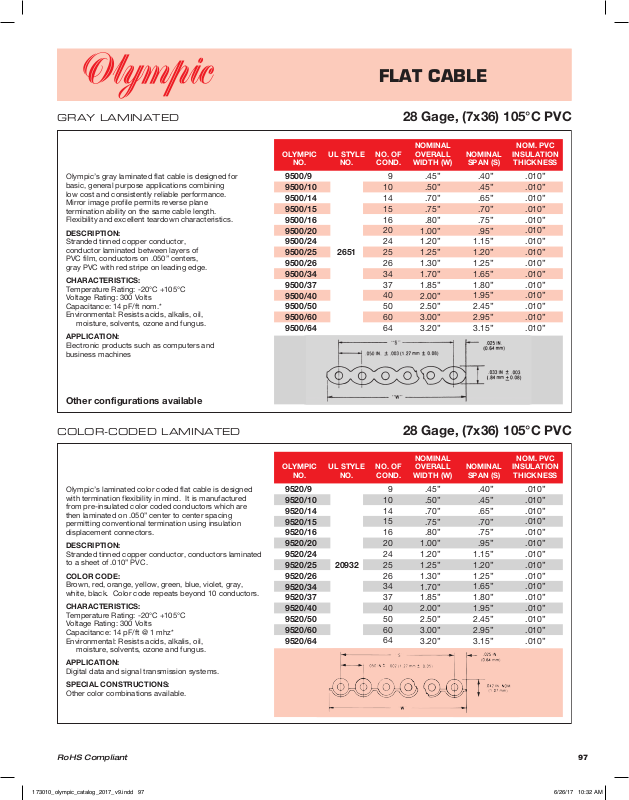

Olympic Wire and Cable FLAT CABLE Catalog Page

RoHS Compliant
FLAT CABLE
GRAY LAMINATED
Olympic’s gray laminated flat cable is designed for basic, general purpose applications combining low cost and consistently reliable performance. Mirror image profile permits reverse plane termination ability on the same cable length. Flexibility and excellent teardown characteristics.
DESCRIPTION:
Stranded tinned copper conductor, conductor laminated between layers of PVC film, conductors on .050” centers, gray PVC with red stripe on leading edge.
CHARACTERISTICS:
Temperature Rating: -20°C +105°C Voltage Rating: 300 Volts Capacitance: 14 pF/ft nom.* Environmental: Resists acids, alkalis, oil, moisture, solvents, ozone and fungus.
APPLICATION:
Electronic products such as computers and business machines
OLYMPIC
NO.
9500/9 9500/10 9500/14 9500/15 9500/16 9500/20 9500/24 9500/25 9500/26 9500/34 9500/37 9500/40 9500/50 9500/60 9500/64
UL STYLE
NO.
2651
28 Gage, (7x36) 105°C PVC
NO. OF
COND.
9 10 14 15 16 20 24 25 26 34 37 40 50 60 64
NOMINAL OVERALL
WIDTH (W)
.45” .50” .70” .75” .80”
1.00”
1.20”
1.25”
1.30”
1.70”
1.85”
2.00”
2.50”
3.00”
3.20”
NOMINAL
SPAN (S)
.40” .45” .65” .70” .75” .95”
1.15”
1.20”
1.25”
1.65”
1.80”
1.95”
2.45”
2.95”
3.15”
NOM. PVC
INSULATION
THICKNESS
.010” .010” .010” .010” .010” .010” .010” .010” .010” .010” .010” .010” .010” .010” .010”
Other configurations available
Olympic’s laminated color coded flat cable is designed with termination flexibility in mind. It is manufactured from pre-insulated color coded conductors which are then laminated on .050” center to center spacing permitting conventional termination using insulation displacement connectors.
DESCRIPTION:
Stranded tinned copper conductor, conductors laminated to a sheet of .010” PVC.
COLOR CODE:
Brown, red, orange, yellow, green, blue, violet, gray, white, black. Color code repeats beyond 10 conductors.
CHARACTERISTICS:
Temperature Rating: -20°C +105°C Voltage Rating: 300 Volts Capacitance: 14 pF/ft @ 1 mhz* Environmental: Resists acids, alkalis, oil, moisture, solvents, ozone and fungus.
APPLICATION:
Digital data and signal transmission systems.
SPECIAL CONSTRUCTIONS:
Other color combinations available.
OLYMPIC
NO.
9520/9 9520/10 9520/14 9520/15 9520/16 9520/20 9520/24 9520/25 9520/26 9520/34 9520/37 9520/40 9520/50 9520/60 9520/64
UL STYLE
NO.
20932
NO. OF
COND.
9 10 14 15 16 20 24 25 26 34 37 40 50 60 64
28 Gage, (7x36) 105°C PVCCOLOR-CODED LAMINATED
NOMINAL OVERALL
WIDTH (W)
1.00”
1.20”
1.25”
1.30”
1.70”
1.85”
2.00”
2.50”
3.00”
3.20”
.45” .50” .70” .75” .80”
NOMINAL
SPAN (S)
.40” .45” .65” .70” .75” .95”
1.15”
1.20”
1.25”
1.65”
1.80”
1.95”
2.45”
2.95”
3.15”
NOM. PVC
INSULATION
THICKNESS
.010” .010” .010” .010” .010” .010” .010” .010” .010” .010” .010” .010” .010” .010” .010”
97
