Page 1

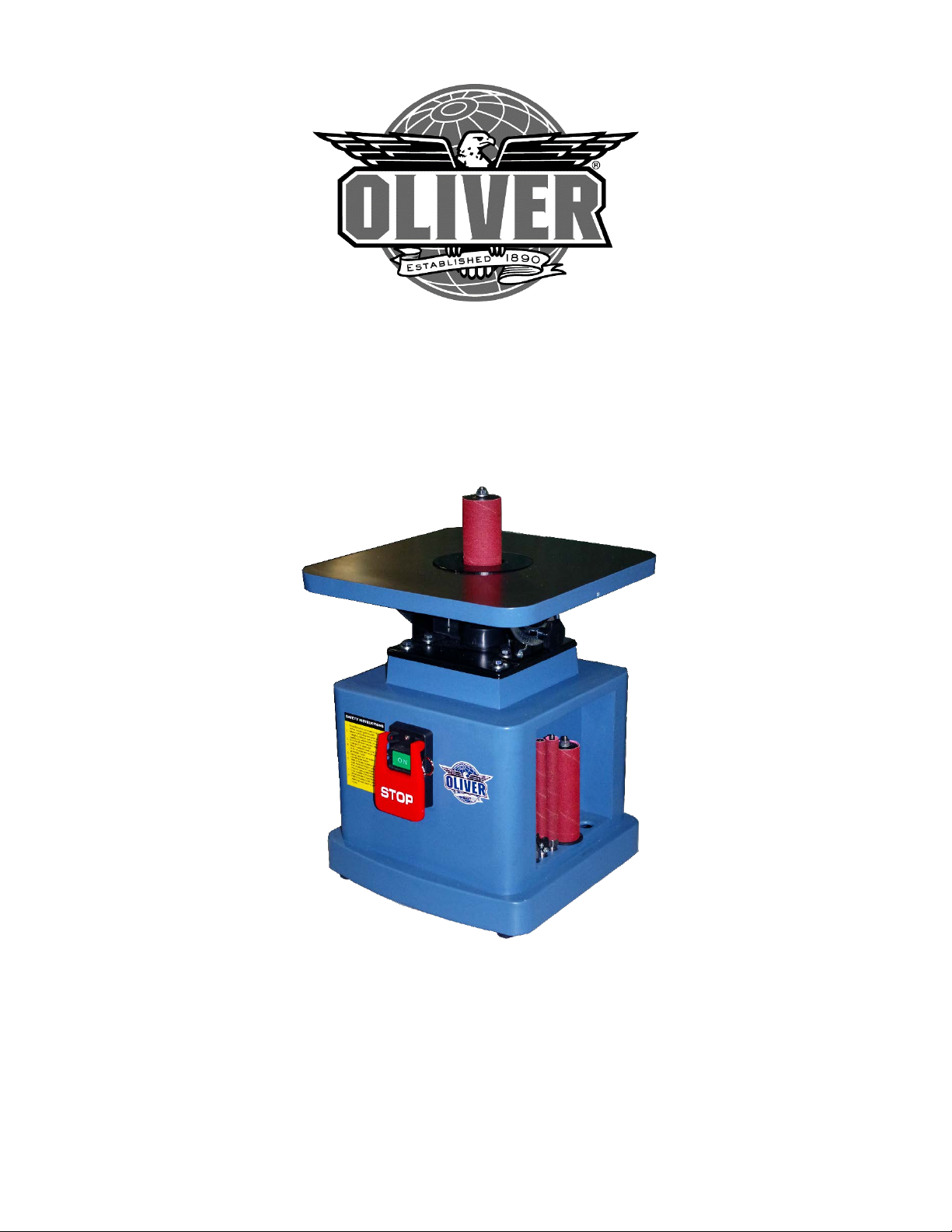

6905 Oscillating Spindle Sander
Owner’s Manual
Oliver Machinery M-6905 08/2017
Page 2
TABLE OF CONTENTS
Table of contents _____________________________________________ 1
Safety rules __________________________________________________ 2
Specifications ________________________________________________ 3
Machine legend_______________________________________________3
Machine dimension ___________________________________________ 4
Safe operating position ________________________________________ 4
Instructions for operations _____________________________________
Tilting the table ______________________________________________ 5
Mounting spindle drum ________________________________________6
Selection guide for drum to table insert___________________________ 7
Maintenance of spindle sander __________________________________8
Troubleshooting ______________________________________________9
Assembly diagram ____________________________________________ 10
Parts List___________________________________________________ 11-13
5
Page 3
SAFETY RULES
Read carefully before operating the machine
1. Learn the machine’s applications
particular to this machine. Follow available safety instructions and safety rules carefully.
2. Keep working area clean and be sure adequate lighting is available.
3. Do not wear loose clothing, gloves, bracelets, necklaces, or ornament. Wear face, eye, ear,
respiratory and body protection devices, as indicated for the operation or environment.
4. Keep hands well away from sanding spindle and all moving parts. Do not clear sawdust
away with hands. Use a brush.
5. Make sure the spindles are moving at operation speed before sanding.
6. Do not push the sanding spindles to hard. The spindles will perform better and be safer
working at the rate for which it was designed.
7. Whenever possible use a dust collector with shaving hood to minimize health hazards.
8. Never leave the machine with the power on.
9. Keep children away. Make sure that visitors are kept at a safe distance from the work area.
10. Use recommended speed sanding accessory, and workpiece material.
11. Never stand on tool. Serious injury could occur if the tool is tipped or if the sanding tool is
and limitations, as well as the specific potential hazards
unintentionally contacted.
12. Be sure sanding spindles are securely locked in the machine.
13. Use suitable support if stock does not have a flat surface.
14. Keep guards in place and in working order. If a guard must be removed for maintenance or
cleaning make sure it is properly attached before using the tool again.
15. Be sure that adjusting wrenches have been removed before turning power on.
16. Only use accessories designed for the machine. Use of accessories not recommended by
may result in a risk of injury.
17. Make sure tool is properly grounded. If tool is equipped with three-prong plug, it should be
plugged into a three-pole electrical receptacle. Never remove the third prong.
18. Always disconnect tool before servicing and when changing accessories such as spindle
sizes.
19. Hold material firmly against the table.
20. Do not use this spindle sander for other than it’s intended use. If used for other purposes,
disclaims any real or implied warranty and holds itself harmless for any injury, which may
result from that use.
2
Page 4
SPECIFICATIONS
MODEL
Table size (L x W)
Table tilt 0~45°
Spindle speed 1400rpm
Oscillations per minute
Oscillation stroke
Dust port diameter
Motor
1/2HP/115V/1ph-only
6905.001
14-1/2" x 14-1/2"
29/min
15/16"
2"

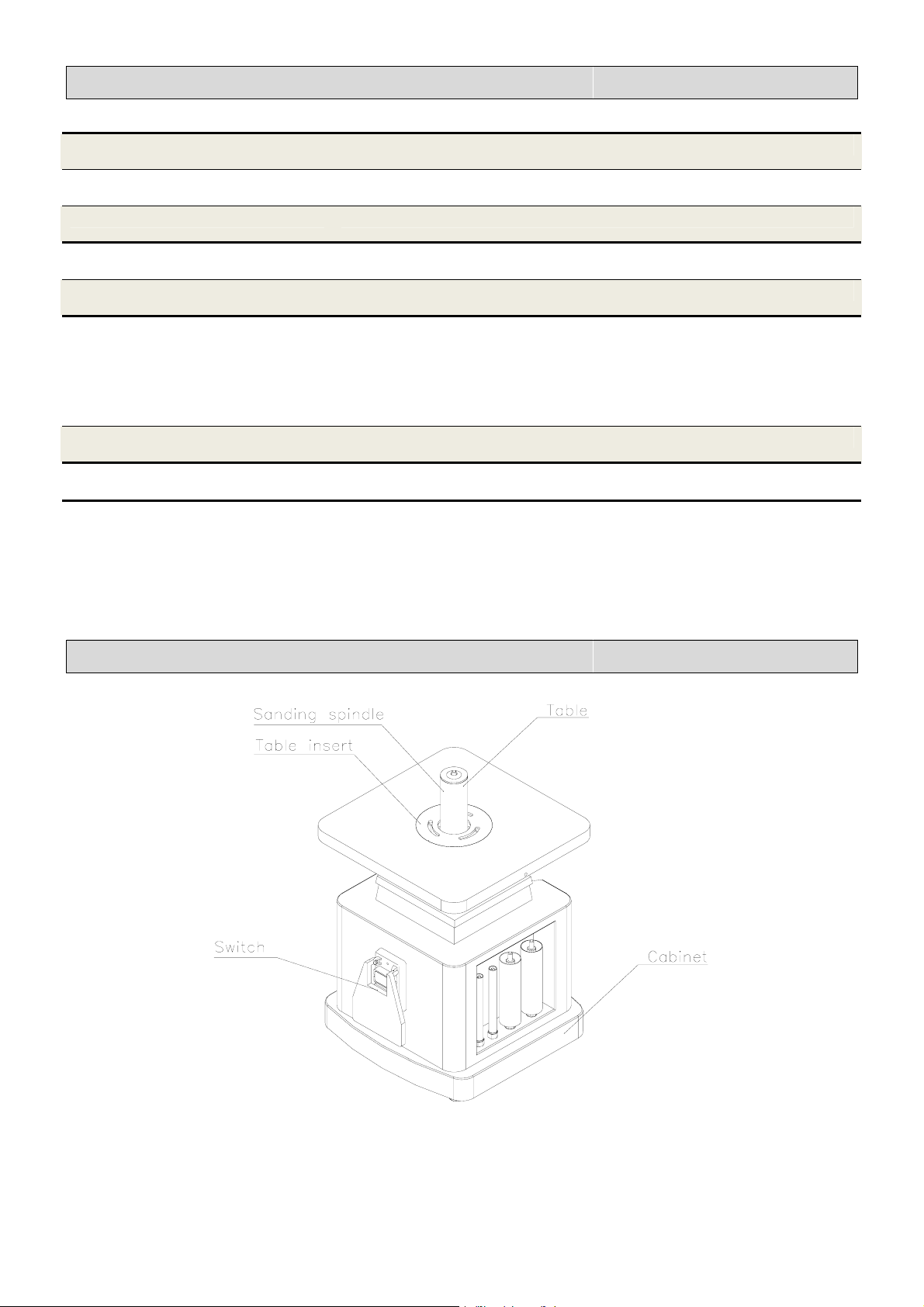

MACHINE LEGEND
3
Page 5

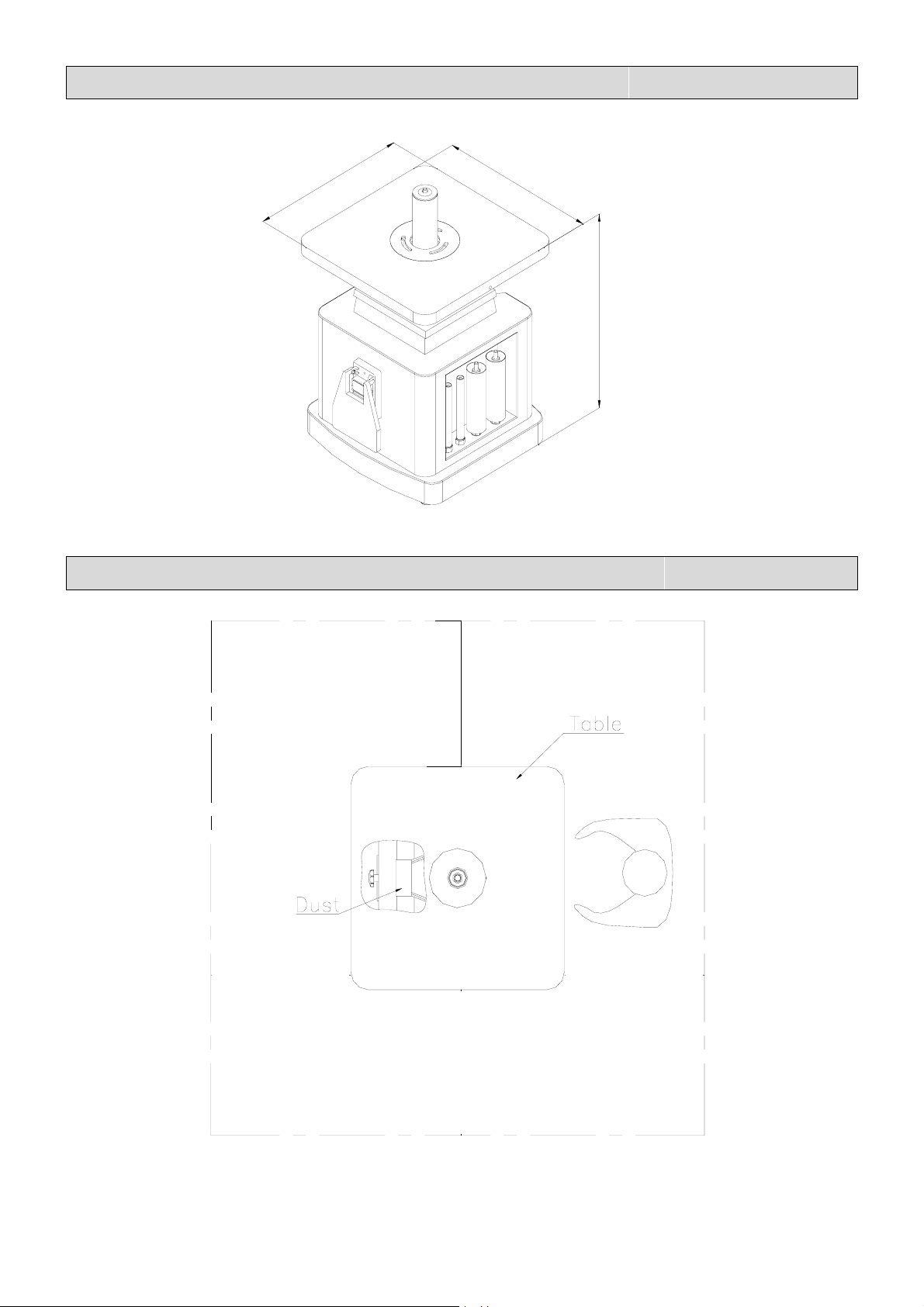

MACHINE DIMENSION
14-1/2"
14-1/2"
19"
SAFE OPERATING POSITION
28"
28"
28"
28"
4
Page 6
INSTRUCTIONS FOR OPERATIONS
1. Select spindle that is smaller than the curve to be sanded.
2. Use an insert plate that comes closest to the spindle without touching it.
3. Make sure that spindle is properly positioned in t aper sleeve socket. With the wrench provided
, tighten the nut. NOTE: Never over tighten; it may be difficult to remove the spindle later.
4. When table is set at a 90° angle, sanding may be done from any corner, or location on table
around spindle.
5. When table is positioned at any angle other than 90°, it is necessary to position the work piece
over the centerline, as shown on table surface.
6. Always lock the table with the hand nut when setting at any angle, also to prevent movement
lock the tilting gear shaft.
7. Always loosen both table lock and tilting gear lock before changing the angle position of the
table. Never force the table if it does not tilt easily, reason may be that the locks are still
engaged. Never attempt to over ride the stop locks, this will cause damage to the tilting
performance.
8. A backing board is recommended when sanding thin pieces of metal or any other material. A
backing board can be easily constructed by using a piece of wood the length of the table,
pushing it into the spindle until a half circle is formed. Clamp each end of the board to the table
and proceed to sand the thin material.
9. Before leaving the machine remove any particles or pieces left over, make sure the table in
90°.

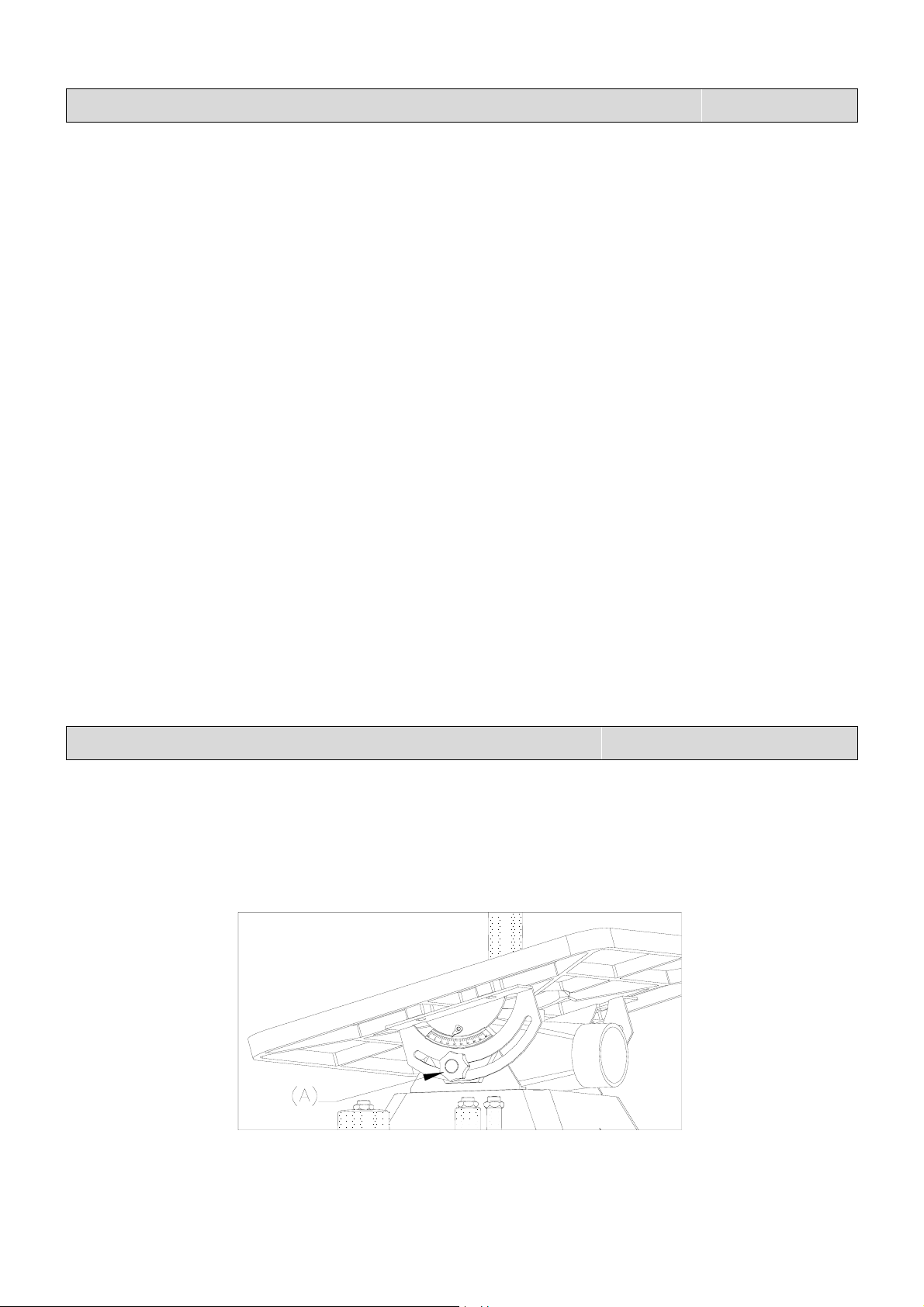

TILTING THE TABLE
Loosen the two table lock knobs (A), located under the table at both sides of the machine
1.
2. Tilt the table forward to the desired angle with your hands.
3. An angle scale is provided at the right side of the trunnion to indicate the degree of table tilt.
4. Tighten the two table lock knobs securely after the table degree has been adjusted.
5
Page 7

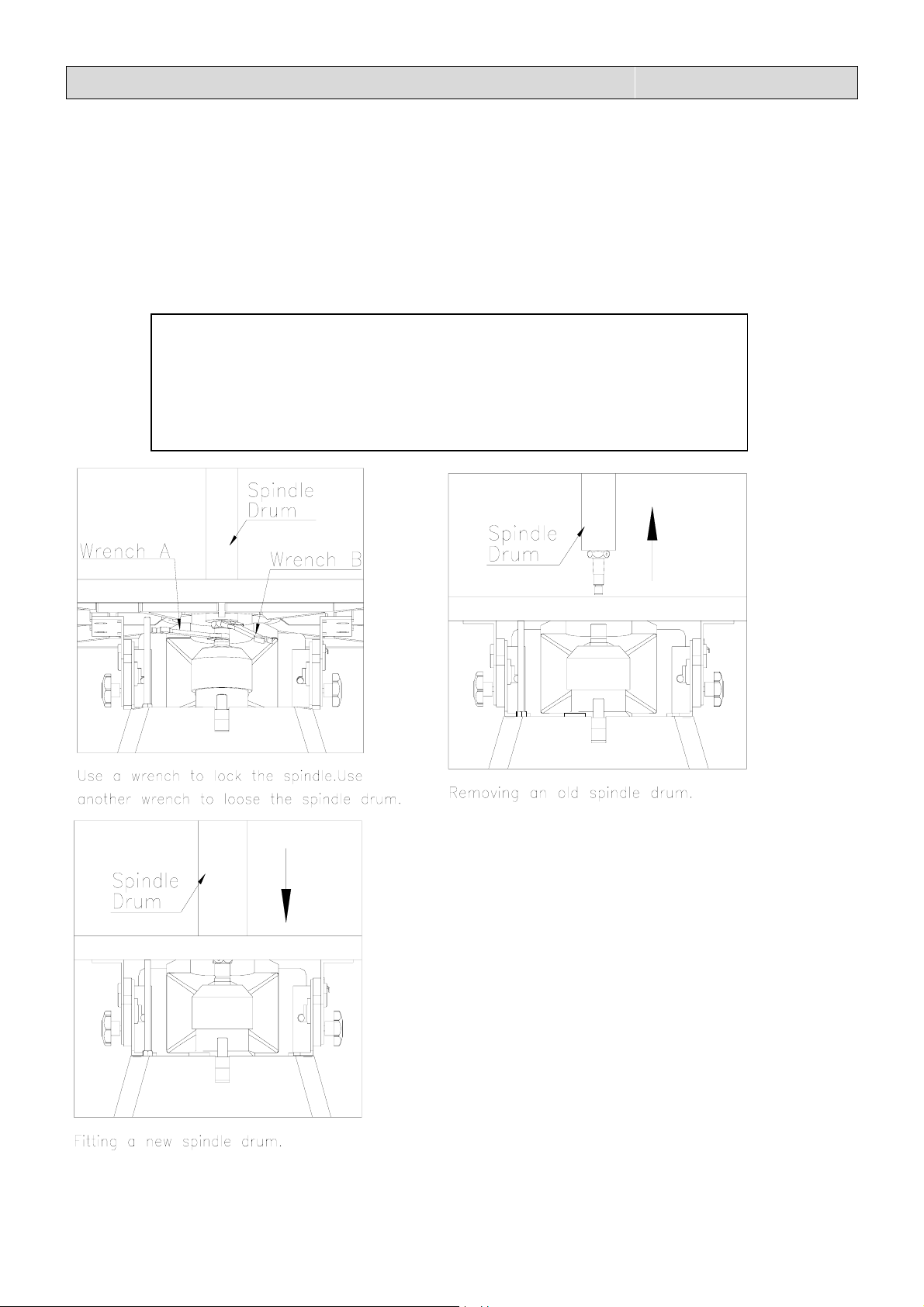

MOUNTING SPINDLE DRUM
1.
Disconnect the sander from the power source.
2. Select the proper diameter of spindle drum.
3. Clean the taper part of the spindle drum before mounting it into the spindle.
4. Use an open-end wrench to lock the spindle by holding its flat surface. At the same time, use
another open-end wrench to tighten the spindle drum.
5. Do not over tighten the spindle drum or it will be causing removable problem.
! WARNING!
△
Disconnect the power source before removing the drum.
6
Page 8

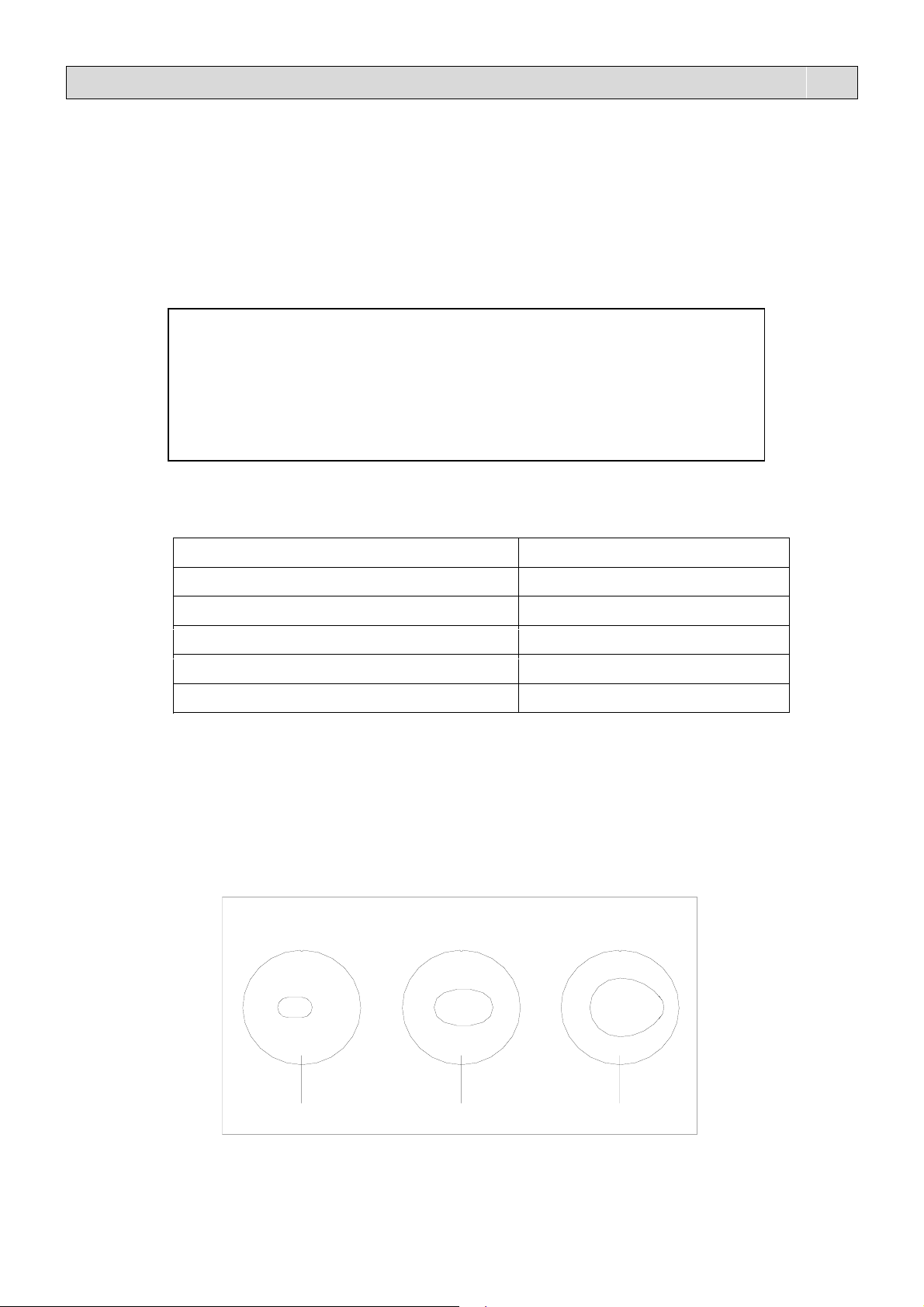

SELECTION GUIDE FOR DRUM TO TABLE INSERT
This machine is furnished with 5 drums. The range of drum diameter is from 1/4” to 2”. If the
drum diameter is changed, the table insert needs to be changed to the proper size.
The table below shows which table insert to use at 90O for various drum diameters.
! WARNING!
△
Failure to use the correct insert with the corresponding
drum may result in injury!
Drum diameter Table insert
1/4” Dia. x 6” long
1/2” Dia. x 6” long
5/8” Dia. x 6” long
1 1/2” Dia. x 6” long
2” Dia. x 6” long
＃1
＃1
＃1
＃2
＃3
#3#2#1
7
Page 9
MAINTENANCE OF SPINDLE SANDER
1. To keep spindle sander in perfect condition, clean machine and attachments at all times.
2. Clean tapered sleeves and tapered socket befor
from nicks.
e use, this will protect spindle sleeves
3. Check gearbox for proper oil level (Approx. 1/4 up on sight glass).
4. We recommend that a small amount of grease be applied to table tilting screw once a
month.
5. No lubrication is required for the bearings, they are permanently lubricated.
8
Page 10
TROUBLESHOOTING
TROUBLE CAUSES CORRECTION
Motor does not run when
power switch is turned “ON”.
Motor does not run at full
speed.
Motor does not reach full
power.
Motor overheating 1. Motor is dirty.
1. Switch is burned out.
2. Connection wire is loose
or damaged.
1. Power voltage is too low.
2. Motor is damage
1. Incorrect power wiring.
2. Ov
2. Motor is damage
erload.
d.
d.
1. Replace the switch.
2. T
ighten or re
wire.
1. Test voltage.
2. Check and repair motor.
1. Replace with the correct
e power
siz
2. R
educe sanding load
1. Clean motor.
2. Check and repair motor.
place the
wiring.
.
Excessive machine vibration Machine is incorrectly
leveled.
Mark on workpiece 1. Sanding drum is
damag
Sanding cloth on drum is
2.
w
Sanding drum turns in wrong
direction
Burns on workpiece Wrong abrasive grit on
Wrong phase or voltage Make sure the phase and
sanding cloth
ed.
orn in some area
s.
Adjust machine leveling
1. Replace the sanding
drum.
2. R
eplace sanding clot
voltage comply with machine
requirement.
Use coarser grit to remove
more material from
workpiece.
h
9
Page 11

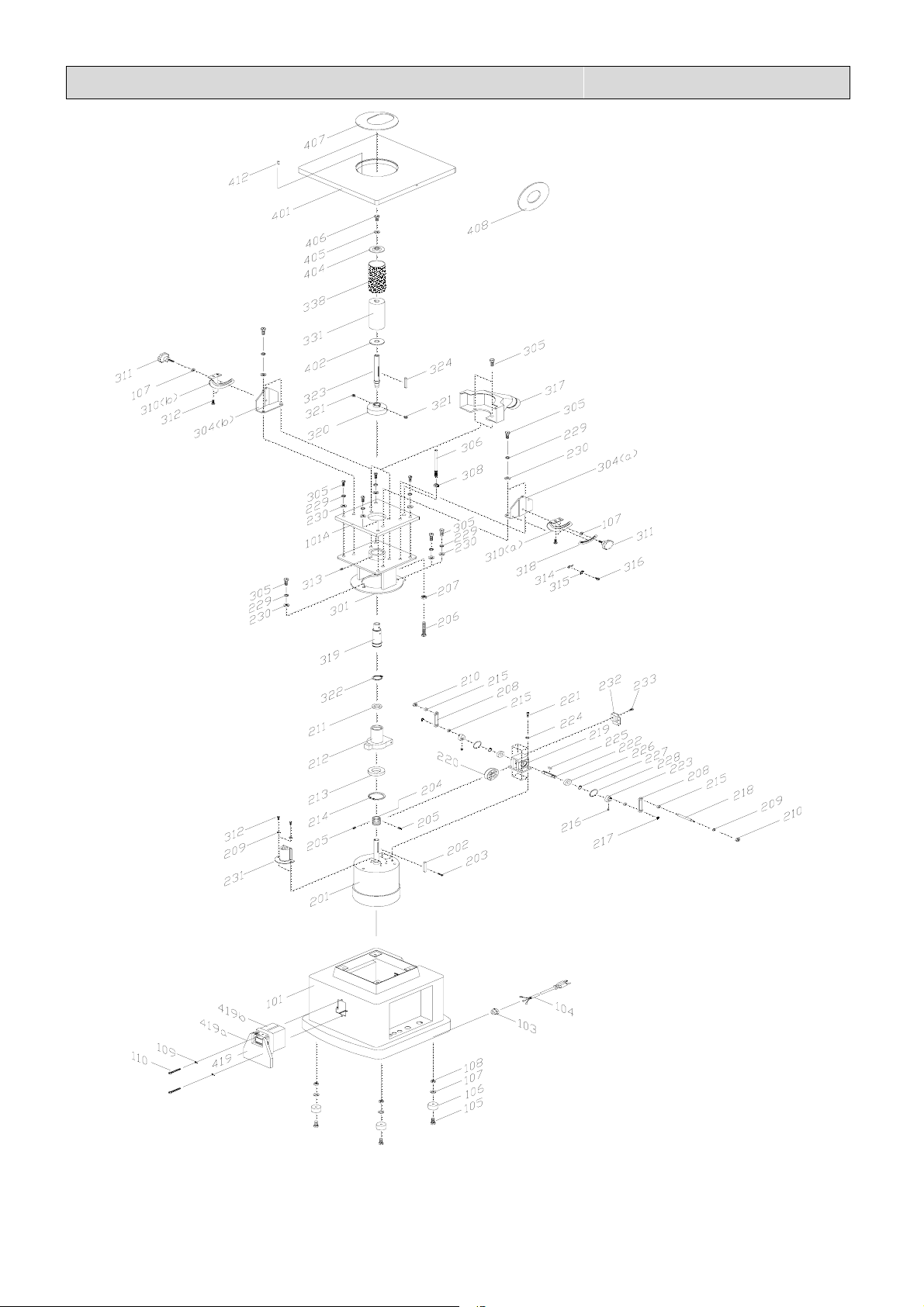

ASSEMBLY DIAGRAM
10
Page 12
SPARE PARTS FOR 6905.001
Key no. Part no. DISCRIPTION Quantity
101 30201001G BASE 1
101a 30201001a TOP PLATE 1
102 W0000000 SWITCH 1
103 S1006P1 STRAIN RELIEF 1
104 L000000 POWER CORD 1
105 S0030622M PHILIPS HEAD SCREW 4
106 10107098 RUBBER FEET 4
107 S0210403 FLAT WASHER 7
108 S0011600M HEX. NUT 4
109 S00303040 PHILIPS HEAD SCREW 2
110 S0030318 PHILIPS HEAD SCREW 2
111 S0220300 GEAR WASHER 2
112 S0110300 HEX. NUT 4
114 30201002 SWITCH BOX 1
201 M000000 MOTOR 1
202 S0430650 KEY 1
203 S0040415M FLAT HEAD SCREW 1
204 30202001 WORM SHAFT 1
205 S0050610M SET SCREW 2
206 30202002 TRANSMISSION ROD 1
207 S0110800M HEX. NUT 1
208 30202003 CONNECTING ROD 2
209 S0210303 FLAT WASHER 4
210 S0120500M LOCKING NUT 2
211 C1106804 BEARING 1
212 30202004 TRANSMISSION 1
213 C1106006 BEARING 1
214 S0520059 C RING 1
215 30202005 BUSHING 4
216 S0050506M SET SCREW 2
217 S05ETW04 E RING 2
218 30202020 CONNECTING SHAFT 1
219 30202006p BRACKET 1
220 30202007p WORM 1
221 S0010615M HEX. SOCKET CAP SCREW 4
222 30202008P SHAFT 1
223 30204010 CRANK SHAFT 2
224 S0230400 SPRING WASHER 4
225 S0400415 KEY 1
226 C1106001 BEARING 2
227 S0521200 C RING 2
Page 13
SPARE PARTS FOR 6905.001
Key no. Part no. DISCRIPTION Quantity
228 S0530028 C RING 2
229 S0230506 SPRING WASHER 11
230 S0210500C FLAT WASHER 11
231 30202009 OIL CAP 1
232 30202012 STORAGE PLATE FOR DRUMS 1
233 30202013 STORAGE PLATE FOR TABLE INSERTS 1
234 30202014 OIL CAP 1
235 S0030304 PHILIPS HEAD SCREW 2
301 30203001 HOUSING 1
304a 30203003 BRACKET (RIGHT) 1
304b 30203003a BRACKET (LEFT) 1
305 S0020825M HEX. SCREW 13
306 30203004 TOP PLATE 1
308 S0020610M HEX. SCREW 1
310a 40501001 SUPPORT TRUNNION (RIGHT) 1
310b 40501011a SUPPORT TRUNNION (LEFT) 1
311 S0070615M LOCK KNOB 2
312 S0010515M HEX. SOCKET CAP SCREW 6
313 S0050605M SET SCREW 1
314 10102022 POINTER 1
315 S0220400 GEAR WASHER 1
316 S0030510M PHILIPS HEAD SCREW 1
317 30203005 DUST COVER 1
319 30203006 MAIN SPINDLE 1
320 30203007 SWITCH COVER 1
321 S0030505M PHILIPS HEAD SCREW 2
322 S0520027 C RING 1
323 30203008 5/8" SANDING SPINDLE 3
324 S0400550 KEY 1
331 30203015 2" RUBBER BUSHING 1
332 30203014 1-1/2" RUBBER BUSHING 1
334 30203017 1/2" SANDING SPINDLE 1
335 30203018 1/4" SANDING SPINDLE 1
337 30203019 1/2" CLAMP 1
338 30203021 2" SANDING SLEEVE 1
339 30203010 1/4" SANDING SLEEVE 1
340 30203011 1/2" SANDING SLEEVE 1
341 30203012 5/8" SANDING SLEEVE 1
342 30203013 1-1/2" SANDING SLEEVE 1
344 30203019a 5/8" CLAMP 1
Page 14
SPARE PARTS FOR 6905.001
345
30203019b
1/4" CLAMP
1
401
30204001
TABLE
1
402
20301002
2" LOWER FOLLOWER PLATE
2
403
20801002
1-1/2" UPPER FOLLOWER PLATE
1
404
20301044
2" UPPER FOLLOWER PLATE
1
405
S0210500
FLAT WASHER
1
406
S0110500L
HEX. NUT
1
407
30204003
2" TABLE INSERT (OVAL)
1
408
30204004
2" TABLE INSERT (ROUND)
1
409
30204005
3/4" TABLE INSERT (ROUND)
1
410
30204006
3/4" TABLE INSERT (OVAL)
1
412
S0310312
SPRING PIN
1
413
30201003
WRENCH
1
414
10105091
WRENCH
1
Key no. Part no. DISCRIPTION Quantity
416 J8010004 WARNING LABEL 1
419 WG000007 SWITCH COVER 1
419a WG000002 SWITCH BOX 1
419b WG000003 SWITCH PIN 1
425 30202039 RUBBER PAD 4
426 S0520019 RING STW-19 1
427 S0110500L HEX. NUT 5/16"*18UNC*LH 1
