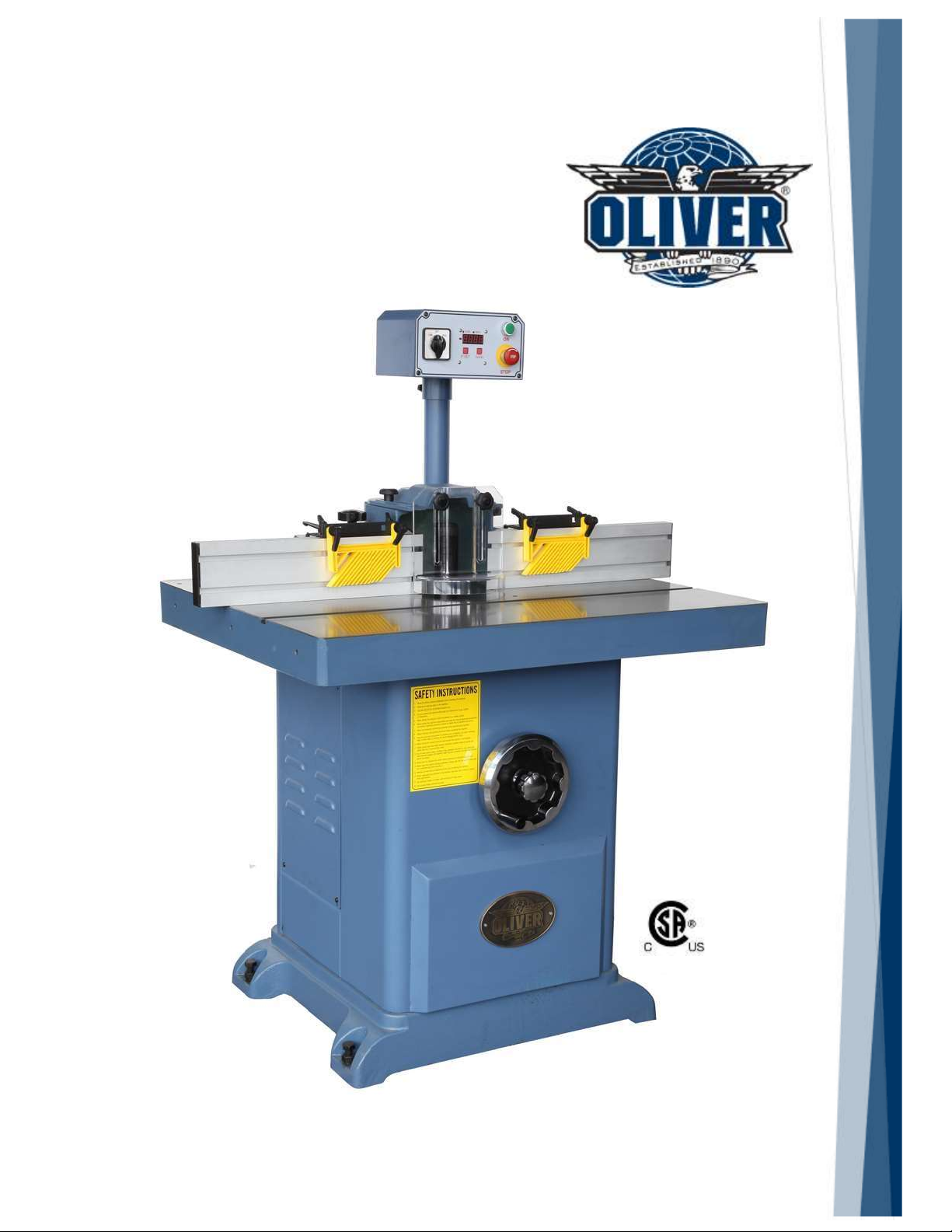

Oliver Machinery 4705 User guide

Shaper

Model 4705

Owner’s Manual

For Models Manufactured Since 08/2010

175370

Oliver Machinery
1-800-559-5065
6902 S 194th St, Kent, WA 98032

[email protected]
WWW.OLIVERMACHINERY.NET

Stock Number: 4705.001, 4705.002

Manual Version: 2.0.0

READ AND UNDERSTAND ALL INSTRUCTIONS IN THIS MANUAL BEFORE
ATTEMPTING TO ASSEMBLE OR OPERATE THE MACHINE.

FOLLOW THE INSTUCTIONS AND THINK SAFETY!

THE OWNER OF THIS MACHINE IS SOLELY RESPONSIBLE FOR THE SAFETY OF ANYONE USING
THIS MACHINE. SUCH RESPONSIBILITY INCLUDES BUT NOT LIMITED TO:

• PROPER ASSEMBLY, OPERATION, INSPECTION, MAINTENANCE, AND RELOCATION OF

THE MACHINE.

• PROPER TRAINING FOR THE OPERATORS AND ENSURES THIS MANUAL IS AVAILABLE

AT ALL TIMES.

• USAGE AUTHORIZATION.

• USAGE OF SAFETY AND PROTECTION DEVICE.

OLIVER MACHINERY DISCLAIMS ANY LIABILITY FOR MACHINES THAT HAVE BEEN ALTERED OR
ABUSED. OLIVER MACHINERY RESERVES THE RIGHT TO EFFECT AT ANY TIME, WITHOUT PRIOR
NOTICE, THOSE ALTERATIONS TO PARTS, FITTINGS, AND ACCESSORY EQUIPMENT WHICH THEY
MAY DEEM NECESSARY FOR ANY REASON WHATSOEVER.

** SAVE THIS MANUAL FOR FUTURE REFERENCES. **

PROP 65 NOTICE

WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust,
and/or other chemicals known to the State of California to cause cancer, birth defects or other
reproductive harm.

Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Avoid inhaling wood dust and other harmful chemicals. Use a dust mask and/or other
safety devices for personal protection.

For more information go to http://www.P65Warnings.ca.gov/wood

Table of Contents

Introduction············································· 6

Features ·················································· 7

Specifications ·········································· 9

Quick View ·················································9

Product Dimensions ····································9

Shipment Info ·············································9

Electricals ···················································9

Motor ······················································ 10

Spindle and Cutter ···································· 10

Table ························································ 10

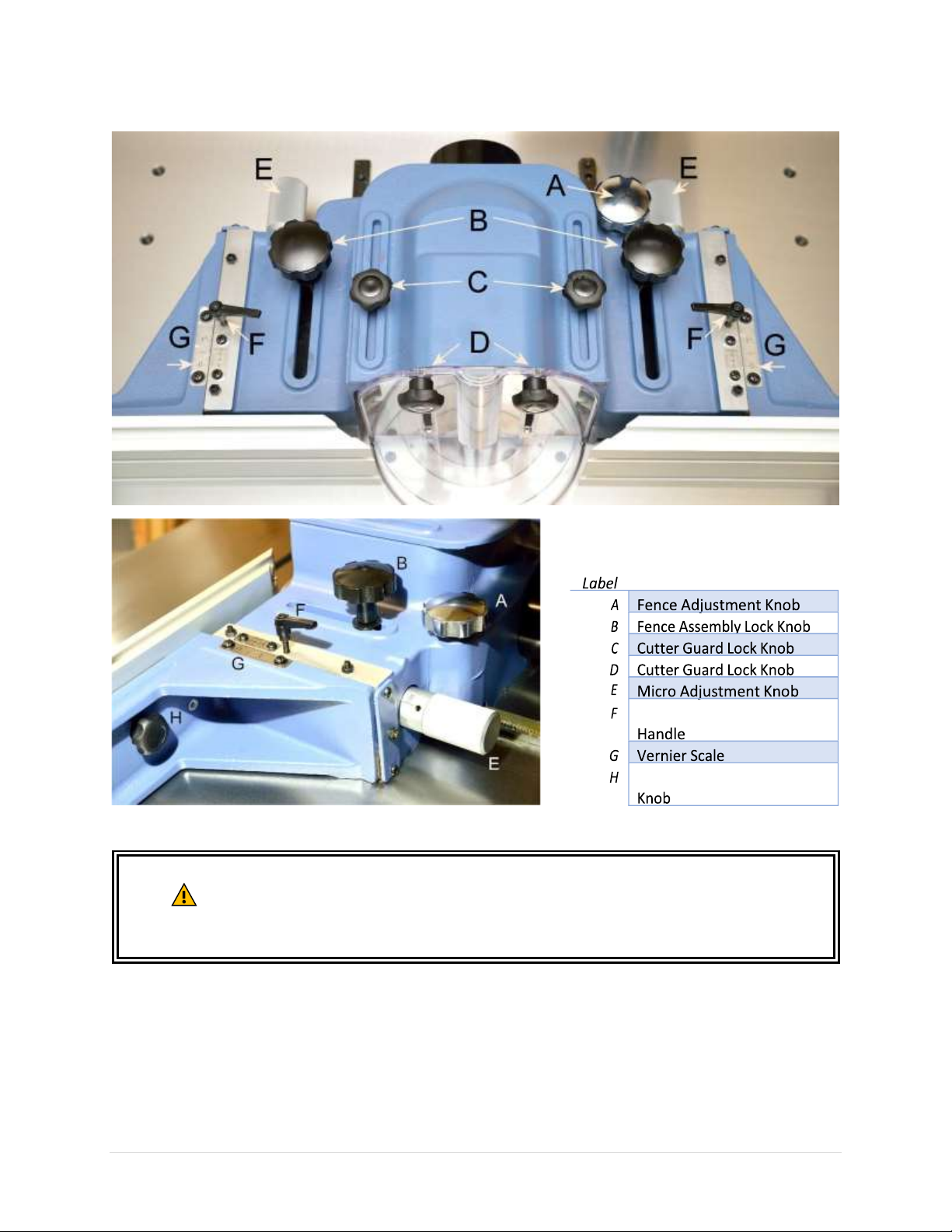

Fence ······················································· 11

Miter Gauge ············································· 11

Safety ······················································ 11

Others ······················································ 11

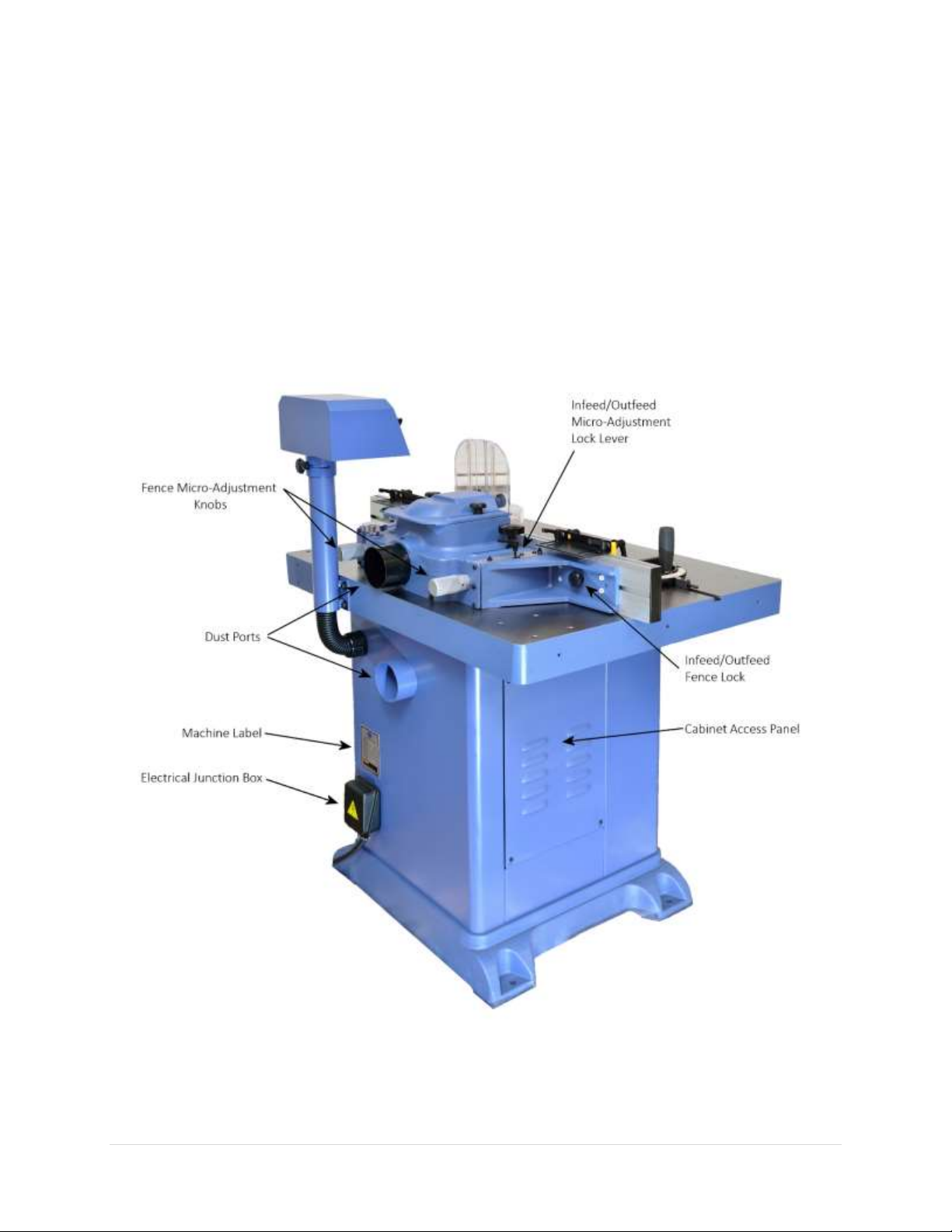

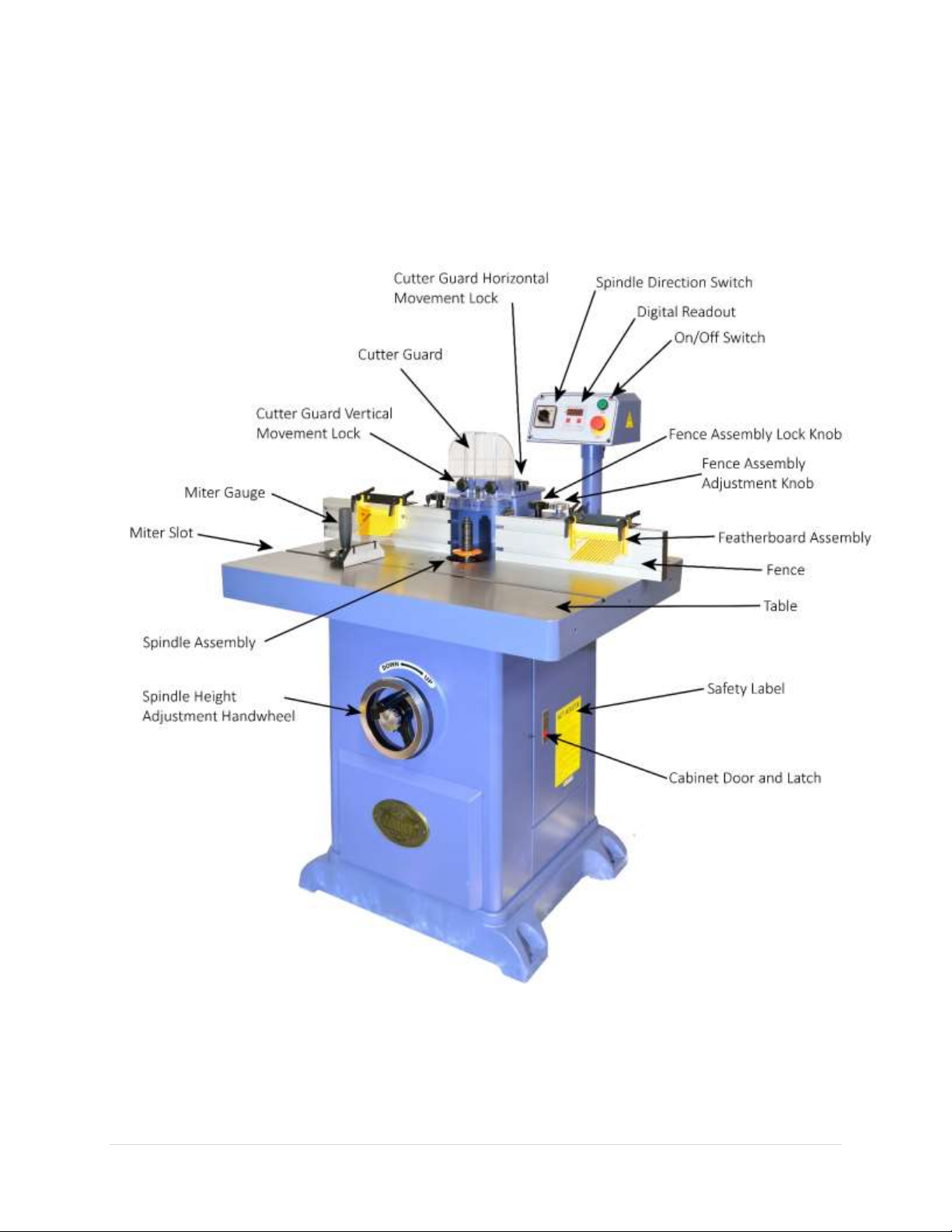

Identification ··········································12

Safety ·····················································14

General Safety Guidelines ························· 14

Safety Guidelines Specific to Shaper ·········· 15

Electricals ···············································18

Minimum Circuit Size Required for Model

4705 Shaper ············································· 18

Grounding ················································ 18

Electrical Wiring ······································· 18

440V Conversion for Three Phase Model

(Stock# 4705.002) ····································· 19

Setup ······················································20

Shop Preparation······································ 20

Space Requirement ········································· 20
Load Limits ······················································ 20
Electricals ························································ 20
Lighting ···························································· 20
Safety Labels ··················································· 20
Dust Collection ················································ 20

Receiving ·················································· 21

Unboxing ················································· 21

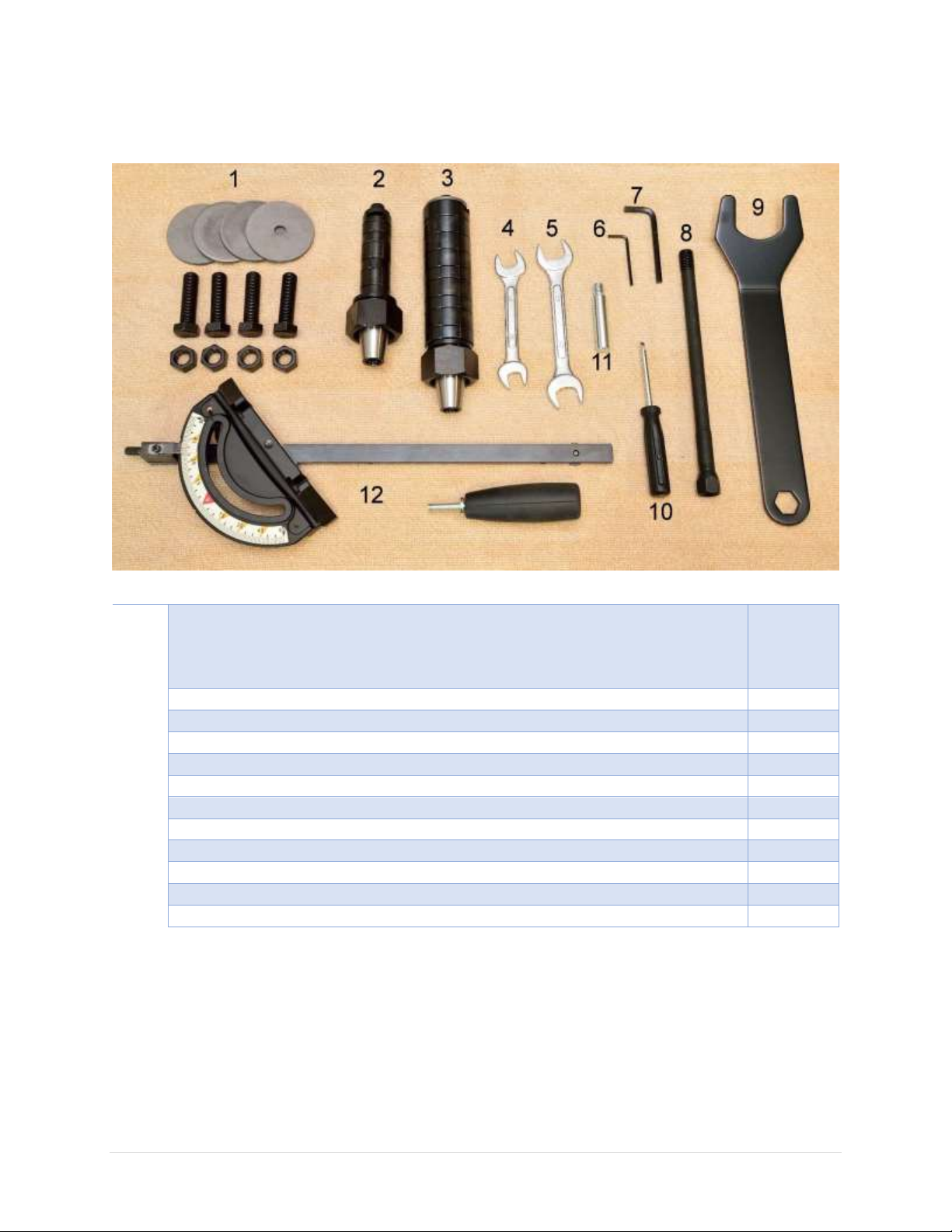

Inventory ················································· 22

Cleaning ··················································· 23

Assembly ················································· 23

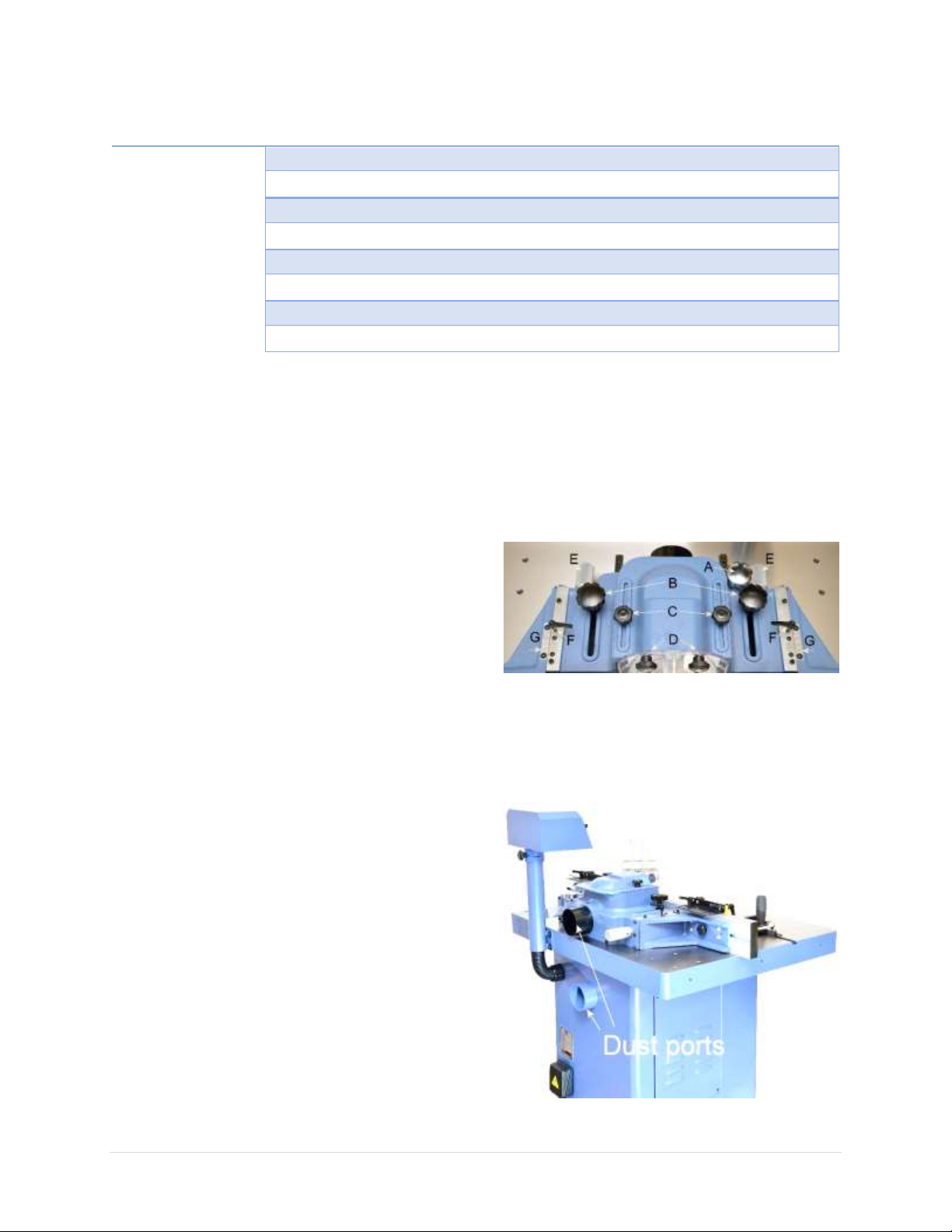

Dust Collection ········································· 23

Wiring and Grounding ······························ 24

Wiring Instructions for Stock Number 4705.001
(220V, 1 Phase) ··············································· 24
Wiring Instructions for Stock Number 4705.002
(220/440V, 3 Phase) ········································ 24

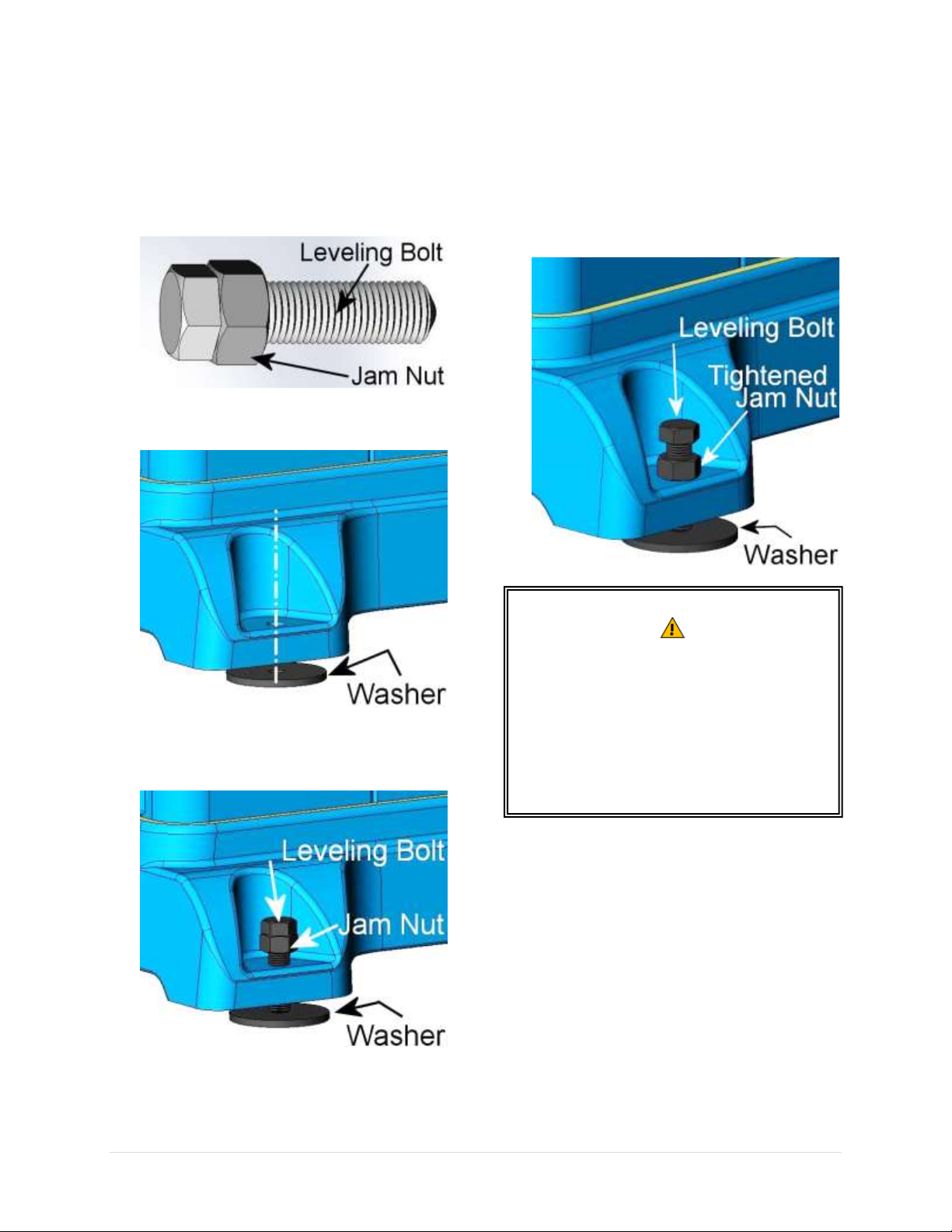

Leveling Machine······································ 25

Operation and Controls ·························· 26

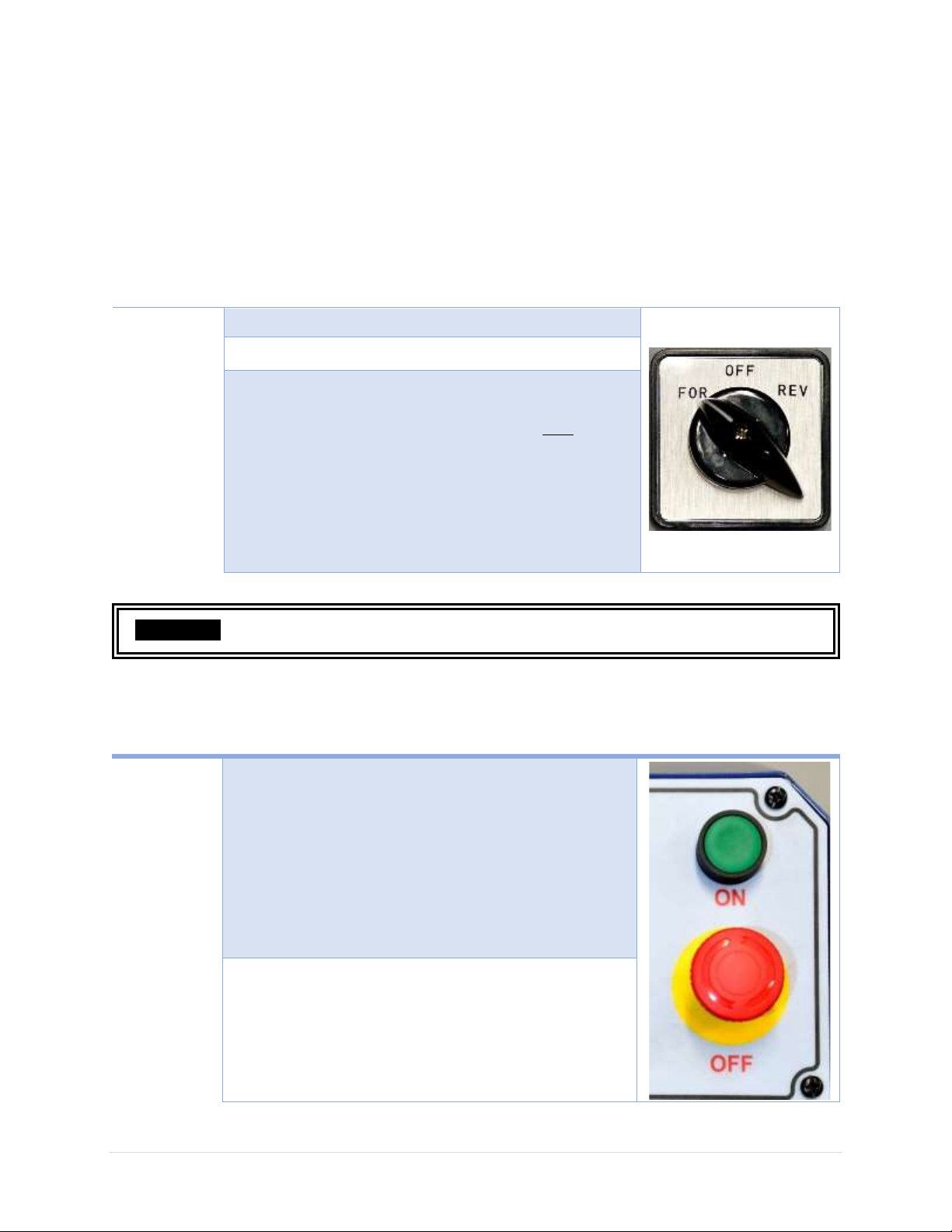

Control Panel ··········································· 26

Rotation Direction Switch ······························· 26
ON / OFF Switches ··········································· 26

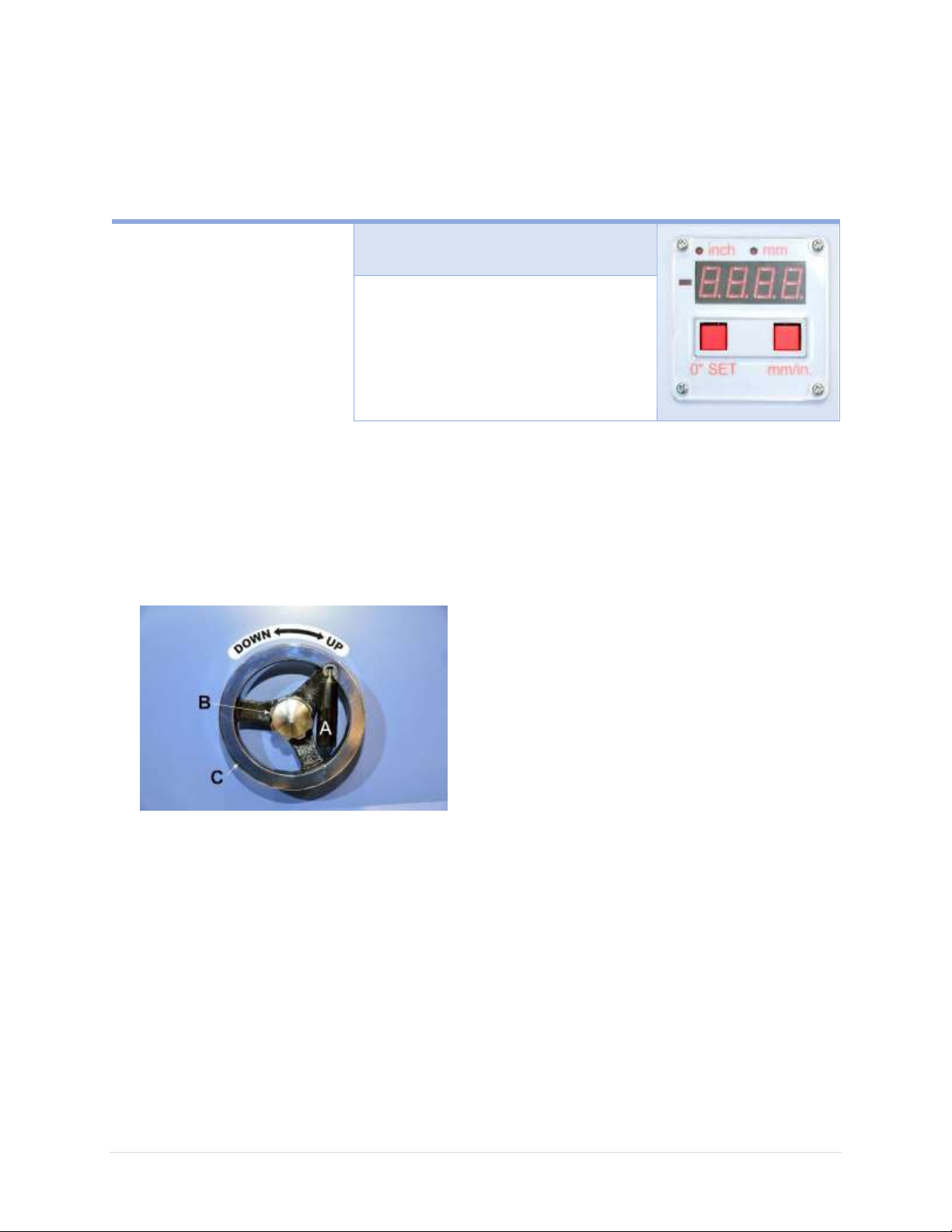

Digital Readout ················································ 27

Spindle Height Adjustment ······················· 27

Spindle Assembly ····································· 31

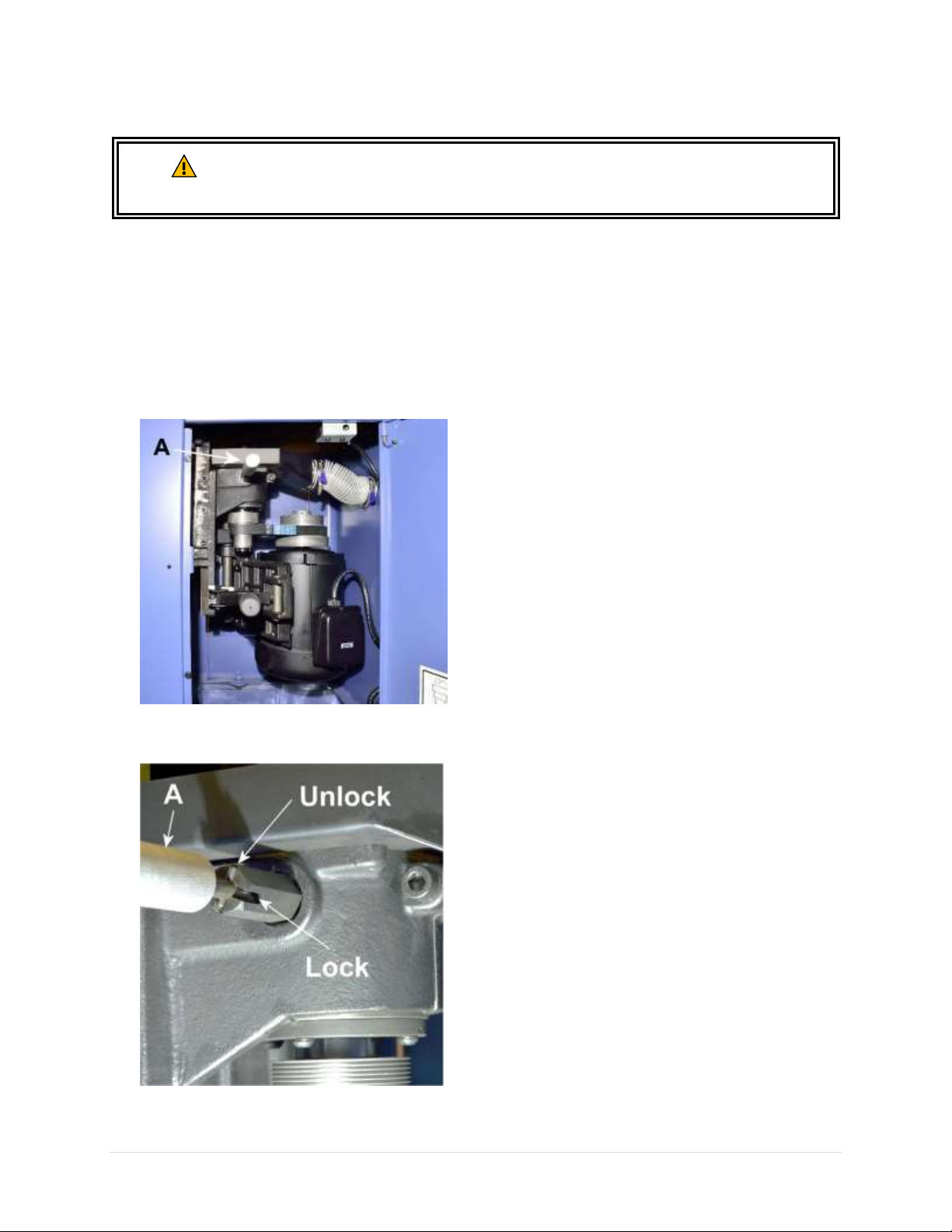

Locking / Unlocking Spindle Arbor ·················· 31

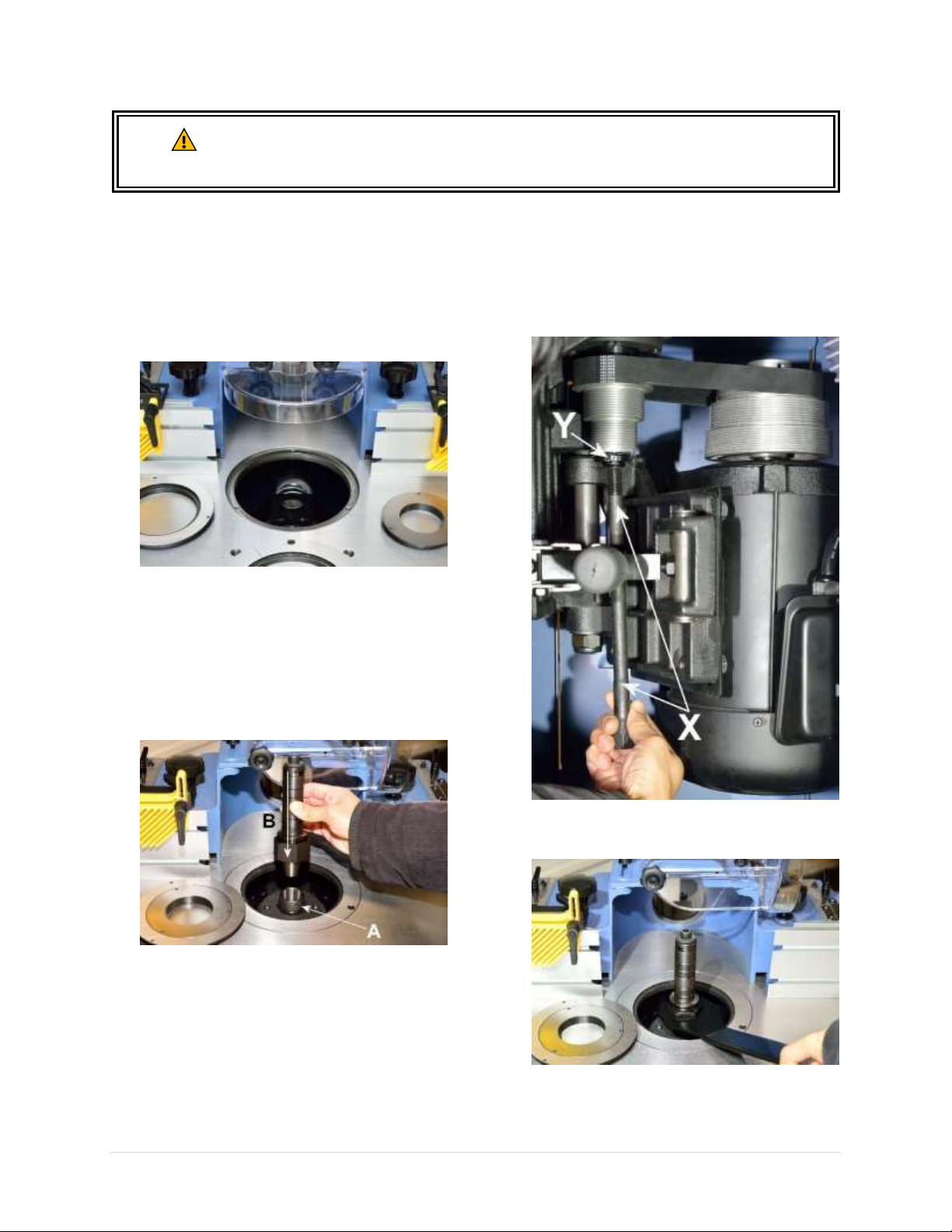

Installing / Removing Spindles ························ 32

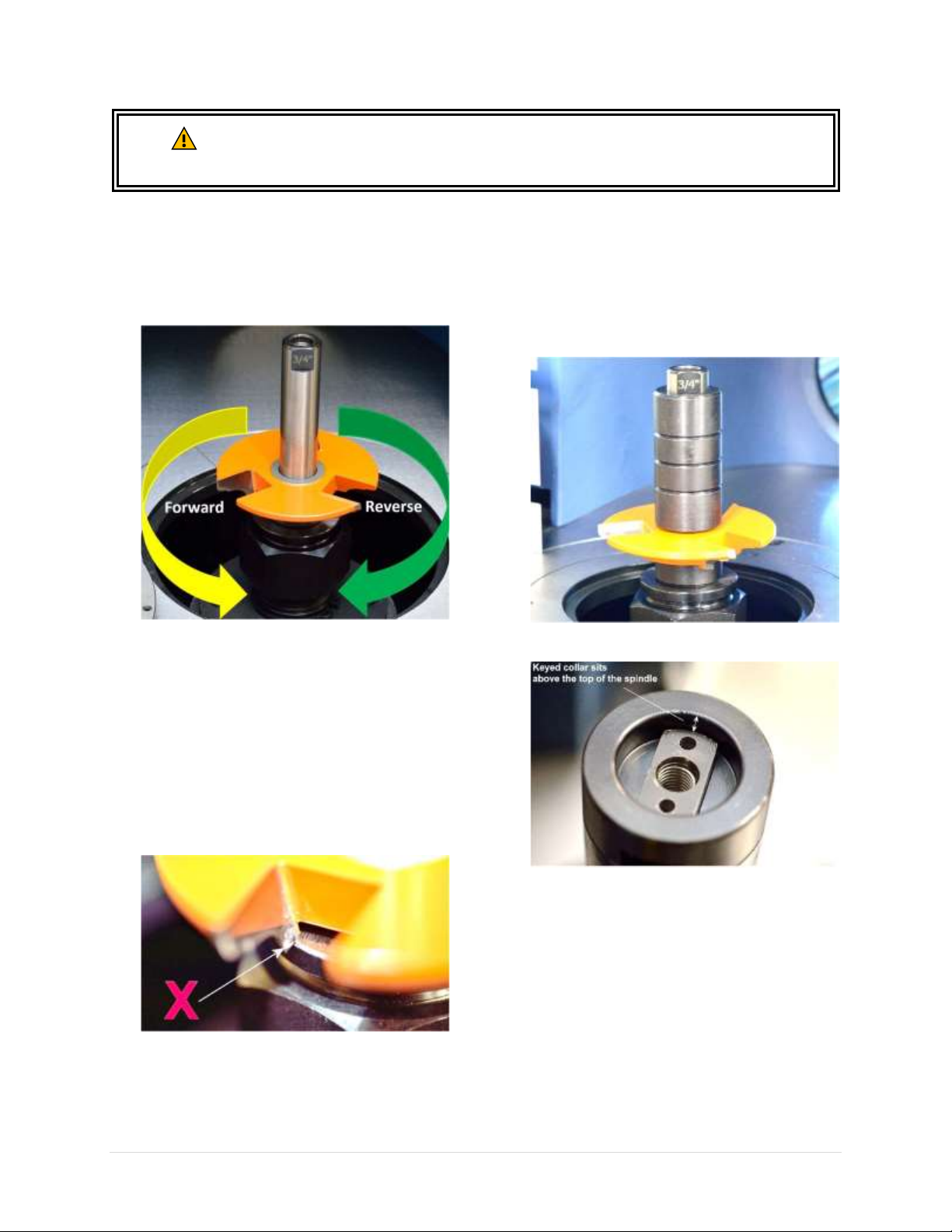

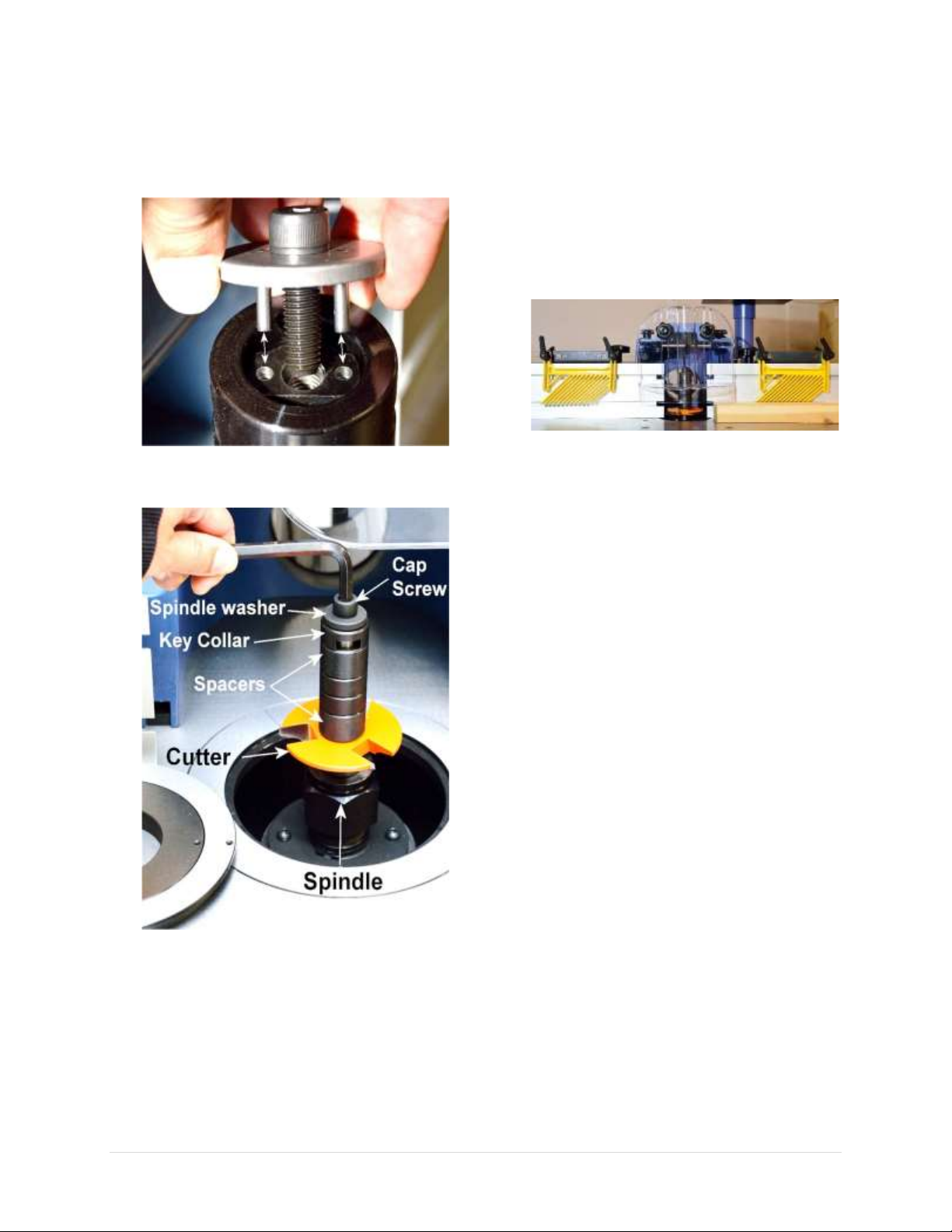

Installing/Removing Cutters ···························· 34
Installing/Removing Router Collets (Sold
Separately) ······················································ 36

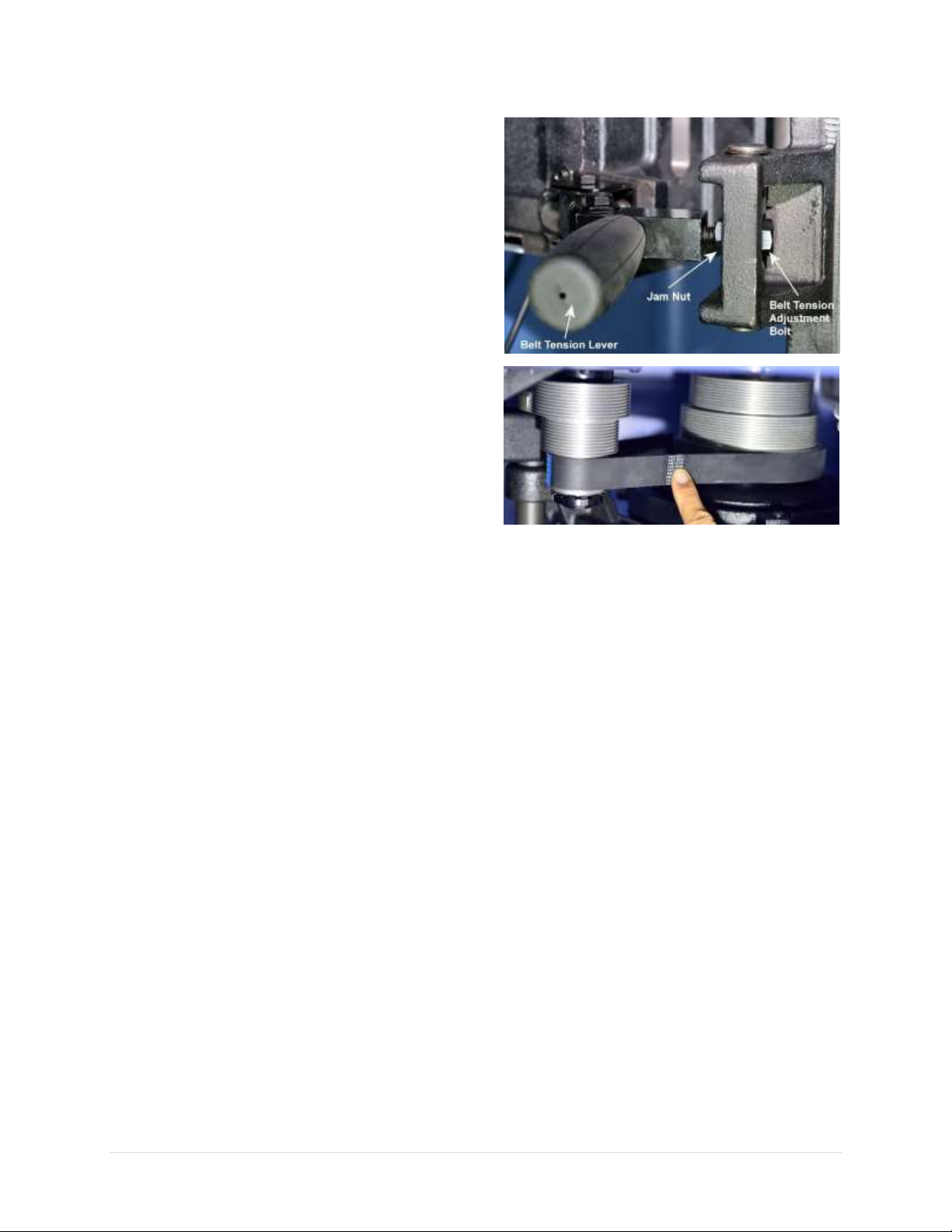

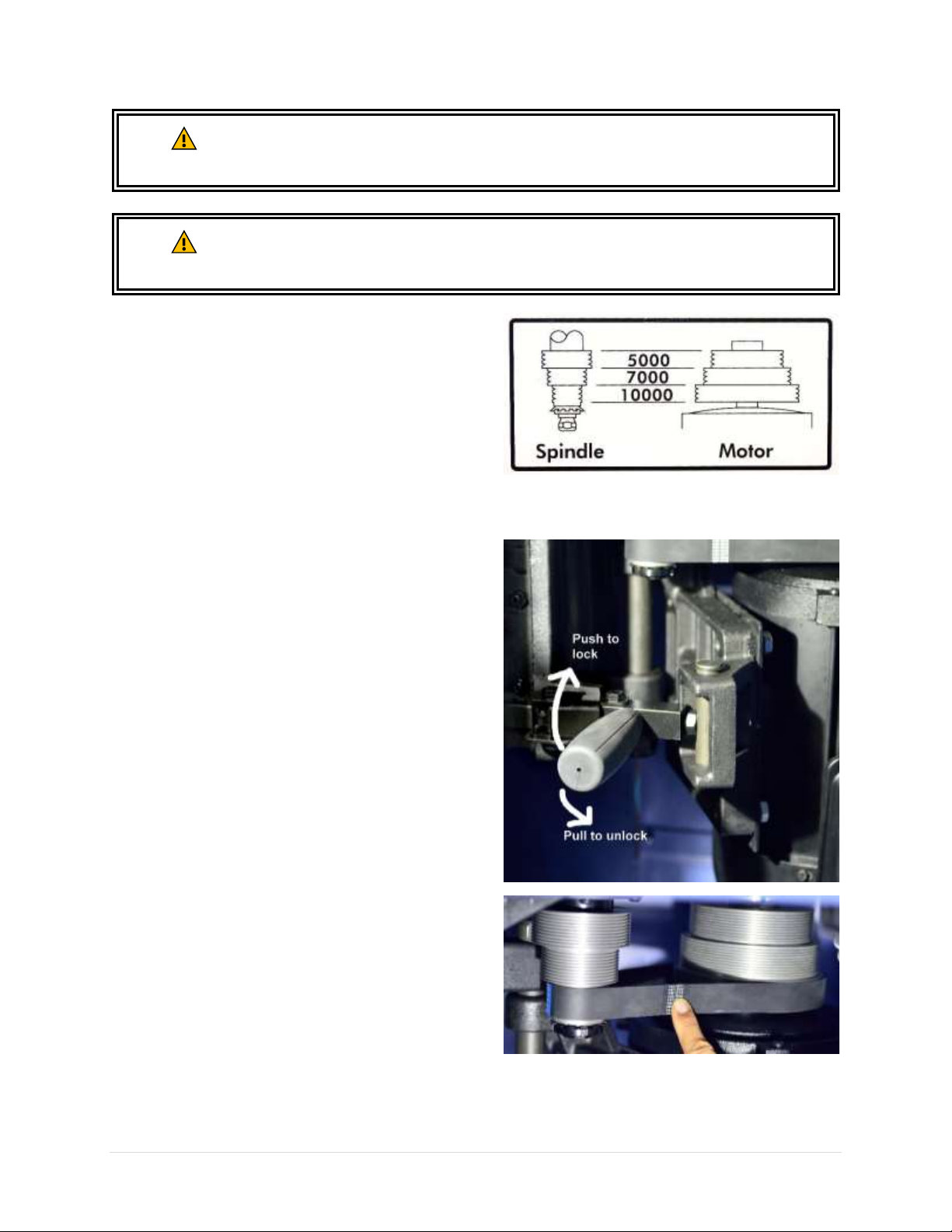

Adjusting Spindle Speed and Belt Tension ······ 37

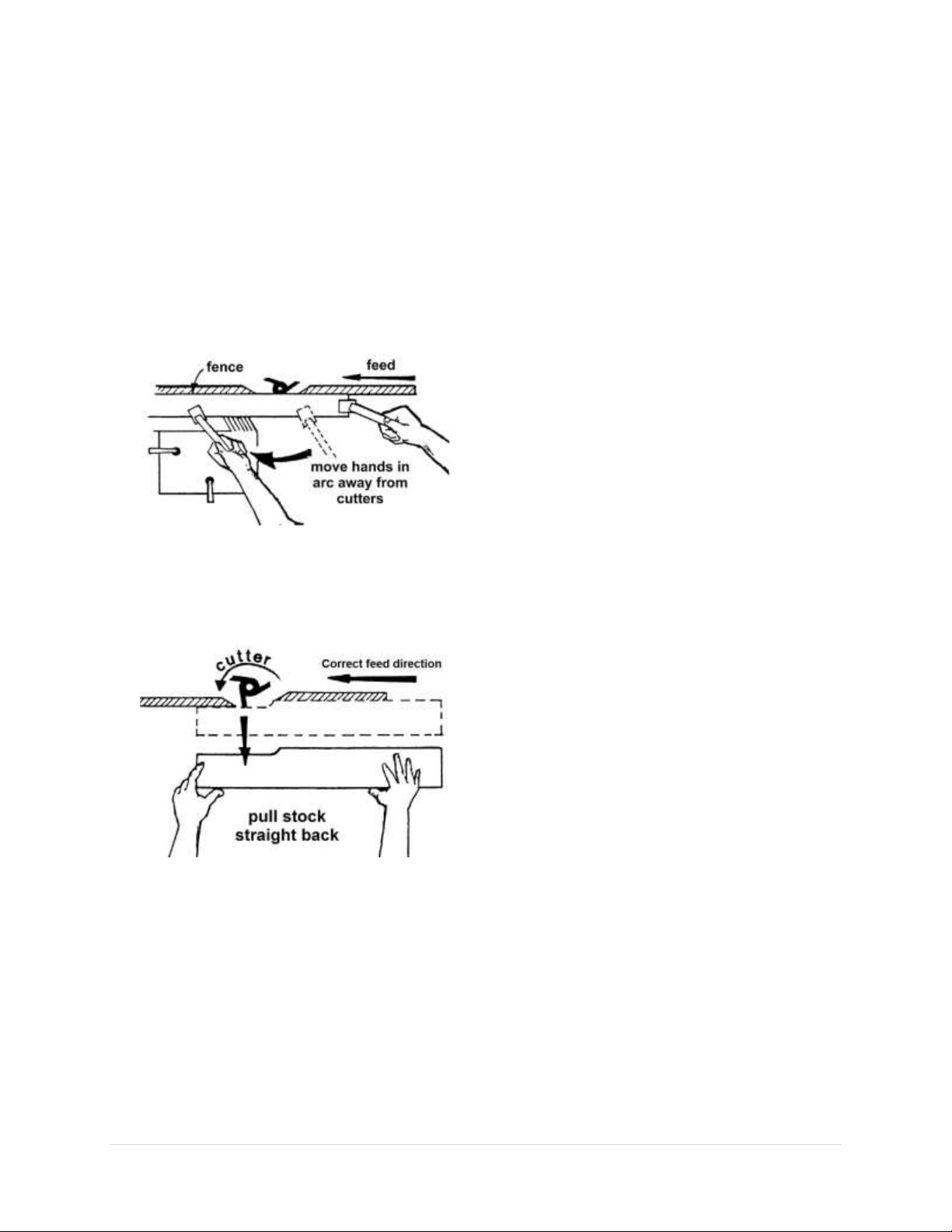

Shaping Wood ·········································· 39

Shaping Long and Straight Pieces ···················· 39
Cross Grain Shaping ········································ 39
Shaping Tall Workpieces ································· 40

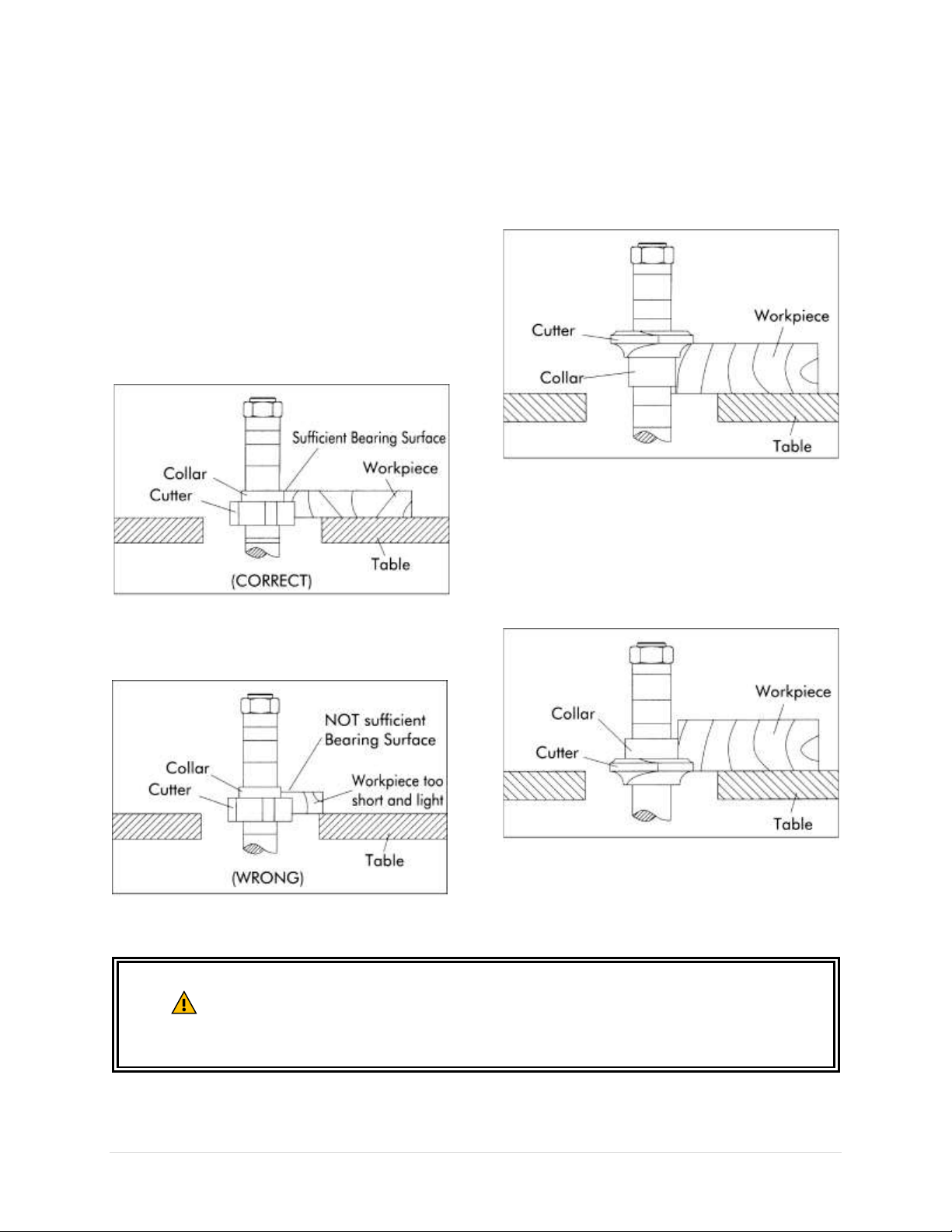

Shaping with Collars ········································ 40

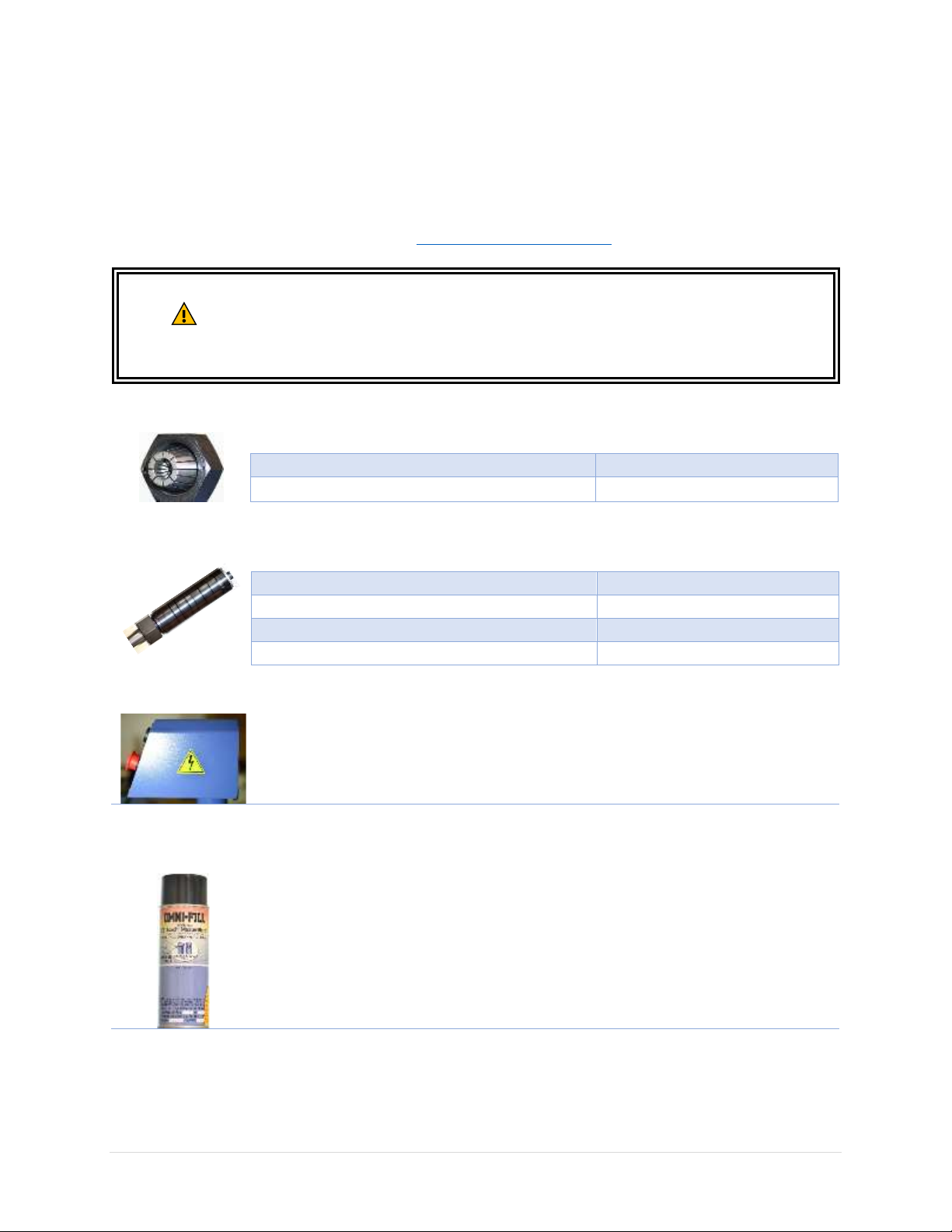

Accessories ············································ 41

Collets ······················································ 41

Spindle Assemblies ··································· 41

440V Conversion Kit ································· 41

Touchup Paint ·········································· 41

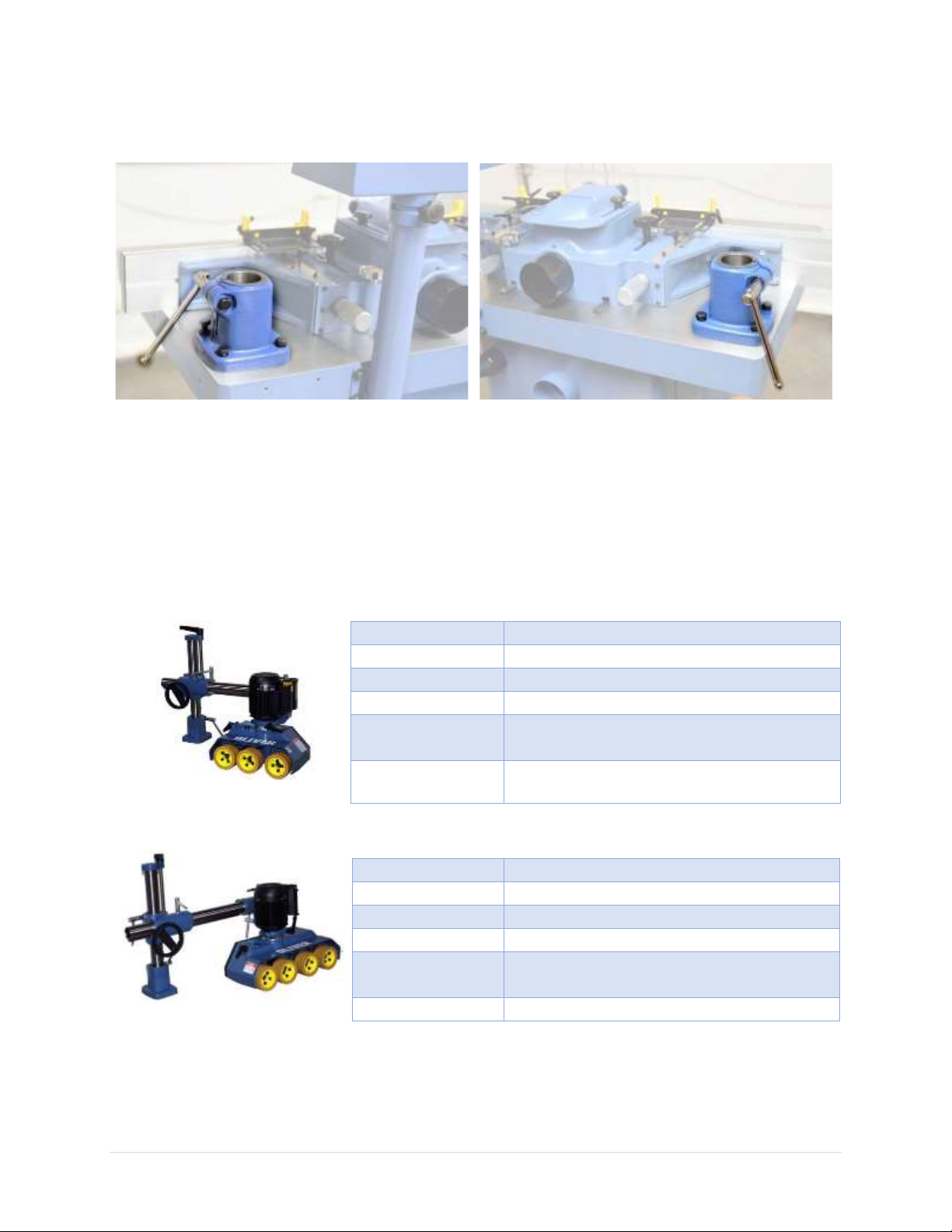

Power Feeders ········································· 42

Maintenance ········································· 43

Replace Drive Belt ···································· 43

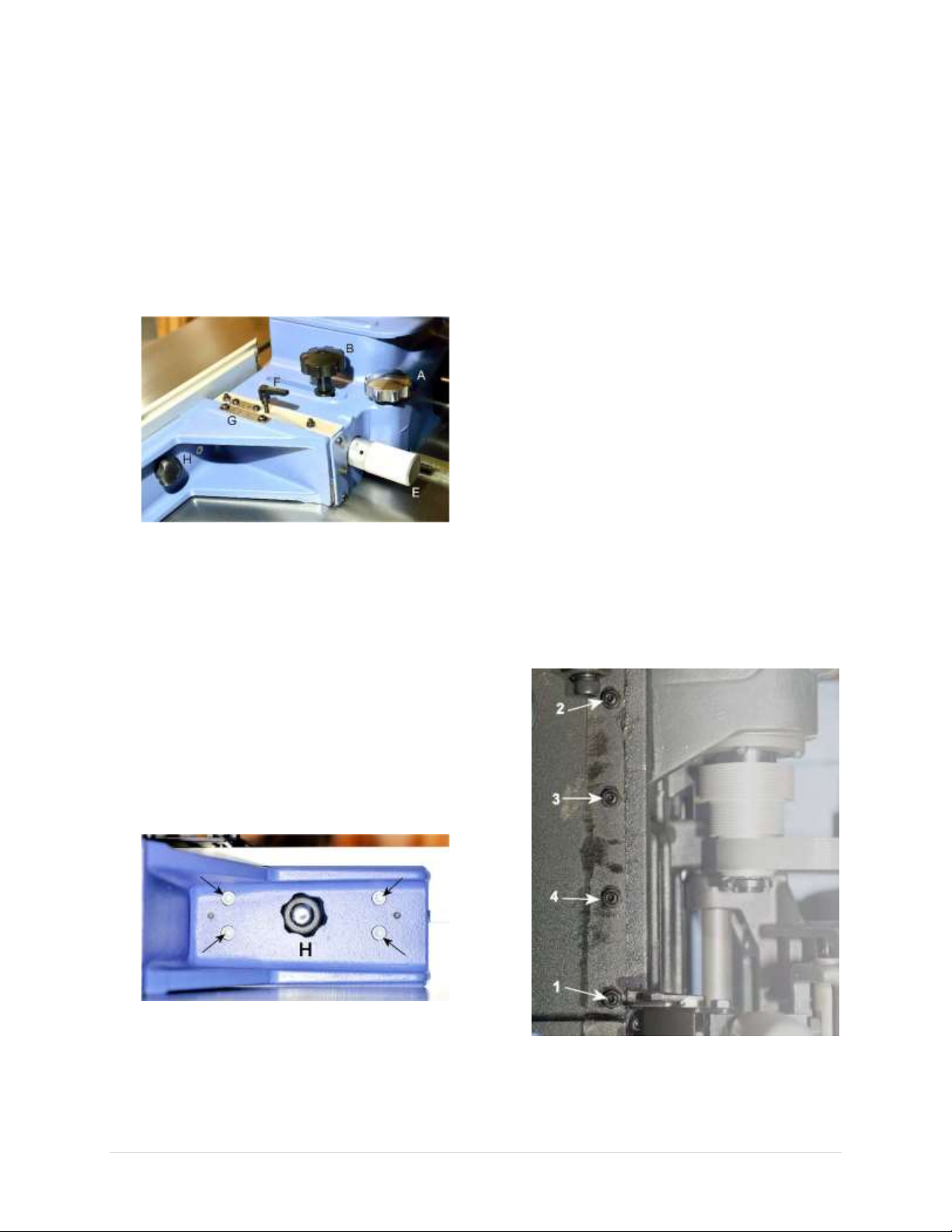

Align Fences ············································· 44

Spindle Elevator Adjustment ····················· 44

Troubleshooting ·····································46

Wiring Diagram ······································48

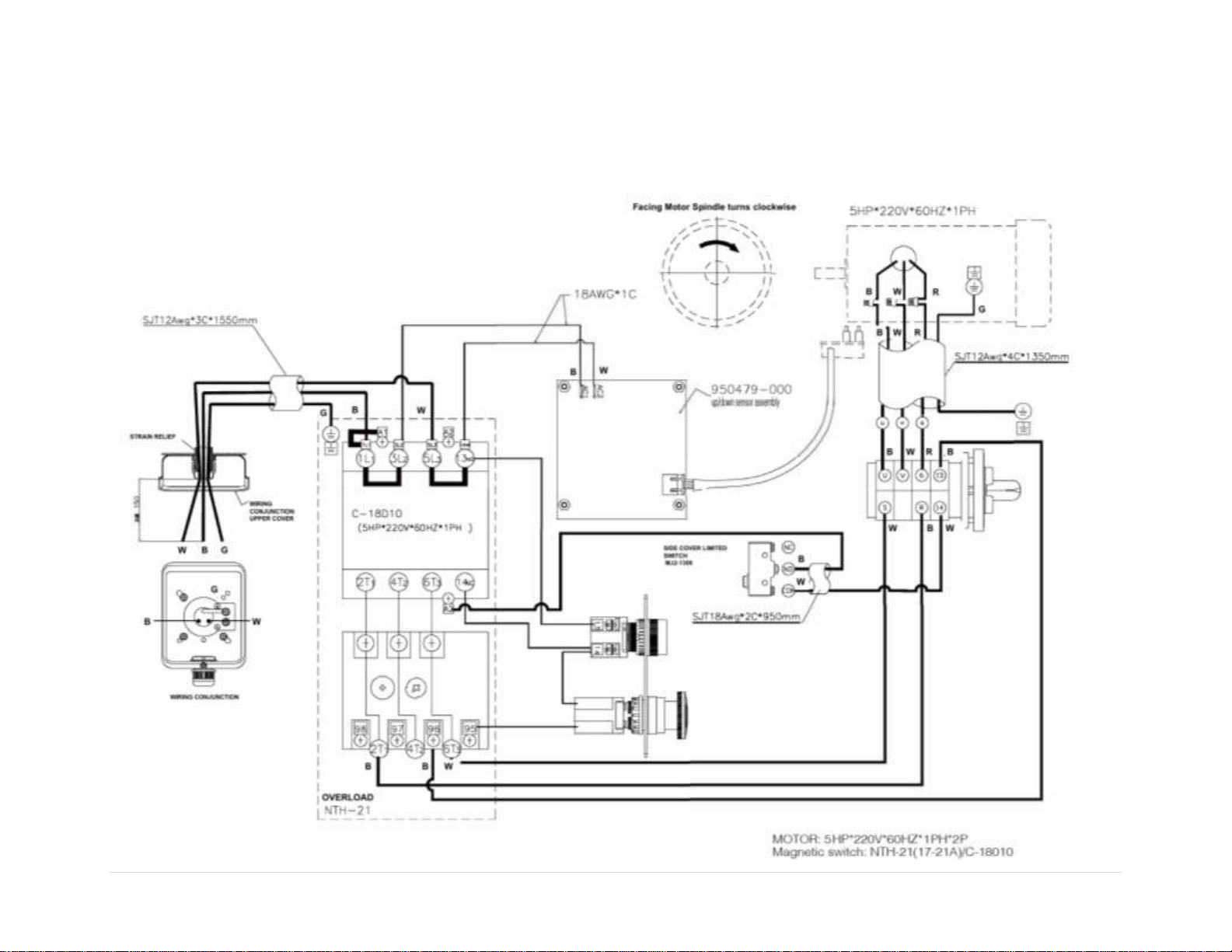

For Stock Number

4705.001 (220V, 1Ph) ····· 48

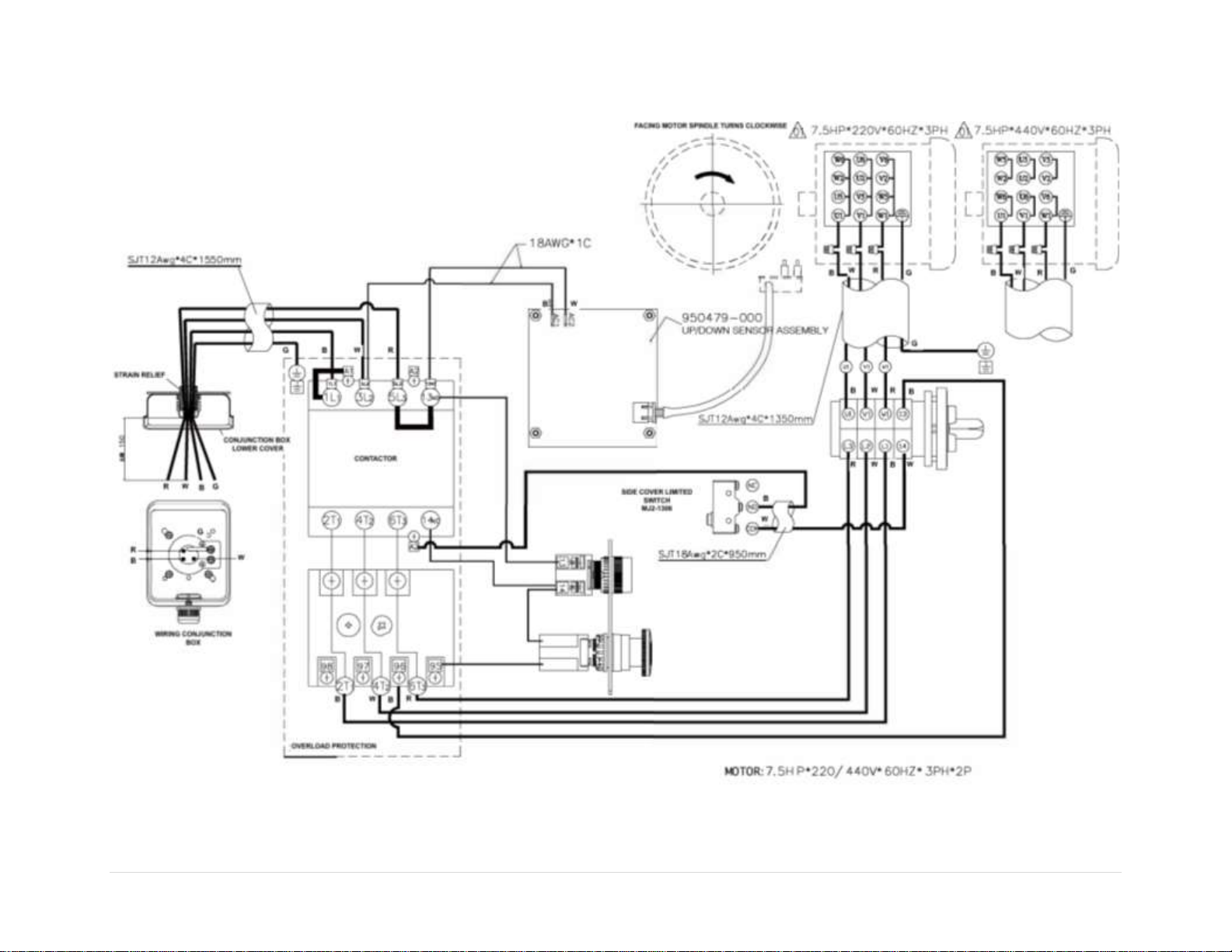

For Stock Number 4705.002 (220/440V, 3Ph)

································································ 49

Parts List ················································50

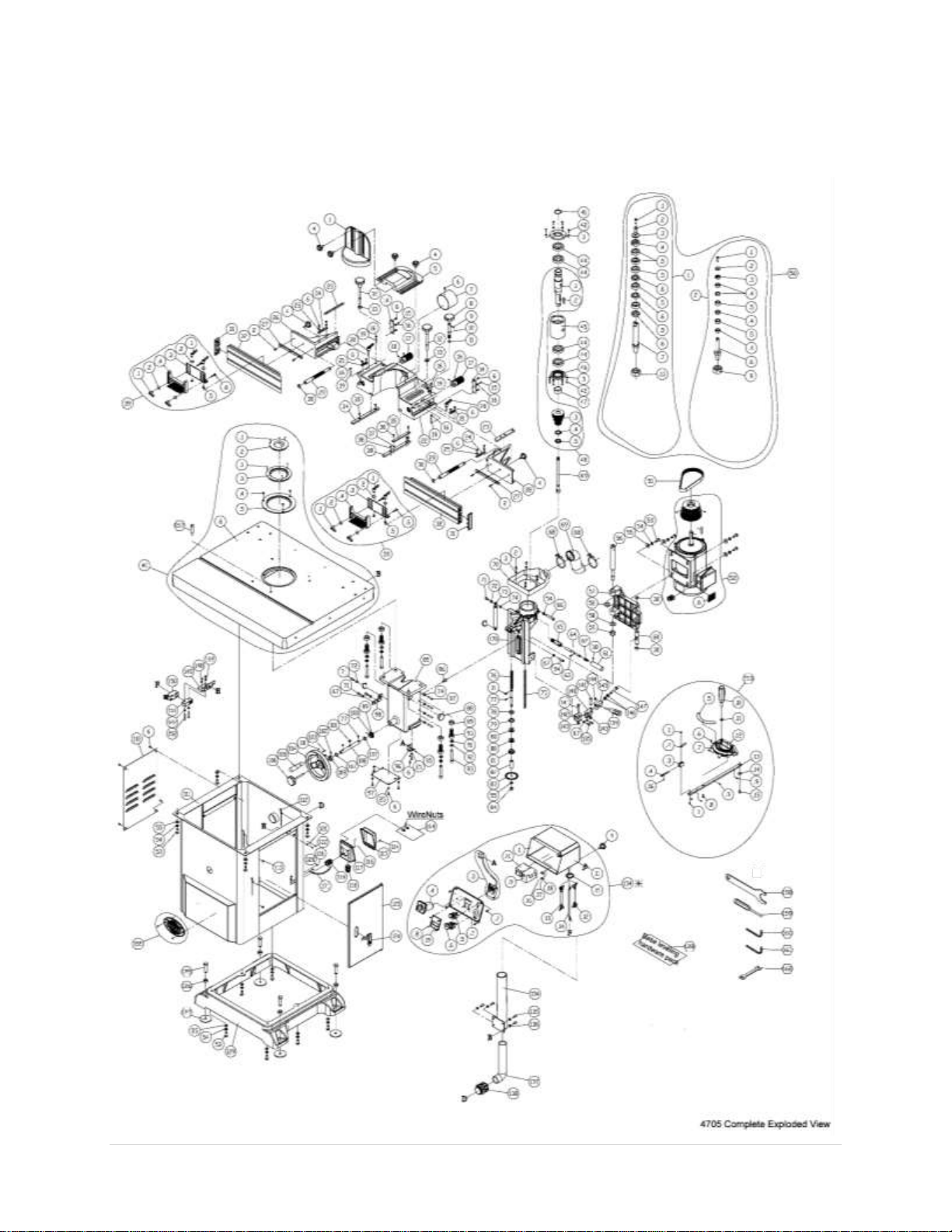

Complete Exploded View ·························· 50

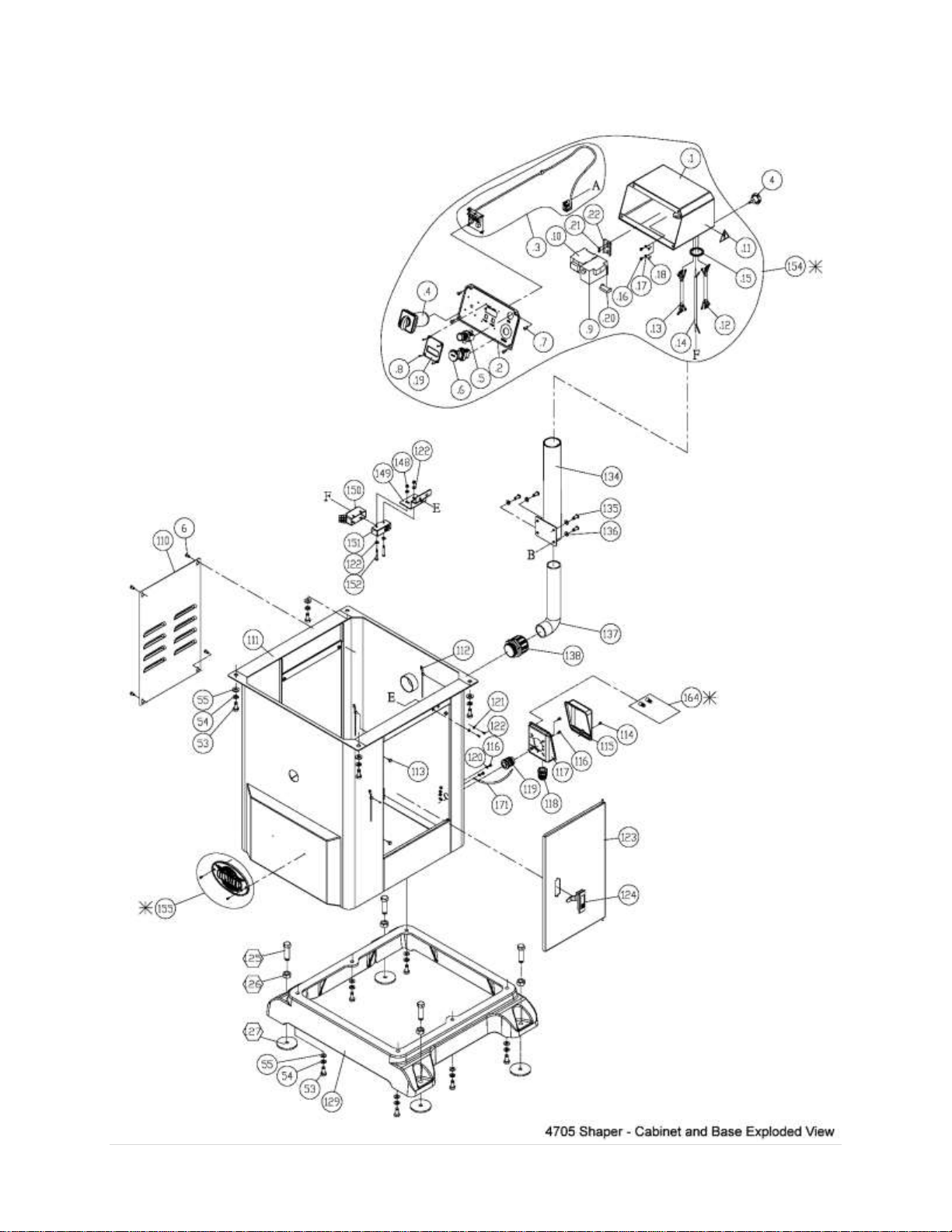

Cabinet and Base ······································ 51

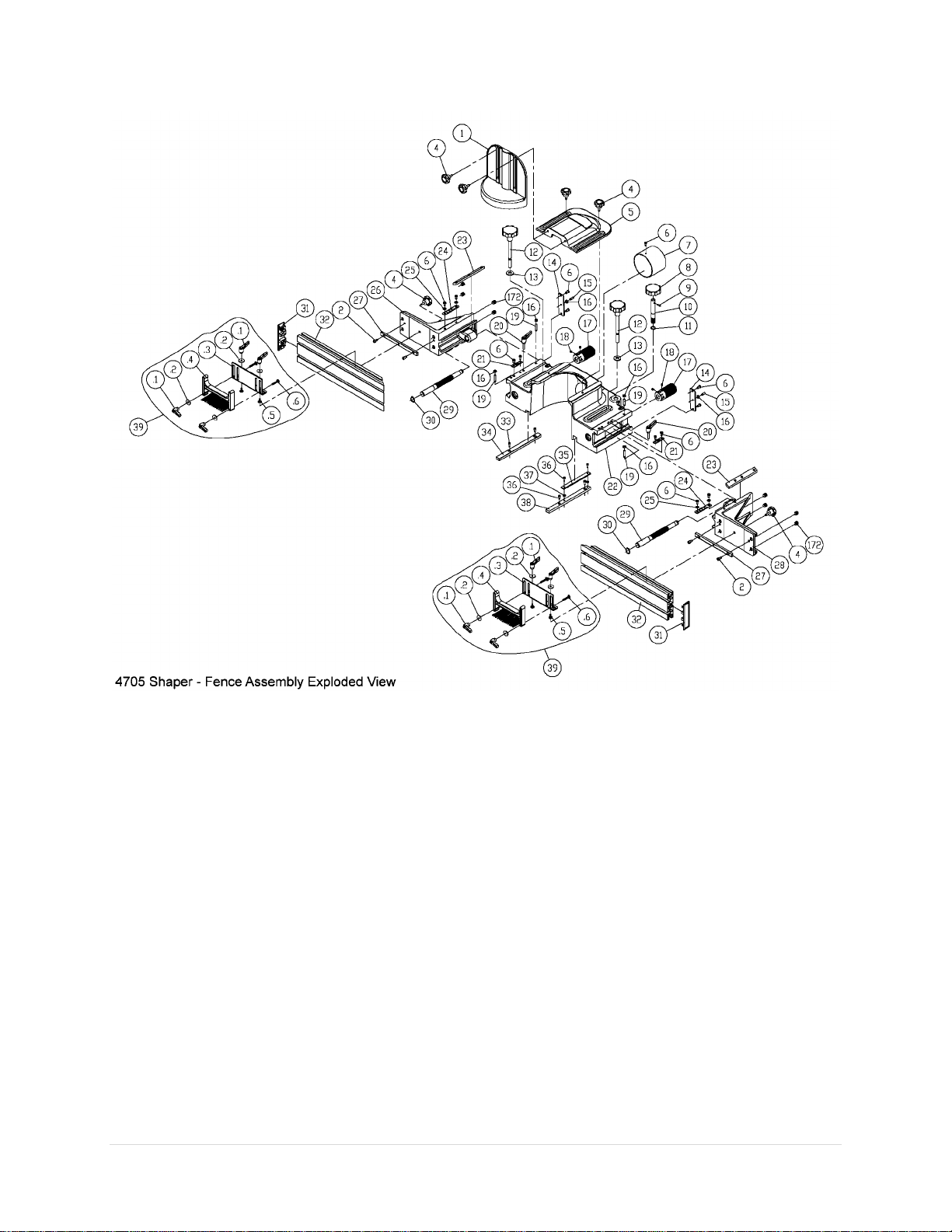

Fence Assembly ········································ 52

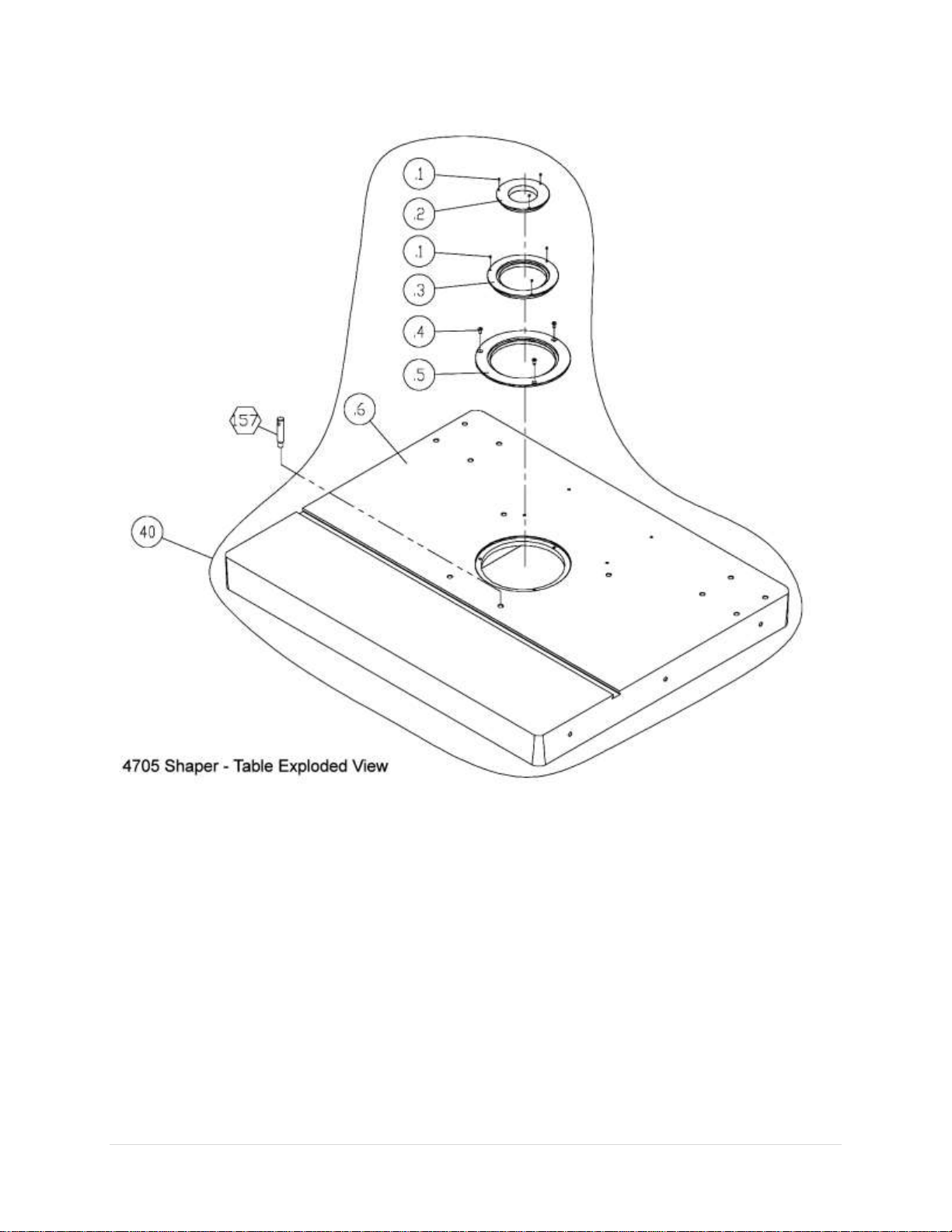

Table Assembly ········································ 53

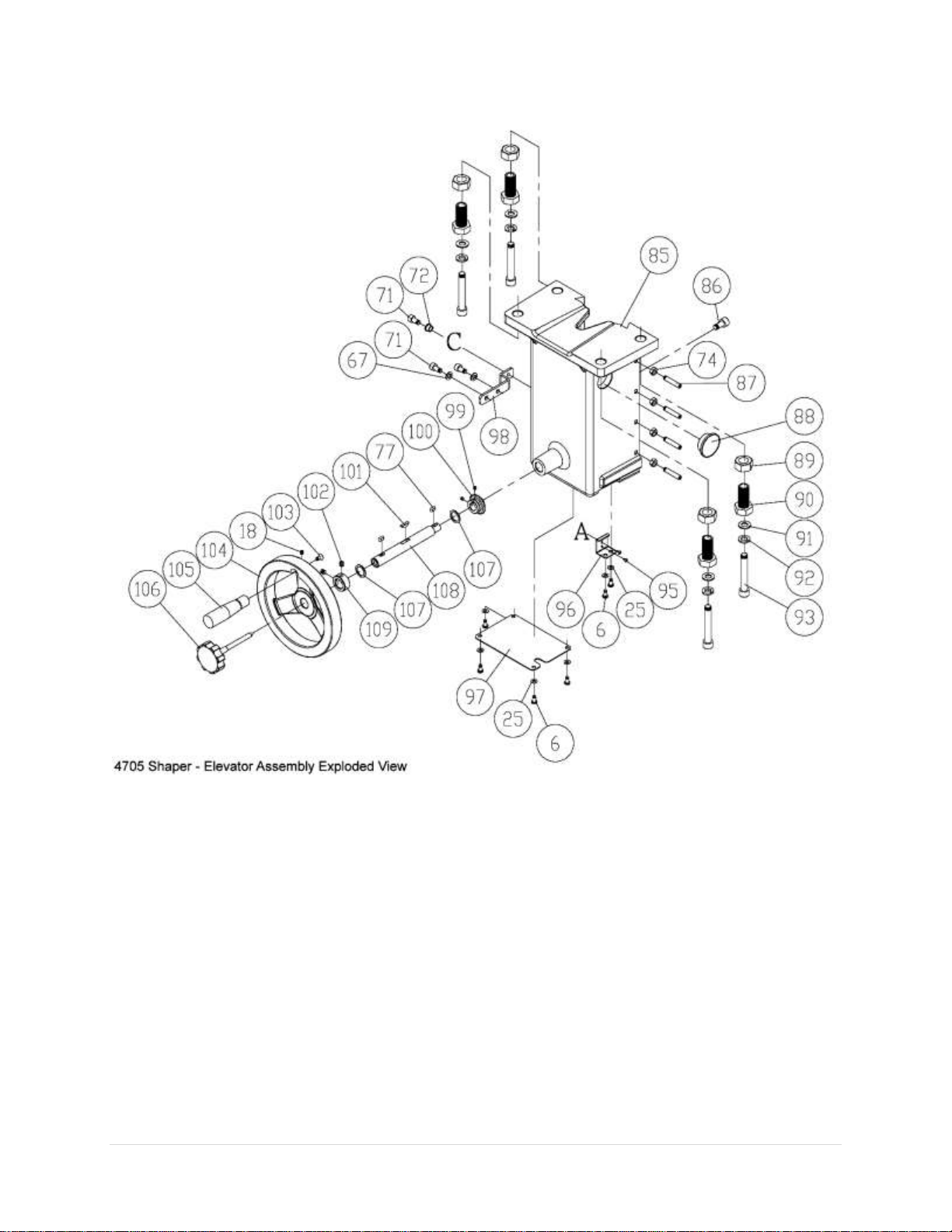

Elevator Assembly ···································· 54

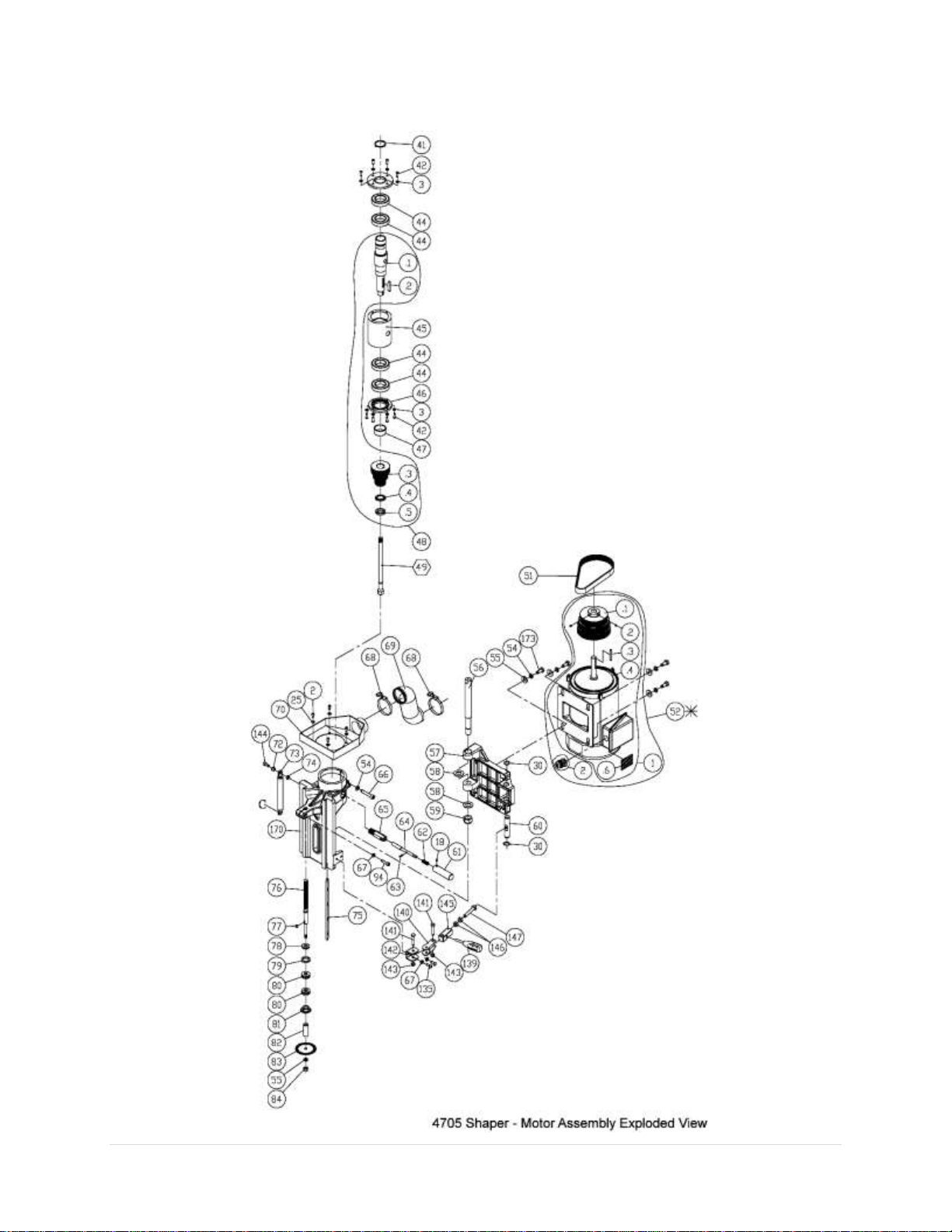

Motor Assembly ······································· 55

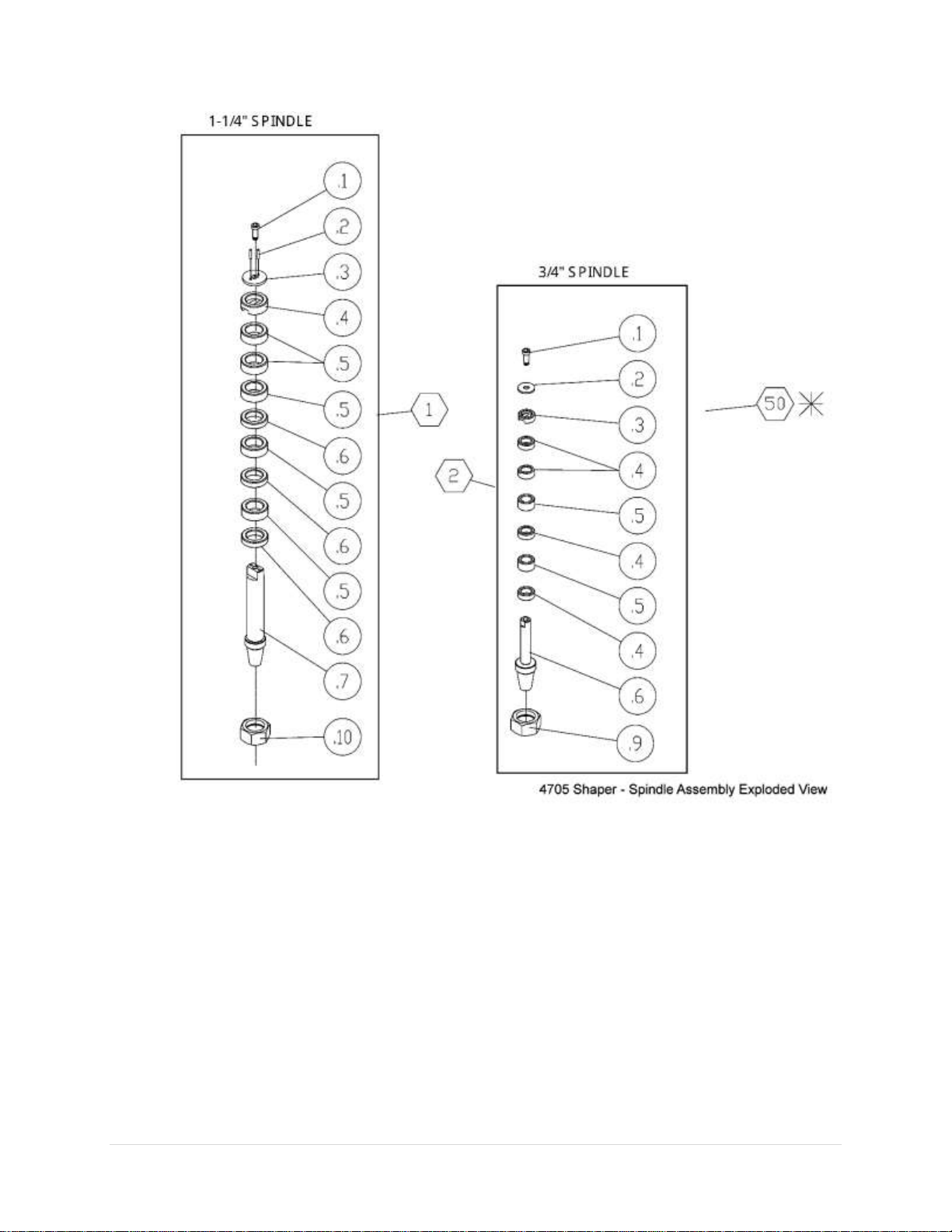

Spindles ··················································· 56

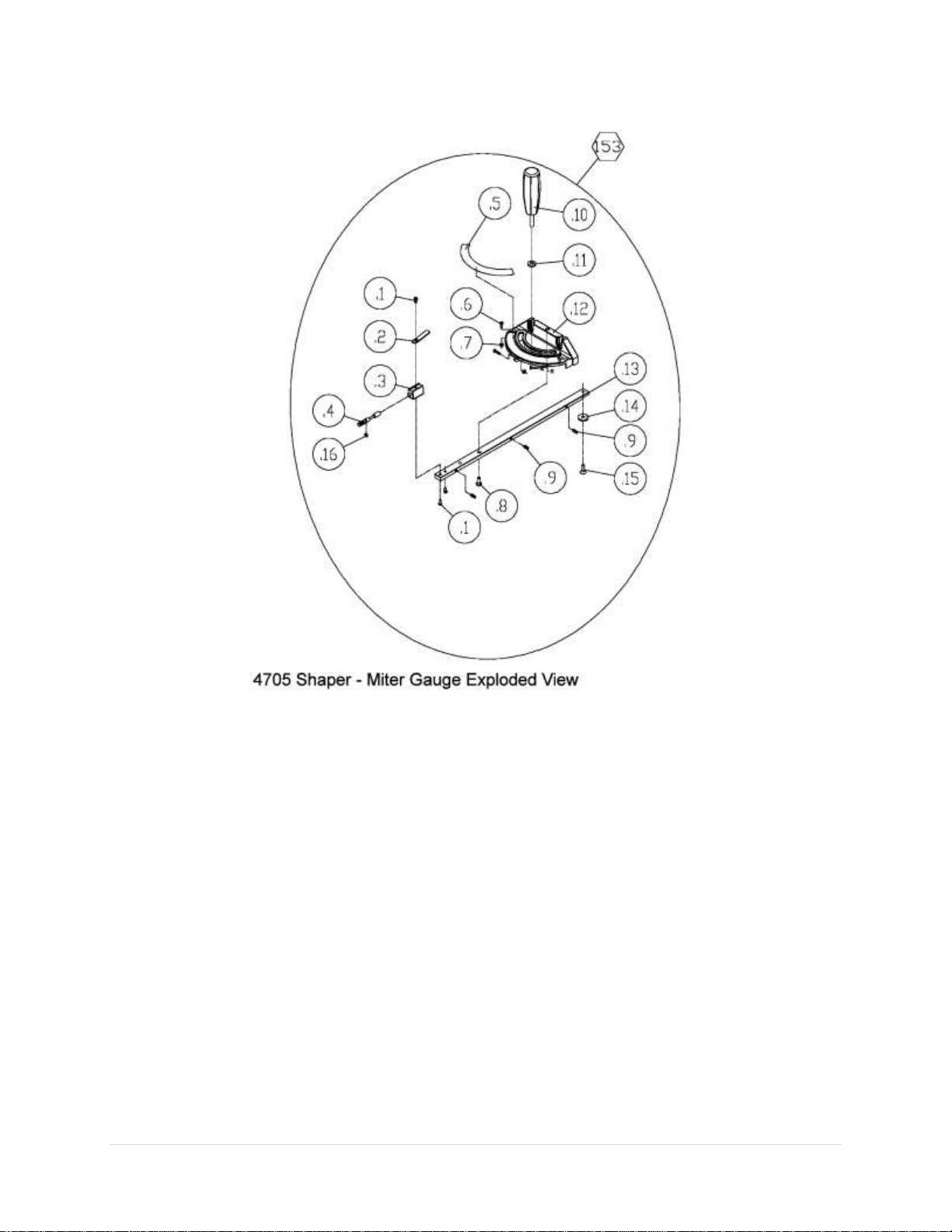

Miter Gauge ············································· 57

Maintenance Record ······························ 67

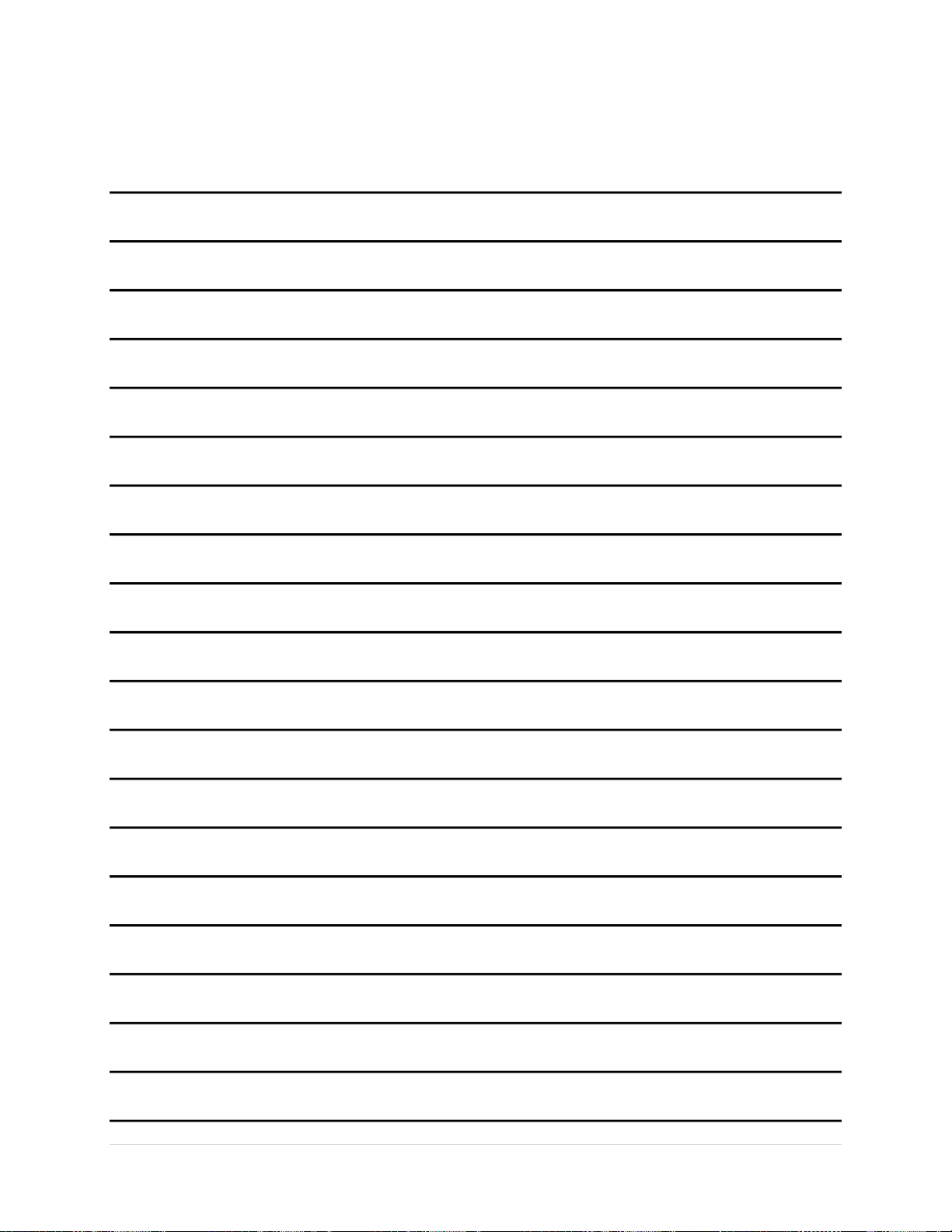

Notes ····················································· 68

Warranty and Service····························· 69

6 | Page Oliver Machinery 4705 Shaper

Introduction

Thank you for choosing Oliver! This manual contains important information on how to safely set up,

operate, and maintain this machine. Please take the time to read through this manual, and make sure you
understand all the instructions.

While this manual may provide tips on optimizing the result of your workpiece, the manual is not intended

as a substitute for formal woodworking training. If you need to know how to safely perform an operation,
please consult knowledgeable and qualified sources before proceeding further.

We made every effort to keep this manual up-to-date. Instructions, specifications, drawings, and

photographs in this manual should match the machine delivered. If you find any differences, or anything
that seems confusing in this manual, please check our website for an updated version:

WWW.OLIVERMACHINERY.NET/MANUALS

Alternatively, you can contact our Technical Support for help:

1-800-559-5065

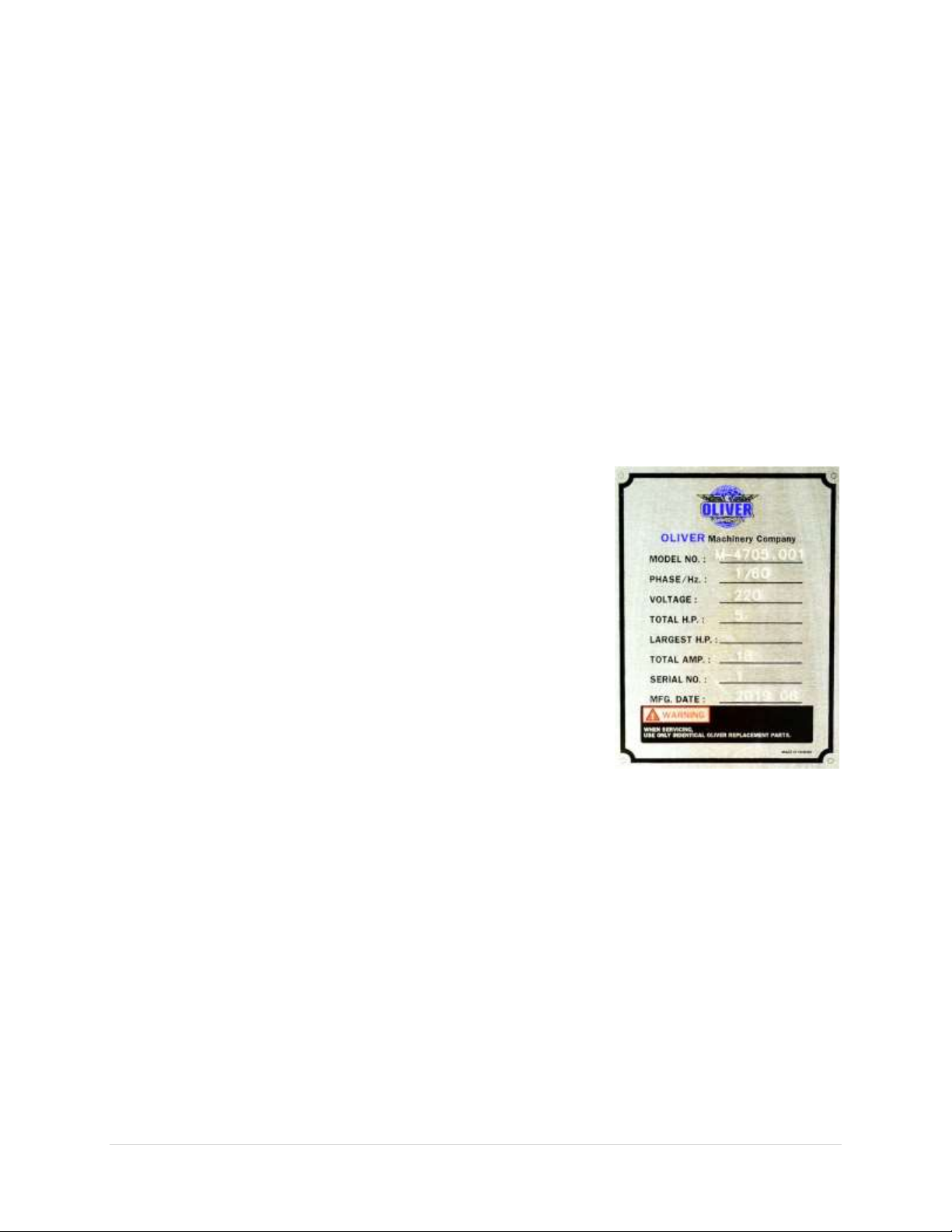

Before calling, please note down the manufacture date and serial

number of the machine. You can find the information on a label located
on the back of the machine cabinet. This information is needed to
provide proper technical support, and to determine if updated
documentation is available for your machine.

4705 Shaper OLIVERMACHINERY.NET 7 | Page

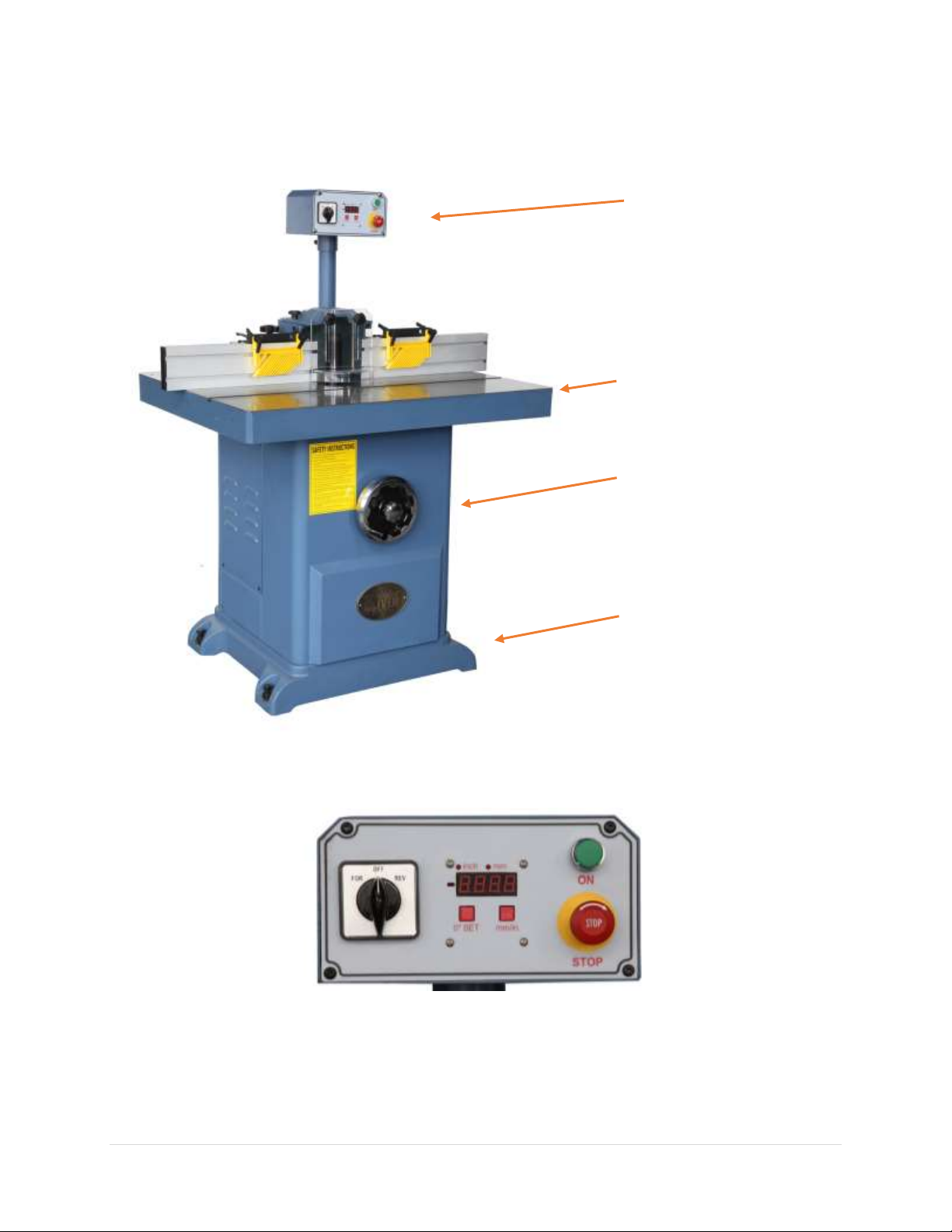

Features

Magnetic switch with

emergency shutoff and
overloading protection
for safer operation.

Reversible spindle gives

more options for each
set-up.

Top mounted control panel

includes a digital readout
for spindle height

adjustments.

Heavy cast iron base

provides a steady platform.

Lockable handwheel with

foldable handle for quick

spindle height adjustments.

Massive cast iron precision

ground table, with two

locations pre-drilled for

power feeder installation.

Digital readout for accurate, repeatable

spindle height adjustments.

8 | Page Oliver Machinery 4705 Shaper

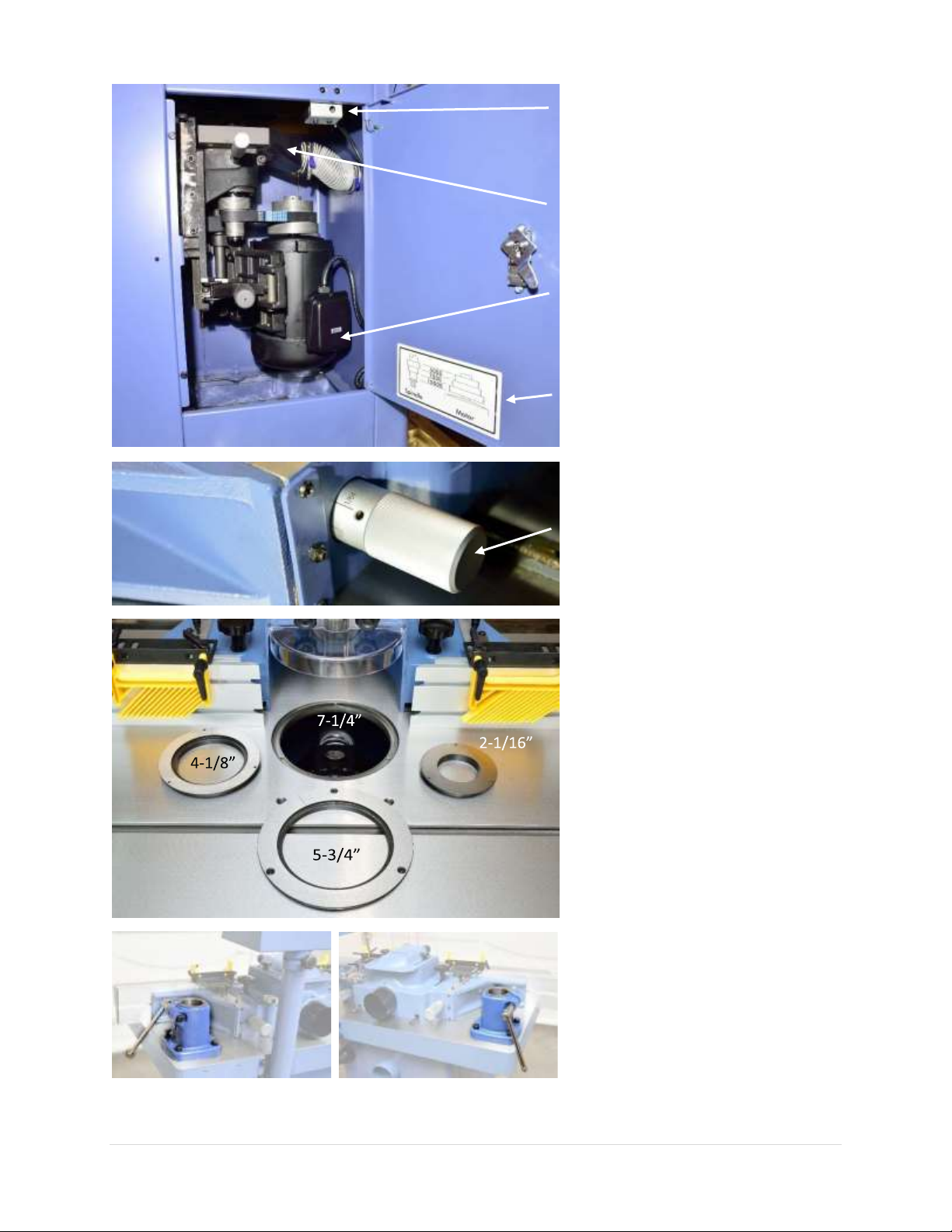

Cabinet door limit switch prevents
accidental startups when the cabinet
door is open.

Internal dust chute to reduce dust
accumulation inside the cabinet.

Powerful TEFC motor available in
220V single phase (5HP) or
220/440V three-phase (7.5HP).

Three spindle speeds allow more
choices to produce a better finish.

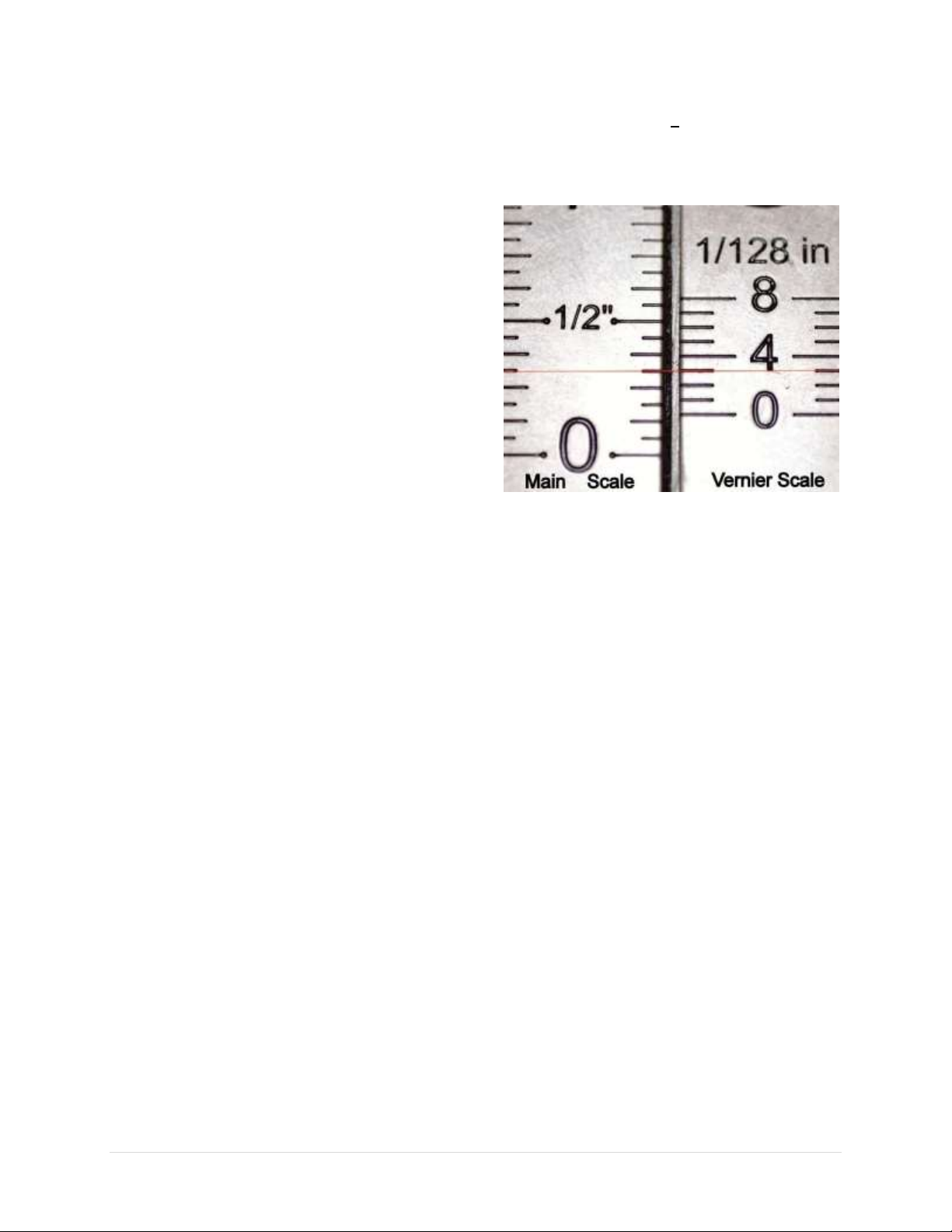

Infeed and outfeed fences are
individually equipped with micro­adjustment mechanism with 1/128”
accuracy.

Three table insert rings with
alignment indicator, providing safety
clearance for various cutter
diameters.

Table is factory pre-drilled and
threaded for Oliver power feeder
installation. (Power feeder sold
separately)

4705 Shaper OLIVERMACHINERY.NET 9 | Page

Specifications

Quick View

Model

4705 Shaper

Stock Number

4705.001

4705.002

Motor

TEFC

5HP, 220V,1Ph

TEFC

7.5HP, 220/440V, 3Ph

Max Spindle Under Nut Capacity

5-1/4”

Max Cutter Diameter Allowed

7” Below Table

8” Above Table

Spindle Speed

5,000, 7,000, 10,000 RPM, Reversible

Dimensions

39-1/2“(L) x 36”(W) x 53-1/2”(H)

Footprint

28-1/2”(L) x 24-3/4”(W)

Fully Assembled Weight

660 lbs.

Warranty

1 Year (Motor and electronics)

2 Years (All other parts)

Product Dimensions

Width x Depth x Height (Fully Assembled)

39-1/2“(L) x 36”(W) x 53-1/2”(H)

Footprint

28-1/2” (L) x 24-3/4”(W)

Fully Assembled Weight

660 lbs.

Shipment Info

Type

Wood Crate with Pallet Base

Content

Shaper with Included Accessories

Dimensions

43”(L) x 39”(W) x 59-1/2”(H)

Weight

880 lbs.

Approx. Assembly Time

30-60 Minutes

Must Ship Upright

YES

Stackable

NO

Electricals

Stock Number

4705.001

4705.002

Power Requirement

220V, 1Ph, 60Hz

220/440V, 3Ph, 60Hz

*Part# 937600-002

required for 440V

Full Load Current Rating

23A

19.5A(220V) / 10A(440V)

Recommended circuit size

30A

30A(220V) / 20A(440V)

Power Switch Type

Magnetic switch with overload protection.

Connection Type

Cord and plug not included.

Electrical hookups required.

Overload Protection

Yes

10 | Page Oliver Machinery 4705 Shaper

Motor

Stock Number

4705.001

4705.002

Motor Type

TEFC

TEFC

Horsepower

5HP

7.5HP

Speed

3450 RPM

3450 RPM

Efficiency / Power Factor

75% / 98%

75% / 90%

Alternative voltage/amperage

(Conversion Kit & Rewiring Required)

N/A

440V

Power Transfer Mechanism

Poly V-belt and pulleys

Bearing type

Permanently sealed ball bearing

Spindle and Cutter

Spindle Sizes

3/4”, 1-1/4” (Included)

1/2", 1" (Optional)

Spindle Speed

5,000, 7,000, 10,000 RPM

Vertical Spindle Travel

4"

Max Cutter (Under Nut) Capacity:

1/2" Spindle

3/4” Spindle

1” Spindle

1-1/4” Spindle

2-3/4”
3-1/2”
3-1/2”
5-1/4”

Max Cutter Diameter

7” Below Table

8” Above Table

Table

Material

Precision Ground Cast Iron

Table Dimensions (L/W/H)

39-3/8” x 31-1/2 x 3-1/2”

Table Height

35-1/2”

Table Opening Diameter

7-1/4”

Number of Table Inserts

3

Table Insert Opening Diameter:

Large

Medium

Small

5-3/4”
4-1/8”

2-9/16”

Miter Slot Type

T-Slot (Standard Size)

Miter Slot Width

3/4”

Miter Slot Height

3/8”

Power feeder mounting locations

On both rear corners of the table.

4705 Shaper OLIVERMACHINERY.NET 11 | Page

Fence

Material

Extruded Aluminum

Fence Length

18-3/4”, for each infeed and outfeed fence

Fence Height

4-3/4”

Fence Maximum Travel Distance (Front to Back)

4-1/4”

Maximum Infeed/Outfeed Fence Offset

1-7/16”

Fence Slot Type

T-Slot

Cutter Guard

Included

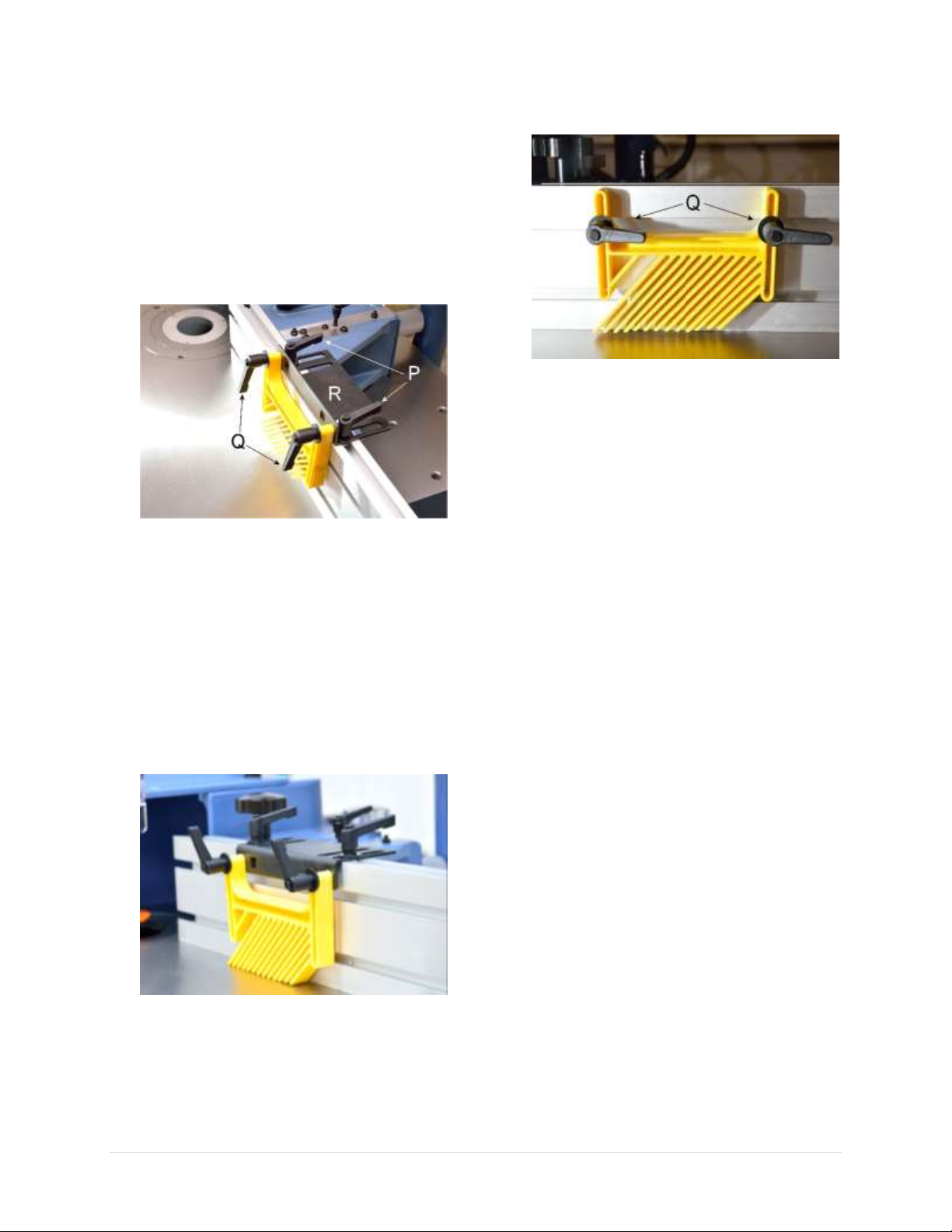

Feather board

Included

Miter Gauge

Angle Range

-60° to 60°, with positive stops at -45°, 0°, 45°

Miter bar Length

18”

Safety

Guard material

Clear Polycarbonate

Maximum Guard Clearance

5-1/16“

Number of Feather Boards Included

2

Feather board hold down capacity

0” to 4-1/4“

Number of Dust Ports

2

Dust Port Size

4”

Minimum CFM Required

800 CFM

Sound Rating @ 2’ distance

85 dB

Others

Measurement Scale

Inch

Serial Number Location

on the back of the machine cabinet.

Certification

CSA 175370

Country of Origin

Taiwan

12 | Page Oliver Machinery 4705 Shaper

Identification

4705 Shaper OLIVERMACHINERY.NET 13 | Page

14 | Page Oliver Machinery 4705 Shaper

Safety

Oliver Machinery has made every attempt to provide a safe, reliable, easy-to-use piece of machinery.

Safety, however, is ultimately depending on the individual machine operator. As with any piece of
machinery, the operator must exercise caution, patience, and common sense at all times to safely run the
machine.

Before operating this product, please become familiar the following safety labels and guidelines.

DANGER

This indicate an imminent dangerous hazardous situation which, if not avoided,
WILL cause death or serious injury.

WARNING

This means if the warning is not taken seriously, it CAN cause death or serious injury.

CAUTION

This mean if the precaution is not taken, it MAY cause minor or moderate injury.

IMPORTANT

This is a tip about proper operation of the machine to avoid machine damage.

General Safety Guidelines

1. FAMILIARIZE yourself with all safety instructions found in this manual. Know the limitations and

hazards associated with this machine. Do not operate / service this machine until you are properly
trained.

2. ELECTRICAL GROUNDING, when done properly, reduce the risk of electrocution, shocks and fire.

Make certain that the machine frame is electrically grounded and that a ground lead is included in the
incoming electrical service. In cases where a cord and a plug are used, make certain that the grounding
plug connects to a suitable ground. Follow the grounding procedure indicated in the electrical code
of your area.

3. DISCONNECT the machine from power before performing any service, maintenance, adjustments or

when changing cutters. A machine under repair should be RED TAGGED to show it should not be used
until the maintenance is complete.

4. EYE PROTECTION: Always wear an approved safety face shield, goggles, or glasses that complies with

ANSI Z87.1 and CSA Z94.3 standards. Common eyeglasses are not safety glasses, and may not provide
adequate protection.

5. EAR PROTECTION: Use hearing protective devices where the noise exceeds the level of exposure

allowed in Section 1910.95 of the OSHA Regulations. When in doubt, use it.

6. OTHER PERSONAL PROTECTION: Before operating the machine, remove tie, rings, watch and other

jewelry. Roll up sleeves above the elbows. Remove all loose outer clothing and confine long hair.
Protective type footwear should be used. Do not wear gloves unless it is instructed to perform
particular step(s) in the manual.

7. GUARDS: Keep the machine guards in place for all applicable operations. If any guards are removed

for maintenance, DO NOT OPERATE the machine until the guards are reinstalled. Check clearance
between the guards and the cutter before starting the machine.

4705 Shaper OLIVERMACHINERY.NET 15 | Page

8. WORKPLACE SAFETY: Keep the floor around the machine clean. Scrap material, saw dust, oil and other

liquids increase the risk of tripping or slipping. Be sure to clean up the table before starting the
machine. Make certain the work area is well lighted and that a proper exhaust system is used to
minimize dust. Use anti-skid floor strips on the floor area where the operator normally stands and
mark off machine work area. Provide adequate work space around the machine.

9. ACCESS CONTROL should be enforced so only trained personnel can access the work area and operate

the machine. Use childproof power switch when applicable.

10. STAY ALERT at all times. Do not operate this machine while under the influence of drugs/alcohol, or

when not feeling well.

11. REPLACEMENT PARTS: Use only genuine Oliver Machinery replacement parts and accessories

recommended for this machine. Generic parts made by other manufacturers may create a safety
hazard, and WILL void the factory warranty and other guarantees.

12. PROPER USE: Do not use this machine for other than its intended use. If used for other purposes,

Oliver disclaims any real or implied warranty and holds itself harmless for any injury or damage which
may result from that use.

Safety Guidelines Specific to Shaper

Before Work Begin:

1. CHECK CUTTER QUALITY: Make sure cutters are sharp, clean, balanced and free from damages.

Forcing the dull cutter to work invites accidents, and lowers the quality of the finish.

2. CUTTER POSITIONING: Whenever possible, position the cutter below the work piece and make blind

cuts with hold-downs. Doing so reduce operator’s exposure to the cutter.

3. SECURE SPINDLE AND CUTTER: Make sure the spindle and the draw bar are tightened on the arbor.

4. Keyed Collar: Never operate the shaper without the keyed collar located immediately under the

spindle nut. This prevents the nut from coming loose when the spindle is running in a
counterclockwise direction. Do not substitute any other type washer in place of the keyed collar.

5. CHECK CUTTER CLEARANCE: Fence plates and table insert should only have enough space to clear the

cutter. Adjust fence plates and use correctly sized insert when applicable. Never start the shaper with
the workpiece touching the cutter.

6. CHECK SPINDLE SPEED AND DIRECTION before starting the machine. Never set the spindle speed

above rated RPM of the cutter. Check control panel to ensure rotation direction is set as desired.

7. CHECK STOCK LENGTH: Never shape stock less than 12 inches in length without special fixtures. When

practical, shape longer stock and cut to size.

8. SHAPE ONLY QUALITY WOOD: This machine is designed for wood products only. Do not shape any

material other than wood. Do not attempt to shape workpiece with loose knots or with any other
foreign material. Do not attempt to shape twisted, warped, bowed stock. Use a jointer to flatten the
workpiece before shaping.

16 | Page Oliver Machinery 4705 Shaper

9. COLLARS: When shaping with collars, the collar must have sufficient bearing surface. The work must

also be fairly heavy in proportion to the cut being made. Do not use short, lightweight stock when
shaping against collars.

When Shaping:

1. 12-INCH RULE: When shaping, never allow

your hands to come closer than 12 inches to
the cutters. Use push block, jigs, and hold­downs to safely feed the workpiece while
cutting.

2. NO CLIMB CUT: Feed stock opposite to the

direction of the cutter rotation. Never back
stock out of the cutter once the cut has been
started. Instead, pull the stock straight back
away from cutter and begin the cut again.

3. EDGE SHAPING: Always use the miter gauge

and clamping mechanism when edge
shaping stock less than 6" wide.

4. FREEHAND SHAPING is for advanced users

only. Always use a starting pin or pivot board
when starting a cut. Never start shaping at a
corner.

5. MAKE LIGHT PASSES: Never force the cutter

to remove too much material in one pass.
Doing so increase the risk of kickback and
lower the quality of the finish. Make several
light passes when applicable.

6. KEEP HANDS SAFE: Do not clear chips and

sawdust with hands; use a brush or
compressed air.

4705 Shaper OLIVERMACHINERY.NET 17 | Page

After Operation

1. STOP THE MACHINE if the operator leaves the machine for any reason.

2. WAIT until the cutter comes to a complete stop.

3. CLEAN UP the work area before departure.

18 | Page Oliver Machinery 4705 Shaper

Electricals

WARNING

All electrical work must be done by a qualified electrician, and must meet the
electrical code in your area.

Minimum Circuit Size Required for Model 4705 Shaper

Stock Number

Minimum Circuit Size Required

4705.001

30A

4705.002

30A(220V) / 20A(440V)

Please ensure the electrical circuit for this machine meets the minimum circuit size requirement.

Minimum circuit size requirement applies to a dedicated circuit which provides power to one 4705 Shaper.
If more machines are sharing the same circuit, consult a qualified electrician to ensure the designated
circuit is properly sized for safe operation.

If a circuit is available, but not meeting the minimum circuit size requirement listed above, a new circuit

must be installed for this machine.

Grounding

WARNING

Improper grounding increases the risk of electric shock, fire, and equipment
damage.

Proper grounding reduces the risk to the operator in the event of electrical malfunction or breakdown.

This machine must be connected to the grounding conductor when available, and all grounding
connections must meet or exceed the electrical code requirements in your area. Furthermore, all grounds
must be verified and must meet or exceed the electrical requirement of the machine. If grounding is not
available. Consider the use of a GFCI protection device as an alternative.

Electrical Wiring

This machine is not pre-wired with a cord and a plug. The preferred way of connection is to connect the

machine directly to the electrical panel (“Hardwiring”). Please ensure there is a readily accessible
electrical disconnect near the machine. Refer to section “Wiring Diagram” for wiring your machine to a

power source.

If you choose to connect this machine with a plug and a cord, please use a UL/CSA listed plug. For power

cord, select a durable cord type with high temperature rating (90C° or above). Both plug and power cord
must be sized to meet the amperage requirement of your machine.

4705 Shaper OLIVERMACHINERY.NET 19 | Page

Minimum cord size (AWG) required based on amperage draw and length of the cord:

Amps

Power Cord Length

25 feet

50 feet

75 feet

100 feet

> 100 feet

< 5

16

14

14

14

NR

5 to 8

14

14

14

12

8 to 12

14

14

12

10

12 to 15

12

12

10

10

15 to 20

10

10

10

NR

21 to 30

10

NR

NR

NR

*NR: Not Recommended

WARNING

Use properly sized wires that meet or exceed the power requirement of your

machine. Using undersized wires may cause overheating and increase the risk of fire
and machine damage.

WARNING

Use copper wires to connect this machine to a power source. If you must connect
copper wires to aluminum wires, use certified CU/AL wire connectors.

Improper copper-aluminum wire connection is a fire hazard.

440V Conversion for Three Phase Model (Stock# 4705.002)

The three-phase version of this machine is prewired to 220V220V. To convert the machine for 440V

operation, you will need the optional part 937600-002, which can be purchased by calling us at 1-800-

559-5065.

WARNING

All electrical work must be done by a qualified electrician, and must meet the
electrical code in your area.

In summary, it takes three steps to convert the shaper for 440V operation:

1. Replacing the original switch with the 440V compatible switch (Part #937600-002).

2. Follow the wiring diagram in section “Wiring Diagram - For Stock Number 4705.002 (220/440V, 3Ph)”

and rewire the motor for 440v operation.

3. Verify electrical connection, and check the direction of rotation of the arbor.

Please contact our sales department at 1-800-559-5065 if you prefer to have the 440V conversion kit pre-

installed at the time of purchase.

20 | Page Oliver Machinery 4705 Shaper

Setup

Shop Preparation

Space Requirement

The dimensions of this machine are 39-1/2“(L) x 36”(W). You will need additional spaces for manipulating

your workpiece, electrical connection and dust collection.

Load Limits

This machine has a shipping weighs of 880 lbs., and net weigh of 660 lbs. Please ensure all lifting tools and

building structures have adequate load capacity, for transporting and supporting the total weight of this
machine, the operator, and related items.

Electricals

Ensure a properly sized circuit and an electrical terminal is available nearby the machine. If the machine

is to be hardwired, there must be a readily accessible power disconnect nearby, so that the machine can
be disconnected from power source for servicing and adjustments. If the machine is to be connected with
a cord and a plug, please ensure a matching outlet is installed nearby the machine.

Please refer to the “Electricals” section in this manual for details regarding electrical requirements and

safety instructions.

Lighting

Adequate lighting is needed for operating this machine. Overhead, non-glare lighting should be installed

near the work area.

Safety Labels

If this machine introduces a new safety hazard to your work place. Please display proper warning signs in

highly visible location(s).

Dust Collection

Wood dusts created by this shaper is a health hazard. If dust collection system is available in the work

area, connect the dust collection ducts to BOTH dust ports of this machine. Check the air suction regularly
to ensure the pipes are not jammed.

Dust masks should be available for using the shaper.

CAUTION

Use a dust collection system that is rated above 800 CFM. Doing so improves air
quality in the workplace, and protects the machine from jamming.

Piping of dust collection system introduces additional air resistance, and decreases
the effective CFM measured at the dust ports. Ensure both dust ports receive
significant suctions from the dust collection system for removing dust and debris
created by this machine.

4705 Shaper OLIVERMACHINERY.NET 21 | Page

Receiving

Your shipment should come with one wood crate with pallet base. Upon receiving your shipment, check

for any significant damages before signing the delivery confirmation.

CAUTION

You may need to remove strapping that is used for securing your package.
Strapping may spring back violently when released and cause injury. Always wear
safety goggles and gloves for this task.

Moving Machine into the Shop

Your machine will be delivered by freight service. Your shipment will be left outside of your workshop by

default. On the day of delivery, please be sure help is available to move the machine to its final location.

WARNING

4705 Shaper has a gross weight of 880 lbs. and net weight of 660 lbs.

Safe moving techniques and proper lifting equipment required, or serious personal
injury may occur.

WARNING

Your machine may be secured by the straps. Do not lift your shipment by the
strap. They are not designed to hold the total weight of your shipment. They may
snap without warning and cause serious injury and machine damage.

Unboxing

Upon removing the crate cover, you

should find a shaper that is mostly
assembled, and a paper box that
contains all the accessories.

Everything is covered by a plastic

bag.

IMPORTANT

If items are damaged, please call us immediately at 1-800-559-5065

22 | Page Oliver Machinery 4705 Shaper

Inventory

Carefully unwrap the packaging and make sure all components are included in the shipment. Lay out all

the items received and inventory them.

Item

Description

Quantity

1

Hardware set for leveling this machine

- M16 Hex Screws

- M16 Hex Nuts

- Washers

4

2

3/4" Spindle Assembly

1

3

1-1/4” Spindle Assembly

1

4

14/17mm double ended wrench

1

5

22/24mm double ended wrench

1

6

3mm Hex Key

1

7

6mm Hex Key

1

8

Spindle draw bar

1

9

Wrench for spindle nut and spindle draw bar.

1

10

Screw driver

1

11

Starting Pin

1

12

Miter gauge assembly

1

NOTICE: If you cannot find the item in the list above. Please check if they are still attached to the packaging

or inside the cabinet. Occasionally the item may have been pre-installed at the factory. Please refer to the
parts list section this manual to ensure you have all the components to setup this machine.

NOTICE: This machine comes with various standard sized, non-proprietary parts. If any of these parts are

missing, we be happy to deliver them to you. To have the machine up and running as soon as possible,
you can also find these parts at your local hardware store.

4705 Shaper OLIVERMACHINERY.NET 23 | Page

Additional Items Needed for Machine Assembly

Item Purpose

Safety glasses

Protection

Disposable gloves

Protection

Paper Towel

Cleaning

Rust Inhibitor

Cast iron table top rust protection.

Straight edge

Verify alignments

Carpenter Squares

Verify alignments

8MM Hex Key

Cutter installation

17MM Wrench

Extra 17mm wrench, for belt tension adjustment.

When all items are ready for setting up the machine, gently remove the machine from the pallet. Lift the

shaper with its table. If using a forklift or any metal lifting devices, ensure the table is protected by
paddings.

NOTICE: The base of the shaper may be bolted to the shipping pallet to prevent shifting during transport.

Remove these bolts if you see them.

Cleaning

To prevent rusting, the cast iron tabletop of this shaper

is covered with thin machine oil and a plastic film.
Simply loosen both fence assembly lock knob (B) to
pull out the plastic film, then wipe off the machine oil
with paper towels.

Once all the machine oil is removed, routinely coat the

table top with rust preventive such as Boeshield® T-9 or paste wax.

Assembly

This shaper is mostly assembled in the factory. You will need to connect the machine to power, and

connect to a dust collection system if available. Please refer to the later sections to prepare for a test run.

Dust Collection

If available, connect the dust collection system to

BOTH dust ports of this machine. Minimum CFM
requirement for this shaper is 800 CFM. Your dust
collection system should have a rating higher than
800 CFM, as air friction from the ducts reduces the
effective CFM at the dust ports.

24 | Page Oliver Machinery 4705 Shaper

Wiring and Grounding

DANGER

Deenergize the electrical circuit before touching any enclosed, electrified parts.
Touching electrified part WILL result in serious personal injury or death.

WARNING

All electrical work must be done by a qualified electrician, and must meet the
electrical code in your area.

Make sure the voltage of your power supply matches the specifications on the
motor plate of the machine.

Wiring Instructions for Stock Number 4705.001 (220V, 1 Phase)

1. Power off before connecting any wires!!

2. Remove the screws that secure the cover to the connection box.

3. Insert the power cable through strain relief.

4. Use wiring diagram in section “Wiring Diagram” to attach the wires to the terminal.

5. Hand tighten the sealing nut of the strain relief to keep the cord in place.

6. Re-install the connection box cover.

Wiring Instructions for Stock Number 4705.002 (220/440V, 3 Phase)

WARNING

This shaper is pre-wired 220V. Operating this shaper with incorrect voltage, or
misconfiguring the machine to operate in a different voltage, may cause serious
injury, death and/or serious machine damage. Have a qualified electrician to
convert the shaper for 440V operation.

1. Power off before connecting any wires!!

2. Remove the screws that secure the cover to the connection box.

3. Insert the power cable through strain relief.

4. Use wiring diagram in section “Wiring Diagram” to attach the wires to the terminal.

5. Hand tighten the sealing nut of the strain relief to keep the cord in place.

6. Re-install the connection box cover.

7. With three phase power, extra steps are needed to verify the motor is turning in the proper direction.

7.1. Set rotation direction switch set to “Forward”.

7.2. Temporary turn on the machine and check the rotation direction of the arbor. Looking through

the table opening from the top, the arbor should be turning counter-clockwise.

7.3. If the rotation is reversed, disconnect the machine from the power source and reverse any two

incoming power leads.

7.4. When testing completes, cut off the power by using the electrical disconnect switch, or unplug

the machine. Now the machine is ready for other setup steps.

4705 Shaper OLIVERMACHINERY.NET 25 | Page

Leveling Machine

It is recommended to locate the shaper on flat, stable ground. If the machine is rocking, or if it vibrates

excessively during operation, the machine may need to be leveled. Use the provided leveling hardware
to give the shaper even support on all 4 corners of the base:

1. Thread the jam nut all the way into the

leveling bolt.

2. Slightly lift up the machine, then center the

washer right under the screw holes found
on the base.

3. Thread the leveling bolt into the base of

the machine. The leveling bolt has rounded
end and will sink into the center of the
washer.

4. Adjust the depth of the bolt until the

machine is completely leveled.

5. Finally, use a wrench to hold the position of

the leveling bolt, and then tighten the jam
nut to secure the leveling bolt in place.

WARNING

This machine has a net weight of 660 lbs.

Leveling this machine requires protective
gear, safe moving techniques, and/or proper
equipment. Otherwise serious personal
injury may occur.

26 | Page Oliver Machinery 4705 Shaper

Operation and Controls

Control Panel

This top mounted control panel is equipped with a spindle rotation direction switch, a magnetic on/off

switch with overload protection, and a digital readout.

Rotation Direction Switch

Position

Function “FOR”

Set spindle to rotate counter-clockwise.

“REV”

Set spindle to rotate spindle clockwise.

“OFF”

Motor will stop rotating.

CAUTION: Setting this switch to “OFF” will NOT trigger
the emergency shutoff switch. Motor will rotate once
you toggle away from the “OFF” position.

The best way to shut down the machine is to press the

red “OFF” emergency shutoff button located on the

right side of the control panel (see below).

ON / OFF Switches

To Turn Off

Machine

Press the “Off” button.

NOTICE: When this button is pressed, the emergency
shutoff mechanism will be triggered. It needs to be reset
by turning the button clockwise before the machine can be
turned on again.

To Turn On

Machine

Press the “On” button.

NOTICE: The machine will only turn on when:

1. Rotation direction switch is NOT set to “OFF”.

2. The emergency shutoff mechanism is disengaged.

3. Cabinet door is closed.

IMPORTANT

Only change the spindle rotation after the spindle has come to a complete stop,
or damage to the machine may occur.

4705 Shaper OLIVERMACHINERY.NET 27 | Page

Digital Readout

The digital readout shows the current position of the spindle relative to a reference point set by the

user. When spindle moves above the reference point, the digital readout will show a positive value. A
negative value will show when spindle is below the reference point.

To Set a Reference Point

Press [0” SET]

To Change Measurement Unit

Press [mm/in.]

Spindle Height Adjustment

The spindle height adjustment handwheel is located in front of the shaper cabinet.

To adjust spindle height:

1. Flip the wheel handle (A) up.

2. Turn the locking knob (B) counter-clockwise

to unlock the height adjustment handwheel.

3. Turn the handwheel (C) clockwise to move

spindle up, or counter-clockwise to move

spindle down. You will see the value of the
digital readout changes as the spindle travels
up/down.

4. Once the spindle height is set, you may also

want to set the reference point of the digital

readout. Simply hit the [0” Set] button in the

control panel reset the reference point to
zero.

5. To lock the spindle height, turn the locking

knob clockwise.

6. If moving the spindle with cutter, verify

safety clearance before starting the machine.

7. You may flip the wheel handle down when

all adjustments are done.

28 | Page Oliver Machinery 4705 Shaper

Fence Assembly

The fence assembly has multiple knobs, locks, and scales:

WARNING

Always verify cutter clearance after making adjustment to the fence. Without
enough clearance, the cutter and the fence assembly will collide, and may cause
serious injury and/or machine damage.

Infeed/Outfeed Fence Lock

Infeed/Outfeed Fence Lock

4705 Shaper OLIVERMACHINERY.NET 29 | Page

To move the entire fence assembly:

1. Loosen assembly lock knobs (B).

2. Rotate the fence adjustment knob (A) to

move the entire fence assembly
forward/backward.

3. Re-tighten assembly lock knobs (B) when

adjustment is done.

To adjust cutter guard horizontal clearance:

1. Loosen cutter guard lock knobs (C). Now

cutter guard can slide FORWARD and
BACKWARD.

2. After setting the position of the guard and

verified safe clearance, re-tighten the lock
knobs.

To adjust cutter guard vertical clearance:

1. Loosen cutter guard lock knobs (D), and the

cutter guard can slide UP and DOWN.

2. After setting the position of the guard and

verified safe clearance, re-tighten the lock
knobs.

To adjust infeed/outfeed fence positions:

1. Loosen the infeed/outfeed fence lock handle

(F).

2. Rotate the micro-adjustment knob (E) to

move the fence forward or backward. One
revolution of the knob moves the fence by

1/16”. Each fence can move forward by at

most 1-7/16”.

3. The Vernier scale (G) indicates the position

of the fence relative to the fence housing,
with precision of 1/128”.

To read the fence position using Vernier scale:

1. Read the main scale where it is passed by the

Vernier scale’s zero. That is the coarse value.

2. Find the first mark on the Vernier scale that

lines up perfectly with any line on the main
scale. Multiply the number of that mark by
1/128”. That is the adjusted value.

3. The exact position is the sum of the coarse

value and adjusted value.

Example:

This picture shows the 3rd mark on the Vernier
scale lines up with a line on the main scale, while

the zeroth mark passed the 1/8” mark on the

main scale:

Coarse Value: 1/8”
Adjusted Value: 3 * 1/128 = 3/128”

Exact position:

1/8” + 3/128” = 19/128”

4. After setting the position of the fence and

verified safe clearance. Re-tighten the lock
handle (F).

To slide the aluminum fence sideways:

1. Loosen the infeed/outfeed fence lock

knob (H).

2. After setting the position of the fence and

verified safe clearance. Re-tighten the
fence lock knob.

30 | Page Oliver Machinery 4705 Shaper

To adjust the position of featherboard:

1. It is recommended to use the provided

featherboards for all works applicable.

2. The featherboard (with mounting bracket, R)

is adjustable along the fence by loosening
the two levers (P) and sliding the assembly
to the desired location.

3. The height of the featherboard can be

adjusted by loosening the two levers (Q).

4. If the featherboard needs to be lowered

even further, the mounting bracket (R) can
be flipped over so that the vertical face is
pointing downward. The levers (P) will have
to be removed and reinstalled in order to flip
the bracket and the feather board itself.

5. The featherboard can also be directly

mounted on the aluminum fence if desired.

4705 Shaper OLIVERMACHINERY.NET 31 | Page

To Lock Spindle Arbor

1. Disconnect machine from power source!!

2. Open the cabinet door and locate the

spindle lock handle (A), which is right below
the table.

3. Pull and rotate the handle (A) until the pins

engage into the “Lock” notch.

4. Rotate the spindle by hand until the spindle

lock engages.

To Unlock Spindle Arbor

1. Disconnect machine from power source!!

2. Pull and rotate the handle (A) until the

pins engage into the “Unlock” notch.

3. Rotate the spindle by hand to ensure the

lock is disengaged.

Spindle Assembly

Locking / Unlocking Spindle Arbor

WARNING

Disconnect machine from the power source before any maintenance, service or
assembly is performed. Failure to comply can cause serious injury!

Prior to adjusting spindle speed, or changing spindle/cutters/collets, the spindle arbor MUST be locked.
Revisit this section before performing these tasks.

32 | Page Oliver Machinery 4705 Shaper

To Install Spindle:

1. Disconnect machine from power source!!

2. Lock the spindle arbor.

3. Move cutter guard and fence away from the

table opening. Remove table inserts to gain
access of the quill.

4. Raise the arbor all the way up, then lower

the spindle (B) straight into the quill (A).
Hand thread the spindle assembly into the
quill.

IMPORTANT: Take extra care not to cross

thread, or the spindle/quill connection will
be damaged.

5. Insert spindle draw bar (X) up into the hole

(Y) at the bottom of the spindle. Thread and
tighten the draw bar with the spindle
wrench. You may also find a ratcheting
wrench useful in tight space.

6. Use the supplied spindle wrench to tighten

the spindle nut.

Installing / Removing Spindles

WARNING

Disconnect machine from the power source before installing/removing spindles.
Failure to comply can cause serious injury!

4705 Shaper OLIVERMACHINERY.NET 33 | Page

7. If you need to install cutters, continue with

section “Installing/Removing Cutters” for

details.

8. Otherwise, unlock the spindle arbor.

9. Close the cabinet door.

10. Reconnect machine to power source when

all adjustments complete.

To Remove Spindle

• Disconnect machine from power source!!

• Lock the spindle arbor.

• Loosen and remove the draw bar.

• Use the spindle wrench to loosen the spindle

nut, then continue to turn until spindle
assembly breaks free of the quill.

34 | Page Oliver Machinery 4705 Shaper

Installing/Removing Cutters

WARNING

When changing cutters, always turn the machine off and disconnect the machine
from its power source. Do not use damaged cutters with cracks or missing teeth.

To Install Cutter

1. Disconnect machine from power source!!

2. Lock the spindle arbor.

3. Place your shaper cutter onto the spindle.

IMPORTANT: Pay attention to the

orientation of the cutter blade. When

rotation switch is set to “FOR” (Forward), the

spindle will rotate counter-clockwise.

4. IMPORTANT: It is generally advisable to

place the cutter as low as possible on the
spindle to reduce spindle deflection and
ensure the best possible finish. However, if
the teeth of the cutter contact the base of
the spindle, the spindle will be damaged.

5. In this case, rise cutter up with spacers to

keep the cutter’s teeth away from the

spindle.

6. After the cutter is properly inserted, Add

more spacers on top of the cutter.

7. Then insert the keyed collar.

IMPORTANT: The keyed collar MUST sit
slightly ABOVE the top of the spindle. This
ensures significant pressure is applied to the
cutter during operation.

4705 Shaper OLIVERMACHINERY.NET 35 | Page

8. Install the spindle washer and the cap screw.

NOTICE: The spindle washer may or may not
be pronged. If the spindle is equipped with a
pronged washer, make sure the prongs are
inserted into the holes of the spindle.

9. Thread and tighten the head cap screw with

an 8mm hex wrench.

10. After cutter is securely installed, unlock the

spindle arbor.

11. Turn the spindle by hand to ensure it rotates

freely. Be careful with the sharp edges of the
cutter.

12. Check cutter clearance, when applicable,

add/remove table inserts, and adjust the
fence/guard to provide safety clearance
between the cutter and the objects nearby.

13. Reconnect to power source and before

operation.

To Remove Cutter

• Disconnect machine from power source!!

• Lock the spindle arbor.

• Loosen the head cap screw (F) with an 8mm

hex wrench.

• Remove the washer, cutter, and spacers as

needed.

36 | Page Oliver Machinery 4705 Shaper

Installing/Removing Router Collets (Sold Separately)

Two optional router collets (1/4” & 1/2”) are available for this shaper. To purchase these collets, please

call our parts department at 1-800-559-5065.

WARNING

Disconnect machine from the power source before installing/removing collets.
Failure to comply can cause serious injury!

To Install Router Collet

1. Disconnect machine from power source!!

2. Lock the spindle arbor.

3. Raise the arbor all the way up.

4. Insert the router bit into the collet.

5. Hand thread the router collet (router bit not

shown in the picture) onto the arbor.

6. Then tighten with the spindle wrench.

7. When collet is secured, unlock the spindle

arbor.

8. Turn the router collet by hand to ensure it

rotates freely. Be careful not to touch the
sharp edges of the router bit.

9. Verify safety clearance before starting the

shaper. Adjust the fence, cutter guard, and
table inserts as needed.

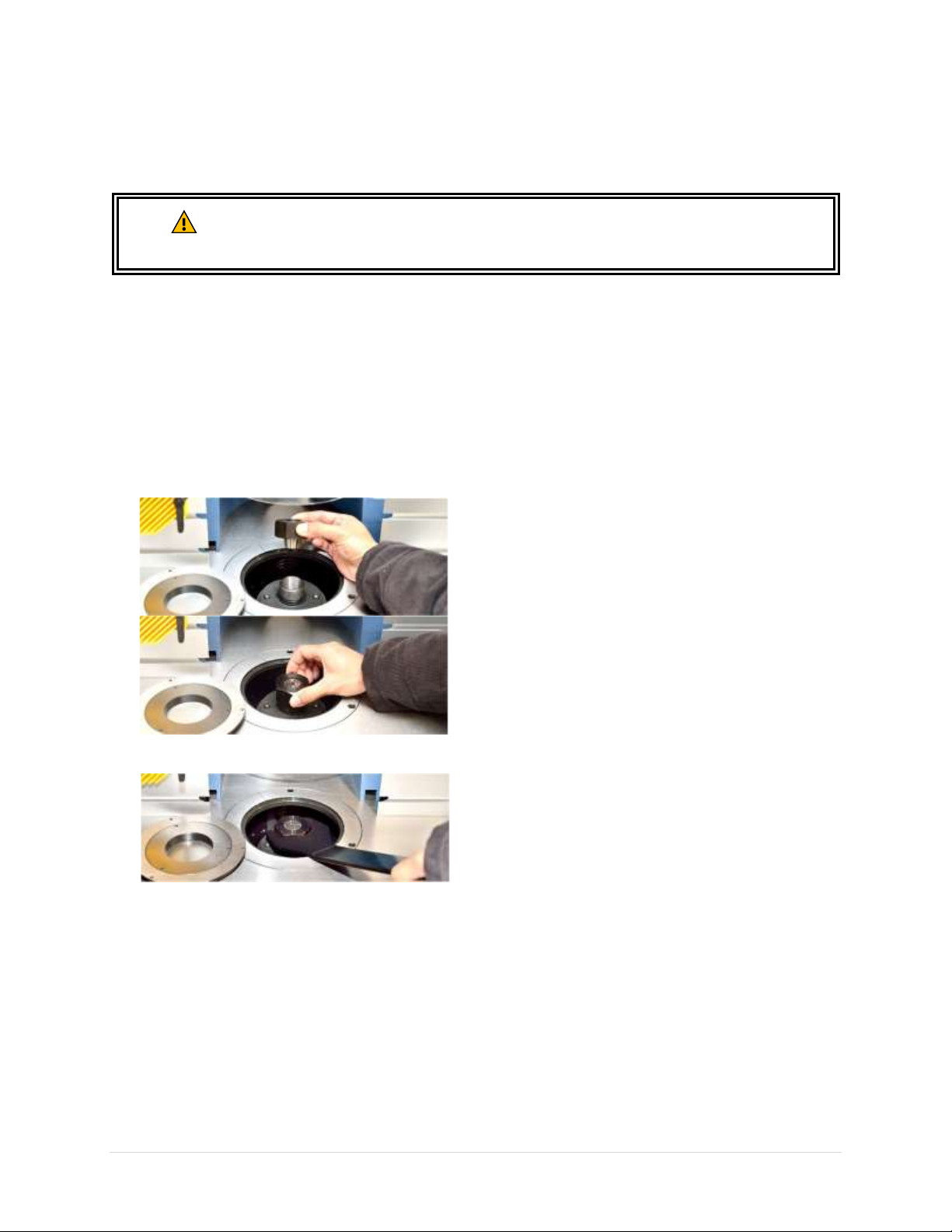

To Remove Router Collet

1. Disconnect machine from power source!!

2. Lock the spindle arbor.

3. Raise the arbor all the way up.

4. Loosen the collet with the spindle wrench

provided.

4705 Shaper OLIVERMACHINERY.NET 37 | Page

Adjusting Spindle Speed and Belt Tension

WARNING

Disconnect machine from the power source before any maintenance, service or
assembly is performed. Failure to comply can cause serious injury!

WARNING

Always check spindle speed is set below the cutter’s rated speed before starting
the machine.

Your machine is supplied with a 3-step pulley system

that provides spindle speeds of 5000, 7000 and 10000
RPM. A speed chart is located on the inside of the
cabinet door. Use the chart to set the belt position and
adjust machine speed.

Before starting the machine, ensure the speed of the

shaper does not exceed cutter’s rated speed.

To Adjust Spindle Speed

1. Disconnect machine from power source!!

2. Open cabinet door to gain access of the belt

tension lever.

3. Pull belt tension lever towards you to relieve

belt tension.

4. Move the belt to the desired position on the

pulleys.

5. The poly-v belt and pulleys have many

grooves. Ensure the belt sits properly on the
pulleys.

6. Push the tension lever back to the “Lock”

position.

7. Check belt tension. When pushing down into

the belt midway between the pulleys, the belt
should flex by 1/8" using moderate finger
pressure.

8. Continue with the next section to adjust belt

tension as needed.

38 | Page Oliver Machinery 4705 Shaper

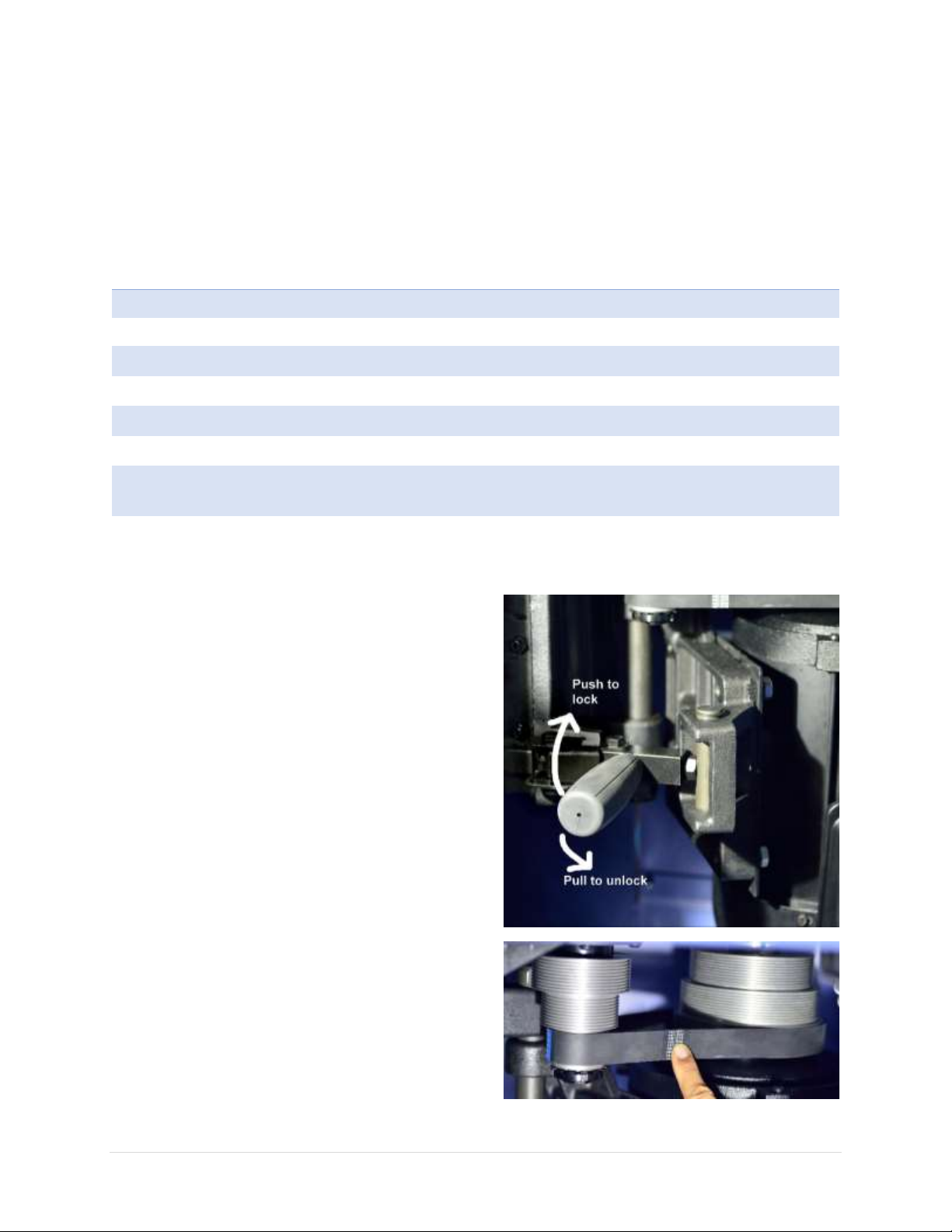

If Belt Tension Needs Adjustment

1. Disconnect machine from power source!!

2. Pull the belt tension lever to “Unlock”

position.

3. Loosen the jam nut.

4. Adjust the belt tension by rotating the belt

tension adjustment bolt:

Clockwise: Reduces belt tension.

Counter-clockwise: Increases belt tension.

5. Make small, incremental adjustments. Check

tension with every 1/6 turn of the
adjustment bolt. You will need to hand
tighten the jam nut and push the tension

level back to “Lock” position for testing belt

tension.

6. When pushing down into the belt midway

between the pulleys, the belt should flex by
1/8” using moderate finger pressure.

7. Once proper belt tension is set, re-tighten

the jam nut. Use one wrench to hold the
position of the tension adjustment bolt while
tightening the jam nut.

8. Check the movement of the belt tension

lever. If it is too difficult to move, slack off on
the belt tension by a bit.

4705 Shaper OLIVERMACHINERY.NET 39 | Page

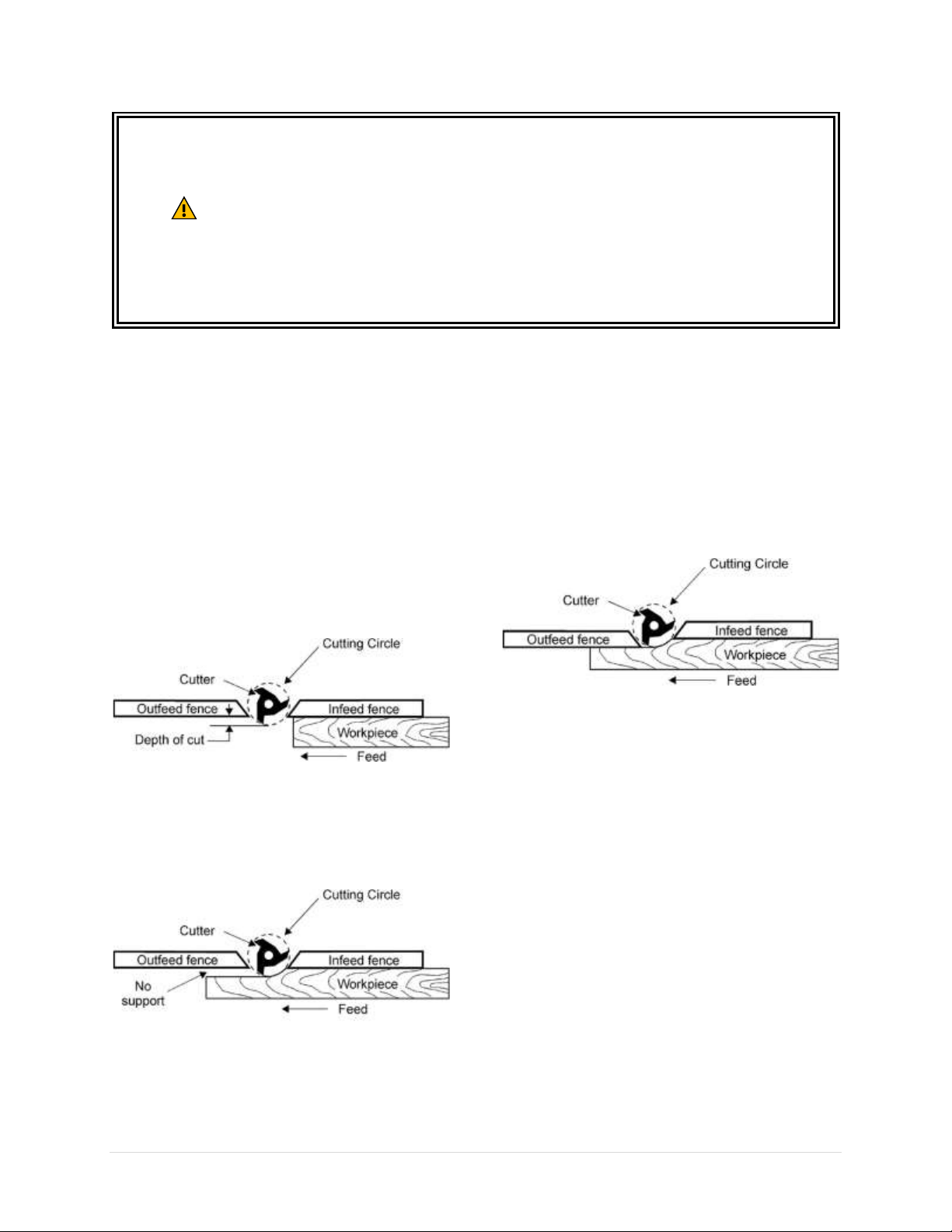

Shaping Wood

WARNING

Do not shape workpiece with loose knots or with nails or any other detachable
foreign objects. Use a jointer to flatten the workpiece before shaping.

Support long/wide boards with rollers or other devices to avoid injuries, and to
ensure a smooth, consistent finish.

Follow the “12-Inch Rule”. Keep your hands at least 12 inches away from the
cutter by using hold downs and push sticks. Use jigs when a workpiece is less than
12 inches long.

Shaping Long and Straight Pieces

Using the fence is the safest and the best way of

shaping straight pieces. Always use the fence
whenever the work permits. Depends on
situation, the infeed and outfeed fences will
need to be adjusted to properly support a
workpiece.

Case 1: Edge is partially shaped

When shaping a piece where a portion of the

original edge remains intact, both the infeed and
outfeed fences should be in line.

Case 2: Entire edge is shaped

When using the shaper for jointing work or

making a full bead, the shaped edge will not be
supported by the outfeed fence when both
fences are in line:

In this case, the outfeed fence should be adjusted

to support the work piece. With the shaper
running, move a small section of the workpiece
through the cutter.

When the workpiece entered approximately 1/3
of the outfeed fence, stop the machine. Hold the
workpiece in place, and use the micro­adjustment dial to move the outfeed fence
forward, until it makes contact with the work
piece. The outfeed fence will then be in line with
the cutting circle and supporting the workpiece.
Disengage the workpiece from cutter, and the
operation can continue.

Cross Grain Shaping

The workpiece is more likely to chip out when
shaping across grain. Using a scrap piece to
support the workpiece at the end of the cut can
mitigate this problem.

Often times cross grain shaping involves
workpieces that are narrow. If that is the case,
use the provided miter gauge or other cross cut
jigs to support the workpiece.

If all four sides of the workpiece need to be
shaped, shape the cross-grain sides first.

40 | Page Oliver Machinery 4705 Shaper

Shaping Tall Workpieces

The height of the fence is 4-3/4” tall. For shaping

tall workpieces, mounting an auxiliary fence, or
using a tenon jig, will provide addition support
and avoid accidents.

Shaping with Collars

Ensure the edge of the workpiece that rides

against the collar is smooth. Otherwise any
irregularity on that edge will be duplicated on
the shaped surface.

When shaping with collars, the collar must have

sufficient bearing surface.

The work must also be fairly heavy relative to the

cut being made. Never shape a short, light
workpiece against the collars.

The collars may be used in any of the following
positions: above, below, or between the cutters.

When the collar is used below the cutter. The
progress of the cut can be seen throughout the
operation. However, any accidental lifting of the
work will gouge the wood and ruin the workpiece.

When the collar is used above the cutter, the cut
cannot be seen, but this method offers an
advantage in that the cut is not affected by slight
variations in the thickness of the stock. Also,
accidental lifting of the workpiece will not gouge
the workpiece; simply repeat the operation to
correct the mistake.

Using the collar between two cutters has the
advantages and disadvantages of the first two
procedures, and is frequently used where both
edges of the work are to be molded.

WARNING

Freehand shaping requires precise control of the workpiece and should only be
performed by advanced users. Use the provided starting pin or a custom-made
pivot board to initiate a cut. Never start freehand shaping at a corner.

4705 Shaper OLIVERMACHINERY.NET 41 | Page

Accessories

Oliver Machinery has a collection of accessories and add-ons to enhances productivity of your shaper. To

purchase these items, please call us at 1-800-559-5065, our representatives are available Monday through
Friday, 9AM - 5PM pacific time.

You can also email our parts department at [email protected]

WARNING

Using unapproved accessories may cause machine to malfunction, resulting in
serious injury and/or machine damage. Only use accessories recommended for
this machine.

Collets

Item

Stock Number

1/4" Collet

4705.A002

1/2" Collet

4705.A003

Spindle Assemblies

Item

Stock Number

1/2" Spindle

10047.A001

3/4” Spindle

10047.A002

1” Spindle

4705.A001

1-1/4 Spindle

4705.A004

440V Conversion Kit

This is a 440V compatible switch box assembly, which requires installation by a

qualified electrician. If you need to purchase a 440V version of this shaper. Please
contact our customer service. We can pre-install this kit for you.

Touchup Paint

Keeping all painted surface in good condition not only keeps your machine looks

nice, it keeps rusts away. We have pre-mixed spray paint available in Oliver-Blue
for purchase.

42 | Page Oliver Machinery 4705 Shaper

Power Feeders

Two power feeders are available for 4705 Shaper. They can be installed on either side of the shaper table

in the back.

Features

• Polyurethane covered rollers provide excellent grip while protecting the work surface.

• Eight feed speeds and choice of three or four rollers to fit any application.

• Versatile stand allows adjustment of 10” in height and 18” in reach.

• Powerful TEFC motor available in single or three-phase.

• CSA Listed

Model

APF0038

Stock Number

APF0038.001 1HP, 1Ph, 220V (4.2A)

Stock Number

APF0038.002 1HP, 3Ph, 220V (3.4A)

Number of Rollers

3

Roller Size

4-3/4”(D) x 2-3/8”(W)

Feed Speed

8 Speeds:

6.5 / 13 / 18 / 22 / 36 / 43 / 55 / 108 FPM

Net Weight

137 lbs.

Model

APF0048

Stock Number

APF0048.001 1HP, 1Ph, 220V (4.2A)

Stock Number

APF0048.002 1HP, 3Ph, 220V (3.4A)

Number of Rollers

4

Roller Size

4-3/4”(D) x 2-3/8”(W)

Feed Speed

8 Speeds:

6.6 / 13 / 18 / 22 / 36 / 43 / 55 / 108 FPM

Net Weight

146 lbs.

Please visit our website at WWW.OLIVERMACHINERY.NET for additional recommended accessories.

4705 Shaper OLIVERMACHINERY.NET 43 | Page

Maintenance

Routine maintenance keeps machine in top shape, and will extend machine’s life. Please follow the

maintenance schedule below, and use the maintenance record worksheet attached in the back of the
manual to document all maintenance task completed over time. NOTICE: Maintenance schedule may
vary for individual users due to different situations and safety requirements.

Task

Frequency

Check spindle and quill for damages

Every time when changing spindle.

Check electrical cord(s) for signs of failure

Every day.

Check belt tension

Every week, or after changing spindle speed.

Remove dust from cabinet

Every week, or whenever there is heavy dust buildup.

Re-coat table top with rust protectant

Every week.

Check fences are coplanar

Every week.

Check V-belt for signs of aging

Every month. Replace V-belt when it shows signs of

cracking or glazing.

Lubricate motor bearings

**Not needed**
Motor bearings are permanently sealed and lubricated.

Replace Drive Belt

1. Disconnect machine from power source!!

2. Open cabinet door to gain access of the belt

tension lever.

3. Pull belt tension lever towards you to relieve

belt tension.

4. Move the belt to the lowest set of pulleys.

5. Continue sliding the belt down from the left

pulley until the belt is free, then remove the
belt over the top of the right pulley.

6. Install a new belt by following step 5 in

reverse.

7. Move the belt to the desired position to set

the spindle speed, then check belt tension.
See section “Adjusting Spindle Speed and
Belt Tension” for details.

44 | Page Oliver Machinery 4705 Shaper

Align Fences

The fences are pre-adjusted in the factory. The

coplanar of the fence should be checked
regularly and adjusted as needed.

To Verify Fences are Coplanar

1. Reset the position of both fences. Release

the fence lock level (F), then turn the micro
adjustment knob (E) to move the fences back
to their initial (0”) position.

2. Place a straightedge on the table, and press

against the infeed and the outfeed fences to
ensure both fences are flushed with the
straight edge.

3. Place a woodworking square on the table

and make sure the fence is perpendicular to
the table.

4. Adjustment is needed if the fences are

skewed.

Coplanar Adjustment

1. There are 4 nylon set screws supporting each

infeed/outfeed fence.

2. Loosen the fence locking knob (H) as shown

in the diagram. Then make small,
incremental adjustment on the set screws to

align the fences. Check your adjustment
frequently. You may want to mark the initial
position of the set screws just in case.

3. To check alignment of the fence, re-lock the

fence with the fence locking knob (H). Check
fences are coplanar, and it is perpendicular
to the table.

Spindle Elevator Adjustment

The gib of the spindle elevator was factory
adjusted and initially should not require
readjustment. Depending on the amount of use,
the spindle elevator may become loose and the
spindle may vibrate. In this case, it will need to
be adjusted:

1. Mark the origin position of the set screws.

2. With a 12mm wrench, loosen four jam nuts

that secure the gib set screws.

3. Hold the set screw in position with the 4mm

hex wrench, then use a 4mm hex wrench to
tighten each set screw, 1/8 or less turn at a
time. Begin with the lowest one, followed by
the uppermost one, then the two middle set
screws.

4705 Shaper OLIVERMACHINERY.NET 45 | Page

4. If this is not enough to remove the play of

the gib, repeat the step above until the play
is removed.

NOTICE: If the gibs are too tight, the spindle
height adjustment handwheel will be
difficult to turn.

5. When adjustment is complete, hold the set

screw in position with the 4mm hex wrench
to maintain the setting while tightening the
jam nut with the 12mm wrench.

46 | Page Oliver Machinery 4705 Shaper

Troubleshooting

Problem

Possible Cause

Solution

Machine will not start

Emergency stop is
engaged.

Rotate the “OFF” emergency shutoff button

clockwise until it pops out.

Spindle rotation switch

is in “Off” position.

Set direction to either “Forward” or “Reverse”

for your operation.

Cabinet door is open.

Close cabinet door.

Not connected to
power source.

Check connection.

Fuse blown or circuit
breaker tripped.

Replace fuse or reset circuit breaker.

Cord / plug damaged.

Have cord / plug replaced.

Faulty switch.

Replace switch.

Connected to wrong
voltage.

Check voltage and ensure wiring is done
correctly.

Spindle arbor is locked

Release spindle lock.

Overload protection is
triggered frequently

Feeding stock too fast

Feed stock more slowly.

Cutter is dull or dirty

Clean or replace cutter.

Extension cord too light
or too long

Use cords that meet this machine’s electrical

requirement.

V-Belt slippage

Increase belt tension.

Tool does not come up
to speed

Extension cord too light
or too long

Use cords that meet this machine’s electrical

requirement.

V-Belt slippage

Increase belt tension.

Motor not wired for
correct voltage

Refer to motor nameplate for correct voltage.

Spindle does not raise
freely

Sawdust and dirt in
raising mechanisms

Brush or blow out loose dust and dirt.

Machine vibrates
excessively

Damaged cutter

Replace cutter.

Machine stands on
uneven floor

Reposition on flat, level surface.

Use provided leveling hardware as support.

V-belt not tensioned
correctly

Adjust belt tension.

Bad v-belt

Replace v-belt.

Spindle gib wear

Adjust spindle gib pressure.

Bent pulley

Replace pulley.

Improper motor
mounting

Check and adjust motor mounting.

4705 Shaper OLIVERMACHINERY.NET 47 | Page

Problem

Possible Cause

Solution

Work pulled from
hand

In adequate stock
support

Use miter gauge with clamp or hold down.
Hold work firmly against the fence. Adjust the
hold down pressure.

Feeding work in wrong
direction

Feed work against cutter rotation.

Machine makes
unsatisfactory cuts

Dull cutter

Replace with sharp cutter.

Gum or pitch on cutter

Remove cutter and clean with turpentine and
#000 steel wool.

Gum or pitch on table
causing erratic feed

Clean table with turpentine and #000 steel
wool.

Feeding work in wrong
direction

Feed work against cutter rotation.

Edge splits off on cross
grain cut

Some wood types tend
to split with cross cuts.

Use sharp cutters.

Make cross-grain cuts first then finish with
grain.

Use scrap block to support at the end of a cut.

Stock burns

Dull cutter

Replace with sharp cutter.

Cutter too deep

On hardwoods take light cuts; attain full depth
of cut with several passes.

Forcing work

Feed slowly and steadily.

Spindle speed too high

Reduce spindle speed.

Raised areas on
shaped edge

Variation in pressure
which holds work
against cutter

Keep work firmly against fence or collars
throughout pass.

Use hold-downs.

Depth of cut not
uniform

Fence is not aligned

Adjust outfeed fence. Check fence coplanarity.

Side pressure not
uniform

Use hold-downs or feeder; keep pressure
against fence or collars consistent.

Variation in height of
cut

Variation in pressure
which holds work down
on table

Keep pressure firm throughout pass, use hold­downs; make pass slowly and steadily.
Whenever possible, keep cutter under stock.

Cuts not smooth

Dull cutter

Replace with sharp cutter.

Spindle speed too low

Increase RPM.

Feeding too fast

Pass stock more slowly.

Working against grain

Work with grain whenever possible.

Cutting too deep

On deep cuts make several passes.

48 | Page Oliver Machinery 4705 Shaper

Wiring Diagram

For Stock Number

4705.001 (220V, 1Ph

)

4705 Shaper OLIVERMACHINERY.NET 49 | Page

For Stock Number 4705.002 (220/440V, 3Ph)

50 | Page Oliver Machinery 4705 Shaper

Parts List

Complete Exploded View

4705 Shaper OLIVERMACHINERY.NET 51 | Page

Cabinet and Base

52 | Page Oliver Machinery 4705 Shaper

Fence Assembly

4705 Shaper OLIVERMACHINERY.NET 53 | Page

Table Assembly

54 | Page Oliver Machinery 4705 Shaper

Elevator Assembly

4705 Shaper OLIVERMACHINERY.NET 55 | Page

Motor Assembly

56 | Page Oliver Machinery 4705 Shaper

Spindles

4705 Shaper OLIVERMACHINERY.NET 57 | Page

Miter Gauge

58 | Page Oliver Machinery 4705 Shaper

Index

Part
Number

Descriptions

Specifications

QTY
1

250838-620

Spindle Guard

1

2

000103-103

CAP Screw

M6*1.0P*12

8 3 006303-100

Spring Washer

6.1*12.3

12 4 230131-000

Lock Bolt

7 5

090240-000

Cover

1

6

000304-103

Round Head Screw

M6*1.0P*12

23

7

190175-904

Dust Port

1

8

230331-916

Lock Nut

1

9

011002-209

Spring Pin

4*18

1

10

320309-902

Gear

1

11

010006-000

S-Ring

STW-15

2

12

230329-901

Lock Bolt

2 13

006001-091

Flat Washer

13*28*3.0t

2

14

172839-000

Adjusting Plate

2

15

000203-106

SET Screw

M6*1.0P*16

2

16

008005-100

Hex. Nut

M6*1.0P(10B*5H)

6

17

360941-910

Handle

2

18

001902-102

SET Lock Screw

M6*1.0P*8

6

19

000203-109

SET Screw

M6*1.0P*30

4

20

230251-000

Universal Handle

2

21

172836-000

Scale

2

22

090239-000

Guard Seat

1 23

051064-000

Bar 2

24

172834-000

Scale Plate

2

25

006001-022

Flat Washer

6.3*13*1.0t

10

26

051059-000

Fence Bracket (Left)

1

27

380966-902

Fence Sliding Bar

2

28

051063-000

Fence Bracket (Right)

1 29

360942-902

Shaft

2

30

010010-000

S-Ring

STW-20

4

31

250593-615

Fence Cap

2

32

310109-909

Fence

2

33

000102-105

CAP Screw

M5*0.8P*16

2

34

380968-902

Sliding Positioning Bar

1

35

380967-902

Rack

1

36

000102-104

CAP Screw

M5*0.8P*12

4

37

006001-131

Flat Washer

5.3*10*2.0t

2

4705 Shaper OLIVERMACHINERY.NET 59 | Page

Index

Part
Number

Descriptions

Specifications

QTY
38

380971-902

Rack Sliding Positioning Bar

1

39

922670-000

Clamp System Assembly

2 39.1

230178-000

Universal Handle

4

39.2

006001-127

Flat Washer

5.5*22*2.0t

4

39.3

172031-901

Fixing Plate

1

39.4

250608-000

Clamp

TS-35

1

39.5

001004-202

Screw

M5*0.8P*16L

2

39.6

001004-203

Screw

M5*0.8P*30L

2

40

922652-000

Table Assembly

1 40.1

001904-102

SET Lock Screw

M4*0.7P*4

6

40.2

050693-902

Small Guide Ring

1

40.3

050688-902

Medium Guide Ring

1 40.4

000402-104

Pan Head Screw

M5*0.8P*12

3

40.5

050832-902

Large Guide Ring

1 40.6

051057-000

Table

1

41

010025-000

S-Ring

STW-40

1

42

000801-104

Pan Head Hex. Screw

M6*1.0P*20

8

43

051062-902

Upper Bearing Cap

1

44

030410-000

Ball Bearing

6008-2NK

4

45

051065-000

Spindle Sleeve

1

46

050892-901

Lower Bearing Cap

1

47

190165-901

Lower Sleeve

1 48

922651-000

Spindle Assembly

1

48.1

360939-901

Spindle

1 48.2

012005-011

Key

8*7*43

1

48.3

090242-000

Pulley

1

48.4

006802-100

Washer

25

1

48.5

008201-100

Nut

M25*1.5P

1

49

380969-905

Link Shaft

1

60 | Page Oliver Machinery 4705 Shaper

Index

Part
Number

Descriptions

Specifications

QTY

50.1

922193-001

1-1/4" Spindle Assembly

1

50.1.1

000105-103

Cap Screw

M10*1.5P*30

1

50.1.2

011102-103

Pin

4.0*20

2

50.1.3

171848-902

Arbor Washer

10.5*45*5t

1

50.1.4

380531-901

Arbor Bushing

1

50.1.5

380039-901

Spacer

5

50.1.6

380038-901

Spacer

3

50.1.7

220105-000

1-1/4" Arbor

1

50.1.10

380818-901

Arbor Nut

1 50.2

970311-001

3/4" Spindle Assembly

1

50.2.1

000105-103

Cap Screw

M10*1.5P*30

1

50.2.2

380691-902

Arbor Washer

1 50.2.3

380530-901

Arbor Bushing

1

50.2.4

380042-901

Spacer

4 50.2.5

380043-901

Spacer

2

50.2.6

220107-000

3/4" Arbor

1 50.2.9

380818-901

Arbor Nut

1

51

014341-000

Belt

250 J10(635mm)

1

52

SS04-01

52.1

900754-000

Motor Assembly 5HP*220V*60HZ*1PH

1

52.1.1

090241-000

Motor Pulley

1

52.1.2

001902-102

SET Lock Screw

2 52.1.3

012202-006

Key 1

52.1.4

603066-008

Motor

1

52.1.5

021306-000

Strain Relief PGA16-14B

1 52.1.6

572554-000

Motor Tag

1

52.1

900735-000

Motor Assembly

7.5HP*220V/440V*60HZ*3PH

1

52.1.1

090241-000

Motor Pulley

1

52.1.2

001902-102

SET Lock Screw

2

52.1.3

012202-006

Key 1

52.1.4

606106-008

Motor

1

52.1.5

021306-000

Strain Relief PGA16-14B

1

52.1.6

572553-000

Motor Tag

1

53

000004-102

Hex. Screw

M10*1.5P*25

14

54

006307-100

Spring Washer

10.2*18.5

15

4705 Shaper OLIVERMACHINERY.NET 61 | Page

Index

Part
Number

Descriptions

Specifications

QTY
55

006003-080

Flat Washer

10*25*3.0t

15

56

360946-902

Motor Bracket Shaft

1 57

051060-008

Motor Bracket

1

58

006001-142

Flat Washer

21*38*3t

2

59

008314-100

Lock Nut

M20*1.5P(30B*20H)

1

60

360943-902

Motor Fixing Shaft

1

61

300013-000

Handle

1

62

280151-905

Spring

1

63

011002-105

Spring Pin

4*20

1

64

360724-901

Fixing Pin

1

65

380511-901

Fixing Shaft

1

66

000105-106

CAP Screw

M10*1.5P*55

1

67

006305-100

Spring Washer

8.2*15.4

4

68

042608-000

Clamp

dia. 60-80mm(inner)

2

69

042611-000

Dust Duct

300mm

1

70

172835-008

Dust Chute

1

71

000104-104

CAP Screw

M8*1.25P*16 (Black)

4

72

160076-000

Sleeve

2

73

660147-000

Air Pressure Shaft

1

74

008006-100

Hex. Nut

M8*1.25P(13B*6.5H)

5

75

050696-000

Bar 1

76

360945-902

Spindle Up/Down Worm Shaft

1

77

012003-003

Key

5*5*12

3

78

160073-000

Up/Down Worm Shaft Sleeve

1

79

660144-000

Anti-Dirt Ring

1

80

031006-000

Thrust Bearing

51202

2

81

380767-000

Gear

Left Thread

1

82

360944-902

Sleeve

1

83

171985-000

Sensor

1

84

008307-100

Lock Nut

M10*1.25P(17B*12H)

1

85

051061-008

Sliding Seat Body

1

86

002604-101

CAP Lock Screw

M10*1.5P*20

1

87

000204-108

SET Screw

M8*1.25P*35

4

88

250159-615

Plug

1

62 | Page Oliver Machinery 4705 Shaper

Index

Part
Number

Descriptions

Specifications

QTY
89

008017-100

Hex. Nut

M20*1.5P(30B*16H)

4

90

380647-902

Screw

M20*1.5P

4

91

006001-136

Flat Washer

12.2*23*2.0t

4

92

006308-100

Spring Washer

12.2*21.6

4

93

000106-112

CAP Screw

M12*1.75P*80

4

94

002604-103

CAP Lock Screw

M10*1.5P*40

1

95

001101-203

Round Head Self-Tapping Screw

M3*1.06P*08L

2

96

172992-000

Bracket

1

97

172838-000

Anti-Dust Plate

1

98

172982-901

Supporting Bracket

1

99

001901-101

SET Lock Screw

M5*0.8P*5

2

100

380768-000

Gear

Right Thread

1

101

130061-000

Woodruff Key

1

102

004403-103

SET Lock Screw

5/16"-18NC*5/16"

2

103

000702-102

Pan Head Hex. Screw

M6*1.0P*12

1

104

240077-000

Handwheel

1 105

230046-000

Foldable Handle

1 106

230171-916

Lock Knob

1

107

006006-106

Flat Washer

19.1*25.4*1.6

2

108

360940-902

Handwheel Shaft

1

109

360376-901

Fixing Ring

1

110

172837-000

Left Side Cover

1

111

172987-000

Body

1

112

230297-615

Wire Fixing Chain

3

113

340007-615

Packing

2

114

003303-102

Round Head Screw

3/16"-24NC*1/4"

1

115

490124-008

Wiring Cover

1

116

000303-103

Round Head Screw

M5*0.8P*10

4

117

490609-008

Wiring Cover (Bottom)

1

118

021306-000

Strain Relief

PGA16-14B

1

119

021315-000

Strain Relief

MG25A-16B

1

120

006502-100

Washer

5.3*10(BW-5)

2

121

000302-102

Round Head Screw

M4*0.7P*8

2

122

006001-001

Flat Washer

4.3*10*1.0t

6

123

172841-000

Right Side Cover

1

124

230134-000

Door Bar

1

129

050822-000

Base

1

4705 Shaper OLIVERMACHINERY.NET 63 | Page

Index

Part
Number

Descriptions

Specifications

QTY
134

172983-000

Switch Support

1

135

000802-102

Pan Head Hex. Screw

M8*1.25P*20

6

136

006001-049

Flat Washer

8.5*16*2.0t

4

137

022231-000

Plastic Tube

NFE-16B*300mm

1

138

023207-000

Connector

N-MGQ50-48B*

1

139

250146-000

Handle

1

140

172991-904

Bracket

1

141

000003-109

Hex. Screw

M8*1.25P*45

2

142

172990-904

Supporting Bracket

1 143

008306-100

Lock Nut

M8*1.25P(13B*9H)

2

144

009105-300

Lock Nut

5/16"-18NC(12.7B*9H)

1

145

381002-904

Turning Block

1 146

008007-100

Hex. Nut

M10*1.5P(17B*8H)

2

147

000004-113

Hex. Screw

M10*1.5P*65

1

148

008301-100

Lock Nut

M4*0.7P(7B*5H)

2

149

171901-901

Bracket

1 150

490229-000

Limit Switch Anti-Dust Cover

KSSCB-2

1

151

490227-000

Limit Switch

MJ2-1306

1

152

000302-107

Round Head Screw

M4*0.7P*35

2

153

921574-000

Miter Gauge Assembly

1

153.1

003303-105

Round Head Screw

3/16"-24NC*3/8"

3

153.2

250193-620

Pointer

1 153.3

130053-901

Block

1

153.4

360381-901

Shaft

1 153.5

571151-000

Scale Tape

1

153.6

003305-106

Round Head Screw

5/32"-32NC*5/8"

3

153.7

009001-100

Hex. Nut

5/32"-32NC(8B*3.8H)

3

153.8

290017-901

Shoulder Screw

1 153.9

230222-901

Positioning Point

3

153.10

230300-615

Handle

1

153.11

006002-051

Flat Washer

8.5*18*3t

1

153.12

090067-008

Miter Gauge

1

153.13

380614-904

Positioning Bar

1 153.14

380069-901

Packing

1 153.15

000403-105

Pan Head Screw

M6*1.0P*6 (Black)

1

153.16

043311-000

P Type O-Ring

P5

1

64 | Page Oliver Machinery 4705 Shaper

Index

Part
Number

Descriptions

Specifications

QTY
154

937573-000

Switch Box Assembly 5HP 220V 60HZ 1PH

1

154.1

172833-000

Switch Controller Box

1

154.2

300036-000

Controller Panel

1

154.3

950479-000

Up/Down Sensor

1

154.4

490342-000

Forward/Reverse Switch

1

154.5

490040-000

On Switch

1

154.6

490591-000

Emergency Stop Switch

1

154.7

000304-203

Phil Head Screw

4

154.8

000301-202

Phil Head Screw

4

154.9

490640-000

Overload Protector

1

154.10

490692-000

Magnetic Contactor

1

154.11

571227-000

Electrical Hazards Warning Label

1

154.12

473004-035

Cable SJT12AWG*4C*1550mm

1

154.13

474004-022

Cable SJT12AWG*4C*1350mm

1

154.14

472001-027

Cable ST18AWG*2C*950mm

1

154.15

021702-000

Rubber Tie

1

154.16

000303-102

Phil Head Screw

2

154.17

006502-100

Toothed Washer

2

154.18

570695-000

Ground Label/Sticker

2

154.19

250839-620

Display Protector

1

154.20

730078-001

Terminal Block Plate

1

154.21

000302-201

Phil Head Screw

2

154.22

730083-012

Bracket

1

154

937524-000

Switch Box Assembly

7.5HP 220V 60HZ 3PH

1

154.1

172833-000

Switch Controller Box

1 154.2

300036-000

Controller Panel

1

154.3

950479-000

Up/Down Sensor

1

154.4

490341-000

Forward/Reverse Switch

1 154.5

490040-000

On Switch

1

154.6

490591-000

Emergency Stop Switch

1

154.7

000304-203

Phil Head Screw

4 154.8

000301-202

Phil Head Screw

4

154.9

490640-000

Overload Protector

1

154.10

490692-000

Magnetic Contactor

1

154.11

571227-000

Electrical Hazards Warning Label

1

154.12

474004-021

Cable SJT12AWG*4C*1550mm

1

4705 Shaper OLIVERMACHINERY.NET 65 | Page

154.13

474004-022

Cable SJT12AWG*4C*1350mm

1

154.14

472001-027

Cable ST18AWG*2C*950mm

1

154.15

021702-000

Rubber Tie

1

154.16

000303-102

Phil Head Screw

2

154.17

006502-100

Toothed Washer

2

154.18

570695-000

Ground Label/Sticker

2

154.19

250839-620

Display Protector

1

154.20

730078-001

Terminal Block Plate

1

154.21

000302-201

Phil Head Screw

2 154.22

730083-012

Bracket

1

154

937600-002

Switch Box Assembly 7.5HP 440V 3PH

1

154.1

172833-000

Switch Controller Box

1 154.2

300036-000

Controller Panel

1

154.3

950733-000

Up/Down Sensor

1

154.4

490341-000

Forward/Reverse Switch

1 154.5

490040-000

On Switch

1

154.6

490591-000

Emergency Stop Switch

1

154.7

000304-203

Phil Head Screw

4 154.8

000301-202

Phil Head Screw

4

154.9

490736-000

Overload Protector

1

154.10

490737-000

Magnetic Contactor

1 154.11

571227-000

Electrical Hazards Warning Label

1

154.12

474004-021

Cable SJT12AWG*4C*1550mm

1

154.13

474004-022

Cable SJT12AWG*4C*1350mm

1 154.14

472033-007

Cable ST18AWG*2C*950mm

1

154.15

021702-000

Rubber Tie

1

154.16

000303-102

Phil Head Screw

2 154.17

006502-100

Toothed Washer

2

154.18

570695-000

Ground Label/Sticker

2

154.19

250839-620

Display Protector

1 154.20

730078-001

Terminal Block Plate

1

154.21

000302-201

Phil Head Screw

2

154.22

730083-012

Bracket

1 155

SS04-10

Oliver Brand Plaque

1

157

360735-905

Pin 1

164

SS04-85
Wire Nuts Package (x3 nuts)

1 171

471004-012

SJT12AWG*1C*150mm

1

66 | Page Oliver Machinery 4705 Shaper

Index

Part
Number

Descriptions

Specifications

QTY
** Hardware for leveling shaper **

125

000006-105

Screw

M16*2.0P*60

4

126

008011-100

Hex. Nut

M16*2.0P(24B*13H)

4

127

172277-902

Packing

4

** Tools for assembly **

158

171895-904

Wrench

50mm

1

159

040401-000

Screwdriver

No.1*75

1

160

040003-000

Hex. Wrench

3mm

1

161

040006-000

Hex. Wrench

6mm

1

162

040205-000

Open Wrench (Double Ended)

14*17

1

4705 Shaper OLIVERMACHINERY.NET 67 | Page

Maintenance Record

Date

Task

Operator

68 | Page Oliver Machinery 4705 Shaper

Notes

4705 Shaper OLIVERMACHINERY.NET 69 | Page

Warranty and Service

Oliver makes every effort possible to assure that its equipment meets the highest possible standards of

quality and durability. All products sold by Oliver are warranted to the original customer to be free from
defects for a period of 2 (two) years on all parts, excluding electronics and motors, which are warranted

for 1 year. Oliver’s obligation under this warranty shall be exclusively limited to repairing or replacing (at
Oliver’s option) products which are determined by Oliver to be defective upon delivery F.O.B. (return

freight paid by customer) to Oliver, and on inspection by Oliver. This warranty does not apply to defects
due, directly or indirectly, to misuse, abuse, negligence, accidents, unauthorized repairs, alterations, lack
of maintenance, acts of nature, or items that would normally be consumed or require replacement due
to normal wear. In no event shall Oliver be liable for death, personal or property injury, or damages arising
from the use of its products.

Oliver Machinery is always adding new Industrial Woodworking products to the line.

For complete, up-to-date product information, visit us online at:

WWW.OLIVERMACHINERY.NET

or call toll free 1-800-559-5065

** SAVE THIS MANUAL FOR FUTURE REFERENCES. **
