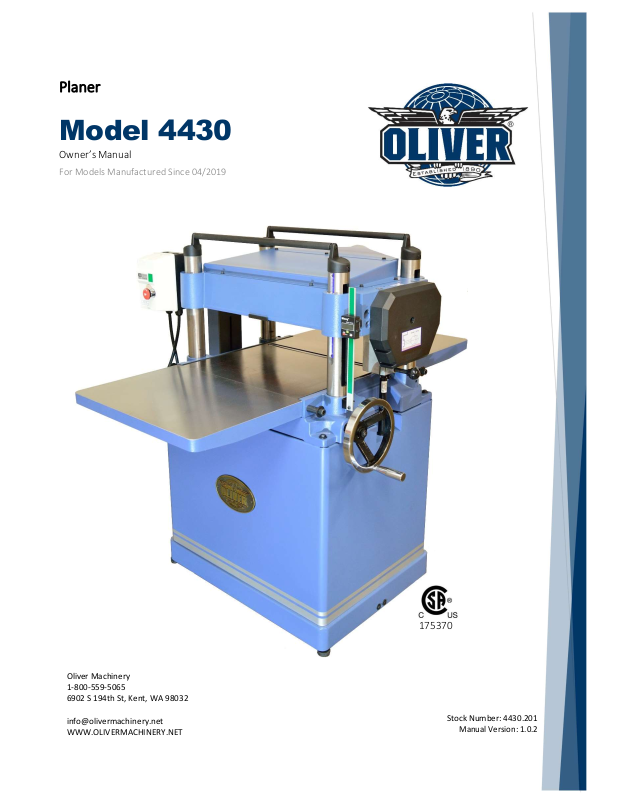

Oliver Machinery 4430 User guide

Download

Page 1

Model

4430

Owner’s

Manual

175370

WWW.OLIVERMACHINERY.NET

Manual

Version:

1.0.

Planer

For Models Manufactured Since 04/2019

Oliver Machinery 1-800-559-5065 6902 S 194th St, Kent, WA 98032

[email protected]

Stock Number: 4430.201

Page 2

Page 3

READ AND UNDERSTAND ALL INSTRUCTIONS IN THIS MANUAL BEFORE

ATTEMPTING TO ASSEMBLE OR OPERATE THE MACHINE.

FOLLOW THE INSTUCTIONS AND THINK SAFETY!

THE OWNER OF THIS MACHINE IS SOLELY RESPONSIBLE FOR THE SAFETY OF ANYONE USING THIS MACHINE. SUCH RESPONSIBILITY INCLUDES BUT NOT LIMITED TO:

• PROPER ASSEMBLY, OPERATION, INSPECTION, MAINTENANCE, AND RELOCATION OF THE MACHINE.

• PROPER TRAINING FOR THE OPERATORS AND ENSURES THIS MANUAL IS AVAILABLE AT ALL TIMES.

• USAGE AUTHORIZATION.

• USAGE OF SAFETY AND PROTECTION DEVICE.

OLIVER MACHINERY DISCLAIMS ANY LIABILITY FOR MACHINES THAT HAVE BEEN ALTERED OR ABUSED. OLIVER MACHINERY RESERVES THE RIGHT TO EFFECT AT ANY TIME, WITHOUT PRIOR NOTICE, THOSE ALTERATIONS TO PARTS, FITTINGS, AND ACCESSORY EQUIPMENT WHICH THEY MAY DEEM NECESSARY FOR ANY REASON WHATSOEVER.

** SAVE THIS MANUAL FOR FUTURE REFERENCES. **

PROP 65 NOTICE

WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, and/or other chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Avoid inhaling wood dust and other harmful chemicals. Use a dust mask and/or other safety devices for personal protection. For more information go to http://www.P65Warnings.ca.gov/wood

Page 4

Table of Contents

Introduction············································· 6 Specifications ·········································· 7

Quick View ·················································7 Product Dimensions····································7 Shipment Info·············································7 Electricals ···················································7 Motor ························································8 Planer Capacity and Performance ···············8 Cutterhead and Headstock ··························8 Measurements ···········································8 Table ··························································9 Safety·························································9 Others ························································9

Identification ··········································10 Safety ·····················································13

Cleaning ··················································· 22 Assembly ················································· 22

Installing Height Adjustment Handwheel ······· 23 Installing Dust Hood ········································ 23 Installing Extension Tables ······························ 24 Installing Power Switch ··································· 25

Dust Collection ········································· 26 Wiring and Grounding ······························ 26

Wiring Instructions ·········································· 26

Break-in Period ········································· 26

Controls and Components ······················ 27

ON / OFF Switches ···································· 27 Cutterhead Height Adjustment ················· 27 Cutterhead Height Scale ··························· 27 Digital Readout (DRO) ······························· 28 Feed Rate Control ····································· 28

Components for Planing Wood ················· 29 General Safety Guidelines ························· 13 Safety Guidelines Specific to Planer··········· 14

Electricals ···············································16

Minimum Circuit Size Required for Model

4430 Planer ·············································· 16 Grounding ················································ 16 Electrical Wiring ······································· 16

Setup ······················································18

Shop Preparation······································ 18

Space Requirement ········································· 18 Load Limits ······················································ 18 Electricals ························································ 18 Lighting ···························································· 18 Safety Labels ··················································· 18 Dust Collection ················································ 18

Receiving ·················································· 19 Unboxing ················································· 19 Inventory ················································· 20

Test Run ··················································· 30

Operation ·············································· 31

Step 1: Preparation ··································· 31 Step 2: Setting Depth of Cut and Feed Rate32 Step 3: Select Feed Direction ····················· 33 Step 4: Planing Wood to Desired Thickness33 Common Cutting Problems ······················· 35

Snipe ································································ 35 Chipping ·························································· 35 Indentation ······················································ 35 Fuzzy Grain ······················································ 35

Accessories ············································ 36

Cutter Inserts ··········································· 36 Touchup Paint ·········································· 36

Maintenance ········································· 37

Maintenance Schedule ····························· 37 Lubrication Schedule ································ 37

Removing Machine from Crate ·················· 21

Page 5

Instructions for Maintenance and

Adjustments ············································ 39

Remove Planer Top Cover ······························· 39 Adjust Chip Deflector Clearance ····················· 39 Service Cutterhead and Rotate Cutter Inserts 40 Adjust Belt Tension ········································· 41 Adjust Table Chain Tension ····························· 42 Adjust Table Roller Height ······························· 42 Adjust Cutterhead/Feed Roller Height Offset · 43 Adjust Feed Roller Tension ······························ 45 Adjust Cutterhead Height Scale ······················ 46 Anti-Kickback Fingers Inspection····················· 46

Parts List ················································ 51

Table Assembly ········································ 51 Cabinet Assembly ····································· 52 Motor Mount Assembly ···························· 53 Headstock Assembly ································· 54 Gearbox Assembly ···································· 55 Cover and Dust Hood Assembly ················ 55

Maintenance Record ······························ 62

Troubleshooting ·····································47 Wiring Diagram ······································50

Notes ····················································· 63 Warranty and Service····························· 64

Page 6

Introduction

Thank you for choosing Oliver! This manual contains important information on how to safely set up,

operate, and maintain this machine. Please take the time to read through this manual, and make sure you understand all the instructions.

While this manual may provide tips on optimizing the result of your workpiece, the manual is not intended

as a substitute for formal woodworking training. If you need to know how to safely perform an operation, please consult knowledgeable and qualified sources before proceeding further.

We made every effort to keep this manual up-to-date. Instructions, specifications, drawings, and

photographs in this manual should match the machine delivered. If you find any differences, or anything that seems confusing in this manual, or some instructions are not available, please check our website for an updated version:

WWW.OLIVERMACHINERY.NET/MANUALS

Alternatively, you can contact our Technical Support for help:

1-800-559-5065

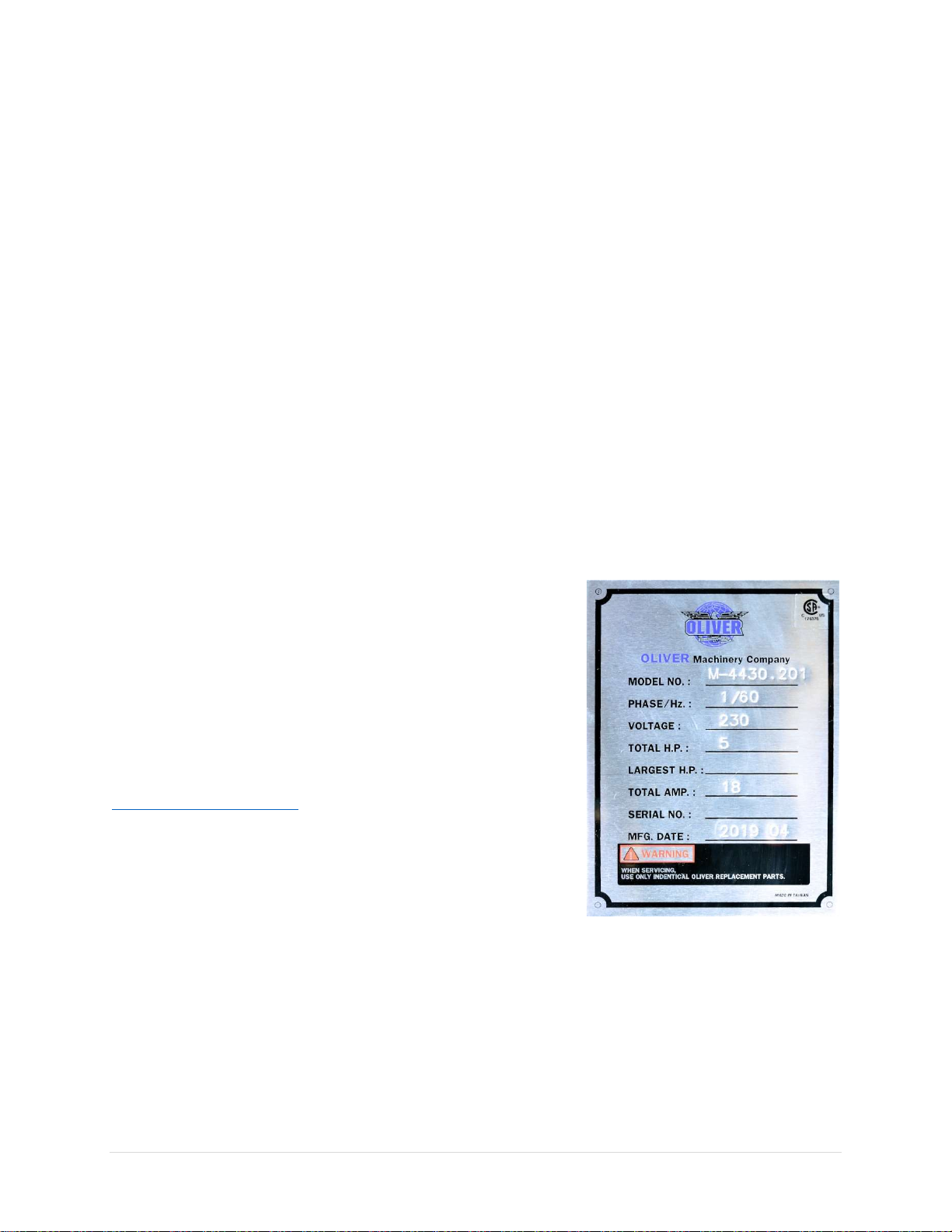

Before calling, please note down the manufacture date and serial number of the machine. You can find the information on a nameplate located on machine cabinet below the power switch. This information is needed to provide proper technical support, and to determine if an updated manual is available for your machine.

Please let us know how well this manual serves you. If you have any suggestions, please call the number above or email us at:

[email protected]

We love to hear from our customers and make improvements.

6 | Page Oliver Machinery 4430 Planer

Page 7

Specifications

Model

4430 Planer

Stock Number

4430.201

Motor

TEFC Induction Motor

Max. Stock Width

20” Max Depth of Cut

1/8”

(Full width)

1/4" (

Stock less than

8” wide

) Dimensions

51”

(L) x

40”

(W) x

46-1/2”

(H) Footprint

22-

1/2”

(L) x

28-3/4”

(W) Fully Assembled Weight

546 lbs.

Warranty

1 Year (Motor and electronics)

Width x Depth x Height (Fully

Assembled)

51”

(L) x

40”

(W) x

46-1/2”

(H) Footprint

22-

1/2”

(L) x

28-3/4”

(W) Fully Assembled Weight

546 lbs.

Type

Wood Crate with Pallet Base

Content

Planer with Included Accessories

Dimensions

38-

1/4”

(L) x

32”

(W) x

51-3/4”

(H) Weight

625 lbs.

Approx

imate

Setup

Time

60 minutes

Must Ship Upright

YES Stackable

Power Requirement

230V, 1Ph

, 60Hz

Full Load Current Rating

18A Recommended circuit size

30A Power Switch Type

Magnetic switch with overload protection.

Connection Type

5’ 12 AWG Cord included.

Overload Protection

Equipped

Quick View

Product Dimensions

5HP, 230V, 1Ph

2 Years (All other parts)

Shipment Info

Electricals

Electrical hookups required.

4430 Planer OLIVERMACHINERY.NET 7 | Page

Page 8

Motor

Motor Type

TEFC Induction Motor

Horsepower

5HP Speed

3450 RPM

Efficiency / Power Factor

75% /

98% Power Transfer Mechanism

Poly V

belt and pulleys

Bearing type

Permanently sealed ball bearing

Maximum Stock Width

20” Maximum Depth of Cut

1/4" (Stock less than 8” wide)

Maximum Stock

Thickness

8”

Minimum Stock Thickness

1/4" Minimum Stock Length

7”

Feed Rate

16/20 FPM

Number of Cuts Per Square Inch

89 @ 16FPM

Cutterhead Type

Helical

Cutterhead Diameter

1/4” Cutterhead Speed

5000

RPM

Number of Cutter Inserts

Number of Rows of Cutter Inserts

Cutter Insert Type

Four

sided, indexable German made carbide

Cutter Insert Diameters

15mm x 15mm x 2.5mm

Cutter Blade Angle

30 degree

Cutter Insert Screw Tensioning Torque

50-

lbs.-inch Infeed Roller Type

Serrated steel

Outfeed Roller Type

Smooth steel

Headstock Height Change Per Each Turn of

Approx.

1/1

6” / 1.5mm

Stock Return Roller Load Limit

220 lbs.

Measurement

Units

Inch/mm

Measurement Devices

Wixey Digital Readout

Resolution

1/32”/0.002”/0.05mm

Accuracy

+/-

1/250

”/0.004”/0.1mm

Backup Measurement Device

Standard headstock height scale installed.

Planer Capacity and Performance

Cutterhead and Headstock

1/8”(Full Width)

71 @ 20FPM

Handwheel

Measurements

8 | Page Oliver Machinery 4430 Planer

Page 9

Table

Table Dimensions

51” x 20”

Table Height Above Ground

29-

3/4”

Material

Precision ground cast iron

Bed Roller

One

(past

cutterhead

) Extension Table Weight

29 lbs.

Number of Dust Ports

Dust Port Size

5”

Minimum CFM Required

650 CFM

Sound Rating @ 2’ distance

85 dB

Serial Number Location

On machine cabinet below the power switch.

Spare Parts Included

10 Cutter inserts and compatible torx screws.

Certification

CSA 175370

Country of Origin

Taiwan

Safety

Others

(With infeed/outfeed table)

21” x 20”

(Without infeed/outfeed table)

4430 Planer OLIVERMACHINERY.NET 9 | Page

Page 10

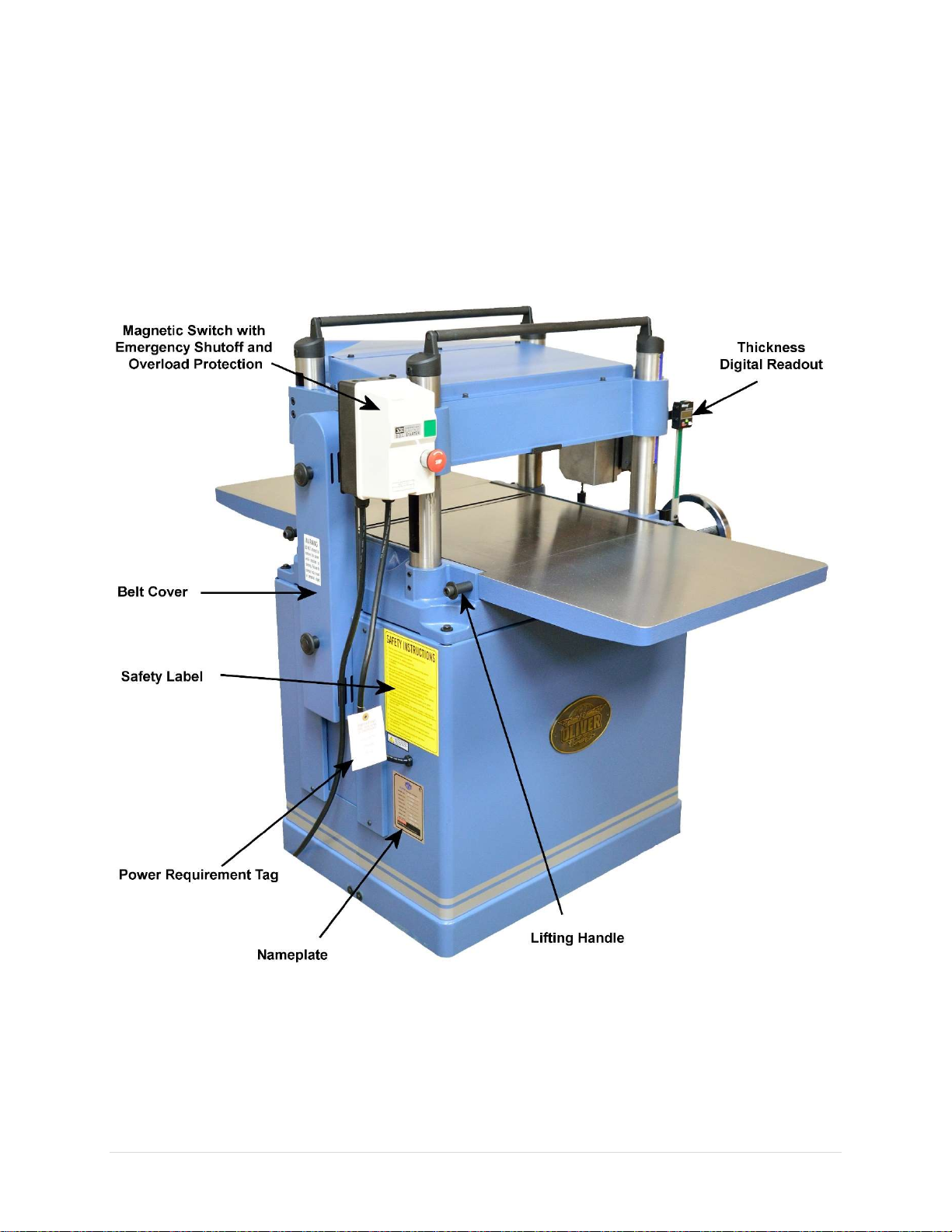

Identification

10 | Page Oliver Machinery 4430 Planer

Page 11

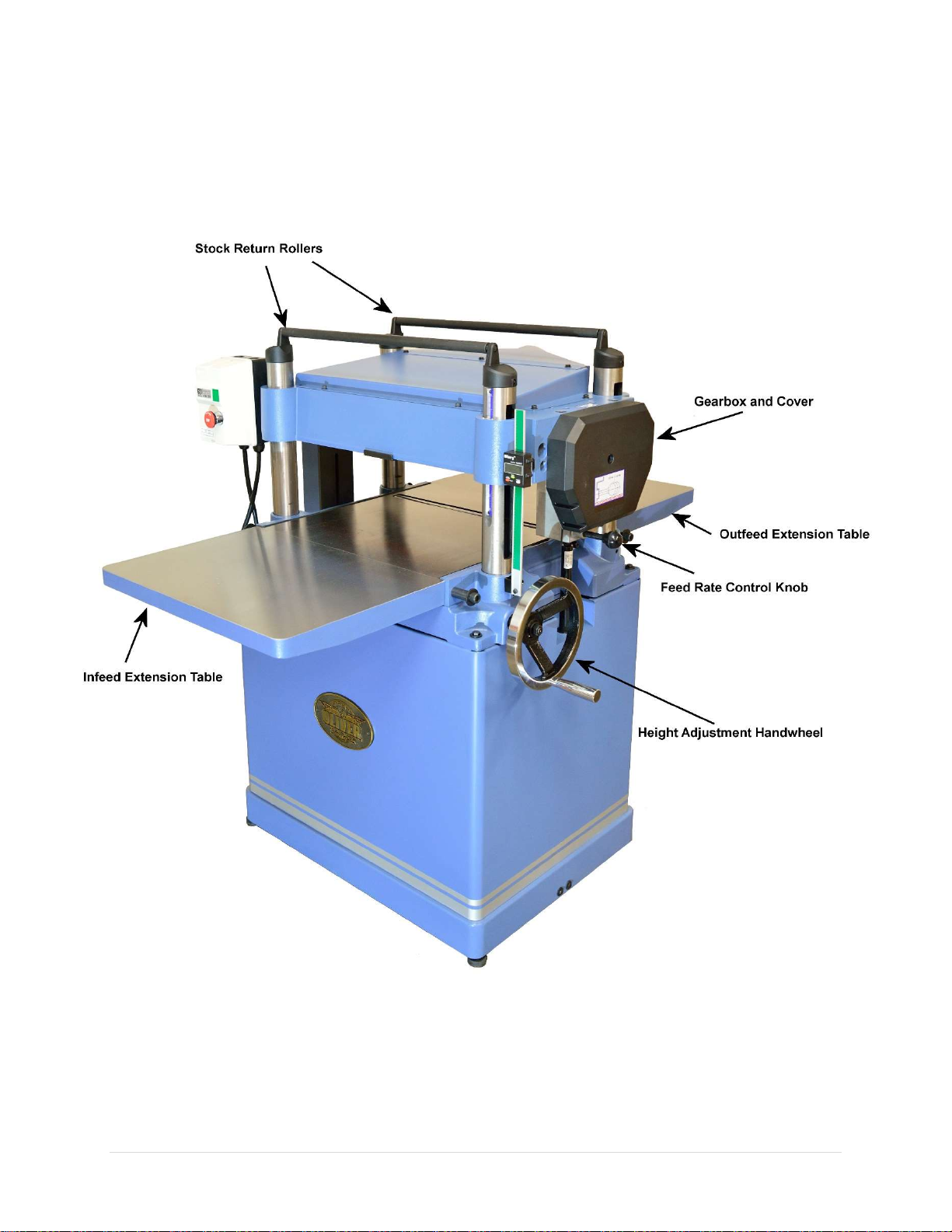

4430 Planer OLIVERMACHINERY.NET 11 | Page

Page 12

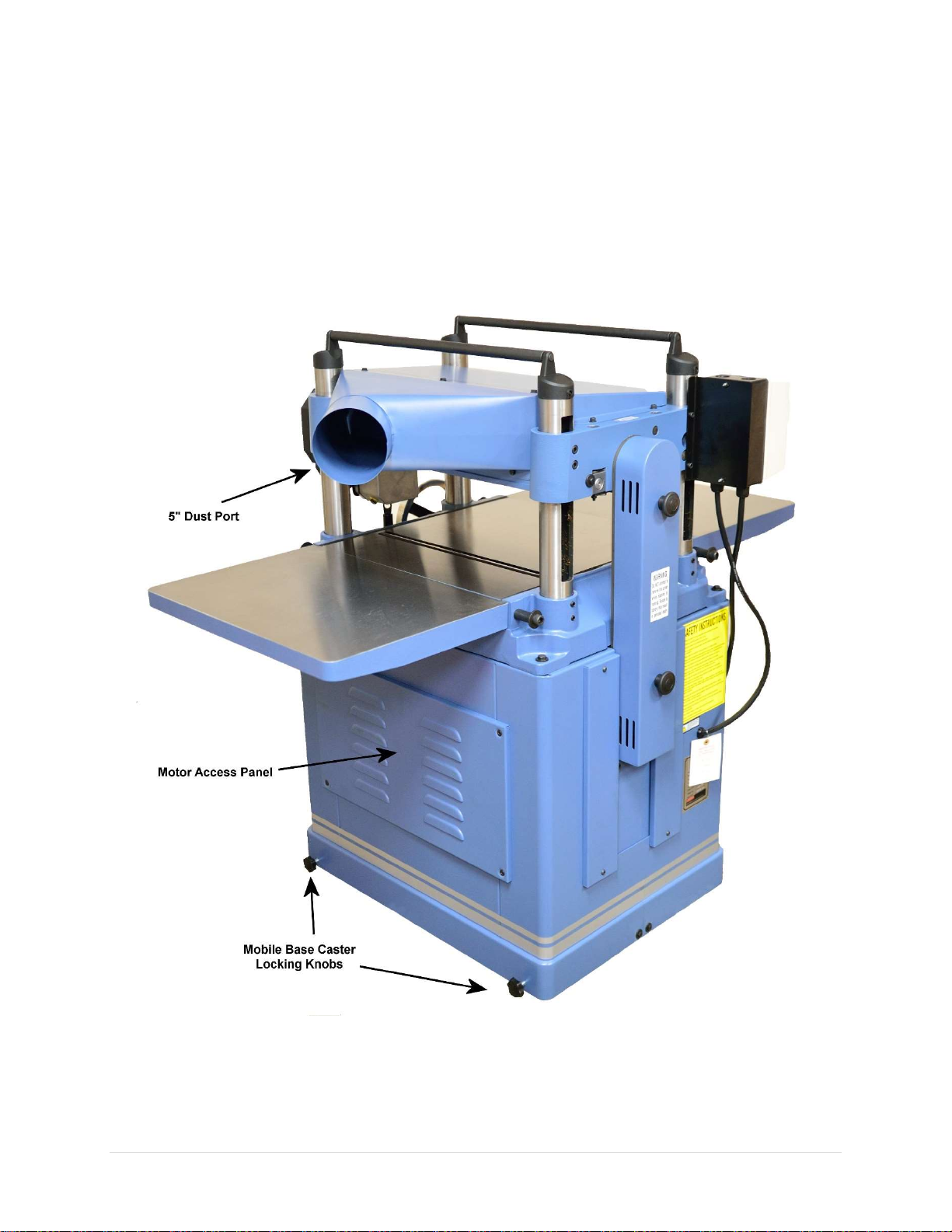

12 | Page Oliver Machinery 4430 Planer

Page 13

This indicate an imminent hazardous situation which, if not avoided,

WILL

cause

Safety

Oliver Machinery has made every attempt to provide a safe, reliable, easy-to-use piece of machinery.

Safety, however, is ultimately depending on the individual machine operator. Before operating this

machine, please become familiar with the following safety labels and guidelines.

DANGER

WARNING

CAUTION

IMPORTANT This is a tip about proper operation of the machine to avoid machine damage.

death or serious injury. This means if the warning is not taken seriously, it CAN cause death or serious injury.

This mean if the precaution is not taken, it MAY cause minor or moderate injury.

General Safety Guidelines

1. FAMILIARIZE yourself with all safety instructions found in this manual. Know the limitations and

hazards associated with this machine. Do not operate / service this machine until you are properly trained.

2. ELECTRICAL GROUNDING, when done properly, reduce the risk of electrocution, shocks and fire.

Make certain that the machine frame is electrically grounded and that a ground lead is included in the incoming electrical service. In cases where a cord and a plug are used, make certain that the grounding plug connects to a suitable ground. Follow the grounding procedure indicated in the electrical code of your area.

3. DISCONNECT the machine from power before performing any service, maintenance, or adjustments.

A machine under repair should be RED TAGGED to show it should not be used until the repair is complete.

4. EYE PROTECTION: Always wear an approved safety face shield, goggles, or glasses that complies with

ANSI Z87.1 and CSA Z94.3 standards. Common eyeglasses are not safety glasses, and may not provide adequate protection.

5. EAR PROTECTION: Use hearing protective devices where the noise exceeds the level of exposure

allowed in Section 1910.95 of the OSHA Regulations. When in doubt, use it.

6. OTHER PERSONAL PROTECTION: Before operating the machine, remove tie, rings, watch and other

jewelry. Roll up sleeves above the elbows. Remove all loose outer clothing and confine long hair. Protective type footwear should be used. Do not wear gloves unless it is instructed to perform particular step(s) in the manual.

7. GUARDS: Keep the machine guards in place for all applicable operations. If any guards are removed

for maintenance, DO NOT OPERATE the machine until the guards are reinstalled. Check clearance between the guards and the cutter before starting the machine.

4430 Planer OLIVERMACHINERY.NET 13 | Page

Page 14

8. WORKPLACE SAFETY: Keep the floor around the machine clean. Scrap material, saw dust, oil and other

liquids increase the risk of tripping or slipping. Be sure to clean up the table before starting the machine. Make certain the work area is well lighted and that a proper exhaust system is used to minimize dust. Use anti-skid floor strips on the floor area where the operator normally stands and mark off machine work area. Provide adequate work space around the machine.

9. ACCESS CONTROL should be enforced so only trained personnel can access the work area and operate

the machine. Use childproof power switch when applicable.

10. STAY ALERT at all times. Do not operate this machine while under the influence of drugs/alcohol, or

when not feeling well.

11. REPLACEMENT PARTS: Use only genuine Oliver Machinery replacement parts and accessories

recommended for this machine. Generic parts made by other manufacturers may create a safety hazard, and WILL void the factory warranty and other guarantees.

12. PROPER USE: Do not use this machine for other than its intended use. If used for other purposes,

Oliver disclaims any real or implied warranty and holds itself harmless for any injury or damage which may result from that use.

Safety Guidelines Specific to Planer

Before Work Begin:

1. USE ONLY NATURAL, SOLID WOOD. Do not plane any material such as plywood, MDF, OSB, laminate

or anything that can disintegrate during operation. Do not plane treated lumber or anything that contains harmful chemicals, as this will spread wood dusts that contain such harmful chemicals. Do not attempt to plane workpiece with loose knots or with any other foreign materials.

2. CHECK CUTTER INSERTS: Make sure cutter inserts are sharp, clean, and free from damages. Forcing

dull/damaged cutter inserts to work invites accidents, and lowers the quality of the finish. Use recommended amount of torque to securely fasten all inserts onto the cutterhead.

3. SERVICING CUTTER INSERTS: Wear heavy duty leather clothes to protect your hands when installing

new cutter inserts or rotating the existing ones. Ensure the cutterhead is thoroughly clean before installing the insert. Debris between the cutter insert and the platform can create uneven pressure, causing the insert to break, and body injuries may occur.

4. SUPPORT LONG WORKPIECE with auxiliary stock feeding rollers/tables. This will help avoiding injuries and improve the quality of finish.

14 | Page Oliver Machinery 4430 Planer

Page 15

When Planning:

1. DUST COLLECTION SYSTEM is required for this planer. Please make sure the system is on and provide enough suction before operation begins.

2. KICKBACK happens when a workpiece is ejected, usually towards the infeed side of the planer, during the operation. This can cause serious injuries or even death. This planner is equipped with metal antikickback fingers to reduce the risk of kickback. Make sure they are clean and moving freely before operation. Even with this safety device installed, kickback can still happen due to workpiece quality, grain orientation and many factors. Operator should be cautious about possible kickback.

 ALWAYS wear proper protection device and stay away from the line-of-fire to avoid kickback

related accidents.

 NEVER look inside the planer during operation.  NEVER plane boards that are shorter than 7”as mentioned in the specifications.

3. PROPER WORKPIECE FEEDING avoids kickback. Never start the machine with the workpiece engaging the cutterhead. Never start feeding until the planer has reached its full speed. Ensure there is proper gripping force from the feeding rollers when passing through a workpiece.

 NEVER force a workpiece through the planer. Make adjustments as needed.  ONLY plane one board at a time.  For twisted workpieces, use a jointer to face joint the bottom side of the workpiece before

planning.

4. STUCK WORKPIECE should be removed only after the planer is powered off, and the cutterhead comes to a complete stop. Do not use hands or push sticks to force feed a workpiece through the planer, as it can result in severe injuries and/or machine damage.

5. DEPTH OF CUT SETTINGS: Never exceed the designed maximum depth of cut capacity found in the specification. Failing to comply can cause machine damage and injuries. Consider the hardness of the workpiece when setting the depth of cut, as harder wood types increase the workload of the planer.

After Operation

1. STOP THE MACHINE if the operator leaves the machine for any reason.

2. WAIT until the machine comes to a complete stop.

3. CLEAN UP the work area before departure.

4430 Planer OLIVERMACHINERY.NET 15 | Page

Page 16

Electricals

Stock Number

Minimum

Circuit Size Required

4430.201

30A

All electrical work must be done by a qualified electrician, and must meet the

WARNING

Minimum Circuit Size Required for Model 4430 Planer

Please ensure the electrical circuit for this machine meets the minimum circuit size requirement.

Minimum circuit size requirement applies to a dedicated circuit which provides power to one 4430 Planer. If more machines are sharing the same circuit, consult a qualified electrician to ensure the designated circuit is properly sized for safe operation.

If a circuit is available, but not meeting the minimum circuit size requirement listed above, a new circuit

must be installed for this machine.

Grounding

electrical code in your area.

WARNING

Proper grounding reduces the risk to the operator in the event of electrical malfunction or breakdown.

This machine must be connected to the grounding conductor when available, and all grounding connections must meet or exceed the electrical code requirements in your area. Furthermore, all grounds must be verified and must meet or exceed the electrical requirement of the machine. If grounding is not available, consider the use of a GFCI protection device as an alternative, if this complies with the electric code in your area.

Improper grounding can cause electric shock, fire, and equipment damage.

Electrical Wiring

This machine is not pre-wired with a plug. A 5-feet long 12AWG cord is

provided for connecting this machine to a power source. If you plan to connect the machine directly to the electrical panel (“Hardwiring”). Please ensure there is a readily accessible electrical disconnect near the machine. Refer to section “Wiring Diagram” for wiring your machine to a power source.

If you choose to connect this machine with a plug and a cord, please

use a UL/CSA listed plug. If you need an extension cord to connect to the power outlet, select a durable cord type with high temperature rating (90C° or above). Both plug and power cord must be sized to meet the amperage requirement of your machine.

16 | Page Oliver Machinery 4430 Planer

Page 17

Minimum cord size (AWG) required based on amperage draw and length of the cord:

Amps

Power Cord Length

25 feet

50 feet

75 feet

100 feet

> 100 feet

< 5 16 14 14 14 NR 5 to 8

14 14 14 12 8 to 12

14 14 12 10 12 to 15

12 12 10 10 15 to 20

10 10 10 NR 21 to 30

10 NR NR NR

Use properly sized wires that meet or exceed the power requirement of your

*NR: Not Recommended

WARNING

machine. Using undersized wires may cause overheating and increase the risk of fire and machine damage.

Improper copper-aluminum wire connection is a fire hazard. If the power circuit

WARNING

available uses aluminum wires, use certified CU/AL wire connectors.

4430 Planer OLIVERMACHINERY.NET 17 | Page

Page 18

Setup

. Doing so improves air

Shop Preparation

Space Requirement

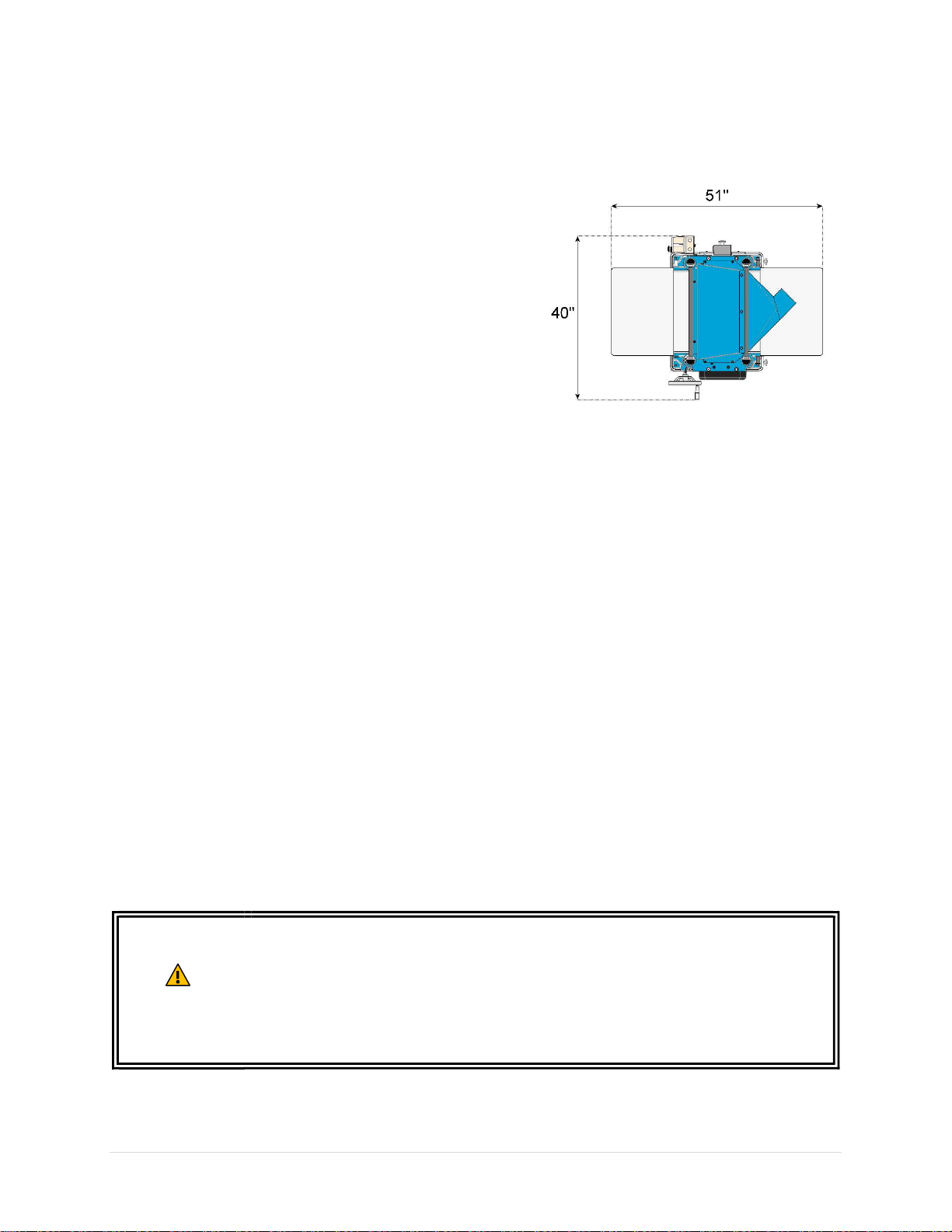

The dimensions of this machine are 51”(L) x 40”(W). You will

need additional spaces for manipulating your workpiece, electrical connection and dust collection.

Load Limits

This machine has a shipping weight of 625 lbs., and a net

weight of 546 lbs. Please ensure all lifting tools and building structures have adequate load capacity, for transporting and supporting the total weight of this machine, the operator, and related items.

Electricals

Ensure a properly sized circuit and an electrical terminal are available nearby the machine. If the machine

is to be hardwired, there must be a readily accessible power disconnect nearby, so that the machine can be disconnected from power source for servicing and adjustments. If the machine is to be connected with a cord and a plug, please ensure a matching outlet is installed nearby the machine.

Please refer to the “Electricals” section in this manual for details regarding electrical requirements and

safety instructions.

Lighting

Adequate lighting is needed for operating this machine. Overhead, non-glare lighting should be installed

near the work area.

Safety Labels

If this machine introduces a new safety hazard to your work place, display proper warning signs in highly

visible location(s).

Dust Collection

Wood dusts created by this planer is a health hazard. Connect a dust collection system to this machine.

Check air suction regularly to ensure the pipes are not jammed.

Dust masks should be available for using the planer.

Use a dust collection system that is rated above 650 CFM quality in the workplace, and protects the machine from jamming.

CAUTION

Piping of dust collection system introduces additional air resistance, and decreases the effective CFM measured at the dust ports. Ensure there is significant suction at the dust port, so dust and debris can be effectively removed from the machine.

18 | Page Oliver Machinery 4430 Planer

Page 19

Receiving

Your shipment should come with one wood crate. Upon receiving your shipment, check for any significant

damages before signing the delivery confirmation.

IMPORTANT

CAUTION

Moving Machine into the Shop

Your machine will be delivered by freight service, and it will be left outside of your workshop by default.

On the day of delivery, please be sure help is available to move the machine to its final location.

WARNING

You may need to remove strapping that is used for securing your package. Strapping may spring back violently when released and cause injury. Always wear safety goggles and gloves for this task.

4430 Planer has a gross weight of 625 lbs. and a net weight of 546 lbs. Safe moving techniques and proper lifting equipment required, or serious personal

injury may occur.

Your shipment may be secured by the straps. Do not lift your shipment by the strap. They are not designed to hold the total weight of your shipment. They may snap without warning and cause serious injury and machine damage.

If items are damaged, please call us immediately at 1-800-559-5065

Unboxing

Upon removing the crate cover, you should find a planer that is mostly assembled, and three paper boxes

that contain all the accessories. Everything is covered by a plastic bag.

4430 Planer OLIVERMACHINERY.NET 19 | Page

Page 20

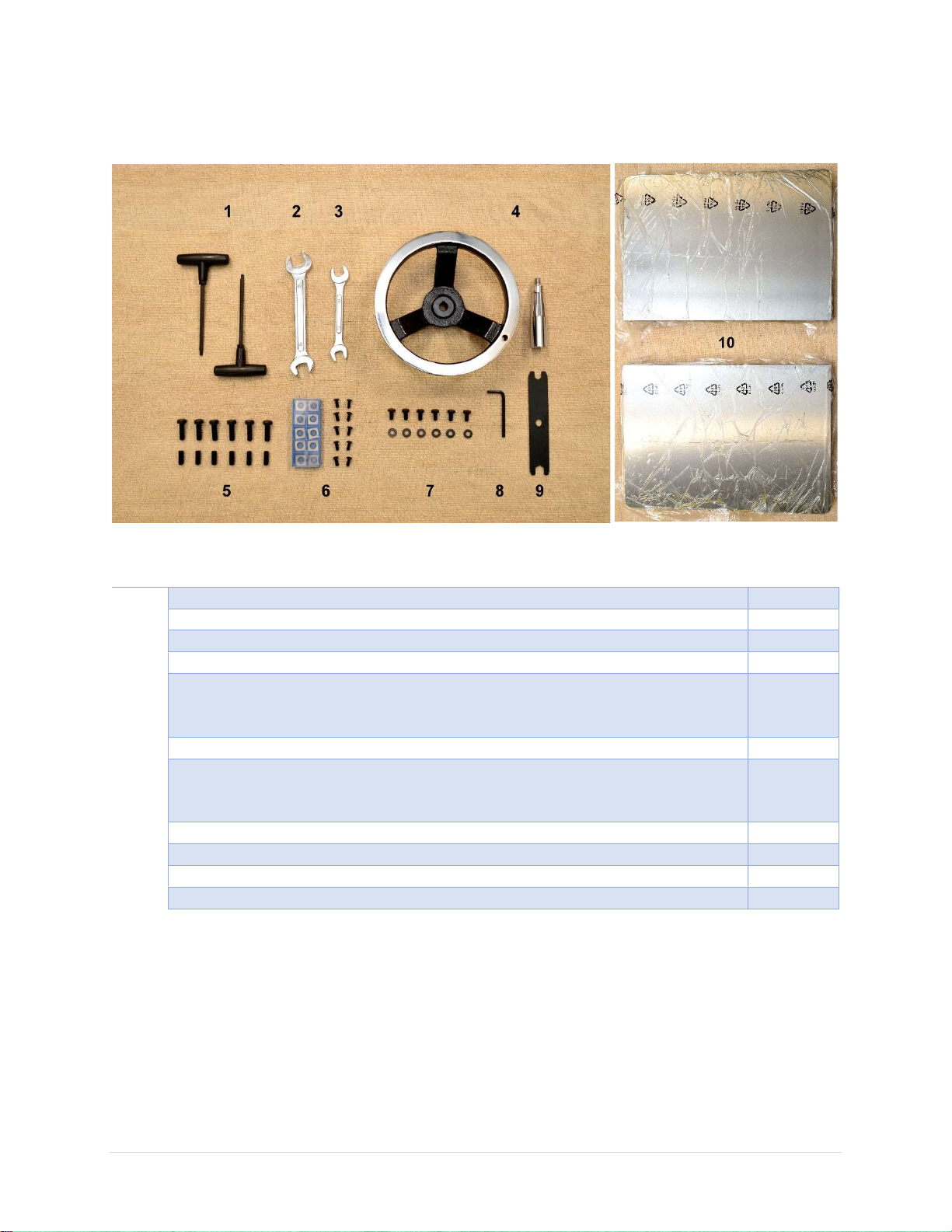

Inventory

Item

Description

Quantity

1 T-

Handle Torx Drivers (T

-25) 2 2 17/19mm

Wrench

1 3 12/14mm Wrench

1 4

Height Adjustment Handwheel and Handle

1 5

Fasteners for Extension Table:

6 each

Spare Cutter Inserts and Torx Screws

each

Fasteners for Dust

Hood

6 each

4mm Hex Wrench

1 9

10/13mm

Wrench

1 10

Cast Iron Extension Tables

2 11

5” Dust

Hood

(Not shown in the picture)

Carefully unwrap the packaging and make sure all components are included in the shipment. Lay out all

the items received and inventory them.

Hex Bolt (M8*1.25P*25) Set Screw (M8*1.25P*20)

Socket Head Cap Screw (M6*1.0P*12) Washer

NOTICE: If you cannot find the item in the list above. Please check if they are still attached to the packaging

or inside the cabinet. Occasionally the item may have been pre-installed at the factory. Please refer to the parts list section this manual to ensure you have all the components to set up this machine.

NOTICE: This machine comes with various standard sized, non-proprietary parts. If any of these parts are

missing, we be happy to deliver them to you. To have the machine up and running as soon as possible, you can also find these parts at your local hardware store.

20 | Page Oliver Machinery 4430 Planer

Page 21

Additional Items Recommended for Machine Assembly

Item

Purpose

Safety

lasses

Protection

Disposable

loves

Protection

Paper Towel

/ Rags

Cleaning

Rust Inhibitor

Cast iron table top rust protection.

Straight edge

Check

alignments

. Metric

Comb

ination

Assembly and Maintenance

Metric Hex Wrench Set

Assembly and Maintenance

Torque Wrench

Cutter inserts

installation

and

for

checking

torx screw

tension

(50-55

lbs.

T25 Star Bit Socket

Cutter inserts installation

Wrench Set

inch).

Removing Machine from Crate

When all items are ready for setting up the

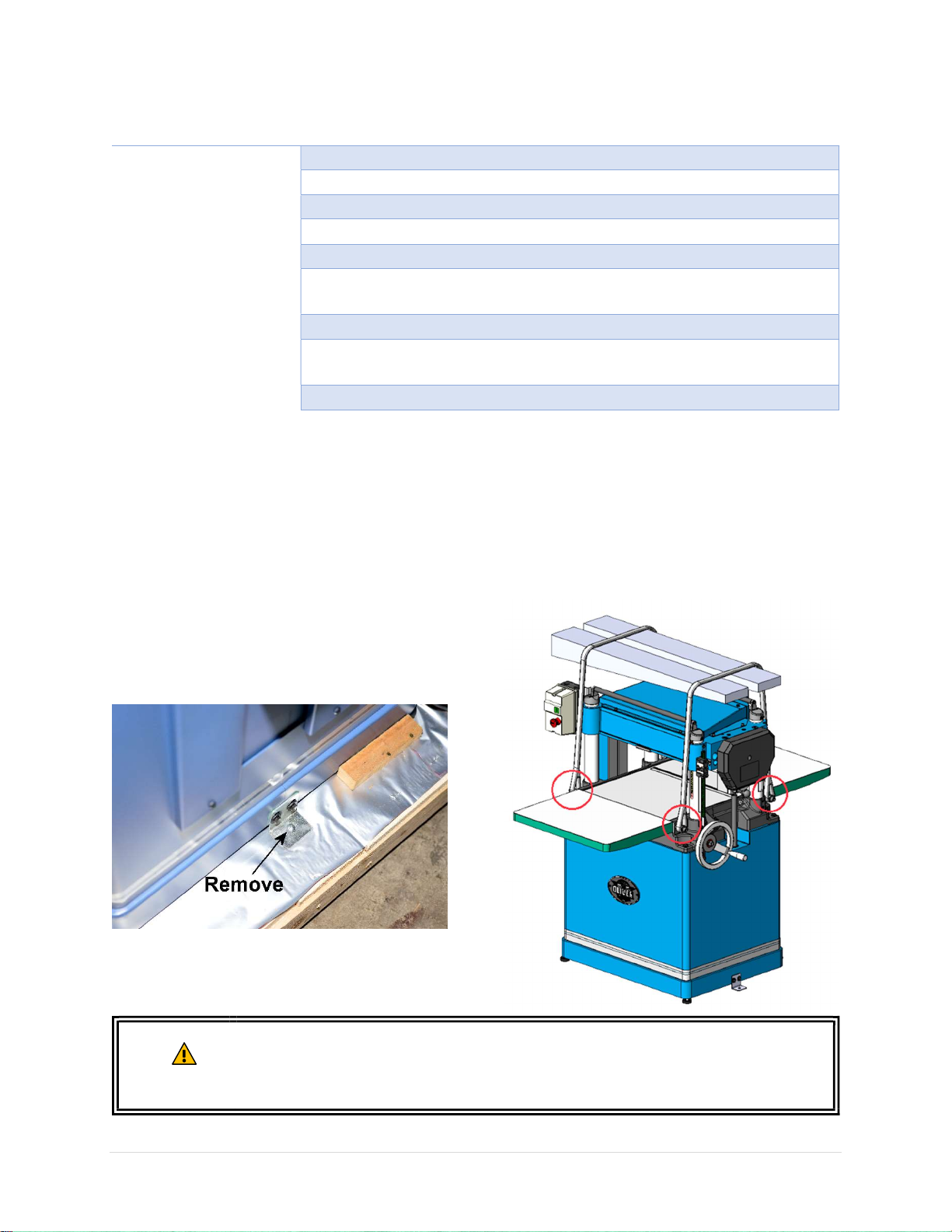

machine, gently remove the machine from the pallet. The planer is equipped with casters so it can be push off the pallet with the help of a ramp.

The base of the planer is bolted onto the pallet

to prevent shifting during transport. Remove these screws and brackets if you see them. You may reuse the hardware if the machine is to be bolted onto the floor.

If more lifting is needed, you may attach a pair of

1” lifting sling to all 4 of the lifting points located on the side of the planer. Be careful with the power switch and the digital readout when lifting the machine with lifting devices.

WARNING

4430 Planer OLIVERMACHINERY.NET 21 | Page

4430 Planer has a net weight of 546 lbs. All lifting devices must be capable to handle the load, or serious personal injury and machine damage may occur.

Page 22

Cleaning

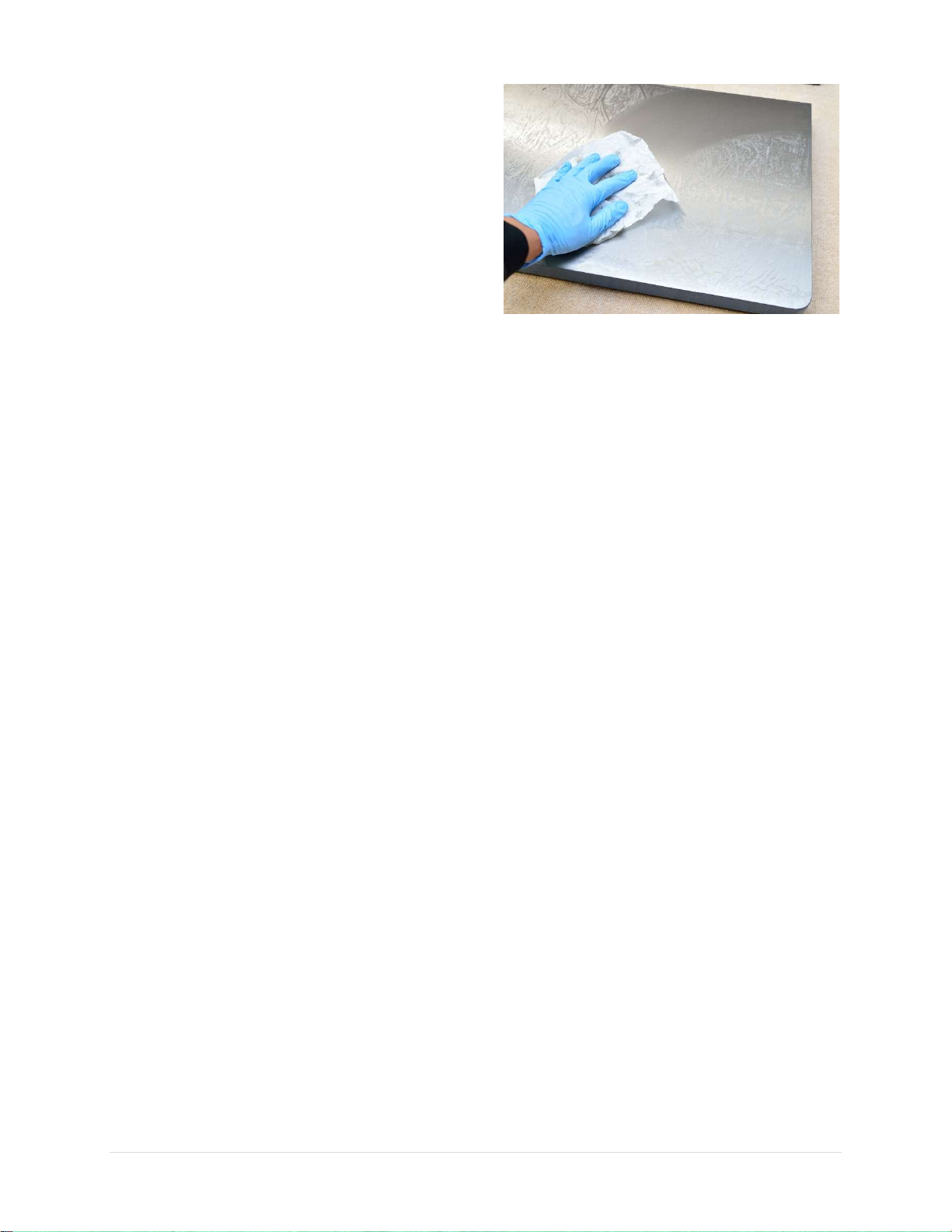

To prevent rusting, the cast iron bed and

extension tables of this planer are covered with machine oil and a plastic film. Remove the plastic film, then wipe off the machine oil with paper towels or rags.

Once all the machine oil is removed, routinely

coat the unpainted cast iron surface with rust preventive such as Boeshield® T-9 or paste wax. Do not use rust preventives that contains silicon, which is known to interfere with certain finishes and glues.

Assembly

This planer is mostly assembled in the factory. There are a few more items to set up before the machine

is ready for a test run:

1. Install height adjustment handwheel.

2. Install dust hood.

3. Install extension tables.

4. Install power switch.

5. Connect planer to a dust collection system.

6. Connect planer to power source.

The approximate time for cleaning and assembly is approximately 60 minutes.

22 | Page Oliver Machinery 4430 Planer

Page 23

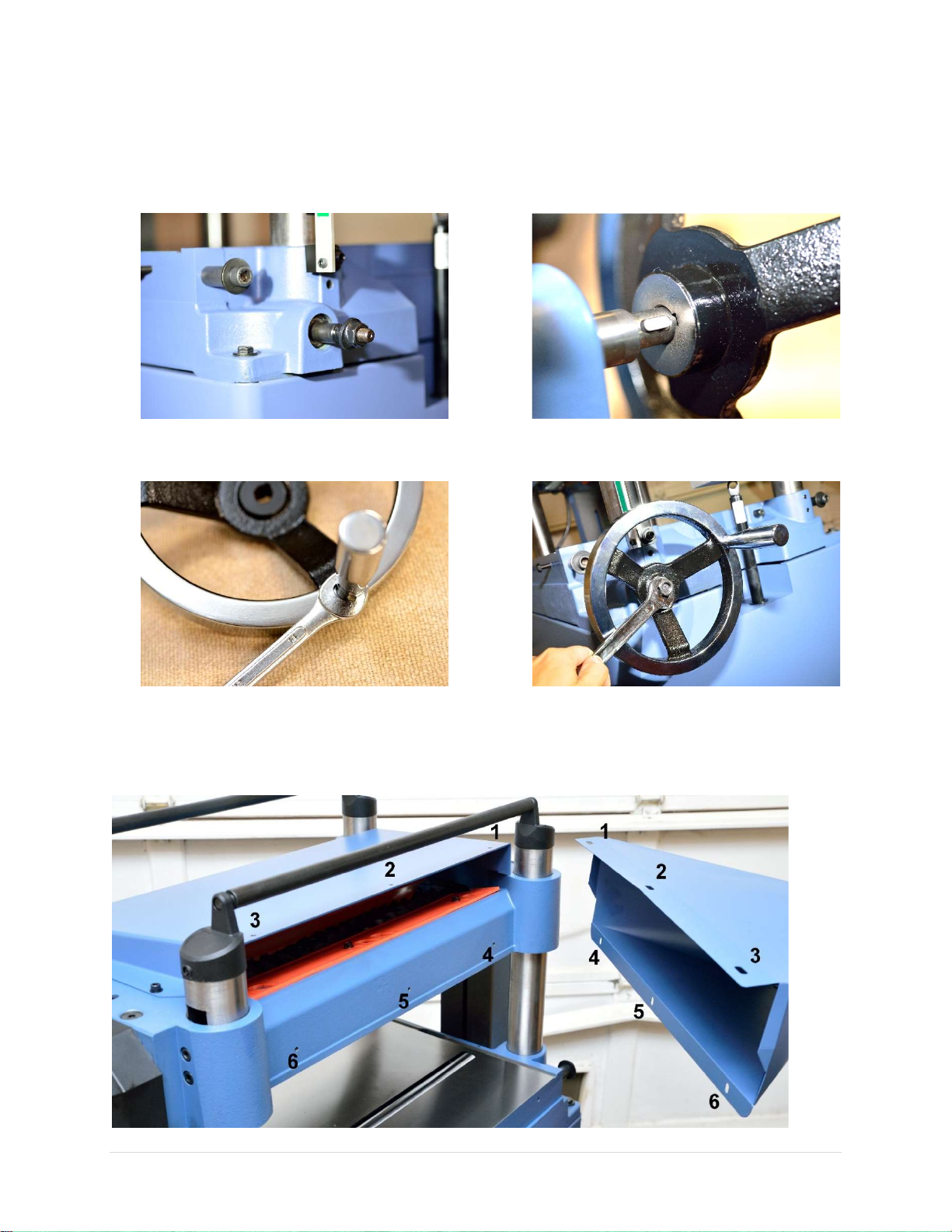

Installing Height Adjustment Handwheel

1. To install the height adjustment handwheel, you will need the key, bolt and the washer. They are taped onto the handwheel shaft. Carefully remove the tape to retrieve these parts.

3. Insert the key into the keyway on handwheel shaft.

4. Insert the handwheel and make sure the keyway on the handwheel is aligned with the key.

2. Install the handle of the handwheel and tighten with a 14mm wrench.

5. Install the washer and nut, then tighten the nut with a 19mm wrench.

Installing Dust Hood

Use the provided cap screws and washer (#7 in “Inventory”), to mount the dust hood on top of the

cutterhead cover:

4430 Planer OLIVERMACHINERY.NET 23 | Page

Page 24

Installing Extension Tables

CAUTION

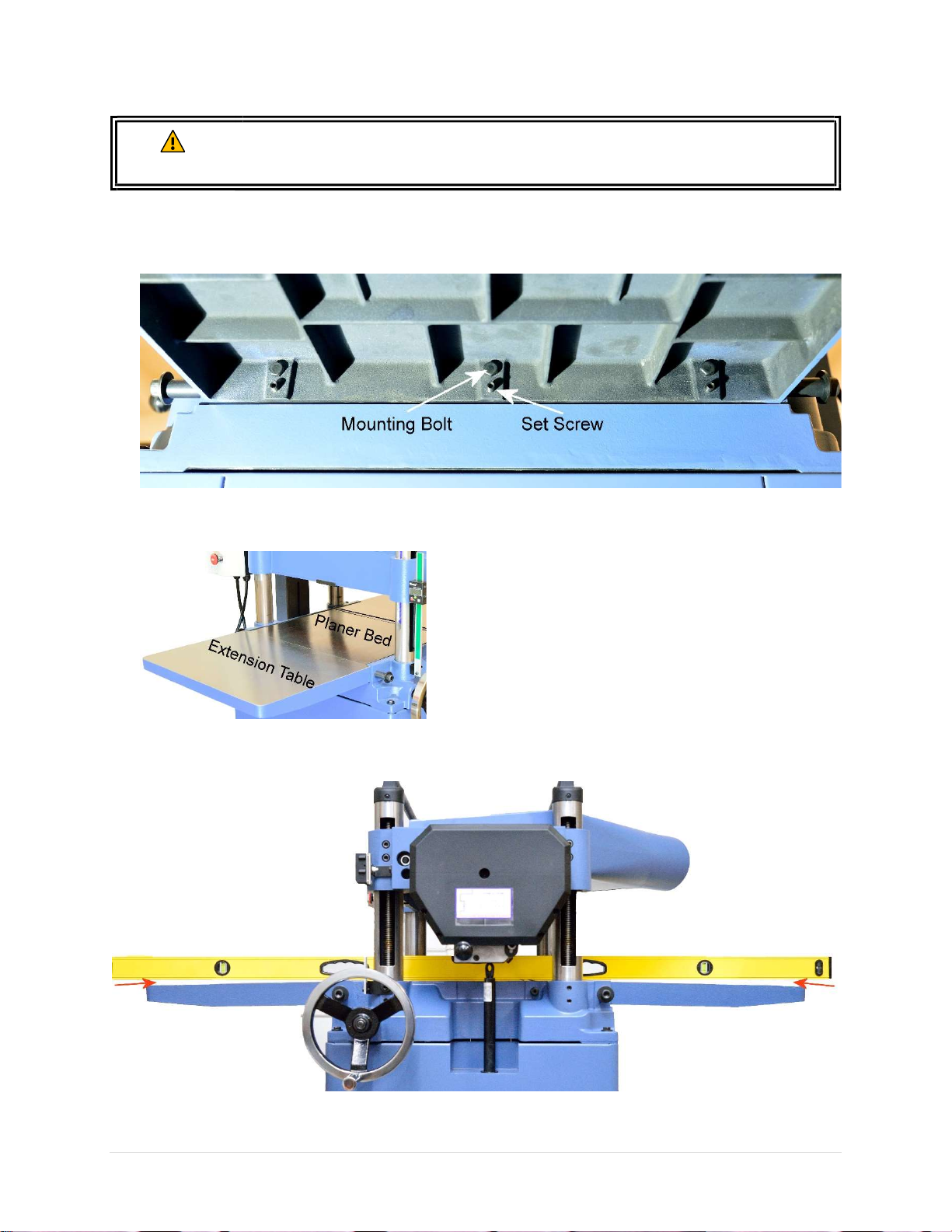

1. Attach the extension table to the planer with the provided mounting bolts (#5 in “Inventory”). Do not fully tighten the bolts yet. Just make sure it is tight enough to hold the extension table in place. Then hand thread the set screws into the extension table.

2. Align the edge of extension tables with the edge of the planer bed. Make sure the edges are flush with each other.

Each extension table weighs 29 lbs. and it can be difficult to install by one person. Get assistance to install the extension tables when needed.

3. Use a straight edge to check if the extension tables are in parallel with the planer bed. At this point the extension table should be slightly sagged.

24 | Page Oliver Machinery 4430 Planer

Page 25

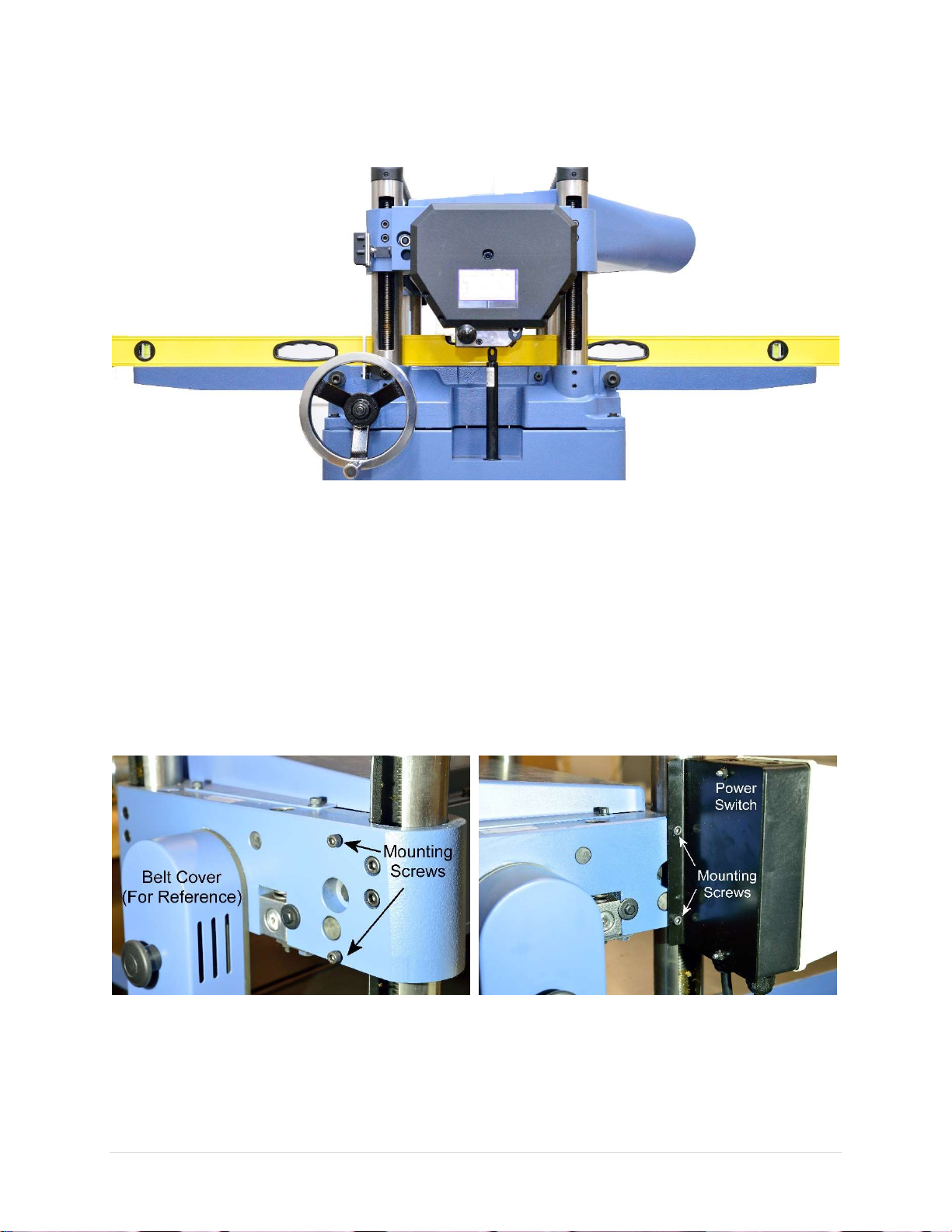

4. Rotate the set screws with a hex wrench to raise the extension tables. For each set screw, make small, incremental adjustments, and then move on to the next set screw. Repeat until both extension tables are in parallel with the planer bed. If a set screws become too difficult to turn, you may need to slightly loosen the mounting bolts before continue to raise the extension table.

5. When the extension tables are in parallel with the planer bed, tighten all mounting bolts. Recheck table parallelism for one more time.

6. Save these instructions as the extension tables will need to be adjusted from time to time.

Installing Power Switch

The mounting screws for the power switch are pre-installed in the headstock. Remove the cap screws as

show in the picture, then use them to mount the power switch.

4430 Planer OLIVERMACHINERY.NET 25 | Page

Page 26

Dust Collection

Wood planer can generate a lot of wood shavings and dusts. Connect the dust collection system to this

machine. Minimum CFM requirement for this planer is 650 CFM at the dust port, which means your dust collection system should have a rating greater than 650 CFM, as air friction from the ducts reduces the effective CFM at the dust ports.

Running this planer without dust collection system, or using a dust collection system with inadequate suction, will cause dust and shavings to accumulate

IMPORTANT

inside the planer. This can damage the machine and cause other hazardous situations. Check your dust collection system regularly to make sure it is not jammed or filled up.

Wiring and Grounding

Deenergize the electrical circuit before touching any enclosed, electrified parts.

DANGER

WARNING

Touching electrified part WILL result in serious personal injury or death.

All electrical work must be done by a qualified electrician, and must meet the electrical code in your area.

Make sure the voltage of your power circuit matches the specifications on the nameplate of the machine, and the circuit is sized to supply power to the planer.

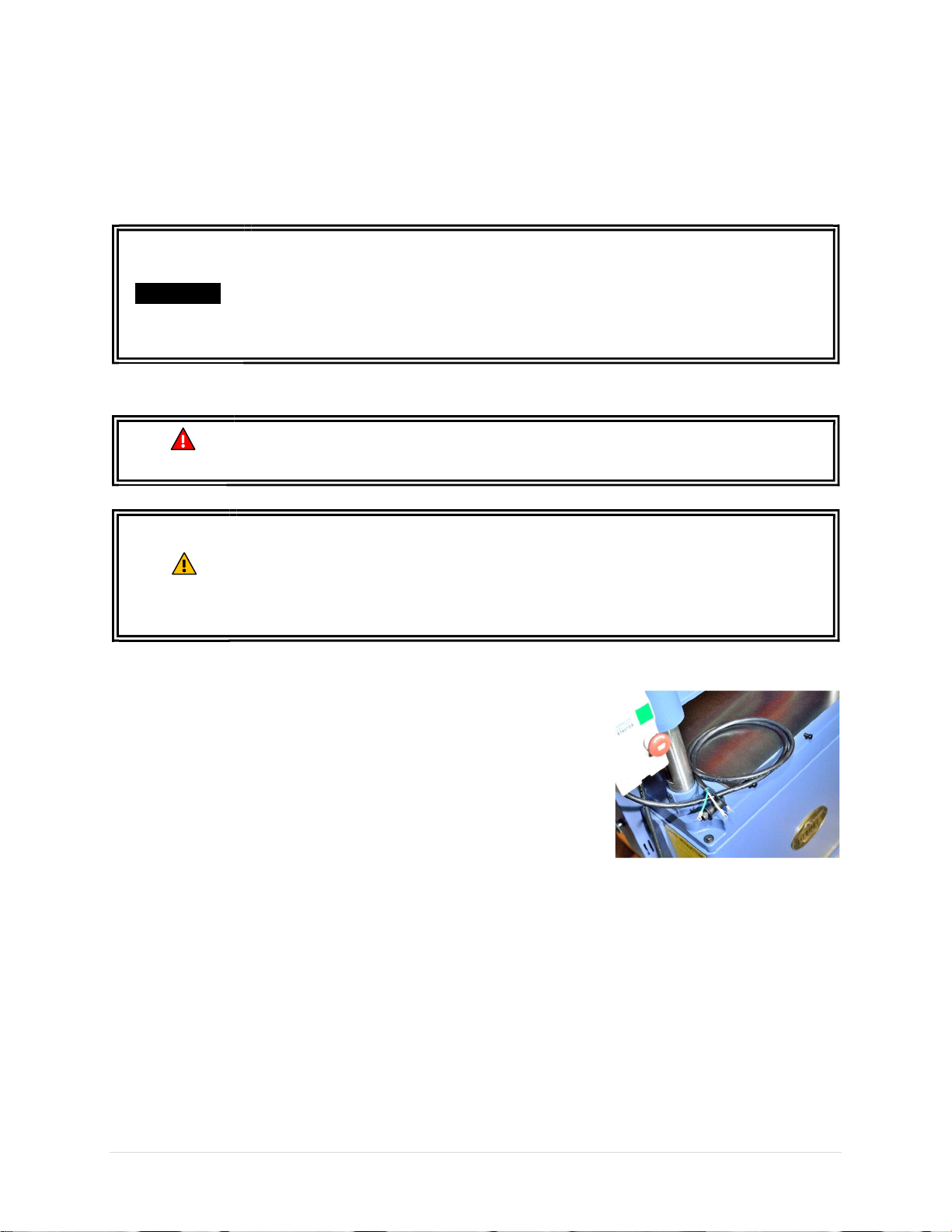

Wiring Instructions

This machine is not pre-wired with a plug. A 5-feet long 12AWG cord is

If you choose to connect this machine with a plug and a cord, please

use a UL/CSA listed plug that is sized to meet the amperage requirement of your machine.

Break-in Period

Congratulations for getting this machine assembled and ready for a test run! Please set a reminder to

service this machine as it goes through the break-in period. Completing these services will maximize the performance and longevity of your machine.

After 16 hours of operation: Adjust V-belt tension. After 50 hours of operation: Replace gearbox oil.

26 | Page Oliver Machinery 4430 Planer

Page 27

Controls and Components

To Turn Off

Press the “

STOP

” button.

it needs to be

he STOP button

To Turn On

Press the

green

“

START

” button

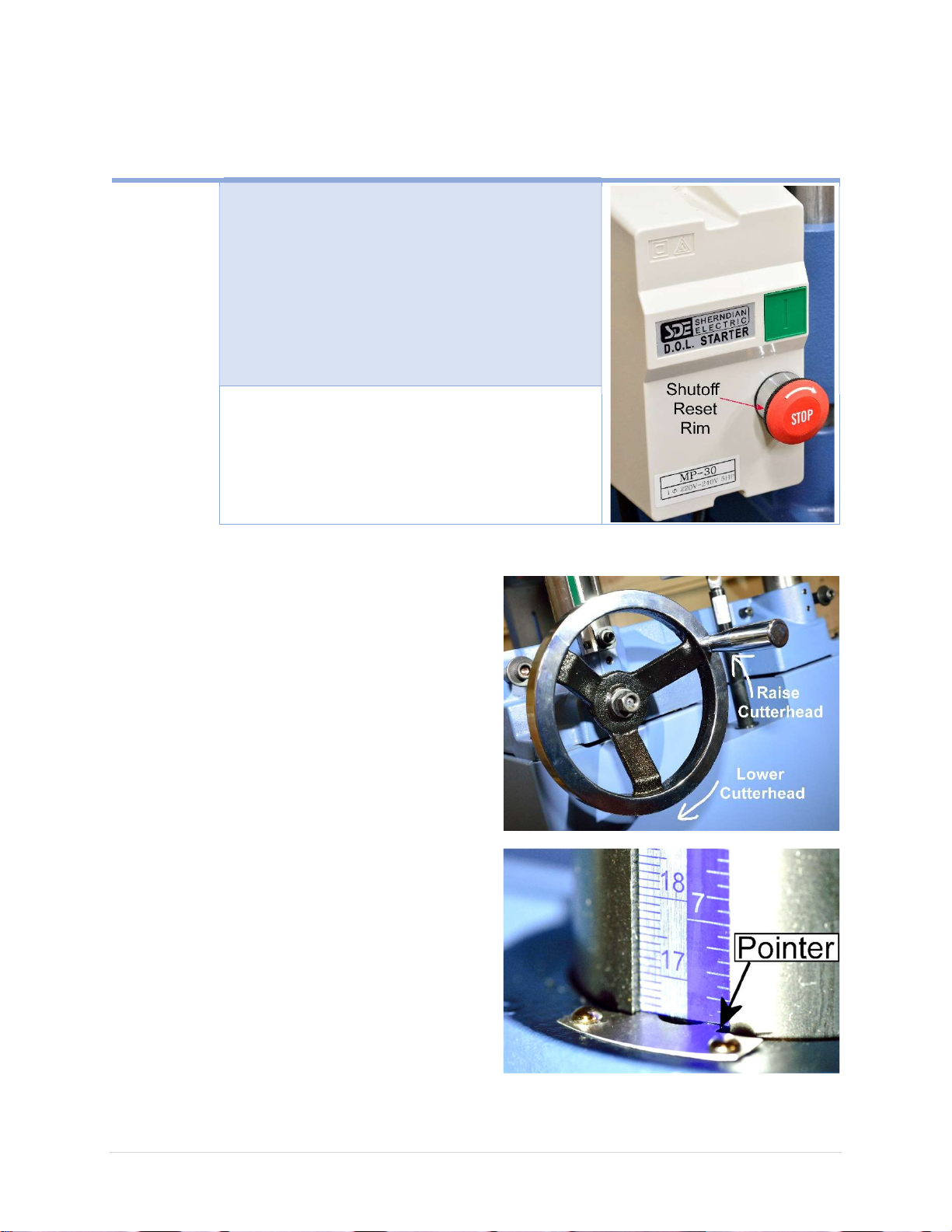

ON / OFF Switches

Machine

NOTICE: When STOP button is pressed, reset before the planer can start again. To reset rotate the serrated rim clockwise. T will pop up when it is reset.

NOTICE: The planer will shut down if it is overloaded. Press STOP to reset overload protection.

NOTICE: The machine will only start when the STOP button is reset.

Cutterhead Height Adjustment

The cutterhead height adjustment handwheel is

located on the side of the planer, right below the digital readout.

Turn CLOCKWISE to lower the cutterhead.

Turn COUNTERCLOCKWISE to raise the cutterhead.

Each rotation of the handwheel changes the height by

approximately 1/16” (1.5mm).

Cutterhead Height Scale

The cutterhead height scale is located on the right

column next to the digital readout. A metal pointer marks the current height of the cutterhead.

4430 Planer OLIVERMACHINERY.NET 27 | Page

Page 28

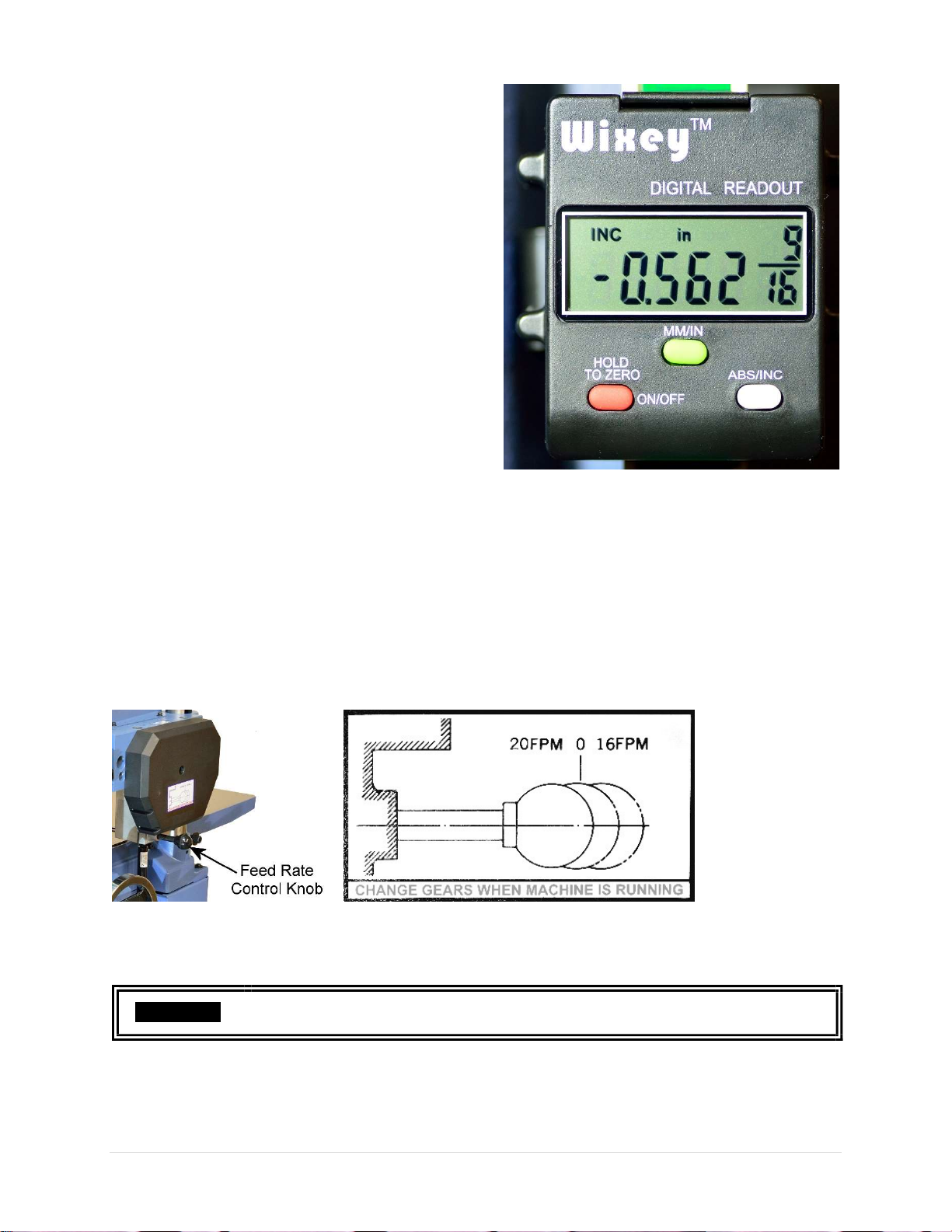

Digital Readout (DRO)

Only change feed rate when the

machine is running

at full speed

. Failure to do so

The Wixey DRO allows operators to measure the depth

of the cut with 1/32” resolution.

 Press the ON/OFF button to turn on/off the

DRO.

 Press the MM/IN button to toggle measuring

unit between metric (mm) and US standard (inch). The fraction inch value will appear if the measurement is a multiple of 1/32”

 Press the ABS/INC button to toggle between

absolute measuring mode and incremental mode.

 Value in INC mode will be reset when switching

to ABS mode.

 To reset the reading to zero in ABS mode, hold

the ON/OFF button

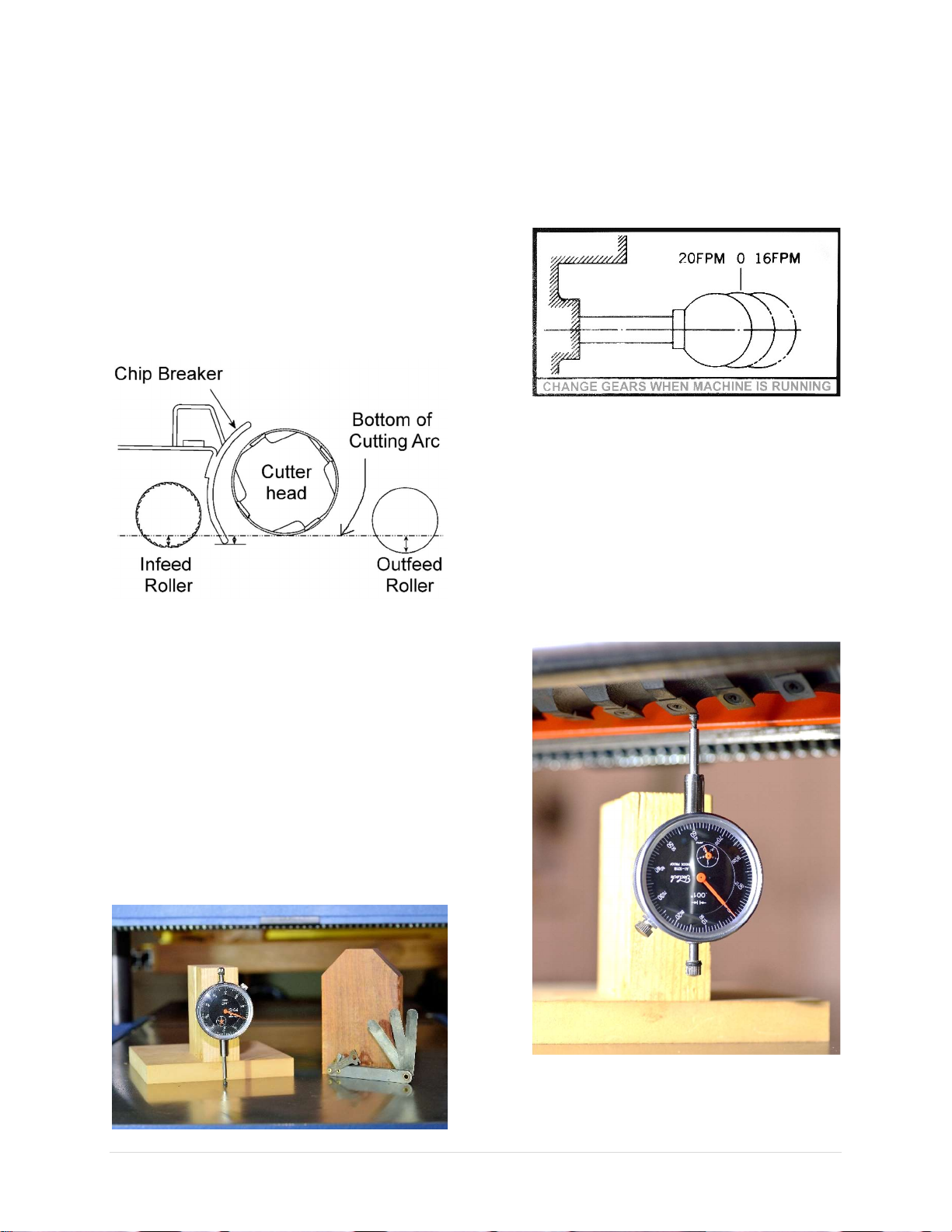

Feed Rate Control

4430 Planer can feed stock at 16/20 FPM (feet-per-minute). To change feed rate, shift the position of the

feed rate control knob when the machine is running at full speed with no load:

 Push in: 20 FPM  Pull out: 16 FPM  In between: 0 FPM (Neutral)

IMPORTANT

28 | Page Oliver Machinery 4430 Planer

may cause the gearbox to jam and damage the machine.

Page 29

Components for Planing Wood

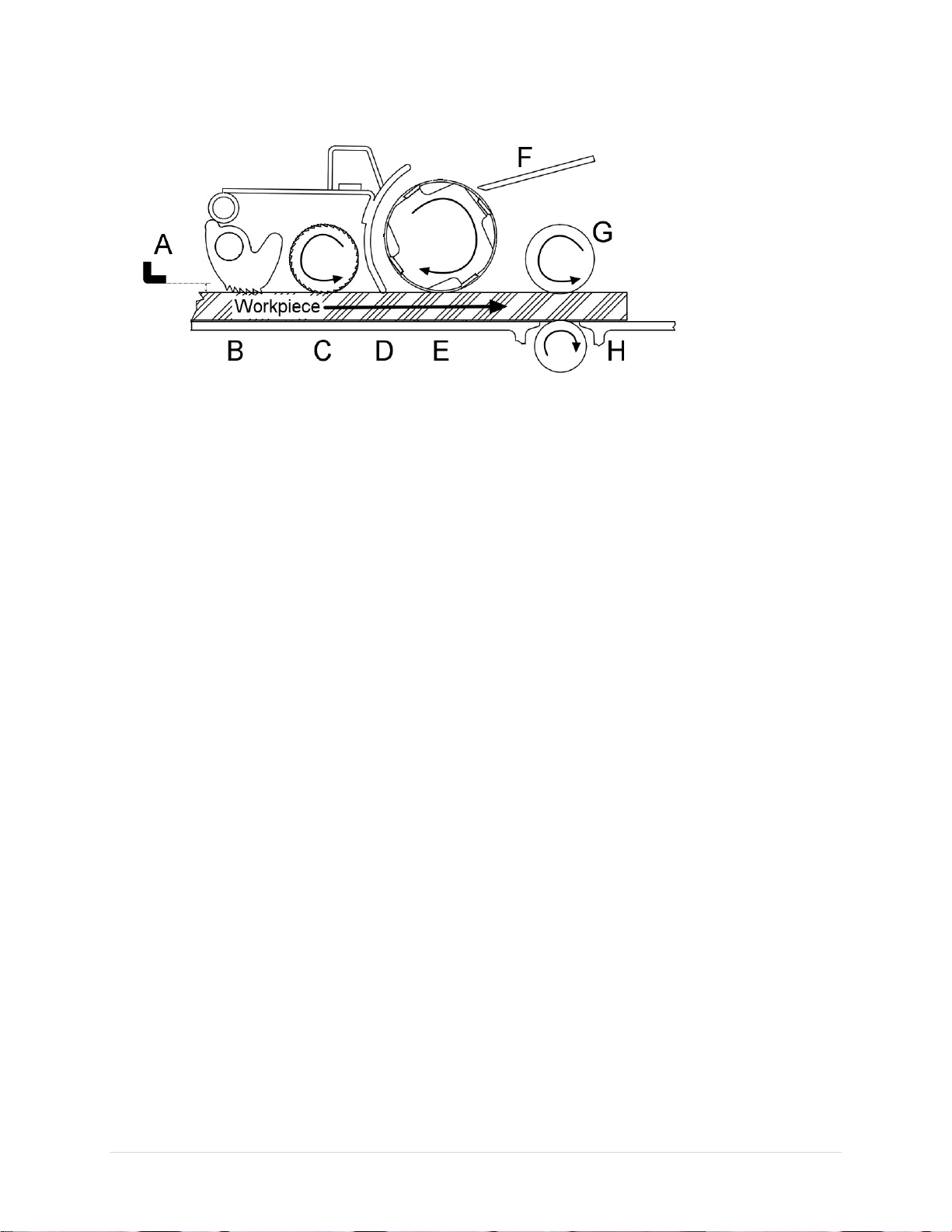

This diagram shows components involved for planning a piece of wood:

How it works:

1. When a workpiece enters the planer, with planer’s depth of cut properly set, it will clear the depth

limiter[A]. For workpiece less than 8”, it is possible to bypass the limiter and receive a deeper cut.

2. The anti-kickback fingers [B] then engage the workpiece to prevent accidental kick-back.

3. As the workpiece moves further into the planer, it will engage the infeed roller [C]. The infeed

roller will bring the workpiece towards the chip breaker [D] and the cutterhead [E].

4. As the cutterhead cuts on the workpiece, the woodchips will be broken down by the chip breaker.

5. The chip breaker and the chip deflector [F] then divert the woodchips towards the dust port for

removal.

6. As the workpiece leaves the cutter head, it will engage the outfeed roller [G], which helps pulling

the workpiece away from the planer.

7. The workpiece will also engage the bed roller[H] which helps reducing resistance as the workpiece

moves along the planer table. The height of the bed roller can be adjusted to accommodate workpiece with various roughness.

4430 Planer OLIVERMACHINERY.NET 29 | Page

Page 30

Test Run

Each planer has been inspected and calibrated before leaving the factory to meet our quality and precision

standards. Due to various reasons, the machine may need to be re-adjusted when it arrives at your workshop. It is recommended to complete the test run before using the planer for production work, and repeat the test run if the planer is relocated.

Step 1: Verify all electrical components are functional.

1. Remove all tools and debris from the machine.

2. Press STOP button.

3. Connect machine to the power source.

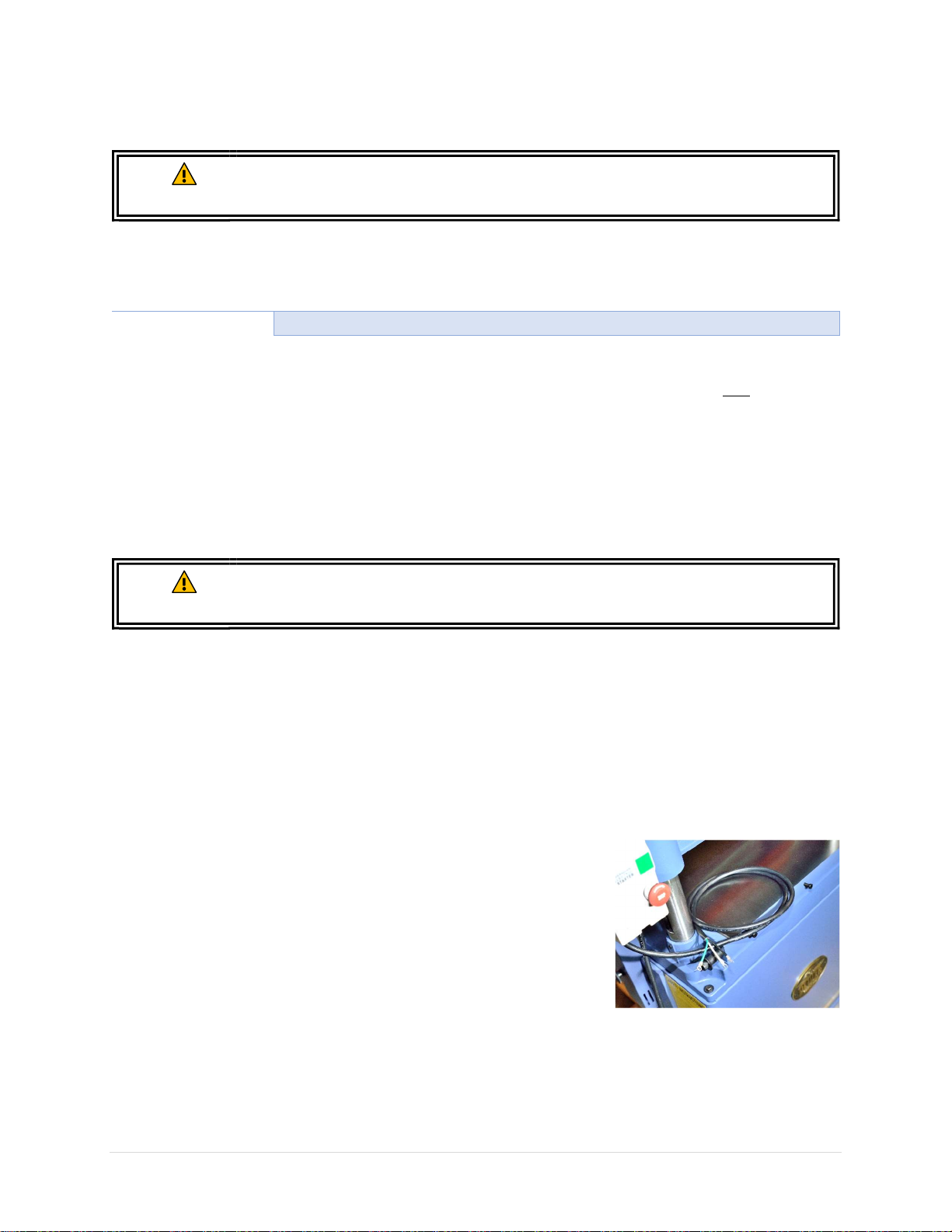

4. Turn the rim of the STOP button clockwise to reset the safety shutoff mechanism.

5. Press the green START button. The machine should be running with no excessive noise and

vibration.

6. Press STOP button to turn machine off.

7. Without resetting the STOP button, attempt to restart the machine by pressing the START button.

The machine should NOT start.

8. Reset the STOP button to restart the machine. Disconnect the machine from power source while

the machine is running, then reconnect machine to power. The machine should NOT restart.

Step 2: Verify the planer headstock is functional and calibrated.

1. Connect planer to a dust collection system.

2. Lower the headstock all the way down. The headstock should stop at approximately 1/4" above

the planer table.

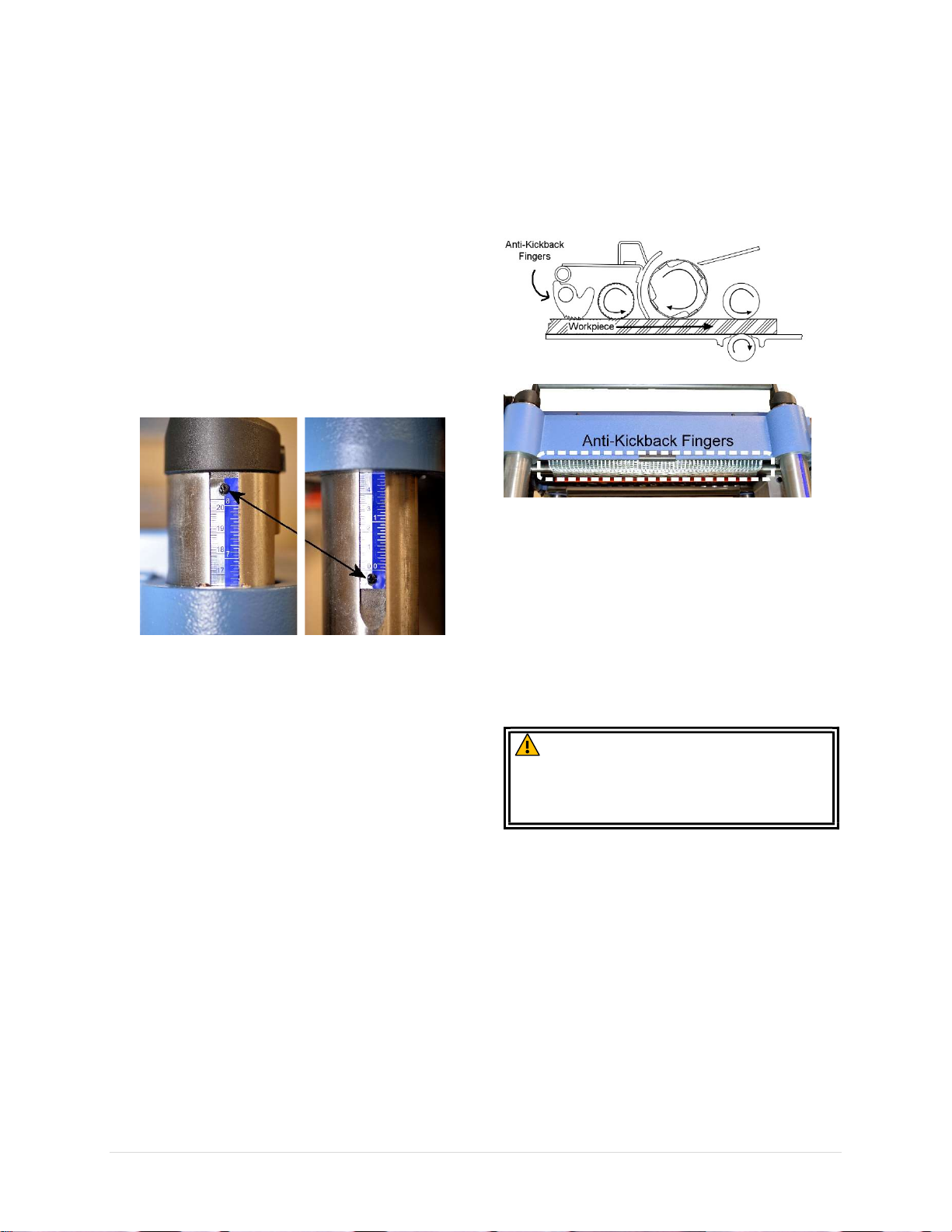

3. Raise the headstock all the way up. Ensure all the anti-kickback fingers can move freely.

4. Turn on the DRO to check the readings of digital readout. The readings should reflect the

movement of the headstock.

5. Prepare a piece of good quality, straight grain wood board with flat bottom for a test run. It is

advised to choose a board that is close to 20” wide and at least 2 feet long.

6. Start the dust collection system.

7. Lower the headstock to remove 1/16” of the workpiece for the test run.

8. Turn on the planer and gently feed the workpiece towards the infeed roller. Ones the infeed roller

engages the workpiece, it should pull the workpiece through the planer. Verify the entire top surface has been cut.

9. Inspect the workpiece for defective finish.

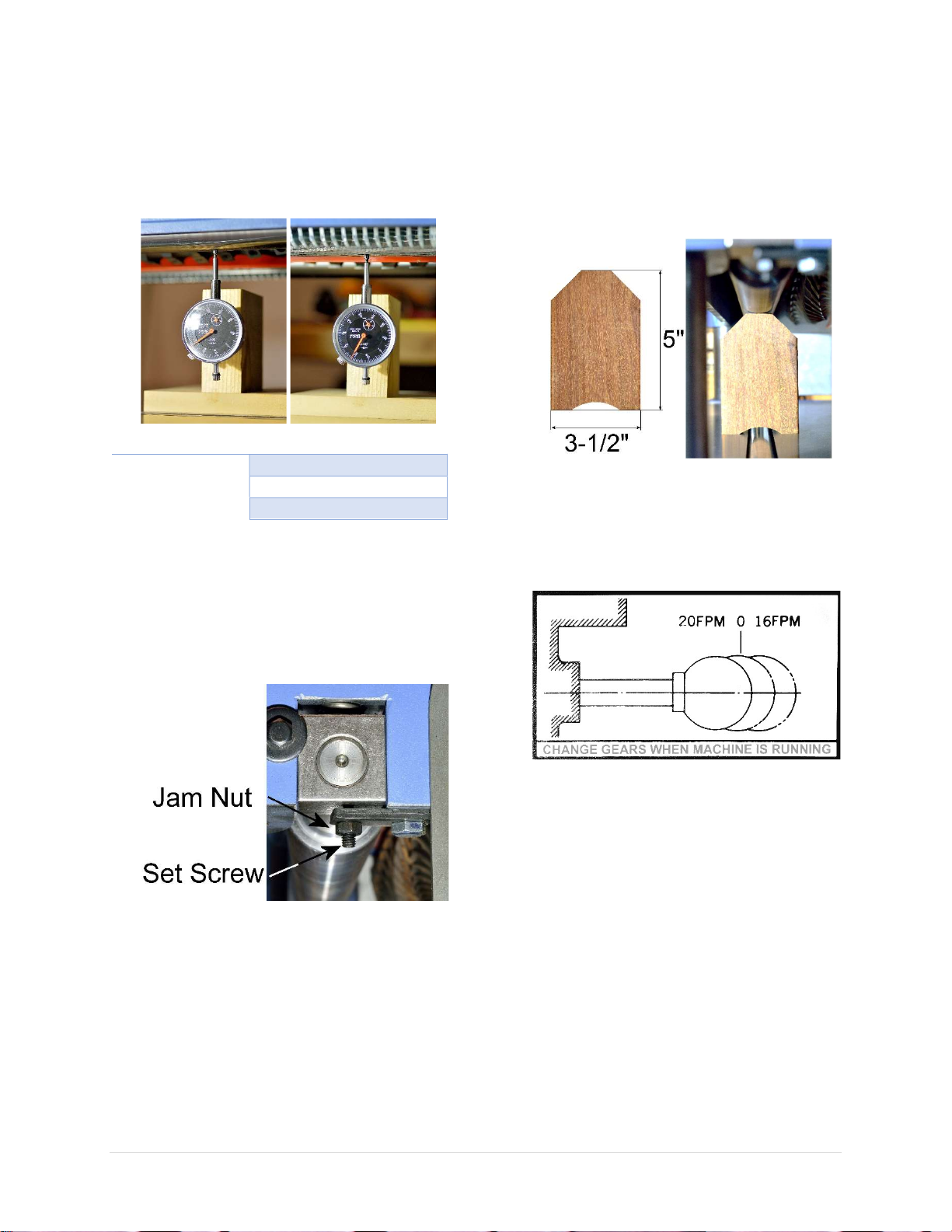

10. Use a caliper to measure the thickness of each side to ensure the cutterhead is parallel with the

planer table. If the thicknesses are the same, check if the reading is the same as shown on the headstock height scale.

11. Check for excessive snipes. Minimum amount of snipe may occur at the ends of the board, and it

is expected.

12. While the machine is running idle, move the feed rate control knob to change feed rate. This

ensures the gearbox and feed rate control knob is functional.

13. Hit STOP to turn off the planer when all tests complete.

Congratulations for completing the test run! Now your planer is ready for production work. If you discover

any issue from the tests, please refer to the troubleshooting section and maintenance section for how to diagnose the issue and make adjustments.

30 | Page Oliver Machinery 4430 Planer

Page 31

Operation

For safety and best results, please take the following steps for operating this machine.

Step 1: Preparation

Only Use Natural, Good Quality Wood

Only plane natural wood materials that is in good quality. Cracked stock, board with loose knots, plywood and other engineered wood products can break apart and cause severe kickbacks, which can lead to severe injuries and machine damages.

Do not plane treated lumber or anything that contains harmful chemicals, as this will spread wood dusts that contain such harmful chemicals. NEVER plane boards that are shorter than 7”as mentioned in the specifications.

Inspect the Workpiece

Carefully inspect the workpiece for foreign objects. Nails, staples, rock chips and other objects embedded on the wood surface will damage the planer. To avoid chipping/dulling the cutter inserts, it is advised to clean a workpiece with a stiff brush to remove all dirt and foreign objects before planing, especially for rough sawn or reclaimed lumber. Use metal detector to scan for metal as needed.

Check Moisture Content

Check moisture content of the workpiece before operation. “Green wood” with moisture content over 20% will not cut properly and may jam the machine. Excessive moisture content will also cause planer’s unpainted surface to rust. Besides, as the workpieces dries, the planed surface will become fuzzy, and the workpiece may wrap. It is recommended to allow the workpiece to dry and stabilize before it is processed.

Wrapped Stock

Workpiece should have a flat bottom to be processed by a planer. It is acceptable to process a slightly

cupped board with the cupped side facing down and begin with light cuts. Boards with moderate cupping, bowing or twisting should have one side face-jointed before being processed by a planer.

Avoid using boards with severe wrapping, as they can be unstable and might cause severe kickbacks during

operation.

Glue-Ups

Glue left on the workpiece surface can dull the cutters and reduce cut quality. Scrape off all glue from the

workpiece before operation.

Wood Grain Direction

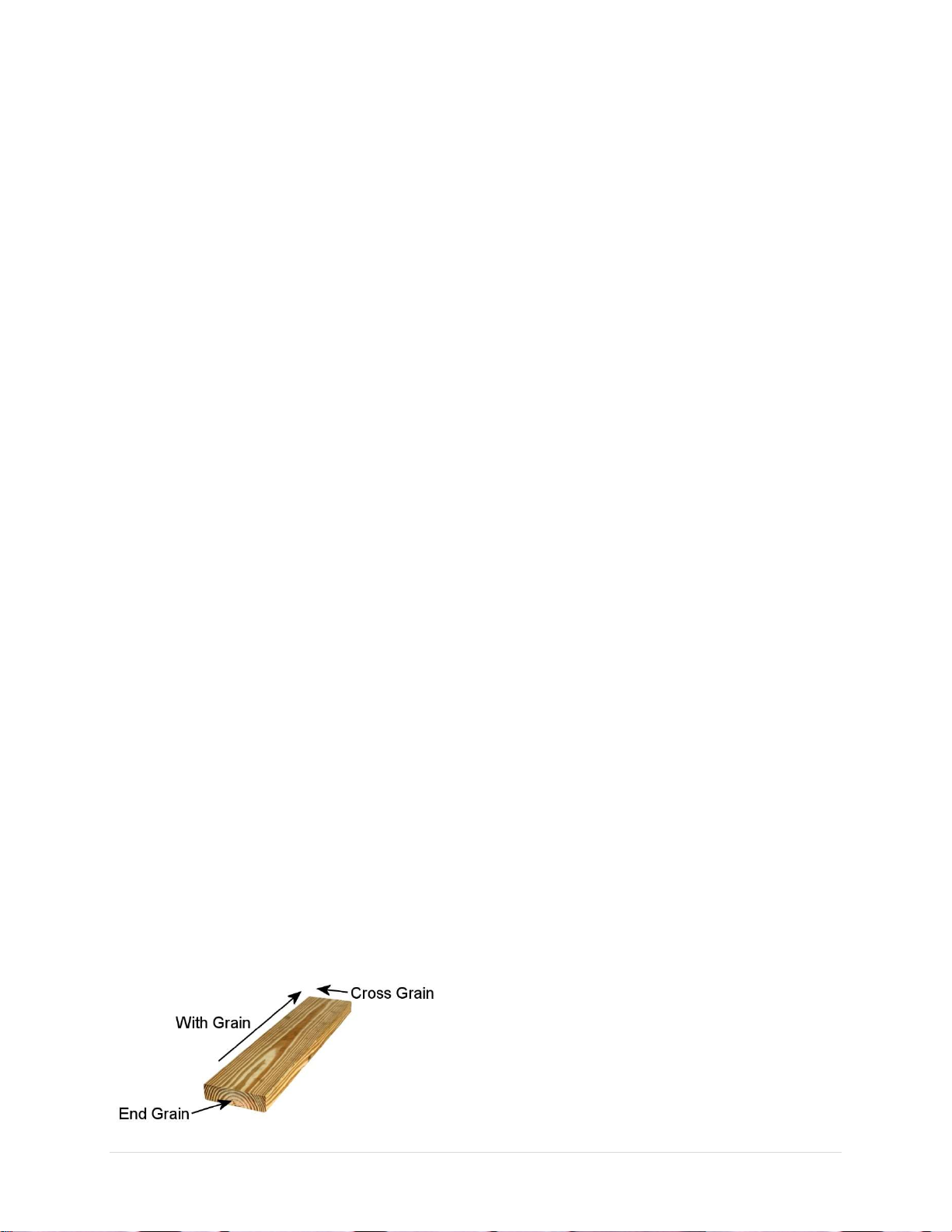

This planer is designed to plane WITH the grain direction of the wood. Do not plane cross-grain or end-

grain. Severe kickback and chipping may occur.

4430 Planer OLIVERMACHINERY.NET 31 | Page

Page 32

Step 2: Setting Depth of Cut and Feed Rate

This planer is capable of removing at most 1/8” per pass. For stock that is less than 8” wide, the planer

can cut as much as 1/4" per pass. For best results, it is recommended to take light passes with low feed rate when approaching the desired thickness.

Wood Hardness

Depends on the hardness and brittleness of the wood type, operator should adjust the maximum depth

of cut and feed rate accordingly. For workpiece that is hard/brittle, reduce the depth of cut and feed rate.

For your reference, this Janka scale shows the hardness of wood types that are commonly used. It ranks

the hardness of various wood types by measuring the amount of force (in lbs.) required to embed a 0.444” steel ball halfway into the wood.

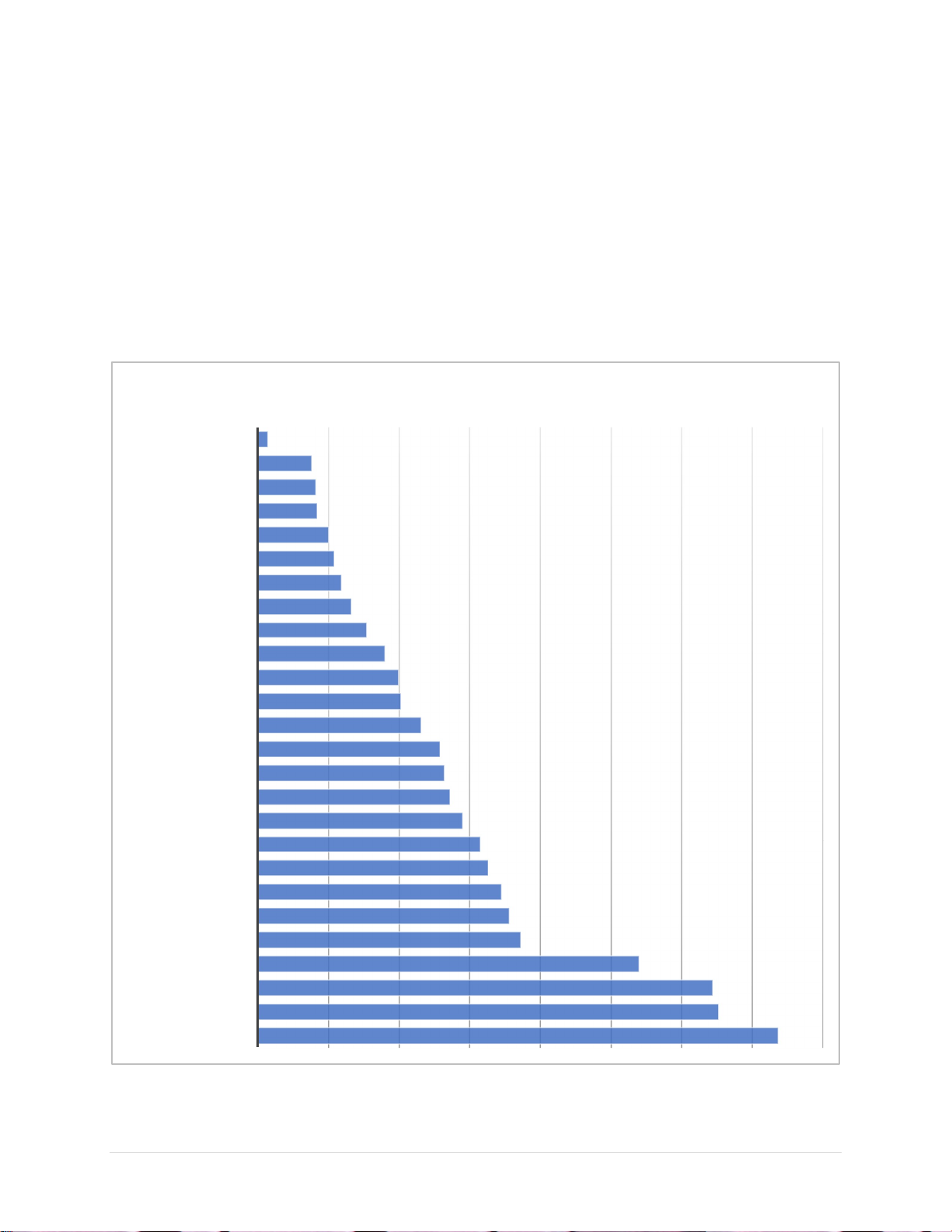

Janka Scale

BALSA

EASTERN WHITE PINE

BASSWOOD WHITE PINE

HEMLOCK

CHESTNUT

RED ALDER

DOUGLAS FIR

SYCAMORE

CEDAR

CHERRY

BLACK WALNUT

TEAK

RED OAK

WHITE ASH

WHITE OAK HARD MAPLE ZEBRAWOOD

WENGE, RED PINE

PADAUK

ROSEWOOD

PURPLE HEART

RED MAHOGANY

EBONY

IRONWOOD

IPE

380

410 420

500

540

590

660

770

900

995

1010

1155

1290

1320

1360

1450

1575

1630

1725

1780

1860

2697

3220

3260

3684

32 | Page Oliver Machinery 4430 Planer

Page 33

Step 3: Select Feed Direction

Inspect the workpiece and identify the direction of the edge grain. Choose a feed direction such that workpiece will receive a downhill cut.

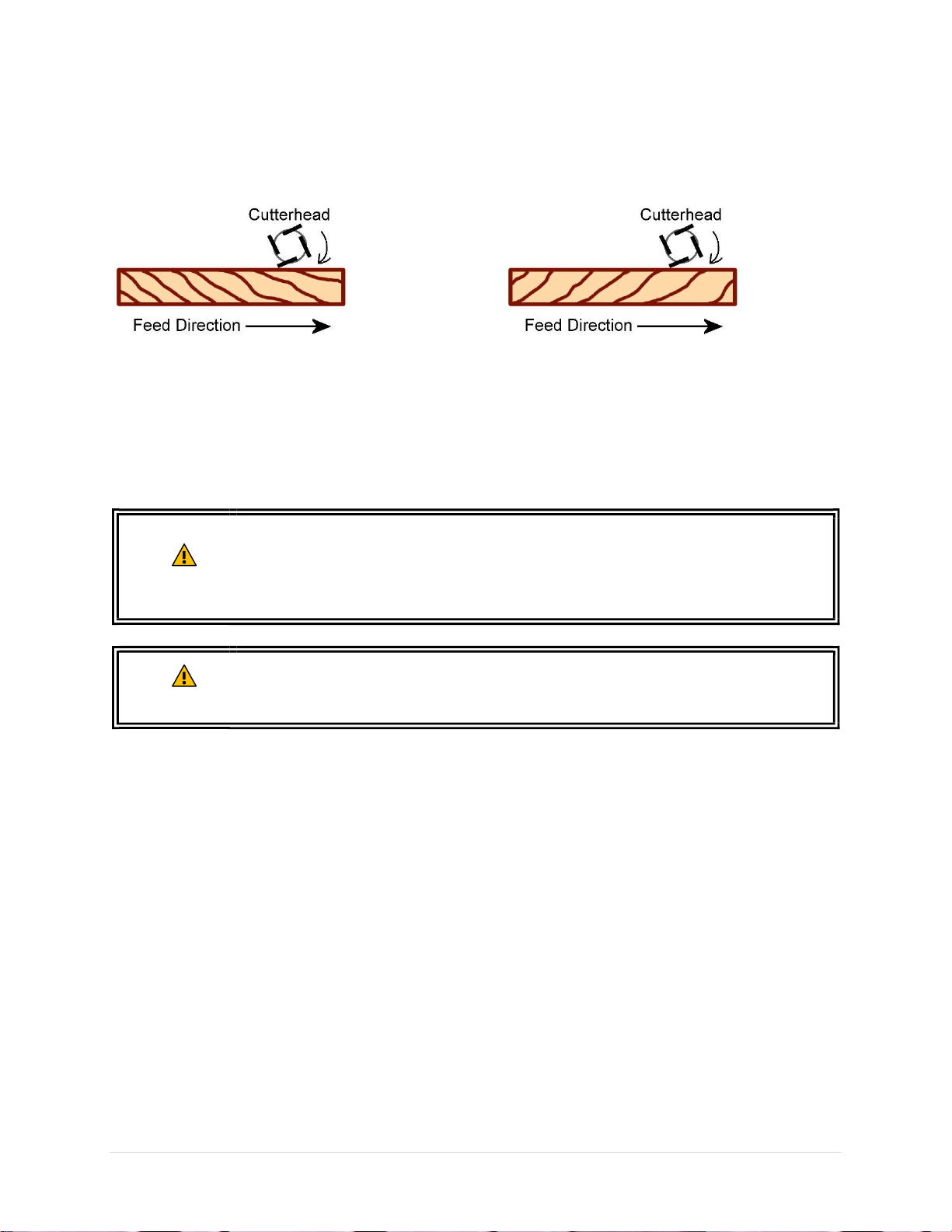

Good – Planer Cuts Downhill

Not Ideal – Planer Cuts Uphill

Sometimes it is impossible to perform a downhill cut for the entire length of a workpiece. In this case, try

feeding the workpiece in opposite direction and see what works best. Reducing the depth of cut and feed rate can also help improving cut quality.

Step 4: Planing Wood to Desired Thickness

ALWAYS wear goggles, and other protection device when operating this machine. Stay on the side of the planer next to the power switch to avoid kickback related

WARNING

CAUTION

With the above preparation steps completed, the workpiece is ready for planing.

1. Please put on all protection devices before proceed. If you have a long workpiece, please make sure it is properly supported throughout the process.

2. Measure the thickness/height of the workpiece, then move the cutterhead no more than 1/16” below the highest/thickest point of the workpiece. This allows the feed rollers to properly engage the workpiece, and at the same time not taking too much materials off for a test pass.

3. Turn on dust collection system and the planer.

4. While standing on the side of the planer, place the workpiece on the table with the flat side down. Gently feed the workpiece towards the infeed roller. Once the infeed roller engages the workpiece, allow the machine to feed the workpiece. DO NOT force feed the workpiece through the planer.

If the infeed roller does not engage the workpiece:

 Headstock height is set too high.  Stop the machine. Wait for the machine to come to a complete stop.  Raise the headstock and remove the workpiece.  Reduce the initial headstock height, and restart form step 3.

accidents. NEVER look inside the planer during operation. Failing to comply may result in serious injuries or death.

Use ear protection device to prevent hearing loss. Ensure dust collection system is

functional and use dusk mask to avoid inhaling harmful airborne particles.

4430 Planer OLIVERMACHINERY.NET 33 | Page

Page 34

If the machine stalls or the workpiece gets stuck:

 Headstock height is set too low.  Stop the machine and wait for the machine to come to a complete stop.  Raise the headstock and remove the workpiece.  Reduce the depth of cut, and restart from step 3.

5. If the workpiece is feeding properly, wait until the entire workpiece clears the outfeed roller, then remove the work piece.

6. After the initial pass, measure the thickness at the midsection of the workpiece.

If more material needs to be removed, continue with the following steps.

7. If you need to remove a lot of material, run a few passes with deeper cuts, then finish with a light pass with shallow cuts and slow feed rate.

8. Turn on the digital readout (DRO), and use the INC mode to measure the depth of cut for each pass. If your DRO is already running in INC mode, you can reset the readings by switching to ABS mode and then come back to INC mode.

9. Using the DRO as depth gauge, lower the cutterhead. Each pass should remove no more than 1/8” for workpiece wider than 8”, and no more than 1/4" for workpieces 8” wide or less. Reduce maximum depth of cut for harder wood types.

10. Upon completion of each pass, reset the reading of DRO. Use a caliper to measure workpiece’s midsection thickness, and decide the depth of cut for the next pass.

11. Repeat the process until the desired thickness is achieved.

Turn machine off when operation completes.

34 | Page Oliver Machinery 4430 Planer

Page 35

Common Cutting Problems

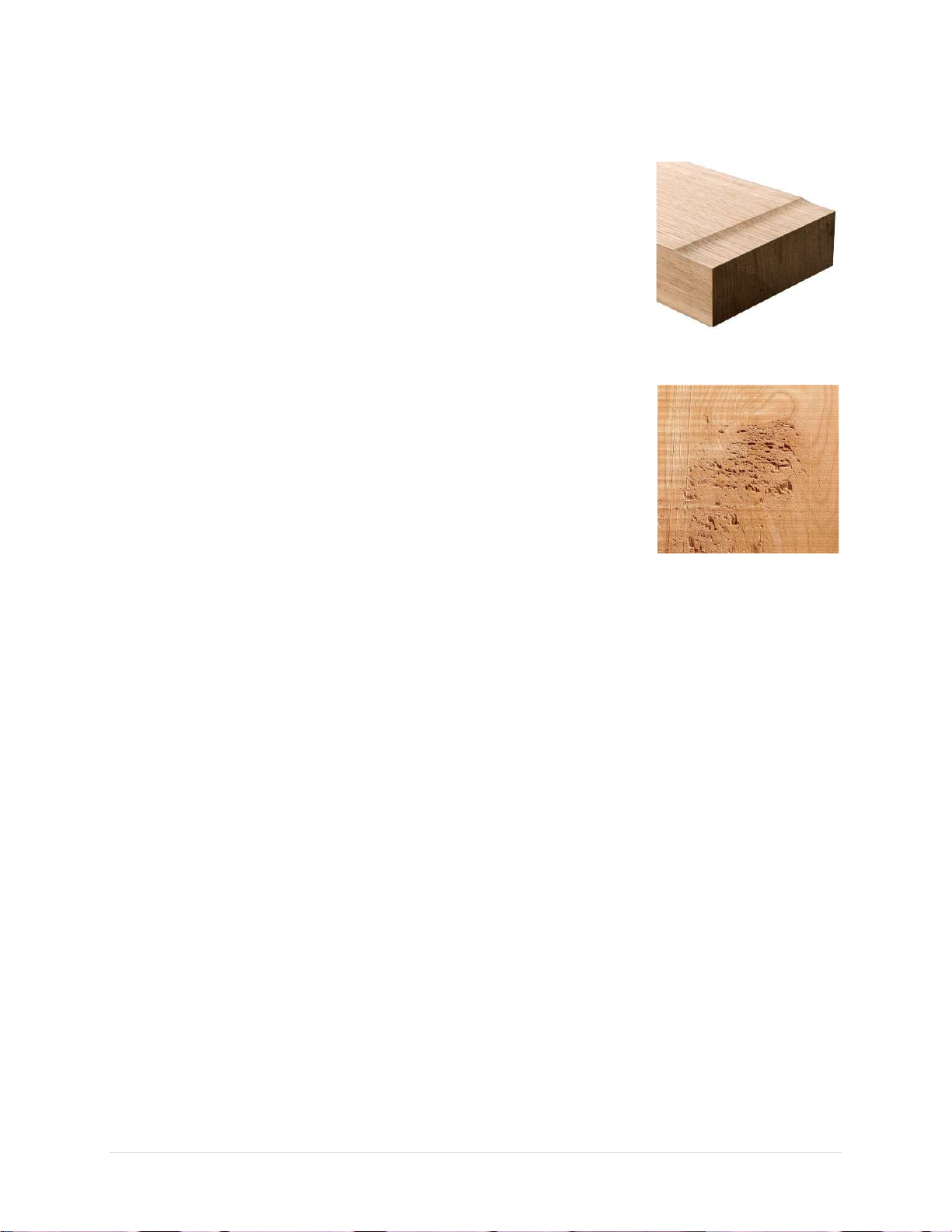

Snipe

When a workpiece is not properly supported as it enters or leaves the machine, the ends of the workpiece will have more materials removed than the rest of the section. To mitigate this problem, hold the workpiece up slightly as it enters and leaves the machine. Sometimes, a small amount of snipe is inevitable, and the best way to fully eliminate sniping is to prepare a workpiece with extra length, and then trim the ends when planing is done.

Chipping

Happens when making a cut against the grain direction. See “Uphill” cut in

Step 3 of this section. For highly figured lumber and areas near the knot, some amount of chipping is normal. In this case, moistening the problematic area before planing can sometimes mitigate the issue.

Chipping can also cause by dirty or dull cutters. If chipping happens while

planing straight grain stocks. Inspect the cutter inserts and remove all resin buildups. Rotate/replace dull cutter inserts when they are dull.

Indentation

This can happen when foreign object is pressed on the workpiece when it passes through the planer.

Remove all resin buildups from the rollers, cutterhead and the table. Also check the dust collection system and ensure all wood chips generated are effectively removed. Adjust the chip breaker and chip deflector as needed.

Fuzzy Grain

Can happen when planing wood with high moisture content or if the cutter is dull. Sometimes fuzzy grain

is unavoidable due to the nature of certain wood types. To mitigate this issue, avoid using wood with high moisture content and use sharp cutters.

4430 Planer OLIVERMACHINERY.NET 35 | Page

Page 36

Accessories

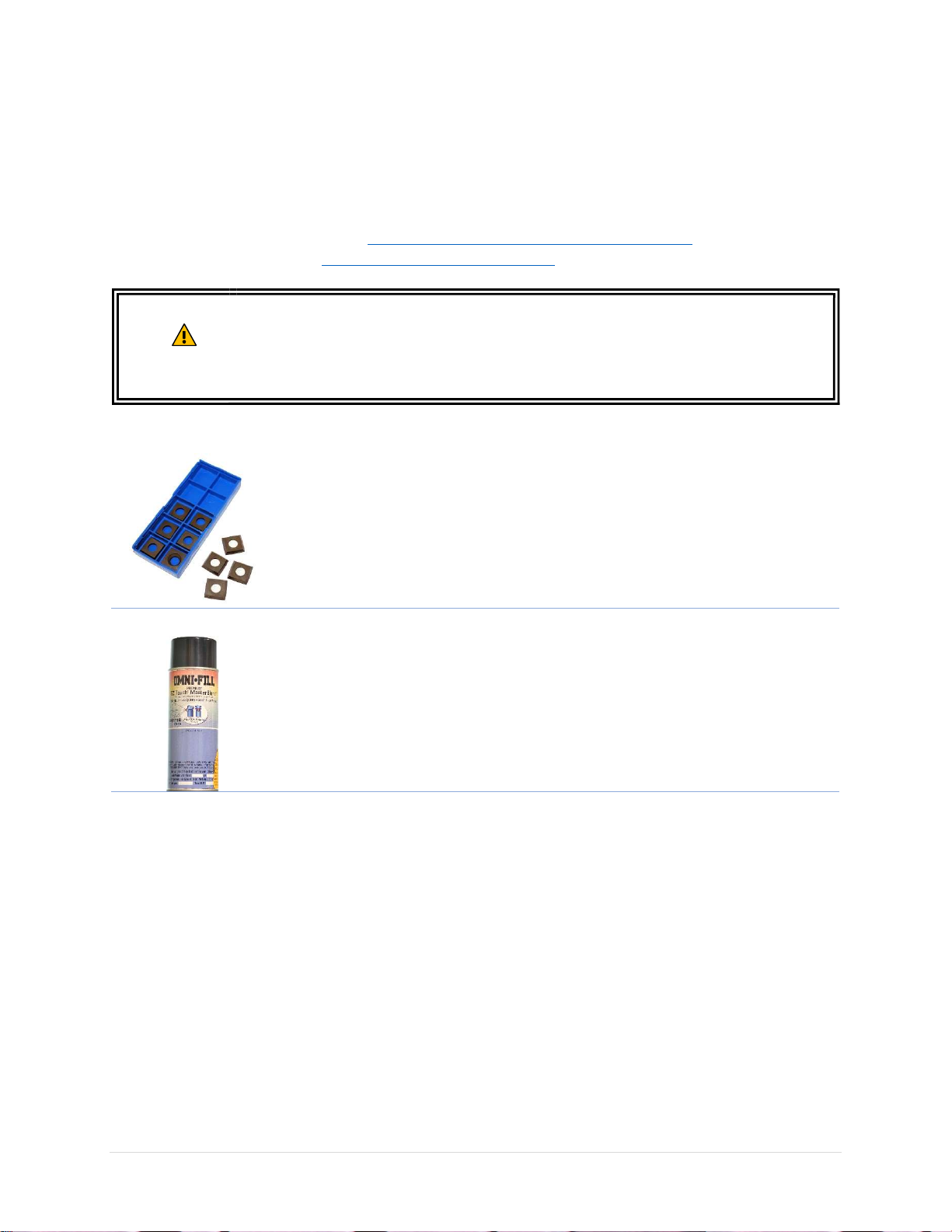

Oliver Machinery has a collection of accessories and add-ons to enhances productivity of your planer. To

purchase these items, please call us at 1-800-559-5065, our representatives are available Monday through Friday, 9AM - 5PM pacific time.

You may also purchase them online: WWW.OLIVERMACHINERY.NET/ACCESSORIES or E-mail our parts department: [email protected]

Using unapproved accessories may cause machine to malfunction, resulting in

WARNING

Cutter Inserts

serious injury and/or machine damage. Only use accessories recommended for this machine.

Genuine four-sided indexable carbide cutter insert that will fit the cutterhead of

Oliver 4430 Planer. Made in Germany.

Parts number: P-15mm 4S

Touchup Paint

Keeping all painted surface in good condition not only keeps your machine looks

nice, it keeps rusts away. We have pre-mixed spray paint available in Oliver-Blue for purchase.

Please visit our website at WWW.OLIVERMACHINERY.NET/ACCESSORIES for other recommended

accessories.

36 | Page Oliver Machinery 4430 Planer

Page 37

Maintenance

Interval

Component

Every day

Remove dust buildups from planer and dust collection system.

Inspect power cord for sign of aging and damages. Replace as needed.

Every week

Inspect and clean

cutterhead, rollers and anti

kickback fingers. Remove any dust

Inspect/rotate/replace worn cutter inserts.

Apply rust protectant on unpainted cast iron surfaces.

Verify extension tables are level with the planer bed.

Adjust as needed.

Every month

Check V

belt tension and replace if belt shows signs of cracking or glazing.

Every 4

6 months

Remove dust buildups from motor and the cabinet.

Inspect table chain for chain slacks.

Check parallelism between the table and cutterhead, and the rollers.

Refill oil

Routine maintenance keeps your planer in top shape. Please follow the maintenance schedule below,

and use the maintenance record worksheet attached in the back of the manual to document all tasks completed. NOTICE: Maintenance schedule may vary for individual users due to different situations and safety requirements.

Disconnect machine from the power source before any maintenance work is

WARNING

Maintenance Schedule

performed. After servicing the planer, remove all wrenches and tools before restarting the machine. Failure to comply can cause serious injury!

and resin accumulation.

Notice: Motor bearings are permanently sealed and lubricated, and do not require lubrication.

Lubrication Schedule

Component Interval Types of Lubricant Reference

A - Return roller shafts Every week SAE 30 oil. Figure 1

B - Feed roller shafts Every 30 hours SAE-30 oil.

C - Drive chains and sprockets

D - Lead screws (x4) Once every 3 months General purpose grease

E - Columns (x4) Clean and lubricate

F - Gear box Replace gear box oil

G - Outfeed roller Clean and

H - Infeed roller

I - Anti-kickback fingers

J - Bed roller Figure 5

K - Table chain and sprockets

Monthly General purpose grease

Light coat of SAE-30 oil

weekly

Standard gear oil, 70-90 weight. after first 50 hours, then every year.

lubricate as needed.

Every 4 to 6 months

Remove gearbox cover to access drain plug

and fill plug. Drain and recycle used oil.

until it reaches the fill plug.

Very light coat of SAE-30 oil. Figure 4

Grease, or good quality cycle chain lubricant.

Remove motor access panel to access

components.

Figure 2

Figure 3

Figure 6

4430 Planer OLIVERMACHINERY.NET 37 | Page

Page 38

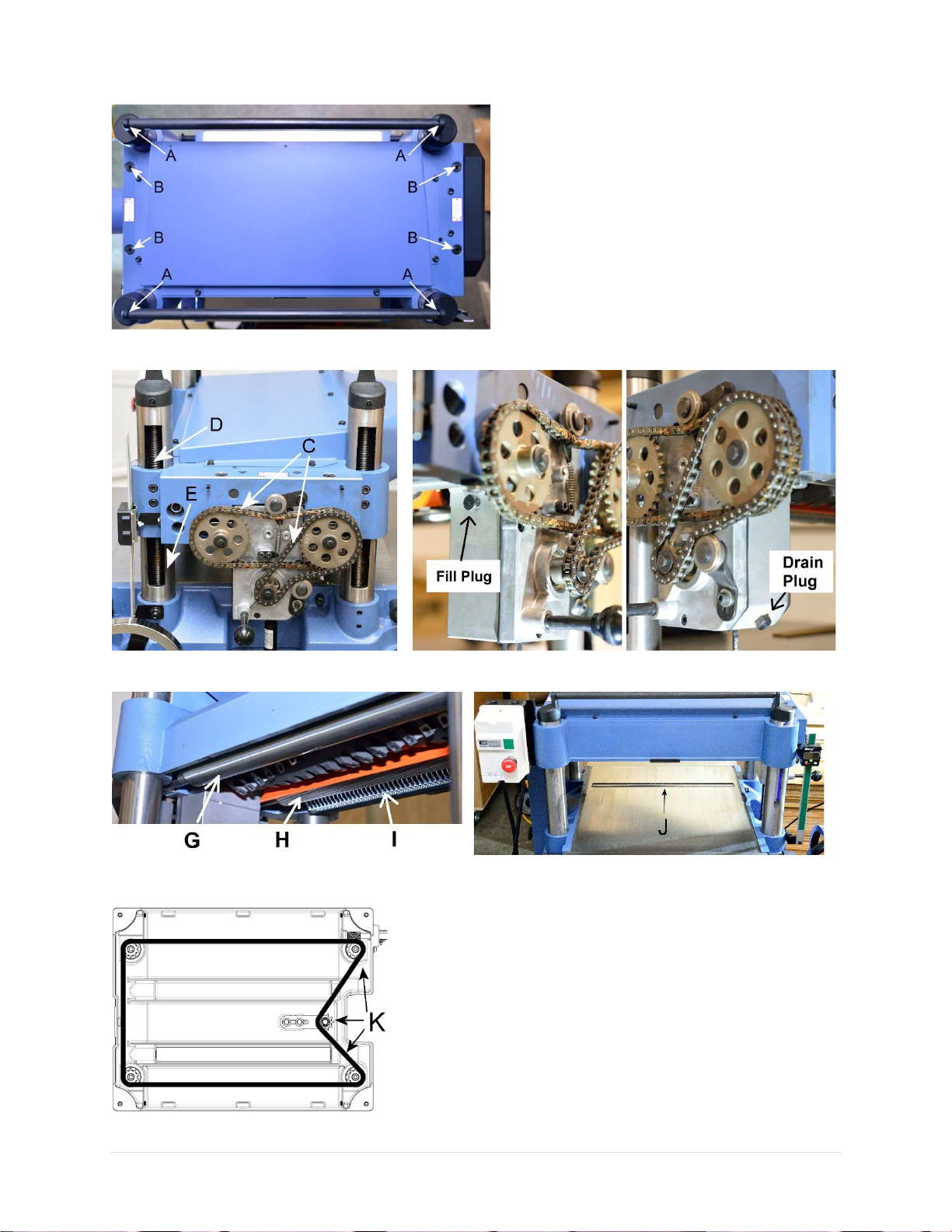

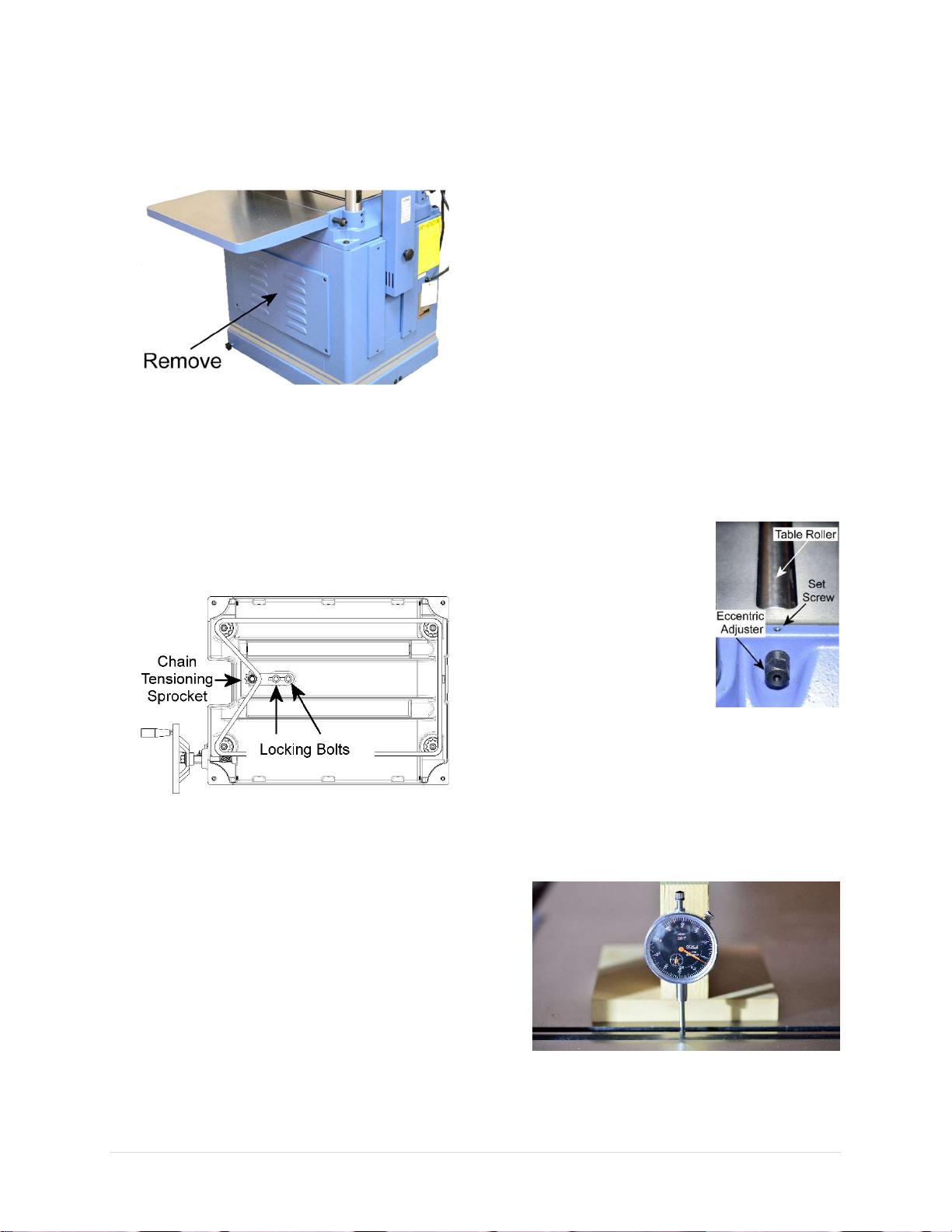

Figure 1

Figure 2 Figure 3

Figure 4 Figure 5

Figure 6

38 | Page Oliver Machinery 4430 Planer

Page 39

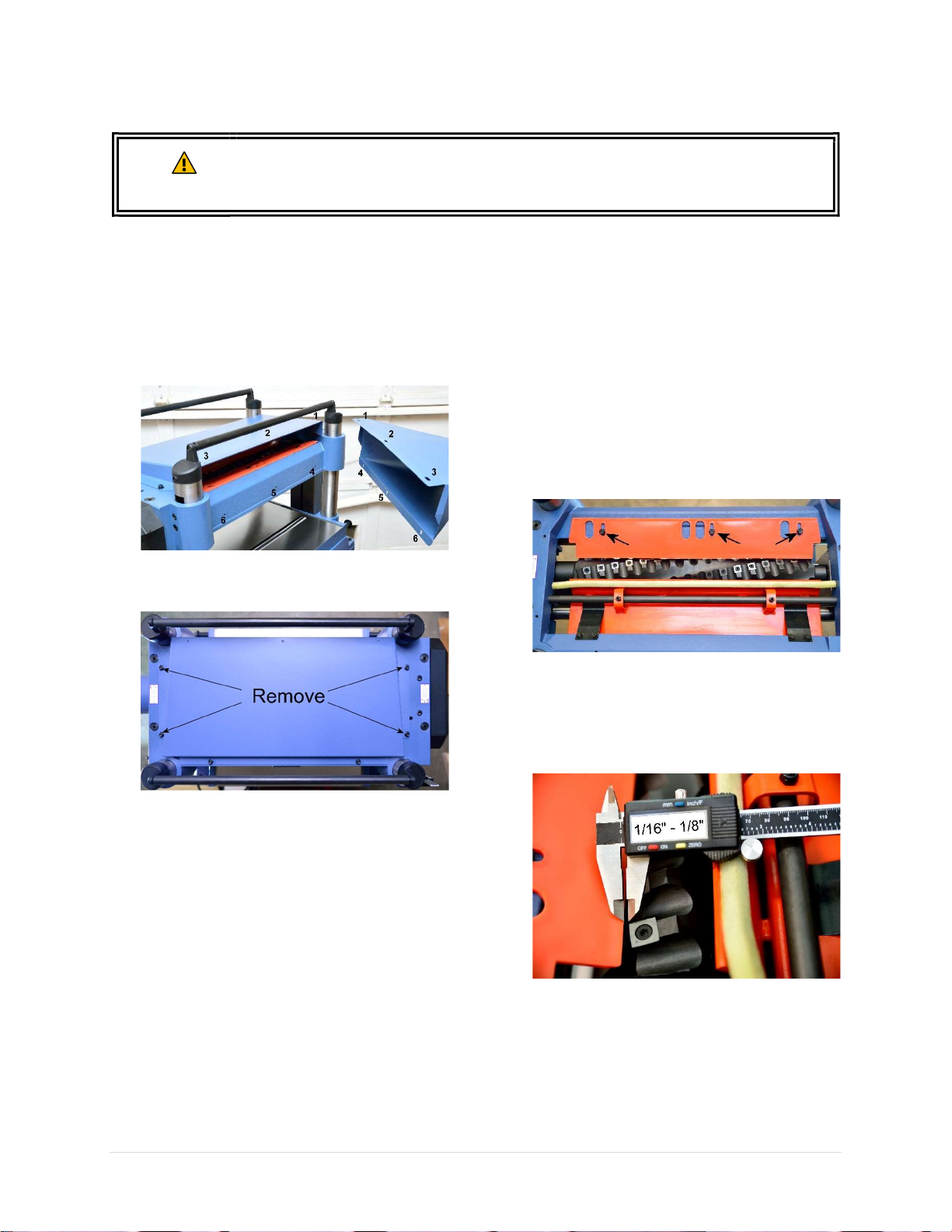

Instructions for Maintenance and Adjustments

Disconnect machine from the power source before any maintenance work is

WARNING

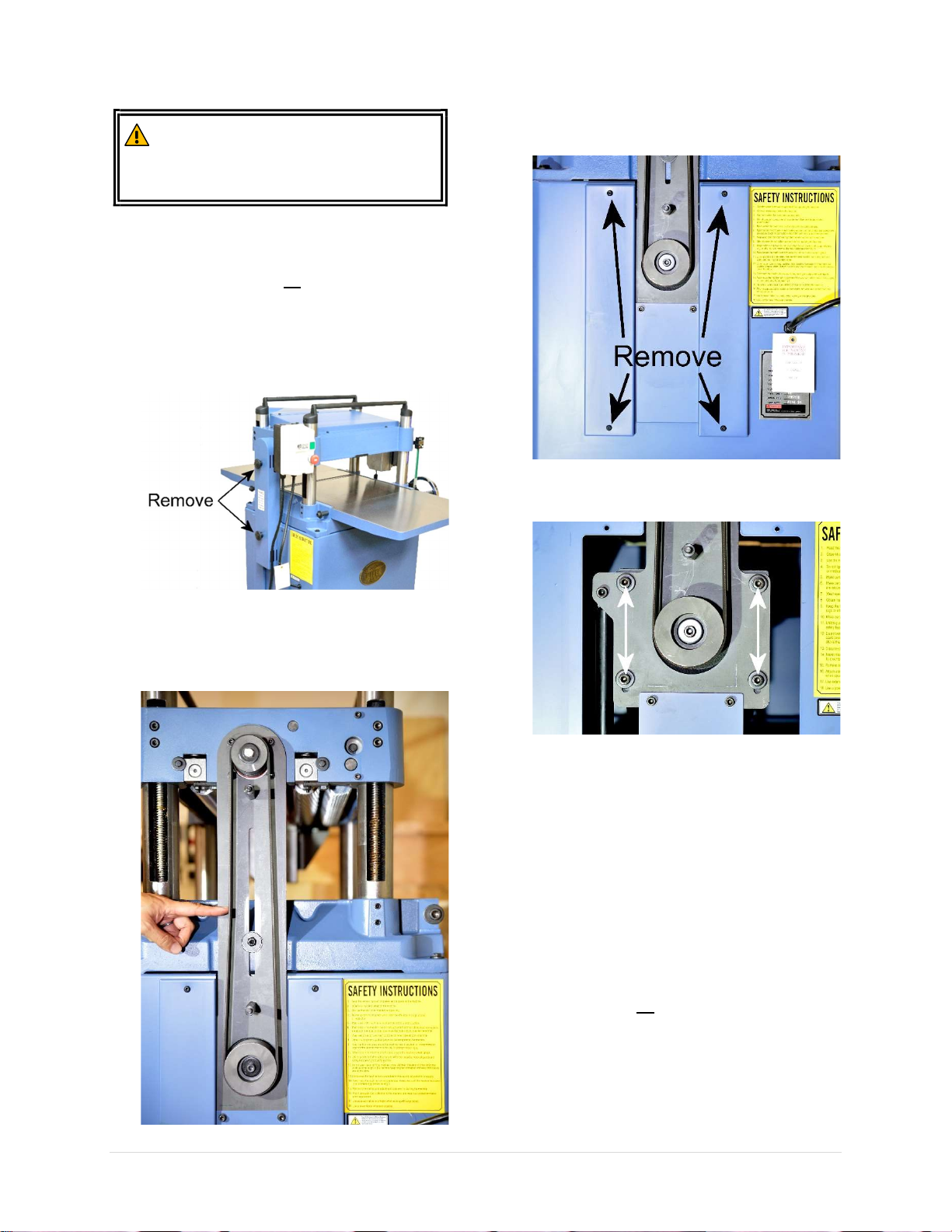

Remove Planer Top Cover

This allows you to service the cutterhead, chip

deflector, and chip breaker.

1. Disconnect planer from power source!!

2. Remove dust hood.

3. Remove the planer cover by removing the four cap screws from the top of the planer.

performed. After servicing the planer, remove all wrenches and tools before restarting the machine. Failure to comply can cause serious injury!

Adjust Chip Deflector Clearance

The chip deflector was pre-installed in the

factory and should not require adjustments initially. If the gap between chip deflector and cutterhead goes beyond the 1/16” - 1/8” tolerance, adjustment is needed.

1. Disconnect planer from power source!!

2. Remove dust hood and top cover.

3. Loosen the three bolts that secures the chip deflector.

4. Adjust the distance between the chip deflector and the cutterhead. The entire edge of the chip deflector should be no less than 1/16” away from the closest point of the cutter head, but no more than 1/8”.

5. Re-tighten the bolts to secure the chip deflector, then reinstall the top cover and dust hood.

6. Remove all wrenches and tools before restarting the planer.

4430 Planer OLIVERMACHINERY.NET 39 | Page

Page 40

Service Cutterhead and Rotate Cutter Inserts

Cutter inserts on the cutterhead are extremely sharp. Protect your hands with thick

CAUTION

1. Disconnect planer from power source!!

2. Remove dust hood and top cover.

3. Remove dusts and resin accumulations on the cutterhead and the area nearby.

4. Rotate the cutter inserts 90° clockwise when they get dulled or nicked. Use a permanent marker to mark the new edge to be used.

5. To rotate/replace a cutter insert, remove the torx screw with a T-25 torx bit. Turn

COUNTERCLOCKWISE to loosen the screw.

leather gloves to avoid injuries.

8. Inspect the torx screw. Replace any damaged screws. Lubricate the screw thread with a thin coat of light weight machine oil.

IMPORTANT: Do not use excessive amount of lubrication, or the torx screw and the cutter insert will not sit properly.

9. Using a torque wrench, re-tighten the torx screw with 50-55 lbs.-inch of torque.

IMPORTANT: Do not overtighten the screw or the inserts may break. Do not use power tools to tighten the torx screws as it can strip the screws.

10. Reinstall top cover and dust hood when cutterhead service completes.

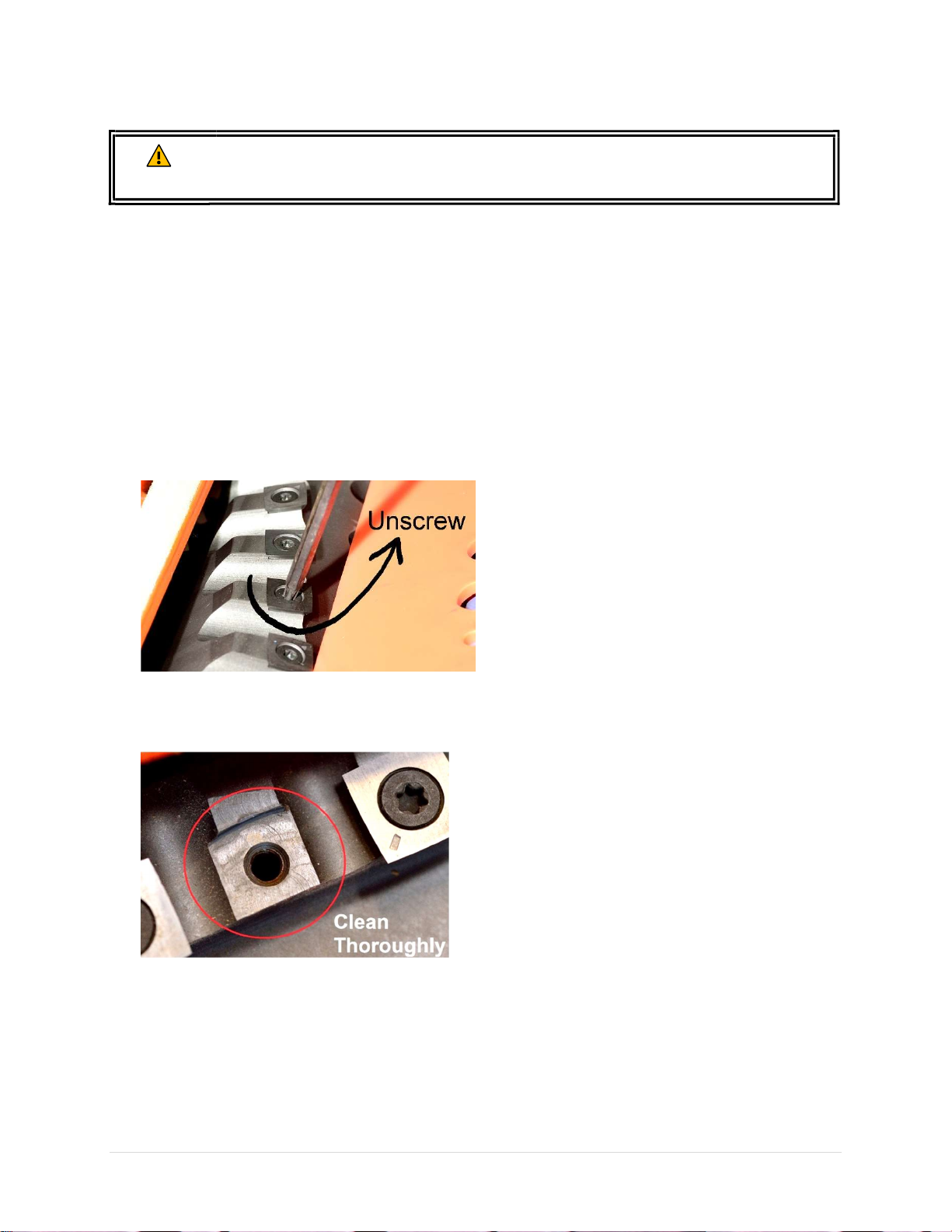

6. With the cutter insert removed from its platform, thoroughly clean the cutter insert platform with a vacuum or compressed air.

IMPORTANT: Obstacles between the insert and cutterhead platform will create uneven pressure against the insert. This will lower cut quality and may cause the insert to crack.

11. Remove all wrenches and tools before restarting the planer.

7. Reinstall the cutter insert with the marked cutting edge facing out.

40 | Page Oliver Machinery 4430 Planer

Page 41

Adjust Belt Tension

If belt tension needs adjustment:

CAUTION: Belt and pulleys may be hot

after operations. Allow components to cool before servicing.

IMPORTANT: After initial break-in period. The V-

belt should stretch by some amount. Check and adjust belt tension after 16 hours of operation.

1. Disconnect planer from power source!!

2. Remove the belt cover knobs and the belt cover.

4. Remove the side panels to gain access to the motor mount cap screws.

5. Loosen the cap screws and lower the motor to tighten the belt. If the belt becomes too tight, raise the motor.

3. Apply moderate pressure on the V-belt midway between the two pulleys. Properly tensioned V-belt should deflect by approximately 1/4“.

6. Re-tighten the motor mount cap screws and re-install the side panels when belt is properly tensioned.

If belt needs to be replaced

7. Loosen the belt and roll the belt off the pulleys.

8. Install new belts and make sure the belt sits into the grooves of the pulleys.

9. Adjust belt tension.

10. Set a reminder to readjust belt tension after the new belt is broken in. The process takes approximately 16 hours of run time.

When belt maintenance completes

11. Reinstall all the panels and covers.

12. Remove all wrenches and tools before

4430 Planer OLIVERMACHINERY.NET 41 | Page

restarting the planer.

Page 42

Adjust Table Chain Tension

1. Disconnect planer from power source!!

2. Remove motor access panel.

3. Loosen the two locking bolts for holding the chain tensioner bracket in place.

IMPORTANT: Keep table chain tensioned while loosening the locking bolt. If the chain falls off from the sprockets, it can take a lot of time to reinstall the chain and recalibrate the planer.

Adjust Table Roller Height

Your planer is equipped with one table roller to help feeding a workpiece through the planer. There is no fixed rule for setting the exact height of the table rollers, because each piece of wood behaves differently. The acceptable range of table roller height is: 0.002”- 0.005” above the table.

As a general rule of thumb:

 Raise the roller when planing rough stock.  Lower the roller when planing smooth stock.

NOTICE: If the roller is set too high, the workpiece will be more likely to have snipe on the ends.

To adjust table roller height:

1. Disconnect planer from power source!!

2. Each end of the table roller is equipped with a set screw and an eccentric adjuster. Make sure height adjustment is done on both ends.

4. Push the chain tensioning sprocket against the chain with moderate tension to remove chain slack. Hold the sprocket in place, and re-tighten the locking bolts.

5. Clean and lubricate the chain as needed.

6. Re-install motor access panel when adjustments complete.

3. Loosen the set screws that hold the eccentric adjusters.

4. Rotate the eccentric adjusters to change roller’s height.

5. Use a dial indicator to verify the height is the same side-to-side. Make fine adjustments as needed.

6. Retighten the set screws to lock the eccentric adjusters when adjustments complete.

42 | Page Oliver Machinery 4430 Planer

Page 43

Adjust Cutterhead/Feed Roller Height Offset

The infeed/outfeed rollers pull the workpiece

through the planer. To ensure optimal feeding/cutting performance, it is important to ensure the height offsets between the cutterhead and the feed rollers are correct.

The following diagram shows the height offset

between the cutterhead and various components inside the headstock of the planer. The feed rollers and chip breaker are installed BELOW the lowest point of cutterhead.

*Diagram not drawn to scale

The height of the rollers and the chip breaker has

been pre-calibrated in the factory and should not need further adjustments.

In case if adjustments are needed, you will need

a dial indicator with a sturdy stand. If a dial indicator is not available, it is possible to make the adjustments with a home-made gauge block and a set of feeler gauges.

Clean the table and the rollers to remove any

accumulations before making adjustments.

Method 1: Using a Dial Indicator

1. Remove all tools from the planer.

2. Turn on the planer, wait until it reaches full speed, then shift the feed rate control knob to 0 FPM (Neutral) position. This allows the feed rollers to rotate freely.

3. Turn off planer. Disconnect planer from power source!!

4. Remove the belt cover so you can rotate the cutterhead with the drive belt.

5. Adjust the table height so that the dial indicator can fit right below the cutterhead. Rotate the cutterhead and use the dial indicator to locate its lowest point. Using a flat bottom tip for the dial indicator can make this task easier.

6. Zero the dial indicator. Use this as the reference point for measuring the offset between the cutterhead and the feed rollers.

4430 Planer OLIVERMACHINERY.NET 43 | Page

Page 44

7. Move the dial indicator to the lowest point

Tolerance

Infeed Roller

0.020”

- 0.027”

below

Chip breaker

0.000”

- 0.020” below

Outfeed Roller

0.024

” - 0.031”

below

of the feed rollers. The reading from the dial indicator now shows the offset between the cutterhead and the roller. Made adjustments if the offset goes beyond the tolerance listed below.

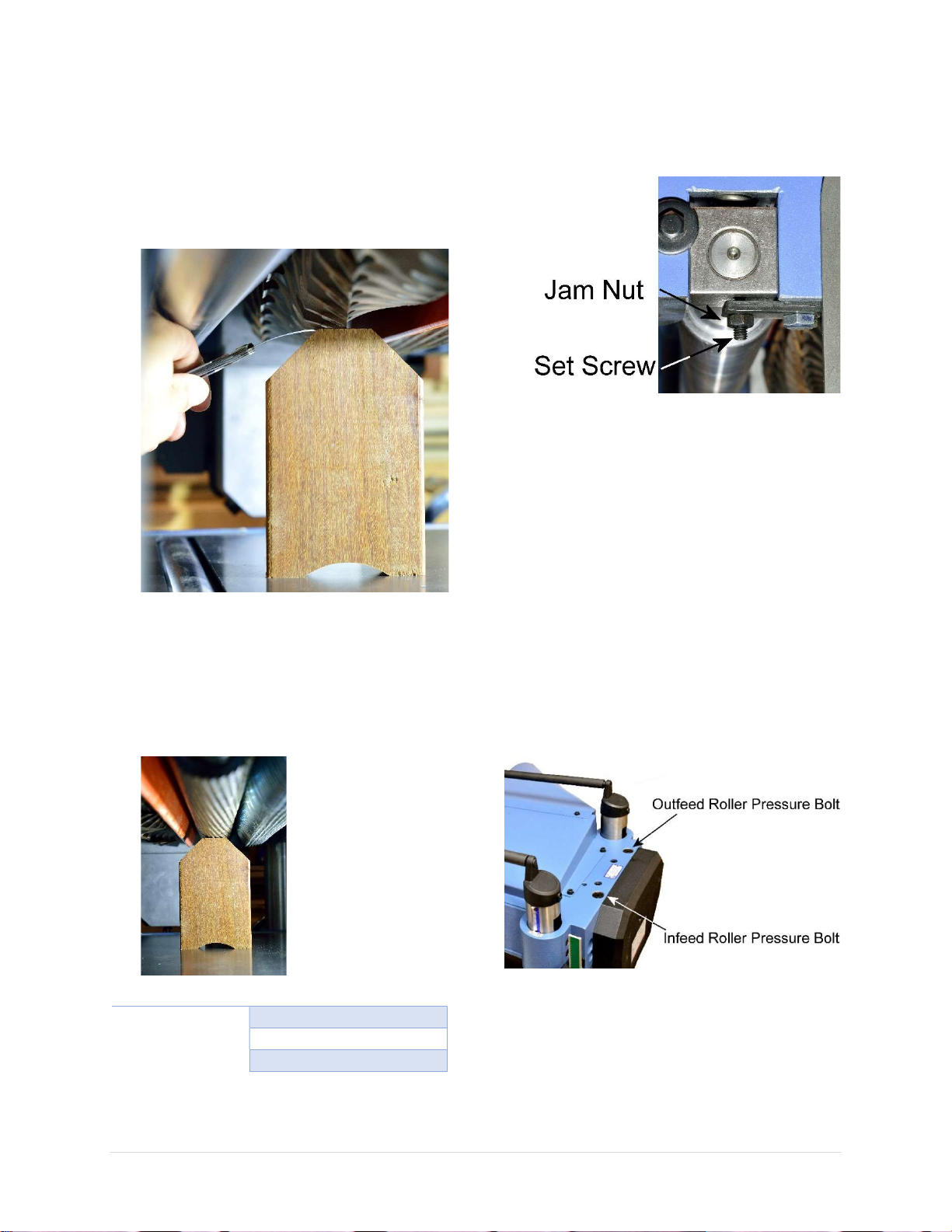

8. To adjust the height of the feed rollers, loosen the jam nuts on both ends of the feed roller. Rotate the set screws to change the height of the roller. Continue to calibrate until the cutterhead-roller offset is uniform across the entire feed roller.

Method 2: Using Feeler Gauge

1. Using hardwood, build a gauge block similar to this one below. The exact dimension is not critical. Just make sure the bottom clears the table roller. The top should be chamfered for better tool access and visibility.

2. Remove all tools from the planer.

3. Turn on the planer, wait until it reaches full speed, then shift the feed rate control knob to 0 FPM (Neutral) position. This allows the feed rollers to rotate freely.

4. Turn off planer. Disconnect planer from power source!!

5. Remove the belt cover so you can rotate the cutterhead with the drivebelt.

9. When the correct height is set, hold the set screws in place and re-tighten the jam nuts.

10. Re-install belt cover when adjustments complete.

44 | Page Oliver Machinery 4430 Planer

Page 45

6. Raise the headstock, place the gauge block

Tolerance

Infeed Roller

0.020”

- 0.027”

below

Chip breaker

0.000”

- 0.020” below

Outfeed Roller

0.024

” - 0.031”

below

below the cutterhead. For checking the infeed roller’s offset, put the 0.020” feeler gauge on top of the gauge block.

7. Lower the cutterhead until the lowest point of the cutterhead barely touches the feeler gauge.

8. Remove the feeler gauge and move the gauge block under the infeed roller. The gauge block should fit right under the infeed roller if the height setting is perfect. You may need to rotate the infeed roller to find the lowest spot. Made adjustments according to the specifications as needed:

roller. Rotate the set screws to change the height of the roller. Continue to calibrate until the cutterhead-roller offset is uniform across the entire feed roller.

10. When the correct height is set, hold the set screws in place and re-tighten the jam nuts.

11. Repeat STEP 7-13 for the outfeed roller, and use a 0.030” feeler gauge instead.

12. Re-install belt cover when adjustments complete.

Adjust Feed Roller Tension

If your workpiece is slipping and not feeding through the machine, increase the feed roller pressure by turning the pressure bolts clockwise with a hex wrench.

There is a pressure adjustment bolt on each end of the feed rollers. Make sure the adjustments are made on BOTH ends of the feed roller, so even pressure is applied across the entire feed

9. To adjust the height of the feed rollers, loosen the jam nuts on both ends of the feed

4430 Planer OLIVERMACHINERY.NET 45 | Page

roller. If the workpiece is damaged by the feed roller,

reduce pressure.

Page 46

Adjust Cutterhead Height Scale

The cutterhead height scale is pre-calibrated at

the factory. It can be adjusted to accommodate a different viewing angle, or if the scale is shifted.

1. Prepare a piece of 2x4 with flat bottom for calibration.

2. Using the digital readout, plane the board down to 1-1/4” or 1”. Use a caliper to measure the mid-section of the board for thickness.

Anti-Kickback Fingers Inspection

This planner is equipped with anti-kickback

fingers. Once engaged, the workpiece can only move towards the cutterhead. This prevents accidental kickbacks which can cause serious injuries.

3. Loosen the top and bottom screws that holds the scale in place.

4. Shift the scale so that the pointer is pointing at the exact value as the thickness of the board.

5. Re-tighten the screws when adjustments complete.

Inspect the anti-kickback fingers regularly to

ensure they can move freely, and that their teeth are clean and are sharp enough to stop a board from moving backwards. Clean and lubricate with very light coat of SAE-30 machine oil as needed.

Replace anti-kickback fingers if they are damaged or worn.

CAUTION: Do not operate this planer

without functioning anti-kickback fingers. Failure to comply can result in serious personal injuries.

46 | Page Oliver Machinery 4430 Planer

Page 47

Troubleshooting

Problem

Possible Cause

Possible Solution

Machine does not start.

Stop button is not

Turn the

rim of the

STOP button clockwise to

Machine is not

1. Make sure machine is plugged in, or power

Low voltage / current.

Have an electrician to check/repair the power

Faulty

switch/motor/

Contact customer service for further assistance.

Machine trips

thermal

Machine

undersized

Reduce the depth of cut and/or feed rate.

Workpiece moisture

Only

plane

wood with moisture level below

Machine is jammed.

Inspect cutterhead and make sure

is not

Too much load on a

Make sure the power

circuit is sized for this

Motor/capacitor issue.

Contact customer service for further assistance.

Machine stalls during

Machine

undersized

Reduce the depth of cut. Lower feed rate.

Dull cutters

Rotate/replace cutter inserts.

Belt slipping

Clean belt and the pulleys. Adjust belt tension.

Motor/capacitor issue.

Contact customer

service for further assistance.

Machine stopped

Thermal overload

Hit STOP button to reset overload protection.

Chain jumps during

Loose chain.

Adjust chain tensioner.

Misaligned sprockets.

Align sprockets.

Worn sprockets.

Replace sprockets and chains.

Digital readout not

Dead battery.

Replace battery.

protection / circuit breaker, or blow fuses.

reset.

connected to a power source.

capacitor.

for the operation.

level is too high.

reset. The stop button will pop up.

disconnect is at the ON position.

2. Check electrical panel for tripped circuit breaker or blown fuse.

3. Ensure all electrical connections have good contacts.

circuit.

20%.

obstructed by woodchips. Check dust port and headstock and clear blockages.

circuit.

operation.

during operation.

operation.

functional.

for the operation.

protection triggered.

machine. If the same circuit is shared, ensure the circuit is sized to supply power for all items in the circuit.

Wait for the machine to cool down. Reduce depth of cut and feed rate before continue.

4430 Planer OLIVERMACHINERY.NET 47 | Page

Page 48

Problem

Possible Cause

Possible Solution

Unable to move feed rate

knob.

Machine is not running.

Only move feed rate knob while the

Feed

rollers does not move

Gear box is in neutral.

Shift feed rate control knob to set feed rate

Workpiece does not feed

Low feed roller

Adjust feed roller spring tension.

Incorrect feed roller

Adjust feed rollers height so the bottom of

Dirty planer table /

Clean table and rollers. Apply paste wax on

Belt slipping

Clean belt and the pulleys. Adjust belt

Stuck planer bed roller.

Clean and lubricate roller.

Machine vibrates

Damaged cutter

Replace cutter inserts.

Machine stands on

Reposition on flat, level surface.

Chip deflector is hitting

Move chip deflector 1/16”

- 1/8” away from

V-belt worn, slipping or

Clean belt and pulleys. Adjust belt tension.

Feed roller bushing

Lubricate

bushings.

Bent pulley

Replace pulley.

Improper motor

Check and adjust motor mounting.

Loose components.

Tighten fasteners of the component.

Worn bearings

Contact customer service for assistance.

Uneven depth of cut side to

Cutterhead is not

Adjust cutterhead

table parallelism.

Board thickness does not

Cutterhead height scale

Adjust the scale.

machine is running idle at full speed.

when machine is running.

smoothly.

excessively or makes unexpected noise.

pressure.

height setting.

rollers.

inserts.

uneven floor.

to 16/20 FPM while machine is running idle at full speed.

the rollers is below the lowest point of the cutterhead.

Infeed Roller: 0.020” - 0.027” below. Outfeed Roller: 0.024” - 0.031” below.

the table to reduce drag. Do not use silicon lubrications on table top.

tension.

side.

match the scale’s measurement.

the cutterhead.

hitting belt cover.

needs lubrication.

mounting.

parallel with planer table.

is mispositioned.

cutterhead.

Replace V-belt if it shows signs of aging.

Tolerance: Less than 0.005” side-to-side.

48 | Page Oliver Machinery 4430 Planer

Page 49

Problem

Possible Cause

Possible Solution

Workpiece came out

twisted.

Workpiece is twisted

Planer is not the tool to flatten a twisted

Feed/bed roller is not

Adjust roller/table parallelism.

Excessive snipe

Extension tables slope

Adjust the extension tables to make them

Long workpiece is not

Use auxiliary rollers to support long workpiece.

A small amount of

Add an extra 6” length on a workpiece for

End of workpiece

Aggressive depth of cut

Reduce depth of cut.

Planing end grain.

Do not plane

end grain

. U

se a drum sander

Chipping in workpiece

Damaged cutter.

Rotate/replace cutter insert.

Planing against/across

Avoid planing workpiece with knots. Plane along

Too

much material

Reduce feed rate / depth of cut.

Indentation in

Dirty rollers.

Remove all buildups on infeed, outfeed, and

Inefficient chip

Check dust collection system for suction.

Fuzzy looking finish.

Wood moisture content

Only process wood with less than 20% moisture

Dull cutter.

Rotate/replace cutter insert.

Some wood types tend

Adjust feed rate

depth of cut

Glossy looking finish.

Dull cutter

. Rotate/replace cutter insert.

Cutting depth too

Increase depth of cut.

Long line or ridges

Chipped cutter.

Rotate/replace cutter insert.

Serrated marks on

Cutting depth too

Increase depth of cut.

before the cut.

parallel with the cutterhead.

workpiece. Flatten one side with a jointer before proceeding with a planer.

chipping

surface.

workpiece surface.

down.

supported properly.

sniping can happen sometimes.

for the wood type.

grain; or knots.

removed in one pass.

parallel with the planer bed.

planing, and then trim off the ends.

instead.

the grain and perform downhill cut whenever possible. Moisten problematic areas before planing.

table rollers.

removal.

too high.

to have fuzzy grain.

Adjust chip breaker and chip deflector.

content.

Use sharp cutters.

shallow.

running along the length of board.

workpiece.

shallow.

4430 Planer OLIVERMACHINERY.NET 49 | Page

Page 50

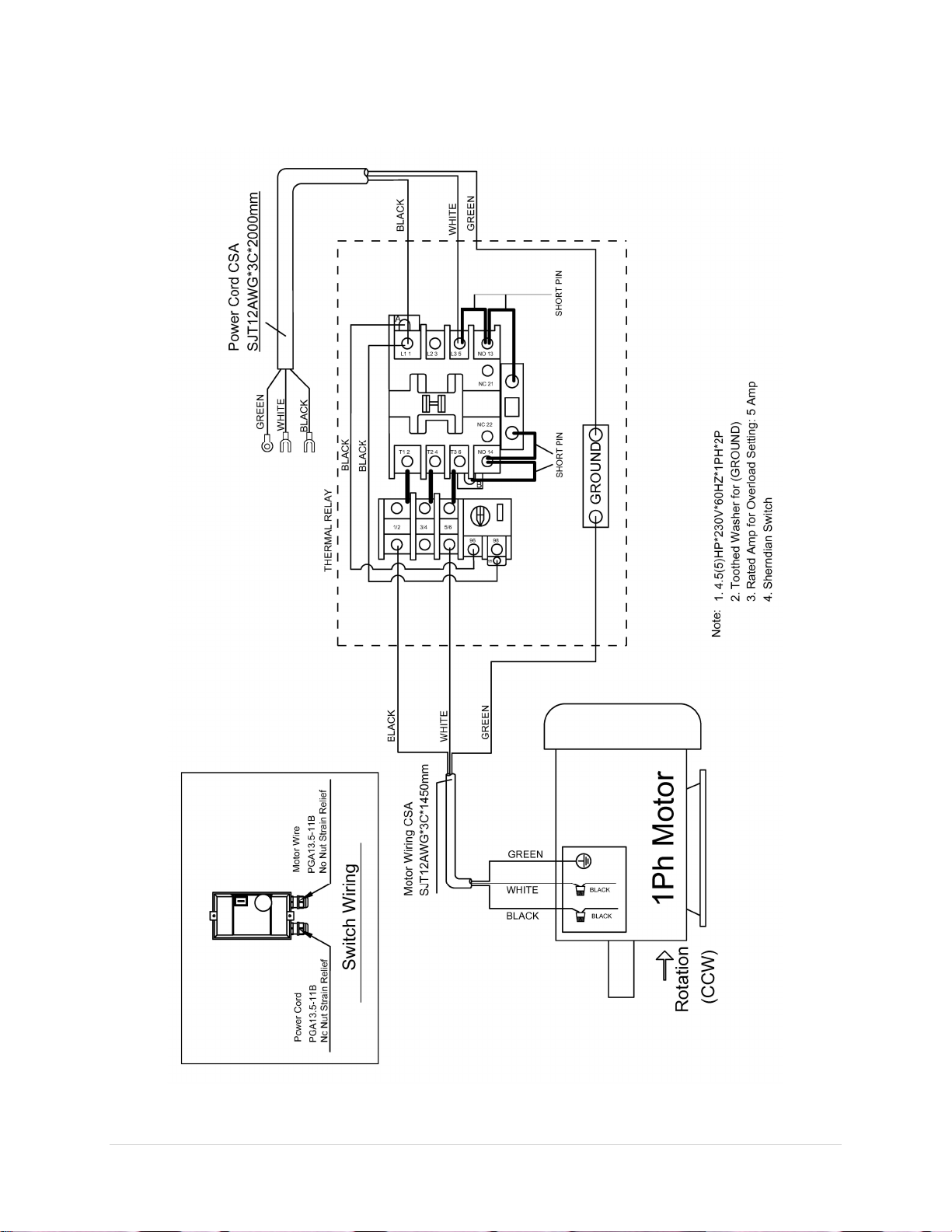

Wiring Diagram

50 | Page Oliver Machinery 4430 Planer

Page 51

Parts List

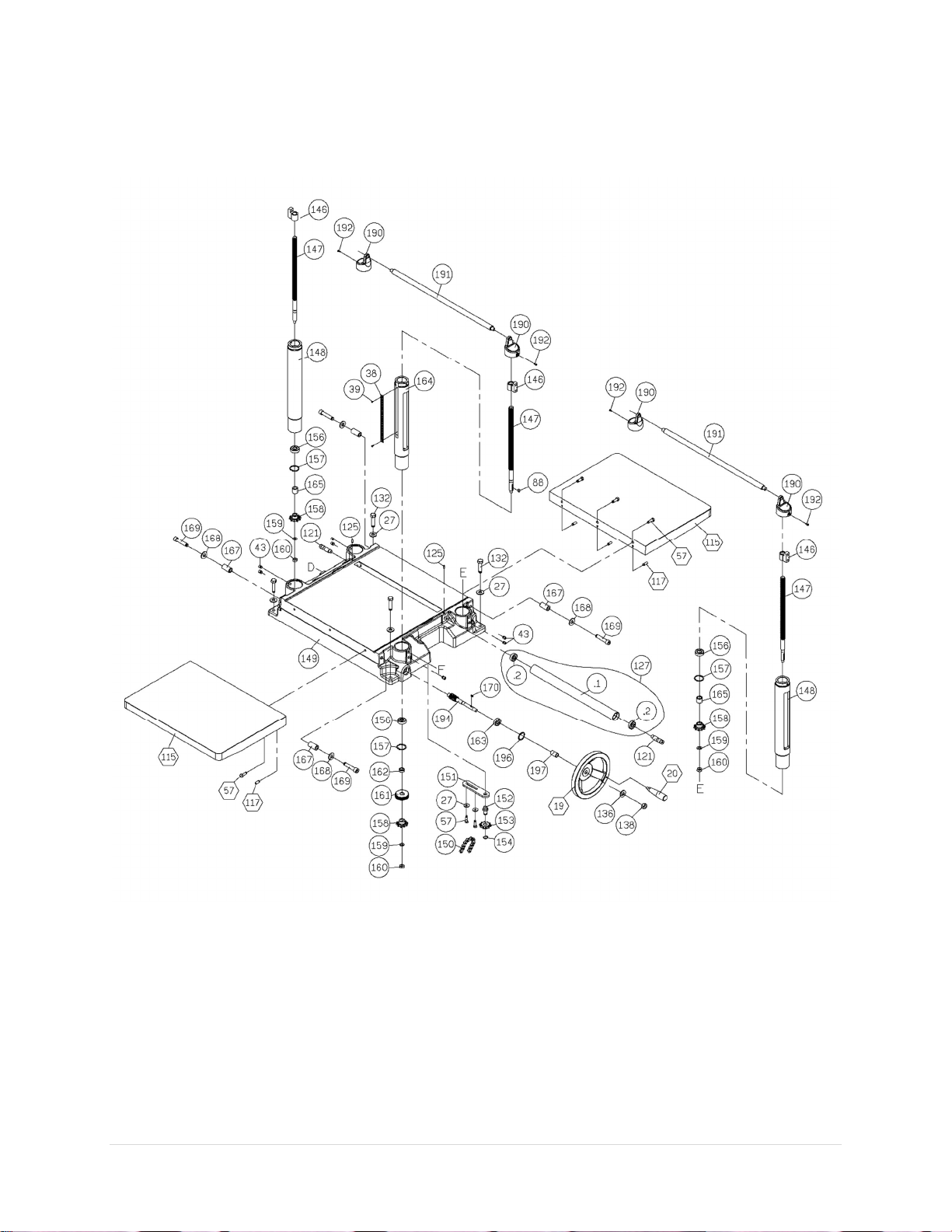

Table Assembly

4430 Planer OLIVERMACHINERY.NET 51 | Page

Page 52

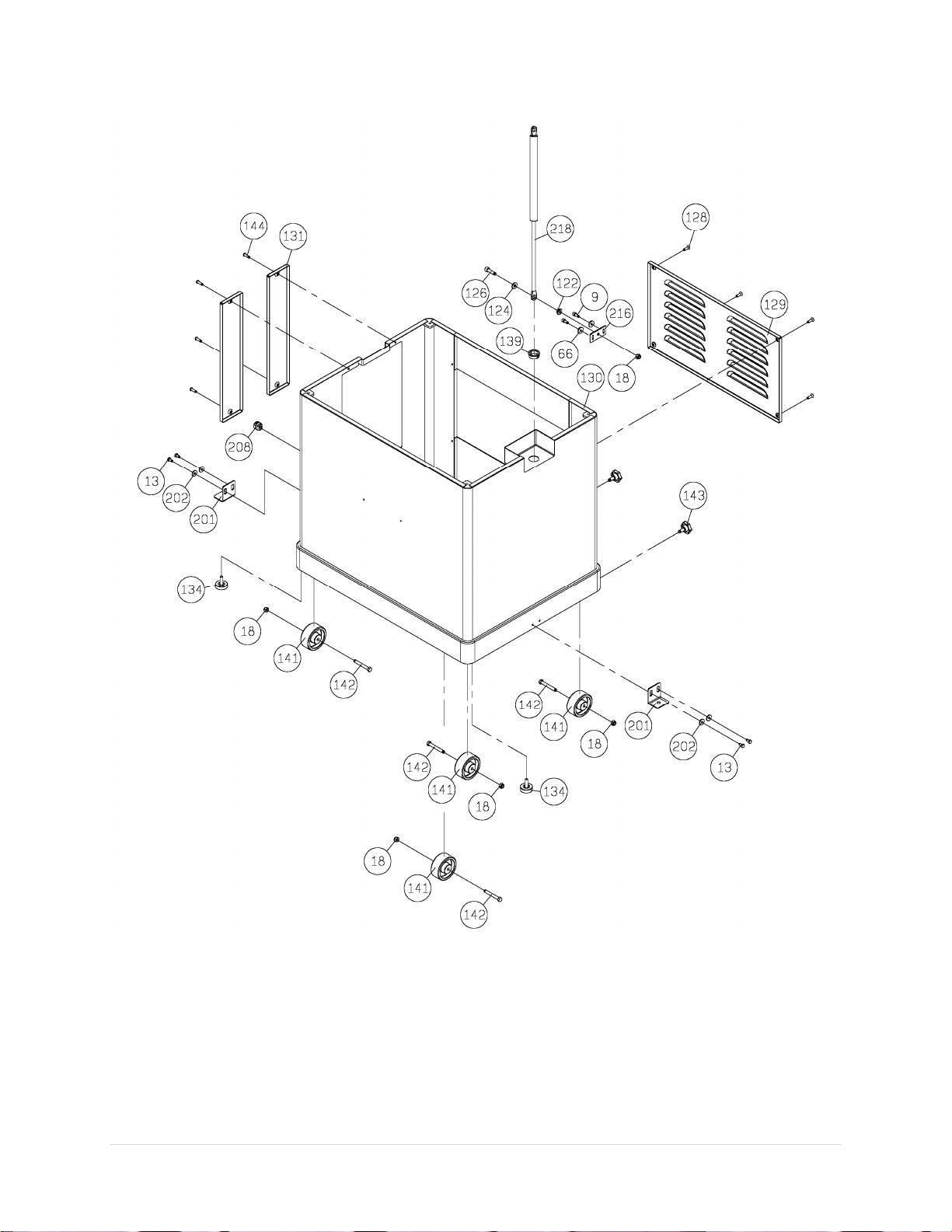

Cabinet Assembly

52 | Page Oliver Machinery 4430 Planer

Page 53

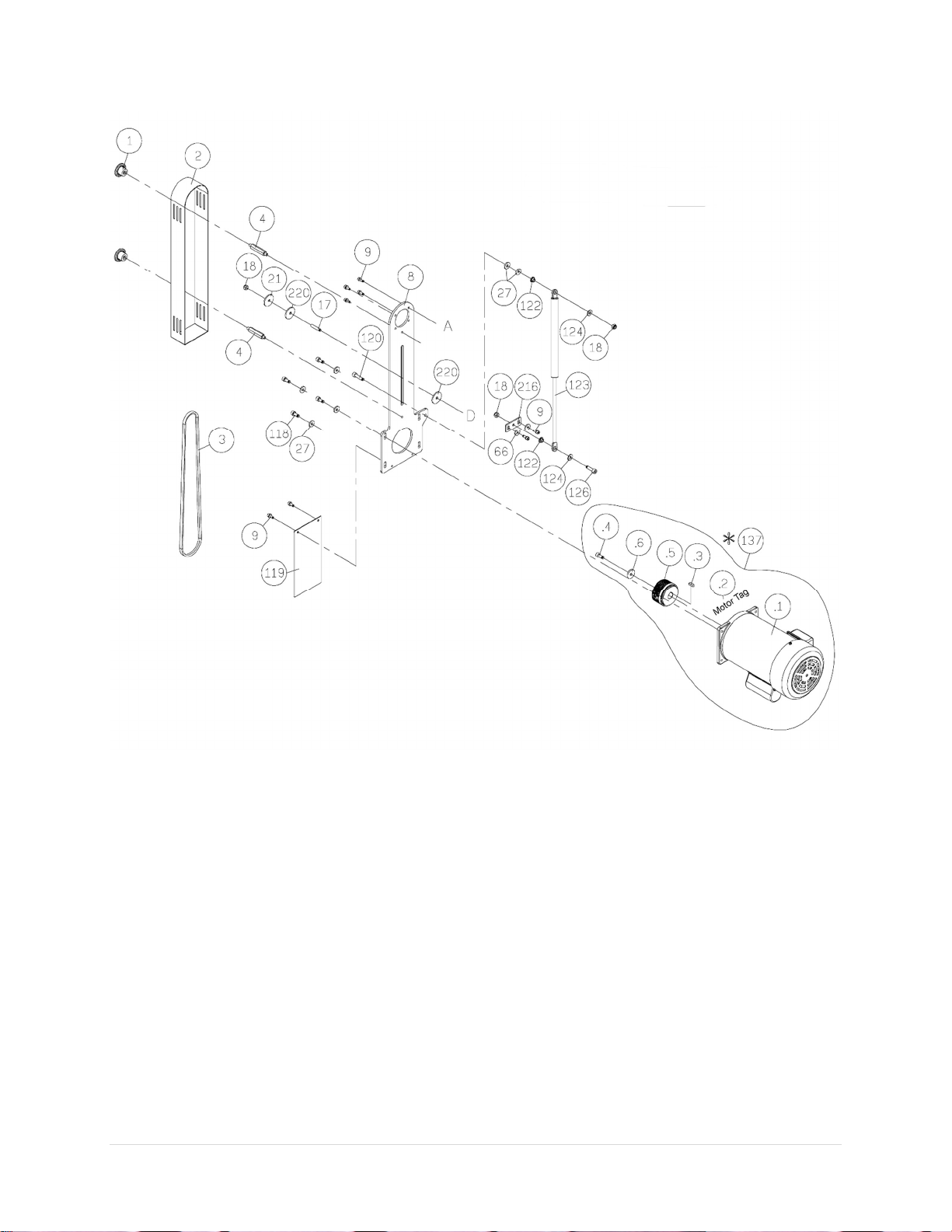

Motor Mount Assembly

4430 Planer OLIVERMACHINERY.NET 53 | Page

Page 54

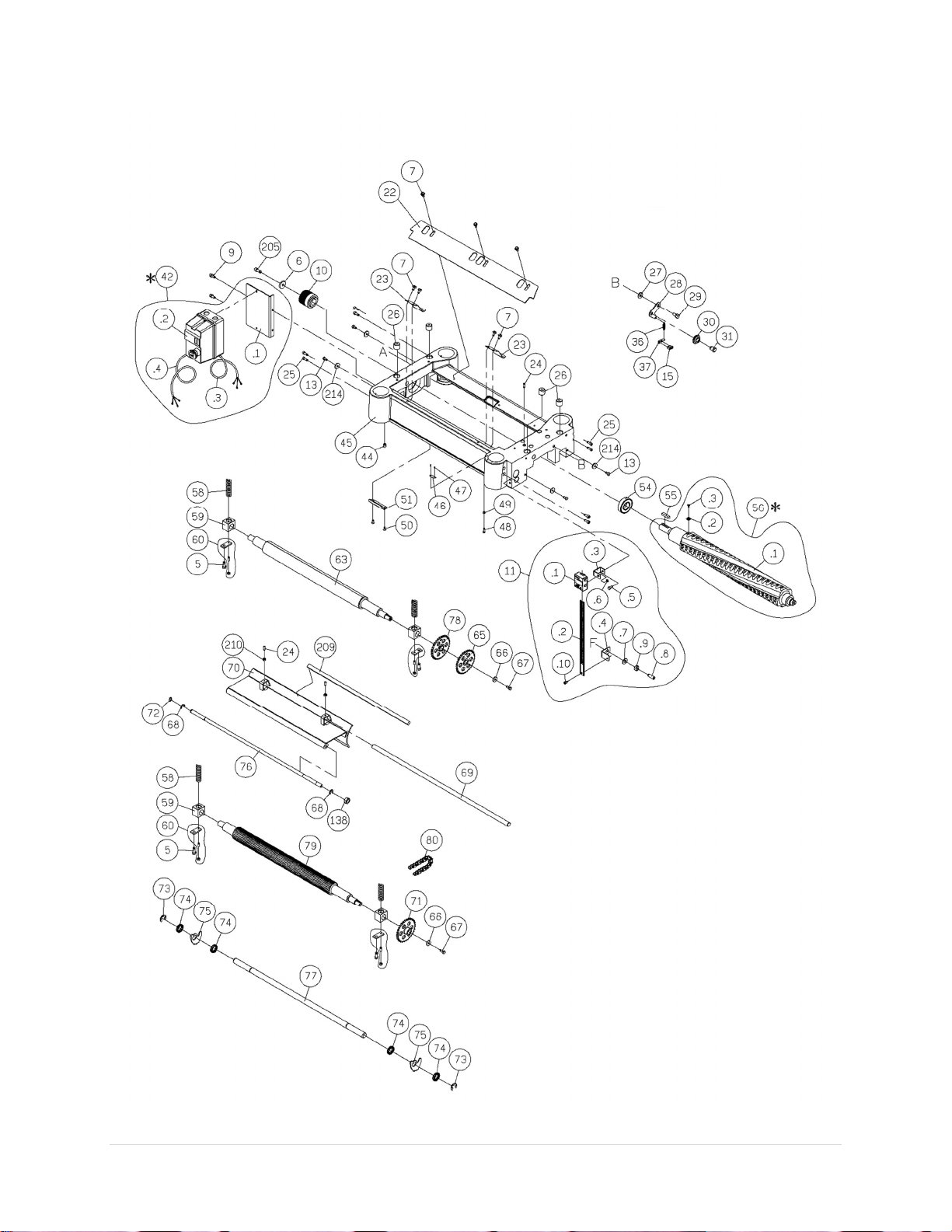

Headstock Assembly

54 | Page Oliver Machinery 4430 Planer

Page 55

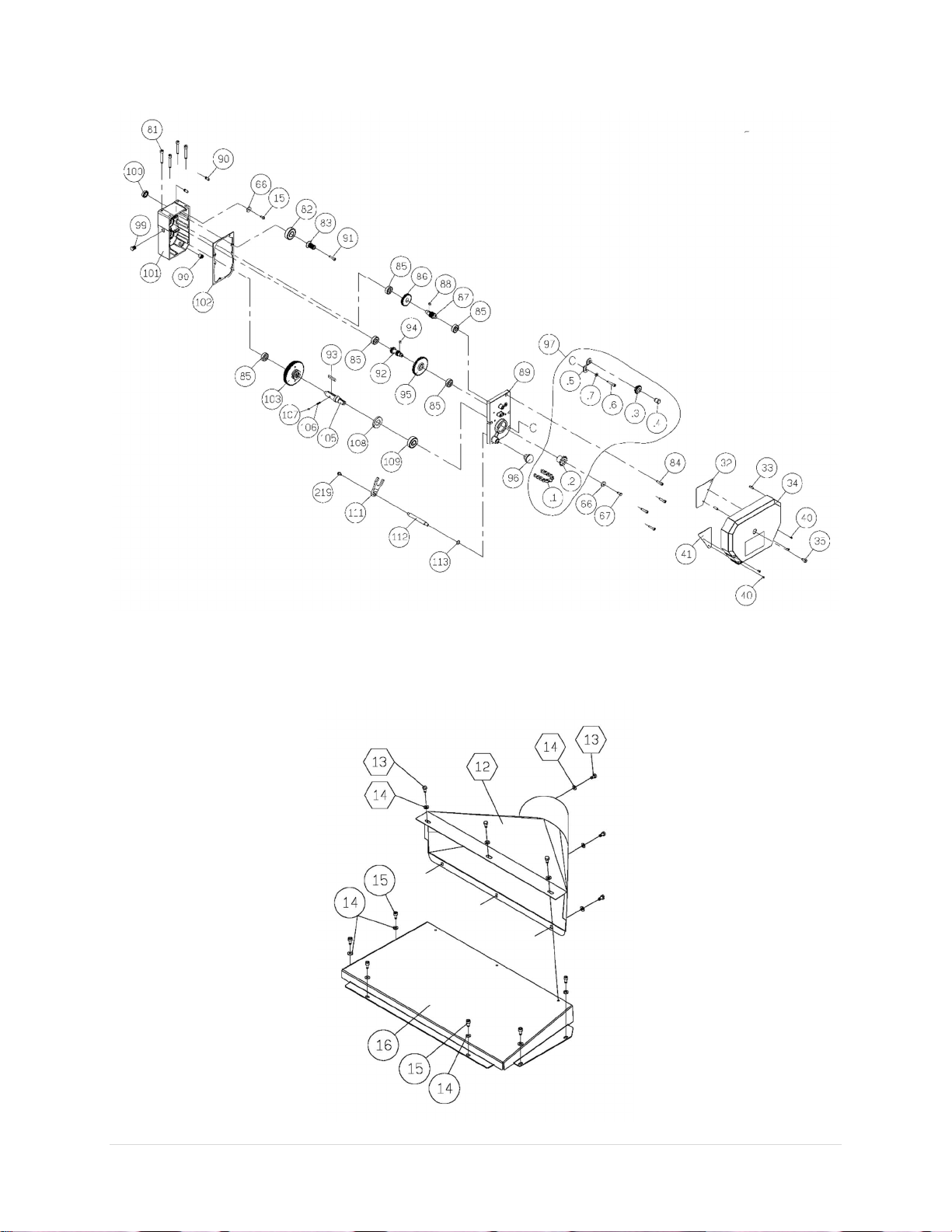

Gearbox Assembly

Cover and Dust Hood Assembly

4430 Planer OLIVERMACHINERY.NET 55 | Page

Page 56

Key Part Number Descriptions Specifications QTY 1 230118-000 Knob 2 2 174572-000 BELT GUARD 1

3 014363-000 POLY-V-BELT 450J-12 1 4 380147-901 SPECIAL BOLT 2 5 000003-104 HEX. SCREW M8*1.25P*20 4 6 006001-043 FLAT WASHER 8*30*4.0t 1 7 000902-102 HEX. SCREW W/WASHER M6*1.0P*12 7 8 174573-902 MOTOR BRACKET 1 9 001802-101 10 381423-902 11 924753-000 .1 491142-000 .2 950792-000 .3 174757-904 .4 174758-904 .5 000002-102 .6 006002-009 .7 006001-075 .8 000205-102 .9 008007-100 .10 000102-102

CAP SCREW W/SPRING WASHER CUTTER HEAD PULLEY DRO SOLD AS ASSEMBLY ONLY DIGITAL READ OUT (Reference only) SENSOR STRIP ASSEMBLY (Reference only) BRACKET-UPPER (Reference only) BRACKET-DOWN (Reference only) HEX. SCREW (Reference only) FLAT WASHER (Reference only) FLAT WASHER (Reference only) SET SCREW (Reference only) HEX. NUT (Reference only) SOCKET HEAD CAP SCREW (Reference only)

M6*1.0P*16/6.5*10.5 12 1 1 1 1 1 1 M6*1.0P*15 1

5.2*10*1.0t 1

10.3*22*2.0t 1 M10*1.5P*30 1 M10*1.5P(17B*8H) 1 M5*0.8P*8 1

12 170488-000 DUST CHUTE 1 13 000002-101 HEX. SCREW M6*1.0P*12 14 14 006001-032 FLAT WASHER 6.6*13*1.0t 12 15 000103-103

SOCKET HEAD CAP SCREW

M6*1.0P*12 9

16 174574-000 DUST HOOD 1 17 000204-109 SET SCREW M8*1.25P*40 1 18 008306-100 HEX. LOCK NUT M8*1.25P(13B*9H) 8 19 240017-000 HAND WHEEL 1 20 230114-906 HANDLE 1 21 006001-040 FLAT WASHER 8*30*3.0t 1 22 250172-617 CHIP DEFLECTOR 1 23 270015-901 SPRING PLATE 2 24 000203-106 SET SCREW M6*1.0P*16 3 25 000104-104 SOCKET HEAD CAP SCREW M8*1.25P*16 8 26 380200-901

TENSION BOLT

56 | Page Oliver Machinery 4430 Planer

Page 57

Key Part Number Descriptions Specifications QTY 27 006001-041 FLAT WASHER 8.2*22*3.0t 13 28 170405-901 BRACKET 1

29 290039-901 SHAFT 1 30 130071-000 CHAIN TENSIONER 1 31 360349-901 CHAIN TENSIONER SHAFT 1 32 174671-902 SIDE COVER GUARD 1 33 011004-102 SPRING PIN 6*20 2 34 251337-615 SIDE COVER 1 35 000104-103 SOCKET HEAD CAP SCREW M8*1.25P*12 1 36 280050-000 SPRING 1 37 170406-901 HOOK 1 38 574905-000 SCALE 1 39 000301-101 ROUND HEAD SCREW M3*0.5P*6 2 40 002001-704 SOCKET HEAD CAP SCREW M4*0.7P*8 4 41 174659-902 SIDE COVER GUARD 1 42 937953-000 MAGNETIC SWITCH ASSEMBLY 5HP*220V-240V*1PH 1 .1 171404-904 SWITCH PLATE 1 .2 821016-002 MAGNETIC SWITCH 5HP*220V-240V*1PH 1 .3 473004-006 CONNECT WIRE MOTOR SJT12AWG*3C*1450mm 1 .4 473004-012 CONNECT WIRE POWER SJT12AWG*3C*2000mm 1 43 000205-101 SET SCREW M10*1.5P*12 7 44 000204-103 SET SCREW M8*1.25P*12 1 45 051418-000 HEAD CASTING 1 46 170464-156 POINTOR 1 47 002301-201 RIVET 2*5 2 48 000001-102 HEX. SCREW M5*0.8P*16 1 49 008004-100 HEX. NUT M5*0.8P(8B*4H) 1 50 000402-104 FLAT HEAD SCREW M5*0.8P*12 2 51 170409-901 LIMIT PLATE 1 54 030210-002 BALL BEARING 6206 1 55 012204-001 KEY 8*8*36 1 56 924685-000 HELICAL CUTTERHEAD ASSEMBLY 4 SLOTS 1 .1 220197-000

HELICAL CUTTERHEAD ONLY

.2 P-15mm 4S INSERT (SOLD IN BOX OF 10) 68 .3 038201-101 TORX SCREW #10-32UNF*1/2" 68 57 000003-105 HEX. SCREW M8*1.25P*25 8

4430 Planer OLIVERMACHINERY.NET 57 | Page

Page 58

Key Part Number Descriptions Specifications QTY 58 280051-000 SPRING 4 59 130039-000 BUSHING 4

60 923901-000 RETAINER PLATE ASSEMBLY 4 63 360407-000 OUTFEED ROLLER 1 65 150025-000 CHAIN SPROCKET 1 66 006001-020 FLAT WASHER 6.2*20*3.0t 8 67 000002-103 HEX. SCREW M6*1.0P*16 3 68 010207-000 RETAINING RING ETW-10 2 69 360386-000 SHAFT 1 70 170478-019

CHIP BREAKER

71 150028-000 CHAIN SPROCKET 1 72 010003-000 RETAINING RING STW-12 1 73 010209-000 RETAINING RING ETW-15 2 74 250160-615 SPACER 56 75 172281-905 ANTI-KICK BACK 55 76 361325-902 SHAFT 1 77 360388-000 SHAFT 1 78 150027-000 CHAIN SPROCKET 1 79 360389-000 INFEED ROLLER 1 80 016308-002 CHAIN #06B*67P 1 81 000104-114 SOCKET HEAD CAP SCREW M8*1.25P*50 4 82 030208-002 BALL BEARING 6204 1 83 320196-000 GEAR 1 84 000103-108 SOCKET HEAD CAP SCREW M6*1.0P*25 4 85 030106-002 BALL BEARING 6201 5 86 320197-000 GEAR 1 87 320160-000 SHAFT 1 88 012003-003 KEY 5*5*12 2 89 090350-920 GEARBOX COVER 1 90 360355-901 PIN 2 91 002602-106 CAP LOCKING SCREW M6*1.0P*25 1 92 320205-000 SHAFT 1 93 012004-003 KEY 6*6*40 1 94 012003-002 KEY 5*5*10 1 95 320198-000 GEAR 1

58 | Page Oliver Machinery 4430 Planer

Page 59

Key Part Number Descriptions Specifications QTY 96 250372-615 KNOB 1 97 920744-000 SPROCKET & CHAIN ASSEMBLY

FEED RATE 16/20FPM

.1 016304-000 CHAIN #06B*50P 1 .2 150008-000 CHAIN SPROCKET 1 .3 130071-000 CHAIN TENSIONER 1 .4 360349-901 CHAIN TENSIONER SHAFT 1 .5 170474-901 BRACKET 1 .6 000103-110 SOCKET HEAD CAP SCREW M6*1.0P*35 1 .7 006001-032 FLAT WASHER 6.6*13*1.0t 1 99 043401-000 PLUG PT1/4"-19 2 100 043608-000 OIL SEAL TC28*40*8 1 101 090349-920 GEARBOX 1 102 340012-615 GEARBOX GASKET 1 103 922351-000 GEAR ASSEMBLY 1 105 360357-000 SHAFT 1 106 280052-000 SPRING 1 107 017002-000 STEEL BALL 6mm 1 108 043505-000 OIL SEAL SC25*47*6 1

109 030109-002 BALL BEARING 6204 1 111 070014-000

SHIFTING FORK

112 360358-901 SHAFT 1 113 043303-000 RETAINING RING P12 1 115 050301-000 EXTENSION WING 2 117 000204-105 SET SCREW M8*1.25P*20 6 118 001803-102 CAP SCREW W/SPRING WASHER M8*1.25P*20/8.2*13.7 4 119 174575-000 PLATE 1 120 000104-111 SOCKET HEAD CAP SCREW M8*1.25P*35 1 121 360391-000 ECCENTRIC SHAFT 2 122 361323-902 BUSHING 3 123 660288-000

GAS CYLINDER

45kgf 1

124 006001-054 FLAT WASHER 8.5*20*2.0t 3 125 000203-104 SET SCREW M6*1.0P*12 2 126 000104-110 SOCKET HEAD CAP SCREW M8*1.25P*30 2 127 921208-000 ROLLER W/BEARING 1 .1 190007-000 ROLLER 1 .2 030007-001 BALL BEARING 6201 2

4430 Planer OLIVERMACHINERY.NET 59 | Page

Page 60

Key Part N

umber

Descriptions

Specification

s QTY

128 000403

104 FLAT HEAD SCREW

M6*1.0P*20

129 170479

000 STAND

ACCESS PANEL

130 174576

000 STAND

131 174577

000 COVER

132 000003

107 HEX. SCREW

M8*1.25P*35

134 230049

000 FOOT

136 006001

091 FLAT WASHER

13*28*3.0t

137 901167

000 MOTOR W/PULLEY ASSEMBLY

5HP*230V*60HZ*1PH

1 .1

603162

000 MOTOR

5HP*220

240V*60HZ*1PH

.1.01

496076

000 START CAPACITOR

600MFD/125VAC (45*85)

496077

000 RUNNING CAPACITOR

50UF/350VAC (45*85)

1 .2

573556

000 MOTOR TAG

5HP*230V*60HZ*1PH

1 .3

012206

002 KEY 1 .4 002601

107 CAP

LOCKING SCREW

M8*1.25P*25

1 .5

381424

902 MOTOR W/PULLEY ASSEMBLY

1 .6

006001

043 FLAT WASHER

8.2*30*4.0t

138 008009

100 HEX. NUT

M12*1.75P(19B*10H)

139 021802

000 RELIEF BUSHING

NB-

2430

141 250399

615 WHEEL

142 000003

316 HEX. SCREW

M8*1.25P*60

143 004001

101 KNOB

5/16"

18NC*3/4"

144 000801

104 ROUND HEAD HEX SCREW

M6*1.0P*20

146 130045

000 NUT 4 147 361321

000 ELEVATING SCREW

148 051419

000 COLUMN

149 051420

000 BASE CASTING

150 016004

000 CHAIN

#40*166P

151 170413

901 CHAIN TENSIONER BRACKET

152 360362

901 SPROCKET SHAFT

153 150011

000 CHAIN SPROCKET

154 010006

000 RETAINING RING

STW

-15 1

156 030003

001 BALL BEARING

6202

157 010103

000 RETAINING RING

RTW

-35 4

158 150012

000 CHAIN SPROCKET

159 006001

078 FLAT WASHER

10.5*19*1.5t

160 008008

100 HEX. NUT

M10*1.25P(17B*8H)

161 320404

000 SCREW

162 160094

903 SPACER

.1.02

60 | Page Oliver Machinery 4430 Planer

Page 61

Part N

umber

Descriptions

Specification

s QTY

10 038201

101 TORX

SCREW

#10-32UNF*1/2"

4MM FOR EXTENSION WING

10*13 FOR EXTENSION WING

Key Part Number Descriptions Specifications QTY 163 030007-001 BALL BEARING 6201 1 164 051421-000 MAIN COLUMN 1

165 160093-903 SPACER 3 167 160095-903 SPACER 4 168 006001-153 FLAT WASHER 13.5*30*3t 4 169 000106-101 SOCKET HEAD CAP SCREW M12*1.75P*60 4 170 012002-004 KEY 4*4*10 1 190 251318-615 ROLLER BRACKET 4 191 361322-902 ROLLER 2 192 000302-103 ROUND HEAD SCREW M4*0.7P*10 4 194 320204-000 LEAD SCREW 1 196 010102-000 RETAINING RING RTW-32 1 197 190008-901 SPACER 1 201 174711-000

SHIPPING PLATE

202 006001-036 FLAT WASHER 6.7*19*2.0t 4 205 002601-107 CAP LOCKING SCREW M8*1.25P*25 1 208 020005-000 STRAIN RELIEF SB8R-3 1 209 200057-646

FOAM GASKET

3/8"*1/2"*525L 1

210 008304-100 HEX. LOCK NUT M6*1.0P(10B*7H) 2 214 006001-021 FLAT WASHER 6.2*22*3t 4 216 174769-000 218 660299-000

ADJUSTMENT PLATE GAS CYLINDER

2 35kgf 1

219 029502-201 HEX. SCREW W/LOCK WASHER M6*1.0P*12 1 220 006007-140

FLAT WASHER

10.5*32*1.0t 2

Spare Parts

P-15mm 4S INSERT (SOLD IN BOX OF 10)

Tools for Assembly

Part Number Descriptions Specifications QTY

040004-000 HEX WRENCH (Local Purchase)

174569-904 COMBO WRENCH (Local Purchase)

040204-000 COMBO WRENCH (Local Purchase) 12*14 FOR HANDLE 1 040206-000 COMBO WRENCH (Local Purchase) 17*19 FOR HANDLE WHEEL 1

4430 Planer OLIVERMACHINERY.NET 61 | Page

SCREWS

HEX. SCREWS & DUST CHUTE

Page 62

Date

Task Operator

Maintenance Record

62 | Page Oliver Machinery 4430 Planer

Page 63

Notes

4430 Planer OLIVERMACHINERY.NET 63 | Page

Page 64

Warranty and Service

Oliver makes every effort possible to assure that its equipment meets the highest possible standards of

quality and durability. All products sold by Oliver are warranted to the original customer to be free from defects for a period of 2 (two) years on all parts, excluding electronics and motors, which are warranted for 1 year. Oliver’s obligation under this warranty shall be exclusively limited to repairing or replacing (at Oliver’s option) products which are determined by Oliver to be defective upon delivery F.O.B. (return freight paid by customer) to Oliver, and on inspection by Oliver. This warranty does not apply to defects due, directly or indirectly, to misuse, abuse, negligence, accidents, unauthorized repairs, alterations, lack of maintenance, acts of nature, or items that would normally be consumed or require replacement due to normal wear. In no event shall Oliver be liable for death, personal or property injury, or damages arising from the use of its products.

64 | Page Oliver Machinery 4430 Planer

Page 65

Oliver Machinery is always adding new Industrial Woodworking products to the line.

For complete, up-to-date product information, visit us online at:

WWW.OLIVERMACHINERY.NET

or call toll free 1-800-559-5065

** SAVE THIS MANUAL FOR FUTURE REFERENCES. **
