OLIMEX MOD-PULSE User guide

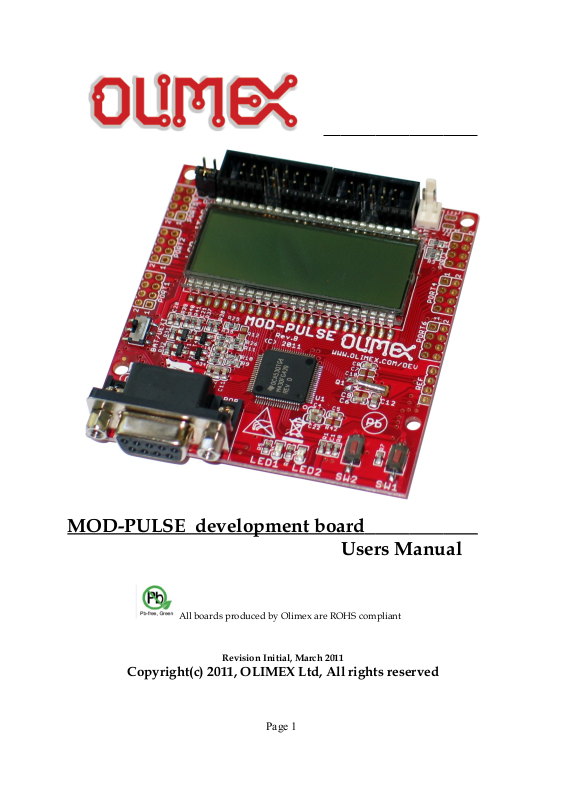

MOD-PULSE development board

Users Manual

All boards produced by Olimex are ROHS compliant

Revision Initial, March 2011

Page 1

INTRODUCTION:

MOD-PULSE is an instrument for monitoring the blood oxygenation of a human. By measuring the oxygen level and heart rate, MOD-PULSE can display the levels of blood oxygenation and heart rate on it's LCD display. To perform it's functionality, MOD-PULSE requires external sensor connected to it via PROBE connector. MOD-PULSE can be connected to variety of OLIMEX's development boards via it's UEXT connector.

BOARD FEATURES:

• MCU: MSP430FG439

• JTAG

• UEXT

• custom LCD

• two user buttons

• two status leds

• power supply switch

• +3V lithium battery connector

• Battery connector for 2 x 1.5V AA batteries

• DB9 – Female connector

• System clock crystal

• extension pin holes for each microcontroller's ports

• FR-4, 1.5 mm, red soldermask, component print

• Dimensions: 134.6x101.6mm (5.3 x 4.0")

ELECTROSTATIC WARNING:

The MOD-PULSE board is shipped in protective anti-static packaging. The board must not be subject to high electrostatic potentials. General practice for working with static sensitive devices should be applied when working with this board.

BOARD USE REQUIREMENTS:

Cables: The cable you will need depends on the programmer/debugger

you use. If you use MSP430-JTAG-TINY, MSP430-JTAG-TINY-V2, or MSP430JTAG-ISO, you will need USB A-B cable. If you use MSP430-JTAG, you will need LPT cable.

Page 2

Hardware: Programmer/Debugger MSP430-JTAG, MSP430-JTAG-

TINY, MSP430-JTAG-TINY-V2, MSP430-JTAG-ISO, or other compatible

programming/debugging tool.

PROCESSOR FEATURES:

MOD-PULSE board uses ultralow power microcontroller MSP430FG439 from

Texas Instruments with these features:

− Low Supply-Voltage Range, 1.8 V to 3.6 V

− Ultralow-Power Consumption:

− Active Mode: 300 μA at 1 MHz, 2.2 V

− Standby Mode: 1.1 μA

− Off Mode (RAM Retention): 0.1 μA

− Five Power Saving Modes

− Wake-Up From Standby Mode in Less Than 6 μs

− 16-Bit RISC Architecture, 125-ns Instruction Cycle Time

− Single-Channel Internal DMA

− 12-Bit A/D Converter With Internal Reference, Sample-and-Hold and

Autoscan Feature

− Three Configurable Operational Amplifiers

− Dual 12-Bit D/A Converters With Synchronization

− 16-Bit Timer_A With Three Capture/Compare Registers

− 16-Bit Timer_B With Three Capture/Compare-With-Shadow Registers

− On-Chip Comparator

− Serial Communication Interface (USART), Select Asynchronous UART or

Synchronous SPI by Software

− Brownout Detector

− Supply Voltage Supervisor/Monitor With Programmable Level Detection

− Bootstrap Loader

− Serial Onboard Programming, No External Programming Voltage Needed

Programmable Code Protection by Security Fuse

− Integrated LCD Driver for Up to 128 Segments

− 60KB+256B Flash Memory

− 2KB RAM

Page 3

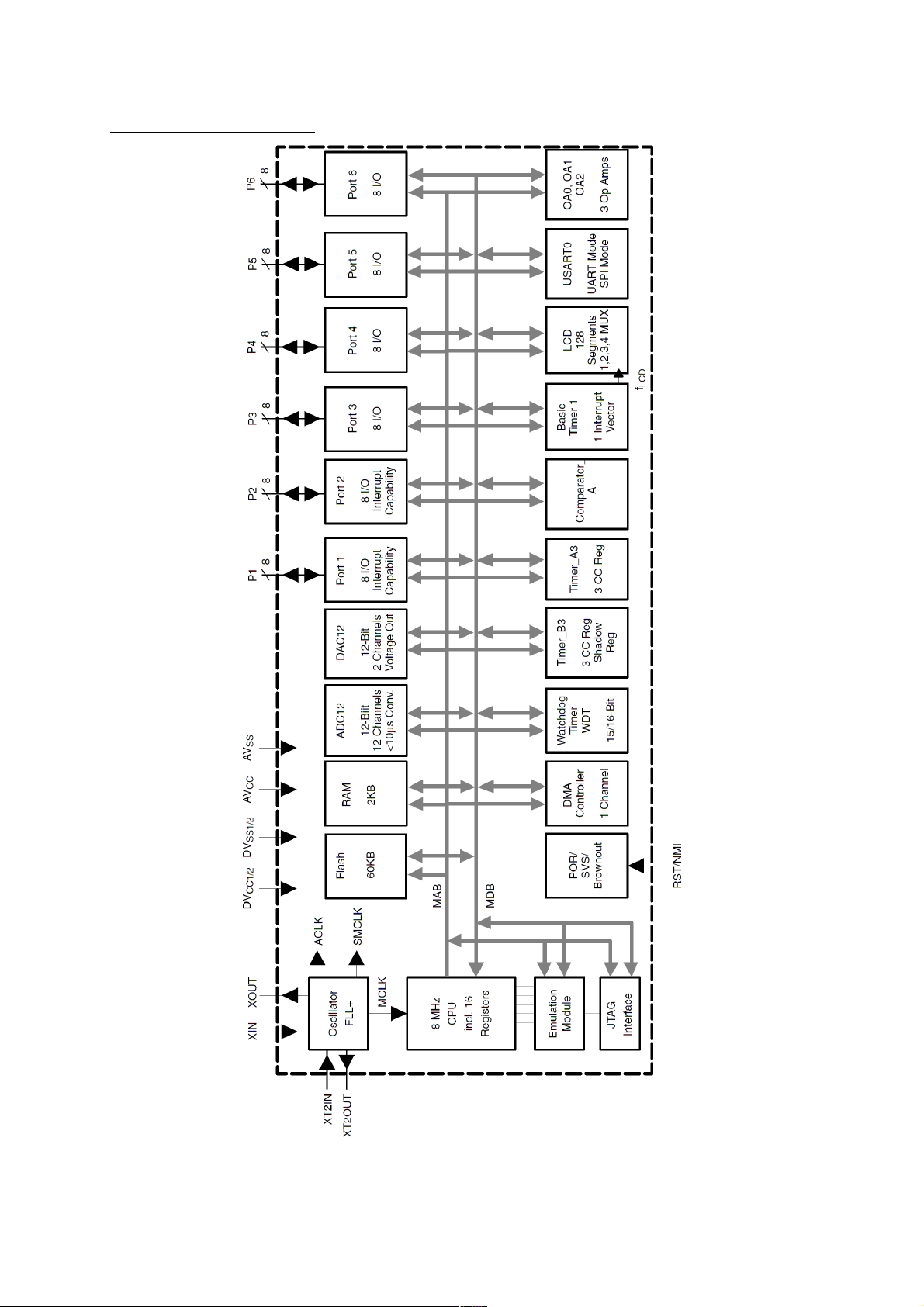

BLOCK DIAGRAM:

Page 4

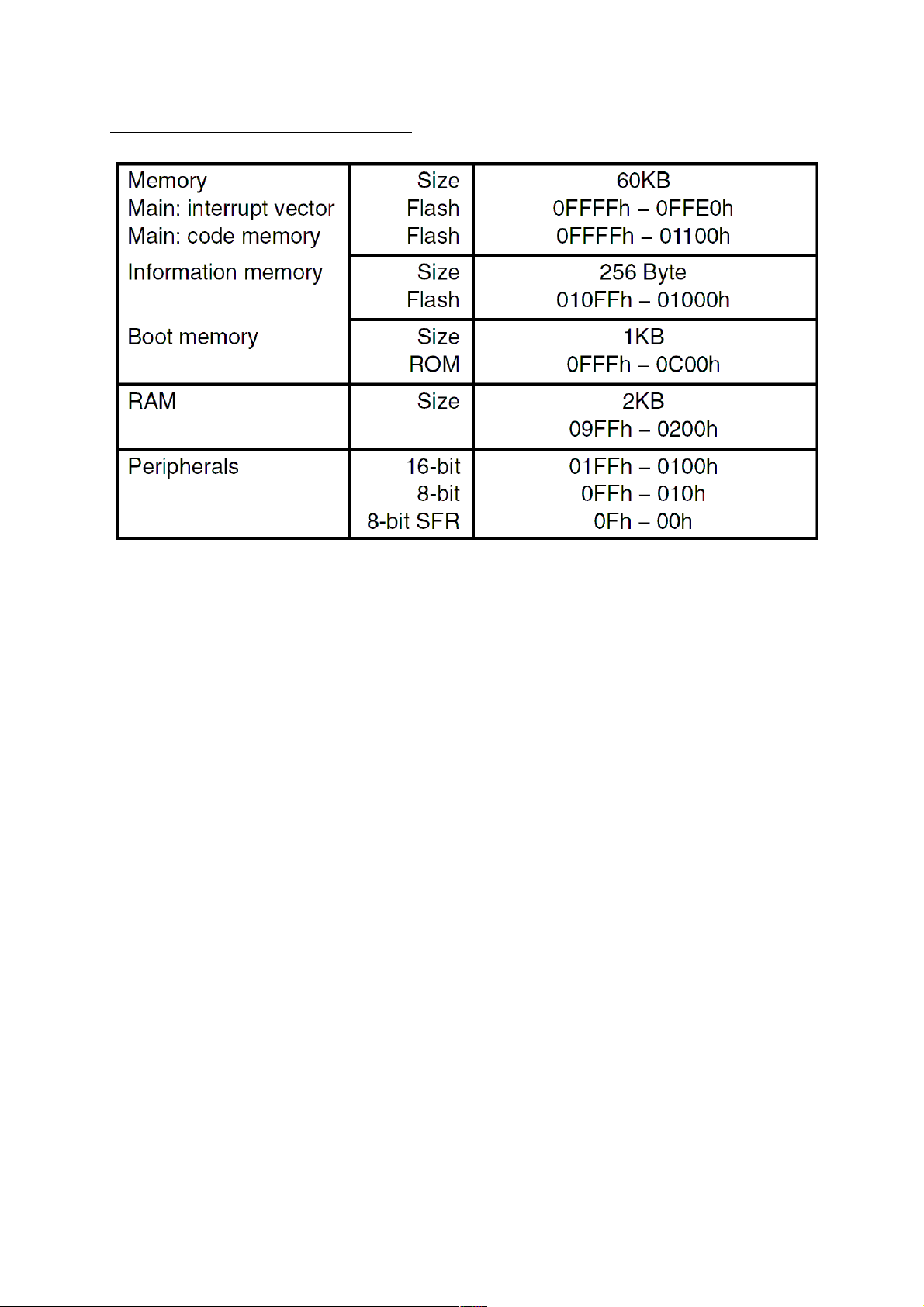

MEMORY ORGANIZATION:

Page 5

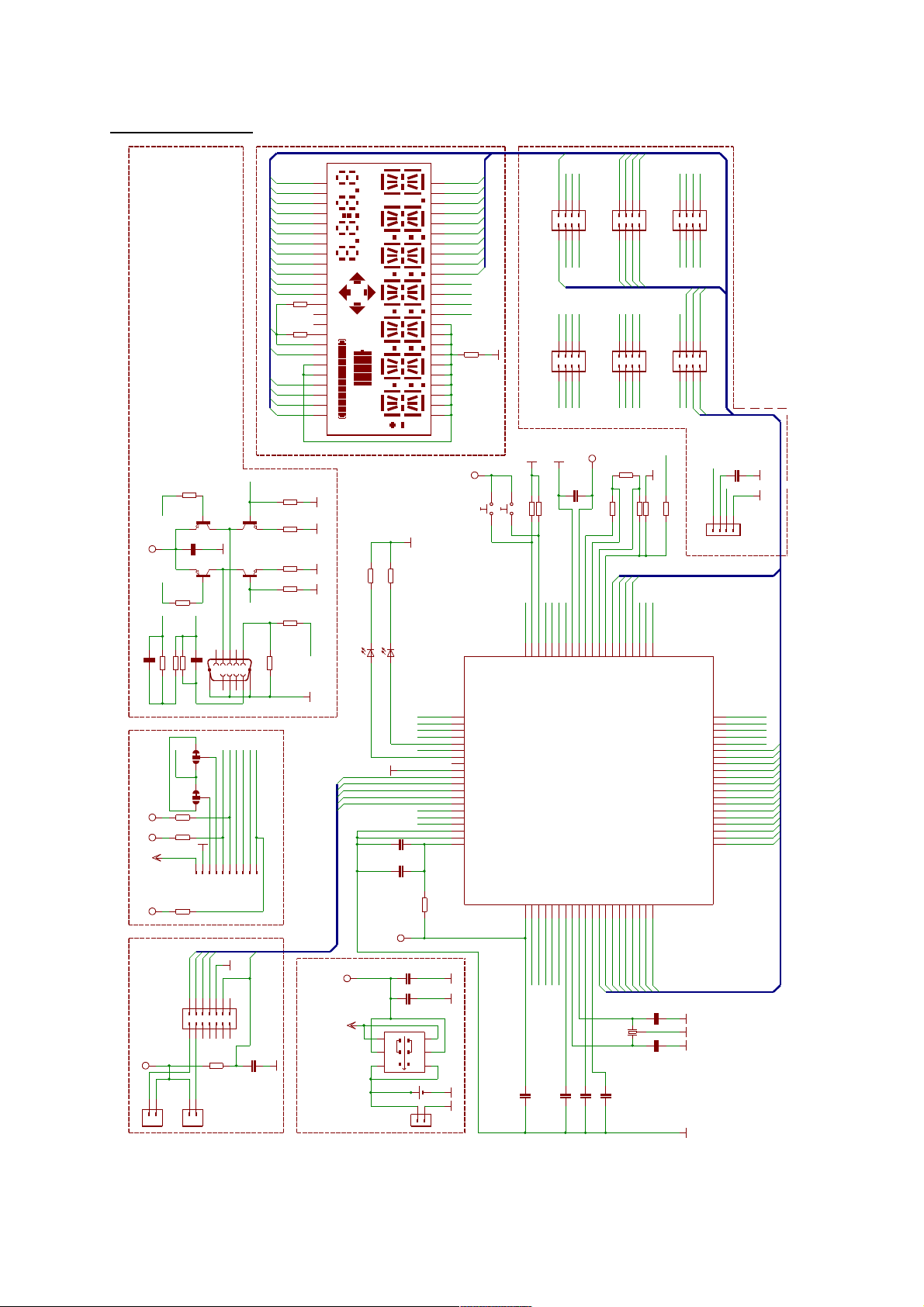

SCHEMATIC:

Page 6

BC-20 01

WF 2S

IS-1390(Default: UEXT is closed)

10 nF

10uF/6.3V

10 nF

10 0nF

NA

10 0nF

NA NA

10 0nF

10 uF/6. 3V

100nF

3.3 pF

47 pF

10uF/6.3V

1-2:Open; 2-3:Close 1-2:Open; 2-3:Close

BH1 4S

OL IMEX _LTD

GYX-SD-TC0805SURK(RED)

NA( HN2 X4) NA( HN2 X4)

DB9 BFR

HN 1x2( Ope n)

HN 1x2( Clos e)

32 768H z/6 pF

10 0k

10 k

4.7 k 4.7 k

1k

10 0k

68 0k

680 kNA15 0k

NA(0R)

4.7 k

10 k

20 R 4.7 k20 R4.7 k

15 k

10 0k

47 0k

4.7 k

15 0k

NA( 0R)

NA

T1107A(6x3.8x2.5mm)

BC80 7-40 SM D BC81 7-40 SMD

MSP 430 FG43 9

BH1 0SBH1 0SBH1 0SBH1 0SBH1 0SBH1 0SBH1 0SBH1 0SBH1 0SBH1 0S

VCC

VCC VCCVCC3.3 V_U EXT

3.3 V_U EXT

AVCC

CO M0

COM0

CO M1

COM1

CO M2

COM2

CO M3

COM3

GN D

GND

P1.0

P1. 0

P1.1

P1. 1

P1.2

P1 .2

P1.3

P1 .3

P1.4

P1. 4

P1.5

P1. 5

P1.6

P1. 6

P1 .7

P1. 7

P2. 0

P2. 1

P2. 2

P2 .2

P2. 2

P2. 3

P2 .3

P2. 3

P3. 0 P3. 0

P3. 0

P3.4

P3. 4

P3.4

P3.5

P3. 5

P3.5

P3.6

P3 .6

P3.6

P3.7

P3 .7

P3.7

P6.0

P6. 0

P6 .0

P6.1

P6. 1

P6 .1

P6.2

P6 .2

P6. 3

P6 .3

P6. 3

P6. 4

P6. 5

P6. 6

P6. 7

R0 3

R1 3

R2 3

R3 3

RST

S0

S1

S2

S3 S3S3S4 S4S4S5

S5

S6

S7

S8

S9

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S22

S23

SIMO 0

SIM O0

SO MI0

TCK

TDI

TDO

TMS

UC LK0

UCLK0

UC LK0

UR XD0 UR XD0

UR XD0

UTX D0

VCC

VER EF+

VER EF-

VRE F+

XIN

XO UT

+ -

3V-LI_BAT

1

2

BAT

1

2

3

4

5

6

BAT/UEXT

C1

C2 C3

C4

C5

C6

C7

C8

C9 C1 0

C1 1

C1 2

C18

C2 0

C2 1

C22

1

2

3

J1

1

2

3

J2

12345678910

1112

1314

JTA G

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

2425

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

LC D

LED 1

LED 2

123456

78

PO RT1

123456

78

PO RT2

123456

78

POR T3

123456

78

POR T4

123456

78

PO RT5

123456

78

PO RT6

12345

678

9

G1

G2

PRO BE

1

2

P_I N

1

2

P_O UT

Q1

R1

R2

R3 R4

R5

R6

R7

R8

R9

R1 0

R1 1

R1 2

R2 6

R27

R28

R2 9

R3 1

R3 2

R3 3 R34R3 5R3 6

R3 7

R3 8

R3 9

R4 0

R4 1

R4 2

123

4

REF

SW 1

SW 2

T1

T2

T3

T4

AVCC

80

AVSS

78

COM0

44

DVCC1

1

DVCC2

52

DVSS1

79

DVSS2

53

P1.0/TA0

67

P1.1/TA0/MCLK

66

P1.2/TA1

65

P1.3/TBOUTH/SVSOUT

64

P1.4/TBCLK/SMCLK

63

P1.5/TACLK/ACLK

62

P1.6/CA0

61

P1.7/CA1

60

P2.0/TA259P2.1/TB058P2.2/TB157P2.3/TB2

56

P2.4/UTXD0

55

P2.5/URXD0

54

P2.6/CAOUT/S19

31

P2.7/ADC12CLK/S18

30

P3.0/STE0/S31

43

P3.1/SIMO0/S3042P3.2/SOMI0/S29

41

P3.3/UCLK0/S28

40

P3.4/S27

39

P3.5/S26

38

P3.6/S25/DMAE0

37

P3.7/S24

36

P4.0/S9

21

P4.1/S820P4.2/S719P4.3/S618P4.4/S517P4.5/S416P4.6/S3/A1515P4.7/S2/A1414P5.0/S1/A1313P5.1/S0/A12/DAC1

12

P5.2/COM145P5.3/COM246P5.4/COM3

47

P5.5/R1349P5.6/R2350P5.7/R33

51

P6.0/A0/OA0I0

75

P6.1/A1/OA0O

76

P6.2/A2/OA0I1

77

P6.3/A3/OA1I1/OA1O2P6.4/A4/OA1I03P6.5/A5/OA2I1/OA2O4P6.6/A6/DAC0/OA2I05P6.7/A7/DAC1/SVSIN

6

R03

48

RST/NMI

74

S10

22

S11

23

S12

24

S13

25

S14

26

S15

27

S16

28

S17

29

S20

32

S21

33

S22

34

S23

35

TCK

73

TDI

71

TDO/TDI

70

TMS

72

VEREF+ /DAC010VREF+7VREF-/VE REF-11XIN8XOUT

9

XT2IN

69

XT2OUT

68

U1

UEX T-1

UEX T-2

UEX T-3

UEX T-4

UEX T-5

UEX T-6

UEX T-7

UEX T-8

UEX T-9

UEX T-10

MOD-PULSE

Re v. B

CO PYRI GHT( C) 2 011 , OL IMEX Ltd .

htt p://w ww. olime x.co m/de v

+

a

b

c

d

e

f g

OLIMEX

umHF

GN D

0R

UEXTJTAG

POWER SUPPLY

Extensions

LCD

Pulsoximeter measurement

OA0I0

OA 0O

OA 1I0

OA 1O

circuit

OA 0I1

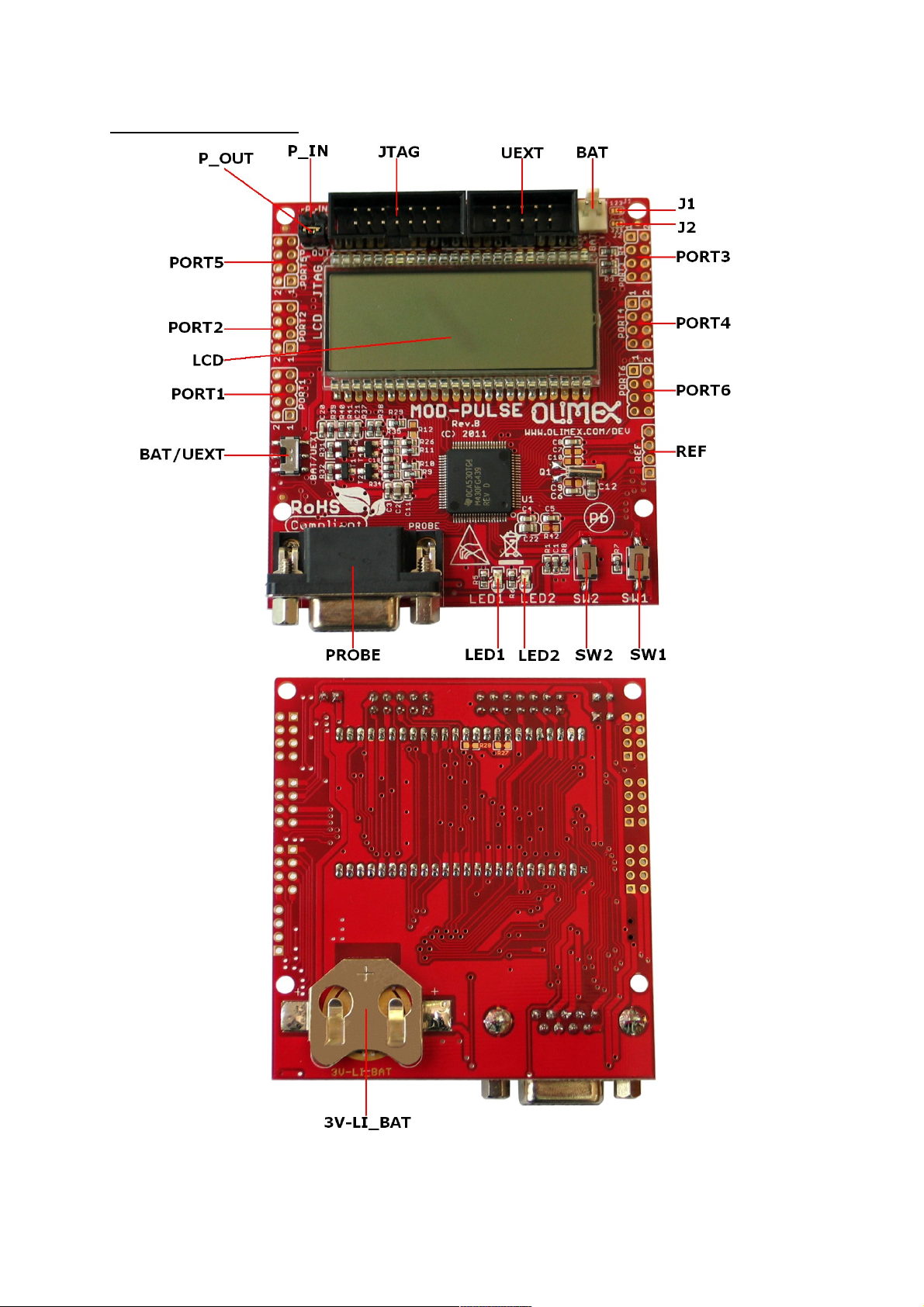

BOARD LAYOUT:

Page 7

POWER SUPPLY CIRCUIT:

MOD-PULSE can take power from:

–UEXT connector, when BAT/UEXT switch is in position UEXT. In this case the

jumper P_OUT has to be closed.

–JTAG, when jumper P_IN is closed.

–+3V via BAT connector, when BAT/UEXT switch is in position BAT. In this case

the jumper P_OUT has to be closed.

–+3V lithium battery via 3V-LI_BAT connector, when BAT/UEXT switch is in

position BAT. In this case the jumper P_OUT has to be closed.

The programmed board power consumption is about 30 mA with all peripherals enabled. So, we recommend you to supply the board via BAT connector instead of 3V-LI_BAT connector.

RESET CIRCUIT:

MOD-PULSE reset circuit includes R1 (100k), C1 (10nF), JTAG connector

pin 11 and MSP43FG439 pin 74 (RST/NMI).

CLOCK CIRCUIT:

Quartz crystal Q1 32.768 kHz is connected to MSP430FG439 pin 8 (XIN)

and pin 9 (XOUT).

JUMPER DESCRIPTION:

P_IN

When this jumper is closed, the board is power supplied by the standard JTAG pin 2. This is only possible when the consumption of the board is not very high which is typically the case with MSP430 microcontrollers. If this jumper is open the board should be power supplied by another external source. This jumper and P_OUT should always be reversely open/closed, i.e. if P_IN is closed, P_OUT should be open and vice versa. Default state is opened.

P_OUT

When this jumper is closed, the board is power supplied not by the JTAG but from external source. Then the JTAG has to synchronize with the working voltages which is done through this line. This is especially important when debugging with JTAG. This jumper and P_IN should always be reversely open/closed, i.e. if P_OUT is closed, P_IN should be open and vice versa.

Default state is closed.

Page 8

J1

When jumper J1 is shorted in position 1-2, UEXT pin 3 is connected to MSP430FG439 pin 55 (P2.4/UTXD0) – signal “UTXD0”. When jumper J1 is shorted in position 2-3, UEXT pin 3 is connected to MSP430FG439 pin 54 (P2.5/URXD0) – signal “URXD0”. Default state is shorted in position 2-3.

J2

When jumper J2 is shorted in position 1-2, UEXT pin 4 is connected to MSP430FG439 pin 54 (P2.5/URXD0) – signal “URXD0”. When

jumper J2 is shorted in position 2-3, UEXT pin 4 is connected to

MSP430FG439 pin 55 (P2.4/UTXD0) – signal “UTXD0”.

Default state is shorted in position 2-3.

Depending on jumpers J1 and J2 configuration, the board can work in host, or in device mode.

The default state of J1 and J2 is for device mode (shorted in position 2-3).

INPUT/OUTPUT:

Status led with name LED1 (red) connected to MSP430FG439 pin 67 (P1.0/TA0).

Status led with name LED2 (red) connected to MSP430FG439 pin 65 (P1.2/TA1).

User button with name SW1 connected to MSP430FG439 pin 59 (P2.0/TA2).

User button with name SW2 connected to MSP430FG439 pin 58 (P2.1/TB0).

Power supply switch with name BAT/UEXT – when in position BAT – the board is

power supplied via +3V lithium battery, when is in position UEXT – the board is connected to other board with UEXT and is power supplied by the other board via UEXT connector.

LCD custom display.

Page 9

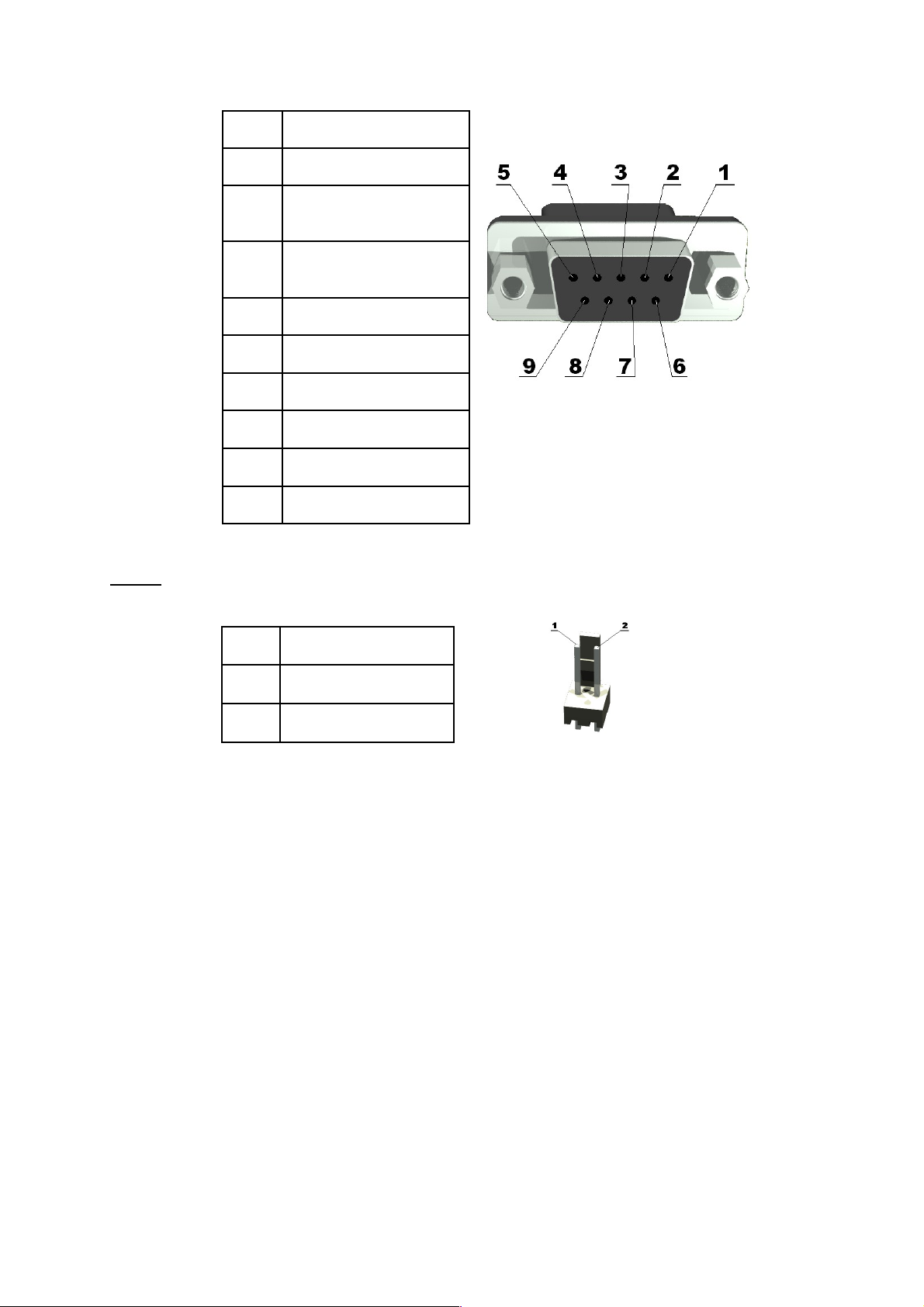

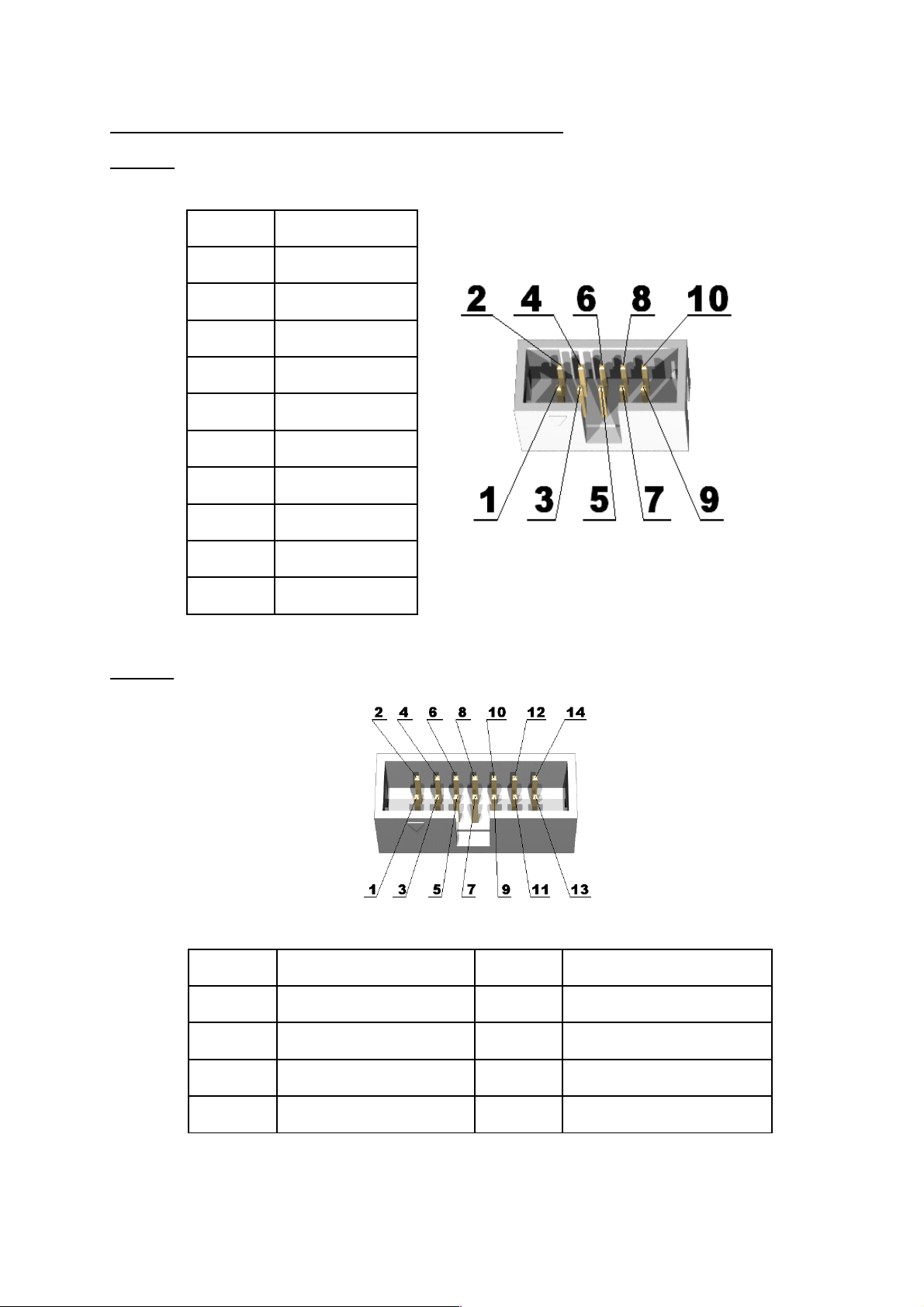

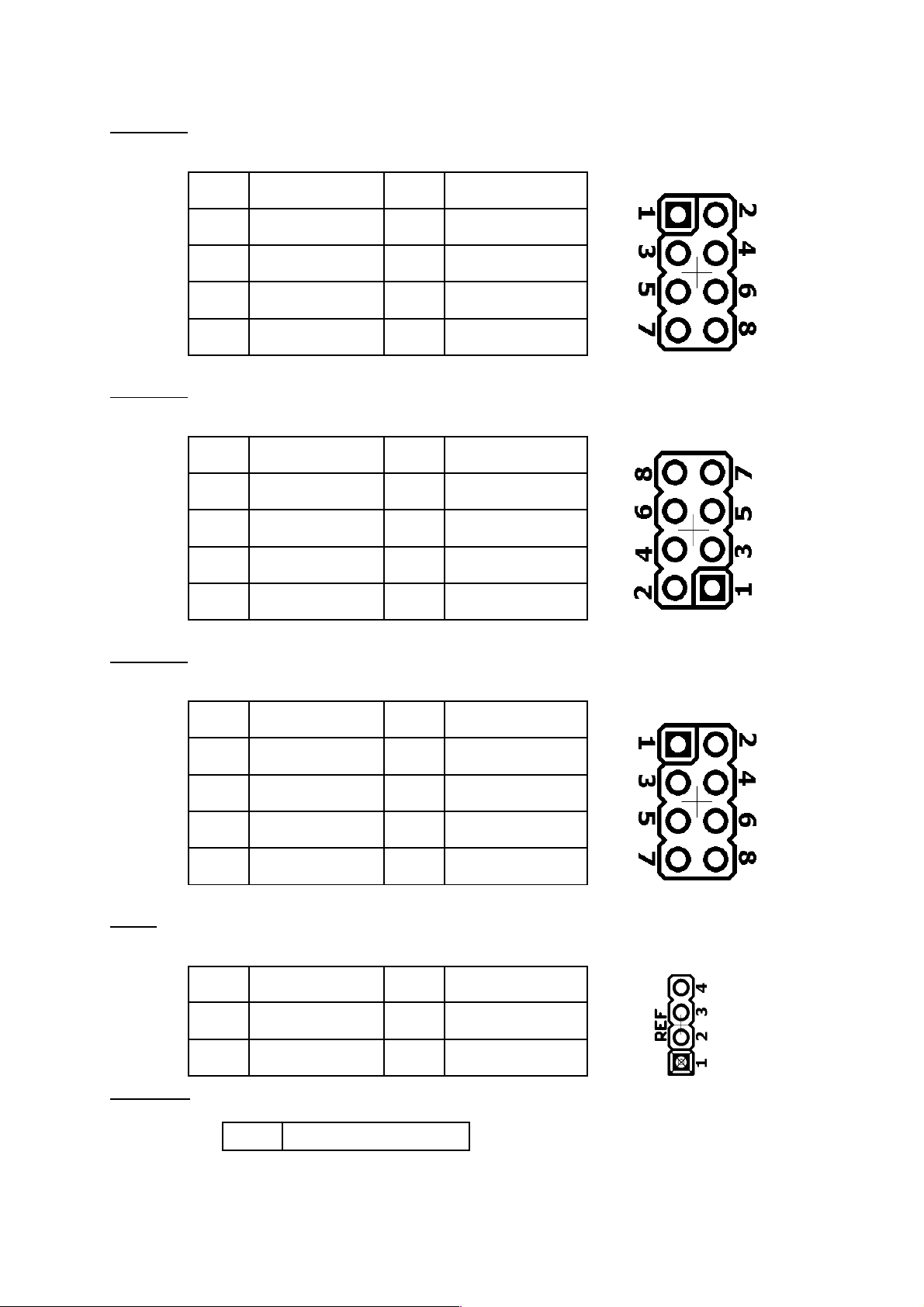

EXTERNAL CONNECTORS DESCRIPTION:

UEXT:

Pin # Signal Name

1 VDD

2 GND

3 TX

4 RX

5 P1.4

6 P1.5

7 SOMI0

8 SIMO0

9 UCLK0

10 P3.0

JTAG:

Pin # Signal Name Pin # Signal Name

1 TDO 2 Via P_IN to VCC

3 TDI 4 Via P_OUT to VCC

5 TMS 6 Not Connected

7 TCK 8 Not Connected

Page 10

9 GND 10 Not Connected

11 RST 12 Not Connected

13 Not Connected 14 Not Connected

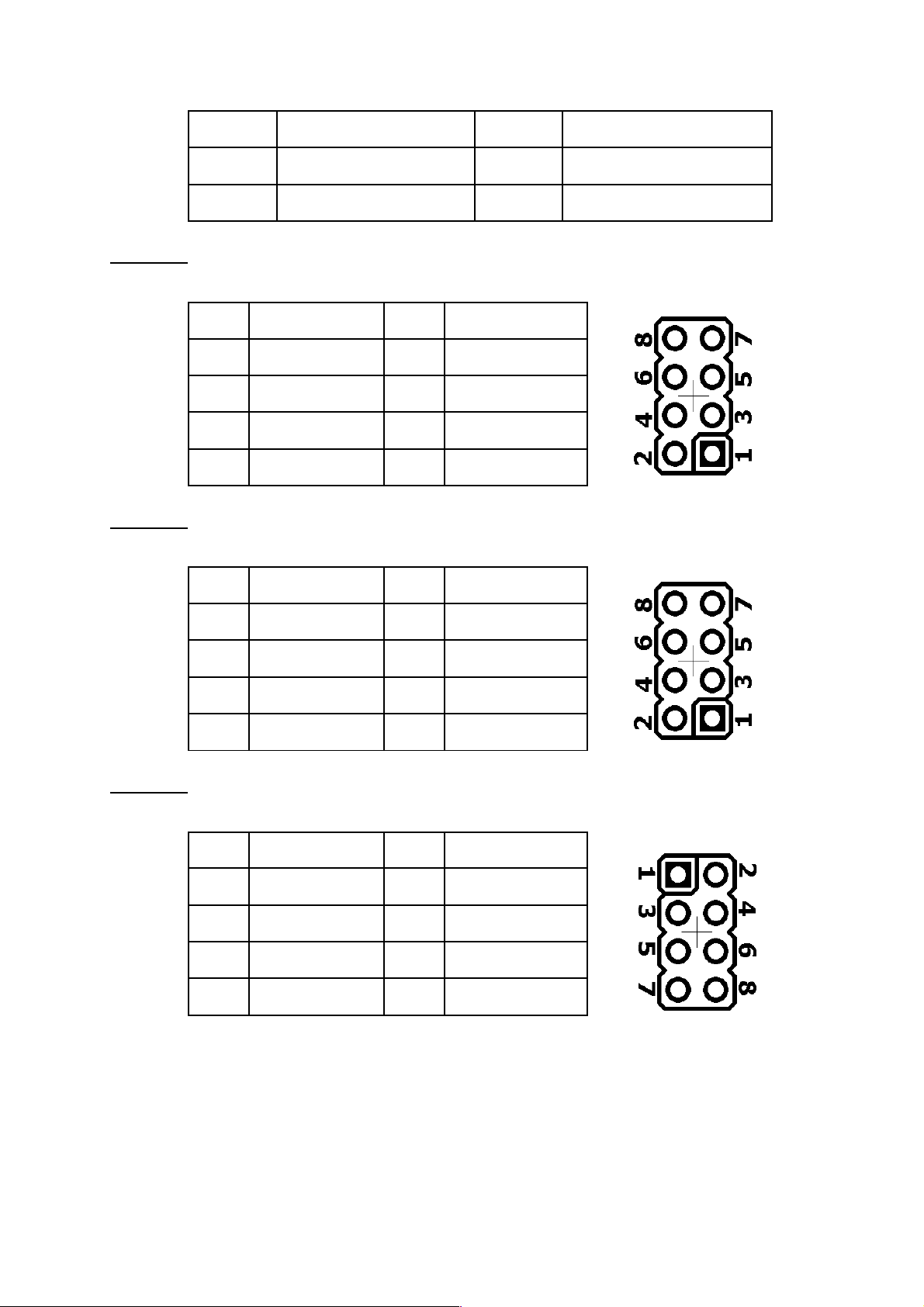

PORT1:

Pin # Signal Name Pin # Signal Name

1 P1.0 2 P1.1

3 P1.2 4 P1.3

5 P1.4 6 P1.5

7 P1.6 8 P1.7

PORT2:

Pin # Signal Name Pin # Signal Name

1 P2.0 2 P2.1

3 P2.2 4 P2.3

5 UTXD0 6 URXD0

7 S19 8 S18

PORT3:

Pin # Signal Name Pin # Signal Name

1 P3.0 2 SIMO0

3 SOMI0 4 UCLK0

5 P3.4 6 P3.5

7 P3.6 8 P3.7

Page 11

PORT4:

Pin # Signal Name Pin # Signal Name

1 S9 2 S8

3 S7 4 S6

5 S5 6 S4

7 S3 8 S2

PORT5:

Pin # Signal Name Pin # Signal Name

1 S1 2 S0

3 COM1 4 COM2

5 COM3 6 R13

7 R23 8 R33

PORT6:

Pin # Signal Name Pin # Signal Name

1 P6.0 2 P61

3 P6.2 4 P6.3

5 P6.4 6 P6.5

7 P6.6 8 P6.7

REF:

Pin # Signal Name Pin # Signal Name

1 VEREF+ 2 VREF+

3 VEREF- 4 GND

PROBE:

Pin # Signal Name

Page 12

1 Not Connected

2 Driving line for sensor's

infrared and red led

3 Driving line for sensor's

infrared and red led

4 Not Connected

5 P6.2

6 Not Connected

7 GND

8 Not Connected

9 P6.0

BAT:

Pin # Signal Name

1 to BAT/UEXT switch

2 GND

Page 13

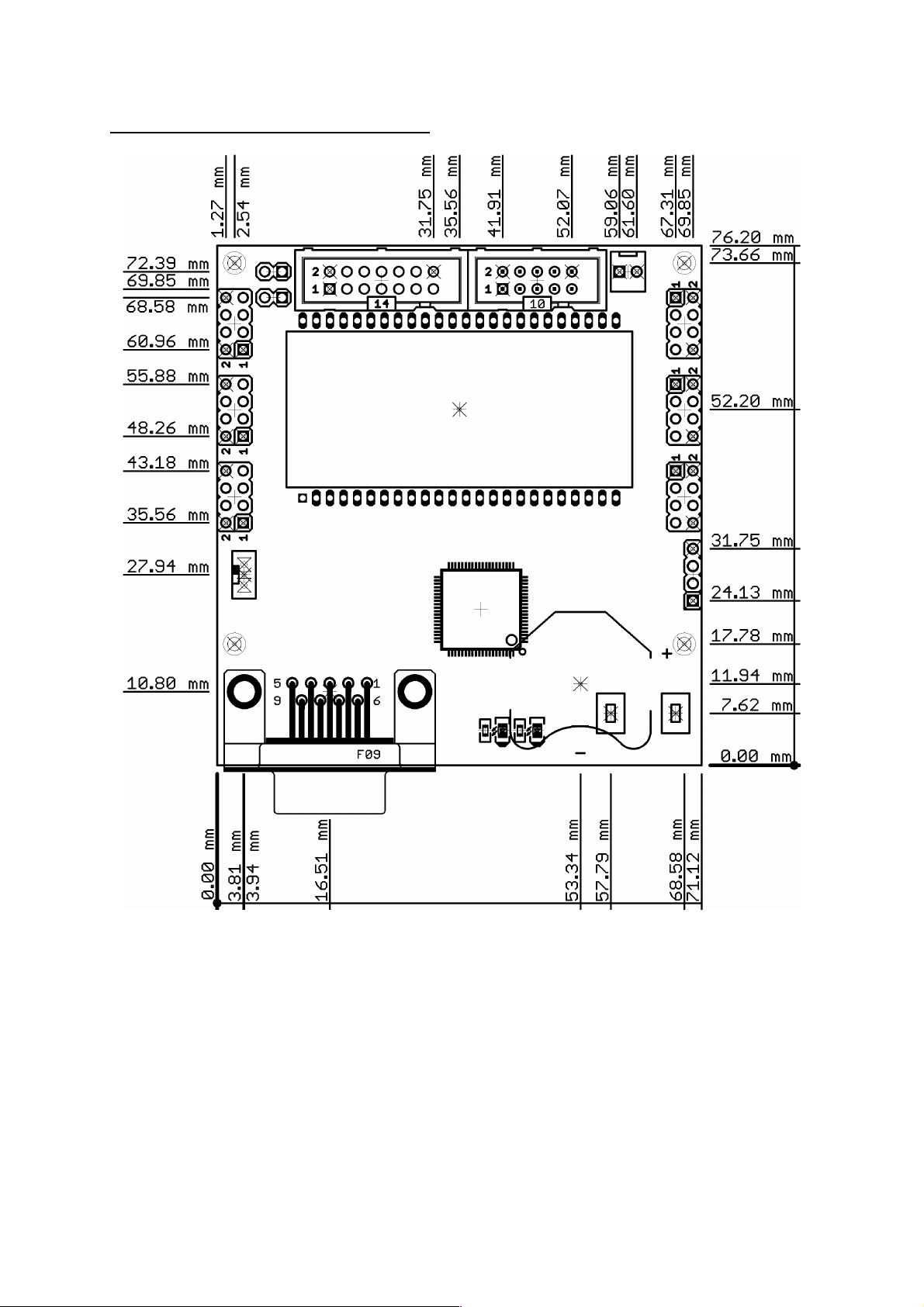

MECHANICAL DIMENSIONS:

Page 14

AVAILABLE DEMO SOFTWARE:

Demonstrates blood oxygenation and heart rate measurement. For this demo you must connect sensor to MOD-PULSE's PROBE connector.

–MOD-PULSE_DemoSoft IAR for MSP v4.21

Page 15

ORDER CODE:

MOD-PULSE - assembled and tested board

How to order?

You can order to us directly or by any of our distributors. Check our web www.olimex.com/dev for more info.

Revision history:

Board's revision: Rev. B, June 2011

Manual's revision: Rev. Initial, June 2011

Page 16

Disclaimer:

© 2011 Olimex Ltd. All rights reserved. Olimex®, logo and combinations thereof, are registered trademarks of Olimex Ltd. Other terms and product names may be trademarks of others. The information in this document is provided in connection with Olimex products. No license, express or implied or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Olimex products. Neither the whole nor any part of the information contained in or the product described in this document may be adapted or reproduced in any material from except with the prior written permission of the copyright holder. The product described in this document is subject to continuous development and improvements. All particulars of the product and its use contained in this document are given by OLIMEX in good faith. However all warranties implied or expressed including but not limited to implied warranties of merchantability or fitness for purpose are excluded. This document is intended only to assist the reader in the use of the product. OLIMEX Ltd. shall not be liable for any loss or damage arising from the use of any information in this document or any error or omission in such information or any incorrect use of the product.
