OKI C310, C330, C510, C530 User Guide

C310/C330/C510/C530

User’s Guide

REFACE

Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. The manufacturer assumes no responsibility for the results of errors beyond its control. The manufacturer also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it. Mention of software products manufactured by other companies does not necessarily constitute endorsement by the manufacturer.

While all reasonable efforts have been made to make this document as accurate and helpful as possible, we make no warranty of any kind, expressed or implied, as to the accuracy or completeness of the information contained herein.

The most up-to-date drivers and manuals are available from:

http://www.okiprintingsolutions.com

Oki is a registered trademark of Oki Electric Industry Company, Ltd.

Oki Printing Solutions is a trademark of Oki Data Corporation.

Energy Star is a trademark of the United States Environmental Protection Agency.

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corporation.

Apple, Macintosh, Mac and Mac OS are registered trademarks of Apple Computer.

Other product names and brand names are registered trademarks or trademarks of their proprietors.

As an Energy Star Program Participant, the manufacturer has determined that this product meets the Energy Star guidelines for energy efficiency.

This product complies with the requirements of the Council Directives 2004/ 108/EC (EMC), 2006/95/EC (LVD), 1999/5/ EC (R&TTE) and 2009/125/EC (EuP), as amended where applicable on the approximation of the laws of the member states relating to electromagnetic compatibility, low voltage, radio & telecommunications terminal equipment, and energy using products

The following cables were used to evaluate this product to achieve EMC directive 2004/108/EC compliance and configurations other than this may affect that compliance.

CABLE TYPE LENGTH

(METRE)

Power 1.8

USB 5.0

LAN 15.0

CORE SHIELD

✘✘

✘ ✔

✘✘

Preface > 2

MERGENCY FIRST AID

Take care with toner powder:

If swallowed, give small amounts of cold water and seek medical attention. DO NOT attempt to induce vomiting.

If inhaled, move the person to an open area for fresh air. Seek medical attention.

If it gets into the eyes, flush with large amounts of water for at least 15 minutes keeping eyelids open. Seek medical attention.

Spillages should be treated with cold water and soap to help reduce risk of staining skin or clothing.

ANUFACTURER

Oki Data Corporation, 4-11-22 Shibaura, Minato-ku, Tokyo 108-8551, Japan

MPORTER TO THE

Oki Europe Limited (trading as OKI Printing Solutions)

Blays House Wick Road Egham Surrey, TW20 0HJ United Kingdom

EU/

AUTHORISED REPRESENTATIVE

For all sales, support and general enquiries contact your local distributor.

NVIRONMENTAL

INFORMATION

Emergency first aid > 3

ONTENTS

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Emergency first aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Manufacturer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Importer to the EU/authorised representative. . . . . . . . . . . . . . . . . . . . .3

Environmental information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Notes, cautions and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Documentation suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

On-line usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Printing pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Power saving mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Paper recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Cassette trays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Multi purpose tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Face down stacker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Face up stacker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Duplex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Loading paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Cassette trays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Multi purpose tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

C310 and C510 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

C330 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

C530 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Printing settings in Windows (C310 and C510 only) . . . . . . . . . . . . . . .21

Printing preferences in windows applications . . . . . . . . . . . . . . . . . . . . . .21

Setup tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Job options tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Colour tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Setting from windows control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

General tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Advanced tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Printing settings in Mac OS X (C310 and C510 only) . . . . . . . . . . . . . . .26

Setting printing options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Setting printing options - saving driver settings . . . . . . . . . . . . . . . . . . . .26

Changing the default printer and paper size . . . . . . . . . . . . . . . . . . . . . . .27

Page setup options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Print options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Copies & pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Paper handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

ColorSync. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Cover page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Duplex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Contents > 4

Paper source. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Print quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Colour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Printer setup options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Printer options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

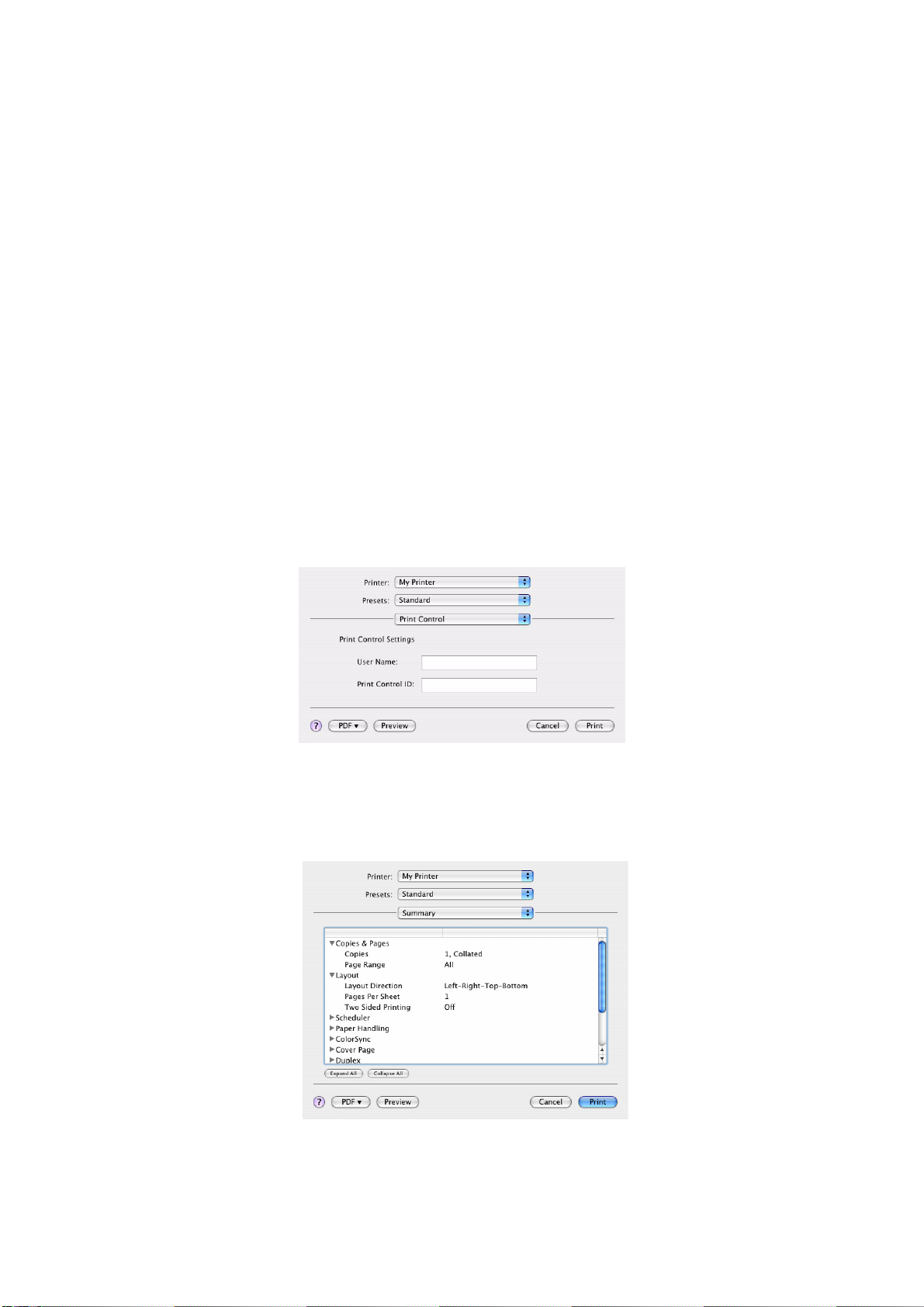

Print control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Colour printing (C310 and C510 only) . . . . . . . . . . . . . . . . . . . . . . . . . .34

Factors that affect the appearance of prints . . . . . . . . . . . . . . . . . . . . . . .34

Tips for printing in colour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Printing photographic images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Printing from Microsoft Office applications . . . . . . . . . . . . . . . . . . . . . .35

Printing specific colours (e.g. a company logo) . . . . . . . . . . . . . . . . . . .35

Adjusting the brightness or intensity of a print . . . . . . . . . . . . . . . . . . .35

Accessing the colour matching options. . . . . . . . . . . . . . . . . . . . . . . . . . .36

Setting the colour matching options . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Using the colour swatch feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Using the colour correct utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Menu functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Operator panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

How to change the settings - user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

How to change the settings - administrator . . . . . . . . . . . . . . . . . . . . . . .40

Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Print jobs menu - C530 only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Information menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Shutdown menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Print menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Media menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Color menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Sys config menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

PCL emulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

PPR emulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

FX emulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

USB menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Network menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Memory menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Sys Adjust menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Maintenance menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Usage menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Administrator Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Print statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Replacing consumable items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Toner cartridge replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Image drum replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Replacing the transfer belt unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Fuser replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

...the unit casing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

...the LED head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Installing upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Memory upgrade (C330 and C530 only). . . . . . . . . . . . . . . . . . . . . . . . . .75

SD card (C530 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Additional paper tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Setting the driver device options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Mac OS X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Contents > 5

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Major printer components and paper path . . . . . . . . . . . . . . . . . . . . . . . .83

Paper sensor error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Clearing paper jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Dealing with unsatisfactory printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Oki contact details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Contents > 6

OTES, CAUTIONS AND WARNINGS

NOTE A note provides additional information to supplement the main text.

CAUTION!

A caution provides additional information which, if ignored, may result in equipment malfunction or damage.

WARNING!

A warning provides additional information which, if ignored, may result in a risk of personal injury.

For the protection of your product, and in order to ensure that you benefit from its full functionality, this model has been designed to operate only with genuine original toner cartridges. Any other toner cartridge may not operate at all, even if it is described as “compatible”, and if it does work, your product's performance and print quality may be degraded.

Use of non-genuine products may invalidate your warranty.

Specifications subject to change without notice. All trademarks acknowledged.

Notes, cautions and warnings > 7

BOUT THIS GUIDE

NOTE Images used in this manual may include optional features that your product does not have installed.

OCUMENTATION SUITE

This guide is part of a suite of online and printed documentation provided to help you become familiar with your product and to make the best use of its many powerful features. The documentation is summarised below for reference and is found on the manuals DVD unless indicated otherwise:

> Installation Safety booklet: provides information for safe use of your product.

This is a paper document that is packaged with the product and should be read before setting up your machine.

> Set-up guide: describes how to unpack, connect and turn on your product.

This is a paper document that is packaged with the product.

> User’s Guide: helps you become familiar with your product and make the best use

of its many features. Also included are guidelines for troubleshooting and maintenance to ensure that it performs at its best. Additionally, information is provided for adding optional accessories as your printing needs evolve.

> Network Guide: helps you become familiar with the functionality of the built in

network interface card.

> Printing Guide

software supplied with your product.

> Barcode Printing Guide

barcode printing feature.

> Security Guide

> Installation Guides: accompany consumable items and optional accessories to

describe how to install them.

These are paper documents that are packaged with the consumables and optional accessories.

> On-line Help: on-line information accessible from the printer driver and utility

software.

: helps you become familiar with the many features of the driver

: helps you become familiar with your product’s built in

: helps you become familiar with your product’s security features.

1. C330 and C530 only.

2. C530 only.

About this guide > 8

ON-

LINE USAGE

This guide is intended to be read on screen using Adobe Reader. Use the navigation and viewing tools provided in Adobe Reader.

There are many cross-references within this book, each highlighted as blue text. When you click on a cross-reference the display will instantly jump to the part of the manual containing the referenced material.

By using the button in Adobe Reader, you can navigate directly back to where you were before.

You can access specific information in two ways:

> In the list of bookmarks down the left hand side of your screen, click on the topic of

interest to jump to the required topic. (If the bookmarks are not available, use the

“Contents” on page 4.)

> In the list of bookmarks, click on Index to jump to the Index. (If the bookmarks are

not available, use the “Contents” on page 4.) Find the term of interest in the alphabetically arranged index and click on the associated page number to jump to the page containing the term.

RINTING PAGES

The whole manual, individual pages, or sections may be printed. The procedure is:

1. From the toolbar, select File > Print (or press the Ctrl + P keys).

2. Choose which pages you wish to print:

(a) All pages, (1), for the entire manual.

(b) Current page, (2), for the page at which you are looking.

1 2 3

page numbers.

(d) Click OK.

About this guide > 9

NTRODUCTION

Congratulations on choosing this colour printer. Your new printer is designed with advanced features to give you clear, vibrant colour prints and crisp black and white pages at high speed on a range of print media for the office.

Your printer includes these features:

> ProQ2400, multi-level technology produces subtler tones and smoother gradations

of colour to lend photographic quality to your documents.

> 600 x 600, 1200 x 600 dpi (dots per inch) and ProQ2400 print resolution for high

quality image production showing the finest detail.

> Internet Protocol version 6 (IPv6).

> Single Pass colour Digital LED technology for high speed processing of your printed

pages.

> PostScript 3, PCL 5C, PCL 6 and Epson FX emulations for industry standard operation

and wide compatibility with most computer software.

> 10Base-T and 100Base-TX network connection lets you share this valuable resource

among users on your office network.

> Photo Enhance mode to improve printouts of photographic images (not available on

PS drivers).

> Automatic two-sided (duplex) printing for economical use of paper and compact

printing of larger documents.

> “Ask Oki” – a user-friendly function for Windows that provides a direct link from your

printer driver screen to a dedicated web site specific to the exact model you are using. This is where you’ll find all the advice, assistance and support you could need to help you get the best possible results from your Oki printer.

> Tem pl a te Ma n ag er utility for Windows enables the design and print of business

cards, banners, labels with ease.

Additionally, the following optional features are also available:

> Additional paper tray for loading a further 530 sheets to minimise operator

intervention, or different paper stocks for letterhead stationery, alternative paper sizes or other print media.

> Additional memory allows printing of more complex pages. For example, high

resolution banner printing.

> SD card for storage of overlays, macros and downloadable fonts, and automatic

collation of multiple copies of multipage documents and the download of ICC Profiles.

1. C330 and C530 only.

2. C530 only.

Introduction > 10

VERVIEW

RONT VIEW

1. Output stacker, face down.

Standard printed copy delivery point. Holds

up to 150 sheets at 80g/m².

2. Operator panel.

Menu driven operator controls and LCD

panel

3. Paper tray.

Standard paper tray. Holds up to 250 sheets

of 80g/m² paper.

4. Multi purpose tray.

Used for feeding heavier paper stocks,

envelopes and other special media. Also for

manual feeding of single sheets when

required.

a. The display language can be changed to show different languages. (see “Changing the

display language” on page 12).

5. Multi-purpose tray release recess.

6. Top cover release button.

7. LED heads.

8. Fuser release levers.

9. Toner cartridges (C,M,Y,K).

10. ID unit.

Introduction > 11

EAR VIEW

4 5

1. ON/OFF switch.

2. AC power socket.

3. Rear, face up stacker.

a. The Network Interface may have a protective “plug” which

must be removed before connection can be made.

4. USB interface.

5. SD card slot (C530 only).

6. Network interface.

When the rear paper stacker is folded down paper exits the printer through the rear of the printer and is stacked here face up. This is mainly used for heavy print media. When used in conjunction with the multi purpose feed tray, the paper path through the printer is essentially straight. This avoids bending the paper around curves in the paper path and enables feeding of up to 220g/m² media.

HANGING THE DISPLAY LANGUAGE

The default language used by your machine for display messages is English. If required, this can be changed using the Panel Language Set-up utility.

Introduction > 12

ETTING STARTED

OWER SAVING MODE

If you do not use the machine for a while, it will enter the power saving mode to control the power consumption of the device. To cancel or initiate power saving mode, press the Power Save button on the control panel.

NOTE If your machine is connected locally (via USB), when it transitions to Sleep mode its status is viewed as off-line. To use the printer in this state, you must press the Power Save button to exit sleep mode.

WITCHING OFF

CAUTION!

If you have an SD card fitted, always follow the correct shutdown procedure to ensure that no data is lost.

1. Press the OK button on the control panel to enter the menu.

2. Press the Menu down button and scroll to the Shutdown menu.

3. Press the OK button.

4. Press the OK button to execute.

5. At the prompt, turn the power switch OFF.

Introduction > 13

APER RECOMMENDATIONS

Your printer will handle a variety of print media, including a range of paper weights and sizes, labels and envelopes. This section provides general advice on choice of media, and explains how to use each type.

The best performance will be obtained when using standard 75~90g/m² paper designed for use in copiers and laser printers.

Use of heavily embossed or very rough textured paper is not recommended.

Pre-printed stationery can be used, but the ink must not offset when exposed to the high fuser temperatures used in the printing process.

Envelopes

CAUTION!

Envelopes should be free from twist, curl or other deformations. They should also be of the rectangular flap type, with glue that remains intact when subjected to hot roll pressure fusing used in this type of printer. Window envelopes are not suitable.

Labels

CAUTION!

Labels should also be of the type recommended for use in copiers and laser printers, in which the base carrier page is entirely covered by labels. Other types of label stock may damage the printer due to the labels peeling off during the printing process.

ASSETTE TRAYS

SIZE DIMENSIONS WEIGHT (G/M²)

A6 A5 148 x 210mm B5 182 x 257mm Executive 184.2 x 266.7mm A4 210 x 297mm Letter 215.9 x 279.4mm Legal 13in. 216 x 330mm Legal 13.5in. 216 x 343mm Legal 14in. 216 x 356mm

a. A6 printing from Tray 1 or the MP Tray only.

105 x 148mm Light 64 - 74g/m²

Medium Light 75 - 82g/m²

Medium 83 - 104g/m²

Heavy 105 - 120g/m²

Ultra heavy1 121 - 176g/m²

Ultra heavy2 177 - 220g/m²

Tray 1/2: 64 - 176g/m²

MP Tray: 64 - 220g/m²

Duplex: 64 - 176g/m²

If you have identical paper stock loaded in another tray (2nd tray if you have one, or multi purpose tray) you have the printer automatically switch to the other tray when the current

tray runs out of paper. When printing from Windows applications, this function is enabled in the driver settings. When printing from other systems, this function is enabled in the Print Menu. (See “AUTO TRAY SWITCH” on page 43.)

Paper recommendations > 14

ULTI PURPOSE TRAY

The multi purpose tray can handle the same sizes as the cassette trays but in weights up to 220 that the paper path through the printer is almost straight.

The multi purpose tray can feed paper widths from 76mm to 215.9mm and lengths from

127.0mm to 1320mm (banner printing).

For paper lengths exceeding 356mm (Legal 14in.) use paper stock between 90g/m² and 128g/m² and the face up (rear) paper stacker.

Use the multi purpose tray for printing on envelopes. Up to 10 envelopes can be loaded at one time, subject to a maximum stacking depth of 10mm.

The face down stacker on the top of the printer can hold up to 150 sheets of 80g/m² standard paper, and can handle paper stocks up to 176g/m².

Pages printed in reading order (page 1 first) will be sorted in reading order (last page on top, facing down).

The face up stacker at the rear of the printer should be opened and the tray extension pulled out when required for use. In this condition paper will exit via this path, regardless of driver settings.

g/m². For very heavy paper stock use the face up (rear) paper stacker. This ensures

ACE DOWN STACKER

ACE UP STACKER

The face up stacker can hold up to 100 sheets of 80g/m² standard paper, and can handle stocks up to 220

Always use this stacker and the multi purpose feeder for paper stocks heavier than 176g/m².

UPLEX

Automatic two-sided printing on the same range of paper sizes as tray 2 (i.e. all cassette sizes except A6), using paper stocks from 64 - 176g/m².

g/m².

Paper recommendations > 15

OADING PAPER

ASSETTE TRAYS

1. Remove the paper tray from the printer.

Fan the paper to be loaded at the edges (1) and in the middle (2) to ensure that all

sheets are properly separated, then tap the edges of the stack on a flat surface to make it flush again (3).

Loading paper > 16

3. Load paper (letter headed paper face down and top edge towards the front of the printer), as shown.

4. Adjust the rear stopper (a) and paper guides (b) to the size of paper being used.

5. Close the paper tray gently.

To prevent paper jams:

> Do not leave space between the paper and the guides and rear stopper.

> Do not overfill the paper tray. Capacity depends on the type of paper stock.

> Do not load damaged paper.

> Do not load paper of different sizes or types at the same time.

> Close the paper tray gently.

Loading paper > 17

> Do not pull the paper tray out during printing (except as described below for the 2nd

tray).

NOTE

> If you have two trays and you are printing from the 1st (upper) tray, you

can pull out the 2nd (lower) tray during printing to reload it. However, if you are printing from the 2nd (lower) tray, do not pull out the 1st (upper) tray. This will cause a paper jam.

> For face down printing, make sure the face up (rear) stacker (a) is closed

(the paper exits from the top of the printer). Stacking capacity is approximately 150 sheets, depending on paper weight.

> For face up printing, make sure the face up (rear) stacker (a) is open and

the paper support (b) is extended. Paper is stacked in reverse order and tray capacity is approximately 100 sheets, depending on paper weight.

> Always use the face up (rear) stacker for heavy paper (card stock, etc.).

CAUTION!

Do not open or close the rear paper exit while printing as it may result in a paper jam.

Loading paper > 18

ULTI PURPOSE TRAY

1. Open the multi purpose tray (a).

2. Fold out the paper supports (b).

3. Press gently down on the paper platform (c) to ensure it is latched down.

4. Load the paper and adjust the paper guides (d) to the size of paper being used.

> For single-sided printing on headed paper load the paper into the multi purpose

tray with pre-printed side up and top edge into the printer.

> For two-sided (duplex) printing on headed paper load the paper with pre-printed

side down and top edge away from the printer.

> Envelopes should be loaded face up with top edge to the left and short edge into

the printer. Do not select duplex printing on envelopes.

> Do not exceed the paper capacity of about 100 sheets or 10 envelopes. Maximum

stacking depth is 10mm.

5. Press the tray latch button inwards to release the paper platform, so that the paper is lifted and gripped in place.

6. Set the correct paper size for the multi purpose tray in the Media Menu (see “Media

menu” on page 45).

Loading paper > 19

PERATION

C310 and C510

For full details of how to use the machine and any optional accessories to print jobs efficiently and effectively, please refer to the following chapters:

> “Printing settings in Windows (C310 and C510 only)” on page 21

> “Printing settings in Mac OS X (C310 and C510 only)” on page 26

> “Colour printing (C310 and C510 only)” on page 34

C330

For full details of how to use the machine and any optional accessories to print jobs efficiently and effectively, please refer to the Printing Guide and the Barcode Guide.

C530

For full details of how to use the machine and any optional accessories to print jobs efficiently and effectively, please refer to the Printing Guide and the Barcode Guide.

For full details of how to access and use the printer security features, please refer to the Security Guide.

Operation > 20

RINTING SETTINGS IN

Your printer’s operator panel menus provide access to many options.

The Windows printer driver also contains settings for many of these items. Where items in the printer driver are the same as those in the operator panel menus, and you print documents from Windows, the settings in the Windows printer driver will override those items in the operator panel menus.

The illustrations in this chapter show Windows XP. Other Windows versions may appear slightly different, but the principles are the same.

RINTING PREFERENCES IN WINDOWS APPLICATIONS

When you choose to print your document from a Windows application program a print dialogue box appears. This dialogue usually specifies the name of the printer on which you will print your document. Next to the printer name is a Properties button.

When you click Properties a new window opens which contains a short list of the printer settings available in the driver, which you can choose for this document.

The settings available from within your application are only those which you may want to change for specific applications or documents. Settings you change here will usually only last for as long as the particular application program is running.

INDOWS

(C310

AND

C510

ONLY

)

ETUP TAB

When you click the Properties button from your application’s Print dialogue, the driver window opens to allow you to specify your printing preferences for the current document.

1 2

1. Paper size should be the same as the page size of your document (unless you wish to scale the printout to fit another size), and should also be the same as the size of paper you will feed into the printer.

2. You can choose the source of the paper to feed, which may be Tray 1 (the standard paper tray) or the multi purpose feeder. You can also click on the appropriate part of the screen graphic to select your preferred tray.

3. The setting for paper weight should match the type of paper on which you intend to print.

4. A variety of document finishing options can be selected, such as normal one page per sheet, or N-up (where N can be any number up to 16) for printing scaled down pages at more than one page per sheet. Booklet printing prints two pages per sheet on each side of the paper so that when folded they make up a booklet.

Poster printing will print large pages as tiles spread over multiple sheets.

Printing settings in Windows (C310 and C510 only) > 21

5. For two-sided printing, you can choose to flip the page by the long edge or the short edge.

6. If you have changed some printing preferences before and saved them as a set, you can recall them to avoid having to set them individually each time you need them.

7. A single on-screen button restores the default settings.

JOB

OPTIONS TAB

1. The output resolution of the printed page can be set as follows.

> The ProQ2400 setting prints at 600 x 600dpi x 2 bit. This option requires the most

printer memory and takes the longest to print.

> The Fine/Detail setting prints at 1200 x 600dpi and is adequate for all but the

most discerning applications.

> The Normal setting prints at 600 x 600dpi and is suitable for most draft

documents, where print quality is less critical.

2. You can print watermark text behind the main page image. This is useful for marking documents as draft, confidential, etc.

3. You can select up to 999 copies to print consecutively, although you will need to top up the paper tray during such a long print run.

4. Page orientation can be set to either portrait (tall) or landscape (wide).

5. You printed pages can be scaled to fit larger or smaller stationery.

6. Clicking the Advanced button gives you access to further settings. For example,

you can elect to have black areas printed using 100%K toner (a more matte appearance).

7. A single on-screen button restores the default settings.

8. The quality of photographic images can be improved.

Printing settings in Windows (C310 and C510 only) > 22

OLOUR TAB

1. Control over the colour output of your printer may be performed automatically, or for advanced control, by manual adjustment. The automatic setting will be appropriate in most cases. The other options in this window only become visible when you select a choice other than Auto.

2. You can choose from a range of colour matching options, depending on the image source for your document. For example, a photograph taken on a digital camera might require different colour matching to a business graphic created in a spreadsheet application. Again, for most general purpose use, automatic is the best choice.

3. Printed output may be made lighter or darker, or the colours made more saturated and vibrant as required.

4. Black areas may be printed using cyan, magenta and yellow (composite black), giving a more glossy appearance, or using only black toner (true black), giving a more matte appearance. Choosing the automatic setting allows the driver to make the most appropriate choice depending on image content.

5. A single on-screen button restores the default settings.

Printing settings in Windows (C310 and C510 only) > 23

ETTING FROM WINDOWS CONTROL PANEL

When you open the driver properties window directly from Windows, rather than from within an application program, a somewhat more extensive range of settings is provided. Changes made here will generally affect all documents you print from Windows applications, and will be remembered from one Windows session to the next.

ENERAL TAB

1. This area lists some of the main features of your printer.

2. This button opens the same windows as described earlier for items which can be set

from within application programs. Changes you make here, however, will become the new default settings for all Windows applications.

3. This button prints a test page to ensure that your printer is working.

DVANCED TAB

1 2

1. You can specify which times of day your printer will be available.

2. Indicates current priority, from 1 (lowest) to 99 (highest). Highest priority

documents will print first.

3. Specifies that documents should be spooled (stored in a special print file) before being printed. The document is then printed in the background, allowing your application program to become available more quickly.

4. This specifies that printing should not start until the last page has been spooled. If your application program needs a lot of time for further computation in the middle of

Printing settings in Windows (C310 and C510 only) > 24

printing, causing the print job to pause for more than a short period, the printer could prematurely assume that the document has finished. Selecting this option would prevent that situation, but printing will be completed a little later, as the start is delayed.

5. This is the opposite choice to the one above. Printing starts as soon as possible after the document begins spooling.

6. This specifies that the document should not be spooled, but printed directly. Your application will not normally be ready for further use until the print job is complete. This requires less disk space on your computer, since there is no spool file.

7. Directs the spooler to check the document setup and match it to the printer setup before sending the document to print. If a mismatch is detected, the document is held in the print queue and does not print until the printer setup is changed and the document restarted from the print queue. Mismatched documents in the queue will not prevent correctly matched documents from printing.

8. Specifies that the spooler should favour documents which have completed spooling when deciding which document to print next, even if completed documents are lower priority than documents which are still spooling. If no documents have completed spooling, the spooler will favour larger spooling documents over shorter ones. Use this option if you want to maximise printer efficiency. When this option is disabled the spooler chooses documents based only on their priority settings.

9. Specifies that the spooler should not delete documents after they are completed. This allows documents to be re submitted to the printer from the spooler instead of printing again from the application program. If you use this option frequently it will require large amounts of disk space on your computer.

10. Specifies whether advanced features, such as booklet printing, page order and pages per sheet, are available, depending on your printer. For normal printing keep this option enabled. If compatibility problems occur you can disable the feature. However, these advanced options may then not be available, even though the hardware might support them.

11. This button provides access to the same setup windows as when printing from applications. Changes made via the Windows Control Panel become the Windows default settings.

Printing settings in Windows (C310 and C510 only) > 25

RINTING SETTINGS IN

The information in this section is based on Mac OS X Tiger (10.4). Other versions may appear slightly different, but the principles are the same.

ETTING PRINTING OPTIONS

You can choose your printer and select options for how you want your documents to print from the Print dialog box.

To set your printer options:

1. Open the document you want to print.

2. To change the paper size or page orientation, select File > Page Setup. For a

description of each option, see “Page setup options” on page 27.

OS X (C310

AND

C510

ONLY

)

3. Close the Page Setup dialog box.

4. Select File > Print.

5. Select your printer from the Printer drop-down menu.

6. To change any printer driver settings, select the required options from the Settings

drop-down menu. You can select more options from the Copies & Pages menu. For a description of these options, see “Print options” on page 28.

7. Click the Print button.

ETTING PRINTING OPTIONS

You can save a set of printer driver options to use for future documents.

1. Open the document you want to print.

SAVING DRIVER SETTINGS

Printing settings in Mac OS X (C310 and C510 only) > 26

2. To change the paper size or page orientation, select File > Page Setup.

3. Select Save As Default from the Settings drop-down menu.

4. Select File > Print.

5. To save the current printer driver settings as a preset, select Save As from the

Preset menu.

6. Enter a name for your preset and click OK.

HANGING THE DEFAULT PRINTER AND PAPER SIZE

The following steps describe how to change your default printer and the paper size options.

1. Select Apple menu > System Preferences.

2. Click the Print & Fax icon.

3. Select your printer in the Selected Printer in Print Dialog drop-down menu.

4. Select your required paper size in the Default Size in Page Setup drop-down menu.

AGE SETUP OPTIONS

This section provides a description of the page setup options available to you.

Page Attributes

You can select Save As Default to use the current Page Setup settings as a standard for all documents.

Format for

Allows you to select your printer model before changing options such as Paper size and Orientation.

Paper Size

Select a paper size to match your document and the paper loaded in the printer. The paper margin is 4.2mm at all edges. To specify your own paper sizes, select Manage Custom

Sizes...

Printing settings in Mac OS X (C310 and C510 only) > 27

Scale

You can scale documents up or down to fit onto different paper sizes. To fit your document on a specific paper size, select Options in the Paper Handling drop-down menu in the

Print Options dialog box (see “Print options” on page 28).

Orientation

You can select a portrait or landscape option. When using landscape, you can rotate the document 180 degrees.

RINT OPTIONS

OPIES

PAGES

Copies

This option allows you to enter the number of copies to print. If you select Collate, all pages of the document will print before the next copy prints.

Pages

You can select whether to print all pages of a document or just a section of it.

AYOUT

Pages per sheet

You can shrink multiple pages and print them on a single sheet of paper. For example, choosing 4-up will tile four of your document's pages across a single sheet of paper.

You can control the order in which the documents are tiled and also choose to surround each document page with a border.

Two-sided

You cannot use the two sided printing options in this panel. Use the options in the Duplex panel instead. Refer to “Duplex” on page 30.

Printing settings in Mac OS X (C310 and C510 only) > 28

Scheduler

This option lets you choose whether to print your document immediately, or defer printing until later. You can also assign a priority to a print job.

These features are useful if you are printing large documents that take a long time to print.

APER HANDLING

Page order

You can choose to print your document in the normal page order (1,2,3..) or reverse order (..3,2,1).

This option allows you to choose whether to print only odd or even numbered pages. This is useful if you are using manual duplex for which you first print all odd pages, re-insert the paper in the printer and then print all even pages.

Destination paper size

Scale documents to fit on the size of paper in your printer. For example, you can take a document formatted for A3 and print it on A4 paper using an A4 printer.

OLORSYNC

Color conversion

For Color Conversion, Standard is the only option available for your printer model.

Printing settings in Mac OS X (C310 and C510 only) > 29

Quartz Filter

Choose a Quartz filter if you wish to apply a special effect to your print job, such as Sepia or Blue Tone.

OVER PAGE

Choosing a cover page may help you to identify your printed document in a large pile of paper. This is useful in a busy office with many people sharing the printer.

UPLEX

Choosing duplex allows you to print on both sides of the paper, to save paper, weight, bulk and cost.

Long-Edge Binding prints pages that read like a normal book. Short-Edge Binding prints pages that read like a notepad.

APER SOURCE

This option allows you to select the paper tray to use for your print job.

Printing settings in Mac OS X (C310 and C510 only) > 30

RINT QUALITY

Print quality

Use this option to selects the print resolution. The ProQ2400 setting produces the best graphic images, but these images can take longer to print.

Photo Enhance

Use Photo Enhance to significantly improve quality when printing images. The printer driver analyses any photographic images and processes them to improve the overall appearance. This setting cannot be used together with the “ProQ2400” print quality setting.

Toner Saving

Toner saving uses less toner when printing your document. This is best suited to draft text documents as it lightens the print significantly.

OLOUR

Colour mode

COLOUR MODE DESCRIPTION

Advanced Colour The driver selects the most appropriate color

settings.

Manual Allows you to manually adjust colour and black

Grayscale Convert all colours to shades of grey.

Printing settings in Mac OS X (C310 and C510 only) > 31

and white settings or select.

Color matching

COLOUR DESCRIPTION

Monitor (6500K) Perceptual Optimised for printing photos. Colours are

Monitor (6500K) Vivid Optimised for printing photos, but with

Monitor (9300K) Optimised for printing graphics from

Digital Camera Results will vary depending on the subject

sRGB The printer reproduces the sRGB colour

printed with emphasis on saturation.

even more saturated colours.

applications such as Microsoft Office. Colours are printed with emphasis on Lightness.

and conditions the image was taken.

space. This might be useful if colour matching from an sRGB input device such as a scanner or digital camera.

Black Finish

Use this option to control the way black is printed in colour documents. Select Composite Black (CMYK) to use all 4 toner colours to represent black. This option is recommended

for color photos. Select True Black (K) to use 100% black toner to represent black. This option is recommended for text and business graphics.

Brightness / Saturation

This option allows you to increase brightness for a lighter print. Modify saturation to change the strength (or purity) of a colour.

If the printed colours are too strong, reduce saturation and increase brightness. As a general rule, reduce saturation by the same amount as you increase brightness. For example, if you reduce saturation by 10, increase brightness by 10 to compensate.

RINTER SETUP OPTIONS

RINTER OPTIONS

Media weight

Select the thickness or type of paper in the printer. It is important to set this correctly as it affects the temperature at which the toner is fused to the paper. For example, if you are printing on normal A4 paper, do not select Labels or Transparency as this may cause toner smearing and paper jams.

Auto tray switch

If the printer runs out of paper in the current tray, Auto Tray Switch automatically changes to a tray that has the same type of paper and continues printing.

Printing settings in Mac OS X (C310 and C510 only) > 32

Paper size check

Select Paper Size check if you want the printer to warn you when the document paper size is different from the paper in the printer.

A warning message is displayed and printing continues when you load the correct paper in the paper tray and press ONLINE. When this option is deselected, the printer uses the paper loaded in the selected tray regardless of the document size.

Feed manually from Multipurpose Tray

Select this option if you want the printer to wait until you press the ONLINE button when feeding from the Multipurpose Tray. This can be useful if printing on envelopes.

Always create 100% black (K) toner

Select this option if you want the printer to always use only black (K) toner when printing pure black (RGB = 0,0,0). This is effective even when Composite Black (CMYK) is selected in the colour options.

Run maintenance cycle before printing

Depending on printing habits and usage patterns, running the maintenance cycle before printing may ensure the best possible print quality. This feature uses the printer's image drums and transfer belt. The life of these printer consumables may be shortened if the printer runs a maintenance cycle frequently.

RINT CONTROL

If you are using the Windows Print Control Server software to manage printers, enter your assigned user name and ID. This information is sent to the printer with your print job and is recorded by the printer.

UMMARY

This option displays a summary of all selected print options for the current job.

Printing settings in Mac OS X (C310 and C510 only) > 33

OLOUR PRINTING

The printer drivers supplied with your machine provide several controls for changing the colour output. For general use the automatic settings will suffice, providing reasonable default settings that will produce good results for most documents.

Many applications have their own colour settings, and these may override the settings in the printer driver. Please refer to the documentation for your software application for details on how that particular program’s colour management functions.

ACTORS THAT AFFECT THE APPEARANCE OF PRINTS

If you wish to manually adjust the colour settings in your printer driver, please be aware that colour reproduction is a complex topic, and there are many factors to take into consideration. Some of the most important factors are listed below.

(C310

AND

C510

ONLY

)

Differences between the range of colours a monitor or printer can reproduce

> Neither a printer nor a monitor is capable of reproducing the full range of colours

visible to the human eye. Each device is restricted to a certain range of colours. In addition to this, a printer cannot reproduce all of the colours displayed on a monitor, and vice versa.

> Both devices use very different technologies to represent colour. A monitor uses

Red, Green and Blue (RGB) phosphors (or LCDs), a printer uses Cyan, Magenta, Yellow and Black (CMYK) toner or ink.

> A monitor can display very vivid colours such as intense reds and blues and these

cannot be easily produced on any printer using toner or ink. Similarly, there are certain colours, (some yellows for example), that can be printed, but cannot be displayed accurately on a monitor. This disparity between monitors and printers is often the main reason that printed colours do not match the colours displayed on screen.

Viewing conditions

A print can look very different under different lighting conditions. For example, the colours in a print may look different when viewed standing next to a sunlit window, compared to how they look under standard office fluorescent lighting.

Printer driver colour settings

The driver settings for Manual colour can change the appearance of a print. There are several options available to help match the printed colours with those displayed on screen.

Monitor settings

The brightness and contrast controls on your monitor can change how your document looks on-screen. Additionally, your monitor’s colour temperature influences how “warm” or “cool” the colours look.

There are several settings found on a typical monitor:

> 5000k Warmest; yellowish lighting, typically used in graphic art environments.

> 6500k Cooler; approximates daylight conditions.

> 9300k Cool; the default setting for many monitors and television sets.

(k = degrees Kelvin, a measurement of temperature.)

Colour printing (C310 and C510 only) > 34

How your software application displays colour

Some graphics applications such as Corel Draw or Adobe Photoshop may display colour differently from “Office” applications such as Microsoft Word. Please see your application’s on-line help or user manual for more information.

Paper type

The type of paper used can also significantly affect the printed colour. For example, a printout on recycled paper can look duller than one on specially formulated glossy paper.

IPS FOR PRINTING IN COLOUR

The following guidelines may help you to achieve good colour output from your printer.

RINTING PHOTOGRAPHIC IMAGES

Use the Monitor (6500k) Perceptual setting.

If the colours look too dull, try the Monitor (6500k) Vivid or Digital Camera settings.

RINTING FROM MICROSOFT OFFICE APPLICATIONS

Use the Monitor (9300k) setting. This may help if you are having problems with specific colours from applications such as Microsoft Excel or Microsoft Powerpoint.

RINTING SPECIFIC COLOURS (E.G. A COMPANY LOGO

There are 2 utilities on your DVD-ROM that can help match specific colours:

> Colour Correct Utility

> Colour Swatch Utility

DJUSTING THE BRIGHTNESS OR INTENSITY OF A PRINT

If the print is too light/dark, you can use the Brightness control to adjust it.

If the colours are too intense/not intense enough, use the Saturation control.

)

Colour printing (C310 and C510 only) > 35

CCESSING THE COLOUR MATCHING OPTIONS

The colour matching options in the printer driver can be used to help match your printed colours to the ones displayed on your monitor or from some other source, such as a digital camera.

To open colour matching options from the Windows Control Panel:

1. Open the Printers window (called “Printers and Faxes” in Windows XP).

2. Right-click the printer name and choose Properties.

3. Click the Printing Preferences button (1).

To open colour matching options from within a Windows application:

1. Choose File > Print… from the application’s menu bar.

2. Click the Properties button next to the printer name.

ETTING THE COLOUR MATCHING OPTIONS

1. On the Colour tab select Advanced Colour (1) for colour matching.

WINDOWS

MAC

2. Choose the Manual colour setting (2) and select from the following options:

(a) Monitor (6500k) Perceptual

Optimised for printing photographs. Colours are printed with emphasis on saturation.

(b) Monitor (6500k) Vivid

Optimised for printing photographs, but with even more saturated colours than the Monitor (6500k) Perceptual setting.

Optimised for printing graphics from applications such as Microsoft Office. Colours are printed with emphasis on Lightness.

(d) Digital Camera

Optimised for printing photographs taken with a digital camera.

Your results will vary depending on the subject and the conditions under which the photograph was taken.

(e) sRGB

The printer will try to reproduce the sRGB colour space. This may be useful if colour matching from an sRGB input device such as a scanner or digital camera.

Colour printing (C310 and C510 only) > 36

SING THE COLOUR SWATCH FEATURE

To use the Colour Swatch feature, you must install the Colour Swatch Utility. This is supplied on the DVD-ROM that you received with your printer.

The Colour Swatch function prints charts which contain a range of sample colours. Note that this is not the full range of colours that the printer can produce. Listed on each sample colour are the corresponding RGB (Red, Green, Blue) values. This can be used to pick specific colours in applications that allow you to choose your own RGB values. Simply click the Colour Swatch button (1) and choose from the options available.

An example of using the Colour Swatch function:

You wish to print a logo in a particular shade of red. The steps you would follow are:

1. Print a colour swatch, then select the shade of red that best suits your needs.

2. Take a note of the RGB value for the particular shade that you liked.

3. Using your program’s colour picker, enter these same RGB values, and change the

logo to that colour.

The RGB colour displayed on your monitor may not necessarily match what was printed on the colour swatch. If this is the case, it is probably due to the difference between how your monitor and printer reproduce colour. Here, it is unimportant since your primary objective is to print the required colour.

SING THE COLOUR CORRECT UTILITY

The Oki Colour Correct Utility is provided on your DVD-ROM.

The Colour Correct utility has the following features:

> Office palette colours can be individually adjusted. This is useful if you want to

change how a specific colour is printed.

> Colours can be adjusted by changing Hue, Saturation and Gamma. This is useful if

you wish to change the overall colour output.

Once these colour adjustments have been made, the new settings can be selected from the printer driver Colour tab.

To select adjustments made with the Colour Correct Utility:

1. From your application program, click File and point to Print.

2. Click Properties. This displays the printer driver options.

3. Click the Colour tab.

4. Click Advanced Colour.

5. Click User Defined.

Select the colour adjustment you made with the Colour Correct Utility.

Colour printing (C310 and C510 only) > 37

ENU FUNCTIONS

This section lists the menus accessed via the controls on the printer’s operator panel and displayed in the LCD window.

PERATOR PANEL

6 6

C310/C330 C510/C530

1. READY LED ON: Ready to receive data.

BLINK 1 (0.8 sec interval): Processing

data.

BLINK 2 (0.5 sec lit/

4.5 sec off): Sleep

state.

OFF: Offline.

3 7 3

1 51 5

2. DISPLAY Displays the printer

3 7 3

status and any error messages.

3. MENU Buttons In the ONLINE or OFFLINE mode: enters the Menu mode.

In the Menu mode: forwards or reverses the menu item displayed.

Press for 2 secs. or longer to fast forward or reverse.

5. ATTENTION LED ON: A warning occurs. Printing may be possible (e.g low toner).

BLINKING: An error occurs. Printing not possible (e.g. toner empty).

OFF: Normal condition.

4. ON LINE Button Switches between

ONLINE and OFFLINE.

Exits the menu and goes ONLINE when pressed in the Menu mode.

Forces printing on the paper currently loaded when pressed with “WRONG PAPER” or “WRONG PAPER SIZE” displayed.

6. BACK Button Returns to the previous higher level menu item.

Pressing this button for more than 4 seconds initiates the printer shutdown procedure, select Yes to continue or No to abort.

Menu functions > 38

6 6

C310/C330 C510/C530

7. OK Button In the ONLINE or OFFLINE mode: enters the Menu mode.

In the Menu mode: determines the setting selected.

3 7 3

1 51 5

3 7 3

8. CANCEL Button Deletes the data being printed or received when pressed for two seconds or longer.

Deletes the data when pressed for two seconds or longer with WRONG PAPER SIZE, RUN OUT OF PAPER, TRAY 1 IS OPEN, or TRAY 1 IS NOT FOUND is displayed.

Exits the menu and goes ONLINE when pressed in the Menu mode.

9. POWER SAVE Button

Pressing this button switches the machine into power save mode or wakes the machine up from power save mode.

Menu functions > 39

OW TO CHANGE THE SETTINGS

It s hou l d be not e d th a t ma ny o f t hes e se t tin gs can be, and often are, overridden by settings in the Windows printer drivers. However, several of the driver settings can be left at “Printer Setting”, which will then default to the settings entered in these printer menus.

Where applicable, factory default settings are shown in bold type in the following tables.

In the normal operating condition, known as “standby,” the printer’s LCD window will show “ONLINE.” In this condition, to enter the menu system, press the up and down Menu buttons on the operator panel to move up and down through the list of menus until the menu you wish to view is displayed. Then proceed as follows:

1. Press OK to enter the menu.

2. Use the up and down MENU buttons on the control panel to scroll through the

menus. When the item you want to change is displayed, press OK to view the submenus for that item.

3. Use the up and down MENU buttons to move up and down through the sub-menu items. When the item you want to change is displayed press OK to display the setting.

4. Use the up and down MENU buttons to move up and down through the available settings for the sub-menu item. When the item you want to change is displayed press OK to display the setting. An asterisk (*) will appear next to the setting, indicating that this setting is currently in effect.

USER

5. Do one of the following:

> Press BACK again to move up to the list of menus;

or…

> Press ON LINE or CANCEL to exit from the menu system and return to standby.

OW TO CHANGE THE SETTINGS

You can set whether to ENABLE or DISABLE each category in the user menu.

Disabled categories are not displayed in the User’s menu. Only a system administrator can change these settings.

1. Turn OFF the printer.

2. Turn ON the printer while pressing the OK button.

When ADMIN MENU appears, take your finger off the button.

3. Press the OK button.

4. At the Enter Password prompt, enter the Admin password:

(a) Using the up and down MENU buttons, scroll to the required letter/digit.

(b) Press the OK button to input and move to the next letter/digit.

ADMINISTRATOR

Enter your 4 to 9 digit password.

(The default password is aaaaaa).

5. Press the OK button.

6. Press the up or down MENU button until the “category” you want to change is

displayed.

7. Press the OK button.

Menu functions > 40

8. Press the up or down MENU button until the “item” you want to change is displayed.

9. Press the OK button.

10. Using the up or down MENU button, identify the parameter as required.

11. Press the OK button to enter an asterisk (*) on the right side of the setting selected.

12. Press the ON LINE button to switch to online. The machine will automatically re-

boot.

ENUS

NOTE This guide is written to cover a number of models and as such may reference menu items or features that your machine does not have installed or does not support.

RINT JOBS MENU

- C530

ONLY

NOTE This menu only displays if the optional SD card is installed.

ITEM ACTION EXPLANATION

ENCRYPTED JOB NOT FOUND

PRINT DELETE

Used for printing an encrypted authentication print job (Encrypted Job) stored in the SD card.

After inputting a password, “SEARCHING JOB” is displayed until a job appropriate to the password is found.

(Searching time increases in proportion to the number of jobs stored in the SD card, and the printer may take up to 20 sec.)

The search can be cancelled by holding down the CANCEL button.

“NOT FOUND” will be displayed where a file is unavailable.

One of the following messages will appear if a printable file is available.

ENCRYPTED JOB

DELETE

If PRINT is selected, ALL jobs will be printed.

If DELETE is selected, the following message will appear.

ARE YOU SURE?

YES

If NO is selected you will return to the source MENU. If YES is selected, ALL jobs will be deleted.

Print jobs with encrypted authentication stored in the SD card are deleted by a delete method specified by the driver after printing or a delete instruction from the menu.

Menu functions > 41

ITEM ACTION EXPLANATION

STORED JOB NOT FOUND

PRINT DELETE

NFORMATION MENU

Used to print out a stored job in the SD card.

“NOT FOUND” will be displayed where a file is unavailable.

One of the following messages will appear if a printable file is available.

STORED JOB

DELETE

If PRINT is selected, COLLATING AMOUNT is displayed and the number of pages to print can be specified. Press the OK button.

All specified pages will be printed.

If DELETE is selected, the following message will appear.

ARE YOU SURE?

YES

If NO is selected you will return to the source MENU. If YES is selected, ALL jobs will be deleted.

This menu provides a quick method of listing various items stored within the printer.

ITEM ACTION EXPLANATION

PRINT MENU MAP EXECUTE Prints complete menu listing with current settings shown.

NETWORK EXECUTE Prints Network configuration information.

PRINT FILE LIST EXECUTE Prints a list of overlays, macros, fonts and other files stored on

the printer’s SD card (if installed).

PRINT PCL FONT EXECUTE Prints complete list of all internal PCL fonts plus those stored in

ROM (slot 0), flash memory and SD card (if installed).

PRINT PSE FONT EXECUTE Prints complete list of all internal PostScript emulation fonts.

PRINT PPR FONT EXECUTE Prints complete list of all internal IBM ProPrinter III XL emulation

PRINT FX FONT EXECUTE Prints complete list of all internal Epson FX emulation fonts,

DEMO1 EXECUTE Prints demonstration page containing graphics and text in colour

PRINT ERROR LOG EXECUTE Prints a list of all errors and warnings experienced.

USAGE REPORT EXECUTE Prints a list of colour and mono pages printed.

COLOR PROF LIST EXECUTE Prints a list of stored colour profiles.

fonts, including any downloaded to flash memory or SD card (if installed).

including any downloaded to flash memory or SD card (if installed).

and monochrome.

Menu functions > 42

HUTDOWN MENU

Thi s item should alway s be selected before s w i tching the printer o ff, to ensure that no d a ta is lost.

ITEM SETTINGS EXPLANATION

SHUTDOWN START EXECUTE Performs controlled shutdown of the printer.

Only power the printer off when the display indicates that shutdown is complete.

RINT MENU

This menu provides adjustment of various print job related functions.

ITEM SETTINGS EXPLANATION

COPIES 1-999 Enter the number of copies of a document to be printed

from 1 to 999.

DUPLEX ON

OFF

BINDING LONG EDGE

SHORT EDGE

PAPER FEED TRAY1

TRAY2 MP TRAY

AUTO TRAY SWITCH ON

OFF

TRAY SEQUENCE DOWN

UP PAPER FEED TRAY

MP TRAY USAGE DO NOT USE

WHEN MISMATCH

MEDIA CHECK ENABLE

DISABLE

OVERRIDE A4/LT YES

Switches the Duplex (2 sided) function ON/OFF.

Sets the default binding to SEF or LEF.

Display condition: duplex setting is enabled. See

“DUPLEX” on page 43.

Selects the default tray for paper feed, Tray 1 (upper), Tray 2 (lower, if installed) or MP Tray (multi purpose tray).

If two trays contain identical paper, the printer can switch to an alternative source when the current tray runs out in the middle of a print job.

Determines tray sequence order when automatically switching.

If a document to be printed demands a paper size not installed in the selected tray, the printer can automatically feed from the multi purpose tray instead. If this function is not enabled, the printer will stop and request the correct size of paper to be loaded.

Determines whether the printer check the size of paper loaded matches that required for the document sent to print.

If enabled, when the paper size of a job is set to A4 but there is no A4 set in the printer, if there is Letter paper in the printer, the job will be printed on Letter paper without requesting the user to fill the paper tray with A4 paper.

Similarly, when the paper size of a job is set to Letter but there is no Letter set in the printer, if there is A4 paper in the printer, the job will be printed on A4 paper without requesting the user to fill the paper tray with Letter paper.

RESOLUTION 600DPI

600x1200DPI

600DPI M-LEVEL

Sets the default resolution for printing (dots per inch). 600x1200DPI uses more memory and requires more time to process, but prints at a higher quality.

Menu functions > 43

ITEM SETTINGS EXPLANATION

TONER SAVE MODE ON

OFF

MONO-PRINT SPEED AUTO

COLOR SPEED

NORMAL SPEED

ORIENTATION PORTRAIT

LANDSCAPE

LINES PER PAGE 5~64~128LINES Sets the number of lines of text per page when raw text

EDIT SIZE CASSETTE SIZE

A4 /A5/ A6 / B5 LEGAL14 LEGAL13.5 LEGAL13 LETTER EXECUTIVE CUSTOM COM-9 ENVELOPE COM-10 ENVELOPE MONARCH ENV DL ENVELOPE C5 ENVELOPE INDEX CARD

This function works effectively only if the data input is color RGB data. This setting is valid in PS and PCL, but does not take effect in the following cases.

(1) PS: If Color Matching is set OFF.

(2) PS: If any setting other than ASIC Color Matching is set.

(3) PS: CMYK data when Ink Simulation Mode is used (valid in any other cases except Case (1) and Case (2) above as long as data is RGB).

(4) PCL binary data (Color/Monochrome).

Sets the monochrome print speed. Prints at the most appropriate speed for page process if Auto is set.

Prints always at the color print speed if Color is set.

Prints always at the monochrome print speed if Normal is set.

Selects default page orientation between portrait (tall) and landscape (wide). - (PCL, IBMPPR & EPSON FX only)

is received from systems other than Windows. The default for A4 portrait is 64, and for Letter is 60. - (PCL only)

Sets the size of the printable page area to match the size of paper in use. This is not the same as the physical paper size, which is always slightly larger. For dimensions of physical page sizes, see “Paper Recommendations” section in this guide.

X DIMENSION 64MILLIMETER

210MILLIMETER

216MILLIMETER

Y DIMENSION 127MILLIMETER

297MILLIMETER

1321MILLIMETER

Specifies paper width of Custom paper as a default value.

Sets a paper size at right angles to the paper run direction.

Specifies paper length of Custom paper as a default value.

Sets a paper size in the same direction as the paper run direction.

Menu functions > 44

EDIA MENU

This menu provides adjustment to suit a wide range of print media.

ITEM SETTINGS EXPLANATION

TRAY1 PAPERSIZE A4 /A5/ A6/B5/

LEGAL14/LEGAL13.5/ LEGAL13/LETTER/ EXECUTIVE CUSTOM

TRAY1 MEDIATYPE PLAIN

LETTERHEAD BOND RECYCLED CARD STOCK ROUGH GLOSSY USERTYPE1 USERTYPE2 USERTYPE3 USERTYPE4 USERTYPE5

TRAY1MEDIAWEIGHT LIGHT

MEDIUM LIGHT

MEDIUM

HEAVY ULTRA HEAVY1

TRAY2 PAPERSIZE A4 /A5/ B5/LEGAL14/

LEGAL13.5/LEGAL13/ LETTER/EXECUTIVE CUSTOM

Selects the size of paper loaded in Tray 1 (upper tray if both trays installed). For CUSTOM setting see XDIMENSION and Y-DIMENSION in “Print menu” on

page 43.

Selects the type of media loaded in this tray. This will help the printer to adjust its internal operating parameters, such as engine speed and fusing temperature, to better accommodate the media to be fed. For example, letterhead may benefit from a slightly lower fusing temperature to ensure that its ink does not offset.

Note: USERTYPEn are displayed only if registered in the host PC/Server.

Adjusts the printer for the weight of paper stock loaded in this tray.

Selects the size of paper loaded in Tray 2 (lower) if installed. For CUSTOM setting see X-DIMENSION and Y-DIMENSION in “Print menu” on page 43.

TRAY2 MEDIATYPE PLAIN

LETTERHEAD BOND RECYCLED CARD STOCK ROUGH GLOSSY USER TYPE 1 USER TYPE 2 USER TYPE 3 USER TYPE 4 USER TYPE 5

TRAY2MEDIAWEIGHT LIGHT

MEDIUM LIGHT

MEDIUM

HEAVY ULTRA HEAVY1

Selects the type of media loaded in this tray (if installed). This will help the printer to adjust its internal operating parameters, such as engine speed and fusing temperature, to better accommodate the media to be fed. For example, letterhead may benefit from a slightly lower fusing temperature to ensure that its ink does not offset.

Note: USERTYPEn are displayed only if registered in the host PC/Server.

Adjusts the printer for the weight of paper stock loaded in this tray (if installed).

Menu functions > 45

ITEM SETTINGS EXPLANATION

MPT PAPERSIZE A4

A5 A6 B5 LEGAL14 LEGAL13.5 LEGAL13 LETTER EXECUTIVE CUSTOM COM-9 ENVELOPE COM-10 ENVELOPE MONARCH ENV DL ENVELOPE C5 ENVELOPE INDEX CARD

MPT MEDIATYPE PLAIN

LETTERHEAD LABELS BOND RECYCLED CARD STOCK ROUGH GLOSSY USER TYPE 1 USER TYPE 2 USER TYPE 3 USER TYPE 4 USER TYPE 5

Selects the size of paper to be fed from the multi purpose tray. For CUSTOM setting see X-DIMENSION and Y-DIMENSION in “Print menu” on page 43.

Selects the type of media to be fed from the multi purpose tray so that the printer can adjust its internal parameters to better accommodate the selected type of media.

Note: USERTYPEn are displayed only if registered in the host PC/Server.

MPT MEDIAWEIGHT LIGHT

MEDIUM LIGHT

MEDIUM

HEAVY ULTRA HEAVY1 ULTRA HEAVY2

UNIT OF MEASURE MILLIMETER

INCH

Selects the media weight to be fed from the multi purpose tray.

Selects the unit of measure.

Menu functions > 46

OLOR MENU

The printer automatically adjusts colour balance and density at appropriate intervals, optimising the printed output for bright white paper viewed in natural daylight conditions. The items on this menu provide a means of changing the default settings for special or particularly difficult print jobs.

ITEM SETTINGS EXPLANATION

DENSITY CONTROL AUTO

MANUAL

ADJUST DENSITY EXECUTE Selecting this will activate adjustment of the colour

COLOR TUNING PRINT PATTERN Selecting this item prints the colour tuning pattern to

C HIGHLIGHT

C MID-TONE

C DARK

M HIGHLIGHT

M MID-TONE

M DARK

Y HIGHLIGHT

Y MID-TONE

Y DARK

K HIGHLIGHT

K MID-TONE

K DARK

-3~0~+3

If set to AUTO, image density will be automatically adjusted at power on, when a new image drum or toner cartridge is installed, and at intervals of 100, 300 and 500 drum counts. If a 500 drum count interval occurs during a print job it will occur at the end of that job, and will take up to 55 seconds. If set to manual, this adjustment will only be performed when initiated by the next menu item.

density.

help you adjust the colour balance.

Adjusts image density for each colour component (cyan, magenta, yellow and black). Normal setting is 0.

C DARKNESS

M DARKNESS

Y DARKNESS

K DARKNESS

AJST REGISTRATION EXECUTE Performs automatic colour registration adjustment.

C REG FINE AJST

M REG FINE AJST

Y REG FINE AJST

INK SIMULATION OFF

UCR LOW

CMY100% DENSITY DISABLE

-3~0~+3

SWOP EUROSCALE JAPAN

MEDIUM HIGH

ENABLE

Adjusts darkness of each colour component (cyan, magenta, yellow and black). Normal setting is 0.

Normally this is done on power on and when the top cover is opened and then closed. This process accurately aligns the cyan, magenta and yellow images to the black image.

erforms fine adjustment of image timing in relation to

P the black image component.

Selects from a range of industry standard colour swatches.

Note: This function only applies to PS models

Selects limitation of the toner layer thickness.

If paper curl occurs in dark printing, selecting MEDIUM or LIGHT sometimes helps reduce curl.

When enabled, black areas are produced using 100% C, M, and Y instead of black. This results in a glossier finish.

Menu functions > 47

ITEM SETTINGS EXPLANATION

CMYK CONVERSION ON

SYS

CONFIG MENU

OFF

Setting to “OFF” will simplify the conversion process of CMYK data, which will reduce the processing time.

This setting is ignored when Ink Simulation function is used.

Note: This function only applies to PS models

This menu adjusts general printer settings to suit the way you prefer to work.

ITEMS SETTINGS EXPLANATION

POW SAVE TIME 1 MIN

2 MIN 3 MIN 4 MIN 5 MIN 10 MIN 15 MIN

30 MIN

60 MIN 120 MIN 180 MIN

SLEEP TIME 1 MIN

2 MIN 3 MIN 4 MIN 5 MIN

10 MIN

15 MIN 30 MIN 60 MIN 120 MIN 180 MIN

Adjusts the idling time before the printer automatically switches into power saving mode. In this mode power consumption is reduced to a low level required to just keep the printer operating and ready to receive data. When a job is sent the printer will require a warm-up time of up to 1 minute before printing can begin.

Adjusts the power saving time before the printer automatically switches into sleep mode.

PERSONALITY AUTO EMULATION

PCL IBM PPR III XL EPSON FX PS3 EMULATION

USB PS-PROTOCOL RAW

ASCII

NET PS-PROTOCOL RAW

ASCII

CLRABLE WARNING ONLINE

JOB

AUTO CONTINUE ON

OFF

MANUAL TIMEOUT OFF

30 SEC

60 SEC

WAIT TIMEOUT 5~40 SEC~300, OFF Specifies how many seconds the printer will wait when

LOW TONER CONTINUE

STOP

This item selects which industry standard emulation your printer should use. When set to AUTO, incoming data is examined and the correct emulation is automatically selected each time a print job is received.

Selects PostScript data format for USB port.

Selects PostScript data format for network port.

When ONLINE, non-critical warnings, such as requests for a different paper size, can be cleared by pressing the ON LINE button. When set to JOB, they are cleared when the print job resumes.

Determines whether or not the printer will automatically recover from a memory overflow condition.

Specifies how many seconds the printer will wait for paper to be fed before cancelling the job.

received data pauses before forcing a page eject. In PostScript Emulation mode the job will be cancelled if timeout occurs.

Specifies whether the printer should continue printing even after a low toner condition is detected.

Menu functions > 48

ITEMS SETTINGS EXPLANATION

JAM RECOVERY ON

ERROR REPORT ON

PCL

EMULATION

OFF

Specifies whether the printer should perform jam recovery after a paper jam has occurred. If ON, the printer will attempt to re-print any pages lost due to a paper jam once the jam has been cleared.

If ON, the printer will print error details when a PostScript Emulation error occurs.

Note: Applies tp PS & PCL XL only.

This menu controls settings effective when the printer is operating in PCL emulation mode.

ITEMS SETTINGS EXPLANATION

FONT SOURCE RESIDENT /

RESIDENT2

FONT NO. I0 ~ I90 Sets the current default font number from the currently

FONT PITCH 0.44CPI~

10.00CPI~

99.99CPI

Specifies the location of the PCL default font. Normally this will be INTERNAL unless additional fonts are installed in the expansion ROM slot or additional fonts have been downloaded to RAM as permanent fonts.

selected source.

Sets the width of the PCL default font in characters/inch (CPI).

Default font is the fixed-pitch, scalable font. The value is displayed to the second decimal place

Displayed only when the font selected in Font No. is fixed-spacing, scalable font.

FONT HEIGHT 4.00 POINT~12.00

POINT~999.75 POINT

SYMBOL SET PC-8

(Default Symbol Set only shown)

A4 PRINT WIDTH 78 COLUMN

80 COLUMN

WHITE PAGE SKIP OFF / ON Selects whether blank pages are printed or not.

CR FUNCTION CR / CR+LF Selects whether a received carriage return character

LF FUNCTION LF / LF+CR Selects whether a received line feed character (0Ah)

PRINT MARGIN NORMAL

1/5 INCH 1/6 INCH

TRUE BLACK OFF / ON Selects whether black image data is printed using black

Height of the PCL default font.

Note: This menu item is displayed only when the font selected in Font No. is a proportional-spacing, scalable font.

PCL symbol set. If the font source and number are changed to one which does not support the selected symbol set, this must be changed to an available symbol set for that font.

Sets the number of columns subject to Auto LF with A4 paper in PCL. This is the value when Auto CR/LF Mode is set to OFF with the 10CPI character.

(0Dh) also causes a line feed.

also causes a carriage return.

Sets the non-printable page area. NORMAL is PCL compatible.

toner (ON) or 100% CMY (OFF). (Valid in PCL emulation mode only.)

Menu functions > 49

ITEMS SETTINGS EXPLANATION

PEN WIDTH ADJUST ON/OFF When minimum width is specified in PCL, sometimes a

1-dot line, looks broken.

With PEN WIDTH Adjust set to ON, when the minimum width is specified, the line width will be emphasized so as to look wider than a 1-dot line.

With PEN WIDTH Adjust set to OFF, the line will appear as before.

TRAY ID#

PPR

EMULATION

MP TRAY 1 ~ 4 ~ 59 Sets the # to specify the MP tray for the paper feed

TRAY 2 1 ~ 5 ~ 59 Sets the # to specify Tray 2 for the paper feed

destination command (ESC&l#H) in PCL5e emulation.

(Displayed only if Tray 2 is installed).

This menu controls settings effective when the printer is operating in PPR emulation mode.

ITEM SETTINGS EXPLANATION

CHARACTER PITCH 10 CPI; 12 CPI;

17 CPI; 20 CPI; PROPORTIONAL

FONT CONDENSE 12CPI TO 20CPI

12CPI TO 12CPI

CHARACTER SET SET-1

SET-2

SYMBOL SET IBM-437

(Default Symbol Set only shown)

LETTER 0 STYLE DISABLE

ENABLE

ZERO CHARACTER NORMAL

SLASHED

LINE PITCH 6 LPI; 8 LPI Specifies the line spacing.

WHITE PAGE SKIP OFF / ON Selects whether blank pages are printed or not.

CR FUNCTION CR / CR+LF Selects whether a received carriage return character

LF FUNCTION LF / LF+CR Selects whether a received line feed character (0Ah)

LINE LENGTH 80 COLUMN; 136

COLUMN

Specifies character pitch in IBM PPR emulation.

Specifies 12CPI pitch for Condense Mode.

Specifies a character set.

Specifies a symbol set.

Specifies the style that replaces 9BH with letter o and 9DH with a zero

Sets the zero to be slashed or unslashed.

(0Dh) also causes a line feed.

also causes a carriage return.

Specifies the number of characters per line.

FORM LENGTH 11 INCH

11.7 INCH

12 INCH

TOF POSITION 0.0INCH ~ 1.0INCH Specifies the distance of print from the top edge of the

LEFT MARGIN 0.0INCH ~ 1.0INCH Specifies the distance of print from the left hand edge

Menu functions > 50

Specifies the length of paper.

paper.

of the paper.

ITEM SETTINGS EXPLANATION

FIT TO LETTER DISABLE

ENABLE

TEXT HEIGHT SAME

DIFF

EMULATION

Sets the printing mode that can fit print data, equivalent to 11 inches (66 lines), in the LETTER-size printable area.

Sets the height of a character.

SAME: Regardless of CPI, same height

DIFF: As CPI, character heights vary.

This menu controls settings effective when the printer is operating in FX emulation mode.

ITEM SETTINGS EXPLANATION

CHARACTER PITCH 10 CPI; 12 CPI; 17

CPI; 20 CPI; PROPORTIONAL

CHARACTER SET SET-1

SET-2

SYMBOL SET IBM-437 (Default

Symbol Set only shown)

LETTER 0 STYLE DISABLE

ENABLE

ZERO CHARACTER NORMAL

SLASHED

Specifies character pitch in this emulation.

Specifies a character set.

Specifies a symbol set.

Specifies the style that replaces 9BH with letter o and 9DH with a zero

Sets the zero to be slashed or unslashed.

LINE PITCH 6 LPI; 8 LPI Specifies the line spacing.

WHITE PAGE SKIP OFF / ON Selects whether blank pages are printed or not.

CR FUNCTION CR / CR+LF Selects whether a received carriage return character

(0Dh) also causes a line feed.

LINE LENGTH 80 COLUMN; 136

COLUMN

FORM LENGTH 11 INCH

11.7 INCH

12 INCH

TOF POSITION 0.0INCH ~ 1.0INCH Specifies the distance of print from the top edge of the

LEFT MARGIN 0.0INCH ~ 1.0INCH Specifies the distance of print from the left hand edge

FIT TO LETTER DISABLE

ENABLE

TEXT HEIGHT SAME

DIFF

Specifies the number of characters per line.

Specifies the length of paper.

paper.

of the paper.

Sets the printing mode that can fit print data, equivalent to 11 inches (66 lines), in the LETTER-size printable area.

Sets the height of a character.

SAME: Regardless of CPI, same height.

DIFF: As CPI, character heights vary.

Menu functions > 51

USB

This menu controls the operation of the printer’s USB data interface.

ITEM SETTINGS EXPLANATION

SOFT RESET ENABLE / DISABLE Enables or disables the SOFT RESET command.

SPEED 12Mbps / 480Mbps Selects the interface speed.

OFFLINE RECEIVE ENABLE / DISABLE Enables or disables this function. When set to Enable,

the interface retains a receive possible state even when switching to Offline. Interface sends the BUSY signal only when the receive buffer is full or a service call occurs.

SERIAL NUMBER ENABLE / DISABLE Specifies whether to ENABLE or DISABLE a USB serial

number.

The USB serial number is used to identify the USB device connected to your PC.

NOTE When you have changed any settings in the USB MENU, turn the printer OFF, then ON again.

ETWORK MENU

This menu controls the operation of the printer’s 10Base-T/100Base-TX network interface.

ITEM SETTINGS EXPLANATION

TCP/IP ENABLE / DISABLE Enables or disables this network protocol.

IP VERSION IP v4

IP v4+v6

IP v6

Applies to C330 and C530 only.

Sets up the IP version.

Operates with IPv4 only (not valid with IPv6).

Operates with both IPv4 and IPv6.

Operates with IPv6 only (not valid with IPv4).

From this stage, if IPv6 only is set from UI, for example Telnet, “IP v6” appears as the value of IP Version on the operation panel. “IP v6” will disappear from the value if “IP v4” or “IP v4+v6” is selected.

Display Condition: TCP/IP should be enabled.

NETBEUI ENABLE / DISABLE Applies to C330 and C530 only.

Enables or disables this network protocol.

NETBIOS OVER TCP C330: ENABLE /

DISABLE

C530: ENABLE /

DISABLE

NETWARE C330: ENABLE /

DISABLE

C530: ENABLE /

DISABLE

ETHERTALK ENABLE / DISABLE Applies to C330 and C530 only.

Menu functions > 52

Applies to C330 and C530 only.

Sets Enable/Disable of NetBIOS over TCP protocol.

Display Conditions:

> > TCP/IP should be enabled. > > IP Version is not IPv6.

Applies to C330 and C530 only.

Enables or disables this network protocol.

ITEM SETTINGS EXPLANATION

FRAME TYPE AUTO / 802.2 / 802.3 /

ETHERNET II / SNAP

IP ADDRESS SET AUTO / MANUAL Specifies whether IP address allocation is automatic

IPV4 ADDRESS xxx.xxx.xxx.xxx Current assigned IP address. To change, press OK and

SUBNET MASK xxx.xxx.xxx.xxx Current assigned subnet mask. To change, proceed as

GATEWAY ADDRESS xxx.xxx.xxx.xxx Current assigned gateway address. To change, proceed

WEB ENABLE / DISABLE Enables or disables Web config. facility.

TELNET ENABLE / DISABLE Enables or disables Telnet config. facility.

FTP ENABLE / DISABLE Enables or disables communication via FTP.

IPSEC ENABLE / DISABLE Applies to C330 and C530 only.

SNMP ENABLE / DISABLE Enables or disables SNMP protocol.

Applies to C330 and C530 only.

Selects the Ethernet MAC layer frame type.

Display Condition: Netware should be enabled.

(DHCP) or manually assigned.

use Menu buttons to increment 1st octet, then press OK again to move on to next octet. When 4th octet has been set, press OK again to register new address.

above.

as above.

Sets Enable/Disable of IPSec. Enable via the web.

Enable: IPSec is available. Disable: IPSec is not available.

NETWORK SCALE NORMAL / SMALL Selects network size.

When NORMAL is selected, printer can work effectively, even when connected to a HUB that has a spanning tree

feature. However, printer start up time gets longer when computers are connected with two or three small LANs.

When SMALL is selected, computers can cover from two or three small LANs to a large LAN, but may not work effectively when connected to a HUB that has a spanning tree feature.

HUB LINK SETTING AUTO NEGOTIATE

100BASE-TX FULL 100BASE-TX HALF 10BASE-T FULL 10BASE-T HALF

FACTORY DEFAULTS EXECUTE Reload s the settings present when the unit was setup

Sets full or half duplex for communication via a network hub.

When AUTO is set, negotiation is done automatically.

by the manufacturer.

Menu functions > 53

EMORY MENU

Not displayed as default. This menu is displayed only when set to ENABLE in OP MENU

of Administrator menu.

This menu sets the conditions of memory allocated to the buffer and resource.

ITEM SETTINGS EXPLANATION

RECEIVE BUF SIZE AUTO

0.5MB

1MB

2MB

4MB

8MB

16MB

32MB

RESOURCE SAVE AUTO

OFF

0.5MB

1MB

2MB

4MB

8MB

16MB

32MB

Sets the size of the receive buffer.

Sets the size of the resource saving area.

Menu functions > 54

SYS A

DJUST MENU

Not displayed as default. This menu is displayed only when set to ENABLE in OP MENU

of Administrator menu.

ITEM SETTINGS EXPLANATION

X ADJUST +2.00MILLIMETER

0.00MILLIMETER

-2.00MILLIMETER

Y ADJUST +2.00MILLIMETER

0.00MILLIMETER

-2.00MILLIMETER

DUPLEX X ADJUST +2.00MILLIMETER

0.00MILLIMETER

-2.00MILLIMETER

DUPLEX Y ADJUST +2.00MILLIMETER

0.00MILLIMETER

-2.00MILLIMETER

Adjusts the position of a whole print image in the direction perpendicular to the direction the paper runs, that is horizontally, in 0.25 mm increments.

Any parts of the print image that are outside the printable area as a result of this shift will be cropped.

Adjusts the position of a whole print image in the direction the paper runs, that is vertically, in 0.25 mm increments.

Any parts of the print image that are outside the printable area as a result of this shift will be cropped.

Corrections in a negative value are ignored in PS mode.

When printing the reverse page of a duplex job, adjusts the position of the whole print image in the direction that is perpendicular to the direction the paper runs, that is horizontally, in 0.25 mm increments.

Any parts of the print image that are outside the printable area as a result of this shift will be cropped.

When printing the reverse page of a duplex job, adjusts the position of the whole print image in the direction the paper runs, that is vertically, in 0.25 mm increments.

Any parts of the print image that are outside the printable area as a result of this shift will be cropped.

Corrections in a negative value are ignored in PS mode.

DRUM CLEANING ON

OFF

HEX DUMP EXECUTE Prints out data received from the host PC in

AINTENANCE MENU

Sets whether to rotate the drum in idle prior to printing in order to reduce any horizontal white lines.

CAUTION: Each additional rotation will shorten the ID life by that amount.

hexadecimal Dump. Turning off the power supply switch restores Normal Mode from HEX Dump Mode.

This menu provides access to various printer maintenance functions.

ITEM SETTINGS EXPLANATION

MENU RESET EXECUTE Resets menus to default settings.

SAVE MENU EXECUTE Saves the current menu settings. The last menu

executed is saved and the menu previously saved is overwritten and erased.

When you press the OK button, the following confirmation message is displayed.

ARE YOU SURE? YES/NO

If you select NO, the display returns to the previous menu.

If you select YES, the current menu settings are stored and the menu is exited.

Menu functions > 55

ITEM SETTINGS EXPLANATION

RESTORE MENU EXECUTE Changes to the menu setting saved.

When you press the OK button, the following confirmation message is displayed.

ARE YOU SURE? YES/NO

If NO is selected, the previous menu display resumes. If YES is selected, changes made to the menu setting are saved and you exit from the menu.

Notes:

This cannot be executed when data is printing.

This menu item will only show if the menu has been saved previously

POWER SAVE ENABLE / DISABLE Enables or disables automatic power save mode. Delay

SLEEP ENABLE / DISABLE Sets Enable/Disable of Sleep Mode.

PAPER BLACK SET –2~0~+2 Used for small adjustments when you experience faded

PAPER COLOR SET –2~0~+2 As above, but for colour printing.

SMR STTING –3~0~+3 Sets a correction value for uneven print quality, to

BG SETTING –3~0~+3 Sets a correction value for dark-coloured paper

SAGE MENU

before entering this mode is set in the SYSTEM CONFIGURATION menu.

print or light specks / streaking in monochrome printing on white paper. Select a higher value to reduce fading, or a lower value to reduce specks or streaking in high density print areas.

correct print variations caused by variations in temperature and humidity or in print density/ frequency.

printing, to correct print variations caused by variations in temperature and humidity or in print density/ frequency.

This menu is for information only, and provides an indication of total usage of the printer and the expected life left in its consumable items. This is particularly useful if you do not have a full set of replacement consumables to hand and you need to know how soon you will need them.

ITEM EXPLANATION

TRAY1 COUNT The total number of pages fed from tray 1.

TRAY2 COUNT The total number of pages fed from tray 2 (if fitted).

MP TRAY COUNT The total number of pages fed from the multi purpose tray.

DRUM UNIT LIFE REMAINING Percentage of image drum life remaining.

BELT LIFE REMAINING Percentage of belt life remaining.

FUSER LIFE REMAINING Percentage of fuser life remaining.

K TONER (n.nK) REMAINING C TONER (n.nK) REMAINING M TONER (n.nK) REMAINING Y TONER (n.nK) REMAINING

Cartridge size and current toner level.

Menu functions > 56

DMINISTRATOR MENU

This menu should only be changed by the System Administrators. In order to gain access to this menu, follow the instructions in “How to change the settings - administrator” on

page 40.

This menu is in ENGLISH only.

ITEM SETTINGS EXPLANATION

ENTER PASSWORD xxxxxxxxxxxx Enter a password to gain entry to the Admin

menu.

Password should be from 6 to 12 digits of alpha/numeric characters (or mix)

The default value is “aaaaaa”

OP MENU ALL CATEGORY ENABLE

DISABLE

PRINT JOBS MENU

INFORMATION MENU

SHUTDOWN MENU

PRINT MENU ENABLE

MEDIA MENU ENABLE

ENABLE

DISABLE

ENABLE

DISABLE

ENABLE

DISABLE

Set up ENABLE/DISABLE condition for all categories in USERS MENU.

Set up ENABLE/DISABLE condition for PRINT JOB MENU category.

If DISABLE is selected, PRINT JOBS MENU category of USERS MENU will not appear.

Display Condition: SD card must be installed.

Set up ENABLE/DISABLE condition for INFORMATION MENU category.

If DISABLE is selected, INFORMATION MENU category of USERS MENU will not appear.

Set up ENABLE/DISABLE condition for SHUTDOWN MENU category.

If DISABLE is selected, SHUTDOWN MENU category of USERS MENU will not appear.

Set up ENABLE/DISABLE condition for PRINT MENU category.

If DISABLE is selected, PRINT MENU category of USERS MENU will not appear.

Set up ENABLE/DISABLE condition for MEDIA MENU category.

If DISABLE is selected, MEDIA MENU category of USERS MENU will not appear.

COLOR MENU ENABLE

DISABLE

SYS CONFIG MENU

PCL EMULATION ENABLE

PPR EMULATION ENABLE

ENABLE

DISABLE

Menu functions > 57

Set up ENABLE/DISABLE condition for COLOR MENU category.

If DISABLE is selected, COLOR MENU category of USERS MENU will not appear.

Set up ENABLE/DISABLE condition for SYS.CONFIG MENU category.

If DISABLE is selected, SYS.CONFIG MENU category of USERS MENU will not appear.

Set up ENABLE/DISABLE condition for PCL EMULATION category.

If DISABLE is selected, PCL EMULATION category of USERS MENU will not appear.

Set up ENABLE/DISABLE condition for PPR EMULATION category.

If DISABLE is selected, PPR EMULATION category of USERS MENU will not appear.

ITEM SETTINGS EXPLANATION

OP MENU

(cont.)

FX EMULATION ENABLE

DISABLE

USB MENU ENABLE

DISABLE

NETWORK MENU ENABLE

DISABLE

MEMORY MENU ENABLE

DISABLE

SYS ADJUST MENU

MAINTENCE MENU

ENABLE

DISABLE

ENABLE

DISABLE

Set up ENABLE/DISABLE condition for FX EMULATION category.

If DISABLE is selected, FX EMULATION category of USERS MENU will not appear.

Set up ENABLE/DISABLE condition for USB MENU category.

If DISABLE is selected, USB MENU category of USERS MENU will not appear.

Set up ENABLE/DISABLE condition for NETWORK MENU category.

If DISABLE is selected, NETWORK MENU category of USERS MENU will not appear.

Set up ENABLE/DISABLE condition for MEMORY MENU category.

If DISABLE is selected, MEMORY MENU category of USERS MENU will not appear.

Set up ENABLE/DISABLE condition for SYS.ADJUST MENU category.

If DISABLE is selected, SYS.ADJUST MENU category of USERS MENU will not appear.

Set up ENABLE/DISABLE condition for MAINTENACE MENU category.

If DISABLE is selected, MAINTENANCE MENU category of USERS MENU will not appear.

USAGE MENU ENABLE

CONFIG. MENU NEARLIFE

STATUS

LIFE WARNING ENABLE

NEARLIFE LED ENABLE

ECO MODE ON

DISABLE

ENABLE

DISABLE

OFF

Set up ENABLE/DISABLE condition for USAGE MENU category.

If DISABLE is selected, USAGE MENU category of USERS MENU will not appear.

Set LCD panel control at the time of near-life warning for drum, fuser and belt.

Enable: Display a near-life warning.

Disable: Do not display a near-life warning.

If DISABLE is selected, the printer does not display life warning after cover opening and closing.

Display Condition: NEARLIFE STATUS is set to DISABLE.

Enables/disables illumination of front panel LED when “near-end-of-life” warning of a toner, drum, fuser, or belt occurs.

Attention LED is lit when setting is enabled, inhibited when disabled.

When ON, if the machine is in power save mode and you send a small print job (1 or 2 pages), the machine will print the job without warming the fuser to the “normal” operating temperature beforehand.

When you change the setting and exit the Admin Menu, the machine will power cycle then the following message is displayed “PLEASE POWER OFF/ON”. Switch the power off then turn the machine back on.

Menu functions > 58

ITEM SETTINGS EXPLANATION

SECURITY MENU JOB LIMITATION OFF

ENCRYPTED JOB

MAKE SECURE SD-M

MAKE NORMAL SD-M

EXECUTE SD Card encoding function is made effective.

EXECUTE SD Card encoding function is set to invalid.

Job limitation mode control.

Jobs other than specified ones are rejected.

Formation of the cipher key and encoding function (security mode)

information is turned on. At the same time, it initializes the SD card.

After execution, the following confirmation messages will appear.

Are You Sure?

Yes

If No is selected, the display will return to the previous menu.

If Yes is selected, the printer will be automatically rebooted and the

encoding function will become effective.

Display Conditions:

SD Card is installed, SD Card encoding function invalidity and

Storage Setup > Enable Initialization > Yes

Deletion of the cipher key and encoding function (security mode)

information is turned off. At the same time, it initializes the SD card.

After execution, the following confirmation messages will appear.

Are You Sure?

Yes

If No is selected, the display will return to the previous menu.

If Yes is selected, the printer will be automatically rebooted and the

encoding function will become invalid.

Display Conditions:

SD Card is installed, SD Card encoding function invalidity and

Storage Setup > Enable Initialization > Yes

Menu functions > 59

ITEM SETTINGS EXPLANATION

SECURITY MENU

(cont.)

FILE SYS MAINTE1

RESET CIPHER KEY

EXECUTE Resets a cipher key to be used on an

encrypted SD card.

When this processing is done, all data stored on the SD card cannot

be restored.

After execution, the following confirmation messages will appear.

Are You Sure?

Yes

If No is selected, the display will return to the previous menu.

If Yes is selected, the printer will be automatically rebooted and the

resetting of the cipher key will be executed.

Display Conditions:

> SD Card implementation > An encrypted SD card function is enabled.

SD-M INITIALIZE EXECUTE Initializes the SD Card to the factory default

setting. Machine performs partition-division, and initializes each partition.

When this menu is executed, the following confirmation message appears.

ARE YOU SURE?

YES/NO

If “NO” is selected, the display will go back to the source menu. If “YES” is selected, the printer will automatically reboot and execute SD card initialisation.

This item is displayed only if the SD card (option) is installed.

PARTITION SIZE EXECUTE The screen will display the SD card partition

size.

This item is displayed only if the SD card (option) is installed.

SD-M FORMATTING

PCL

COMMON

PSE

Format the specified partition. Press the OK button and the following message displays.

ARE YOU SURE?

YES/NO

If NO is selected, the display will go back to the source menu. If YES is selected, the printer will automatically reboot and initialise the specified partition.

This item is displayed only if the SD card (option) is installed.

FLASH INITIALIZE

EXECUTE Initialises the resident FLASH MEMORY.

If NO is selected, the machine will go back to the source menu.

If YES is selected, the machine will be automatically rebooted and initialize the FLASH memory.

Menu functions > 60

ITEM SETTINGS EXPLANATION

FILE SYS MAINTE2

CHK FILE SYS EXECUTE Executing this function will resolve any

mismatch between the actual and the displayed free space of the file system and recover the management data (FAT information).

Note 1: It takes several seconds to complete this function.

Note 2: This item is displayed only if the SD card (option) is installed.

CHK ALL SECTORS

SD CARD ENABLE

SD CARD ERASE EXECUTE Deletion of all data stored in the SD Card.

EXECUTE Performs recovery of defective SD Card

sector information and a file system mismatch mentioned above.

Even if a machine is inoperable at

DISABLE

installation because of a faulty SD Card, the machine can be made operable by setting this parameter to No (ignores the existence of the SD Card).

When No is set, access to the SD Card results in FAIL because the SD Card is regarded as not attached.

After setting change and exit from the menu, the printer will restart.

This item is displayed only if the SD card (option) is installed.

Data cannot be recovered. DoD 5220.22-M sanitizing formula is used for clearing the card. The printer will restart after changing the setup menu.

The progress of the procedure is displayed as a percentage.

The following message appears after pressing the OK button.

ARE YOU SURE?

YES/NO

If NO is selected, the display will go back to the source menu, and the procedure for clearing the disk will start again immediately after the reboot.

if YES is selected.

The following message appears if the CANCEL button is pressed.

CANCEL NOW?

YES/NO

If NO is selected, the procedure will continue.

If YES is selected, the procedure will discontinue and the printer will restart after formatting the SD card.

This item is displayed only if the SD card (option) is installed.

INITIAL LOCK YES

If “YES” is selected, you will not be able to select “ADMIN MENU” - “FILE SYS MAINTE1” (above).

Menu functions > 61

ITEM SETTINGS EXPLANATION

LANGUAGE MENU LANG INITIALIZE EXECUTE Initialise the message file loaded in FLASH

MEMORY.

If NO is selected, the machine will go back to the source menu. The procedure for clearing the disk will start immediately after the menu and machine reboot.

PS MENU L1 TRAY TYPE1

TYPE2

SIDM MENU SIDM MANUAL

ID#

SIDM MANUAL2 ID#

SIDM MP TRAY ID#

SIDM TRAY1 ID# 0 ~ 1 ~ 9 Set up Pn specified TRAY 1by Tray 1 ID

SIDM TRAY2 ID# 0 ~ 2 ~9 Set up Pn specified TRAY 2 by Tray 2 ID

CHANGE PASSWORD

NEW PASSWORD xxxxxxxxxxxx Set a new password for entering the

0 ~ 2 ~ 9 Set up Pn speci fied in MANUAL b y MANU AL-1

0 ~ 3 ~ 9 Set up Pn specified MANUAL by MANUAL-2

0 ~ 4 ~ 9 Set up Pn specified TRAYO(MP Tray) by MP

Switches between Postscript types

ID No.FX/PPR Emu in CSFcontrol command fi(ESC EM Pn).

ID No.FX/PPR Emu in CSF control command(ESC EM Pn).

Tray ID No.FX/PPR Emu in CSF control command(ESC EM Pn).

No.FX/PPR Emu in CSF control command(ESC EM Pn).

No.FX/PPR Emu in CSF control command (ESC EM Pn).

administrator’s menu.

Password should be from 6 to 12 digits of alpha/numeric characters (or mix)

The default value is “aaaaaa”

The printer will restart after the ADMIN MENU.

VERIFY PASSWORD

xxxxxxxxxxxx Verification of above.

Menu functions > 62

RINT STATISTICS

This menu should only be changed by the System Administrators. In order to gain access to this menu, follow the instructions in “How to change the settings - administrator” on

page 40, but hold down the Menu button instead of the OK button. In this case, the default

password is 0000.

This menu is in ENGLISH only.

ITEM SETTING EXPLANATION

ENTER PASSWORD nnnn Enters a password to enter Print Statistics

menu.

The default password is “0000.”

“Print Statistics” category is not shown when Print Statistics function is not supported.

USAGE REPORT ENABLE/

DISABLE

GROUP COUNTER ENABLE/

DISABLE

SUPPLIES REPORT ENABLE/

DISABLE

RST MAIN CNT EXECUTE Zeros the counter

CHANGE PASSWORD

NEW PASSWORD **** Sets a new password to enter Print

VERIFY PASSWORD

**** Verifies the change

Enables/Disables the printing of the Usage Report.

When changing a setting value, the printer is rebooted.

Specifies if the Group counter is displayed in the Usage Report Print.

Enable: Displayed,

Disable: Not displayed.

Conditions for display:

Enable must be selected in Print Statistics > Usage Report.

Indication of frequency of consumable exchange/non indication is set.

When Enable is set, also the maintenance counter is indicated in together.

Conditions for display:

Enable must be selected in Print Statistics

> Usage Report.

Statistics menu.

Menu functions > 63

AINTENANCE

EPLACING CONSUMABLE ITEMS

Only use genuine original consumables to ensure the best quality and performance from your hardware. Non original products may adversely affect your printer's performance and invalidate your warranty.

ONER CARTRIDGE REPLACEMENT

NOTE When the LCD display indicates TONER LOW, or if print appears faded, first open the top cover and try tapping the cartridge a few times to evenly distribute the toner powder. This will enable you to obtain the best “yield” from your toner cartridge.

CAUTION!

To avoid toner wastage and possible toner sensor errors, do not change the toner cartridge(s) until “TONER EMPTY” is displayed.

The toner used in this printer is a very fine dry powder. It is contained in four cartridges: one each for cyan, magenta, yellow and black.

Have a sheet of paper handy so that you have somewhere to place the used cartridge while you install the new one.

Dispose of the old cartridge responsibly, inside the pack that the new one came in. Follow any regulations, recommendations, etc., which may be in force concerning waste recycling.

If you do spill any toner powder, lightly brush it off. If this is not enough, use a cool, damp cloth to remove any residue.

Do not use hot water, and never use solvents of any kind. They will make stains permanent.

WARNING!

If you inhale any toner or get it in your eyes, drink a little water or bathe your eyes liberally in cold water. Seek medical attention immediately.

1. Press the cover release and open the printer’s top cover fully.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

Maintenance > 64

2. Note the positions of the four cartridges. It is essential that they go back in the same order.

1. Yellow cartridge 2. Magenta cartridge

3. Cyan cartridge 4. Black cartridge

(a) Slide the coloured release collar on the cartridge to be replaced fully towards

the right hand side of the printer.

(b) Lift the right-hand end of the cartridge and then draw the cartridge to the right

to release the left-hand end as shown, and withdraw the toner cartridge out of the printer.

3. Put the cartridge down gently onto a piece of paper to prevent toner from marking your furniture.

4. Clean the top of the ID unit with a clean, lint free cloth.

Maintenance > 65

5. Remove the new cartridge from its box but leave its wrapping material in place for the moment.

6. Gently shake the new cartridge from end to end several times to loosen and distribute the toner evenly inside the cartridge.

7. Remove the wrapping material.

8. Holding the cartridge by its top centre, lower it into the printer over the image drum

unit from which the old cartridge was removed.

9. Insert the left end of the cartridge into the top of the image drum unit first, pushing it against the spring on the drum unit, then lower the right end of the cartridge down onto the image drum unit.

10. Pressing gently down on the cartridge to ensure that it is firmly seated, slide the coloured collar fully towards the left hand side of the printer. This will lock the cartridge into place and release toner into the image drum unit.

Maintenance > 66

11. Gently wipe the LED head surface with a clean, lint free cloth.

12. Finally, close the top cover and press down firmly at both sides so that the cover

latches closed.

MAGE DRUM REPLACEMENT

CAUTION!

Static sensitive devices, handle with care.

The machine contains one image drum unit.

1. Press the cover release and open the printer’s top cover fully.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

2. Holding it by its handles, lift the image drum assembly, complete with toner

cartridges, up and out of the printer.

Maintenance > 67

3. Put the assembly down gently onto a piece of paper to prevent toner from marking your furniture and to avoid damaging the green drum surface.

CAUTION!

The green image drum surface at the base of the ID unit is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.

4. Note the positions of the four toner cartridges. It is essential that they go back in the

same order.

5. Slide the coloured release collar on the cartridge fully to the right hand side. This will release the bond between the toner cartridge and the image drum unit.

6. Lift the right-hand end of the toner cartridge (1) and then draw the cartridge to the right to release the left-hand end as shown (2), and withdraw the toner cartridge out of the image drum cartridge. Place the cartridge on a piece of paper to avoid marking your furniture.

7. Repeat steps 5 and 6 for the remaining three cartridges.

8. Take the new image drum cartridge out of its packaging and place it on the piece of

paper where the old cartridge was placed. Keep it the same way round as the old unit. Pack the old cartridge inside the packaging material for disposal.

NOTE Follow instructions that come with the new image drum for additional information such as the removal of packaging material, etc.

9. Holding the toner cartridge by its top centre, lower it over the image drum unit.

10. Insert the left end of the cartridge into the top of the image drum unit first, pushing

it against the spring on the drum unit, then lower the right end of the cartridge down onto the image drum unit. (It is not necessary to fit a new toner cartridge at this time unless the remaining toner level is very low.)

Maintenance > 68

11. Pressing gently down on the cartridge to ensure that it is firmly seated, slide the coloured collar fully towards the left hand side of the printer. This will lock the cartridge into place and release toner into the image drum unit.

12. Repeat steps 9 and 11 for the remaining three cartridges.

13. Holding the complete assembly by its handles, lower it into place in the machine,

locating the pegs at the sides into their slots in the sides of the printer cavity.

14. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

Maintenance > 69

EPLACING THE TRANSFER BELT UNIT

The belt unit is located under the image drum assembly.

Switch off the printer and allow the fuser to cool for about 10 minutes before opening the cover.

1. Press the cover release and open the printer’s top cover fully.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

2. Holding it by its handles, lift the image drum assembly, complete with toner

cartridges, up and out of the printer.

3. Place the assembly in a safe place away from direct sources of heat and light.

CAUTION!

The green image drum surface at the base of each cartridge is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.

Maintenance > 70

4. Pull the locking levers at each side of the transfer belt up and towards the front of the machine.

5. Using the locking levers (a), lift the belt (b) upwards and withdraw from the machine.

6. Lower the new belt unit into place, with the drive gear towards the rear of the printer. Locate the drive gear into the gear inside the printer by the rear right corner of the unit, and lower the belt unit flat inside the printer.

7. Push the locking levers towards the rear of the machine. This will secure the belt unit in place.

8. Holding the image drum assembly by its handles, lower it into place in the machine, locating the pegs at the sides into their slots in the sides of the printer cavity.

9. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

Maintenance > 71

USER REPLACEMENT

The fuser is located inside the printer just behind the toner cartridges.

WARNING!

If the printer has recently been powered on, some fuser components will be very hot. Handle the fuser with extreme care, holding it only by its handle, which will only be mildly warm to the touch. A warning label clearly indicates the area. If in doubt, switch the printer off and wait at least 10 minutes for the fuser to cool before opening the printer cover.

1. Press the cover release and open the printer’s top cover fully.

2. Identify the fuser handle (a) on the top of the fuser unit.

3. Pull the two fuser retaining levers (b) towards the front of the printer so that they are fully upright.

4. Holding the fuser by its handle (a), lift the fuser straight up and out of the printer. If the fuser is still warm, place it on a flat surface which will not be damaged by heat.

5. Remove the new fuser from its packaging and remove the transit material.

6. Holding the new fuser by its handle, make sure that it is the correct way round. The

retaining levers (b) should be fully upright, and the two locating lugs (c) should be towards you.

7. Lower the fuser into the printer, locating the two lugs (c) into their slots in the sides of the printer cavity.

Maintenance > 72

8. Push the two retaining levers (b) towards the rear of the printer to lock the fuser in place.

9. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

Maintenance > 73

LEANING

CAUTION!

Use a clean, moist, lint-free cloth for cleaning. Do not use benzine, thinners or alcohol as a cleaning agent.

...

THE UNIT CASING

1. Switch the printer off.

2. Wipe the unit surface with a soft cloth moistened sparingly with water or neutral

detergent.

3. Use a soft dry cloth to dry the unit surface.

4. Switch the printer on.

...

THE

LED

HEAD

Clean the LED heads when printing does not come out clearly, has white lines or when text is blurred.

There is no need to switch off the printer to clean the lens.

1. Press the cover release and open the printer’s top cover fully.

2. Gently wipe the LED head surface with a clean, lint free cloth.

CAUTION!

Do not use methyl alcohol or other solvents on the LED head as damage to the lens surface will occur.

3. Close the top cover and press down firmly at both sides so that the cover latches

closed.

Maintenance > 74

NSTALLING UPGRADES

This section explains how to install optional equipment into your printer. This includes:

> additional RAM memory (C330 and C530 only)

> SD card (C530 only)

> additional paper tray

EMORY UPGRADE

The basic printer models comes equipped with the following main memory:

> C330: 128MB

> C530: 256MB

This can be upgraded with an additional memory board of 256MB or 512MB, giving a maximum total memory capacity of:

> C330: 640MB

> C530: 768MB

1. Switch the printer off and disconnect the AC power cable.

(C330

AND

C530

ONLY

)

2. Remove the outer access cover and place it safely to one side.

3. Turn locking screw (a) anti-clockwise and remove the inner access cover (b). Place it

safely to one side.

Installing upgrades > 75

4. Carefully remove the new memory board from its wrapping. Try to handle the board only by its short edges, avoiding contact with any metal parts as far as possible. In particular, avoid touching the edge connector.

5. Notice that the memory board has a small cutout in the edge connector, which is closer to one end than the other.

6. Identify the RAM expansion slot in the printer.

7. If the RAM expansion slot already contains a memory upgrade board, that board will

have to be removed before you can install the new one. To remove it, proceed as follows, otherwise skip to step 8.

(a) Release retaining clips and pull the board out of the slot.

(b) Place the removed memory board in the antistatic bag which originally

contained the new memory board.

8. Hold the new memory board by its short edges, so that the edge connector faces in towards the RAM expansion slot, and the small cutout is closer to the rear of the printer.

9. Gently push the board into the RAM expansion slot until it latches in and will not go any further.

10. Replace the inner access cover (b) and turn locking screw (a) clockwise to secure it shut.

Installing upgrades > 76

11. Replace the access cover and latch it closed.

12. Reconnect the AC power cable and switch the printer on.

13. When the printer is ready, print a menu map as follows:

(a) Press the OK button.

(b) Press the Menu down button then the OK button to select the INFORMATION

MENU.

(d) Press the OK button once more to execute.

(e) When the Configuration map is printed, press ON LINE to exit the menu

system.

14. Examine the first page of the menu map.

Near the top of the page, between the two horizontal lines, you will see the current printer configuration. This list contains the figure for total memory size.

This should indicate the total memory now installed.

Installing upgrades > 77

CARD

(C530

The optional SD card enables collating of printed pages and can be used to store overlays and macros, fonts, and secure or proof documents waiting to be printed.

1. Switch the printer off and disconnect the AC power cable.

2. Remove the outer access cover and place it safely to one side.

ONLY

)

3. Turn locking screw (a) anti-clockwise and remove the inner access cover (b). Place it

safely to one side.

4. Notice that the SD card has one chamfered corner.

Installing upgrades > 78

5. Gently push the SD card into the slot as shown.

6. Replace the inner access cover (b) and turn locking screw (a) clockwise to secure it shut.

7. Replace the access cover and latch it closed.

8. Reconnect the AC power cable and switch the printer on.

9. When the printer is ready, print a menu map as follows:

(a) Press the OK button.

(b) Press the Menu down button then the OK button to select the INFORMATION

MENU.

(d) Press the OK button once more to execute.

(e) When the Configuration map is printed, press ON LINE to exit the menu

system.

10. Examine the first page of the menu map.

Near the top of the page, between the two horizontal lines, you will see the current printer configuration. This should now indicate that the SD card is installed.

Installing upgrades > 79

DDITIONAL PAPER TRAY

1. Switch the printer off and disconnect the AC power cable.

2. Place additional paper tray on desired location.

3. Observing safety rules for lifting and, using locating guides, place printer on top of

the additional paper tray.

4. Fit retaining clips as shown.

5. Re-connect the AC power cable and switch the printer ON.

All that remains is to adjust the printer driver to make full use of the new features (“Setting the driver device options” on page 81).

Installing upgrades > 80

ETTING THE DRIVER DEVICE OPTIONS

Once your new upgrade has been installed, you may need to update the printer driver so that the additional features are available to your applications.

Accessories such as additional paper trays will only be usable if the printer driver on your computer knows they are there.

In some cases the hardware configuration of your machine is automatically detected when the driver is installed. However, it is advisable to at least check whether all of the available hardware features are listed in the driver.

This procedure is essential if you subsequently add extra hardware features to your machine after the drivers have been installed and set up.

Remember that if your machine is shared between users on different computers, the driver must be adjusted on each user’s machine.

INDOWS

1. Access the driver’s Properties window.

(a) Open the Printers window (called “Printers and Faxes” in Windows XP) via the

Start Menu or from the Windows Control Panel.

(b) Right-click the icon for this machine, and choose Properties from the pop-up

menu.

2. Select the Device Options tab.

In the Windows XP PostScript driver the tab may be called Device Settings.

3. Set the options for any devices you have just installed.

4. Click OK to close the window and save your changes.

MAC OS X

NOTE Applies to the PS driver only.

Snow Leopard (Mac OS X 10.6) and Leopard (Mac OS X 10.5)

1. Open the Mac OS X Print & Fax Preferences.

2. Ensure your machine is selected.

3. Click Options & Supplies.

4. Click Driver.

5. Select all hardware options appropriate to your machine and click OK.

Tiger (Mac OS X 10.4)

1. Open the Mac OS X Print & Fax Preferences.

2. Ensure your machine is selected.

3. Click Printer Setup….

4. Click the menu and choose Installable Options….

5. Select all hardware options appropriate to your machine and click Apply Changes….

Installing upgrades > 81

Panther (Mac OS X 10.3)

1. Open the Mac OS X Print & Fax Preferences.

2. Click Printing.

3. Click Set Up Printers….

4. Ensure your machine is selected and click Show Info….

5. Click the menu and choose Installable Options….

6. Select all hardware options appropriate to your machine and click Apply Changes….

Installing upgrades > 82

ROUBLESHOOTING

Provided that you follow the recommendations in this guide on the use of print media, and you keep the media in good condition prior to use, y ou r pr i n te r sh o ul d g iv e ye a rs o f re l ia b le service. However, paper jams occasionally do occur, and this section explains how to clear them quickly and simply.

Jams can occur due to paper misfeeding from a paper tray or at any point on the paper path through the printer. When a jam occurs, the printer immediately stops, and the Attention LED on the control panel informs you of the event. If printing multiple pages (or copies), do not assume that, having cleared an obvious sheet, others will not also be stopped somewhere along the path. These must also be removed in order to clear the jam fully and restore normal operation.

AJOR PRINTER COMPONENTS AND PAPER PATH

1. Face-up stacker. 5. Front cover.

2. Paper exit. 6. Paper tray.

3. Fuser unit 7. Additional paper tray (if fitted)

4. Top cover.

Troubleshooting > 83

APER SENSOR ERROR CODES

370

382

371

381

372

380, 400

390

391

392

CODE # LOCATION CODE # LOCATION

370 Duplex 390 MP Tray

371 Duplex 391 Paper Tray

372 Duplex 392

380 Paper feed 400 Paper size

381 Paper path 409 Face up stacker

382 Paper exit

a. If fitted.

Paper tray

(sensor not shown)

Troubleshooting > 84

LEARING PAPER JAMS

1. If a sheet is well advanced out of the top of the printer, simply grip it and pull gently

to draw it fully out. If it does not remove easily, do not use excessive force. It can be removed from the rear later.

2. Press the cover release and open the printer’s top cover fully.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

3. Holding it by its handles, lift the image drum assembly, complete with the toner

cartridges, up and out of the printer.

Put the assembly down gently onto a piece of paper to prevent toner from marking

your furniture and to avoid damaging the green drum surface, and cover.

CAUTION!

The green image drum surface at the base of the Image Drum is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.

Troubleshooting > 85

5. Look into the printer to check whether any sheets of paper are visible on any part of the belt unit.

CAUTION!

Do not use any sharp or abrasive objects to separate sheets from the belt. This may damage the belt surface.

(a) To remove a sheet with its leading edge at the front of the belt (a), lift the

plastic guard (e) at the front of the printer, then carefully lift the sheet from the belt and pull it forwards into the internal drum cavity and withdraw the sheet.

(b) To remove a sheet from the central area of the belt (b), carefully separate the

sheet from the belt surface and withdraw the sheet.

sheet from the belt, push the fuser pressure release lever (d) towards the front and down to release the fuser’s grip on the sheet, and withdraw the sheet

Troubleshooting > 86

through the drum cavity area. Then allow the pressure release lever to rise again.

NOTE If the sheet is well advanced into the fuser (only a short length is still visible), do not attempt to pull it back.

(d) To remove a sheet in the fuser, move the two retaining levers (e) towards the

front of the machine to release the fuser. Withdraw the fuser unit using the handle (f).

(e) Press release lever (g) and pull the trapped paper from the fuser.

(f) Replace fuser unit into the machine and move locking levers (e) toward the rear

of the machine.

Troubleshooting > 87

6. If you were duplex printing when the jam occurred, check the duplex paper path:

(a) Pull the locking levers at each side of the transfer belt up and towards the front

of the machine.

(b) Using the locking levers (a), lift the belt (b) upwards and withdraw from the

machine.

part of the paper path. Pull out any sheets found in this area.

(d) Lower the belt unit into place, with the drive gear towards the rear of the

printer. Locate the drive gear into the gear inside the printer by the rear right corner of the unit, and lower the belt unit flat inside the printer.

(e) Push the locking levers towards the rear of the machine. This will secure the belt

unit in place.

7. Holding the image drum assembly by its handles, lower it into place in the machine, locating the pegs at the sides into their slots in the sides of the printer cavity.

Troubleshooting > 88

8. Lower the top cover but do not press down to latch it closed yet. This will protect the drum from excessive exposure to room lighting while you check the remaining areas for jammed sheets.

9. Open the rear exit tray (h) and check for a sheet of paper in the rear path area (i).

> Pull out any sheets found in this area.

> If the sheet is low down in this area and difficult to remove, it is probably still

gripped by the fuser. In this case raise the top cover, reach around and press down on the fuser pressure release lever (d).

10. If you are not using the rear exit tray, close it once any paper has been removed from this area.

11. Pull out the paper tray and ensure that all paper is stacked properly, is undamaged, and that the paper guides are properly positioned against the edges of the paper stack. When satisfied, replace the tray.

12. Finally, close the top cover and press down firmly so that the cover latches closed.

When the jam has been cleared, if JAM RECOVERY is set to ON in the SYS CONFIG MENU, the printer will attempt to reprint any pages lost due to paper jams.

Troubleshooting > 89

EALING WITH UNSATISFACTORY PRINTING

SYMPTOMS POSSIBLE CAUSES STEPS TO TAKE

Vertical white lines can be seen on the printed page.

Printed images are fading vertically.

Printing is light. The toner cartridge is not

The LED head is dirty. Wipe the LED head with a soft,

The toner is low. Open the top cover and tap the

Foreign materials may be present in the image drum.

Light-shielding film of the image drum cartridge is dirty.

The LED head is dirty. Wipe the LED head with a soft,

The toner is low. Open the top cover and tap the

The paper is not suitable for the printer unit.

properly seated.

lint-free cloth.

cartridge a few times to evenly distribute any remaining toner. If symptoms persist, replace the toner cartridge.

Replace the image drum cartridge.

Wipe the film with a soft, lintfree cloth.

lint-free cloth.

cartridge a few times to evenly distribute any remaining toner. If symptoms persist, replace the toner cartridge.

Use recommended paper.

Reinstall the toner cartridge.

The toner is low. Open the top cover and tap the

The paper is moist. Use paper stored in proper

The paper is not suitable for the printer unit.

Thickness and type of paper are inappropriate.

Recycled paper is being used. Set one value thicker for media

Partially faded images. White spots and lines appear in solid printing.

Vertical lines appear. The image drum cartridge is

Paper is moist or dry. Use paper stored in proper

damaged.

The toner is low. Open the top cover and tap the

cartridge a few times to evenly distribute any remaining toner. If symptoms persist, replace the toner cartridge.

temperature and humidity conditions.

Use recommended paper.

Set the correct value of media type and media weight in the Media menu or set one value thicker for media weight.

weight in the Media menu.

temperature and humidity conditions.

Replace the image drum cartridge.

cartridge a few times to evenly distribute any remaining toner. If symptoms persist, replace the toner cartridge.

Troubleshooting > 90

SYMPTOMS POSSIBLE CAUSES STEPS TO TAKE

Horizontal Lines and spots appear periodically.

White area of paper is lightly stained.

Periphery of the letters is smudged.

When the interval is about 94mm (4in), the image drum (the green tube) is damaged or dirty.

When the interval is about 30mm (1.2in), there may be foreign particles in the image drum cartridge.

When the interval is about 86mm (3.4in), the fuser unit is damaged.

The image drum cartridge has been exposed to light.

Paper contains static. Use paper stored in proper

Too thick paper is used. Use thinner paper.

The toner is low. Open the top cover and tap the

The LED head is dirty. Wipe the LED head with a soft,

Wipe it lightly with a soft cloth. Replace the image drum cartridge when it is damaged.

Open/close the top cover, and print again.

Replace the fuser unit.

Replace the image drum cartridge if the problem is not resolved.

temperature and humidity conditions.

cartridge a few times to evenly distribute any remaining toner. If symptoms persist, replace the toner cartridge.

lint-free cloth.

Toner comes off when it is rubbed.

Glossiness is not uniform.

The thickness and type of the paper are incorrectly set.

Recycled paper is used. Set one value thicker for media

The thickness and type of the paper are incorrectly set.

Set the correct value of media type and media weight in the Media menu or set one value lighter for media weight.

weight in the Media menu.

Set the correct value of media type and media weight in the Media menu or set one value lighter for media weight.

Troubleshooting > 91

PECIFICATIONS

C310 - N34301B C330 - N34302B C510 - N34303B C530 - N34304B

ITEM SPECIFICATION

C310 C330 C510 C530

Dimensions 410 x 504 x 242mm (W x D x H)

Weight 21Kg approx.

Power supply 220 to 240VAC @ 50/60 Hz ± 2%

Power consumption

Sleep: - - < 2.5 W < 1.5 W

Power saving: < 9.5 W < 14 W < 9.5 W < 14 W

Stand-by: 80 W 90 W 80 W 90 W

Operating (Average): 480 W 540 W

Operating (Max.): 1170 W

Operating environment Operating 10 to 32 °C/20 to 80% RH

(optimum 25 °C wet, 2 °C dry)

Off: 0 to 43 °C/10 to 90% RH

(optimum 26.8 °C wet, 2 °C dry)

Print environment Colour 17 to 27 °C @ 50 to 70% RH

Noise (Sound pressure level)

Operating: < 52dB(A) < 54dB(A)

Standby: 37dB(A)

Specifications > 92

NDEX

Belt

how to replace

life remaining.................... 56

.................. 70

Cleaning the LED head.......... 74

Colour

adjusting

........................... 47

Duplex

paper size and weight

.............................. 15

limits

Envelopes

.............................. 19

Fuser

how to replace

life remaining.................... 56

.................. 72

Image drum

current usage state

how to replace .................. 67

.......... 56

Maintenance menu................ 54

Major printer components and

paper path

Menu functions...................... 38

Menus

administrator menu

color menu........................ 47

factory default settings..... 40

FX emulation .................... 51

how to use........................ 38

information menu ............. 42

maintenance menu........... 55

media menu...................... 45

memory menu .................. 54

menu map ........................ 42

network menu .................. 52

PCL emulation menu......... 49

PPR emulation menu ........ 50

print jobs menu ................ 41

print menu........................ 43

print statistics menu ......... 63

resetting ........................... 55

shutdown menu ................ 43

system adjust menu......... 55

system configuration

usage menu ...................... 56
