Oki 70040901 User Manual

Memory DIMM

Installation Instructions

DIMM PART NUMBER

64MB: 70040901

128MB: 70041101
256 MB: 70041201
512 MB: 70041901

Every effort has been made to ensure that the information in this document is
complete, accurate, and up-to-date. Oki Data assumes no responsibility for the
results of errors beyond its control. Oki Data also cannot guarantee that changes in
software and equipment made by other manufacturers and referred to in this guide
will not affect the applicability of the information in it. Mention of software
products manufactured by other companies does not necessarily constitute
endorsement by Oki Data.

Copyright 2002 by Oki Data Americas, Inc. All rights reserved.

Written and produced by the Oki Data Training & Publications Department. Please
address any comments on this publication by mail to:

Training & Publications Dept.
Oki Data Americas, Inc.
2000 Bishops Gate Blvd.
Mt. Laurel, NJ 08054-4620

by email to: [e-mail]

For the latest product information, printer drivers, manuals, special offers, etc., we
welcome you to visit our multilingual web site:

http://www.okidata.com

OKI is a registered trademark/marque déposée/marca registrada Oki Electric
Industry Company, Ltd. Adobe and PostScript are trademarks of Adobe Systems,
Inc. which may be registered in certain jurisdictions. Macintosh is a trademark of
Apple Computer, Inc., registered in the U.S. and other countries. Windows and
Windows NT are either registered trademarks or trademarks of Microsoft
Corporation in the United States and other countries.

1

Getting Started

The printers have four sockets for memory DIMM boards. You can expand the
printer’s memory up to 1 GB by installing two 512-MB DIMMs. To achieve the 1
GB memory in most models, you will need to replace the DIMM(s) provided with
512 MB DIMMs. The printer will not acknowledge more than 1 GB of memory.

Model Memory Provided

C7300 64 Mb

C7300n 64 Mb

C7300dxn 128 Mb

C7500n 128 Mb

C7500dxn 128 Mb

C9300 128 Mb

C9300n 128 Mb

C9300dxn 192 Mb (64 + 128 MB)

C9500dxn 320 Mb (64 + 256 MB)

Caution!

Circuit boards can be damaged by static electricity and rough handling. Keep
board in packaging until you’re ready to install it. DIMMs are sensitive to static
electricity. To avoid damage, ground yourself before handling DIMMs.

2

Prepare the Printer

1. Turn off the printer and unplug the power cord.

2. Detach the interface cable from the printer.

3. Remove and save the thumbscrew at the top and bottom which hold the control board in place.

C7100/C7300/C7500

C9300/C9500

3

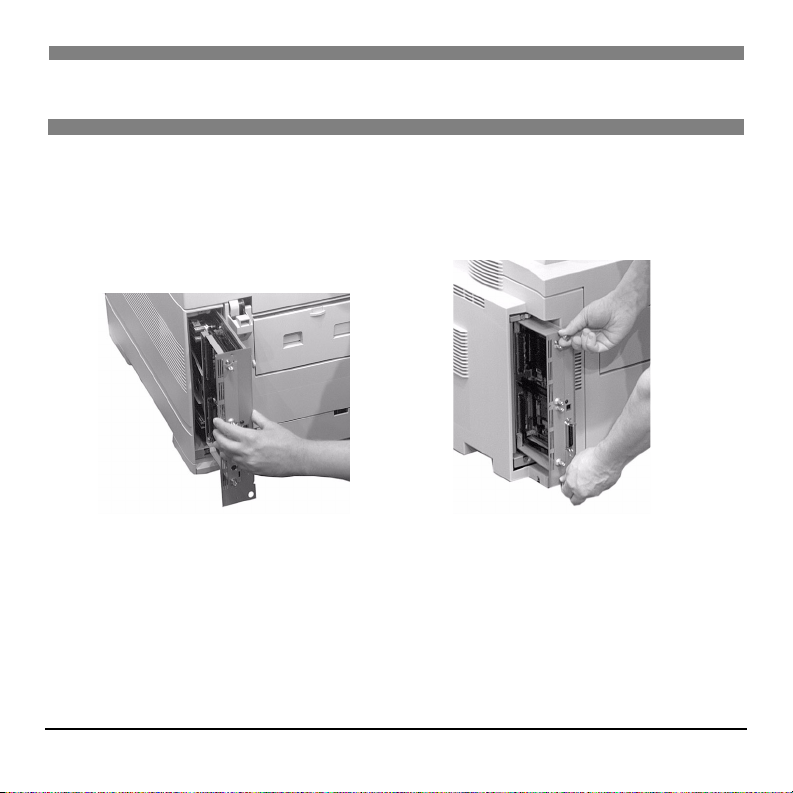

4. Grasp the control board, loosen it by wiggling it back and forth, and slide it out
of the printer.

C9300/C9500

C7100/C7300/C7500

4

Install the DIMM(s)

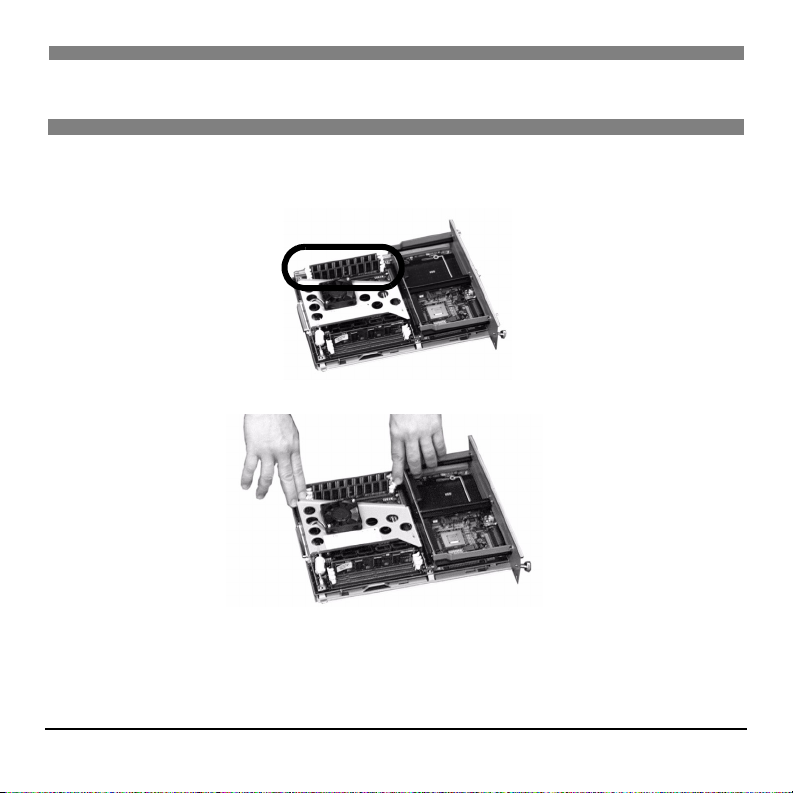

1. Locate the DIMM sockets (circled) on the control board.

2. Push out the white lock tabs at either end of the DIMM socket.

Caution!
Circuit boards can be damaged by static electricity and rough handling. To avoid
damage, ground yourself (touch metal) before handling DIMMs.

5

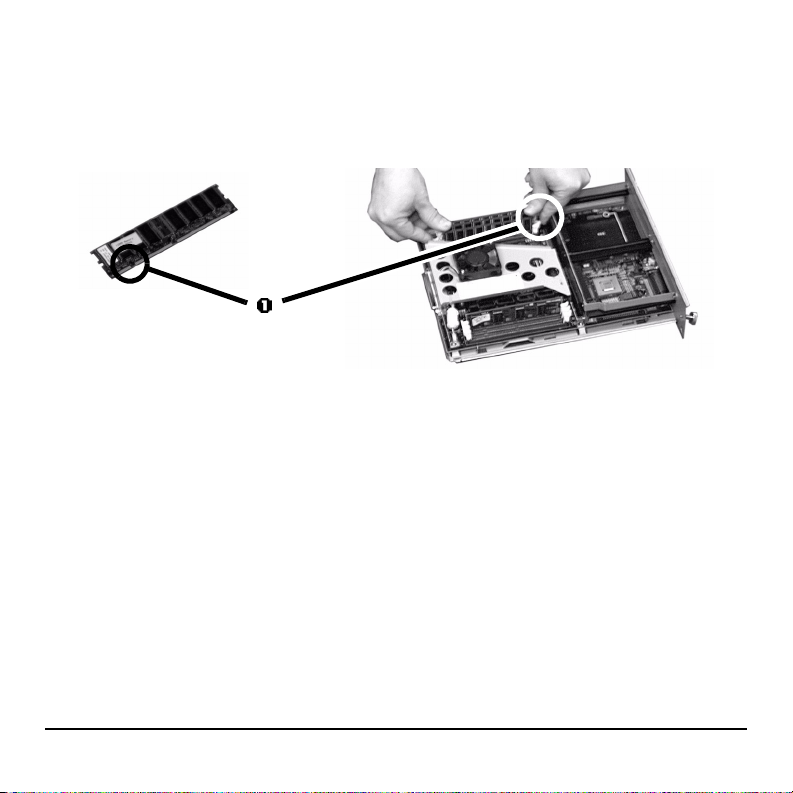

3. Remove the DIMM from its shipping package.

4. Align the DIMM with the narrow strip (1) on its metallic contact edge toward
the front of the control board, then carefully insert the DIMM in the socket.
Press down firmly, until you feel the board engage the connector, then raise the
white tabs to lock the DIMM in place.

5. Repeat steps 2 through 4 for each DIMM being installed.

6

Complete the Installation

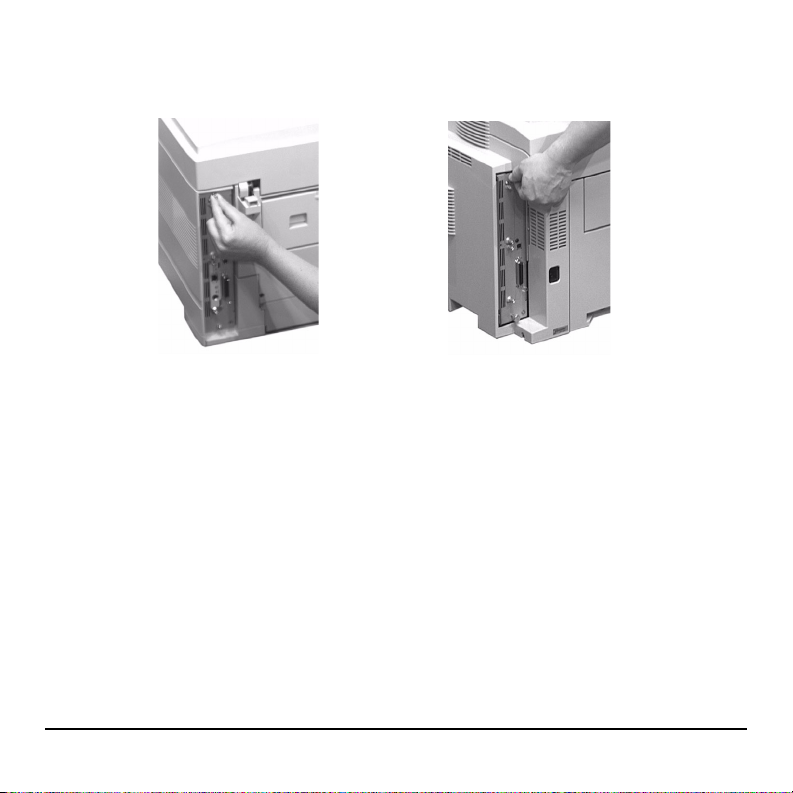

1. Align the bottom of the control board with the track in the printer and slide it back into place.

C9300/C9500

C7100/C7300/C7500

7

2. Reinstall the thumbscrews at the top and bottom of the board.

C7100/C7300/C7500

C9300/C9500

3. Reattach the computer interface cable.

4. Plug the power cord into the power outlet and turn on the printer.

8

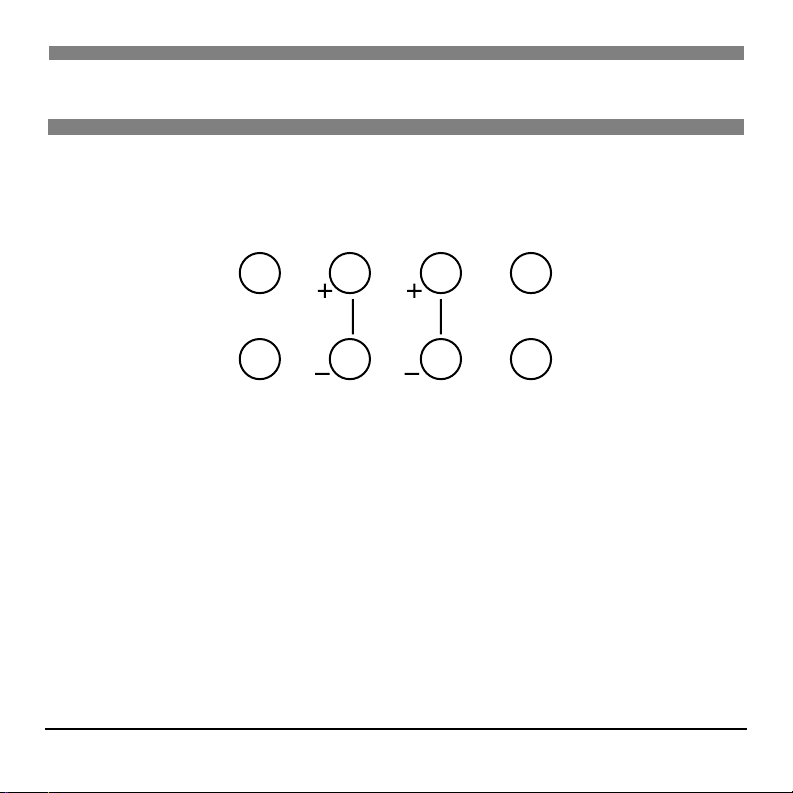

Check for Proper Installation

ON LINE

Generate a MenuMap printout and check to be sure that the DIMMs are properly
installed.

MENU ITEM VALUE SELECT

3210

ON LINE

CANCEL

7654

1. Press MENU once or twice until INFORMATION MENU appears on the display.

2. Press SELECT. PRINT MENU MAP appears on the display.

3. Press SELECT. The MenuMap prints.

4. Check the top of the MenuMap printout to verify that the DIMMs you installed
are listed (they will appear as DIMMs).

5. If the DIMM is not listed at the top of the MenuMap printout, remove the board
and make sure the memory DIMM is firmly in place, then print the MenuMap
again.

9

Change the Memory Setting in the Driver(s)

Windows® Adobe® PostScript® Driver

1. Click Start — Settings — Printers. The Printers dialog box opens.

2. Right click the appropriate OKI PostScript driver icon, then click

3. Windows 2000 & NT 4.0:

a. Click the Device Settings tab.

b. Scroll down to

c. Under

Windows Me, 98 & 95

a. Click the

b. Click

c. Under

4. Click OK, then close the Printers dialog box.

Change ‘Memory Configuration’ Setting, click the total memory

installed (original plus the memory you just installed).

Memory Configuration.

Change setting for: Memory Configuration, click the total mem-

ory installed (original plus the memory you just installed).

Installable Options and click Memory Configuration.

Device Options tab.

Windows PCL Driver

Properties.

1. No changes are necessary in the PCL driver.

10

Macintosh® Driver (OSX)

1. As of OS 10.1.5, Apple has not enabled Printer Options adjustment. Therefore,
this selection is unavailable.

Macintosh® Driver

1. Activate Chooser from the Apple menu.

2. Select

3. Click

4. Click

5. Change the

6. Click

LaserWriter 8.

Printer — Setup.

Configure.

Memory Configuration setting to match the total DIMM memory

installed (original plus the new memory you just installed):

OK twice, then close Chooser.
