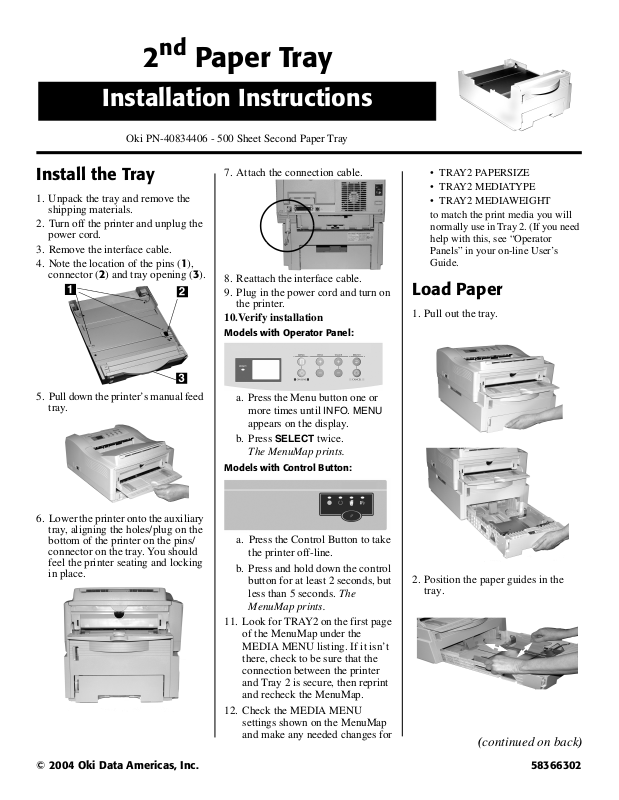

Paper Tray

Installation Instructions

Oki PN-40834406 - 500 Sheet Second Paper Tray

Install the Tray

1. Unpack the tray and remove the shipping materials.

2. Turn off the printer and unplug the power cord.

3. Remove the interface cable.

4. Note the location of the pins (1), connector (2) and tray opening (3).

5. Pull down the printer’s manual feed tray.

7. Attach the connection cable.

8. Reattach the interface cable.

9. Plug in the power cord and turn on the printer.

10.Verify installation

Models with Operator Panel:

a. Press the Menu button one or

more times until appears on the display.

b. Press

Models with Control Button:

SELECT twice.

The MenuMap prints.

INFO. MENU

• TRAY2 PAPERSIZE

• TRAY2 MEDIATYPE

• TRAY2 MEDIAWEIGHT to match the print media you will

normally use in Tray 2. (If you need help with this, see “Operator Panels” in your on-line User’s Guide.

Load Paper

1. Pull out the tray.

6. Lower the printer onto the auxiliary tray, aligning the holes/plug on the bottom of the printer on the pins/ connector on the tray. You should feel the printer seating and locking in place.

a. Press the Control Button to take

the printer off-line.

b. Press and hold down the control

button for at least 2 seconds, but less than 5 seconds. The

MenuMap prints.

11. Look for TRAY2 on the first page of the MenuMap under the MEDIA MENU listing. If it isn’t there, check to be sure that the connection between the printer and Tray 2 is secure, then reprint and recheck the MenuMap.

12. Check the MEDIA MENU settings shown on the MenuMap and make any needed changes for

2. Position the paper guides in the tray.

(continued on back)

3. Fan the paper.

4. Lift the paper bar (1) and load

paper (up to 500 sheets 20-lb. US Bond). Keep the stack below the full line (2).

AUTOFEED

To set the printer to switch to Tray 2 when Tray 1 is empty:

Printers with Operator Panel

Set

AUTOTRAY

on in the Print Menu.

Printer with online Status Monitor

Go to the Select

Paper

tab in the Status Monitor.

Auto Tray Switch

Activate the Tray in the Printer Driver

Windows

PCL Driver

1. Click [

Printers and Faxes for XP].

The Printers (Printers and Faxes) dialog box opens.

2. Right click the Oki printer icon, then click

3. Click the Device Option(s) tab.

Available Tray, select Lower

4. For

Cassette

5. Click (Printers and Faxes) dialog box.

PostScript Emulation Driver, (Printers with Postscript option installed).

Start → Settings → Printers

Properties.

OK, then close the Printers

Macintosh

PostScript Emulation Driver, (Printers with PostScript option installed)

OS 8.x and 9.x

1. Activate

Chooser from the Apple

menu.

2. Select

3. Click

4. Click

5. Change the

LaserWriter 8. Printer → Setup. Configure.

Available Tray setting

to 2 (1 Optional Tray).

6. Click

7. Close

OK twice.

Chooser.

OS X.1

No activation is required for Macintosh OS X.1.

OS X.2

1. Activate

Hard Utilities → Print Center

Print Center from Local

Drive → Applications →

2. Highlight the printer name and select from the menu

Show Info

3. Click the

Available Tray

Printers →

drop-down menu and select 2 (1

Optional Tray)

4. Click

Apply Changes and exit to

the desktop.

5. Lower the paper bar and push the tray back into the printer.

Note: To install paper in Tray 1:

a. Open the Tray 2 front panel.

b. Slide Tray 1 out.

1. Click

Start → Settings → Printers

Printers and Faxes for XP].

[

The Printers (Printers and Faxes) dialog box opens.

2. Right click the Postscript emulation printer icon, then click

Properties.

3. Next:

– Windows XP, 2000 and NT 4.0:

click the Device Settings tab.

– Windows Me and 98: click the

Device Options tab.

4. Then:

– Windows XP, 2000, NT 4.0 and

Me: under Installable Options,

Available Tray and select 2.

click

– Windows 98: under

setting for Available Tray 2 (1 Optional Tray).

5. Click

OK, then close the Printers

Change

(Printers and Faxes) dialog box.

, select
