Order Number

: GETEC-C1-12-381

FCC Part 15 subpart C

Test Report Number

: GETEC-E3-12-143 Page 1 / 1

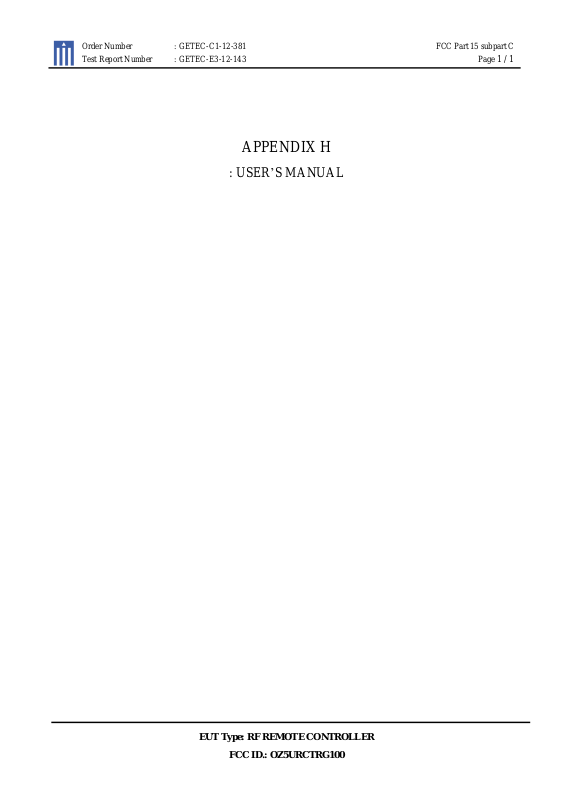

APPENDIX H

: USER’S MANUAL

EUT Type: RF REMOTE CONTROLLER

FCC ID.: OZ5URCTRG100

TRG-100 Umotion Remote

Owner’s Manual

TRG-100 UMOTION REMOTE

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

This remote control was Custom Programmed for you by:

For questions about your Custom Programming call:

Custom Programming of a complex home theater and/or a multi-room system is one of the most challenging tasks within an audio/video installation. It involves an intimate knowledge of how the components interact and exact details on the proper sequences of control.

Only a Total Control dealer has the requisite experience and training to quickly and effectively customize a remote control for true automated operation.

Congratulations on your choice!

The information in this manual is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Universal Remote Control, Inc.

UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.

The information in this manual may be subject to change without prior notice.

URC - Control the Experience is a registered trademark of Universal Remote Control, Inc.

All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.

TRG-100 UMOTION REMOTE

Congratulations! 1

Parts Guide 1

Using the TRG-100 Umotion Remote 2

Installing the Batteries 4

Pairing to a TRF-GE1 and/or MRX-20 5

Maintaining Your TRG-100 Umotion Remote 6

Specifications 6

USA Limited Warranty Statement 7

Federal Communication Commission Interference Statement 9

Declaration of Conformity 10

TRG-100 UMOTION REMOTE

Page 1

Congratulations!

Thank you for purchasing the Total Control TRG-100 Umotion Remote. The TRG-100 works to control the MRX-20 Advanced System Controller’s user interface. View and control your connected devices throughout your home with the user interface via a connected HDTV.

Control the on-screen interface with the remote’s built in gyroscopic motion

The TRG-100’s built-in gyroscopic motion allows for on-screen control and selection of all your connected devices.

RF “No Rules” Operation

The TRG-100 communicates directly to the MRX-20 via 2.4 GHz “bidirectional” RF. This gives the TRG-100 the ability to control your system without being in direct line of sight of the equipment. Use the optional TRF-GE1 to extend two-way communication between a TRG remote and an MRX-20 within a large space.

Requires MRX-20 or compatible MRX Advanced System Controller

In combination with an MRX-20 or compatible MRX Advanced System Controller, the TRG-100 Umotion Remote can control your home system via the on-screen interface.

Programmable only by URC Certified Professional Programmer

To fully automate your audio/video system, the programmer must have detailed knowledge of each component, LAN configuration, Wi-Fi optimization and how the system is connected and operated. Only a trained and certified professional audio/video installer can install a TRG-100 Umotion Remote in a timely and efficient manner.

Parts Guide

The TRG-100 Extender includes:

1 - TRG-100 Umotion remote 1 - Owner’s Manual 2 - “AA” Batteries

Using the TRG-100 Umotion Remote

The TRG-100 remote consists of basic buttons found on many other remotes with the exception of the special Umotion button. Use these functions to control your rooms and connected devices. All buttons

may vary based on your Custom Professional’s programming.

TRG-100 UMOTION REMOTE

Page 2

Umotion Control

Allows for motion control and button selection via

on-screen interface.

Five-way cursor

While watching

devices such as

Cable,DVD,

Sat, etc.., use the

Left/Right/Up/Down

and Select buttons to

navigate through the

device menu.

While in the System

Menu, use the

Left/Right/Up/Down

and Select buttons to

navigate via the

on-screen menu.

Ch +/- Prev

Change Channels while

viewing connected devices like Cable,

Sat , DVD etc...

Volume +/- & Mute

Control the Volume while viewing connected devices like Cable, Sat , DVD etc... Also view the on-screen volume status via a display device.

Main

Displays the MRX-20’s

System menu. For further details, refer to the MRX-20 Owner’s Manual.

Power

Turns the A/V

connected

devices in the

room ON or OFF.

TRG-100 UMOTION REMOTE

Using the TRG-100 Umotion Remote (cont...)

In addition to the basic options, it is important to know the additional features the buttons listed below provide, when controlling an MRX-20 Advanced System Controller.

Power: Turns the connected devices in the room ON or OFF.

When a room is OFF: Pressing Power sends out a series of commands to turn ON all required devices to view the on-screen display.

When a room is ON: Pressing Power sends out a series of commands to turn off all connected A/V devices in that room,such as a display device or an optional SNP-1 music player.

Pressing and holding the Power button for three seconds displays a programmer customizable on-screen Power menu. By default the options are: Turn OFF Room, Turn OFF House. Other options may vary based on the programming. See Power Menu below.

Page 3

Press and hold the Power button for three seconds to open the Power menu.

Page 4

TRG-100 UMOTION REMOTE

Installing the Batteries

Open the battery cover by pushing up on the spring lock at the bottom of the cover. Remove the cover.

Observe the + and – polarity indicators inside the battery compartment and the batteries. Place the two AA batteries into their positions in the battery compartment.

Now, replace the battery cover and snap it into place.

Main: Displays the MRX-20’s System menu via a connected display device.

When a room is OFF: Pressing Main sends out a series of

commands to turn ON all required devices to view the on-screen display.

When a room is ON: Pressing Main, while the display

device is on, opens the System menu of the MRX-20.

Umotion: Allows for motion control and button selection via on-screen interface. Press the Umotion button to activate on-screen movement. Point the TRG-100 towards the television. As you move the remote, an on-screen pointer will mimic your movements. To select a button, hover over your selection and press the Umotion button. Placing the remote down for ten seconds, exits the on-screen motion control.

When a room is OFF: No action occurs.

When a room is ON: The display device shows a

Shortcuts Menu screen.

TRG-100 UMOTION REMOTE

Page 5

Pairing to a TRF-GE1 and/or MRX-20

Before you can begin to use the TRG-100 Umotion remote, it is necessary to pair it with either a TRF-GE1 Extender or the MRX-20 Advanced System Controller. To pair, press and hold the Main and Sel buttons for three seconds. Once paired, the Umotion button will flash three times. Keep in mind, a TRG-100 remote can only be paired with one MRX-20/TRF-GE1 at a time. If it is paired with a new MRX-20/TRF-GE1, it will no longer work with the previous setup.

Press and hold

Main and Sel for

three seconds.

Once paired, the

Umotion button

will flash three

times.

TRG-100 UMOTION REMOTE

Page 6

Maintaining Your TRG-100 Umotion Remote

The TRG-100 Umotion Remote is not waterproof. Do not use it in any location that is damp or wet. If you spill water on it, remove the batteries and let the TRG-100 Umotion Remote dry for 48 hours before you try powering it up again. If you spill coffee or another beverage on it, clean it with distilled water. Make sure no water gets inside the TRG-100 Umotion Remote. Keep it away from extreme cold or heat. Be careful to not drop the TRG-100 Umotion Remote or slam it against anything.

Specifications

Microprocessor: ARM 32-bit Cortex™-M3

Memory: 16 Kbytes SRAM, 128 Kbytes Flash

RF Range(radio frequenc

RF Freqency: 2.425~2.475 GHz

Weigh

t: 2.6 oz

Siz: 1.82” X 0.6” X 1.52”

Batteries: AA Battery 2EA

y): 50 to 100 feet, depending upon the environment

TRG-100 UMOTION REMOTE

Page 7

USA Limited Warranty Statement

Your Universal Remote Control, when delivered to you in new condition, is warranted against defects in materials or workmanship as follows: UNIVERSAL REMOTE CONTROL, INC. warrants this product against defects in material or workmanship for a period of one (1) year and as set forth below. Universal Remote Control will, at its sole option, repair the product using new or comparable rebuilt parts, or exchange the product for a comparable new or rebuilt product. In the event of a defect, these are your exclusive remedies.

This Limited Warranty covers only the hardware components packaged with the Product. It does not cover technical assistance for hardware or software usage and it does not cover any software products whether or not contained in the Product; any such software is provided "AS IS" unless expressly provided for in any enclosed software Limited Warranty.

To obtain warranty service, you must deliver the product, freight prepaid, in its original packaging or packaging affording adequate protection to Universal Remote Control at the address provided in the Owner's Manual.

It is your responsibility to backup any macro programming, artwork, software or other materials that may have been programmed into your unit. It is likely that such data, software, or other materials will be lost during service and Universal Remote Control will not be responsible for any such damage or loss. Adated purchase receipt, Bill of Sale, Installation

Contract or other verifiable Proof of Purchase is required. For product support and other important information visit Universal Remote Control's website: http://www.UniversalRemote.com

or call the Customer Service

Center (914) 835-4484.

This Limited Warranty only covers product issues caused by defects in material or workmanship during ordinary consumer use. It does not cover product issues caused by any other reason, including but not limited to product issues due to commercial use, acts of God, third-party installation, misuse, limitations of technology, or modification of or to any part of the Universal Remote Control product. This imited Warranty does not cover Universal Remote Control products sold as USED, AS IS, REFURBISHED, so-called “B STOCK” or consumables (such as batteries). This Limited Warranty is invalid if the factoryapplied serial number has been altered or removed from the product. This Limited Warranty is valid only in the United States of America. This Limited Warranty specifically excludes products sold

by unauthorized resellers.

TRG-100 UMOTION REMOTE

Page 8

LIMITATION OF REMEDIES UNIVERSALREMOTE CONTROLSHALLNOT BE LIABLE FOR ANY INCIDENTALOR CONSEQUENTIALDAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON THIS PRODUCT. IN NO EVENT SHALL UNIVERSAL REMOTE CONTROL BE LIABLE, WHETHER IN CONTRACT OR IN TORT(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE,OR FOR ANY INDIRECT, INCIDENTAL, SPECIALOR CONSEQUENTIALDAMAGES OF ANYKIND, OR LOSS OF REVENUE OR PROFITS,LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWAREOR APPLICATIONS OR OTHER FINANCIALLOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, THERE IS NO OTHER WARRANTY EXPRESSED OR IMPLIED. UNIVERSAL REMOTE CONTROL WILL NOT BE HELD RESPONSIBLE FOR STATEMENTS MADE BY OTHERS CONCERNING THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT. Some states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This Limited Warranty gives you specific legal rights and you may have other rights which vary from state to state or jurisdiction to jurisdiction.

REV020708

TRG-100 UMOTION REMOTE

Page 9

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there isno guarantee that interference will not occur in a particular installation. If thisequipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one more of the followingmeasures:

u Reorient or relocate the receiving antenna. u Increase the separation between the equipment and receiver. u Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

u Consult the dealer or an experienced radio/TV technician for help.

Warning!

Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. Note : The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

FCC Caution

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment.

Federal Communication Commission (FCC) Radiation Exposure Statement

This remote device is approved as a hand-held and hand-operated only portable (relative to hand) device which is normally operated at 5 cm from a person's body.

TRG-100 UMOTION REMOTE

Page 10

● EN 62479 (2010)

Declaration of Conformity

Company Name : OH SUNG ELECTRONICS CO., LTD.

Company Address : #181 GONG DAN-DONG, GUMI, GYEONG BUK,

Contact Information : Phone: +82-54-468-7281, Fax: +82-54-461-8368

Brand Name : UNIVERSAL remote control

Product Name : RF Remote Controller

Model Name : TRG-100

This product herewith complies with the requirements of EMC Directive (2004/108/EC) and R&TTE Directive(1995/5/EC) issued by the Commission of the European Community

Compliance with these directives implies conformity to the following European Community

n EMC Directive

l EN 55022 (2010)

l EN 55024 (2010)

n R&TTE Directive

l EN 60950-1 (2006) + A11 (2009) + A1 (2010) + A12 (2011)

l ETSI EN 301 489-1 V1.9.2 (2011), ETSI EN 301 489-17 V2.2.1 (2012)

l ETSI EN 300 328 V1.7.1 (2006)

REPUBLIC OF KOREA

List of test reports and/or certificate verified compliance with the standards above

n EMC Directive

l Report No.
