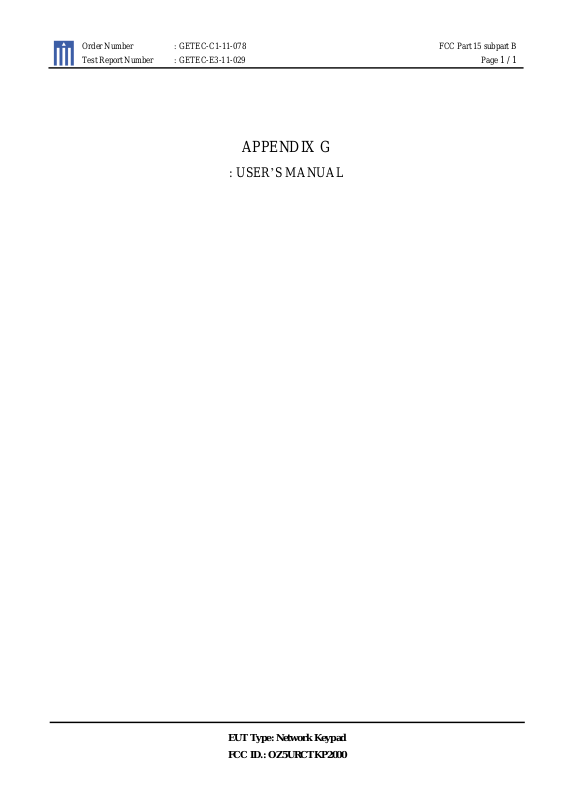

Ohsung Electronics URCTKP2000 Users Manual

Order Number

: GETEC-C1-11-078

FCC Part 15 subpart B

Test Report Number

: GETEC-E3-11-029 Page 1 / 1

APPENDIX G

: USER’S MANUAL

EUT Type: Network Keypad
FCC ID.: OZ5URCTKP2000

TKP-2000 Network Keypad

Owner’s Manual

TKP-2000 Installation Manual ©2011 Universal Remote Control, Inc.

The information in this manual is copyright protected. No part of this man­ual may be copied or reproduced in any form without prior written consent
from Universal Remote Control, Inc.

UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER­ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN
THIS MANUAL.

The information in this manual may be subject to change without prior
notice.

All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.

Universal Remote Control,Inc.

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: [phone] Fax: [phone]

TABLE

OF CONTENTS

Congratulations! 1

Features and Benefits 2

Parts List 2

TKP-2000 Product Description 3

Displaying the Settings Screen 4

Adjusting Sleep Settings 4

Button Light Settings 4

Setting Date and Time 4

Sound 5

Adjusting Brightness 5

System 5

Network 5

Factory Default 6

Exit 6

Frequently Asked Questions 7

Specifications 7

USA Limited Warranty Statement 8

Federal Communication Commission

Interference Statement 10

Regulatory Information to the user 11

Page 1

TKP-2000 NETWORK KEYPAD

Congratulations!

You’ve purchased a unique synthesis of hardware and software
engineering, the Total Control TKP-2000 Network Keypad. The TKP­2000 achieves a magnificent combination of power and flexibility
by simplifying and automating the operation of even the most com­plex systems.

The TKP-2000 has the ability to control audio video components,
energy management devices, multizone matrixes, PCs, iPods and
whole house URC Lighting. It communicates over IP to the Total
Control MRX-10 Network System Controller.

The MRX-10 “Controller” is required to make the TKP-2000 work.
The combination of the TKP-2000 and MRX-10 create a robust and
powerful system to control the Total Control product line and your
home theatre equipment.

Page 2

TKP-2000 NETWORK KEYPAD

Features and Benefits

2-Way IP Home Theater AVRS

Now with the unique URC 2-Way database, you can control your
multizone audio video receivers over your home network via the
MRX-10 Network System Controller.

2-Way IP Control of Media on PCs and iPods

The high speed of the LAN enables the TKP-2000 to display lists of
artists, albums or songs and to display the cover art of the selected
album on the Now Playing screen of the remote control from the
PSX-2 Personal Server or from a Mac or PC.

Backlit Color LCD screen

The TKP-2000 has a programmable 3.5” color touch screen. When
any button is pressed, the color LCD screen as well as the remote
buttons, will light up.

User Configurable Internet RSS for News, Sports, Stocks and
Weather

The well known URC modules for News, Sports, Weather and
Stocks are all available updated to the TKP-2000 screen and of
course, are completely user set.

No batteries to replace...Ever!

The TKP-2000 is powered over the ethernet cable it’s connected to,
so you never have to worry about replacing batteries.

Parts List

The TKP-2000 Network Keypad includes:

1 - TKP-2000 Network Base Station
1 - Owner’s Manual
4 - Screws for mounting to a wall box
