Defender® 5000
Standard Indicators
Multifunctional Indicator for Standard Industrial Applications

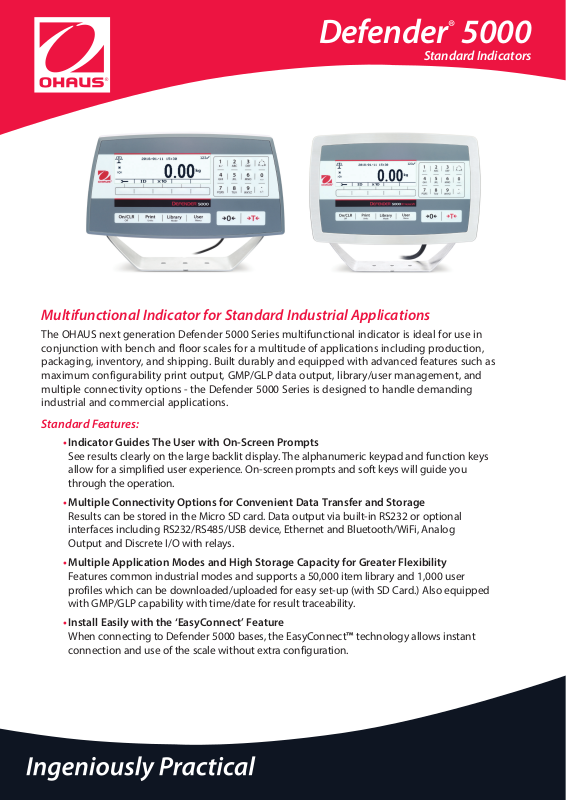

The OHAUS next generation Defender 5000 Series multifunctional indicator is ideal for use in
conjunction with bench and floor scales for a multitude of applications including production,
packaging, inventory, and shipping. Built durably and equipped with advanced features such as
maximum configurability print output, GMP/GLP data output, library/user management, and
multiple connectivity options - the Defender 5000 Series is designed to handle demanding
industrial and commercial applications.
Standard Features:
• Indicator Guides The User with On-Screen Prompts
See results clearly on the large backlit display. The alphanumeric keypad and function keys
allow for a simplified user experience. On-screen prompts and soft keys will guide you
through the operation.
• Multiple Connectivity Options for Convenient Data Transfer and Storage
Results can be stored in the Micro SD card. Data output via built-in RS232 or optional
interfaces including RS232/RS485/USB device, Ethernet and Bluetooth/WiFi, Analog
Output and Discrete I/O with relays.
• Multiple Application Modes and High Storage Capacity for Greater Flexibility
Features common industrial modes and supports a 50,000 item library and 1,000 user
profiles which can be downloaded/uploaded for easy set-up (with SD Card.) Also equipped
with GMP/GLP capability with time/date for result traceability.
• Install Easily with the ‘EasyConnect’ Feature
When connecting to Defender 5000 bases, the EasyConnect™ technology allows instant
connection and use of the scale without extra configuration.
Defender® 5000 Standard Indicators
Simplified Use
Results can be read easily on the Defender 5000’s large transective dot matrix
display, even in bright sunlight. The SmarText 3.0 interface will guide you through
all of the Defender 5000’s unique and advanced features. With ve soft keys,
SmartText 3.0 makes an advanced scale very simple to use, and reduces training
time for operators.
Multiple Connectivity Options
Weighing results can be easily exported through the standard RS232 port and
Micro-SD slot. Additional connectivity options include a second RS232, RS485 or
USB device; Ethernet and WiFi/Bluetooth.
Using the Analog option (either 4-20mA or 0-10V) and two In/four Out discrete I/O,
the new Defender 5000 indicator can also be used for PLC systems.
Simple Operation
Featuring most common applications including Percent Weighing, Parts Counting
with APW optimization, Checkweighing or Checkcounting and Dynamic Weighing
or Display Hold, the Defender 5000 meets the weighing and measurement
needs of practically every industrial application or manufacturing process.
Many application modes eliminate the need for long and complicated manual
calculations. GMP/GLP with time/date allows for traceability of results.
Equipped with Micro SD card, the Defender 5000 can support storage of up to
50,000 items and 1,000 user proles. Weighing results can also be stored in Alibi
or regular format, addressing all your data storage needs.
Easy Installation
The latest technology EasyConnectTM, allows the Defender 5000 indicator and
base to be freely connected without needing extra conguration. Plug and play save your time and money for installation and adjustment.
Defender® 5000 Standard Indicators

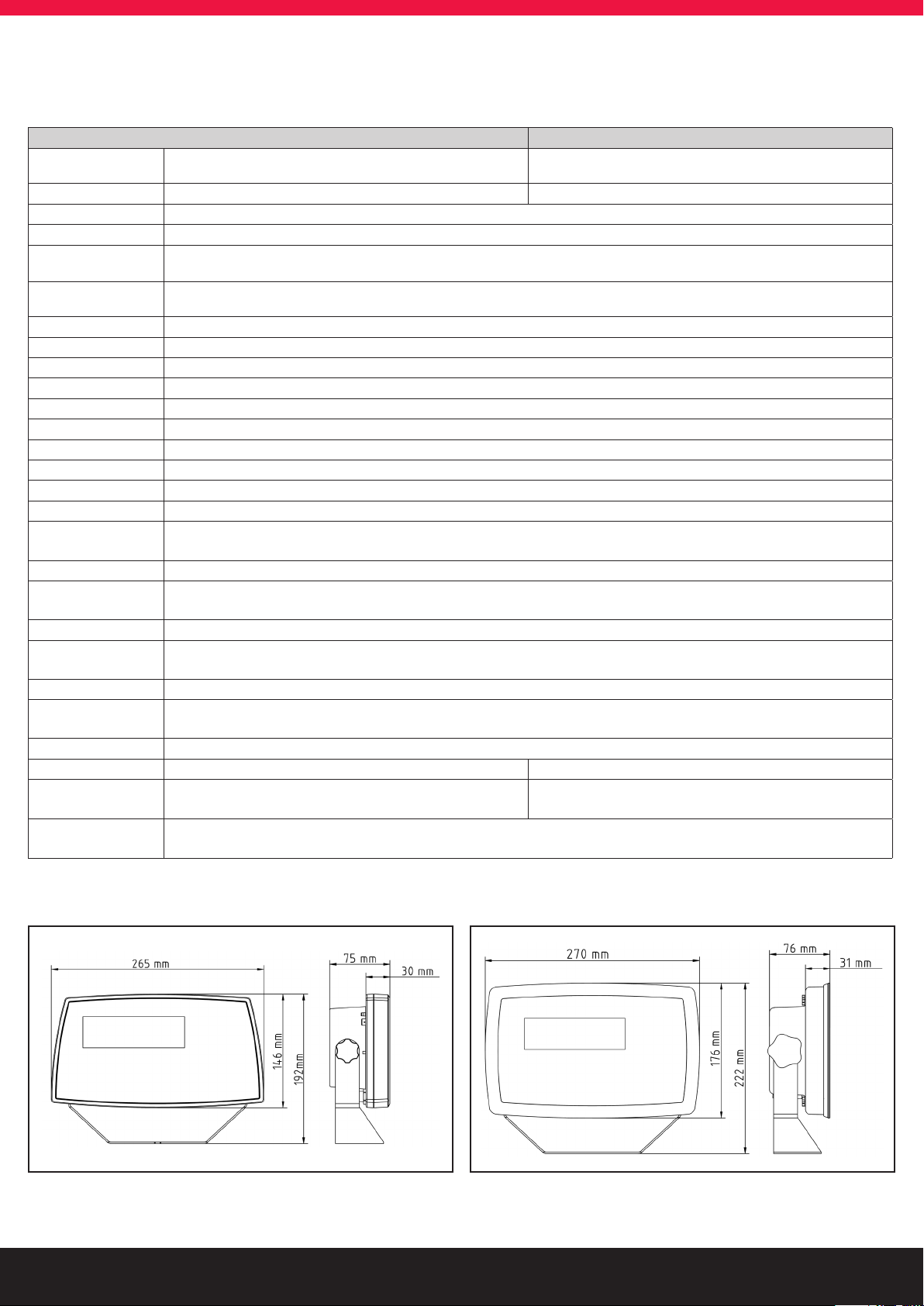

Indicator Specications
TD52P TD52XW
Construction
Protection N/A IP68
A/D Conversion Rate 80 Hz
Capacity Selections 999,999 with decimal located to five places
Maximum
Display Resolution
Maximum
Approved Resolution
Weighing Units Kilogram, Gram, Pound, Ounce, Pound: Ounce, Tonne (Metric Tonne), Ton (Short Ton), Custom unit
Application Modes Basic Weighing, Percent Weighing, Piece Counting with Optimized APW, Checkweighing/Checkcounting, Dynamic Weighing/Display Hold
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard 6 function, 5 quick, 12 alpha numeric membrane switches
Auto-zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Calibration Zero, Span or 3-point Linear
Span Calibration 1 kg or 1 lb to capacity
Internal Resolution
Digital Filtering/Type
Load Cell
Excitation Voltage
Load Cell Drive
Load Cell
Input Sensitivity
Stabilization Time
Power
Battery Life
Interface
Shipping Dimensions
Approx. Net Weight
Approx.
Shipping Weight
Operating
Temperature Range
ABS plastic, powder-coated steel bracket
1:75,000
1:10,000 (EC, OIML & NTEP/Measurement Canada) Class III or 2 × 3000e @ 0.8 µV/e (EC, OIML)
1,137,000 counts per mV/V
Averaging
5VDC
Up to 8 x 350 ohm load cells
Up to 3 mV/V
Within 2 seconds
100-240 VAC / 50/60 Hz Universal Power Supply, Hardwired (TD52XW) or Line Cord (TD52P),
Rechargeable Lithium battery (optional)
20 hours of continuous use
Standard RS232, MicroSD Card (included)
Optional Ethernet, WiFi/Bluetooth, 2nd RS232/RS485/USB, Analog Output, 2 In/4 Out Digital I/O
300 x 265 x 135 mm
1.5 kg 2 kg
2 kg 2.5 kg
-10°C to 40°C
304 stainless steel with sand blasted
surface treatment, stainless steel bracket
TD52P TD52XW
Defender® 5000 Standard Indicators
Application Modes
Weighing: Determine the weight of items
in the selected unit of measure.
Parts Counting: Count samples of uniform weight. Advanced
auto-optimization software recalculates the average piece of
weight as the overall weight increases.
Checkweighing/Counting: Compare the weight/count of
a sample against target limits. Connect with Discrete I/O
and Light Tower Kit for external check lights.
Percent Weighing: Measure the weight of a sample displayed as
a percentage of a pre-established reference weight.
Dynamic Weighing and Display Hold: Weigh an unstable load.
Scale takes an average of weights over a period of time. The
Display Hold feature manually and automatically holds the last
stable weight on the display.
Other Standard Features and Equipment
Checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple operating languages,
selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings,
auto-dim, auto-off, auto tare, screensaver.
Additional Features
A total of six print templates are available to ensure you can print out all of the data you need. A simple template is predefined for quick
printing, as well as five templates you can customize so you can print the exact information necessary for your application - eliminating
confusion and time to sift through excess unnecessary data.
Compliance
• Metrology: OIML R76 (Certicate R76/2006-A-NL1-18.13)
• Product Safety: IEC/EN 61010-1; CAN/CSA C22.2 61010-1; UL61010-1
• Electromagnetic Compatibility: IEC/EN 61326-1 Class B, basic environments; FCC Part 15 Class B; Canada ICES-003 Class B
• Compliance Marks: CE; CSA; RCM
Accessories
WiFi/BT Dongle, OHAUS (Requires 30424406)2 ......30412537
Analog Output Kit, TD523 ......................30424403
2nd RS232/RS485/USB, TD523 .................30424404
Battery Kit, Li-ion, TD52 .......................30424405
USB Host for Dongle, TD52 ....................30424406
Light Tower, 3 Colors, 243mm, IP65
(Requires 30097591) ...............................30424021
In-use Cover Set, TD52P .......................30424022
In-use Cover Set, TD52XW .....................30424023
Wall Mount Kit, SST, TD52XW ..................30424026
Wall Mount Kit, CS, TD52P .....................30424027
LC Extension Cable, 9 meters, D521. . . . . . . . . . . . .30424409
M16 Gland with Ferrite, to TD52 ...............30379716
Micro SD Card, 8G .............................30303533
I/O with Relay (2 In/4 Out)3 .....................30097591
Ethernet Kit, D522 ..............................30429666
Printer SF40A .................................30045641
1 Cannot be used for legal-for-trade applications 2 Only one of them can be used at the same time 3 Only one of them can be used at the same time
