7000 Series
Advanced Indicators

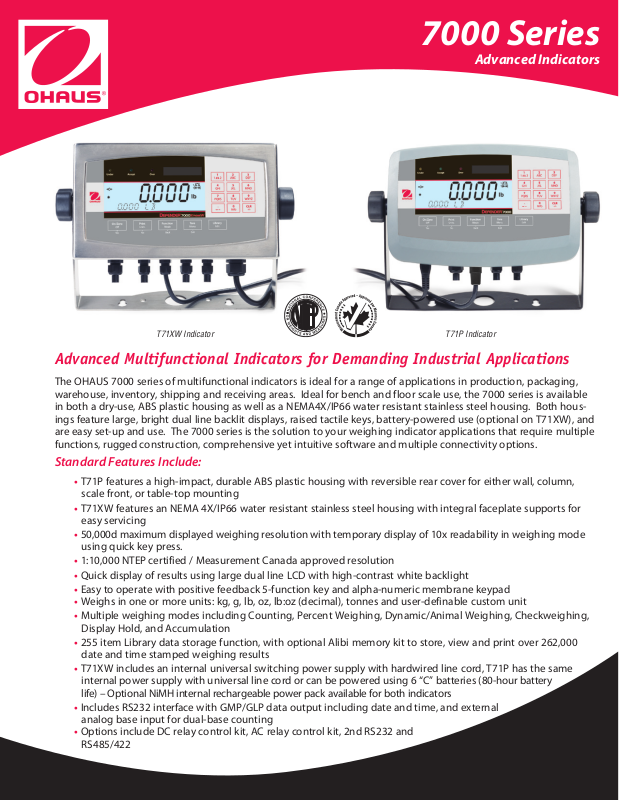

T71XW Indicator T71P Indicator
Advanced Multifunctional Indicators for Demanding Industrial Applications
The OHAUS 7000 series of multifunctional indicators is ideal for a range of applications in production, packaging,
warehouse, inventory, shipping and receiving areas. Ideal for bench and floor scale use, the 7000 series is available
in both a dry-use, ABS plastic housing as well as a NEMA4X/IP66 water resistant stainless steel housing. Both housings feature large, bright dual line backlit displays, raised tactile keys, battery-powered use (optional on T71XW), and
are easy set-up and use. The 7000 series is the solution to your weighing indicator applications that require multiple
functions, rugged construction, comprehensive yet intuitive software and multiple connectivity options.
Standard Features Include:
• T71P features a high-impact, durable ABS plastic housing with reversible rear cover for either wall, column,
scale front, or table-top mounting
• T71XW features an NEMA 4X/IP66 water resistant stainless steel housing with integral faceplate supports for
easy servicing
• 50,000d maximum displayed weighing resolution with temporary display of 10x readability in weighing mode
using quick key press.
• 1:10,000 NTEP certified / Measurement Canada approved resolution
• Quick display of results using large dual line LCD with high-contrast white backlight
• Easy to operate with positive feedback 5-function key and alpha-numeric membrane keypad
• Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
• Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing,
Display Hold, and Accumulation
• 255 item Library data storage function, with optional Alibi memory kit to store, view and print over 262,000
date and time stamped weighing results
• T71XW includes an internal universal switching power supply with hardwired line cord, T71P has the same
internal power supply with universal line cord or can be powered using 6 “C” batteries (80-hour battery
life) – Optional NiMH internal rechargeable power pack available for both indicators
• Includes RS232 interface with GMP/GLP data output including date and time, and external
analog base input for dual-base counting
• Options include DC relay control kit, AC relay control kit, 2nd RS232 and
RS485/422
Page 2
7000 Series Advanced Indicators
7000 Series Indicators Offer Multiple Features and Easy Configuration:
To meet different operational needs, the 7000 Series includes a suite of configurable software:
• Counting mode for packaging and inventory control, enabling counting into a container or out of a container for bulk
operations. Supports a maximum counting resolution to 1:500,000 (minimum APW equal to 0.1d), selectable autooptimization of average piece weight (APW). APW data can be displayed at any time using a quick key press.
• Percent Weighing mode for formulation and mixing applications, with display of reference weight with quick key press.
• Dynamic/Animal Weighing with selectable averaging times from 0-60 seconds.
• Checkweighing function for count and weight checking, with display of results using LCD display and red/yellow/green
LEDs. Audible beeper can be configured to prompt when weight is within range, under, over, or under or over range.
Target values can be displayed at any time using a quick key press.
• Display Hold mode for weighing large packages, holds last stable weight on display until cleared manually or automatically
• Weighs in one or more user-selectable units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
• Supports GMP/GLP data output with date, time user ID, project ID and scale ID. The Defender 7000 features selectable
print options for data and print format
• Software lockouts for menu items as well as individual key functions to limit operator access to functions.
• Library storage for up to 255 memory records that may contain data from a combination of different modes. These reference data can be quickly and conveniently recalled for use with the active mode.
• Multi-language feature allows the user to display operation and menu text in the language of their choice: English, Spanish,
French, German, Italian. This allows for convenience and ease of training and operation of the Defender 7000.
• Accumulation mode with statistics feature allows totalizing weight and count values manually or automatically. The total
accumulated value is displayed in real-time. With the press of the “Info” key, the number of weighments, average, standard
deviation, minimum, maximum and difference are displayed. These statistical values can also be printed.
• Dual scale connections are built-in for 2-scale counting configuration. Connect two bases, a higher resolution base to optimize average piece weight, in conjunction with a large capacity base to weigh/count in bulk.
• Store, view and print over 262,000 date and time-stamped weighing results with the optional Alibi memory kit.
Options and Accessories
Interface Options OHAUS Number
AC Relay Kit, T71P/T71XW .....................................................80500720
DC Relay Kit, T71P/T71XW .....................................................80500727
RS485/422 Interface Kit, T71P/T71XW ...................................80500731
RS232 Interface Kit, T71P/T71XW ..........................................80500733
Foot Switch .............................................................................71173378
Power Options
Rechargeable Battery Kit, T71P/T71XW ..................................80500729
Mounting Accessories
Wall Mount Kit, T71P ..............................................................72200227
Wall Mount Kit, T71XW ..........................................................80500735
Base Mount Kit, T71P .............................................................80500722
Column Mount Kit, 35cm, painted, T71 ..................................80500723
Column Mount Kit, 68cm, painted, T71 ..................................80500724
Column Mount Kit, 35cm, stainless steel, T71 .......................80500725
Column Mount Kit, 68cm, stainless steel, T71 .......................80500726
Compatible with all existing columns for Champs-CD/CW11/CD3X/CKW
Other Accessories OHAUS Number
Compact Dot Matrix Impact Printer ........................................80252042
Compact Thermal Printer ........................................................80251992
OHAUS Collect Software .........................................................80500746
Alibi Memory Option Kit ..........................................................80500503
TAL Software WinWedge ........................................................SW12W
Paper for Printer, 80252042 (1 roll) .......................................80251932
Ribbon for Printer, 80252042 .................................................80251933
RS232 Cable & Adapter, 80252042 Printer to T71XW ...........80252574
RS232 Cable, PC 9 Pin to T71XW ..........................................80500552
RS232 Cable, PC 25-pin to T71XW ........................................80500553
RS232 Cable & Adapter, 80252042 Printer to T71P ...............80252571
RS232 Cable, PC 9-pin to T71 ................................................80500525
RS232 Cable, PC 25-pin to T71P ............................................80500524
Page 3

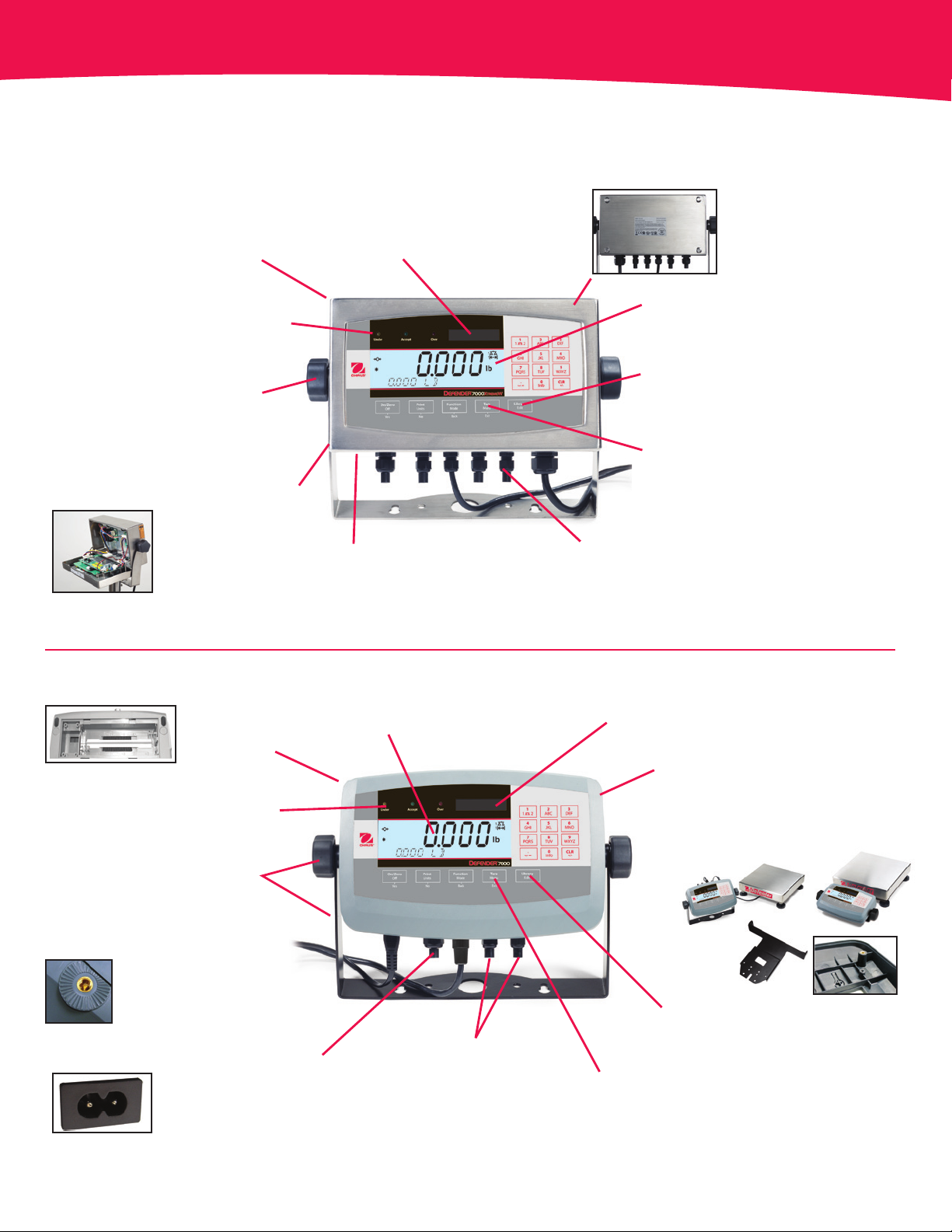

Standard Features:
Optional NiMH Battery
Allows for use in environments
where an electrical outlet may not
be readily available
3-Color LED Checkweigh Indication
with configurable beeper alert
Included Table/Wall Mount Bracket
With large ergonomic adjustable knobs
to maximize viewing angles
Hinged Front Cover
Only four sealing screws secure the hous-
ing for ease of servicing,
while still ensuring IP66
seal integrity
Internal Slot for Capacity Label
Protects label from the effects
of moisture and external
environments
Universal Switching Power Supply
Automatically adapts to different
voltages from 100-240 VAC; plug
anywhere, anytime
Stainless Steel 304 NEMA 4X/IP66 Enclosure
Indoor/outdoor protection
against falling dirt, rain,
sleet, snow, windblown dust,
splashing and corrosion
High-Visibility Dual Line LCD Display
with bright white LED backlight. Fast
display stable weight within 2 seconds
Library Data Storage Function
Storage and quick recall of data
records for up to 255 items
One-Key, Multiple Mode Selection
Counting, Dynamic Weighing,
Display Hold, Percent Weighing and
Checkweighing
Stay Connected/Output
Built in RS232 bi-directional interface and built-in
external input, optional RS422/485, optional second
RS232 and optional AC or DC relay. Optional Alibi
memory kit for data recording and traceability
Simple Plug-In Battery Installation
Use six C- alkaline
batteries or the
optional NiMH
battery
3-Color LED Checkweigh Indication
with configurable beeper alert
Included Table/Wall Mount Bracket
With large ergonomic adjustable
knobs to maximize viewing angles.
A ratchet-type angle adjustment with
metal inserts ensure that viewing
angles are set securely,
and lasts a long time
even with frequent
adjustments
Universal Switching Power Supply
100-240 VAC with AC line
cord; no need for an
external AC adapter!
High-Visibility Dual Line LCD Display
with bright white LED backlight and
fast display stable weight within 2
seconds
Stay Connected/Output
Built in RS232 bi-directional interface and built-in external input,
optional RS422/485, optional second RS232 and optional AC or DC
relay. Optional Alibi memory kit for
data recording and traceability
Internal Slot for Capacity Label
Protects label from the effects of
moisture and external environments
Reversible Rear Housing
Cables can exit above (table or front scale
mounting) or below (wall or bench scale
mounting) for convenient mounting. Front
scale mounting with available accessory.
Internal structural ribs provide strength and
minimize flexing.
Library Data Storage Function
Storage and quick recall of data records
for up to 255 items
One-Key, Multiple Mode Selection
Counting, Dynamic Weighing,
Display Hold, Percent Weighing
and Checkweighing
Page 4
7000 Series Advanced Indicators

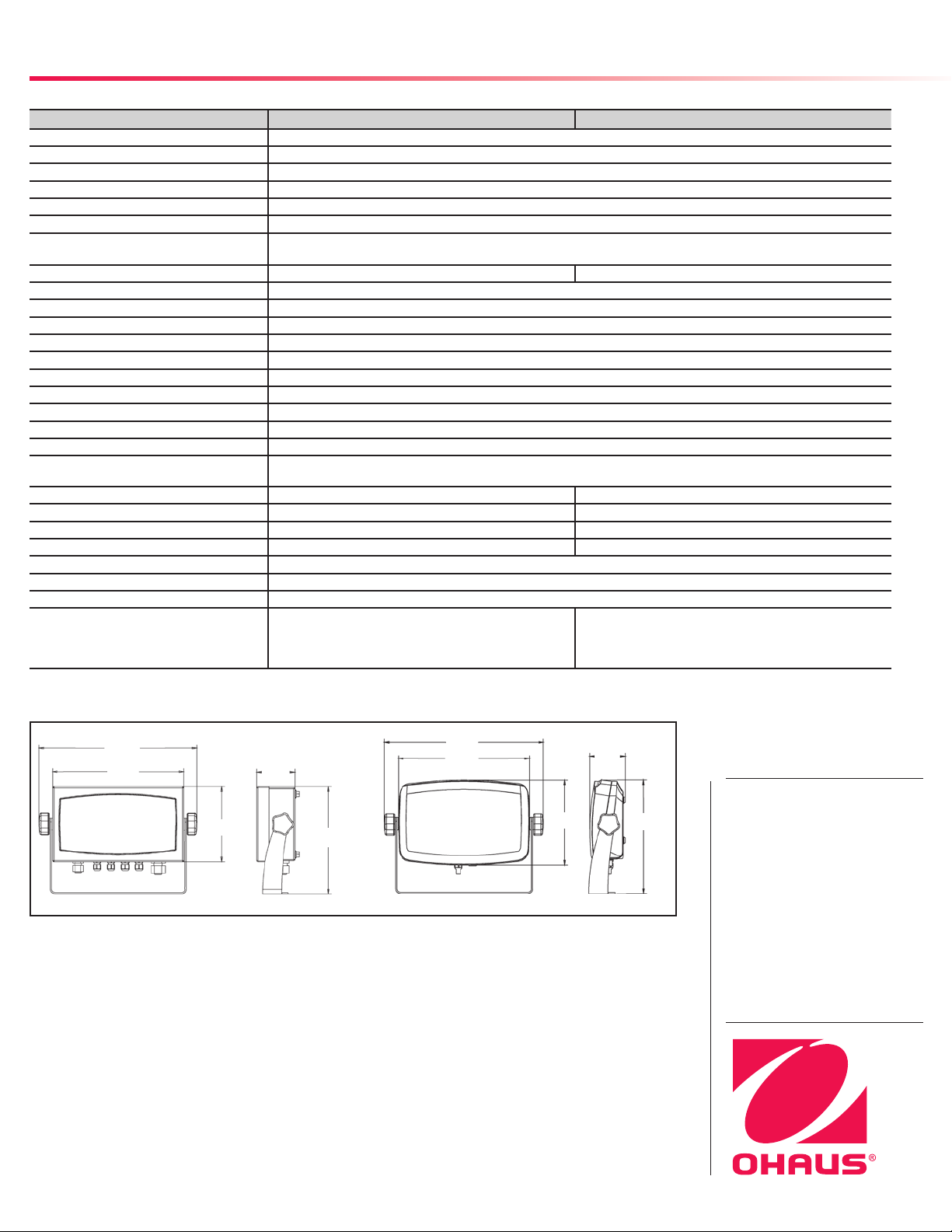

Specifications
Indicator Models T71P T71XW
Capacity Range 1 to 999,950 kg/lb
Maximum Displayed Weighing Resolution 1:50,000
Maximum Displayed Counting Resolution 1:500,000
Certified/Approved Resolution
Minimum Average Piece Weight (APW) 0.1d
Weighing Units kg, lb, g, oz, lb:oz, tonnes, custom
Modes/Features
Static Weighing (single or dual range), Dynamic Weighing, Counting, Checkweighing,
Percent Weighing, Display Hold, Accumulation, Library
Housing ABS plastic with reversible rear cover 304 stainless steel enclosure, NEMA 4X / IP66
Display 6-digit, 7-segment LCD, 25mm/1 inch high primary digits, dual line, with high-contrast white LED backlight
Checkweigh Indication 3-color checkweigh LED with configurable beeper signal
Keypad Positive feedback membrane keys, 5 function keys and alpha-numeric keypad
Load Cell Excitation Voltage 5V DC
Load Cell Drive Up to 8 x 350 ohm load cells
Load Cell Input Sensitivity Up to 3 mV/V
Stabilization Time Within 2 seconds
Auto-Zero Tracking Off, O.5, 1 or 3d
Zeroing Range 2% or 100% of capacity
Calibration Span: 1kg or 1lb to 100% of capacity / Linearity: 3 or 5 point
Interface
Built-in RS232 and External Tare Input included
Optional 2nd RS232, RS422/485, AC Relay or DC relay available
Overall Dimensions (inc. bracket) (W x D x H) 10.2 x 2.7 x 8.8 in / 260 x 71 x 224 mm 10.3 x 3 x 8.7 in / 262 x 76 x 212 mm
Enclosure Dimensions (W x D x H) 10.2 x 2.7 x 6.6 in / 260 x 71 x 168 mm 10.3 x 3 x 5.8 in / 262 x 76 x 149 mm
Net Weight 3.3 lb / 1.5 kg 7.7 lb / 3.5 kg
Shipping Weight 5.0 lb / 2.3 kg 9.5 lb / 4.3 kg
Shipping Dimensions (W x D x H) 13 x 9.5 x 7 in / 330 x 240 x 180 mm
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Relative Humidity Range Maximum 80% up to 88°F/31°C, decreasing linearly to 50% at 104°F/40°C
100-240 VAC / 50-60 Hz
Power
Internal universal power supply, line cord
6 ‘C’ cell batteries (not supplied) with 80 hour life
Opt. Int. rechargeable NiMH battery (10-hr. typical operation)
1:10,000
100-240 VAC / 50-60 Hz
Internal universal power supply, hardwire cord
Opt. Int. rechargeable NiMH battery (10-hr. typical operation)
Outline Dimensions
315 mm
12.4 in
262 mm
10.3 in
149 mm
5.86 in
76 mm
3.0 in
212 mm
8.3 in
313 mm
12.4 in
260 mm
10.2 in
168 mm
6.6 in
71 mm
2.8 in
224 mm
8.8 in
T71XW Indicator T71P Indicator
Other Features
Zero point calibration, calibration test, span or linear calibration, selectable auto-zero tracking range, selectable
stability range, selectable averaging level, selectable LCD backlight, selectable auto shutoff, retain zero weight data
after power-off, Geo gravity adjustment, selectable key beep, key function lock, menu lock, selectable power-on
and calibration unit, battery status display, display of gross/net weight, indication of stability, center of zero, overand underweight, overload and underload conditions. Configuration menus for PRINT1, PRINT2, COM1, COM2,
and I/O.
Compliance
• Legal for Trade: NTEP (COC No. 09-102) / Measurement Canada (AM-5762)
• Safety and EMC: cULus 2005/95/EC low voltage directive: EN60950-1:2001, FCC Part 15 Class A 2004/108/EC
EMC directive: EN61326-1:1997; +A1:1998; +A2:2001; + A3>2003
• Other: Compliant to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE)
• Quality: OHAUS quality management system registered to ISO 9001:2008
OHAUS CORPORATION
* 7 Campus Drive
Suite 310
Parsippany, NJ 07054 USA
Tel: 800.672.7722
973.377.9000
Fax: 973.944.7177
www.ohaus.com
With offices throughout Europe,
Asia, and Latin America
* ISO 9001
Registered Quality Management System
80774470_B © Copyright Ohaus Corporation
Loading...
