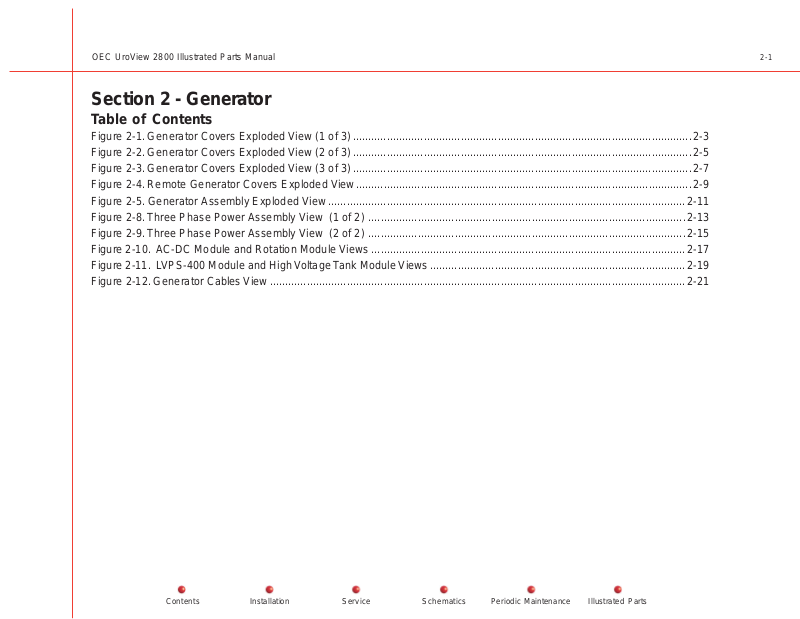

OEC UroView 2800 Illustrated Parts Manual
Section 2 - Generator
Table of Contents
Figure 2-1. Generator Covers Exploded View (1 of 3) ..............................................................................................................2-3
Figure 2-2. Generator Covers Exploded View (2 of 3) ..............................................................................................................2-5
Figure 2-3. Generator Covers Exploded View (3 of 3) ..............................................................................................................2-7
Figure 2-4. Remote Generator Covers Exploded View.............................................................................................................2-9
Figure 2-5. Generator Assembly Exploded View.................................................................................................................... 2-11
Figure 2-8. Three Phase Power Assembly Vie w (1 of 2) .......................................................................................................2-13
Figure 2-9. Three Phase Power Assembly Vie w (2 of 2) .......................................................................................................2-15
Figure 2-10. AC-DC Module and Rotation Module Views ......................................................................................................2-17
Figure 2-11. LVPS-400 Module and High V oltage Tank Module Views...................................................................................2-19

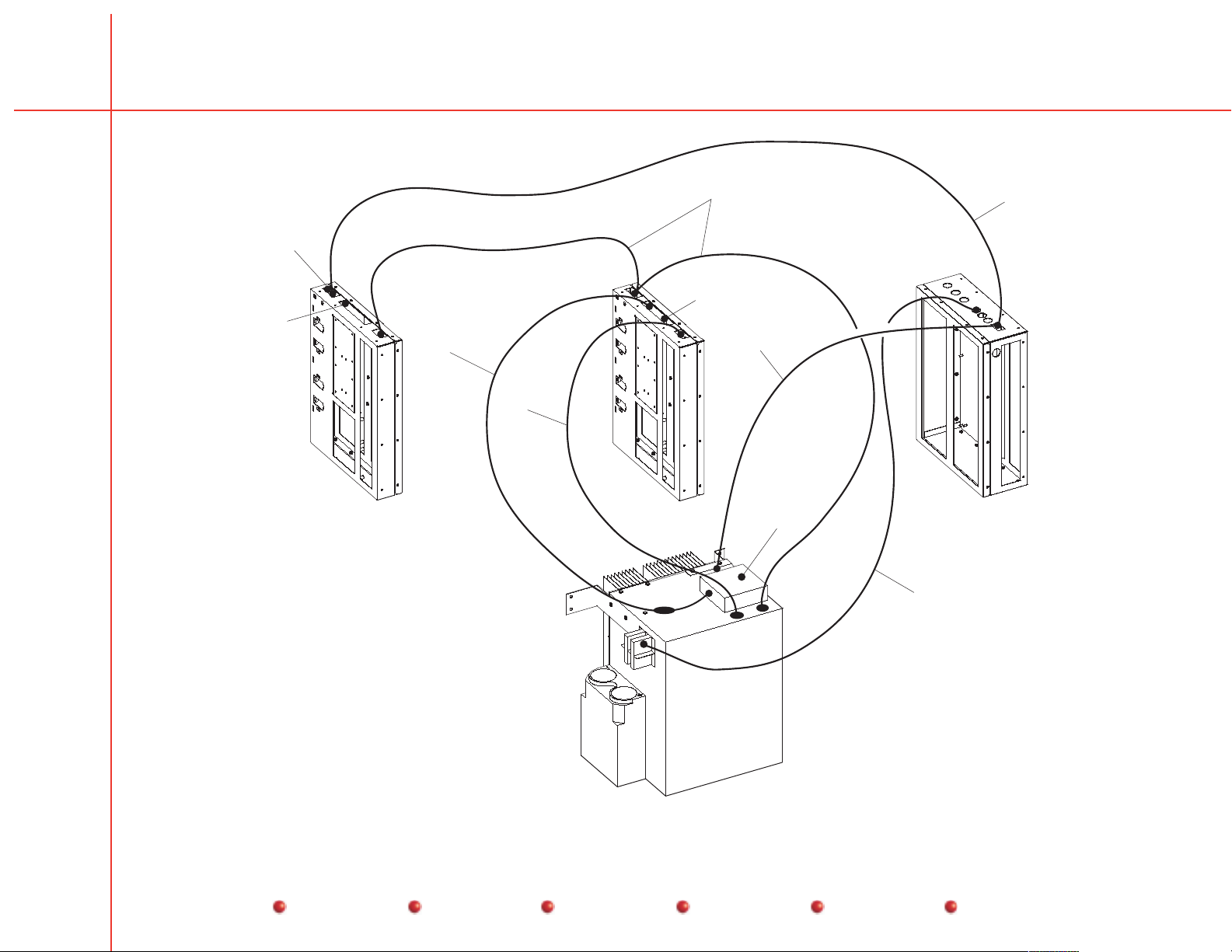

Figure 2-12. Generator Cables View.......................................................................................................................................2-21
2-1
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 2
OEC UroView 2800 Illustrated Parts Manual
Figu re 2- 1 . Generator Co vers Parts List (1 of 3)
Item Part Number Description Qty
2 00-884196-01 Bracket, Strain Relief, Bottom 1
3 12-225108-08 Screw, SEMS Spring, Pan, Torx, 8-32, 1/2, SZC 18
5 00-883797-01 Cover, Main, Jedi (Left) 1
5 00-883797-02 Cover, Main, Jedi (Right) 1
6 00-883796-02 Cover, Back, Jedi (Left) 1
6 00-883796-01 Cover, Back, Jedi (Right) 1
7 12-225108-06 Screw, SEMS Spring, Pan, Torx, 8-32, 3/8, SZC 24
8 00-884285-01 Clip, Clamp Mounting, Uro2800 1
10 00-884088-01 Plate, Backing, Jedi 4
11 00-884093-01 Plate, Backing, Jedi 2
12 00-884089-01 Bracket, Top, Cable Cover, Jedi 1
13 00-884081-01 Hanger, Cable, Power, Jedi 1
2-2
14 00-884090-01 Bracket, Bottom, Cable Cover, Jedi 1
15 00-884087-01 Hanger, Cable, Jedi 1
16 00-884095-01 Cover, Top, Jedi (Left) 1
16 00-884095-02 Cover, Top, Jedi (Right) 1
17 00-884091-02 Cover, Cable, Jedi (Left) 1
17 00-884091-01 Cover, Cable, Jedi (Right) 1
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 3
OEC UroView 2800 Illustrated Parts Manual
29
3
3
8
23
25, 26
41
11
19
24
2-3
21
7
16
3
18
3
5
12
13
40
21
7
42
15
10
17
27, 28
21
6
See figure 2-3
21
14
40
43
2
7
7
21
7
Figure 2-1. Generator Co ver s Exploded View (1 of 3)
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 4
OEC UroView 2800 Illustrated Parts Manual
Figure 2-2. Gen erator C overs Parts List (2 of 3)
Item Part Number Description Qty
18 00-884176-01 Lock, Top Cover, Generator, Uro2800 1
19 12-225160-08 Screw, SEMS Spring, Pan, Torx, 10-32, 1/2, SZC 8
21 12-225160-06 Screw, SEMS Spring, Pan, Torx, 10-32, 3/8, SZC 10
23 00-883798-01 Cover, Top, Jedi 1
24 14-101114-00 Washer, Plain, 1/4, SZC, ID = .281, OD = .625 4
25 12-311114-08 Screw, Na, Socket, Hex, ¼ - 20, 1/2, SZC, 8 4
26 88-299282-00 Adhesive, Slit, Blue, Bottle,10cc, 242-21 AR
27 88-495005-00 Gasket, Shield-Emi, Fm-Core, Cl Mount, 13l 2
28 88-495006-00 Gasket, Shield-Emi, Fm-Core, Cl Mount,18l 1
29 00-882477-01 Gasket, Covers 1
40 00-883714-01 Plug, Hole, .750 2
41 28-993025-00 Clamp, Hose, 13/16 D to 1-1/2 D, SST 1
2-4
42 24-389059-00 Grom, Strip, Flex, SST/Polym, .037 - .055 AR
43 00-884275-01 Bracket, Cover Clearance, Uro2800 1
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 5
OEC UroView 2800 Illustrated Parts Manual
29
3
3
8
23
25, 26
41
11
19
24
2-5
21
7
16
3
18
3
5
12
13
40
21
7
42
15
10
17
27, 28
21
6
See figure 2-3
21
14
40
43
2
7
7
21
7
Figure 2-2. Generator Co ver s Exploded View (2 of 3)
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 6
OEC UroView 2800 Illustrated Parts Manual
Figure 2-3. Gen erator C overs Parts List (3 of 3)
Item Part Number Description Qty
1 00-884197-01 Bracket, Strain Relief, Top 1
30 24-399760-00 Grom, Round, Panel, Vnl, Blk, 5/16 ID 9/16 OD 1
31 24-399761-00 Grom, Round, Panel, Vnl, Blk, 3/8 ID 43/64 OD 1
32 24-399762-00 Grom, Round, Panel, Vnl, Blk, 11/16 ID 15/16 OD 2
33 24-399763-00 Grom, Round, Panel, Vnl, Blk, 9/16 ID 55/64 OD 1
34 24-399753-00 Grom, Round, Panel, Nprn Blk, 3/16 ID ½ OD 1
35 22-119790-00 Clamp, Cable, 3/16d, 3/8 w, Nylon 1
36 22-119795-00 Clamp, Cable, 5/16d,3/8 w, Nylon 1
37 22-119796-00 Clamp, Cable, 3/8d, 3/8 w, Nylon 1
38 22-119950-00 Clamp, Cable, 9/16d,1/2 w,Nylon 1
39 22-119951-00 Clamp, Cable, 11/16d, ½ w, Nylon 2
44 00-884274-01 Bracket, Strain Relief, Spacer, Uro2800 1
45 12-225108-12 Screw, SEMS Spring, Pan, Torx, 8-32,3/4,SZC 6
2-6
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 7
OEC UroView 2800 Illustrated Parts Manual
2-7
37, 45
36, 45
44
38, 45
39, 45
35, 45
1
30
33
31
34
32
Figure 2-3. Generator Co ver s Exploded View (3 of 3)
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 8
OEC UroView 2800 Illustrated Parts Manual
Figure 2-4. Rem o te Generator C overs Parts List
Item Part Number Description Qty
1 00-883797-03 Cover, Main, Jedi 1
2 00-883798-01 Cover, Top, Jedi 1
3 00-884176-01 Lock, Top Cover, Generator, Uro2800 1
4 00-884414-01 Cover, Back, Right 1
5 00-884415-01 Cover, Back, Left 1
6 00-884419-01 Plate, Cable, Lower, Uro2800 1
7 00-884420-01 Plate, Cable, Upper, Uro2800 1
8 00-884453-01 Plate, Clamp, Cable, Uro2800 1
10 24-399753-00 Grom, Round, Panel, Nprn Black, 3/16 ID 1/2 OD 1
11 24-399760-00 Grom, Round, Panel, Vinyl, Black, 5/16 ID 9/16 OD 1
12 24-399761-00 Grom, Round, Panel, Vinyl, Black, 3/8 ID 43/64 OD 1
13 24-399762-00 Grom, Round, Panel, Vinyl, Black, 11/16 ID 15/16 OD 2
2-8
14 24-399763-00 Grom, Round, Panel, Vinyl, Black, 9/16 ID 55/64 OD 1
15 22-119950-00 Clamp, Cable, 9/16d,1/2w, Nylon 1
16 22-119940-00 Clamp, Cable, 5/8d, 1/2w, Nylon 2
17 22-119790-00 Clamp, Cable, 3/16d, 3/8w, Nylon 1
18 22-119795-00 Clamp, Cable, 5/16d, 3/8w, Nylon 1
19 22-119796-00 Clamp, Cable, 3/8d, 3/8w, Nylon 1
20 12-225108-06 Screw, SEMS Spring, Pan, Torx, 8-32,3/8, SZC 30
21 12-225108-08 Screw, SEMS Spring, Pan, Torx, 8-32,1/2, SZC 22
22 00-882477-01 Gasket, Covers 1
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 9
OEC UroView 2800 Illustrated Parts Manual
8
20
22
2-9
21
2
21
3
15
17
21
20
18
19
16
14
20
10
11
12
13
6
7
20
21
4
1
5
20

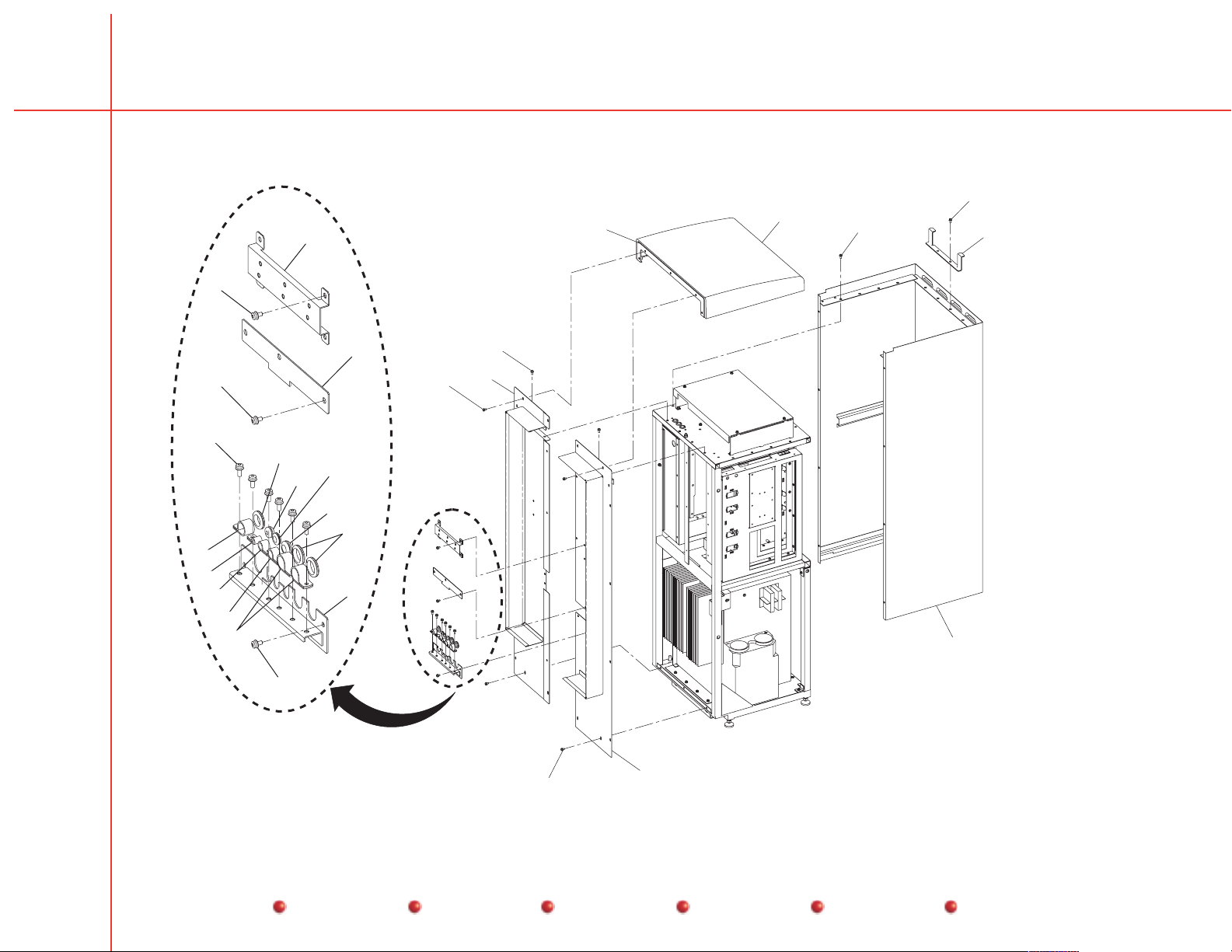

Figure 2-4. Remote Generator Covers Exploded View
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 10
OEC UroView 2800 Illustrated Parts Manual
Figu re 2-5. G enerator A ssem bly Parts List
Item Part Number Description Qty
4 12-311114-08 Screw, Na, Socket, Hex, 1/4-20, 1/2, SZC, 8 7
5 12-365005-10 Screw, Metric, Btn, Hex, M4 x .7, 8mm, SZC 12
6 12-923105-10 Screw, Metric, Flg, Hex, Cap, M4 x 0.7, 8mm, SZC 7
10A 00-901828-01 Generator, X-Ray, Three Phase (For Reference Only) 1
10B 00-901828-01 Generator, X-Ray, Single Phase (For Reference Only) 1
11 00-884015-01 Bracket, Module, Outer, Jedi 1
12 00-884016-01 Bracket, Module, Inner, Jedi 1
13 00-884017-01 Bracket, Upper, Left, Tank, Jedi 1
14 00-884018-01 Bracket, Lower, Tank, Jedi 1
15 00-884039-01 Bracket, Upper, Tank, Right, Jedi 1
17 00-884052-01 Wall, Cover, Inner, Jedi 1
18 00-884053-01 Cover, Top, Inner, Jedi 1
19 22-119601-00 Clamp, Cable Tie Mt, .1-.8w, Nylon 9
21 22-119653-00 Clamp, Cable Tie, 1/8 x 5-3/8, Nylon 8
22 88-299284-00 Adhsive, Slt, Purple, Bottle, 10cc, 222-21 AR
23 12-225108-08 Screw, Sems Spring, Pan, Torx, 8-32, 1/2, SZC 21
24 22-012004-00 Clamp, Cable/W,1D, .50w, Nylon 2
27 15-019929-00 Term, Fer, Crp, 2/0, Insl 1
28 Heatsink 1
2-10
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 11
OEC UroView 2800 Illustrated Parts Manual
2-11
23
6, 22
14
4, 22
23
12
6
28
10
15, 6
6, 22
23
17
24
4, 22
27
18
17
23
See figures 2-6 and 2-7
For Reference Only
Three Phase
5
10A
For Reference Only
Single Phase
10B
24
6, 22
19, 21
6, 13
23
23
6
23
6
11
11
10

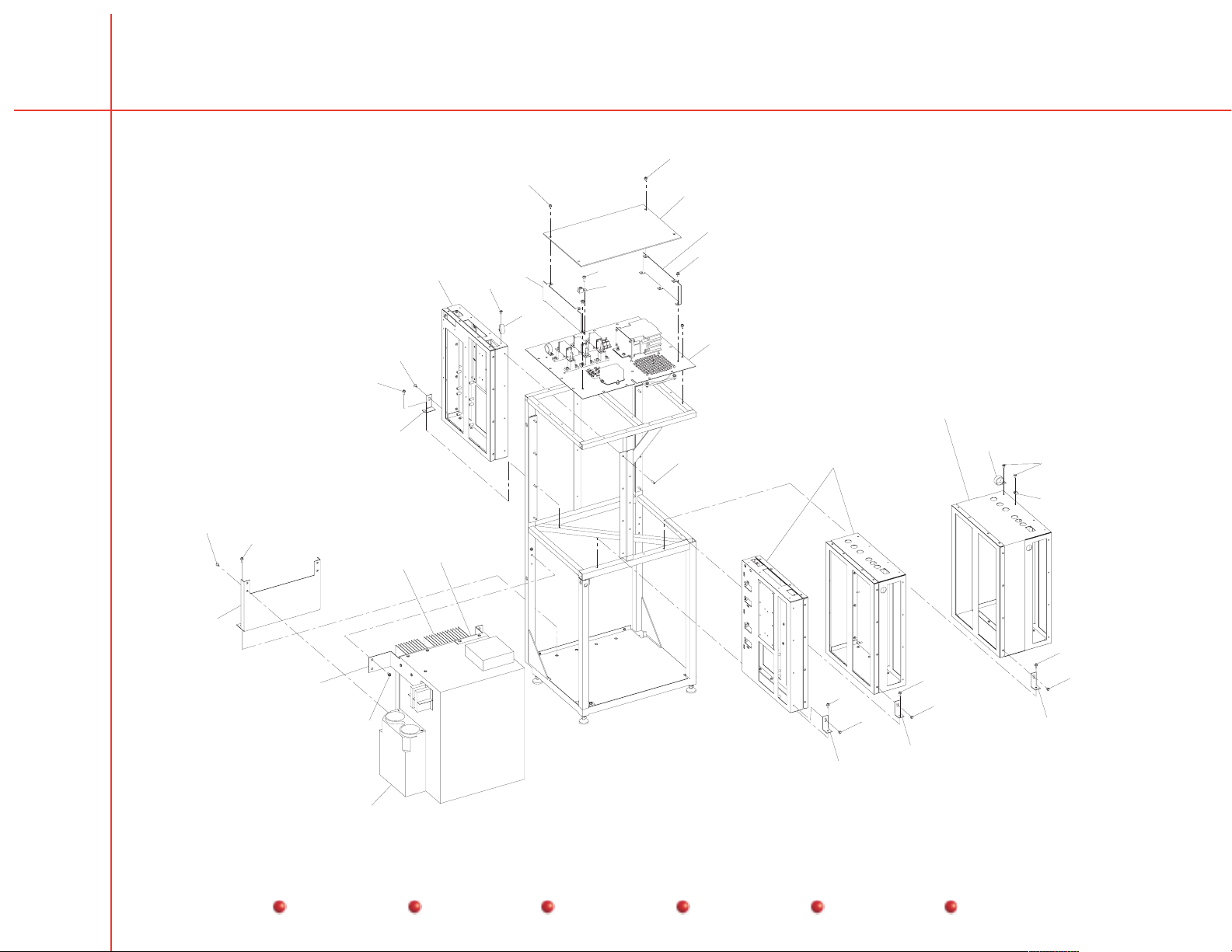

Figure 2-5. Generator Assemb l y Exploded View
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
23
6
11
Page 12
OEC UroView 2800 Illustrated Parts Manual
Figure 2-6. Three Phase Power Assem bly Parts L i st (1 of 2)
Item Part Number Description Qty
1 00-883724-01 Power Assembly, 240v Fuse Assembly, 3 Phase (Cables Not Shown) 1
2 55-200221-00 Fuse holder, Module Block, Chas Mount, 400A, 1000V 6
3 55-500391-00 Fuse, Hs, Sq Body, 160A, 660V, Fast-Acting 3
4 15-650010-00 Term, Fer, Crp, 6 AWG, Insul, White 3
8 72-200001-00 Control, 3pst, Chas Mount, 110a, 460 VAC 1
9 67-135430-00 Fuse , Gl,3a, 250v, ¼ x 1- 1/4, Slo-Blo 2
10 67-132350-00 Fuse, Gl, ½ a, 250 v, ¼ x1 – 1/4 1
11 43-399888-00 Filter Elec, Power Line, 10a, Fston 1
13 00-883799-01 Plate, Top, Jedi 1
14 72-201000-00 Coil, Control, Mod, 220/230 VAC @ 50HZ 1
15 72-201001-00 Coil, Control, Mod, 240 VAC @ 60 HZ 1
16 00-884051-01 Bracket, Power Contactor, Jedi 1
17 20-840095-00 Fan, Axile, 230 VAC, 80 CFM, 2200 rpm 1
2-12
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 13
OEC UroView 2800 Illustrated Parts Manual
2-13
Hardware included with item 2
22
2
20
13
10
9
22
8
16
20
3
29
25
1
23
29
25
1
22
17
18
11

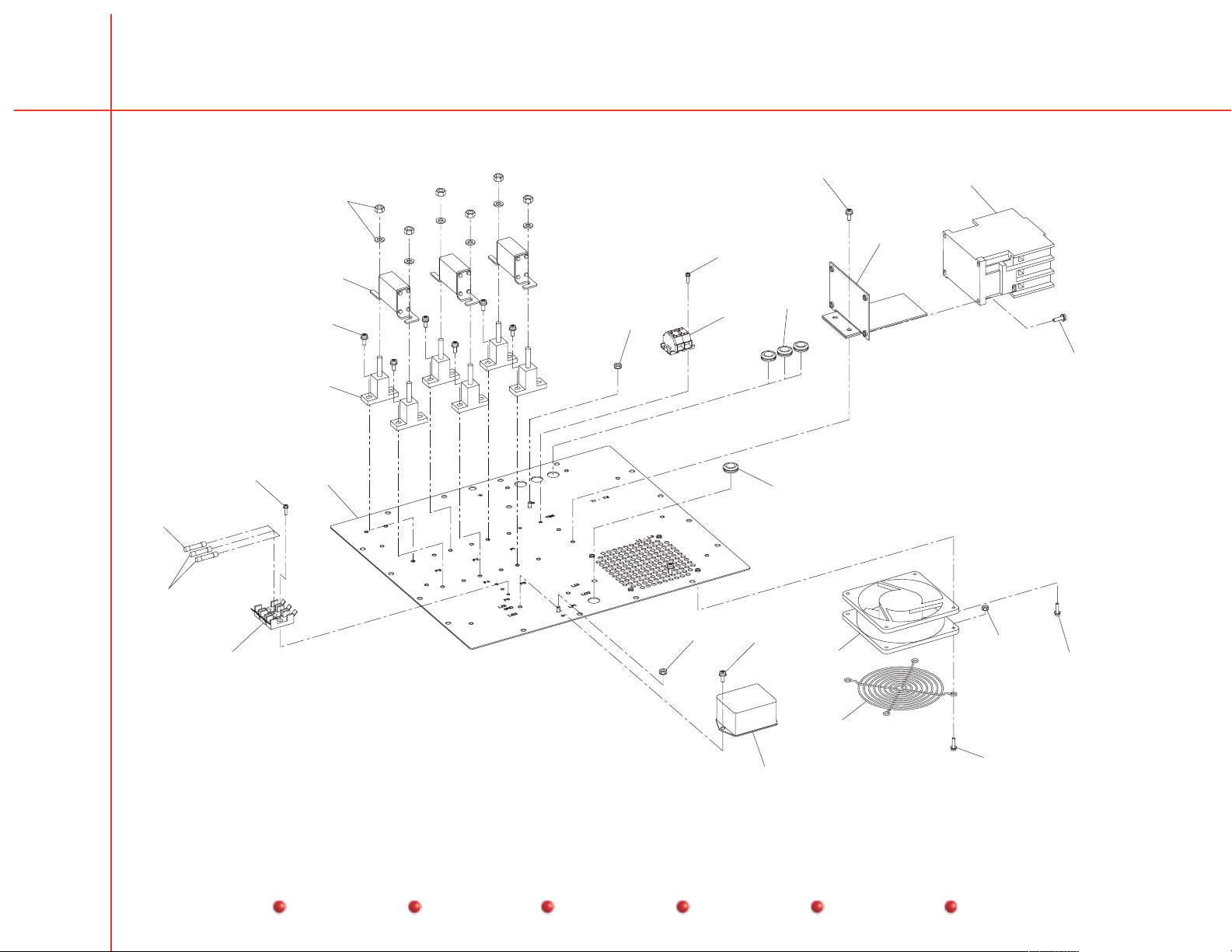

Figure 2-6. Three Phase Power Assembl y View (1 of 2)
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
24
21
21
Page 14
OEC UroView 2800 Illustrated Parts Manual
Figure 2-7. Three Phase Power Assem bly Part s List (2 of 2)
Item Part Number Description Qty
18 20-839926-00 Guard, Finger, Fan 1
19 00-884094-01 Cable Assembly, LVPS 240v Cable, Generator (Not Shown) 1
20 12-225104-08 Screw, Sems Spring, Pan, Torx, 4-40, 1/2, Szc 5
21 12-225106-10 Screw, Sems Spring, Pan, Torx, 6-32, 5/8, Szc 8
22 12-225108-08 Screw, Sems Spring, Pan, Torx, 8-32, 1/2, Szc 16
23 12-225108-10 Screw, Sems Spring, Pan, Torx, 8-32, 5/8, Szc 4
24 13-311106-00 Nut, Hex-Lock-Ext-T, 6-32, SST, NA, A = .313 4
25 13-311108-00 Nut, Hex-Lock-Ext-T, 8-32, SST, NA, A = .344 2
27 00-883986-01 Cable Assembly, Generator Top Plate Power Cables (Not Shown) 1
28 00-884137-01 Cable Assembly, Generator Fan (Not Shown) 1
29 24-399771-00 Grom, Round, Panel,Vyl, Block, ½ ID 13/16 OD 4
2-14
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 15
OEC UroView 2800 Illustrated Parts Manual
2-15
Hardware included with item 2
22
2
20
13
10
9
22
8
16
20
3
29
25
1
23
29
25
1
22
17
18
11
Figure 2-7. Three Phase Power Assembl y View (2 of 2)
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
24
21
21
Page 16
OEC UroView 2800 Illustrated Parts Manual

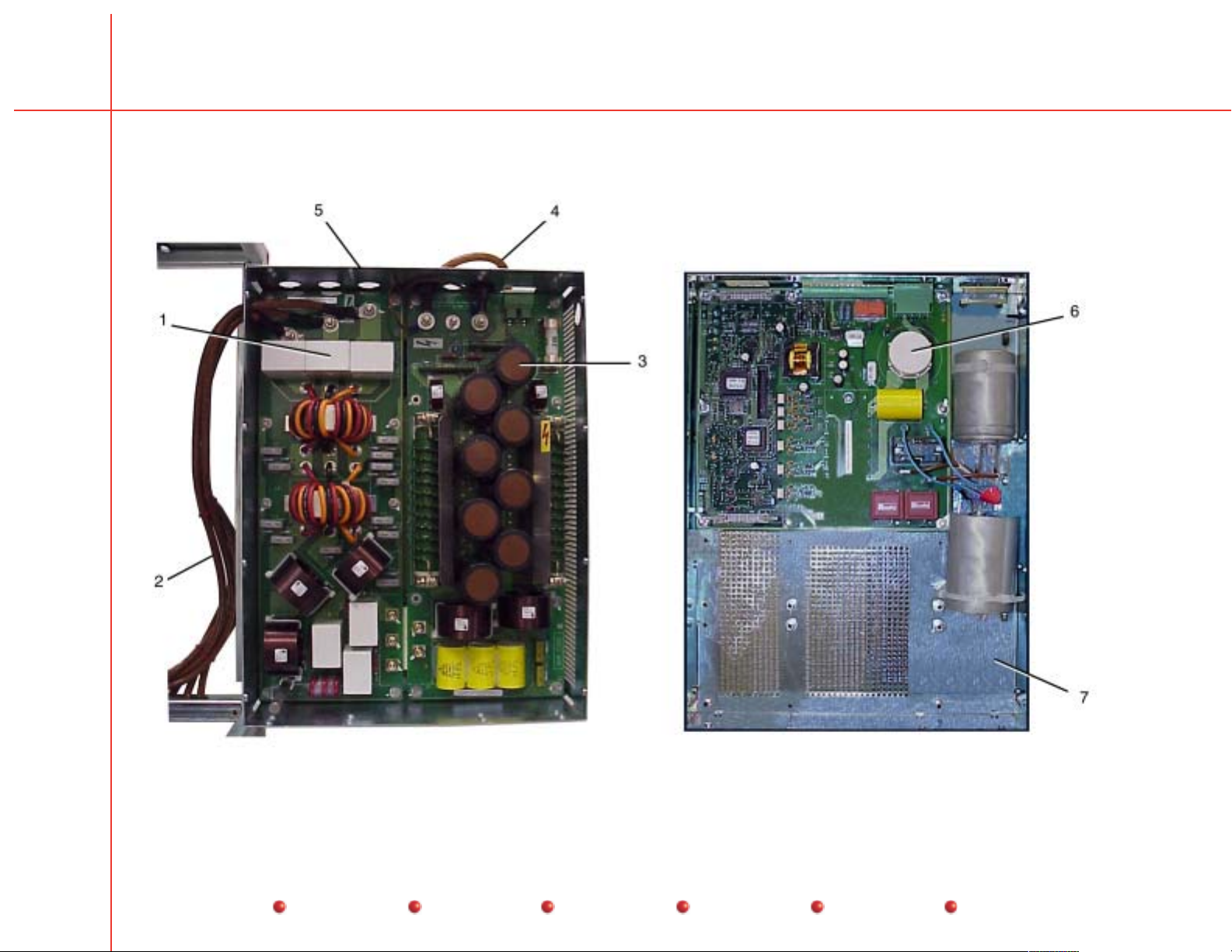

Figure 2-8. AC-DC Module and Rotation Module Parts List
Item Part Number Description Qty
1 2209840-2 EMC Board 3 PH V2B (Part of Item 5) 1
2 2285892-2 3 Phase Supply EMC Board Cable (Part of Item 5) 1
3 2208974-2 AC/DC Tri V2D (Part of Item 5) 1
4 2285368-2 ACDC/Inverter DC Bus Cable (Pa rt of I tem 5 ) 1
5 2294257 Equiped AC/DC (Three Phase) 1
6 2242440-9 Programmed Rotation Board (Part of Item 7) 1
7 2294057 Auxiliary Module 2 1
2-16
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 17
OEC UroView 2800 Illustrated Parts Manual
2-17
Figure 2-8. AC-DC Module and Rotation Module Views
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 18
OEC UroView 2800 Illustrated Parts Manual
Figure 2-9. LVPS -400 Module and High Voltage Tank Modul e Parts List
Item Part Number Description Qty
1 2285870 Programmed Heater V4.00 (FRU 1) 2
2 2325360-3 LVPS 400 V3, Applil .23, Boot (FRU 2) 1
3 2284710 Heater Can Cable (FRU 2) 1
4 2284711 Dual Heater to Aux Chassis (FRU 3) Cable 1
5 2284708 Heater 1/DC Cable (FRU 3) 1
6 2284709 Heater 2/DC Cable (FRU 3) 1
7 2294061 Internal Cable (FRU 2) (Not Shown) 1
8 2222253-3 AEC V2C (Part of Item 17) 1
9 2295467-2 Generic IF V2 (Part of Item 17) 1
10 2308246-5 Programmed PPC KV CTRL V1C 1
11 2198184 KV Measure-Filament Cable 1
12 2293901 Ventil Heli 119 x 119 x 38 65, 8L (Fan) 1
13 2292876 Cable AEC 9 Pins (Part of Item 17) 1
14 2294420 Cable Gen IF / AEC 1
15 2300154 Generic IF / KV Controle Cable 1
16 2250036 KV Measure-KV control Cable 1
17 2268574 Jedi Power Module 100KW 1
18 2284712-2 KV Control/Aux Can Cable, UroView 1
19 2214527 Jedi STD HV Tank (Part of Item 17) 1
2-18
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 19
OEC UroView 2800 Illustrated Parts Manual
2-19
Figure 2-9. LVPS-400 Module and High Voltage Tank Module Views
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 20
OEC UroView 2800 Illustrated Parts Manual
Item Part Number Description Qty
1 2285368-2 ACDC/Inverter DC Bus Cable (Three Phase Only) 1
2 2298901 Ventil Heli 119 x 119 x 38 65, 8 L 1
3 2284712 KV Control/Aux Can Cable, UroView 1
4 2294766 LVPS400 to Inductor Fan Cable (Three Phase Only) 1
5 2272367-2 Heater Cable 1
6 2272368-2 ACDC/Quad Snub Baord DC Cable 1
7 2272369 DC Bus Auxilliaire Cable 1
8 00-883986-01 Cable Assembly, Jedi Power Cables, 3 Phase (Not Shown) 1
9 00-883986-02 Cable Assembly, Jedi Power Cables, Single Phase (Not Shown) 1
2-20
Figure 2-10. Gen erator Cables Parts List
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 21
OEC UroView 2800 Illustrated Parts Manual
2-21
Stator Cable
Tube Thermal
Switch Cable
Rotation Module
3
7
To 220 AC Line
4
6
5
LVPS-400
2
AC/DC Module
1
HV Tank
Figure 2-10. Generator Cables View
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Page 22
OEC UroView 2800 Illustrated Parts Manual
2-22
Contents Installation Service Schematics Periodic Maintenance Illustrated Parts
Loading...
