Safety Precautions

z Do not subject the device to severe impact or drop

it from heights.

z Do not use the device in extreme hot or cold, dusty

or damp conditions. Do not expose it to direct sunlight.

z Avoid using the device near strong magnetic fields. z Keep the device away from water and other liquids.

In the event that water or other liquids enter the device, power off the product immediately and clean the device.

z Do not use chemicals to clean the device in order

to avoid corrosion. Clean it with a dry cloth.

z We are not responsible for damage or lost data

caused by malfunction, misuse, modification of the device or battery replacement.

z Do not attempt to disassemble, repair or modify the

product. This will invalidate the warranty.

z If the device will not be used for an extended period

of time, please charge the battery at least once per month to maintain battery life.

z Charge the battery if:

a) The battery level icon displays battery) b) The device powers off automatically when restarted. c) There is no response when pressing keys with keys unlocked and battery full.

z When the device is being formatted or transferring

a file, do not interrupt the connection. Otherwise, data may be corrupted of lost.

z When the device is used as a portable HD, please

use only per the instructions. Otherwise, permanent data loss could occur.

z Please use and install data using the

attachments/accessories provided and only according to the manufacturer’s instruction.

(An empty

z Please refer to the information on the bottom of the

device for electrical and safety information before installing data or operating the device.

z To reduce the risk of fire or electric shock, do not

expose this device to rain or moisture. The device should not be exposed to dripping or splashing. Never place objects filled with liquids, such as vases, on the device.

z There is danger of explosion if the battery is

replaced incorrectly. Replace only with the same or equivalent type.

z The battery (battery or batteries or battery pack)

should not be exposed to excessive heat such as sunlight, fire or the like.

z Please follow responsible procedures for battery

disposal.

z If the power adaptor is disconnected from the

device, the device will remain operable as long as the battery has sufficient charge.

z The power adaptor is a CLASS II apparatus with

double insulation, and no external ground is provided.

z Safety symbol explanation:

- The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

- To reduce the risk of electric shock, do not remove the cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.

- The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the device.

z Do not leave the device on in a confined space

such as a book case or similar. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains, etc.

z No open flames, such as lighted candles, should be

placed on the device.

z Use the device in moderate climates. z Never disconnect the USB cable from your e-book

reader to the PC during a data transfer or formatting. Correctly disconnect the device from the operating system. Information loss and malfunctions can occur.

Note

Please only charge the battery while the device is turned off. The charging time will be

shorter and the lifetime of the battery will be enlarged. Please fully charge the battery before first use.

Note

Please note that the internal battery can only be replaced by qualified personnel. If necessary please contact to the ODYS customer service at www.odys.de.

Disposal

Correct Disposal of this product. This marking indicates that this product should not be disposed of with other household waste in the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To dispose of your used device, please use the return and collection systems available in your area or contact the retailer where the product was purchased. They can take this product for safe environmental recycling.

Conformity

We, Axdia International GmbH, hereby declare that this Android Tablet corresponds to the basic requirements and relevant regulations outlined in guideline 1999/5/EG, 2004/18/EC,

2006/96/EC.

The CE declaration of conformity for this product may be found on the following link:

www.odys.de

(http://www.odys.de/web/downloads_de.html

This device uses a non harmonized frequency and is suitable for operation in the following European countries: Germany, Belgium, Netherlands, Luxembourg, Austria, Switzerland, France, Spain, Portugal, Italy, Greece, Norway, Sweden, Finland, Denmark, Liechtenstein

Within the European Union, operation of the WLAN/Bluetooth function in buildings is not restricted. Operation outside of buildings is restricted.

– Service – Downloads

)

V2.3

Listening Cautions

Hearing Safety

Listen at a moderate volume: Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss. Sound can be deceiving. Over time your hearing ‘comfort level’ adapts to higher volumes of sound. So after prolonged listening, what sounds ‘normal’ can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there. To establish a safe volume level: Set your volume control at a low setting. Slowly increase the sound until you can hear it comfortably and clearly, without distortion. Listen for reasonable periods of time: prolonged exposure to sound, even at normally ‘safe’ levels, can also cause hearing loss. Be sure to use your equipment reasonably and take appropriate breaks. Be sure to observe the following guidelines when using your headphones. Listen at reasonable volumes for reasonable periods of time. Be careful not to adjust the volume as your hearing adapts. …

… Do not turn up the volume so high that you can’t hear what’s around you. You should use caution or temporarily discontinue use in potentially hazardous situations. Do not use headphones while operating a motorized vehicle, cycling, skateboarding, etc.; it may create a traffic hazard and is illegal in many areas.

Support

http://www.odys.de support@odys.de

On our website you will find the latest information about this product, other products of our enterprise, our company itself and valid warranty terms. The latter you will find under Service - Downloads. Firmware upgrades for this device are also offered on our website. For questions or problems read our FAQs on our website or contact our after sales service.

The product includes software components licensed

under GNU General Public License (GPL). If you would like to receive more information about the appropriate source code, please refer to our Service Center.

Manufacturer

Axdia International GmbH Formerweg 9 D-47877 Willich (Germany) Tel: +49(0) 2154 / 8826-0 Fax: +49(0) 2154 / 8826-100 Web: www.odys.de

Support-Hotline: +49 (0)2154 / 8826-101 E-Mail: info@axdia.de

Appropriate use

Device is designed for playing music and video files in commonly used formats, showing photos and access internet functions using the build in Wi-Fi function. It is exclusively meant for this purpose and must only be used for the same.

This also includes paying attention to all information contained in this operating manual, especially in the safety instructions. Any other usage is considered to be improper and may lead to material damages and even personal injuries. Moreover, it will result in the immediate loss of guarantee. The manufacturer does not bear any liability for damages caused due to improper use.

This manual may not reflect your actual device’s operation. All information is subject to change without prior notification. Please follow your actual device’s operational procedures.

Cleaning

• Please only clean the device using a cloth.

• Please don’t use any chemicals or solvents.

Table of Content

Safety Precautions ....................................................... 1

Conformity .................................................................... 5

Listening Cautions ........................................................ 6

Support ......................................................................... 8

Appropriate use ............................................................ 9

Cleaning ....................................................................... 9

Firmware updates (OTA update) ................................ 11

Feature Summary ....................................................... 12

Accessories ................................................................ 12

Buttons & Ports ........................................................... 13

Charging Battery ........................................................ 15

Installing Memory Card .............................................. 16

HDMI Output ............................................................... 17

Connect via USB ........................................................ 18

Transferring Files ........................................................ 20

Turning On/Off ............................................................ 21

Screen Lock ................................................................ 21

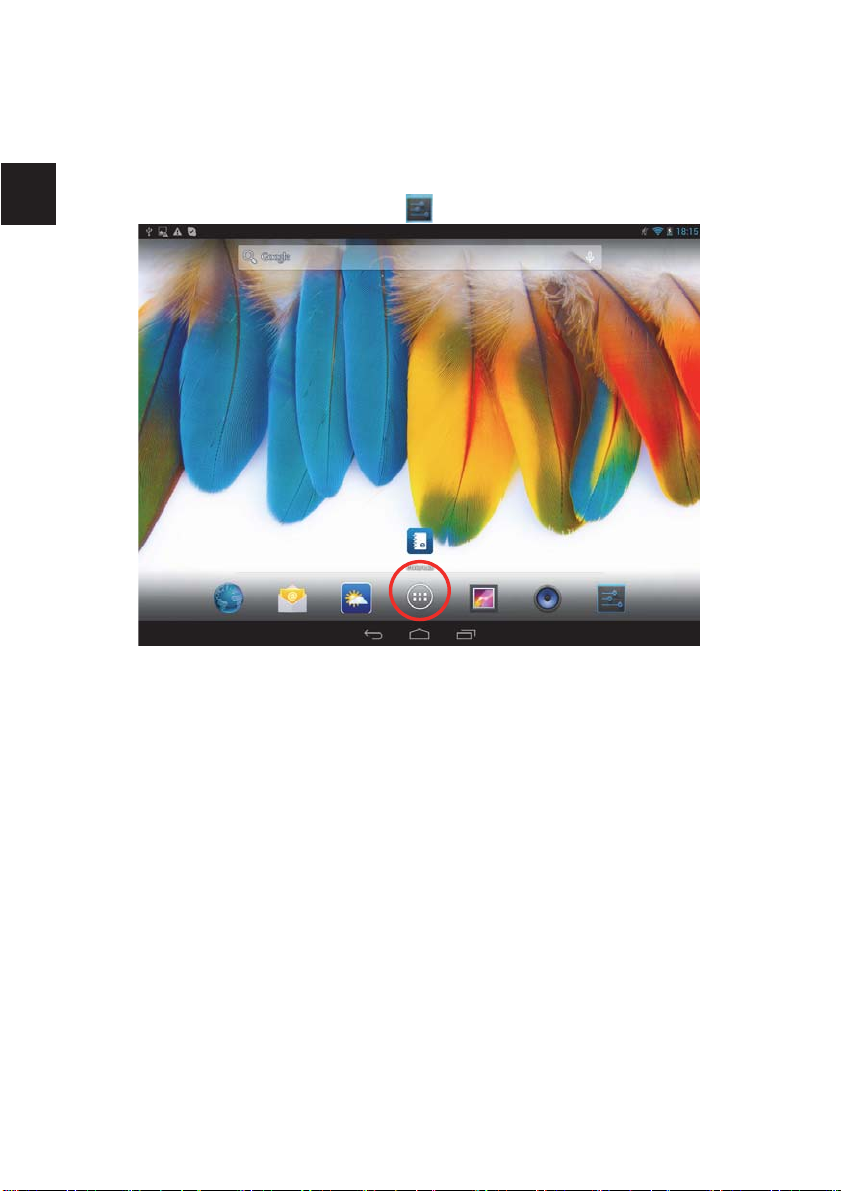

Home Screen

.............................................................. 22

Using the Touch Screen ............................................. 27

Bluetooth Connection ................................................. 28

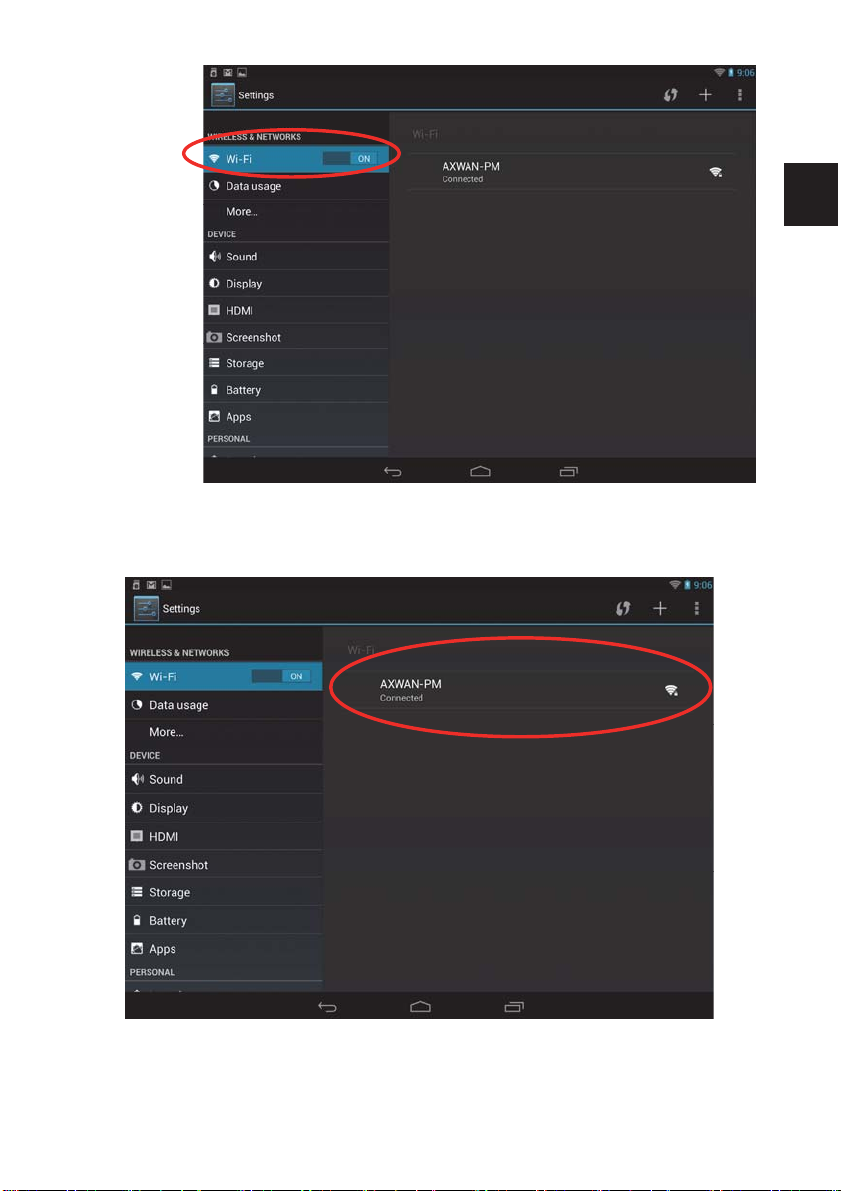

Access Internet - Wifi ................................................. 31

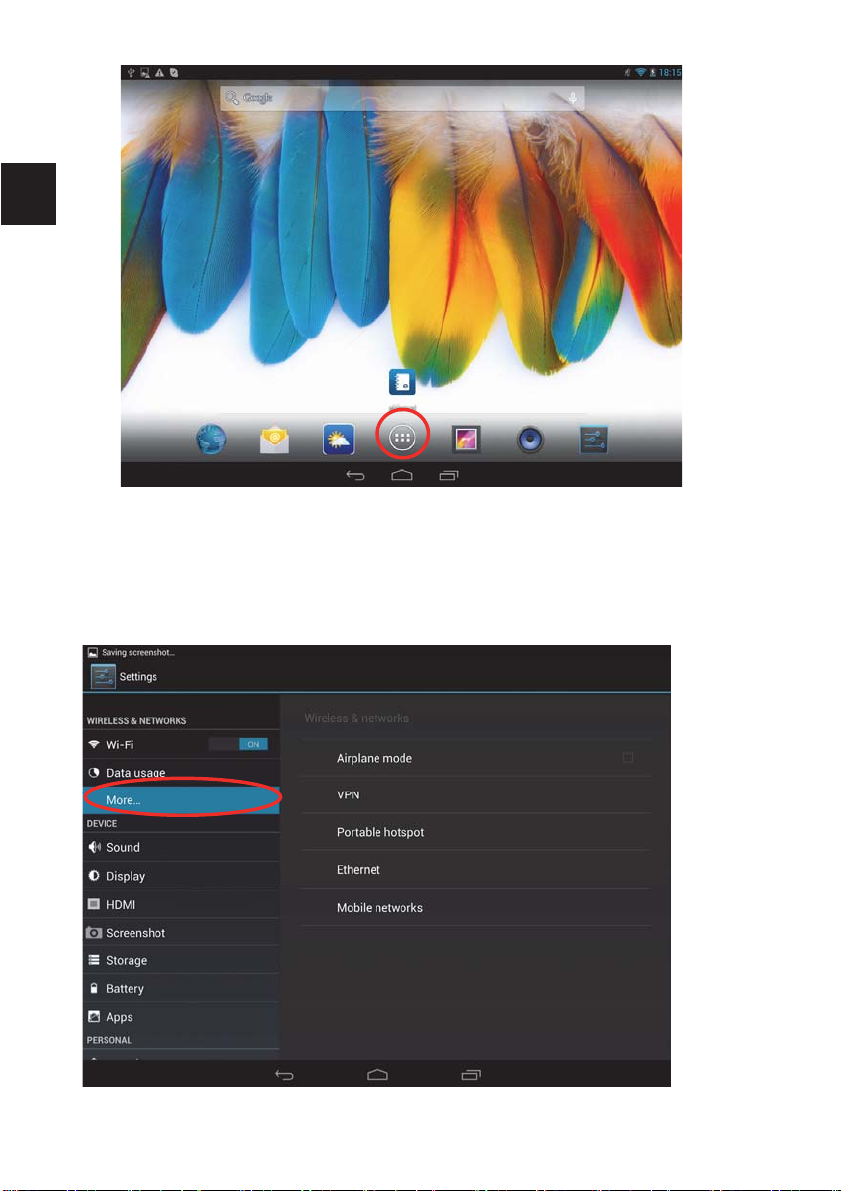

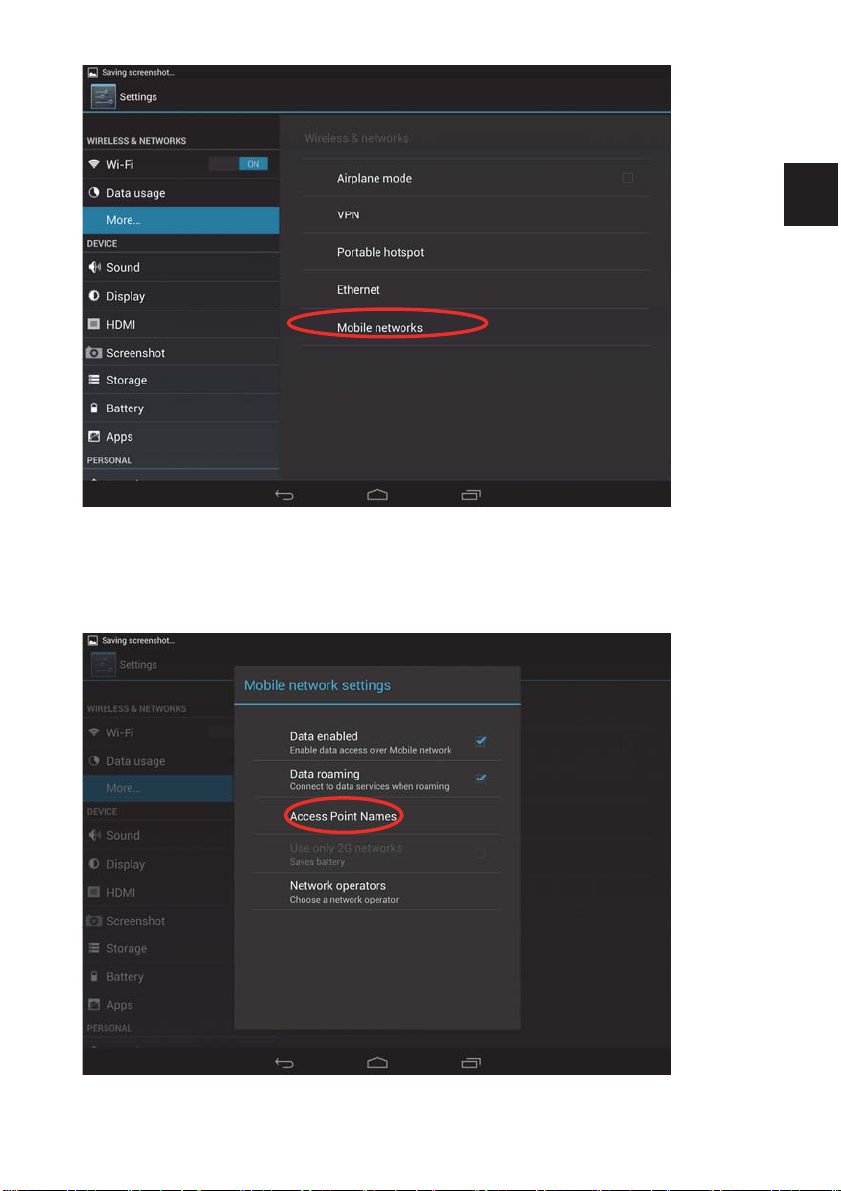

Internet Access - UMTS ............................................. 38

Virtual Keyboard ......................................................... 45

Using the Web Browser .............................................. 47

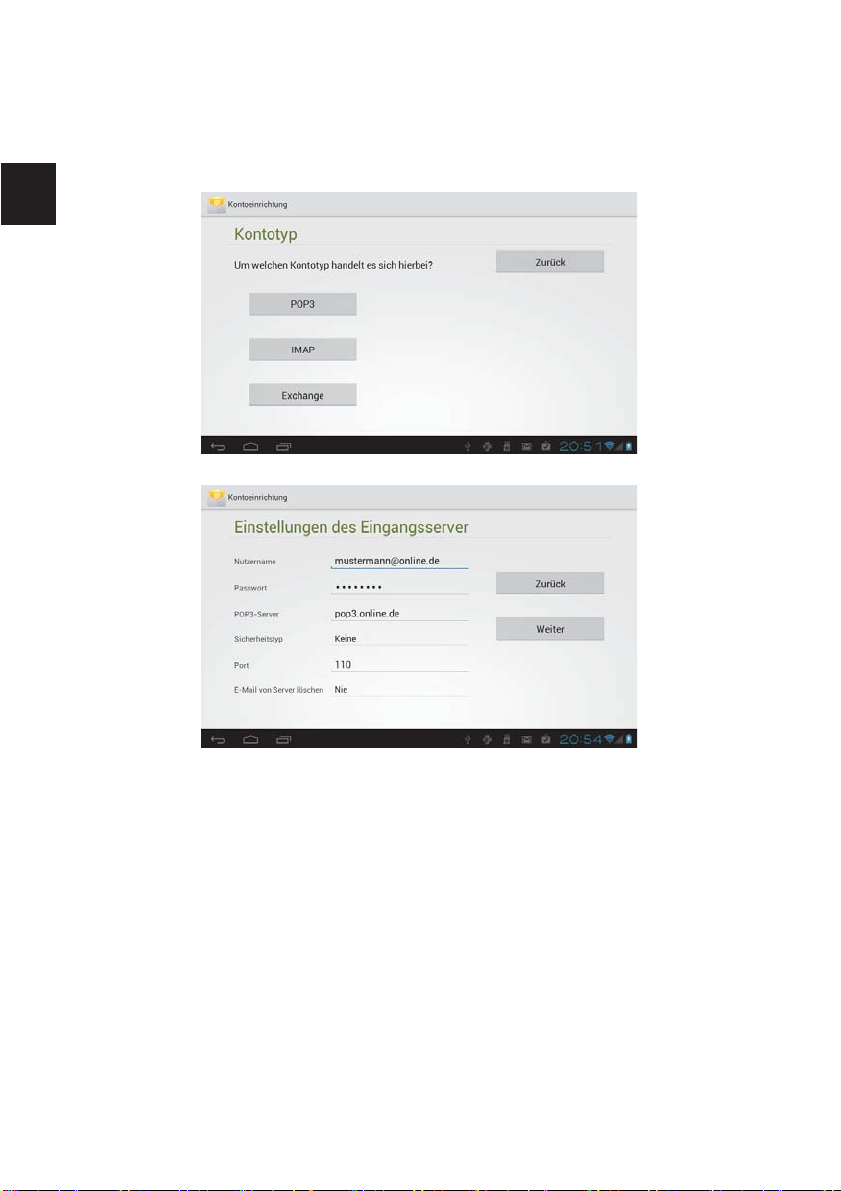

Sending/Receiving E-Mails ........................................ 50

Reading E-Books ....................................................... 56

Playing Music ............................................................. 67

Video / Photo Playback .............................................. 71

Camera usage ............................................................ 77

ES File Explorer ......................................................... 80

Manage Third-party Applications ................................ 87

System Settings ......................................................... 89

Troubleshooting .......................................................... 94

Specifications............................................................100

License conditions ....................................................104

Warranty Conditions .................................................105

Firmware updates (OTA update)

ODYS would like to offer a easy and most comfortable way to keep the operating system of your device up-to-date. Using this specially for ODYS Tablet PCs designed App, which you can download from the

Google Play Store; you can easily update the system. The ODYS Update App is preinstalled at your ODYS Device Gerät vorinstalliert. Select, if you you would like to update manually of if the system update should be done automatically.

Please note that updates improve the capability oft that device. Therefore updates are highly recommended.

Settings und saved Data will not be influenced by a successful update. However it is highly recommended to save your data before making an update.

Note

Take care to save your data regularly in a suitable way at another device. ODYS is not responsible for any lost data.

Caution

Please connect the power supply while charging.

Feature Summary

Wi-Fi Connectivity

With the latest Wi-Fi technology, this device can connect you to the Internet wherever you are.

10,1” Touch Screen

Touch or slide your finger on the screen, the screen responds instantly.

Third-party Application Support

With the built-in Android

OS, you can install a large

number of third-party applications in this device.

Please note that you need to insert a Micro SD-Card for it.

Built-in G-sensor

The screen changes to landscape or portrait automatically when the device rotates.

Entertainment

You can enjoy music, movies, pictures and e-books with the Mobile Tablet.

Accessories

z USB Cable z Power Adaptor z Quick start

Buttons & Ports

1. Back Key

2. Volume +/-

3. Camera

(Backside)

4. Speaker

5. Front Camera

6. Power Button

Tap to return to the previous screen. If the keyboard is on the screen, tap to close the keyboard. Increase / decrease Volume Backside-Facing camera for taking avatar pictures and videos

Front-facing camera for taking avatar pictures

Press and hold the power switch to turn on or off the device; Briefly press the switch to turn the screen on or off.

7. Headphone

jack

Audio output connection for head-phones

Note: Speaker output is automatically disabled when headphones are connected to the player.

8. Mini HDMI

9. Micro USB

Host

Support USB stick, Surf stick, KeyBoard and Mouse.

Note: A OTG supporting adaptor cable is required (not included)

10. Micro

USB 2.0 Hi-speed

11. Reset

Connect to a computer to transfer data (e.g., music, videos, photos, files). Restart the device if it freezes or otherwise behaves abnormal.

12. Microphone

13. Power jack

Charge and power the tablet with the included power adapter.

14. Micro SD Card

Slot

Accommodates any standard Micro SD/SDHC memory card.

Charging Battery

The device has a built-in rechargeable battery. No extra battery installation is required. Just charge the device when it indicates low battery.

To charge the battery, connect the device to any

standard wall outlet via the DC port using the power adaptor. It takes about 5 hours to fully charge the battery.

Note:

a. We advice to use only the delivered power adapter

with this tablet.

b. Y ou can operate the device even when it is being

charged. But for extended battery life, it is suggested NOT to use the device when it is charging.

c. It is recommended to charge the battery before you

use the device for the first time.

d. For maximum performance, lithium-ion batteries

need to be used often. If you don’t use the device often, be sure to recharge the battery at least once per month.

e. Should the rechargeable battery of the device

discharge completely, connect the device (using the adapter) to the main power source for approximately 5-10 minutes before attempting normal operation.

f. In some cases, devices which have been charged

for longer periods of time may not be able to be switched back on. Should this occur, press the RESET switch.

Installing Memory Card

This device can read files

directly from memory card. To use a memory card, find the card slot at the back of the device and then insert the memory card into the slot in the correct orientation. To access the files stored in the memory card, enter the ES File

Explorer mode by tapping the Explorer icon and select

the “external_SD” directory.

x Check that the Micro SD card is in the correct

position with the contact pin facing downwards and to the front as illustrated. You may damage the card and the reader if Micro SD card is not inserted in correct position.

x Push the card into the card slot until it clicks. x To remove SD card, push the Micro SD card once

again until it clicks.

Note: We recommend using only Micro SD or SDHC cards up to 32GB capacity. x When a Micro SD card is inserted in or ejected from

the device, it may take few seconds for the device to update the content.

x Please avoid inserting or ejecting Micro SD card

when other operation is running as this may cause the system hang.

x Do not remove the card if the c ontent inside the card

is being played. This will halt the operation of the device and might cause a system hang.

HDMI Output

- Connect the device using an appropriate cable

to your TV.

- The display changes from the device to the

screen.

- The touch screen remains black, but can be

used for the operations. For this reason, we recommend a USB mouse (not included) for the operations

Note:

Only use connecting cable with a maximum length of 25cm.

Please note that video and audio are only output via HDMI for video playback. Simultaneous audio output via HDMI and the internal speakers and/or earphones jack is not possible.

If HDMI is connected, then videos are only displayed on the TV set. Controls can be displayed as usual by tapping on the tablet.

HDMI output is only intended when using the device in landscape mode.

Note: The device is equipped with a mini HDMI

connector. You need an HDMI cable with a mini HDMI connector on one end and a standard HDMI connector on the other end (not supplied).

Connect via USB

Connect a USB Cable

Screen

Top

Bottom

Hooks

Please note: Only use connecting cable with a maximum length of 80cm. Please make sure when connecting the USB adapter or connector cables attention to the correct alignment of the connector before inserting it into the USB socket on the unit. Incorrect insertion may cause damage to plug and socket.

On the side of the plug there are usually small sizes of hooks that secure the fixation. Pay special attention on the position of the hooks, they show upward when connecting cables while the screen is above.

Establish a USB connection

The dialog to activate the USB connection will be prompted after connecting a USB Cable. Tap at „Turn on USB storage“ and confirm the security note if necessary.

Note:

While connected to USB, the USB Symbol is shown at the top left corner of the screen. Please drag down the status bar if the above dialog window does not appear and tap at the below notice to open it manually:

Transferring Files

Before reading or playing files, you need to transfer

media files from a computer to the device. (1) Connect the device to a computer with the

supplied USB cable.

(2) Once connected, two removable disk drives will

show on your computer. One represents the internal memory of the device, and the other represents the memory card inserted into the device. Now you can copy files from or to these disk drives just as you would on your hard drive.

(3) Choose “Turn off USB Storage” and then tap

“Turn Off” to disconnect the device from computer.

(4) Disconnect the device from the PC safely.

a) Left-click the

or icon at the right bottom

corner of the computer desktop.

b) Click the pop-up mini-window message of “Stop

the USB Mass Storage Device – Drive (X).”

c) Disconnect the device from the computer.

Note: The pre-installed applications and Android OS occupy a considerable part of capacity – nearly more than 1GB, it is normal that you see huge difference between available memory space and total capacity.

Turning On/Off

To turn on the device, press and hold the Power

button on the unit until you see the boot-up screen then release. It may take a few minutes to start up the system, please wait before you proceed.

To turn off the device, press and hold the Power

button until you see the option “Power Off”, tap on “Power Off” and then tap on “OK”.

Tip: This device will sleep with the screen off if it stays inactive for a few seconds. You can briefly press the Power button to turn on the screen and wake it up.

Screen Lock

The screen automatically turns off and locks itself after a set period of time.

When the screen turned off, press the Power button to

light up the screen.

Push the lock icon and drag it to the surrounding edge to unlock.



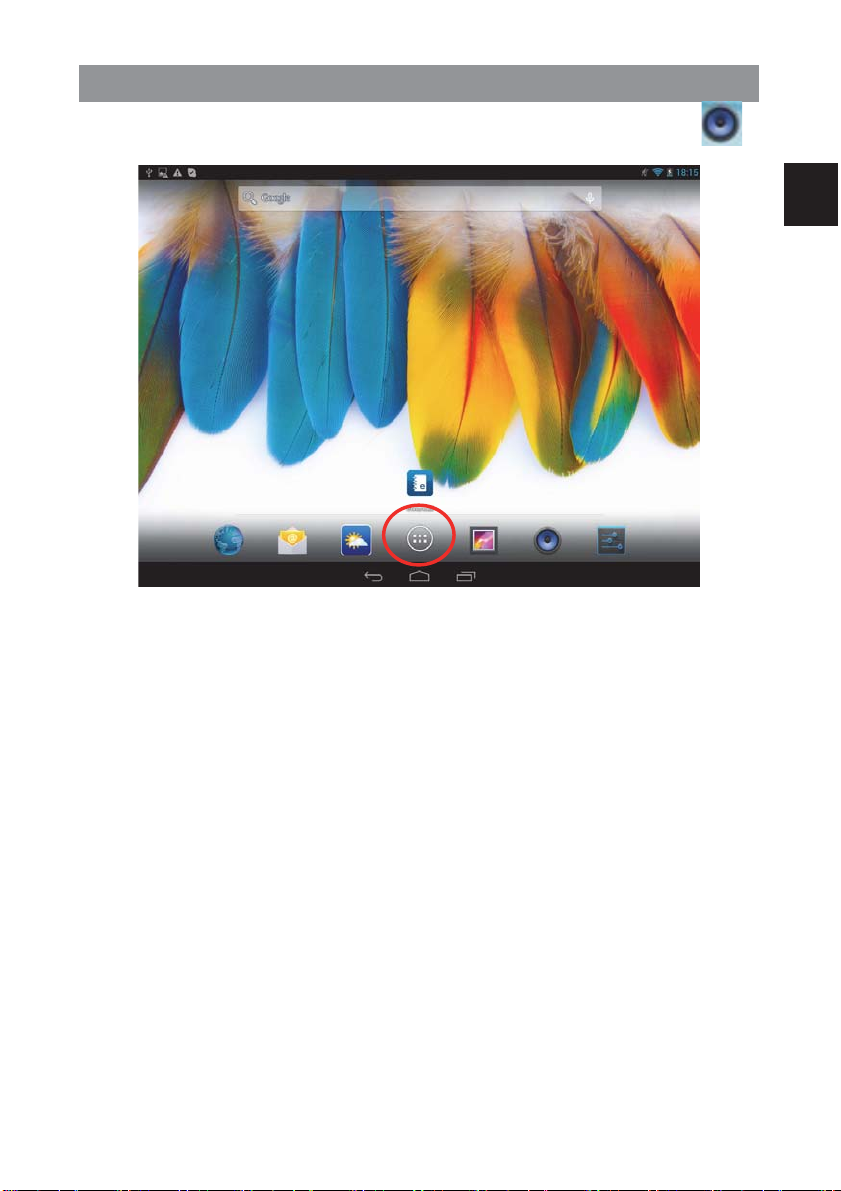

Home Screen



a. System Hints Informs the user if attached

memory or updates are available and other system status information’s

b. System settings System information’s like wifi and

battery status and the current time will be shown here. Drag down the bar to open additional settings shortcuts.

c. Google Search

Bar

d. Google Voice



e. eManual Manual in ebook format f. Browser Tap to launch the Browser to visit

your favorite websites.

g. E-Mail To open the mail client h. Weather Weather information

(While connected to the internet)

i. Applications icon Tap on this icon to reveal all

applications installed on your Tablet

- You can copy the applications onto the Home screen by pressing and holding on their icons.

- You can delete the application from the Home Screen by dragging their icons to the Cross that appears at the top of the screen .

j. Galerie Picture view / Video playback k. Music Music Playback l. System Settings m. Back soft key Tap to return to the previous

screen. If the keyboard is on the screen, tap to close the keyboard.

n. Home soft key Tap to return to the home screen. o. Running apps Show apps which are currently

running in background.

Status bar areas

The status bar at the top of the screen is divided into

two areas. (1) At the left side you will see status information’s and

system notes like new e-mails and available app updates.

(2) At the right side you will get direct access to the

most important system settings. System information’s like wifi and battery status and the current time will be shown here.

System hints System settings

System hints

Mustermann@Muster.com

System settings

Your contact dates, if you have set it up.

Brightness setting

Clear list

Current notification’s and indications

System settings

Wifi status

Battery status

3G connection status (Only available

Airplan mode

Note:

All wireless connections will be canceled.

Caution!

Bluetooth On/Off

Turn off/on automatic screen rotation

using optional



accessories)

This view may vary and could show different or less elements at your device.

Display all Applications

The device supports most of popular third-party

applications. It has many useful applications pre-installed, such as music player, video player, photo viewer, alarm clock, calculator, etc. Furthermore, you can add more applications to the device by installing them manually. To display all applications installed on your device, tap the Application Tab. Refer to the figure below.



Using the Touch Screen

This device is equipped with a touch-screen. Following are a few tips on how to use the touch screen.

Tip: For a proper usage please use your finger.

Main Touch Screen Actions

In many applications, you can go back one level in the

interface by tapping on the Back icon

left corner of the screen). Wherever you are in the interface, you can go back

directly to the Home Screen by tapping on the Home

icon

(in the lower left corner of the screen).

(at the lower

Bluetooth Connection

Your tablet is equipped with an integrated Bluetooth technology to enable your device be connected with other Bluetooth devices such as other tablets, mobile phones, headsets or Bluetooth keyboards.



Pair other devices

(1) Touch the icon for the „Settings“ on the home

screen.

(2) Tap to turn on the „Bluetooth“, and slide the switch

to the right. Bluetooth is ON“ will be displayed.

(3) Select the device that you want to pair from the list

on the right side.

 Follow the pairing wizard. You may have typed on

both or only one of the devices for a PIN code



Visibility setup

(1) Touch the icon for the „Settings“ on the home

screen.

(2) Tap to turn on the „Bluetooth“, and slide the switch

to the right. Bluetooth is ON“ will be displayed.

(3) Tap on the devices name above the list of

available devices to enable or disable the visibility.



Please note: Depending on the device, another

procedure code can be applied. For some devices, you will find a four digit pin number in the manual of this device. Newer devices will be shown the code to be used on one or both devices.

Notice:

The Bluetooth status and received data is displayed at the top bar.

Advanced setting

To access the advanced settings, first press the menu button (

Here you will find for example Visibility settings, and

the name, apply to this device in the Bluetooth mode.



Other Touch Screen Actions

When watching a video or

listening to music, you can

tap the progression bar to

go directly to a different location in the video or song. You can also use your finger to drag the cursor in the progression bar to another location in the video or song.

In the file browsers (File,

Music, Video, Photo, etc.), you can drag your finger up and down to scroll the file list up and down.



In the Web browser, you can scroll up and down by

tapping on the page and dragging it up or down (be careful not to tap a link until you are ready!).

Tap the link to open the page.

Note: DON’T use a pen or pencil or other sharp items to tap on the screen! This may damage the screen. DON’T place heavy or sharp edged items on the screen. Clean it carefully with a soft cloth. DON’T use cleaner.

Access Internet - Wifi

Your Tablet features built-in Wi-Fi technology so that you can access the internet via Wi-Fi network. First of all, you need to configure a Wi-Fi network. For the Wi-Fi configuration procedure to work, you need to be in a Wi-Fi zone that will allow you to connect to it. Every time Your Tablet is in range of a network that you have already configured once, it will attempt to make a connection.

Note: In order to establish a Wi-Fi connection it is required to know the encryption password of the desired Wi-Fi network. Be sure that you are allowed to use this network and that no other settings of this netw ork like MAC address filter will deny the connection. The MAC Address of your device can be found at: “Settings” – “About device” – “Status”.

Connect to a WPS capable router

This device also supports Wi-Fi Protected Setup (WPS), if your router is WPS capable, you can use

WPS button to connect this player to your router. Note:

- Consult the user manual of the router and learn how to add a WPS device to the router.

- Please use the manual setup if WPS does not work.

1. Press the WPS button on the wireless router.

Note: Some router use the WLAN key also for WPS

Connections. Please press the WLAN-Key of your Router for 6 Seconds in these cases.

2. In the Home screen, tap on the program symbol and

then on Settings icon.

3. Tap on the “Wi-Fi” setting to turn on the Wi-Fi. Your

Tablet will scan automatically for available WiFi networks and display them.

4. Now tap at the WPS-Key at the upper right corner.

5. Please wait until the connection was established.

Manual WIFI Configuring

(1) In the Home screen, tap on program symbol and

the on the Settings icon.

(2) Tap on the “WLAN” to turn on the Wi-Fi. your

Tablet will scan automatically for available WiFi networks and display them. The list of available networks shows all the wireless networks in range of your device.

(3) The list of available networks will be shown at the

right side



Note:

The available network list is constantly refreshed automatically.

When the Wi-Fi is enabled, Your Tablet will connect automatically to your configured networks when they are in range. If Your Tablet finds a network that has never been configured, it will display a notification icon.

(4)Tap on the network you want to connect to, enter

the required network information (password) and then tap on “Connect”. Your Tablet will now attempt to establish a connection to that WiFi hot spot with the network parameters you entered. If the connection is successful, the message Connected to XXX will appear under the WIFI setting.

Advanced Connection

To manually scan for available Wi-Fi networks, in the “WIRELESS&NETWORKS” screen, tap the SCAN icon (at top right corner). If the Wi-Fi network you want to connect does not appear in the list, then tap “ADD NETWORK.” Enter the required settings, then tap “Save.”

Launching the Web browser

Tap the Applications icon to display all applications, and then tap the Browser icon

to launch the Web browser. If you are already connected to a network, the Web browser will simply open and you can start browsing the Web. To access a new website, tap the Menu icon

to display the menu, and input another address.

Note: Not all wireless networks offer access to the Internet. Some Wi-Fi networks only link several computers together, without any Internet connection.

Internet Access - UMTS

For mobile Internet access you can use common UMTS Internet sticks with your tablet.

Please note: For mobile internet access, UMTS and mobile internet dongles may be used with this device. Due to the numerous varieties of dongles available, we cannot guarantee that compatibility of all dongles with this device. Instead, we recommend the use of a mobile router with UMTS (3G) function. Alternatively, current mobile phones may be configured as a wireless hotspot which enables the sharing of its internet connection. For further information please contact our customer service (support@axdia.de)

- This function is a special feature, which can only be

used with additional accessories, which are not

supplied with the device.

- For Internet connection you need a SIM card plus

the respective Internet connection tariff.

Caution! If your SIM card is PIN-protected it must be disabled before use. You can use any common mobile phone. Find the respective menu item in the security settings of your mobile phone.

Configure 3G Internet Connection Note

Take care to connect the 3G Dongle while the device is turned off. Normally your provider settings will be set up automatically. If not, please got to „Settings“ – „Wireless & Network“ – „More…“ – „Mobile networks“ – „Access Point Names“ and check if the correct APN was selected and activate it by taping if necessary. Only if your provider could not be recognized, please follow the instructions below and set up the APN manually.

1. Use the USB adaptor cable to connect the dongle to

the device.

2. Turn the device on.

After the device is turned on, press the On/Off button until the menu is displayed and press the OK button to confirm.

3. In the Home screen tap on the program symbol

and then on settings icon.

4. Open the page with installed apps

Settings – Wireless & Network – More…– Mobile Networks.

5. Enable the item “Data Enabled” if it is not yet

ticked.

6. Select item “Access Point Names” to add an

Internet access point.

7. Press the menu button and select “New APN”.

Note:

The list stays empty if no APN is entered or the

connected dongle was not detected.

8. Enter the access data obtained from your mobile

service provider. Contact your mobile service provider to obtain all required access data, if necessary.

9. Press the Return button to save the settings.

10. The list of set APNs is displayed. After setup

generally only one value is listed.

11. Ensure that the item on the right of your entered

APN is green; otherwise tap on it to activate.

12. Exit the settings and access a website with the

browsers.

13. Observe the dongle status LED. It generally

(depending on model) turns blue after successful connection. The LED flashes blue if the connection to the provider is established, but no data are transmitted yet.

Caution!

A dongle must be connected to add an access point! Observe the 3G icon on the status bar. The connection is available if it is displayed.

Re-connect the dongle with the device if it is not displayed.

The letters at the connection icon show the current connection speed. H = HSDPA (highest speed) 3G = UMTS E = EDGE G = GPRS (lowest speed)

Contact our customer support at VXSSRUW#D[GLDGH if you require help.

Virtual Keyboard

Tapping on any text input field opens the virtual keyboard. Enter a website address or any required text with the virtual keyboard.

a. Tabulator b. Back-space c. Switch between

Numbers and Characters

d. OK / Enter

e. Shift f. Input settings g. Voice input h. Space bar i. Emoticons

Special character Some or the keys provide the possibility to enter special character. (1) Press the corresponding key and keep

pressing. (2) While pressing move your finger tot he

desired character. (3) Release to write the selected symbol.

Select Input Method Open the Android keyboard settings and select the input

method if more than one input method is installed.

Please note: The keyboard layout changes according to OSD language settings.

Using the Web Browser



You can scroll the screen up and down by tapping

on the page and dragging it up or down (be careful not to tap a link until you are ready!).

To open a link, simply tap it. You can open several web pages at a time, view

them all at once on the screen, and then tap one of them to view it in full screen.

To go back to the previous page that you browsed,

tap the Back icon

To display the available menu items, tap the Menu

icon

To go back directly to the Home screen, tap the

Home icon

Depending on where you are in the web browser,

holding down on an item will give you access to more options.

To fill in a text field, tap in the field, then use the

virtual keyboard to type in the required text.

You can tap on the screen to enlarge or diminish the

page.

Webbrowser options

While a Web page is prompted press the menu key at the top right corner, to open the browser settings.

Refresh / Stop Forward NewTab New incognito tab Share page Find on

Refresh the current page after it was fully loaded / Stops refreshing To open the next page if existing. Open a new tab Open a new tab that will not be saved in the history. There will also be no cookies crated. Share the current page by mail. Find a word at the page.

page Request

To view the pages in desktop style.

desktop site Never sleep

Screen stays on while browsing.

when browsing Save for offline reading

Stores the current page at the internal memory for later offline use.

Note: Containing functions or links

may not work using the offline version.

Page info

Informations about the current page.

Settings

Additional browser settings:

General Select start-up

page and auto-fill

text functions Privacy & security

To manage

formular data,

cache, cookies and

history Accessibility Text settings and

contrast Advanced Advanced browser

settings Bandwidth mangement

Settings for data

transfer Labs Experimental

functions

Sending/Receiving E-Mails

This device has an email app pre-installed. You can

send or receive emails via the Internet. Make sure that you have an Internet connection before using the email service.

In the Home screen, tap on the program symbol and

the on the email icon to access the email app.



Setup Email Account

First you need to setup an email account for receiving or sending emails. (1) Start up the email app and you are prompted to

setup an account. Tap on “Next”.

(2) Enter your email address and login password. You

can set the account as default by selecting the option “Send email from this account by default”. Tap on “Next”.

(3) Enter the required information for POP3/IMAP

server. Contact your service provider, network administrator or search for information on the

Internet.

(4) Tap on “Next” after setting the POP3 server. The

device verifies the server settings and continues with IMAP server settings if your input was correct. Set up the IMAP server similar to the POP3 server. Please note that in field “IMAP Server” “imap. + domain name” must be entered.

(5) The device verifies the settings. After “Your account

is set up, and email is on its way” is displayed your account is set up successfully.

(6) Enter your name to be displayed on emails and tap

on “Done” to finish.

Please note: If you have more than one account,

every time when you start up the email app, you enter the default email account.

Caution!

Please check correctness of inbox and outbox server! Depending on your service provider, there are sometimes problems with automatic settings.

Email Menu

Email functions are displayed on the right side of the email header.

Create new email.

Search inbox.

Refresh current email.

Delete current email.

Move current email to folder.

Check settings, Refresh / Mark as unread.

Manage Accounts

You can setup more than one account and manage these accounts by checking information about the

account, adding a new account or deleting an account.

Add New Account Follow these steps to add a new account. (1) Launch the email app, press the Menu icon

and tap on “Settings” in the top right corner to

display the menu items. Select “Accounts”. (2) In the top right corner tap on “Add Account”. (3) Follow the steps to set up an email account.

Delete Email Account (1) Launch the email app, press the Menu icon

and tap on “Settings” in the top right corner to

display the menu items. Select “Accounts”. (2) Select the account to be deleted and navigate in

the settings list for this account all the way to the

bottom. (3) Tap on “Remove Account” and tap on “OK” to

confirm.

Check Account Settings (1) Launch the email app, press the Menu icon

and tap on “Settings” in the top right corner to

display the menu items. Select “Accounts”. (2) Select the desired account. (3) The settings list for this account is displayed.

View Emails

Access your mailbox when you start up the email app.

In the mailbox, wipe with your finger up and down to

scroll through the email list.

Tap on an email to open it.

Reading E-Books

Start Reading

(1) Open the page for further applications (2) Tap on the icon of "Aldiko" (3) Tap an e-book to start reading immediately.

Note: a. Make sure your e-books are in format of PDF and

EPUB supported by the device.

b. E-book cover will show as defaulted cover by the

device if the e-book has no cover data. That’s why you see some e-book covers are the same.

c. We recommend to modify or disable the automatic

display turn off function while reading.

History and My Library

You can tap “History” to view your reading history or tap “My Library” to enter the e-book library. “History” shows all of the e-books that you have read by date. “My Library” shows all of e-books stored in the device.

To open the Aldiko Home page.

Select the desired view of the e-books list at the Aldiko Home page.

Add already transferred e-Books using “Files” to the e-books list.

Adding new e-books

1. First open “Files” page as shown above.

This will automatically open the internal memory (internal sd-card) of your device.

2. Now find the right folder containing new e-books at the left side of the screen and tap at the corresponding rectangle at the right.

Note

If you have used Adobe Digital Editions please mark the corresponding folder to add these books.

3. Tap on “Import” at the now appearing bar at the top of the screen.

4. Now you directly can open the new e-books or use the back key to go back step by step to the aldiko home screen.

View e-book Information In the history or e-book library, you can view information about an e-book before you start reading it. Tap an e-book, and the book name; author or publication year of the e-book should display at the top screen.

Sort e-books In the history or e-book library, you can sort e-books by title, author or file size by tapping on Title, Author or Size.

Start Reading To start reading an e-book, tap “Continue Read”.

Page Up/Down

When you are reading the e-book, you can slide your finger on the screen left and right.

Increase Font Size

When you are reading, tap the Menu icon

display e-book settings.  (1) Tap at the middle of the screen.

(2) Tap at

to adjust the font size

(3) Tap a size that you want.

Note

Please note that some files like PDF-Files do not offer the possibility to change the font type.

Jump to a Page

You can directly go to a page that you have specified.

When you are reading, tap the Menu icon

display e-book settings.  (1) Tap at the middle of the screen.

(2) Tap at

(3) 7DSDW“*RWR”

(4) Tap the numbers to input the page number. (5) Once you finish inputting the page number, tap

“OK” to jump to the specified page.

Use Bookmarks

You can add, delete or load bookmarks on the page.

When you are reading, tap the Menu icon

display e-book settings.  (1) Tap at the middle of the screen.

(2) Tap at

 WRDGGDERRNPDUNWRWKHFXUUHQW

SDJH

(3) 7DSDJDLQWRGHOHWHWKHERRNPDUN (4) Tap “go to” then tap “Bookmarks” to open a

bookmarked page.

Show Outline of the e-book

You can view the outline of the e-book and then choose your desired chapter or section to read.

When reading, tap on the Menu icon

to display

e-book settings.  (1) Tap at the middle of the screen.

(2) Tap “

” then tap “Outline”

Download DRM protected e-books with the Adobe Digital Edition

Attention! Please note that you must install Adobe Digital Editions BEFORE you buy your first e-book online!

Once you have purchased eBooks online, you need to transfer them to your Tablet using the Adobe Digital Editions software which allows you to view and manage e-books protected by DRM license.

To transfer DRM-protected e-books,

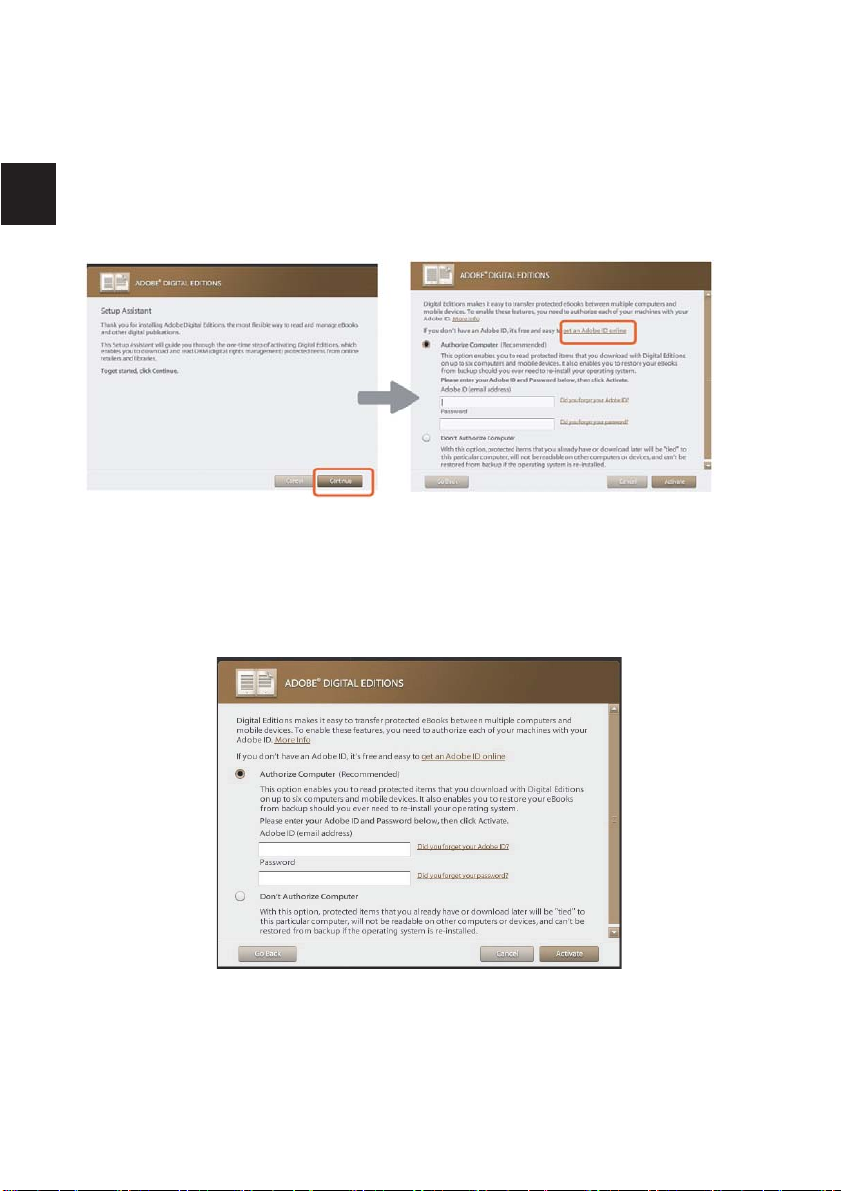

1. Access the website http://www.adobe.com/products/digitaleditions/, and then install the Adobe Digital Edition software following the instructions online.

Note: To show the above installation window at the adobe website you must install or enable adobe flash player for the browser you are using first.

x For first time user, you will need to get a free adobe

ID from adobe website. Click on the [get an Adobe ID online] link as illustrated:

x Enter your email address and complete the online

form as per instructed.

2. Upon registration, return to the ADE window. Enter the username and password to activate your Adobe account and authorize your computer.

3. Activate your Tablet. Connect your Tablet to computer with the USB cable and start up the Adobe Digital Editions. Click “Authorize Device” to authorize your Tablet.

4. Download DRM-protected PDF files to your

computer.

Access the Internet and search for e-books, choose your favorite e-books and download them. If the e-book is protected by DRM, you should be prompted by DRM license information. Click “Open” to start downloading the DRM-protected e-book.

Note: You need to “OPEN” the e-Book you wish to download. DON’T use the “Save as”!

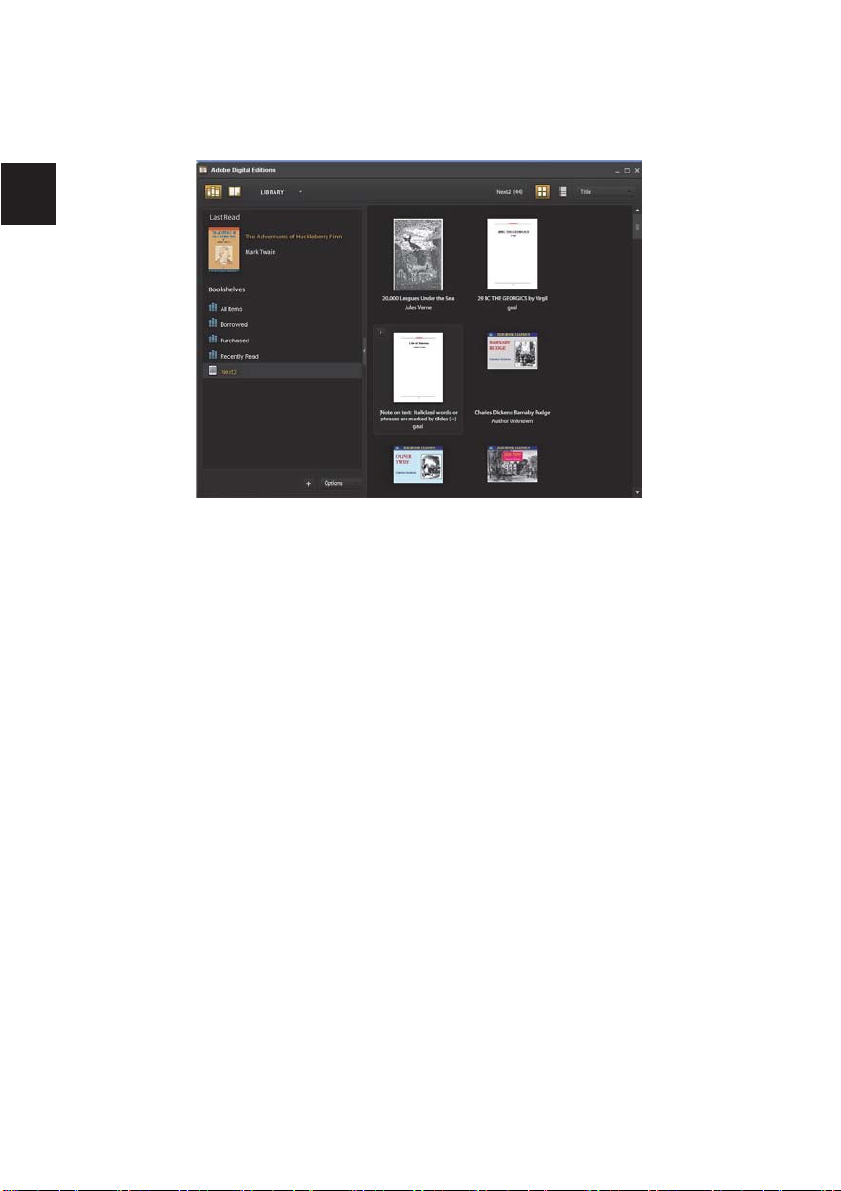

5. Click “Purchase”, and then you should see your

downloaded e-book at the right panel of the Adobe Digital Editions user interface.

6. Connect your Tablet to the computer with the USB

cable, and the Adobe Digital Editions should recognize your Tablet.

7. Click “Purchase” to see your downloaded e-book

and then drag it to your Tablet.

Playing Music

Tap on the program symbol and the on Music icon to enter the music player mode.

Music Library

You should enter the music library once you start the music player. The Music Library shows your music

files sorted by categories (Artist, Album, Title

, Genre,

etc.) if your music files contain these song information tags. If some of your music files do not contain information tags, they will be classified as (Unknown) in the Music Library. When new music is copied to the device, the Music Library will be updated automatically.



You can drag your

finger up and down on the file list to scroll through the list.

Tap a track to play a

track.

7RUHWXUQWRWKH+RPH6FUHHQWDS   



Search for Tracks

You can search for tracks in the internal memory or memory card by inputting a few key words.

Playback Screen

a. Shows that the player app is running, if running in

background. b. Show current playlist. c. Random playback on / off. d. Change replay mode e. Lyrics, if available f. CD Cover (If existing) g. ID3-Information’s (Artist, Album etc.) h. Short press – Previous track i. Play/Pause j. Short press – Next track k. Progress bar l. Menu key



To pause or resume the playback, tap on the

Pause

To play the previous/next song, tap on

You can tap on the progression bar to go directly

/ Play icon.

/ .

to a different location in the song. You can also drag the cursor in the progression bar to another location in the song.

Tapping continuously on the ID3 information tag

will search for the information about the track from the Internet.

7RJREDFNWRWKHPXVLFOLEUDU\WDSRQ 7RJREDFNGLUHFWO\WRWKH+RPHVFUHHQWDSRQWKH

+RPHLFRQ

 RU5HWXUQLFRQ 

Video / Photo Playback

On the Home screen tap on the program icon and

then on the photo browser icon

 to launch the

photo viewer.

Thumbnails

The first screen in photo mode shows all photos/videos and sub folders in the device or on memory card as thumbnails. Tap on a photo thumbnail to view the photo in full screen mode. Open the sub folder if the photo is stored in a sub folder to display the photo/video contents as thumbnails.

View Photo

While viewing photos tap on the screen to show the status bar at top and bottom.



Press the menu button or tap on the respective icon

(

) in the top right corner and then on “Slide Show”

to start the slide show.

Tap on the screen again to end the slide show. Wipe with your finger to the left or right over the

image to display the previous/next photo.

To zoom in or out tap with two fingers on the

display and pinch the image between thumb and

pointer finger.

Tap on and then “Rotate Left” or “Rotate Right”

to rotate the image 90° left or right.

Tap on again and then on “Details”WRVKRZ

LPDJHGHWDLOV

Tap on and then on “Set Image As” to use the

image as wallpaper or contact image.

Video Playback Screen

When Video Playback

image:

d e

you will see the following

a. Progress bar b. Decrease volume c. Increase volume d. Add bookmark e. Brightness setting f. Previous video

g. Play/Pause h. Next video i. Screen scaling j. Preview mode k. Return l. Video settings

Tap on Pause / Play to pause or continue

video playback.

Tap on to display the menu items. Tap on the progress bar to skip to a position in the

video. Alternatively, drag the cursor on the progress

bar to a different position in the video.

Tap on / to set the volume level. Tap on / to play the previous/next video.

7DSRQ  WRHQGSOD\EDFNDQGWRUHWXUQWRWKHYLGHR

OLVW

Preview Mode (

)

In preview mode the Video will be played in a small window and can be moved to any position at the screen.

Simultaneously tap with two fingers at this window.

Drag the fingers together or apart scale the window.

Tap once at the window to show the progress bar. Tap at the window while the progress bar is visible

to pause playback. Tap again to resume.

Tap at the arrow at the bottom right (Ì) while the

progress bar is visible to fade out the window.

Use the

Longer tap at the window (2 Sec.) while the progress

 V\PEROWRIDGHLQWKHZLQGRZDJDLQ

mar is NOT visible. Now tap at the appearing cross

to stop playback and close the window completely.

Video settings (

)

Use to set up the video playback

Delete bookmark and

play from beginning Delete bookmark Play mode Select:

- Single

- Repeat one

- Repeat all

External, embedded subtitles priority selection Embedded subtitle select

Select if external or embedded subtitles will have first priority Select between the available embedded subtitles

Audio track select Select the sound track if

different are available Help Function overview Return Exit menu



Camera usage

The camera can be used for capturing photos or videos of for internet video calls.

Settings

Shutterforcamera andvideocapturing (Whilerecordinga video,tapagainto stoprecording)

Switchbetween

PhotoͲ, VideoͲ 

and

Panorama

Zoom

Simultaneously tap with two fingers at the screen. Drag the fingers together or apart to zoom out or in.

Zoomout

Zoomin

Change the camera

Tap at

to open the settings and at to toggle

between front and rear facing camera.

Camera settings

Tap at

More symbols will appear in the middle of the screen.

to open the settings.

Tap at the desired symbol to open.

General settings

Szene mode Auto or Night Store location Picture size Select the desired picture quality.



The current position will be saved if

Picture settings (White Balance)



Cloudy



Sunny

Auto

Neon light



Tungsten



ES File Explorer

On the Home screen tap on the app icon to access all

apps and tap on the explorer icon to launch the ES

Explorer

Screen elements

Quick Access

hidden

path

Higher level of the file current file

App configuration

Menu bar

Quick Access

The main elements and places of memory are accessible directly from the rapid access at the left edge. Favorites Access memory locations marked

as favorites

Local Navigate to the location of local

memories Library Media library Network Access to network elements Tools Aditional features



By pressing

 the toolbar bar will be hidden.



Progress

From the path at the top, you could follow the file in which you are.

- Press the left side of the progress bar to exit the

current file.

- Press the right side to access the path or select

another location

Note

If you reached already the lowest level of the file, the left side is no longer present.



Window management

If a new item is opened via a quick access, it will be opened in a new window.

The open windows are displayed in the upper part of the screen between the windows, you can change by wiping the left or right.

Press

to close the current window.

Opened window

Close this

window

General

Standard path is the internal SD card. Tap on the history above to toggle between connected storage media.

External storage devices are in folder “mnt”: sdcard Usable internal device memory. external_sd Connected microSD memory card. usb_storage USB storage media, which are

connected via USB adaptor.

Navigate Files And Folders

Wipe with your finger up and down to scroll through

the file list.

To open a file or folder, tap the file/folder. Go back one level in the directory by pressing the

left side of the path

Tap on the Return or Home button anywhere in the

app to return to the Home screen.

Touch to navigate "local" in the fast access and

"Home" directly in the directory



   



Menu Bar

You can use the toolbar to navigate in the internal memory of your device or memory card and delete or

copy files

Add files / Folders

Search by file type.

Update

Sort

Change the view

Press and hold for (ca. 3 Seconds) on a file or folder to select it and to show other functions. .

Below you can select multiple files or other folders

Copy selected items

Cut selected items.

Delete selected items

Rename selected items

Additional features

Copy/Move Files And Folders

(1) In the file list, scroll up and down by wiping with

your finger to select the file/folder to be copied or moved.

(2) Hold your finger on the selected file/folder until a

pop-up menu appears.

(3) Select “Copy” or “Move” from the pop-up menu.

Navigate to the location where you wish to copy or move the file/folder to.

(4) Press on

to add into it the file or data

(5) You may open the field at the left

side of the window to have more options.



Delete Files And Folders

(1) In the file list, scroll up and down by wiping with

your finger to select the file/folder to be deleted.

(2) Hold your finger on the selected file/folder until a

pop-up menu appears.

(3) Select “Delete” from the pop-up menu, then select

“Delete” to confirm or “Cancel” to cancel deleting.

Rename Files And Folders

(3) In the file list, scroll up and down by wiping with

your finger to select the file/folder to be renamed.

(4) Hold your finger on the selected file/folder until a

pop-up menu appears. (5) Select “Rename” from the pop-up menu. (6) Tap on the input field to display the virtual keyboard,

then enter the letters from the virtual keyboard to

rename the file/folder. (7) Tap “OK” to confirm the new name.

Manage Third-party Applications

Your Tablet provides support to many useful third-party applications. You can purchase the applications to add more functions to your device. They are available online at the Internet or directly on your product.



Pre-installed Applications

The device has pre-installed applications when it was manufactured. You can see them by tapping

Application Tab. They are video player, audio player,

photo browser, calculator etc.

Install Applications

You can install applications manually following these steps: (1) Download the installation file to your computer.

Make sure the file is in format of .apk which is supported by your Tablet system.

(2) Connect your Tablet to computer with the USB

cable. (3) Copy the installation file to your Tablet. (4) Disconnect your Tablet form the computer. (5) Turn on your Tablet and enter the file explorer

mode with the Explorer. (6) Locate the installation file and open it. (7) Follow the on-screen instructions to install the

application. (8) Once the application is installed successfully, you

can find it in the application tab.



Uninstall Applications

(1) Tap the Settings shortcut in the Home Screen to

display all system settings.

(2) Select “Applications”. (3) Tab on the application that you want to uninstall. (4) Tab on “Uninstall” to uninstall the application.

Note: You cannot uninstall the pre-installed applications. Some of the applications developed for Android mobile might not run properly in the Tablet. Please consult the respective software developer for further information or support.

Installed on this unit are various third-party applications (Apps), whose author is not Axdia International. All rights and obligations remain the sole responsibility of the author of these applications. Axdia accepts no liability for any malfunction of third-party apps. For support or license inquiries please contact the respective owners directly. Contact information may usually be found within the application.

Caution! Please note that the installation of third-party application occurs on your own risk! Any up normal behavior or damage that is caused by installing third-party applications will not be an integral part of the warranty.

y y

System Settings

On the Home screen tap on the “Settings” icon and

select the category “Wireless & Networks”, “Sound

and Display”, “Date and Time”, etc.

Tap on the function to change the settings. Tap on the tick box on the right side of the

parameter to enable this option.

Wipe with your finger over the screen to display

further settings outside the screen.

After completing your settings tap on the

return to the setting menu or tap on the return to the Home screen. Your changes are saved.

icon to

Wireless & Networks

Wi-Fi

Tap to enable/disable the Wi-Fi connection.

Press the menu button or tap on the

icon in the top right corner and then on “Advanced” in the top right corner to manually set up and manage your Wi-Fi networks.

Data usage

List of the Data usage of installed apps

More…

Here you find the advanced network settings such as for VPN or mobile use.

Device

Sound Volume

System

Set the volume level for music and videos. You can also set the volume with the volume buttons on right of the device. Enable/disable touch screen button beeps and notification tones for lock/unlock.

Display Brightnes

Set screen brightness.

Wallpaper

Auto

Display Rotation

Sleep

Select wallpaper. Automatic display rotation when rotating the device. Set auto off delay and screen lock. Press On/Off once to switch on again and tap on the screen once to unlock the screen.

Font Size

Change the menu font size.

Screenshot

Setting to take screenshots

Setting

Storage

This setting allows the verification of the memory capacity of the internal memory and SD card. You can also set media content of connected external USB devices or microSD cards to be searched.

Battery

Capacity display of the rechargeable battery

Apps

This screen allows Android™ apps management. Info display of apps

installed on your device.

Personal

Location Services

This screen allows certain Android™ apps to determine their current

location.

Security

Set security parameters and screen locks.

Language & Input Method Backup & Reset

Set your language and region and configure text settings for faster and more accurate text input. This setting allows system or data backup or recovery.

Caution! All previous settings are reset.

Accounts

Sync setting for email and messenger accounts.

System

Date & Time

Set date, time, time zone and time format.

Accessibility

Set operating aid such as Auto Display Rotate or the touch screen response time.

Developer Options

Important functions for app developers such as USB debugging mode or user interface display functions.

About

Display information about your tablet system.

Troubleshooting

Reset the device

If the On/Off button does not reset your device, use

the “pinhole reset” button, located on the back of the device. The device reboots. Settings and data are NOT lost.

Touch screen does not respond

Ensure that the app provides full touch screen

support.

Do not tap to hard on the screen; this can cause

malfunctions.

No sound from earphones

Ensure that the volume setting is not too low and

that the connection is ok. Ensure that the earphones are clean. Corrupted MP3 files can cause different noise or cannot be played. Ensure that the files are not damaged. Try different earphones. Ensure that the Wi-Fi function is enabled and that a wireless network is within range.

Characters are corrupted

Ensure that the language is set properly.



No Wi-Fi connection

Ensure that the Wi-Fi function is enabled and that a

wireless network is within range.

Enter the correct password. Observe special

characters and case sensitivity. Characters must be entered accordingly.

Follow the hints on the next page.

Problem

Network not found

Internet

No Internet

Solve Wi-Fi connection problems

1. Open Wi-Fi settings.

2. Select and remove Wi-Fi.

3. Tick “Display Password” and enter password.

4. Look out for status messages below the network name:

Status

messages

(below network

name in Wi-Fi

Possible

cause

Solution

settings)

- Enable SSID in router configuratio n

- Decrease distance to router

- Firmware

Network not found

- SSID not visible

- Wi-Fi too weak

update or change channel

- Deactivate

-> Connecting

-> Not connected

- MAC filter active

filter in router configuratio n

-> Connecting

- Password wrong or

- Check and re-enter

Authenticati on…

wrong spelling

password

-> Not connected

- Delete list of connected devices on router

- Decrease distance to router

- Activate DHCP in router configuratio

No Internet

-> Connecting

-> Authenticati on…

-> Retrieving IP address…

-> Not connected

- Router configurat ion faulty or

- Wi-Fi too weak

- DHCP server off

Reset this device

If the Power button does not reset your device, use

the “pinhole reset” button, located on the back the device.

Touch-screen Problems

Check if the Application you are using has full

touch-screen support.

Don’t press too hard on the screen. This might

cause a wrong behavior.

No Wifi connection

Take care that Wifi is enabled and a wireless

network is in range.

Be sure that you entered the correct password. Take

care of special characters and capital letters. They need to be entered as is.

Without sound inside earphone

Please confirm the volume is not in the status of

Zero and the connection of earphone is ok. Please confirm the earphone is clean. The broken MP3 will produce noise with different grades even cannot play music. Please confirm the complete files. Try another pair of headphones.Take care that Wifi is enabled and a wireless network is in range.

The character on the display screen is in abnormal shape

Please confirm the language that you selected is

correct.



No USB connection is established to the PC

Check cable/plug connection to the PC, Windows

system configuration and USB driver. Restart PC, remove and reconnect the USB cable, reinstall drivers.

It is not possible to store anything at the inserted SD card

Please confirm that the inserted SD card is not write

protected.

It is not possible to download e-books from odysbook.de.

Please disable any popup blocker.

Specifications

Configurations

1,5 GHz Dual Core Processor

CPU

Amlogic 8726-MXS, ARM Cortex A9

Kernel DDR 1GB DDRIII Ram Built-in operating

Android OS 4.2 system

Hardware

Internal Memory Memory Card

IBM PC or compatible PC, Notebook

or Macintosh with USB port

8GB

Micro SD card: up to 32GB(SDHC)

System Requirements

Operation System USB Interface

Windows2000/XP/Vista/windows

7and MAC OS 10.4 or above

USB2.0 High speed

Features

Output Port

3.5mm earphone port, built-in

speaker Built in microphone E-book Format

EPUB, PDF

MP3 (MPEG1/2/2.5 Audio Layer

Audio

1/2/3)˗

WMA (Version 4,4.1,7,8,9)

WAV (MS-ADPCMˈIMA-ADPCMˈ

PCM)

Odys Tao X10 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
