Halogen Light Source
HL-2000 / HL-2000-LL / HL-2000-HP
Installation and Operation Manual
Document Number 000-10000-050-02-201307
Offices: Ocean Optics, Inc. World Headquarters
830 Douglas Ave., Dunedin, FL, USA 34698
Phone 727.733.2447
Fax 727.733.3962
8 a.m.– 8 p.m. (Mon-Thu), 8 a.m.– 6 p.m. (Fri) EST
Ocean Optics Mikropack
Maybachstraße 11, D73760, Ostfildern, Germany
Phone +49 (0)711 34 16 96-0
Fax +49 (0)711 34 16 96-85
E-mail: Info@OceanOptics.com (General sal es inq u iri e s)
Orders@OceanOptics.com (Questions about orders)
TechSupport@OceanOptics.com (Technical support)
000-00000-000-02-A
Copyright © 2009 Ocean Optics, Inc.
All rights reserved. No part of this pu blication may be reproduced, stored i n a retri e va l sys tem, or transmitted, by any means, electronic,
mechanical, photocopyin g, r ec ord ing, or otherwise, without written permission from Ocean Optics, Inc.
This manua l is sold as part of an order and subject to the condition that it shall not, by way of trade or otherwise, be lent, re-sold, hired out or
otherwise circulated with out the pr ior consent of Ocean Optics, Inc. in an y form of binding or cover other than that in which it is publish ed .
Trademarks
Microsoft, Windows, Wind ow s 95, Windows 98, Windows Me, Windows NT, Windows 2000, Wind ow s XP an d Excel are either registered
trademarks or tr a d emarks of M i crosof t C or p oration .
Limit of Liability
Every effort h as been made to make this m an ua l as c om plete and as accurate as possible, but n o warra nty or fitness is implied. The inform a ti on
provided is on an “as is” basis. Ocean O ptics, Inc. shall have neither liability nor resp ons ib ility to any person or entity with r es pect to any loss or
damages arising from the inform a t i on contained in this manual.
Important Safety Notices
1. Do not remove or modify any installed safety device on this equipment. Doing so will void your
warrant y and create an unsafe operat ing environm ent.
2. Dangerous voltages are present in this device. There are NO user serviceable parts inside.
3. Only allow qualified personnel to service this unit.
4. Do not use the unit if it is dam aged in any wa y. Contact your dealer for repair or replacement
information.
000-10000-050-02-201307 A
Important Safety Notices
B 000-10000-050-02-201307
Table of Contents
About This Manual .............................................................................................................iii
Document Purpose and Intended Audience .............................................................................. iii
What’s New in this Document ................................................................................................... iii
Document Summary .................................................................................................................. iii
Product-Related Documentation ............................................................................................... iii
Upgrades ............................................................................................................................iii
Chapter 1: Setup ................................................................................... 1
Setting Up the HL-2000 Light Source ................................................................................1
Optimizing the Optical Power Output .................................................................................2
HL-2000 Diagrams .............................................................................................................2
Chapter 2: HL-2000 Specifications ..................................................... 5
Specifications .....................................................................................................................5
Parts List .............................................................................................................................5
Appendix A: Bulb Replacement ......................................................... 7
Overview .............................................................................................................................7
Identifying the Bulb Type ....................................................................................................7
Replacing the Bulb .............................................................................................................8
Index ...................................................................................................... 11
000-10000-050-02-201307 i
About This Manual
Document Purpose and Intended Audience
This document provides you with an installation section to get your system up and running.
What’s New in this Document
This version of th e Halogen Light Source HL-2000 / HL-2000-LL / HL-2000-HP Installation and
Operation Manual updates the logo and contact information.
Document Summary
Chapter Description
Chapter 1: Setup
Chapter 2: HL-2000 Specifications
Appendix A: Bulb Replacement
Contains a list of package contents and unpacking
instructions.
Contains operating environment specifications, as
well as other physical details of the product.
Provides instructions for changing the bulb.
Product-Related Documentation
You can access documentation for Ocean Optics products b y visiting our website at
http://www.oceanoptics.com. Select Technical → Operating Instructions, then choose the appropriate
document from the avail able drop-down lists. Or, use the Search by Model Number field at the bottom
of the web page.
You can also access operating instructions for Ocean Optics products on the Software and Technical
Resources CD included with the system.
Engineering-level docu mentation is located on ou r website at Technical → Engineering Docs.
Upgrades
Occasionally, you may find that you n eed Ocean Optics to make a change or an upgrade to your system.
To facilitate these changes, you must first contact Customer Support and obtain a Return Merchandise
000-10000-050-02-201307 iii
About This Manual
Authorization (RMA) number. Pleas e con tac t O cean Op tics f or spe ci fic in st ru cti ons wh en returning a
product.
iv 000-10000-050-02-201307
Setting Up the HL-2000 Light Source
Chapter 1
Setup
Use the following procedure and refer to HL-2000 Diagrams
► Procedure
Perform the steps below to set up your H L -2000 Light Source:
1. Plug the power suppl y int o a wall ou tlet.
Note
The HL-2000-HP Series of light sources requires a 24 VDC power supply. Do not use
the standard 12 VDC power supply.
000-10000-050-02-201307 1
to set up your light sourc e.
1: Setup
Power Connector
Power Supply
2. Plug the other end of the power supply cable into the socket of HL-2000.
3. Connect the SMA connector of your fiber optic cable to the SM A plugs.
4. Turn the Halogen lamp on using the power switch on the rear of the HL-2000.
Optimizing the Optical Power Out put
The HL-2000 is adjusted at the factory to provide maximu m pow er int o a 200 µm f ibe r. If a lower op tic al
power is required or a different fiber (bundle) diameter is used, you can adjust the optical power of the
unit. Refer to HL-2000 Diagrams
► Procedure
Follow the steps below to adjust the optical power of the HL-2000 Light Source:
1. Connect a fiber opt ic spe ctr o met er or an opt ic al po we r met e r to a fiber, an d th en con ne ct the other
end of the fiber to the HL-2000’s SMA plug.
2. Loosen the blocking screw with the provided 1.3mm Allen wrench.
while using the following procedure.
3. Shift the SMA socket to optimize the optic al power of the HL-2000.
4. Tighten the blocking screw to secure the SMA socket position.
HL-2000 Diagrams

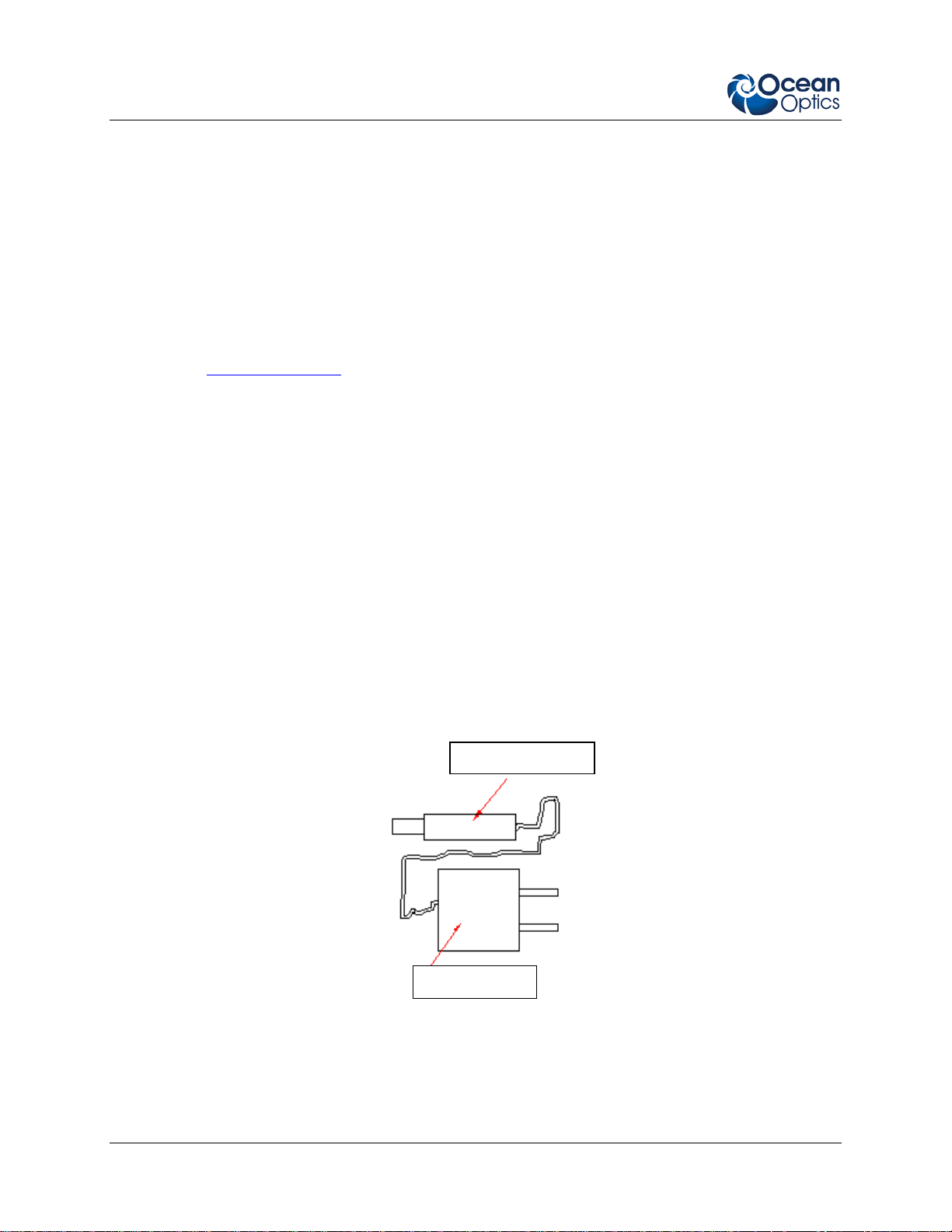

Figure 1: HL-2000 Power Supply
2 000-10000-050-02-201307
1: Setup
Power Socket
Rear Screw
Rear Screw
Rear Screw
Power S w i tch
Filter Holder (select models)
Figure 2: HL-2000 Rear View
SMA Connector
Figure 3: HL-2000 Side View
000-10000-050-02-201307 3
1: Setup
Blocking Screw
Bottom Plate Screw
Cooling Fan

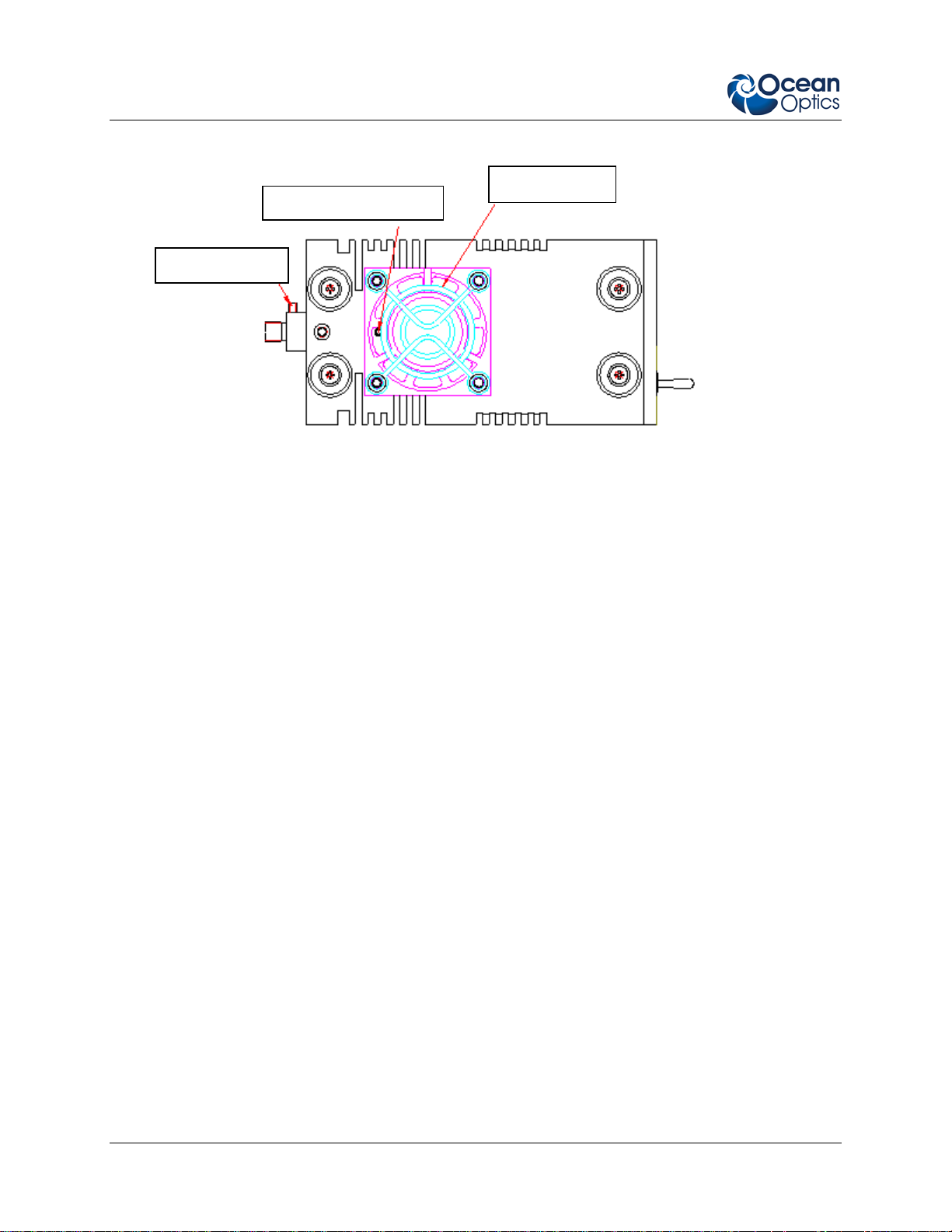

Figure 4: HL-2000 Bottom View
4 000-10000-050-02-201307
HL-2000
HL-2000-LL
HL-2000-HP
Halogen light source with filter holder/shutter and atte n uator
HL-2000
Halogen light source, fan cooled, long life
HL-2000 -LL
Halogen light source high-power 20 W version
HL-2000-HP
Halogen spare bulb 2960K/ 1.500 hrs
HL-2000-B
Halogen spare bulb 2800K / 10.000 hrs
HL-2000-LL-B
Halogen spare bulb High-Power
HL-2000-HP-B
Chapter 2
HL-2000 Specifications
This section provides information on the operating environment, physical controls, and dimensions of the
HL-2000. It also provides a parts list.
Specifications
Wavelength range 360 nm – 2400 nm
Stability 0.5 %
Drift <0.3% per Hour
Time to stabilize Approximately 5 Minutes
Power Consumption 1.2A @ 12 VDC 1.0A @ 12VDC 1.2A @24VDC
Bulb life time 1500 h 10,000 h 1000 h
Characteristic Focused
Bulb color temperature 2,960K 2,800K 3,000K
Room temperature 5°C – 35°C
Humidity 5 - 95% at 40°C
Output 7W 7W 20W
Weight Approximately 0.5 kg
Size 62 x 60 x 150 mm
Parts List
Spare Parts / Order Information Catalog Number
000-10000-050-02-201307 5
2: HL-2000 Specifications
6 000-10000-050-02-201307
Bulb Replacement
Overview
To order replace men t bulb s for th e H L-2000, consult the Parts List .
WARNING
Before replacing the bulb in the HL -2000, disconnect the lamp from your power
source and allow the unit to cool for at least twenty min utes, if necessary.
Appendix A
Identifying the Bulb Type
► Procedure
Perform the steps below to ident if y the bul b t yp e:
1. Unplug the power connector from the power socket on the HL-2000.
2. Loosen the screws on the rear of the unit with the provided 2.5mm Allen wrench.
3. Remove the backside of the HL-2000 and remove the electronics board from the HL-2000, taking
particular care not to disconnect the fan wires.
4. Remove the screws from the bottom plate of the unit with the provided 1.3mm Allen key.
000-10000-050-02-201307 7
A: Bulb Replacement
5. Inspect the bulb for the bulb code/description. The bulb codes and descriptions are as follows:
Bulb Code May 2003 and Later - Description Before May 2003 - Description
HL-2000-B
HL-2000-BL
HL-2000-B-HP
Cable: Black and red
Small housing AD = 13mm
Cable: Black and yellow
Small housing AD = 13mm
Cable: Black and blue
Small housing AD = 13mm
Cable: Black and red
Small housing AD = 13mm
Cable: Black and red
Small housing AD = 13mm
Ring marker
Cable: Black and red
Small housing AD = 13mm
Bigger bulb
Replacing the Bulb
► Procedure
Refer to Figure 5 and perform the steps below to replace the bulb in the HL-2000 Light Source:
1. Unplug the power connector from the power socket on the HL-2000.
2. Loosen the screws on the rear of the unit with the provided 2.5mm Allen wrench.
3. Remove the backside of the HL-2000 and remove the electronics board from the HL-2000, taking
particular care not to disconnect the fan wires.
4. Remove the screws from the bottom plate of the unit with the provided 1.3mm Allen key.
5. Remove the bulb from the HL-2000.
6. Disconnect the wires from the connection block.
7. Replace the bulb and reconnect the wires to the connection block.
8. Slide the lamp into the housing and secure the housing with the bottom screw.
9. Slide the electr on i cs bo ard bac k in to the H L -2000, taking particular care to ensure that the wires
do not come into contact with the fan blades.
8 000-10000-050-02-201307
A: Bulb Replacement
Connection
Block
Lamp
Fan Wires
Housing
Figure 5: HL-2000 Bulb Replacement Diagram
Rear /
Electronics
Board
000-10000-050-02-201307 9
A: Bulb Replacement
10 000-10000-050-02-201307
Index
bulb
indentifying type, 7
replacement, 8
bulb replacement
diagram, 9
diagrams, 2
bottom vi ew, 4
bulb replacement, 9
power supply, 2
rear view, 3
side view, 3
document
audience, iii
purpose, iii
summary, ii i
optical power
optimizing output, 2
B
D
O
P
parts list, 5
product-related documentation, iii
S
setup, 1
specifications, 5
U
upgrades, iii
W
what's new, iii
000-10000-050-02-201307 11
Index
12 000-10000-050-02-201307
