Ocean Optics DH-2000 User Manual

Deuterium-Halogen Light Source

DH-2000 / DH-2000-BAL / DH-2000-DUV / DH-2000-S / DH­2000-S-DUV / DH-2000-FHS, DH-2000-FHS-DUV /
DH-2000-S-DUV-TTL

Installation and Operation Manual

Document Number 000-10000-025-02-1209

Office: Ocean Optics, Inc. World Headquarters

830 Douglas Ave., Dunedin, FL, USA 34698

Phone [phone]
Fax [phone]

8 a.m.– 8 p.m. (Mon-Thu), 8 a.m.– 6 p.m. (Fri) EST

Ocean Optics Mikropack

Maybachstraße 11, D73760, Ostfildern, Germany

Phone [phone]
Fax [phone]

000-00000-000-02-A

E-mail: [e-mail] (General sales inquiries)

[e-mail] (Mikropack sales inquiries)
[e-mail] (Questions about orders)
[e-mail] (Technical support)

Protective Eye Wear Must Be Worn When
Using This Instrument ­Intense Ultraviolet Radiation Present

See Important Safety Notices inside.

WARNING

Copyright © 2009 Ocean Optics, Inc.

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, by any means, electronic,
mechanical, photocopying, recording, or otherwise, without written permission from Ocean Optics, Inc.
This manual is sold as part of an order and subject to the condition that it shall not, by way of trade or otherwise, be lent, re-sold, hired out or
otherwise circulated without the prior consent of Ocean Optics, Inc. in any form of binding or cover other than that in which it is published.

Trademarks

Microsoft, Windows, Windows 95, Windows 98, Windows Me, Windows NT, Windows 2000, Windows XP and Excel are either registered
trademarks or trademarks of Microsoft Corporation.

Limit of Liability

Every effort has been made to make this manual as complete and as accurate as possible, but no warranty or fitness is implied. The information
provided is on an “as is” basis. Ocean Optics, Inc. shall have neither liability nor responsibility to any person or entity with respect to any loss or
damages arising from the information contained in this manual.

Important Safety Notices

1. Do not remove or modify any installed safety device on this equipment. Doing so will void your
warranty and create an unsafe operating environment.

2. Dangerous voltages are present in this device. There are NO user serviceable parts inside.

3. Only allow qualified personnel to service this unit.

4. Do not use the unit if it is damaged in any way. Contact your dealer for repair or replacement
information.

5. Always screw in the fiber optic cables before starting the instrument.

Protective eyewear must be worn when using this equipment - Intense
ultraviolet radiation present.

WARNING

Never look directly into the light beam, as this can cause eye damage.

Warranty

Ocean Optics warrants to the original user of this instrument that it shall be free of any defects resulting
from faulty manufacture of this instrument for a period of 12 months from the original data of shipment.

This instrument should not be used for any Clinical or Diagnostic purposes. Data generated in these
areas is not warranted in any way by Ocean Optics. Any defects covered by this Warranty shall be
corrected either by repair or by replacement, as determined by Ocean Optics.

There are no warranties that extend beyond the description herein.

This Warranty is in lieu of, and excludes, any and all other warranties or representations expressed,
implied, or statutory, including merchantability and fitness, as well as any and all other obligations or
liabilities of Ocean Optics including, but not limited to, special or consequential damages. No person,
firm, or corporation is authorized to assume for Ocean Optics.

000-10000-025-02-1209 A

Table of Contents

About This Manual .............................................................................................................iii

Document Purpose and Intended Audience..............................................................................iii

What’s New in this Document ................................................................................................... iii

Document Summary..................................................................................................................iii

Product-Related Documentation ............................................................................................... iii

Upgrades ............................................................................................................................iv

Chapter 1: Setup...................................................................................1

Overview.............................................................................................................................1

Unpacking the DH-2000 .....................................................................................................2

Contents .............................................................................................................................2

Connecting the Cables .......................................................................................................2

Connecting the Fiber Optic Cable ............................................................................................. 2

Chapter 2: DH-2000 Specifications ....................................................5

Operating Environment ......................................................................................................5

DH-2000 Components .......................................................................................................5

Front Panel ................................................................................................................................ 6

Rear Panel................................................................................................................................. 7

Specifications .....................................................................................................................8

Pinout Information ..............................................................................................................9

15-pin Connector Pinout Diagram......................................................................................9

Chapter 3: Operating Instructions......................................................11

Operating the Lamp............................................................................................................11

Starting the Lamp ......................................................................................................................11

Turning the Lamp Off................................................................................................................. 11

Warming Up the Lamp............................................................................................................... 12

000-10000-025-02-1209 i

Table of Contents

Chapter 4: Troubleshooting ................................................................13

Deuterium Lamp .................................................................................................................13

Halogen Lamp ....................................................................................................................14

Appendix A: Maintenance ...................................................................15

Overview.............................................................................................................................15

Bulb Replacement ..............................................................................................................15

Replacing the Deuterium Bulb for All Models Except DH-2000-BAL ........................................ 16

Replacing the Deuterium Bulb for DH-2000-BAL Model ...........................................................17

Replacing the Halogen Bulb for All Models Except DH-2000-BAL ...........................................18

Replacing the Halogen Bulb for DH-2000-BAL Model .............................................................. 19

Appendix B: Supplementary Information for Models DH-2000-S and

DH-2000-FHS.........................................................................................21

Overview.............................................................................................................................21

DH-2000-S (With TTL Shutter Control)..............................................................................21

Automatic Operation..................................................................................................................21

Manual Operation ...................................................................................................................... 21

DH-2000-FHS (With Filter Holder and TTL Shutter Control) and DH-2000-BAL..............22

TTL Function Operating Instructions ......................................................................................... 22

Operating Instructions – Filter (DH-2000-FHS Only) ................................................................22

Index ......................................................................................................25

ii 000-10000-025-02-1209

About This Manual

Document Purpose and Intended Audience

This document provides you with an installation section to get your system up and running.

What’s New in this Document

This version of the Deuterium-Halogen Light Source DH-2000 / DH-2000-BAL / DH-2000-DUV /
DH-2000-S / DH-2000-S-DUV / DH-2000-FHS, DH-2000-FHS-DUV / DH-2000-S-DUV-TTL
Installation and Operation Manual

maintenance insatructions.

Document Summary

Chapter Description

updates the logo and the contact information. It also updates the

Chapter 1: Setup

Chapter 2: DH-2000 Specifications

Chapter 3: Operating Instructions

Chapter 4: Troubleshooting

Appendix A: Maintenance

Appendix B: Supplementary Information for

Models DH-2000-S and DH-2000-FHS

Contains a list of package contents and unpacking
instructions.

Contains operating environment specifications, as well
as other physical details of the product.

Provides instructions for operating the DH-2000 Light
Source.

Contains troubleshooting information for the power
supply and both the deuterium and halogen lamps.

Provides instructions for changing the bulb.

Contains operating instructions specific to the
DH-2000-S and DH-2000-FHS models.

Product-Related Documentation

You can access documentation for Ocean Optics products by visiting our website at

http://www.oceanoptics.com. Select Technical → Operating Instructions, then choose the appropriate

document from the available drop-down lists. Or, use the
of the web page.

You can also access operating instructions for Ocean Optics products on the

Resources

CD included with the system.

Search by Model Number field at the bottom

Software and Technical

Engineering-level documentation is located on our website at

000-10000-025-02-1209 iii

Technical → Engineering Docs.

About This Manual

Upgrades

Occasionally, you may find that you need Ocean Optics to make a change or an upgrade to your system.
To facilitate these changes, you must first contact Ocean Optics and obtain a Return Merchandise
Authorization (RMA) number. Please contact Ocean Optics for specific instructions when returning a
product.

iv 000-10000-025-02-1209

Chapter 1

Setup

Overview

The following sections provide instructions on unpacking and setting up your DH-2000 Light Source.

Before using the DH-2000 for the first time check for transport damage. Be sure to adhere to all warnings
on the unit and in this manual.

000-10000-025-02-1209 1

1: Setup

Unpacking the DH-2000

► Procedure

1. Unpack your lamp assembly and power supply carefully. Although the lamp is rigidly mounted,
dropping this instrument can cause permanent damage.

2. Inspect the outside of the instrument and make sure that there is no damage. Do not use the
instrument if damage is present.

3. Use this instrument in a clean laboratory environment (see

Operating Environment).

Contents

Your DH-2000 package should contain the following:

 DH-2000 unit
 Power cord
 One IC-DB15-2 interface cable for shutter operation (DH-2000-S, DH-2000-BAL, DH-2000-

FHS, and DH-2000-S-DUV-TTL models only)

 UV safety goggles

Connecting the Cables

► Procedure

1. Connect the power cord to an outlet and to the rear of the unit.

2. If you have a DH-2000-S, DH-2000-BAL, DH-2000-FHS, or DH-2000-S-DUV-TTL connect the
15-pin interface cable for external control of TTL lamp shuttering.

3. Connect the fiber optic cable (see

Connecting the Fiber Optic Cable ).

Connecting the Fiber Optic Cable

Use the following procedure to connect the cable to the lamp.

2 000-10000-025-02-1209

► Procedure

To connect the fiber optic cable to the DH-2000,

1. Locate the cap on the front of the DH-2000.

2. Lift the cap on the front of the DH-2000 to expose the SMA connector.

1: Setup

3. Connect the fiber optic cable to the SMA connector.

000-10000-025-02-1209 3

1: Setup

4 000-10000-025-02-1209

Chapter 2

DH-2000 Specifications

This section provides information on the operating environment, physical controls, and dimensions of the
DH-2000.

Operating Environment

The following table provides information on optimizing the operating environment of your DH-2000 unit.

Operating Environment The DH-2000 Unit . . .

Moisture Is designed for operation in dry rooms only.

Ventilation Should be situated so that its location or position does not interfere

with proper ventilation.

Heat Should be situated away from any device that emits excessive heat.

Object and Liquid Entry Should be positioned so that objects do not fall on top of the unit.

Additionally, ensure that no liquids are spilled into the enclosure
through openings.

Power Sources Should be connected to a power supply with the following

specifications:

 Units manufactured since April 2003 are equipped with power

supplies that can handle voltage input of 90 to 240 VAC. These
units have a serial number formatted as 23XXXX.

 Units manufactured before April 2003 are equipped with power

supplies that can handle either 110 VAC or 240 VAC. These units
have serial numbers formatted as 02000XXX.

The power type should be listed on a sticker on the rear of the light
source.

DH-2000 Components

The following sections describe the components located on the front and rear of the DH-2000 unit. Also
see

Supplementary Information for Models DH-2000-S and DH-2000-FHS if you have one of these

models.

000-10000-025-02-1209 5

2: DH-2000 Specifications

Connector

Switch

Front Panel

Halogen On/Off

Mechanical Protection –SMA

Deuterium On/Off

TTL Shutter On/Off

Power LED

Component Description

Press the blue DEUTERIUM button to turn the Deuterium lamp on or off. The bulb

Deuterium On/Off

Power LED Indicates the power state of the DH-2000.

Mechanical Protection –
SMA Connector

Halogen On/Off

For DH-2000-S and -BAL
models:

Shutter Mode Switch

requires a warm-up time of 20 seconds before the Deuterium lamp is illuminated.
You must allow the bulb to warm up to receive accurate data from the lamp.

LED lights green upon successful illumination, or red to indicate lamp malfunction.

Covered to protect users from unintentionally looking directly at the beam of light.
Connect the fiber cable to the DH-2000
unnecessary exposure to UV radiation.

Always wear proper eye protection when using the DH-2000 lamp.

Press the red HALOGEN button to turn the Halogen lamp on or off. Requires a
warm-up time of 20 seconds before the Halogen lamp is illuminated.

LED lights green upon successful illumination, or red to indicate lamp malfunction.

Sets the operational mode of the shutter. Open indicates that the shutter is
constantly open; Closed indicates that the shutter is constantly closed; TTL
indicates that the shutter is operated via 5V TTL signal (see

BEFORE turning the lamp on to avoid

Rear Panel).

6 000-10000-025-02-1209

Rear Panel

Power Terminal Input

Fuse

Type Sign

Variable Resistor

Cooling Fan

Main Power Switch

2: DH-2000 Specifications

Component Description

Use a screwdriver to adjust the intensity of the halogen lamp to optimize the

Variable Resistor

Power Terminal Input

Main Power Switch

Fuse

Cooling Fan Cools the interior of the DH-2000. Do not obstruct.

Type Sign

intensity between deuterium and halogen light in UV-VIS applications.

DH-2000-(S)-(FHS)-(DUV)-(BAL) Voltage Optical Power

Halogen Adjustment 5V - 12 V 10% - 100%

Connect power cable to provide voltage to DH-2000:

Note: Only connect the power cable to the lamp when the Main Power Switch is in
the OFF position.

Turn on to supply power to the DH-2000. The Power LED illuminates when this
switch is in the On position.

Contains the fuse to protect the unit against overload:

European Fuse Type: Miniature fuse 5 x 20 mm, 1 Amp slow blow

USA Fuse Type: Miniature fuse 5 x 20 mm, 2.5 Amp slow blow

Information about:

– Type – Version

– Order No. – Serial No.

– Main connection – Max. Ambient. Temperature

15-pin TTL Connector
(not shown)

000-10000-025-02-1209 7

– Warnings – CE-Marking

On TTL Connector-equipped DH-2000 Series lamps, this connector allows for
external TTL control of lamp shuttering (-S and _BAL models only) and individual
lamp operation (TTL model only). See Pinout information.

2: DH-2000 Specifications

Specifications

Specifications Deuterium Lamp Criteria

Wavelength Range 210–400 nm 300–1500 nm

Current – Voltage – Stability

Current – Voltage – Drift

Warm-Up Time 20 minutes 40 minutes

Lamp Voltage

Lamp Current

Lamp Lifetime 1000 hours

Radiation Characteristics

PIN Position at SUB-D 15 Pin Connector

(Only -S / -FHS / -BAL models)

(Only -TTL model)

Possible Filter Dimensions (only -FHS
model)

Performance Guaranteed Temperature 5°C – 35°C

0,01 % / h

0,01 % / h

Ignition 580V / 20°

Operating 85 V / 0.3A

Aperture 0.5mm NA
(13°)

Shutter PIN 13: TTL / PIN 10: Ground

PIN 2 Deuterium / PIN3 Halogen / PIN 4 Ground

Up to diameter or square 25mm x 4mm, or 20mm x 6mm

26°

Tungsten-Halogen Lamp
Criteria

0.4% of voltage

12V DC / 1.67A

Focused

Humidity 5 - 95% without condensation at 40°

Internal Power Consumption 25 W 20 W

Total Power

Max. Power Consumption

Power Requirements:

European Version (prior to 4/2003)

USA Version (prior to 4/2003)

All units manufactured after 4/2003

Markings / Directives CE; VDI/VDE 0160; EN 61010

Weight Approximately 6 kg

Size 150 x 135 x 319 mm

100 Watt/190 Watt (Heating D-Lamp for 20 seconds)

230-240V 50/60 Hz

110-115V 50/60 Hz

90-240V 50/60 Hz

Operating Environment for specific information.

See

8 000-10000-025-02-1209

2: DH-2000 Specifications

Pinout Information

The following table contains pinout information for the DH-2000 Series of Lamps. Consult the
appropriate column for pinout information on your lamp.

If your lamp is not listed, pinout information in this chart is not applicable for your particular model.

Pin Description

1 na

2 Deuterium Lamp – Turns the Deuterium Lamp

on when 5V is applied to the pin

3 Halogen Lamp - Turns the Halogen Lamp on

when 5V is applied to the pin

4 Ground (TTL versions only)

5 na

6 na

7 na

8 na

9 na

10 Ground

11 na

12 na

13 TTL Signal – Shutter control

14 na

15 na

DH-2000

DH-2000-S

X X X X

X X X X

DH-2000-FHS

DH-2000-TTL

X

X

X

DH-2000-BAL

na = not applicable

15-pin Connector Pinout Diagram

000-10000-025-02-1209 9

2: DH-2000 Specifications

Modification of specifications and design to improve device performance are possible
without notice.

Note

10 000-10000-025-02-1209

Chapter 3

Operating Instructions

Operating the Lamp

The following sections provide instructions on operating the Deuterium and Halogen lamps in the DH-

2000. The Halogen lamp is only available in the DH-2000, DH-2000-DUV, and DH-2000-BAL models.

Caution

The unit must operate in a horizontal position.

Starting the Lamp

Press the Deuterium or Halogen On/Off switch down to preheat the desired lamp. The LED blinks green
until the lamp illuminates (approximately 20 seconds). The bulb requires a 20-second preheating period.
You must allow this warm up period in order to receive accurate data. After the warm up period, the lamp
will light.

After successful illumination, the two-color LED beneath the lamp’s On/Off switch lights up green to
indicate that the lamp is on. Should the lamp fail to light, the two-color LED lights up red. This indicates
a malfunction of the lamp. Press the On/Off switch again to reset the lamp. See
information.

Protective eyewear must be worn when using this equipment - Intense ultraviolet radiation
present.

WARNING

Never look directly into the light beam, as this can cause eye damage.

Troubleshooting for more

Turning the Lamp Off

Turn the lamp off by pressing the appropriate On/Off switch.

000-10000-025-02-1209 11

3: Operating Instructions

Warming Up the Lamp

The Deuterium lamp requires 10–15 minutes, while the Tungsten-Halogen lamp requires 5–10 minutes of
operation to reach a state of thermal equilibrium. During this warm-up period, the intensity of the UV
output power can vary substantially.

If applications require extreme intensity stability, the Halogen lamp should be warmed up for an
additional 15 minutes. Once warmed up for this amount of time, the lamp will reach specified drift values.

12 000-10000-025-02-1209

Chapter 4

Troubleshooting

Deuterium Lamp

If the power supply or Deuterium lamp does not seem to functioning properly, check the following:

Issue Probable Cause Resolution

Power switches on, but no
LEDs light.

Deuterium lamp does not light.

The two-color LED under the
Deuterium On/Off switch lights
up red, indicating an error.

Deuterium lamp turns off
during operation.

Line power not present Check line voltage

Fuse defective Check fuse

Allow the Deuterium lamp to cool
down (20 minutes).

Deuterium lamp too hot

Deuterium lamp life exhausted Replace Deuterium lamp

Deuterium lamp’s internal
connection plug is not closed
correctly.

Deuterium lamp too hot

Press On/Off switch again to
reset the Deuterium Tungsten­Halogen lamp, then press again
to restart.

Open unit (see the
and close connector plug.

Turn off the unit.

Allow the unit to cool down for at
least 20 minutes.

Once the unit has cooled down,
turn the Deuterium lamp back on.

Maintenance)

000-10000-025-02-1209 13

4: Troubleshooting

Halogen Lamp

If the Halogen lamp does not seem to functioning properly, check the following:

Issue Probable Cause Resolution

Halogen lamp does not work
after pressing On/Off switch

LED does not light after
switching on the Halogen lamp

Deuterium lamp is warming up

Halogen lamp is defective Replace the Halogen lamp

Internal power supply is
defective

Wait until the Deuterium lamp
has lit and try again

Disconnect the unit from the
main power source and contact
your dealer for repair or
replacement

14 000-10000-025-02-1209

Appendix A

Maintenance

Overview

Maintenance of your DH-2000 unit involves periodic replacing the light source bulbs, when necessary.

DH2000 units produced before 2003 CANNOT be repaired or have the bulbs replaced. The bulbs for a
DH2000 unit manufactured before 2003 are no longer available. See the figure beow to determine which
unit you have before ordering new bulbs or requesting an RMA:

Rear panel of Repairable DH2000

(manufactured after 2003)

Rear panel of Nonrepairable DH2000

(manufactured before 2003)

Bulb Replacement

You can manually change the Deuterium and Halogen bulbs in the DH-2000. To order replacement bulbs
for the DH-2000, order the following item number(s):

 Deuterium Spare Bulb (210 – 400 nm): D-2000-B

 Deuterium Spare Bulb Deep UV (190 – 400 nm): D-2000-B-DUV

000-10000-025-02-1209 15

A: Maintenance

 Halogen Spare Bulb (300 – 1500 nm): DH-2000-B

WARNING

Before replacing the bulb in the DH-2000, disconnect the lamp from your power
source and allow the unit to cool for at least twenty minutes, if necessary.

Do not touch the lamp glass directly, as contact with bare fingers will reduce the
lifetime of the bulb.

Replacing the Deuterium Bulb for All Models Except DH­2000-BAL

► Procedure

1. Open the six slotted screws (14) and open the casing cover.

2. Open the screws (15) with the tool (18) that is delivered with the spare bulb (16).

3. Disconnect the old bulb and connect the new Deuterium Tungsten-Halogen lamp only with the
originally supplied connection plugs (17).

16 000-10000-025-02-1209

A: Maintenance

Replacing the Deuterium Bulb for DH-2000-BAL Model

► Procedure

1. Open the six slotted screws (14) and open the casing cover and rotate or remove the cover to
expose the bulb housing.

2. Open the screws (15) with the tool (18) that is delivered with the spare bulb (16).

3. Disconnect the old bulb and connect the new Deuterium lamp only with the originally supplied
connection plugs (17).

4. Reassemble the lamp housing by reversing Steps 1-3.

000-10000-025-02-1209 17

A: Maintenance

Replacing the Halogen Bulb for All Models Except
DH-2000-BAL

► Procedure

1. Open the six slotted screws (14) and open the casing cover.

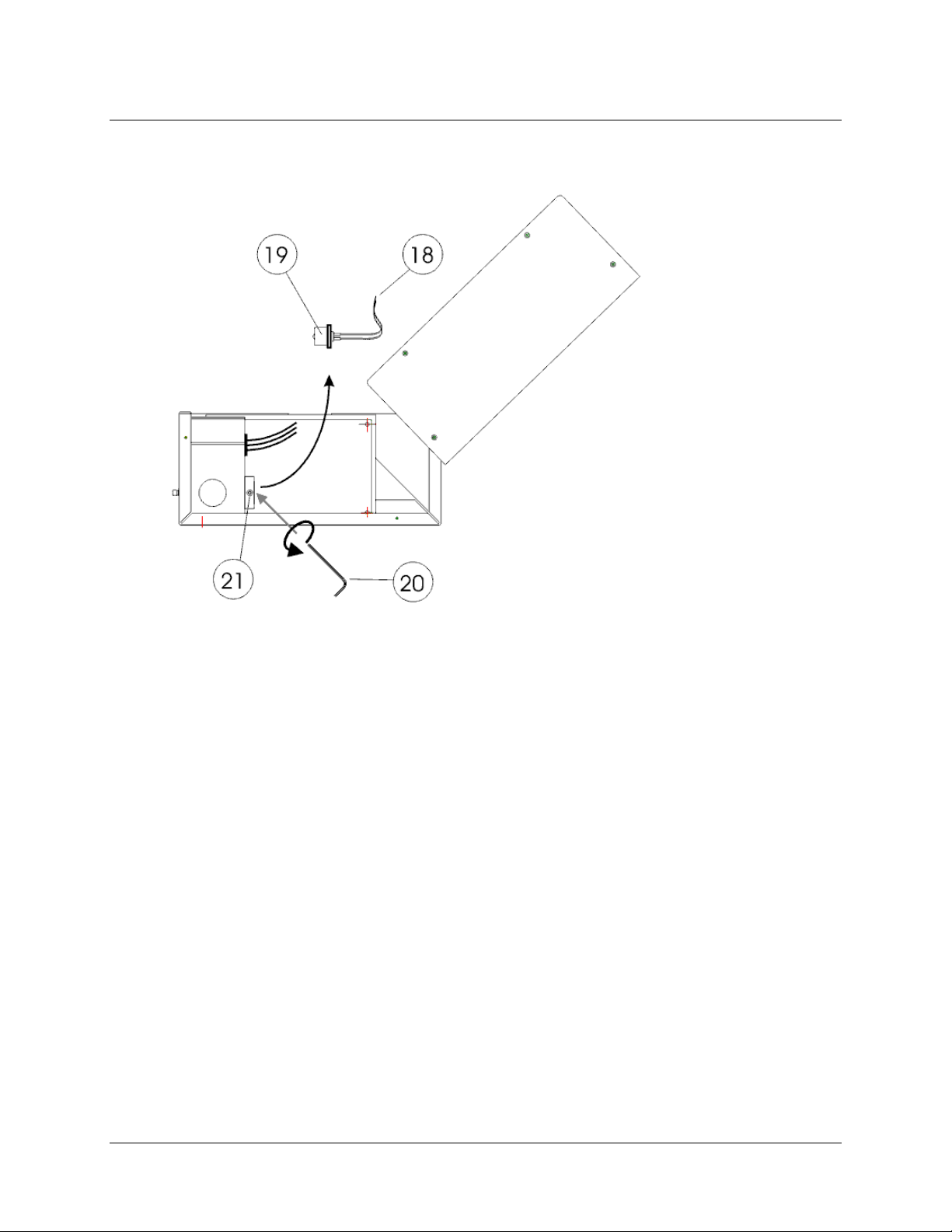

2. Remove the screw (21) with the tool (20) provided with the spare bulb (19).

3. Disconnect the old Halogen bulb from the connection plugs (18)

4. Open the screws of the cable-clamp on the lamp-side and remove the defective Halogen lamp
module.

5. Insert the new Halogen lamp module and Replace the screw (21).

18 000-10000-025-02-1209

A: Maintenance

6. Reattach the two cables of the Halogen lamp module to the cable-clamp. To do this, attach the
Halogen lamp’s blue cable to Port 1 and the black cable to Port 2 of the connector.

Replacing the Halogen Bulb for DH-2000-BAL Model

► Procedure

1. Open the six slotted screws (14) and open the casing cover.

2. Remove the screw (21) with the tool (20) provided with the spare bulb (19).

3. Disconnect the old Halogen bulb from the connection plugs (18)

4. Open the screws of the cable-clamp on the lamp-side and remove the defective Halogen lamp
module.

000-10000-025-02-1209 19

A: Maintenance

5. Insert the new Halogen lamp module and Replace the screw (21).

6. Reattach the two cables of the Halogen lamp module to the cable-clamp.

7. Reassemble the unit by reversing the disassembly steps.

20 000-10000-025-02-1209

Appendix B

Supplementary Information for

Models DH-2000-S and

DH-2000-FHS

Overview

The following information applies to specific models of the DH-2000. Read the instructions and refer to
the figures on page 23.

DH-2000-S (With TTL Shutter Control)

Automatic Operation

Plug SUB-D 15-pin TTL connector into socket on rear of DH-2000-S.

Manual Operation

Manually set operating mode using the toggle switch on the front of the DH-2000-S:

 Open - Shutter open (left position)

 Close - Shutter closed (center position)

 TTL - Controls shutter with external TTL signal (High = Open, Low = Close) using software and

spectrometer

000-10000-025-02-1209 21

B: Supplementary Information for Models DH-2000-S and DH-2000-FHS

DH-2000-FHS (With Filter Holder and TTL Shutter
Control) and DH-2000-BAL

TTL Function Operating Instructions

Automatic Operation

Plug the SUB-D 15-pin TTL connector into the socket on the rear of the DH-2000-FHS.

Manual Operation

Manually set operating mode using the toggle switch on the front of the DH-2000-FHS:

 Open - Shutter open

 Close - Shutter closed

 TTL - Controls shutter with external TTL signal (High = Open, Low = Close)

Operating Instructions – Filter (DH-2000-FHS Only)

► Procedure

1. Open the filter slit by rotating the light beam protection cap.

2. Insert a filter with a maximum size of 1” (round or square) into the filter slit.

3. Close the filter slit by rotating the light beam protection cap until the slit is closed.

22 000-10000-025-02-1209

Switch

Light Beam
Protection

B: Supplementary Information for Models DH-2000-S and DH-2000-FHS

Filter Slit SUB-D 15 Pin TTL Connector

000-10000-025-02-1209 23

B: Supplementary Information for Models DH-2000-S and DH-2000-FHS

24 000-10000-025-02-1209

B

bulb replacement, 15

deuterium bulb, 16
deuterium bulb for DH-2000-BAL, 17
halogen bulb, 18
halogen bulb for DH-2000-BAL, 19

C

Index

Model DH-2000-S

automatic operation, 21
manual operation, 21

O

operating environment, 5
operating instructions, 11

lamp, 11

components, 5

front panel, 6
rear panel, 7

connecting fiber optic cable, 2

D

document

audience, iii
purpose, iii
summary, iii

L

lamp

starting, 11
turning off, 11
warming up, 12

M

maintenance, 15
Model DH-2000-FHS

automatic operation, 22
filter instructions, 22
manual operation, 22
operating instructions, 22

P

package contents, 2
product-related documentation, iii

S

setup, 1
specifications, 5
specifications table, 8

T

troubleshooting

deuterium lamp, 13

halogen lamp, 14
troubleshooting table, 13
TTL shutter control, 21

U

unpacking procedure, 2
upgrades, iv

000-10000-025-02-1209 25

Index

warranty, A
what's new, iii

W

26 000-10000-025-02-1209
