Oceanic versa Operating Manual

operating manual

LIMITED TWO-YEAR WARRANTY

For details, refer to the Product Warranty Registration Card provided.

COPYRIGHT NOTICE

This operating manual is copyrighted, all rights are reserved. It may not, in whole or in part, be copied, photocopied, reproduced,
translated, or reduced to any electronic medium or machine readable form without prior consent in writing from Oceanic / 2002
Design.

Versa Operating Manual, Doc. No. 12-2281

© 2002 Design 2001

San Leandro, Ca. USA 94577

TRADEMARK NOTICE

Oceanic, the Oceanic logo, Versa, the Versa logo, Oceanglo, Smart Glo, OceanLog, Graphic Diver Interface, Pre Dive Planning
Sequence, Surface Sequence, Tissue Loading Bar Graph, Variable Ascent Rate Indicator, and color coding of Bar Graphs are all
registered and unregistered trademarks of Oceanic. All rights are reserved.

PATENT NOTICE

U.S. Patents have been issued, or applied for, to protect the following design features:
Dive Time Remaining (U.S. Patent no. 4,586,136), Data Sensing and Processing Device (U.S. Patent no. 4,882,678),
and Variable Ascent Rate Indicator (U.S. Patent no. 5,156,055). User Setable Display (U.S. Patent no. 5,845,235) is

owned by Suunto Oy (Finland).

DECOMPRESSION MODEL

The programs within the Versa simulate the absorption of nitrogen into the body by using a math­ematical model. This model is merely a way to apply a limited set of data to a large range of experi­ences. The Versa dive computer model is based upon the latest research and experiments in decom­pression theory. Still, using the Versa, just as using the U.S. Navy (or other) No Decom-

pression Tables, is no guarantee of avoiding decompression sickness, i.e. “the
bends.” Every diver’s physiology is different, and can even vary from day to day. No machine can

predict how your body will react to a particular dive profile.

2

VERSA

CONTENTS

LIMITED TWO-YEAR WARRANTY ................................................................................................................................2

NOTICES ............................................................................................................................... ....................................... 2

DECOMPRESSION MODEL ......................................................................................................................................... 2

FEATURES AND DISPLAYS .............................................................................................. 5

CONTROL BUTTON ..................................................................................................................................................... 6

TISSUE LOADING BAR GRAPH ................................................................................................................................... 7

VARIABLE ASCENT RATE INDICATOR ....................................................................................................................... 7

INFORMATIONAL DISPLAYS ....................................................................................................................................... 8

Depth Displays ............................................................................................................................... .......................... 8

Time Displays ........................................................................................................................................................... 8

POWER SUPPLY .......................................................................................................................................................... 9

Low Battery Condition ............................................................................................................................................... 9

LCD DISPLAY ............................................................................................................................................................. 10

ACTIVATION AND SETUP................................................................................................ 11

ACTIVATION ............................................................................................................................................................... 12

Backup Activation ................................................................................................................................................... 12

SURFACE SEQUENCE .............................................................................................................................................. 13

Time of Day and Surface Mode ................................................................................................................................13

Pre Dive Planning Sequence ................................................................................................................................... 14

SET MODE ................................................................................................................................................................. 14

DIVE MODES ................................................................................................................... 19

DIVE MODE BAR GRAPHS ........................................................................................................................................ 20

CONTROL OF DISPLAYS ........................................................................................................................................... 20

NO DECOMPRESSION DIVE MODE .......................................................................................................................... 21

DECOMPRESSION DIVE MODE ................................................................................................................................22

VIOLATION MODES .................................................................................................................................................... 24

3

CONTENTS (continued)

POST DIVE MODES ........................................................................................................ 29

POST DIVE SURFACE MODE .................................................................................................................................... 30

TRANSITION PERIOD ................................................................................................................................................ 30

AFTER THE TRANSITION PERIOD (THE FIRST 2 HOURS)....................................................................................... 31

Time to Fly .............................................................................................................................................................. 31

Pre Dive Planning Sequence ................................................................................................................................... 32

Log Mode ............................................................................................................................................................... 32

AFTER THE FIRST 2 HOURS ..................................................................................................................................... 34

GENERAL ........................................................................................................................ 35

WET CONTACTS ........................................................................................................................................................ 36

CARE AND CLEANING .............................................................................................................................................. 36

INSPECTIONS AND SERVICE ................................................................................................................................... 37

BATTERY REPLACEMENT ........................................................................................................................................ 39

SPECIFICATIONS ............................................................................................................ 45

OCEANIC AFFILIATES/REGIONAL DISTRIBUTORS ...................................................... 48

SERVICE RECORD ......................................................................................................... 49

Pay special attention to items marked with this WARNING symbol.

WARNING: During Activation, Diagnostics, or Operation, if any display or function
varies from the information provided herein, DO NOT dive with the Versa. Return
it to your Authorized Oceanic Dealer for inspection.

4

VERSA

WARNING: Prior to diving with the Versa, you
must also read and understand the Oceanic Dive
Computer Safety and Reference Manual which pro­vides Important Warnings and Safety Recommen­dations as well as general product information.

FEATURES and DISPLAYS

5

WELCOME TO OCEANIC AND THANK YOU FOR CHOOSING THE VERSA !

Your Versa presents the information that you need before, during, and after your Air
dives using a combination of easy to read displays and identification icons. This instruc­tional guide is intended to help you become familiar with the functions and features avail­able and show you examples of displays that you could expect to see in the various op­erational modes. Relax and read through the complete operating manual.

Remember that the rules you learned in your basic scuba certification course(s) still apply
to the diving you will do while using a dive computer - some will become even more im­portant. Technology is no substitute for common sense, and a dive computer only pro­vides the person using it with data, not the knowledge to use it.

CONTROL BUTTON (Fig. 1)

• The Control Button is first used to Activate the Versa.

• Once activated (and while on the surface), pressing it
momentarily provides you access to the Log Mode.

• Pressing it for several seconds provides access to the
Set Mode which allows you to set Units of measure,
Hour Format, Time of Day, and Water Activation, which
are described later.

Fig. 1 - Control Button

6

TISSUE LOADING BAR GRAPH (TLBG)

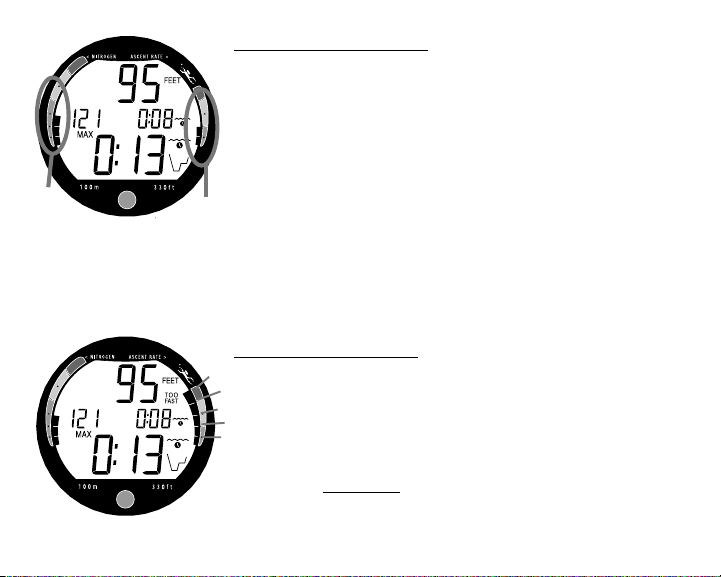

The TLBG (Fig. 2a) represents tissue loading of nitrogen,
showing your relative no decompression or decompression
status. As your depth and elapsed dive time increase, seg­ments add to the TLBG, and as you ascend to shallower
depths, they will begin to recede, indicating that additional
no decompression time is allowed for multilevel diving.

The TLBG monitors 12 different nitrogen compartments simul­taneously and displays the one that is in control of your dive.
It is divided into a green No Decompression (normal) zone,
a yellow Caution zone (also No Decompression), and a red
Decompression (danger) zone.

VARIABLE ASCENT RATE INDICATOR (VARI)

The VARI (Fig. 2b) provides a visual representation of ascent
speed (i.e., an ascent speedometer).

• Green is a 'normal' rate, yellow a 'caution' rate, and red
is 'Too Fast'.

• The segments of the VARI represent two sets of speeds
which change at a reference depth of 60 feet (18
meters). Refer to the chart for segment values.

• At depths greater than 60 feet (18 meters), the VARI will
flash as a warning when an ascent exceeds 60 fpm (18
mpm). At depths of 60 feet (18 meters) and shallower, it
will flash if the ascent rate exceeds 30 fpm (9mpm).

VERSA

a

b

Fig. 2 - Bar Graphs

Deeper than 60 feet (18 m)

Segments Ascent Rate =
Displayed FPM MPM
0 0-20 0 - 6
1 21-30 6.5-9
2 31-40 9.5-12
3 41-50 12.5-15
4 51-60 15.5-18
5 >60 >18

60 feet (18 m) & Shallower

Segments Ascent Rate =
Displayed FPM MPM
0 0-10 0 - 3
1 11-15 3.5-4.5
2 16-20 5-6
3 21-25 6.5-7.5
4 26-30 8-9
5 >30 >9

Variable Ascent Rate Indicator

7

a

b

Fig. 3 - Depth Displays

b

a

Fig. 4 - Time Displays

8

INFORMATIONAL DISPLAYS

Each numeric and graphic display represents a
unique piece of information. It is imperative that
you understand the formats, ranges, and values
of the information represented to avoid any pos­sible misunderstanding that could result in error.

Depth Displays

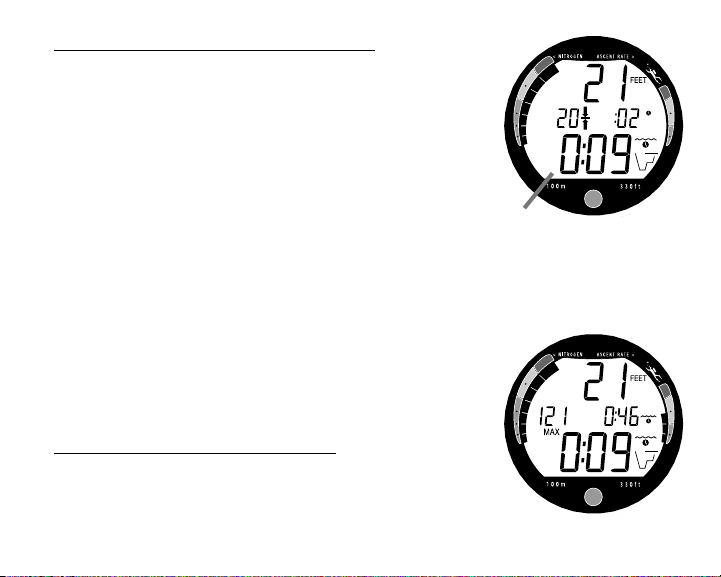

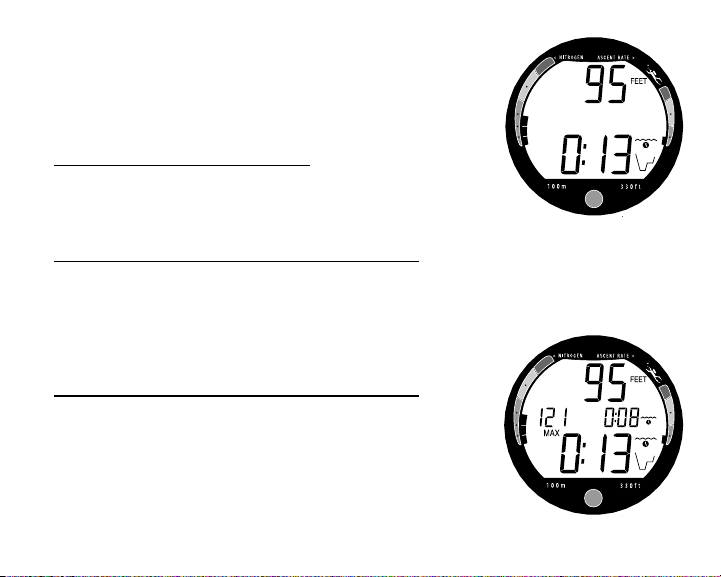

• During a dive, the Current Depth display (Fig. 3a), in-

dicates depths from 0 to 330 feet (99.9 meters) in 1 foot
(.1 meter) increments.

• By pressing the Button, the Maximum Depth reached

during that dive will also be displayed (Fig. 3b).

• During a Decompression Dive, the required Ceiling
Stop Depth is displayed in place of Maximum Depth
which can be viewed by pressing the Button.

c

Time Displays

• The Main Time display located in the lower portion of
the screen (Fig. 4a) is configured with large segments.

• A Secondary Time display is located in the center/
right portion of the display (Fig. 4b).

• Both displays are identified by clock icons (Fig. 4c).

Time displays are shown in hour:minute format (i.e., 1:45 represents one hour and

VERSA

forty five minutes, not 145 minutes!). The colon that separates hours and minutes blinks
once per second when the display is indicating real time (e.g., Elapsed Dive Time), and is
solid (non-blinking) when times are calculated projections (e.g., Time to Fly).

POWER SUPPLY

The Versa utilizes one (1) type CR 2450 Lithium 3 volt cell that should provide 300
hours of continuous, or 50 activation periods, of operation. If you conduct 1 dive each
time the unit is activated, you should obtain approximately 50 dives. If you conduct 3
dives each time the unit is activated, you should obtain approximately 150 dives.

Low Battery Condition

Voltage level is checked upon activation and every 10 minutes during operation.

• If a Low Battery Condition exists when the unit is activated, it will perform a diagnos­tic check then the Battery icon will flash once per second for 5 seconds (Fig. 5) fol­lowed by shutdown of the unit.

• If the button is not pressed to activate the unit prior to a
dive, and a Low Battery Condition exists, the Low Battery
icon will appear flashing as a warning upon descent past
5 feet (1.5 m). No other information will be displayed.

• If the unit did not display the Low Battery icon 'prior to'
entering the Dive Mode, and a Low Battery Condition oc­curs during the dive, the Low Battery icon appears after
the dive when the unit enters Surface Mode. There will
be sufficient battery power to maintain unit operation for
the remainder of 'that dive'.

Fig. 5 - Low Battery Condition

9

LCD DISPLAY

a. Tissue Loading Bar Graph

g

h

f

a

b. Variable Ascent Rate Indicator
c. Icon - Low Battery Condition
d. Icon - Maximum Depth
e. Icon - Decompression Ceiling
f. Icon - Log Mode
g. Icon - Dive Number
h. Icon - Depth
i. Icon - Time
j. Icon - Operating Mode
k. Operating Button

e

b

i

10

d

j

c

k

VERSA

WARNING: Prior to diving with the Versa, you
must also read and understand the Oceanic Dive
Computer Safety and Reference Manual which pro­vides Important Warnings and Safety Recommen­dations as well as general product information.

ACTIVATION and SETUP

11

ACTIVATION

To Activate the Versa press and release the Button.

Backup Activation (only if Water Activation is set ON)

As a backup, the Versa will also automatically activate by water contact. This is accom­plished by bridging the gap between contacts located on the Button stem and back of the
case. The graphic H2O that will be displayed as an indication is described later.

• Upon activation, the unit will enter Diagnostic Mode (Fig. 6), displaying all segments
of the LCD (as 8's), followed by dashes (- -), then a countdown from 9 to 0. Diagnos­tic Mode checks the display functions and battery voltage to ensure that everything is
within tolerance and functioning properly.

• After manual activation, it will also check the ambient barometric pressure, and cali­brate its present depth as zero. At elevations of 2,000 feet (610 m) or higher, it will

recalibrate itself to measure depth in feet of fresh water
instead of feet of sea water.

WARNING: If the unit is activated at elevations higher
than 14,000 feet (4,267 meters), it will perform a diagnos­tic check followed by immediate shutdown.

If no dive is made within 2 hours after initial activation,
the unit will automatically deactivate. If the wet contacts
are still bridged, the unit will reactivate and display the

Fig. 6 - Diagnostic Mode

H2O graphic.

12

SURFACE SEQUENCE

Immediately after completing its' Diagnostic check, the Versa
will automatically scroll through the following Sequence --

• Time of Day (displayed for 3 seconds), then -

• Surface Mode (displayed for 3 seconds), then -

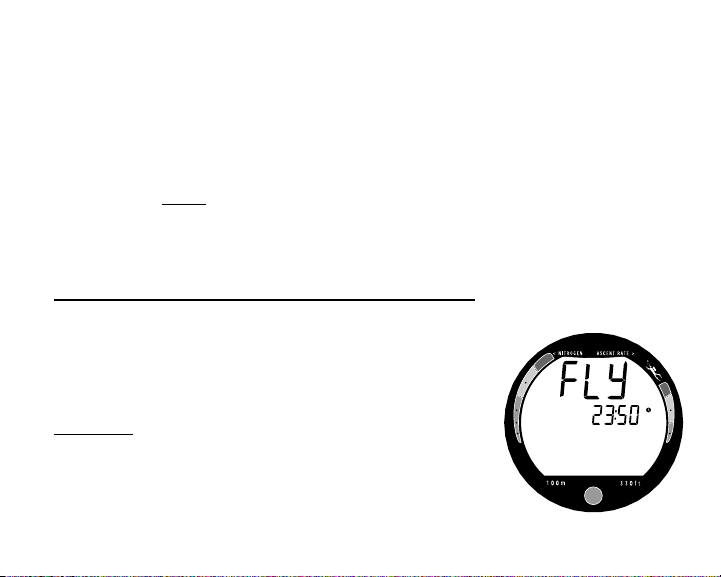

• Time to Fly (displayed for 3 seconds only after a dive is

made, see page 31), then -

• Pre Dive Planning Sequence (each depth/time is dis-

played for 3 seconds), then -

• The Surface Sequence repeats for 2 hours, or until a dive

is made.

• Log and Set Modes can be accessed during the Surface

Sequence with the Control Button. This is described later.

Time of Day and Surface Mode (F i g. 7 )

Displayed are -

• Dive Number ('0' if no dive made yet)

• Time of Day (for 3 seconds), then -

• Elapsed Surface Time (with flashing colon) and icon (for

3 seconds)

• Tissue Loading Bar Graph (only after a dive is made)

NOTE: If the wet contacts are bridged, the graphic
'H2O' will appear in place of the dive number '0' (Fig.

8). After the unit is rinsed and dried, '0' will replace
'H2O'.

VERSA

Fig. 7 - Time of Day then

Surface Mode

Fig. 8 - Surface Mode

(rinse and dry the Versa)

13

Depth NDL
feet (meters) hours:mins
30 (9 ) 4:20 (4:43)
40 (12) 2:17 (2:24)
50 (15) 1:21 (1:25)
60 (18) :57 (:59)
70 (21) :40 (:42)
80 (24) :30 (:32)
90 (27) :24 (:25)
100 (30) :19 (:20)
110 (33) :15 (:16)
120 (36) :13 (:13)
130 (39) :10 (:11)
140 (42) :09 (:09)
150 (45) :08 (:08)
160 (48) :07 (:07)

No Decompression Limits

(no dive made yet)

Fig. 9 - Pre Dive Planning Sequence

14

Pre Dive Planning Sequence (PDPS) (Fig. 9)

The PDPS provides a sequence of theoretical dive times avail­able for depths ranging from 30 feet (9 meters) to 160 feet
(48 meters) in 10 foot (3 meter) increments.

No decompression times are only displayed for depths
where there is at least 3 minutes of theoretical dive time
available at the depth, taking into account a descent rate of
120 feet (36 meters) per minute.

The PDPS should be reviewed prior to every dive to help you
plan your dive as required to avoid exceeding no decom­pression limits. For repetitive dives, it indicates adjusted
dive times that are available for the next dive, based on re­sidual nitrogen following the last dive and surface interval.

WARNING: The available dive times provided by the
PDPS are only predictions. Depending on cylinder
size and breathing gas consumption you may have
less time available than indicated because of breath­ing gas quantity or other limitations.

SET MODE

After gaining access to Set Mode, settings can be made in
sequence one after the other, or you can access a specific
item that you want to set, bypassing others.

You can set:

• Units of Measure (Imperial or Metric)

• Hour Format (12 or 24)

• Time of Day (Hour and Minute)

• Water Activation (On or Off)

• External Access (this is for factory use only)

To Access Set Mode and enter Settings:

While the unit is scrolling through the Surface Sequence -

• Press and hold the Button for 2 seconds, release when SET

FEET (or M) appears with FEET (or M) flashing.

• HINT: To bypass a parameter that you do not

want to set, keep the Button depressed until the
item you do want to set appears, then release
it.

To change the setting for Units of Measure (Fig. 10) -

• Press the Button momentarily and release to toggle be-

tween FEET and M.

• Press and Hold the Button for 2 seconds to save the set-

ting, release when Hr and 12 (or 24) appear with 12 (or

24) flashing.

VERSA

Fig. 10 - Set Units of Measure

15

Fig. 11 - Set Hour Format

Fig. 12 - Set Time of Day

16

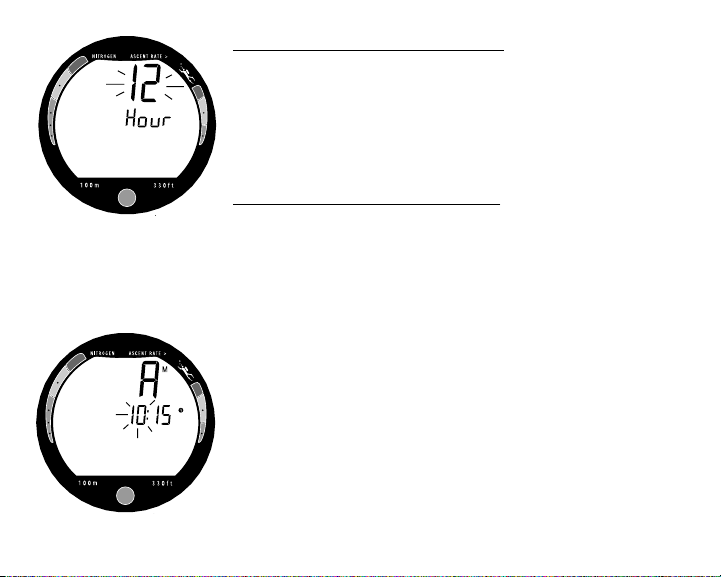

To change the setting for Hour Format (Fig. 11) -

• Press the Button momentarily and release to toggle be­tween 12 and 24.

• Press and Hold the Button for 2 seconds to save the set­ting, release when Am (or Pm) and the Time of Day ap­pear with the Hour value flashing.

To change the setting for Time of Day (Fig. 12) -

• Repeatedly press the Button momentarily and release it
until the correct value for Hour appears (1: to 12:, or 0:
to 23:). Do Not Hold the Button depressed.

• Press and Hold the Button for 2 seconds to save the set­ting, release when the Minute value flashes.

• Repeatedly press the Button momentarily and release it
until the correct value for Minute appears (:00 to :59).
Do Not Hold the Button depressed.

• Press and Hold the Button for 2 seconds to save the set­ting, release when ACT, H2O, and ON (or OFF) appear
with ON (or OFF) flashing.

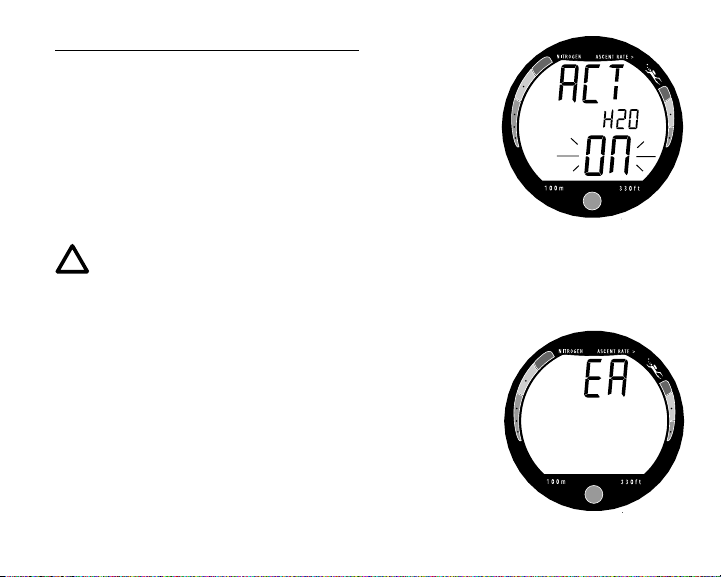

To change the setting for Water Activation (Fig. 13) -

• Press the Button momentarily and release to toggle be­tween ON and OFF.

• Press and Hold the Button for 4 seconds to save the set­ting, release when Am (or Pm) and the Time of Day ap­pear with the colon flashing.

• During the 4 seconds, EA will appear (Fig. 14) and be
bypassed.

NOTE: EA signifies External Access Mode which is
used only by the factory for calibration and testing of
the module. It does not have any user related func­tion.

VERSA

Fig. 13 - Set Water Activation

Fig. 14 - EA Mode

17

SUMMARY OF SET MODES

To access Set Mode from the Surface Sequence, press the Button for 2 seconds.

To set Units of Measure - press and release the button to toggle between FEET/METERS.

• To save the setting - press the button for 2 seconds.

To set Hour Format - press and release the button to toggle between ON/OFF.

• To save the setting - press the button for 2 seconds.

To set Hour - press and release the button until the correct value appears.

• To save the setting - press the button for 2 seconds.

To set Minutes - press and release the button until the correct value appears.

• To save the setting - press the button for 2 seconds.

To set Water Activation - press and release the button to toggle between ON/OFF.

• To save the setting and return to Surface Sequence - press the button for 4 seconds.

18

VERSA

WARNING: Prior to diving with the Versa, you
must also read and understand the Oceanic Dive
Computer Safety and Reference Manual which pro­vides Important Warnings and Safety Recommen­dations as well as general product information.

DIVE MODES

19

DIVE MODE BAR GRAPHS

As your depth and elapsed dive time increase, the Tissue
Loading Bar Graph (TLBG) will fill with segments (green

toward red) to represent the absorption of nitrogen (Fig.
15a). While ascending to shallower depths, the segments
that have filled the TLBG will begin to recede, offering a
graphic representation of your multilevel diving capability.

a

Fig. 15 -Bar Graphs

Fig. 16 - Ascent Too Fast

20

The Variable Ascent Rate Indicator (VARI) shows how

b

fast you are ascending (Fig. 15b). When you exceed an as­cent rate of 60 fpm (18 mpm) if deeper than 60 feet (18m),
or 30 fpm (9 mpm) if shallower than 60 feet (18m), it will en­ter the red (Too Fast) zone and all segments plus the graphic
TOO FAST will flash (Fig. 16) until your ascent rate is
slowed.

CONTROL OF DISPLAYS

During dive modes, 3 displays of information are available.
The diver can change from one display to another as often as
desired by pressing and releasing the Button.

During No Decompression conditions, the diver can choose
how much information is displayed at a given time. The dis­play chosen will remain until the diver presses the Button to
change it.

During conditions in which cautionary type information is dis­played (e.g., Decompression, etc.), there is a Main Display
of important information relevant to the specific condition.
The diver can access another display, but it will automati­cally revert to the Main Display after 3 seconds.

NO DECOMPRESSION DIVE MODE

The Versa will enter the No Decompression Dive Mode when
you descend deeper than 5 feet (1.5 meters).

No Decompression Dive Mode - Display #1 (Fig. 17)

Information includes Current Depth, Dive Time Remaining
(and Mode icon), and the Bar Graphs.

• press and release the Button to view Display #2.

No Decompression Dive Mode - Display #2 (Fig. 18)

Information includes Current Depth, Dive Time Remaining
(and Mode icon), Maximum Depth for that dive (and icon),
Elapsed Dive Time (and icon), and the Bar Graphs.

• press and release the Button to view Display #3.

VERSA

Fig. 17 - No Deco #1

Fig. 18 - No Deco #2

21

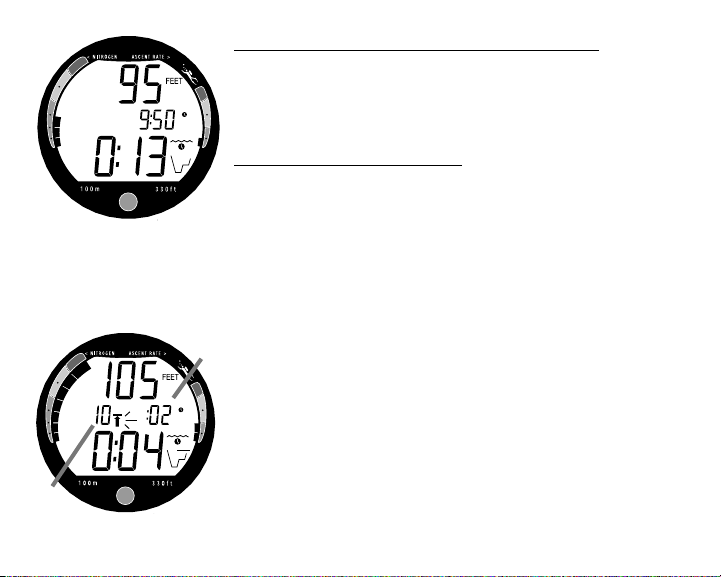

Fig. 19 - No Deco #3

a

Fig. 20 - Entry into Decompression

22

No Decompression Dive Mode - Display #3 (Fig. 19)

Information includes Current Depth, Dive Time Remaining
(and Mode icon), Time of Day, and the Bar Graphs.

• Press and release the Button to view Display #1.

DECOMPRESSION DIVE MODE

The Versa is designed to help you by providing a representa­tion of how close you are to entering decompression. De­compression Dive Mode activates when theoretical No De­compression time/depth limits are exceeded.

Upon entering Decompression Mode, you should begin a
safe controlled ascent to a depth slightly deeper than, or
equal to, the Required Ceiling Stop Depth indicated (Fig.

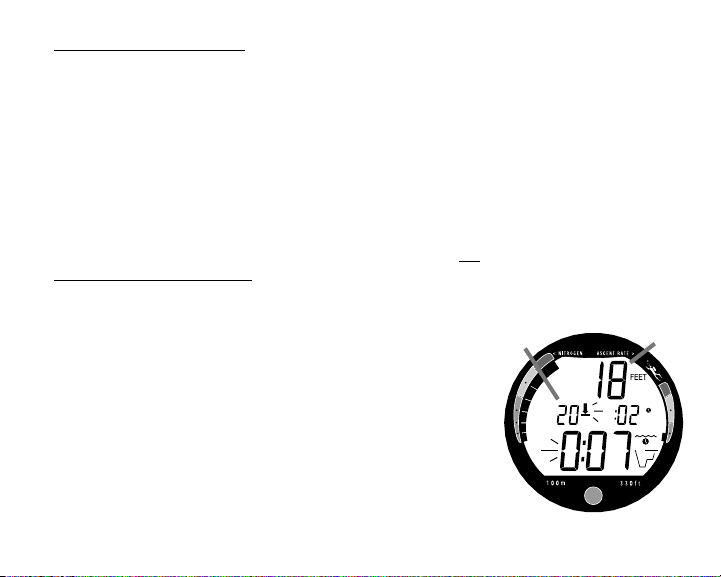

20a) and decompress for the Stop Time indicated (Fig. 20b).

b

• The UP Arrow and Deco Bar will flash if you are more
than 10 feet (3 meters) deeper than the Required Ceiling
Depth.

• Once within 10 feet (3 meters) of, and below, the Re­quired Ceiling Depth, both Arrows and the Bar appear
solid.

Decompression Dive Mode - Main Display #1 (Fig. 21)

The amount of decompression credit time that you receive
is dependent on Depth, with slightly less credit given the
deeper you are. You should stay slightly deeper than the Re­quired Stop Depth indicated until the next shallower Stop
Depth appears. Then, you can slowly ascend to, but not
shallower than that indicated ceiling Stop Depth.

VERSA

Information includes -

• Current Depth.

• Required Ceiling Stop Depth/Time.

• Total Ascent Time (Fig. 21a) - which includes Stop Times
required at all ceilings and vertical Ascent Time calcu­lated at 60 feet (18 meters) per minute at depths greater
than 60 feet (18 meters) and 30 feet (9 meters) per
minute at depths of 60 feet (18 meters) and shallower.

• Applicable Bar Graphs.

• While within 10 feet (3 meters) of, and below, the Stop
Depth, both Arrows and the Bar appear solid.

• Press the Button to view Display #2.

Decompression Dive Mode - Display #2 (Fig. 22)

Information includes - Maximum Depth for that dive (and
icon), Elapsed Dive Time (and icon), Total Ascent Time, and
the applicable bar graphs.

• Press the Button to view Display #3.

a

Fig. 21 - Deco #1 (Main)

Fig. 22 - Deco #2

23

24

Decompression Dive Mode - Display #3 (Fig. 23)

Information includes - Current Depth, Time of Day, Total As­cent Time, and the applicable Bar Graphs.

• Press the Button to view Display #1.

NOTE: While in Decompression Mode, the Versa
will automatically revert to the Main Display (#1) after
3 seconds unless the Button is pressed to view an­other display of information.

VIOLATION MODES

Violation Modes that the Versa can enter are termed - Condi­tional, Delayed, and Immediate. Permanent Violation Mode
and Gauge Mode are continuations of these.

• While in Violation Modes, the Alternate Displays previ­ously described can be accessed using the Button.

NOTE: While in Violation Modes, the Versa will auto­matically revert to the Main Display after 3 seconds
unless the Button is pressed to view another display.

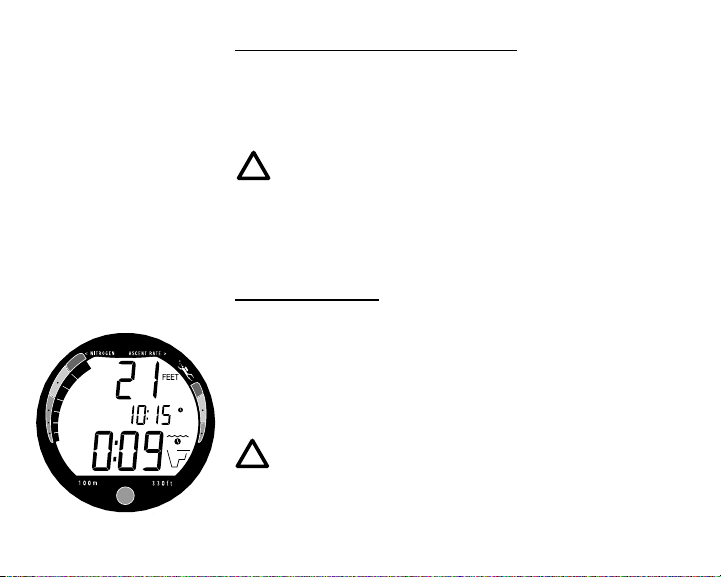

Fig. 23 - Deco #3

Conditional Violation Mode

The Versa will enter the Conditional Violation Mode if you
ascend to a depth shallower (Fig. 23a) than the
Required Decompression Ceiling Stop Depth displayed

(Fig. 24b).

The Down Arrow, Deco Bar, and the Total Ascent Time dis­play will flash until you descend below the Required Stop
Depth. Also displayed will be Current Depth and applicable
Bar Graphs.

If you descend below the required decompression ceiling be­fore 5 minutes have elapsed, the Versa will continue to func­tion in Decompression Dive Mode. In this case, no off-gas­sing credit will be given, and for each minute above the ceil­ing 11/2 minutes of Penalty Time will be added to Required
Stop Time.

The added Penalty (decompression) Time will then have to be
worked off first, before obtaining off-gassing credit.

Once the Penalty Time is worked-off, and off-gassing credit
begins, required decompression Stop Depths and Time will
decrease toward zero, then the Tissue Loading Bar Graph
will recede into the yellow Caution Zone and the Versa will
revert to the No Decompression Dive Mode.

VERSA

b

Fig. 24 -Conditional Violation

a

25

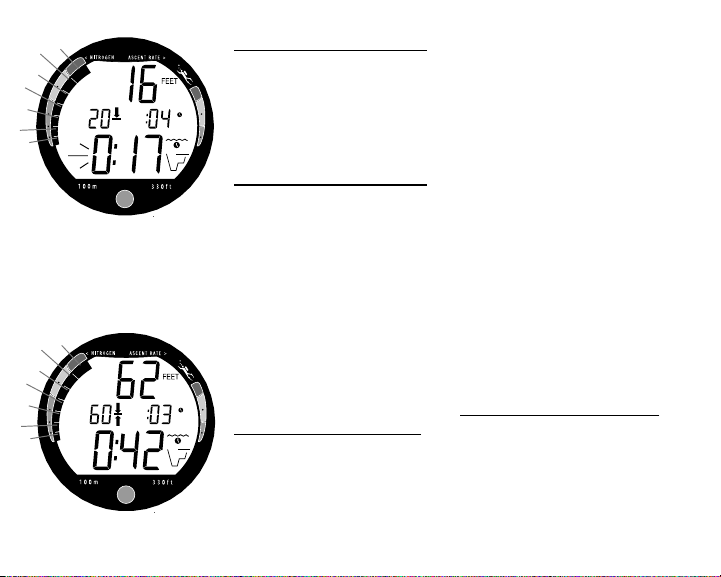

Fig. 25 -Delayed Violation #1

Fig. 26 -Delayed Violation #2

26

Delayed Violation Mode #1 (Fig. 25)

If you remain above the Required Ceiling Stop
Depth for 'more than 5 minutes', the Tissue Loading

Bar Graph and Total Ascent Time display will flash until you
descend below the Required Stop Depth. This is a continua­tion of a Conditional Violation.

Delayed Violation Mode #2 (Fig. 26)

The Versa cannot calculate decompression times for Stop
Depths much greater than 60FT (18M) and offers no indica­tion of how much time spent underwater would result in the
need for a greater Stop Depth.

If your Decompression obligation requires a Ceil­ing Stop Depth 'between' 60 feet (18 meters) and
70 feet (21 meters), the Tissue Loading Bar Graph will

flash. Total Ascent Time will still be displayed.

You must ascend to just deeper than, and stay as close as
possible to, 60 feet (18 meters) without causing the Total As­cent Time display to flash. When the Required Stop Depth in­dicates 50 FT/ 15 M, etc., you can ascend to those depths
and continue decompressing.

Delayed Violation Mode #3 (Fig. 27)

If you descend deeper than 330 feet (99.5
meters), the Tissue Loading Bar Graph will flash, and the

Current Depth and Max Depth displays will only indicate 3
dashes ( - - -).

Upon ascending above 330 feet (99.5 meters), the Current
Depth display will be restored, however Max Depth will only
display 3 dashes (- - -) for the remainder of that dive. The
Log for that dive will also only indicate 3 dashes (- - -) as the
Max Depth achieved.

Immediate Violation Mode and Gauge Mode

During a Dive, if a ceiling much greater than 60FT (18M) is
required, an Immediate Violation Mode will be entered.
This situation would be preceded by entering Delayed Viola­tion Mode #2, previously described. The Versa would then
operate with limited functions in Gauge Mode during the
remainder of that dive and for 24 hours after surfacing.

Gauge Mode turns the Versa into a digital instrument with­out any decompression or oxygen monitoring functions.
Only Current Depth, Max Depth, Elapsed Dive Time, and

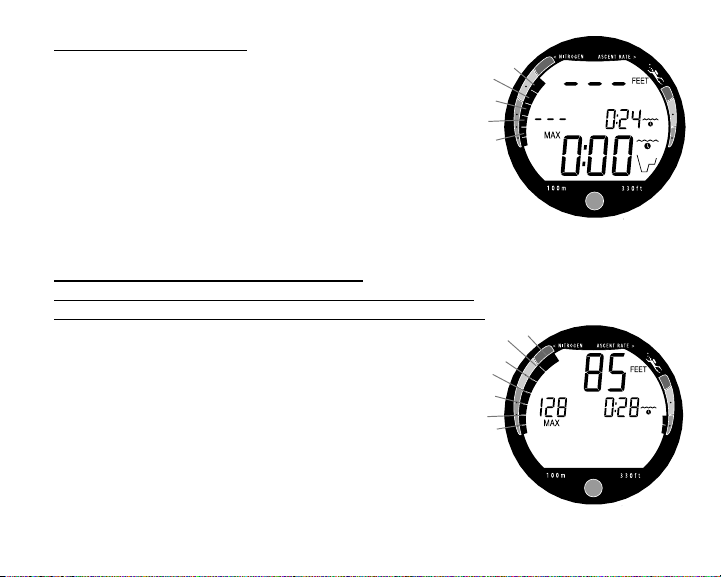

the Variable Ascent Rate Indicator will be displayed (Fig. 28).
The full Tissue Loading Bar Graph will flash as a warning of
this condition.

VERSA

Fig. 27 -Delayed Violation #3

Fig. 28 -Gauge Mode

(during a dive)

27

• Alternate displays are not available while in Gauge
Mode.

The Versa will also enter an Immediate Violation Mode
5 minutes after reaching the surface from a dive in which a
Delayed Violation occurred.

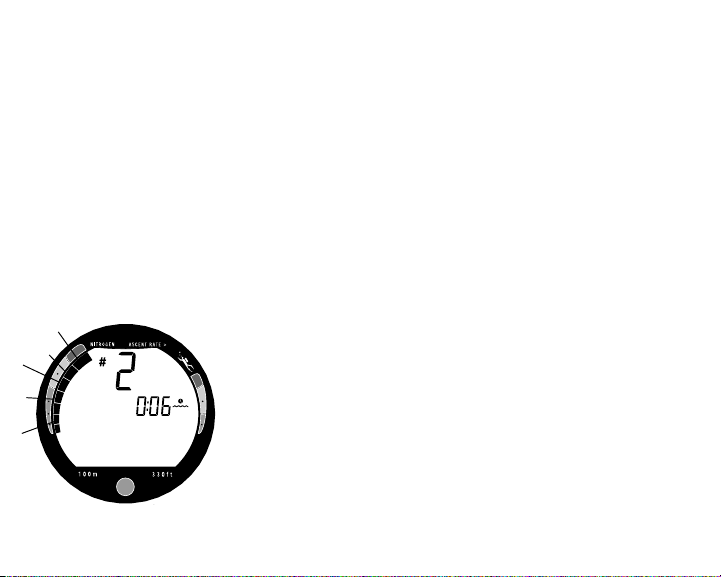

On the surface, Gauge Mode displays the Dive Number,
Surface Interval, and the full Tissue Loading Bar Graph flash­ing (Fig. 29). It does not provide the Pre Dive Planning Se­quence or the Time to Fly feature.

The countdown timer that appears with a single dash dur­ing the Surface Sequence is only provided to inform you of
the time remaining before normal Versa operation can re­sume with full features and functions.

This condition is considered a Permanent Viola­tion, and in the event that a dive is made during
the 24 hour period, a full 24 hour surface interval
must then be served before all functions are re­stored.

Fig. 29 -Gauge Mode

(after surfacing)

28

Be a RESPONSIBLE DIVER at all times.

VERSA

WARNING: Prior to diving with the Versa, you
must also read and understand the Oceanic Dive
Computer Safety and Reference Manual which pro­vides Important Warnings and Safety Recommen­dations as well as general product information.

POST DIVE MODES

29

POST DIVE SURFACE MODE

When you ascend to 3 feet (1 m) or shallower, the unit will
enter Surface Mode and begin counting your surface inter­val.

TRANSITION PERIOD

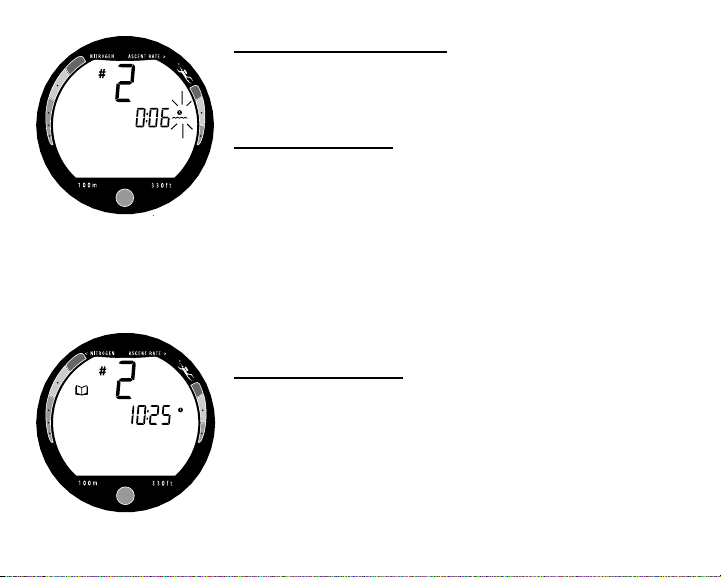

The first 10 minutes is, in affect, a Transition Period during
which time the following information is displayed (Fig. 30):

Fig. 30 - Transition Period

Fig. 31 - Log Mode

30

• 'Number' of that dive (during that activation period)

• Surface Interval time (colon flashing) and icon (flashing)

• Tissue Loading Bar Graph ( indicating current nitrogen
loading)

During the Transition Period, Log Mode can be accessed.
No other modes (e.g., Fly, Plan, Set) are accessible.

To view that dive's Log

Refer to page 33 for a description of the Log Mode displays.

• Press the Button to view the first display (Fig. 31).

• Press the Button again to view the Nitrogen data screen

• Press the Button again to return to Surface Mode.

• The unit will revert to Surface Mode after 2 minutes if the
button is not pressed.

Log Data will not be stored in the unit's memory until the 10
minute Transition Period on the surface is completed.

Once 10 minutes have elapsed, the Surface Mode icon and
Surface Interval time display colon stop flashing indicating
that the Dive and Transition Period are completed, and a
subsequent descent will be considered a new dive.

If you descend during the 10 minute Transition Period, time
underwater will be considered a continuation of that dive.
The time at the surface (if less than 10 minutes) will not be
added as Dive Time.

AFTER THE TRANSITION PERIOD (THE FIRST 2 HOURS)

For the remainder of the first 2 hours after surfacing,
information will continue to be displayed as the Surface Se­quence, scrolling through Time of Day/Surface Mode/Time
to Fly/Pre Dive Planning Sequence. You will have full access
to Log Mode and Set Mode.

Time to Fly

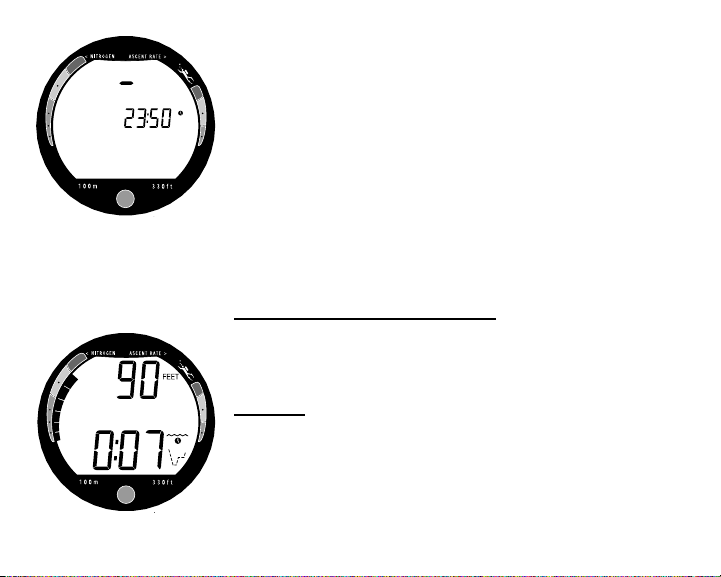

The Time to Fly Countdown Timer begins counting down 10
minutes after surfacing from a dive (after the Transition Pe­riod) displaying the word 'FLY' and a countdown that begins
at 23:50 (Fig. 32) and counts down to 0:00 (hr:min).

VERSA

Fig. 32 - Time to Fly

31

Fig. 33 - Fly Mode

(after a Violation)

Fig. 34 - Adjusted NDLs

32

• If a violation occurred during the dive a single dash ( - )
will appear instead of the letters FLY (Fig. 33).

The Time to Fly counter is provided to assist you with decid­ing when enough surface time has elapsed to fly (or travel to
higher elevations).

• After a surface interval of 12 hours, you may choose to
fly (or travel to higher elevations), provided that your dive
profile(s) did not enter decompression. If your diving in­volved decompression or a repetitive, multi day profile, it
is strongly recommended that you wait a full 24 hours af­ter your last dive to add a greater degree of protection.

Pre Dive Planning Sequence (PDPS)

After a dive, the PDPS provides 'adjusted' No Decompres­sion Limits (Fig. 34) based on residual nitrogen calculated to
be remaining from the previous dives.

Log Mode

Information from up to 9 dives is stored in the Log for view­ing. Each subsequent dive will then overwrite the oldest dive
stored in the Log. It is therefore suggested that you transfer
the Log's data to your log book at the end of each day of div­ing. The first dive conducted after each Activation will be
#1, therefore there may be multiple #1 dives in the Log.

Dives are displayed in a reverse sequence that starts with the
dive most recently recorded, back to the oldest of the dives
stored. The most recent dive will always be the first shown in

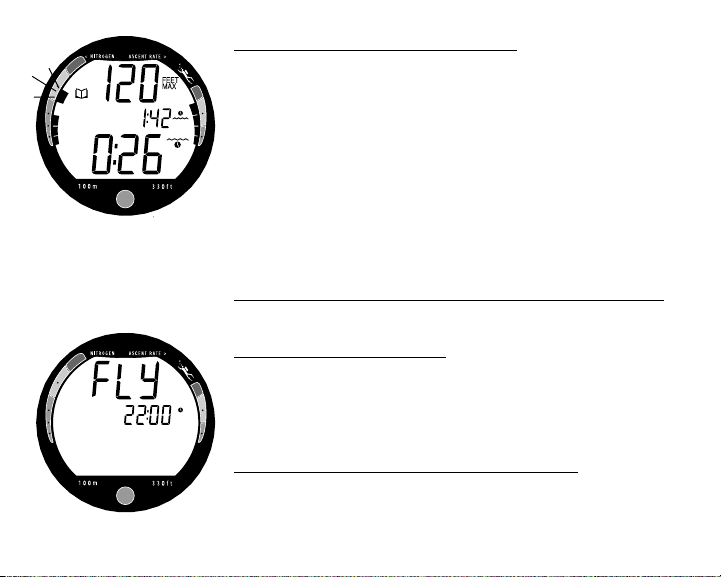

the sequence. Each dive has 2 Log screens - Dive Number/
Time of Day started and Dive Data. Log data will not be lost
when the battery is removed/replaced, however, factory ser­vice and calibration will delete the data.

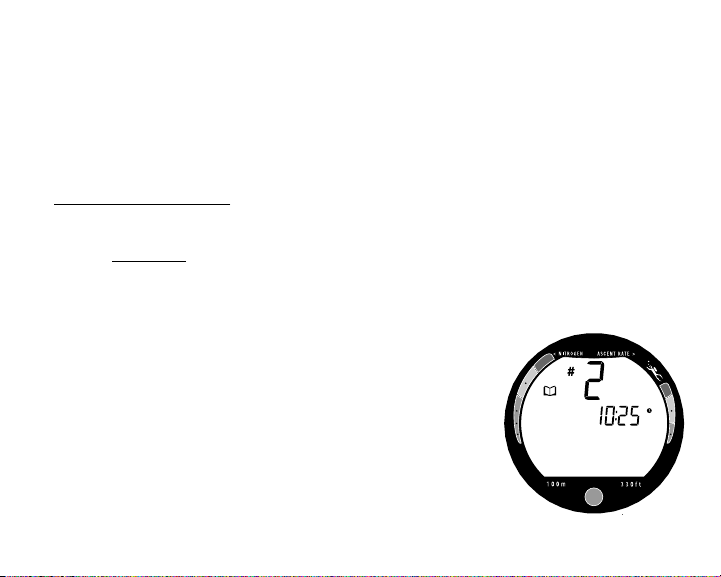

To access Log Mode (Fig. 35) -

• Press the Button momentarily while the unit is scrolling
through the Surface Sequence.

• The first screen of the most recent dive conducted will ap­pear displaying -

• Log Mode icon

• Dive Number (for that activation period)

• Time of Day (that the dive started)

• Press the Button momentarily to view the Second Screen.

• To return to the Surface Sequence at any time while in
Log Mode, press the Button for 4 seconds, releasing it
when the current Time of Day appears.

• The unit will automatically revert to the Surface Sequence
after 2 minutes if the Button is not pressed to view an­other Log Screen.

VERSA

Fig. 35 - Log Mode

33

Fig. 36 - Log Dive Data

Fig. 37 - Time to Fly Countdown

34

Dive Data (the second screen) includes (Fig. 36) -

• Log Mode icon

• Maximum Depth - reached during the dive (and icon)

• Surface Interval - prior to that dive (and icon)

• Elapsed Dive Time (and icon)

• Variable Ascent Rate Indicator - showing the maximum
ascent rate maintained for 4 consecutive seconds during
the dive.

• Tissue Loading Bar Graph - showing tissue nitrogen load­ing at the time you surfaced at the end of the dive. Also,
the segment that reflects the maximum loading during the
dive will appear flashing.

To access the first screen of the previous dive's Log

• Press the Button momentarily.

AFTER THE FIRST 2 HOURS

Two hours after the last dive the Surface Sequence will no
longer be displayed. The Time to Fly countdown (Fig. 37)
will be displayed continuously until it counts down to 0:00
(hr:min) or another dive is made.

To access other modes or enter settings -

• Press the Button to reactivate the Surface Sequence.

• The unit will again revert to the Time to Fly countdown af­ter 2 hours, if the Button is not pressed.

VERSA

WARNING: Prior to diving with the Versa, you
must also read and understand the Oceanic Dive
Computer Safety and Reference Manual which pro­vides Important Warnings and Safety Recommen­dations as well as general product information.
____________________________________________

DO NOT attempt to change the Battery during the
first 10 minutes after surfacing from a dive. Doing
so will result in loss of calculated data for repetitive
dives.

GENERAL

35

WET CONTACTS

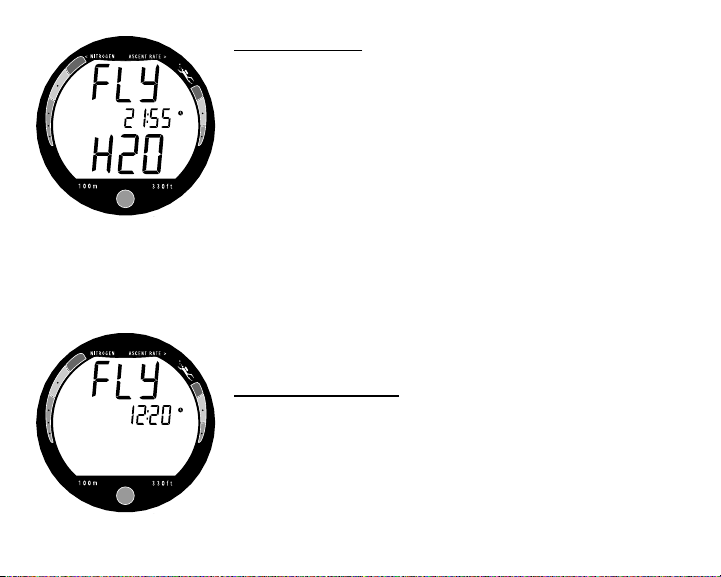

If the graphic H2O appears during the Fly Mode countdown
(Fig. 38), it is an indication that the water activation contacts
are bridged (still wet) and the unit must be rinsed in fresh wa­ter and thoroughly dried.

• Once the unit is dry, the graphic H2O will disappear
from the display (Fig. 39).

Fig. 38 - Activation Contacts Wet

Fig. 39 - Activation Contacts Dried

36

• If the unit is not cleaned and dried prior to the count­down reaching 0:00 (hr:min), or making another dive, it
will shut off then automatically reactivate. The graphic
H2O would then appear in place of Dive Number when
Surface Mode is displayed during the scrolling Surface
Sequence. If no dive is made, the unit would shut off af­ter 2 hours, then automatically reactivate again, repeat­ing the action until cleaned and dried.

CARE AND CLEANING

Protect your Versa from shock, excessive temperatures such
as the trunk of a car during a hot day, chemical attack, and
tampering. Protect the lens against scratches with a transpar­ent Instrument Lens Protector. Small scratches will naturally
disappear underwater.

Soak and rinse the Versa in fresh water at the end of each
day of diving, and check to ensure that the areas around the
low pressure (depth) sensor (Fig. 40a) and button are free of
debris or obstructions. To dissolve salt crystals, use luke­warm water or a slightly acidic white vinegar/water bath.
After removal from the bath, place the unit under gently run­ning water and towel dry before storing. Transport your unit
cool, dry, and protected.

INSPECTIONS AND SERVICE

Your Versa should be inspected annually by an Autho­rized Oceanic Dealer who will perform a factory prescribed
function check and inspection for damage or wear. To keep
the 2 year limited warranty in effect, this inspection must be
completed one year after purchase (+/- 30 days).

Oceanic recommends that you continue to have this inspec­tion performed every year to ensure it is working properly.
The costs of annual inspections are not covered under the
terms of the 2 year limited warranty.

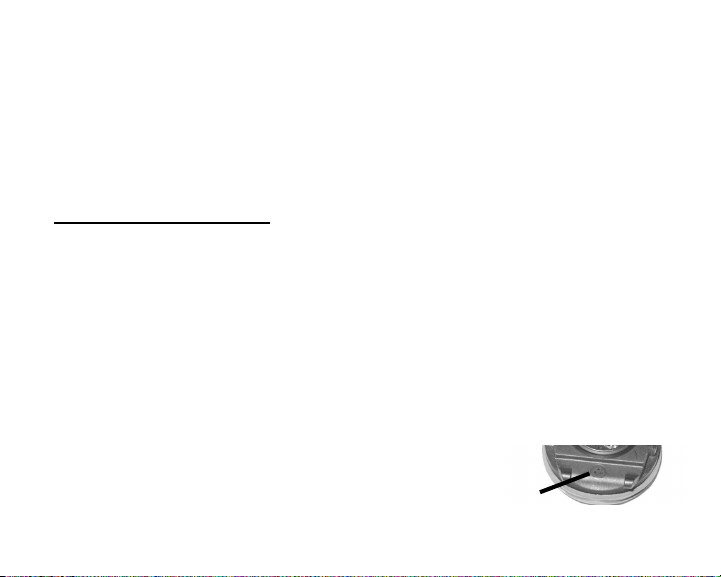

It is possible to damage the depth sensor of the Versa if it is
not pressure tested properly. Ensure that your Versa is never
pressure tested unless completely immersed in water.

VERSA

a

Fig. 40 -Depth Sensor

37

WARNING: If a
Low Battery Condi­tion is indicated
prior to a dive, DO
NOT attempt to
dive with the Versa
until the battery is
replaced.

38

To Obtain Service

Take you Versa to an Authorized Oceanic Dealer or send it
to the nearest Oceanic Regional Distributor (page 48).

To return your Versa to Oceanic:

• Record all dive data in the Log and/or download the
data in memory. All data will be erased when it receives
factory service.

• Package it using a protective cushioning material.

• Include a legible note stating specific reason for return,
your name, address, daytime phone number, serial num­ber, and a copy of your original sales receipt and War­ranty Registration Card.

• Send freight prepaid and insured using a traceable
method to the nearest Oceanic Regional Service Facility,
or to Oceanic.

• Prior to returning the Versa to the factory, obtain an Re­turn Authorization (RA) number from Customer Service.

• Non-warranty service must also be prepaid (call for an
estimate). COD is not accepted.

• If you have any questions regarding service, call Oceanic
Customer Service at [phone], Monday - Friday,
8 to 5 PST, or E-mail [e-mail].

BATTERY REPLACEMENT

The battery compartment should only be opened in a dry and
clean environment with extreme care taken to prevent the
entrance of moisture or dust.

As an additional precautionary measure to prevent formation
of moisture in the battery compartment, it is recommended
that the battery be changed in an environment equivalent to
the local outdoor temperature and humidity (e.g., do not
change the battery in an air conditioned environment then
take it outside during a hot sunny day).

Module Removal from Boot

• DO NOT use tools or lubricants. Doing so could dam­age the module or boot.

• Use care not to drop the module when it dislodges from
the boot.

• Turn the unit over so the back is facing you.

• Using the fingers of your left hand, lift and pull the top
(upper/front portion) of the Boot back toward you while
simultaneously pressing the top (upper/right portion) of
the module away with your right thumb (Fig. 41).

• Press firmly until the upper/right tab of the module slides
of the retaining lip inside the boot.

• Repeat for the left side and the module will dislodge from
the Boot (Fig. 42).

VERSA

Fig. 41 - Removal from Boot

Fig. 42 - Module Removal

39

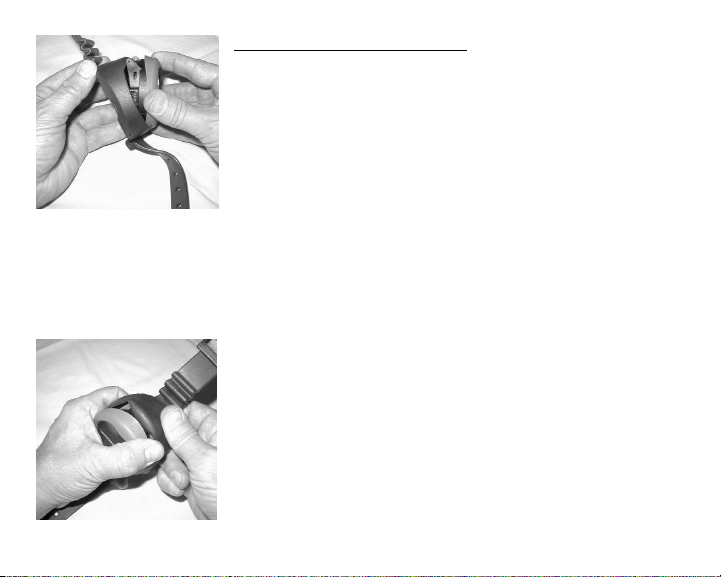

Fig. 43 -Ring Removal

Fig. 44 -Ring Removal (alternate)

40

NOTE: The procedures that follow must be closely
adhered to. Damage due to improper battery replace­ment is not covered by the VERSA's 2 year warranty.

Battery Hatch Removal

• Inspect the Button, Lens, and Housing to ensure they are
not cracked or damaged.

• If there is any sign of moisture in the module, DO NOT
use the Versa until it receives proper service by an Autho­rized Oceanic Dealer, or the Oceanic factory.

• Locate the Battery Compartment on the back of the Hous­ing.

• While applying steady inward pressure on the Battery
Hatch, rotate the Hatch Ring clockwise 10 degrees by
pressing on the upper/right arm of the Ring with a small
blade screwdriver (Fig. 43).

NOTE: If available, an adjustable face spanner tool or
a pair of pointed pliers can be used instead of the
screwdriver by inserting the tips of the tool in the
small holes in the Ring (Fig. 44).

• Lift the Hatch Ring up and away from the Housing.

• Remove the clear Battery Hatch.

Battery Removal

• Remove the Retaining Bar located across the lower por­tion of the Battery (Fig. 45a).

• Remove the Hatch O-ring. DO NOT use tools

• Using care not to damage the Battery Contacts (Fig. 45
b/c), slide the Battery up and out of the right side of the
Battery Compartment.

Inspection

• Closely check all of the sealing surfaces for any signs of
damage that might impair proper sealing.

• Inspect the Buttons, Lens, and Housing to ensure they are
not cracked or damaged.

• If it is necessary to clean the Battery Compartment, flush
the it and all components with a solution of 50% white
vinegar and 50% fresh water. Rinse with fresh water,
and allow to dry overnight, or blow dry with a hair dryer
(set at 'no heat').

WARNING: If damage, moisture, or corrosion is
found, it is recommended that you return your Versa
to an Authorized Oceanic Dealer, and DO NOT at­tempt to use it until it has received factory prescribed
service.

VERSA

CAUTION: A
metal object (tool)
should NOT be
used to pry the
Battery from the
Battery Compart­ment.

b

a

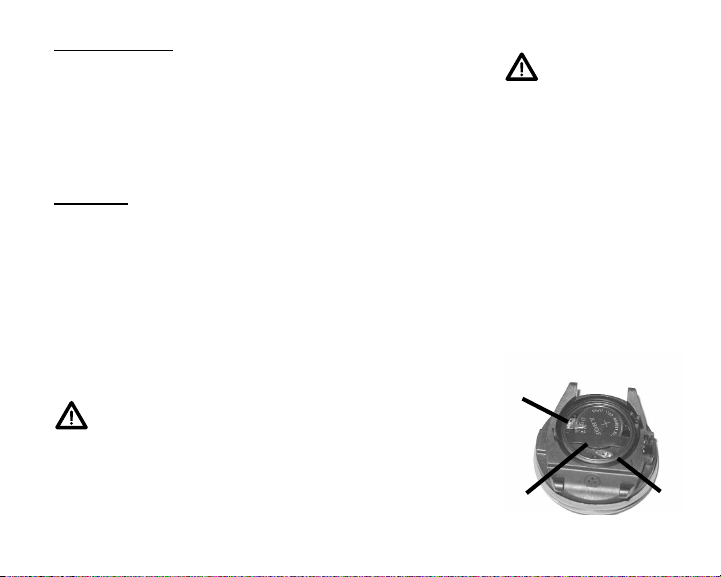

Fig. 45 - Battery Compartment

c

41

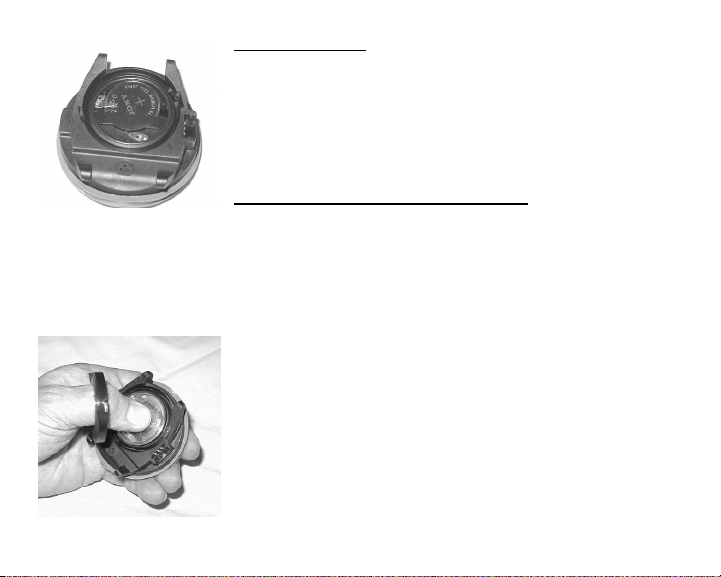

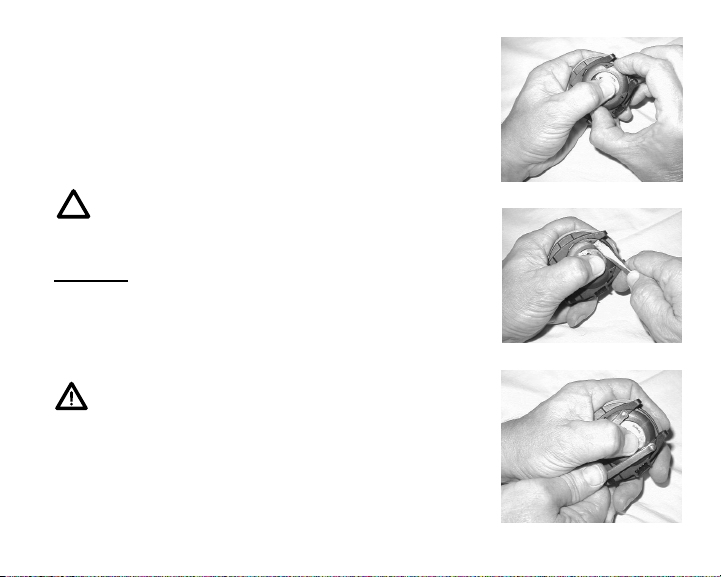

Fig. 46 - Battery Installation

Fig. 47 -Hatch Installation

42

Battery Installation

• Slide a new 3 volt type CR2450 Lithium Battery, negative
(-) side down into the Battery Cavity. Slide it in from the
right side and ensure that it slides under the contact clip
on the left rim of the cavity.

• Orient the Retaining Bar across the lower portion of the
Battery and carefully push it down into position (Fig. 46).

Battery Hatch and Hatch Ring Installation

• Replace the Hatch O-ring with new. This O-ring must be
a genuine Oceanic part that can be purchased from an
Authorized Oceanic Dealer. Use of any other O-ring
will void the warranty.

• Lightly lubricate the new Hatch O-ring with silicone
grease and place it on the inner rim of the Battery Hatch.
Ensure that it is evenly seated.

• Slide the Hatch Ring, top portion first (small opening),
onto your thumb (Fig. 47).

• Carefully place the clear Battery Hatch (with O-ring) into
position on the rim of the Battery Compartment, then
press it evenly and completely down into place with your
same thumb.

• Maintain the Battery Hatch securely in place and, using
your other hand, slide the Hatch Ring down off your
thumb and into position around the Battery Compartment.

• The tabs on the Ring fit down into the slots located at the
2 and 9 o'clock positions (Fig. 48).

• Using your fingers, turn the Ring counter clockwise 5 de­grees until the tabs engage, then tighten it 5 more de­grees by turning it counter clockwise with the aide of a
small blade screwdriver, pressing against the upper/left
arm of the Ring (Fig. 49).

VERSA

NOTE: If available, an adjustable face spanner tool
or pair of pointed pliers can be used by placing the
tips in the small holes of the Ring (Fig. 50).

Inspection

• Activate the Versa and watch carefully as it performs a
full diagnostic and battery check, and enters Surface
Mode. Observe the LCD display to ensure it is consis­tently clear and sharp in contrast throughout the screen.

WARNING: If there are any portions of the display
missing or appearing dim, or if a Low Battery condi­tion is indicated, return your Versa to an Authorized
Oceanic Dealer for a complete evaluation before at­tempting to use it.

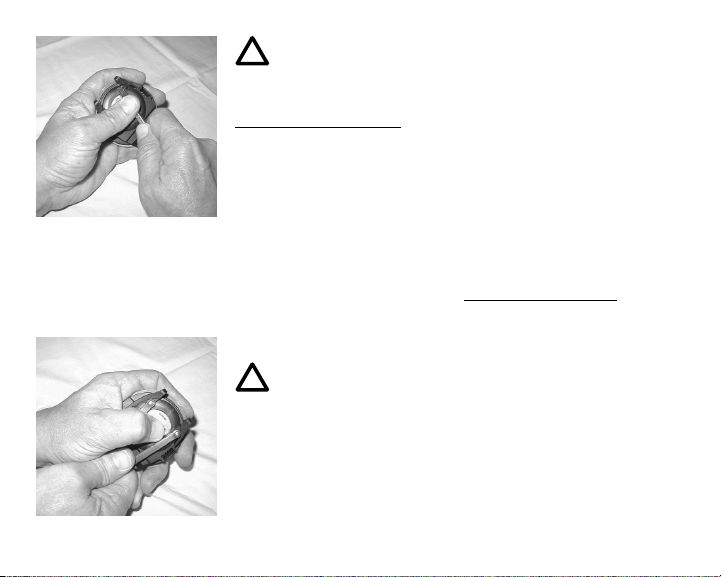

Fig. 48 - Orientation of Hatch Ring

Fig. 49 -Ring Installation

Fig. 50 -Ring Installation (alternate)

43

Fig. 51- Lower Portion of Module

Fig. 52 -Upper Portion of Module

44

Installing the Module into a Boot

• DO NOT use tools or lubricants, doing so could damage
the module or boot.

• Hold the Module over the Boot (both facing you).

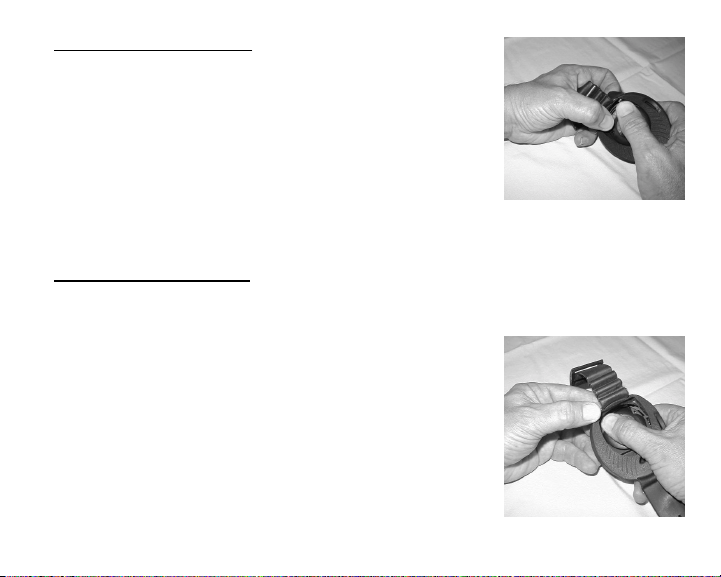

• Slide the lower/front portion of the Module down into the
cavity of the Boot (Fig. 51).

• Place the fingers of your left hand inside the upper/back
portion of the Boot.

• Carefully stretch and pull the top (upper/front portion) of
the Boot upward and toward you while simultaneously
pressing the top (upper/right portion) of the Module into
the Boot (Fig. 52).

• Press firmly until the upper/right arm of the Module slides
over the retaining lip inside the Boot.

• Repeat for the left side.

• Ensure that the edges of the Boot (front and back) are not
curled and the pressure sensor opening is clear.

SPECIFICATIONS

NO DECOMPRESSION MODEL
Basis:

 Modified Haldanean Algorithm
 12 tissue compartments

Data Base:

 Diving Science and Technology (DSAT) - Rogers/Powell

Performance:

 Tissue compartment halftimes (mins.) Spencers M values

5, 10, 20, 40, 80, 120, 160, 200, 240, 320, 400, 480
 Reciprocal subsurface elimination
 60 minute surface credit control for compartments faster

than 60 minutes
 Tissue compartments tracked up to 24 hours after last dive

Decompression Capabilities:

 Decompression stop ceilings at 10, 20, 30, 40, 50, & 60 ft

(3, 6, 9, 12, 15, & 18 m)

Altitude Algorithm:

 Based on NOAA tables

OPERATIONAL MODES

 Activation/Diagnostic
 Surface Sequence:

 Time of Day

 Surface Mode

 Time to Fly Countdown

 Pre Dive Planning Sequence
 Dive Log (Start Time, Dive Data)

VERSA

OPERATIONAL MODES (continued)

 Set Mode:

 Units of Measure (Imperial / Metric)
 Hour Format (12 / 24)
 Time (Hour, Minute)
 Water Activation (On / Off)
 External Access (EA) Mode (for factory use only)

 No Decompression Dive:

 #1 (Current Depth, Dive Time Remaining, Bar Graphs)
 #2 (#1 plus Max Depth, Elapsed Dive Time)
 #3 (#1 plus Time of Day)

 Decompression Dive:

 #1 - Main (Current Depth, Stop Depth / Time,

Total Ascent Time, BGs)

 #2 (Max Depth, Elapsed Dive Time, Total Ascent

Time, BGs)

 #3 (#1 plus Time of Day)

 Violation (Conditional, Delayed, & Immediate/Gauge)

45

SPECIFICATIONS (CONTINUED)

DISPLAY RANGE/RESOLUTION

Numeric Displays: Range: Resolution:

 Dive Number 0 - 9 1
 Depth 0 - 330 ft (0 - 99.9 m) 1 ft (.1 m )
 Max Depth 330 ft (99.9 m) 1 ft (.1 m )
 Dive Time Remaining 0:00 - 9:59 hr:min 1 minute
 Total Ascent Time 0:00 - 9:59 hr:min 1 minute
 Decompression Stop Time 0:00 - 9:59 hr:min 1 minute
 Elapsed Dive Time 0:00 - 9:59 hr:min 1 minute
 Surface Time 0:00 - 23:59 hr:min 1 minute
 Dive Log Surface Interval 0:00 - 23:59 hr:min 1 minute

Numeric Displays: Range: Resolution:
 Time to Fly 23:50 - 0:00 hr:min* 1 minute

Special Displays: Occurrence
 Diagnostic Display After Manual Activation
 Out of Range (- - -) >330 feet (>99.9 meters)
 Gauge Mode Countdown Timer 23:50 to 0:00 hr:min (after violation)

BAR GRAPHS

Tissue Loading Bar Graph: segments

 No Decompression zone (green) 5
 No Deco Caution zone (yellow) 2
 Decompression Warning zone (red) 1

(* starting 10 min after the dive)

46

SPECIFICATIONS (CONTINUED)

VERSA

Variable Ascent Rate Indicator: 60 feet (18 m) & Shallower Deeper than 60 feet (18 m)

segments feet/min meters/min segments feet/min meters/min

 Normal Zone (Green) 1 11 - 15 3.5 - 4.5 1 21 - 30 6.5 - 9
 Normal Zone (Green) 2 16 - 20 5 - 6 2 31 - 40 9.5 - 12
 Normal Zone (Green) 3 21 - 25 6.5 - 7.5 3 41 - 50 12.5 - 15
 Caution Zone (Yellow) 4 26 - 30 8 - 9 4 51 - 60 15.5 - 18
 Too Fast Zone (Red - flashing) 5 > 30 > 9 5 > 60 > 18

OPERATIONAL PERFORMANCE

Function: Accuracy:

 Depth ±1% of full scale
 Timers 1 second per day

Dive Counter:

 Displays Dives #1 to 9, 0 if no dive made yet
 Resets to Dive #1, upon diving (after 24 hours')

Dive Log Mode:

 Stores 9 most recent dives in memory for viewing
 After 9 dives, adds 10th dive in memory and deletes the first dive

Altitude:

 Operational from sea level to 14,000 feet (4,267 meters) elevation
 Compensates for altitude only if manually activated at that altitude (no compensation if activated by immersion in water)
 Recalibration of depth readings from 'feet of sea water' to 'feet of fresh water' when manually activated at elevations greater

higher than 2,000 feet (610 meters) elevation

0 0 - 1 0 0 - 3 0 0 - 2 0 0 - 6

47

SPECIFICATIONS (CONTINUED)

OPERATIONAL PERFORMANCE (continued)

Power:

 Battery 1 - 3 vdc, type CR2450 Lithium battery
 Shelf life Up to 5 years
 Replacement User replaceable (annual recommended)
 Life expectancy 100 dive hours (if 1 - 1 hour dive per dive day)

Activation:

 Manual - push button (recommended)
 Automatic - by immersion in water (as a backup if set ON)
 H2O graphic indicates Wet Contacts are bridged (must be dried

prior to transport or storage).

 Cannot be activated at elevations higher than 14,000 ft (4,267 m)
 Cannot be manually activated below 4 feet (1 m), if the Water Acti-

vation feature is set OFF.

Shutoff:

 Automatically shuts off if no dive is made within 2 hour after manual

activation. Reactivation required.

 Automatically shuts off 24 hours after last dive (will reactivate if the

H2O graphic is displayed).

 Cannot be shut off manually.

ACCESSORIES

Optional items available from your Authorized Oceanic Dealer:
 Lens Protector (computer module) - adheres to lens face, prevents

scratches

 Battery Kit - includes 1 battery, 1 battery hatch o-ring, silicone

grease

300 dive hours (if 3 - 1 hour dives per dive day)

48

OCEANIC AFFILIATES/REGIONAL DISTRIBUTORS

Oceanic Germany - Nurnberg, Germany

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

Oceanic South Europe - Genova, Italy

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

Oceanic SW, Ltd - Devon, United Kingdom

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

Oceanic France - Marseille, France

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

Oceanic International (Pacific) - Kapolei, Hawaii

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

Oceanic Diving Australia Pty. Ltd

Sorrento, Victoria, Australia

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

Oceanic Asia-Pacific Pte. Ltd - Singapore

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

Oceanic Japan - Yokohama, Japan

Tel: [phone] Fax: [phone]

E-mail: [e-mail]

SERVICE RECORD

Serial Number ________________________

VERSA

Date of purchase _____________________

Purchased from ______________________

R

E

S

P

V

I

O

D

N

E

S

L

I

B

Below to be filled in by an Authorized Oceanic Dealer:

Date Service Performed Dealer / Technician

R

E

49

2002 Davis Street
San Leandro, CA 94577
USA
Phone: [phone]
Fax: [phone]

Web: http://www.OceanicWorldWide.com

Doc.no.12-2281-r03 7/10/01
