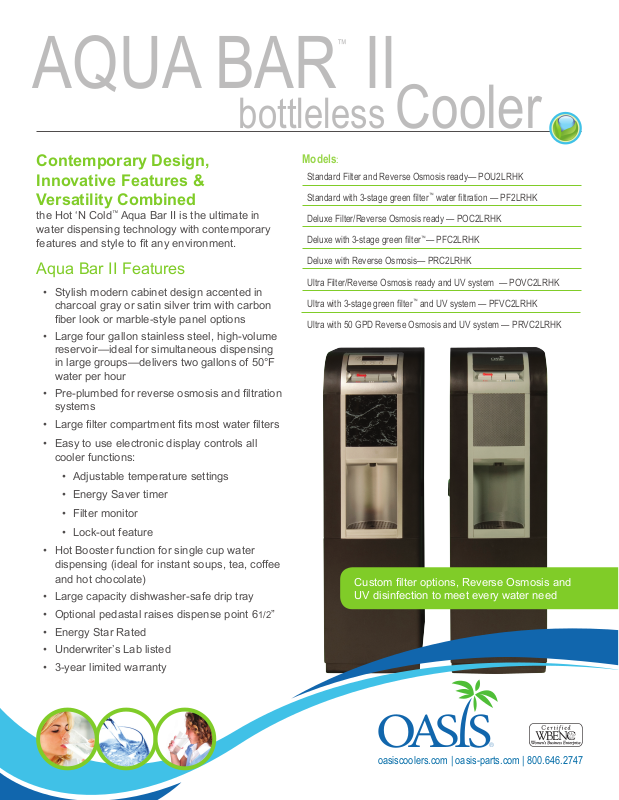

Oasis PF2LRHK User Manual
AQUA BAR™ II
bottleless Cooler
Contemporary Design,
Innovative Features &
Versatility Combined
the Hot ‘N Cold™ Aqua Bar II is the ultimate in
water dispensing technology with contemporary
features and style to t any environment.
Aqua Bar II Features
• Stylish modern cabinet design accented in
charcoal gray or satin silver trim with carbon
ber look or marble-style panel options
• Large four gallon stainless steel, high-volume
reservoir—ideal for simultaneous dispensing
in large groups—delivers two gallons of 50°F
water per hour
• Pre-plumbed for reverse osmosis and ltration
systems
• Large lter compartment ts most water lters
• Easy to use electronic display controls all
cooler functions:
Models:
Standard Filter and Reverse Osmosis ready— POU2LRHK
Standard with 3-stage green lter™ water ltration — PF2LRHK
Deluxe Filter/Reverse Osmosis ready — POC2LRHK
Deluxe with 3-stage green lter™— PFC2LRHK
Deluxe with Reverse Osmosis— PRC2LRHK
Ultra Filter/Reverse Osmosis ready and UV system — POVC2LRHK
Ultra with 3-stage green lter™ and UV system — PFVC2LRHK
Ultra with 50 GPD Reverse Osmosis and UV system — PRVC2LRHK
• Adjustable temperature settings
• Energy Saver timer
• Filter monitor
• Lock-out feature
• Hot Booster function for single cup water
dispensing (ideal for instant soups, tea, coffee
and hot chocolate)
• Large capacity dishwasher-safe drip tray
• Optional pedastal raises dispense point 61/2”
• Energy Star Rated
• Underwriter’s Lab listed
• 3-year limited warranty
Custom lter options, Reverse Osmosis and
UV disinfection to meet every water need
oasiscoolers.com | oasis-parts.com | 800.646.2747
AQUA BAR II specications
Sleek, modern water cooler with features for every environment
Cabinet: Modern cabinet design accented
by charcoal gray or satin silver accent trim
with either a carbon ber look or marble
style panel depending on model. Sleek
injection molded ABS plastic top and front
with removable metal side panels. Predrilled holes on cabinet side for simple cup
dispenser installation.
Water Dispensing System: Easy to use
buttons located on front display panel for
tri-temperature dispensing of hot, cold and
room-temp water. Large faucet alcove for
lling large reusable containers.
Cold Water Refrigeration: Convection-
cooled condenser, internal spring mounted
hermetically sealed compressor with
automatic overload protector.
Cold Water Reservoir: Four gallon, 300
Series stainless steel tank with external
copper refrigerant coil encased in molded
foam insulation.
Hot Water Reservoir: 33.8 ounce, 300
Series stainless steel tank with 450 watt
element.
Dimensions: W 12 3/4” x D 16 3/4” x H 45 1/3”
Approximate Net Weight: 50 lbs.
Optional Water Filtration and Reverse Osmosis:
Aqua Bar II Standard is Filter and Reverse Osmosis
(RO) ready, Aqua Bar II Deluxe and
Ultra are Filter and RO ready and
availalble with the OASIS threestage green lter™ system or with
RO.
Cabinet Features: Carbon Fiber-
Look panel comes with the Standard
model, Marble-Look panel comes
with the Deluxe and Ultra models.
Warranty: Limited 3 year warranty
(within the Continental Limits of the
United States and Canada). Three
years on the sealed refrigeration
system, one year on most
component parts. Detailed warranty
certicate enclosed with each water
cooler; sample copy available upon
request.
Hot Water Safety Faucet: Safety faucet
button requires a two-step action to prevent
accidental dispensing.
Drip Receptor: Durable drip tray lifts out for
easy removal and is dishwasher safe.
Lead-Free: Components in this water
cooler are lead-free as dened by the Safe
Drinking Water Act Amendments of 1986
and the Lead Contamination Control Act
of 1988. Model Listed by Underwriter’s
Laboratories to U.S. and Canadian
Standards.
OASIS USA
800.646.2747
info@oasiscoolers.com
oasiscoolers.com
oasis-parts.com
OASIS Europe
Ireland: tel. + 353 96 71222
Poland: tel + 48 32 332 6501
info@oasis.ie
oasis.ie
Specications are subject to change without notice.
OASIS is a registered trademark of LVD Acquisition, LLC dba Oasis International © 2012
