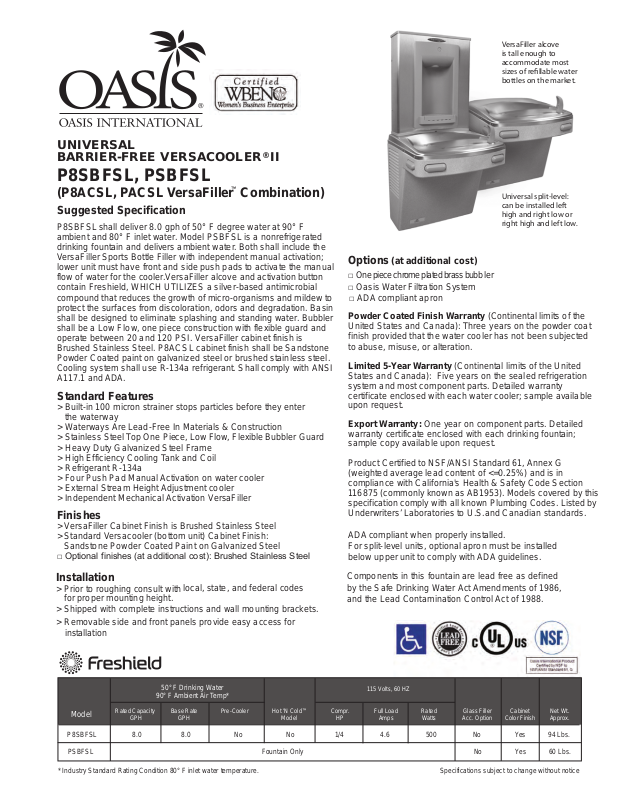

Oasis P8SBFSL User Manual
UNIVERSAL
BARRIER-FREE VERSACOOLER® II
P8SBFSL, PSBFSL
(P8ACSL, PACSL VersaFiller Combination)
Suggested Specification
P8SBFSL shall deliver 8.0 gph of 50° F degree water at 90° F
ambient and 80° F inlet water. Model PSBFSL is a nonrefrigerated
drinking fountain and delivers ambient water. Both shall include the
VersaFiller Sports Bottle Filler with independent manual activation;
lower unit must have front and side push pads to activate the manual
flow of water for the cooler.VersaFiller alcove and activation button
contain Freshield, WHICH UTILIZES a silver-based antimicrobial
compound that reduces the growth of micro-organisms and mildew to
protect the surfaces from discoloration, odors and degradation. Basin
shall be designed to eliminate splashing and standing water. Bubbler
shall be a Low Flow, one piece construction with flexible guard and
operate between 20 and 120 PSI. VersaFiller cabinet finish is
Brushed Stainless Steel. P8ACSL cabinet finish shall be Sandstone
Powder Coated paint on galvanized steel or brushed stainless steel.
Cooling system shall use R-134a refrigerant. Shall comply with ANSI
A117.1 and ADA.
Standard Features
> Built-in 100 micron strainer stops particles before they enter
the waterway
> Waterways Are Lead-Free In Materials & Construction
> Stainless Steel Top One Piece, Low Flow, Flexible Bubbler Guard
> Heavy Duty Galvanized Steel Frame
> High Efficiency Cooling Tank and Coil
> Refrigerant R-134a
> Four Push Pad Manual Activation on water cooler
> External Stream Height Adjustment cooler
> Independent Mechanical Activation VersaFiller
Finishes
> VersaFiller Cabinet Finish is Brushed Stainless Steel
> Standard Versacooler (bottom unit) Cabinet Finish:
Sandstone Powder Coated Paint on Galvanized Steel
□ Optional finishes (at additional cost): Brushed Stainless Steel
™
VersaFiller alcove
is tall enough to
accommodate most
sizes of refillable water
bottles on the market.
Universal split-level:
can be installed left
high and right low or
right high and left low.
Options (at additional cost)
□ One piece c hrome plated brass bubbler
□ Oasis Water Filtration System
□ ADA compliant apron
Powder Coated Finish Warranty (Continental limits of the
United States and Canada): Three years on the powder coat
finish provided that the water cooler has not been subjected
to abuse, misuse, or alteration.
Limited 5-Year Warranty (Continental limits of the United
States and Canada): Five years on the sealed refrigeration
system and most component parts. Detailed warranty
certificate enclosed with each water cooler; sample available
upon request.
Export Warranty: One year on component parts. Detailed
warranty certificate enclosed with each drinking fountain;
sample copy available upon request.
Product Certified to NSF/ANSI Standard 61, Annex G
(weighted average lead content of <=0.25%) and is in
compliance with California's Health & Safety Code Section
116875 (commonly known as AB1953). Models covered by this
specification comply with all known Plumbing Codes. Listed by
Underwriters’ Laboratories to U.S.and Canadian standards.
ADA compliant when properly installed.
For split-level units, optional apron must be installed
below upper unit to comply with ADA guidelines.
Installation
> Prior to roughing consult with
for proper mounting height.
local, state, and federal codes
Components in this fountain are lead free as defined
by the Safe Drinking Water Act Amendments of 1986,
and the Lead Contamination Control Act of 1988.
> Shipped with complete instruc tions and wall mounting brackets.
> Removable side and front panels provide easy access for
installation
other Oasis Ver
50° F Drinking Water
90° F Ambient Air Temp*
Model
P8SBFSL 8.0 8.0 No No 1/4 4.6 500 No Yes 94 Lbs.
PSBFSL
* Industry Standard Rating Condition 80° F inlet water temperature.
Rated Capacity
GPH
Base Rate
GPH
Pre-Cooler Hot ’N Cold™
Model
Fountain Only
Compr.
HP
115 Volts, 60 HZ
Full Load
Amps
Rated
Watts
**Specifications subject to change without notice
Glass Filler
Acc. Option
No Yes 60 Lbs.
Cabinet
Color Finish
Net Wt.
Approx.
Form 3725 | Rev. 10/10
Oasis International | 222 East Campus View Blvd. | Columbus, OH 43235
For Customer Service and Technical Helpline assistance call: 800.950.3226
Models listed above are Sandstone powder coated paint on galvanized steel. Stainless steel models are available at extra cost.
P8AC with VersaFiller............P8SBF
P8ACSL with VersaFiller .......P8SBFSL
PG8AC with VersaFiller.........PG8SBF
PG8ACSL with VersaFiller.....PG8SBFSL
PF8AC with VersaFiller....... PF8SBF
PF8ACSL with VersaFiller.. PF8SBFSL
PV8AC with VersaFiller ...... PV8SBF
PV8ACSL with VersaFiller.. PV8SBFSL
PAC with VersaFiller .......... PSBF
PACSL with VersaFiller....... PSBFSL
PGAC with VersaFiller........ PGSBF
PGACSL with VersaFiller.... PGSBFSL
Available Oasis Versacooler
®
II Models with VersaFiller Combination
OASIS
®
Barrier-Free Split-Level Versacooler
www.oasiscoolers.com
PFACSL with VersaFiller ...PFSBFSL
PVAC with VersaFiller........ PVSBF
PVACSL with VersaFiller ... PVSBFSL
PFAC with VersaFiller........ PFSBF
®
II with VersaFiller
®
– Models P8SBFSL, PSBFSL (left side low)
OASIS is a trademark of Oasis International
2010 Oasis International
