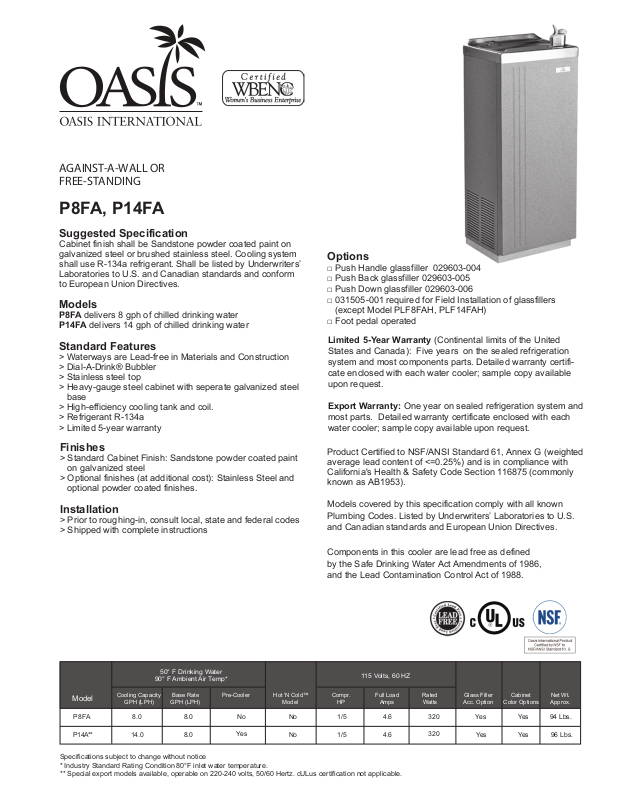

Oasis P14FA User Manual
AGAINST-A-WALL OR
FREE-STANDING
P8FA, P14FA
Suggested Specification
Cabinet finish shall be Sandstone powder coated paint on
galvanized steel or brushed stainless steel. Cooling system
shall use R-134a refrigerant. Shall be listed by Underwriters’
Laboratories to U.S. and Canadian standards and conform
to European Union Directives.
Models
P8FA delivers 8 gph of chilled drinking water
P14FA delivers 14 gph of chilled drinking water
Standard Features
> Waterways are Lead-free in Materials and Construction
> Dial-A-Drink® Bubbler
> Stainless steel top
> Heavy-gauge steel cabinet with seperate galvanized steel
base
> High-efficiency cooling tank and coil.
> Refrigerant R-134a
> Limited 5-year warranty
Options
□ Push Handle glassfiller 029603-004
□ Push Back glassfiller 029603-005
□ Push Down glassfiller 029603-006
□ 031505-001 required for Field Installation of glassfillers
(except Model PLF8FAH, PLF14FAH)
□ Foot pedal operated
Limited 5-Year Warranty (Continental limits of the United
States and Canada): Five years on the sealed refrigeration
system and most components parts. Detailed warranty certificate enclosed with each water cooler; sample copy available
upon request.
Export Warranty: One year on sealed refrigeration system and
most parts. Detailed warranty certificate enclosed with each
water cooler; sample copy available upon request.
Finishes
> Standard Cabinet Finish: Sandstone powder coated paint
on galvanized steel
> Optional finishes (at additional cost): Stainless Steel and
optional powder coated finishes.
Installation
> Prior to roughing-in, consult local, state and federal codes
> Shipped with complete instructions
Product Certified to NSF/ANSI Standard 61, Annex G (weighted
average lead content of <=0.25%) and is in compliance with
California's Health & Safety Code Section 116875 (commonly
known as AB1953).
Models covered by this specification comply with all known
Plumbing Codes. Listed by Underwriters’ Laboratories to U.S.
and Canadian standards and European Union Directives.
Components in this cooler are lead free as defined
by the Safe Drinking Water Act Amendments of 1986,
and the Lead Contamination Control Act of 1988.
Capacities*
50° F Drinking Water
90° F Ambient Air Temp*
Model
P8FA 8.0 8.0 No No 1/5 4.6 320 Yes Yes 94 Lbs.
P14A**
Cooling Capacity
GPH (LPH)
Base Rate
GPH (LPH)
8.0
Pre-Cooler Hot ’N Cold™
Yes 320
Model
Compr.
HP
115 Volts, 60 HZ
115 Volts, 60 HZ
Full Load
Amps
6.45/1oN0.41
Rated
Watts
Glass Filler
Acc. Option
Yes Yes 96 Lbs.
Cabinet
Color Options
Net Wt.
Approx.
Specifications subject to change without notice
* Industry Standard Rating Condition 80°F inlet water temperature.
** Special export models available, operable on 220-240 volts, 50/60 Hertz. cULus certification not applicable.
Form 3954 | Rev. 06/09
Oasis International | 222 East Campus View Blvd. | Columbus, OH 43235
For Customer Service and Technical Helpline assistance call: 800.950.3226
OASIS
™
AGAINST-A-WALL WATER COOLER MODELS P8FA, P14FA
www.oasiscoolers.com
OASIS is a trademark of Oasis International
2009 Oasis International
